Mixed integer programming formulation of unsupervised learning

01/20/2020 ∙ by Arturo Berrones-Santos, et al. ∙ 0

A novel formulation and training procedure for full Boltzmann machines in terms of a mixed binary quadratic feasibility problem is given. As a proof of concept, the theory is analytically and numerically tested on XOR patterns.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

A central open question in machine learning is the effective handling of unlabeled data

[1, 2]. The construction of balanced representative datasets for supervised machine learning for the most part still requires a very close and time consuming human direction, so the development of efficient learning from data algorithms in an unsupervised fashion is a very active area of research [1, 2]

. A general framework to deal with unlabeled data is the Boltzmann machine paradigm, in which is attempted to learn a probability distribution for the patterns in the data without any previous identification of input and output variables. In its most general setups however, the training of Blotzmann machines is computationally intractable

[2, 3, 4]

. In this contribution is established a relation, which to the best of my knowledge was previously unknown, between Mixed Integer Programing (MIP) and the full Boltzmann machine in binary variables. Is hoped that this novel formulation opens the road to more efficient learning algorithms by taking advantage of the great variety of techniques available for MIP.

2 Full Boltzmann machine with data as constraints

Consider a network of units with binary state space. Each unit depends on all the others by a logistic-type response function,


where the “round” indicates the nearest integer function, the ’s are pairwise interactions between units and the ’s are shift parameters. As will later be clear, the proposed model supports both supervised and unsupervised learning and leads to a full Boltzmann machine in its classical sense.

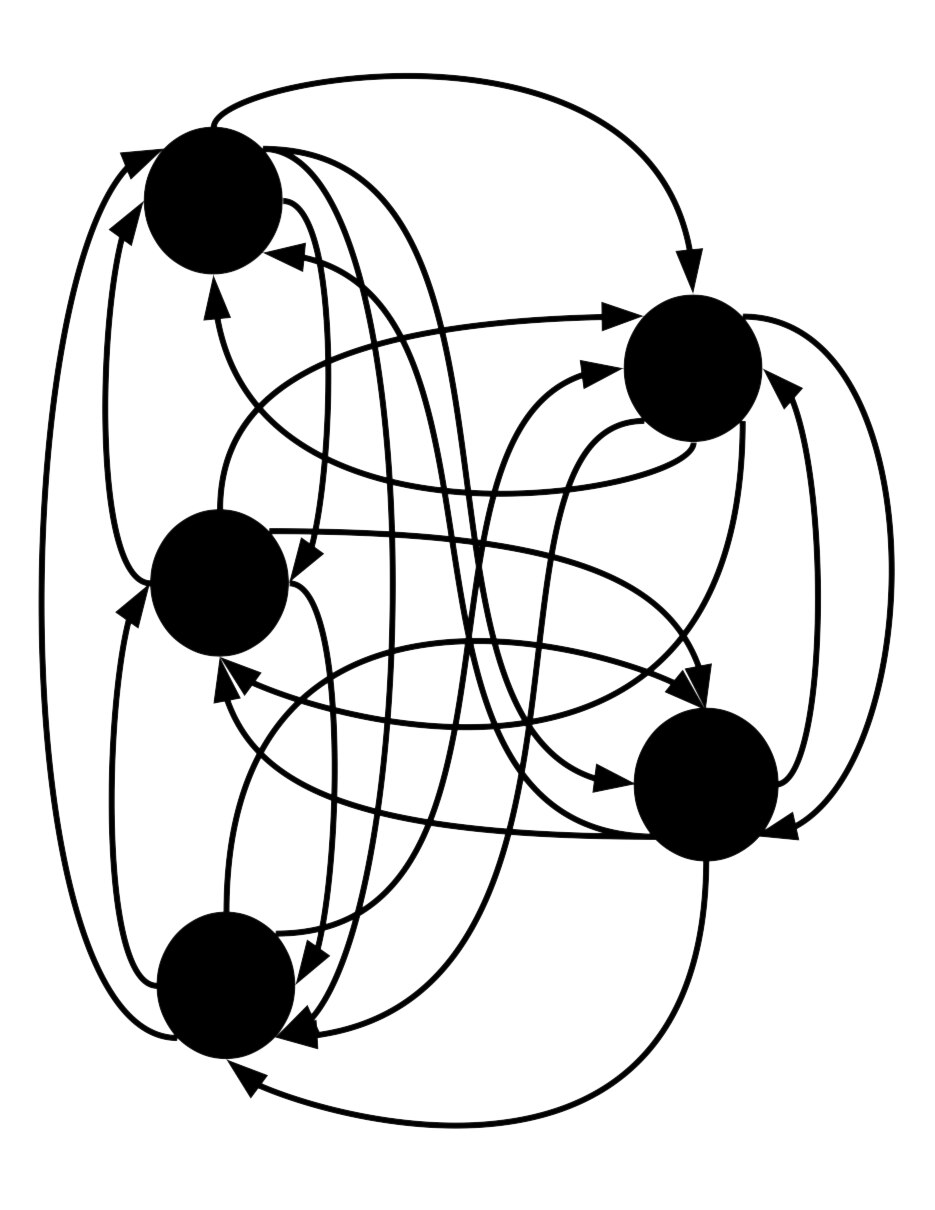

Figure 1: Full Boltzmann machine with five units.

Suppose a data set of

visible binary vectors,

, with components each and a collection of hidden units , . The total number of units in the system is . If the connectivity and shift parameters are given, each sample fixes the binary vector and therefore the data set imposes the following constraints:


A posterior distribution for the parameters , can be constructed by the maximum entropy principle, which gives the less biased distribution that is consistent with a set of constraints [5, 6]. This is done by the minimization of the Lagrangian


where the brackets represent average under the posterior, is a vector that contains the connectivity and shift parameters and the ’s are positive Lagrange multipliers. Due to the linearity of the system of inequalities (2), the average of the constraints under with fixed unit values is simply given by the same set of inequalities with the coefficients ’s and ’s substituted by their averages ’s, ’s. The maximum entropy distribution for the parameters is therefore given by


where is a normalization factor. So due to the linearity of the constraints,

is a tractable (i. e. an easy to sample) product of independent two parameter exponential distributions:


where [7]. Therefore a necessary and sufficient condition for the existence of the above distribution is the existence of the averages , which is determined by the satisfaction of the inequalities (2).

The representation of the posterior by its two parameter exponential form Eq. (5) gives a codification of the training data in terms of a tractable distribution for the parameters that in conjunction with Eq. (1) is in fact a distribution for new unlabeled binary strings of data. For fully connected topologies, this is what is usually understood by an equilibrium distribution of a full Boltzmann machine [2].

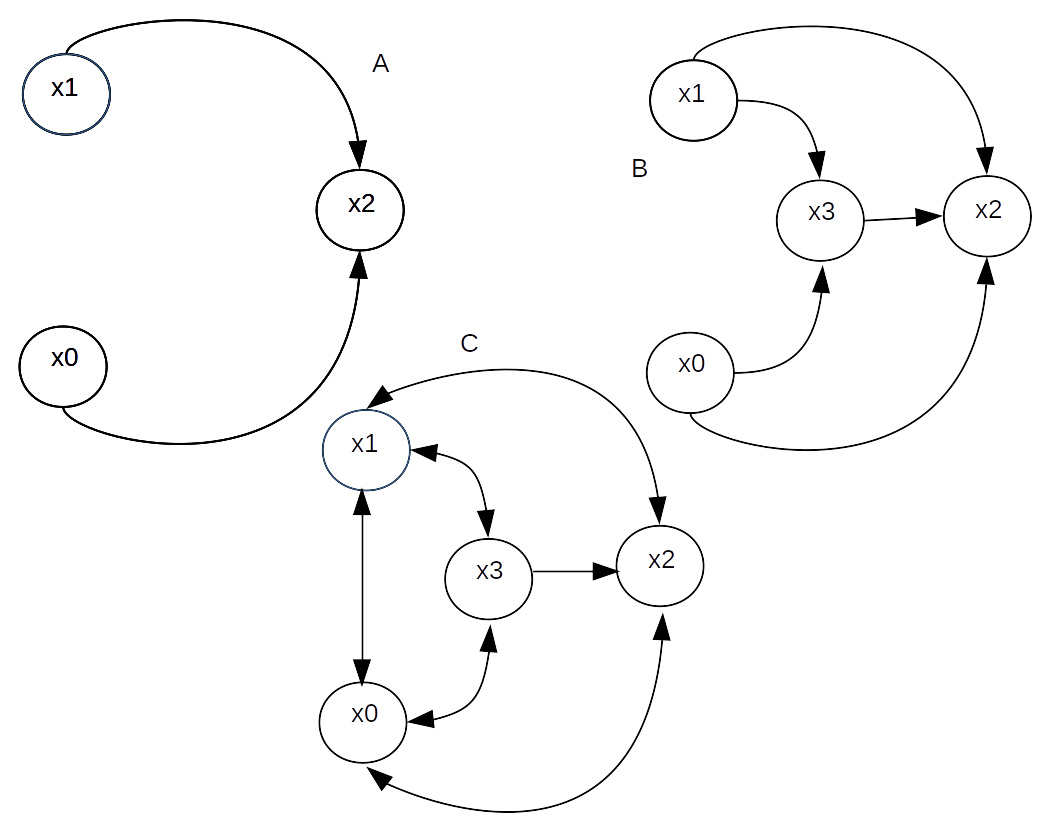

Figure 2: Three different architectures for the XOR problem.
