1 Introduction

In recent years, deep Convolution Neural Networks (CNNs) have prevailed in both academia and industry, and the CNNs models not only have outperformed most of traditional machine learning and pattern recognition techniques

lecun2015deep ; schmidhuber2015deep ; liu2017survey

such as computer vision

krizhevsky2012imagenet ; he2016deep ; bengio2009learning and speech recognition hinton2012deep ; amodei2016deep but also has ranked number one in the game of Go silver2016mastering ; silver2017mastering . With increasing of training dataset size russakovsky2015imagenet ; cocodatset and deep learning (DL) models complexity he2016deep ; simonyan2014very ; huang2017densely , DL training has become one of the most computationally-demanding high performance computing (HPC) applications. Consequently, works relevant to build powerful computing platforms in both hardware and software have become hot research fields. In this paper, we address our ad hoc solution, a co-design peta-scale distributed heterogeneous system including an affordable GPU cluster that is less than 1 million dollar, named “Manoa” and a novel job sever software framework, named “MiMatrix”, which is designed based on proprieties of Manoa. It also has other two advantages: 1) high density-all nodes and switches equipped in two 48U racks, and 2) high price and coverage speed ratio.

Compared to other gradient descent optimization algorithms ruder2016overview 111In this paper, Asynchronous Stochastic Gradient Descent (ASGD) and SSGD are categorized into two different optimization algorithms., Synchronous Stochastic Gradient Descent (SSGD) has two major advantages: 1) Obtain the highest accuracy in most cases zhang2018theory ; and 2) Guarantee to learn a function in polynomial time daniely2017sgd ; revistingSGD . Particularly, most of less-resource methods such as distilling distilling and pruning han2015learning ; Laine2017 heavily rely on the accuracy of the pre-train models. Considered it, this paper targets at designing and developing a feasible solution to DL training based on SSGD.

Prior to introduction to our work, we briefly revisit three major challenges of designing both a distributed system and parallel software framework listed as following:222In the rest of paper, if we don’t point out the type of distributed DL training approach, the DL training means to SSGD approach.

  1. It is difficult to scale out DL training. Most of large scale CNNs training approaches use mini-batch training333In this paper, we take data parallel training processing.. From computation’s perspective, it should have a higher parallel efficiency with a bigger batch size and scale out to more nodes. On the contrary, too bigger size leads to slow the converge speed of the learning, and even low the accuracy of the trained models szegedy2017inception ; masters2018revisiting ; cho2017powerai .

  2. The distributed DL training meets problems of computation bound (convolution layers), memory bound (fully-connected layer) and bandwidth bound (data aggregation among workers) zhang2016parallel , alternately. It causes a dilemma of configuring the hardware of the system and developing and optimizing algorithms of CNNs training;

  3. The DL training process has frequent I/O operations and synchronizations, loading mini-batch and synchronizing model weight in each iteration, which greatly decreases the utilization of the whole system. In turn, it causes the poor performance of the system.

In order to solve the three challenges mentioned above, inspired by Harvard architecture, we design and build Manoa with a dedicated novel topology, which provides a powerful computational capacity, over 1.2 PetaFLOPS (PFLOPS) single precision. Meanwhile, given the properties of Manoa, we develop and implement MiMatrix, which is a job sever framework and maximizes the Manoa’s capacity to expedite DL training. In MiMatrix, we also propose a new parallel SSGD algorithm, referred to as GPUDirect RDMA-Aware AllReduce (GDRAA). Its computation and handshake message are .

As shown in Fig.1, analogy to Harvard architecture, Manoa has a head node, referred to as Job Server, which acts on the role of control unit (CU) for the whole system. The node has powerful CPUs dealing with task-intensive works such as job schedule, system monitoring, real-time visualization, and I/O tasks. Manoa also has sixteen computing nodes, referred to as computing server, that are designed as the role of arithmetic logic unit (ALU) in Harvard architecture and takes on compute-intensive portions. Besides running forward and backward parts during training, the computer servers act as both client and server roles during AllReduce. Besides them, Manoa also has a 240TB storage node with RAID10. All nodes are connected by both InfiniBand (IB) and Ethernet.

We first propose and develop a Job Server parallel software framework, named MiMatrix. This software is co-designed with dedicated topology of Manoa for fully utilizing its computational capacity. Also we propose a novel GPU direct RDMA-aware AllReduce algorithm, SGRAA, short from GPUDirect RDMA-Aware AllReduce, and directly implement the algorithm with IB Verbs library rdmaprogramming1 , referred to as ibverbs.

Figure 1: Basic scheme of architecture of Manoa. Manoa consists of one job server, sixteen computing servers, one storage (120TB). One 10G Ethernet switch and one 56G InfiniBand switch. The data of models are directly transferred via InfiniBand with GPU Direct RDMA. The message passes through Ethernet.

Along with quick DL development, some distributed systems coates2013deep ; chilimbi2014project ; kurth2017deep ; bhattacharjee2017distributed and parallel software frameworks dean2012large ; chen2015mxnet ; caffe2 ; Paddlepaddle ; MPItheano ; tensorflow ; CNTK ; xing2015petuum have been released successfully in recent years. However, all of them either design a cluster using some existing general DL SDKs or developed a general distributed SDK running on various distributed systems. It is obvious that the whole system cannot be fully optimized. To the best of our knowledge, Manoa and Mimatrix are firstly co-designed and co-developed in both hardware and software for accelerating distributed DL training.

In this paper, we make two major contributions as followings:

  1. To meet the increasing computational demands of DL training, we first co-design and co-develop a peta-scale heterogeneous cluster, Manoa, and a job server DL parallel framework, MiMatrix. Our system is a high coverage speed price ratio (CS/P) and high-density cluster. The price of Manoa is 900K dollar444 Price in March, 2017. and less than 45% of Nvidia DGX 1 solution555 https://www.nvidia.com/en-us/data-center/dgx-1/. All equipments are installed in two 48U racks. To the best of our knowledge, it is the highest density of a distributed GPU cluster for DL training.

  2. We propose a novel GDRAA algorithm, in which both computation and handshake message are . We implement our proposed algorithm with ibverbs, natively, which fully utilizes the bidirectional bandwidth of all computer servers and reduces latency of data copy.

The rest of the paper is organized as follows. Section 2 conceptually describes how we design Manoa and MiMatrix and briefly introduces our software implementation. Section 3 details our proposed GDRAA AllReduce algorithm and proves its properties. In section 4, we present our experimental results and some analysis. This paper closes with a conclusion of our work and some future directions in section 5.

2 System Design and Software Implementation

In the beginning of this section, we address conceptual description of idea and consideration of the co-design distributed heterogeneous system. Following it, we describe our implementation of MiMatrix.

2.1 Description of system design and consideration

A parallelism of a distributed heterogeneous cluster is generally categorized into three levels: 1): 1st level-worker level, spanning across workers in a system; 2): 2nd level-processor level, spanning across processors in a worker; and 3): 3rd level-core level, spanning across cores in a processor. Since collective communications library (NCCL) nccl and CUDNN library chetlur2014cudnn have handled 2nd level and 3rd level tasks, respectively, we focus on 1st level parallelism design and development.

Objective of Co-design System and Considerations Our goal is to design and develop an affordable distributed system, which provides enough computational power to finish most of deep CNNs models training on a large scale training dataset in one day. We take Resnet101 and Resnet50 he2016deep as the model benchmark and ImageNet-1K russakovsky2015imagenet as the dataset benchmark. Since GPUs are well-suited for the types of computation of deep CNN, GPUs are widely taken for DL training chen2014big . Additional advantages of GPUs over CPUs include more computational units and a higher bandwidth. Consequently, We choose GPUs as the accelerator of Manoa.

In this paper, we designed Manoa in November 2016. At that time, the Nvida P100 GPU card is the best GPU card for DL training666 At that time, the price of Nvidia Tesla P100 is about $5,500 per card. . Consequently, we took the Nvida P100 card with 16G memory as our GPU accelerator. Also, at that time, the last generation of CPU is Broadwell CPU that has forty slots. We selected Mellanox FDR56 InfiniBand adapter cards and switch. Given the number of InfiniBand switch and price, we chose 128 P100 GPU cards and 16 computing nodes, Each node has eight GPUs cards and two InfiniBand adapter cards.

Scaling Efficiency Measurement Distributed DL system aims at speeding up to converge. As a result, any high computational scaling efficient without being measured to converge to a desirable accuracy is mindless for distributed system for machine learning. In this paper, we measure the scaling using a ratio between an acceptable accuracy and training time, as did cho2017powerai .

In order to measure the affordable machine, we first define a novel criterion, price and convergence ratio (PCR), defined as:


where time is how long the Resnet101 obtains 70% or more accuracy on validation data of Imagenet 1K, and price is the how much the whole system hardware price, the unit is Kilo Dollar (K$). PCR reveal how many dollars one minute convergence demands. The bigger is better.

Manoa Components The Manoa consists of one job server, sixteen computing servers, and one storage, all of which are connect by Ethernet and IB FDR56, as shown in Fig.1.

The storage has 120 TB storage of 240TB hard disk drives with RAID10.

The job server has two Intel Xeon high-end Broadwell CPUs with 512 GB memory, and has over 2TB SSD storage.

As shown in Fig. 2, each of computing servers has two CPUs. The motherboard is non-uniform memory access (NUMA). The computer server has eight Nivida Tesla GPUs, and four of them connect to one socket through two PCIE switches. Also there are one Infiniband host channel adapter (HCA) located on each socket. P100 GPUs card has 9.3 TeraFLOPS single-precision performance and 18.7 TeraFLOPS half-precision performance, the computational capacity of only GPUs of the system has over 1.19 PetaFLOPS for single precision and 2.39 PetaFLOPS for half precision. Plus the CPUs of computer servers and job server, Manoa has over 1.2 PetaFLOPS for the single precision float.

All equipments are installed in two 48U racks. To the best of our knowledge, it is the highest density of a distributed GPU cluster fro DL training kurth2017deep ; cho2017powerai .

Figure 2: Architecture of a computing server. Each computing node has two Intel Xeon CPUs, each of which connects two PCIE switches and one IB HCA. Each PICE switch connects two Nvida Tesla P100 GPUs. The node is NUMA architecture. Each CPU has forty PCIE3 lanes, two PCIE switches takes thirty two lanes, and IB HCA uses remaining eight lanes.

High Speed Interconnection The data transfer system of our system is built with Mellanox FDR56 InfiniBand technology, which provides up to 56Gbit/s bandwidth and 4TB/s bi-direction throughput, and messages that control DL training through 10G Ethernet. As shown in Fig. 2, GPU cards connect CPU though PCIe 3. HCA cards connect nodes though IB switch. Since Nvidia P100 card supports GPUDirect remote direct memory access (RDMA)that transfer data from P2P from GPU to GPUs directly, the memories of GPU and CPU of all nodes are broadly considered as one that connected by InfiniBand.

Three-level Data Cache MiMatrix is designed a three-level data cache system. The first level is the memories of GPU and CPU connected with IB, in which the data is directly are feed into running DL training process. The second level is 2TB SSD of job server, in which data is the current training dataset that is loaded during running training tasks. The 2TB volume is enough for most of deep CNNs models training. And the third level is storage node which stores a variety of training datasets. Before a CNNs model is trained, the training data is copied to the second level data cache, SSD of the job server.

2.2 Job Server and Software Implementation

Job Server Framework Parameter server framework is the most widely-used parallel DL software architecture dean2012large ; chen2015mxnet . In it, a central node, referred to as parameter server, receives the model weights from all workers, and broadcasts the aggregating weights to all workers in each iteration, simultaneously. Two problems, stagger and bandwidth bottleneck, always lead to the poor performance.

According to hardware and topology of Manoa, we propose a novel job server software architecture, named MiMatrix. At the same time, we propose and implement a new AllReduce algorithm, GPUDirect RDMA-Aware AllReduce (GDRAA), in which both computation and handshake message are , detailed in section 3.

MiMatrix adopts message driven framework for the DL training. The job server acts on the central node and only receives and sends messages from and to computer servers and storage. The training process is executed by a protocol defined by users. Therefore, MiMatrix is flexible to any training approach with re-defining a new protocol.

For updating model in each iteration, the computer sever is considered as both master and slaver. As illuminated in Fig. 3 and detail in Algorithm. 1, each of computer severs not only sends part data of weights of this worker to other workers but also receives part data from other workers. After obtaining the data from all other computer severs, each server separately averages the data of the node and then broadcasts to other computer servers. Each of iteration only needs two synchronizations, which are the theoretical minimum number.

Software Implementation We implement MiMatrix with C++11 in CPU part and CUDA 8.0 cudaprogram with CUDNN 6.0 library chetlur2014cudnn on GPU part. The data transfer functions are directly written by ibverbs rdmaprogramming1 . The big advantage to implement on low level ibverbs api rather than MPI mpiprogramming or other InfiniBand’s upper-layer protocols (ULPs) such as over IB/SDP or RDS rdmaprogramming ; bedeir2010rdma ; 8291933 is to provide lower latency and allow for zero-copy transfer.

In our implementation, there is a whole and continuous GPU memory registered by ibv_reg_mr, which is separated into two memories: Receiver Buffer (RB) and Send Buffer (SB), as shown in Fig. 3. During running forward and backward part, the weights of the models are in SBs. The RB of each worker hold the parts of weights of other workers during weights aggregation. The data transfer directly calls ibv_post_send among GPUs in different workers offloading CPU.

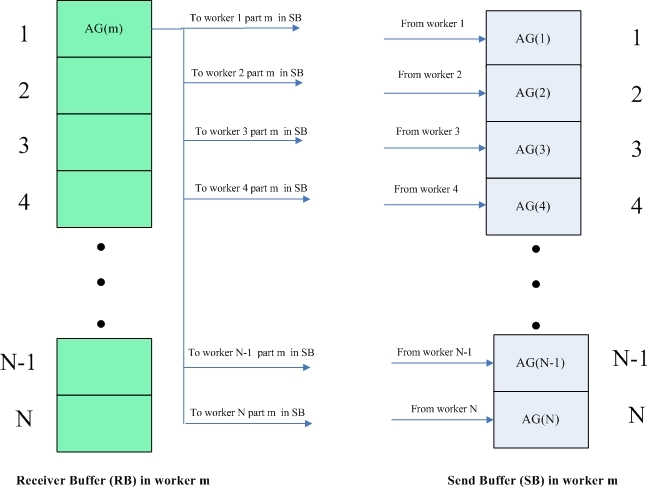

(a): Reduce Processing. (b): Broadcast Processing.
Figure 3: Illumination of our proposed GDRAA AllReduce algorithm. Example worker to explain our proposed algorithm. Image (a) shows reducing process. As a master, worker sends data in SB to other workers’ RB, shown in left column. As a slaver, RB in worker receives data from other workers, shown in right column. Image (b) shows broadcast processing. After back propagation, the aggregating data of worker is in RB. As a master, the data is broadcasted to other workers, shown in left column. As a salver, worker receives data from other workers.
1:Total N workers, each worker load different mini-batch data
2:gradient of differential at worker ,
3:for  do EN is maximum of iteration
4:     for , each workers parallel do
5:         if  then
6:              Skip
7:         else
8:              if Worker obtain from all workers then
9:                   1st synchronization
10:              end if
11:               End of GDRW AllReduce
12:              Update model with gradient of differential Update the model
13:         end if
14:         Each worker has model
15:          Training task part
16:          Start of GDRW AllReduce part
17:         Divide is divided by , and get
18:         for  do
19:              Send D(i, j) to worker Shown in Fig. 3 (a)
20:         end for
21:         if  Worker obtain data from all workers then
22:               2nd synchronization
23:              Average and obtain
24:              send to all workers Shown in Fig. 3 (b)
25:         end if
26:     end for
27:end for
Algorithm 1 GDRAA Algorithm.

3 GDRAA Algorithm

In this section, we detail our proposed AllReduce algorithm, GPUDirect RDMA-Aware AllReduce(GDRAA), in Algorithm 1. Basic idea is illuminated in Fig. 3. Then, we prove that GDRAA is in both computational complex and handshake message for the number of worker .

In real-word applications, the operator of data copy is compose of data transfer and latency. To be sure that the time of the data transfer dominates the whole time of data copy, our proposed algorithm is based on two assumptions:

  1. Compared to time of data transfer, the latency is tiny.

  2. The number of worker is small to guarantee the summary of latency operators is small as well.

The latency of data copy of Mellanox FDR56 IB is 0.7 sec, and MiMatrix is designed for maximum 32 workers. Obviously, that our design satisfies the above two assumptions.

GDRAA is a three-step algorithm: 1): Reduce, each workers obtains weights from all workers; 2): Aggregation, each worker averages these weights that it achieves; and 3): Broadcast, each worker sends the averaging data to all workers. Each worker allocate a continuous memory dividing two segmentations, send buffer (SB) and receiver buffer (RB), respectively. Both are divided into if the system has workers. As shown in Fig.3, in Reduce step, the SB has part data, , is the worker number, and is block number, . is sent to block number at worker . Take worker as a example, SB has N block data, , and this data is sent to worker , block . Meanwhile, will receive data from workers. As shown in Fig. 3 (a) right column, RB will receives N data , means worker number. . For each worker, once obtaining data from all workers, the weights are averaged. Then it is the broadcast part, as shown in Fig. 3 (b), the worker sends the averaged result to all others. Meanwhile, the worker achieves the averaged data from other workers. We also take worker as a example, is the average data in worker and will broadcast to other workers at block . Meanwhile, its SB receives all , from other workers.

GDRAA operates reduce, aggregation and broadcast asynchronously, and has two synchronizations to wait data of each iteration. The synchronizations are designed based on DL training instead of instead of AllReduce that most of existing distributed DL approaches have used. The synchronizations operator of GDRAA is as latest as the DL needs. Consequently, the MiMatrix has greatly relieved the stagger problem.

The rest of this section, we proof that GDRAA has in both computation and handshake message.

Lemma 0.

For a distributed system with workers, given the fixed size of memory of each worker, . The handshake message is of .


For any worker, , the data is divided into N. In the first step, considered worker , the worker will send to other workers. Therefore, the size of data sent is:


At the same time, the worker is receiving from total . Therefore, the size of data received is


The Equation 2 and Equation 3 have shown that in first step before model data averaging, the data that worker sends and receives is both about data, which doesn’t depend on the size of .

For the step 2, the proof the similar to the process of step 1. ∎

Lemma 0.

For a distributed system with workers, given any worker, the the computation complex of aggregation is of .


In the aggregation of the distributed DL training, the operator is averaging. For any worker, , the computational complex equals to


In Equation 4, the first part is the complex of add operator, and the second part is the complex of the multiply operator. We can rewrite it as:


For number of worker, , the is a fixed. As a result, the computational complex is and independence to . ∎

4 Experimental Results and Analysis

4.1 Configuration

We took two Intel Xeon E5-2650V4 CPUs with 512GB memory in job sever and two Intel Xeon E5-2620V4 CPUs with 256GB memory and eight Nvidia Tesla P100 GPU with 16GB memory in the computing server. In computer servers, most of computational tasks running on GPUs. Low-end CPUs and low volume memory is enough. This design greatly reduces the cost of the system and increase PCR.

Manoa has sixteen computer servers and equipped in two 48U racks. Both job server and computing sever are 4U node. Operating system is CentOS 7. Version of the kernel is . Version of Nvidia driver is . The version of GCC is .

In our training procedure, some parameters are set as following: the initial learning rate is , momentum is , weight decay is , learning rate change policy is ”ploy” and the gamma is . Recently, some researchers has represented some tricks to quickly train extremely large minibatch goyal2017accurate ; you2017imagenet ; akiba2017extremely . Obviously, some of them can greatly speedup our training tasks. However, in this paper, we aim at benching the job server performance and present reproductive works. We don’t try these tricks.

4.2 Results and Analysis

As mentioned in section 2, the system performance was evaluated by the training time reaching an desirable accuracy. In our paper, we conducted our experiments on ImageNet-1K dataset russakovsky2015imagenet

, and we took ResNet with batch normalization

batch our benchmark he2016deep . We did two types of tests: 1) PRC measurement. The training task has 32 workers, each of which has 4GPUs. In our experiment, each GPU has 40 images. and 2) Scaling efficient. We measured the scaling efficient using Resnet50 on ImageNet-1K with 1,2,4,8,16 and 32 workers. The time obtained is that Resnet50 reaching 65% on validation data, in which each GPU has 64 images and each worker has 4 GPUs777All training times listed in this paper include saving models time of each epoch..

Figure 4: ResNet101 accuracy on validation data of ImageNet 1K. The mini-batch is 1,280. The time reaching 70% accuracy is 888 minutes.

As shown in Figure. 4, Training time of ResNet101 models reaching 70% accuracy is 888 minutes. The total price of Manoa is 900K dollar. The PRC of Manoa is 0.00000125.

Number of Worker Time (minutes) Scalability
1 4841 1
2 3039 1.59
4 1644 2.84
8 850 5.70
16 430 11.26
32 333 14.56
Table 1: Scaling Efficiency of Manoa.

5 Conclusion

In this paper, we propose a co-design distributed heterogeneous cluster for speeding up DL training. In it, we successfully design and build a high-density 128-GPU cluster, named Manoa, and propose and develop a job server parallel framework for DL training, named MiMatrix, which effectively and efficiently utilizes the whole system. Our system achieves high ratio between speed converge and price. Compared to the parameter sever framework, the job server framework successfully solve the bandwidth bottleneck and stagger problems. Meanwhile, we also propose a novel AllReduce algorithm, GDRAA, which has in both computation and handshake message. We conducted our experiments on ImageNet-1K dataset, and the performance has demonstrated state-of-the-art.

In the future, we are planning to investigate better hyper parameters such as adaptive learning rate policy and monument to improve our system performance. Also, we will obtain much results on larger-scale datasets, such as ImageNet22K and/or Places-365 place2 datasets.


Some of the technology described in this paper is patent pending. Many thanks to Super Micro Computer, Inc. for their help with building Manoa.
