MGNC-CNN: A Simple Approach to Exploiting Multiple Word Embeddings for Sentence Classification

03/03/2016 ∙ by Ye Zhang, et al. ∙ The University of Texas at Austin 0

We introduce a novel, simple convolution neural network (CNN) architecture - multi-group norm constraint CNN (MGNC-CNN) that capitalizes on multiple sets of word embeddings for sentence classification. MGNC-CNN extracts features from input embedding sets independently and then joins these at the penultimate layer in the network to form a final feature vector. We then adopt a group regularization strategy that differentially penalizes weights associated with the subcomponents generated from the respective embedding sets. This model is much simpler than comparable alternative architectures and requires substantially less training time. Furthermore, it is flexible in that it does not require input word embeddings to be of the same dimensionality. We show that MGNC-CNN consistently outperforms baseline models.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Neural models have recently gained popularity for Natural Language Processing (NLP) tasks

[Goldberg2015, Collobert and Weston2008, Cho2015]. For sentence classification, in particular, Convolution Neural Networks (CNN) have realized impressive performance [Kim2014, Zhang and Wallace2015]. These models operate over word embeddings, i.e., dense, low dimensional vector representations of words that aim to capture salient semantic and syntactic properties [Collobert and Weston2008].

An important consideration for such models is the specification of the word embeddings. Several options exist. For example, Kalchbrenner et al. kalchbrenner2014convolutional initialize word vectors to random low-dimensional vectors to be fit during training, while Johnson and Zhang johnson2014effective use fixed, one-hot encodings for each word. By contrast, Kim kim2014convolutional initializes word vectors to those estimated via the word2vec model trained on 100 billion words of Google News

[Mikolov et al.2013]; these are then updated during training. Initializing embeddings to pre-trained word vectors is intuitively appealing because it allows transfer of learned distributional semantics. This has allowed a relatively simple CNN architecture to achieve remarkably strong results.

Many pre-trained word embeddings are now readily available on the web, induced using different models, corpora, and processing steps. Different embeddings may encode different aspects of language [Padó and Lapata2007, Erk and Padó2008, Levy and Goldberg2014]: those based on bag-of-words (BoW) statistics tend to capture associations (doctor and hospital), while embeddings based on dependency-parses encode similarity in terms of use (doctor and surgeon). It is natural to consider how these embeddings might be combined to improve NLP models in general and CNNs in particular.

Contributions. We propose MGNC-CNN, a novel, simple, scalable CNN architecture that can accommodate multiple off-the-shelf embeddings of variable sizes. Our model treats different word embeddings as distinct groups, and applies CNNs independently to each, thus generating corresponding feature vectors (one per embedding) which are then concatenated at the classification layer. Inspired by prior work exploiting regularization to encode structure for NLP tasks [Yogatama and Smith2014, Wallace et al.2015], we impose different regularization penalties on weights for features generated from the respective word embedding sets.

Our approach enjoys the following advantages compared to the only existing comparable model [Yin and Schütze2015]: (i) It can leverage diverse, readily available word embeddings with different dimensions, thus providing flexibility. (ii) It is comparatively simple, and does not, for example, require mutual learning or pre-training. (iii) It is an order of magnitude more efficient in terms of training time.

2 Related Work

Prior work has considered combining latent representations of words that capture syntactic and semantic properties [Van de Cruys et al.2011], and inducing multi-modal embeddings [Bruni et al.2012] for general NLP tasks. And recently, Luo et al. luo2014pre proposed a framework that combines multiple word embeddings to measure text similarity, however their focus was not on classification.

More similar to our work, Yin and Schütze yin-schutze:2015:CoNLL proposed MVCNN for sentence classification. This CNN-based architecture accepts multiple word embeddings as inputs. These are then treated as separate ‘channels’, analogous to RGB channels in images. Filters consider all channels simultaneously. MVCNN achieved state-of-the-art performance on multiple sentence classification tasks. However, this model has practical drawbacks. (i) MVCNN requires that input word embeddings have the same dimensionality. Thus to incorporate a second set of word vectors trained on a corpus (or using a model) of interest, one needs to either find embeddings that happen to have a set number of dimensions or to estimate embeddings from scratch. (ii) The model is complex, both in terms of implementation and run-time. Indeed, this model requires pre-training and mutual-learning and requires days of training time, whereas the simple architecture we propose requires on the order of an hour (and is easy to implement).

3 Model Description

We first review standard one-layer CNN (which exploits a single set of embeddings) for sentence classification [Kim2014], and then propose our augmentations, which exploit multiple embedding sets.

Basic CNN. In this model we first replace each word in a sentence with its vector representation, resulting in a sentence matrix , where

is the (zero-padded) sentence length, and

is the dimensionality of the embeddings. We apply a convolution operation between linear filters with parameters and the sentence matrix. For each , where denotes ‘height’, we slide filter across , considering ‘local regions’ of adjacent rows at a time. At each local region, we perform element-wise multiplication and then take the element-wise sum between the filter and the (flattened) sub-matrix of , producing a scalar. We do this for each sub-region of that the filter spans, resulting in a feature map vector . We can use multiple filter sizes with different heights, and for each filter size we can have multiple filters. Thus the model comprises weight vectors , each of which is associated with an instantiation of a specific filter size. These in turn generate corresponding feature maps , with dimensions varying with filter size. A

1-max pooling

operation is applied to each feature map, extracting the largest number from each feature map . Finally, we combine all together to form a feature vector to be fed through a softmax function for classification. We regularize weights at this level in two ways. (1) Dropout, in which we randomly set elements in

to zero during the training phase with probability

, and multiply with the parameters trained in at test time. (2) An l2 norm penalty, for which we set a threshold for the l2 norm of during training; if this is exceeded, we rescale the vector accordingly. For more details, see [Zhang and Wallace2015].

MG-CNN. Assuming we have word embeddings with corresponding dimensions , we can simply treat each word embedding independently. In this case, the input to the CNN comprises multiple sentence matrices , where each may have its own width . We then apply different groups of filters independently to each , where denotes the set of filters for . As in basic CNN, may have multiple filter sizes, and multiple filters of each size may be introduced. At the classification layer we then obtain a feature vector for each embedding set, and we can simply concatenate these together to form the final feature vector to feed into the softmax function, where . This representation contains feature vectors generated from all sets of embeddings under consideration. We call this method multiple group CNN (MG-CNN). Here groups refer to the features generated from different embeddings. Note that this differs from ‘multi-channel’ models because at the convolution layer we use different filters on each word embedding matrix independently, whereas in a standard multi-channel approach each filter would consider all channels simultaneously and generate a scalar from all channels at each local region. As above, we impose a max l2 norm constraint on the final feature vector for regularization. Figure 1 illustrates this approach.

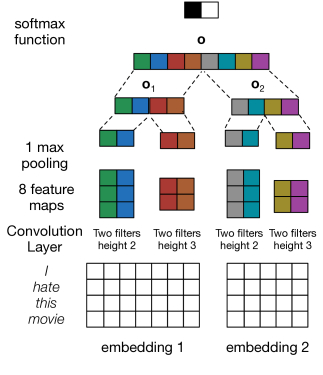

Figure 1: Illustration of MG-CNN and MGNC-CNN. The filters applied to the respective embeddings are completely independent. MG-CNN applies a max norm constraint to , while MGNC-CNN applies max norm constraints on and independently (group regularization). Note that one may easily extend the approach to handle more than two embeddings at once.

MGNC-CNN. We propose an augmentation of MG-CNN, Multi-Group Norm Constraint CNN (MGNC-CNN), which differs in its regularization strategy. Specifically, in this variant we impose grouped regularization constraints, independently regularizing subcomponents derived from the respective embeddings, i.e., we impose separate max norm constraints for each (where again indexes embedding sets); these hyper-parameters are to be tuned on a validation set. Intuitively, this method aims to better capitalize on features derived from word embeddings that capture discriminative properties of text for the task at hand by penalizing larger weight estimates for features derived from less discriminative embeddings.

4 Experiments

Model Subj SST-1 SST-2 TREC Irony
CNN(w2v) 93.14 (92.92,93.39) 46.99 (46.11,48.28) 87.03 (86.16,88.08) 93.32 (92.40,94.60) 67.15 (66.53,68.11)
CNN(Glv) 93.41(93.20,93.51) 46.58 (46.11,47.06) 87.36 (87.20,87.64) 93.36 (93.30,93.60) 67.84 (67.29,68.38)
CNN(Syn) 93.24(93.01,93.45) 45.48(44.67,46.24) 86.04 (85.28,86.77) 94.68 (94.00,95.00) 67.93 (67.30,68.38)
MVCNN [Yin and Schütze2015] 93.9 49.6 89.4 - -
C-CNN(w2v+Glv) 93.72 (93.68,93.76) 47.02(46.24,47.69) 87.42(86.88,87.81) 93.80 (93.40,94.20) 67.70 (66.97,68.35)
C-CNN(w2v+Syn) 93.48 (93.43,93.52) 46.91(45.97,47.81) 87.17 (86.55,87.42) 94.66 (94.00,95.20) 68.08 (67.33,68.57)
C-CNN(w2v+Syn+Glv) 93.61 (93.47,93.77) 46.52 (45.02,47.47) 87.55 (86.77,88.58) 95.20 (94.80,65.60) 68.38 (67.66,69.23)
MG-CNN(w2v+Glv) 93.84 (93.66,94.35) 48.24 (47.60,49.05) 87.90 (87.48,88.30) 94.09 (93.60,94.80) 69.40 (66.35,72.30)
MG-CNN(w2v+Syn) 93.78 (93.62,93.98) 48.48(47.78,49.19) 87.47(87.10,87.70) 94.87 (94.00,95.60) 68.28 (66.44,69.97)
MG-CNN(w2v+Syn+Glv) 94.11 (94.04,94.17) 48.01 (47.65,48.37) 87.63(87.04,88.36) 94.68 (93.80,95.40) 69.19(67.06,72.30)
MGNC-CNN(w2v+Glv) 93.93 (93.79,94.14) 48.53 (47.92,49.37) 88.35(87.86,88.74) 94.40 (94.00,94.80) 69.15 (67.25,71.70)
MGNC-CNN(w2v+Syn) 93.95 (93.75,94.21) 48.51 (47.60,49.41) 87.88(87.64,88.19) 95.12 (94.60,95.60) 69.35 (67.40,70.86)
MGNC-CNN(w2v+Syn+Glv) 94.09 (93.98,94.18) 48.65 (46.92,49.19) 88.30 (87.83,88.65) 95.52 (94.60,96.60) 71.53 (69.74,73.06)
Table 1: Results mean (min, max) achieved with each method. w2v:word2vec. Glv:GloVe. Syn: Syntactic embedding. Note that we experiment with using two and three sets of embeddings jointly, e.g., w2v+Syn+Glv indicates that we use all three of these.
Model Subj SST-1 SST-2 TREC Irony
CNN(w2v) 9 81 81 9 243
CNN(Glv) 3 9 1 9 81
CNN(Syn) 3 81 9 81 1
C-CNN(w2v+Glv) 9 9 3 3 1
C-CNN(w2v+Syn) 3 81 9 9 1
C-CNN(w2v+Syn+Glv) 9 9 1 81 81
MG-CNN(w2v+Glv) 3 9 3 81 9
MG-CNN(w2v+Syn) 9 81 3 81 3
MG-CNN(w2v+Syn+Glv) 9 1 9 243 9
MGNC-CNN(w2v+Glv) (9,3) (81,9) (1,1) (9,81) (243,243)
MGNC-CNN(w2v+Syn) (3,3) (81,81) (81,9) (81,81) (81,3)
MGNC-CNN(w2v+Syn+Glv) (81,81,81) (81,81,1) (9,9,9) (1,81,81) (243,243,3)
Table 2: Best value on the validation set for each method w2v:word2vec. Glv:GloVe. Syn: Syntactic embedding.

4.1 Datasets

Stanford Sentiment Treebank Stanford Sentiment Treebank (SST) [Socher et al.2013]. This concerns predicting movie review sentiment. Two datasets are derived from this corpus: (1) SST-1, containing five classes: very negative, negative, neutral, positive, and very positive. (2) SST-2, which has only two classes: negative and positive. For both, we remove phrases of length less than 4 from the training set.111As in [Kim2014]. Subj [Pang and Lee2004]

. The aim here is to classify sentences as either

subjective or objective. This comprises 5000 instances of each. TREC [Li and Roth2002]. A question classification dataset containing six classes: abbreviation, entity, description, human, location and numeric. There are 5500 training and 500 test instances. Irony [Wallace et al.2014]. This dataset contains 16,006 sentences from reddit labeled as ironic (or not). The dataset is imbalanced (relatively few sentences are ironic). Thus before training, we under-sampled negative instances to make classes sizes equal. Note that for this dataset we report the Area Under Curve (AUC), rather than accuracy, because it is imbalanced.

4.2 Pre-trained Word Embeddings

We consider three sets of word embeddings for our experiments: (i) word2vec222 is trained on 100 billion tokens of Google News dataset; (ii) GloVe [Pennington et al.2014]333 is trained on aggregated global word-word co-occurrence statistics from Common Crawl (840B tokens); and (iii) syntactic word embedding trained on dependency-parsed corpora. These three embedding sets happen to all be 300-dimensional, but our model could accommodate arbitrary and variable sizes.

We pre-trained our own syntactic embeddings following [Levy and Goldberg2014]. We parsed the ukWaC corpus [Baroni et al.2009] using the Stanford Dependency Parser v3.5.2 with Stanford Dependencies [Chen and Manning2014] and extracted (word, relation+context) pairs from parse trees. We “collapsed” nodes with prepositions and notated inverse relations separately, e.g., “dog barks” emits two tuples: (barks, nsubj_dog) and (dog, nsubj_barks). We filter words and contexts that appear fewer than 100 times, resulting in 173k words and 1M contexts. We trained 300d vectors using word2vecf444 with default parameters.

4.3 Setup

We compared our proposed approaches to a standard CNN that exploits a single set of word embeddings [Kim2014]. We also compared to a baseline of simply concatenating embeddings for each word to form long vector inputs. We refer to this as Concatenation-CNN C-CNN. For all multiple embedding approaches (C-CNN, MG-CNN and MGNC-CNN), we explored two combined sets of embedding: word2vec+Glove, and word2vec+syntactic, and one three sets of embedding: word2vec+Glove+syntactic. For all models, we tuned the l2 norm constraint over the range on a validation set. For instantiations of MGNC-CNN in which we exploited two embeddings, we tuned both , and ; where we used three embedding sets, we tuned and .

We used standard train/test splits for those datasets that had them. Otherwise, we performed 10-fold cross validation, creating nested development sets with which to tune hyperparameters. For all experiments we used filters sizes of 3, 4 and 5 and we created 100 feature maps for each filter size. We applied 1 max-pooling and dropout (rate: 0.5) at the classification layer. For training we used back-propagation in mini-batches and used AdaDelta as the stochastic gradient descent (SGD) update rule, and set mini-batch size as 50. In this work, we treat word embeddings as part of the parameters of the model, and update them as well during training. In all our experiments, we only tuned the max norm constraint(s), fixing all other hyperparameters.

4.4 Results and Discussion

We repeated each experiment 10 times and report the mean and ranges across these. This replication is important because training is stochastic and thus introduces variance in performance

[Zhang and Wallace2015]. Results are shown in Table 2, and the corresponding best norm constraint value is shown in Table 2. We also show results on Subj, SST-1 and SST-2 achieved by the more complex model of [Yin and Schütze2015] for comparison; this represents the state-of-the-art on the three datasets other than TREC.

We can see that MGNC-CNN and MG-CNN always outperform baseline methods (including C-CNN), and MGNC-CNN is usually better than MG-CNN. And on the Subj dataset, MG-CNN actually achieves slightly better results than [Yin and Schütze2015], with far less complexity and required training time (MGNC-CNN performs comparably, although no better, here). On the TREC dataset, the best-ever accuracy we are aware of is 96.0% [Mou et al.2015], which falls within the range of the result of our MGNC-CNN model with three word embeddings. On the irony dataset, our model with three embeddings achieves 4% improvement (in terms of AUC) compared to the baseline model.

On SST-1 and SST-2, our model performs slightly worse than [Yin and Schütze2015]. However, we again note that their performance is achieved using a much more complex model which involves pre-training and mutual-learning steps. This model takes days to train, whereas our model requires on the order of an hour.

We note that the method proposed by Astudillo et al.  astudillo2015learning is able to accommodate multiple embedding sets with different dimensions by projecting the original word embeddings into a lower-dimensional space. However, this work requires training the optimal projection matrix on laebled data first, which again incurs large overhead.

Of course, our model also has its own limitations: in MGNC-CNN, we need to tune the norm constraint hyperparameter for all the word embeddings. As the number of word embedding increases, this will increase the running time. However, this tuning procedure is embarrassingly parallel.

5 Conclusions

We have proposed MGNC-CNN: a simple, flexible CNN architecture for sentence classification that can exploit multiple, variable sized word embeddings. We demonstrated that this consistently achieves better results than a baseline architecture that exploits only a single set of word embeddings, and also a naive concatenation approach to capitalizing on multiple embeddings. Furthermore, our results are comparable to those achieved with a recently proposed model [Yin and Schütze2015] that is much more complex. However, our simple model is easy to implement and requires an order of magnitude less training time. Furthermore, our model is much more flexible than previous approaches, because it can accommodate variable-size word embeddings.


This work was supported in part by the Army Research Office (grant W911NF-14-1-0442) and by The Foundation for Science and Technology, Portugal (grant UTAP-EXPL/EEIESS/0031/2014). This work was also made possible by the support of the Texas Advanced Computer Center (TACC) at UT Austin.


  • [Astudillo et al.2015] Ramon F Astudillo, Silvio Amir, Wang Lin, Mário Silva, and Isabel Trancoso. 2015. Learning word representations from scarce and noisy data with embedding sub-spaces. In Proceedings of Association for Computational Linguistics, pages 1074–1084.
  • [Baroni et al.2009] Marco Baroni, Silvia Bernardini, Adriano Ferraresi, and Eros Zanchetta. 2009. The wacky wide web: a collection of very large linguistically processed web-crawled corpora. Language Resources and Evaluation, 43(3):209–226.
  • [Bruni et al.2012] Elia Bruni, Gemma Boleda, Marco Baroni, and Nam-Khanh Tran. 2012. Distributional semantics in technicolor. In Proceedings of Association for Computational Linguistics, pages 136–145.
  • [Chen and Manning2014] Danqi Chen and Christopher Manning. 2014. A fast and accurate dependency parser using neural networks. In Proceedings of Empirical Methods in Natural Language Processing, pages 740–750.
  • [Cho2015] Kyunghyun Cho. 2015. Natural language understanding with distributed representation. arXiv preprint arXiv:1511.07916.
  • [Collobert and Weston2008] Ronan Collobert and Jason Weston. 2008. A unified architecture for natural language processing: Deep neural networks with multitask learning. In

    Proceedings of the International Conference on Machine learning

    , pages 160–167.
  • [Erk and Padó2008] Katrin Erk and Sebastian Padó. 2008. A structured vector space model for word meaning in context. In Proceedings of Empirical Methods in Natural Language Processing, pages 897–906.
  • [Goldberg2015] Yoav Goldberg. 2015. A primer on neural network models for natural language processing. arXiv preprint arXiv:1510.00726.
  • [Johnson and Zhang2014] Rie Johnson and Tong Zhang. 2014. Effective use of word order for text categorization with convolutional neural networks. arXiv preprint arXiv:1412.1058.
  • [Kalchbrenner et al.2014] Nal Kalchbrenner, Edward Grefenstette, and Phil Blunsom. 2014. A convolutional neural network for modelling sentences. arXiv preprint arXiv:1404.2188.
  • [Kim2014] Yoon Kim. 2014. Convolutional neural networks for sentence classification. arXiv preprint arXiv:1408.5882.
  • [Levy and Goldberg2014] Omer Levy and Yoav Goldberg. 2014. Dependency-based word embeddings. In Proceedings of Association for Computational Linguistics, pages 302–308.
  • [Li and Roth2002] Xin Li and Dan Roth. 2002. Learning question classifiers. In Proceedings of the International Conference on Computational Linguistics, pages 1–7.
  • [Luo et al.2014] Yong Luo, Jian Tang, Jun Yan, Chao Xu, and Zheng Chen. 2014. Pre-trained multi-view word embedding using two-side neural network. In

    Conference on Artificial Intelligence

  • [Mikolov et al.2013] Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. 2013. Distributed representations of words and phrases and their compositionality. In Advances in Neural Information Processing Systems, pages 3111–3119.
  • [Mou et al.2015] Lili Mou, Hao Peng, Ge Li, Yan Xu, Lu Zhang, and Zhi Jin. 2015. Discriminative neural sentence modeling by tree-based convolution. In Proceedings of Empirical Methods in Natural Language Processing, pages 2315–2325.
  • [Padó and Lapata2007] Sebastian Padó and Mirella Lapata. 2007. Dependency-based construction of semantic space models. Computational Linguistics, 33(2):161–199.
  • [Pang and Lee2004] Bo Pang and Lillian Lee. 2004.

    A sentimental education: Sentiment analysis using subjectivity summarization based on minimum cuts.

    In Proceedings of Association for Computational Linguistics, page 271.
  • [Pennington et al.2014] Jeffrey Pennington, Richard Socher, and Christopher D Manning. 2014. Glove: Global vectors for word representation. In Proceedings of the Empirical Methods in Natural Language Processing, pages 1532–1543.
  • [Socher et al.2013] Richard Socher, Alex Perelygin, Jean Y Wu, Jason Chuang, Christopher D Manning, Andrew Y Ng, and Christopher Potts. 2013. Recursive deep models for semantic compositionality over a sentiment treebank. In Proceedings of Empirical Methods in Natural Language Processing, pages 1631–1642.
  • [Van de Cruys et al.2011] Tim Van de Cruys, Thierry Poibeau, and Anna Korhonen. 2011. Latent vector weighting for word meaning in context. In Proceedings of Empirical Methods in Natural Language Processing, pages 1012–1022.
  • [Wallace et al.2014] Byron C. Wallace, Do Kook Choe, Laura Kertz, and Eugene Charniak. 2014. Humans require context to infer ironic intent (so computers probably do, too). In Proceedings of Association for Computational Linguistics, pages 512–516.
  • [Wallace et al.2015] Byron C. Wallace, Do Kook Choe, and Eugene Charniak. 2015. Sparse, contextually informed models for irony detection: Exploiting user communities, entities and sentiment. In Proceedings of Association for Computational Linguistics, pages 1035–1044.
  • [Yin and Schütze2015] Wenpeng Yin and Hinrich Schütze. 2015. Multichannel variable-size convolution for sentence classification. In Proceedings of the Conference on Computational Natural Language Learning, pages 204–214.
  • [Yogatama and Smith2014] Dani Yogatama and Noah Smith. 2014. Making the most of bag of words: Sentence regularization with alternating direction method of multipliers. In Proceedings of the International Conference on Machine Learning, pages 656–664.
  • [Zhang and Wallace2015] Ye Zhang and Byron C. Wallace. 2015. A sensitivity analysis of (and practitioners’ guide to) convolutional neural networks for sentence classification. arXiv preprint arXiv:1510.03820.
