Metrics for multirate routing in dense LEO constellations

06/22/2020 ∙ by Jonas W. Rabjerg, et al. ∙ Aalborg University 0

Low Earth Orbit (LEO) satellite constellations combine great flexibility and global coverage with short propagation delays when compared to satellite networks deployed in higher orbits. However, the fast movement of the individual satellites makes inter-satellite routing a complex and dynamic problem. In this paper, we investigate the performance with three routing metrics in terms of routing latency. Besides, we provide the formulations to calculate the total latency considering the predictable propagation and packet transmission times in single- and multi-packet transmissions with different rates at the satellites. Our results showcase the contribution of each of these aspects to the total routing latency. In addition, these emphasize that the overall minimum latency can only be achieved by combining a metric that calculates the per-packet latency at each feasible hop with a path selection algorithm that considers the successive packet transmissions. Doing so leads to latency savings of up to 40 transmissions using Dijkstra's shortest path algorithm at the expense of increasing the routing complexity. Nevertheless, closely similar results are achieved with one of the presented metrics, the path loss metric, in combination with Dijkstra's algorithm. Besides, we observe that the impact of the queueing latency at the nodes greatly depends on the selected metric and the number of packets to be transmitted. These aspects can be used to design metrics and algorithms for specific types of services.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Low Earth Orbit (LEO) satellite constellations are usually organized in orbital planes. These are groups of satellites, deployed at altitudes from to  km above the Earth’s surface, that orbit in the same direction, one after the other. Fig. 1 shows an example of a typical Walker star constellation with five orbital planes and satellites deployed at an altitude of  km. These satellites communicate with ground stations (GS) or user equipment on the Earth surface through the ground-to-satellite link (GSL). On the other hand, communication between satellites may take place through the inter-satellite link (ISL), which are not always implemented, mainly due to cost and physical constraints in the satellites [3]. Nevertheless, implementing the ISLs in a constellation is essential for systems that aim at serving as a space backbone network for latency-sensitive services without depending on geo-stationary satellites or a dense network of GSs.

As illustrated in Fig. 1, the ISLs can be further divided into intra- and inter-plane ISLs. Intra-plane ISLs communicate neighboring satellites in the same orbital planes, using antennas located at both sides of the roll axis. Since the inter-satellite distances within the same orbital planes are mainly fixed, intra-plane ISLs are usually stable and ultra-narrow beams, for example, optical wireless links, can be used [8]. On the other hand, satellites in different orbital planes communicate through the intra-plane ISLs, using antennas located at both sides of the pitch axis. Note that the rapid movement of the satellites creates frequent changes in the relative positions between satellites in different orbital planes. Therefore, inter-plane ISLs are greatly dynamic and may be affected by Doppler shift. Nevertheless, both intra- and inter-plane ISLs are needed to ensure full connectivity across the constellation and to enable the interconnection of ground devices across the globe from the space.

Fig. 1:

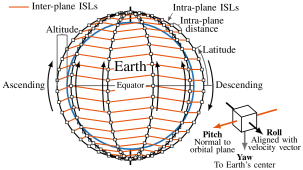

Diagram of a Walker star constellation with five orbital planes and the axes of a satellite with respect to the velocity vector. Arrows near the orbital planes indicate the direction of rotation.

In order to have routing capabilities in the constellation, ISLs must be implemented together with a routing protocol, which is responsible of finding appropriate routes between any two satellites according to the selected routing metric and of defining the forwarding rules. Routing metrics are an essential element of routing protocols, which are used to determine the cost of each potential hop towards the destination. Classical examples of routing metrics in terrestrial networks include the number of hops (i.e., hop-count), the expected number of transmissions due to packet erasures, euclidean distance, etc. In traditional unipath routing, these metrics are used to identify and select the path with the lowest total cost before the packet is actually transmitted from the source. On the other hand, in opportunistic routing, routes are dynamic rather than fixed. This aims to exploit the broadcast nature of the wireless channel in the presence of transmissions failures [2].

Routing for LEO satellite constellations has been investigated for years. The first set of relevant works for this paper are from the times of the initial Iridium launches. For example, Ekici et al.  [4] proposed a routing approach that exploits the geometry of a symmetric Walker star constellation. Intervals in the latitude of the satellites, known as logical locations were defined. Then, to route the packets, rings were formed with satellites from different orbital planes that are at the same logical locations. However, this approach is not efficient for constellations with slight asymmetries, as pointed out in our previous work [9]. These slight asymmetries are can be found in most commercial dense LEO constellations, in the form of slightly different altitudes at the orbital planes, to minimize the risk of collisions between satellites. Hence, with the advent of the New Space era, there is a renovated interest in satellite routing [5, 6].

To the best of our knowledge, the efforts in previous works have oversimplified the constellation geometry and the ISL connectivity, with the exception of papers studying specific commercial constellations such as [6]. In a general approach, we observe that the characteristics of the constellation introduce two distinctive elements to the routing problem. First of all, the constellation geometry represents a structured dynamic wireless mesh network, where the distances between satellites: 1) in the same orbital plane are fixed and 2) in different orbital planes change rapidly. Secondly, the propagation time has a great impact in the overall latency. This is in contrast to terrestrial wireless mesh networks, where the propagation time is negligible when compared to the transmission time (i.e., time to transmit bits at a given data rate). This aspect requires special attention in the design of routing protocols for LEO constellations.

Under these premises, we investigate routing metrics relevant for LEO satellite constellations supporting latency-sensitive services. Our analyses exploit the predictability component of the latency, namely the propagation and the transmission latency, in the routing. To this end, we consider an exemplary network where two ground users, separated by a great distance, communicate with each other through the constellation. For this, the ground users communicate, either directly or through a dedicated GS, with the nearest LEO satellite. In this scenario, we investigate three different routing metrics and assess the performance using unipath routing with multiple rates (i.e., multirate routing) in the dense Walker star LEO constellation illustrated in Fig. 1.

The rest of the paper is organized as follows. Section II presents the system model, followed by the detailed description of the routing metrics in Section III. Then, Section IV presents our results and Section V concludes the paper.

Ii System Model

In this section, we present the constellation geometry and the channel model used for our analyses. While the LEO constellation is dynamic, we observe the entire system at specific time instants and skip the time dependence for notation simplicity throughout this section.

We consider a Walker star constellation, as in [9], with polar planes evenly separated by . An orbital plane consists of evenly spaced satellites deployed at an altitude and with an inclination angle . The latitude of each satellite, measured from the Equator towards the north pole as in Fig. 1, is denoted as , where is the orbital plane and is the index of satellite within the orbital plane. Building on these, the coordinates of satellite in an orbital plane are given as , where is the radius of the Earth.

We model the satellite constellation as a weighted undirected graph , where is the set of satellites (i.e., vertices) and is the set of edges (i.e., ISLs). The satellites are equipped with four antennas for inter-satellite communication: two antennas for the intra-plane ISLs – aligned and opposite to the roll axis, in the direction of the velocity vector – and two for the inter-plane ISLs – one at each side of the pitch axis, normal to the orbital plane (see Fig. 1). Building on this, satellites maintain a connection with their closest inter- and intra-plane neighbors, one at each side of the pitch and roll axes, at all times as illustrated in Fig. 1. These connections constitute the set of edges of the network graph.

The weights for all are defined in the following section for the selected routing metrics. Therefore, the route of a single packet is a weighted path in with edge set . Note that we do not account for the latency on the ground-to-satellite and satellite-to-ground links. This is because, given that the source and destination satellites – the ones closest to the source and destination GSs – are the same for all possible paths, these links would simply add a constant latency to the results presented in Section IV.

Inter-satellite communication occurs in a free-space path loss (FSPL) environment. Let be the slant range (i.e., line-of-sight distance) between two arbitrary satellites, and , calculated as the euclidean norm between their positions. Next, let be the FSPL and be the carrier frequency. All the antennas have fixed transmission power and gains in the direction of the main lobe, denoted as for transmission and for reception. Hence, the received signal strength at from is

(1)

where is the speed of light [10].

We consider typical parabolic reflector antennas with perfect beam steering capabilities [1], whose gain with respect to a perfect isotropic antenna is the function of the diameter of the reflecting surface , the carrier frequency , and the efficiency of the antenna , given as

(2)

From (2), it can be seen that using a high carrier frequency will result in a higher antenna gain if the same parabolic reflector is being used.

It is out of the scope of this paper to design or evaluate interference mitigation techniques and we assume the interference to an ongoing transmission is zero at all times. This can be achieved either by using sufficiently narrow beams or by diverse multiple access techniques that assign orthogonal resources for communication such as TDMA, FDMA, OFDMA, or even CDMA with a sufficiently large spreading factor.

Based on this latter assumption, we consider that inter-satellite communication takes place in an additive white Gaussian noise (AWGN) channel. Hence, we deal with a multirate routing problem where, for simplicity, the data rate for communication between and is selected for a known received power , from an infinite set of possible values, to be

(3)

where is the bandwidth, is Boltzmann’s constant, is the system noise temperature, and is the SNR margin selected to transmission failures in the presence of interference. Note that our analyses can be easily extended to the case where the rates are selected from a finite set of feasible values.

Knowing the data rate for communication between and and the state of the queues at the satellites, the exact one-hop latency to transmit a packet of length  bits can be calculated in three parts. First, the time it takes for the electromagnetic radiation to travel the distance from to , which we refer to as the propagation time. Second, the time it takes to transmit  bits at  bps, which we will refer to as the transmission time. Finally, the waiting time at the queue

, which is an observation of the random variable (RV)

. Hence, we have

(4)

Next, considering that the propagation, transmission, and waiting times are negligibly short when compared to the movement of the constellation, the overall latency when successively transmitting packets of the same size through the same path can be calculated as

(5)

Note that (5) is an approximation due to the fast movement of the satellites, which creates minor changes in the latency, even between short time instants. Nevertheless, (5) indicates that, even if no transmission errors occur, successively transmitting packets of  bits each is more efficient than transmitting a big packet of size . On the other hand, the last term in (5) is a tight upper bound as . These characteristics are illustrated in Fig. 2, where three packets are transmitted along a same path with three hops with zero waiting time at the queues. Note that the ISL between and has the greatest transmission time and, hence, the greatest contribution to the overall latency.

Fig. 2: Time diagram for the transmission of three packets along a three-hop route. Satellites are at different distances and use different transmission rates.

However, knowing the status of the queues at all satellites is a daunting task with great communication overhead. For instance, all satellites would need to report the status of their queues to the nodes calculating the routes ahead of time. Instead, routing metrics usually focus on finding the shortest path for each packet considering zero queueing delay at each hop, as illustrated in Fig. 2. Nevertheless, this completely neglects the waiting time at the queues. A feasible alternative to incorporate these waiting times is to calculate a long-term average for across the constellation and use it for routing purposes. By doing so, and assuming are i.i.d. RVs, the expected latency for 1) an ISL , denoted , and for 2) a path , denoted , can be calculated by substituting with in (4) and (5), respectively.

Iii Routing Metrics

In this section we describe in detail the three considered routing metrics.

Hop-count metric: This is one of the simplest routing metrics, where the cost (i.e., weight) of every hop is set to the same value, for example, for all and . If two or more paths have the same cost, the one with the shortest transmission distance is selected. Due to its simplicity, we use this metric as a benchmark.

Latency: The aim of the latency metric is to deliver the packets using the minimal amount of time. For this, the weight of all edges is , so that both the propagation and transmission times are considered, along with the mean waiting time at the queue.

The main benefit of the latency metric is that it accounts for 1) the linearity of the propagation times, 2) the non-linearity of the path loss and, hence, of the achievable data rate as defined in (3), and 3) the mean waiting time at the queues. Note that a simpler version of this metric can be obtained by setting , which is beneficial when the waiting times are not adequately characterized by the latter parameter.

Path loss metric: This is a relatively simple metric that emphasizes the non-linearity of the path loss in the ISLs. Besides, it can be easily adapted to exploit the specific geometry of the considered constellation.

Let be a satellite in orbital plane and in a feasible routing path towards the destination, located in orbital plane . It is immediate to see that the overall latency is reduced by using the intra-plane ISL if . Hence, we define to be an indicator variable that takes the value of if and otherwise. Then, we set the cost of all intra-plane ISLs to be .

On the other hand, the cost of the inter-plane ISLs towards the closest neighbor in orbital plane is set to be the ratio of inter- to intra-plane path loss, given as

(6)

where is the closest intra-plane neighbor of . Note that is the closest inter-plane neighbor to in if and only if .

Therefore, (6) can be closely approximated by assuming that all orbital planes are deployed at the same altitude and that the satellites are aligned, so that , as

(7)

Naturally, greatly depends on , but also on the ratio . Therefore, inter-plane ISLs are preferred when the packet is close to the poles, where , but also when .

To illustrate the calculation of the path loss routing metric, we show the CDF of the FSPL to the nearest inter-plane neighbor as a function of the latitude of a given satellite , denoted (given in degrees), in Fig. 3. These were obtained via Monte Carlo simulations, considering the Walker star constellation illustrated in Fig. 1 with , , and  km. The minimum and maximum FSPL to the nearest neighbor in the same orbital plane (i.e., at the lowest and highest orbital planes, respectively) are also illustrated.

Fig. 3:

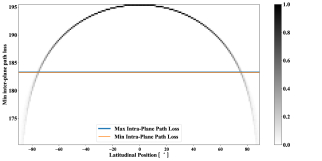

Heatmap of the empirical probability mass function (pmf) of the FSPL to the nearest inter-plane neighbor, along with the maximum and minimum FSPL for the nearest intra-plane neighbor.

As Fig. 3 shows, for all . This illustrates the reason to calculate as in (6). Specifically, the curvature of the heatmap represents the pmf of the numerator in (6), while the maximum and minimum intra-plane path loss, which are closely similar, represent the range of possible values for the the denominator. The intersection describes when is large enough to make the .

Based on these metrics, we find the shortest path using two approaches when a given number of successive packets are transmitted. First, with Dijkstra’s algorithm [7], which finds in the shortest path between source and destination considering a single packet transmission. This approach is used with all three metrics and leads to the minimum expected latency when combined with the latency metric for . Second, via exhaustive search (ES) in combination with the latency metric. That is, finding all the feasible paths in the constellation and the latency at each of the ISLs involved and, next, calculating the overall latency with (5) to find the shortest path. This leads to the minimum expected latency for any .

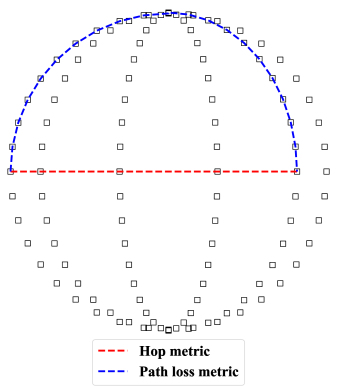

Fig. 4: Illustrative example of the paths selected by the hop-count and path loss metrics for GSs along the Equator and separated by an angle of .
