1 Introduction

Forecasting is one of the fundamental scientific problems and also of great practical utility. The ability to plan and control as well as to appropriately react to manifestations of complex partially or completely unknown systems often relies on the ability to forecast relevant observations based on their past history. The applications of forecasting span a variety of fields, ranging from extremely technical (e.g. vehicle and robot control (Tang and Salakhutdinov, 2019), data center optimization (Gao, 2014)), to more business oriented (supply chain management (Leung, 1995), workforce management (Chapados et al., 2014), forecasting phone call arrivals (Ibrahim et al., 2016) and customer traffic (Lam et al., 1998)) and finally to ones that may be critical for the future survival of humanity, such as precision agriculture (Rodrigues Jr et al., 2019) or fire and flood management (Mahoo et al., 2015; Sit and Demir, 2019). Unsurprisingly, forecasting methods have a long history that can be traced back to the very origins of human civilization (Neale, 1985), modern science (Gauss, 1809) and has consistently attracted considerable attention (Yule, 1927; Walker, 1931; Holt, 1957; Winters, 1960; Engle, 1982; Sezer et al., 2019). The progress made in the univariate forecasting in the past four decades is well reflected in the results and methods considered in the associated competitions (Makridakis et al., 1993, 1982; Makridakis and Hibon, 2000; Athanasopoulos et al., 2011; Makridakis et al., 2018b)

. Growing evidence suggests that machine learning approaches offer a superior modeling methodology to tackle time-series (TS) forecasting tasks, in contrast to some previous assessments

(Makridakis et al., 2018a). For example, the winner of the last competition (M4Makridakis et al. (2018b)) was a deep neural network predicting parameters of a statistical model (Smyl, 2020). The latter result was reinforced by Oreshkin et al. (2020) who improved over the winner using a pure neural network model, called N-BEATS. One of the contributions of the present paper is to help understand why N-BEATS is working so well, by casting it as a meta-learning method.

On the practical side, the deployment of deep neural architectures is often challenged by the cold start problem. Before a tabula rasa

deep neural network provides a useful output, it should be trained on a large problem-specific dataset. For early adopters, this often implies data collection efforts, changing data handling practices and even changing the existing IT infrastructures on a massive scale. In contrast, advanced statistical models can be deployed with significantly less effort as they estimate their parameters on a single TS at a time. In this paper we address the problem of reducing the entry cost of deep neural networks in the industrial practice of TS forecasting. We show that it is viable to train a neural network model on a diversified source dataset and deploy it on a target dataset in a

zero-shot regime

, i.e. without explicit retraining on that target data, resulting in performance that is at least as good as that of advanced statistical models tailored to the target dataset. In addition, the TS forecasting problem is distinct in that one has to deal upfront with the challenge of out-of-distribution generalization: TS are typically generated by systems whose generative distributions shift significantly over time. Consequently, transfer learning was considered challenging in this domain until very recently

(Hooshmand and Sharma, 2019; Ribeiro et al., 2018). Ours is the first work to demonstrate the highly successful zero-shot operation of a deep neural TS forecasting model, thanks to a meta-learning approach.

Addressing this practical problem also provides clues to fundamental questions. Can we learn something general about forecasting and transfer this knowledge across datasets? If so, what kind of mechanisms could facilitate this? The ability to learn and transfer representations across tasks via task adaptation is an advantage of meta-learning (Raghu et al., 2019). We propose here a broad theoretical framework for meta-learning which spans several existing meta-learning algorithms. We further show how N-BEATS fits this meta-learning framework. We identify within N-BEATS internal meta-learning adaptation mechanisms that generate new parameters on-the-fly, specific to a given TS, iteratively extending the architecture’s expressive power. We empirically confirm that these mechanisms are key to improving its zero-shot univariate TS forecasting performance.

1.1 Background

The univariate point forecasting problem in discrete time is formulated given a length- forecast horizon and a length- observed series history

. The task is to predict the vector of future values

. For simplicity, we will later consider a lookback window of length ending with the last observed value to serve as model input, and denoted . We denote the point forecast of . Its accuracy can be evaluated with , the symmetric mean absolute percentage error (Makridakis et al. 2018b),

(1)

Other quality metrics (e.g. , , , ) are possible and are defined in Appendix A.

Meta-learning or learning-to-learn (Harlow, 1949; Schmidhuber, 1987; Bengio et al., 1991) is believed to be necessary for intelligent machines (Lake et al., 2017). The ability to meta-learn is usually linked to being able to (i) accumulate knowledge across different tasks (i.e. transfer learning, multi-task learning) and (ii) quickly adapt the accumulated knowledge to the new task (task adaptation(Ravi and Larochelle, 2016; Lake et al., 2017; Bengio et al., 1992). Accordingly, a meta-learning set-up can be defined by assuming a distribution over tasks (where each task can be seen as a meta-example), a predictor parameterized with parameters and a meta-learning procedure with meta-parameters . Each task (a meta-example) includes a limited set of task training examples and a set of task validation examples. The objective is to design a meta-learner that can generalize well on a new task by appropriately choosing the predictor’s parameters after observing the task training data. The meta-learner is trained to do so by being exposed to many tasks in a training dataset sampled from . For each task , the meta-learner is requested to produce the solution to the task in the form of and the meta-learner meta-parameters

are optimized across many tasks based on validation data and loss functions supplied with the tasks. Training on multiple tasks enables the meta-learner to produce solutions

that generalize well on a set of unseen tasks sampled from .

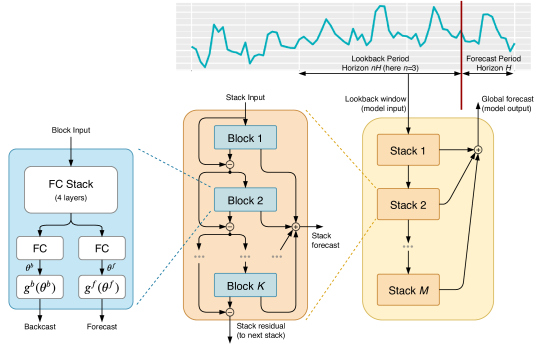

N-BEATS (Oreshkin et al., 2020) consists of a total of blocks connected using a doubly residual architecture that we review in detail below (see Appendix B.1 for full architecture details). Block has input and produces two outputs: the backcast and the partial forecast . For the first block we define , where is assumed to be the model-level input from now on. The internal operations of a block are based on a combination of fully connected and linear layers. In this paper, we focus on the configuration of N-BEATS that shares all learnable parameters across blocks. We define the -th fully-connected layer in the -th block, having non-linearity (Nair and Hinton, 2010; Glorot et al., 2011), weight matrix

, bias vector

and input , as . With this notation, one block of N-BEATS is described as:

(2)

where denotes a fully connected layer and and are linear operators which can be seen as linear bases, combined linearly with the coefficients. Finally, the doubly residual architecture is described by the following recursion (recalling that ):

(3)

The N-BEATS parameters included in the and linear layers are learned by minimizing a suitable loss function (e.g. defined in (1)) across multiple TS.

2 Meta-learning Framework

A meta-learning procedure can generally be viewed at two levels: the inner loop and the outer loop. The inner training loop operates within an individual “meta-example” or task (fast learning loop improving over current ) and the outer loop operates across tasks (slow learning loop). A task includes task training data and task validation data , both optionally involving inputs, targets and a task-specific loss: , . We extend the definition of the predictor originally provided in Section 1.1 by allowing a subset of its parameters denoted to belong to meta-parameters and hence not to be task adaptive. Therefore, in our framework, the predictor has parameters that can be adapted rapidly, at the task level, and meta-parameters that are set by the meta-learning procedure and are slowly learned across tasks.

Accordingly, the meta-learning procedure has three distinct ingredients: (i) meta-parameters , (ii) initialization function and (iii) update function . The meta-learner’s meta-parameters include the meta-parameters of the meta-initialization function, , the meta-parameters of the predictor shared across tasks, , and the meta-parameters of the update function, . The meta-initialization function defines the initial values of parameters  for a given task based on its meta-initialization parameters , task training dataset and task meta-data . Task meta-data may have, for example, a form of task ID or a textual task description. The update function is parameterized with update meta-parameters . It defines an iterated update to predictor parameters at iteration based on their previous value and the task training set . The initialization and update functions produce a sequence of predictor parameters, which we compactly write as . We let the final predictor be a function of the whole sequence of parameters, written compactly as . One implementation of such general function could be a Bayesian ensemble or a weighted sum, for example: . If we set , then we get the more commonly encountered situation .

The meta-parameters are updated in the outer meta-learning loop so as to obtain good generalization in the inner loop, i.e., by minimizing the expected validation loss that maps the ground truth and estimated outputs into the value that quantifies the generalization performance across tasks. The meta-learning framework is succinctly described by the following set of equations.

(4)
(5)

In this section we explained the proposed broad meta-learning framework and laid out its main equations. Next, we demonstrate how existing meta-learning algorithms can be cast into this framework.

2.1 Existing Meta-learning Algorithms Explained

MAML and related approaches (Finn et al., 2017; Li et al., 2017; Raghu et al., 2019) can be derived from (4) and (5) by (i) setting to be the identity map that copies into , (ii) setting to be the SGD gradient update: , where and by (iii) setting the predictor’s meta-parameters to the empty set . Equation (5) applies with no modifications.

MT-net (Lee and Choi, 2018) is a variant of MAML in which the predictor’s meta-parameter set is not empty. The part of the predictor parameterized with is meta-learned across tasks and is fixed during task adaptation. The other part parameterized with is treated exactly as in MAML.

Optimization as a model for few-shot learning (Ravi and Larochelle, 2016) can be derived from (4) and (5) via the following steps (in addition to those of MAML). First, set the update function to the update equation of an LSTM-like cell of the form ( is the LSTM update step index) . Second, set to be the LSTM’s forget gate value (Ravi and Larochelle, 2016): and to be the LSTM’s input gate value: . Here is a sigmoid non-linearity. Finally, include all the LSTM parameters into the set of update meta-parameters: .

Prototypical Networks (PNs) (Snell et al., 2017). Most metric-based meta-learning approaches, including the PNs, rely on comparing embeddings of the task training set samples with those of the validation set. Therefore, it is convenient to consider a composite predictor consisting of the embedding function, , and the comparison function, : . Concretely, PNs can be derived from  (4) and (5) as follows. Consider a -shot image classification task, to be a convolutional network with parameters , and to be class prototype vectors: . Initialization function with simply sets to the values of prototypes. is an identity map with and

is as a softmax classifier:

(6)

Here could be Euclidean distance and the softmax is normalized w.r.t. all . Finally, define the loss in (5) as the cross-entropy of the softmax classifier described in (6). Interestingly, are nothing else than the dynamically generated weights of the final linear layer fed into the softmax of a regular image classifier, which is especially apparent when . The fact that in the prototypical network scenario only the final linear layer weights are dynamically generated based on the task training set resonates very well with the most recent study of MAML (Raghu et al., 2019). It has been shown that most of the MAML’s gain can be recovered by only adapting the weights of the final linear layer in the inner loop.

Matching networks (Vinyals et al., 2016) are similar to the PNs with a few adjustments. First,

is cosine similarity. Second, in the

vanilla matching network architecture, is defined, assuming and

are one-hot encoded, as a soft nearest neighbor:

The softmax is normalized w.r.t. and predictor parameters, dynamically generated by , include embedding/label pairs: . In the FCE matching network, validation and training embeddings additionally interact with the task training set via attention LSTMs (Vinyals et al., 2016). To reflect this, the update function, , updates the original embeddings via LSTM equations (Appendix A.2 in (Vinyals et al., 2016)): . The LSTM’s parameters are included in . Second, the predictor is augmented with an additional relation module , , with the set of predictor meta-parameters extended accordingly: . The relation module is again implemented via LSTM: (cf. Vinyals et al. (2016), Appendix A.1).

TADAM (Oreshkin et al., 2018) extends PNs by dynamically conditioning the embedding function on the task training data via FiLM layers (Perez et al., 2018). TADAM’s predictor has the following form: ; . The compare function parameters are as before, . The embedding function parameters include the FiLM layer (scale/shift) vectors for each convolutional layer, generated by a separate FC network from the task embedding. The initialization function sets to all zeros, embeds task training data, and sets the task embedding to the average of class prototypes. The update function whose meta-parameters include the coefficients of the FC network, , generates an update to from the task embedding. Then it generates an update to the class prototypes using conditioned with the updated .

LEO (Rusu et al., 2019) uses a fixed pretrained embedding function. The intermediate low-dimensional latent space is optimized and is used to generate the predictor’s task-adaptive final layer weights. LEO’s predictor has the following form: . The predictor has final layer and the latent space parameters, , and no meta-parameters, . The initialization function , , uses a task encoder and a relation network with meta-parameters and , respectively, to meta-initialize the latent space parameters, , based on the task training data. The update function , , uses a decoder with meta-parameters to iteratively decode into the final layer weights, . It optimizes by executing gradient descent .

In this section, we illustrated that seven distinct meta-learning algorithms from two broad categories (optimization-based and metric-based) can be derived from our equations (4) and (5). This confirms that our meta-learning framework is general and can serve as a useful tool to analyze existing and perhaps synthesize new meta-learning algorithms.

3 N-BEATS as a Meta-learning Algorithm

Let us now focus on the analysis of N-BEATS described by equations (2), (3). We first introduce the following notation: ; ; . In the original equations, and are linear and hence can be represented by equivalent matrices and . In the following, we keep the notation general as much as possible, transitioning to the linear case only at the end of our analysis. Then, given the network input, (), and noting that we can write the output as follows:

(7)

3.1 Meta-learning Framework Subsumes N-BEATS

N-BEATS is now derived from the meta-learning framework of Section 2, based on two observations: (i) each application of in (7) is a predictor and (ii) each block of N-BEATS is the iteration of the inner meta-learning loop. More concretely, we have the following: . Here and are parameters of functions and in (7). The meta-parameters of the predictor, , are learned across tasks in the outer loop. The task-specific parameters include the sequence of shift vectors, that we explain in detail next. The -th block of N-BEATS performs the adaptation of the predictor’s task-specific parameters of the form . These parameters are used to adjust the predictor’s input at every iteration as as evident from equation (3).

This gives rise to the following initialization and update functions. with sets to zero. , with generates the next parameter update based on :

Interestingly, (i) meta-parameters are shared between the predictor and the update function and (ii) the task training set is limited to the network input, . Note that the latter makes sense because the data are TS, with the inputs

having the same form of internal dependencies as the target outputs

. Hence, observing is enough to infer how to predict from in a way that is similar to how different parts of are related to each other.

Finally, according to (7), predictor outputs corresponding to the values of parameters learned at every iteration of the inner loop are combined in the final output. This corresponds to choosing a predictor of the form in (5). The outer learning loop (5) describes the N-BEATS training procedure across tasks (TS) with no modification.

Remark 3.1.

It is clear that the final output of the architecture depends on the entire sequence . Quite obviously, even if predictor parameters , are shared across blocks and fixed, the behaviour of is governed by an extended space of parameters . This has two consequences. First, the expressive power of the architecture grows with the growing number of blocks, in some proportion to the growth of the space spanned by , even if , are fixed and shared across blocks. Second, since the number of parameters describing the architecture behaviour grows with the number of blocks, it may lead to a phenomenon similar to overfitting. Therefore, it would be reasonable to expect that at first the addition of blocks will improve generalization performance, because of the increase in expressive power. However, at some point adding more blocks may hurt the generalization performance, because of an effect similar to overfitting, even if , are fixed and shared across blocks, because at each iteration more information is extracted from and the set of parameters is expanded.

3.2 Linear Approximation Analysis

Next, we go a level deeper in the analysis to uncover more intricate task adaptation processes. To this end, we study the behaviour of (7) assuming that residual corrections are small. This allows us to derive an alternative interpretation of N-BEATS’ meta-learning operation, expressing it in terms of the adaptation of the internal weights of the network based on the task input data. Under the assumption of small , (7) can be analyzed using a Taylor series expansion, in the vicinity of . This results in the following first order approximation:

Here is the Jacobian of and is the small O in Landau notation.

We now consider linear and , as mentioned earlier, in which case and are represented by two matrices of appropriate dimensionality, and ; and . Thus, the above expression can be simplified as:

Continuously applying the linear approximation until we reach and recalling that we arrive at the following:

(8)

Note that can be written in the form of sequential updates of . Consider , then the update equation for can be written as and (8) becomes:

(9)

Let us now discuss how the results of the linear approximation analysis can be used to re-interpret N-BEATS as an instance of the meta-learning framework (4) and (5). According to (9), the predictor can now be represented in a decoupled form . Thus, in the predictor, task adaptation is now clearly confined in the decision function, , whereas the embedding function only relies on fixed meta-parameters . The adaptive parameters include the sequence of projection matrices . The meta-initialization function is parameterized with and it simply sets . The main ingredient of the update function is, as before, . Therefore, it is parameterized with , same as in Section 3.1. The update function now consists of two equations:

(10)
Remark 3.2.

In the linearized analysis, the sequence of input shifts becomes an auxiliary internal instrument of the update function. It is used to generate a good sequence of updates to the final linear layer of the predictor via an iterative two-stage process. First, for a given previous location in the input space, , the new location in the input space is predicted by . Second, the previous location in the input space is translated in the update of by appropriately projecting via . The first order analysis result (9) shows that under certain circumstances, the block-by-block manipulation of the input sequence apparent in (7) is equivalent to producing a sequential update of the final linear layer apparent in (10), with the block input being set to the same fixed value (cf. the final layer update behaviour identified in MAML by Raghu et al. (2019) and the results of our analysis of PNs).

The key role in this process seems to be encapsulated in that is responsible for both generating the sequence of input shifts and for the re-projection of derivatives . We study this aspect in more detail in the next section.

3.3 The Role of

It is hard to study the form of learned from the data in general. However, equipped with the results of the linear approximation analysis presented in Section 3.2, we can study the case of a two-block network, assuming that the norm loss between and is used to train the network. If, in addition, the dataset consists of the set of pairs the dataset-wise loss has the following expression:

Introducing , the error between the default forecast and the ground truth , and expanding the L2 norm we obtain the following:

Now, assuming that the rest of the parameters of the network are fixed, we have the derivative with respect to using matrix calculus (Petersen and Pedersen, 2012):

Using the above expression we conclude that the first order approximation of optimal satisfies the following equation:

Although this does not help to find a closed form solution for , it does provide a quite obvious intuition: the LHS and the RHS are equal when and are negatively correlated. Therefore, satisfying the equation will tend to drive the update to in (10) in such a way that on average the projection of over the update to matrix will tend to compensate the error made by forecasting using based on meta-initialization.

In this section we established that N-BEATS is an instance of a meta-learning algorithm described by equations (4) and (5). We showed that each block of N-BEATS is an inner meta-learning loop that generates additional shift parameters specific to the input time-series. Therefore, the expressive power of the architecture is expected to grow with each additional block, even if all blocks share their parameters. We used linear approximation analysis to show that the input shift in a block is equivalent to the update of the block’s final linear layer weights under certain conditions. We further provided mathematical intuition hinting that in a two-block network, the second block will on average tend to compensate the forecasting error made by the first block, even if the blocks share the same network weights.

M4, M3, tourism, electricity, traffic fred,
Pure ML 12.894 Comb 13.52 ETS 20.88 MatFact 0.160 0.200 ETS 14.16
Best STAT 11.986 ForePro 13.19 Theta 20.88 DeepAR 0.070 0.170 Naïve 12.79
ProLogistica 11.845 Theta 13.01 ForePro 19.84 DeepState 0.083 0.167 SES 12.70
Best ML/TS 11.720 DOTM 12.90 Strato 19.52 Theta 0.079 0.178 Theta 12.20
DL/TS hybrid 11.374 EXP 12.71 LCBaker 19.35 ETS 0.083 0.702 ARIMA 12.15
N-BEATS 11.135 12.37 18.52 0.067 0.114 11.49
NB-SH-M4 n/a 12.44 18.82 0.094 0.147 11.60
NB-NSH-M4 n/a 12.38 18.92 0.102 0.152 11.70
NB-SH-FR 11.701 12.69 19.94 n/a
NB-NSH-FR 11.675 12.61 19.46 n/a
Table 1: Dataset-specific metrics on test sets, aggregated over each dataset; lower values are better. NB: zero-shot N-BEATS; -SH/-NSH: block weight sharing ON/OFF; -M4/-FR: M4/fred source dataset. All other model names are explained in Appendix E. N-BEATS trained on double upsampled monthly data, see Appendix B.2. original M3 , see Appendix E.3. n/a: not applicable

4 Zero-Shot TS Forecasting Task

Base datasets. M4 (M4 Team, 2018), contains 100k TS representing demographic, finance, industry, macro and micro indicators. Sampling frequencies include yearly, quarterly, monthly, weekly, daily and hourly. fred is a dataset introduced in this paper containing 290k US and international economic TS from 89 sources, a subset of Federal Reserve economic data (Federal Reserve Bank of St. Louis (2019); see Appendix D.2 for a detailed description). M3 (Makridakis and Hibon, 2000) contains 3003 TS from domains and sampling frequencies similar to M4. tourism (Athanasopoulos et al., 2011) includes monthly, quarterly and yearly series of indicators related to tourism activities supplied by governmental tourism organizations and various academics. electricity (Dua and Graff, 2017; Yu et al., 2016) represents the hourly electricity usage of 370 customers over three years. traffic (Dua and Graff, 2017; Yu et al., 2016) tracks hourly occupancy rates scaled in a (0,1) range of 963 lanes in the San Francisco Bay Area freeways over a period of slightly more than one year. Additional details for all datasets appear in Appendix D.

The zero-shot forecasting task definition. One of the base datasets, a source dataset, is used to train a machine learning model. The entire source dataset can be used for training. The trained model can then forecast a TS in a target

dataset. The source and the target datasets are distinct: they do not contain TS whose values are linear transformations of each other. The forecasted TS is split into two non-overlapping pieces: the history, and the test. The history is used as model input and the test is used to compute the forecast error metric. We use the history and the test splits for the base datasets consistent with their original publication, unless explicitly stated otherwise. To make forecasts, the model is allowed to access the TS in the target dataset on a

one at a time

basis. This is to avoid having the model implicitly learn/adapt based on any information contained in the target dataset other than the history of the forecasted TS. If any adjustments of model parameters or hyperparameters are necessary, they are allowed

exclusively using the history of the forecasted TS.

5 Empirical Results

Experiments follow the defined zero-shot forecasting setup and the base datasets presented in Section 4. We mostly follow the original training setup of Oreshkin et al. (2020) to train N-BEATS on a source dataset, with one exception. We scale/descale the architecture input/output by dividing/multiplying all input/output values by the max value of the input window. This does not affect the accuracy of the model in the usual train/test scenario. In the zero-shot regime, this operation is intended to prevent catastrophic failure when the scale of the target dataset differs significantly from the source dataset. Additional training setup details are provided in Appendix B.2. For each dataset, we compare our results with 5 representative entries reported in the literature for that dataset, according to the customary metrics specific to each dataset (M4, fred, M3: , tourism: , electricity, traffic: ). Our main results appear in Table 1 and more details are provided in Appendix E. In the zero-shot forecasting regime, N-BEATS consistently outperforms most statistical models tailored to these datasets. N-BEATS trained on fred and applied in zero-shot regime to M4 outperforms the best statistical model selected for its performance on M4 and is at par with the competition’s second entry (boosted trees). On M3 and tourism the zero-shot forecasting performance of N-BEATS is better than that of the M3 winner, Theta (Assimakopoulos and Nikolopoulos, 2000). On electricity and traffic N-BEATS performs close to or better than other neural models trained on these datasets. The results overall suggest that a neural model (N-BEATS) is able to extract general knowledge about the TS forecasting task and then successfully adapt it to forecast on unseen TS. We believe our study presents the first example of successfully applying a neural model to solve the zero-shot TS forecasting.

(a) M3
(b) tourism
Figure 1: Zero-shot forecasting performance of the model trained on the M4 source dataset and applied to M3 (left) and tourism (right) target datasets with respect to the number of blocks,

. Each plot shows results with (blue) and without (red) weight sharing across blocks. Block width is 1024. The mean performance and one standard deviation interval (computed using ensemble bootstrap) are shown.

Expressive power. Remark 3.1 on expressive power implies that N-BEATS internally generates a sequence of parameters that dynamically extend the expressive power of the architecture with each newly added block, even if block parameters are shared. To validate this hypothesis, we performed an experiment studying the zero-shot forecasting performance of N-BEATS with increasing number of blocks, with and without parameter sharing. The architecture was trained on M4 and the performance was measured on the target datasets M3 and tourism. The results111The extended set of results for all datasets, using fred as a source dataset, a few metrics and varying layer width are provided in Appendix F. Extended results further reinforce findings in Fig. 1. are presented in Fig. 1. On the two datasets and for the shared-weights configuration, we consistently see performance improvement when the number of blocks increases up to about 30 blocks. In the same scenario, increasing the number of blocks beyond 30 leads to small, but consistent deterioration in performance, an effect similar to overfitting. Recalling that increasing the number of blocks with sharing does not lead to an increase in the number of meta-parameters, only the sequence of task specific parameters is being extended on-the-fly. In our view, this provides evidence supporting the meta-learning interpretation of N-BEATS, with a simple interpretation of this phenomenon as overfitting in the inner loop of meta-learning. It is not clear otherwise how to explain the generalization dynamics in Fig. 1.

Additionally, the performance improvement due to meta-learning alone (shared weights, multiple blocks vs. a single block) is 12.60 to 12.44 (1.2%) and 20.40 to 18.82 (7.8%) for M3 and tourism, respectively (see Fig. 1). The performance improvement due to meta-learning and unique weights (unique weights, multiple blocks vs. a single block) is 12.60 to 12.40 (1.6%) and 20.40 to 18.91 (7.4%). Clearly, the majority of the gain is due to the meta-learning alone. The introduction of unique block weights sometimes results in marginal gain, but often leads to a loss (see more results in Appendix F). This has a clear implication for reducing the memory footprint of neural networks.

It is interesting to make a note about the scale of the improvement. On the tourism dataset (see Fig. 1, right), the zero-shot error of 1 block ( 20.40) is a little bit better than that of the out-of-the-box models ETS and Theta ( 20.88). As the number of blocks grows, the error drops to a of 18.80, outperforming the statistical method of LeeCBaker (tourism competition winner, hand-crafted specifically for tourism (Athanasopoulos et al., 2011)). For the M3 target dataset (see Fig. 1, left) we can see the generalization performance with one N-BEATS block ( 12.60) is a bit better than the best known statistical model (EXP method, 12.71). Increasing the number of blocks closes the generalization gap between the zero-shot performance ( 12.40) and the regular N-BEATS trained on M3 ( 12.37).

In this section, we presented empirical evidence that neural networks are able to provide high-quality zero-shot forecasts on unseen TS. We further empirically supported the hypothesis that meta-learning adaptation mechanisms identified within N-BEATS in Section 3 are instrumental in achieving impressive zero-shot forecasting accuracy results. Our results provide positive evidence to stimulate research on (i) addressing the cold start problem in neural TS forecasting and (ii) designing memory-efficient neural networks.

6 Related Work

From a high-level perspective, there are many links with classical TS modeling: a human-specified classical model is typically designed to generalize well on unseen TS, while we propose to automate that process. The classical models include exponential smoothing with and without seasonal effects (Holt, 1957, 2004; Winters, 1960), multi-trace exponential smoothing approaches, e.g. Theta and its variants (Assimakopoulos and Nikolopoulos, 2000; Fiorucci et al., 2016; Spiliotis et al., 2019). Finally, the state space modeling approach encapsulates most of the above in addition to auto-ARIMA and GARCH (Engle, 1982) (see Hyndman and Khandakar (2008) for an overview). The state-space approach has also been underlying significant amounts of research in the neural TS modeling (Salinas et al., 2019; Wang et al., 2019; Rangapuram et al., 2018). However, those models have not been considered in the zero-shot scenario. In this work we focus on studying the importance of meta-learning for successful zero-shot forecasting. The foundations of meta-learning have been developed by Schmidhuber (1987); Bengio et al. (1991). More recently, meta-learning research has been expanding, mostly outside of the TS forecasting domain (Ravi and Larochelle, 2016; Finn et al., 2017; Snell et al., 2017; Vinyals et al., 2016; Rusu et al., 2019). In the TS domain, meta-learning has manifested itself via neural models trained over a collection of TS (Smyl, 2020; Oreshkin et al., 2020) or via a model trained to predict weights combining outputs of several classical forecasting algorithms (Montero-Manso et al., 2020). Successful application of a neural TS forecasting model trained on a source dataset and fine-tuned on the target dataset was demonstrated by Hooshmand and Sharma (2019); Ribeiro et al. (2018) as well as in the context of TS classification by Fawaz et al. (2018). Unlike those, we focus on the zero-shot scenario and address the cold start problem.

7 Conclusions

Zero-shot transfer learning. We propose a broad meta-learning framework and explain meta-learning mechanisms facilitating zero-shot forecasting. Our results show that neural networks are able to extract generic knowledge about forecasting and apply it to solve zero-shot forecasting problem. Residual architectures in general are covered by the analysis presented in Section 3. The results of this study may thus be applicable to explain some of the success of residual architectures. The extensions to validate this hypothesis are subject to future work. Memory efficiency.

Our analysis clearly suggests that the network is producing, on-the-fly, compact task-specific parameters via residual connections. This makes sharing weights across residual blocks effective, resulting in neural networks with reduced memory footprint and comparable statistical performance.
