Message-Passing Algorithms for Channel Estimation and Decoding Using Approximate Inference

by   Mihai-Alin Badiu, et al.

We design iterative receiver schemes for a generic wireless communication system by treating channel estimation and information decoding as an inference problem in graphical models. We introduce a recently proposed inference framework that combines belief propagation (BP) and the mean field (MF) approximation and includes these algorithms as special cases. We also show that the expectation propagation and expectation maximization algorithms can be embedded in the BP-MF framework with slight modifications. By applying the considered inference algorithms to our probabilistic model, we derive four different message-passing receiver schemes. Our numerical evaluation demonstrates that the receiver based on the BP-MF framework and its variant based on BP-EM yield the best compromise between performance, computational complexity and numerical stability among all candidate algorithms.


page 1

page 2

page 3

page 4


Probabilistic Receiver Architecture Combining BP, MF, and EP for Multi-Signal Detection

Receiver algorithms which combine belief propagation (BP) with the mean ...

Structured Message Passing

In this paper, we present structured message passing (SMP), a unifying f...

Variational Algorithms for Marginal MAP

Marginal MAP problems are notoriously difficult tasks for graphical mode...

Deep learning via message passing algorithms based on belief propagation

Message-passing algorithms based on the Belief Propagation (BP) equation...

Approximate Inference for Stochastic Planning in Factored Spaces

Stochastic planning can be reduced to probabilistic inference in large d...

Expectation Consistent Approximate Inference: Generalizations and Convergence

Approximations of loopy belief propagation, including expectation propag...

Joint Channel Estimation, Activity Detection and Decoding using Dynamic Message-Scheduling for Machine-Type Communications

In this work, we present a joint channel estimation, activity detection ...

I Introduction

The design of advanced receiver algorithms is crucial to meet the stringent requirements of modern communication systems. Motivated by the successful application of the “turbo” principle in the decoding of channel codes, a large number of works have been devoted to the design of turbo receivers (see [1]

and the references therein). While in many of these works the receiver modules are individually designed and heuristically interconnected to exchange soft values, iterative receiver algorithms can be rigourously designed and better understood as instances of message-passing inference techniques (e.g., see


In this context, variational Bayesian inference in probabilistic models

[3] have proven to be a very useful tool to design receivers where tasks like channel estimation, detection and decoding are jointly derived. Among the variational techniques, belief propagation (BP) [4, 5] has found the most widespread use. Originally applied to the decoding of channel codes, BP has been shown to be especially efficient in discrete probabilistic models. An alternative to BP is the mean field (MF) approximation and its message-passing counterpart, usually referred to as variational message-passing [6]

. MF inference has been successfully applied to continuous probabilistic models involving probability density functions (pdfs) belonging to an exponential family, in which BP suffers from numerical intractability. Other notable examples of general-purpose inference techniques are expectation-maximization (EM)

[7] and expectation propagation (EP) [8]. EM is a special case of MF, where the approximate pdfs – referred to as beliefs – are Dirac delta functions; EP can be seen as an approximation of BP where some beliefs are approximated by pdfs in a specific exponential family. Some attempts to find a unified framework encompassing all these techniques include the -divergence interpretation in [9] and the region-based free energy approximations in [10]. Following the latter approach, a novel hybrid message-passing inference framework combining BP and the MF approximation was recently proposed in [11].

In this paper, we investigate the design of receivers that perform joint channel estimation and data decoding in a generic communication system. For this purpose, we capitalize on the combined inference framework [11]

, which provides some degree of freedom in the choice of the parts of the factor graph in which either BP or MF is applied. We show that this framework can be modified to naturally embed EP, EM and BP with Gaussian approximation of some messages. Then, we apply these hybrid inference techniques to the underlying probabilistic model of the system and obtain four receiver algorithms, whose performance we assess by simulating a wireless system.

Notation: we denote by the cardinality of a finite set ; the relative complement of in is written as ; the set is denoted by

. Boldface lowercase and uppercase letters are used to represent vectors and matrices, respectively; superscripts

and denote transposition and Hermitian transposition, respectively. The Hadamard product of two vectors is denoted by . For a vector , we write ; for a matrix , denotes its th entry, is the matrix with the th row and th column deleted, denotes the column vector , and is the row vector

. The pdf of a multivariate complex Gaussian distribution with mean

and covariance matrix is denoted by . We write when for some positive constant . We denote by the approximation of the pdf in the argument with a Gaussian pdf with the same mean and covariance matrix. The Dirac delta function is denoted by .

Ii Message-Passing Inference Algorithms

We begin by concisely describing the unified message-passing algorithm that combines the BP and MF approaches (refer to [11]). Then, we briefly show how other widespread inference algorithms can be obtained as particular instances or slight modifications of the unified framework.

Let be an arbitrary pdf of a random vector which factorizes as


where is the vector of all variables that are arguments of the function .We have grouped the factors into two sets that partition : and . The factorization in (1) can be visualized in a factor graph [4] representation. We define to be the set of indices of all variables that are arguments of function ; similarly, denotes the set of indices of all functions that depend on . The parts of the graph that correspond to and to are referred to as “BP part” and “MF part”, respectively. We denote the variable nodes in the BP part by and those in the MF part by .

The combined BP-MF inference algorithm approximates the marginals , by auxiliary pdfs called beliefs. They are computed as [11]




where and are constants that ensure normalized beliefs.

Belief propagation is obtained as a particular case of BP-MF by setting , since in this case the expressions in (3) reduce to the BP message computations. Similarly, mean field is an instance of BP-MF when .

Expectation propagation is very similar to BP, the main difference being that it constrains the beliefs of some variables to be members of a specific exponential family. Assuming Gaussian approximations of the beliefs, EP can also be integrated in the BP-MF framework by modifying the messages


for all , .

The expectation-maximization algorithm is a special case of MF when the beliefs of some variables are constrained to be Dirac delta functions [11]. Again, we include this approximation in the BP-MF framework. This leads to for all and , where maximizes the unconstrained belief (2). We refer to this modified algorithm as BP-EM.

Iii Probabilistic System Model

In this section, we present the signal model of our inference problem and its graphical representation. These will establish the baseline for the derivation of message-passing receivers.

We analyze a system consisting of one transmitter and one receiver. A message represented by a vector of information bits is conveyed by sending data and pilot channel symbols having the sets of indices and , respectively, such that and . Specifically, vector is encoded and interleaved using a rate channel code and a random interleaver into the vector of length . For each , the subvector is mapped to a data symbol with , where is a discrete complex modulation alphabet of size . Symbols are multiplexed with pilot symbols , which are randomly selected from a QPSK modulation alphabet. Finally, the aggregate vector of channel symbols is sent through a channel with the following input-output relationship:


The vector contains the received signal samples, is the vector of channel coefficients, and contains the samples of additive noise and has the pdf for some positive component precision . Note that (5) can model any channel with a multiplicative effect that is not affected by inter-symbol interference, e.g., a time-varying frequency-flat channel or the equivalent channel in the frequency domain in a multicarrier system.

Based on the above signal model, we can state the probabilistic model which captures the dependencies between the system variables. The pdf of the collection of observed and unknown variables factorizes as


where and incorporate the observations in and are given by


is the prior pdf of the vector of channel coefficients for which we set


stand for the modulation mapping, accounts for the coding and interleaving operations and is the prior pmf of the th information bit. To obtain (6), we used the fact that is conditionally independent of and given , is independent of , and , the noise samples are i.i.d., and each data symbol is conditionally independent of all the other symbols given . The factorization in (6) can be visualized in the factor graph depicted in Fig. 1. The graph of the code and interleaver is not explicitly given, its structure being captured by .

fh[][] h1[][] V[][] hj[][] hn[][] fd1[][] fp[][] fdn[][] x1[][] xn[][] fm1[][] fmn[][] c1[][] c1L[][] cn1[][] cnL[][] fc[][] u1[][] uk[][] fu1[][] fuk[][]

Fig. 1: Factor graph representation of the pdf factorization in (6) with and .

Iv Message-Passing Receiver Schemes

In this section, we derive iterative receiver schemes by applying different inference algorithms to the factor graph in Fig. 1. The receiver has to infer the beliefs of the information bits using the observed vector and prior knowledge, i.e., the pilot symbols and their set of indices , the noise precision , the channel statistics in (9), the modulation mapping and the structure of the channel code and interleaver.

We set and (defined in Section II for a general probabilistic model) to be the sets of all factors and variables, respectively, contained in our probabilistic model. Next, we show that the BP algorithm resulting from setting yields messages of an intractable complexity. Assume that by running BP in the part of the graph containing the modulation and code constraints we obtain the messages


with , where represent extrinsic information on symbol . These messages are further passed as . Then, for each , compute the message


while for all set


Note that the message in (11) is proportional to a mixture of Gaussian pdfs with components. Then, after setting for all and for all , the message from to reads


Using (9), (11) and (12), the message in (13) becomes a Gaussian mixture with and components for and , respectively. Clearly, the computation of such messages is intractable and one has to use approximations.

Iv-a Algorithm based on BP combined with Gaussian approximation

Since the intractability of the messages occurs due to the Gaussian mixture in (11), we approximate those messages as proposed in [12], i.e., for each we set




In (15), we have defined the normalized amplitudes of the Gaussian mixture , where the constant ensures

. We also denote the mean and variance of the pdf in (

12) by and , , and we define the vector and the matrix with entries if and zero otherwise, for all .

Now, using (9) and (14), the message in (13) becomes




These messages are further passed as extrinsic values, i.e., . For each , the following message is then computed:

After passing the extrinsic messages , , , we apply the BP update rule to compute the probabilities of the coded and interleaved bits (which is equivalent to MAP demapping), followed by BP decoding to obtain the beliefs of the information bits.

Iv-B Algorithm based on expectation propagation

We set and . The message computed with (4) is proportional to a Gaussian pdf; consequently, the EP rule for reduces to the BP rule and outputs a Gaussian pdf as in (IV-A), since the operator is an identity operator for Gaussian arguments.

Specifically, using (3), (4), and then (11), (IV-A), we have

for each , where


and , as in (17). Using (4) again, we obtain



Unlike (15) in BP with Gaussian approximation, the values of and , , computed with (18) depend on all and , , , through (17). The parameters of are updated using (17) but with and computed as above. Note that all messages that depend on the channel coefficients need to be updated in a sequential manner. The rest of the messages are computed as in Section IV-A.

Iv-C Algorithm based on the combined BP-MF framework

The factor graph is split into the MF and BP parts by setting and . Such a splitting yields tractable and simple messages, takes advantage of the fact that BP works well with hard constraints and best exploits the correlation between the channel coefficients for the graphical representation in Fig. 1111Alternatively, the same level of exploitation of the correlation is obtained by representing the channel variables as a single vector variable and “moving” factor node to the MF part [11]..

Assuming we have obtained the messages (their expression will be given later), we can compute


with the definition and .

The messages are sent to the BP part and hence are extrinsic values. When computing we get the same expression as (IV-A), with the parameters (17). Unlike in the previous algorithms, the following messages are beliefs, i.e., a posteriori probabilities (APP):



Then, for all , we compute


and we pass to the modulation and coding part of the graph as extrinsic values, for all . After running BP, we obtain (10) and then pass the following APP values back to the MF part:

Iv-D Algorithm based on BP-EM

We now apply EM for channel estimation, so we constrain from the previous BP-MF scheme to be Dirac delta functions. The resulting messages are the same as in the previous subsection, except for with computed as in (19). Note that this algorithm uses only point estimates of the channel weights; however, its complexity is basically still the same, since the computation of (19) actually includes the computation of the corresponding variance.

Iv-E Scheduling of message computations

All algorithms employ the same message-passing scheduling: they start by sending messages corresponding to pilots and by initializing ; messages (computed according to the corresponding algorithm) are passed on up to the information bit variables – this completes the first iteration; each following iteration consists in passing messages up to the channel prior factor node and back; messages are passed back and forth until a predefined number of iterations is reached. All algorithms end by taking hard decisions on the beliefs of the information bits.

V Simulation Results

We consider a wireless OFDM system with the parameters given in Table I, and we evaluate by means of Monte Carlo simulations the bit error rate (BER) performance of the receiver algorithms derived in Section IV. We employ as a reference a scheme which has perfect channel state information (CSI), i.e., it has prior knowledge of the vector of channel coefficients .

We encountered numerical problems with the EP-based scheme due to the instability of EP in general, so we used the heuristic approach [9] to damp the updates of the beliefs with a step-size . Also, the EP-based scheme has higher computational complexity than the others due to its message definition – it requires multiplication of a Gaussian pdf with a mixture of Gaussian pdfs, the approximation and division of Gaussian pdfs – and to the sequentiality of the message updates for the channel coefficients222For the other receiver schemes, it can be shown that the parameters of all messages with can be computed jointly and with a lower complexity..

Results in terms of BER versus signal-to-noise ratio (SNR) are given in Fig. 2, while the convergence of the BER with the number of iterations is illustrated in Fig. 3. The receivers based on EP, combined BP-MF and BP-EM exhibit similar performance. They significantly outperform the receiver employing BP with Gaussian approximation. Note that even with a high pilot spacing the performance of the former algorithms is close to that of the receiver having perfect CSI. These three algorithms converge in about 10–12 iterations, while BP with Gaussian approximation converges a little faster, but to a higher BER value. Other results not presented here show that for a higher pilot density the algorithms converge faster, as expected.

Note that the results for the (essentially equally-complex) BP-EM and BP-MF receivers are nearly identical, even if the former discards the soft information in channel estimation. We noticed during our evaluations that even at low SNR values, so our explanation would be that accounting for in the BP-MF receiver does not have a noticeable impact on the detection (20).

Parameter Value
Subcarrier spacing
Number of active subcarriers
Number of evenly spaced pilot symbols
Pilot spacing
Modulation scheme for data symbols
Convolutional channel code
Multipath channel model 3GPP ETU
Coherence bandwidth of the channel
TABLE I: Parameters of the wireless OFDM system

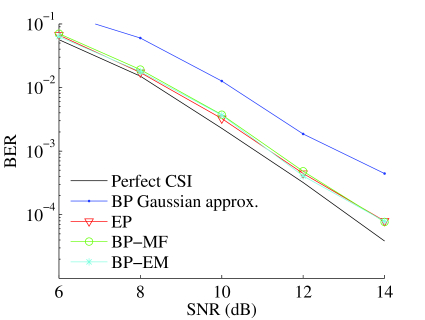

Fig. 2: BER vs. SNR performance of the receiver algorithms for a number of pilot symbols , corresponding to a high pilot spacing .

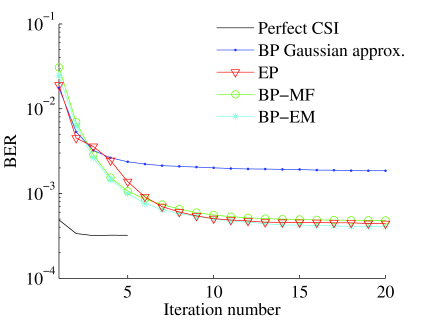

Fig. 3: Convergence of the BER performance from Fig. 2 at .

Vi Conclusions

We formulated the problem of joint channel estimation and decoding in a communication system as inference in a graphical model. To solve the inference problem, we resorted to a recently proposed message-passing framework that unifies the BP and MF algorithms and includes them as particular instances. Additionally, we illustrated how the combined framework can encompass the EP and EM inference algorithms.

Based on the inference techniques considered, we derived four receiver algorithms. Since BP is not suitable for the studied problem, as it leads to intractable messages, we applied its variant which employs Gaussian approximation of the computationally cumbersome messages instead. However, our results showed that it performs significantly worse than the other proposed schemes. Considering the BER results, the computational complexity and stability of these schemes, we conclude that the receiver based on the combined BP-MF framework and its BP-EM variant are the most effective receiver algorithms.
