Memory Efficient Mutual Information-Maximizing Quantized Min-Sum Decoding for Rate-Compatible LDPC Codes

by   Peng Kang, et al.

In this letter, we propose a two-stage design method to construct memory efficient mutual information-maximizing quantized min-sum (MIM-QMS) decoder for rate-compatible low-density parity-check (LDPC) codes. We first develop a modified density evolution to design a unique set of lookup tables (LUTs) that can be used for rate-compatible LDPC codes. The constructed LUTs are optimized based on their discrepancy values and a merge function to reduce the memory requirement. Numerical results show that the proposed rate-compatible MIM-QMS decoder can reduce the memory requirement for decoding by up to 94.92 to the benchmark rate-compatible LUT-based decoder with generally faster convergence speed. In addition, the proposed decoder can approach the performance of the floating-pointing belief propagation decoder within 0.15 dB.



page 1

page 2

page 3

page 4

page 5


Mutual Information-Maximizing Quantized Belief Propagation Decoding of LDPC Codes

A severe problem for mutual information-maximizing lookup table (MIM-LUT...

Information Bottleneck Decoding of Rate-Compatible 5G-LDPC Codes

The new 5G communications standard increases data rates and supports low...

Energy Optimization of Faulty Quantized Min-Sum LDPC Decoders

The objective of this paper is to minimize the energy consumption of a q...

Performance Bounds and Estimates for Quantized LDPC Decoders

The performance of low-density parity-check (LDPC) codes at high signal-...

Noisy Density Evolution With Asymmetric Deviation Models

This paper considers low-density parity-check (LDPC) decoders affected b...

A 594 Gbps LDPC Decoder Based on Finite-Alphabet Message Passing

An ultra-high throughput low-density parity check (LDPC) decoder with an...

Optimization of Bit Mapping and Quantized Decoding for Off-the-Shelf Protograph LDPC Codes with Application to IEEE 802.3ca

Protograph-based, off-the-shelf low-density parity-check (LDPC) codes ar...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Low-density parity-check (LDPC) codes [1] have been widely applied to many practical applications, such as wireless communication and data storage systems [2, 3, 4], for their powerful error correction capability under iterative message passing decoding [5]. Many decoding algorithms have been developed for the LDPC codes to achieve a good trade-off between the performance and decoding complexity [6, 7].

Recently, lookup table (LUT)-based decoders [8, 9, 10, 11, 12, 13, 14] drew considerable attention due to their simple table lookup operations and excellent error performance with coarse quantization. Specifically, the LUT-based decoder in [8] is designed based on the density evolution (DE) [5]

, which aims at minimizing the asymptotic error probability. As an alternative, the LUT-based decoders in

[9, 10, 11, 12, 13, 14] focus on maximizing the mutual information between the coded bits and the extrinsic messages. In [9, 10, 11], several sets of LUTs need to be constructed respectively to update the nodes with different degrees at each iteration. This causes a large memory requirement for storing the LUTs when the node degree or the decoding iteration becomes large. To reduce the memory usage, the mutual-information-maximizing quantized min-sum (MIM-QMS) decoder was proposed in [14], which utilizes the integer additions and one set of LUTs to update all nodes with different degrees.

On the other hand, many practical communication and data storage systems prefer to adopt the rate-compatible codes instead of the fixed-rate codes, e.g., [3, 4, 15]. This is because the rate-compatible LDPC codes can improve the system reliability more efficiently by adapting different code rates according to the channel conditions [3]. However, most of the LUT-based decoders e.g., [10] and [14], are designed for an LDPC code with a particular code rate, which is not capable of supporting rate-compatibility. Although the rate-compatible LUT-based decoder in [11] is able to reuse the LUTs of several LDPC codes across different code rates, it suffers from performance loss, which increases with the number of reused LUTs due to the mismatch problem. Moreover, there are a large number of intermediate LUTs required for the decoding process in [9, 10, 11], which vary with both node degrees and iterations. Obviously, this increases the memory requirement for hardware implementation.

In this letter, we aim at designing a memory efficient MIM-QMS decoder for the rate-compatible LDPC codes. To this end, we propose a two-stage design method for the construction of the LUTs. In particular, we modify the MIM-DE presented in [14] by considering the joint degree distributions of all target LDPC codes rather than their individual degree distributions. Compared to the LUTs designed in [10] and [14], this allows us to construct a unique set of iteration-varying LUTs used for various code rates. We further propose a metric, named as the discrepancy value, and a merge function to optimize the constructed LUTs with similar entries. Instead of minimizing the degradation of asymptotic performance for reducing the memory variation as in [10], our proposed LUT optimization method focuses on maximizing the mutual information between the coded bit and the extrinsic messages. We demonstrate that the proposed MIM-QMS decoder can save the memory requirement by up to compared to the rate-compatible LUT-based decoder [11] with faster convergence speed in the moderate-to-high signal-to-noise (SNR) region. Moreover, it shows only minor performance degradation compared to the MIM-QMS decoders designed for fixed-rate codes, and also approaches the performance of the floating-pointing belief propagation (BP) decoder.

Ii Preliminaries

Ii-a Notations

In this letter, calligraphy capitals are used to define an alphabet set. Normal capitals denote the random variables. Lower-case letters denote the realization of a random variable. Boldface letters are used to define a vector.

Ii-B The MIM-QMS decoder

Consider a (, ) MIM-QMS decoder [14], where is the precision of the exchanged messages between check nodes (CNs) and variable nodes (VNs), and is the precision of a posteriori probability (APP) messages. Note that we set to avoid clipping because the APP messages are generally larger than the exchanged messages. During the decoding iterations, the MIM-QMS decoder processes the messages belonging to certain alphabet sets. Define as the alphabet set of the channel output, where is the cardinality of the set. Denote the alphabets of variable-to-check (V2C) and check-to-variable (C2V) messages by and , respectively. In this letter, we consider . As depicted in Fig. 1, the MIM-QMS decoder performs reconstruction, calculation, and quantization steps for decoding, which can be described correspondingly by three types of functions:

Fig. 1: The framework of the MIM-QMS decoder.

Ii-B1 Reconstruction

The reconstruction function maps a -bit message to a specific number in the integer domain . We denote the reconstruction functions of the channel output and the C2V message by and , respectively.

Ii-B2 Calculation

The computing function for the CN update takes the -bit V2C messages as the input, and outputs the -bit C2V messages based on the cluster MS algorithm [10]. For the VN update, the computing function takes the -bit channel output with all other -bit reconstructed C2V messages to calculate the V2C messages with -bit precision.

Ii-B3 Quantization

The quantization function quantizes a -bit V2C message into a -bit message based on a threshold set denoting by . Here the threshold set is determined by the dynamic programming [16] aiming to maximize the mutual information between the coded bit and the V2C message.

Given a discretized binary-input additive white Gaussian noise channel (AWGNC) with the noise standard deviation

and the degree distributions of an LDPC code with a specific code rate, the MIM density evolution (MIM-DE) is used in [14] to construct the LUTs associated to the reconstruction functions and the threshold set by tracking the evolution of the probability mass functions (pmfs) at each iteration. Note that is known as the design noise standard deviation, which is carefully selected to maximize the mutual information between the coded bit and the V2C message for a preset maximum decoding iteration.

Iii Design of memory efficient MIM-QMS decoders for Rate-compatible LDPC codes

In [9, 10, 12] and [14], the LUT-based decoders and the MIM-QMS decoders are designed for an LDPC code with a fixed code rate. We refer to these decoders as the rate-specific decoders. When different LDPC codes are adopted by the system, these rate-specific decoders such as [10] and [14] need to store multiple sets of LUTs corresponding to different LDPC codes for decoding. This increases the memory demand for hardware implementation. In this section, we propose a two-stage design method to construct a unique set of LUTs for the MIM-QMS decoder, which can be used for decoding rate-compatible LDPC codes with significantly reduced memory requirement.

Iii-a Stage 1: LUT Design Based on the Modified MIM-DE

In [14], the MIM-QMS decoders are designed by using the MIM-DE based on the degree distributions of one target LDPC code. To construct the MIM-QMS decoder for rate-compatible LDPC codes, we first propose a modified MIM-DE, which considers the degree distributions of all target LDPC codes simultaneously. Denoting the sets of the CN and VN degrees of target LDPC codes by and , we have


where and refer to the sets of the CN and VN degrees of the -th LDPC code, respectively. Define the joint degree distributions as


where and are the fractions of edges incident to the CNs with degree- and the VNs with degree-, respectively, by considering the Tanner graphs [17] of all target LDPC codes. We denote the random variable for the coded bit by , which takes values from . Denote the random variable for the channel output by , and the random variable for the V2C (resp. C2V) message by (resp. ). Define as the pmf of channel output conditioned on the coded bit . Define and as the pmfs of the V2C message and the C2V message conditioned on the coded bit , respectively.

Fig. 2: The framework of the MIM-QMS decoder for decoding the rate-compatible LDPC codes.

As illustrated by Fig. 2

, for the CN update, the V2C messages are classified into

alphabet sets correspondingly to different CN degrees. The modified MIM-DE aims to compute the conditional pmf based on the joint CN degree distribution. Denote the vector of V2C messages sent to a degree- () CN by . Define as a realization of . According to the independent and identical distribution (i.i.d) assumption [5], the joint pmf at a degree- CN is given by


where is a realization of , and is the vector of coded bits associated to the neighboring VNs. Here means the checksum of the CN is satisfied. Denote a realization of the C2V message by . For each incoming realization , the computing function calculates the corresponding output by performing the MS operation [10]. Considering all possible values for each CN alphabet set and the fraction in (2), the V2C messages in each CN alphabet set contribute to the output C2V messages with probability . Therefore, we obtain


where is given by [14, Eq. (16)]


Here maps the V2C messages in correspondingly to an integer set , and operates as the inverse function of .

For the VN update, as shown by Fig. 2, the C2V messages are characterized by alphabet sets corresponding to different VN degrees. The modified MIM-DE calculates the conditional pmf based on the joint VN degree distribution. Denote the vector of the C2V messages and the channel output at a degree- () VN by . Define as a realization of . The joint pmf at a degree- VN can be computed by


Define as the alphabet set of the -bit V2C message calculated by the computing function for the VN update, where is the random variable for the -bit V2C message. Let be the pmf of conditioned on the coded bit . According to the fraction in (2), the C2V messages in each VN alphabet set contribute to the output V2C messages with probability so that we have


for a realization of . Note that the computing function is given by [14, Eq. (4)]


By taking and as inputs, we perform the dynamic programming (DP) [16] to obtain the threshold set for the VN update, and the conditional pmf of the V2C message . We refer to the DP operation, which can be described as


In addition, the threshold set for bit decision, denoted by with , also needs to be designed for each iteration, which is obtained similarly to by considering .

Iii-B Stage 2: LUT Optimization

In general, the LUT constructed by the modified MIM-DE is assumed to result in distinct LUTs for different iterations, i.e., the reconstruction functions and the threshold sets vary with iterations. Apparently, storing these iteration-varying LUTs increases the memory requirement. We notice that the LUTs corresponding to the same reconstruction function or threshold set has similar entries for certain consecutive iterations. This is because the pmfs computed by the modified MIM-DE hardly change during these iterations. A similar phenomenon is also observed in [5] for the conventional DE. Motivated by this observation, we propose an LUT optimization method in this section, which reuses one optimized LUT for different consecutive iterations to reduce the memory requirement.

Consider an LUT for either the reconstruction function or the threshold set at the -th iteration, which can be represented by a vector . Here is the total number of entries in the LUT, which is determined by the bit precision . More specifically, we have for the reconstruction function, and for the threshold set. For a preset maximum number of iterations , we define the discrepancy of two LUTs as


where . A smaller value of the discrepancy means the two LUTs have corresponding entries similar to each other, and vice versa. For the LUTs associated to the decoding iterations, we first divide them into groups. Define as the set of iteration indices associated to the LUTs in the -th () group. For all LUTs with , we define a merge function


which computes the optimized LUT by averaging the vectors . We denote the obtained LUT by and reuse it for any iteration .


Algorithm 1 LUT Optimization Process
0:  , , for
0:  Optimized LUTs for
1:  ,
2:  while  do
3:     Compute by (10)
4:     if  then
5:         , go to step 3
6:     else
7:         Set ,
8:         for  do
9:            if  then
11:            else
12:               ,
13:            end if
14:         end for
15:         Update based on (11) for
16:         Run the modified MIM-DE with
17:         Compute the mutual information at
18:         if  and  then
21:         end if
23:     end if
24:  end while

Note that returns the closest integer to each element of the vector . We denote the LUT optimized for the -th group by , which is reused for all iterations . To arrange the LUTs in the -th group, we conduct greedy search by consecutive iterations based on a discrepancy threshold denoted by . In this letter, is determined by performing exhaustive search among discrepancy values. We denote the discrepancy value for the -th search by for . More specifically, we first consider as the discrepancy threshold to update for the -th group. After that, we run the modified MIM-DE with and compute the mutual information between the coded bit and the V2C message at denoted by . Given the target mutual information value , the optimal discrepancy threshold is selected as the maximum discrepancy value to achieve , where is set to a value approaching 1. The optimization process is summarized in Algorithm 1.

Iii-C Remarks

Different from [9, 10, 11, 12, 13, 14], the joint degree distribution considered by the modified MIM-DE is not specific for a target LDPC code. This causes the performance degradation for the rate-compatible MIM-QMS decoders compared to their rate-specific counterparts. However, the performance loss can be reduced by carefully selecting the target LDPC codes in the LUT design. We quantify

equivalently by the corresponding design signal-to-noise ratio (SNR)

, where is the code rate of the LDPC code. According to extensive simulation results, the difference of between any two target LDPC codes is limited up to dB in this letter for a desirable performance. It is an open problem that whether there exists a systematic way to select the target LDPC codes for acceptable deterioration in performance.

Iv Simulation Results

In this section, we evaluate the frame error rate (FER) performance of the proposed rate-compatible MIM-QMS decoder via Monte-Carlo simulations. We also investigate the decoding latency aspects and evaluate the memory requirement of the rate-compatible MIM-QMS decoders.

Degree distributions () Rate-specific Rate-compatible
TABLE I: Degree Distributions and Noise Standard Deviation for the MIM-QMS Decoders

Iv-a FER Performance

Assume that binary LDPC codewords are modulated by binary phase-shift keying (BPSK) and transmitted over the AWGNC. We denote the floating-point precision by “”. For comparison, we include the FER performance of the (, ) rate-specific MIM-QMS decoders [14], the 4-bit rate-compatible LUT-based decoder in [11], the 4-bit normalized min-sum (NMS) decoder [6], and the BP() decoder. Note that the LUT-based decoder is designed based on the MIM quantization by using the dynamic programming [16] 111Here we consider the dynamic programming instead of the information bottleneck method in [11] to realize the MIM quantization because the dynamic programming is proved to be optimal to maximize the mutual information [16], and the scaling factor of the NMS decoder is optimized as . The degree distributions of the simulated LDPC codes and the design noise standard deviation for the associated MIM-QMS decoders are given in TABLE I. We set for all decoders.

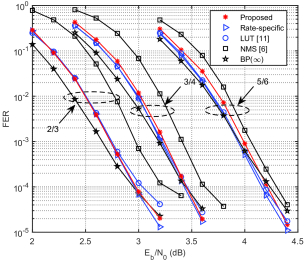

Fig. 3: FER performance of the length- IEEE 802.11n LDPC codes [18] with = , and .

Fig. 3 depicts the FER performance of the length- IEEE 802.11n LDPC codes [18] with code rates = , and , respectively. We can see that our proposed rate-compatible MIM-QMS decoders achieve almost the same FER performance compared to the rate-specific MIM-QMS decoders for each code rate. Note that the performance gap between the rate-compatible MIM-QMS decoder and its rate-specific counterparts becomes larger with the increase of the code rates. This is because the rate-compatible MIM-QMS decoder is designed based on the joint degree distributions with respect to all target LDPC codes, which considers a larger portion of the VNs with low degrees for higher code rates compared to the rate-specific design. These low-degree VNs yield a slower convergence speed. Therefore, the mismatched VN degree distribution between the decoding and the LUT design leads to slightly more degradation in performance for higher code rates. Moreover, the rate-compatible MIM-QMS decoder achieves the FER performance close to the LUT-based decoder [11], and even outperforms the LUT-based decoder by about dB in the high SNR region for = . In addition, the rate-compatible MIM-QMS decoder surpasses the NMS decoder by up to dB, and approaches the performance of the BP() decoder within dB for all code rates. Note that the BP() decoder shows worse FER performance than the rate-compatible MIM-QMS decoders in the high SNR region. This is due to the existing of the degree-2 VNs in the code graph of the IEEE 802.11n LDPC codes. The cycles confined among these degree-2 VNs become low-weight codewords, which are the most detrimental objects for floating-point decoders [19].

Iv-B Decoding Latency Analysis

To evaluate the decoding latency of the proposed rate-compatible MIM-QMS decoder, we first compare the convergence speed of different decoders in Section IV-A. Denote the average number of iterations required for decoding one codeword by . TABLE II compares with respect to . We can see that the rate-compatible MIM-QMS decoder requires the least for most of the simulated SNRs for each code rate.

(dB) 2 2.2 2.4 2.6 2.8 3 3.2
Proposed 19.2 13.99 10.61 8.36 6.94 5.96 5.24
Rate-specific 19.25 14.33 11.23 9.15 7.78 6.79 6.02
() LUT [11] 19.42 14.96 11.62 9.3 7.68 6.69 5.86
NMS [6] 27.1 21.88 16.03 10.87 7.93 6.33 5.34
(dB) 2.4 2.6 2.8 3 3.2 3.4 3.6
Proposed 20.59 14.68 10.63 7.79 6.16 5.16 4.46
Rate-specific 19.47 14.32 10.48 7.98 6.48 5.51 4.8
() LUT [11] 20.28 14.96 10.98 8.35 6.73 5.66 4.89
NMS [6] 26.97 22.3 15.7 10.28 7.09 5.42 4.48
(dB) 3.2 3.4 3.6 3.8 4 4.2 4.4
Proposed 16.16 10.46 7.34 5.31 4.22 3.54 3.06
Rate-specific 15.02 9.99 7.14 5.4 4.4 3.74 3.26
() LUT [11] 15.48 10.46 7.35 5.5 4.41 3.71 3.2
NMS [6] 20.64 14.39 9.12 5.82 4.24 3.42 2.88
TABLE II: Comparison of for Different LDPC Decoders

We also investigate the decoding time of the proposed rate-compatible MIM-QMS decoder at each iteration. Due to the MS operation adopted for all decoders in Section IV-A, the decoding time is of for the CN update per iteration. For the VN update of the NMS decoder [6], the decoding time is of for additions while the rate-compatible LUT-based decoder [11] needs time for table lookup operations due to the concatenating structure of LUTs. Compared to the LUT-based decoder, the rate-compatible MIM-QMS decoder adopts integer additions with , and processes the table lookup operations for the threshold set and reconstruction functions in parallel. This results in the decoding time of in total for the VN update per iteration. Since is small in general, the rate-compatible MIM-QMS decoder only has slightly increased decoding time compared to the NMS decoder, and achieves much less decoding time with respect to the LUT-based decoder.

Iv-C Comparison of Memory Requirement

To demonstrate the memory efficiency of the proposed rate-compatible MIM-QMS decoders, we compare the overall memory requirement of different quantized decoders in Section IV-A for the IEEE 802.11n LDPC codes [18] with = , and . We consider that the decoder implementations are based on digital signal processors or software defined radios such that LUTs are stored in memories [11]. Note that we classify the memory into either for arithmetic computations or for storing the LUTs. For the CN update, all quantized decoders require memory for storing the two C2V messages obtained by the min-sum operation at each CN. For the VN update, both MIM-QMS decoders and the NMS decoder need to save the APP messages computed by additions for each VN. Moreover, all MIM-QMS decoders and the rate-compatible LUT-based decoder [11] need memory to store the LUTs. Without loss of generality, the memory requirement of one LUT is given by bits, where refers to the bit precision of one entry in the LUT. According to [11], the LUTs of the LUT-based decoder have and there are and LUTs of size in total for the VN update and the bit decision at each iteration, respectively. The overall memory requirement for different 4-bit decoders with is summarized in TABLE III. We observe that the memory requirement for the proposed rate-compatible MIM-QMS decoder only increases by compared to the NMS decoder. More importantly, the rate-compatible MIM-QMS decoder can reduce the memory demand by and compared to its rate-specific counterparts and the LUT-based decoder, respectively.

Decoders Arithmetic LUTs Total
Proposed 0.42 kB 1.27 kB 0.14 kB 1.83 kB
Rate-specific 0.48 kB 0.59 kB 0.59 kB 3.35 kB
NMS [6] - 1.69 kB
LUT-based [11] - 35.63 kB 36.05 kB
TABLE III: The Overall Memory Requirement for Different 4-bit Decoders with

V Conclusion

In this paper, we proposed a two-stage design approach to construct the rate-compatible MIM-QMS decoder, which significantly reduces the memory requirement for decoding. More specifically, the proposed design method first adopts the modified MIM-DE to construct the LUTs used for different code rates. The constructed LUTs are further optimized based on a merge function and their discrepancy values for two adjacent iterations. We show that the proposed rate-compatible MIM-QMS decoder reduces the memory requirement for decoding by up to compared to the rate-compatible LUT-based decoder with faster convergence speed in the moderate-to-high SNR region. In addition, there is only minor performance loss compared to both the rate-specific MIM-QMS decoders and the floating-pointing BP decoder.


  • [1] R. G. Gallager, “Low-density parity-check codes,” IRE Trans. Inf. Theory, vol. 8, no. 1, pp. 21–28, Jan. 1962.
  • [2] D. Divsalar, S. Dolinar, C. R. Jones, and K. Andrews, “Capacity-approaching protograph codes,” IEEE J. Select. Areas Commun., vol. 27, no. 6, pp. 876–888, Aug. 2009.
  • [3] T. V. Nguyen, A. Nosratinia, and D. Divsalar, “The design of rate-compatible protograph LDPC codes,” IEEE Trans. Commun., vol. 60, no. 10, pp. 2841–2850, Oct. 2012.
  • [4] P. Chen, K. Cai, and S. Zheng, “Rate-adaptive protograph LDPC codes for multi-level-cell NAND flash memory,” IEEE Commun. Lett., vol. 22, no. 6, pp. 1112–1115, Jun. 2018.
  • [5] T. J. Richardson, M. A. Shokrollahi, and R. L. Urbanke, “Design of capacity-approaching irregular low-density parity-check codes,” IEEE Trans. Inf. Theory, vol. 47, no. 2, pp. 619–637, Feb. 2001.
  • [6] J. Chen, A. Dholakia, E. Eleftheriou, M. P. C. Fossorier, and Xiao-Yu Hu, “Reduced-complexity decoding of LDPC codes,” IEEE Trans. Commun., vol. 53, no. 8, pp. 1288–1299, Aug. 2005.
  • [7] P. Kang, Y. Xie, L. Yang, and J. Yuan, “Enhanced quasi-maximum likelihood decoding based on 2D modified min-sum algorithm for 5G LDPC codes,” IEEE Trans. Commun., vol. 68, no. 11, pp. 6669–6682, Nov. 2020.
  • [8] T. T. Nguyen-Ly, V. Savin, K. Le, D. Declercq, F. Ghaffari, and O. Boncalo, “Analysis and design of cost-effective, high-throughput LDPC decoders,” IEEE Trans. Very Large Scale Integr. (VLSI) Syst., vol. 26, no. 3, pp. 508–521, Mar. 2018.
  • [9] F. J. C. Romero and B. M. Kurkoski, “LDPC decoding mappings that maximize mutual information,” IEEE J. Select. Areas Commun., vol. 34, no. 9, pp. 2391–2401, Sep. 2016.
  • [10] M. Meidlinger, G. Matz, and A. Burg, “Design and decoding of irregular LDPC codes based on discrete message passing,” IEEE Trans. Commun., vol. 68, no. 3, pp. 1329–1343, Mar. 2020.
  • [11] M. Stark, L. Wang, G. Bauch, and R. D. Wesel, “Decoding rate-compatible 5G-LDPC codes with coarse quantization using the information bottleneck method,” IEEE Open J. Commun. Soc., vol. 1, pp. 646–660, May. 2020.
  • [12] L. Wang, R. D. Wesel, M. Stark, and G. Bauch, “A reconstruction-computation-quantization (RCQ) approach to node operations in LDPC decoding,” in Proc. IEEE Global Commun. Conf., Dec. 2020, pp. 1–6.
  • [13] X. He, K. Cai, and Z. Mei, “Mutual information-maximizing quantized belief propagation decoding of regular LDPC codes,” arXiv, Jul. 2020. [Online]. Available:
  • [14] P. Kang, K. Cai, X. He, and J. Yuan, “Generalized mutual information-maximizing quantized decoding of LDPC codes with layered scheduling,” arXiv, Jun. 2021. [Online]. Available:
  • [15] Z. Mei, K. Cai, and B. Dai, “Polar codes for spin-torque transfer magnetic random access memory,” IEEE Trans. on Magn., vol. 54, no. 11, pp. 1–5, Nov. 2018.
  • [16] X. He, K. Cai, W. Song, and Z. Mei, “Dynamic programming for sequential deterministic quantization of discrete memoryless channels,” IEEE Trans. Commun., vol. 69, no. 6, pp. 3638–3651, Jun. 2021.
  • [17] R. Tanner, “A recursive approach to low complexity codes,” IEEE Trans. Inf. Theory, vol. 27, no. 5, pp. 533–547, Sep. 1981.
  • [18] IEEE Standard for Information Technology—Telecommunications and Information Exchange Between Systems—Local and Metropolitan Area Networks-Specific Requirements— Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications, IEEE Std. 802.11n, Oct. 2009.
  • [19] T. Richardson, “Error floor of LDPC codes,” in Proc. 41st Annu. Allerton Conf. Commun., Control, Comput., Monticello, IL, Oct. 2003, pp. 1426–1435.
