MegDet: A Large Mini-Batch Object Detector

11/20/2017 ∙ by Chao Peng, et al. ∙ Megvii Technology Limited Tsinghua University 0

The improvements in recent CNN-based object detection works, from R-CNN [11] and Fast/Faster R-CNN [10, 29] to recent Mask R-CNN [14] and RetinaNet [22], mainly come from new network, or framework, or loss design. But mini-batch size, a key factor in the training, has not been well studied. In this paper, we propose a Large Mini-Batch Object Detector (MegDet) to enable the training with much larger mini-batch size than before (e.g. from 16 to 256), so that we can effectively utilize multiple GPUs (up to 128 in our experiments) to significantly shorten the training time. Technically, we suggest a learning rate policy and Cross- GPU Batch Normalization, which together allow us to suc- cessfully train a large mini-batch detector in much less time (e.g., from 33 hours to 4 hours), and achieve even better accuracy. The MegDet is the backbone of our submission (mmAP 52.5 place of Detection task.



There are no comments yet.


page 2

page 7

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

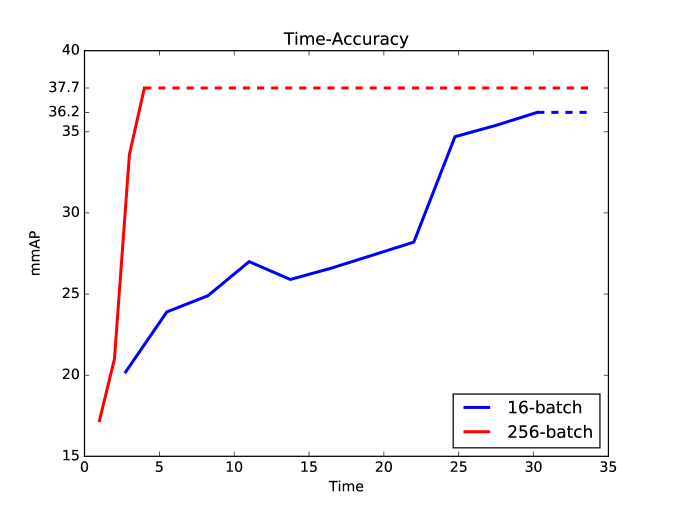

Figure 1: Validation accuracy of the same FPN object detector trained on COCO dataset, with mini-batch size 16 (on 8 GPUs) and mini-batch size 256 (on 128 GPUs). The large mini-batch detector is more accurate and its training is nearly an order-of-magnitude faster.

Tremendous progresses have been made on CNN-based object detection, since seminal work of R-CNN [11], Fast/Faster R-CNN series [10, 31], and recent state-of-the-art detectors like Mask R-CNN [14] and RetinaNet [24]. Taking COCO [25] dataset as an example, its performance has been boosted from AP in Fast R-CNN [10] to AP in RetinaNet [24], in just two years. The improvements are mainly due to better backbone network [16], new detection framework [31], novel loss design [24], improved pooling method [5, 14], and so on [19].

A recent trend on CNN-based image classification uses very large min-batch size to significantly speed up the training. For example, the training of ResNet-50 can be accomplished in an hour [13] or even in 31 minutes [39] , using mini-batch size 8,192 or 16,000, with little or small sacrifice on the accuracy. In contract, the mini-batch size remains very small (e.g., 2-16) in object detection literatures. Therefore in this paper, we study the problem of mini-batch size in object detection and present a technical solution to successfully train a large mini-batch size object detector.

What is wrong with the small mini-batch size? Originating from the object detector R-CNN series, a mini-batch involving only images is widely adopted in popular detectors like Faster R-CNN and R-FCN. Though in state-of-the-art detectors like RetinaNet and Mask R-CNN the mini-batch size is increased to , which is still quite small compared with the mini-batch size (e.g., 256) used in current image classification. There are several potential drawbacks associated with small mini-batch size. First, the training time is notoriously lengthy. For example, the training of ResNet-152 on COCO takes 3 days, using the mini-bath size 16 on a machine with 8 Titian XP GPUs. Second, training with small mini-batch size fails to provide accurate statistics for batch normalization [20]

(BN). In order to obtain a good batch normalization statistics, the mini-batch size for ImageNet classification network is usually set to 256, which is significantly larger than the mini-batch size used in current object detector setting.

Last but not the least, the number of positive and negative training examples within a small mini-batch are more likely imbalanced, which might hurt the final accuracy. Figure LABEL:fig:rois_example gives some examples with imbalanced positive and negative proposals. And Table 1

compares the statistics of two detectors with different mini-batch sizes, at different training epochs on COCO dataset.

What is the challenge to simply increase the min-batch size? As in the image classification problem, the main dilemma we are facing is: the large min-batch size usually requires a large learning rate to maintain the accuracy, according to “equivalent learning rate rule” [13, 21]. But a large learning rate in object detection could be very likely leading to the failure of convergence; if we use a smaller learning rate to ensure the convergence, an inferior results are often obtained.

To tackle the above dilemma, we propose a solution as follows. First, we present a new explanation of linear scaling rule and borrow the “warmup” learning rate policy [13] to gradually increase the learning rate at the very early stage. This ensures the convergence of training. Second, to address the accuracy and convergence issues, we introduce Cross-GPU Batch Normalization (CGBN) for better BN statistics. CGBN not only improves the accuracy but also makes the training much more stable. This is significant because we are able to safely enjoy the rapidly increased computational power from industry.

Our MegDet (ResNet-50 as backbone) can finish COCO training in  4 hours on 128 GPUs, reaching even higher accuracy. In contrast, the small mini-batch counterpart takes 33 hours with lower accuracy. This means that we can speed up the innovation cycle by nearly an order-of-magnitude with even better performance, as shown in Figure  1. Based on MegDet, we secured 1st place of COCO 2017 Detection Challenge.

Our technical contributions can be summarized as:

  • We give a new interpretation of linear scaling rule, in the context of object detection, based on an assumption of maintaining equivalent loss variance.

  • We are the first to train BN in the object detection framework. We demonstrate that our Cross-GPU Batch Normalization not only benefits the accuracy, but also makes the training easy to converge, especially for the large mini-batch size.

  • We are the first to finish the COCO training (based on ResNet-50) in 4 hours, using 128 GPUs, and achieving higher accuracy.

  • Our MegDet leads to the winning of COCO 2017 Detection Challenge.

Epoch Batch Size Ratio(%)
1 16 5.58
256 9.82
6 16 11.77
256 16.11
12 16 16.59
256 16.91
Table 1: Ratio of positive and negative samples in the training (at epoch 1, 6, 12). The larger mini-batch size makes the ratio more balanced, especially at the early stage.

2 Concluding Remarks

We have presented a large mini-batch size detector, which achieved better accuracy in much shorter time. This is remarkable because our research cycle has been greatly accelerated. As a result, we have obtained 1st place of COCO 2017 detection challenge. The details are in Appendix.


Based on our MegDet, we integrate the techniques including OHEM [35], atrous convolution [40, 2], stronger base models [38, 18], large kernel [28], segmentation supervision [27, 34], diverse network structure [12, 32, 36], contextual modules [22, 9], ROIAlign [14] and multi-scale training and testing for COCO 2017 Object Detection Challenge. We obtained 50.5 mmAP on validation set, and 50.6 mmAP on the test-dev. The ensemble of four detectors finally achieved 52.5. Table LABEL:tab:test_dev_on_coco summarizes the entries from the leaderboard of COCO 2017 Challenge. Figure LABEL:fig:det_fig_examples gives some exemplar results.
