I Introduction

The number of activities with a focus on the sustainability of research software has increased over the last few years. Its major exponents are the Software Sustainability Institute (software.ac.uk) (SSI), founded in 2010 in the UK, the international WSSSPE organization (wssspe.researchcomputing.org.uk) with its workshop series and working groups, and to a certain extent, the international community of Research Software Engineers (rse.ac.uk/community/international-rse-groups), which also originated in the UK. This trend is ongoing, as the planning for an institution similar to the SSI in the US, the US Research Software Sustainability Institute (URSSI, urssi.us), and the recent formation of the Better Scientific Software community (BSSw, bssw.io) show. Additionally, further entities are active in the research software sustainability space (“the space”), on different levels. These include, for example, working groups, special interest groups, and others, on local, institutional, or disciplinary levels.

All the above-mentioned entities conduct research on the sustainability of research software, and publish in different venues, e.g., through papers, blog posts, as well as talks and presentations at workshops and conferences. Their research feeds back into academic institutions and associations on the policy and education levels, and increasingly with regard to human resources. Their findings also inform educational activities such as the Carpentries (carpentries.org), which teaches foundational coding to researchers, including specialized communities, such as the high performance computing and digital humanities communities.

These efforts are not currently formally coordinated, and it is highly questionable whether formal—or even central—coordination is at all useful, desirable, or achievable. After all, the dynamic nature of, e.g., small working groups, workshops, and spontaneous events such as hack days are often more constructive and productive than larger, coordinated efforts. Nevertheless, the autonomy of activities bears the risk of unnecessary duplication of efforts, as well as neglect of specific areas of the space.

Ii Mapping the space

A comprehensive mapping of the research software sustainability space can help to reduce this risk and support further efforts. A first mapping was introduced by Katz [1] in a directed graph schematic, reproduced in Figure 1. This visualization lists important parties (nodes) and activities (edges) in the space.

Fig. 1: Reproduction of Katz’ original sustainability schematic [1, p. 3].

Fig. 2: Visualization of the formalized resosuma model of Katz’ sustainability schematic.

Based on this initial concept, a more comprehensive mapping can be built. Advances may include a disassembly of combined activities, a higher resolution and more precise definition of involved parties, as well as the addition of potentially missing agents.

Additionally, formalizing the mapping can make it useful for further processing and would benefit the community: It enables the classification of the different efforts in the space, based on the parties and activities they cover. This includes different possible formats, such as research outputs (papers, blog posts, talks), events, groups, and projects. Such a classification in turn enables the identification of gaps in community efforts via quantitative methods, e.g., publication and event analysis. These gaps can then be closed by initiating respective efforts, e.g., workshops and projects in these areas.

Ii-a Initial formalization

In a first step towards a formalization, we mapped Katz’ original sustainability schematic (Figure 1) to a resosuma CSV representation of activities [2]. In the process, activities that are combined in the schematic (i.e., edge labels that are lists of verbs), were disassembled, so that each verb (the action) has its own row, with its subject (the actor) in the cell to its left, and its object (the actee) in the cell to its right.

Figure 2 shows a visualization of the data, created with the resosuma[3] Python package.

Ii-B Refinement

In a second step, we have made some changes to the data to more comprehensively represent activities in the research software sustainability space, at a higher resolution [4]. The respective resosuma visualization is given in Figure 3. The changes included the following.

Differentiating the “People” node into “Research Software Engineers”, “Researchers” and “Educators” nodes, and defining related activities respectively. This differentiates between groups of roles that have distinct scopes of responsibilities within the space. While “Research Software Engineers” are active in producing and publishing research software and applying “Software Engineering Processes”, “Researchers” are active in using research software and publishing research products (but not research software), but have little direct stake in “Software Engineering Processes”. These two roles rely on different requirements to be fulfilled within the space. Similarly, “Educators”, including academic staff, Carpentry instructors, and training consultants, do not use research software in this role, but disseminate “Software Engineering Processes” for example.

Differentiating the “Publishers, repositories, indices” node into separate nodes, and defining related activities respectively. We split these parties over separate nodes because they play differing roles in the space. Additionally, we split “repositories” into “code platforms” and “archival repositories”. “Code platforms” serve the purpose of interacting with code, allow operations like forking, branching, and often provide further functionality for collaboration. Well-known examples include GitHub (github.com), GitLab (gitlab.com) and Bitbucket (bitbucket.org), but “Code platforms” may also include simpler version control system repositories. “Archival repositories” archive and publish versions of research products including software, but are usually not interactive. Examples include general purpose data repositories such as Zenodo (zenodo.org) or figshare (figshare.com), build artifact repositories such as The Central Repository (“Maven Central”, search.maven.org), the Python Package Index (PyPI, pypi.org), and others, e.g., preprint repositories such as arXiv.org (arxiv.org).

Differentiating the “Software” node into “Research software” and “Supporting software” nodes, and defining related activities respectively. While the differentiated nodes

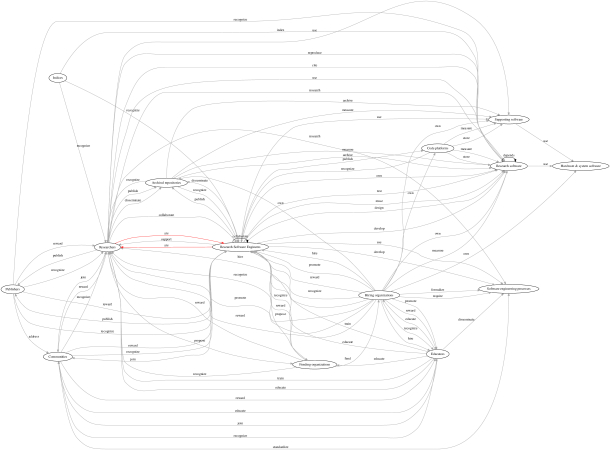

Fig. 3: Visualization of the refined resosuma model [4].

tableActivities modeled in [4].

max width= Actor Action Actee Actor Action Actee Research Software Engineers collaborate Research Software Engineers Code platforms measure Research software Research Software Engineers support Researchers Code platforms store Supporting software Research Software Engineers are Researchers Code platforms measure Supporting software Research Software Engineers publish Publishers Archival repositories recognize Research Software Engineers Research Software Engineers publish Code platforms Archival repositories recognize Researchers Research Software Engineers publish Archival repositories Archival repositories archive Research software Research Software Engineers disseminate Archival repositories Archival repositories measure Research software Research Software Engineers develop Research software Archival repositories archive Supporting software Research Software Engineers test Research software Archival repositories measure Supporting software Research Software Engineers design Research software Indices index Research software Research Software Engineers reuse Research software Indices recognize Research Software Engineers Research Software Engineers own Research software Indices recognize Researchers Research Software Engineers use Supporting software Research software depends Research software Research Software Engineers join Communities Research software use Hardware & system software Research Software Engineers propose Funding organizations Supporting software use Hardware & system software Research Software Engineers use Software engineering processes Communities recognize Research Software Engineers Research Software Engineers develop Software engineering processes Communities reward Research Software Engineers Researchers collaborate Research Software Engineers Communities recognize Researchers Researchers are Research Software Engineers Communities reward Researchers Researchers publish Publishers Communities recognize Educators Researchers publish Archival repositories Communities reward Educators Researchers disseminate Archival repositories Communities standardize Software engineering processes Researchers use Research software Funding organizations recognize Research Software Engineers Researchers reproduce Research software Funding organizations reward Research Software Engineers Researchers cite Research software Funding organizations recognize Researchers Researchers research Research software Funding organizations reward Researchers Researchers use Supporting software Funding organizations fund Hiring organizations Researchers join Communities Hiring organizations hire Research Software Engineers Researchers propose Funding organizations Hiring organizations promote Research Software Engineers Researchers research Software engineering processes Hiring organizations recognize Research Software Engineers Educators train Research Software Engineers Hiring organizations reward Research Software Engineers Educators educate Research Software Engineers Hiring organizations hire Researchers Educators train Researchers Hiring organizations promote Researchers Educators educate Researchers Hiring organizations recognize Researchers Educators educate Communities Hiring organizations reward Researchers Educators join Communities Hiring organizations hire Educators Educators educate Funding organizations Hiring organizations promote Educators Educators educate Hiring organizations Hiring organizations recognize Educators Educators disseminate Software engineering processes Hiring organizations reward Educators Publishers reward Research Software Engineers Hiring organizations own Code platforms Publishers recognize Research Software Engineers Hiring organizations own Archival repositories Publishers reward Researchers Hiring organizations own Research software Publishers recognize Researchers Hiring organizations measure Research software Publishers recognize Research software Hiring organizations own Supporting software Publishers address Communities Hiring organizations formalize Software engineering processes Code platforms recognize Research Software Engineers Hiring organizations require Software engineering processes Code platforms store Research software Hiring organizations own Hardware & system software

represent similar objects, the ways they are produced and used, and the ways they are referenced and rewarded differ remarkably. Additionally, research software is the defining entity at the core of the space, and “supporting software” can exist independently of it while potentially having a great effect on the space. “Supporting software” covers software that is used to create research software, including everything from editors and integrated development environments to version control system platforms.

The “Software Engineering Processes” node was left unchanged, but it should be noted that it includes a wide range of processes and practices, including best practices around metadata, citation, etc.

“are” has been introduced as a specific relation in the space, where “Research Software Engineers” and “Researchers” are nodes that may reference different roles for the same individual. As this relation is at the heart of some of the activities in the space, most notably the international RSE community, it should be explicitly included in the mapping.

Further activities were added. We established an “own” activity, for example, from “Research Software Engineers” to “Research Software” in addition to the one from “Hiring organizations” to “Research Software” to represent potential copyright of an RSE on their work (cf. [5]).

A visualization of the refined resosuma data is given in Table 3 and Figure 3. A more optimal visualization of this data would be an interactive, zoomable graph visualization in a web application.

Iii Future work

The data is openly maintained on GitHub (github.com/research-software/resosuma-data), and we propose that the community should collaborate to

  1. complete it to create iterative releases which reflect state changes in the research software sustainability space; and

  2. build a classification scheme on it that can be used to classify efforts.

The classification could take the form of simple handles for activities, e.g., resosuma:rse-dev-rso for the activity “Research Software Engineers develop research software”. The classification could then be used to tag efforts, retrospectively where possible. This is easily done for publications, where classification handles can be included in keywords or in the body, but should also be done for projects, working groups, events, etc., for example on their websites.

The classification could be used for automated extraction and quantitative analysis, and could also serve to build a registry of efforts across formats that would make it even easier to identify gaps and track progress.

The level of granularity of the activity graph should be discussed within the community, and if deemed necessary and helpful, different resolutions of the mapping could be created, e.g., a low-res version which would look similar to Figure 2, and a high-res version which would look similar to an optimized version of Figure 3. Both versions can be codified in different versions of the classification scheme, similar to what has been done in ISO 639 (en.wikipedia.org/wiki/ISO_639), with a low-res classification in ISO 639-1 and a more high-res classification in ISO 639-3.
