1 Introduction

Today’s programs are numerous and become more and more complex. For example, services running in data centers are often large scale, and perform complicated operations depending on input workload. Predicting how applications will behave for given input workload is key to helping users and operators better manage those applications.

Predicting metrics (e.g., performance, resource consumption) has great applications in many usage scenarios. First, prediction of execution time of a service request can be used for better workload management [18]. If the request is likely to violate service level agreements, the system can drop the request and allocate resources to other requests. Second, in scheduling applications such as MapReduce [15, 23], if we can predict execution time of tasks, we can then schedule jobs more optimally by considering where to map individual tasks to candidate resources and perform speculative execution in a timely fashion without spawning unnecessary processes. Third, prediction can help with better resource provisioning [35, 11, 12] (e.g., how many servers should I use to run this job? Should I add more servers?). Fourth, with prediction, we can detect performance anomaly. If an operation takes much longer than a predicted time, we label it an anomaly for troubleshooting purposes. Finally, prediction can answer what if questions — how system behavior changes when input workload changes or system configuration changes [25, 33, 14].

Despite all these opportunities and demands, prediction has not been in the mainstream. This is because it is very difficult to predict metrics with high accuracy for current practices — analytically modeling the system or treating the system as a black box and generating a transfer function between input workload and output response. System execution inherently depends on program semantics (i.e., internals of how the program works), thus prediction depends on program semantics. For example, certain metadata of programs (e.g., image resolution and depth) is a cache of program semantics. One way to obtain program semantics is to ask its details to its developers. In reality, however, this is not feasible due to the abundance and complexity of programs. In this work, we aim to automatically extract program semantics without developers of the program and use them to create better prediction models for system performance (execution time). In particular, we focus on predicting with different input workload in the same environment (i.e., machine).

Mantis is a system that achieves this goal by combining programming language and machine learning techniques in a novel way (Section 2). Mantis consists of three key components: feature instrumentation, model generation, and code snippets generation for computing feature values when predicting. To capture program semantics without programmer assistance, we begin by extracting a potentially large number of program features that capture the characteristics of program execution by running programs instrumented with code analysis (Section 3). Next, we use machine learning techniques to select important, relevant features to create the prediction models (Section 4). Finally, program slicing computes small code snippets that compute features needed by the model for prediction (Section 5). This component also guides model generation to choose features that can be computed cheaply.

Figure 1: Mantis architecture.

We evaluate our system by applying the framework to two applications, Lucene search engine and ImageJ, an image processing applications (Section 6). We show that Mantis can achieve more than 93% accuracy with less than 10% training data set. We compare the model generated by Mantis with blackbox approaches that rely on workload size and input configurations (e.g., command-line arguments) and show that Mantis can significantly outperform these models. We explain how slicing can benefit model generation and the overhead of computing selected features. Finally, in Section 7 we discuss related work, and conclude with future research directions in Section 8.

2 Mantis Overview

2.1 Approach

We address the problem of predicting performance metrics quickly without actually running the entire program. Traditionally, researchers have taken a stance in two camps for prediction — modeling systems analytically (e.g., queuing theory), or treating the system as a black box and creating a model between input (workload) and output (performance). However, these approaches do not work well due to their inherent limitations, i.e., the lack of knowledge about the program. We take a new white-box approach to generating prediction models. Unlike traditional approaches, simply put, we extract information from execution of the program that contains a plethora of information. In particular, we extract as many features as possible from programs for given input data if extracting features incurs little overhead, and rely on machine learning techniques to process the large amount of information dumped out. Machine learning techniques can infer key features from voluminous information and construct a robust model that predicts performance based on new program features. In summary, our approach solves the prediction system problems by combining programming language and machine learning techniques in a novel way.

To achieve our goal, we need to address three key questions:

  1. What are good program features? How do we extract these feature values?

  2. Among many features, which ones are relevant to performance metrics? How do we model performance with relevant features?

  3. How do we automatically generate code to compute feature values for prediction?

We present Mantis, a new prediction architecture that addresses the three questions above. There are three main components, each of which addresses a key question.

2.2 Architecture

Figure 1 shows the Mantis architecture, a novel prediction framework that combines programming language techniques with machine learning techniques. This architecture shows the offline part for generating prediction models.

Mantis consists of three major components: feature instrumentation and profiling, prediction model generation, and feature evaluator generation. The feature instrumentor analyzes the code of the program and automatically adds instrumentation code that extracts program features. Then the profiler runs this instrumented program with sample input data to collect performance metrics and feature values. This profiling can generate a large number of features within the budget of instrumentation overhead. Then, the model generator runs machine learning algorithms to generate a prediction model, i.e., select a subset of key features that are relevant to the performance metrics and create a function of the selected features to predict the performance metrics with high accuracy. To use the model, we need a way to compute feature values. The feature evaluator generator uses program slicing

to automatically extract small code snippets (which we call feature evaluators) that compute feature values from the instrumented program. Ideally, for a feature evaluator, the technique includes only program statements that affect the feature value of the evaluator. Finally, there is a feedback loop from the slicer to the model generator. We may not be able to use some of the features selected by the model generator. If a selected feature is expensive to compute (e.g., we have to run the entire program to compute the feature value), we reject the feature by notifying the cost of computing the feature value to the model generator. The prediction model generator creates a new model after excluding the rejected feature(s). This loop may run multiple times depending on scenarios. When the program slicer can generate all the feature evaluators of the selected features (cheaply), the entire process ends, and the tool produces final features, prediction model, and feature evaluators.

Once a prediction model is generated, it is used to forecast a performance metric of interest for a new input as shown in Figure 2. The example has

feature evaluators. The new input is sent to each feature evaluator to compute its feature value, and the prediction model computes an estimate using all the feature values.

In the following, we explain these components in detail and evaluate the system.

Figure 2: Online predictor.

3 Feature Instrumentation

We extract program features relevant to performance (e.g., execution time). We choose features with the following goals in mind. First, the features should capture the behavior of program performance. Second, the features should be accurate and easy to compute. For example, we avoid relying on inaccurate timer resolution. Third, the features should be collected with low overhead. We aim to run our instrumented program to collect feature values and performance metrics at the same time instead of running the original program to get performance metrics, running the instrumented program to get feature values, and joining the data. The latter is not accurate when the program has non-determinism.

In the following, we first describe what program features we instrument and then present how to create instrumented programs.We use Java programs as examples, but our techniques are generally applicable to other programming languages.

3.1 Features

The features we choose are loop counts, branch counts, and variable values in different versions. We discuss the rationales of choosing these features below.

Loops

When a program repeats computation, the execution time depends on how many times the program repeats. We introduce loop counts to capture this behavior. We instrument all loop constructs (e.g., while and for) in the program. If there are nested loops, we add a loop count for each loop. The following example shows a nested loop. The outer loop performs reading a line from a file, and the inner loop performs a search operation times.

// original code
while(line=readLine()) {
  for (int i=0; i<n; ++i)
    search(line, i);
}
// instrumented code
while(line=readLine()) {
  ++mantis_loop_cnt1;
  for (int i=0; i<n; ++i) {
    ++mantis_loop_cnt2;
    search(line, i);
  }
}

Method invocation

Another way to repeat computation is to use a recursive procedure. The execution time depends on how many times the program invokes recursive methods. To capture this behavior, we introduce method invocation counts, each of which is incremented when a method is invoked. The following example shows an example program that traverses a tree structure and computes an aggregated metric.

// original code
process(node n) {
  if (cond) return;
  process(n.l);
  process(n.r);
  compute(n);
}
// instrumented code
process(node n) {
  ++mantis_methodinv_cnt;
  if (cond) return;
  process(n.l);
  process(n.r);
  compute(n);
}

Branches

Often the execution time changes depending on which control flow path the program takes. This can be captured by adding branch information. The following example shows that depending on the conditional, the program takes two different paths with very different execution times.

// original code
if (flag) { lightweightCompute(); }
else { heavyCompute(); }
// instrumented code
if (flag) {
  ++mantis_branch_cnt1;
  lightweightCompute();
} else {
  ++mantis_branch_cnt2;
  heavyCompute();
}

We add a branch counter for each branch in the program. It counts how many times a particular branch is taken. For example, if the program takes a particular branch once depending on a conditional, the counter value is either 1 or 0. If a branch is taken multiple times, its value reflects that.

Variable values

We also instrument versions of variable values to characterize the program execution. We focus on primitive variables (short, int, long, float, double, char, and boolean variables) and collect the first values whenever a variable is assigned to a value. Our intuition is that often the variable values obtained from input parameters and configurations are changing infrequently, and these values tend to affect program execution by changing control flow. We track both class field variables and local variables.

In the following example, the execution time of the program is dominated by the input argument of , which comes from a preprocessed variable, which is done quickly. We collect the assigned value of as one of our program features.

// original code
n = preprocess();
compute(n);
// instrumented code
n = preprocess();
mantis_n_data[cur_ptr++] = n;
compute(n);

Exception counts

For certain inputs, the program may take a control flow that throws and handles errors. This path is not a common case the program takes, so the execution time of the program is likely to change significantly. We add an exception count for each exception handling part of the program to capture this behavior.

// original code
try { compute(); }
catch (Exception e) { error(e); }
// instrumented code
try { compute(); }
catch (Exception e) {
  ++mantis_ex_cnt;
  error(e);
}

To collect these features in multi-threaded object-oriented programs, we need to summarize the features across objects and across threads. We sum up loop count and branch count across objects, and also keep a single array of a variable for all objects created. To handle multiple threads we maintain a separate instrumentation object that captures features per thread, and merge feature values at the end of program execution. For loop and branch counts, we sum up those counts across threads. For versions of variables, we compute the mean of each version across threads.

3.2 Instrumentor

To instrument program to obtain program features, we perform code analysis and transformation. In particular, we use source code analysis111We can also implement our instrumentation using bytecode analysis. With bytecode, we do not have local variable names we can refer to unless source code is compiled with the Java compiler debug option. to construct abstract syntax trees (ASTs), and manipulate the constructed ASTs by adding new nodes representing loop counts, method invocation counts, branch counts, exception counts, and variable versions to the trees.

We use the instrumented program to capture the execution time of the original program as well as to capture program feature values. To achieve low overhead, we employ three techniques. First, we perform selective profiling of programs. We focus on application programs and do not instrument system libraries (e.g., toString() or equals()). Second, we use a procedure that removes instrumentation from the part that incurs high overhead until the overall instrumentation overhead is below our threshold (e.g., 5% of the original program execution time). Third, to avoid synchronization overhead of multiple threads accessing the instrumentation variables, we use a thread-local data structure per thread, and merge data structures of the threads at the end of the program execution.

After the instrumentation step, the profiler receives the instrumented program with test input data, runs the program with each input, and collects tuples, each of which is program execution time and feature values for each input data. The profiler then sends the tuples of (execution time, feature values) to the prediction model generator that performs feature selection and model creation.

4 Prediction Modeling

We instrument and profile programs to collect many features from program execution runs for modeling the performance metrics of the programs. However, we expect that a small but relevant set of features may explain the execution time well, and hence seek a compact model, i.e., a function of this small set of features, that accurately estimates the execution time of the program. Among all the information, not all of them are expected to be useful for the model: Some of them may have no variability across different inputs, some have very weak or even no correlation to the execution time, and others are redundant to each other. However, we do not know which features are useful, but would like to determine a small subset of features that is most relevant to predicting the execution time, and are willing to sacrifice some of the small details in order to get the “big picture".

To make the problem tractable, we constrain our models to the multivariate polynomial family. We expect that a good program should have polynomial execution time on some (combination of) features, and a polynomial model up to certain degree can approximate well any nonlinear model (due to Taylor expansion). In addition, a compact polynomial model that predicts execution time well can provide an easy-to-understand explanation on what factors are important in determining the execution time of the program, and then give program developers intuitive feedback on the performance of the program.

In summary, what we need is an optimal strategy to produce a (nonlinear) model on a small set of features from thousands of ones collected blindly. We rely on machine learning techniques (specifically, sparse regression with multivariate polynomial basis) to automatically infer this small subset features and construct a compact model to capture the dominant predictors of execution time.

4.1 Background

Least Square Regression

Our feature instrumentation procedure outputs data samples as tuples of , where denotes the observation of execution time, and denotes the

observation of the vector of

features. We use regression techniques to model the relationship between and , which assumes that ’s are generated from , where is a vector of weights to be determined for the model, and

is the white noise. Least square regression is a mathematical procedure for finding the best-fitting

to a given set of responses by minimizing the sum of the squares of the residuals [21], i.e.,

(1)

If a linear function is used, we obtain linear least square regression, which can be easily extended to create nonlinear models by using nonlinear (e.g., polynomial, spline, etc.) basis functions of features .

Sparse Regression

While widely used, least square regression has two major drawbacks: 1) When a large number of features exist, least squares tend to create complex models and overfit the data, resulting in inferior prediction accuracy. 2) It is usually hard to interpret the results, because it tends to create models involving many feature terms, if not all of them. This does not satisfy us since we have a lot of features but desire only a small subset of them to contribute to the model.

Regression with best subset selection finds for each the subset of size that gives smallest residual sum of squares. However, it is a discrete optimization and is known to be NP-hard [21]. In recent years a number of approaches based on model regularization have been proposed as efficient alternatives. Their main idea is to add a regularization term to problem (1) to control the complexity of the model, and make a tradeoff between the regression error and the number of features used in the model. Among them, a widely used one is LASSO (Least Absolute Shrinkage and Selection Operator) [34], which uses quantity to penalize problem (1). It effectively enforces many ’s to be 0, and selects a small subset of features (indexed by non-zero

’s) to build the model, which is usually compact and has better prediction accuracy than models created by ordinary least square regression

[21]. Parameter controls the complexity of the model: as grows larger, fewer features are selected by the model.

Being a convex optimization problem is the greatest advantage of the LASSO method, and there exist fast algorithms to solve the problem efficiently even with large-scale datasets [17, 24]. LASSO also has nice theoretical and empirical properties, and under suitable assumptions, it can recover the true underlying model [34, 16]. In addition, LASSO can be easily extended to create nonlinear models (e.g., using polynomial basis functions of the features).

4.2 Our Procedure

We aim to use polynomial functions to model the execution time, so that we can clearly see what kinds of nonlinear terms on which features are important to the execution time. To capture nonlinear effects of and interactions between multiple features, we expand the features to all the terms in the expansion of the degree- polynomial , and use them to construct a multivariate polynomial function for the regression. For example, using a degree- polynomial with feature vector , we expand out to get terms , and use them as basis functions to construct the following function for regression:

Because we neither know which features are needed nor what kinds of nonlinear terms are necessary, an optimal but naive approach is to expand the degree- multivariate polynomial with all features and use all the terms to construct the regression function. However, this approach gives us terms, which is large when is on the order of thousands and even for small , and will cause heavy burden on the computing of the regression model. Complete expansion on all features is not necessary, because many of them have little contribution to the execution time, and many of them are redundant to each other.

For efficient computation, we adopt a 3-step approach for the feature selection and nonlinear model fitting:

Step 1: Use the linear LASSO algorithm to filter out (many) features that hardly contribute to the execution time. Although this step may be suboptimal (mainly due to the non-linearity in the true underlying model), it is cheap, fast and scalable, and is provably better than the traditional feature selection methods that consider individual features one by one.

Step 2: Do degree- multivariate polynomial expansion on the features selected in step (1), and use all the terms from the expansion as the basis functions for the nonlinear model.

Step 3: Use the LASSO method on the expanded features to pick out a subset of nonlinear terms to construct the model.

With these three steps, we have developed an efficient procedure to select a small set of nonlinear terms to construct a compact and intuitive model. Our experimental results in Section 6 show our method can construct models to accurately predict execution time for a variety of applications.

5 Feature Evaluator Generation

In this section we explain our feature evaluator generation component. To generate a feature evaluator, i.e., a small code snippet that computes the value of a feature, we use a program slicing algorithm. Given a program and a slicing criterion, which is a program variable at a program point , static slicing [36] computes a slice, which is an executable sub-program of the given program that yields the same value of at as the given program, on all inputs. The goal of static slicing is to yield as small a sub-program as possible. Figure 3 shows a slicing example. The original code performs reading lines from a file, executes expensive computation on each line, and accumulates processed values. Suppose we want to extract the code part that affects the computation of the instrumented variable mantis_loop_cnt1. Ideally, the slicer should produce the sliced code, shown in Figure 3 that captures only code that really affects the variable.

// original code
int j;
while(line=readLine()) {
  ++mantis_loop_cnt1;
  j = j + expensive_processing(line);
}
// sliced code on the variable
// mantis_loop_cnt1
while(line=readLine()) {
  ++mantis_loop_cnt1;
}
Figure 3: A slicing example.

At a high level, our slicer captures intra-procedural and inter-procedural data dependencies and control dependencies of a slicing criterion. The produced slices must be executable since in our system the generated sub-program will be executed online on the given input to obtain the result of the slicing criterion. This is a requirement clearly different from most slicing research work motivated by debugging (e.g., [32]) whose goal is to highlight as few statements as possible that will aid the programmer debug a particular problem. Thus, they elide the constraint in the original slicing definition that the generated sub-program be executable. To achieve executability, we need to solve several engineering issues related to Java language features.

Our slicing algorithm operates on expressions , which may be of one of four kinds: a local variable , a static field (i.e., a global variable) , an abstract instance field denoting instance field of any object allocated at site , or an abstract array element , denoting any element of any array object allocated at site . Abstractions of instance fields and array elements are required because static analysis cannot refer to concrete object addresses. Our slicing algorithm is not dependent upon the choice of abstraction, however, can easily be modified to use abstractions besides object allocation sites.222The choice of abstraction affects the precision and scalability of the algorithm, and we found object allocation sites to strike a good tradeoff.

The slicer takes as input the given program and the slicing criterion , which is an expression whose value is desired at program point , and produces as output a corresponding slice. In our setting, is always a static field instrumented by us (e.g., a loop counter), and is always the exit of a method of the program (e.g., the program’s main method.)

Our slicing algorithm is based on two algorithms (one from Horwitz, Reps, and Sagiv [22] and one from Reps, Horwitz, Sagiv, and Rosay [28]). We summarize four steps of the algorithm. First, for each method, we construct a Program Dependence Graph (PDG). Then, for the entire program, we construct a System Dependence Graph (SDG), which is a set of PDGs where additional edges are created to capture interprocedural dependencies. We augment the SDG with summary edges by running the interprocedural data flow analysis algorithm in [27] to solve context sensitivity problems. Finally, we run a 2-pass reachability algorithm on the augmented SDG. We explain individual steps more in detail below.

PDG and SDG

Our slicing algorithm operates on Joeq [6] quad code, an intermediate representation format based on registers. The vertices of a PDG represent quad code instructions (e.g., statements and predicates). The edges of a PDG represent data flow and control dependencies. An SDG also includes inter-procedural dependencies. A method call creates a call vertex and a set of actual-in and actual-out vertices. Each parameter of a method call creates an actual-in vertex, and a return value creates an actual-out vertex. A method entry creates an entry vertex and a set of formal-in and formal-out vertices, which correspond to arguments and a return value respectively. A call edge is created to connect a call vertex of an call site to an entry vertex of the matching method. In addition, a linkage-entry edge is created from an actual-in vertex to a corresponding formal-in vertex, and a linkage-exit edge is created to link a formal-out vertex to an actual-out vertex.

Augmented SDG

An SDG does not capture context-sensitivity of method calls. Therefore, if a call site of a method is included in a slice, other call sites of the same method may be included even though they do not affect a slicing criterion. To remedy this problem, we build an augmented SDG by adding summary edges to an SDG. A summary edge connects an actual-in vertex to an actual-out vertex and summarizes the effect of the actual-in on the actual-out of a method call. To create summary edges, we use the backward RHS algorithm [27]. It propagates from formal-out vertices of the method based on data- and control- dependencies to calculate path edges of the method. A path edge is of the form meaning that at program point affects at : it always ends with a formal-out of the method and is created within the method. Therefore, when there exists a path edge from a formal-in vertex to a formal-out vertex of a method, a summary edge is created connecting corresponding actual-in vertex and actual-out vertex of a call site to the method.

2-pass algorithm

To identify statements to include in a slice, we run a 2-pass reachability algorithm on an augmented SDG. The first pass starts from the program point of a given slicing criterion and goes backwards along all the edges in the augmented SDG but not along linkage-exit edges. As a result, when encountering a call site, the first pass does not go into the method body but uses summary edges of the call site. The second pass starts from all actual-out vertices visited in the first pass and traverses backwards using all the edges but not using linkage-entry and call edges. This pass covers all methods that correspond to call sites identified in the first pass. In addition, it may find more call sites while traversing the body of the methods and use summary edges; this process adds additional actual-out vertices of the summary edges and the pass goes into the methods associated with the actual-outs.

Slicing made practical

A set of program statements identified by the described algorithm may not meet Java language requirements. This problem needs to be resolved to create executable slices. We list a few of the engineering issues we addressed for that. First, we need to handle accesses to static fields and heap locations (instance fields and array elements). Therefore, when building an SDG, we identify all such accesses in a method and create formal-in vertices for those read and formal-out for those written along with corresponding actual-in and actual-out vertices. Second, there may be uninitialized parameters if they are not included in a slice. We opt to keep method signatures, hence we initialize them with default values. Third, there are methods not reachable from a main method but rather called from JVM directly (e.g., class initializers). These methods will not be included in a slice by the algorithm but still may affect the slicing criterion. Therefore, we do not slice out such code. Fourth, when a new object creation is in a slice, a corresponding constructor invocation may not. To address this, we create a control dependency between object creations and corresponding constructor invocations to ensure that they are also in the slice. Fifth, a constructor of a class except the Object class must include a call to a constructor of its parent class. Hence we include such calls when they are missing in a slice. Sixth, the first parameter of an instance method call is a reference to the associated object. Therefore if such a call site is in a slice, the first parameter has to be in the slice too and we ensure this.

Final step

Previous steps we described so far generate a slice of Joeq quad code. To generate the final Java byte code we can execute, we translate the Joeq quad code to Jasmin [4] assembly code and use the Jasmin assembler to generate Java byte code. We take a simple approach that translates each quad instruction to a corresponding set of byte codes. During the process, since we do not have complete information on ordering between basic blocks, we add an explicit goto instruction at the end of each basic block. However this may lead to a cycle if a conditional branch in a loop is sliced out and replaced by goto. We ensure that no cycle is created by performing a DFS-like search and choosing a successor as a target of the goto instruction only if it can reach the exit of the method. Another special case is JSR instruction that pushes the address of the next immediate opcode into an operand stack as its return address. However the next instruction may not be the same as one in the original program. Hence we add an extra goto with an appropriate target after the JSR operation. Our current translator is not optimized; we plan to optimize the use of stacks if needed in the future.

Discussion

There are static and dynamic program slicing algorithms. They have tradeoffs between input coverage and slice compactness. Static slicing works for all inputs, but it may produce a bigger slice than dynamic slicing. Dynamic slicing includes only code that is actually executed for given inputs, but it does not cover all inputs. As a starting point, we chose static slicing as it guarantees to work for all inputs, but in the future we plan to explore dynamic slicing or hybrid slicing that combines static slicing and dynamic slicing if we need to improve slice compactness. In this paper, we tested our static slicing algorithms with simple programs, and we plan to evaluate the scalability of our algorithms with complicated programs.

6 Evaluation

We have implemented Mantis that works with Java programs by extending existing machine learning and program analysis tools. We built the feature instrumentor atop Eclipse JDT AST libraries. JDT is a toolkit that provides APIs to access and manipulate Java source code. We add visitors to ASTs to add instrumentation code. The basic instrumentation variables are thread local variables. The instrumentor also introduces static global variables that summarize feature values across threads and are used for slicing. We implemented our modeling procedure in Matlab. Finally, we extended JChord [5], a static and dynamic Java program analysis tool, to implement our program slicing algorithm in Java and Datalog. In the current version, we have to patch models for native library functions manually to track dependencies inside native library functions. The JChord slicer produces Joeq quadcode slices. To create final executable bytecode slices, we implemented a translator from quadcode to bytecode using Jasmin [4].

To evaluate our system, we choose two applications, Lucene Search [8] and ImageJ [3], that involve intensive computation. We evaluate the prediction accuracy of our system in terms of prediction error (i.e., prediction accuracy = 1 - prediction error) and compare it with blackbox approaches. Prediction error is computed using the equation:

We show the sensitivity to the size of training data and the regularization parameter , and the results of prediction. Traditional blackbox approaches fail to predict execution time with low prediction error, but our system can construct an online predictor that can predict execution time accurately. Note that, in presenting the results of our system, we use only features that can be compuated cheaply by iterating over feature selection and program slicing for rejecting expensive features.

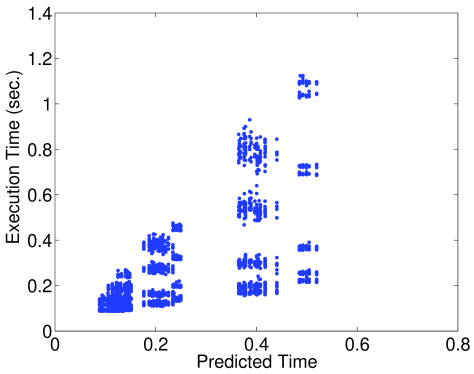

Figure 4: For Lucene, the blackbox approach fails to predict execution time accurately.

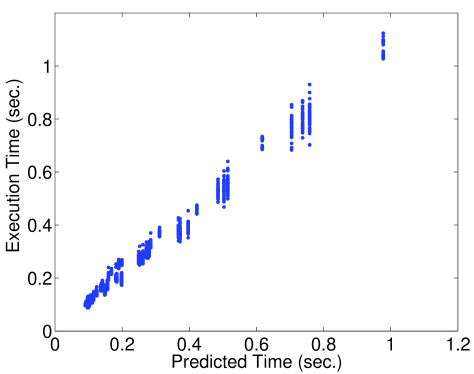

Figure 5: Predicted time vs. execution time of the Lucene search application. Using 10% of Lucene search data for training, our system can predict execution time with less than 7% prediction error.

6.1 Prediction Results for Lucene

After profiling our Lucene search application with various text input queries over a corpus of the works of Shakespeare and the King James Bible, we obtain a dataset with 3840 samples, each of which consists of 1 execution time, 9 loop features, 29 branch features, and 90 variable features from 18 variables (we record 5 versions of values for each variable). So we obtain a dataset with 1 column of execution time and 126 columns of features, subset of which would hypothetically explain the execution time well. In the prediction modeling process, we normalize each column of values into range [0,1], and randomly partition data (row) samples into training set and testing set.

(a) (b)
Figure 6: Using Lucene search data, we show in (a) that our approach is insensitive to parameter : there are a range of that result in similar models for accurate prediction, and show in (b) that our approach is insensitive to the size of training data: even using 5% or less of data for training, our system can create models achieving accurate prediction for execution time.

We first evaluate a blackbox approach for predicting execution time. We choose one that can construct compact nonlinear models using the command line arguments as features (instead of using the feature data from our profiler), which consist of the following ones: raw, threads, totalqueries, hitsperpage, repeat, denoted by , , , and , respectively. We build models using either ordinary least-square regression or LASSO with a function using all terms in the expansion of . However, in either case we consistently see more than 38% prediction error, even when we: 1) (randomly) sample different portions of data for training, 2) vary the size of training data (for model regression) from 10% to 40%, 3) use polynomial functions with order higher than 3, and 4) use different subsets of the 5 features. Figure 4 shows predicted execution time vs. actual execution time. As you can see, this blackbox approach derived from command line features fails to model and predict execution time accurately.

From our detailed analysis, two features that have the largest correlation with the execution time are feature-1, totalqueries, which has a fair amount of correlation with execution time, and feature-2, thread, and the remaining features are poorly correlated with execution time. Despite some correlation in feature-1 the model derived from command line features are not enough for predicting execution time accurately: for each value of the predicted time (on -axis), there are dramatically different actual execution times (on -axis) correspond to (an ideal prediction is a degree line pass through the origin). This result indicates that some other factors that are not captured by the features should contribute to the execution time. On the contrary, as shown in the following, our system can automatically select higher quality features from the program, and construct nonlinear models to predict execution time accurately.

To evaluate our system, we start with its sensitivity to , the parameter for trading off the prediction error with the number of selected features. We use 10% of data for training (both feature selection and model fitting), and trace a variety of values (which may result in different subset of selected features, thus different models) using an efficient algorithm proposed in [17]. We show the result in Figure 6 (a). To our surprise, we see that our method is able to select 2-4 features (out of 126 in total) that are enough to build a nonlinear model to predict the execution time within 7% error. As expected, starting from a very small value and increasing it, our method selects decreasing number of features (from 4 down to 1), and consequently results in models with decreasing prediction power. We clearly see that there is a range of values (e.g., (0, 0.07]) that enable our method to select the right set of features and build models for accurate prediction. Repeating the experiment with different (random) training samples, and with 20%, 30% and 40% of data for training, we see very similar behavior. We conclude that our method is insensitive to the parameter , and setting allows us to select right features, and construct compact and accurate models for predicting execution time.

Fixing 333An optimal can be determined by a cross-validation approach, e.g., further partitioning the training data into two sets, one for feature selection and model regression, and another for testing the model. An optimal is the one giving the smallest testing error (on the part of training data selected for testing)., we study the sensitivity of our method to the size of training data, and plot the result in Figure 6 (b). We see that with different sizes of training data, prediction errors of the constructed models are fairy stable, and even using 5% or less training data, our method is able to produce accurate models for predicting execution time.

To reveal more details of the model, we use and 10% of data for training, to investigate which features are selected and what kinds of models are constructed. We find that our algorithm usually selects 3-4 features (depending on which subset of data are sampled for training) and constructs a model with a prediction error around 6.1%. Figure 5 shows predicted execution time vs. actual execution time of our system. In one instance of modeling, the following 4 features are selected: 1) loop feature related to a while loop for reading keywords from the query file, 2) variable feature related to totalQueries, 3) variable feature related to hitsPerPage, and 4) variable feature related to how many query processors to create per thread. Among them, features and have the largest weights (indicating they are the most important) and persistently appear when sampling different portions of the data for training. With just these two features, we do a LASSO sparse regression with all basis functions of features in the expansion of . Interestingly, we are able to construct the following a nonlinear model

which can predict execution time with error 6.7% (indicating the rest two selected features and only contribute to less than 1% of the prediction accuracy).

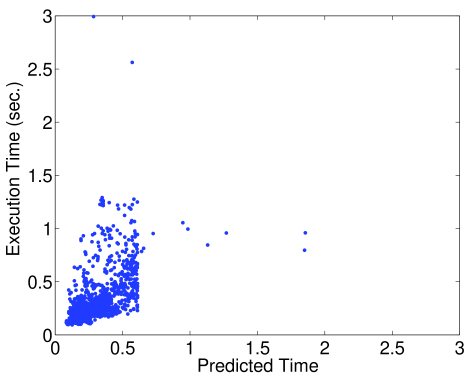

Figure 7: Predicted time vs. execution time of the ImageJ application for a blackbox approach.

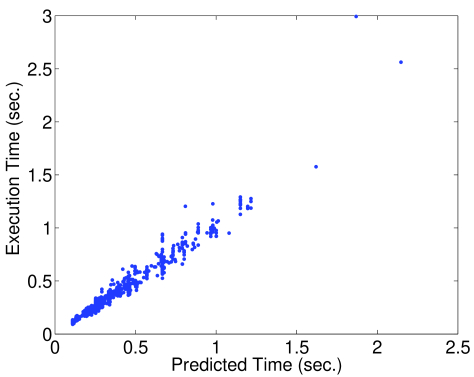

Figure 8: Predicted time vs. execution time of the ImageJ application. Using 10% of ImageJ data for training, our system can predict execution time with 5.5% prediction error.

6.2 Prediction Results for ImageJ

ImageJ [3] is a public domain Java image processing and analysis program. It provides a variety tools for displaying, editing, analyzing, and processing images in many formats. We test a dozen of tools of ImageJ, including Smooth, Find Edges, FFT, Find Maxima, etc. We choose to profile and predict the execution time of Find Maxima

, because it exhibits high variance in execution time when processing different images (even with similar size), making it a challenging task to model the execution time.

To profile the Find Maxima, we use 3045 images from popular vision corpus of Caltech 101 [1], Event Dataset [2] and PASCAL challenge 2008 dataset [9]. The images vary a lot in size and resolution, and have content in different scenes (e.g., in the office, on the street, in the natural environment, etc) and with different object categories (e.g., plan, car, bird, building, etc). After the profiling, we obtain a dataset with 3045 samples, each of which consists of one execution time, 291 loop features, 2935 branch features, and 2290 variable features from 458 variables (we record five versions of values for each variable). So we obtain a dataset with one column of execution time and 5516 columns of features. After removing constant and redundant columns, we obtain 182 useful features, (small) subset of which would likely explain the execution time well. In the experiments, we normalize each column of values into range [0,1], and randomly partition the data into training set and testing set.

For a blackbox approach, many methods can be used. We consider one with the execution time as a nonlinear function of a simple input parameter – the image size. We start with a degree 3 polynomial function of the image size , and obtain the following prediction model using 20% of data for training

Predicting on the remaining 80% test data, we consistently see more 35% of prediction error regardless which subset of data are sampled as a training set (may result in slightly different models). We see similar results when we increase the degree of the polynomial and the percentage of training data.

We plot the execution time against the predicted execution time obtained from the model in Figure 7. We clearly see that image size alone is not enough for predicting execution time regardless of whatever model may come out: the image size is poorly correlated with the execution time, and for each value of the image size or the predicted execution time, there are dramatically different actual execution times corresponding, indicating that some other factors should contribute to the execution time.

On the contrary, our system can automatically select two high-quality features from thousands of automatically instrumented features, and construct a model to predict execution time accurately. Of the two selected features, one is the variable feature related to the width of region of interest (denoted by ); the other is height of the image (denoted by ). Although highly correlated to the execution time, neither a single feature (even with nonlinear model), nor the linear combination of both selected features can predict execution time very well. Instead, using 10% of data for training with , we do a LASSO sparse regression using all (nonlinear) terms in the expansion of , and obtain the following model

which can predict the execution time accurately (around 5.5% prediction error), as shown in Figure 8.

(a) (b)
Figure 9: Using ImageJ data, we show in (a) that our approach is insensitive to : there are a range of that result in similar models for accurate prediction, and show in (b) that our approach is insensitive to the size of training data: even using 5% or less of data for training, our system can create models achieving accurate prediction.

We also study the sensitivity of our method to using 10% of data for training (both feature selection and model fitting), and show the result in Figure 9 (a). Again, we see that our method is insensitive to , and there are a wide range of values (e.g., ) that allow us to select right features, and construct compact and accurate models for predicting execution time.

Fixing , we study the sensitivity of our method to the size of training data, and plot the result in Figure 6 (b). Again, we see that with different sizes of training data, prediction errors of the constructed models are fairy stable, and even using 5% or less training data, our method is able to produce accurate models for predicting execution time.

6.3 Benefit of Slicing

In this section, we evaluate the benefit of slicing. We explain how slicing can help choose features that are not expensive to compute and evaluate the execution times of feature evaluators of selected features computed manually.

Step Features selected by Rejected
the model generator features
1 loop features and loop feature
variable features , , and
2 loop feature NONE
variable features , , and
Table 1: Iterative procedure of model selection considering the cost of computing feature values. In the example, loop feature is related to a for loop printing search results, and loop feature is related to a while loop counting how many times queries are executed. We explained other features in Section 6.1. Computing requires computing the most of the program (i.e., doing actual lookups of indices), thus it is rejected in step 1. This iterative procedure stops at step 2 since all selected features are quickly computable.

We look at the details on how the Lucene search application chose final features we presented in Section 6.1. Table 1 shows the steps taken by the model generator due to the feedback from the slicer. In each step, we show the features selected by the model generator, and the features rejected by the slicer among the features passed from the model generator. For this application, at step 2, the slicer can compute slices that can quickly compute all the features needed by the model, thus it accepts the selected features and the feedback loop from the slicer to the model generator ends.

Figure 10

shows the cumulative distribution function (CDF) of execution time of the entire Lucene search program and that of the slice to compute loop feature

. We show only because it is the most expensive selected feature to compute since the slice goes through files to count keywords. The other variable features are derived by arithmetic operations and assignments of values from inputs. Computing takes of the entire program execution time, thus the prediction model can compute an estimate of execution time with low overhead.

Figure 10: CDF of execution time of the entire Lucene search program and time to execute the slice that computes loop feature .

7 Related Work

Prediction has been explored in multiple different contexts — database, cluster and cloud, networking, and program complexity modeling. In this paper, we presented a new performance prediction framework for generic programs by combining programming language and machine learning techniques. As far as we know, our work is the first to explore program analysis to extract features, employ machine learning to create accurate models with selected features, and use program slicing to automatically produce code snippets that compute feature values for prediction.

In the database, researchers explored machine learning algorithms to predict database query execution time. Gupta, Mehta, and Dayal [20]

used a variant of decision trees to predict time ranges of data warehouse queries. Ganapathi et al.

[18] used KCCA to predict time and resource consumption of database queries (number of I/Os and messages) using the statistics of query texts and query plans (e.g., instance count for each possible database operator).

In resource allocation and provisioning for cluster and cloud applications, research has been done to forecast how much resource is required to support given workload to meet service level agreements [11, 12], or how long it takes to complete a candidate assignment [31]. The models used resource consumption or workload size for prediction. Xu et al. used console logs — coarse-grained program status reports — to detect anomalies in the Hadoop Distributed File System and the Darkstar game [37].

For load shedding in network monitoring applications, Barlet-Ros et al. [10]

used a simple linear regression model of features from five packet header tuples, number of bytes, number of packets to predict CPU resource usage. This work is specific to packet processing applications. In contrast, our framework is applicable to generic programs.

In the networking context, multiple projects addressed the problems of predicting response time changes for what-if scenarios. WebProphet [25] predicts the impact of certain optimizations of web services before deploying them by extracting web object dependencies with injected delays and simulating web page loading processes with web object dependency graphs. WISE [33] predicts the effects of configuration or deployment changes in content distribution networks by modeling the network dependency structure to response-time distribution. Link Gradients [14] predicts the impact of network latency in multi-tier systems by doing delay injection and performing spectral analysis.

There have been studies on using information from execution traces for modeling computational complexity [19], simulating hardware platforms efficiently [29, 30], and finding bugs cooperatively [26]. In contrast to these, Mantis focuses on creating a model for predicting program execution time by computing feature values online with slices quickly for new inputs.

Trendprof [19] models asymptotic computational complexity by measuring empirical computational complexity. It computes a model that estimates the performance of a program by modeling basic block execution frequency in terms of user-specified features (e.g., input size) and summarizing the program with clusters of basic blocks.

SimPoint [29, 30] finds a subset of execution instruction traces of program for an input for efficient hardware platform simulation because simulating hardware for the entire program execution takes too long time. It instruments basic block vectors in each fixed interval and uses a clustering algorithm to extract a representative subset of traces from clusters that approximates low-level hardware metrics such as instructions per cycle, percent RUU occupancy, cache miss rate, branch prediction miss rate, and address prediction miss rate [30].

Cooperative bug isolation (CBI) [26] used three predicates — branches with four values (always true, always false, sometimes true and sometimes false, unreachable in the run), comparisons between all pairs of integer-valued variables and constants in the program, and comparisons between integer valued return results of functions and 0. CBI aims to find which predicates are correlated with crashes to find bugs, and uses sampling of predicates to lower runtime overhead since the executed runs are collected from end users of the program.

8 Conclusion

In this paper, we presented Mantis, a new prediction framework that extracts program features using code analysis, models performance with these features using sparse regression, and generates code snippets that compute the feature values. We take a first step towards building such a framework. Our prototype evaluation shows that Mantis can predict execution time with more than 93% accuracy for the applications we tested, a search engine and an image processing application, which cannot be achieved with models without program features. In the future, we plan to evaluate our system with various complicated applications in terms of accuracy, applicability, and scalability.

Our new approach to prediction presents several exciting research directions we want to explore. First, we want to extend our model to include environment and to explore more sophisticated features (e.g., feature values that depend on calling contexts) and more sophisticated slicing algorithms (e.g., algorithms based on dynamic control flow graphs). Second, we would like to build our framework for C/C++ languages with LLVM [7] since the current prototype works with Java programs. Third, we want to further extend our framework to apply to networked systems running on multiple nodes. Our work in this paper addressed single-machine program execution. Finally, we also would like to apply the tool to performance debugging (e.g., a tool that generates test cases for performance debugging similar to KLEE [13] that generates test cases for correctness).

References

  • [1] Caltech 101 Object Categories. www.vision.caltech.edu/Image_Datasets/Caltech101/Caltech101.html.
  • [2] Event Dataset. vision.stanford.edu/lijiali/event_dataset.
  • [3] ImageJ. rsbweb.nih.gov/ij/.
  • [4] Jasmin. jasmin.sourceforge.net.
  • [5] jchord. code.google.com/p/jchord.
  • [6] Joeq. joeq.sourceforge.net.
  • [7] LLVM. llvm.org.
  • [8] Mahout. lucene.apache.org/mahout.
  • [9] Visual Object Classes Challenge 2008. pascallin.ecs.soton.ac.uk/challenges/VOC/voc2008.
  • [10] P. Barlet-Ros, G. Iannaccone, J. Sanjuas-Cuxart, D. Amores-Lopez, and J. Sole-Pareta. Load shedding in network monitoring applications. In USENIX Annual Tech. Conf., 2007.
  • [11] P. Bodik, R. Griffith, C. Sutton, A. Fox, M. I. Jordan, and D. A. Patterson. Automatic exploration of datacenter performance regimes. 2009.
  • [12] P. Bodik, R. Griffith, C. Sutton, A. Fox, M. I. Jordan, and D. A. Patterson. Statistical machine learning makes automatic control practical for internet datacenters. 2009.
  • [13] C. Cadar, D. Dunbar, and D. Engler. KLEE: Unassisted and automatic generation of high-coverage tests for complex systems programs. In OSDI, 2008.
  • [14] S. Chen, K. Joshi, M. A. Hiltunen, W. H. Sanders, and R. D. Schlichting. Link gradients: Predicting the impact of network latency on multitier applications. In INFOCOM, 2009.
  • [15] J. Dean and S. Ghemawat. MapReduce: Simplified data processing on large clusters. In OSDI, 2004.
  • [16] D. Donoho. For most large underdetermined systems of equations, the minimal -norm solution is the sparsest solution. Communications on Pure and Applied Mathematics, 59:797–829, 2006.
  • [17] B. Efron, T. Hastie, I. Johnstone, and R. Tibshirani. Least angle regression. Annals of Statistics, 32(2):407–499, 2002.
  • [18] A. Ganapathi, H. Kuno, U. Dayal, J. L. Wiener, A. Fox, M. Jordan, and D. Patterson. Predicting multiple metrics for queries: Better decisions enabled by machine learning. In ICDE, 2009.
  • [19] S. Goldsmith, A. Aiken, and D. Wilkerson. Measuring empirical computational complexity. In FSE, 2007.
  • [20] C. Gupta, A. Mehta, and U. Dayal. PQR: Predicting query execution times for autonomous workload management. In ICAC, 2008.
  • [21] T. Hastie, R. Tibshirani, and J. Friedman. The Elements of Statistical Learning. Springer, 2009.
  • [22] S. Horwitz, T. Reps, and D. Binkley. Interprocedural slicing using dependence graphs. In PLDI, 1988.
  • [23] M. Isard, V. Prabhakaran, J. Currey, U. Wieder, K. Talwar, and A. Goldberg. Quincy: fair scheduling for distributed computing clusters. In Proceedings of SOSP’09, 2009.
  • [24] S.-J. Kim, K. Koh, M. Lustig, S. Boyd, and D. Gorinevsky. An interior-point method for large-scale l1-regularized least squares. IEEE Journal on Selected Topics in Signal Processing, 1(4):606–617, 2007.
  • [25] Z. Li, M. Zhang, Z. Zhu, Y. Chen, A. Greenberg, and Y.-M. Wang. WebProphet: Automating performance prediction for web services. In NSDI, 2010.
  • [26] B. Liblit, M. Naik, A. X. Zheng, A. Aiken, and M. I. Jordan. Scalable statistical bug isolation. In PLDI, 2005.
  • [27] T. Reps, S. Horwitz, and S. Sagiv. Precise interprocedural dataflow analysis via graph reachability. In POPL, 1995.
  • [28] T. W. Reps, S. Horwitz, S. Sagiv, and G. Rosay. Speeding up slicing. In FSE, 1994.
  • [29] T. Sherwood, E. Perelman, and B. Calder. Basic block distribution analysis to find periodic behavior and simulation points in applications. In Parallel Architectures and Compilation Techniques, 2002.
  • [30] T. Sherwood, E. Perelman, G. Hamerly, and B. Calder. Automatically characterizing large scale program behavior. In ASPLOS, 2002.
  • [31] P. Shivam, S. Babu, and J. S. Chase. Learning application models for utility resource planning. In ICAC, 2006.
  • [32] M. Sridharan, S. Fink, and R. Bodik. Thin slicing. In PLDI, 2007.
  • [33] M. Tariq, A. Zeitoun, V. Valancius, N. Feamster, and M. Ammar. Answering what-if deployment and configuration questions with wise. In ACM SIGCOMM, 2008.
  • [34] R. Tibshirani. Regression shrinkage and selection via the lasso. J. Royal. Statist. Soc B., 1996.
  • [35] B. Urgaonkar and A. Chandra. Dynamic provisioning of multi-tier internet applications. In Proceedings of the Second International Conference on Automatic Computing (ICAC’05), Washington, DC, 2005.
  • [36] M. Weiser. Program slicing. In ICSE, 1981.
  • [37] W. Xu, L. Huang, A. Fox, D. Patterson, and M. Jordan. Detecting large-scale system problems by mining console logs. In SOSP, 2009.
