Managing Data Lineage of O G Machine Learning Models: The Sweet Spot for Shale Use Case

03/10/2020
by   Raphael Thiago, et al.
0

Machine Learning (ML) has increased its role, becoming essential in several industries. However, questions around training data lineage, such as "where has the dataset used to train this model come from?"; the introduction of several new data protection legislation; and, the need for data governance requirements, have hindered the adoption of ML models in the real world. In this paper, we discuss how data lineage can be leveraged to benefit the ML lifecycle to build ML models to discover sweet-spots for shale oil and gas production, a major application in the Oil and Gas O G Industry.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

06/08/2021

Supervised Machine Learning with Plausible Deniability

We study the question of how well machine learning (ML) models trained o...
02/22/2017

When Lempel-Ziv-Welch Meets Machine Learning: A Case Study of Accelerating Machine Learning using Coding

In this paper we study the use of coding techniques to accelerate machin...
10/09/2019

Provenance Data in the Machine Learning Lifecycle in Computational Science and Engineering

Machine Learning (ML) has become essential in several industries. In Com...
08/25/2020

Towards Guidelines for Assessing Qualities of Machine Learning Systems

Nowadays, systems containing components based on machine learning (ML) m...
01/13/2021

MLGO: a Machine Learning Guided Compiler Optimizations Framework

Leveraging machine-learning (ML) techniques for compiler optimizations h...
12/15/2021

Fix your Models by Fixing your Datasets

The quality of underlying training data is very crucial for building per...
01/30/2020

Machine Learning as a Service for HEP

Machine Learning (ML) will play significant role in success of the upcom...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

In this paper, we discuss how data lineage can be leveraged to benefit the Machine Learning (ML) lifecycle to build ML models to discover sweet-spots for shale oil and gas production, a major application for the Oil and Gas (O&G) Industry.

ML is an artificial intelligence discipline that aims at producing predictive models to perform tasks without the need to explicitly defined them

[bishop2006pattern]. Models are learned, or generalized, from a set of training data, this data is usually derived from raw or closely related to the task’s domain, e.g., a house price prediction model would need to be trained using datasets derived from real house price data111Like the Boston house-prices dataset., passed through one or a series of data transformations.

However, to obtain a reliable ML model, one usually needs to perform several iterations of the ML lifecycle [prov2019works] – obtaining relevant raw data, transforming data, training and validating an ML model. Given the heterogeneous nature of this lifecycle, it is difficult to track how data is transformed through it. In practice, tracking data transformations is usually done manually, which is an error-prone and time-consuming task. The increasing use of ML models in several industries, coupled with the introduction of several regulatory pieces concerning data privacy and protection, like the European’s General Data Protection Regulation (GDPR), the California Consumer Privacy Act (CCPA), and Brazil’s Lei Geral de Proteção de Dados (LGPD), among others, as well as industry-specific data concerns, like the ones faced in the O&G domain, makes the problem of having reliable track of data transformations one of the top concerns for a model’s adoption.

Data lineage, or data provenance, helps reproducing, tracing, assessing, and understanding data and their transformation processes [herschel2017survey]. In this paper, we present how a provenance data tracking and analysis system, called ProvLake [souza2019efficient], can aid building models for finding Sweet Spot for Shale (SSS) [bianca2019sss]. ProvLake  [souza2019efficient] supports inter-workflow tracking of heterogeneous data stored in heterogeneous stores with design principles suited for the tracking data in ML lifecycles [prov2019works, souza_managing_2019].

This paper starts with the current introduction, followed by a description of ProvLake. Then we introduce and explain the Sweet Spot for Shale use case and how ProvLake can be used within it. Afterwards, it is presented some experimental analysis and, finally, our concluding remarks.

Ii ProvLake

ProvLake [souza2019efficient] is a provenance tracking and analysis system for runtime analysis of multi workflow data. It was built using a set of design principles that enables it to perform well in the ML lifecycle: (i) asynchronicity and the use of (ii) work queues allow it to have a small (time-wise) provenance capture overhead and its (iii) lightweight library makes so the original code remains as close as possible to its original form.

ProvLake has a microservices architecture composed of three services (Data Tracker, ProvManager, and PolyProvQueryEngine), a lightweight Data Tracker API, a messaging system, and the ProvLake Data View (PLView) (Figure 1). These components capture data, transform them into the provenance database representation, insert them into the database, and help runtime data analysis through query submissions.

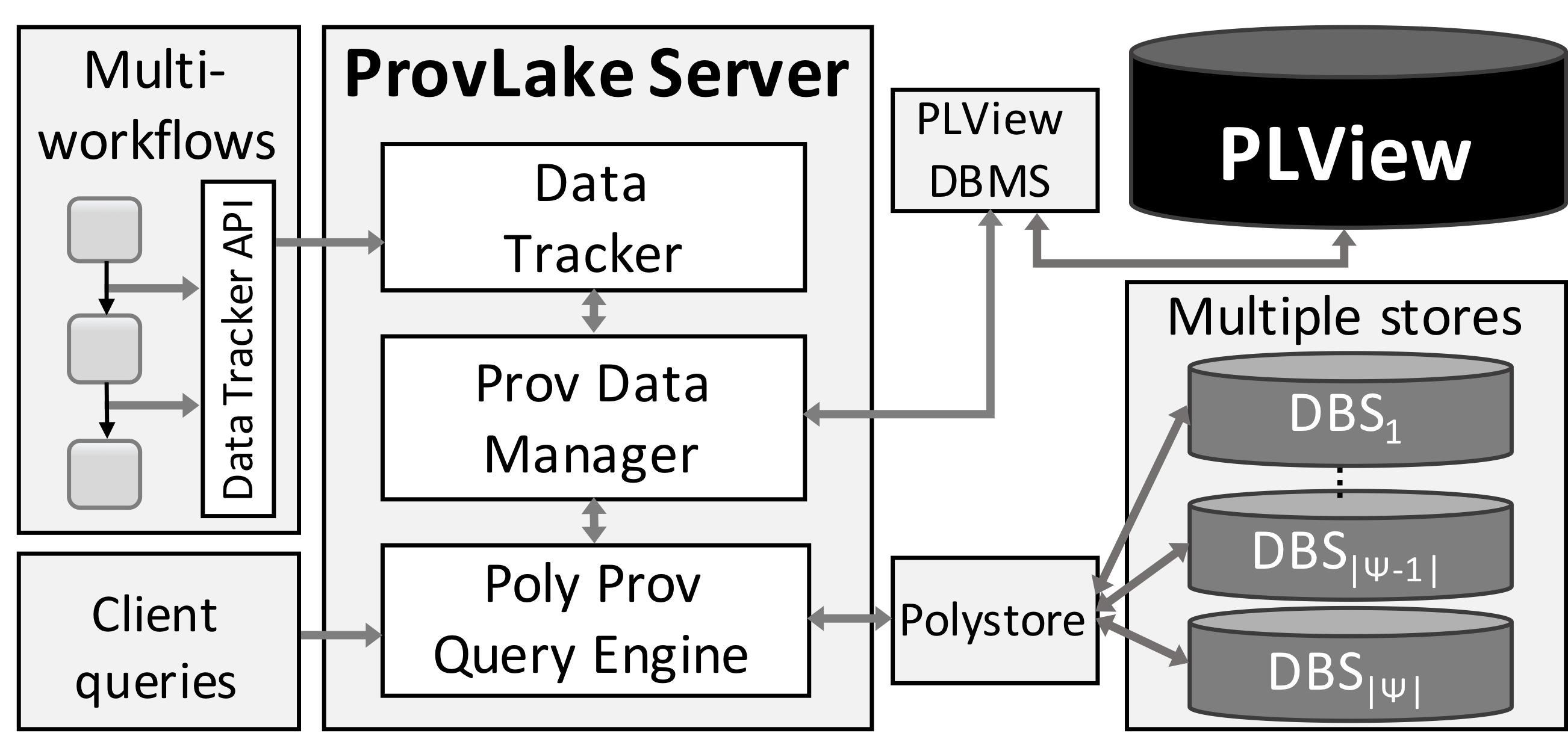

Fig. 1: ProvLake Architecture [souza2019efficient].
