1. Introduction

Domain generation algorithms (DGAs) are incorporated in many malware families and used to determine the current location of a bot’s command and control (C2) server. These algorithms typically generate a large amount of pseudo-random domain names in order to impede the blocking of the bot’s communication. All of the algorithmically generated domains (AGDs) are successively queried by the bots. Most of the queries result in non-existent domain (NXD) responses. The botnet herder is aware of the generation scheme and thus able to predict and register a subset of the AGDs in advance. When the bots query one of the registered domains they obtain a valid IP address of their C2 server.

To detect infection with DGA based malware and prohibit it from reaching its C2 server, machine learning classifiers can be used to label domain names in monitored DNS queries as benign or malicious. The classification result may then be used to block connection attempts to C2 servers, may trigger additional monitoring of the device that initiated the query, or may be used as one of several indicators of compromise in an intrusion detection system. This binary classification task has been addressed, not only by classical feature-based approaches, such as random forests (RFs) or support vector machines (SVMs) (e.g.,

(Schüppen et al., 2018)

), but also by featureless approaches, such as recurrent (RNNs) or convolutional neural networks (CNNs) (e.g.,

(Woodbridge et al., 2016; Yu et al., 2018; Saxe and Berlin, 2017)). Variants of some of the above classifiers have also been evaluated in the context of the more challenging multiclass classification task of attributing AGDs to a certain DGA family (e.g., (Woodbridge et al., 2016; Tran et al., 2018; Sivaguru et al., 2018)) narrowing down the malware family and thus enabling targeted remediation measures.

In practice, only automated solutions which have a low false positive rate are useful due to the large amount of data which has to be processed. Therefore, it is important to analyze details such as the effect of class imbalances on classifiers in order to keep the false positive rate as low as possible. The performance of machine learning classifiers depends on several factors such as the type of the classifier, choice of hyperparameters, and probably most important on the training data. A classifier always derives a decision for a given input sample based on the data provided during its training phase. Hence, the choice of the training data is crucial for the classifier’s prediction performance. Considering the fact that the sample distribution per DGA family is heavily imbalanced it is not trivial to create adequate training data sets for either of the two DGA classification tasks. Given that the OSINT feed of DGArchive

(Plohmann et al., 2016), e.g., contains the Dnsbenchmark DGA with overall 5 samples and the Virut DGA with over 22 million samples it is not obvious how many samples per DGA should be included to the training sets. In particular, it is unclear whether the inclusion of underrepresented DGAs in the training process is beneficial or harmful for the overall performance of a classifier.

For binary classification, adding such samples could distract a classifier and reduce its overall classification capability. Contrarily, the classifier could increase its capability of separating AGDs of these DGAs from benign samples without reducing the classifier’s detection capability of well represented classes.

For multiclass classification, it has been shown in prior work (Tran et al., 2018) that the overall performance of a classifier may be increased if the class imbalance problem is properly addressed. However, it has not been analyzed yet whether the inclusion of a few training samples per DGA to the training set enables a classifier to correctly attribute samples of those same DGAs. Likewise, the added samples could have a negative impact on the attribution of the well represented classes. In addition, in this setting, the question arises to which specific classes, i.e. the benign class or different DGA families, possible out-of-distribution samples are classified to. Here, the inclusion of underrepresented DGAs could either reduce or increase the rate of falsely attributing malicious samples to the benign class.

Since there are usually only small amounts of samples known for recently discovered DGAs, the question whether the inclusion of such samples in the training set enables the detection of these newly discovered DGAs is of great practical relevance.

In this paper, we address the mentioned issues by analyzing the effect of class imbalances on classical machine learning approaches (SVMs and RFs) as well as on deep learning based approaches (RNNs and CNNs). In our comprehensive study, we use the same unified experimental setup to evaluate the various classifiers and make use of captured real-world traffic as well as AGDs generated by 91 different DGA families. We answer the aforementioned open questions and show the great value of a few training samples per class for both classification tasks. Thereby, we make a further step into bringing the promising DGA classifiers into practical use.

2. Related Work

In the past, various approaches have been proposed in order to detect DGA activities within networks. These approaches can be divided into two groups: contextless approaches which operate solely on the domain name that is to be classified (e.g., (Schüppen et al., 2018; Woodbridge et al., 2016; Tran et al., 2018; Yu et al., 2018; Saxe and Berlin, 2017; Sivaguru et al., 2018)), and context-aware approaches which require additional contextual information (e.g., (Antonakakis et al., 2012; Bilge et al., 2014; Grill et al., 2015; Yadav and Reddy, 2011; Schiavoni et al., 2014; Shi et al., 2018)). The advantage of the contextless approaches is that they are typically less resource intensive and intrusive than approaches which require additional information.

The proposed machine learning classifiers can be further separated into two additional groups: feature-based and deep learning based approaches. Feature-based machine learning approaches such as SVMs or different Decision Tree algorithms (e.g., RFs or C4.5 Decision Trees) are able to classify domain names as either benign or malicious with high accuracy (e.g.,

(Bilge et al., 2014; Schüppen et al., 2018)). The performance of these classifiers heavily depends on the utilized feature set. Hence, a feature engineering step prior to the training of a classifier is mandatory. Deep learning based approaches, on the other side, do not require this as they learn to extract the relevant features automatically during their training. Different types of deep learning classifiers, RNNs, CNNs, or combinations of both, have been proposed for DGA binary (e.g., (Woodbridge et al., 2016; Yu et al., 2018; Saxe and Berlin, 2017)) as well as for DGA multiclass classification (e.g., (Woodbridge et al., 2016; Tran et al., 2018; Sivaguru et al., 2018)). While the deep learning classifiers achieve comparable if not better classification results compared to classical approaches, they lack in the explainability of their decisions. For instance, the predictions of a decision tree can be traced down by the individual features used for the classification. Such a simple explanation is not possible for the predictions of deep learning based approaches.

The class imbalance problem in general occurs in many areas of application and has been extensively studied in the past. The authors of (Zhi-Hua Zhou and Xu-Ying Liu, 2006) have shown that simple techniques to deal with this problem, such as over- or undersampling, can have a negative impact on the classification performance of a multiclass classifier. Several more complex approaches such as AdaBoost (Freund and Schapire, 1996), SMOTEBoost (Chawla et al., 2003), RUSBoost (Seiffert et al., 2009), Over- and UnderBagging (Wang and Yao, 2009), EasyEnsemble (Liu et al., 2008), and BalanceCascade (Liu et al., 2008) have been proposed to cope with class imbalances. In (Galar et al., 2012), a comprehensive study was conducted which included several bagging-, boosting-, and hybrid-based approaches and identified RUSBoost as one of the best performing approaches while being least complex.

In the context of DGA detection, the class imbalance problem has been identified and partly investigated in (Woodbridge et al., 2016; Schüppen et al., 2018; Tran et al., 2018). The authors of (Tran et al., 2018) studied a specific approach for DGA multiclass classification which achieves better results than RusBoost.

In more detail, in (Schüppen et al., 2018), the authors claim that their binary DGA detection classifiers need at least a few hundred training samples per DGA to work well, and therefore removed all DGAs with less than 250 unique training samples from their training sets. Woodbridge et al. (Woodbridge et al., 2016) identified that the class imbalances limit the capability of their RNN-based DGA multiclass classifier to correctly attribute domain names to the DGA, which generated them. The authors increased the averaged classification performance by clustering the 30 investigated DGA families into 11 super families. However, thereby the identification of a specific malware family is not possible anymore which can be helpful for targeted remediation measures. The authors of (Tran et al., 2018) addressed this issue by making the model of (Woodbridge et al., 2016) cost-sensitive. In order to achieve this, the authors introduced a class weight for every class

. These class weights control the magnitude of the weight updates during the training process of a model by weighting the loss function. Misclassified samples of class

are now penalized with instead of . Increasing forces the model to emphasizes more on class . The proposed class weights are defined as follows:

is a parameter which expresses how much the training data should be rebalanced. Setting lets the model behave cost-insensitive. When is chosen, the model values every class equally regardless of the available samples per class included in the training set. The authors empirically determined to work well for their RNN-based DGA multiclass classifier and demonstrated that their approach achieves better results than RUSBoost.

Through this technique the authors were able to enhance the classifier’s capability of correctly identifying DGAs of underrepresented classes. However, the effect on the classifier’s attribution capability of well represented DGAs was not measured. Moreover, it is unclear to which classes out-of-distribution samples are attributed to, when underrepresented classes are left out of the training. The main motivation to analyze this more closely is that it might be better to train the classifier only on the well represented classes in order to be able to correctly classify the major fraction of the samples instead of including the underrepresented classes which would enable the identification of an additional minor fraction but possibly decrease the correct attribution of the samples which appear most of the time. In this paper, we thus complete the prior results on RNN-based multiclass classifiers ((Woodbridge et al., 2016; Tran et al., 2018)) by answering the open questions and show that the results hold true for other types of classifiers as well.

For binary classification, it has not been studied so far whether it is useful to include AGDs of DGAs into the training set for which only a small number of samples is available. Adding these samples could distract a classifier and reduce its overall classification capability. Contrarily, the classifier could increase its capability of separating AGDs of these DGAs from benign samples without reducing the classifiers detection capability of well represented classes.

In this work, we perform a comprehensive study to address the aforementioned still open questions for the multiclass task and address the question for the first time in the binary setting.

3. Evaluation Setup

In this section, we present the used data sources, the selected state-of-the-art classifiers, and an overview of the different types of experiments which we conduct to analyze the effect of class imbalances on both DGA classification tasks.

3.1. Data Sources

We use two distinct data sources for the creation of representative real-world data sets, one for benign and one for malicious domains.

3.1.1. Malicious Data: DGArchive

We obtain malicious domains from DGArchive (Plohmann et al., 2016). DGArchive is a database containing AGDs of known DGAs which are generated by implementations of reverse engineered DGAs. For our experiments we use all available samples of DGArchive until October 1st, 2019. This data set contains approximately 100 million unique AGDs generated by 91 different DGAs.

3.1.2. Benign Data: Large University Network

The central DNS resolver of the campus network of RWTH Aachen University serves as source for benign data. This network incorporates several academic and administrative networks, networks from student residences, eduroam (Eduroam, World wide education roaming for research and education), and the networks of the university hospital of RWTH Aachen. We extract domain names from captured non-resolving DNS traffic (NX-traffic) instead of using full DNS traffic due to the following two reasons. First, the amount of NX-traffic is significantly smaller than the amount of full DNS traffic which eases the monitoring. Second, observing the NX-traffic of a network enables the detection of bot activities even before they are able to exfiltrate any sensitive data, or to receive any commands to participate in any malicious process. This is because most of the queried AGDs will result in NXD responses before the bots are able to obtain the IP address of their C2 server. From this source we obtain a one-month recording of September 2019. In total, this recording comprises of approximate 26 million unique NXDs.

This one-month recording includes versatile data and thus allows for the creation of representative real-world data sets. The captured benign NXDs originate mainly from misconfigured or outdated software which tries to resolve domains that do not exist, or from typing errors caused by humans. Besides that, the recording includes benign AGDs which emerge from the intentional misuse of the DNS. For instance, Google Chrome incorporates a DGA in order to detect DNS hijacking attempts (Zdrnja, 2011), and antivirus software exchange signatures using AGDs via DNS (Sophos, 2019). In a data sanitation step, we filter the captured domain names against the data from DGArchive and remove all known malicious AGDs. The benign AGDs remain in the data set and are further considered as benign.

3.2. Classifiers

In this section, we present the selected state-of-the-art classifiers. We focus on contextless classifiers as they are less resource intensive and intrusive compared to context-aware approaches while achieving state-of-the-art performance. We first present the currently best feature-based approach and continue with three different types of neural network classifiers.

3.2.1. Fanci

Currently, the best contextless feature-based approach for DGA binary detection is FANCI (Schüppen et al., 2018). It implements an SVM (FANCI-SVM) and an RF (FANCI-RF) classifier using 21 hand-crafted features of the following three categories: structural, linguistic, and statistical features. FANCI does not incorporate multiclass classification off-the-shelf.

3.2.2. Endgame

Woodbridge et al. (Woodbridge et al., 2016)

propose RNN-based classifiers for the DGA binary and multiclass classification task. Both classifiers use a long short-term memory (LSTM) layer consisting of 128 hidden units with hyperbolic tangent activation. The difference between the two classifiers is that the LSTM output of the binary classifier is consumed by a single node with sigmoid activation performing the logistic regression while the final layer of the multiclass classifier is composed of as many nodes as classes are present. The multinomial logistic regression and thus the attribution of an input to a specific class is performed using the softmax activation function. In the following, we denote the binary classifier by B-Endgame and the multiclass classifier by M-Endgame.

3.2.3. Nyu

Zhang et al. (Zhang et al., 2015) propose a character-level CNN with six stacked 1-dimensional convolutional layers. While this model was successfully applied to natural language text classification, it tends to overfit domain names. This is caused by properties of domain names such as missing grammatics and their typically small length. Yu et al. (Yu et al., 2018) adapted this model and reduced the number of CNN layers to two and the number of their filters to 128 for DGA binary classification. In the following, we refer to the adapted model as B-NYU. Similar to M-Endgame we adapted B-NYU to a multiclass classifier and refer to it as M-NYU in the following.

3.2.4. ResNet

Recently, residual neural network (ResNet) based classifiers have been proposed for both DGA classification tasks (Meyer et al., 2020)

. These classifiers are build up of residual blocks which introduce skip connections between convolutional layers allowing the gradient to bypass certain layers unaltered and thus avoid the vanishing gradient problem during training

(He et al., 2016a, b). The proposed binary classifier B-ResNet uses only one residual block with 128 filters per convolutional layer while the multiclass classifier M-ResNet is composed of eleven residual blocks with 256 filters per layer.

3.3. Experiments

In this section, we provide an overview of the different experiments we conduct. We analyze the effect of class imbalances on the two classification tasks separately.

3.3.1. Binary Classification

Here, we analyze whether or not it is useful to include samples of DGA families into the training set of binary classifiers for which only a small number of AGDs is known. Currently, it is not clear whether the inclusion of these samples has a positive or a negative effect on the overall classification performance of a classifier. On the one hand, the classifier could learn to distinguish AGDs of DGAs with little support from the benign samples. On the other hand, the few included samples could distract the classifier such that its overall performance decreases.

3.3.2. Multiclass Classification

We investigate the effect of class imbalances on the multiclass task in two separate scenarios.

In the first scenario, the balanced scenario, we use only samples from DGAs for which at least a pre-defined number of samples exist for training. I.e., we enforce a balanced class distribution in the training set. The reasoning for this is that the classifiers might need at least a certain amount of samples per class in order to be able to extract enough information for meaningful classification results. Samples of DGAs with only little support in the training set might distract the classifiers such that the overall classification performance decreases.

In a second scenario, we investigate the class imbalance case by including samples of all DGAs, even of those for which only a small number of AGDs is known. Here, a few samples may already be enough for the classifiers to learn discriminants which separate the classes with little support.

In both of the scenarios, we deliberately exclude FANCI from our study. To the best of our knowledge, there is currently no contextless feature-based approach for DGA multiclass classification. While it is possible to reduce the multiclass classification to multiple binary classification problems the resulting classifier would be of questionable quality as the currently utilized features are engineered to distinguish benign from malicious domains and not to discriminate different DGAs. Hence, we decided not to implement multiclass classification support for FANCI. For a promising multiclass classifier new features have to be engineered.

3.3.3. Out-Of-Distribution Classification

Lastly, we investigate to which classes out-of-distribution samples are attributed to, when underrepresented classes are left out of the training.

4. Evaluation

The performance of the classifiers is assessed by the f1-score, recall, and precision. The f1-score is the harmonic mean of the recall and the precision. The recall equals the true positive rate and measures the ability of a classifier to identify positive samples. The precision measures the fraction of true positives among those samples that are labeled as positive by a classifier. When building averages, we choose macro-averaging as it values each class with the same level of importance despite the actual number of samples per class.

All deep learning models are executed on an NVIDIA Tesla V100 GPU using Python 3.6.8, Keras 2.3.1, TensorFlow 1.13.1, CUDA 10.0.130, and cuDNN 7.4.

For our analysis, we separate the 91 DGAs of DGArchive into two groups: the well represented group consists of 46 DGAs for which more than 10,000 AGDs per DGA are available. The remaining 45 DGAs, for which less than 10,000 samples per DGA exist, form the weakly represented group.

4.1. Binary Classification

In Fig. 1, we provide an overview of the two different types of sets we use in our binary evaluation: balanced, and imbalanced data sets. The imbalanced testing data sets (B-Imbalanced-Test) include for each of the 45 DGAs of the weakly represented group 20% of the available samples. The imbalanced training data sets (B-Imbalanced-Train) contain the remaining 80% of the samples of the weakly represented group and additionally 10,000 random samples for each of the 46 DGAs of the well represented group. We intentionally do not include any AGDs of the well represented DGAs to the B-Imbalanced-Test sets since we want to explicitly study how well the underrepresented DGAs are detected in this setting. In the B-Imbalanced-Train sets as well as in the B-Imbalanced-Test sets we additionally add samples drawn uniformly at random from the benign data source such that in each set an equal amount of benign and malicious samples are present. We create 20 different B-Imbalanced-Train and B-Imbalanced-Test data set pairs like this, where each of the training sets has a cardinality of 1,045,648 and each of the test sets contains 31,440 samples.

Further, we create 20 balanced training data sets (B-Balanced-Train) which contain 11,366 samples for each DGA of the well represented group, targeting the same amount of samples as included in the B-Imbalanced-Train sets. Similar to the imbalanced sets, these sets include as many benign samples as malicious samples. We intentionally increased the number of AGDs per DGA for the B-Balanced-Train sets in order to guarantee that if a classifier is trained on one of the two set types (balanced or imbalanced), approximately the same number of training samples is available for training. Lastly, we create 20 balanced testing sets (B-Balanced-Test) consisting of 1,000 AGDs for every DGA which is included in the B-Balanced-Train data sets and an equal amount of benign samples.

We use each training data set (B-Balanced-Train and B-Imbal-anced-Train) to train an individual classifier which results in 40 classifiers per approach. Classifiers which are trained on B-Balanced-Train are evaluated using every testing set (B-Balanced-Test and B-Imbalanced-Test), resulting in passes per approach and set type. The classifiers which are trained using the B-Imbalanced-Train sets are evaluated on the B-Balanced-Test sets in the same way. Prediction on the B-Imbalanced-Test sets is only performed by using those classifiers for which the training and test set are fully disjoint. This results in overall 20 evaluation passes per approach. The rational is that if we perform the prediction on every B-Imbalanced-Test set, it is highly probable that due to the small number of available AGDs a big fraction of testing samples was already seen by a classifier during training. Hence, by forcing this constraint, we can obtain more representative results. This is not required for the prediction on the B-Balanced-Test sets because the included AGDs are drawn uniformly at random from a sufficiently large pool for every DGA.

Figure 1. Binary Experiment Overview

Table 1 depicts the averaged recall for the benign as well as for the malicious class for the different classifiers and combinations of training and testing sets. When prediction is performed on the B-Balanced-Test sets, the individual classifiers achieve approximately the same scores regardless of the utilized training set. Hence, we can argue that the included samples of classes for which only a small amount of AGDs is known has no major influence on the classifier’s detection capability of DGAs which are well represented in the training data. When prediction is performed on the B-Imbalanced-Test sets, the recall of the malicious class is significantly lower for the classifiers which are trained on the B-Balanced-Train data sets compared to the classifiers which learned classification based on the B-Imbalanced-Train sets. The recall for the benign class does not differ much between any of the classifiers.

Table 2 shows the individual recall scores of the classifiers, when they are trained on B-Balanced-Train and B-Imbalanced-Train sets, for each individual DGA contained in the B-Imbalanced-Test sets. Improvements of over 1% which are achieved by using B-Imbal-anced-Train sets are printed in bold. The support denotes the number of samples which are included in the B-Imbalanced-Test sets.

All classifiers significantly profit from adding the DGAs of the weakly represented group to the training sets. On average, the recall of the deep learning based classifiers increases by 10.777%, while FANCI-SVM improves by 4.3%, and FANCI-RF by 7.035%. The feature-based approaches are slightly better in the detection of unknown DGAs of the weakly represented group compared to the deep learning classifiers. However, the deep learning classifiers are better in detecting the DGAs of the weakly represented group when samples of these DGAs are included in their training.

Consequently, these results show that domain names that are generated by DGAs for which only a small amount of AGDs are known should be used as training samples in order to increase the detection rate of those same DGAs. Thereby, we are able to increase the recall for the malicious class on average by over 8.733% on the B-Imbalanced-Test sets. In fact, already a small number of samples per class is sufficient in order to increase the detection rate for those classes significantly. For instance, for all classifiers but FANCI-SVM, training on 168 samples of the Beebone DGA increases the recall from 0% to over 99.5% for the 42 remaining available samples which were not seen by the classifiers during training. For FANCI-SVM the recall is improved by 31.667%. In general, we could significantly increase the recall of 6 DGAs for FANCI-SVM, 12 DGAs for FANCI-RF, and 10 DGAs for the deep learning based classifiers.

B-Balanced-Test B-Imbalanced-Test
Classifier Training Data Benign Malicious Benign Malicious
FANCI-SVM B-Balanced-Train 0.99739 0.99921 0.99730 0.91798
FANCI-SVM B-Imbalanced-Train 0.99702 0.99924 0.99707 0.96097
FANCI-RF B-Balanced-Train 0.99736 0.99941 0.99726 0.91443
FANCI-RF B-Imbalanced-Train 0.99720 0.99939 0.99707 0.98479
B-Endgame B-Balanced-Train 0.99745 0.99991 0.99737 0.88780
B-Endgame B-Imbalanced-Train 0.99753 0.99991 0.99726 0.99714
B-NYU B-Balanced-Train 0.99761 0.99994 0.99750 0.88868
B-NYU B-Imbalanced-Train 0.99745 0.99994 0.99733 0.99842
B-ResNet B-Balanced-Train 0.99762 0.99985 0.99752 0.89318
B-ResNet B-Imbalanced-Train 0.99755 0.99984 0.99740 0.99740
Table 1. Binary Experiment: Macro Averages of the Recall
FANCI-SVM FANCI-RF B-Endgame B-NYU B-ResNet
DGA Balanced Imbalanced Balanced Imbalanced Balanced Imbalanced Balanced Imbalanced Balanced Imbalanced Support
bedep 1.00000 1.00000 0.99859 0.99973 0.99904 0.99997 1.00000 1.00000 0.99995 1.00000 1492
beebone 0.00000 0.31667 0.00000 1.00000 0.00000 0.99524 0.00190 0.99881 0.00000 1.00000 42
blackhole 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 147
bobax 0.27250 0.27500 0.25058 0.41250 0.31046 0.99583 0.32325 0.99833 0.63492 0.99750 60
ccleaner 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 7
chir 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 20
darkshell 1.00000 1.00000 0.97938 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 8
diamondfox 0.97963 1.00000 0.96134 1.00000 1.00000 1.00000 1.00000 1.00000 0.99993 1.00000 108
dircrypt 1.00000 1.00000 0.99996 0.99978 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 230
dmsniff 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 14
dnsbenchmark 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1
downloader 1.00000 1.00000 1.00000 1.00000 0.00000 0.99167 0.00000 1.00000 0.00000 0.98333 12
ebury 1.00000 1.00000 0.99996 0.99988 0.99997 1.00000 1.00000 1.00000 0.99998 1.00000 400
ekforward 0.99976 0.99976 0.99996 1.00000 0.97929 1.00000 1.00000 1.00000 0.99983 1.00000 638
feodo 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 39
fobber 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 0.99997 0.99975 400
goznym 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 73
gspy 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 10
hesperbot 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 36
madmax 0.49620 0.90924 0.49590 0.98424 0.49793 0.95054 0.49620 0.98587 0.49658 0.97826 92
makloader 1.00000 1.00000 0.95808 1.00000 1.00000 0.99951 0.99981 1.00000 0.99976 1.00000 103
mirai 1.00000 1.00000 0.98496 0.99464 0.57491 1.00000 0.56866 1.00000 0.57911 0.99732 56
modpack 1.00000 1.00000 0.77920 0.96364 0.99955 1.00000 1.00000 1.00000 1.00000 1.00000 22
omexo 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 4
pushdotid 0.99999 1.00000 0.99976 1.00000 1.00000 1.00000 0.99991 1.00000 0.99920 0.99988 1200
pykspa2s 1.00000 1.00000 0.99992 0.99997 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1992
qhost 1.00000 1.00000 0.91700 0.97000 1.00000 1.00000 1.00000 1.00000 0.99500 1.00000 5
ramdo 1.00000 1.00000 0.99970 0.99979 1.00000 1.00000 1.00000 1.00000 0.99998 1.00000 1200
randomloader 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 0.91250 1.00000 1
redyms 1.00000 1.00000 0.99250 0.99286 0.98464 0.99286 0.97643 1.00000 0.90036 0.98571 7
shifu 0.99569 0.99904 0.99986 0.99989 1.00000 1.00000 1.00000 1.00000 0.99995 1.00000 467
sisron 0.99763 1.00000 0.99752 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1979
sutra 0.66457 0.74408 0.66456 0.99871 0.66457 1.00000 0.67690 1.00000 0.71611 1.00000 1977
tempedreve 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 41
tempedrevetdd 1.00000 1.00000 0.99982 1.00000 1.00000 1.00000 1.00000 1.00000 0.99984 1.00000 330
tofsee 0.90301 1.00000 0.96952 1.00000 0.99966 1.00000 1.00000 1.00000 0.99988 1.00000 784
tsifiri 0.00000 1.00000 0.23229 1.00000 0.05000 0.95000 0.00000 0.95000 0.00000 0.95000 12
ud2 1.00000 1.00000 0.99989 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 93
ud3 1.00000 1.00000 1.00000 1.00000 0.90229 0.99583 0.97542 0.99583 0.98438 0.99167 12
ud4 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 14
vawtrak 1.00000 1.00000 0.99986 0.99981 1.00000 1.00000 1.00000 1.00000 0.99919 0.99963 540
vidrotid 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 60
volatilecedar 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 100
xshellghost 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 1.00000 12
xxhex 1.00000 1.00000 0.96938 0.99989 0.98877 0.99994 0.97195 0.99989 0.97653 0.99994 880
Average 0.91798 0.96097 0.91443 0.98479 0.88780 0.99714 0.88868 0.99842 0.89318 0.99740 349.333
Table 2. Binary classification: individual recall scores of the classifiers, when they are trained on B-Balanced-Train and B-Unbalanced-Train sets, for each individual DGA contained in the B-Unbalanced-Test sets.

4.2. Multiclass Classification

To analyze the effect of class imbalances on the DGA multiclass classification task, we create two different sets, one for the balanced scenario (M-Balanced), and one for the imbalanced case (M-Imbalanced). The M-Balanced set contains 10,000 random samples for the DGAs of the well represented group. Additionally, we include 10,000 random samples of our benign data source. This results in 46 malicious classes and one benign class and thus yields an overall set size of 470,000 samples. The M-Imbalanced set additionally includes all samples of the DGAs of the weakly represented group. In this set, we have overall 92 classes including the benign class resulting in a set size of 548,544 samples. For both scenarios, we perform 5 repetitions of a 5-fold cross validation where we split the samples of each included class into 80% training and 20% testing samples in every fold.

4.2.1. Balanced Scenario

We concentrate on cost-insensitive models here, as for each class the exact same number of samples is included in the M-Balanced set and therefore the performances of the models without class weighting do not deviate from the models which incorporate class weighting.

Table 3

shows the averaged results for the different classifiers. All classifiers achieve comparable results. The best performing model is M-ResNet. To further visualize the classification performance, we additionally provide its confusion matrix in Fig.

2

. Each block within the figure represents the fraction of samples (encoded as shades of gray) of the DGA family on the vertical axis which is labeled as a class on the horizontal axis. A perfect classifier would correspond to an identity matrix of black blocks.

It can be seen that the benign class can precisely be separated from all other classes (f1-score of 0.99495). This result confirms the statement of Lison and Mavroeidis (Lison and Mavroeidis, 2017) that using the same neural network to detect whether a domain is benign or not and simultaneously label the DGA family in case of a malicious sample performs approximately equally well as using two different neural networks optimized for the two tasks separately. Most DGA families are easily recognizable, the DGA which is detected worst is Oderoor with an f1-score of 0.26834. Most of its test samples are labeled as Vidro. The f1-score of Vidro is 0.42385 and similarly a significant fraction of its samples are labeled as Oderoor. This is due to the fact that both DGAs generate AGDs with similar characteristics. In fact, 79.092% of the available unique AGDs which are generated by Oderoor are also generated by Vidro.

4.2.2. Imbalanced Scenario

In this scenario, we include the DGAs of the weakly represented group. Thereby, the class distribution of the training sets is no longer balanced. Thus, we additionally evaluate cost-sensitive models as proposed in (Tran et al., 2018) in this experiment.

Table 4 shows the achieved results of the classifiers for different values of the rebalancing parameter (). The classifiers achieve their best results at different values of . M-Endgame is best at =0.9, M-NYU at =0.7, and M-ResNet at =0.2. While M-Endgame profits initially from increasing , the achieved scores stay quite stable after =0.2 compared to the other classifiers. M-NYU monotonically achieves better results up to =0.7 but after that the classifier’s performance degrades. M-ResNet profits at least from the rebalancing and similarly to M-NYU, greater values of have an negative impact on the classification performance. Comparing the cost-insensitive model of M-ResNet with the best cost-sensitive model yields an improvement of 0.531% while M-Endgame improves by 4.231% and M-NYU by 6.371%. To further compare the classification performance between the balanced and imbalanced scenario, we provide the confusion matrix of M-ResNet at =0.2 in Fig. 3.

Classifier F1-score Precision Recall
M-Endgame 0.87430 0.88151 0.87595
M-NYU 0.86657 0.87532 0.86873
M-ResNet 0.87682 0.88348 0.87860
Table 3. Multiclass Classification: Balanced Scenario
Figure 2. Balanced Scenario: M-ResNet’s Confusion Matrix

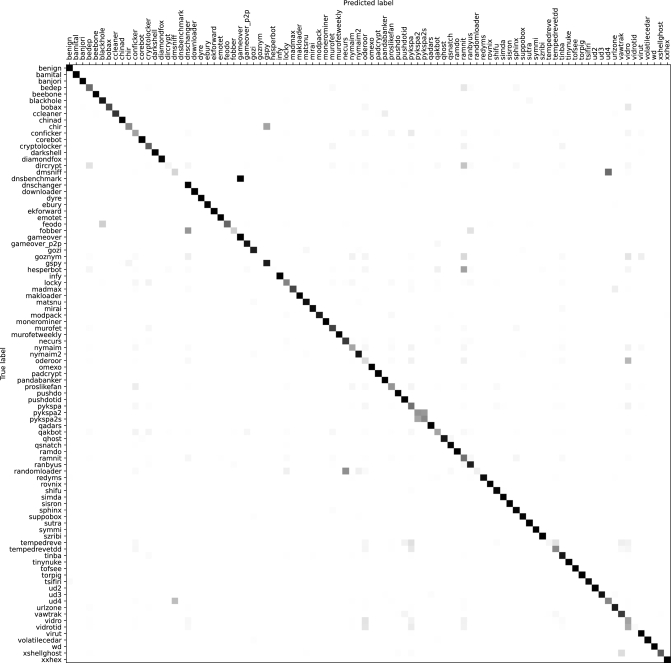

Figure 3. Imbalanced Scenario: M-ResNet’s Confusion Matrix at =0.2
Classifier F1-score Precision Recall
0.0 M-Endgame 0.71814 0.73534 0.71914
M-NYU 0.68654 0.71485 0.68559
M-ResNet 0.78299 0.80944 0.78521
0.1 M-Endgame 0.73051 0.74829 0.73135
M-NYU 0.70366 0.73134 0.70274
M-ResNet 0.78618 0.80822 0.79045
0.2 M-Endgame 0.74462 0.76429 0.74590
M-NYU 0.72471 0.75340 0.72452
M-ResNet 0.78830 0.80730 0.79523
0.3 M-Endgame 0.75176 0.76989 0.75437
M-NYU 0.74241 0.76486 0.74619
M-ResNet 0.78675 0.79840 0.79738
0.4 M-Endgame 0.74577 0.75849 0.75135
M-NYU 0.74310 0.76370 0.74983
M-ResNet 0.78714 0.79570 0.79931
0.5 M-Endgame 0.75355 0.76828 0.75984
M-NYU 0.74677 0.76190 0.75772
M-ResNet 0.78472 0.79284 0.80043
0.6 M-Endgame 0.75566 0.76456 0.76544
M-NYU 0.74784 0.75811 0.76327
M-ResNet 0.77552 0.77964 0.79957
0.7 M-Endgame 0.75610 0.76633 0.76708
M-NYU 0.75025 0.75591 0.77384
M-ResNet 0.76663 0.76825 0.79841
0.8 M-Endgame 0.75983 0.76796 0.77409
M-NYU 0.73645 0.73834 0.76972
M-ResNet 0.75000 0.74859 0.79561
0.9 M-Endgame 0.76045 0.76638 0.77883
M-NYU 0.70960 0.71128 0.75840
M-ResNet 0.70330 0.70131 0.76831
1.0 M-Endgame 0.75832 0.76242 0.78409
M-NYU 0.65598 0.66338 0.72583
M-ResNet 0.61585 0.62699 0.70072
Table 4. Multiclass Classification: Imbalanced Scenario

The averaged f1-score over all 92 classes is generally lower compared to the averaged f1-score over the 47 classes of the balanced scenario. However, the 46 malicious classes used in the balanced scenario are detected approximately equally well in the imbalanced scenario. The only exception is Pykspa2 since it generates similar AGDs as its related DGA family Pykspa2s. The averaged difference of the f1-scores of the DGAs of the well represented group between the two scenarios is below 1% when Pykspa2s is excluded from this calculation. While the classifier is not able to unambiguously separate Pykspa2 from Pykspa2s

it is still able to delimit these classes from the benign class. Similar to the balanced scenario, the benign class can precisely be separated from the malicious classes (f1-score of 0.99427). The biggest outlier is

Dnsbenchmark whose f1-score depends on the classification of a single sample that is included in the test set of a fold. For 22 of the 46 additional classes included in the unbalanced scenario, compared to the balanced case, the classifier is able to achieve an f1-score of more than 0.90, and for 11 classes even an f1-score of more than 0.99. These results show that the inclusion of a few samples per DGA family already enables the classifier to correctly attribute AGDs generated by several DGAs with high probability. Moreover, the detection rate of well-represented classes is not negatively affected.

4.2.3. Out-Of-Distribution Classification

In this section, we analyze to which class possible out-of-distribution samples are attributed to, when the DGAs of the weakly represented class are omitted from the training of a classifier. For each deep learning based approach, we train 20 classifiers using the samples of the well represented group included in the M-Imbalanced set. We then perform classification on the samples of the weakly represented group within the M-Imbalanced set. The average classification results for all approaches are very similar. As an example we display the results of M-ResNet in Fig. 4.

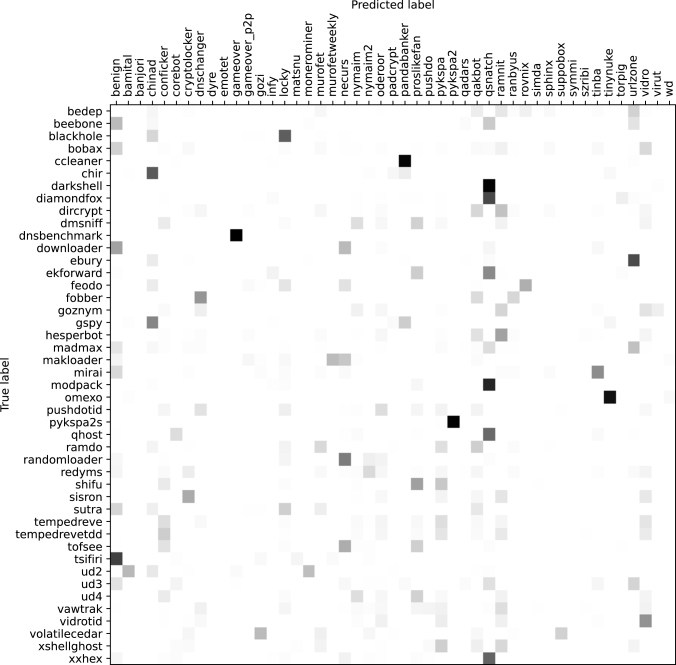

Figure 4. M-ResNet’s Out-Of-Distribution Classification

The out-of-distribution samples are not only spread over the malicious classes but also a huge fraction of the samples is attributed to the benign class. Hence, e.g., a multiclass classification module of an intrusion detection system would miss these samples entirely.

These results show that it is highly recommendable to include samples of less represented DGAs to the training sets of machine learning classifiers in order to reduce the possible misattribution of out-of-distribution samples to the benign class.

5. Conclusion

In this paper, we analyzed the effect of class imbalances on the DGA binary and multiclass classification task using a considerable data set that includes 91 malicious classes and real-world benign data. To this end, we evaluated the classification performance of SVMs, RFs, RNNs, CNNs, and ResNet-based classifiers and demonstrated the high value of a few training samples per class for all classifiers and classification tasks.

For the binary task, we showed that by the inclusion of a few training samples the classifiers’ capabilities of detecting underrepresented DGAs can be increased significantly without decreasing the detection rates of well represented DGAs. In particular, we could improve the classifiers’ recall for the weakly represented DGAs by 10.777% for the deep learning based classifiers and by 5.6675% for the feature-based approaches.

For the multiclass task, we demonstrated that already a few training samples enable the classifiers to correctly attribute several DGAs with high probability without negatively affecting the attribution rate of well represented classes. For 22 of 46 underrepresented classes the ResNet-based classifier was able to achieve f1-scores of over 0.90 and for 11 DGAs even over 0.99.

Moreover, in our evaluation, we demonstrated that when underrepresented classes are left out of the training a huge fraction of out-of-distribution samples is falsely attributed as benign.

Consequently, these results show that underrepresented DGAs should be included in the training sets for both classification tasks.

Acknowledgements.
The authors would like to thank Jens Hektor and Siemens for providing NXD data as well as Daniel Plohmann for granting us access to DGArchive. This project has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 833418. Simulations were performed with computing resources granted by RWTH Aachen University under project rwth0438.

References

  • M. Antonakakis, R. Perdisci, Y. Nadji, N. Vasiloglou, S. Abu-Nimeh, W. Lee, and D. Dagon (2012) From throw-away traffic to bots: detecting the rise of DGA-based malware. In USENIX Security Symposium, External Links: ISBN 978-931971-95-9 Cited by: §2.
  • L. Bilge, S. Sen, D. Balzarotti, E. Kirda, and C. Kruegel (2014) Exposure: a passive DNS analysis service to detect and report malicious domains. ACM Transactions on Information and System Security 16 (4). External Links: ISSN 1094-9224 Cited by: §2, §2.
  • N. V. Chawla, A. Lazarevic, L. O. Hall, and K. W. Bowyer (2003) SMOTEBoost: improving prediction of the minority class in boosting. In Knowledge Discovery in Databases: PKDD 2003, External Links: ISBN 978-3-540-39804-2 Cited by: §2.
  • Eduroam (World wide education roaming for research and education) Https://www.eduroam.org/. Cited by: §3.1.2.
  • Y. Freund and R. E. Schapire (1996) Experiments with a new boosting algorithm. In International Conference on Machine Learning, External Links: ISBN 1558604197 Cited by: §2.
  • M. Galar, A. Fernandez, E. Barrenechea, H. Bustince, and F. Herrera (2012) A review on ensembles for the class imbalance problem: bagging-, boosting-, and hybrid-based approaches. IEEE Transactions on Systems, Man, and Cybernetics, Part C (Applications and Reviews) 42 (4). Cited by: §2.
  • M. Grill, I. Nikolaev, V. Valeros, and M. Rehak (2015) Detecting DGA malware using netflow. In IFIP/IEEE International Symposium on Integrated Network Management, Cited by: §2.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016a) Deep residual learning for image recognition. In

    IEEE Conference on Computer Vision and Pattern Recognition

    ,
    Cited by: §3.2.4.
  • K. He, X. Zhang, S. Ren, and J. Sun (2016b) Identity mappings in deep residual networks. In Computer Vision – ECCV 2016, External Links: ISBN 978-3-319-46493-0 Cited by: §3.2.4.
  • P. Lison and V. Mavroeidis (2017) Automatic detection of malware-generated domains with recurrent neural models. In Norwegian Information Security Conference, Cited by: §4.2.1.
  • X. Liu, J. Wu, and Z. Zhou (2008) Exploratory undersampling for class-imbalance learning. IEEE Transactions on Systems, Man, and Cybernetics, Part B (Cybernetics) 39 (2). Cited by: §2.
  • U. Meyer, S. Schüppen, and D. Teubert (2020) Analyzing the real-world applicability of dga classifiers. In International Conference on Availability, Reliability and Security, Cited by: §3.2.4.
  • D. Plohmann, K. Yakdan, M. Klatt, J. Bader, and E. Gerhards-Padilla (2016) A comprehensive measurement study of domain generating malware. In USENIX Security Symposium, External Links: ISBN 978-1-931971-32-4 Cited by: §1, §3.1.1.
  • J. Saxe and K. Berlin (2017) eXpose: a character-level convolutional neural network with embeddings for detecting malicious URLs, file paths and registry keys. arXiv:1702.08568. Cited by: §1, §2, §2.
  • S. Schiavoni, F. Maggi, L. Cavallaro, and S. Zanero (2014) Phoenix: DGA-based botnet tracking and intelligence. In Detection of Intrusions and Malware, and Vulnerability Assessment, External Links: ISBN 978-3-319-08509-8 Cited by: §2.
  • S. Schüppen, D. Teubert, P. Herrmann, and U. Meyer (2018) FANCI: feature-based automated nxdomain classification and intelligence. In USENIX Security Symposium, External Links: ISBN 978-1-931971-46-1 Cited by: §1, §2, §2, §2, §2, §3.2.1.
  • C. Seiffert, T. M. Khoshgoftaar, J. Van Hulse, and A. Napolitano (2009) RUSBoost: a hybrid approach to alleviating class imbalance. Vol. 40. Cited by: §2.
  • Y. Shi, G. Chen, and J. Li (2018) Malicious domain name detection based on extreme machine learning. Neural Processing Letters 48 (3). External Links: ISSN 1573-773X Cited by: §2.
  • R. Sivaguru, C. Choudhary, B. Yu, V. Tymchenko, A. Nascimento, and M. De Cock (2018) An evaluation of DGA classifiers. In IEEE International Conference on Big Data, Cited by: §1, §2, §2.
  • Sophos (2019) Sophos Live Protection: Overview. External Links: Link Cited by: §3.1.2.
  • D. Tran, H. Mac, V. Tong, H. A. Tran, and L. G. Nguyen (2018) A LSTM based framework for handling multiclass imbalance in DGA botnet detection. Neurocomputing 275 (en). External Links: ISSN 09252312 Cited by: §1, §1, §2, §2, §2, §2, §2, §4.2.2.
  • S. Wang and X. Yao (2009) Diversity analysis on imbalanced data sets by using ensemble models. In Computational Intelligence and Data Mining, Cited by: §2.
  • J. Woodbridge, H. S. Anderson, A. Ahuja, and D. Grant (2016) Predicting domain generation algorithms with long short-term memory networks. arXiv:1611.00791. Cited by: §1, §2, §2, §2, §2, §2, §3.2.2.
  • S. Yadav and A. L. N. Reddy (2011) Winning with dns failures: strategies for faster botnet detection. In International Conference on Security and Privacy in Communication Systems, Cited by: §2.
  • B. Yu, J. Pan, J. Hu, A. Nascimento, and M. De Cock (2018) Character level based detection of DGA domain names. In International Joint Conference on Neural Networks, Cited by: §1, §2, §2, §3.2.3.
  • B. Zdrnja (2011) Google Chrome and (weird) DNS requests. External Links: Link Cited by: §3.1.2.
  • X. Zhang, J. Zhao, and Y. LeCun (2015) Character-level convolutional networks for text classification. In Advances in Neural Information Processing Systems 28, Cited by: §3.2.3.
  • Zhi-Hua Zhou and Xu-Ying Liu (2006) Training cost-sensitive neural networks with methods addressing the class imbalance problem. IEEE Transactions on Knowledge and Data Engineering 18 (1). External Links: ISSN 1041-4347 Cited by: §2.
