MAG: A Multilingual, Knowledge-base Agnostic and Deterministic Entity Linking Approach

07/17/2017 ∙ by Diego Moussallem, et al. ∙ Universität Paderborn UNIVERSITÄT LEIPZIG 0

Entity linking has recently been the subject of a significant body of research. Currently, the best performing approaches rely on trained mono-lingual models. Porting these approaches to other languages is consequently a difficult endeavor as it requires corresponding training data and retraining of the models. We address this drawback by presenting a novel multilingual, knowledge-based agnostic and deterministic approach to entity linking, dubbed MAG. MAG is based on a combination of context-based retrieval on structured knowledge bases and graph algorithms. We evaluate MAG on 23 data sets and in 7 languages. Our results show that the best approach trained on English datasets (PBOH) achieves a micro F-measure that is up to 4 times worse on datasets in other languages. MAG, on the other hand, achieves state-of-the-art performance on English datasets and reaches a micro F-measure that is up to 0.6 higher than that of PBOH on non-English languages.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

More than one exabyte of data is added to the Web every day.111https://tinyurl.com/kx6baxx Automatic extraction of knowledge from this data demands the use of efficient Natural Language Processing (NLP

) techniques such as text aggregation, text summarization and knowledge extraction. One of the most important

NLP tasks is Entity Linking (EL), also known as Named Entity Disambiguation (NED). The goal here is as follows: Given a piece of text, a reference knowledge base and a set of entity mentions in that text, map each entity mention to the corresponding resource in .

Several challenges have to be addressed when dealing with EL. For example, an entity can have a large number of surface forms (SF) (also known as labels) due to synonymy, acronyms and typos. For example, New York City, NY and Big Apple are all labels for the same entity. Moreover, multiple entities can share the same name due to homonymy and ambiguity. For example, both the state and the city of New York are called New York. Despite the complexity of the endeavor, EL

approaches have achieved increasingly better results over the past few years by relying on trained machine learning models (see

(Usbeck et al., 2015) for an overview). A portion of these approaches claim to be multilingual and rely on using cross-lingual dictionaries. However, our experiments (see Section 4) show that the underlying models being trained on English corpora make them prone to failure when migrated to a different language. For example, while PBOH (Ganea et al., 2016) achieves an average micro F-measure of 0.69 on corpora in English, it only achieves an average micro F-measure of 0.31 on other languages.

We alleviate this problem by presenting MAG, a novel multilingual EL approach. MAG (Multilingual AGDISTIS) is based on concepts similar to those underlying AGDISTIS (Usbeck et al., 2014) but goes beyond this approach by relying on time-efficient graph algorithms combined with language-independent features to link entities to a given reference knowledge base. Hence, MAG is knowledge-base agnostic, i.e., it can be deployed on any reference knowledge base . Our approach is also deterministic and does not rely on any trained model. Hence, it can be deployed on virtually any language.

The main contributions of this paper can be summarized as follows:

  • We present a novel multilingual and deterministic approach for EL which combines lightweight and easily extensible graph-based algorithms with a new context-based retrieval method.

  • MAG features an innovative candidate generation method which relies on various filter methods and search types for a better candidate selection.

  • We provide a thorough evaluation of our overall system on 23 data sets using the GERBIL platform (Usbeck et al., 2015). Our results show that MAG achieves state-of-the-art performance on English. In addition, MAG outperforms all state-of-the-art approaches on 6 non-English data sets.

MAG was implemented within the AGDISTIS framework.222https://github.com/AKSW/AGDISTIS The version of MAG used in this paper and also all experimental results are publicly available333https://github.com/AKSW/AGDISTIS/releases/tag/v1.0-mag444http://faturl.com/magexp/?open&selected=0.

2. Related Work

EL approaches can be subdivided into 2 different classes: 1) English-only approaches which are based and evaluated on English data sets and 2) multilingual approaches.

English-only In 2013, Van Erp et al. (Erp et al., 2013)

proposed an approach, dubbed NERD-ML, for entity recognition tailored for extracting entities from tweets. This approach relies on entity type classification over a rich feature vector composed of a set of linguistic components. Next to that, a plethora of other approaches including

(Cucerzan, 2007; Milne and Witten, 2008; Ratinov et al., 2011; Han et al., 2011; Chisholm and Hachey, 2015; Luo et al., 2015; Francis-Landau et al., 2016; Zhang et al., 2016) have been developed. These approaches mostly rely on graph algorithms and/or on machine-learning techniques. However, most of them do not offer a webservice nor an implementation that is publicly available and are thus difficult to compare.

Multilingual A large number of multilingual approaches have been developed over the years. DBpedia Spotlight (Mendes et al., 2011) combines Named Entity Recognition (NER) and NED

models based on a vector-space representation of entities and the use of cosine similarity for performing the disambiguation task. Hoffart et al.

(Hoffart et al., 2011) present AIDA which is based on the YAGO2 Knowledge Base (KB). Gad-Elrab et al. (Gad-Elrab et al., 2015) have implemented AIDA for other languages. KEA (Steinmetz and Sack, 2013) is based on a fine-granular context model that takes into account heterogeneous text sources as well as text created by automated multimedia analysis. Dojchinovski et al. (Dojchinovski and Kliegr, 2013)

presents Entity-classifier.eu which is based on hypernyms and a Wikipedia-based entity classification system which identifies salient words. The input is transformed to a lower dimensional representation keeping the same quality of output for all sizes of input text. In 2014, Zhang et al.

(Zhang and Rettinger, 2014) presented x-Lisa, a three-step pipeline based on cross-lingual Linked Data lexica that harnesses the multilingual Wikipedia. Navigli et al. (Moro et al., 2014) proposed Babelfy, which is based on random walks and a densest subgraph algorithm and relies on the BabelNet semantic network (Navigli and Ponzetto, 2012) as background knowledge. Usbeck et al. (Usbeck et al., 2014) presented AGDISTIS, a KB-agnostic entity disambiguation approach based on string similarity measures and the graph-based HITS algorithm. WAT (Piccinno and Ferragina, 2014) is the successor of TagME (Ferragina and Scaiella, 2012) which includes a re-design of all TagME components, namely, the spotter, the disambiguator, and the pruner. In 2015, Consoli and Recupero (Consoli and Recupero, 2015) presented FRED, a novel machine reader which extends TagMe with entity typing capabilities. Zwicklbauer et al. (Zwicklbauer et al., 2016) presented DoSer, an approach akin to AGDISTIS but based on entity embeddings. Later, Ganea et al. (Ganea et al., 2016) introduced PBOH, a probabilistic graphical model which uses pairwise Markov Random Fields. Our related work study suggests that only three of the related approaches are multilingual and deterministic without domain restriction. These are VINCULUM (Ling et al., 2015), AGDISTIS (Usbeck et al., 2014) and QVC (Wang et al., 2015). However, VINCULUM, QVC and other recent supervised approaches (Sil and Florian, 2016; Pappu et al., 2017) could not be included in our evaluation because neither their code nor a webservice were made available publicly, and the approaches could not be reconstructed based on the respective papers only.

3. The MAG Approach

In this section, we present MAG in detail. Throughout this work, we rely on the following formal definition of EL.

Definition 3.1 ().

Entity Linking: Let be a set of entities from a KB and be a document containing potential mentions of entities m = . The goal of an entity linking system is to generate an assignment of mentions to entities with for the document , where stands for an entity that is not in the KB.

The EL process implemented by MAG consists of two phases. Several indexes are generated during the offline phase. The entity linking per se is carried out during the online phase and consists of two steps: 1) candidate generation and 2) disambiguation. An overview can be found in Figure 1.

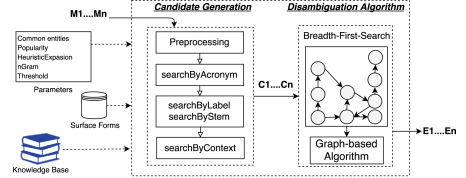

Figure 1. MAG architecture overview.

3.1. Offline Index Creation

MAG relies on the following five indexes: surface forms, person names, rare references, acronyms and context.

Surface forms. MAG relies exclusively on structured data to generate surface forms for entities so as to remain KB-agnostic. For each entity in the reference KB, our approach harvests all labels of the said entity as well as its type and indexes them.555In our implementation, we relied on predicates such as rdfs:label and rdf:type. Additional SFs can be collected from different sources (Usbeck et al., 2014; Bryl et al., 2016).

Person names - This index accounts for the variations in names for referencing persons (Krahmer and Van Deemter, 2012) across languages and domains. Persons are referred to by different portions of their names. For example, the artist Beyoncé Giselle Knowles-Carter is often referred to as Beyoncé or Beyoncé Knowles. In Brazil, she is also known as Beyoncé Carter and Beyoncé G. Knowles. Moreover, languages such as Chinese and Japanese put the family name in front of the given name (in contrast to English, where names are written in the reverse order). We address the problem of labelling persons by generating all possible permutations of the words within the known labels of persons and adding them to the index of names.

Rare references - This index is created if textual descriptions are available for the resources of interest (e.g., if resources have a rdfs:comment property). A large number of textual entity descriptions provide type information pertaining to the resource at hand, as in the example “Michael Joseph Jackson was an American singer …”666See rdfs:comment of http://dbpedia.org/resource/Michael_Jackson.. Hence, we use a POS tagger (the Stanford POS tagger (Toutanova and Manning, 2000) in our implementation) on the first line of a resource’s description and collect any noun phrase that contains an adjective. For example, we can extract the supplementary SF American singer for our example. This is similar to (Röder et al., 2015).

Acronyms - Acronyms are used across a large number of domains, e.g., in news (see AIDA and MSNBC data sets). We thus reuse a handcrafted index from STANDS4.777See http://www.abbreviations.com/

Context - Previous works(Zwicklbauer et al., 2016) rely on semantic embeddings such as Word2vec (Mikolov et al., 2013) to create indexes that model the words surrounding resource mentions in textual corpora. Given that we aim to be KB-agnostic and deterministic, our context index relies on the Concise Bounded Description (CBD)888https://www.w3.org/Submission/CBD/ of resources. The literals found in the CBD of each resource are first freed of stop words. Then, each preprocessed string is added as an entry that maps to the said resource.

All necessary information for recreating our indexes or building new indexes for other KBs can be found in our Wiki.999https://github.com/AKSW/AGDISTIS/wiki/3-Running-the-webservice

3.2. Candidates Generation

The candidate generation and the disambiguation steps occur online, i.e., when MAG is given a document and a set of mentions to disambiguate. The goal of the candidate generation step is to retrieve a tractable number of candidates for each of the mentions. These candidates are later inserted into the disambiguation graph, which is used to determine the mapping between entities and mentions (see Section 3.3).

First, we preprocess mentions to improve the retrieval quality. Before using common normalization techniques, we apply a filter for separating acronyms. The acronym filter detects acronyms by looking for strings made up of 5 uppercase letters or less. For example, “PSG” is the acronym of “Paris Saint-Germain”. In the case where a mention is considered an acronym, all further preprocessing steps are skipped. Otherwise, we use basic normalization methods which remove punctuation, symbols and additional white spaces. We use regular expressions to normalize the structure of strings. For example, our procedure will map strings to the lower case except for the first letter. Therewith, “NEW YORK” is normalized to “New York”. Furthermore, our preprocessing is capable of recognizing mentions such as camel cases “AmyWinehouse” and adds a space between lower-case and upper-case letters (i.e. true casing technique (Lita et al., 2003)).

The second step of the candidate generation, the candidate search, is divided into three parts:

By Acronym - If a mention is considered an acronym by our preprocessing, we expand the mention with the list of possible names from the acronym index mentioned above. For example, “PSG” is replaced by “Paris Saint-Germain”.

By Label - This search relies on our SF index. First, MAG retrieves candidates for a mention using exact matches to their respective principal reference. For example, the mention “Barack Obama” and the principal reference of the former president of the USA, which is also “Barack Obama”, match exactly. In cases where we find a string similarity match with the main reference of 1.0, the remaining steps are skipped. If this search does not return any candidates, MAG starts a new search using a trigram similarity threshold over the SF index. In cases where the set of candidates is still empty, MAG stems the mention and repeats the search. For example, MAG stems “Northern India” to “North India” to account for linguistic variability. The stemming process is not initialized in the preprocessing step since it is a technique which can induce additional errors (Singh and Gupta, 2016). For both search types, i.e. search by acronyms and labels, we apply trigram similarity for retrieving possible candidates.

By Context - Here, we use two post-search filters to find possible candidates from the context index. Before applying both filters, MAG extracts all entities contained in the input document. These entities are used as an addition while searching a mention in the context index. This search relies on TF-IDF (Ramos et al., 2003) which reflects the importance of a word or string in a document corpus relative to the relevance in its index. Afterwards, MAG first filters unlikely candidates by applying trigram similarity. Second, MAG retrieves all direct links among the remaining candidates in the KB. Our approach uses the number of connections to find highly related entity sets for a specific mention. This is similar to finding a dense subgraph (Hoffart et al., 2011). Figure 2 illustrates an example which contains three ambiguous entities, namely “Angelina”, “Brad” and “Jon”. Regarding the mention “Jon”, MAG searches the context index using “[(Angelina + Brad + Jon) + Jon]” as a query. MAG keeps only “Jon_Lovitz” and “Jon_Voight” after trigram filtering. Only “Jon_Voight”, the father of “Angelina_Jolie”, has direct connections with the other candidates and is thus chosen.

Figure 2. Search using the context index. White boxes on the right side depict candidates discarded by the trigram filter.

To improve the quality of candidates, the popularity of a given entity is a good ranking factor. If MAG’s configuration uses this factor, the number of candidates retrieved from the index is increased and then the result is sorted. After this sorting step, MAG returns the top 100 candidates. The popularity is calculated using Page Rank (Page et al., 1999) over the underlying KB

. If we are unable to leverage Page Rank on certain KB’s, we fall back to a heuristic of inlinks and outlinks. MAG’s candidate generation process is shown in Algorithm

1.101010The in-document, co-reference resolution is based on earlier works. (Usbeck et al., 2014)

Data: Mention , trigram similarity threshold
Result: candidates found
;
mention Preprocessing(); mention Co-reference();
if containsAcronym(m) then
        searchByAcronym();
else
        searchByLabel();

for c  do
        if c .matches([0-9]) then
               if trigramSimilarity(c, )  then
                      c; return;

              else if trigramSimilarity(c, )  then
                      c;



searchByContext();
for c  do
        if trigramSimilarity(c, ) then
               for c  do
                      if c.directLinks()  then
                             c;




Algorithm 1 Candidates Generation.

3.3. Entity Disambiguation Algorithm

After the candidate generation step, the computation of the optimal candidate to mention assignment starts by constructing a disambiguation graph with depth similar to the approach of AGDISTIS.

Definition 3.2 ().

Knowledge Base: We define KB as a directed graph where the nodes are resources of , the edges are properties of and .

Given the set of candidates , we begin by building an initial graph where is the set of all resources in and . Starting with the algorithm expands the graph using Breadth-First-Search (BFS) technique in order to find hidden paths among candidates. The extension of a graph is to a graph with . The (BFS) operator iterates times on the input graph to compute the initial disambiguation graph . After constructing , we need to identify the correct candidate node for a given mention. Here, we rely on HITS (Kleinberg, 1999) or Page Rank (Page et al., 1999) as disambiguation graph algorithms. This choice comes from a comparative study of the differences between both (Devi et al., 2014).

HITS uses hub and authority scores to define a recursive relationship between nodes. An authority node is a node that many hubs link to and a hub is a node that links to many authorities. The authority values are equal to the sum of the hub scores of each node that points to it. The hub values are equal to the sum of the authority scores of each node that it points to. According to previous work (Usbeck et al., 2014), we chose 20 iterations for HITS which suffice to achieve convergence in general.

Page Rank has a wide range of implementations. We implemented the general version in accordance with (Page et al., 1999)

. Thus, we defined the possibility of jumping from any node to any other node in the graph during the random walk with a probability

. We empirically chose 50 Page Rank iterations which has shown to be a reasonable number for EL (Zwicklbauer et al., 2016). We assigned a standard weight for each node. Finally, the sum is calculated by spreading the current weight divided by outgoing edges.

Independent of the chosen graph algorithm, the highest candidate score among the set of candidates is chosen as correct disambiguation for a given mention . The entire process is presented in Algorithm 2. Note, MAG also considers emergent entities (Hoffart et al., 2014) and assigns a new URI to them.111111https://www.w3.org/TR/cooluris/

Definition 3.3 ().

Emergent entity: If the candidate generation step fails to retrieve any candidate from the target KB, we assume the mention belongs to an emergent entity.

Data: mentions, depth, number of iterations
Result: identified candidates for named entities
;
insertCandidates();
;
breadthFirstSearch();
if HITS then
        HITS();
        sortAccordingToAuthorityValue(V);
        for  do
               for  do
                      if  is a candidate for  then
                             store(,);
                             break;




if Page Rank then
        Page Rank();
        sortSumValue(V);
        for  do
               for  do
                      if  is a candidate for  then
                             store(,);
                             break;




Algorithm 2 Disambiguation Algorithm based on HITS and Page Rank.

4. Evaluation

4.1. Goals

The aim of our evaluation is three-fold. First, we aim to measure the performance of MAG on 17 data sets and compare it to the state of the art for EL in English. Second, we evaluate MAG’s portability to other languages. To this end, we compare MAG and the multilingual state of the art using 6 data sets from different languages. For both evaluations we use HITS and Page Rank. Third, we carry out a fine-grained evaluation providing a deep analysis of MAG using the method proposed in (Waitelonis et al., 2016). Throughout our experiments, we used DBpedia as reference KB.

4.2. Experimental setup

For our evaluation, we rely on the GERBIL platform (Usbeck et al., 2015) focusing on the Disambiguation to KB (D2KB) experiment type. The task is to map a set of given mentions to entities from a given KB or to (meaning the resource cannot be found in the reference KB).

All data sets (see  Table 1 for an overview) are integrated into GERBIL for the sake of comparability.121212The TAC-KBP data sets could not be included in our evaluation because of their redistribution license. ACE2004 originates from (Ratinov et al., 2011) and is a subset of the ACE co-reference documents. The annotations were obtained through crowd-sourcing where annotators linked the first mention of each reference to Wikipedia. AIDA/CoNLL is divided into 3 chunks: Training, TestA and TestB and exclusively contains annotations based on named entities. This manually annotated data set was used to evaluate AIDA, and stems from the CoNLL 2003 shared task (Tjong Kim Sang and De Meulder, 2003). AQUAINT contains annotations of the first mention of each entity in its news-wire documents (Milne and Witten, 2008). Spotlight was released along with DBpedia Spotlight (Mendes et al., 2011). The manually annotated data set contains short texts of named entities and common entities such as cancer and home. IITB was created in 2009 and has the highest entity/document-density of all corpora (Kulkarni et al., 2009). KORE50’s  aim is to stress test EL systems through difficult disambiguation tasks using highly ambiguous mentions using hand-crafted sentences.131313http://www.yovisto.com/labs/ner-benchmarks/ The Microposts 2014 data sets were created for the ”Making Sense of Microposts” challenge and contains only tweets. MSNBC was introduced in 2007 by (Cucerzan, 2007). The data set contains news documents with rare SF and a distinctive lexicalization. N Reuters-128 comprises 128 news articles which were sampled from the Reuters-21578 news articles data set randomly and annotated manually by domain experts. N RSS-500 consists of data scrapped from 1,457 RSS feeds (Gerber et al., 2013). The list includes all major worldwide newspapers and a wide range of topics. The corpus was annotated manually by domain experts. OKE 2015 was used in the OKE challenge (Nuzzolese et al., 2015). The data sets were curated manually and are divided into 3 subsets. N news.de is a real-world data set collected from 2009 to 2011. It contains documents from the German news portal news.de. DBpedia Abstracts is a large, multilingual corpus generated from enriched Wikipedia data of annotated Wikipedia abstracts from six languages (Brümmer et al., 2016).141414We reduced our test set to the first subset of provided abstracts for each language due to evaluation platform limits and display their characteristics in Table 1.

Corpus Language Topic Documents Entities
ACE2004 English news 57 253
AIDA/CoNLL-Complete English news 1393 34929
AIDA/CoNLL-Test A English news 216 5917
AIDA/CoNLL-Test B English news 231 5616
AIDA/CoNLL-Training English news 946 23396
AQUAINT English news 50 747
Spotlight Corpus English news 58 330
IITB English mixed 103 18308
KORE 50 English mixed 50 144
Microposts2014-Test English tweets 1055 1256
Microposts2014-Train English tweets 3395 3822
MSNBC English news 20 747
N Reuters-128 English news 128 880
N RSS-500 English mixed 500 1000
OKE 2015 Task 1 evaluation set English mixed 101 664
OKE 2015 Task 1 example set English mixed 3 6
OKE 2015 Task 1 training set English mixed 96 338
N news.de German news 53 627
Dutch Abstract Dutch mixed 39,300 385,259
French Abstract French mixed 38,197 346,448
Spanish Abstract Spanish mixed 37,663 452,628
Italian Abstract Italian mixed 36,432 310,775
Japanese Abstract Japanese mixed 38,823 316,982
Table 1. Data set statistics.

4.2.1. Results on English data sets

For this evaluation, we configured MAG to disambiguate named entities as well as common entities, to use the acronyms index and the popularity scores. According to  (Usbeck et al., 2014)

, N-gram at letter level achieved best results when set to 3. The

trigram threshold was optimal at 0.87151515We chose the trigram threshold in accordance with the work of Usbeck. et al. (Usbeck et al., 2014) http://titan.informatik.uni-leipzig.de/rusbeck/agdistis/appendix.pdf and varying the depth of BFS yields an optimal choice of 2. Therefore, we tuned the thresholds to and for performing the evaluation of MAG. The English results are shown in the first part of Table 2.161616http://gerbil.aksw.org/gerbil/experiment?id=201701230012 and http://gerbil.aksw.org/gerbil/experiment?id=201701260017

angle=90,lap=0pt-(1em)Language Tools/Data sets angle=90,lap=0pt-(1em)AGDISTS angle=90,lap=0pt-(1em)AIDA angle=90,lap=0pt-(1em)Babelfy angle=90,lap=0pt-(1em)DBpedia angle=90,lap=0pt-(1em)DoSer angle=90,lap=0pt-(1em)entityclassifier.eu angle=90,lap=0pt-(1em)FRED angle=90,lap=0pt-(1em)Kea angle=90,lap=0pt-(1em)NERD-ML angle=90,lap=0pt-(1em)PBOH angle=90,lap=0pt-(1em)WAT angle=90,lap=0pt-(1em)xLisa angle=90,lap=0pt-(1em)MAG + HITS angle=90,lap=0pt-(1em)MAG + PR
English ACE2004 0.65 0.70 0.53 0.48 0.75 0.50 0.00 0.66 0.58 0.72 0.66 0.70 0.69 0.60
AIDA/CoNLL-Complete 0.55 0.68 0.66 0.50 0.69 0.50 0.00 0.61 0.20 0.75 0.71 0.48 0.59 0.54
AIDA/CoNLL-Test A 0.54 0.67 0.65 0.48 0.69 0.48 0.00 0.61 0.00 0.75 0.7 0.45 0.59 0.54
AIDA/CoNLL-Test B 0.52 0.69 0.68 0.52 0.69 0.48 0.00 0.61 0.00 0.75 0.72 0.47 0.57 0.52
AIDA/CoNLL-Training 0.55 0.69 0.66 0.50 0.69 0.52 0.00 0.61 0.28 0.75 0.71 0.48 0.60 0.55
AQUAINT 0.52 0.55 0.68 0.53 0.82 0.41 0.00 0.78 0.60 0.81 0.73 0.76 0.67 0.68
Spotlight 0.27 0.25 0.52 0.71 0.81 0.25 0.04 0.74 0.56 0.79 0.67 0.71 0.65 0.66
IITB 0.47 0.18 0.37 0.30 0.43 0.14 0.00 0.48 0.43 0.38 0.41 0.27 0.52 0.43
KORE50 0.27 0.70 0.74 0.46 0.52 0.30 0.06 0.60 0.31 0.63 0.62 0.51 0.24 0.24
MSNBC 0.73 0.69 0.71 0.42 0.83 0.51 0.00 0.78 0.62 0.82 0.73 0.5 0.79 0.75
Microposts2014-Test 0.33 0.42 0.48 0.50 0.76 0.41 0.05 0.64 0.52 0.73 0.60 0.55 0.45 0.44
Microposts2014-Train 0.42 0.51 0.51 0.48 0.77 0.00 0.31 0.65 0.52 0.71 0.63 0.59 0.49 0.44
N3-RSS-500 0.66 0.45 0.44 0.20 0.48 0.00 0.00 0.44 0.38 0.53 0.44 0.45 0.69 0.67
N3-Reuters-128 0.61 0.47 0.45 0.33 0.69 0.00 0.41 0.51 0.41 0.65 0.52 0.39 0.69 0.64
OKE 2015 Task 1 evaluation set 0.59 0.56 0.59 0.31 0.59 0.00 0.46 0.63 0.61 0.63 0.57 0.62 0.58 0.55
OKE 2015 Task 1 example set 0.50 0.60 0.40 0.22 0.55 0.00 0.60 0.55 0.00 0.50 0.60 0.50 0.67 0.50
OKE 2015 Task 1 training set 0.62 0.67 0.71 0.25 0.78 0.00 0.61 0.78 0.77 0.76 0.72 0.75 0.72 0.70
Multilingual N news.de 0.61 0.52 0.50 0.48 0.56 0.28 0.00 0.61 0.33 0.30 0.59 0.36 0.76 0.63
Italian Abstracts 0.22 0.28 0.33 0.00 0.00 0.00 0.00 0.00 0.00 0.20 0.00 0.00 0.80 0.80
Spanish Abstracts 0.25 0.33 0.26 0.00 0.24 0.27 0.00 0.47 0.00 0.31 0.33 0.31 0.75 0.68
Japanese Abstracts 0.15 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.38 0.00 0.00 0.54 0.54
Dutch Abstracts 0.33 0.36 0.36 0.28 0.36 0.22 0.00 0.40 0.00 0.5 0.40 0.25 0.66 0.67
French Abstracts 0.00 0.00 0.28 0.22 0.00 0.25 0.00 0.00 0.00 0.20 0.28 0.28 0.80 0.80
Average 0.45 0.48 0.50 0.36 0.55 0.24 0.11 0.53 0.31 0.59 0.54 0.45 0.63 0.59
Standard Deviation 0.19 0.22 0.18 0.19 0.27 0.21 0.21 0.23 0.26 0.20 0.22 0.20 0.13 0.13
Table 2. Micro F-measure across approaches. Red entries are the top scores while blue represents the second best scores.

An analysis of our results shows that although the acronym index is an interesting addition for potential improvements, its contribution amounts only to 0.05% F-measure on average over all data sets. Also, the popularity feature improves the results in almost every data set. It can be explained by the analysis of (Waitelonis et al., 2016), which demonstrates that most data sets were created using more popular entities as mentions. Thus, this bias eases their retrieval171717see the results without popularity using HITS http://gerbil.aksw.org/gerbil/experiment?id=201701220014. HITS has shown better results on average than Page Rank.181818http://gerbil.aksw.org/gerbil/experiment?id=201701240030 However, Page Rank did show promising results in some data sets (e.g., Spotlight corpus, AQUAINT, and N3-RSS-500).

MAG using HITS outperformed the other approaches on 4 of the 17 data sets while achieving comparable results on others, e.g., ACE2004, MSNBC, and OKE data sets.

Additionally, the performance of MAG can be easily adjusted on each data set by tuning the parameters. For instance, MAG has achieved on Micropost2014-test 0.45 F-measure, but the result may increase around 22% to 0.55 F-measure by disabling the context search.191919http://gerbil.aksw.org/gerbil/experiment?id=201701270035 This improvement is due to the low entity count (1.81 entities per document) and thus missing links among entities inside a document.

The parameter configuration works not only for huge data sets but also for small data sets or even for disambiguating simple sentences, e.g., “Michael Jordan is a basketball player and Michael Jordan

(born 1957), is an American researcher in Machine learning and Artificial intelligence.” If the co-reference resolution is turned on, both “Michaels” are linked to the same entity (the basketball player), but if this parameter is turned off, MAG is able to find both correctly.

For the sake of clarity, there is no machine learning in MAG, thus there is no cross-validation set or held-out validation while choosing the parameters.

4.2.2. Multilingual Results

Here, we show the easy portability and high quality of MAG for many different languages. Next to German, Italian, Spanish, French and Dutch, we chose Japanese to show the promising potential of MAG across different language systems. MAG’s preprocessing NLP techniques are multilingual, thus there is no additional implementation for handling the mentions with different characters. We used the same set of parameters as in the English evaluation but excluded the acronyms as they were only collected for English. Moreover, we performed the Page Rank algorithm over each KB in each respective language to collect popularity values of their entities. The results displayed in the second part of  Table 2 show that MAG, using HITS, outperformed all publicly available state-of-the-art approaches.202020For details see http://faturl.com/multilingualmag/?open Also, Page Rank outperformed HITS score on Dutch. The improved performance of MAG is due to its knowledge-base agnostic algorithms and indexing models. For instance, although the mention “Obama” has a high popularity in English, it may have less popularity in Italian or Spanish KBs. Studies about the generation of proper names support this observation (Dale and Reiter, 1995; Ferreira et al., 2017).

4.2.3. Fine-Grained Evaluation

In this analysis, we use an extension of GERBIL done by Waitelonis et al. (Waitelonis et al., 2016). This extension provides a fine-grained evaluation which measures the quality of a given EL for linking different types of entities. This extension also considers the assumption of Van Erp et al. (van Erp et al., 2016) that a corpus has a tendency to focus strongly on prominent or popular entities which may cause evaluation problems. Hence, the extension evaluates the capability of a given EL system for finding entities with different levels of popularity thus revealing its degree of bias towards popular entities.

For this evaluation, we used the same set of parameters as for the English evaluation. The fine-grained analysis shows that MAG is better at linking persons than other types of entities. This can be explained by the indexes created by MAG in the offline phase. They collect last names and rare surfaces for entities. In addition, the results show that MAG is not biased towards linking only popular entities as can be seen in Table 3.212121Detailed information about other data sets can be found here http://gerbil.s16a.org/gerbil/experiment?id=201701260000

Filter IITB N3-RSS-500 MSNBC Spotlight N3-Reuters-128 OKE 2015
Persons 0.95 0.83 0.94 0.84 0.80 0.92
Page Rank 10% 0.73 0.67 0.83 0.74 0.79 0.76
Page Rank 10%-55% 0.72 0.72 0.70 0.69 0.73 0.79
Page Rank 55%-100% 0.73 0.71 0.73 0.75 0.76 0.82
Hitsscore 10% 0.77 0.74 0.77 0.69 0.73 0.76
Hitsscore 10%-55% 0.69 0.66 0.64 0.69 0.79 0.78
Hitsscore 55%-100% 0.71 0.66 0.84 0.74 0.77 0.80
Table 3. Fine-grained micro F1 evaluation.

5. Summary

We presented MAG, a KB-agnostic and deterministic approach for multilingual EL. MAG outperforms the state of the art on all non-English data sets. In addition, MAG achieves a performance similar to the state of the art on English data sets. Nevertheless, an average of 0.63 F-measure places MAG 1st out of 13 annotation systems. As expected, machine learning-based systems retain their advantages due to their tuned training on the provided data sets. However, we are intrigued by our deterministic and knowledge-base independent performance. In this paper, we analyzed the influence of different indexing and searching methods as well as the influence of the data set structure in a fine-grained evaluation. We also provided a context search without relying on machine learning as previously done. Moreover, we showed that current ML-based EL approaches are strongly biased due to their learned model. This behavior can be seen on multilingual data sets. We also deployed and analyzed the influence of acronyms and last names. To the best of our knowledge, no work has investigated this influence on EL and provided a fine-grained evaluation before. In the future, we intend to further investigate disambiguation algorithms and MAG’s performance in biomedical and earth science domains using the same data set from Wang et. al (Wang et al., 2015). We also aim to evaluate MAG on different languages such as Arabic using other data sets from (Tsai and Roth, 2016) and export the experiment configurations based on the MEX Vocabulary(Esteves et al., 2015) for reproducibility purposes.

Acknowledgments

This work has been supported by the H2020 project HOBBIT (GA no. 688227) as well as the EuroStars projects DIESEL (no. 01QE1512C) and QAMEL (no. 01QE1549C) and supported by the Brazilian National Council for Scientific and Technological Development (CNPq) (no. 206971/2014-1). This work has also been supported by the German Federal Ministry of Transport and Digital Infrastructure (BMVI) in the projects LIMBO (no. 19F2029I) and OPAL (no. 19F2028A) as well as by the German Federal Ministry of Education and Research (BMBF) within ’KMU-innovativ: Forschung für die zivile Sicherheit’ in particular ’Forschung für die zivile Sicherheit’ and the project SOLIDE (no. 13N14456).

References

  • (1)
  • Brümmer et al. (2016) Martin Brümmer, Milan Dojchinovski, and Sebastian Hellmann. 2016. DBpedia Abstracts: A Large-Scale, Open, Multilingual NLP Training Corpus. In Proceedings of the Tenth International Conference on Language Resources and Evaluation (LREC 2016). European Language Resources Association (ELRA), Paris, France.
  • Bryl et al. (2016) Volha Bryl, Christian Bizer, and Heiko Paulheim. 2016. Gathering alternative surface forms for DBpedia entities, In NLP & DBpedia 2015. CEUR workshop proceedings 1581, 13–24.
  • Chisholm and Hachey (2015) Andrew Chisholm and Ben Hachey. 2015. Entity disambiguation with web links. Transactions of the Association for Computational Linguistics 3 (2015), 145–156.
  • Consoli and Recupero (2015) Sergio Consoli and Diego Reforgiato Recupero. 2015. Using FRED for Named Entity Resolution, Linking and Typing for Knowledge Base Population. In Semantic Web Evaluation Challenges: Second SemWebEval Challenge at ESWC 2015, Portorož, May 31 - June 4, 2015. Springer, Slovenia, 40–50.
  • Cucerzan (2007) Silviu Cucerzan. 2007. Large-Scale Named Entity Disambiguation Based on Wikipedia Data. In Proceedings of the 2007 Joint Conference on Empirical Methods in Natural Language Processing and Computational Natural Language Learning (EMNLP-CoNLL). Association for Computational Linguistics, Prague, Czech Republic, 708–716.
  • Dale and Reiter (1995) Robert Dale and Ehud Reiter. 1995. Computational interpretations of the Gricean maxims in the generation of referring expressions, In Fourteenth International Conference on Computational Linguistics. Cognitive science 19, 233–263.
  • Devi et al. (2014) Pooja Devi, Ashlesha Gupta, and Ashutosh Dixit. 2014. Comparative Study of HITS and PageRank Link based Ranking Algorithms. International Journal of Advanced Research in Computer and Communication Engineering 3, 2 (2014), 5749–5754.
  • Dojchinovski and Kliegr (2013) Milan Dojchinovski and Tomas Kliegr. 2013. Entityclassifier.eu: Real-time Classification of Entities in Text with Wikipedia. In Proceedings of the ECMLPKDD’13.
  • Erp et al. (2013) Marieke Van Erp, Giuseppe Rizzo, and Raphaël Troncy. 2013. Learning with the Web: Spotting Named Entities on the Intersection of NERD and Machine Learning. In Proceedings of the Making Sense of Microposts (#MSM2013) Concept Extraction Challenge.
  • Esteves et al. (2015) Diego Esteves, Diego Moussallem, Ciro Baron Neto, Tommaso Soru, Ricardo Usbeck, Markus Ackermann, and Jens Lehmann. 2015. MEX vocabulary: a lightweight interchange format for machine learning experiments. In Proceedings of the 11th International Conference on Semantic Systems. ACM, 169–176.
  • Ferragina and Scaiella (2012) Paolo Ferragina and Ugo Scaiella. 2012. Fast and Accurate Annotation of Short Texts with Wikipedia Pages. IEEE software (2012).
  • Ferreira et al. (2017) Thiago Castro Ferreira, Emiel Krahmer, and Sander Wubben. 2017. Generating flexible proper name references in text: Data, models and evaluation. In Proc. EACL, Vol. 17.
  • Francis-Landau et al. (2016) Matthew Francis-Landau, Greg Durrett, and Dan Klein. 2016. Capturing semantic similarity for entity linking with convolutional neural networks. arXiv preprint arXiv:1604.00734 (2016).
  • Gad-Elrab et al. (2015) Mohamed H Gad-Elrab, Mohamed Amir Yosef, and Gerhard Weikum. 2015. Named entity disambiguation for resource-poor languages. In Proceedings of the Eighth Workshop on Exploiting Semantic Annotations in Information Retrieval. ACM, 29–34.
  • Ganea et al. (2016) Octavian-Eugen Ganea, Marina Ganea, Aurelien Lucchi, Carsten Eickhoff, and Thomas Hofmann. 2016. Probabilistic Bag-Of-Hyperlinks Model for Entity Linking. In Proceedings of the 25th International Conference on World Wide Web (WWW ’16). International World Wide Web Conferences Steering Committee, Republic and Canton of Geneva, Switzerland, 927–938. https://doi.org/10.1145/2872427.2882988
  • Gerber et al. (2013) Daniel Gerber, Axel-Cyrille Ngonga Ngomo, Sebastian Hellmann, Tommaso Soru, Lorenz Bühmann, and Ricardo Usbeck. 2013. Real-time RDF extraction from unstructured data streams. In ISWC.
  • Han et al. (2011) Xianpei Han, Le Sun, and Jun Zhao. 2011. Collective entity linking in web text: a graph-based method. In Proceedings of the 34th international ACM SIGIR conference on Research and development in Information Retrieval. ACM, 765–774.
  • Hoffart et al. (2014) Johannes Hoffart, Yasemin Altun, and Gerhard Weikum. 2014. Discovering Emerging Entities with Ambiguous Names. In Proceedings of the 23rd International Conference on World Wide Web (WWW ’14). ACM, New York, NY, USA, 385–396.
  • Hoffart et al. (2011) Johannes Hoffart, Mohamed Amir Yosef, Ilaria Bordino, Hagen Fürstenau, Manfred Pinkal, Marc Spaniol, Bilyana Taneva, Stefan Thater, and Gerhard Weikum. 2011. Robust Disambiguation of Named Entities in Text. In Conference on Empirical Methods in Natural Language Processing.
  • Kleinberg (1999) Jon M. Kleinberg. 1999. Authoritative sources in a hyperlinked environment. J. ACM 46, 5 (1999), 604–632.
  • Krahmer and Van Deemter (2012) Emiel Krahmer and Kees Van Deemter. 2012. Computational generation of referring expressions: A survey. Computational Linguistics 38, 1 (2012), 173–218.
  • Kulkarni et al. (2009) Sayali Kulkarni, Amit Singh, Ganesh Ramakrishnan, and Soumen Chakrabarti. 2009. Collective annotation of Wikipedia entities in web text. In 15th ACM SIGKDD. 457–466.
  • Ling et al. (2015) Xiao Ling, Sameer Singh, and Daniel S Weld. 2015. Design challenges for entity linking. In Transactions of the Association for Computational Linguistics, Vol. 3. 315–328.
  • Lita et al. (2003) Lucian Vlad Lita, Abe Ittycheriah, Salim Roukos, and Nanda Kambhatla. 2003. Truecasing. In Proceedings of the 41st Annual Meeting on Association for Computational Linguistics-Volume 1. Association for Computational Linguistics, 152–159.
  • Luo et al. (2015) Gang Luo, Xiaojiang Huang, Chin-Yew Lin, and Zaiqing Nie. 2015. Joint named entity recognition and disambiguation. In Proc. EMNLP.
  • Mendes et al. (2011) Pablo N. Mendes, Max Jakob, Andres Garcia-Silva, and Christian Bizer. 2011. DBpedia Spotlight: Shedding Light on the Web of Documents. In 7th International Conference on Semantic Systems (I-Semantics).
  • Mikolov et al. (2013) Tomas Mikolov, Ilya Sutskever, Kai Chen, Greg S Corrado, and Jeff Dean. 2013. Distributed representations of words and phrases and their compositionality. In Advances in neural information processing systems. 3111–3119.
  • Milne and Witten (2008) David Milne and Ian H Witten. 2008. Learning to link with wikipedia. In 17th ACM CIKM. 509–518.
  • Moro et al. (2014) Andrea Moro, Alessandro Raganato, and Roberto Navigli. 2014. Entity Linking meets Word Sense Disambiguation: A Unified Approach. TACL (2014).
  • Navigli and Ponzetto (2012) Roberto Navigli and Simone Paolo Ponzetto. 2012. BabelNet: The Automatic Construction, Evaluation and Application of a Wide-Coverage Multilingual Semantic Network. Artificial Intelligence (2012).
  • Nuzzolese et al. (2015) Andrea-Giovanni Nuzzolese, AnnaLisa Gentile, Valentina Presutti, Aldo Gangemi, Darío Garigliotti, and Roberto Navigli. 2015. Open Knowledge Extraction Challenge. In Semantic Web Evaluation Challenges. Communications in Computer and Information Science, Vol. 548. Springer International Publishing, 3–15.
  • Page et al. (1999) Lawrence Page, Sergey Brin, Rajeev Motwani, and Terry Winograd. 1999. The PageRank citation ranking: Bringing order to the web. Technical Report. Stanford InfoLab.
  • Pappu et al. (2017) Aasish Pappu, Roi Blanco, Yashar Mehdad, Amanda Stent, and Kapil Thadani. 2017. Lightweight Multilingual Entity Extraction and Linking. In Proceedings of Tenth International Conference on Web Search and Data Mining.
  • Piccinno and Ferragina (2014) Francesco Piccinno and Paolo Ferragina. 2014. From TagME to WAT: a new entity annotator. In Proceedings of the first international workshop on Entity recognition & disambiguation. ACM, 55–62.
  • Ramos et al. (2003) Juan Ramos et al. 2003. Using tf-idf to determine word relevance in document queries. In Proceedings of the first instructional conference on machine learning.
  • Ratinov et al. (2011) L. Ratinov, D. Roth, D. Downey, and M. Anderson. 2011. Local and Global Algorithms for Disambiguation to Wikipedia. In ACL. http://cogcomp.cs.illinois.edu/papers/RRDA11.pdf
  • Röder et al. (2015) Michael Röder, Ricardo Usbeck, René Speck, and Axel-Cyrille Ngonga Ngomo. 2015. CETUS – A Baseline Approach to Type Extraction. In 1st Open Knowledge Extraction Challenge at 12th European Semantic Web Conference (ESWC 2015).
  • Sil and Florian (2016) Avirup Sil and Radu Florian. 2016. One for All: Towards Language Independent Named Entity Linking. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics, ACL 2016, August 7-12, 2016, Berlin, Germany, Volume 1: Long Papers.
  • Singh and Gupta (2016) Jasmeet Singh and Vishal Gupta. 2016. Text Stemming: Approaches, Applications, and Challenges. ACM Computing Surveys (CSUR) 49, 3 (2016), 45.
  • Steinmetz and Sack (2013) Nadine Steinmetz and Harald Sack. 2013. Semantic Multimedia Information Retrieval Based on Contextual Descriptions. In The Semantic Web: Semantics and Big Data, Philipp Cimiano, Oscar Corcho, Valentina Presutti, Laura Hollink, and Sebastian Rudolph (Eds.). Lecture Notes in Computer Science, Vol. 7882. Springer Berlin Heidelberg, 382–396.
  • Tjong Kim Sang and De Meulder (2003) Erik F. Tjong Kim Sang and Fien De Meulder. 2003. Introduction to the CoNLL-2003 Shared Task: Language-Independent Named Entity Recognition. In Proceedings of CoNLL-2003.
  • Toutanova and Manning (2000) Kristina Toutanova and Christopher D Manning. 2000. Enriching the knowledge sources used in a maximum entropy part-of-speech tagger. In Proceedings of the 2000 Joint SIGDAT conference on Empirical methods in natural language processing and very large corpora: held in conjunction with the 38th Annual Meeting of the Association for Computational Linguistics-Volume 13. Association for Computational Linguistics, 63–70.
  • Tsai and Roth (2016) Chen-Tse Tsai and Dan Roth. 2016. Cross-lingual wikification using multilingual embeddings. In Proceedings of NAACL-HLT. 589–598.
  • Usbeck et al. (2014) Ricardo Usbeck, Axel-Cyrille Ngonga Ngomo, Michael Röder, Daniel Gerber, Sandro Athaide Coelho, Sören Auer, and Andreas Both. 2014. AGDISTIS - Graph-Based Disambiguation of Named Entities Using Linked Data. In The Semantic Web - ISWC 2014 - 13th International Semantic Web Conference, October 19-23, 2014. Proceedings, Part I. Riva del Garda, Italy, 457–471.
  • Usbeck et al. (2015) Ricardo Usbeck, Michael Röder, Axel-Cyrille Ngonga Ngomo, Ciro Baron, Andreas Both, Martin Brümmer, Diego Ceccarelli, Marco Cornolti, Didier Cherix, Bernd Eickmann, Paolo Ferragina, Christiane Lemke, Andrea Moro, Roberto Navigli, Francesco Piccinno, Giuseppe Rizzo, Harald Sack, René Speck, Raphaël Troncy, Jörg Waitelonis, and Lars Wesemann. 2015. GERBIL: General Entity Annotator Benchmarking Framework. In Proceedings of the 24th International Conference on World Wide Web, WWW 2015, Florence, Italy, May 18-22, 2015. Florence, Italy, 1133–1143.
  • van Erp et al. (2016) Marieke van Erp, Pablo Mendes, Heiko Paulheim, Filip Ilievski, Julien Plu, Giuseppe Rizzo, and Jörg Waitelonis. 2016. Evaluating entity linking: An analysis of current benchmark datasets and a roadmap for doing a better job. In 10th International Conference on Language Resources and Evaluation (LREC).
  • Waitelonis et al. (2016) Jörg Waitelonis, Henrik Jürges, and Harald Sack. 2016. Don’T Compare Apples to Oranges: Extending GERBIL for a Fine Grained NEL Evaluation. In Proceedings of the 12th International Conference on Semantic Systems (SEMANTiCS 2016). ACM, New York, NY, USA, 65–72.
  • Wang et al. (2015) Han Wang, Guang Jin Zheng, Xiaogang Ma, Peter Fox, and Heng Ji. 2015. Language and Domain Independent Entity Linking with Quantified Collective Validation. In Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing. Association for Computational Linguistics, Lisbon, Portugal, 695–704.
  • Zhang and Rettinger (2014) Lei Zhang and Achim Rettinger. 2014. X-LiSA: Cross-lingual Semantic Annotation. PVLDB 7, 13 (2014), 1693–1696.
  • Zhang et al. (2016) Lei Zhang, Achim Rettinger, and Patrick Philipp. 2016.

    Context-Aware Entity Disambiguation in Text Using Markov Chains. In

    IEEE/WIC/ACM International Conference on Web Intelligence (WI’16). IEEE Computer Society Press, Omaha, Nebraska, USA.
  • Zwicklbauer et al. (2016) Stefan Zwicklbauer, Christin Seifert, and Michael Granitzer. 2016. DoSeR - A Knowledge-Base-Agnostic Framework for Entity Disambiguation Using Semantic Embeddings. In The Semantic Web. Latest Advances and New Domains: 13th International Conference, ESWC 2016, Heraklion, Crete, Greece, May 29 – June 2, 2016, Proceedings. Springer International Publishing, Cham, 182–198.
