Empirical properties of buyer-seller networks

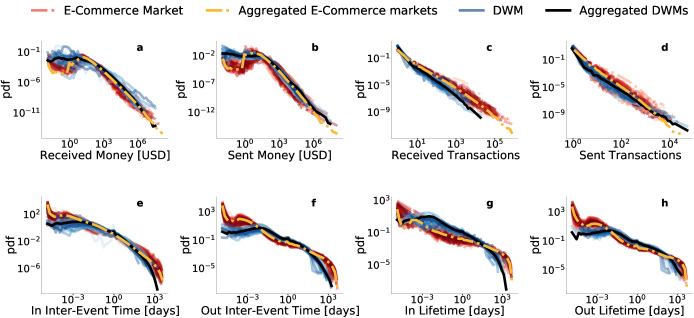

In order to characterize the buyer-seller networks, we start by analyzing different aggregate user-level quantities. First, we study the distributions for the number and amount of user transactions. Results for DWMs and for each e-commerce market are shown in Fig. 1a-d, where black and yellow lines are obtained by aggregating all users in the respective datasets. Single distributions display common behavior, spanning several orders of magnitudes. It is important to note that distributions are computed without any rescaling or manipulation of the data, and that higher values generally reached by the regulated platform in all distributions are exclusively due to the different platform sizes. The slight discrepancy between the distributions in the total number of received transactions can be ascribed to the different nature of the two datasets: while in the DWM dataset sellers can withdraw the earnings from several market trades at once, in the e-commerce data each transaction corresponds to a single purchase.
We then analyze the temporal dimension of the data. We focus on the distribution of user lifetimes, defined as the time between the first and last user transaction in the market, and the inter-event time between two successive transactions of the same user. Again, we find remarkable regularities across different DWMs and different regulated product markets, as shown in Fig. 1e-h. In these distributions, as before, we also observe the effects of different sizes of marketplaces. The similarity between different distributions is particularly pronounced in the meaningful timescales between an hour and a month/year. Discrepancies for longer periods are due to the different lifetimes of the markets, whereas discrepancies for shorter timescales can be explained by the different nature of the two datasets: precise timestamps on transaction data for the regulated marketplaces vs. times at which the transaction is actually added to the Bitcoin blockchain (which depends on its algorithm) for the DWM dataset.
Having considered buyers and sellers separately, we now investigate the dynamics of buyer-seller relationships and the evolution of the buyer-seller network. We limit this analysis to e-commerce markets, since DWMs data do not contain buyer-seller links (see Material and Methods for more details). We first consider how single users distribute their purchases across sellers: for example, buyers could purchase equally from multiple sellers or, alternatively, buyers could show loyalty to one seller from which they do most of their purchases. A standard way to quantify how distributed or concentrated this pattern is to compute the normalized entropy for the purchases of each buyer as in (1), and then compute its distribution for all markets. The normalized entropy is defined as
where is the share of buyer ’s purchases from seller and we sum over the sellers the buyer purchased from. Figure 2a shows that the distributions are fat-tailed, with buyers populating the full support but with most of the mass towards the top, meaning that most buyers buy a similar number of times from the different sellers they purchase from. Buyers with zero entropy, who buy from just one seller, were excluded from the figure for visual clarity, but these were almost exclusively buyers who only made a single purchase (see Fig. S1 in the Supplementary Information).
The observed normalized entropy distributions are compatible with different kinds of temporal patterns produced by two possible choices: either buyers choose to engage with new sellers they have never purchased from (i.e., exploration) or they return to a known seller (i.e., exploitation). We investigate these dynamics by leveraging insight from the social networks literature, where several studies have investigated how users explore and exploit social connections by renewing previously activated ties or by establishing new ones [50, 52]. Indeed, across different types of social networks, the temporal evolution of links that a person forms with their contacts can be captured by the following expression:
where— now using the language of online marketplaces — is the probability that a buyer (node) of degree
is the probability that a buyer (node) of degree(who has already bought from different sellers) chooses to buy from a new seller, while and are constants which depend on the final degree of the buyer and which measure their propensity to explore new sellers. Following the procedure proposed in  (see Supplementary Information for more details), we group nodes in different classes according to the final degree: a buyer is in class if the final degree satisfies , starting from . We then fit (2) to each node class obtaining a value of and (see Tab. S1 in the Supplementary Information).

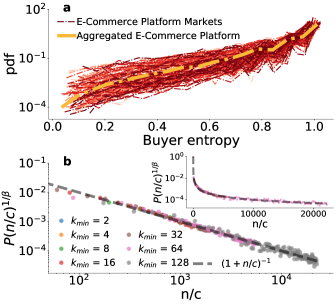

Results are shown in Fig. 2b. Since different classes feature different values of and , we plot a rescaled as a function of . Indeed, (2) becomes (dashed line in Fig. 2b) for every degree class , where . In other words, we re-scale both axes assuming the empirical behavior is captured by (2). As shown in Tab. S1 in the Supplementary Information, the parameter values are independent of the degree class and suggest a weaker () effect than previously observed in social networks (0.48 ¡ ¡ 2) [55, 52]. The close fit of the data to the predicted memory for different indicates the applicability of (2) in the dynamics of buyer-seller relationships. While users have different propensities to explore new sellers, they follow the same mechanism: the more sellers a user has bought from, the less likely is their next purchase from a new seller.
Modeling buyer-seller networks
In order to understand possible mechanisms that drive the properties of buyer-seller networks, we propose an agent-based model aimed at capturing the patterns observed in the previous section. The main features of the model are:

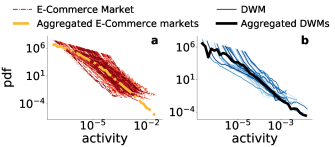

Activity. The rate at which buyers make transactions. As shown in Fig. 1, in both e-commerce and DWMs buyers feature heterogeneous propensities to make purchases.
Memory. When making new transactions buyers can either choose a seller they already bought from or pick a new one. As shown in Fig. 2b and discussed above, buyers have a memory of the sellers they had interacted with, and this memory affects their future purchases.
Preferential attachment. The attractiveness (i.e., popularity) of a seller is proportional to the number of their sales. This attractiveness captures the fact that, in online marketplaces, sellers are rated based on the feedback they receive from the buyers, and buyers prefer sellers with higher ratings, other things equal [20, 19, 56, 57]. Here, we focus on the number of sales rather than sale volume to capture the fact that it is mainly frequency of transactions that matters for seller reputation.
Given these three ingredients the model dynamics is as follows. The system consists of buyers and sellers. At we assign the activity to each buyer . Each seller starts with attractiveness . At each time step , each buyer makes a purchase with probability , where is the simulation time step (fixed to 1 from now on). A buyer who interacted with sellers in the past has probability of choosing a new seller and of returning to a known one. In the first case, the buyer selects a new seller proportionally to their attractiveness  , in the latter, the buyer selects it proportionally to the number of previous interactions. In other words, buyers select sellers either according to past purchases or to their popularity. In both cases the attractiveness of the seller is increased by . This model produces a bipartite temporal network: at each time step we build a network in which two types of nodes— buyers and sellers—are linked if the buyer has purchased from that seller at time . These networks are then combined together in an aggregated network, where each buyer-seller link is weighed according to the number of purchases between that buyer and that seller across time.
Compared to other activity-driven models developed to capture the temporal evolution of different social networks [50, 52, 55], our model extends the framework to bipartite networks of buyers and sellers and introduces the preferential attachment guiding the buyer selection process. Henceforth, we will refer to the model lacking preferential attachment, proposed in , as Model NoPA. We will also consider a version of the model that does not include the memory element (Model NoMem). Comparing these versions of the model will allow us to identify the role played by the different mechanisms.
A standard way to define and measure user activity in a (social) network is , where is the number of purchases made by buyer , where the sum is over all buyers in their market. In Fig. 3 we show the activity distributions of all e-commerce markets (a) and all DWMs (b). While curves exhibit fat-tailed behavior, they no longer overlap due to different activity ranges and shapes in different product markets. As a result, we need to use market-specific empirical activity distributions as inputs for our model.
We now fit the model to the e-commerce data.
As mentioned above, since the DWM dataset does not contain the full bipartite buyer-seller network, we cannot test all the model predictions on the DWM data.
We employ a data-driven approach, fine-tuning the model to each single market so we can more faithfully compare the simulation results with the empirical buyer-seller networks.
In the main text we show results for two different product markets, 26 more are shown in Fig. S2-S5 in the Supplementary Information, for a total of 28 markets (see Supplementary Information for the sampling procedure).
We fix parameters and which we fitted previously (see Tab. S1 in the Supplementary Information), and use the empirical activity distributions as measured in the data (see Fig. 3a) to reflect the observed heterogeneity across different markets.
The value of is determined with Maximum Likelihood Estimation for each market (see
is determined with Maximum Likelihood Estimation for each market (seeSupplementary Information for more details).

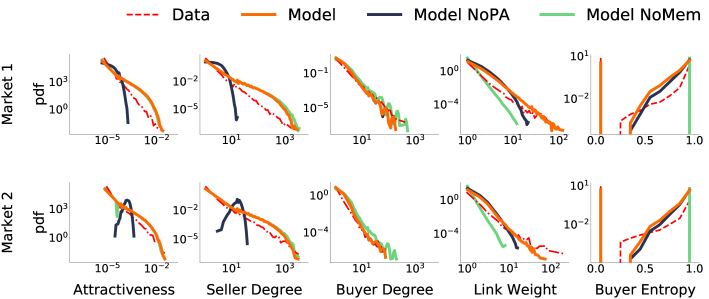

Results are in Fig. 4. We first compare the model’s output with the empirical distributions of the final seller attractiveness and degree. The attractiveness of a seller is their market share , where is the total number of sales of seller and the sum is over all the sellers. Fig. 4 shows that the model reproduces both distributions well, while the NoPA variation of our main model (without preferential attachment) fails to capture the heterogeneity (up to six orders of magnitude) of these curves, emphasizing how preferential attachment is key to reproducing the presence of very active sellers. We then consider the buyer side of the network. We first study the degree distribution. Fig. 4 shows that the model captures the empirical distributions, while the absence of buyer memory generally leads to a small overestimation of the tails, since it does not induce the repetition of past interactions with a subset of buyers.

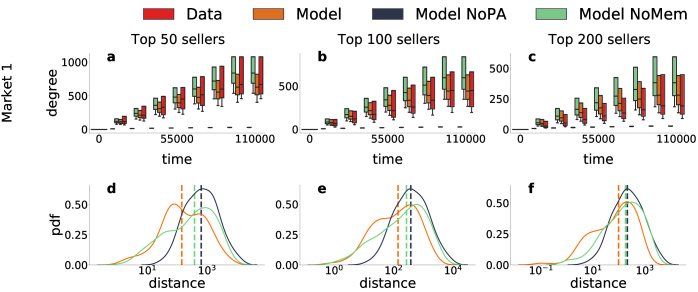

Thus far, we have considered node-level properties aggregating detailed information on the links. For example, the attractiveness only accounted for the total number of links, whereas the degree only captures the total number of different buyers or sellers that the user has interacted with. To better understand how the model performs in reproducing finer details of the buyer-seller network structure, we test our model against two other properties of the aggregated network: link weight—the number of transactions between a buyer and a seller—and the buyer entropy, as defined in (1). Our main model outperforms its two variations in reproducing the shape and tails of the link weight distribution. In particular, the memory mechanism appears to be fundamental in reproducing repeated transactions between a buyer and a seller. The buyer entropy distribution is again well-captured by the model and shows how the memory mechanism is key to capturing the diversity of relationships buyers establish with different sellers. Indeed, the NoMem model produces only entropy values close to 0 and 1; this happens because without memory, a buyer almost never finds any previous seller, hence buyers making more than one purchase almost always buy from new sellers.
We have seen that our model is able to capture various aspects of the final aggregated buyer-seller network. The next step is to see whether our model can also reproduce the temporal evolution of the buyer-seller network. To investigate this, we focus on the degree of top sellers since we previously showed these sellers generate the largest activity and volume on these markets. We measure time by the total number of purchases made. Results are shown in Fig. 5a-c, where we plot the temporal evolution of the top 50 (a), 100 (b) and 200 (c) sellers degree distribution for one illustrative product market. In doing so, we compare the model to its two variations and the data. Results for more product markets are shown in Fig. S6-S9 in the Supplementary Information. The main model is able to reproduce the temporal evolution of the distributions, as clearly shown by the cores (i.e., interquartile ranges) overlapping at different times. We further compute the absolute value of the difference between the mean of the models’ distribution and the mean of the data, for each of the nine equally spaced time steps and for all 28 simulated product markets. As shown in Fig. 5d-f, the model is better able to reproduce the temporal dynamics for all simulated markets. Indeed, the median of the distance distributions is always smaller in the main model than the two other model variations.
In this paper, we have analyzed 244M (25B USD) transactions occurring on regulated and unregulated online marketplaces. First, we have revealed remarkable regularities in the aggregate static and temporal properties of the buyer-seller networks, both for buyers and sellers. Then, we have revealed how buyers are affected by the memory of past interactions. Finally, we have proposed a model which captures the main stylized facts of the data, based only on three well-known network formation mechanisms of online marketplaces: buyers have different propensity to make purchases, they remember the sellers they purchased from, and they are more likely to buy from successful sellers.
It is important to highlight the limitations of our study, which also represent directions for further work. First, while our study is based on (pre-processed) blockchain data, access to DWM server logs could provide more detailed information on some specific markets, for instance, the directed buyer-seller links which are not observable in our data. Second, the model could be further enriched with other known mechanisms: pricing dynamics [59, 60], product search ranking [23, 24, 25, 26], customer reviews , sellers entering or leaving the platform , and recommendation algorithms . Finally, including richer economic incentives (e.g., strategic behavior) to model buyers’ and sellers’ decisions could shed light on how agents could exploit their market power. A deeper understanding of economic incentives and equilibrium behavior in buyer-seller networks could ultimately inform market design and regulation of online marketplaces.
Nevertheless, our work supports and extends previous findings. The fat-tailed heterogeneous curves in Fig. 1a-d substantiate previous observations of high concentration in DWMs: wholesale , few sellers  or few buyers  were found responsible for the largest part of volumes in smaller samples of data. The fat-tailed inter-event time distributions, spanning times between a second and a year, are compatible with the bursty nature of several social activities [63, 51, 64], and the finding about a shared memory kernel further points to a similarity between social and economic activities [50, 52]. Taken together, our results could inform and enrich economic models where heterogeneity assumptions are now commonplace  but empirical evidence on the structure of buyer-seller networks has not yet been introduced.
The regularities observed in Fig. 1 are surprising given the differences in the marketplaces covered by our data: transactions on the clear web with state enforcement of contracts  vs. transactions on the dark web that rely mainly on reputation and self-governance ; the sale of only regulated products vs. mainly unregulated products; the use of fiat vs. the use of cryptocurrencies. And, indeed, there is both substantial heterogeneity in product markets in the e-commerce dataset and several differences across marketplaces in the DWM dataset (e.g., existence time period, geography, product focus, etc.). Our model suggests specific mechanisms that drive the regularities across the two datasets. Sellers build a reputation that makes them more attractive to buyers who, in turn, are affected by their memory of the sellers they already purchased from. In particular, the presence of both memory and preferential attachment is fundamental in reproducing both local and global properties of the buyer-seller network, as already shown for the intrinsically different social networks [53, 54, 63, 51, 50]. However, commercial interactions exhibit important differences compared to social interactions, with preferential attachment playing a dominant role in the market dynamics.
Our results point towards alternative strategies to attempt to reduce trading of illicit goods on dark web marketplaces. Historically, DWMs have been closed after long and expensive operations targeting the market admins in order to arrest them and shut down the servers . However, the high degree of concentration, the importance of preferential attachment, and the memory kernel in the buyer dynamics, all suggest that limited observations of the market dynamics could give a clear enough picture of who the key actors of these networks are. For instance, key sellers will most likely attract most of the observed purchases from the more active buyers, and stopping them would effectively stop a large part of the market trade. In this regard, our model could also be used to produce candidate synthetic DWM buyer-seller networks to quantitatively study and simulate the effects of targeting “key players” on marketplaces .
Finally, a better understanding of buyer-seller network formation could have consequences for market design and regulation. For example, fat-tailed distributions show a high degree of concentration on both buyer and seller sides of the marketplaces: just a few agents (both on the buyers and seller sides) are responsible for a vast majority of the transaction volume. While buyer market power appeared in analyzes of labor monopsony and retailers [68, 69], our empirical finding of buyer concentration calls for a deeper understanding of buyer power in online marketplaces. Also, we find signs of both local (memory) and global (reputation) mechanisms in the structure and evolution of buyer-seller relationships. Thus, the inclusion of memory and reputation in previously developed models can improve our understanding of the pricing of network effects , inter-platform competition  and long-run sustainability of the platforms .
Materials and Methods
Dark Web Marketplaces
Dark Web Marketplaces are illegal unregulated commercial websites. They operate similarly to other online marketplaces, such as Gumtree or Craigslist. To improve anonymity DWMs are reached through browsers supporting the onion protocol , and use cryptocurrencies, mainly Bitcoin, as the main currency. While all Bitcoin transactions are publicly available, they record money exchanges between addresses, and a user can generate a new address (identifier) at each transaction to favour anonymity. As a result, the data need to be pre-processed to cluster addresses into individual entities in order to perform any economic analysis. Our dataset has been pre-processed by Chainalysis Inc.  to map addresses into entities (see Supplementary Information for more details).
Our dataset contains the entire transaction data of 28 entities corresponding to DWMs between June, 2011, and February 2021 (see Fig. S10 and Tab. S2 in the Supplementary Information). These markets all have an average daily volume of more than 15,000 USD, in order to be able to reliably measure different observables, and include all relevant DWMs as identified by law enforcement agencies . The data contain all transactions received or sent by DWMs, excluding services such as exchanges (Bitcoin trading exchanges allow users to trade Bitcoin). Note that the data hide the direct buyer-seller link, because the money pass through the platform during the transaction.
E-commerce platforms are regulated online marketplaces where sellers can post ads for products. Buyers and sellers can generally be both individuals or businesses. The payment is usually processed by the platform, but the shipping is handled by the seller. Sellers receive feedback from buyers, which together with product categorization helps people navigate the platform and choose what to buy.
The data used in this study consist in all the purchases made on 144 product markets from a popular e-commerce platform since 2010. The 144 product markets have been randomly selected from the markets that were active during the entire time period. The data cover only one geographical region. Similarly to the DWM data, the transaction data include: timestamp of the transaction, pseudonyms for buyer and seller, and the amount spent in the transaction. One key difference is that the data show the direct link between buyer and seller, forming a bipartite buyer-seller network and allowing for a more fine-grained analysis. For more details on the data see Fig. S11 in the Supplementary Information.
Each simulation is tuned to simulate one specific product market. We fix the agents population according to the data: number of sellers , number of buyers , and simulation total number of time steps , to fix the average total number of transactions in our simulations as in the data: , where is the buyer activity as defined in the main text, is the simulation time step (fixed to 1) and is the total number of transactions present in the data. We realise 30 different realizations for each parameter set, and aggregate the final results.
A.Br. and A.Ba. gratefully acknowledge support from the Alan Turing Institute. J.B. gratefully acknowledges the support of the Center of Mathematical Sciences and Applications at Harvard University.
The authors declare no conflict of interest.
-  Nicolas Christin. Traveling the silk road: A measurement analysis of a large anonymous online marketplace. In Proceedings of the 22nd International Conference on World Wide Web - WWW ’13, pages 213–224, Rio de Janeiro, Brazil, 2013. ACM Press.
-  Abeer ElBahrawy, Laura Alessandretti, Leonid Rusnac, Daniel Goldsmith, Alexander Teytelboym, and Andrea Baronchelli. Collective dynamics of dark web marketplaces. Scientific Reports, 10(1):18827, December 2020.
-  D. Décary-Hétu and L. Giommoni. Do police crackdowns disrupt drug cryptomarkets? a longitudinal analysis of the effects of Operation Onymous. Crime, Law and Social Change, 67(1):55–75, February 2017.
Alberto Bracci, Matthieu Nadini, Maxwell Aliapoulios, Damon McCoy, Ian Gray,
Alexander Teytelboym, Angela Gallo, and Andrea Baronchelli.
Dark Web Marketplaces and COVID-19: Before the vaccine.
EPJ data science, 10(1):6, 2021.
-  Stephanie Chevalier. Annual net revenue of Amazon from 2004 to 2020, 2021. (accessed 2021-09-29).
-  Susan Standing, Craig Standing, and Peter E. D Love. A review of research on e-marketplaces 1997–2008. Decision Support Systems, 49(1):41–51, April 2010.
-  J. Yannis Bakos. Reducing Buyer Search Costs: Implications for Electronic Marketplaces. Management Science, 43(12):1676–1692, December 1997.
-  Vivek Choudhury, Kathleen S. Hartzel, and Benn R. Konsynski. Uses and Consequences of Electronic Markets: An Empirical Investigation in the Aircraft Parts Industry. MIS Quarterly, 22(4):471–507, 1998.
-  Nuray Terzi. The impact of e-commerce on international trade and employment. In Encyclopedia of E-Commerce Development, Implementation, and Management, pages 2271–2287. IGI Global, 2016.
-  James Martin. Drugs on the Dark Net: How Cryptomarkets Are Transforming the Global Trade in Illicit Drugs. Springer, 2014.
-  Matthew Elliott and Andrea Galeotti. The role of networks in antitrust investigations. Oxford Review of Economic Policy, 35(4):614–637, December 2019.
-  Itay P. Fainmesser and Andrea Galeotti. Pricing Network Effects. The Review of Economic Studies, 83(1):165–198, January 2016.
-  Mark Armstrong. Competition in two-sided markets. The RAND Journal of Economics, 37(3):668–691, September 2006.
-  Attila Ambrus and Rossella Argenziano. Asymmetric Networks in Two-Sided Markets. American Economic Journal: Microeconomics, 1(1):17–52, January 2009.
-  Geoffrey G. Parker and Marshall W. Van Alstyne. Two-Sided Network Effects: A Theory of Information Product Design. Management Science, 51(10):1494–1504, October 2005.
-  Chrysanthos Dellarocas. The Digitization of Word of Mouth: Promise and Challenges of Online Feedback Mechanisms. Management Science, 49(10):1407–1424, October 2003.
-  Thomas Eisenmann, Geoffrey Parker, and Marshall W Van Alstyne. Strategies for two-sided markets. Harvard business review, 84(10):92, 2006.
-  Maryam Saeedi. Reputation and adverse selection: Theory and evidence from eBay. The RAND Journal of Economics, 50(4):822–853, December 2019.
-  Michael Luca. Designing Online Marketplaces: Trust and Reputation Mechanisms. Innovation Policy and the Economy, 17:77–93, January 2017.
-  Troy J. Strader and Sridhar N. Ramaswami. The value of seller trustworthiness in C2C online markets. Communications of the ACM, 45(12):45–49, December 2002.
-  Luís Cabral and Ali Hortaçsu. The dynamics of seller reputation: Evidence from Ebay. The Journal of Industrial Economics, 58(1):54–78, March 2010.
-  Steven Tadelis. Reputation and Feedback Systems in Online Platform Markets. Annual Review of Economics, 8(1):321–340, October 2016.
-  Yuxin Chen and Song Yao. Sequential Search with Refinement: Model and Application with Click-Stream Data. Management Science, 63(12):4345–4365, December 2017.
-  Raluca M. Ursu. The Power of Rankings: Quantifying the Effect of Rankings on Online Consumer Search and Purchase Decisions. Marketing Science, 37(4):530–552, August 2018.
-  Babur De los Santos and Sergei Koulayev. Optimizing Click-Through in Online Rankings with Endogenous Search Refinement. Marketing Science, 36(4):542–564, July 2017.
-  Sergei Koulayev. Search for differentiated products: Identification and estimation. The RAND Journal of Economics, 45(3):553–575, September 2014.
-  Bo Xu, Zhangxi Lin, and Bingjia Shao. Factors affecting consumer behaviors in online buy-it-now auctions. Internet Research, 20(5):509–526, October 2010.
-  Daniel Houser and John Wooders. Reputation in Auctions: Theory, and Evidence from eBay. Journal of Economics & Management Strategy, 15(2):353–369, June 2006.
-  Aaron L Bodoh-Creed, Jörn Boehnke, and Brent Hickman. How efficient are decentralized auction platforms? The Review of Economic Studies, 88(1):91–125, 2021.
-  Patrick Bajari, Ali Hortaçsu, and Ali Hortacsu. The Winner’s Curse, Reserve Prices, and Endogenous Entry: Empirical Insights from eBay Auctions. The RAND Journal of Economics, 34(2):329, 22.
-  Yuriy Gorodnichenko and Oleksandr Talavera. Price Setting in Online Markets: Basic Facts, International Comparisons, and Cross-Border Integration. American Economic Review, 107(1):249–282, January 2017.
Aaron Bodoh-Creed, Jörn Boehnke, and Brent Hickman.
Using Machine Learning to predict price dispersion.Working Paper, 2020.
-  David J. DiRusso, Susan M. Mudambi, and David Schuff. Determinants of prices in an online marketplace. Journal of Product & Brand Management, 20(5):420–428, August 2011.
-  Hee-Woong Kim and Yunjie Xu. Drivers of price Premium in e-markets. Communications of the ACM, 50(11):91–95, November 2007.
-  David Lucking-Reiley, Doug Bryan, Naghi Prasad, and Daniel Reeves. Pennies from Ebay: The determinants of price in online auctions. Journal of Industrial Economics, 55(2):223–233, June 2007.
-  J. Broséus, D. Rhumorbarbe, C. Mireault, V. Ouellette, F. Crispino, and D. Décary-Hétu. Studying illicit drug trafficking on Darknet markets: Structure and organisation from a Canadian perspective. Forensic Science International, 264:7–14, July 2016.
-  Jack Cunliffe, James Martin, David Décary-Hétu, and Judith Aldridge. An island apart? risks and prices in the Australian cryptomarket drug trade. International Journal of Drug Policy, 50:64–73, December 2017.
-  Joe Van Buskirk, Amanda Roxburgh, Raimondo Bruno, Sundresan Naicker, Simon Lenton, Rachel Sutherland, Elizabeth Whittaker, Natasha Sindicich, Allison Matthews, Kerryn Butler, and Lucinda Burns. Characterising dark net marketplace purchasers in a sample of regular psychostimulant users. International Journal of Drug Policy, 35:32–37, September 2016.
-  Kyle Soska and Nicolas Christin. Measuring the longitudinal evolution of the online anonymous marketplace ecosystem. In Proceedings of the 24th USENIX Conference on Security Symposium, SEC’15, pages 33–48, USA, 2015. USENIX Association.
-  Julia Buxton and Tim Bingham. The rise and challenge of dark net drug markets. Policy brief, 7:1–24, 2015.
-  Andres Baravalle, Mauro Sanchez Lopez, and Sin Wee Lee. Mining the Dark Web: Drugs and Fake Ids. In 2016 IEEE 16th International Conference on Data Mining Workshops (ICDMW), pages 350–356, Barcelona, Spain, December 2016. IEEE.
-  James Martin, Jack Cunliffe, David Décary-Hétu, and Judith Aldridge. Effect of restricting the legal supply of prescription opioids on buying through online illicit marketplaces: Interrupted time series analysis. BMJ (Clinical research ed.), 361, 2018.
-  Rolf Van Wegberg, Samaneh Tajalizadehkhoob, Kyle Soska, Ugur Akyazi, Carlos Gañán, Bram Klievink, Nicolas Christin, and Michel Van Eeten. Plug and Prey? measuring the Commoditization of Cybercrime via Online Anonymous Markets. In Proceedings of the 27th USENIX Conference on Security Symposium, SEC’18, pages 1009–1026, USA, 2018. USENIX Association.
-  Sam Miller, Abeer El-Bahrawy, Martin Dittus, Mark Graham, and Joss Wright. Predicting Drug Demand with Wikipedia Views: Evidence from Darknet Markets. In Proceedings of The Web Conference 2020, pages 2669–2675, Taipei Taiwan, April 2020. ACM.
-  Lukas Norbutas. Offline constraints in online drug marketplaces: An exploratory analysis of a cryptomarket trade network. International Journal of Drug Policy, 56:92–100, June 2018.
-  Judith Aldridge and David Décary-Hétu. Hidden wholesale: The drug diffusing capacity of online drug cryptomarkets. International Journal of Drug Policy, 35:7–15, September 2016.
-  Martin Dittus, Joss Wright, and Mark Graham. Platform Criminalism: The ’Last-Mile’ Geography of the Darknet Market Supply Chain. In Proceedings of the 2018 World Wide Web Conference on World Wide Web - WWW ’18, pages 277–286, Lyon, France, 2018. ACM Press.
-  Marie Claire Van Hout and Tim Bingham. Responsible vendors, intelligent consumers: Silk Road, the online revolution in drug trading. International Journal of Drug Policy, 25(2):183–189, March 2014.
-  Scott W. Duxbury and Dana L. Haynie. Building them up, breaking them down: Topology, vendor selection patterns, and a digital drug market’s robustness to disruption. Social Networks, 52:238–250, January 2018.
-  Márton Karsai, Nicola Perra, and Alessandro Vespignani. Time varying networks and the weakness of strong ties. Scientific Reports, 4(1):4001, May 2015.
-  Enrico Ubaldi, Alessandro Vezzani, Márton Karsai, Nicola Perra, and Raffaella Burioni. Burstiness and tie activation strategies in time-varying social networks. Scientific Reports, 7(1):46225, May 2017.
-  Enrico Ubaldi, Nicola Perra, Márton Karsai, Alessandro Vezzani, Raffaella Burioni, and Alessandro Vespignani. Asymptotic theory of time-varying social networks with heterogeneous activity and tie allocation. Scientific Reports, 6(1):35724, December 2016.
-  A.L Barabási, H Jeong, Z Néda, E Ravasz, A Schubert, and T Vicsek. Evolution of the social network of scientific collaborations. Physica A: Statistical Mechanics and its Applications, 311(3-4):590–614, August 2002.
-  H Jeong, Z Néda, and A. L Barabási. Measuring preferential attachment in evolving networks. Europhysics Letters (EPL), 61(4):567–572, February 2003.
-  N. Perra, B. Gonçalves, R. Pastor-Satorras, and A. Vespignani. Activity driven modeling of time varying networks. Scientific Reports, 2(1):469, December 2012.
-  European Monitoring Centre for Drugs and Drug Addiction. Reputation is everything: The role of ratings, feedback and reviews in cryptomarkets. In The Internet and Drug Markets. Publications Office, LU, 2016.
-  Robert Augustus Hardy and Julia R Norgaard. Reputation in the Internet black market: An empirical and theoretical analysis of the Deep Web. Journal of Institutional Economics, 12(3):515–539, 2016.
-  Laura Alessandretti, Kaiyuan Sun, Andrea Baronchelli, and Nicola Perra. Random walks on activity-driven networks with attractiveness. Physical Review E, 95(5):052318, May 2017.
-  Austan D Goolsbee and Peter J Klenow. Internet rising, prices falling: Measuring inflation in a world of e-commerce. In Aea papers and proceedings, volume 108, pages 488–92, 2018.
-  Yuriy Gorodnichenko, Viacheslav Sheremirov, and Oleksandr Talavera. Price setting in online markets: Does it click? Journal of the European Economic Association, 16(6):1764–1811, 2018.
-  Chris Nosko and Steven Tadelis. The limits of reputation in platform markets: An empirical analysis and field experiment. Technical report, National Bureau of Economic Research, 2015.
-  Seth Siyuan Li and Elena Karahanna. Online recommendation systems in a B2C E-commerce context: A review and future directions. Journal of the Association for Information Systems, 16(2):2, 2015.
-  Albert-László Barabási. The origin of bursts and heavy tails in human dynamics. Nature, 435(7039):207–211, May 2005.
-  Antoine Moinet, Michele Starnini, and Romualdo Pastor-Satorras. Burstiness and aging in social temporal networks. Physical Review Letters, 114(10):108701, March 2015.
-  Frank Wehinger. The Dark Net: Self-Regulation Dynamics of Illegal Online Markets for Identities and Related Services. In 2011 European Intelligence and Security Informatics Conference, pages 209–213, Athens, Greece, September 2011. IEEE.
-  European Monitoring Centre for Drugs and Drug Addiction. Drugs and the Darknet: Perspectives for Enforcement, Research and Policy. Publications Office, LU, 2017.
-  Coralio Ballester, Antoni Calvó-Armengol, and Yves Zenou. Who’s Who in Networks. Wanted: The Key Player. Econometrica, 74(5):1403–1417, September 2006.
-  William M Boal and Michael R Ransom. Monopsony in the labor market. Journal of economic literature, 35(1):86–112, 1997.
-  Arindrajit Dube, Jeff Jacobs, Suresh Naidu, and Siddharth Suri. Monopsony in Online Labor Markets. American Economic Review: Insights, 2(1):33–46, March 2020.
-  Roger Dingledine, Nick Mathewson, and Paul Syverson. Tor: The second-generation onion router. In Proceedings of the 13th Conference on USENIX Security Symposium - Volume 13, SSYM’04, page 21, USA, 2004. USENIX Association.
-  Chainalysis Inc., 2020.
-  Darknetlive, 2020.
Danny Yuxing Huang, Maxwell Matthaios Aliapoulios, Vector Guo Li, Luca Invernizzi, Elie Bursztein, Kylie McRoberts, Jonathan Levin, Kirill Levchenko, Alex C Snoeren, and Damon McCoy.Tracking ransomware end-to-end. In 2018 IEEE Symposium on Security and Privacy (SP), pages 618–631. IEEE, 2018.
-  Mikkel Alexander Harlev, H. Yin, Klaus Christian Langenheldt, R. Mukkamala, and R. Vatrapu. Breaking Bad: De-Anonymising Entity Types on the Bitcoin Blockchain Using Supervised Machine Learning. In HICSS, 2018.
-  Daniel Goldsmith, Kim Grauer, and Yonah Shmalo. Analyzing hack subnetworks in the bitcoin transaction graph. Applied Network Science, 5:1–20, 2020.
-  Paolo Tasca, Adam Hayes, and Shaowen Liu. The evolution of the bitcoin economy: Extracting and analyzing the network of payment relationships. The Journal of Risk Finance, 19(2):94–126, March 2018.
-  Dorit Ron and Adi Shamir. Quantitative analysis of the full bitcoin transaction graph. In International Conference on Financial Cryptography and Data Security, pages 6–24. Springer, 2013.
-  Sarah Meiklejohn, Marjori Pomarole, Grant Jordan, Kirill Levchenko, Damon McCoy, Geoffrey M Voelker, and Stefan Savage. A fistful of bitcoins: Characterizing payments among men with no names. In Proceedings of the 2013 Conference on Internet Measurement Conference, pages 127–140, 2013.
-  Dmitry Ermilov, Maxim Panov, and Yury Yanovich. Automatic bitcoin address clustering. In 2017 16th IEEE International Conference on Machine Learning and Applications (ICMLA), pages 461–466. IEEE, 2017.
-  Elli Androulaki, Ghassan O Karame, Marc Roeschlin, Tobias Scherer, and Srdjan Capkun. Evaluating user privacy in bitcoin. In International Conference on Financial Cryptography and Data Security, pages 34–51. Springer, 2013.
-  Lily Hay Newman. How a Bitcoin Trail Led to a Massive Dark Web Child-Porn Site Takedown, 2019.
-  Gwern Branwen, Nicolas Christin, David Décary-Hétu, Rasmus Munksgaard Andersen, StExo, El Presidente, Anonymous, Daryl Lau, Delyan Kratunov Sohhlz, Vince Cakic, Van Buskirk, Whom, Michael McKenna, and Sigi Goode. Dark net market archives, 2011-2015, July 2015.
Appendix A Dark Web Marketplaces
Dark Web Marketplaces (DWMs) are unregulated commercial websites. They operate similarly to other online marketplaces, such as Gumtree or Craigslist. In most cases, the buyer sends money to the DWM which keeps the money until the client has confirmed receipt of the goods, upon which the funds are released to the seller after taking a small fee. Customers may also leave reviews, contributing to the sellers reputation. To favour anonymity DWMs are reached through browsers supporting the onion protocol, to find their updated domain one can navigate one of the many specialised websites like DeepDotWeb and darknetlive . DWMs use cryptocurrencies, mainly Bitcoin, as the main currency.
Our dataset contains the entire transaction data of 28 dark marketplaces between June, 2011, and July 2020. These markets all have an average daily volume larger than 15,000 USD, in order to be able to reliably measure different observables, and include all relevant DWMs as identified by law enforcement agencies . Each marketplace can be represented as an egocentric network around the DWM, a star where the marketplace is the central node and its nearest neighbours represent marketplace users. A directed edge represents a transaction occurring between the DWM and one of its nearest neighbours. Note that the data hide the buyer-seller direct link, because the money go through the platform during the purchase.
All transactions ever done in Bitcoin are publicly available, and can be downloaded by installing Bitcoin core software or through various third party APIs like Blockchain.com. Each transaction is recorded through its time, exchanged amount, source and destination addresses. An address is an alphanumeric identifier, and a user can generate a new one every time he does a transaction, and this what now generally happens for anonymity reasons. For this reason, the data need to be pre-processed to cluster addresses into individual entities in order to perform any economic analysis.
Our dataset has been pre-processed by Chainalysis Inc following approaches as in [73, 74, 75] .
This process uses established heuristics
. This process uses established heuristics[76, 77, 78, 79, 80] in order to map addresses into entities. This process is unsupervised, as there is no ground truth data to rely on. Avoiding false positives in the clustering is crucial, as this data have been used in many law enforcement investigations related to illicit activities . This means that if an addresses does not meet the heuristics conditions it is left unclustered, and therefore not all addresses linked to DWMs or their admins may be correctly included in the market entity.
Chainalisis Inc. also identifies the clustered entities corresponding to a number of dark web marketplaces. Our dataset contains their full transaction history, meaning all the transaction in which the markets either send or receive money from other entities. Bitcoin trading exchanges were excluded from the list of trading entities, since we focus on the users’ direct interaction with the dark marketplace. (Bitcoin trading exchanges are platforms that allow users to trade Bitcoin for other cryptocurrencies or fiat currencies.)
We collect additional information on the analysed marketplaces from different sources, including the Gwern archive , law enforcement agencies reports and dedicated online forums. We focused our attention on the creation and closure dates of these markets, in order to correctly interpret the transaction data. We report the lifetimes of the selected markets in Fig. 10, color coding by the daily average number of transactions as proxy for the market size. For more details on the markets, see also Tab. 2.
Appendix B Computing the Memory Kernel
In this section we describe the computations made in order to estimate the buyer memory parameters ,. As detailed in the main text, buyers are grouped in different classes according to their final degree (number of different sellers they purchased from) at the end of the considered periods. Classes are divided in powers of 2, for example the first class includes buyers with degree 1, the second with degree between 2 and 3, the third between 4 and 7 and so on. In our dataset, a buyer has a unique identifier in each market product, not allowing to follow their behavior across different markets. In order to reduce the noise in the data, all markets are aggregated together for the following computations.
In order to estimate the memory parameters from eq.2, defined in the main text, the first step is to estimate the conditional probabilities of buying from a new seller when you already bought from different ones. To do so, we count the number of buyers in class who go from degree to , and we count the total number of purchases they made when they had degree .
In order to reduce the noise on the computation of , we limit the computation to . This way, all buyers in degree class go from degree to , as their final degree is at least equal to . The numerator is therefore constant, and equal to , the number of buyers in degree class . Equation then reads:
Assuming that for a given degree events are independent, or in other words that users behave independently of each other, and checking that , we can estimate the uncertainty of as follows:
Having estimated the curve for each degree class , we can fit eq.2 to each curve separately. To do so, we do a numerical least square optimization, estimating the values of and for each degree class. Results are shown in Tab. 1.
Appendix C Sampling of Product Markets
The e-commerce platform contains data on 144 product markets. We sample 28 DWMs to fit with our model. The 28 product markets are sampled to ensure all products are represented. In particular, products can be grouped together in higher-level markets, from which we sample on product each. To make an example: our dataset may contain two product markets in the fruit group, namely apples and pears. In the sample for the model simulation we choose only one of the two, taking care that the 28 sampled product markets are representative of the heterogeneous market size of our dataset.
Appendix D Maximum Likelihood Estimation
As detailed in the main text, we employ a data-driven approach to estimate the model parameters for each product market. In particular, the preferential attachment parameter , describing the increment of a seller’s attractiveness after a sale, is estimated by Maximum Likelihood Estimation (MLE). To do so, we simulate the model for each value of on a grid, ranging from 1 to 500, and then compute the associate negative log-likelihood computed comparing the data to the simulated attractiveness distribution, and choose the value minimizing the quantity. We employ this simple approach to estimate , by only analysing the attractiveness distribution, as the scope of this work is to study and reproduce stylized facts, and not to propose a detailed model precisely reproducing all details of a given product market. For this reason, even the value of itself assumes relative importance, as its order of magnitude determines the agreement with the data, but small variations in the precise value are meaningless in the context of this study. For completeness, in Tab. 3 we show the fitted value of for each product market.
Appendix E Supplementary Figures

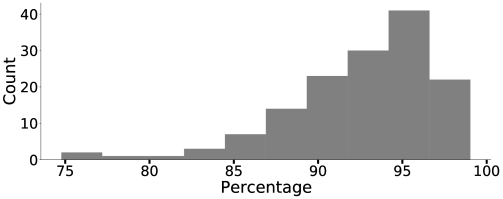

In Fig. 1, we show the histogram of the percentage of users with entropy zero doing just one transaction, in each product market. This percentage is always greater than , but actually over in most cases, showing how buyers with entropy zero can effectively be neglected when showing the buyer entropy distribution.

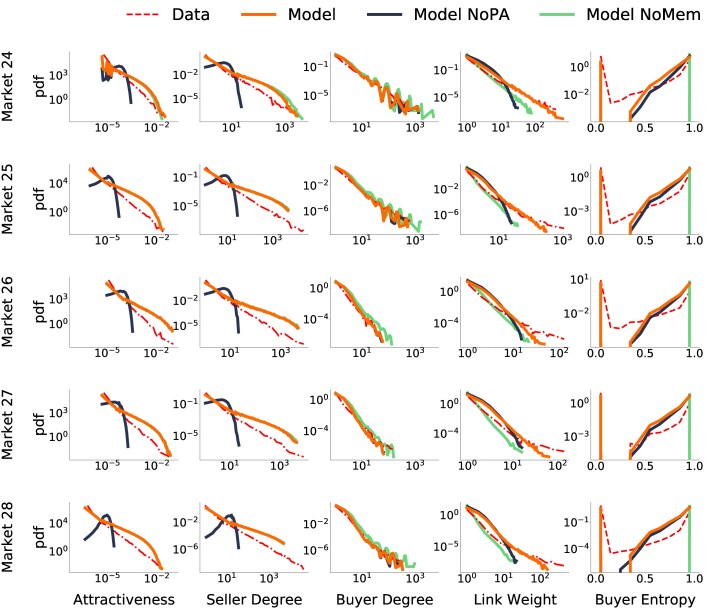

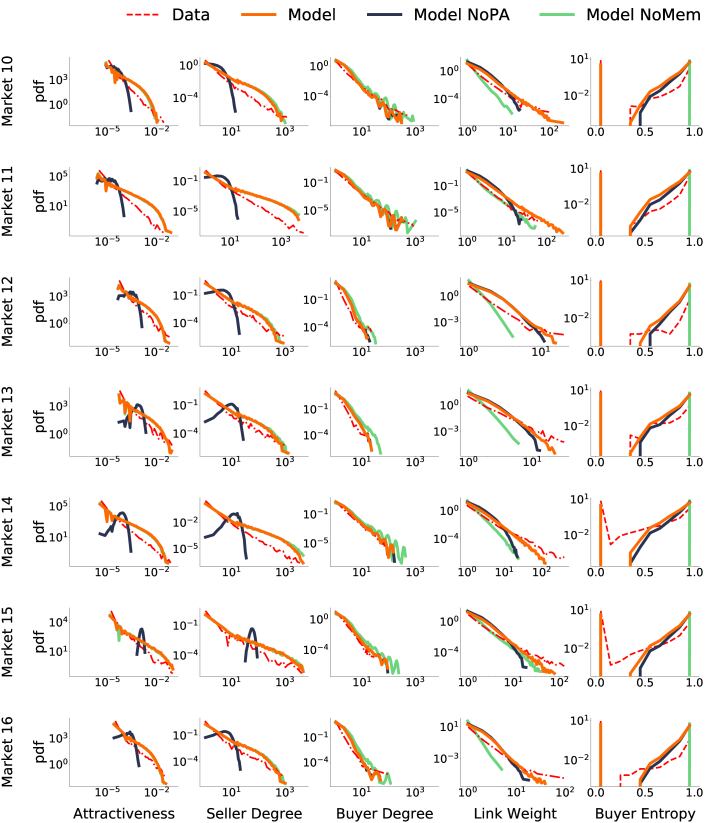

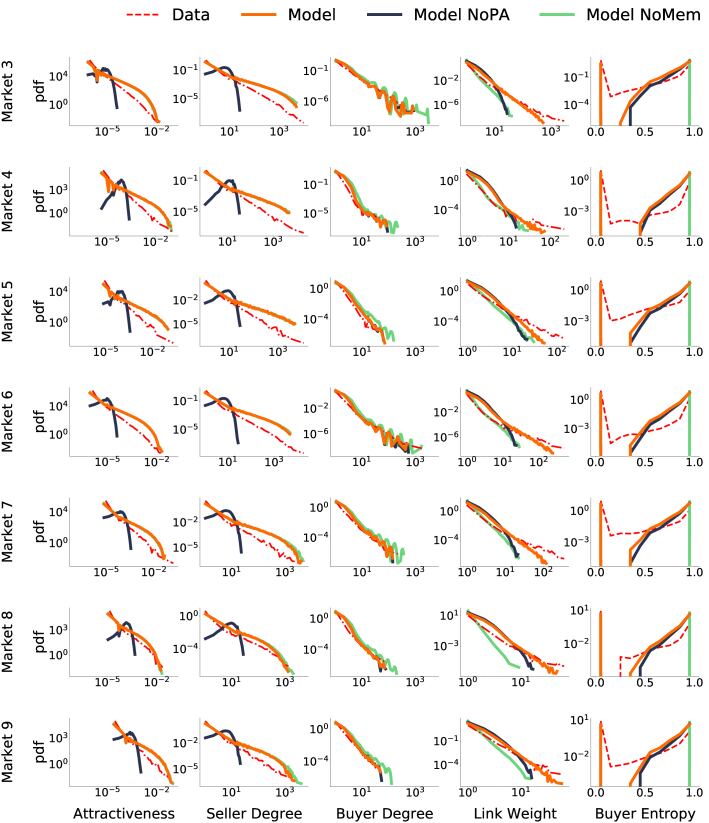

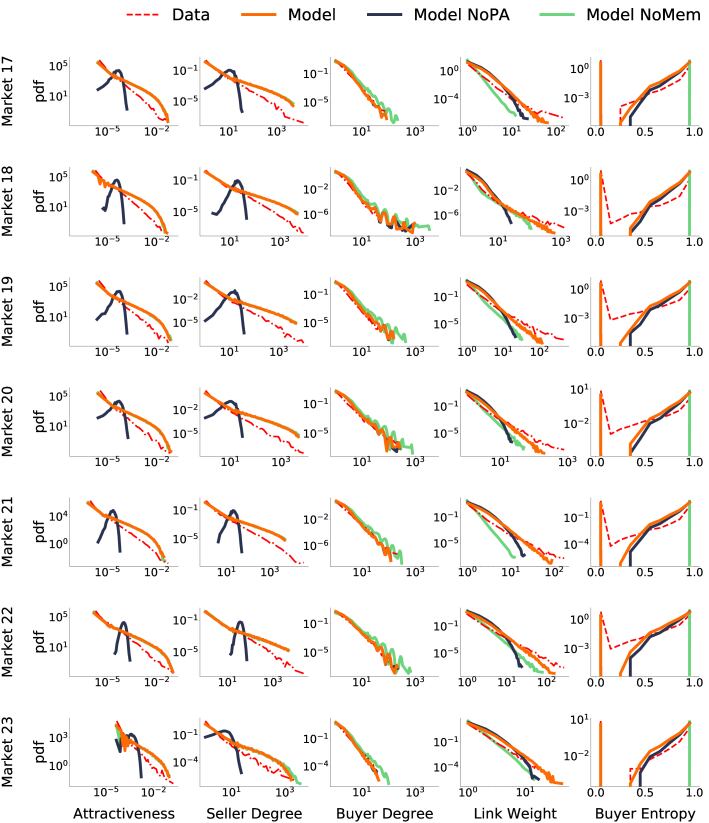

In Fig. 2 to 5 we show results of model simulation for 26 other product markets. The results show how the model is able to capture the main stylised facts of the buyer-seller network structure, with memory and preferential attachment both necessary to capture different aspects of the structure.

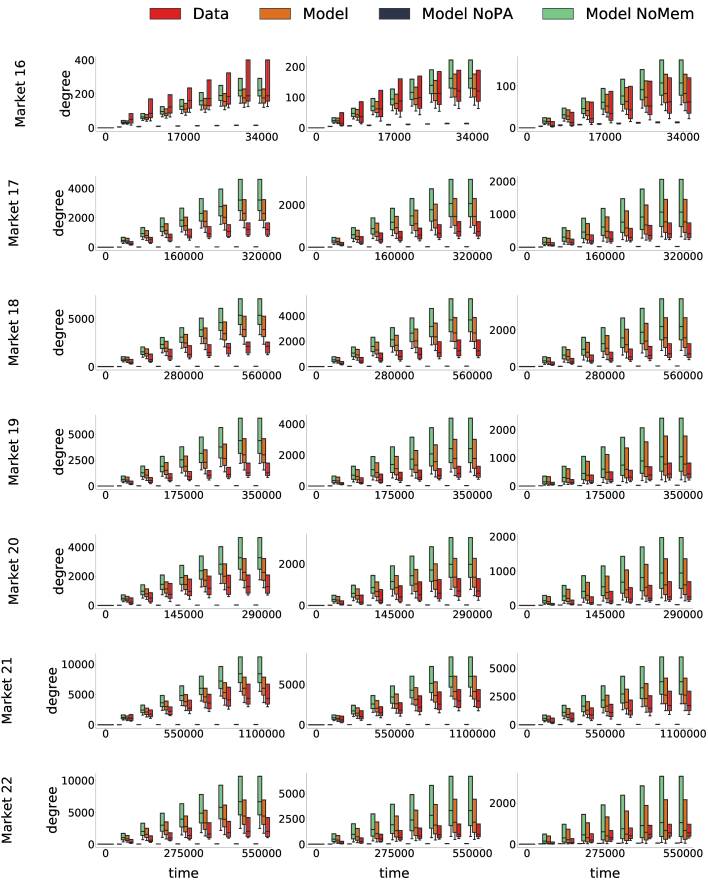

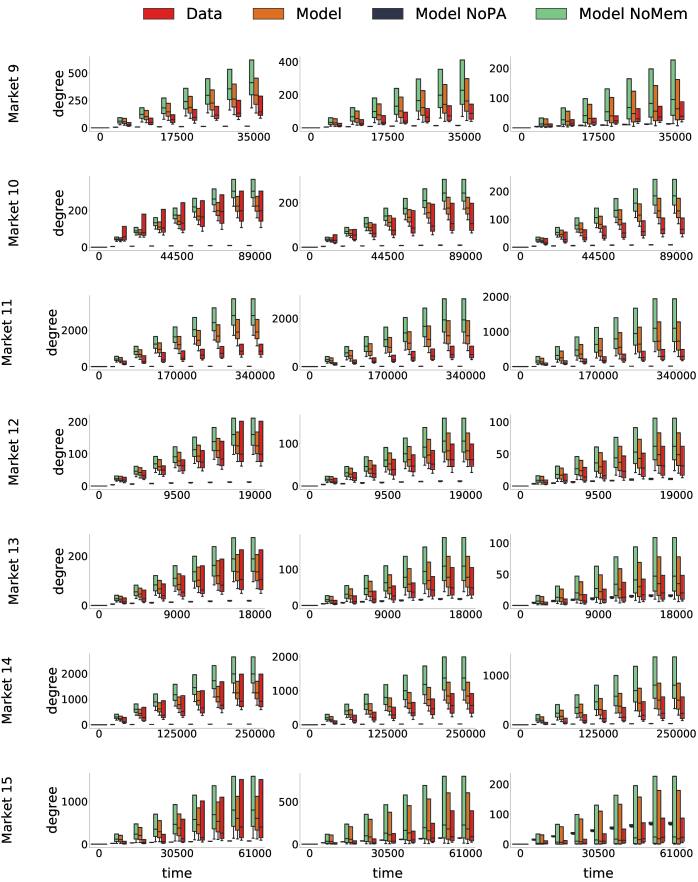

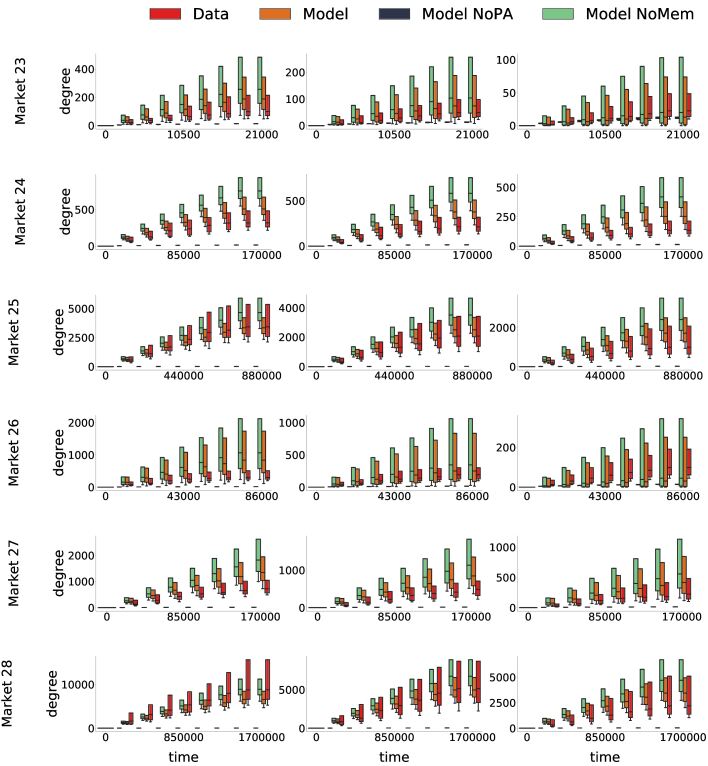

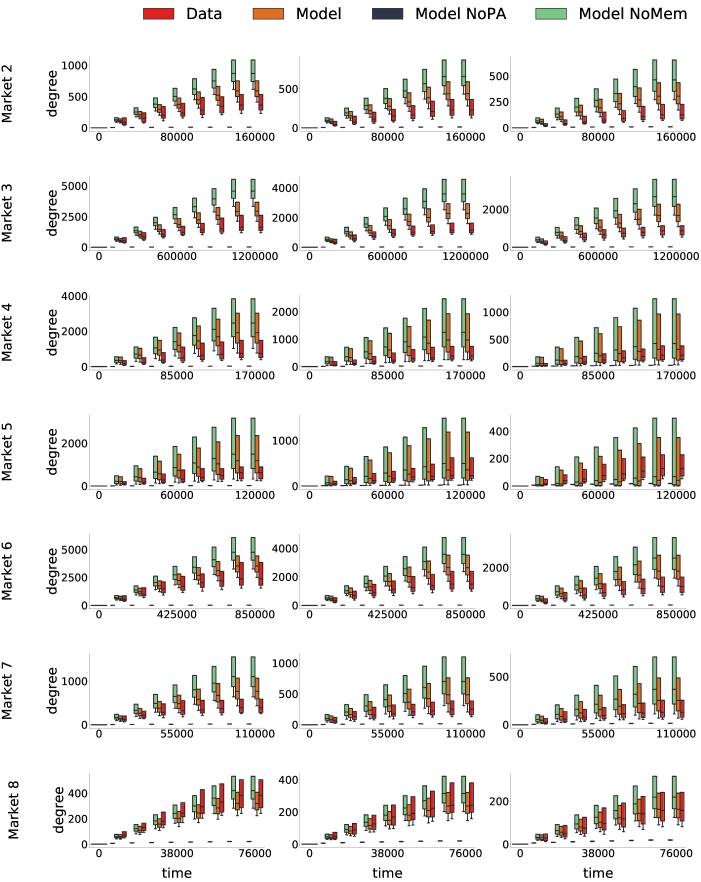

In Fig. 6 to 9 we show the temporal evolution of the top 50, 100 and 200 sellers degree distribution for 26 other product markets, represented as boxplot for 9 equally spaced time steps. The model is consistently able to reproduce the temporal evolution of the degree distribution, as shown by the cores of the boxplots (interquartile range) overlapping.

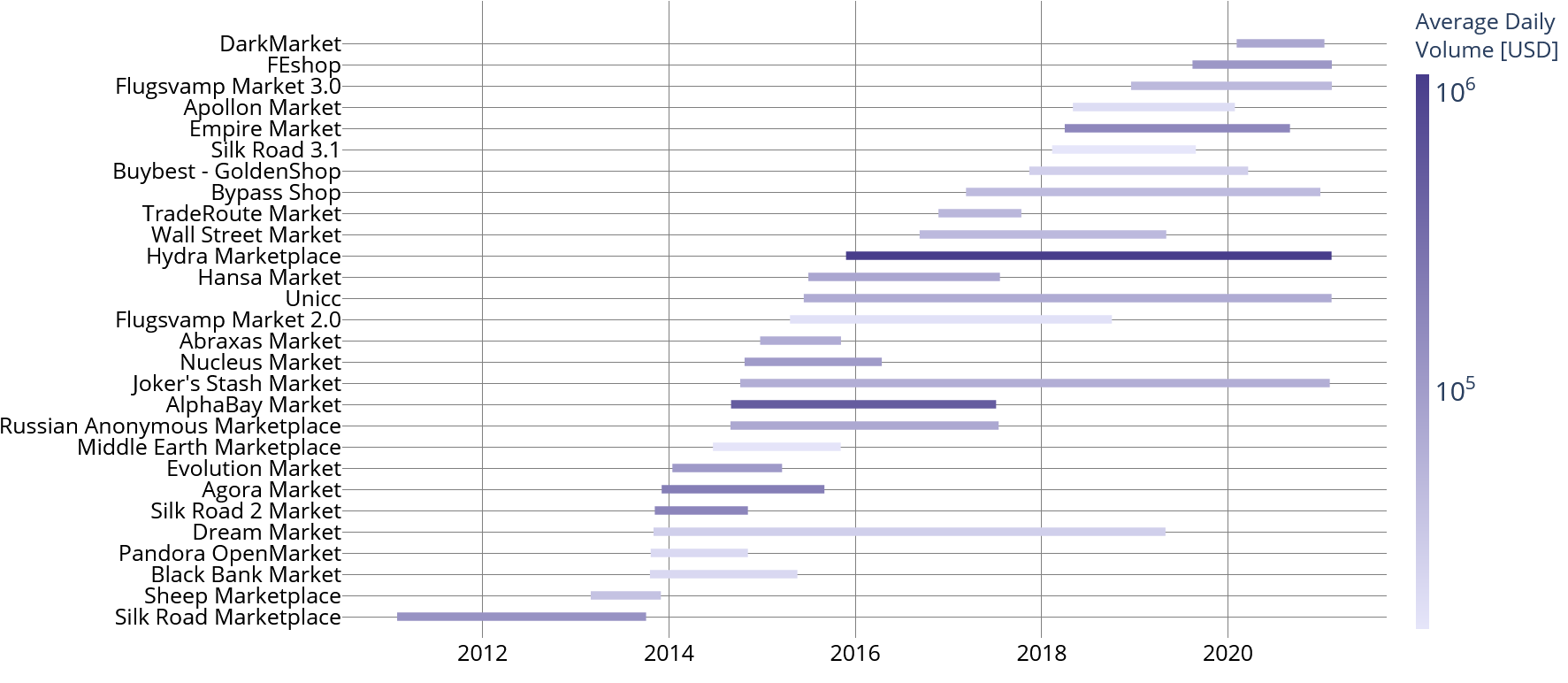

In Fig. 10 we show the duration of each DWM in our dataset, color-coding by the average daily volume of transactions in USD. Our dataset covers all major DWMs from their onstart in 2011 with Silk Road Marketplace. DWMs are heterogeneous in daily volume, with some being just over our threshold of 20,000 USD, and Hydra Marketplace or AlphaBay Market close to 1M daily USD.

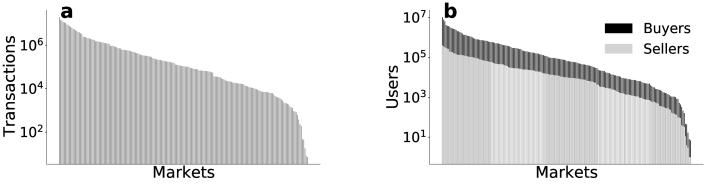

In Fig. 11 we show the size of the 144 product markets in the regulated e-commerce platform dataset. In Fig. 11(a), we show the total number of transactions in each product market, whereas in Fig. 11(b) we show the total number of users (buyers and sellers). Product markets are heterogeneous in size, both w.r.t. number of transactions and number of users.
Appendix F Supplementary Tables
In Tab. 1 we show the fitted coefficients of and for every buyer degree class. The coefficients are slightly different among the different degree classes, but of the same order of magnitude, allowing us to fix the value of and in the model simulation. This is only an approximation in the context of a model whose goal is to see the role of different mechanisms in determining the structure and evolution of the buyer-seller network. If the goal was to reproduce the finest detail of the network, or to make predictions on its evolution, we’d assign values of and according to the buyer degree class, where the degree is sampled from the data degree distribution.
In Tab. 2 we show details on each DWM in the dataset. Details include the name, start and end data, reason of closure, type of goods traded, total number of transactions and total volume of transactions in USD.
In Tab. 3 we show the value of the preferential attachment parameter fitted for each product market. While values are heterogeneous, showing the different role of preferential attachment in each market, the precise value is not important in our study. Indeed, our only goal is to reproduce the main stylized facts of the data, not to reproduce the finest details of the network, and therefore changing the value of around the fitted value would not change our conclusions.
|Silk Road Marketplace||2011-01-31||2013-10-02||raided||mixed||840,987||131,604,274|
|Black Bank Market||2013-10-18||2015-05-18||scam||mixed||89,444||13,152,830|
|Silk Road 2 Market||2013-11-06||2014-11-05||raided||mixed||426,277||66,825,593|
|Middle Earth Marketplace||2014-06-22||2015-11-04||scam||mixed||67,630||8,361,143|
|Russian Anonymous Marketplace||2014-08-29||2017-07-15||raided||mixed||1,109,126||80,478,841|
|Joker’s Stash Market||2014-10-07||2021-02-03||closed||credits||998,687||153,138,403|
|Flugsvamp Market 2.0||2015-04-20||2018-10-02||closed||drugs||254,972||23,013,741|
|Wall Street Market||2016-09-09||2019-05-03||raided||mixed||681,825||48,153,667|
|Buybest - GoldenShop||2017-11-13||2020-03-19||closed||unknown||386,046||24,449,110|
|Silk Road 3.1||2018-02-10||2019-08-27||scam||drugs||93,426||9,053,684|
|Flugsvamp Market 3.0||2018-12-17||2021-02-10||active||unknown||291,018||39,344,294|
