1 Overview
Most scientific questions, such as those asked when evaluating policies, are causal in nature, even if they are not specifically framed as such. Causal inference reasoning helps clarify the scientific question, and define the corresponding causal estimand, i.e the quantity of interest, such as the average treatment effect (ATE). It also makes clear the assumptions necessary to express the estimand in terms of the observed data, known as identification. Once this is achieved, the focus shifts to estimation and inference. While machine learning methods have received a lot of attention in recent years, these methods are primarily geared for prediction. There are many excellent texts covering machine learning focussed on prediction (Friedman et al., 2001; James et al., 2013), but not dealing with causal problems. Recently, some authors within the Economics community have started examining the usefulness of machine learning for the causal questions that are typically the subject of applied econometric research (Varian, 2014; Kleinberg et al., 2015; Mullainathan and Spiess, 2017; Athey, 2017b, a; Athey and Imbens, 2017).
In this Chapter, we contribute to this literature by providing an overview and an illustration of machine learning methods for causal inference, with a view to answer typical causal questions in policy evaluation, and show how these can be implemented with widely used statistical packages. We draw on innovations form a wide range of quantitative social and health sciences, including economics, biostatistics and political science.
We focus on methods to estimate the ATE of a binary treatment (or exposure), under “no unobserved confounding assumptions” (see Section 2
). The remainder of this article is as follows. First, we introduce the notation and the assumptions for the identification of causal effects. Then we outline our illustrative treatment effect estimation problem, an impact evaluation of a social health insurance program in Indonesia. Next, we provide a brief introduction to supervised machine learning methods. In the following sections, we review methods for estimating the ATE. These can be roughly categorised into three main types: methods that aim to balance covariate distributions (propensity scores (PS) and other matching methods), methods that fit outcome regressions to “impute” potential outcomes and estimate causal effects, and the so called “double robust” methods that combine these. We also discuss the use of machine learning for variable selection, a challenge increasingly important with “Big data”, especially with a large number of variables. In the last section we provide a brief overview of developments for other settings and a discussion.
2 Estimands and assumptions for identification
2.1 Notation and assumptions
Let be an indicator variable for treatment, and be the outcome of interest. Denote by the potential outcome that would manifest if the th subject were exposed to level of the treatment, with . The observed outcome can then be written as (Rubin, 1978).
Throughout, we assume the Stable Unit Treatment Value Assumption (SUTVA) holds, which comprises no interference, i.e. the potential outcomes of the th individual are unrelated to the treatment status of all other individuals, and consistency, i.e. for all individuals , if then , for all (Robins et al., 2000; VanderWeele, 2009; Cole and Frangakis, 2009; Pearl, 2010).
Denote the observed data of each individual by , where
is a vector of confounding variables, that is factors that influence simultaneously the potential outcomes and treatment. We assume that the data are an independent identically distributed sample of size
.Individual level causal effects are defined as the difference between these “potential outcomes”. Researchers are often interested in the average of these individual causal effects over some population. A widely considered casual estimand is the ATE, defined as . Further estimands include the average taken over the treated subjects (the average treatment effect on the treated, ATT) or the conditional average treatment effect (CATE), which takes the expectation over individuals with certain observed characteristics. Here we focus on the ATE.
Since the potential outcomes can never be simultaneously directly observed, these estimands cannot be expressed in terms of observed data, or identified, without further assumptions. A commonly invoked assumption which we will make throughout is ignorability or unconfoundedness of the treatment assignment, (also known as conditional exchangeability). This assumption requires that the potential outcomes are independent of treatment, conditional on the observed covariates,
(1)
The plausibility of this assumption needs to be carefully argued in each case, ideally with careful data collection and based on subject matter knowledge about the variables that may be associated with the outcome as well as influencing the treatment, as it cannot be tested using the observed data (Rubin, 2005).
The second necessary assumption is the positivity of the treatment assignment (also referred as “overlap”):
(2)
implying that for any combination of covariates, there is a nonzero probability of receiving both the treatment and control states.
Using the unconfoundedness and the positivity assumptions, the conditional mean of the potential outcomes corresponds with the conditional mean of the observed outcomes, and , and the ATE can be identified by:
(3)
3 Illustrative example: the impact of health insurance on assisted birth in Indonesia
We illustrate the methods by applying them each in turn to an impact evaluation of a national health insurance programme in Indonesia (more details in Kreif et al. (2018)). The dataset consists of births between 2002 and 2014, extracted from the Indonesian Family Life Survey (IFLS). The policy of interest, i.e. the treatment, is “being covered by the health insurance offered for those in formal employment and their families” (contributory health insurance). We are interested in the ATE of such health insurance on the probability of the birth being assisted by a health care professional (physician or midwife). We construct a list of observed covariates including the mother’s characteristics, (age, education, wealth in quintiles) and household’s characteristics (social assistance, experienced a natural disaster, rurality, availability of health services: a village midwife, birth clinic, hospital).
We expect that the variables describing socioeconomic status may be particularly important, because those with contributory insurance tend to work in the formal sector, and have higher education than those uninsured, and these characteristics would make a mother more likely to use health services even in the absence of health insurance. Similarly, the availability of health services is expected to be an important confounder, as those who have health insurance may live in areas where it is easier to access health care, with or without health insurance.
The final dataset reflects typical characteristics of survey data: the majority of variables are binary, with two variables categorical and one continuous (altogether 34 variables). Due to the nature of the survey, for around one third of women we could not measure confounder information from the past, but had to impute it with information from the time of the survey. Two binary variables indicate imputed observations.
For simplicity, any records with any other missing data have been listwise deleted. This approach provides unbiased estimates of the ATE as long as missingness does not depend on both the treatment and the outcome
(Bartlett et al., 2015). The resulting completecase dataset consists of 10985 births, of whcih 1181 are in the treated group, as the mother had health insurance in the year of the child’s birth, while 8574 babies had their birth assisted by a health professional.4 Introduction to machine learning for causal inference
4.1 Supervised machine learning
The type of machine learning tools most useful for causal inference are those labelled as “supervised machine learning”. These tools, similarly to regression, can summarise linear and nonlinear relationships in the data and can predict some variable given new values of covariates (Varian, 2014)
. A “good” prediction is defined in relation to a loss function, for example the mean sum of squared errors. A commonly used measure of this is the
test mean squared error (test MSE), defined as the average square prediction error among observations not previously seen. This quantity differs from the usual MSE calculated among observations that were used to fit the model. In the absence of a very large dataset that can be used to directly estimate the test MSE, it can be estimated by holding out a subset of the observation from the model fitting process, using the socalled “Vfold crossvalidation” procedure (see e.g. Zhang (1993)). When performing fold crossvalidation, the researcher randomly divides the set of observations into groups (folds). The first group is withheld from the fitting process, and thus referred to as the test data. The algorithm is then fitted using the data in the remaining folds, called the training data. Finally, the MSE is calculated using the test data, thus evaluating the performance of the algorithm. This process is repeated for each fold, resulting in estimates of the test MSE, which are then averaged to obtain the socalled crossvalidated MSE. In principle, it is possible to perform crossvalidation with just one split of the sample, though results are highly dependent on the sample split. Thus, typically, or is used in practice.The ultimate goal of machine learning algorithms is to get good outofsample predictions minimising the test MSE (Varian, 2014)
, typically achieved by a combination of flexibility and simplicity, often described as the “biasvariance trade off”. The formula for the MSE shows why minimising it achieves this:
. For example, a nonlinear model with many higher order terms is more likely to fit the data better than a simpler model, however it is unlikely that it will fit a new dataset similarly well, often referred to as “overfitting”.Regularisation is a general approach that aims to achieve balance between flexibility and complexity, by penalising more complex models. With less regularisation, one does a better job at approximating the withinsample variation, but for this very reason, the outofsample fit will typically get worse, increasing the bias. The key question is choosing the level of regularisation: how to tune the algorithm so that it does not oversmooth or overfit.
In the context of selecting regularisation parameters, crossvalidation can be used to perform socalled empirical tuning to find the optimal level of complexity, where complexity is often indexed by the tuning parameters. The potential range of tuning parameters is divided into a grid (e.g. 10 possible values), and fold cross validation process is performed for each parameter value, enabling the researcher to choose the value of the tuning parameter with the lowest test MSE. Finally, the algorithm with the selected tuning parameter is refitted using all observations.
4.2 Prediction vs. causal inference
Machine learning is naturally suited to prediction problems, which have been traditionally treated as distinct from causal questions (Mullainathan and Spiess, 2017)
. It may be tempting to interpret causally the output of the machine learning predictions, however making inferences from machine learning models is complicated by (1) the lack of interpretable coefficients for some of the algorithms, and (2) the lack of standard errors
(Athey, 2017a). Moreover, for certain “regressionlike” algorithms (e.g. Lasso), selecting the best model using cross validation, and then doing inference for the model parameters, ignoring the selection process, though common in practice, should be avoided as it leads to potential biases stemming from the shrunk coefficients, and underestimation of the true variance in the parameter estimates (Mullainathan and Spiess, 2017).The causal inference literature (see e.g. Kennedy (2016); Van der Laan and Rose (2011); Petersen (2014)) stresses the importance of first defining the causal estimand of interest (also referred to as ‘’target parameter”), and then carefully thinking about the necessary assumptions for identification. Once the causal estimand has been mapped to an estimator (a functional of the observed data), via the identification assumptions, the problem becomes an estimation exercise. In practice many estimators involve models for parameters (e.g. conditional distributions, means), which are not of interest per se, but are necessary to estimate the target parameter, these are called nuisance models. Nuisance models estimation can be thought of as prediction problem for which machine learning can be used. Examples include the estimation of propensity scores, or outcome regressions that can later be used to predict potential outcomes (see Section 7). So while most machine learning methods cannot be readily used to infer causal effects, they can help the process.
A potential key advantage of using machine learning for the nuisance models is that it fits and compares many alternative algorithms, by for example, using cross validation (while crossvalidation can be used to select among parametric models as well). Selecting models based on a well defined loss functions (e.g. the crossvalidated MSE) can, beyond improving model fit, benefit the overall transparency of the research process
(Athey, 2017b). This is in contrasts with how model selection is usually viewed in Economics, where model is chosen based on theory and estimated only once.This has led to many researchers using machinelearning for the estimation of the nuisance parameters of standard estimators (e.g., outcome regression, inverse probability weighting by the propensity score, see e.g. Lee et al. (2010); Westreich et al. (2010)
). However, the behavior of these estimators is can be poor, resulting in slower convergence rates and confidence intervals which are difficult to construct
(van der Vaart, 2014). In addition, the resulting estimators are irregular and the nonparametric bootstrap is in general not valid (Bickel et al., 1997).An increasingly popular strategy to avoid these biases and have valid inference is to use the socalled doubly robust estimators (combining nuisance models for the outcome regressions and the propensity score) which we review in Section 5.6. This is because DR estimators can converge at fast rates () to the true parameter, and are therefore consistent asymptotically normal, even when the nuisance models have been estimated via machine learning.
In the following sections, we briefly describe the machine learning approaches that have been most widely used for nuisance model prediction in causal inference, either because of their similarity to traditional regression approaches, their easy implementation due to the availability of statistical packages, their superior performance in prediction, or a combination of these.
4.3 Lasso
LASSO (Least Absolute Shrinkage and Selection Operator) is a penalised linear (or generalised linear) regression algorithm, fitting the model including all
predictors. It aims to find the set of coefficients that minimise the sumofsquares loss function, but subject to a constraint on the sum of absolute values (or norm) of coefficients being equal to a constant often referred to as budget, i.e. . This results in a (generalised) linear regression in which only a small number of covariates have nonzero coefficient: this absolutevalue regulariser induces a sparse coefficient vector. The nonzero coefficient estimates are also shrunk towards zero. This significantly reduces their variance at the “price” of increasing the bias. An equivalent formulation of the lasso is(4)
with the penalty being the tuning parameter.
As
increases, the flexibility of the lasso regression fit decreases, leading to decreased variance but increased bias. Beyond a certain point however, the decrease in variance due to increasing
slows, and the shrinkage on the coefficients causes them to be significantly underestimated, resulting in a large increase in the bias. Thus the choice of is critical. This is usually done by crossvalidation, implemented by several R packages, e.g. glmnet and caret.Because the lasso results in some of the coefficients being exactly zero when the penalty is sufficiently large, it essentially performs variable selection. The variable selection however is driven by the tuning parameter, and it can happen that some variables are selected in some of the CV partitions, but may be unused in another. This problem is common when the variables are correlated with each other, and they explain very similar “portions” of the outcome variability. A practical implication of this is that the researcher should remove from the set of potential variables those that are irrelevant, in the sense that they are very correlated to a combination of other, more relevant ones.
Another problem is inference after model selection, with some results (Leeb and Benedikt, 2008) showing its is not possible to obtain (uniform) model selection consistency. As we demonstrate in Section 6 some uses of lasso enable consistent estimation postvariable selection.
4.4 Tree based methods
4.4.1 Regression trees
Tree based methods, also known as classification and regression trees or “CARTs”, have a similar logic to decision trees familiar to economists, but here the “decision” is a choice about how to classify the observation. The goal is to construct (or “grow”) a decision tree that leads to good outofsample predictions. They can be used for classification with binary or multicategory outcomes (“classification trees”) or with continuous outcomes (“regression trees”). A regression tree uses a recursive algorithm to estimate a function describing the relationship between a multivariate set of independent variables and a single dependent variable, such as treatment assignment.
Trees tend to work well for settings with nonlinearities and interactions in the outcomecovariate relationship. In these cases, they can improve upon traditional classification algorithms such logistic regression. In order to avoid overfitting, trees are
prunedby applying tuning parameters that penalise complexity (the number of leaves). A major challenge with tree methods is that they are sensitive to the initial split of the data, leading to high variance. Hence, single trees are rarely used in practice, but instead ensembles  algorithms that stack or add together different algorithms  of trees are used, such as random forest or boosted CARTs.
4.4.2 Random forests
Random forests are constructed using bootsrapped samples of the data, and growing a tree where only a (random) subset of covariates is used for creating the splits (and thus the leaves). These trees are then averaged, which leads to a reduction in variance. The tuning parameters, which can be set or selected using cross validation, include the number of trees, depth of each tree, and the number of covariates to be randomly selected (usually recommended to be approximately where is the number of available independent variables). Popular implementations include the R packages caret and ranger.
4.4.3 Boosting
Boosting generates a sequence of trees where the first tree’s residuals are used as outcomes for the construction of the next tree. Generalised boosted models add together many simple functions to estimate a smooth function of a large number of covariates. Each individual simple function lacks smoothness and is a poor approximation to the function of interest, but added together they can approximate a smooth function just like a sequence of line segments can approximate a smooth curve. In the implementation in the R package gbm (McCaffrey et al., 2004), each simple function is a regression tree with limited depth. Another popular package is xgboost.
4.4.4 Bayesian Additive Regression Trees
Bayesian Additive Regression Trees (BARTs) can be distinguished from other tree based ensembling algorithms due to its underlying probability model (Kapelner and Bleich, 2013). As a Bayesian model, BART consists of a set of priors for the structure and the leaf parameters and a likelihood for data in the terminal nodes. The aim of the priors is to provide regularisation, preventing any single regression tree from dominating the total fit. To do this, BARTs employ socalled “Bayesian backfitting” where the th tree is fit iteratively, holding all other trees constant by exposing only the residual response that remains unfitted. Over many MCMC iterations, trees evolve to capture the fit left currently unexplained (Kapelner and Bleich, 2013). BART is described as particularly wellsuited to detecting interactions and discontinuities, and typically requires little parameter tuning (Hahn et al., 2017). There is ample evidence on BART’s good performance in predictions and even in causal inference (Hill, 2011; Dorie et al., 2017), and is implemented in several R packages (bartMachine, dbarts). Despite its excellent performance in practice, there are limited theoretical results about BARTs.
4.5 Super Learner ensembling
Varian (2014) highlights the importance of recognising uncertainty due to the model selection process, and the potential role ensembling can play in combining several models to create one that outperforms single models. Here we focus on the Super Learner (SL) (van der Laan and Dudoit, 2003), a machine learning algorithm that uses cross validation to find the optimal weighted convex combination of multiple candidate prediction algorithms. The algorithms prespecified by the analyst form the library, and can include parametric and machine learning approaches. The Super Learner has the oracle property, i.e. it produces predictions that are at least as good as those of the best algorithm included in the library (see van der Laan et al. (2007); Van der Laan and Rose (2011) for details).
Beyond its use for prediction (Polley and van der Laan, 2010; Rose, 2013), it has been used for PS and outcome model estimation (see for example, (Eliseeva et al., 2013; van der Laan and Luedtke, 2014; Gruber et al., 2015)), and has been shown to reduce bias from model misspecification (Porter et al., 2011; Kreif et al., 2016; Pirracchio et al., 2015). Implementations of the Super Learner include the SuperLearner, h2oEnsembleR and the subsemble R packages, the latter two with increased computational speed to suit large datasets.
5 Machine learning methods to create balance between covariate distributions
5.1 Propensity score methods
The propensity score (PS) (Rosenbaum and Rubin, 1983) defined as the conditional probability of treatment given observed covariates, i.e. , is referred to as a “balancing score”, due to its property of balancing the distributions of observed confounders amongst the treatment and control groups. The propensity score has been widely used to control for confounding, either for subclassification (Rosenbaum and Rubin, 1984), as a metric to establish matched pairs in nearest neighbor matching (Rubin and Thomas, 1996; Abadie and Imbens, 2016), and for reweighting, using inverse probability of treatment weights (Hirano et al., 2003). The latter two approaches have been demonstrated to have the best performance (Lunceford and Davidian, 2004; Austin, 2009).
The PS matching estimator constructs the missing potential outcome using the observed outcome of the closest observation(s) from the other group, and calculates the ATE as a simple mean difference between these predicted potential outcomes (Abadie and Imbens, 2006, 2011, 2016).
The inverse probability of treatment weighting (IPTW) estimator for the ATE is simply a weighted mean difference between the observed outcomes of the treatment and control groups, where the weights are constructed from the estimated propensity score as
(5)
With a correctly specified , is consistent and efficient (Hirano et al., 2003). The IPTW estimator can be expressed as
(6)
Obtaining SEs for IPTW estimators can be done by the Delta method assuming the PS is known, or using robust covariance matrix, socalled sandwich estimator to acknowledge that the PS was estimated, or by bootstrapping. IPTW estimators are sensitive to large weights.
The validity of these methods depends on correctly specifying the PS model. In empirical work, typically probit or logistic regression models are used without interactions or higher order terms. However, the assumptions necessary for these to be correctly specified, for example the linearity of the relationship between covariates and probability of treatment in the logit scale, are rarely assessed
(Westreich et al., 2010). More flexible modelling approaches, such as series regression estimation (Hirano et al., 2003), and machine learning methods, including decision trees, neural networks and linear classifiers
(Westreich et al., 2010), generalised boosting methods (McCaffrey et al., 2004; Westreich et al., 2010; Lee et al., 2010; Wyss et al., 2014) or the Super Learner (Pirracchio et al., 2012) have been proposed to improve the specification of the PS. However, even such methods may have poor properties, if their loss function targets measures of model fit (e.g. log likelihood, area under the curve) instead of balancing covariates that are important to reduce bias (Westreich et al., 2011). Imai and Ratkovic (2014)proposed a score that explicitly balances the covariates, exploiting moment conditions that capture the desired mean independence between the treatment variable and the covariates that the balancing aims to achieve. A machine learning method for estimating propensity scores that aims to maximise balance is the boosted CART approach
(McCaffrey et al., 2004; Lee et al., 2010), implemented as the TWANGR package. This approach minimises a chosen loss function, based on covariate balance achieved in the IPTW weighted data, by iteratively forming a collection of simple regression tree models and adding them together to estimate the propensity score. It models directly the logodds of treatment rather than the propensity scores, to simplify computations. The algorithm can be specified to stop when the best balance is achieved. A recommended stopping rule is the average standardised absolute mean difference (ASAM) in the covariates. A balance metric, the number of iterations, depth of interactions and shrinkage parameters need to be specified. The boosted CART approach to estimating PS has been demonstrated to improve balance and reduce bias in the estimated ATE
(Lee et al., 2010; Setoguchi et al., 2008) and has been extended to settings with continuous treatments (Zhu et al., 2015).5.2 Methods aiming to directly create balanced samples
There is an extensive literature on methods that aim to create matched samples that are automatically balanced on the covariates, instead of estimating and matching on a PS. An extension of Mahalanobis distance matching, the “Genetic Matching” algorithm (Diamond and Sekhon, 2013)
searches a large space of potential matched treatment and control groups to minimise loss functions based on tests statistics describing covariate imbalance (e.g. KolmogorovSmirnov tests). The accompanying
Matching R package (Sekhon, 2011; Mebane Jr et al., 2011) has a wide range of matching methods (including propensity score), matching options (e.g. with or without replacement, 1:1 or 1:m matching), estimands (ATE vs ATT) and balance statistics. The “Genetic” component of the matching algorithm chooses weights to give relative importance to the matching covariates to optimise the specified loss function. The algorithm proposes batches of weights, “a generation”, and moves towards the batch of weights which maximise overall balance. Each generation is then used iteratively to produce a subsequent generation with better candidate weights. The “population size”, i.e. the size of each generation is the tuning parameter to be specified by the user.Similar approaches to creating optimal matched samples, with a different algorithmic solution are offered by Zubizarreta (2012) and Hainmueller (2012). Both approaches use integer programming optimisation algorithms to construct comparison groups given balance constraints (maximum allowed imbalance) specified by the user, in the former case by onetomany matching, in the latter case by constructing optimal weights.
5.3 Demonstration of balancing methods using the birth dataset
We estimate a range of PS: first, using a main terms logistic regression to estimate the conditional probability of being enrolled in health insurance, followed by two dataadaptive propensity scores. We include all covariates in the prediction algorithms, without prior covariate selection. The first is a boosted CART, with 5000 trees, of a maximum depth of 2 interactions, and shrinkage of 0.005. The loss function used is “average standardised difference”.
Second, we use the Super Learner with a library containing a range of increasingly dataadaptive prediction algorithms:

logistic regression with and without all pairwise interaction

generalised additive models with 2, 3 and 4 degrees of freedom,

random forests  including 4 random forest learners varying the number of trees (500, 2000), and the number of covariates to split on (5 and 8), implemented in the ranger R package),

boosting  using the R package xgboost, with varying number of trees (100 and 1000), shrinkage (0.001 and 0.1) and maximum tree depth (1 and 4)).

a BART prediction algorithm using 200 regression trees with the tuning parameters set to default implementation in the dbarts R package.

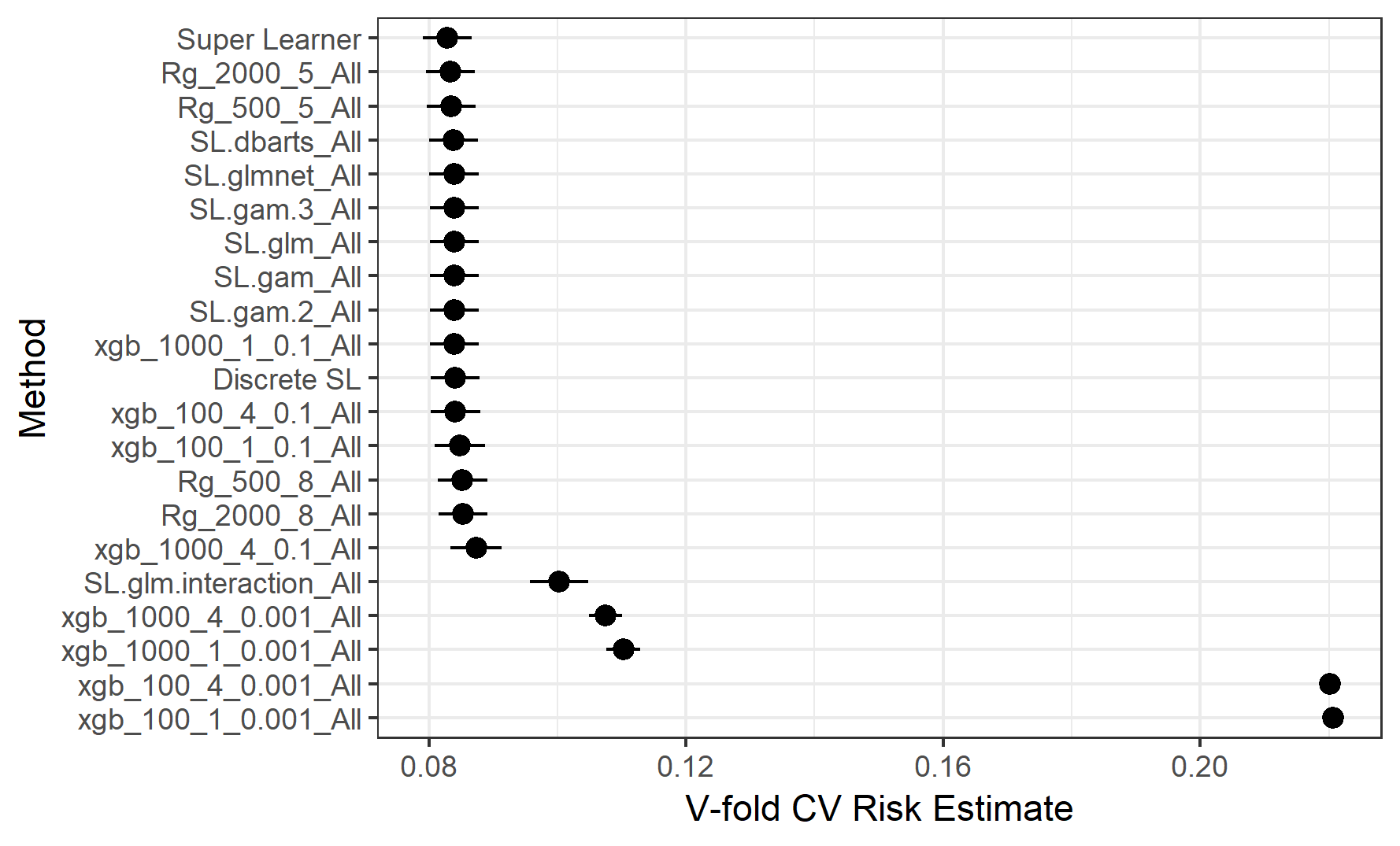

We use 10fold crossvalidation and the mean sum of squares loss function. For the purposes of comparison, we have also implemented two 1:1 matching estimators with replacement, for the ATE parameter. First, we created a matched dataset based on the boosted CART propensity score, implemented without calipers. Second, we implemented the Genetic Matching algorithm, using a population size of 500, and a loss function that aims to minimise the largest pvalues from paired ttest. We have reassessed the balance for the pair matched data. Throughout, we evaluate balance based on standardised mean differences, a metric that is comparable across weighting and matching methods
(Austin, 2009). We calculate the ATE using IPTW and matching. The SEs for the IPTW are “sandwich” SEs while for the matching estimators the AbadieImbens formula is used Abadie and Imbens (2006) that accounts for matching with replacement.Figure 1 can be inspected to assess the relative performance of the candidate algorithms included in the SL. It displays the crossvalidated estimates of the loss function (MSE) after an additional layer of crossvalidation, so that the outof sample performance of each individual algorithm and the convex combination of these algorithms (Super Learner) can be compared. The “Discrete SL” is defined as an algorithm that gives the best candidate the weight of 1. We see that the convex Super Learner performs best. Table 1 show the coefficients attributed to the different candidate algorithms in the final prediction algorithm that was used to estimate the PS.
Algorithm’s weight in ensemble

Random Forest (500 trees, 5 variables)  0.18
Random Forest (2000 trees, 5 variables)  0.36
Generalised additive models degree 3  0.46
GLM with all 2way interactions  0.01

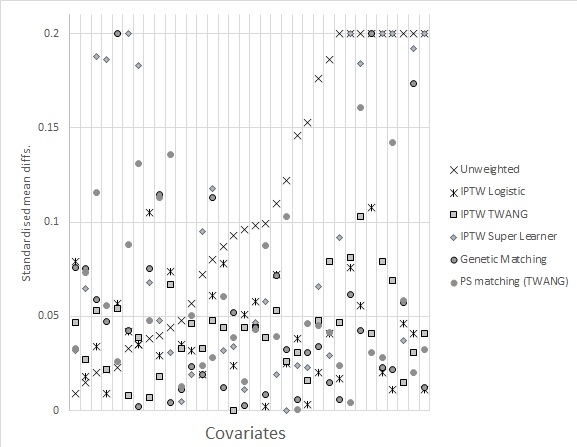

For each propensity score and matching approach, we compare balance on the covariates in the data (reweighted by IPTW weights or by frequency weights from the matching, respectively). Figure 2 displays the absolute standardised differences (ASD) for all the covariates, starting from the variables that were least imbalanced in the unweighted data, moving towards the more imbalanced. Generally, all weighting approaches tend to improve balance compared to the unweighted data, except for variables that were well balanced (ASD ) to begin with. Using the rule of thumb of as a metric of significant imbalance, we find that TWANG, when used for weighting, achieves acceptable balance on all covariates, except for the binary variable indicating having at least secondary education. Based on the more stringent criterion of ASD , however, TWANG leaves several covariates imbalanced, including the indicator of rural community, the availability of health center, the availability of birth clinic, and whether the mother can write in Indonesian. When used for pair matching, the boosted CART based propensity score leaves high imbalances. This is expected as the balance metric in the loss function used the weighted, and not the matched data. The SLbased propensity score results in the largest imbalance, again reflecting that the loss function was set to maximimise the crossvalidated MSE of the propensity score model, and not to maximise balance ^{1}^{1}1We note that an extension of the SL that optimises balance has been proposed by Pirracchio and Carone (2018)..
The estimated ATE results in a 10% increase in the probability of giving birth attended by a health professional, among those with contributory insurance (vs those without). With all the adjustment methods, this effect decreases, indicating an important role of adjusting for observed confounders. As expected, method that reported the largest imbalances, IPTW SL, reports an ATE closest to the unadjusted estimate.
ATE  95 % CI L  95 % CI U

Unadjusted (naive)  0.13  0.11  0.16
IPTW logistic  0.06  0.02  0.11
IPTW TWANG  0.08  0.04  0.12
IPTW SL  0.11  0.09  0.13
PS matching TWANG  0.08  0.04  0.12
Genetic Matching  0.06  0.03  0.09
5.4 Limitations of balancing methods
Balancing methods allow for the consistent estimation of treatment effects, provided the assumptions of no unobserved confounding and positivity hold. Crucially the analyst does not need to model outcomes thus increasing transparency by avoiding cherrypicking of models. While machine learning can help by making the choices of the PS model or a distance metric dataadaptive, subjective choices remain. For example, the loss function needs to be specified, and if the loss function is based on balance, also the choice of balance metric. For example, the ASM chosen for demonstration purposes creates a metric of average imbalance for the means. This ignores two potential complexities. First, imbalances in higher moments of the distribution are not taken into account by this metric. While KolmogorovSmirnov tests statistics can take into account imbalance in the entire covariate distribution (Stuart, 2010; Diamond and Sekhon, 2013), and can be selected to enter the loss function for both the boosted CART and the Genetic Matching algorithms, there is a further issue remaining: how should the researcher tradeoff imbalance across covariates? With a large number of covariates, balancing one variable may decrease balance on an other covariate. Moreover, it is unclear how univariate balance measures should be summarised. The default of the TWANG package is to look at average covariate balance, while the Genetic Matching algorithm, as default, prioritises covariate balance on the variable that is the most imbalanced. This, however may not prioritise variables that are relatively strong predictors of the outcome, and any remaining imbalance would translate into a larger bias.
Hence, there is an increasing consensus that exploiting information from the outcome regression generally improves on the properties of balancebased estimators (Kang et al., 2007; Abadie and Imbens, 2011). ML methods to estimate the nuisance models for the outcome can provide reassurance against subjectively selecting outcome models that provide the most favourable treatment effect estimate. We review these methods in the following section.
5.5 Machine learning methods for the outcome model
Recall that under the unconfoundedness and positivity assumptions, the ATE can be identified by , reducing the problem to one of estimation of these conditional expectations (Imbens and Wooldridge, 2009; Hill, 2011). Denoting the true conditional expectation function for the observed outcome as , the regression estimator for the ATE can be obtained as
(7)
where can interpreted as the predicted potential outcome for level of the treatment among individuals with covariates , and can be estimated by for example a regression with the nuisance function and the parameter of interest for level of the treatment. Under correct specification of the models for , the outcome regression estimator is consistent (Bang and Robins, 2005), but it is prone to extrapolation.
The problem can now be viewed as a prediction problem, making it appealing to use ML to obtain good predictions for . Indeed, some methods do this: BARTs have been successfully used to obtain ATEs (Hill, 2011; Hahn et al., 2017). Austin (2012) demonstrates the use of a wide range of treebased machine learning techniques to obtain regression estimators for the ATE.
However, there are three reasons why ML is generally not recommended for outcome regression. First, the asympototic properties of such estimators are unknown. Typically, the convergence of the resulting regression estimator for the causal effect will be slower than when using ML fits. A related problem is the socalled “regularisation bias” (Chernozhukov et al., 2017; Athey et al., 2018). Dataadaptive methods use regularisation to achieve optimal biasvariance tradeoff, which shrinks the estimates towards zero, introducing bias (Mullainathan and Spiess, 2017), especially if the shrunk coefficients correspond to variable which are strong confounders (Athey et al., 2018). This problem increases as the number of parameters compared to sample size grows. Third, it is difficult to conduct inference for causal parameters, as in general there is no way of constructing valid confidence intervals, and the nonparametric bootstrap is not generally valid (Bickel et al., 1997).
This motivates going beyond single nuisance model ML plugin estimators, and using doublerobust estimators with ML nuisance model fits, reviewed in the next section (Farrell, 2015; Chernozhukov et al., 2017; Athey et al., 2018; Seaman and Vansteelandt, 2018).
5.6 Doublerobust estimation with machine learning
Methods that combine the strengths of outcome regression modelling with the balancing properties of the propensity score have been advocated for long. The intuition is that using propensity score matching or weighting as a “preprocessing” step can be followed by regression adjustment to control further for any residual confounding (Rubin and Thomas, 2000; Abadie and Imbens, 2006; Imbens and Wooldridge, 2009; Stuart, 2010; Abadie and Imbens, 2011). While these methods have performed well in simulations (Kreif et al., 2013; Busso et al., 2014; Kreif et al., 2016), their asymptotic properties are not well understood.
A formal approach to combining outcome and treatment modelling was originally developed to improve the efficiency of IPTW estimators (Robins et al., 1995). Doublerobust (DR) estimators use two nuisance models, and have the special property that they are consistent as long as at least one of the two nuisance models is correctly specified. In addition, some DR estimators are shown to be semiparametrically efficient, if both components are correctly specified (Robins et al., 2007).
A simple DR method is the augmented inverse probability weighting ( AIPTW) estimator (Robins et al., 1994). The AIPTW can be written as , where
(8)
where , as before.
The variance of DR estimators is based on the variance of their influence function. Let be an estimator of a scalar parameter , satisfying
(9)
where denotes a term that converges in probability to 0, and where and , i.e. has zero mean and finite variance. Then is the influence function (IF) of .
By the central limit theorem, the estimator
is asymptotically normal with asymptotic variance times the variance of its influence function using this to construct normalbased confidence intervals.A consequence of this convergence behaviour is that good asymptotic properties of DR estimators can be achieved even when the convergence rates of the nuisance models are slower than the conventional , as the DR estimator can still converge at a fast rate, as long as the product of the nuisance models convergence rates is faster than (under regularity conditions, and empirical process conditions (e.g. Donsker class which can be avoided via sample splitting (Bickel and Kwon, 2001; van der Laan and Robins, 2003; Chernozhukov et al., 2017), described later).
This discovery allows for the use of flexible machine learningbased estimation of the nuisance functions, leading to an increased applicability of DR estimators, which were previously criticised, given that most likely both nuisance models are misspecified (Kang et al., 2007). Concerns about the sensitivity to extreme propensity score weights remain (Petersen et al., 2012).
To improve on AIPTW estimators, Van Der Laan and Rubin (2006) introduced targeted minimum loss based estimation (TMLE), a class of doublerobust semiparametric efficient estimators. TMLEs “target” or debias an initial estimate of the parameter of interest in two stages (Gruber and Van Der Laan, 2009). In the first stage, an initial estimate of is obtained (typically by machine learning), and used to predict potential outcomes under both exposures, for each individual (Van der Laan and Rose, 2011).
In the second stage, these initial estimates are “updated”, by fitting a generalised linear model for , typically with logit link, an offset term and a single socalled clever covariate. When the outcome is continuous, but bounded, the update can also be performed on the logit scale (Gruber and van der Laan, 2010). For the ATE, the clever covariate is . The coefficient corresponding to the clever covariate is then used to update (debias) the estimate of . The updating procedure continues until a step is reached where . The final update is the TMLE. For the special case of the ATE, convergence is mathematically guaranteed in one step, so there is no need to iterate.
This exploits the information in the treatment assignment mechanism and ensures that the resulting estimator stays in the appropriate model space, i.e. it is a substitution estimator. Again, data adaptive estimation of the propensity score is recommended (Van der Laan and Rose, 2011). Available software implementation of TMLE (R package tmle (Gruber and van der Laan, 2011)) incorporates a Super Learner algorithm to provide the initial predictions of the potential outcomes and the propensity scores.
Another DR estimator with machine learning is the socalled double machine learning (DML) estimator (Chernozhukov et al., 2017). For a simple setting of the ATE, this estimator simply combines the residuals of an outcome regression and the residuals of a propensity score model, into a new regression, motivated by the partially linear regression approach of Robinson (1988). For the more general case when the treatment can have an interactive effect with covariates, the form of the estimator corresponds to the AIPTW estimator, where the nuisance parameters are estimated using machine learning algorithms. While the estimator does not claim “doublerobustness” (as it does not aim to “correctly specify” any of the models), it aims to debias estimates of the average treatment effects by combining “good enough” estimates of the nuisance parameters. The machine learning methods used can be highly dataadaptive. This estimator is also semiparametric efficient, under weak conditions, due to an extra step of sample splitting (thus avoiding empirical process conditions (Bickel and Kwon, 2001)). The estimator is constructed by using “crossfitting”, which divides the data into random splits, and witholds one part of data from fitting the nuisance parameters, while using the rest of the data to obtain predictions and constructing the ATE. This is then repeated times, and the average of the resulting estimates is the DML estimate for the ATE. The standard errors are based on the influence function (Chernozhukov et al., 2017). Sample splitting is designed to help avoid overfitting, and thus reduces the bias. A further adaptation of the method also takes into account the uncertainty about the particular sample splitting, by doing large number of repartitioning of the data, and taking the mean or median of the resulting estimates as the final ATE, and also correct the estimated standard errors to capture the spread of the estimates.
5.6.1 Demonstration of DR and double machine learning approaches using the birth data
We begin by fitting a parametric AIPTW using logistic models for both PS and outcome regression. SEs are estimated by nonparametric bootstrap. We then use Super Learner (SL) fits for both nuisance models (with the libraries described in Section 5.3). For the outcome models, we fit two separate prediction models, for the treated and control observations, and obtain the predictions for the two expected potential outcomes, the probabilities of assisted birth under no health insurance and health insurance, given the individual’s observed covariates. We plug these predictions into the standard AIPTW. The SEs are based on the influence function (without further modification).
Next, we implement the TMLE using the same nuisance model SL fits. SEs are based on the efficient influence function, as coded in the R package tmle. Finally, the double machinelearning estimates for the ATE are obtained using onesplit of approximately equal size. The nuisance models are reestimated in the first split of the sample using the SL with the same libraries as before, and obtaining predictions for the other half of the split sample. We then (in the crossfitting step) switch the roles of the two samples, and average the resulting estimates with the formulae for SEs based on the influence function, as in (Chernozhukov et al., 2017).
The relative weights of the candidate algorithms in the SL library are displayed in Table 3, showing that the highly dataadaptive algorithms (boosting, random forests and BART) received the majority of the weights. The estimated ATEs with 95% CIs are reported in Table 4. While the point estimates are of similar magnitude (% increase in the probability of assisted birth), their confidence intervals show a large variation. The SL AIPTW and TMLE appear to be very precisely estimated, displaying a narrower CI than the parametric AIPTW, where CIs have been obtained using parametric bootstrap. One potential explanation may that without the sample splitting, the nuisance parameters may be overfitted, and the influence function based standard errors do not take this into account. This is consistent with the finding of Dorie et al. (2017) in simulated datasets that TMLE results in undercoverage of 95% CIs. Indeed, the DML estimator, which only differs from the SL AIPTW estimator in the crossfitting stage, displays the widest CIs, including zero.
Algorithm’s weight in SL

Model for control  Model for treated
Boosting (100 trees, depth of 4, shrinkage 0.1)  0.02  0.38
Boosting (1000 trees, depth of 4, shrinkage 0.1)  0.00  0.04
Random forest (500 trees, 5 variables)  0.00  0.36
Random forest (500 trees, 8 variables)  0.00  0.09
Random forest (2000 trees, 8 variables)  0.32  0.00
BART  0.54  0.00
GLM with no interaction  0.00  0.11
GLM with all 2way interactions  0.12  0.01
ATE  95% CI

AIPTW (boot SE)  0.066  0.029  0.103
SL AIPTW  0.081  0.077  0.086
TMLE  0.073  0.065  0.081
DML (1 split)  0.053  0.026  0.133
6 Variable selection
A problem empirical researchers face when relying on a conditioning on a sufficient set of observed covariates for confounding control is variable selection, i.e. identifying which covariates to include in the model(s) for conditional exchangeability to hold. In principle, subject matter knowledge should be used to select a sufficient control set (Rubin, 2007). In practice however, there is often little prior knowledge on which variables in a given data set are confounders. Hence dataadaptive procedures to select the variables to adjust for become increasingly necessary when the number of potential confounders is very large. There is a lack of clear guidance about what procedures to use, and about how to obtain valid inferences after variable selection. In this Section, we consider some approaches for variable selection when the focus is on the estimation of causal effects.
Decisions on whether to include a covariate in a regression model, whether these are done manually or by automated methods, such as stepwise regression, are usually based on the strength of evidence for the residual association with the outcome, by for example, iteratively testing for significance in models that include or exclude the variable, and comparing the resulting pvalue to a prespecified significance level. Stepwise models (backwards or forwards selection) are however widely recognised to perform poorly (Heinze et al., 2018), for two main reasons. First, collinearity can be an issue, which is especially problematic for forwardselection, while in highdimensional settings backward selection may be unfeasible. Second, tests performed during the variable selection process are not prespecified, and this is typically not acknowledged in the subsequent analysis, compromising the validity and the interpretability of subsequent inferences, derived from models after variable selection.
Decisions about which covariates to adjust for in a regression must ideally be based on the evidence of confounding, taking into account the covariateexposure association. Yet causal inference procedures that only rely on the strength of covariatetreatment relationships (e.g. propensity score methods) may also be problematic. For example, they may lead to adjusting for variables that are causes of the exposure only (socalled pure instruments), inducing bias (Vansteelandt et al., 2012). On the other hand, if variable selection only relies on modelling the outcome, using for example, lasso regression, it may introduce regularisation bias, due to underestimating coefficients, and as a result, mistakenly excluding variables with nonzero coefficients.
To address these challenges, Belloni et al. (2014b) proposed a solution that offers principled variable selection, taking into account both the covariateoutcome and the covariatetreatment assignment association, resulting in valid inferences after variable selection. Their framework, referred to as “post double selection”, or “doublelasso’, also allows to extend to space of possible confounding variables to include higher order terms. Following Belloni et al. (2014b), we consider the partially linear model , where a set of confoundercontrol variables, and is the error term satisfying . We examine the problem of selecting a set of variables from among potential variables , which includes and transformations of as to adequately approximate , and allowing for . Crucially, pure instruments, i.e. variables associated with the treatment but not the outcome, do not need to be identified and excluded in advance.
We identify covariates for inclusion in our estimators of causal effects in two steps. First we find those that predict the outcome and in a separate second step those that predict the treatment. A lasso linear regression calibrated to avoid overfitting is used for both models. In a final step, the union of the variables selected in either step is used as the confounder control set, to be used in the causal parameter estimator. The control set can include some additional covariates identified beforehand.
Belloni et al. (2014b) show that the double lasso results in valid estimates of ATE under the key assumption of ultra sparsity, i.e. conditional exchangeability holds after controlling for a relatively small number of variables in not known apriori. Implementation is straightforward, for example using the glmnet R package. We use crossvalidation for choosing the tuning parameter, following Dukes et al. (2018)
. Once the confounder control set is selected, a standard method of estimation is used, for example ordinary least squares estimation of the outcome regression.
6.1 Application of double lasso to the birth data
We now apply the double lasso approach for variable selection to our birth data example. We begin by running a lasso linear regression (using the glmnet R package) for both outcome and treatment separately, including all the variables available and using crossvalidation to select the penalty.
The union of the variables selected for both models was all 35 available covariates. These variables are used to control for confounding first in a parametric logistic outcome regression model, which we use to predict the potential outcomes, and obtain the ATE. We also calculate IPTW and AIPTW estimates using the weights from a parametric logistic model for the PS. For all estimates we use bootstrap to obtain SEs.
We then increase the covariate space to include all the twoway interactions between the covariates, excluding the exposure and the outcome, resulting in a total of 595 covariates. Using doublelasso on this extended covariate space, we select 156 covariates for the outcome and 89 for the treatment model, leaving us a union set used for confounding control of 211. We repeat the three estimators now based on this expanded control set.
Table 5 reports the esimated ATEs and 95 % CIs. The CI’s for the doublelasso outcome regression were obtained using the nonparametric bootstrap, while the IPTW and AIPTW were obtained as before using the sandwich SEs. The top panel of the table shows estimates using all covariates but no interactions, and the bottom panel shows estimates using 72 covariates, including the main terms and the interactions. The point estimates change very little, implying a minor role of the interactions in controlling for confounding.
ATE  95% CI

Outcome Regression  0.027  0.012  0.041
IPTW  0.083  0.016  0.107
AIPTW  0.066  0.029  0.103
with 2way interactions
Outcome Regression  0.032  0.016  0.046
IPTW  0.078  0.019  0.107
AIPTW  0.063  0.026  0.101
6.2 Collaborative TMLE
Covariate selection for the propensity score can also be done within the TMLE framework. Previously, we have seen that for a standard TMLE estimator of the ATE, the estimation of the propensity score model is performed independently from the estimation of the initial estimator of the outcome model, i.e. without seeking to optimise the fit of the PS for the estimation of the target parameter.
However, it is possible, and even desirable, to choose the treatment model which is optimised to reduce the mean square error the target parameter. An extension of the TMLE framework, the socalled collaborative TMLE (CTMLE) does just this.
The original version of CTMLE (Van Der Laan and Gruber, 2010) is often referred to as “greedy CTMLE”. Here, a sequence of nested logistic regression PS models is created by a greedy forward stepwise selection algorithm, nested such that at each stage (i.e. among all PS models with main terms), we select the PS model which results in the estimated MSE of the ATE parameter being the smallest, when used in the targeting step to update the initial estimator of the outcome model. If the resulting TMLE does not improve upon the empirical fit of the initial outcome regression, then this TMLE is not included in the sequence of TMLEs. Instead, the initial outcome regression estimator is replaced by the last previously accepted TMLE and we start over. This procedure is performed iteratively until all covariates have been incorporated into the PS model. The greedy nature of the algorithm makes it computationally intensive: the total number of models explored is , which is of the order (Ju et al., 2017).
This has led to the development of scalable versions (Ju et al., 2017) of CTMLE, which replace the greedy search with a dataadaptive preordering of the candidate PS model estimators. The time burden of these scalable CTMLE algorithms is of order . Two CTMLE preordering strategies are proposed: logistic and correlation. The logistic preordering CTMLE constructs an univariable estimator of the PS for each available covariate, with the baseline variable, . Using the resulting predicted PS, we construct the clever covariate corresponding to the TMLE for the ATE, namely , and fluctuate the initial estimate of the parameter of interest using this clever covariate, (and a logistic loglikelihood) as usual in the TMLE literature. We obtain the targeted estimate and compute the empirical loss, which could be for instance the mean sum of squares errors. Finally we order the covariates by increasing value of this loss.
The correlation preordering is motivated by noting that we would like the th covariate added to the PS model to be that which best explains the current residual, i.e. between and current targeted estimate. Thus, the correlation preordering ranks the covariates based on their correlation with the residual between and the initial outcome regression estimate (Ju et al., 2017).
For both preorderings, at each step of the CTMLE, we add the variables to the PS prediction model in this order, as long as the value of the loss function continues to decrease.
Another version of the CTMLE exploits lasso regression for the selection of the variables to be included in the PS estimation (Ju et al., 2017). This CTMLE algorithm also constructs a sequence of propensity score estimators, each of them a lasso logistic model with a penalty , where is monotonically decreasing, and which is “initialised” with the minimum selected by crossvalidation. Then, the corresponding TMLE estimator for the ATE is constructed for each PS model, finally choosing by crossvalidation the TMLE which minimises the loss function (MSE). The SEs for all CTMLE versions are computed based on the variance of the influence function, as implemented in the R package ctmle.
6.2.1 CTMLE applied to the birth data
We now apply all these variants of CTMLE to the case study. The final logisic preordering CTMLE is based on a PS model containing nine covariates, including variables indicating the year of birth, and variables capturing education and socioeconomic status.The CTMLE based on correlation preordering selected three covariates for the PS, one variable that captures participation in a social assistance programme, but also two variables that measure the availability of health care providers in the community. These latter variables are indeed to be expected to have a strong associaton with the outcome, assisted birth, hence it is not surprising that they were selected, based on their role in reducing the MSE of the ATE.Finally, the lasso CTMLE is based on a penalty term 0.000098 chosen by crossvalidation, which resulted in all variables having nonzero coefficients for the PS.
The results are reported on Table 6. The estimated ATEs are somewhat larger than those obtained using TMLE, all reporting an increase of around 8% in the probability of giving birth assisted by a health care professional, for those who have social health insurance vs. uninsured. However, the CTMLE estimate resulting from the lasso, which selected all variables into the PS model, is (unsurprisingly) very similar to the TMLE estimate reported in Section 5.6, and thus is further away from the naive estimate than the estimates from CTMLEs that use only a subset of the variables. LassoCTMLE also has wider 95% CIs than the rest, while the greedy CTMLE has the tightest. This may be an empirical evidence of the biasvariance trade off: due to using less covariates in the PS, the estimators that use aggressive variable selection for the PS are slightly biased, but with lower variance.
ATE  95% CI

Greedy CTMLE  0.082  (0.071, 0.094)
Scalable CTMLE logistic preordering  0.085  (0.067, 0.104)
Scalable CTMLE correlation preordering  0.082  (0.068, 0.097)
Lasso CTMLE  0.076  (0.048, 0.105)
7 Further topics
Throughout this chapter, we have seen how machine learning can be used in estimating ATE, by using it as a prediction tool for outcome regression or PS models. The same logic can be applied to many other estimation problems where there are nuisance parameters that need to be predicted as part of the estimation of the parameter of interest.
7.1 Estimating treatment effect heterogeneity
We focused the discussion to the common target parameter, the ATE. Most of the methods considered are also available for the ATT parameter (see e.g. Chernozhukov et al. (2018)). The difference between the ATE and ATT stems from heterogeneous treatment effects, and this heterogeneity – in particular, heterogeneity with respect to observed covariates – in itself can be an interesting target of causal inference. For example, in the birth cohort example of this paper, we may be interested in how the effect of health insurance varies by the socioeconomic gradient. To answer this question, one may either want to specify the “treatment effect function”, a possibly nonparametric function of the treatment effects as a function of deprivation, and possibly other covariates such as age. An other approach may be subgroup analysis, based on variables that have been selected in a dataadaptive way.
Imai et al. (2013)
propose a variable selection method using Support Vector Machines, to estimate heterogeneous treatment effects in randomised trials.
Hahn et al. (2017) further develop the BART framework to estimate treatment effect heterogeneity, by flexibly using the estimated propensity score to correct for regularisation bias. Athey and Imbens (2016) propose a regression tree method, referred to as “causal trees” to identify subgroups with treatment effect heterogeneity, using samplesplitting to avoid overfitting. Wager and Athey (2017) extend this idea to random forestbased algorithms, referred to as “causal forests” for which they establish theoretical properties. A second interesting question may concern optimal policies: if a health policy maker has limited resources to provide free insurance for those currently uninsured, what would be an optimal allocation mechanism that maximimses health benefits? The literature on “optimal policy learning” is rapidly growing. Kitagawa and Tetenov (2017) focus on estimating optimal policies from a set of possible policies with limited complexity, while Athey and Wager (2017) further develop the doublemachine learning (Chernozhukov et al., 2018) to estimate optimal policies. Further approaches have been proposed, for example (Kallus, 2017) based on balancing and within the TMLE framework (van der Laan and Luedtke, 2015; Luedtke and Chambaz, 2017).7.2 Instrumental variables
In certain situations, even after adjusting for observed covariates, there may be doubts as to whether conditional exchageability holds. However, other methods can be used where there is an instrumental variable (IV) available, that is a variable which is correlated with the exposure but is not associated with any confounder of the exposureoutcome association, nor is there any pathway by which the IV affects the outcome, other than through the exposure. Depending on the additional assumptions the analyst is prepared to make, different estimands can be identified. Here, we focus on the local average treatment effect (LATE) under monotonic treatment (Angrist et al., 1996).
Consider the (partially) linear instrumental variable model, which in its simpler form can be thought of as a twostage procedure, where the first stage consists of a linear regression of the endogeneous exposure on the instrument , . Then in a second stage, we regress the outcome on the predicted exposure , .
Usually, the first stage is treated as an estimation step, and the coefficients are obtained using OLS. In fact, we are only interested in the predicted exposure for each observation, and the parameters in the first stage are merely nuisance parameters that must be estimated to calculate the fitted values for exposure. Thus, we can think of this problem directly as a prediction problem, and use machine learning algorithms for the first stage. This can help alleviate some of the finite sample bias, often observed in IV estimates, which are typically biased towards the OLS, as a consequence of overfitting the first stage regression, a problem that is more serious with small sample sizes or weak instruments (Mullainathan and Spiess, 2017).
A number of recent studies have used ML for the first stage of the IV models. Belloni et al. (2012) use lasso, while Hansen and Kozbur (2014)
use ridge regression. More recently, a TMLE has been developed for IV models, which uses ML fits also for the initial target parameter estimation
(Tóth and van der Laan, 2016). Double robust IV estimators can also be used with machine learning predictions for the nuisance models in the second stage, as shown in (Chernozhukov et al., 2018; DiazOrdaz et al., 2018).8 Discussion
We have attempted to provide an overview of the current use of ML methods for causal inference, in the setting of evaluating the average treatment effects of binary static treatments, assuming no unobserved confounding. We used a case study of an evaluation of a health insurance scheme on health care utilisation in Indonesia. The case study displayed characteristics typical of applied evaluations: a binary outcome, and a mixture of binary, categorical and continuous covariates. A practical limitation of the presented case study is the presence of missing data. While for simplicity, we used a complete case analysis, assuming that missingness does not depend on both the treatment and the outcome (Bartlett et al., 2015). If this is not the case, the resulting estimates may be biased. Several options to handle missing data under less restrictive assumptions exist: e.g. multiple imputation (Rubin, 1987), which is in general valid under missingatrandom assumptions, or the missing indicator method, which includes indicators for missingness in the set of potential variables to adjust for, and relies on the assumption that the confounders are only such when observed (D’Agostino et al., 2001). Another alternative is to use inverse probability of “being a complete case” weights, which can be easily combined with many of the methods described in this article (Seaman and White, 2014).
We have highlighted the limitations of naively interpreting the output of machine learning prediction methods as causal estimates, and provided a review of recent innovations that plugin ML prediction of nuisance parameters in ATE estimators. We have demonstrated how ML can make the estimation of the PS more principled, and also illustrated a multivariate matching approach that uses ML to dataadaptively select balanced comparison groups. We also highlighted the limitations of such “design based” approaches: they may not improve balance on variables that really matter to reduce bias in the estimated ATE, as they cannot easily take into account information on the relative importance of confounders for the outcome variable.
We gave a brief overview of the possibility of using ML for estimating ATEs via outcome regressions. We emphasised that obtaining valid confidence intervals after such procedures is complicated, and the bootstrap is not valid. Some methods, such as BARTs are able to give inferences based on the corresponding posterior distributions, and have been used in practice with success (Dorie et al., 2017). Nevertheless, there are currently no theoretical results underpinning its use (Wager and Athey, 2017), and thus BART inferences should be used with caution. Instead, we illustrated doublerobust approaches that combine the strengths of PS estimation and outcome modelling, and are able to incorporate ML predictors in a principled way. These approaches, specifically TMLE pioneered by van der Laan and colleagues, and the double machine learning estimators developed by Chernozokov and colleagues, have appealing theoretical properties and increasing evidence of their good finite sample performance (Porter et al., 2011; Dorie et al., 2017).
All estimation approaches demonstrated in this article rely on the assumption that selection into treatment is based on observable covariates only. In many settings of policy evaluations, this assumption is not tenable. Under such settings, beyond instrumental variable methods (discussed in Section 7.2), panel data approaches are commonly used to control for one source of unobserved confounding, that is due to unobservables that remain constant over time. To date, ML approaches have not been combined with panel data econometric methods. Exceptions are Bajari et al. (2015) and Chernozhukov et al. (2017) who demonstrate ML approaches for demand estimation using panel data.
We stress once again that ML methods can improve the estimation of causal effects only once the identification step has been firmed up and using estimators with appropriate convergence rates, so that they remain consistent even when using ML fits. However, with the increasing availability of Big data, in particular in settings with a very large number of covariates, assumptions such as “no unobserved confounders” may be more plausible (Titiunik, 2015). With such datasets, ML methods are indispensable for variable selection as well as the construction of low dimensional parameters such as average treatment effects. Indeed, many innovations in ML for causal inference are taking place in such settings (e.g. Belloni et al. (2011, 2014a); Wager and Athey (2017)).
Finally, we believe that, paradoxically, ML methods that are often criticized for their ‘’black box” nature, may increase the transparency of applied research. In particular, ensemble learning algorithms such as the Super Learner, can provide a safeguard against having to handpick the best model or algorithm. ML should be encouraged to enhance expert substantive knowledge when selecting confounders and model specification.
Acknowledgements
Karla DiazOrdaz was supported by UK Wellcome Trust Institutional Strategic Support Fund– LSHTM Fellowship 204928/Z/16/Z.
Noémi Kreif gratefully acknowledges her coauthors on the impact evaluation of the Indonesian public health insurance scheme: Andrew Mirelman, Rodrigo MorenoSerra, Marc Suhrcke (Centre for Health Economics, University of York) and Budi Hidayat (University of Indonesia).
Further reading
 Athey (2017b) Athey S. (2017b) Beyond prediction: Using big data for policy problems. Science, 355(6324):483–485.
 Athey et al. (2018) Athey, S. and Imbens, G. W., and Wager, S. (2018) Approximate residual balancing: debiased inference of average treatment effects in high dimensions. Journal of the Royal Statistical Society: Series B (Statistical Methodology), 80(4):597–623.
 Athey and Imbens (2017) Athey, S. and Imbens, G. W. (2017a) The state of applied econometrics: Causality and policy evaluation. Journal of Economic Perspectives, 31(2):3–32.
 Belloni et al. (2014a) Belloni, A., Chernozhukov, V. and Hansen, C. (2014) Inference on Treatment Effects after Selection among HighDimensional Controls. Review of Economic Studies, 81(August):608–650. doi10.1093/restud/rdt044.
 Chernozhukov et al. (2017a) Chernozhukov, V., Chetverikov, D., Demirer, M., Duflo, E., Hansen, C., and Newey, W. (2017a) Double/debiased/neyman machine learning of treatment effects. American Economic Review, 107(5):261–65.
 Chernozhukov et al. (2018) Chernozhukov, V., Chetverikov, D., Demirer, M., Duflo, E., Newey, W. and Robins, J. (2018) Double/debiased machine learning for treatment and structural parameters. The Econometrics Journal, 21: C1C68. doi:10.1111/ectj.12097.
 Diamond and Sekhon (2013) Diamond, A. and Sekhon, J. S. (2013) Genetic matching for estimating causal effects: A general multivariate matching method for achieving balance in observational studies. Review of Economics and Statistics, 95(3):932–945.
 James et al. James (Witten) James G., Witten D., Hastie T., and Tibshirani R. (2013) An introduction to statistical learning, volume 112. Springer.
 Kleinberg et al. (2015) Kleinberg, J., Ludwig, J., Mullainathan, S., and Obermeyer, Z. (2015) Prediction policy problems. American Economic Review, 105(5):491–95.
 Lee et al. (2010) Lee,B. K., Lessler, J. and Stuart,E. A. (2010) Improving propensity score weighting using machine learning. Statistics in medicine, 29(3):337–346.
 McCaffrey et al. (2004) McCaffrey, D. F., Ridgeway, G. and Morral, A. R. (2004) Propensity score estimation with boosted regression for evaluating causal effects in observational studies. Psychological methods, 9(4):403.
 Mullainathan and Spiess (2017) Mullainathan, S. and Spiess, J. (2017) Machine learning: an applied econometric approach. Journal of Economic Perspectives, 31(2):87–106.
 Polley and van der Laan (2010) Polley, E. C. and van der Laan, M. J. (2010) Super learner in prediction. U.C. Berkeley Division of Biostatistics Working Paper Series Working Paper 266. URL http://biostats.bepress.com/ucbbiostat/paper266.
 Van Der Laan and Gruber (2010) van der Laan, M. J. and Gruber, S. (2010) Collaborative double robust targeted maximum likelihood estimation. International Journal of Biostatistics, 6(1). doi:10.2202/15574679.1181.
 Van der Laan and Rose (2011) van der Laan, M. J., and Rose, S. (2011) Targeted learning: causal inference for observational and experimental data. Springer Science & Business Media.
 Van Der Laan and Rubin (2006) van der Laan, M. J. and Rubin, D. (2006) Targeted maximum likelihood learning. The International Journal of Biostatistics, 2(1).
 Varian (2014) Varian, H. R. (2014) Big data: New tricks for econometrics. Journal of Economic Perspectives, 28(2):3–28.
References
 Abadie and Imbens (2006) Abadie, A. and G. W. Imbens (2006). Large sample properties of matching estimators for average treatment effects. econometrica 74(1), 235–267.
 Abadie and Imbens (2011) Abadie, A. and G. W. Imbens (2011). Biascorrected matching estimators for average treatment effects. Journal of Business & Economic Statistics 29(1), 1–11.
 Abadie and Imbens (2016) Abadie, A. and G. W. Imbens (2016). Matching on the estimated propensity score. Econometrica 84(2), 781–807.
 Angrist et al. (1996) Angrist, J. D., G. W. Imbens, and D. B. Rubin (1996). Identification of Causal Effects Using Instrumental Variables. Journal of the American Statistical Association 91(434), pp. 444–455.
 Athey (2017a) Athey, S. (2017a). Beyond prediction: Using big data for policy problems. Science 355(6324), 483–485.

Athey (2017b)
Athey, S. (2017b).
The impact of machine learning on economics.
In
Economics of Artificial Intelligence
. University of Chicago Press.  Athey and Imbens (2016) Athey, S. and G. Imbens (2016). Recursive partitioning for heterogeneous causal effects. Proceedings of the National Academy of Sciences 113(27), 7353–7360.
 Athey and Imbens (2017) Athey, S. and G. W. Imbens (2017). The state of applied econometrics: Causality and policy evaluation. Journal of Economic Perspectives 31(2), 3–32.
 Athey et al. (2018) Athey, S., G. W. Imbens, and S. Wager (2018). Approximate residual balancing: debiased inference of average treatment effects in high dimensions. Journal of the Royal Statistical Society: Series B (Statistical Methodology) 80(4), 597–623.
 Athey and Wager (2017) Athey, S. and S. Wager (2017). Efficient policy learning. arXiv preprint arXiv:1702.02896.
 Austin (2009) Austin, P. C. (2009). Some methods of propensityscore matching had superior performance to others: results of an empirical investigation and monte carlo simulations. Biometrical Journal: Journal of Mathematical Methods in Biosciences 51(1), 171–184.
 Austin (2012) Austin, P. C. (2012). Using ensemblebased methods for directly estimating causal effects: an investigation of treebased gcomputation. Multivariate behavioral research 47(1), 115–135.
 Bajari et al. (2015) Bajari, P., D. Nekipelov, S. P. Ryan, and M. Yang (2015). Machine learning methods for demand estimation. American Economic Review 105(5), 481–85.
 Bang and Robins (2005) Bang, H. and J. M. Robins (2005). Doubly robust estimation in missing data and causal inference models. Biometrics 61(4), 962–973.
 Bartlett et al. (2015) Bartlett, J. W., O. Harel, and J. R. Carpenter (2015). Asymptotically unbiased estimation of exposure odds ratios in complete records logistic regression. American journal of epidemiology 182(8), 730–736.
 Belloni et al. (2012) Belloni, A., D. Chen, V. Chernozhukov, and C. Hansen (2012). Sparse Models and Methods for Optimal Instruments With an Application to Eminent Domain. Econometrica 80(6), 2369–2429.

Belloni
et al. (2011)
Belloni, A., V. Chernozhukov, et al. (2011).
L1penalized quantile regression in highdimensional sparse models.
The Annals of Statistics 39(1), 82–130.  Belloni et al. (2014a) Belloni, A., V. Chernozhukov, and C. Hansen (2014a). Inference on treatment effects after selection among highdimensional controls. The Review of Economic Studies 81(2), 608–650.
 Belloni et al. (2014b) Belloni, A., V. Chernozhukov, and C. Hansen (2014b). Inference on Treatment Effects after Selection among HighDimensional Controls †. Review of Economic Studies 81(August), 608–650.
 Bickel et al. (1997) Bickel, P., F. Götze, and W. van Zwet (1997). Resampling fewer than n observations: Gains, losses, and remedies for losses. Statistica Sinica 7, 1–31.
 Bickel and Kwon (2001) Bickel, P. J. and J. Kwon (2001). Inference for semiparametric models: some questions and an answer. Statistica Sinica 11, 920–936.
 Busso et al. (2014) Busso, M., J. DiNardo, and J. McCrary (2014). New evidence on the finite sample properties of propensity score reweighting and matching estimators. Review of Economics and Statistics 96(5), 885–897.
 Chernozhukov et al. (2017) Chernozhukov, V., D. Chetverikov, M. Demirer, E. Duflo, C. Hansen, and W. Newey (2017). Double/debiased/neyman machine learning of treatment effects. American Economic Review 107(5), 261–65.
 Chernozhukov et al. (2018) Chernozhukov, V., D. Chetverikov, M. Demirer, E. Duflo, C. Hansen, W. Newey, and J. Robins (2018). Double/debiased machine learning for treatment and structural parameters. The Econometrics Journal 21(1), C1–C68.
 Chernozhukov et al. (2017) Chernozhukov, V., M. Goldman, V. Semenova, and M. Taddy (2017). Orthogonal machine learning for demand estimation: High dimensional causal inference in dynamic panels. arXiv preprint arXiv:1712.09988.
 Cole and Frangakis (2009) Cole, S. R. and C. E. Frangakis (2009). The consistency statement in causal inference: a definition or an assumption? Epidemiology 20(1), 3–5.
 D’Agostino et al. (2001) D’Agostino, R., W. Lang, M. Walkup, T. Morgan, and A. Karter (2001, Dec). Examining the impact of missing data on propensity score estimation in determining the effectiveness of selfmonitoring of blood glucose (smbg). Health Services and Outcomes Research Methodology 2(3), 291–315.
 Diamond and Sekhon (2013) Diamond, A. and J. S. Sekhon (2013). Genetic matching for estimating causal effects: A general multivariate matching method for achieving balance in observational studies. Review of Economics and Statistics 95(3), 932–945.
 DiazOrdaz et al. (2018) DiazOrdaz, K., R. Daniel, and N. Kreif (2018, February). Dataadaptive doubly robust instrumental variable methods for treatment effect heterogeneity. ArXiv eprints.
 Dorie et al. (2017) Dorie, V., J. Hill, U. Shalit, M. Scott, and D. Cervone (2017). Automated versus doityourself methods for causal inference: Lessons learned from a data analysis competition. arXiv preprint arXiv:1707.02641.
 Dukes et al. (2018) Dukes, O., V. Avagyan, and S. Vansteelandt (2018). Highdimensional doubly robust tests for regression parameters. arXiv preprint arXiv:1805.06714.
 Eliseeva et al. (2013) Eliseeva, E., A. E. Hubbard, and I. B. Tager (2013). An application of machine learning methods to the derivation of exposureresponse curves for respiratory outcomes.
 Farrell (2015) Farrell, M. H. (2015). Robust inference on average treatment effects with possibly more covariates than observations. Journal of Econometrics 189(1), 1–23.
 Friedman et al. (2001) Friedman, J., T. Hastie, and R. Tibshirani (2001). The elements of statistical learning, Volume 1. Springer series in statistics New York, NY, USA:.
 Gruber et al. (2015) Gruber, S., R. W. Logan, I. Jarrín, S. Monge, and M. A. Hernán (2015). Ensemble learning of inverse probability weights for marginal structural modeling in large observational datasets. Statistics in medicine 34(1), 106–117.
 Gruber and Van Der Laan (2009) Gruber, S. and M. J. Van Der Laan (2009). Targeted maximum likelihood estimation: A gentle introduction.
 Gruber and van der Laan (2010) Gruber, S. and M. J. van der Laan (2010). A targeted maximum likelihood estimator of a causal effect on a bounded continuous outcome. The International Journal of Biostatistics 6(1).
 Gruber and van der Laan (2011) Gruber, S. and M. J. van der Laan (2011). tmle: An r package for targeted maximum likelihood estimation.
 Hahn et al. (2017) Hahn, P. R., J. S. Murray, and C. M. Carvalho (2017). Bayesian regression tree models for causal inference: regularization, confounding, and heterogeneous effects.
 Hainmueller (2012) Hainmueller, J. (2012). Entropy balancing for causal effects: A multivariate reweighting method to produce balanced samples in observational studies. Political Analysis 20(1), 25–46.
 Hansen and Kozbur (2014) Hansen, C. and D. Kozbur (2014). Instrumental variables estimation with many weak instruments using regularized jive. Journal of Econometrics 182(2), 290–308.
 Heinze et al. (2018) Heinze, G., C. Wallisch, and D. Dunkler (2018). Variable selection – A review and recommendations for the practicing statistician.
 Hill (2011) Hill, J. L. (2011). Bayesian nonparametric modeling for causal inference. Journal of Computational and Graphical Statistics 20(1), 217–240.
 Hirano et al. (2003) Hirano, K., G. W. Imbens, and G. Ridder (2003). Efficient estimation of average treatment effects using the estimated propensity score. Econometrica 71(4), 1161–1189.
 Imai and Ratkovic (2014) Imai, K. and M. Ratkovic (2014). Covariate balancing propensity score. Journal of the Royal Statistical Society: Series B (Statistical Methodology) 76(1), 243–263.
 Imai et al. (2013) Imai, K., M. Ratkovic, et al. (2013). Estimating treatment effect heterogeneity in randomized program evaluation. The Annals of Applied Statistics 7(1), 443–470.
 Imbens and Wooldridge (2009) Imbens, G. W. and J. M. Wooldridge (2009). Recent developments in the econometrics of program evaluation. Journal of economic literature 47(1), 5–86.
 James et al. (2013) James, G., D. Witten, T. Hastie, and R. Tibshirani (2013). An introduction to statistical learning, Volume 112. Springer.

Ju et al. (2017)
Ju, C., S. Gruber, S. D. Lendle, A. Chambaz, J. M. Franklin, R. Wyss,
S. Schneeweiss, and M. J. van der Laan (2017).
Scalable collaborative targeted learning for highdimensional data.
Statistical methods in medical research, 0962280217729845.  Ju et al. (2017) Ju, C., R. Wyss, J. M. Franklin, S. Schneeweiss, J. Häggström, and M. J. van der Laan (2017). Collaborativecontrolled LASSO for constructing propensity scorebased estimators in highdimensional data. Statistical Methods in Medical Research.
 Kallus (2017) Kallus, N. (2017). Balanced policy evaluation and learning. arXiv preprint arXiv:1705.07384.
 Kang et al. (2007) Kang, J. D., J. L. Schafer, et al. (2007). Demystifying double robustness: A comparison of alternative strategies for estimating a population mean from incomplete data. Statistical science 22(4), 523–539.
 Kapelner and Bleich (2013) Kapelner, A. and J. Bleich (2013). bartmachine: Machine learning with bayesian additive regression trees. arXiv preprint arXiv:1312.2171.
 Kennedy (2016) Kennedy, E. H. (2016). Semiparametric Theory and Empirical Processes in Causal Inference, Chapter Statistical Causal Inferences and Their Applications in Public Health Research, pp. 141–167. Cham: Springer International Publishing.
 Kitagawa and Tetenov (2017) Kitagawa, T. and A. Tetenov (2017). Who should be treated? empirical welfare maximization methods for treatment choice.
 Kleinberg et al. (2015) Kleinberg, J., J. Ludwig, S. Mullainathan, and Z. Obermeyer (2015). Prediction policy problems. American Economic Review 105(5), 491–95.
 Kreif et al. (2013) Kreif, N., R. Grieve, R. Radice, and J. S. Sekhon (2013). Regressionadjusted matching and doublerobust methods for estimating average treatment effects in health economic evaluation. Health Services and Outcomes Research Methodology 13(24), 174–202.
 Kreif et al. (2016) Kreif, N., S. Gruber, R. Radice, R. Grieve, and J. S. Sekhon (2016). Evaluating treatment effectiveness under model misspecification: a comparison of targeted maximum likelihood estimation with biascorrected matching. Statistical methods in medical research 25(5), 2315–2336.
 Kreif et al. (2018) Kreif, N., A. Mirelman, R. Moreno Serra, B. Hidayat, D. Erlannga, and M. Suhrcke (2018). Evaluating the impact of public health insurance reforms on infant mortality in Indonesia. Technical report.
 Lee et al. (2010) Lee, B. K., J. Lessler, and E. A. Stuart (2010). Improving propensity score weighting using machine learning. Statistics in medicine 29(3), 337–346.
 Leeb and Benedikt (2008) Leeb, H. and M. P. Benedikt (2008). Can One Estimate The Unconditional Distribution of PostModelSelection Estimators? Econometric Theory 24, 338–376.
 Luedtke and Chambaz (2017) Luedtke, A. and A. Chambaz (2017). Faster rates for policy learning. arXiv preprint arXiv:1704.06431.
 Lunceford and Davidian (2004) Lunceford, J. K. and M. Davidian (2004). Stratification and weighting via the propensity score in estimation of causal treatment effects: a comparative study. Statistics in medicine 23(19), 2937–2960.
 McCaffrey et al. (2004) McCaffrey, D. F., G. Ridgeway, and A. R. Morral (2004). Propensity score estimation with boosted regression for evaluating causal effects in observational studies. Psychological methods 9(4), 403.
 Mebane Jr et al. (2011) Mebane Jr, W. R., J. S. Sekhon, et al. (2011). Genetic optimization using derivatives: the rgenoud package for r. Journal of Statistical Software 42(11), 1–26.
 Mullainathan and Spiess (2017) Mullainathan, S. and J. Spiess (2017). Machine learning: an applied econometric approach. Journal of Economic Perspectives 31(2), 87–106.
 Pearl (2010) Pearl, J. (2010). On the consistency rule in causal inference: axiom, definition, assumption, or theorem? Epidemiology 21(6), 872–875.
 Petersen (2014) Petersen, M. L. (2014). Applying a causal road map in settings with timedependent confounding. Epidemiology (Cambridge, Mass.) 25(6), 898.
 Petersen et al. (2012) Petersen, M. L., K. E. Porter, S. Gruber, Y. Wang, and M. J. van der Laan (2012). Diagnosing and responding to violations in the positivity assumption. Statistical methods in medical research 21(1), 31–54.
 Pirracchio and Carone (2018) Pirracchio, R. and M. Carone (2018). The Balance Super Learner: A robust adaptation of the Super Learner to improve estimation of the average treatment effect in the treated based on propensity score matching. Statistical Methods in Medical Research 27(8), 2504–2518.
 Pirracchio et al. (2015) Pirracchio, R., M. L. Petersen, and M. van der Laan (2015). Improving propensity score estimators’ robustness to model misspecification using super learner. American journal of epidemiology 181(2), 108–119.
 Pirracchio et al. (2012) Pirracchio, R., M. RescheRigon, and S. Chevret (2012). Evaluation of the propensity score methods for estimating marginal odds ratios in case of small sample size. BMC medical research methodology 12(1), 70.
 Polley and van der Laan (2010) Polley, E. C. and M. J. van der Laan (2010, May). Super learner in prediction. U.C. Berkeley Division of Biostatistics Working Paper Series Working Paper 266.
 Porter et al. (2011) Porter, K. E., S. Gruber, M. J. van der Laan, and J. S. Sekhon (2011). The relative performance of targeted maximum likelihood estimators. The international journal of biostatistics 7(1), 1–34.
 Robins et al. (2007) Robins, J., M. Sued, Q. LeiGomez, and A. Rotnitzky (2007). Comment: Performance of doublerobust estimators when" inverse probability" weights are highly variable. Statistical Science 22(4), 544–559.
 Robins et al. (2000) Robins, J. M., M. A. Hernan, and B. Brumback (2000). Marginal structural models and causal inference in epidemiology. Epidemiology 11(5), 550–560.
 Robins et al. (1994) Robins, J. M., A. Rotnitzky, and L. P. Zhao (1994). Estimation of regression coefficients when some regressors are not always observed. Journal of the American statistical Association 89(427), 846–866.
 Robins et al. (1995) Robins, J. M., A. Rotnitzky, and L. P. Zhao (1995). Analysis of semiparametric regression models for repeated outcomes in the presence of missing data. Journal of the american statistical association 90(429), 106–121.
 Robinson (1988) Robinson, P. M. (1988). Rootnconsistent semiparametric regression. Econometrica: Journal of the Econometric Society, 931–954.
 Rose (2013) Rose, S. (2013). Mortality risk score prediction in an elderly population using machine learning. American journal of epidemiology 177(5), 443–452.
 Rosenbaum and Rubin (1983) Rosenbaum, P. R. and D. B. Rubin (1983). The central role of the propensity score in observational studies for causal effects. Biometrika 70(1), 41–55.
 Rosenbaum and Rubin (1984) Rosenbaum, P. R. and D. B. Rubin (1984). Reducing bias in observational studies using subclassification on the propensity score. Journal of the American statistical Association 79(387), 516–524.
 Rubin (1978) Rubin, D. B. (1978). Bayesian inference for causal effects: The role of randomization. The Annals of statistics, 34–58.
 Rubin (1987) Rubin, D. B. (1987). In discussion of Tanner, M. A. and Wong, W. H., The calculation of posterior distributions by data augmentation. Journal of the American Statistical Association 82, 543–546.
 Rubin (2005) Rubin, D. B. (2005). Causal inference using potential outcomes: Design, modeling, decisions. Journal of the American Statistical Association 100(469), 322–331.
 Rubin (2007) Rubin, D. B. (2007). The design versus the analysis of observational studies for causal effects: parallels with the design of randomized trials. Statistics in medicine 26(1), 20–36.
 Rubin and Thomas (1996) Rubin, D. B. and N. Thomas (1996). Matching using estimated propensity scores: relating theory to practice. Biometrics, 249–264.
 Rubin and Thomas (2000) Rubin, D. B. and N. Thomas (2000). Combining propensity score matching with additional adjustments for prognostic covariates. Journal of the American Statistical Association 95(450), 573–585.
 Seaman and White (2014) Seaman, S. and I. White (2014). Inverse probability weighting with missing predictors of treatment assignment or missingness. Communications in Statistics  Theory and Methods 43(16), 3499–3515.
 Seaman and Vansteelandt (2018) Seaman, S. R. and S. Vansteelandt (2018). Introduction to Double Robust Methods for Incomplete Data. Statistical Science 33(2), 184–197.
 Sekhon (2011) Sekhon, J. S. (2011). Multivariate and propensity score matching software with automated balance optimization: the matching package for r.
 Setoguchi et al. (2008) Setoguchi, S., S. Schneeweiss, M. A. Brookhart, R. J. Glynn, and E. F. Cook (2008). Evaluating uses of data mining techniques in propensity score estimation: a simulation study. Pharmacoepidemiology and drug safety 17(6), 546–555.
 Stuart (2010) Stuart, E. A. (2010). Matching methods for causal inference: A review and a look forward. Statistical science: a review journal of the Institute of Mathematical Statistics 25(1), 1.
 Titiunik (2015) Titiunik, R. (2015). Can big data solve the fundamental problem of causal inference? PS: Political Science & Politics 48(1), 75–79.
 Tóth and van der Laan (2016) Tóth, B. and M. J. van der Laan (2016). {TMLE} for Marginal Structural Models Based on an Instrument. U.C. Berkeley Division of Biostatistics Working Paper Series. Working Paper 350..
 van der Laan and Dudoit (2003) van der Laan, M. J. and S. Dudoit (2003, November). Unified crossvalidation methodology for selection among estimators and a general crossvalidated adaptive epsilonnet estimator: Finite sample oracle inequalities and examples. U.C. Berkeley Division of Biostatistics Working Paper Series Working Paper 130.
 Van Der Laan and Gruber (2010) Van Der Laan, M. J. and S. Gruber (2010). Collaborative double robust targeted maximum likelihood estimation. International Journal of Biostatistics 6(1).
 van der Laan and Luedtke (2014) van der Laan, M. J. and A. R. Luedtke (2014). Targeted learning of an optimal dynamic treatment, and statistical inference for its mean outcome.
 van der Laan and Luedtke (2015) van der Laan, M. J. and A. R. Luedtke (2015). Targeted learning of the mean outcome under an optimal dynamic treatment rule. Journal of causal inference 3(1), 61–95.
 van der Laan et al. (2007) van der Laan, M. J., E. C. Polley, and A. E. Hubbard (2007, July). Super learner. U.C. Berkeley Division of Biostatistics Working Paper Series Working Paper 222.
 van der Laan and Robins (2003) van der Laan, M. J. and J. M. Robins (2003). Unified methods for censored longitudinal data and causality. Springer Science & Business Media.
 Van der Laan and Rose (2011) Van der Laan, M. J. and S. Rose (2011). Targeted learning: causal inference for observational and experimental data. Springer Science & Business Media.
 Van Der Laan and Rubin (2006) Van Der Laan, M. J. and D. Rubin (2006). Targeted maximum likelihood learning. The International Journal of Biostatistics 2(1).
 van der Vaart (2014) van der Vaart, A. (2014). Higher Order Tangent Spaces and Influence Functions. Statistical Science 29(4), 679–686.
 VanderWeele (2009) VanderWeele, T. J. (2009). Concerning the consistency assumption in causal inference. Epidemiology 20(6), 880–883.
 Vansteelandt et al. (2012) Vansteelandt, S., M. Bekaert, and G. Claeskens (2012). On model selection and model misspecification in causal inference. Statistical Methods in Medical Research 21(1), 7–30.
 Varian (2014) Varian, H. R. (2014). Big data: New tricks for econometrics. Journal of Economic Perspectives 28(2), 3–28.
 Wager and Athey (2017) Wager, S. and S. Athey (2017). Estimation and inference of heterogeneous treatment effects using random forests. Journal of the American Statistical Association (justaccepted).
 Westreich et al. (2011) Westreich, D., S. R. Cole, M. J. Funk, M. A. Brookhart, and T. Stürmer (2011). The role of the cstatistic in variable selection for propensity score models. Pharmacoepidemiology and drug safety 20(3), 317–320.
 Westreich et al. (2010) Westreich, D., J. Lessler, and M. J. Funk (2010). Propensity score estimation: neural networks, support vector machines, decision trees (cart), and metaclassifiers as alternatives to logistic regression. Journal of clinical epidemiology 63(8), 826–833.
 Wyss et al. (2014) Wyss, R., A. R. Ellis, M. A. Brookhart, C. J. Girman, M. Jonsson Funk, R. LoCasale, and T. Stürmer (2014). The role of prediction modeling in propensity score estimation: an evaluation of logistic regression, bcart, and the covariatebalancing propensity score. American journal of epidemiology 180(6), 645–655.
 Zhang (1993) Zhang, P. (1993). Model selection via multifold cross validation. The Annals of Statistics, 299–313.
 Zhu et al. (2015) Zhu, Y., D. L. Coffman, and D. Ghosh (2015). A boosting algorithm for estimating generalized propensity scores with continuous treatments. Journal of causal inference 3(1), 25–40.
 Zubizarreta (2012) Zubizarreta, J. R. (2012). Using mixed integer programming for matching in an observational study of kidney failure after surgery. Journal of the American Statistical Association 107(500), 1360–1371.
