The inherent challenge of Wi-Fi and Long Term Evolution (LTE) coexisting fairly in the unlicensed bands at 5 GHz has been addressed by recent standardization efforts: LTE-LAA developed by 3GPP  and LTE-U developed by the LTE-U Forum . These two standardization entities differ in the way coexistence is implemented. LTE-LAA  uses a mechanism similar to CSMA/CA as used in Wi-Fi, also known as Listen Before Talk (LBT), while LTE-U leverages a duty cycle approach (i.e., repeating ON and OFF intervals) and an adaptation technique called Carrier Sense Adaptive Transmission (CSAT). During an ON period, the LTE-U BS transmits its data normally. In the OFF period, it observes the channel and dynamically adjusts its duty cycle based on the number of detected Wi-Fi basic service sets (BSSs) or access points (APs). The detection method of Wi-Fi BSSs is arguably still a point of contention. Table I shows different types of possible CSAT approaches: directly decoding the Wi-Fi MAC header of Wi-Fi BSSs or spectrum sensing using energy detection (ED), auto-correlation (AC), or machine learning (ML) models. Each method has its own pros and cons as listed in the Table I. In our previous work  222The latest version can be found here: http://bit.ly/2LDVWWo, we studied ED and AC based detection of Wi-Fi APs, and demonstrated algorithms that performed reasonably well under different scenarios.
Of late, machine learning (ML) approaches are beginning to be used in wireless networks to solve problems such as agile management of network resources using real-time analytics based on data. ML models enable us to replace heuristics with more robust and general alternatives. In this paper, we collect the Wi-Fi AP energy values during LTE-U OFF duration and use the data to train different ML models. We also apply the models in an online experiment to detect the number of Wi-Fi APs. Finally, we demonstrate significant improvement in the performance of the ML approach as compared to the ED and AC detectors.
|Header Decoding (HD)||Decodes the Wi-Fi MAC header at the LTE-U BS||100% accurate||Additional Complexity , high cost|
|Energy Detection (ED)||Based on the change in the energy level of the air medium||Low-cost, low-complexity||Low-accuracy |
|Auto-correlation (AC)||LTE-U BS performs correlation on the Wi-Fi L-STF symbol in the preamble||Low-cost, low-complexity||Medium accuracy (more accurate than ED) |
|Machine Learning (ML)||Train the model based on energy values on the channel||Much more accurate than ED and AC methods||Requires gathering data and training models|

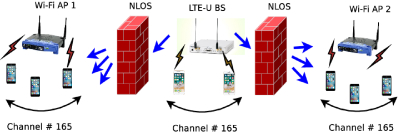

Fig. 1 illustrates an example LTE-U/Wi-Fi coexistence scenario, where two Wi-Fi APs and one LTE-U BS are operating on the same channel, with multiple clients associated with each AP and BS. According to 3GPP, it is expected that the LTE-U BS will adjust its duty cycle from 33% to 50% when one of the APs is turned off, and vice versa. Hence, a robust and accurate detection method is needed to guarantee the efficient adaptation of the duty cycle. We aim to exploit the collected energy level data by using the ML approach at the LTE-U BS to infer the presence of one or two Wi-Fi BSSs and make the decision to adapt the duty cycle appropriately. In order to accomplish this, we create realistic experimental scenarios using a National Instruments (NI) USRP RIO board with a LTE-U module, two Netgear Wi-Fi APs, and two Wi-Fi clients.
The rest of the paper is organized as follows. Section II presents a brief overview of existing literature on Wi-Fi LTE coexistence. Section III describes the experimental measurement set-up used to gather statistics on the energy values in the presence of one or two Wi-Fi APs which are then used to develop the ML adaptation algorithm described in Section IV. The experimental results are presented in Section V. Finally, Section VII concludes the paper.
Ii Related Work
The coexistence of LTE and Wi-Fi in the unlicensed spectrum gives rise to several challenges in terms of Wi-Fi client association, interference management, scheduling/resource allocation, fair coexistence, imperfect carrier sensing, etc. There has been a significant amount of research, both from academia and industry on LTE/Wi-Fi coexistence. This is mainly driven by the strong intention both from 3GPP and LTE-U forum to implement the technology as soon as possible. Both License Assisted Access (LAA)/Wi-Fi and LTE-U/Wi-Fi coexistence scenarios and throughput fairness have been well studied as a function of detection threshold and duty-cycle [4, 8, 9]. However, the energy based and auto-correlation based techniques proposed in the existing literature are still under-utilized in the area of spectrum sensing for LTE-U/Wi-Fi coexistence. In our recent work,  and [10, 11]
, we performed rigorous theoretical and experimental analyses of the performance of an energy-based CSAT. We proposed an algorithm that can adjust the duty cycle of LTE-U based on the presence of Wi-Fi APs inferred by the detected energy in the medium. We believe that this is the first work that proved the feasibility of stand-alone energy detection, without the need of packet decoding. We are able to reliably distinguish the presence between one or two Wi-Fi APs, using a threshold of -42 dBm which produced a successful detection probabilityof greater than 80% and false positive probability (false alarm) of less the 5%. To further improve the performance of energy based approach in and , we propose a novel algorithm that solves the problem by using an auto correlation (AC) function  on the Wi-Fi preamble and setting appropriate detection thresholds to infer the number of Wi-Fi BSSs operating on the channel. Performing auto-correlation on the Wi-Fi preamble is more accurate than the energy-based approach. We show that using an AC threshold of = 0.8, we can achieve a probability of detection () of 0.9 with a probability of false alarm () of less than 0.02. In this paper, we aim to further improve the performance of AC detection by introducing an alternative efficient approach i.e., ML based decision to distinguish between one and two Wi-Fi BSSs on the same channel.
|Available Spectrum and Frequency||20 MHz and 5.825 GHz|
|Maximum Tx power for both LTE and Wi-Fi||23 dBm|
|Wi-Fi sensing protocol||CSMA/CA|
|Traffic||Full Buffer (Saturation Case)|
|Wi-Fi & LTE-U Antenna Type||MIMO & SISO|
|LTE-U data and control channel||PDSCH and PDCCH|
Iii Experimental Setup for Machine Learning Based Detection

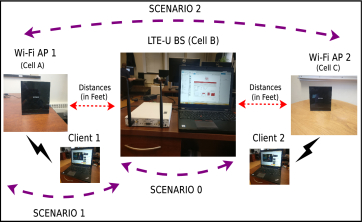

We set up our experimental test-bed according to Fig. 2 and the experiment parameters are described in Table II. An experiment is set up to evaluate the duty cycle adaptation algorithm performance considering LTE-U and Wi-Fi coexistence on the same unlicensed 20 MHz channel in the 5 GHz band. LTE-U utilizes the unlicensed spectrum only for the downlink and all uplink transmissions use the licensed spectrum. The LTE-U BS operates at maximum power by enabling all its resource blocks with the highest modulation coding scheme (i.e., 64-QAM). There are three cells, with two cells (A and C) acting as Wi-Fi cells and one cell (i.e., Cell B) acting as the LTE-U BS. We also ensure that there is no additional interference from other Wi-Fi APs on a particular channel. Each Wi-Fi cell consists of 1 AP and 1 client, and each AP transmits full buffer downlink data and beacon frames, with occasional probe responses if any nearby Wi-Fi clients transmit probe requests. An NI USRP platform is configured as the LTE-U BS and operates at 50% duty cycle during the experiment. During the LTE-U OFF duration, it listens to the configured co-channel for signals and measures its indicator RF power. The RF power function is configured in the LTE block control module of the NI LTE application framework, and it outputs energy value as defined above. Using the energy measurement, we identify the number of Wi-Fi APs in the following scenarios:
Scenario 0: Measure the energy at the LTE-U BS during the LTE-U OFF period when no Wi-Fi APs are deployed.
Scenario 1: Measure the energy at the LTE-U BS during the LTE-U OFF period when only one Wi-Fi AP (i.e., Cell A) and LTE-U (i.e., Cell B) is deployed with full buffer downlink transmission.
Scenario 2: Measure the energy at the LTE-U BS during the LTE-U OFF period when two Wi-Fi APs (i.e., Cell A & Cell C) and LTE-U (i.e., Cell B) are deployed with full buffer downlink transmission.
In each scenario, Cell B measures the energy values during the LTE-U OFF period, while other cells are transmitting full buffer downlink transmission. Also, these scenarios are carried out at different distances in both LOS and NLOS environment. Similar to our previous work [5, 6], we focus only on Scenario 1 and 2 (i.e., 1 and 2 Wi-Fi). The Scenario 0 (i.e., no Wi-Fi) can be easily detected when there is a change in the energy values .
Iv Machine Learning Approach
ML models enable us to replace heuristics with more robust and general alternatives. For the problem of distinguishing between zero, one, two Wi-Fi BSSs, we train a model to detect a pattern in the signals instead of finding a specific energy threshold in a heuristic manner. The state-of-the-art ML models leverage heavily the unprecedented performance of neural networks models that are able to surpass human performance on many tasks, for example, image recognition, and help us answer complex queries on videos . This efficiency is a result of large amounts of data that can be collected and labeled as well as usage of highly parallel hardware such as GPUs or TPUs [13, 14]. In the work described in this paper, we train our neural network models on NVidia GPUs and collect enough data samples that enable our models to achieve high accuracy. Our major task is a classification problem to distinguish between zero, one, two Wi-Fi BSSs.
We consider machine learning models that take time-series data of width as input, giving an example space of , where denotes the real numbers. Our discrete label space of classes is represented as . For example,
classes, enables us to distinguish between 0, 1, and 2 Wi-Fis. Machine learning models represent parametrized functions (by a weight vector) between the example and label spaces . The weight vector is iteratively updated during the training process until the convergence of the train accuracy or train loss (usually determined by very small changes to the values despite further training), and then the final state of is used for testing and real-time inference.
Iv-a Data preparation
The training and testing data is collected over an extended period of time; a single case (a single number of Wi-Fi AP) takes about 8 hours. For ease of exposition, we consider the case with one and two Wi-Fi APs. We collect data for each Wi-Fi AP independently and store the two datasets in separate files. Each file contains more than 2.5 million values and the total raw data size in CSV format is of about 60 MB. Each file is treated as time-series data with a sequence of values that are first divided into chunks. We overlap the time-series chunks arbitrarily by three-fourths of their widths . For example, for chunks of width , the first chunk starts at index 0, the second chunk is formed starting from index 32, the third chunk starts at index 64, and so on. This is part of our data augmentation and a soft guarantee that much fewer patterns are broken on the boundary of chunks. The width of the (time-series data) chunk acts as a parameter for our ML model. It denotes the number of samples that have to be provided to the model to perform the classification. The longer the time-series width , the more data samples have to be collected during inference. The result is higher latency of the system, however, the more samples are gathered, the more accurate the predictions of the model. On the other hand, with smaller number of samples per chunk, the time to collect the samples is shorter, the inference is faster but of lower accuracy. We elaborate more on this topic in Section V.
The collection of chunks are shuffled randomly. We divide the input data into training and test sets, each 50% of the overall data size. The aforementioned shuffling ensures that we evenly distribute different types of patterns through the training and test sets so that the classification accuracy of both sets is comparable. Each of the training and test sets contain roughly the same number of chunks that represent one or two Wi-Fi BSSs. We enumerate classes from 0. For the case of 2 classes (either one or two Wi-Fis), we denote by 0 the class that represents a single Wi-Fi BSS and by 1 the class that represents 2 Wi-Fi BSSs. Next, we compute the mean
only on the train set. We check for outliers and replace the values that are larger thanwith the value (e.g., there are only 4 such values in class 1).
The data for the two classes have different ranges (from about -45.46 to -26.93 for class 0, and from about -52.02 to about -22.28 for class 1). Thus, we normalize the data in the standard way: , where is the normalized data output, and are the mean and standard deviation values computed on the train data. We attach the appropriate label to each chunk of the data. The overall size of the data after the preparation to detect one or two Wi-Fi APs is of about 382 MB, where the Wi-Fi APs are on opposite sides of LTE-U BSS and placed at 6 feet distance from the LTE-U BSS). We collect data for many more scenarios and present them in Section V. The final size of the collected data is 3.4 GB.
For training, we do not insert values from different numbers of Wi-Fi APs into a single chunk. The received signal in the LTE-U BSS has higher energy on average for more Wi-Fi APs, thus there are differences in the mean values for each dataset. Our data preparation script handles many possible numbers of Wi-Fi APs and generates the data in the format that can be used for model training and inference (we follow the format for datasets from the UCR archive). In the future, we plan on gathering additional data samples for more Wi-Fi APs and make the dataset more challenging for classification.
Iv-B Neural network models: FC, VGG and FCN
Our data is treated as a uni-variate time-series for each chunk. There are many different models proposed for the standard time-series benchmark .
First, we test fully connected (FC)
neural networks. For simple architectures with two linear layers followed by the ReLU non-linearity the maximum accuracy achieved is about 90%. More linear layers, or using other non-linearities (e.g. sigmoid) and weight decays do not help to increase the accuracy of the model significantly. Thus, next we extract more patterns from the data using the convolutional layers.
Second, we adapt the VGG network  to the one dimensional classification task. We change its number of weight layers to 6 (also test 7, 5, and 4 layers, but find that 6 gives the highest test accuracy of about 99.52%). However, the drawback is that with fewer convolutional layers, the fully connected layers at the end of VGG net become bigger to the point that it hurts the performance (for 4 weight layers it drops to about 95.75%). This architecture gives us higher accuracy but is rather difficult to adjust to small data.333The dimensionality of the data is reduced slowly because of the small filter of size 3.
Finally, one of the strongest and flexible models called FCN
is based on convolutional neural networks that find general patterns in the time-series sequences. The advantages of the model are: simplicity (no data-specific hyper-parameters), no additional data pre-processing required, no feature crafting required, and significant academic and industrial effort into improving the accuracy of convolutional neural networks [19, 20].
The architecture of the FCN network contains three blocks, where each of them consists of a convolutional layer, followed by batch normalization(where
is a small constant added for numerical stability) and ReLU activation function. There are 128, 256, and 128 filter banks in each of the consecutive 3 layer blocks, where the sizes of the filers are: 8, 5, and 3, respectively. We follow the standard convention for Convolutional Neural Networks (CNNs) and refer to the discrete cross-correlation operation as convolution. The input to the first convolution is the time-series data chunk with a single channel . After its convolution with filters, the output feature map has channels. For training, we insert time-series data chunks into a mini-batch. We have and the discrete convolution  that can be expressed as:
V Experimental results
V-a Training and Inference
V-B Time-series width

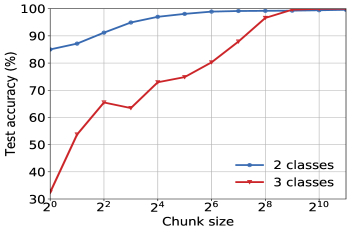

The number of samples collected per second by the LTE-U BS is about 192. The inference of a neural network is executed in milliseconds and can be further optimized by compressing the network. The final width of the time-series chunk imposes a major bottleneck in terms of the system latency. The smaller the time-series chunk width , the lower latency of the system. However, the neural network has to remain highly accurate despite the small amount of data provided for its inference. Thus, we train many models and systematically vary the chunk width from 1 to 2048 (see Fig. 3). In this case, each model is trained only for the single scenario (placement of the Wi-Fi APs) and with zero, one, or two active Wi-Fi APs. When we decrease the chunk sizes to the smaller chunk consisting of a single sample, the test accuracy deteriorates steadily down to the random choice out of the 3 classes (accuracy of about 33%) and for the 2 classes, its performance is very close to the ED (Energy-based Detection) method.

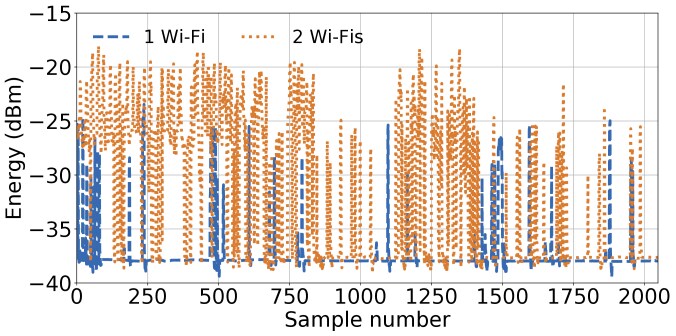

In Fig. 4 we present the values of energy captured for different scenarios with one and two Wi-Fis. If we consider the signal from about 1500th sample to 2000th sample, it is challenging to distinguish between one or two Wi-Fis. The visual inspection of the signals suggests that width of the time-series chunk should be longer than 500 samples. Signals with width of 384 achieve test accuracy below 99% and signals with width 512 can be trained to obtain 99.68% of test accuracy. Based on the experiments in Figs. 3 and 4, we find that the best trade-off between accuracy and inference time is achieved for chunk of size 512.
V-C Transitions between classes
When we switch to another class (change the state of the system in terms of the number of Wi-Fis), we account for the transition period. If in a given window of 1 second a new Wi-Fi is added, the samples from this first second with new Wi-Fi (or without one of the existing Wi-Fis - when it is removed), the chunk is containing values from and (or ) number of Wi-Fis. An easy workaround for the contaminated chunk is to change the state of the system to new number of Wi-Fis only after the same class is returned by the model in two consecutive inferences (classifications).
V-D Real-time inference

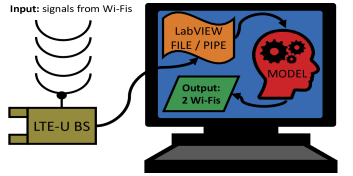

We deploy the model in real-time, which similar to the energy data collection experiment setup, and shown in Fig. 5
. We prepare the model only for the inference task in the following steps. Python scripts load and deploy the trained PyTorch model. We set up the Wi-Fi devices and generate some network load for each device. The LTE-U BS is connected to a computer with the hardware requirements of at least 8 GB RAM (Installed Memory), 64-bit operating system, x64-based processor, Intel(R) Core i7, CPU clock 2.60GHz. The energy of the Wi-Fi transmission signal in a given moment in time is capture using the NI LabVIEW. From the program, we generate an output file or write the data to a pipe. The ML model reads the new values from the file until it reaches the time-series chunk length. Next, the chunk is normalized and passed through the model that gives a categorical output that indicates the predicted number of Wi-Fis in the real-time environment.
Vi Performance comparison between ED, AC and ML methods
In this section, we analyze and study the performance differences between ED, AC and ML methods for different configuration setups and discus the inference delay. In ML method, we validate the performance on both test () and real-time inference () data. For the final evaluation, we train a single Machine Learning model that is based on the FCN network and used for all the following experiments. The model is trained on the whole dataset of size 3.4 GB, where the train and test sets are of the same size of about 1.7 GB.
Vi-a Successful Detection at Fixed Distance

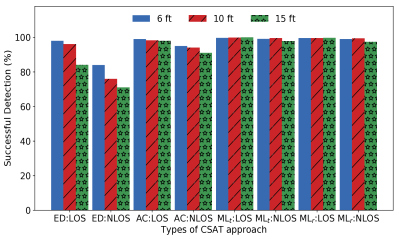

We compare the and performance with ED and AC approaches using the NI USRP platform as shown in Fig. 2. In the experiment, Wi-Fi APs are transmitting full buffer data, along with beacon and probe response frames following the 802.11 specification. We performed different experiments with 6ft, 10ft and 15ft for LOS and NLOS scenarios. Fig 6 shows the performance of detection for LOS and NLOS scenarios. In ED and AC based approach the proposed detection algorithm achieves the successful detection on average at 93% and 95% for LOS scenario. Similarly, the algorithm achieves 80% and 90% for the NLOS scenario. In this work, we show that and approach can achieve close to 100% successful detection rate for both LOS and NLOS, and different distance scenarios (6ft, 10ft & 15ft). From this result, we observe the approach works close to the performance of .
Vi-B Successful Detection at Different Configuration
We verify how the detection works in different configurations. We placed the two Wi-Fi APs on the same side of the LTE-U BS, unlike the above configuration (i.e., 6ft, 10ft and 15ft) where they were on opposite sides. Wi-Fi AP 1 and Wi-Fi AP 2 are placed at distances of 6 feet and 15 feet from the LTE-U BS respectively. We measured the performance of detection with LOS and NLOS configurations.
Case A: Both Wi-Fi AP 1 and Wi-Fi AP 2 are ON.
Case B: Only the Wi-Fi AP 1 at 6 feet is ON.
Case C: Only the Wi-Fi AP 2 at 15 feet is ON.
Table III shows that there is not much degradation in the performance of detection in and compared to ED and AC. Hence, we believe that the ML approach is the preferred method for a LTE-U BS to detect the number of Wi-Fi APs and scale back the duty cycle efficiently.
|CSAT Types||CASE A (%)||CASE B (%)||CASE C (%)|
Vi-C Additional Delay to Detect the Wi-Fi AP
In ED, the total time for the energy based CSAT algorithm to adopt or change the duty cycle from 50% to 33% is 5.2 seconds (i.e., Wi-Fi 1st beacon transmission time + LTE-U detects beacon (or) data packets time + NI USRP RIO hardware processing time) as shown in Table IV. In AC, the total time for the AC based CSAT algorithm to change the duty cycle from 50% to 33% is 4.6 seconds (i.e., Wi-Fi 1st L-STF packet frame + LTE-U detects L-STF frame time + NI USRP RIO hardware processing time). In ML (i.e., ), the total time for the CSAT algorithm to adopt the duty cycle from 50% to 33% is about 3.0 seconds. This approach is dependent on the chunk size (in this case set to 512).
|CSAT Types||NI HW Delay|
|Energy Detection (ED)||5.2 S|
|Auto-correlation (AC)||4.6 S|
|Machine Learning (ML)||3 S|
We propose a ML based algorithm that can be used by a LTE-U BS to determine presence of one or two Wi-Fi APs on the channel so that the duty cycle can be adjusted accordingly. We believe that this is the first work to demonstrate the feasibility of using ML on energy values in real-time, instead of packet decoding , to reliably distinguish between the presence of different number of Wi-Fi APs. The results show that the ML approach can achieve accuracy close to 100% in detection as compared to ED and AC. We aim to extend this work in future by distinguishing between more than two Wi-Fi APs, thus enabling even finer duty cycle adjustments of a LTE-U BS and improved coexistence with Wi-Fi.
