1 Introduction

This documents describes the notations, procedures and meaning of outcomes associated with the R package gainML, which is to quantify potential power gain resulting from installing passive devices on wind turbine generators (WTG). The method described here has been applied to several cases of vortex generator (VG) installation but is generally applicable to the cases of other passive device installation.

A naïve approach for the gain quantification is to compare the power production of a WTG before and after the passive device installation, referred to as Period 1 and Period 2, respectively. Recall that wind power production depends on various environmental factors, such as wind speed. The temporal variation of these factors contributes to power production difference between Period 1 and 2. As such, the difference in power production associated with the two periods does not simply confirm a potential power gain resulting from the passive device installation. For an accurate quantification, the effect of passive device installation needs to be separated from the effect of environmental factors. Therefore, we build a machine learning model to control for the environmental effect and then quantify a potential gain in power production once the conditions between the two periods have been made comparable.

This machine learning-based model, when applied to the reference turbine alone, may work well if one can perfectly control for the environmental conditions. However, a perfect control for the environmental condition is extremely difficult, if at all possible, because one may not be able to identify or measure every single environmental factor that potentially affects the power production of a WTG. In our investigation, we use a three-turbine group to add additional layers of calibration to correct for the effect of unknown or unobservable factors that may have drifted over time. The three turbines in a group are known as: (a) the reference or test turbine, the one that underwent an upgrade, (b) the baseline control turbine, a turbine nearby the test turbine that was not upgraded but provides a datum for calibrating the gain, and (c) the neutral turbine, a control turbine nearby the test turbine that was not upgraded but supplies the measurements of covariates (inputs used in the machine learning model) unaffected by the installation of the passive device.

Under this setup, we build two machine learning models, one for the test turbine and another for the control turbine, both use the covariates supplied by the neutral turbine. An underlying assumption for this calibration is that unknown or unobservable factors will have the same effect on the power production of a test turbine and a control turbine at a given time, which sounds reasonable.

While considering that, we conduct Period 1 analysis and Period 2 analysis using the machine learning models. The purpose of the Period 1 analysis is to reduce the error of a machine learning model for a given test turbine by determining a best set of environmental variables and to choose a control turbine that satisfies the assumption that the unknown or unobservable effect for the control turbine is comparable to that for the test turbine. The purpose of the Period 2 analysis is to take all decisions made in Period 1 analysis and quantifies potential power gain while applying a second calibration procedure.

In the remainder of this documentation, we describe a machine learning model that captures the effect of environmental factors in Section 2, explain the details of Period 1 analysis in Section 3, and state the step-by-step procedures of Period 2 analysis in Section 4.

2 Core machine learning model: an adaptive kernel regression

Suppose that refers to the power output of a WTG and denotes a set of environmental variables. Then, we would like to determine a function that defines the relationship between and (can be considered as a high-dimensional extension of power curve) in the following model.

(1)

where is the index of observations and is the total number of observations. models random noise, the portion of that is not explained by given ; assumed to be independent and identically distributed.

We estimate

by using a kernel regression estimator, known as the Nadaraya-Watson estimator, defined by

(2)

where is the estimator of and is a weight assigned to the th observation given . Note that does not have any subscript, meaning that can be any value, e.g., a future realization, although it can also be an observed . The weight is determined by a Gaussian kernel and -nearest neighbor distance as

(3)

calculates the Euclidean norm, and is a standard normal density, i.e., . The bandwidth parameter is not a constant, but it varies with modeling an adaptive bandwidth. We define

(4)

where is the th nearest distance among all the distances from to for . This adaptive bandwidth allows a smaller bandwidth where there are more data points and a larger bandwidth where there are less data points. In other words, the functional fit would follow a local trend more if the region around an evaluation point, , is dense and would follow a global trend more if the region is sparse; this improves prediction accuracy compared to the case of using a constant bandwidth.

From the definition of the estimator in Eq. (2)–(4), all values are given or can be calculated by using given values except the value of . is the only parameter that needs to be set, and the value of will dictate the goodness of the estimator. We select that minimizes the generalized cross-validation (GCV) criterion while using only training data, for . By fitting the model in Eq. (2) to the training data, we have

(5)

where is an

-dimensional vector,

is an matrix with its th element given by , and is also an -dimensional vector. The parentheses following signify ’s dependence on . Now, GCV criterion is defined by

(6)

where is an identity matrix. Then, we choose that minimizes , i.e., .

3 Period 1 analysis

In Period 1 analysis, while using the machine learning model described in Section 2, we determine the best set of environmental variables modeling the power production of a test turbine and choose a control turbine for which the prediction error exhibits a similar trend with that for the test turbine. In Period 1 analysis, we are interested in establishing a machine learning model that represents the power production of a WTG without any device installation as accurately as possible; for this reason, this analysis is based on Period 1 data only.

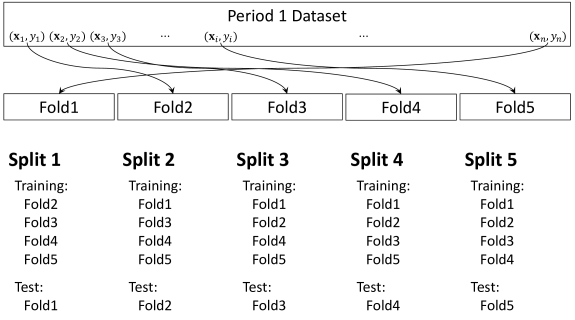

Figure 1: Data usage of Period 1 data for 5-fold CV

For an effective usage of data, we apply 5-fold cross validation (CV) for evaluating out-of-sample prediction. 5-fold CV partitions an entire dataset (Period 1 data) into five mutually exclusive subsets of data, each of which takes 20% of the entire dataset; the assignment of a data point to a specific subset is performed randomly. The idea is to take four folds (subsets) of data for training and the remaining single fold of data for testing, yielding 80:20 training/test data splitting. Each of the five folds can be used for testing one at a time, and this allows five times testing (and training) of a model. The multiple testing improves the estimation of out-of-sample prediction error relative to the case of a single training and testing. Figure 1 illustrates a data usage for the 5-fold CV.

We use three performance measures to assess the prediction from a test turbine model and a control turbine model. The three measures include root mean square error (RMSE), empirical bias (BIAS), and residuals binned by control turbine power (BIAS curve). Suppose that for denotes training data and for denotes test data. Then,

(7)

To generate the BIAS curve, we first bin the test data according to control turbine power by using the bin size of 100kW. Suppose that there are bins in total and for is a set of test data points that belong to the th bin. We define the bin-wise BIAS curve as

(8)

Then, the BIAS curve can be generated by and the mid-point of each power bin for ; see Figure 2.

Figure 2: BIAS curve for a test turbine: the black lines denote calculated for each of 5-fold CV, and the green line indicates their averages, i.e., .

The three measures can be calculated for each data split. For the evaluation of a model, we use the averages of the three measures over five splits, referred to, respectively, as , , and in the subsequent sections.

3.1 Variable selection

Wind speed is the most important variable determining wind power output. Typically, wind speed is measured at an anemometer on the nacelle of a WTG located behind the rotor. As passive device installation, especially VG installation, changes aerodynamic behaviors behind the rotor, the after-rotor measurement of wind speed for a same inflow wind can be different before and after the device installation. Therefore, using wind speed measured at a test turbine, albeit the most influential, would make the extraction of device installation effect on power more challenging.

One way to overcome the inconsistent measurement problem is to use the measurements of a nearby WTG for which there is no change of the after-rotor measurements. Recall that we would use a control turbine for calibration purpose. If we use wind speed measured at this control turbine, the control turbine model will take advantage of using its own measurements yielding relatively small prediction error. However, such an advantage is not applicable to a test turbine model, eventually resulting in a larger difference of the prediction error between the two models.

Due to all these considerations, a different source of wind speed measurements is needed, and the source can be another nearby WTG or a met mast. In general, one can find a WTG that is closer to a test turbine than a mast is. Hence, we choose another control turbine as a source of wind speed measurements; this turbine is referred to as a neutral turbine.

Let REF, CTR-b, and CTR-n denote the test WTG, the baseline control WTG for calibration, and the neutral control WTG providing the measurements of some key covariates like wind speed. Then, we consider the following variables for modeling a multi-dimensional power response surface:

  • -CTRn: wind speed measured at the neutral turbine (CTR-n),

  • -CTRn: wind speed difference between time and , calculated from -CTRn,

  • -CTRn: power output of the neutral turbine (CTR-n),

  • Direction: wind direction measured at the reference turbine (REF),

  • Density: air density calculated by the temperature and air pressure measurements at the reference turbine (REF),

  • Hour: hour of the day for each measurement.

We do not consider other variables measured at a met mast because, conditioned on the use of the above variables, prediction quality does not improve in terms of RMSE. The datasets associated with the met mast have also a much high percentage of missing values. If we have to use both nacelle data and mast data, the total amount of data in fact become less after data alignment.

To determine the best set of variables, we first start with a model having the full set of variables (saying currently optimal) and calculate its . Then, we eliminate a variable at a time constructing multiple -variable models, where is the number of variables in the current optimal model. We find a -variable model with the least , and if its is lower than that of the current optimal model, the -variable model becomes a new current optimal model. We continue this while decreasing by one until there is no reduction in ; in this case, the current optimal model becomes the optimal model. The optimal set of variables will be denoted by for subsequent analysis. Algorithm 1 shows the details of the variable selection process.

1 Initialize , ;
2 For each of five training/testing splits, predict for by using and calculate ;
3 ;
4 repeat
5       ;
6       while  do
7             ;
8             For each of five training/testing splits, predict for by using and calculate ;
9             ;
10             ;
11
12       end while
13      ;
14       if  then
15             ;
16             ;
17             ;
18
19       else
20             break;
21
22       end if
23
24 end
25
26return ;
Algorithm 1 Selection of an optimal set of variables

3.2 Control turbine selection

As discussed in Section 3.1, the quantification of potential power gain will use two types of control turbines, CTR-b and CTR-n. Both control turbines need to be determined based on the outcome of Period 1 analysis. The selection of CTR-b is more restrictive because, to satisfy the assumption of having the same unknown or unobservable effect with REF, it should typically be in a closer vicinity of REF than CTR-n. Sometimes, the selection of CTR-b can be obvious based on the proximity to REF, but depending on the layout of a wind farm, such an immediate selection may not be applicable in other cases.

For the selection of control turbines, we use REF model’s and and also BIAS curve difference between REF model and CTR-b model defined by

(9)

where and are bin-wise BIAS curve for REF and CTR-b models, respectively. Similar to the notations of other performance measures, we use to denote the average of obtained from five different data splits. An example of the BIAS curve difference is shown in Figure 3.

Figure 3: BIAS curve difference: the dotted lines denote calculated for each of 5-fold CV, and the solid line indicates their averages, i.e., .

The BIAS curve difference, , assesses the similarity of unexplained variation between REF and CTR-b models while and evaluate the prediction accuracy of REF model. Considering that the unexplained variation of REF model is corrected by that of CTR-b model, the BIAS curve difference would be the most important criterion justifying the assumption for calibration. Still, and values need to be kept at a sufficiently low level to minimize the amount of correction.

As the selection becomes a multi-criteria decision, we do not impose an absolute threshold for each performance measure. In general, there is a limited number of WTGs in the vicinity of REF, so we rather find the best pair of CTR-b/CTR-n among all possible alternatives. Yet, a good pair needs to have

or at least close to the limit of 10kW as well as a relatively low and , as compared to other pairs.

4 Period 2 analysis

In Period 2 analysis, we use the best set of variables, , and CTR-b and
CTR-n determined in Period 1 analysis to quantify the potential gain of passive device installation. For the gain quantification, we evaluate how the change of unexplained variation over Period 1 and Period 2 is different between REF and CTR-b while developing a machine learning model for each of them that shares the same .

As the quantification requires to control for unexplained variation for both Period 1 and 2, we need prediction for both periods. For an accurate estimation of unexplained variation, we calculate out-of-sample prediction error while keeping the 5-fold CV structure for the Period 1 prediction. The Period 2 prediction does not require data splitting since the entire Period 1 data can be used to train a model. Then, the out-of-sample prediction error can be calculated from Period 2 data. Figure 4 illustrates data structure for Period 2 analysis.

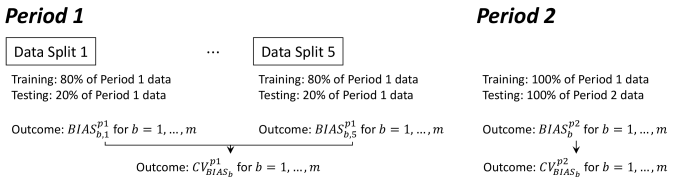

Figure 4: Data structure for gain quantification

From the Period 1 prediction, we have five for each data split per each bin , where the superscript indicates that the value is resulting from the Period 1 prediction. By taking the average of five , we calculate for . On the other hand, the Period 2 prediction provides a single for each bin, so we define for without the need to average.

As we have REF model and CTR-b model, and can be calculated for each model. Let superscript REF and CTR-b indicate that the values are derived from each of the two models, respectively. For example, represents the average BIAS of REF model in Period 1, and denotes the BIAS of CTR-b model in Period 2.

We define Effect curve as the change in the BIAS curve of REF power over Period 1 and 2, expressed by

(10)

Since passive devices are installed on the REF turbine in Period 2, includes the change in REF power due to passive device installation and the change in REF power due to unknown factors (other than known ). If we define a similar quantity for CTR-b model, referred to as Offset curve, then

(11)

CTR-b turbine is without any passive device installation, even in Period 2, so explains the change in CTR-b power due to unknown factors other than . We assumed that this change caused by unknown factors is the same for REF turbine and CTR-b turbine, so by taking the difference of and , we quantify the (bin-wise) change in REF power due to passive device installation as follows:

(12)

The examples of Effect curve and Offset curve are shown in Figure 5.

Figure 5: Curves illustrating temporal change in power not explained by given covariates, : (a) Effect curve and (b) Offset curve.

To aggregate the bin-wise gain defined by Gain curve into a single quantity, we calculate a weighted sum of . For the weights, we use the long-term annual power frequency, expressed in the unit of hours and estimated using the long-term historical data. Let denote the annual power frequency of bin . Then, annualized Gain is finally estimated by

(13)

where AEP is also estimated from long-term historical data and OEM power curve.

To reduce the uncertainty of the gain quantification, we can apply bootstrap and establish a confidence interval of annualized Gain. Bootstrapping relies on random sampling with replacement. Suppose that

includes all given data points (both Period 1 and 2). We draw random samples from the original dataset, , while allowing that a single data point is sampled multiple times. These sampled data points form a bootstrapped dataset of which sample size is . By repeating this times, we can construct for where is a bootstrapped dataset and is the total number of bootstrapping. For each , we partition the bootstrapped dataset into Period 1 and Period 2 data based on time stamps and calculate a single value of annualized Gain following Eq. (13); note, for this calculation, prediction is always based on the optimal set of variables determined in Period 1 analysis. Finally, we have annualized Gain quantified times, and these quantified values are used to build a confidence interval of annualized Gain. For example, if , by eliminating the lowest annualized Gain and the greatest annualized Gain and by taking the range of the rest eight values, we can have an 80% confidence interval (eight out of ten).
