I Introduction

The available spectrum in lower frequency ranges does not meet the unprecedented increase in demand for user data throughput in mobile networks. Fifth Generation (5G) mobile network technology thus designated the use of millimeter-wave (mmWave) frequency bands along with frequencies below 6 GHz due to the availability of larger transmission bandwidth.

Enabling higher carrier frequencies introduces new channel conditions. Propagating signals are exposed to higher diffraction loss [1] and are highly susceptible to blockage caused by surrounding objects which leads to rapid signal degradations [2]. Furthermore, higher carrier frequencies enable the deployment of many small-sized antennas that are used for directional signal transmission, resulting in beamforming gain.

Higher diffraction loss and rapid signal degradation caused by obstructions challenge user mobility at mmWave frequencies. Besides, measurements used for user mobility and handover decisions are impaired by fluctuations that are caused by measurement error and fast fading. The spatial and temporal characteristics of fast fading are highly correlated with carrier frequency. Mobility investigations require long simulation time to collect handover and failure statistics. For better understanding of user mobility at higher carrier frequencies, an efficient simulator is needed that runs in feasible simulation time and captures spatial and temporal characteristics of the mmWave channel which are relevant for user mobility investigations [3].

There are numerous studies [4, 5, 6, 7, 8] that model the radio propagation channel for 5G based on measurements for both lower and higher carrier frequencies. The Quasi Deterministic Radio Channel Generator (QuaDRiGa) [4] extends the Wireless Initiative for New Radio (WINNER) [5] model with 3D propagation and antenna patterns along with time evolution and scenario transitions between Line-of-Sight (LOS) and Non-LOS (NLOS). In [6], the authors address channel model for indoor Machine-to-Machine (M2M) applications. The 3rd Generation Partnership Project (3GPP) and New York University (NYU) have also developed 3D channel models, [7, 8], based on real-world channel measurements at various frequencies (including mmWave) for different scenarios such as urban microcell (UMi), urban macrocell (UMa), and rural macrocell (RMa).

The channel models mentioned above can be good candidates for mobility simulations, however, they are computationally inefficient which leads to infeasible simulation time [3]. In this paper, a Simplified channel model is developed based on Geometry-based Stochastic Channel Model (GSCM) [7] which runs in feasible simulation time and captures the spatial and temporal characteristics of [7] for different receiver (RX) speeds, carrier frequencies, LOS and NLOS conditions. Besides, the proposed channel model is designated for beamformed systems where directional transmission is enabled by deployment of multiple antenna elements. Moreover, the impact of this Simplified channel model and Jake’s channel model on user mobility performance are compared in a 5G mmWave scenario.

This paper is organized as follows. Jake’s fading model [9] and GSCM [7] are reviewed in section II. Our Simplified channel model proposed for New Radio (NR) user mobility investigations is presented in section III. The simulation models and scenario are explained in IV. Simulation results are presented in section V to compare the proposed channel model against Jake’s channel model with respect to mobility performance. The paper is then concluded in section VI.

Ii Channel Models

In this section, the well-known Jake’s fading model [9] is reviewed first. Then, observations of spatial and temporal characteristics of GSCM [7], leading to the proposed Simplified model, are presented.

Ii-a Jake’s Fading

In wireless channels, multiple replicas of the transmitted wave (multipath waves) arrive at the RX from all directions since the wave is exposed to diffraction, reflection and scattering caused by surrounding objects in the wireless medium which is known as multipath propagation. Due to the multipath propagation, multipath waves are phase-shifted, delayed and attenuated replicas of emitted wave which arrive from all directions at the RX. Superposition of the waves at the RX can be either constructive or destructive, depending on the phase shift of each multipath waves which causes temporal variation (fluctuation) of the received signal power.

In addition to distortion of the signal caused by multipath propagation, the Doppler effect also has an adverse impact on the received signal for non-stationary users.. Let us assume a mobile RX, with a velocity of , receives a wave from an angle between the direction of the RX’s motion and the direction of the arrival of the wave. Due to the mobility of the RX unit, the Doppler effect causes a frequency shift of the incident wave which is called Doppler shift and is expressed as

(1)

Here, is the maximum frequency shift proportional to the RX velocity and carrier frequency which is given as

(2)

where is speed of light. Considering the fact that there are multiple incident waves from all directions, the carrier frequency expands from () to () which is called Doppler spread.

One of the most popular channel model is Jake’s fading model that captures the multipath and Doppler characteristics of the channel [9]. It is assumed that the incident waves arrive in two-dimensional (horizontal) plane with equal power. Besides, it is also assumed that the angle of arrival and phase shift of each incident wave

are uniformly distributed in the interval

, and the power radiation pattern of the RX antenna is omni-directional. Hence, the channel impulse response can be represented by the superposition of number of orthogonal sinusoids as

(3)

The channel impulse response given in (3) is a complex Gaussian random process with power envelope

following non-central Chi-square distribution (

) with degrees of freedom, unit mean and variance [10].

In mobility studies, handover decision mechanisms and measurements are based on signal power rather than on the complex impulse response. The power envelope of Jake’s model represents a fading channel with single path diversity and paths can be maximum ratio combined to obtain a power envelope for higher path diversity [11]. By using (3), one can formulate the power envelope of a channel with L-path diversity as

(4)

which is distributed with degrees of freedom, unit mean due to the normalization and variance [10]. Hence, the path diversity of the power envelope is expressed as

(5)

The statistical measure of the channel fluctuations caused by Doppler spread can be captured by the coherence time of the channel impulse response which is a representation of the correlation of fading channel samples over time. From [9] we know that the autocorrelation of the power envelope of (3) can be expressed as

(6)

where is zero-order Bessel function of the first kind and is the scale of the time distance transversed for correlation. Time correlation in (6) also applies to (4) since temporal characteristics of the fading process do not change for varying path diversity. In practice, the coherence time is often defined as correlation of the which can be approximated as

(7)

Ii-B Geometry-based Stochastic Channel Model (GSCM)

In 3GPP, GSCM is proposed [7] to properly study and evaluate the performance of upcoming 5G features.The GSCM is made up of stochastic and deterministic aspects of the channel where the former aspect reflects the spatial consistency based on the positions of scattering waves (clusters) and the latter represents the characteristics of the propagation environment. The statistical characteristics of the environment are captured by a large-scale fading (LSF) model where the joint spatial correlation of the LSF components are incorporated in the model.

The channel impulse response matrix between each antenna element of transmitter (TX) and RX is denoted as for a given cluster delay and time [7]. The number of TX and RX antenna elements is given by and , respectively, and each element of from column , and from row , represents the channel impulse response from TX antenna element to RX antenna element . Modeling the channel impulse response is described for both line-of-sight (LOS) and non-LOS (NLOS) scenarios in [7].

Proper use of multiple antenna elements enables the directional signal transmission, also known as beamforming. The phase of the transmitted signal from each antenna element can be adjusted such that all signals add constructively in a specific direction, resulting in beamforming gain. For a given beam direction in 3-D plane elevation angle , azimuth angle with beam direction index , the phase shift of antenna element is formulated as

(8a)
(8b)
(8c)

Here,

is the unit vector that is directed towards the beam direction and

holds the 3D coordinates of transmit antenna element in Cartesian coordinates. In order to apply beamforming to the channel impulse response matrix , the weighted sum of the channel impulse response for each transmit antenna element is evaluated as

(9)

where is the channel impulse response of beam from TX to RX antenna element is obtained in (9).

In case of beamforming, cluster power does not follow the uniform distribution at the RX due to the directional transmission which increases cluster power towards the intended direction and suppresses it in unintended directions. As such, the Doppler spread of the channel impulse decreases which leads to an increase in the coherence time of the channel impulse response as shown in (7).

(a) Coherence time distribution per beam.
(b) Path diversity distribution per beam.
Figure 1: Coherence time and path diversity distribution per beam for GSCM.

Figure 1 shows the spatial and temporal statistics of the power envelope of GSCM for the parameter configuration given in Table I. There are 12 beam directions where beam elevation angles are defined in (10), beam azimuth angles and antenna panel sizes are given in Table I. Channel impulse response (9) is evaluated for beams

. Then, probability mass function of coherence time

and path diversity of 1st, 5th and 12th strongest beams are illustrated in Figure (a)a and Figure (b)b

respectively. The strength of the beam is evaluated by the average power of impulse response over time. The coherence time of each process is estimated by

auto-correlation of the power envelope, and coherence time for Jake’s shown in (7) is given by the red dashed line as reference. It is assumed that the power envelope of the channel impulse response in (9) follows distribution with unit mean and variance. Hence, the path diversity of each process is approximated by using the statistical property of the distribution given in (5).

(10)
Parameter Value
Carrier frequency 28 GHz
RX velocity 1 km/h
System bandwidth 100 MHz
TX antenna height 10m
RX height 1.5m
TX panel size ;
Beam azimuth angle ;
TX Antenna element pattern Table 7.3-1 in [7]
TX vertical antenna element spacing
TX horizontal antenna element spacing
RX antenna element pattern isotropic
RX antenna element gain 0 dBi
Scenario UMi-Street Canyon [7]
Table I: Simulation Parameters I

The coherence time distribution given in Figure (a)a shows that of the coherence time of the beams are above Jake’s coherence time due to beamforming. It is also shown that the temporal characteristics of the channel impulse response do not vary much among beams. However, Figure (b)b shows that the path diversity is correlated with the strength of the beam where the path diversity of the beam impulse response decreases for the beams with higher average power.

(a) LOS
(b) NLOS
Figure 2: Beamforming gain deviation for LOS and NLOS cases

In typical system level simulators, it is assumed that there is a single ray between TX and RX in LOS direction and . Eventually, the beamforming gain of the link between TX and RX is calculated for a single ray in LOS direction. Considering the fact that multipath propagation consists of multiple rays with different angle of departure and arrival, the beamforming gain of a multipath channel deviates in principle from . The beamforming gain of the multipath channel is modeled as the mean power of the channel normalized to mean power of the channel impulse response for any and .

realizations of are simulated, and in each simulation is evaluated for each to visualize the deviation of from . In Figure 2, is shown as a scatter plot (red) against

along with linear regression

shown in orange that is applied on the collected beamforming gains. The black line shows the reference where does not deviate. For larger beamforming gains in the LOS case (Figure (a)a), does not deviate much from . However, for decreasing , saturates around dB which is caused by the scattering structure of GSCM where some of the clusters are not attenuated as much as the single ray in LOS direction due to angular spread at TX. In the NLOS case (Figure (b)b), is larger than for high beamforming gain values because higher values are observed in case the transmission is on boresight direction of the beam where GSCM applies angular spread on transmit clusters and attenuates the clusters which are not on boresight direction. Similar to the LOS case, saturates around dB against much smaller values.

Iii Simplified Channel Model

Figure 3: Simplified model of fast fading allocation process

In system-level mobility simulations, a model for communication links between TX and RX is needed. In this section, an Simplified fast fading channel model is presented which integrates the stochastic spatial and temporal characteristics of the GSCM into Jake’s channel model. The evaluation of the fast fading process for each link is composed of 4 steps as shown in Figure 3. The description of each step is provided below.

Iii-1 Initial Simulation Setup

For a system level mobility simulation, it is assumed that the network topology and TX/RX locations are initialized. All possible combinations of the links between each TX and RX are evaluated, i.e. for a network with number of user equipments (UEs) as receiver and number of cells, there are possible combinations of links between UEs and cells.

Iii-2 Assign random tuple for each TX-RX link

Based on the network setup defined in Step 1, the parameters of the GSCM are configured such that the fast fading process of GSCM is aligned with the statistics of the mobility simulation: fast fading processes are generated for both LOS and NLOS cases, fixed carrier frequency and velocity , and for each beam . Then, the path diversity of process is estimated by using the relation between path-diversity and variance of process given in (5). The coherence time is also estimated by observing autocorrelation of the process as shown in (7). Estimated and of each process form a tuple where each tuple is matrix and each row contains and of beam . Rows of the tuple matrix are sorted by mean power of each beam in descending order. Finally, for each link , one LOS and one NLOS random tuple are drawn from the pre-processed tuple list.

Iii-3 Coherence Time Scaling

The randomly drawn coherence time from the tuple list represents the statistics of a fixed carrier frequency and velocity which may not always match the simulated network setup configuration; i.e., in case a different value for and are simulated. For a given carrier frequency and velocity , a new coherence time is derived from the tuple coherence time as follows

(11)

Iii-4 Selection of fast fading process

For different path diversities and different coherence times , power envelopes of the fast fading process (4) are evaluated in pre-processing and stored in a fast fading look-up table (LUT). The set of path diversity and coherence time in the LUT is determined such that it captures the distribution of path diversity and coherence time of GSCM for the given simulation setup (carrier frequency, antenna panel, bandwidth etc.) and UE velocities.

The fast fading process of each link is assigned by selecting the appropriate fast fading process from the LUT. For any scaled coherence time of randomly drawn coherence time from a tuple and corresponding path diversity (Step 2-3), the nearest smaller values of coherence time and path diversity are selected from the LUT as follows

(12a)
(12b)

Then, the fast fading process corresponding to and is selected from LUT and assigned to the link .

Hereby, the GSCM and Jake’s fading processes are simulated once per given simulation setup and pre-processed to obtain channel statistics of GSCM that are stored in tuple data. This generated tuple data can be then re-used for different simulations and parameters which saves additional computation complexity. Reuse of the pre-processed tuple data is further enhanced by introducing scaling of the data with respect to user velocity and carrier frequency which prevents the repetition of the pre-processing.

Iv Mobility Models, Simulation Scenario and Parameters

In this section, the investigated scenario, mobility and propagation parameters are described. These will be used to compare the different mobility performance indicators obtained for the Simplified channel model against those from Jake’s channel model for various simulation cases.

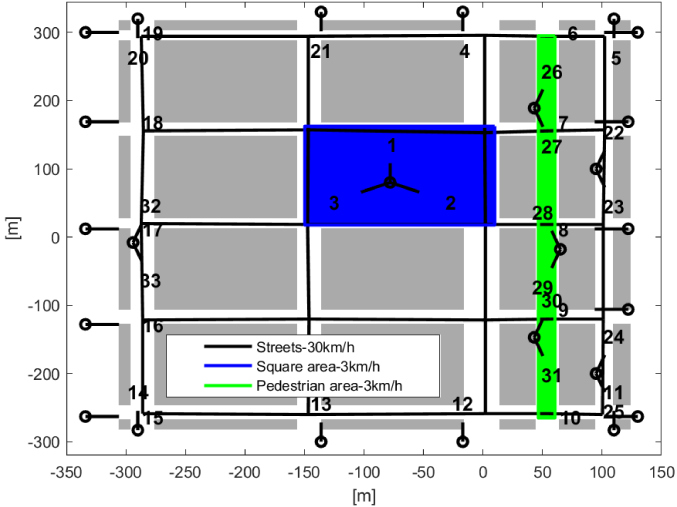

Figure 4: Simulation scenario

In this study, the Madrid Grid layout that is described in the METIS 2 project [12] is used. The layout is given in Figure 4 and consists of buildings (grey), streets (black), open square (blue) and pedestrian area (green). There are 3-sector macro cells which are located on the roof tops of the buildings. The users are distributed as follows: 200 users are moving in the streets with km/h in both directions. Besides, 40 pedestrian users are walking in the open square and 80 users are walking in the pedestrian area with km/h.

The scenario parameters along with the configuration of the transmit antenna panels are defined in Table I, Table II and (10). The beams have smaller beamwidth and higher beamforming gain to cover the far regions of the coverage areas whereas beams with larger beamwidth and relatively smaller beamforming gain are defined to serve regions near to the cell. SINR of a link between UE and beam of cell is evaluated by the approximation given in [13] for strict resource fair scheduler.

Parameters Value
Carrier frequency 28 GHz
Number of cells
Network topology Madrid grid [12]
PRB bandwidth 10 MHz
Downlink TX power 12 dBm/PRB
Thermal noise power -97 dBm/PRB
Propagation loss deterministic model of [14]
Penetration loss 0 dB
Total number of UEs
Number of simultaneously scheduled beams per cell
Cell-pair specific offset dB
Table II: Simulation Parameters II

RSRP and measurement error: Each UE measures and reports the reference signal received power (RSRP) measurements for serving and neighboring cells which are used by the network for handover decisions. The RSRP comprises path-loss, antenna gain, shadowing and fast fading.

The limited number of reference symbols available in handover measurement bandwidth for RSRP measurements introduces measurement error (ME). This error is modeled as log-normal distributed with zero mean and

dB standard deviation as defined in

[15].

Layer-1 and Layer-3 filtering: Two levels of filtering are applied to RSRP measurements to mitigate the effects of the fast fading and measurement errors: Layer-1 (L1) filtering applies moving average to RSRP measurements over a certain bandwidth on the physical layer and outputs where is the discrete time step of the L1 output [16].

Layer-3 (L3) filtering further averages the L1 output by applying an infinite impulse response (IIR) filter in dB [16]. L3 output is evaluated as

(13)

In (13), the forgetting factor controls the impact of older measurements on the current measurement [17]. To this end, is configured using filter time constant where the impact of an L1 RSRP measurement is halved after period [17].

Handover: A handover for user is triggered by the serving cell when it receives L3 measurements reported from the UE. This measurement report is sent at time instant if the following condition expires at the UE,

(14)

where is a cell-pair specific offset that is configured by the serving cell for each neighboring cell . In (14) the condition expires at when the L3 measurement of a neighbor cell exceeds that of the serving cell power for a certain amount time which is called time to trigger.

After receiving the measurement report from the UE, the serving cell sends a HO command to the UE. The UE receives it successfully if its Signal-to-interference-noise ratio (SINR) is above a quality threshold . The handover execution towards the target cell is completed only if the SINR with respect to the target cell exceeds during the random access procedure.

Radio Link Failure: Radio link failure (RLF) is one of the most important key metric that is used to evaluate mobility performance. An RLF timer is started when falls below and RLF is declared if expires. During the timer, the UE may recover before detecting RLF if SINR exceeds a second threshold which is larger than . A detailed explanation of the procedure is given in [17].

V Performance Evaluation

In this section, the proposed channel model is compared against Jake’s channel model [9] with multipath diversity given in (4). The key performance indicators (KPIs) used for comparison are explained below.

V-a KPIs

Outage Percentage: Outage is a time period when a UE is not able to receive data due to several reasons. Herein, it is assumed that the data transmission is not possible when is below . Besides, if expires due to RLF, the UE initiates re-establishment to a cell (any cell including serving cell) and during the re-establishment, the UE cannot receive any data. Successful handover also causes a short outage since during the random access period of the the UE to a new cell, UE cannot receive any data. Outage is evaluated as follows

(15)

HO: Denotes the number of successful handovers from a serving cell to a neighboring cell in the network.

RLF: Denotes the number of RLFs that is declared in the network.

Outage percentage, and are normalized to the number of UEs and simulation time as illustrated in the following section.

V-B Simulation Results

The KPIs are shown for different cases (Table III) of the given scenario setup. In those cases, the impact of beamforming gain models ( and ), measurement error (ME), fast fading (FF), HO access period and L3 filtering on channel model is analyzed. In order to apply , is evaluated for each link and the corresponding is obtained from fitting curves (Figure 2) for each LOS and NLOS case. It is assumed that the cell-pair specific offset is set to the same value for each (serving-target) cell-pair. The results are discussed for the proposed (Simplified) and Jake’s channel model with path diversities. The used beamforming gain models and are indicated in the legend of each channel model in Figure 5 and Figure 6.

Simulation Case FF ME L3
Reference
ME
FF
ME+FF
L3
ME+FF+L3 100ms
ME+FF+L3 50ms
ME+FF+L3 20ms
ME+FF+L3 10ms
ME+FF+L3 5ms
Table III: Simulation Case Definition I
(a) Number of RLF
(b) Number of successful handovers
(c) Outage percentage
Figure 5: KPIs

Impact of beamforming gain: Figure (a)a shows that for our Simplified channel model with is higher than that of the Simplified channel model with and Jake’s channel model. The reason for this is that the interference signal originates from non-serving beams which are mostly directed towards other directions than the serving beam and of non-serving beams mostly yields very low values. In case is used, lower values saturate around dB for the LOS case and dB for the NLOS case which leads to higher interference power and lower value. This is also reflected in the results (Figure (b)b) where the handovers are not completed due to insufficient after the measurement report was triggered by the UE.

Impact of measurement error and fast fading: Measurement error and fast fading cause rapid fluctuations in received signal power which may lead to unnecessary triggering of handovers. Figure (b)b shows that the number of handovers increases compared to the Reference case when measurement error and fast fading components of the channel are enabled in ME and FF cases. Besides, fast fading causes a larger increase in compared to the measurement error since fluctuations on received signal power caused by fast fading are stronger than those of the measurement error. slightly decreases when measurement error and fast fading are enabled because RLF timer is reset when the signal power exceeds which is observed more often due to the rapid fluctuations in signal power.

Impact of path diversity: In Figure (b)b, in case of FF and FF+ME results, decreases for increasing path-diversity of Jake’s model. This is because rapid fluctuations in received signal power become smoother when the path diversity increases which prevents ping-pong effects. For the same cases, of the Simplified channel model is close to the one of Jake’s channel model with path diversity. This is expected because as it is seen in Figure (b)b, the path diversity distribution of our Simplified channel model leads to higher path diversity values.

Impact of L3 filtering: L3 filtering causes delay for the L3 measurement reported by the UE to the serving cell. In return, fluctuations caused by fast fading are filtered and smoother received signal power is obtained. When the Reference is compared to the L3 case in Figure (b)b, delayed measurements lead to less successful HOs because they cause late HO decisions and the UEs cannot send the measurement report on time due to low . This is also visible in Figure (a)a where UEs suffer from low and the of case L3 increases significantly compared to the Reference case. When L3 is combined with ME and FF (ME+FF+L3), , and outage results do not change with respect to the L3 case since the impairments caused by measurement error and fast fading are filtered out but the impact of delayed measurement remains.

(a) RLF
(b) Successful Handover
(c) Outage
Figure 6: KPIs

Impact of filter time constant: Reducing L3 filter time constant decreases the latency on the measurements caused by L3 filtering. In Figure 6 simulation results of the ME+FF+L3 case are shown for different L3 filtering time constants . As a consequence of decreasing , successful HO increases for all channel models (Figure (b)b) because channel impairments are not filtered too much for shorter . This impact is more apparent for Jake’s channel model with path diversity since the received signal fluctuations are higher for lower path diversities. On the other hand, increasing results in smaller latency of the measurements. Consequently, decreases for increasing since the HO is triggered before drops below .

Vi Conclusion

In this paper, a Simplified channel model is presented for beamforming systems operating at mmWave frequencies considering the spatial and temporal characteristics of the propagation channel. Stochastic properties of the channel model developed by 3GPP are studied and those properties are reflected in the Simplified channel model by adopting Jake’s channel model. Furthermore, we show that the geometry based beamforming gain is correlated with the beamforming gain which is obtained by applying a directional transmission scheme to the 3GPP channel model. The impact of the channel model on mobility key performance indicators such as successful handover, radio link failure and outage are investigated for different propagation channel configurations. In addition, the influence of measurement error, fast fading and L3 filtering is analyzed. Results have shown that the proposed channel model provides accurate simulation results to Jake’s model for high path diversity. Moreover, it is shown that the angular spread of the rays impact the beamforming gains of interfering beams which leads to smaller SINRs and increased RLFs. Results also show that the Simplified channel model and Jake’s model with high path diversity have similar mobility performance. However, this similarity cannot be generalized as path diversity order of Jake’s may need to be determined for each mobility scenario by comparing, for instance, the mobility results with those obtained from the Simplified channel model.

References

  • [1] I. Rodriguez et al., “Analysis of 38 ghz mmwave propagation characteristics of urban scenarios,” in Proceedings of European Wireless 2015; 21th European Wireless Conference, May 2015, pp. 1–8.
  • [2] G. R. MacCartney, T. S. Rappaport, and S. Rangan, “Rapid fading due to human blockage in pedestrian crowds at 5g millimeter-wave frequencies,” in GLOBECOM 2017 - 2017 IEEE Global Communications Conference, Dec 2017, pp. 1–7.
  • [3] U. Karabulut, A. Awada, I. Viering, M. Simsek, and G. P. Fettweis, “Spatial and temporal channel characteristics of 5g 3d channel model with beamforming for user mobility investigations,” IEEE Communications Magazine, vol. 56, no. 12, pp. 38–45, December 2018.
  • [4] S. Jaeckel, L. Raschkowski, K. Börner, and L. Thiele, “Quadriga: A 3-D multi-cell channel model with time evolution for enabling virtual field trials,” IEEE Transactions on Antennas and Propagation, vol. 62, no. 6, pp. 3242–3256, June 2014.
  • [5] P. Kyösti et al., “IST-4-027756 WINNER II D1.1.2 v.1.1: WINNER II Channel Models,” Tech. Rep. [Online]. Available: http://www.ist-winner.org
  • [6] Y. Yu, Y. Liu, W. Lu, and H. Zhu, “Propagation model and channel simulator under indoor stair environment for machine-to-machine applications,” in 2015 Asia-Pacific Microwave Conference (APMC), vol. 2, Dec 2015, pp. 1–3.
  • [7] 3GPP, “Study on channel model for frequencies from 0.5 to 100 GHz,” 3rd Generation Partnership Project (3GPP), Tech. Rep. 38.901, Jun 2018, V15.0.0.
  • [8] S. Sun, G. R. MacCartney, and T. S. Rappaport, “A novel millimeter-wave channel simulator and applications for 5G wireless communications,” in 2017 IEEE International Conference on Communications (ICC), May 2017, pp. 1–7.
  • [9] W. C. Jakes, Microwave Mobile Communications.
  • [10] Proakis, Digital Communications 5th Edition.   McGraw Hill, 2007.
  • [11] M. T. Ivrlac and J. A. Nossek, “Quantifying diversity and correlation in rayleigh fading mimo communication systems,” in Proceedings of the 3rd IEEE International Symposium on Signal Processing and Information Technology (IEEE Cat. No.03EX795), Dec 2003, pp. 158–161.
  • [12] P. Agyapong et al., “Simulation guidelines,” Mobile and wireless communications Enablers for the Twentytwenty Information Society (METIS 2), Tech. Rep., 2013, Deliverable ICT-317669-METIS/D6.1.
  • [13] A. Ali et al., “System model for average downlink sinr in 5g multi-beam networks,” in 2019 IEEE 30th Annual International Symposium on Personal, Indoor and Mobile Radio Communications (PIMRC), September 2019, pp. 1–6.
  • [14] A. Awada, A. Lobinger, A. Enqvist, A. Talukdar, and I. Viering, “A simplified deterministic channel model for user mobility investigations in 5g networks,” in IEEE International Conference on Communications (ICC), May 2017, pp. 1–7.
  • [15] M. Anas, F. D. Calabrese, P. Ostling, K. I. Pedersen, and P. E. Mogensen, “Performance analysis of handover measurements and layer 3 filtering for utran lte,” in 2007 IEEE 18th International Symposium on Personal, Indoor and Mobile Radio Communications, Sep. 2007, pp. 1–5.
  • [16] K. Vasudeva, M. Simsek, D. López-Pérez, and . Güvenç, “Analysis of handover failures in heterogeneous networks with fading,” IEEE Transactions on Vehicular Technology, vol. 66, no. 7, pp. 6060–6074, July 2017.
  • [17] 3GPP, “NR radio resource control protocol specification,” 3rd Generation Partnership Project (3GPP), Tech. Rep. 38.331, Jun 2019, V15.6.0.
