Loss Function Search for Face Recognition

07/10/2020 ∙ by Xiaobo Wang, et al. ∙ 0

In face recognition, designing margin-based (e.g., angular, additive, additive angular margins) softmax loss functions plays an important role in learning discriminative features. However, these hand-crafted heuristic methods are sub-optimal because they require much effort to explore the large design space. Recently, an AutoML for loss function search method AM-LFS has been derived, which leverages reinforcement learning to search loss functions during the training process. But its search space is complex and unstable that hindering its superiority. In this paper, we first analyze that the key to enhance the feature discrimination is actually how to reduce the softmax probability. We then design a unified formulation for the current margin-based softmax losses. Accordingly, we define a novel search space and develop a reward-guided search method to automatically obtain the best candidate. Experimental results on a variety of face recognition benchmarks have demonstrated the effectiveness of our method over the state-of-the-art alternatives.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Face recognition is a fundamental and of great practice values task in the community of pattern recognition and machine learning. The task of face recognition contains two categories: face identification to classify a given face to a specific identity, and face verification to determine whether a pair of face images are of the same identity. In recent years, the advanced face recognition methods

(Simonyan and Andrew, 2014; Guo et al., 2018; Wang et al., 2019b; Deng et al., 2019)

are built upon convolutional neural networks (CNNs) and the learned high-level discriminative features are adopted for evaluation. To train CNNs with discriminative features, the loss function plays an important role. Generally, the CNNs are equipped with classification loss functions

(Liu et al., 2017; Wang et al., 2018e; Chen et al., 2018; Wang et al., 2019a; Yao et al., 2018, 2017; Guo et al., 2020), metric learning loss functions (Sun et al., 2014; Schroff et al., 2015) or both (Sun et al., 2015; Wen et al., 2016; Zheng et al., 2018b). Metric learning loss functions such as contrastive loss (Sun et al., 2014) or triplet loss (Schroff et al., 2015) usually suffer from high computational cost. To avoid this problem, they require well-designed sample mining strategies. So the performance is very sensitive to these strategies. Increasingly more researchers shift their attention to construct deep face recognition models by re-designing the classical classification loss functions.

Intuitively, face features are discriminative if their intra-class compactness and inter-class separability are well maximized. However, as pointed out by (Wen et al., 2016; Liu et al., 2017; Wang et al., 2018b; Deng et al., 2019), the classical softmax loss lacks the power of feature discrimination. To address this issue, Wen et al. (Wen et al., 2016) develop a center loss to learn centers for each identity to enhance the intra-class compactness. Wang et al. (Wang et al., 2017) and Ranjan et al. (Ranjan et al., 2017)

propose to use a scale parameter to control the temperature of softmax loss, producing higher gradients to the well-separated samples to reduce the intra-class variance. Recently, several margin-based softmax loss functions

(Liu et al., 2017; Chen et al., 2018; Wang et al., 2018c, b; Deng et al., 2019) to increase the feature margin between different classes have also been proposed. Chen et al. (Chen et al., 2018) insert virtual classes between different classes to enlarge the inter-class margins. Liu et al. (Liu et al., 2017) introduce an angular margin (A-Softmax) between the ground truth class and other classes to encourage larger inter-class variance. However, it is usually unstable and the optimal parameters need to be carefully adjusted for different settings. To enhance the stability of A-Softmax loss, Liang et al. (Liang et al., 2017) and Wang et al. (Wang et al., 2018b, c) propose an additive margin (AM-Softmax) loss to stabilize the optimization. Deng et al. (Deng et al., 2019) develop an additive angular margin (Arc-Softmax) loss, which has a clear geometric interpretation. However, despite great achievements have been made, all of them are hand-crafted heuristic methods that rely on great effort from experts to explore the large design space, which is usually sub-optimal in practice.

Recently, Li et al. (Li et al., 2019)

propose an AutoML for loss function search method (AM-LFS) from a hyper-parameter optimization perspective. Specifically, they formulate hyper-parameters of loss functions as a parameterized probability distribution sampling and achieve promising results on several different vision tasks. However, they attribute the success of margin-based softmax losses to the relative significance of intra-class distance to inter-class distance, which is not directly used to guide the design of search space. In consequence, the search space is complex and unstable, and is hard to obtain the best candidate.

To overcome the aforementioned shortcomings, including hand-crafted heuristic methods and the AutoML one AM-LFS, we try to analyze the success of margin-based softmax losses and conclude that the key to enhance the feature discrimination is to reduce the softmax probability. According to this analysis, we develop a unified formulation and define a novel search space. We also design a new reward-guided schedule to search the optimal solution. To sum up, the main contributions of this paper can be summarized as follows:

  • We identify that for margin-based softmax losses, the key to enhance the feature discrimination is actually how to reduce the softmax probability. Based on this understanding, we develop a unified formulation for the prevalent margin-based softmax losses, which involves only one parameter to be determined.

  • We define a simple but very effective search space, which can sufficiently guarantee the feature discrimiantion for face recognition. Accordingly, we design a random and a reward-guided method to search the best candidate. Moreover, for reward-guided one, we develop an efficient optimization framework to dynamically optimize the distribution for sampling of losses.

  • We conduct extensive experiments on the face recognition benchmarks, including LFW, SLLFW, CALFW, CPLFW, AgeDB, CFP, RFW, MegaFace and Trillion-Pairs, which have verified the superiority of our new approach over the baseline Softmax loss, the hand-crafted heuristic margin-based Softmax losses, and the AutoML method AM-LFS. To allow more experimental verification, our code is available at http://www.cbsr.ia.ac.cn/users/xiaobowang/.

2 Preliminary Knowledge

Softmax. Softmax loss is defined as the pipeline combination of last fully connected layer, softmax function and cross-entropy loss. The detailed formulation is as follows:

(1)

where is the -th classier () and is the number of classes. denotes the feature belonging to the -th class and is the feature dimension. In face recognition, the weights and the feature of the last fully connected layer are usually normalized and their magnitudes are replaced as a scale parameter (Wang et al., 2017; Deng et al., 2019; Wang et al., 2019b)

. In consequence, given an input feature vector

with its ground truth label , the original softmax loss Eq. (1) can be re-formulated as follows (Wang et al., 2017):

(2)

where

is the cosine similarity and

is the angle between and . As pointed out by a great many studies (Liu et al., 2016, 2017; Wang et al., 2018b; Deng et al., 2019; Wang et al., 2019b), the learned features with softmax loss are prone to be separable, rather than to be discriminative for face recognition.

Margin-based Softmax. To enhance the feature discrimination for face recognition, several margin-based softmax loss functions (Liu et al., 2017; Wang et al., 2018e, b; Deng et al., 2019) have been proposed in recent years. In summary, they can be defined as follows:

(3)

where is a carefully designed margin function. Basically, is the motivation of A-Softmax loss (Liu et al., 2017), where and is an integer. with is the Arc-Softmax loss (Deng et al., 2019). with is the AM-Softmax loss (Wang et al., 2018c, b). More generally, the margin function can be summarized into a combined version: .

AM-LFS. Previous methods relay on hand-crafted heuristics that require much effort from experts to explore the large design space. To address this issue, Li et al. (Li et al., 2019) propose a new AutoML for Loss Function Search (AM-LFS) to automatically determine the search space. Specifically, the formulation of AM-LFS is written as follows:

(4)

where and are the parameters of search space. is the -th pre-divided bin of the softmax probability. is the number of divided bins. Moreover, to consider different difficulty levels of examples, the parameters and may be different because they are randomly sampled for each bin. As a result, the search space can be viewed as a candidate set with piece-wise linear functions.

3 Problem Formulation

In this section, we first analyze the key to success of margin-based softmax losses from a new viewpoint and integrate them into a unified formulation. Based on this analysis, we define a novel search space and accordingly develop a random and a reward-guided loss function search method.

3.1 Analysis of Margin-based Softmax Loss

To begin with, let us retrospect the formulation of softmax loss Eq. (2) and margin-based softmax losses Eq. (3). The softmax probability is defined as follows:

(5)

And the margin-based softmax probability is formulated as follows:

(6)

According to the above formulations Eqs. (5) and (6), we can derive the following equation:

(7)

where

(8)

is a modulating factor with non-positive values (). Some existing choices are summarized in Table 1. Particularly, when , the margin-based softmax probability becomes identical to the softmax probability . is a modulating function to reduce the softmax probability. Therefore, we can claim that, no matter what kind of margin function has been designed, the key to success of margin-based softmax losses is how to reduce the softmax probability.

Compared to the piece-wise linear functions used in AM-LFS (Li et al., 2019), our has several advantages: 1) Our is always less than the softmax probability while the piece-wise linear functions are not. In other words, the discriminability of AM-LFS is not guaranteed; 2) There is only one parameter to be searched in our formulation while the AM-LFS needs search parameters. The search space of AM-LFS is complex and unstable; 3) Our method has a reasonable range of the parameter (i.e., ) hence facilitating the searching procedure, while the parameters of AM-LFS and are without any constraints.


Method Modulating Factor
Softmax
A-Softmax
AM-Softmax
Arc-Softmax
Table 1: Some existing modulating factors including Softmax, A-Softmax, AM-Softmax and Arc-Softmax, respectively.

3.2 Random Search

Based on the above analysis, we can insert a simple modulating function into the original softmax loss Eq. (2) to generate a unified formulation, which encourages the feature margin between different classes and has the capability of feature discrimination. In consequence, we define our search space as the choices of , whose impacts on the training procedure are decided by the modulating factor . The unified formulation is re-written as:

(9)

where the modulating function has a bounded range and the modulating factor is . To validate our formulation Eq. (9), we first randomly set the modulating factor

at each training epoch and denote this simple manner as

Random-Softmax in this paper.

3.3 Reward-guided Search

The Random-Softmax can validate that the key to enhance the feature discrimination is to reduce the softmax probability. But it may not be optimal because it is without any guidance for training. To solve this problem, we propose a hyper-parameter optimization method which samples hyper-parameters from a distribution at each training epoch and use them to train the current model. Specifically, we model the hyper-parameter

as the Gaussian distribution, described by:

(10)

where is the mean or expectation of the distribution and

is its standard deviation. After training for one epoch,

models are generated and the rewards of these models are used to update the distribution of hyper-parameter by REINFORCE (Williams, 1992) as follows:

(11)

where is PDF of Gaussian distribution. We update the distribution of by Eq. (11) and search the best model from these candidates for the next epoch. We denote this manner as Search-Softmax in this paper.

  Input: Training set ; Validation set ; Initialized model ; Initialized distribution ; Distribution learning rate ; Training epochs .
  for  to  do
     1. Shuffle the training set and sample hyper-parameters via Eq. (10);
     2. Train the model for one epoch separately with the sampled hyper-parameters and get candidate models ;
     3. Calculate the reward for each candidate and get the corresponding scores ;
     4. Update the mean by using Eq. (11);
     5. Decide the index of model with the highest score ;
     6. Broadcast the model ;
  end for
  Output: The model
Algorithm 1 Search-Softmax

3.4 Optimization

In this part, we give the training procedure of our Search-Softmax loss. Suppose we have a network model parameterized by . The training set and validation set are denoted as and , respectively. The target of our loss function search is to maximize the model ’s rewards (e.g., accuracy) on the validation set with respect to the modulating factor , and the model is obtained by minimizing the following search loss:

(12)

According to the works (Colson et al., 2007; Li et al., 2019), the Eq. (12) refers to a standard bi-level optimization problem, where the modulating factor is regarded as a hyper-parameter. We train model parameters which minimize the training loss (i.e., Eq. (9)) at the inner level, while seeking a good loss function hyper-parameter which results in a model parameter that maximizes the reward on the validation set at the outer level. The model with the highest score is used in next epoch. At last, when the training converges, we directly take the model with the highest score as the final model without any retraining. To simplify the problem, we fix as a constant and optimize over . For clarity, the whole scheme of our Search-Softmax is summarized in Algorithm 1.


Datasets #Identities Images
Training CASIA-WebFace-R 9,879 0.43M
MS-Celeb-1M-v1c-R 72,690 3.28M
Test LFW 5,749 13,233
SLLFW 5,749 13,233
CALFW 5,749 12,174
CPLFW 5,749 11,652
AgeDB 568 16,488
CFP 500 7,000
RFW 11,430 40,607
MegaFace 530 (P) 1M (G)
Trillion-Pairs 5,749 (P) 1.58M (G)
Table 2: Face datasets for training and test. (P) and (G) refer to the probe and gallery set, respectively.

4 Experiments

4.1 Datasets

Training Data. This paper involves two popular training datasets, including CASIA-WebFace (Yi et al., 2014) and MS-Celeb-1M (Guo et al., 2016). Unfortunately, the original CASIA-WebFace and MS-Celeb-1M datasets consist of a great many face images with noisy labels. To be fair, here we use the clean version of CASIA-WebFace (Zhao et al., 2019, 2018) and MS-Celeb-1M-v1c (Deepglint, 2018) for training.

Test Data. We use nine popular face recognition benchmarks, including LFW (Huang et al., 2007), SLLFW(Deng et al., 2017), CALFW (Zheng et al., 2017), CPLFW (Zheng et al., 2018a), AgeDB (Moschoglou et al., 2017), CFP (Sengupta et al., 2016), RFW (Wang et al., 2018d), MegaFace (Kemelmacher-Shlizerman et al., 2016; Nech and Kemelmacher-Shlizerman, 2017) and Trillion-Pairs (Deepglint, 2018), as the test data. For more details about these test datasets, please see their references.

Dataset Overlap Removal. In face recognition, it is very important to perform open-set evaluation, i.e., there should be no overlapping identities between training set and test set. To this end, we need to carefully remove the overlapped identities between the employed training datasets and the test datasets. For the overlap identities removal tool, we use the publicly available script provided by (Wang et al., 2018b) to check whether if two names (one of which is from training set and the other comes from test set) are of the same person. In consequence, we remove 696 identities from the training set CASIA-WebFace and 14,718 identities from MS-Celeb-1M-v1c. For clarity, we denote the refined training datasets as CASIA-WebFace-R and MS-Celeb-1M-v1c-R, respectively. Important statistics of all the involved datasets are summarized in Table 2. To be rigorous, all the experiments are based on the refined training sets.

4.2 Experimental Settings

Data Processing. We detect the faces by adopting the FaceBoxes detector (Zhang et al., 2017, 2019a) and localize five landmarks (two eyes, nose tip and two mouth corners) through a simple 6-layer CNN (Feng et al., 2018; Liu et al., 2019). The detected faces are cropped and resized to 144144, and each pixel (ranged between [0,255]) in RGB images is normalized by subtracting 127.5 and divided by 128. For all the training faces, they are horizontally flipped with probability 0.5 for data augmentation.

CNN Architecture. In face recognition, there are many kinds of network architectures (Liu et al., 2017; Wang et al., 2018b, a; Deng et al., 2019). To be fair, the CNN architecture should be same to test different loss functions. To to achieve a good balance between computation and accuracy, we use the SEResNet50-IR (Deng et al., 2019) as the backbone, which is also publicly available at the website111 https://github.com/wujiyang/Face_Pytorch. The output of SEResNet50-IR gets a 512-dimension feature.

Training. Since our Search-Softmax loss is a bi-level optimization problem, our implementation settings can be divided into inner level and outer level. In the inner level, the model parameter

is optimized by stochastic gradient descent (SGD) algorithm and is trained from scratch. The total batch size is 128. The weight decay is set to 0.0005 and the momentum is 0.9. The learning rate is initially 0.1. For the CASIA-WebFace-R, we empirically divide the learning rate by 10 at 9, 18, 26 epochs and finish the training process at 30 epoch. For the MS-Celeb-1M-v1c-R, we divide the learning rate by 10 at 4, 8, 10 epochs, and finish the training process at 12 epoch. For all the compared methods, we run their source codes and keep the same experimental settings. In the outer level, we optimize the modulating factor

by REINFORCE (Williams, 1992) with rewards (i.e., accuracy on LFW) from a fixed number of sampled models. We normalized the rewards returned by each sample to zero mean and unit variance, which is set as the reward of each sample. We use Adam optimizer with a learning rate of and set for updating the distribution parameter . After that, we broadcast the model parameter

with the highest reward for synchronization. All experiments in this paper are implemented by Pytorch

(Paszke et al., 2019).

Test. At test stage, only the original image features are employed to compose the face representations. All the reported results in this paper are evaluated by a single model, without model ensemble or other fusion strategies.

For the evaluation metric, the cosine similarity is utilized. We follow the unrestricted with labelled outside data protocol

(Huang et al., 2007) to report the performance on LFW, SLLFW, CALFW, CPLFW, AgeDB, CFP and RFW. On Megaface and Trillion-Pairs Challenge, face identification and verification are conducted by ranking and thresholding the similarity scores. Specifically, for face identification, the Cumulative Match Characteristics (CMC) curves are adopted to evaluate the Rank-1 accuracy. For face verification, the Receiver Operating Characteristic (ROC) curves are adopted. The true positive rate (TPR) at low false acceptance rate (FAR) is emphasized since in real applications false acceptance gives higher risks than false rejection.

For the compared methods, we compare our method with the baseline Softmax loss (Softmax) and the hand-crafted heuristic methods (including A-Softmax (Liu et al., 2017), V-Softmax (Chen et al., 2018), AM-Softmax (Wang et al., 2018c, b) and Arc-Softmax (Deng et al., 2019)) and one AutoML for loss function search method (AM-LFS (Li et al., 2019)). For all the hand-crafted heuristic competitors, their source codes can be downloaded from the github or authors’ webpages. While for AM-LFS, we try our best to re-implement it since its source code is not publicly available yet. The corresponding parameter settings of each competitor are mainly determined according to their paper’s suggestions. Specifically, for V-Softmax, the number of virtual classes is set as the batch size. For A-Softmax, the margin parameter is set as . While for Arc-Softmax and AM-Softmax, the margin parameters are set as and , respectively. The scale parameter has already been discussed sufficiently in previous works (Wang et al., 2018b, c; Zhang et al., 2019b). In this paper, we empirically fixed it to 32 for all the methods.

Figure 1: From Left to Right: The derived modulating function and the corresponding margin-based softmax probability with different modulating factors .

4.3 Ablation Study

Effect of reducing softmax probability. We study the effect of reducing softmax probability by setting different modulating factors . Specifically, we manually sample several values . The corresponding modulating functions are shown in the left sub-figure of Figure 1. From the curves, we can see that is a monotonically increasing function with the defined domain (i.e., the value of decreases as the value of decreases). The function is in the range hence makes always less than the softmax probability . The corresponding margin-based softmax probabilities are displayed in the right sub-figure of Figure 3. Moreover, we also report the performance on LFW and SLLFW in Table 3. From the values, it can be concluded that reducing the softmax probability (i.e., ) achieves better performance than the softmax probability (i.e., ). Eventually, the experiments have indicated that the key to enhance the feature discrimination is to reduce the softmax probability and give us a cue to design the search space for our Search-Softmax.


0 -1 -10 -100 -1000 -10000
LFW 99.53 99.56 99.66 99.71 99.61 99.71
SLLFW 98.78 98.91 99.20 99.28 99.36 99.36
Table 3: Effect of reducing softmax probability by setting the modulating factor . The training set is MS-Celeb-1M-v1c-R.

LFW 99.79 99.78 99.79 99.78
SLLFW 99.31 99.56 99.53 99.58
Table 4: Effect of the number of sampled models by setting . The training set is MS-Celeb-1M-v1c-R.

Effect of the number of sampled models. We investigate the effect of the number of sampled models in the optimization procedure by changing the parameter in our Search-Softmax loss. Note that it costs more computation resources (GPUs) as increases. We report the performance results of different values selected from in Table 4 in terms of accuracy on the LFW and SLLFW test sets. The results show that when is small (e.g., ), the performance is not satisfactory because the best candidate cannot be obtained without enough samples. We also observe that the performance exhibits saturation when we keep enlarging (e.g., ). For a trade-off between the performance and the training efficiency, we choose to fix as 4 during training. For all the datasets, each sampled model is trained with 2 P40 GPUs, so a total of 8 GPUs are used.

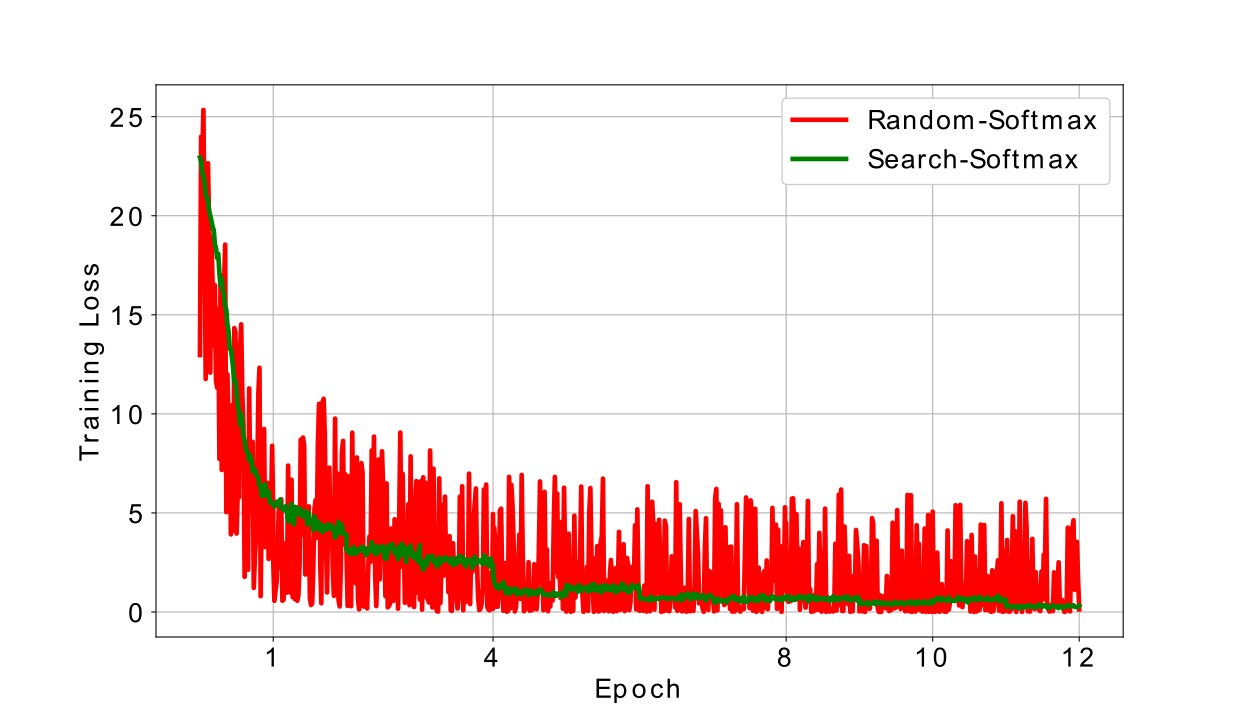

Figure 2: Convergence of the proposed Random-Softmax and Search-Softmax losses. From the curves, we can see that our methods have a good behavior of convergence.

Convergence. Although the convergence of our method is not easy to be theoretically analyzed, it would be intuitive to see its empirical behavior. Here, we give the loss changes as the number of epochs increases. From the curves in Figure 2, it can be observed that the loss changes of our Random-Softmax is fluctuated because the modulating factor is randomly selected at each epoch. Nevertheless, the overall trend is converged. For our Search-Softmax, we can see that it has a good behavior of convergence. The loss values obviously decrease as the number of epochs increases and the curve is much more smooth than the Random-Softmax. The reason behind this is that our Search-Softmax updates the distribution parameter by the rewards of the sampled models. The parameter is towards optimal distribution thus the sampled for each epoch is towards decreasing the loss values to achieve better performance.


Method LFW SLLFW CALFW CPLFW AgeDB CFP Avg.
Softmax 97.85 92.98 86.05 78.58 89.91 90.58 89.32
A-Softmax (Liu et al., 2017) 98.30 93.40 86.36 78.13 89.43 90.11 89.28
V-Softmax (Chen et al., 2018) 98.60 93.11 85.36 78.10 88.86 91.08 89.18
AM-Softmax (Wang et al., 2018b) 99.23 97.01 90.38 82.65 93.65 93.11 92.67
Arc-Softmax (Deng et al., 2019) 99.00 96.29 89.93 81.66 93.70 92.88 92.24
AM-LFS (Li et al., 2019) 98.88 95.23 88.14 80.63 91.41 92.67 91.16
Random-Softmax (Ours) 99.26 97.03 90.71 83.38 93.88 93.32 92.93
Search-Softmax (Ours) 99.15 97.68 90.98 84.21 94.15 94.21 93.39
Table 5: Verification performance (%) of different methods on the test sets LFW, SLLFW, CALFW, CPLFW, AgeDB and CFP. The training set is CASIA-WebFace-R.

Method LFW SLLFW CALFW CPLFW AgeDB CFP Avg.
Softmax 99.53 98.78 93.38 86.25 96.66 93.00 94.60
A-Softmax (Liu et al., 2017) 99.56 98.63 93.86 86.40 96.31 93.57 94.72
V-Softmax (Chen et al., 2018) 99.65 99.23 94.66 87.51 97.06 93.67 95.29
AM-Softmax (Wang et al., 2018b) 99.68 99.40 95.26 88.63 97.60 95.22 95.96
Arc-Softmax (Deng et al., 2019) 99.69 99.26 95.21 88.33 97.35 95.00 95.80
AM-LFS (Li et al., 2019) 99.68 99.01 94.18 86.85 96.70 93.70 95.02
Random-Softmax (Ours) 99.65 99.39 95.10 89.03 97.63 95.01 95.97
Search-Softmax (Ours) 99.78 99.56 95.40 89.50 97.75 95.64 96.27
Table 6: Verification performance (%) of different methods on the test sets LFW, SLLFW, CALFW, CPLFW, AgeDB and CFP. The training set is MS-Celeb-1M-v1c-R.

Method Caucasian Indian Asian African
Softmax 89.16 77.50 78.16 74.16
A-Softmax 88.16 79.33 79.33 77.50
V-Softmax 87.00 78.00 79.49 73.83
AM-Softmax 92.33 83.83 82.50 82.33
Arc-Softmax 91.49 83.66 81.00 80.66
AM-LFS 91.49 78.99 78.50 79.83
Random-Softmax 91.99 84.83 83.66 82.33
Search-Softmax 90.99 86.50 85.00 85.16
Table 7: Verification performance (%) of different methods on the test set RFW. The training set is CASIA-WebFace-R.

Method Caucasian Indian Asian African
Softmax 97.50 90.49 91.49 87.33
A-Softmax 97.50 91.49 90.66 87.66
V-Softmax 96.33 93.16 93.50 91.49
Arc-Softmax 98.99 93.49 93.49 94.00
AM-Softmax 99.00 95.16 94.66 94.16
AM-LFS 91.49 93.49 92.33 89.99
Random-Softmax 98.83 96.16 93.66 93.33
Search-Softmax 99.00 96.17 94.67 95.33
Table 8: Verification performance (%) of different methods on the test set RFW. The training set is MS-Celeb-1M-v1c-R.

4.4 Results on LFW, SLLFW, CALFW, CPLFW, AgeDB, CFP

Tables 5 and 6 provide the quantitative results of the compared methods and our method on the LFW, SLLFW, CALFW, CPLFW, AgeDB and CFP sets. The bold number in each column represents the best result. For the accuracy on LFW, it is well-known that the protocol is typical and easy and almost all the competitors can achieve saturated performance. So the improvement of our Search-Softmax loss is not quite large. On the test sets SLLFW, CALFW, CPLFW, AgeDB and CFP, we can observe that our Random-Softmax loss is better than the baseline Softmax loss and is comparable to most of the margin-based softmax losses. Our Search-Softmax loss further boost the performance and is better than the state-of-the-art alternatives. Specifically, when training by the CASIA-WebFace-R dataset, our Serach-Softmax achieves about 0.72% average improvement over the best competitor AM-Softmax. When training by the MS-Celeb-1M-v1c-R dataset, our Serach-Softmax still outperforms the best competitor AM-Softmax with 0.31% average improvement. The main reason is that the candidates sampled from our proposed search space can well approximate the margin-based loss functions, which means their good properties can be sufficiently explored and utilized during the training phase. Meanwhile, our optimization strategy enables that the dynamic loss can guide the model training of different epochs, which helps further boost the discrimination power. Nevertheless, we can see that the improvements of our method on these test sets are not by a large margin. The reason is that the test protocol is relatively easy and the performance of all the methods on these test sets are near saturation. So there is an urgent need to test the performance of all the competitors on new test sets or test with more complicated protocols.


Method MegaFace Trillion-Pairs
Id. Veri. Id. Veri.
Softmax 65.17 71.29 12.34 11.35
A-Softmax 64.48 71.98 11.83 11.11
V-Softmax 60.09 65.40 9.08 8.65
Arc-Softmax 79.91 84.57 21.32 20.97
AM-Softmax 82.86 87.33 25.26 24.66
AM-LFS 71.30 77.74 16.16 15.06
Random-Softmax 82.51 86.13 27.70 27.28
Search-Softmax 84.38 88.34 29.23 28.49
Table 9: Performance (%) of different loss functions on the test sets MegaFace and Trillion-Pairs. The training set is CASIA-WebFace-R.

Method MegaFace Trillion-Pairs
Id. Veri. Id. Veri.
Softmax 91.10 92.30 50.34 46.63
A-Softmax 90.81 93.49 49.99 45.59
V-Softmax 94.45 95.25 63.85 61.17
Arc-Softmax 96.39 96.86 67.60 66.46
AM-Softmax 96.77 97.20 69.02 67.94
AM-LFS 92.51 93.80 54.85 52.76
Random-Softmax 96.15 96.81 68.73 68.03
Search-Softmax 96.97 97.84 70.41 68.67
Table 10: Performance (%) of different loss functions on the test sets MegaFace and Trillion-Pairs. The training set is MS-Celeb-1M-v1c-R.

4.5 Results on RFW

Firstly, we evaluate all the competitors on the recent proposed new test set RFW (Wang et al., 2018d). RFW is a face recognition benchmark for measuring racial bias, which consists of four test subsets, namely Caucasian, Indian, Asian and African. Tables 7 and 8 display the performance comparison of all the involved methods. From the values, we can conclude that the results on the four subsets exhibit the same trends, i.e., our method is better than the baseline Softmax loss, the hand-crafted margin-based losses and the recent AM-LFS in most of cases. Concretely, our Random-Softmax obviously outperforms the Softmax loss by a large margin, which reveals that reducing the softmax probability will enhance the feature discrimination for face recognition. Our reward-guided one Search-Softmax, which defines an effective search space to well approximate the margin-based loss functions and uses rewards to explicitly search the best candidate at each epoch, is more likely to enhance the discriminative feature learning. Therefore, our Search-Softmax loss usually learns more discriminative face features and achieves higher performance than previous alternatives.

Figure 3: From Left to Right: CMC curves and ROC curves of different loss functions with 1M distractors on MegaFace Set 1. The training set is CASIA-WebFace-R.
Figure 4: From Left to Right: CMC curves and ROC curves of different loss functions with 1M distractors on MegaFace Set 1. The training set is MS-Celeb-1M-v1c-R.

4.6 Results on MegaFace and Trillion-Pairs

We then test all the competitors with more complicated protocols. Specifically, the identification (Id.) Rank-1 and the verification (Veri.) TPR@FAR=1e-6 on MegaFace, the identification (Id.) TPR@FAR=1e-3 and the verification (Veri.) TPR@FAR=1e-9 on Trillion-Pairs are reported in Tables 9 and 10, respectively. From the numbers, we observe that our Search-Softmax achieves the best performance over the baseline Softmax loss, the margin-based softmax losses, the AutoML one AM-LFS and our naive Random-Softmax, on both MegaFace and Trillion-Pairs Challenge. Specifically, on MegaFace, for our proposed Search-Softmax, it obviously beats the best margin-based competitor AM-Softmax loss by a large margin (about 1.5% on identification and 1.0% on verification when training by CASIA-WebFace-R, and 0.2% and 0.6% when training by MS-Celeb-1M-v1c-R). Compared to the AM-LFS, our Search-Softmax loss is also better due to our new designed search space. In Figures 3 and 4, we draw both of the CMC curves to evaluate the performance of face identification and the ROC curves to evaluate the performance of face verification on MegaFace Set 1. From the curves, we can see the similar trends at other measures. On Trillion-Pairs Challenge, we can observe that the results exhibit the same trends that emerged on MegaFace test set. Besides, the trends are more obvious. In particular, we achieve about 4% improvements by CASIA-WebFace-R and 1% improvements by MS-Celeb-1M-v1c-R at both the identification and the verification. In these experiments, we have clearly demonstrated that our Search-Softmax loss is superior for both the identification and verification tasks, especially when the false positive rate is very low. To sum up, by designing a simple but very effective search space and using rewards to guide the discriminative learning, our new developed Search-Softmax loss has shown its strong generalization ability for face recognition.

5 Conclusion

This paper has summarized that the key to enhance the feature discrimination for face recognition is how to reduce the softmax probability. Based on this knowledge, we design a unified formulation for the prevalent margin-based softmax losses. Moreover, we define a new search space to guarantee the feature discrimination. Accordingly, we develop a random and a reward-guided loss function search method to obtain the best candidate. An efficient optimization framework for optimizing the distribution of search space is also proposed. Extensive experiments on a variety of face recognition benchmarks have validated the effectiveness of our new approach over the baseline softmax loss, the hand-crafted heuristic methods, i.e., margin-based softmax losses, and the recent AutoML one AM-LFS.

References

  • B. Chen, W. Deng, and H. Shen (2018) Virtual class enhanced discriminative embedding learning. In Advances in Neural Information Processing Systems, pp. 1942–1952. Cited by: §1, §1, §4.2, Table 5, Table 6.
  • B. Colson, P. Marcotte, and G. Savard (2007) An overview of bilevel optimization. Annals of operations research 153 (1), pp. 235–256. Cited by: §3.4.
  • Deepglint (2018) Note: http://trillionpairs.deepglint.com/overview Cited by: §4.1, §4.1.
  • J. Deng, J. Guo, N. Xue, and S. Zafeiriou (2019) Arcface: additive angular margin loss for deep face recognition. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    ,
    pp. 4690–4699. Cited by: §1, §1, §2, §2, §4.2, §4.2, Table 5, Table 6.
  • W. Deng, J. Hu, N. Zhang, B. Chen, and J. Guo (2017) Fine-grained face verification: fglfw database, baselines, and human-dcmn partnership. Pattern Recognition 66, pp. 63–73. Cited by: §4.1.
  • Z. Feng, J. Kittler, M. Awais, P. Huber, and X. Wu (2018) Wing loss for robust facial landmark localisation with convolutional neural networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2235–2245. Cited by: §4.2.
  • J. Guo, X. Zhu, Z. Lei, and S. Z. Li (2018) Face synthesis for eyeglass-robust face recognition. In Chinese Conference on Biometric Recognition, pp. 275–284. Cited by: §1.
  • J. Guo, X. Zhu, C. Zhao, D. Cao, Z. Lei, and S. Z. Li (2020) Learning meta face recognition in unseen domains. arXiv preprint arXiv:2003.07733. Cited by: §1.
  • Y. Guo, L. Zhang, Y. Hu, X. He, and J. Gao (2016) Ms-celeb-1m: a dataset and benchmark for large-scale face recognition. In European conference on computer vision, pp. 87–102. Cited by: §4.1.
  • G. Huang, M. Ramesh, and E. Miller. (2007) Labeled faces in the wild: a database for studying face recognition in unconstrained enviroments.. Technical Report. Cited by: §4.1, §4.2.
  • I. Kemelmacher-Shlizerman, S. M. Seitz, D. Miller, and E. Brossard (2016) The megaface benchmark: 1 million faces for recognition at scale. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 4873–4882. Cited by: §4.1.
  • C. Li, X. Yuan, C. Lin, M. Guo, W. Wu, J. Yan, and W. Ouyang (2019) AM-lfs: automl for loss function search. In Proceedings of the IEEE International Conference on Computer Vision, pp. 8410–8419. Cited by: §1, §2, §3.1, §3.4, §4.2, Table 5, Table 6.
  • X. Liang, X. Wang, Z. Lei, S. Liao, and S. Z. Li (2017) Soft-margin softmax for deep classification. In International Conference on Neural Information Processing, pp. 413–421. Cited by: §1.
  • W. Liu, Y. Wen, Z. Yu, M. Li, B. Raj, and L. Song (2017) Sphereface: deep hypersphere embedding for face recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 212–220. Cited by: §1, §1, §2, §2, §4.2, §4.2, Table 5, Table 6.
  • W. Liu, Y. Wen, Z. Yu, and M. Yang (2016) Large-margin softmax loss for convolutional neural networks.. In Proceedings of the 33rd International Conference on International Conference on Machine Learning, Vol. 2, pp. 7. Cited by: §2.
  • Y. Liu, H. Shi, Y. Si, H. Shen, X. Wang, and T. Mei (2019) A high-efficiency framework for constructing large-scale face parsing benchmark. arXiv preprint arXiv:1905.04830. Cited by: §4.2.
  • S. Moschoglou, A. Papaioannou, C. Sagonas, J. Deng, I. Kotsia, and S. Zafeiriou (2017) Agedb: the first manually collected, in-the-wild age database. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, pp. 51–59. Cited by: §4.1.
  • A. Nech and I. Kemelmacher-Shlizerman (2017) Level playing field for million scale face recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 7044–7053. Cited by: §4.1.
  • A. Paszke, S. Gross, F. Massa, A. Lerer, J. Bradbury, G. Chanan, T. Killeen, Z. Lin, N. Gimelshein, L. Antiga, et al. (2019)

    PyTorch: an imperative style, high-performance deep learning library

    .
    In Advances in Neural Information Processing Systems, pp. 8024–8035. Cited by: §4.2.
  • R. Ranjan, C. Castillo, and R. Chellappa. (2017) L2-constrained softmax loss for discriminative face verification.. arXiv preprint arXiv:1703.09507.. Cited by: §1.
  • F. Schroff, D. Kalenichenko, and J. Philbin (2015) Facenet: a unified embedding for face recognition and clustering. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 815–823. Cited by: §1.
  • S. Sengupta, J. Chen, C. Castillo, V. M. Patel, R. Chellappa, and D. W. Jacobs (2016) Frontal to profile face verification in the wild. In 2016 IEEE Winter Conference on Applications of Computer Vision (WACV), pp. 1–9. Cited by: §4.1.
  • K. Simonyan and Z. Andrew (2014) Very deep convolutional networks for large-scale image recognition.. arXiv preprint arXiv:1409.1556. Cited by: §1.
  • Y. Sun, Y. Chen, X. Wang, and X. Tang (2014) Deep learning face representation by joint identification-verification. In Advances in neural information processing systems, pp. 1988–1996. Cited by: §1.
  • Y. Sun, X. Wang, and X. Tang (2015) Deeply learned face representations are sparse, selective, and robust. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2892–2900. Cited by: §1.
  • F. Wang, L. Chen, C. Li, S. Huang, Y. Chen, C. Qian, and C. Change Loy (2018a) The devil of face recognition is in the noise. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 765–780. Cited by: §4.2.
  • F. Wang, J. Cheng, W. Liu, and H. Liu (2018b) Additive margin softmax for face verification. IEEE Signal Processing Letters 25 (7), pp. 926–930. Cited by: §1, §2, §2, §4.1, §4.2, §4.2, Table 5, Table 6.
  • F. Wang, X. Xiang, J. Cheng, and A. L. Yuille (2017) Normface: l2 hypersphere embedding for face verification. In Proceedings of the 25th ACM international conference on Multimedia, pp. 1041–1049. Cited by: §1, §2.
  • H. Wang, Y. Wang, Z. Zhou, X. Ji, D. Gong, J. Zhou, Z. Li, and W. Liu (2018c) Cosface: large margin cosine loss for deep face recognition. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 5265–5274. Cited by: §1, §2, §4.2.
  • M. Wang, W. Deng, J. Hu, J. Peng, X. Tao, and Y. Huang (2018d) Racial faces in-the-wild: reducing racial bias by deep unsupervised domain adaptation. arXiv:1812.00194. Cited by: §4.1, §4.5.
  • X. Wang, S. Wang, J. Wang, H. Shi, and T. Mei (2019a) Co-mining: deep face recognition with noisy labels. In ICCV, Cited by: §1.
  • X. Wang, S. Zhang, Z. Lei, S. Liu, X. Guo, and S. Z. Li (2018e) Ensemble soft-margin softmax loss for image classification. arXiv preprint arXiv:1805.03922. Cited by: §1, §2.
  • X. Wang, S. Zhang, S. Wang, T. Fu, H. Shi, and T. Mei (2019b) Mis-classified vector guided softmax loss for face recognition. arXiv preprint arXiv:1912.00833. Cited by: §1, §2.
  • Y. Wen, K. Zhang, Z. Li, and Y. Qiao (2016) A discriminative feature learning approach for deep face recognition. In European conference on computer vision, pp. 499–515. Cited by: §1, §1.
  • R. J. Williams (1992) Simple statistical gradient-following algorithms for connectionist reinforcement learning. Machine learning 8 (3-4), pp. 229–256. Cited by: §3.3, §4.2.
  • T. Yao, Y. Pan, Y. Li, and T. Mei (2017)

    Incorporating copying mechanism in image captioning for learning novel objects

    .
    In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 6580–6588. Cited by: §1.
  • T. Yao, Y. Pan, Y. Li, and T. Mei (2018) Exploring visual relationship for image captioning. In Proceedings of the European conference on computer vision (ECCV), pp. 684–699. Cited by: §1.
  • D. Yi, Z. Lei, S. Liao, and S. Z. Li. (2014) Learning face representation from scratch.. arXiv:1411.7923.. Cited by: §4.1.
  • S. Zhang, X. Wang, Z. Lei, and S. Z. Li (2019a) Faceboxes: a cpu real-time and accurate unconstrained face detector. Neurocomputing. Cited by: §4.2.
  • S. Zhang, X. Zhu, Z. Lei, H. Shi, X. Wang, and S. Z. Li (2017) Faceboxes: a cpu real-time face detector with high accuracy. In 2017 IEEE International Joint Conference on Biometrics (IJCB), pp. 1–9. Cited by: §4.2.
  • X. Zhang, R. Zhao, Y. Qiao, X. Wang, and H. Li (2019b)

    Adacos: adaptively scaling cosine logits for effectively learning deep face representations

    .
    In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 10823–10832. Cited by: §4.2.
  • J. Zhao, Y. Cheng, Y. Xu, L. Xiong, J. Li, F. Zhao, K. Jayashree, S. Pranata, S. Shen, J. Xing, et al. (2018) Towards pose invariant face recognition in the wild. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2207–2216. Cited by: §4.1.
  • J. Zhao, J. Li, X. Tu, F. Zhao, Y. Xin, J. Xing, H. Liu, S. Yan, and J. Feng (2019) Multi-prototype networks for unconstrained set-based face recognition. arXiv preprint arXiv:1902.04755. Cited by: §4.1.
  • T. Zheng, W. Deng, J. Hu, and J. Hu (2017) Cross-age lfw: a database for studying cross-age face recognition in unconstrained environments. arXiv:1708.08197. Cited by: §4.1.
  • T. Zheng, W. Deng, T. Zheng, and W. Deng (2018a) Cross-pose lfw: a database for studying crosspose face recognition in unconstrained environments. Tech. Rep. Cited by: §4.1.
  • Y. Zheng, D. K. Pal, and M. Savvides (2018b) Ring loss: convex feature normalization for face recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 5089–5097. Cited by: §1.
