Look-up and Adapt: A One-shot Semantic Parser

10/27/2019 ∙ by Zhichu Lu, et al. ∙ 0

Computing devices have recently become capable of interacting with their end users via natural language. However, they can only operate within a limited "supported" domain of discourse and fail drastically when faced with an out-of-domain utterance, mainly due to the limitations of their semantic parser. In this paper, we propose a semantic parser that generalizes to out-of-domain examples by learning a general strategy for parsing an unseen utterance through adapting the logical forms of seen utterances, instead of learning to generate a logical form from scratch. Our parser maintains a memory consisting of a representative subset of the seen utterances paired with their logical forms. Given an unseen utterance, our parser works by looking up a similar utterance from the memory and adapting its logical form until it fits the unseen utterance. Moreover, we present a data generation strategy for constructing utterance-logical form pairs from different domains. Our results show an improvement of up to 68.8 evaluation settings compared to the baselines.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction and Background

Speech recognition technologies are achieving human parity Xiong et al. (2016)

. As a result, end users can now access different functionalities of their phones and computers through spoken instructions via a natural language processing interface referred to as a conversational agent. Current commercial conversational agents such as Siri, Alexa or Google Assistant come with a fixed set of simple functions like setting alarms and making reminders, but are often not able to cater to the specific phrasing of a user or the specific action a user needs. However, it has recently been shown that it is possible to add new functionalities to an agent through natural language

instruction Azaria et al. (2016); Labutov et al. (2018).

For example, assume that the user wants to add a functionality for resetting an alarm based on the weather forecast for the next day, as demonstrated by the following utterance: “whenever it snows at night, wake me up 30 minutes early”. The user can instruct this task to the agent by breaking it down into a sequence of actions that the agent already knows.

  • check the weather app,

  • see if the forecast is calling for snow,

  • if yes, then reset the time of the alarm to 30 minutes earlier.

This set of instructions result in a logical form or a semantic parse for this specific new utterance. However, this approach can be used in practice only if the agent is capable of generalizing from this single new utterance to similar utterances such as “if the weather is rainy, then set an alarm for 1 hour later”. We refer to this problem as one-shot semantic parsing.

In this paper, we address this one-shot semantic parsing task and present a semantic parser that generalizes to out-of-domain utterances by seeing a single example from that domain. While state of the art neural semantic parsers are flexible to language variations, they need plenty of examples from the new domain to be able to parse an utterance from that domain, which is not possible in our scenario. On the other hand, grammar parsers are not robust to the flexibility of language because of their use of string matching. Therefore, we propose a method that preserves the robustness of neural semantic parsers while addressing the data sparsity of the one-shot semantic parsing task. We present a general strategy for “adapting” logical forms rather than constructing them from scratch by “looking up” similar sentences that we know how to parse and changing their logical forms until they fit the new utterances. These logical forms are looked-up from a memory that contains a representative subset of previously seen utterance-logical form pairs. Once this general strategy is learned, the parser can be extended to parse an utterance from a new domain by adding one new example of that domain to the memory.

We propose a dataset generation method that allows us to evaluate the effectiveness of our model in a one-shot setting. We show that we generate reasonably good utterances while creating different experimental setups and scenarios for evaluation.

Summary of Results

In this paper we propose a novel neural semantic parser for the task of one-shot semantic parsing. We design two different experiments to evaluate the parsing accuracy. We show that our approach improves the performance of neural semantic parsers by a significant margin across 6 different domains of discourse. Moreover, we present a detailed analysis of our proposed model and the performance of its different components through an oracle study.

2 Problem Definition

In this section, we introduce the basic terminology used in the paper and formally define the task of one-shot semantic parsing.

A semantic parser takes as input an utterance and outputs a corresponding logical form. An utterance is a sequence of words and a logical form is an s-expression capturing the meaning of the utterance.

For example, “parents of John’s friends” is an utterance and (field parent (field friend John)) is its logical form.

We use a synchronous context free grammar (SCFG), which is a generalization of the context-free grammar (CFG), to generate grammar rules Chiang (2006). A rule in an SCFG has a left hand side, which is a non-terminal category, and two right hand sides, referred to as the source and the target. For our semantic parsing task, the source corresponds to an utterance, and the target corresponds to a logical form. We denote a grammar rule with the small letter . A set of grammar rules, denoted by the capital letter , span a domain of utterances. In this paper, we define as the set of all utterance-logical form pairs generated by a set of grammar rules . A sample SCFG with its domain are provided in Tables 5 of Appendix A and Table 1 below, respectively.

Utterance Logical Form
John john
Mary mary
parents parent
children child
parents of John (field parent john)
parents of Mary (field parent mary)
children of John (field child john)
children of Mary (field child mary)
John ’s parents (field parent john)
Mary ’s parents (field parent mary)
John ’s children (field child john)
Mary ’s children (field child mary)
Table 1: Domain of the sample SCFG . The rules of this SCFG are presented in the Appendix A. The domain of the sample SCFG is the set of all source, target pairs listed in this table.

In one-shot semantic parsing we are given as input a subset of utterance and logical form pairs from and a single utterance and logical form pair from . The goal of one-shot semantic parsing is to parse utterances from that are not in the input.

Let us provide an example to make this more clear. Consider that we are given utterance and logical form pairs from in Table 1 as well as the following utterance and logical form pair as input.

The goal of one-shot semantic parsing is to parse examples such as

(1)
(2)

which are not in .

This is a challenging task for a complex grammar since the domain of a typical grammar consists of hundreds of thousand of examples. Therefore, being able to parse all variations of utterances in the domain by seeing only a single example from it does not have a trivial solution. Grammar-based semantic parsers usually rely on string matching which limits their robustness to natural language variation. Neural semantic parsers are more robust compared to grammar-based parsers. However, their performance significantly drops in such a data-hungry setting. In the next section, we present our look-up adapt semantic parser that addresses the challenges of neural semantic parsers in a data-sparse scenario.

3 Look-up and Adapt

In this section, we propose a novel neural network architecture for one-shot semantic parsing. We are given a set of utterance-logical form pairs as input and our goal is to output a semantic parse for an unseen query utterance. Our model is able to generate a logical form for the utterance by “looking up” a similar utterance from a pool of utterance-logical form pairs and “adapting” its logical form. This pool of utterances is maintained in a “memory” and consist of a representative subset of the input utterance-logical form pairs. We will show that in the data-sparse scenario of one-shot semantic parsing, adapting known logical forms is easier compared to generating a logical form from scratch. We will also discuss that it is important what subset of the data is included in the memory.

Our model consists of two main modules, namely look-up § 3.1 and adapt § 3.2. Figure 1 shows a sketch of our proposed model and the main look-up adapt algorithm is given in Algorithm 1. The look-up module is responsible for retrieving utterance-logical form pairs from the memory, using two Bidirectional LSTM encoders. The adapt module is responsible for adapting the retrieved logical form until it results in the correct semantic parse. The adapt module has two sub-modules, namely the aligner and the discriminator. The aligner is responsible for aligning the logical form with the query utterance and the discriminator decides which parts of the logical form should be swapped with a new one from the memory. In the following sections, we will define each sub-module of our proposed model in detail and propose a loss for training the model in an end-to-end fashion.

Before describing the model components, let us start by introducing the notation we will use in the following sections. Bold capital letters represent matrices, and bold lower case letters represent vectors.

denotes a distributed representation of an utterance, where each column of

is the representation for a word in the utterance. denotes a distributed representation of a logical form, where each column of is the representation for a predicate in the logical form. T is a tree representation of the logical form. and denote attention weights that sum to at least 0 and at most 1.

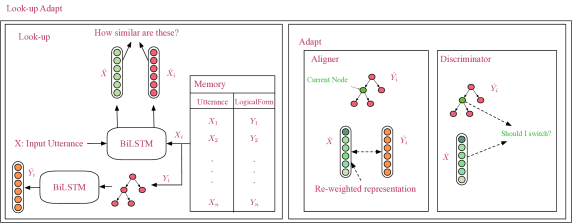

Figure 1: Look-up Adapt semantic parser. Our model consists of two main modules, namely “Look-up” (left box) and “Adapt” (right box). The look-up module is responsible for retrieving utterance-logical form pairs from the memory that are similar to an input query utterance . The ‘Adapt” module is further broken down into two modules “Aligner” and “Discriminator”. Given a looked-up utterance and logical form pair, the aligner module traverses the logical form tree and updates the utterance representation accordingly while the discriminator module decides weather to switch the current node with another one from the memory or keep it as is.
1:function LookUpAndAdapt()
2:
3:     for all t in T.children  do
4:
5:          T.children.replace(t, t’)
6:     return T
Algorithm 1 LookUpAndAdapt

3.1 Look-up

In this section, we describe our look-up strategy and discuss its sub-modules in detail.

Encoder

Bidirectional RNNs have been successfully used to represent sentences in many areas of natural language processing such as question answering, neural machine translation, and semantic parsing

Bengio and LeCun (2015); Hermann et al. (2015); Dong and Lapata (2016). We use Bidirectional LSTMs where the forward LSTM reads the input in the utterance word order () and the backward LSTM reads the input in reversed order (). The output for each word is the concatenation of the th hidden state of the forward LSTM and the th hidden state of the backward LSTM. As shown in Figure 1, we use two Bidirectional LSTMs, one to encode the utterance, and one to encode the logical form. The utterance is treated as a sequence of words, where each word is represented as a pretrained GloVe Pennington et al. (2014) embedding. The logical form is treated as a sequence of predicates and parentheses, each of which is also represented as a pretrained GloVe embedding. The motivation to use GloVe embeddings for both words and predicates is to avoid the problem of unknown words/predicates encountered in the one-shot utterance’s domain.

Retrieving from the memory

The memory consists of a subset of the utterance-logical form pairs given as input to the algorithm. We refer to the number of pairs in the memory as its size and denote it with . We would like to note that the algorithm’s success depends on having a memory that captures the structure of the domain. In this paper, we make a simplifying assumption that the memory is given by an oracle, and it consists of one example per grammar rule. Other choices for the memory are also possible but exploring them falls out of the scope of this paper. An interested reader is referred to Appendix B for a more detailed discussion. In the future we wish to automate the acquisition of this memory.

Given an encoded query utterance , we model the retrieval as a classification over examples in the memory. We compute a fixed size query vector which is a weighted average of the column vectors in . We compute a fixed-size key vector for every example in the memory , as the mean of the column vectors of .

Given a query vector and vectors from the memory for where

is the memory size, we model the probability of retrieving the

th entry from memory using equation 3

(3)

where

(4)

where is element-wise product, is concatenation of vectors and , and

is a Multi-Layer-Perceptron with a single hidden layer and ReLU activation function. This way of featurizing

and was adapted from Kumar et al. (2016). LookUp greedily returns the example with the highest probability of being selected.

3.2 Adapt

The algorithm for Adapt is given in Algorithm 2. The adaptation is two phase. First an alignment from T to relevant words in the new utterance is computed. Then a decision is made on whether this subtree fails to match the relevant words in the utterance and needs to be replaced. If yes, a recursive call to LookUpAndAdapt will be made with an updated attention to focus on words relevant to the subtree, and the returned value will be propagated and eventually used as a replacement for the current subtree. Otherwise, recursive calls to Adapt will be made to check the children of the current subtree. For an example see Table 9.

The input Memory to the algorithm is used in case a recursive call to LookUpAndAdapt is needed. is the representation of the new utterance. is the representation of the current logical form. T is a subtree of that we wish to adapt. is the attention weights of the parent of T, to be used as a mask when the alignment of T is computed. In the following space we describe the aligner module for alignment and the discriminator module for scoring a match between a subtree and part of the new utterance.

1:function Adapt()
2:     Phase 1: aligning T to relevant words in
3:
4:
5:     if  then
6:
7:
8:     Phase 2: deciding whether to replace T and then recurse
9:
10:     if  then
11:          return
12:     else
13:          for all t in T.children  do
14:
15:               T.children.replace(t, t’)
16:          return T
Algorithm 2 Adapt

Aligner Module

The aligner module produces an attention score over the new utterance given a subtree of a logical form. Inspired by the gating attention mechanism in Kumar et al. (2016), we model attention for every word in the utterance as the maximum attention given by any predicate in the subtree T.

(5)

where

is the sigmoid function and

(6)

where is element-wise product, is concatenation of vectors and , is the th column of , is the th column of , and

is a learnable linear transformation.

is the representation of the parent predicate of the subtree T (e.g. the parent predicate is field for subtree john of logical form (field parent john)). We found that adding this feature helps the model learn to align arguments of predicates better.

We also found that constraining the attention further by requiring that the attention of a child node be a refinement of the attention of a parent node facilitates good alignment. This is modeled by the update rule

(7)

Observe that if the attention score of the parent node is very low for some word, the child is not going to be able to look at it. This encourages the parent node to attend to words not just relevant to itself but also the children, and encourages the child to refine rather than drastically change from the alignment of the parent node.

Given the output weights of the aligner module, we compute a fixed-size representation for the relevant words in the utterance to the current subtree T by first taking the weighted average where is matrix product. If , we will divide by to normalize it. is then compared against the representation of the subtree by the discriminator to produce a confidence score indicating whether the subtree matches the words it aligns to in the utterance.

Discriminator Module

The discriminator module learns to tell when a subtree fails to match the meaning of the words in its alignment. Given a subtree T of a logical form , its fixed-size representation is computed as a mean of the representations for each predicate in the subtree using the formula , where is the th column of , and is the set of indices corresponding to all the predicates in the subtree T. For example, the fixed-size representation for the subtree john in logical form (field parent john) is just (indexing from 1, and also counting parentheses because they are also encoded in ).

We model the confidence that the subtree representation fails to match the meaning of the aligned words as

(8)

where is the sigmoid function and

(9)

is element-wise product, is concatenation of vectors and , and is a learnable linear transformation. This confidence score is used by Algorithm 2 to decide whether to replace the subtree or to keep it.

4 Training

In training, we maximize the log conditional likelihood of the data. Due to our selection of memory (one example for each grammar rule in ), for a given there is a unique sequence of retrieval and adaptation actions that lead to the production of the correct . Specifically, letting be the th action in the correct sequence of actions, we define the probability of producing given as the probability of taking the sequence of actions . We decompose this joint probability into products of conditional probabilities of taking action given the previous actions and the input

(10)

If is a retrieval action,

(11)

where is defined in Equation 3. If is an adaptation decision, i.e. to replace a particular subtree

(12)

where is defined in Equation 8.

5 Dataset Generation

Using existing semantic parsing datasets to directly evaluate one-shot parsing is difficult, because evaluation of one-shot parsing requires grouping of utterances by structural similarity to construct domains.

Therefore, we generate our own data 111Our dataset can be accessed at https://github.com/zhichul/lookup-and-adapt-parser-data. based on a synchronous context free grammar. We evaluate our approach on the generated dataset. Although our dataset is synthetic, it has the properties needed to evaluate one-shot parsing:

  • clear distinction of domains

  • plenty of examples for rules in the old domain

  • one example for each rule in the new domain

  • a separate evaluation set containing variations of the new rules

It is worth noting that although datasets such as OVERNIGHT Wang et al. (2015) do have clear domain distinction, they do not have the other properties needed for a good evaluation of one-shot parsing. In the future, we are planning to use crowd-sourcing to rephrase the generated utterances in order to make them more natural.

We have two topics of discourse in the SCFG that we use to generate our data. The first is accessing some field of some object, and the second is setting some field of some object to some value or some field of another object. These are general purpose instructions that can express many common intents, such as looking up the location of a restaurant, getting the phone number of a contact, and setting reminders and alarms.

We have six domains of discourse in the SCFG that we use to generate our data – person, restaurant, event, course, animal, and vehicle. Table 2 includes sample sentences and their logical form for every domain of discourse.

Domain Utterance & Logical Form
person the hometown field of john
(field (relation hometown) (person john))
person set her ’s parents with classmates
(set (field (relation parent) (person reference)) (person classmate))
restaurant irish restaurant instances ’s price field
(field (relation price) (restaurant irish))
restaurant set address field of all irish restaurant as indian restaurant ’s price
(set (field (relation address) (restaurant irish)) (field (relation price) (restaurant indian)))
event the start time of lectures
(field (relation start) (event lecture))
event set the attendants of that event to organizers field of receptions instances
(set (field (relation attendant) (event reference)) (field (relation organizer) (event reception)))
course size of my history course instances
(field (relation size) (course history))
course set all history course instances ’s prerequisite field as physics course
(set (field (relation prerequisite) (course history)) (course physics))
animal life span of all lion instances
(field (relation span) (animal lion))
animal set fish instances ’s family field with dog
(set (field (relation family) (animal fish)) (animal dog))
vehicle the source field of all buses
(field (relation source) (vehicle bus))
vehicle set operators of all subways as buses instances
(set (field (relation operator) (vehicle subway)) (vehicle bus))
Table 2: Sample utterance-logical form pairs from each domain of discourse. Sentences parse to commands that retrieve a field of an object. Sentences parse to commands which set a field of an object to a constant or a field of another object. The grammar we use do not constrain the type of the set command. As a consequence, some sentences generated are not semantically correct according to a human interpreter but still they preserve the sentence structure. Sentence , , and are examples of this phenomena.

Since one-shot parsing has two phases, our dataset is slightly different from a typical dataset consisting of a single collection of utterance-logical form pairs. In the following space we describe the sets of data generated for each domain. In the next section we describe how we can use this dataset to design two different one-shot parsing evaluation setups.

For each domain , we define a and randomly generate examples from to construct an “old” set of examples . We also generate a representative subset to be used as the memory of our model. As described in § 3.1, contains one example for each grammar rule in .

In addition, we define a set of new rules disjoint from for each domain and generate one example for each new rule , and store them into the memory . These are the one-shot examples. The extended memory .

Finally, we generate evaluation sets and where denotes set difference. In our experiments we split the evaluation sets randomly into a development set and a test set of the same size.

Some statistics of our generated dataset is presented in Appendix D. In the next section, we describe how we use this data to generate two different experimental scenarios for evaluating one-shot semantic parsing.

6 Results and Evaluation

We evaluate our approach in six domains, namely person, restaurant, event, course, animal, and vehicle, and in two one-shot parsing scenarios, namely extension and transfer. In the next section we define these two different scenarios. We compare the performance to a sequence-to-sequence parser with attention which is defined in the following paragraphs.

Baseline

Our baseline is a sequence-to-sequence parser with attention. We use a 1-layer Bidirectional LSTM as the encoder for the utterance, and a 1-layer LSTM as the decoder for the logical form. We initialize the decoder with a learned projection of the last hidden state of the encoder. The inputs to the encoder are GloVe word embeddings, and the inputs to the decoder are concatenations of embeddings of logical predicates and context vectors. Context vectors are attention weighted averages of projected encoder states. The attention weights over the utterance for each decoding step is computed by taking the dot product of the hidden state of the decoder at step and the projected encoder state for each word in the utterance, normalized using the softmax function. The output of a decoding step

is a probability distribution over all the logical predicates. The distribution is modeled as a dot product between a projection of the overall decoding state at time

, and the embedding for each logical predicate, normalized using the softmax function. The overall decoding state at time is the concatenation of the hidden state of the decoder at time and the context vector at time . Decoding of a logical form given an utterance is done as a greedy search over all possible logical forms to output.

Evaluation Metric

Our evaluation metric is parsing accuracy. We define parsing accuracy as the ratio of the correctly parsed utterances in the test set. An utterance is parsed correctly if its generated logical form matches the annotated logical form exactly. E.g.

(field (relation parent) (person john)) is a correct parse of “parents of John”. We report accuracy percentage in Tables 3 and 4.

6.1 Discussion

We design two different scenarios for one-shot parsing evaluation, namely the extension and the transfer scenarios. We define and discuss the results of each scenario in the following sections.

Extension

This scenario tests one-shot parsing of new rules within the same domain that the model is trained on. In this case, we hold out several rules and their corresponding utterance-logical form pairs for evaluation and train on the remaining ones.

The results of this experiment are presented in Table 3. Each column indicates the evaluation results on each domain. The full scores refer to the overall percentage of correct parses on the entire test data, the d=2 scores refer to the percentage of correct parses on examples with logical form depth 2 and the d=3 scores refer to the percentage of correct parses on examples with logical form depth 3.

As it can be seen in the table, our model is able to consistently improve the sequence-to-sequence baseline on all the domains by a significant margin of .

Transfer

This scenario tests one-shot parsing of new rules in a domain different from the one that the model is trained on. For example, in the transfer scenario for domain person the model is trained on examples from the other domains restaurant, event, course, animal, and vehicle and tested on samples from domain person. This is harder compared to the extension setup since it requires generalization to a completely new domain.

The results of this section are reported in Table 4. As it can be seen, the performance is improved by up to compared to the baseline model.

In order to have a better understanding of the model and indicate why it is performing comparable to the baseline on some of the domains setting, we carry out a model analysis in the next section.

Model Analysis

We add two variations of our model ORACLE-DISCRIM and PRETRAIN-ENC for the transfer scenario to see the performance improvements gained from replacing different components of our model with an oracle/near oracle. This identifies potential bottlenecks of the model.

In ORACLE-DISCRIM, we load a trained model from LOOKUPADAPT but replace the discriminator with an oracle during evaluation. As the numbers in row 3 of Table 4 show, using an oracle discriminator improves the model performance by more than 10% in the vehicle domain and course domain, and by smaller amounts in the other domains. On one hand, this suggests that the discriminator has room for improvement. On the other hand, the numbers suggest that there is still a much larger room for improvement for the encoder, aligner, and look-up components. Our hypothesis is that the encoder components are likely the main bottleneck because during evaluation in the transfer scenario they have to produce good representations for utterances and logical forms very different from the ones which they have seen during training. We found evidence supporting this hypothesis in the PRETRAIN-ENC variation.

In PRETRAIN-ENC, we pretrain our model on all the domains, which ensures that the two encoders see all domains. We then use the encoder parameters of this all-domain pretrained model to initialize the encoders in the experiments for the transfer scenario. We then fix the encoders and train only the aligner, discriminator, and look-up parameters. This results in near perfect generalization to the test domain by the aligner, discriminator, and look-up components, which are trained only on the other domains. This suggests that the encoder is the main bottleneck of our model since using a near-oracle version boosts its performance to perfect. The results for this variation is shown in row 4 of Table  4.

extension
person restaurant event course animal vehicle
Sequence-To-Sequence full 20.1 25.1 26.1 19.9 25.0 18.8
d=2 25.0 18.1 20.0 31.8 26.5 25.9
d=3 13.9 37.3 42.4 0.0 21.5 5.8
LOOKUPADAPT full 45.9 61.7 85.5 79.2 63.6 87.6
d=2 56.7 85.4 94.5 86.7 70.1 93.6
d=3 27.8 20.0 61.7 66.7 46.5 76.5
Table 3: Test Accuracy on the extension Dataset.
transfer
person restaurant event course animal vehicle
Sequence-To-Sequence full 5.2 29.2 5.2 19.9 35.5 12.5
d=2 6.4 41.7 4.9 27.5 44.9 15.6
d=3 3.1 8.4 5.7 6.0 13.8 6.3
LOOKUPADAPT full 41.8 43.8 8.4 16.7 28.3 11.5
d=2 52.5 53.4 13.2 24.2 37.3 14.1
d=3 21.4 27.8 0.0 3.0 6.9 6.3
ORACLE-DISCRIM full 46.9 45.8 12.5 29.2 33.3 25.0
d=2 55.6 56.7 18.0 41.8 44.8 29.7
d=3 30.3 27.8 2.9 5.9 6.9 15.6
PRETRAIN-ENC full 98.0 100.0 100.0 99.0 100.0 96.9
d=2 100.0 100.0 100.0 100.0 100.0 100.0
d=3 94.0 100.0 100.0 97.1 100.0 90.1
Table 4: Test Accuracy on the transfer Dataset.

7 Related Work

Semantic parsing is the task of mapping utterances to a formal representation of their meaning. Researchers have used grammar-based methods as well as machine learning-based methods to address this problem. Grammar-based parsers work by having a set of grammar rules that are either learned or hand-written, an algorithm for generating a set of candidate logical forms by recursive application of the grammar rules, and a criterion for picking the best candidate logical form within that set

Liang and Potts (2015); Zettlemoyer and Collins (2005, 2007). However, they are brittle to the flexibility of language. To improve this limitation, supervised sequence-based neural semantic parsers have been proposed Dong and Lapata (2016). Herzig and Berant (2017)

improved the performance of neural semantic parsers by training over multiple knowledge bases and providing the domain encoding at decoding time. In addition to supervised learning, reinforcement learning methods for neural semantic parsing have been explored in

Zhong et al. (2017).

Retrieve-and-edit style semantic parsing is gaining popularity. Hashimoto et al. (2018) proposed a retrieve and edit framework that can efficiently learn to embed utterances in a task-dependent way for easy editing. Our work differs in that we perform hierarchical retrievals and edits, and that we evaluate on cross-domain data and focus on one-shot semantic parsing. It is worth noting that retrieve-and-edit as a general framework is not limited to semantic parsing and is applicable to other areas such as sentence generation. Guu et al. (2018) and machine translation Gu et al. (2018).

Another line of research maps semantic parsing under cross-domain setting to a domain adaptation problem Su and Yan (2017). In their work, the model is trained on a certain domain and then fine tuned to parse data from another domain. This is in essence different from our work in that we do not adapt the model, rather we adapt seen samples to form parses of new samples. Moreover, We do not fine-tune any part of the model in the new domain and focus on one-shot semantic parsing.

Most of these models need many data-points to train. Therefore, there has been recent attempts at zero-shot semantic parsing. Dadashkarimi et al. (2018)

proposed a transfer learning approach where a domain label is predicted first and then the parse.

Ferreira et al. (2015) and Herzig and Berant (2018) proposed slot-filling methods for semantic parsing based on general word embeddings. Bapna et al. (2017) focuses on zero-shot frame semantic parsing by leveraging the description of slots to be filled.

8 Conclusion and Future Work

As speech recognition technologies mature, more computing devices support spoken instructions via a conversational agent. However, most agents do not adapt to the phrasing and interest of a specific end user. It has recently been shown that new functionalities can be added to an agent from user instruction Azaria et al. (2016); Labutov et al. (2018). However, the user instruction only provides one instance of a general instruction template and the agent is challenged to generalize to variations of the instance given during instruction. We define the one-shot parsing task for measuring a semantic parser’s ability to generalize to new instances of user-taught commands from only one example. We propose a new semantic parser architecture that learns a general strategy of retrieving seen utterances similar to an unseen utterance and adapting the logical forms of seen utterances to fit the unseen utterance. Our results show an improvement of up to 68.8% on one-shot parsing under two different evaluation settings compared to the baselines. We found that the BiLSTM encoders are likely bottlenecks for the model. Some future directions include exploring the effects of contents in the memory, automating memory extraction from dataset, and improving the encoder.

Acknowledgments

This work was supported by AFOSR under grant FA95501710218, NSF under grant IIS1814472, and a Faculty award from J. P. Morgan.The authors would like to sincerely thank Bishan Yang for the initial discussions and ideas related to model architecture, and to Kathryn Mazaitis for the brainstorming sessions on the limitations of the model and future directions.

References

Appendix A Sample Grammar and Data Generation Grammar

A sample SCFG is given in Table 5 to facilitate the definition of .

This sample SCFG is not to be confused with the grammar used to generate our dataset. In comparison, the SCFG for data generation contains a larger number of entities, relations, and operations than the sample SCFG. Selected rules from the person domain and restaurant domain are provided below in Table 7 and Table 8.

Appendix B Contents of the Memory

In this paper, we assume the memory is provided to the model by a human expert. We picked the strategy of selecting one example for each grammar rule in the synchronous context free grammar that generated the data. It makes the formulation of maximum conditional likelihood learning straightforward, because this strategy produces a memory such that for any given utterance there is a unique sequence of look-up and adapt actions that produce the correct logical form. Recall that an example of a grammar rule is an utterance-logical form pair generated using and other rules of . In particular, we choose an example for such that the top level predicate of the example’s logical form matches the top level predicate of the target of . For example, we will choose to put

John ’s parents, (field parent john) in memory for the grammar rule

because field is the root predicate of both the example logical form (field parent john) and the target of the rule (field PSN_REL PSN). Here’s another example. For a terminal rule like

we put the pair John, (person john) in memory, because the top level predicate of the logical form (person) matches that of ’s target (person). We would not put for instance John ’s children, (field children john) because the top level predicate of the logical form (field) does not match that of ’s target (person).

We do note that the requirement of manually selected examples to put in memory is a big limitation of the current approach. In future work, we wish to automate the building of memory.

Appendix C The trace of an example run of Look-up and Adapt

A trace of an example run of the LookUpAndAdapt algorithm is given in Table 9. The utterance of this run is based on the sample SCFG grammar given in Table 5. Given a memory with 3 examples and a new utterance “John’s Parents”, the LookUpAndAdapt algorithm will look-up an example from the memory that matches the attended parts of the new utterance and recursively adapt the logical form of the retrieved example to produce a correct logical form that fits the new utterance.

Appendix D Statistics of the generated data

We provide a breakdown of the number of examples used in training and evaluation for the six domains of discourse at different depths in Table 6. The definition for the different groups of examples and their use is explained in § 5 for dataset generation.

Left-hand-side Source(Utterance) Target(Logical Form)
PSN John john
PSN Mary mary
PSN_REL parents parent
PSN_REL children child
FIELD PSN_REL of PSN (field PSN_REL PSN)
FIELD PSN ’s PSN_REL (field PSN_REL PSN)
S PSN PSN
S PSN_REL PSN_REL
S FIELD FIELD
Table 5: Sample SCFG . The subscripts indicate linking of terminals/nonterminals in source and target. A SCFG rule can only be applied to linked terminals/nonterminals together.
domain of discourse
person restaurant event course animal vehicle
full 737 810 911 960 801 729
d=2 417 490 591 640 481 409
d=3 320 320 320 320 320 320
full 96 96 96 96 96 96
d=2 65 68 67 66 61 64
d=3 31 28 29 30 35 32
full 96 96 96 96 96 96
d=2 63 60 61 62 67 64
d=3 33 36 35 34 29 32
full 96 96 96 96 96 96
d=2 68 67 58 68 60 66
d=3 28 29 38 28 36 30
full 96 96 96 96 96 96
d=2 60 61 70 60 68 62
d=3 36 35 26 36 28 34
full 23 16 16 16 16 15
d=1 20 13 13 13 13 12
d=2 2 2 2 2 2 2
d=3 1 1 1 1 1 1
full 27 20 20 20 20 19
d=1 24 17 17 17 17 16
d=2 2 2 2 2 2 2
d=3 1 1 1 1 1 1
Table 6: Dataset Statistics: sizes of each component with depth breakdown. Please refer to § 5 for the precise definition of each row of the table. In the extension scenario, for each domain of discourse , the model is trained on examples from using as memory and is evaluated on examples from and using as memory. In the transfer scenario, for each domain of discourse , the model is trained on using as memory, and is evaluated on and using as memory.
Left-hand-side Source(Utterance) Target(Logical Form)
PSN john (person john)
PSN mary (person mary)
PSN colleagues (person colleague)
PSN professors (person professor)
PSN_REL parents (relation parent)
PSN_REL children (relation child)
PSN_REL hometown (relation hometown)
PSN_REL salary (relation salary)
FIELD PSN_REL of PSN (field PSN_REL PSN)
FIELD PSN ’s PSN_REL (field PSN_REL PSN)
CMD set FIELD to VALUE (set FIELD VALUE)
VALUE FIELD FIELD
VALUE PSN PSN
S FIELD FIELD
S CMD CMD
Table 7: This is a selected subset of the grammar used to generate data for the person domain. Rules not shown here include those for introducing flexibility in language and rules for additional entities and relations.
Left-hand-side Source(Utterance) Target(Logical Form)
RST chinese restaurant (restaurant chinese)
RST italian restaurant (restaurant italian)
RST french restaurant (restaurant french)
RST german restaurant (restaurant german)
RST_REL address (relation address)
RST_REL reviews (relation reviews)
RST_REL dishes (relation dishes)
RST_REL price (relation price)
FIELD RST_REL of RST (field RST_REL RST)
FIELD PSN ’s RST_REL (field RST_REL RST)
CMD set FIELD to VALUE (set FIELD VALUE)
VALUE FIELD FIELD
VALUE RST RST
S FIELD FIELD
S CMD CMD
Table 8: This is a selected subset of the grammar used to generate data for the restaurant domain. Rules not shown here include those for introducing flexibility in language and rules for additional entities and relations.
 Func Description New utterance and current logical form Memory
LkUpNAdpt Initial call always has uniform attention. [John ’s parents] None John, john Mary, mary Mary ’s parents ,(field parent mary)
LookUp Retrieves entry from memory by utterance similarity. [John ’s parents] (field parent mary) John, john Mary, mary Mary ’s parents ,(field parent mary)
 ::Adapt Adapt first child. parent is aligned to parents. YES, they match, keep parent. There’s no children. Return. John ’s [parents] (field [parent] mary) John, john Mary, mary Mary ’s parents ,(field parent mary)
 ::Adapt Adapt second child. mary is aligned to John. NO, they don’t match. Find replacement and return it. [John] ’s parents (field parent [mary]) John, john Mary, mary Mary ’s parents ,(field parent mary)
 ::::LkUpNAdpt Find replacement for mary. [John] ’s parents (field parent mary) John, john Mary, mary Mary ’s parents ,(field parent mary)
 ::::LookUp Retrieves entry from memory by utterance similarity. [John] ’s parents (field parent mary) John, john Mary, mary Mary ’s parents ,(field parent mary)
 ::::LkUpNAdpt There’s no children. Return john [John] ’s parents (field parent mary) John, john Mary, mary Mary ’s parents ,(field parent mary)
LkUpNAdpt Replace mary with john. Exhausted all children, return the current logical form. [John ’s parents] (field parent john) John, john Mary, mary Mary ’s parents ,(field parent mary)
Table 9: Trace of a sample run of the algorithm with sample memory, utterance, and attention. The attention weights (argument to LookUpAndAdapt and variable in Adapt) are visualized as brackets. Bracketed words in the utterance receive more attention, un-bracketed words receive less attention. For Adapt calls, bracketed words in the logical form indicate the current subtree of the whole logical form tree that the algorithm is looking at (the argument T to Adapt). Colons are used to indicate the depth of the call stack.
