LogDP: Combining Dependency and Proximity for Log-based Anomaly Detection

Log analysis is an important technique that engineers use for troubleshooting faults of large-scale service-oriented systems. In this study, we propose a novel semi-supervised log-based anomaly detection approach, LogDP, which utilizes the dependency relationships among log events and proximity among log sequences to detect the anomalies in massive unlabeled log data. LogDP divides log events into dependent and independent events, then learns normal patterns of dependent events using dependency and independent events using proximity. Events violating any normal pattern are identified as anomalies. By combining dependency and proximity, LogDP is able to achieve high detection accuracy. Extensive experiments have been conducted on real-world datasets, and the results show that LogDP outperforms six state-of-the-art methods.


page 1

page 2

page 3

page 4


LogBERT: Log Anomaly Detection via BERT

Detecting anomalous events in online computer systems is crucial to prot...

Deep Reinforcement Learning for Unknown Anomaly Detection

We address a critical yet largely unsolved anomaly detection problem, in...

Graph Convolutional Networks for traffic anomaly

Event detection has been an important task in transportation, whose task...

Self-Taught Semi-Supervised Anomaly Detection on Upper Limb X-rays

Detecting anomalies in musculoskeletal radiographs is of paramount impor...

syslrn: Learning What to Monitor for Efficient Anomaly Detection

While monitoring system behavior to detect anomalies and failures is imp...

UniParser: A Unified Log Parser for Heterogeneous Log Data

Logs provide first-hand information for engineers to diagnose failures i...

Sensing Anomalies like Humans: A Hominine Framework to Detect Abnormal Events from Unlabeled Videos

Video anomaly detection (VAD) has constantly been a vital topic in video...

1 Introduction

Modern software-intensive systems, including service-oriented systems, have become increasingly large and complex. While these systems provide users with rich services, they also bring new challenges to system operation and maintenance. One of the challenges is to identify faults and discover potential risks by analyzing a massive amount of log data. Logs are composed of semi-structured texts, i.e., log messages. Log analysis is one of the main techniques that engineers use for troubleshooting faults and capturing potential risks. When a fault occurs, checking system logs helps to efficiently detect and locate the fault. However, with the increase in scale and complexity, manual identification of abnormal logs from massive log data has become infeasible.

During the past decade, many automated log analysis approaches, including supervised, semi-supervised, and unsupervised approaches, have been proposed to detect system anomalies reflected by logs[1, 2, 3, 4, 5]. Although supervised approaches show promising results, the scarcity of labeled anomalous log data is a daunting issue. In contrast, unsupervised and semi-supervised approaches have a significant advantage in that no labeled anomalous data are needed. However, the existing unsupervised and semi-supervised methods have low accuracy.

In this paper, we propose a log anomaly detection method, LogDP, which simultaneously utilizes both dependency among log events and proximity among log sequences to detect anomalous log sequences. LogDP first discovers the normal patterns for logs, then identifies the log sequences that violate these patterns as anomalies. There are two types of normal patterns, dependency patterns (DPs) and proximity patterns (PPs). DPs are related to the events that have dependency relationships with other events, and PPs are for the events that are independent of other events. To find the DP of an event, LogDP trains a predictive model to predict this event using some other events as predictors. Here, we name the log event to be predicted as the focused event, and the predictor events as the related events of the focused event. To find the PP of an event, a mean prediction model is trained to use the mean value of the event as the expected value of the event. When detecting anomalies, given a log sequence, its expected values on all log events are predicted using the learned models, and the differences between the observed values and expected values are calculated, named pattern deviations, which indicate the degree of the log sequence deviating from their corresponding normal dependency. If any pattern deviations are beyond normal ranges, i.e., the normal patterns are violated, the log sequence is flagged as an anomaly.

In summary, our main contributions in this work are as follows:

  • We propose LogDP, a novel log-based anomaly detection method, which utilizes dependency among log events and proximity among log sequences at the same time. To our best knowledge, we are the first to introduce the dependency-based anomaly detection techniques in the field of log analysis.

  • We experimentally demonstrate the effectiveness of the proposed method on seven settings of three widely-used log datasets. The empirical experiments show that the proposed approach can outperform the state-of-the-art unsupervised and semi-supervised log-based anomaly detection methods.

2 The LogDP Method

In this section, we first explain log preprocessing, and then present the LogDP method. The LogDP method consists of two phases, the training phase and the test phase. In the training phase, for each log event, LogDP trains an expected value prediction model and produces the corresponding threshold. In the test phase, the trained prediction modes and thresholds are used to determine if a log sequence is an anomaly or not.

2.1 Log Preprocessing

Logs are usually semi-structured texts, which are used to record the status of systems. Each log message consists of a constant part (log event) and a variable part (log parameter). Log parsers [6, 7, 8] can parse log messages into log events, which are the templates of the log messages. Figure 0(a) shows a snippet of raw logs and the results after they are parsed.

(a) A snippet of log parsing.
(b) An ECM.
Figure 1: Log preprocessing.

Log messages can be grouped into log sequences (i.e., series of log events that record specific execution flows) according to sessions or time windows. Session-based log partition often utilizes certain log identifiers to generate log sequences. When using time windows to partition logs, two types of strategies are usually used, i.e., fixed window and sliding window. Fixed window strategy uses a predefined window size, e.g., 1 hour, to produce log sequences, while sliding windows strategy generates log sequences using overlapping between two consecutive fixed windows. For each log sequence, the occurrences of the events are counted, resulting in an Event Count Matrix (ECM). For example, an ECM is shown in Figure 0(b), where indicates the number of occurrences of in , namely .

The notation used in this paper is as follows. We use a boldfaced upper case letter, e.g. X to denote a matrix; a boldfaced lower case letter, e.g. e

, for a vector; a lower case letter, e.g.

, for a scalar. We have reserved for an ECM with log sequences and log events. represents the set of log events of X and is a log event, i.e., . A log sequence is denoted as , where is a log instance, i.e., the occurrences count of an event in c. The log instance of event in sequence is represented as .

2.2 The Training Phase of LogDP

The workflow of the training phase of the LogDP method is presented in Figure 2. The inputs of the training phase are a training set and a validation set , both of which only contain normal log sequences. is used to train expected value prediction models, and

is used to obtain the thresholds. The training phase is composed of two steps, related event selection and prediction model training. In the related event selection step, for each event, named focused event, its related event is selected to be used as predictors to predict the focused event. In the prediction model training step, two different prediction models are trained according to if Markov blanket (MB) is found for the focused event. If the focused event is not independent, i.e., it has MB, a Multi-Layer Perceptron (MLP) regressor is trained to embody the dependency relationship between the focused event and its MB. If the focused event is independent, i.e., it has not MB found, a mean prediction model is trained. That is, DPs are learned for dependent events using the dependency-based technique, and PPs are for independent events using the proximity-based technique. After training the expected value prediction models,

is input to obtain the corresponding thresholds. The outputs of the training phase include a set of prediction models and their corresponding thresholds.

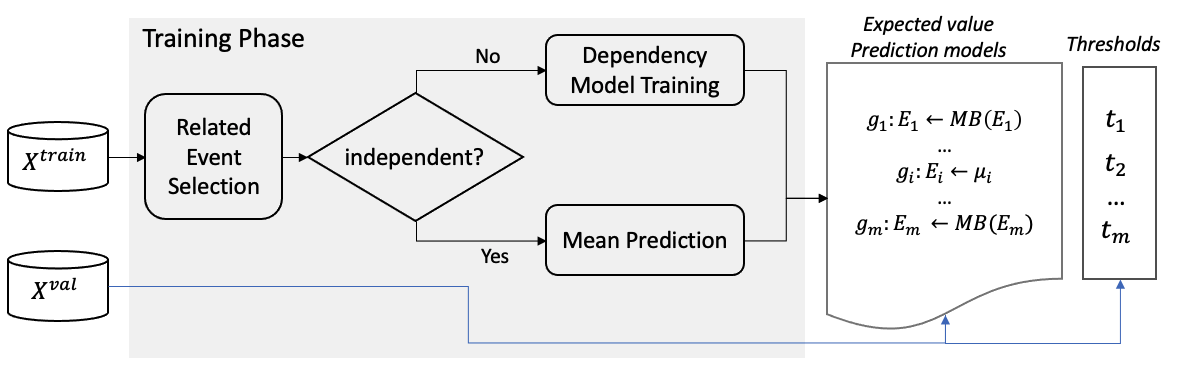

Figure 2: The workflow of the training phase of the LogDP method
