1 Introduction
To address the increasing environmental health issues, countries around the globe are planning to phase out combustion engine vehicles. Automobile manufacturers, like Nissan Leaf, Tesla, Mahindra and Tata Motors, are switching to produce electric vehicles. One of the major challenge posed by this shift is to strategically identify the locations to set up the charging stations. Due to the short range of electric vehicles, the existing refueling station model is not sufficient. Governments across the world are trying to address the issue, but, high costs associated with equipment and installation of charging stations at public spaces are currently obstructing the buildout of such a network. So, what we need is a cost effective solution for locating the charging stations.
The problem of locating charging stations can be formulated as a facility location problem. Facility Location Problem (FL) is a well known and well studied problem in operations research and computer science [Shmoys, ChudakS03, Jain:2001, Byrka07, guha1999greedy, KPR, Chudak98, mahdian2001greedy, mahdian_1.52, charikar2005improved, arya, Zhang2007126, Li13]. In (uncapacitated) FL, we are given a set of facilities and a set of clients. Every facility has an associated facility opening cost. Serving a client from a facility incurs service cost. We assume that the service cost is a metric. The goal is to open a subset of facilities so as to minimise the sum of facility opening costs (facility cost) and the total service cost of serving all the clients from the opened facilities. In case of charging stations, the facilities are charging stations and the consumers are clients. Another closely related problem is Median problem (M). In (uncapacitated) M, we are given an upper bound (cardinality constraint) on the maximum number of facilities that can be opened in our solution and facility opening costs are for every facility. Facility Location is a common generalisation of FL and M where in we have both the facility opening costs and the cardinality constraint. Yet another variant is, center problem (C) where we wish to minimise the maximum distance of any client from the serving facility.
The problems are NPhard. Several approximation results are known for these basic problems. For example an elegant factor approximation was obtained for Center more than three decades ago by Hochbaum and Shmoys [hochbaum1985kC] and the factor is known to be tight. Since then most of the work has focused on FL and M problems. For facility location the gap between the best known approximation ratio (1.488) [Li] and the best known lower bound (1.463) [guha1999greedy] is nearly closed, whereas it is yet to be filled for the median problem with the current best approximation ratio and the best known lower bound being [ByrkaPRST14] and [jain2002new] respectively.
The problems become harder as constraints are added to them. Constraints come naturally in locating the charging stations. One such constraint is the limited number of charging slots at a given station. In the context of FL, the problem with a bound on the maximum number of clients that a facility can serve, is called the capacitated facility location (CFL). This constraint is notoriously hard to handle. The same has been accepted in the literature by many researchers. For example, An et al. [AnCkC] states "there is a large discrepancy in our understanding of uncapacitated and capacitated versions of network location problems". Though the discrepancy is bridged to some extent for problems like CFL and CC (constant factor approximations for the problems have been achieved using local search [Aggarwal, Bansal] and LProunding with preprocessing [AnCkC] respectively), the results and the techniques that are successful in dealing with capacities are still very limited and no true constant factor approximation is known for CM in the literature.
Another constraint in the charging station problem arises due to the need to connect the charging stations for them to receive electric supply from the power grid. This puts a connectivity constraint on the opened facilities (the charging stations). Also, the connectivity must be acquired at low cost. Thus, this also adds a component of cost to the objective function.
Sometimes a few distant consumers (clients) can increase the cost of solution disproportionately. It is profitable for the company (installing the charging stations) to leave these clients unserved by paying some penalty cost. Another way to think about it is that every client has a prize that can only be collected if it is served. This generalisation of the FL problem is called prizecollecting FL (PFL).
Rösner and Schimdt [rosnerICALP] realise the difficulty to adjust individual methods for each added constraint and pose a challenging request to build a solution for the constrained instance using an existing solution for the lesser constrained one, as a black box, satisfying at least one more constraint. In other words, they reduce the constrained instance of a problem to a lesser constrained one and use the solution of the latter as a blackbox, to obtain the solution for the original problem. They provide a framework to add privacy in variants of clustering with different constraints. In this paper, we provide a framework to add connectivity to variants of charging station problem with different constraints. We also provide a framework to add penalties to some variants of the problem. In particular we study the following problems:

Connected Capacitated Facility Location (ConCFL)

Connected Capacitated Median (ConCM)

Connected Capacitated Facility Location (ConCFL)

Connected Capacitated Center (ConCC)

Connected Prize Collecting Facility Location (ConPFL)

Capacitated Prize Collecting Facility Location (CPFL)

Connected Capacitated Prize Collecting Facility Location (ConCPFL)

Connected Capacitated Prize Collecting Median (ConCPM)

Connected Capacitated Prize Collecting Facility Location (ConCPFL)
The constraints, capacities and connectivity, have been studied separately for all the basic problems (FL, M, FL and C). Extending/modifying the techniques used for connected variants of the problem to include capacities or for capacitated variants of problem to include connectivity is a tedious and challenging task. In this paper, we combine the two constraints using reduction to underlying well studied problems. Instead of extending and modifying the solutions to the underlying problems, we use them as black box and combine the obtained solutions. We also, combine the two constraints in the prizecollection set up. Figures 1 and 2 give a broad idea of our plan. Figure depicts the reduction of Connected  Capacitated variant of the problems to two problems, each with only one constraint, either Connectivity or Capacities. Figure depicts the reduction of Connected  Capacitated  PrizeCollecting variant of the problems to two problems: Connected  Prize Collecting and Capacitated  Prize Collecting variants of the problem. Figure also depicts the reduction of Connected/Capacitated  Prize Collecting variant to Connected/Capacitated variant of FL. The last reduction does not work in presence of the cardinality constraint as depicted in Figure 2 (b) and (c) i.e., we are not able to reduce ConPFL/ConPM to ConFL/ConM. However, we are able to solve ConCPFL/ConCPM by reducing them to ConPFL instead, as shown in Figure 3. In particular, we present the following results:
Given an factor approximation for for ConFL and a factor approximation for CFL/CM/CFL with factor violation in capacity/cardinality, a factor approximation for ConCFL/ConCM/ConCFL preserving the violations in capacities/cardinality can be obtained in polynomial time.
Given an factor approximation for CC and a factor approximation for ConC, a factor approximation for ConCC can be obtained in polynomial time.
Given an factor approximation for ConPFL and a factor approximation for CPFL/CPM/CPFL with factor violation in capacities, a approximation for ConCPFL/ConCPM/ConCPkFL preserving the violations in capacities/cardinality can be obtained in polynomial time.
Given an factor approximation for ConFL (using LP optimal to lower bound the cost of the optimal), a factor approximation for ConPFL can be obtained in polynomial time.
Given an factor approximation for CFL, an factor approximation for CPFL can be obtained in polynomial time.
To the best of our knowledge, our results are the first approximations for ConCFL, ConCM, ConCC, ConCPFL, ConCPM, ConCPFL and ConPFL. The only known result for ConCFL in the literature is by Friggstad et al. [FriggstadConLUFL2016]. They gave a constant factor approximation for lower and (uniform) upper bounded ConFL violating both the upper and the lower bounds. We cannot get rid of the violations in the upper bounds even when there are no lower bounds using their technique as they use LP rounding and the LP is known to have an unbounded integrality gap. We give the first true constant factor approximation for the problem. The only result known for CPFL is by Gupta and Gupta [GuptaG14] using local search technique. They give factor for the case of uniform capacities and factor for nonuniform capacities. Our result is interesting as it is much simpler and uses the underlying problem CFL as a black box without increasing the cost. We also improve the factor to . The factor will improve, if the factor for the underlying problem (CFL) improves in future.
Tables 1 and 2 summarise the results we obtain by plugging in the best results known for the underlying problems. Approximation guarantees will improve if better solutions are obtained for the underlying problems.
Problem  SubProblem 1  SubProblem 2

Factor  Violation  Factor  Factor  Violation
(U)ConCFL  ConFL [ConFLGrandoni2011]  (U)CFL [Aggarwal]
Nil  Nil
(NU)ConCFL  ConFL [ConFLGrandoni2011]  (NU)CFL [Bansal]
Nil  Nil
(U)ConCM  ConFL [ConFLGrandoni2011]  (U)CM [ByrkaRybicki2015]
(NU)ConCM  ConFL [ConFLGrandoni2011]  (NU)CM [Demirci2016]
(U)ConCM  ConFL [ConFLGrandoni2011]  (NU)CM [capkmshili2014]
(NU)ConCM  ConFL [ConFLGrandoni2011]  (NU)CM [Lisoda2016]
(U)ConCFL  ConFL [ConFLGrandoni2011]  (U)CFL [capkmByrkaFRS2013]
(U)ConCC  ConC [ge2008ConkC]  (U)CC [KhullerSussmanCkC]
Nil  Nil
(NU)ConCC  ConC [ge2008ConkC]  (NU)CC [AnCkC]
Nil  Nil
Problem  SubProblem 1  SubProblem 2

Factor  Violation  Factor  Factor  Violation
(U/NU)ConCPFL  ConPFL [This Paper]  (U/NU)CPFL [This Paper]
Nil  Nil
(U)ConCPM  ConPFL [This Paper]  (U)CPM [DabasCFLPO]
(U)ConCPFL  ConPFL [This Paper]  (U)CPFL [DabasCFLPO]
ConPFL  ConFL [ConFLGupta2001]
Nil
(U/NU)CPFL    (NU)CFL [Bansal]
Nil    Nil
1.1 Our Techniques
The Combining Technique: In ConCX/ConCPX problems (where X is FL, M, FL or C as applicable), we reduce our problem to two subproblems in a way that the connectivity constraint move to one sub problem (ConFL/ConPFL) and the capacity constraints to another (CX/CPX). We use the openings and the assignments of the solution of CPX and connect them using the connectivity of the solution of ConFL via clients.
ConPFL: We reduce an instance of ConPFL to an instance of ConFL using LP rounding and thresholding techniques. A client paying penalty to an extent of at least half in LP optimal is removed by paying full penalty. Assignment of the remaining clients is raised so that they are served to full extent. The openings are raised accordingly. Note that the reduction does not work in presence of cardinality constraints as increasing the opening of facilities can violate the cardinality constraint by a factor of .
CPFL: We reduce an instance of CPFL to an instance of CFL by creating a dummy facility, with capacity , collocated with every client. The facility opening cost of a dummy facility is equal to the penalty cost of the respective collocated client.
1.2 Previous and Related Work
Capaciated variants of the problem (CFL, CM, CFL and CC): Shmoys et al. [Shmoys] gave the first constant factor() approximation when the capacities are uniform, with a capacity blowup of , by rounding the solution to standard LP. Grover et al. [GroverGKP18] reduced the capacity violation to thereby showing that the capacity violation can be reduced to arbitrarily close to by rounding a solution to standard LP. An et al. [Anfocs2014] gave the first true constant factor(288) approximation for the problem (nonuniform), by strengthening the standard LP. Local search has been successful in dealing with capacities, several results [KPR, ChudakW99, mathp, paltree, mahdian_universal, zhangchenye] have been successfully obtained using local search with the current best being factor for nonuniform [Bansal] and factor for uniform capacities [Aggarwal]. No true approximation is known for CM, till date. Constant factor approximations [Charikar, Charikar:1999, capkmshanfeili2014, ChuzhoyR05, capkmByrkaFRS2013, aardal2013, GroverGKP18] are known, that violate capacities or cardinality by a factor of or more. Strengthened LPs and dependent rounding techniques have been used to give constant factor approximation with small violations in capacities/cardinality. For uniform capacities Byrka et al. [ByrkaRybicki2015] and for nonuniform capacities Demirci et al. [Demirci2016] gave the approximations with violation in capacities whereas Li [capkmshili2014, Lisoda2016] gave the approximations using at most facilities for uniform as well as nonuniform capacities. For uniform CFL, a constant factor approximation, with violation in capacities, was given by Byrka et al. [capkmByrkaFRS2013] using dependent rounding. This was followed by two constant factor approximations by Grover et al. [GroverGKP18], one with violation in capacities and factor violation in cardinality and the other with factor violation in capacities only. For (uniform) CC, a factor approximation was given by BarIlan et al. [barIlanCkC] which was improved to by Khuller and Sussman [KhullerSussmanCkC]. For nonuniform capacities, Cygan et al. [CyganCkC] gave a large constant factor approximation, improved to by An et al. [AnCkC] which is also also the current best.
Connected Variants of the problem (ConFL, ConM, ConFL and ConC): ConFL was first introduced by Gupta et al. [ConFLGupta2001] where they gave a factor approximation for the problem using LProunding technique. Gupta et al. [ConFLGupta2004] described a random facility sampling algorithm for the problem giving factor approximation. Primal and dual technique was first used by Swamy and Kumar [ConFLSwamy2004] to improve the factor to which was then improved to by Jung et al. [ConFLChwa2009]. Eisenbrand et al. [ConFLEisenbrand2010] used random sampling to improve the factor to . The factor was improved to using similar techniques by Grandoni and Rothvob [ConFLGrandoni2011] which is also the current best for the problem. Eisenbrand et al. [ConFLEisenbrand2010] extends their algorithm to ConFL giving factor approximation for ConM and ConFL . For ConC, Ge et al. [ge2008ConkC] gave a factor approximation when is fixed and a factor approximation for arbitrary . Liang et al. [liang2016ConkC] also gave a simpler factor approximation for the problem.
PrizeCollecting FL (PFL): For PFL, a factor approximation using primal dual techniques was given by Charikar et al. [charikar2001algorithms] which was subsequently improved to by Jain et al. [jain2003greedy] using dualfitting and greedy approach. Wang et al. [Wang2015penalties] also gave a factor approximation using a combination of primaldual and greedy technique. Later Xu and Xu [xu2005lp] gave a using LP rounding. The factor was improved to by the same authors in [xu2009improved] using a combination of primaldual schema and local search. For linear penalties Li et al. [LiDXX15] gave a factor using LProunding.
Connected and Capacitated FL (ConCFL): A constant factor approximation for (uniform) ConCFL with violation in capacities follows as a special case from approximation algorithm of Friggstad et al. [FriggstadConLUFL2016] on Connected Lower and Upper Bounded Facility Location problem.
Capacitated and PrizeCollecting variants of the problem (CPFL and CPFL): For CPFL , Dabas and Gupta [DabasCFLPO] gave an approximation with factor violation in capacities using LP rounding techniques and reduction to CFL. The only true approximation is due to Gupta and Gupta [GuptaG14]. They uses local search to obtain a factor and factor approximation for uniform and nonuniform variants respectively. For CPFL , Dabas and Gupta [DabasCFLPO] gave an approximation algorithm with factor violation in capacities.
ConCFL, ConCM, ConCC, ConCPFL, ConCPM, ConCPFL and ConPFL: To the best of our knowledge, no result is known for these problems in the literature.
1.3 Organisation of the Paper
In Section 2, we present our combining technique to obtain constant factor approximations for ConCFL , ConCM , ConCFL and ConCC. In Section 3, we present our results for ConCPFL , ConCPM and ConCPFL. In Sections 4 and 5, we give the results for ConPFL and CPFL respectively. Finally, we conclude with future work in Section 6.
2 Connected and Capacitated variants of the problem
Let be a set of locations and be a complete graph on . Let be a metric cost function. Let and be the set of facilities and clients respectively. Each facility has an associated opening cost and serving a client from facility incurs a cost . In facility location problem (FL), we wish to open of facilities and compute an assignment function . Our goal is to minimize the total cost of opening the facilities in and serving the clients in .

ConFL: In this variant, we wish that the set of the opened facilities is connected by a steiner tree. We call the total cost of the steiner tree, that is the sum of the costs on edges of the steiner tree, as connection cost. Our goal now is to minimise the total cost of opening the facilities, serving the clients and the connection cost.

CFL: In this variant, a facility has a bound on the maximum number of clients it can serve i.e., for all .
In this section, we present a constant factor approximation for ConCFL which is a common generalisation of ConFL and CFL, that is, we have both connectivity and capacity constraints in facility location problem. The result is obtained by combining the results of ConFL and CFL. Let be an instance of ConCFL. We first make two instances and ConFL and CFL by dropping the capacity and the connectivity constraints respectively. Note that, an optimal solution of ConCFL forms a feasible solution for instances and . Hence the cost of the optimal solutions and of and respectively are bounded. Next we solve these instance using approximation algorithms for ConFL and CFL to obtain two approximate solutions and respectively. Finally, we combine and (presented in subsection 2.1) to obtain our final approximate solution . For a solution to an instance , let denote the cost of , we will drop wherever it will clear from the context for brevity of notations. Refer Algorithm 1 for details of the algorithm.
2.1 Combining and

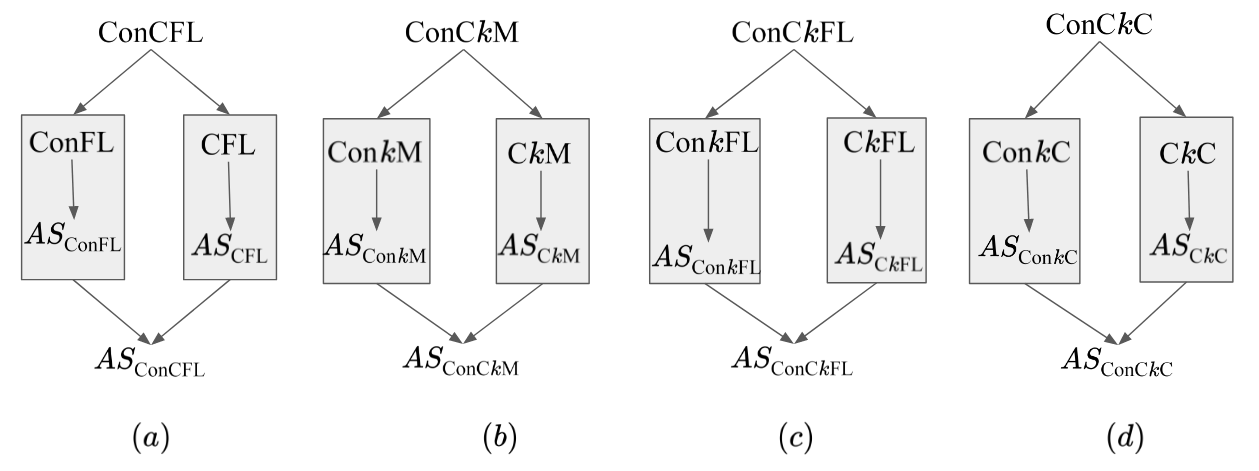

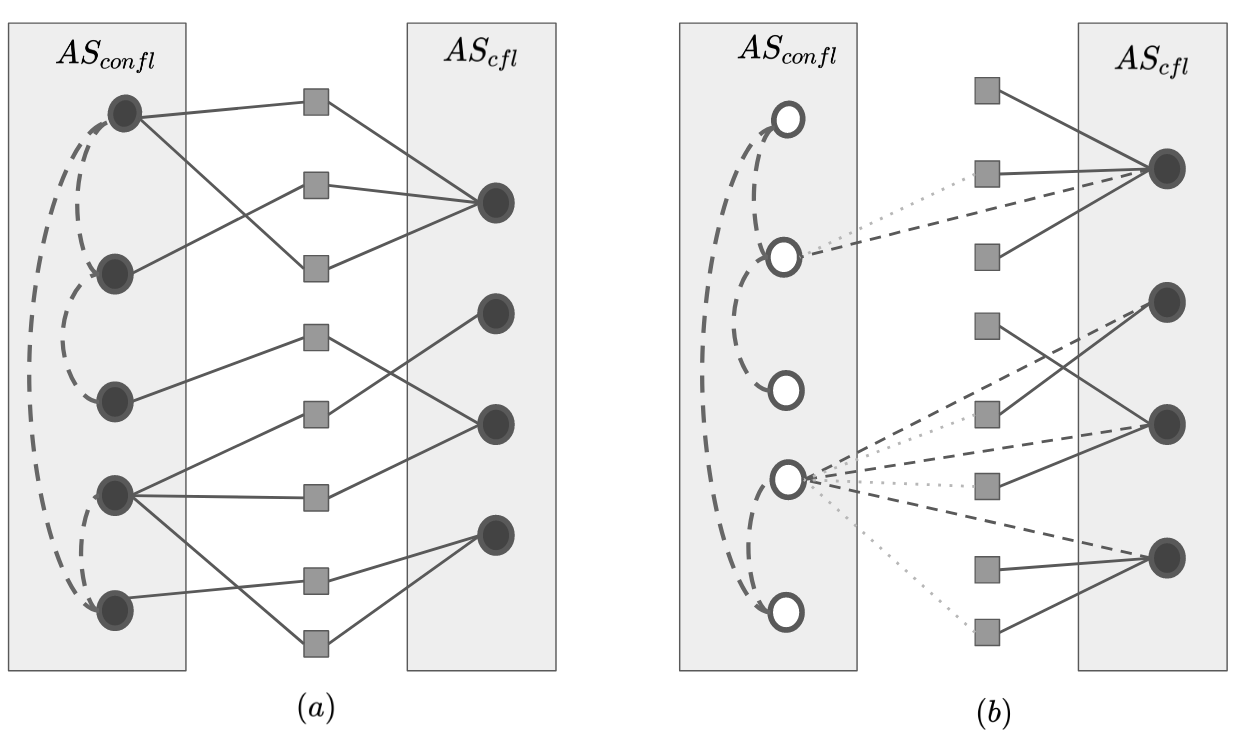

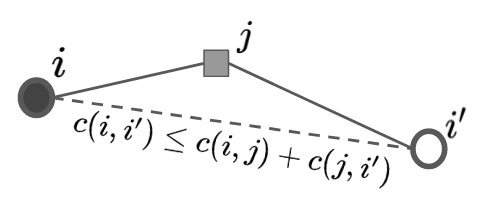

In this section, we combine and to obtain an approximate solution for ConCFL. Refer Figure 4. For every facility opened in , we open in and assign to if it was assigned to in . The cost of opening and assigning to is bounded by cost of . The capacities are respected because they are respected in .We connect the facilities opened in to facilities opened in which are already connected via a steiner tree. We bound this cost (additonal)as follows: let be a facility in . Let be a client served by in and by in (wlog, we assume that such a client exists for otherwise can be closed). The cost of connecting to is bounded by (by triangle inequality (refer Figure 5)). Summing over all , the cost is bounded by where and denote the service cost of and respectively.
The overall cost is bounded by ) + which is . Using Rothvob and Grandoni [ConFLGrandoni2011] for we have . For nonuniform capacities, using Bansal et al. [Bansal] for , we have , which gives us a factor approximation. For uniform capacities, we get factor using factor approximation of Aggarwal et al. [Aggarwal] for .
Introducing cardinality: The same algorithm extends to ConCM/ConCFL/ConCC if we take an instance of connected M/FL/C on one side and capacitated M/FL/C on the other side. Note that the violations in capacities/cardinality are preserved from the underlying solutions. Plugging in the current best results of ConM/ConFL/ConC and CM/CFL/CC, we get the results stated in Table 1.
3 Connected, Capacitated and PrizeCollecting varaints of the problem
Prizecollecting facility location problem is a generalisation of FL where every client has an associated penalty cost . We wish to open of facilities, select of clients to pay penalty and compute an assignment function for the remaining clients. Our goal is to minimize the total cost of opening the facilities in , paying penalty of clients in and serving clients in .

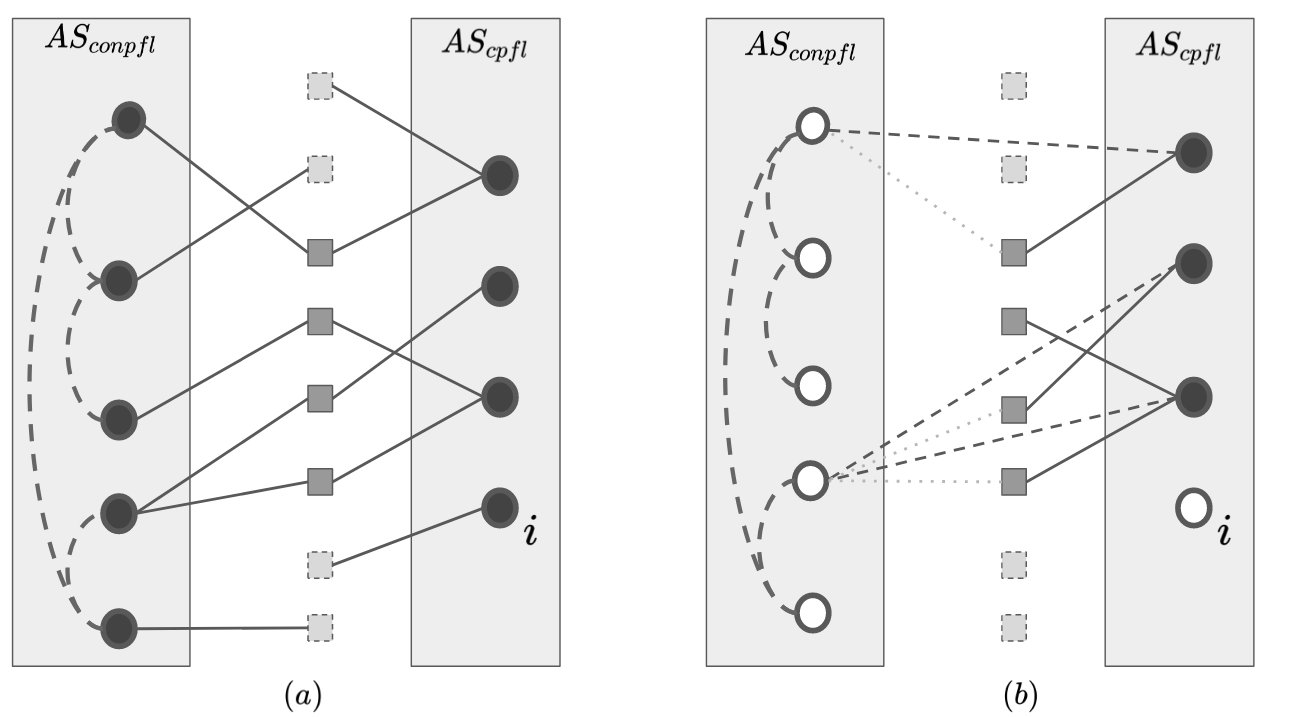

In this section, we present a constant factor approximation for ConCPFL which is a common generalisation of ConPFL and CPFL, that is, we have both the connectivity as well as the capacity constraints in prizecollecting facility location problem. The result is obtained by combining the solutions of ConPFL and CPFL (obtained in Section 4 and 5 respectively). The idea is similar to the one presented in Section 2. Let be an instance of ConCPFL. We first make two instances and of ConPFL and CPFL by dropping the capacity and the connectivity constraints respectively. Note that, an optimal solution of ConCPFL forms feasible solution for instances and . Hence the cost of the optimal solutions and of and respectively are bounded. Next we solve these instance using approximation algorithms for ConPFL and CPFL to obtain two approximate solutions and respectively. Finally, we combine and to obtain our final approximate solution . Refer Figure 6. As in Section 2 we would like to open all the facilities that were opened in , connect them using the solution to and serve the clients that were served in paying penalty for the rest. However, we do not know how to bound the cost of connecting the facilities in to the facilities opened in in this case: some clients served in may be paying penalty in . As a result, it is possible that all the clients served by a facility opened in are paying penalty in ; we do not know how to bound the cost of connecting such a facility to the facilities in (for example, facility in Figure 6). Thus, we decide to pay penalty for clients that were paying penalty in any one of the solutions. The penalty costs of these clients are paid by and . Next, we look at the remaining clients, open the facilities each of which is serving at least one such client in , assign clients and connect the opened facilities to the facilities in in the same manner as in Section 2. Capacities are respected as they are respected in the underlying problem. The bound on facility cost, service cost and connection cost is obtained in a similar manner as done in section 2.

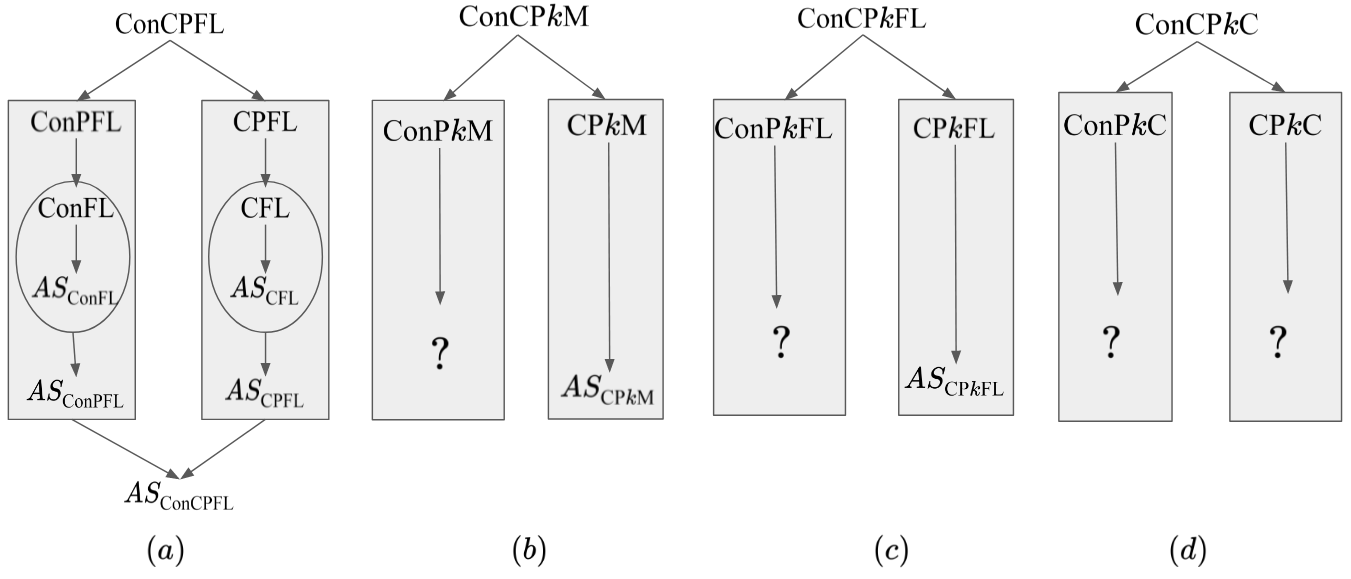

Using factor approximation for ConPFL and  factor approximation for CPFL (presented in sections 4 and 5 resp.), we get a factor approximation for ConCPFL. The result holds for both uniform and nonuniform capacities.

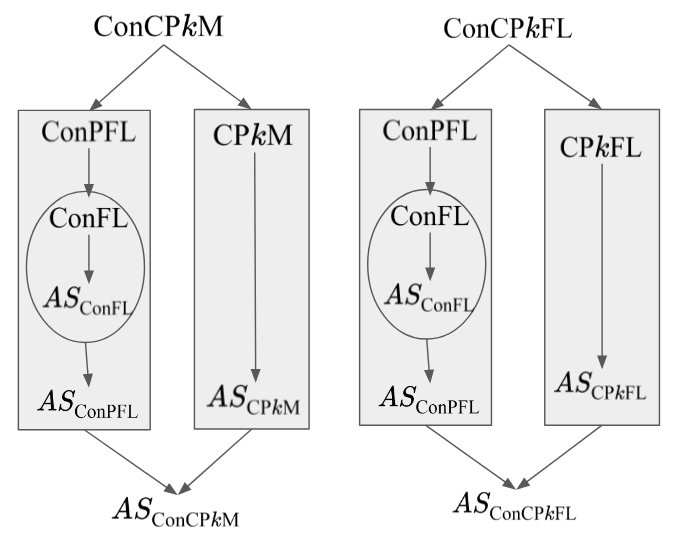

Introducing cardinality: The same algorithm extends to ConCPM/ConCPFL if we take an instance of ConPFL on one side and CPM/CPFL on the other side. The violation in capacities/cardinality is preserved from underlying problem. Using factor approximation (presented in section 4) for ConPFL and with violation in capacities by Dabas et al. [DabasCFLPO] for CPM/CPFL, we get a constant factor approximations for (uniform) ConCPM/ConCPFL with factor violation in capacities. Our algorithm will extend to ConCPC if, in future, we have solutions for the underlying problems viz ConPC and CPC.
4 Solving ConPFL via reduction to ConFL
In this section, we present a constant factor approximation for ConPFL using LP rounding techniques and reduction to ConFL. Let us guess a vertex which is opened as a facility in the optimal solution. We can run our algorithm for all possible choices of and choose the best among them. For a nontrivial set , let represents the cut defined by and . ConPFL can be formulated as the following integer program:
subject to  (1)
(2)
(3)
(4)
(5)
where variable denotes whether facility is open or not, indicates if client is served by facility or not, denoted whether edge belongs to steiner tree or not and denotes if client pay penalty or not. Constraints 1 ensure that every client is either served or pays penalty. Constraints 2 ensure that a client is assigned to an open facility only. Constraint 3 ensures that the guessed facility is opened. Constraints 4 ensure that if a facility is opened then it is connected to . LPRelaxation of the problem is obtained by allowing the variables . Let denote the optimal solution of the LP and denote the cost of .
4.1 Identifying the Clients that will Pay Penalty ()
We first identify a set of clients that pay penalty in our solution via thresholding technique. For every client , if was paying penalty to an extent of at least , we add to . Formally, such that , add to , set and for every . Note that, this can be done within factor of penalty cost, that is, .
4.2 An instance of ConFL :
To handle the remaining clients, we create an instance of ConFL wherein the client set is reduced with . An LP for (LP2) can be formulated as follows:
subject to  (6)
(7)
(8)
(9)
(10)
The following lemma shows existence of a feasible fractional solution to such that the cost is bounded within a constant factor of LP optimal ().
There exist a fractional feasible solution such that cost is bounded by .
Proof.
Recall that, every client is served to an extent of at least . For all , we raise the assignment of on proportionately so that is fully served. Variables and are raised accordingly to satisfy constraints (7) and constraints (9) respectively. Formally, , and , set , and .
Next, we will see that is a feasible solution to LP of ConFL.
Cost Bound: Next we will bound the cost of our feasible solution . Note that, () , and () . Therefore, . ∎
Next, we solve the instance using any algorithm that uses LP optimal as a lower bound on the optimal cost. In particular, we use approximation algorithm by Gupta et al. [ConFLGupta2001] as blackbox to obtain an approximate solution . The solution along with clients in forms an approximate solution for ConPFL. The final cost bound is as follows: . Using Gupta et al. [ConFLGupta2001], we have which gives us factor approximation.
5 Solving CPFL via reduction to CFL
In this section, we present a factor approximation for CPFL by reducing it to CFL. To create an instance of CFL from an instance of CPFL, we create a set of dummy facilities as follows: for every client we create a collocated dummy facility having facility opening cost equal to the penalty cost of the client and unit of capacity. That is, , add a facility to such that , and . Open a facility if it is opened in and assign client to it if it was assigned to in where is an optimal solution for . For a client for which pays the penalty, we open the facility collocated with and assign to it. Clearly the cost of the solution is bounded by the cost of the optimal ().
We obtain an approximate solution to using a  approximation to CFL. Next, we create an approximate solution for from : open a true facility if it is opened in and assign client to it if it was assigned to in ; if a dummy facility collocated with a client is opened in we pay penalty for in our solution. Since wlog we may assume that if is opened in then is assigned to (for if this is not the case and is assigned to a facility and is assigned to , we can obtain another solution by assigning to and to without increasing the cost). Clearly, the cost of the solution so obtained is bounded by the cost of . Using result of Bansal et al. [Bansal] to obtain , we have a factor approximation for the problem.
6 Conclusion and Future Work
In this paper, we presented constant factor approximations for connected, capacitated and prizecollecting facility location problem and variants. The approximations were obtained using the solutions of the underlying problems as blackbox.
We successfully reduced ConPFL and CPFL to ConFL and CFL respectively. Obtaining similar reductions when we have cardinality constraints is an interesting open problem.
Though we feel that reducing ConPC and CPC to ConC and CC respectively would be challenging, the techniques of ConC [liang2016ConkC] and CC [AnCkC] should be extendable (modifiable) to accommodate penalties. Then our technique in section 3 can be used to give an approximation for ConCPC as depicted in Figure 2.
This paper used reductions and combining techniques to introduce notoriously hard capacity constraints to connected and prizecollecting variants of some important classical problems. It will interesting to see similar results for other constraints, for example, the outlier constraint where you are allowed to leave some specified number of clients unserved. Note that our technique for prizecollecting variants gives similar results for outlier version with
factor violation in outliers; the challenge would be to get rid of this violation.
