Onepage quick start
So you know about algorithm portfolios and selection and just want to get started. Here we go. In your R shell, type
to install and load LLAMA. We’re going to assume that you have two input CSV files for your data – one with features and one with times. The rows designate problem instances and the columns feature and solver names. Both files have an “ID” column that allows to link them. Load them into the data structure required by LLAMA as follows.
You can also use the SAT solver data that comes with LLAMA by running data(satsolvers) followed by data = satsolvers. Now partition the entire set of instances into training and test sets for crossvalidation.
This will give you 10 folds for crossvalidation. Now we’re ready to train our first model. To do that, we’ll need some machine learning algorithms – we’re going to use a random forest classifier. Load the
randomForest package and train a simple classification model that predicts the best algorithm.Great! Now let’s see how well this model is doing and compare its performance to the virtual best solver (VBS) and the single best solver in terms of average PAR10 score.
You can use any other classification algorithms instead of randomForest of course. You can also train regression or cluster models, use different train/test splits or preprocess the data by selecting the most important features. More details in the online documentation, or just continue reading for an indepth tour of LLAMA.
1 Background
Throughout this document, we will assume that the reader is somewhat familiar with algorithm portfolios, algorithm selection, and combinatorial search problems. In this section, some of the background is explained and pointers to additional materials given. Readers familiar with the matter may skip ahead to the next section.
We also assume a basic familiarity with how machine learning works. Readers new to this area can find background material in a variety of text books, e.g. [1, 21, 16].
An algorithm portfolio [7, 5] is a collection of state of the art solvers that are all capable of solving the same kind of problem. The rationale of using more than one algorithm or solver for a set of problems is that no single algorithm will be the best for all of these problems. This is known as the no free lunch theorem [23]. If more than one solver is available, we can (at least in theory) choose the best one for each particular problem, thus achieving superior overall performance. The idea of algorithm portfolios was inspired by portfolios in Economics, where a total investment is distributed over multiple securities to minimise the risk.
Many contemporary solvers for artificial intelligence problems have complementing strengths and weaknesses. On a set of problems where one solver exhibits bad performance, another will excel while the picture may be reversed on a different set of problems. Algorithm portfolios exploit this by relating the structure of the problem to solve to the performance of an individual solver or a set of solvers.
SAT is one of the first areas of artificial intelligence that algorithm portfolios and algorithm selection techniques have been applied to, and with great success. The most prominent system is probably SATzilla
[26], which has dominated SAT solver competitions when it was introduced. More recent systems include ISAC [10], Hydra [25] and 3S [9].To use an algorithm portfolio for solving problems, a selection mechanism is required to determine the algorithm to use in the particular case. The concept is closely related to the Algorithm Selection Problem [19], which is concerned with identifying the most suitable algorithm for solving a problem. Usually, some kind of machine learning model is learned to relate the features of a problem instance to the performance of an algorithm or a portfolio. Problem instance features can be anything that describes the instance, for example structural features such as the number of variables in a search problem or probing features such as the progress made after running a benchmark algorithm for a short amount of time on the instance.
There are different ways in which such machine learning models can be used. In the simplest case, a single classification model is trained to predict the best algorithm, given the features of a problem instance. Alternatively, one regression model per algorithm can be trained to predict its performance. The performance predictions can then be used to choose the best algorithm. Another approach is to cluster the problem instances in the training set, determine the best algorithm for each cluster and assign new instances to the closest cluster. These and many more approaches have been used in the literature. LLAMA supports four fundamentally different approaches and a large number of variations of these involving metalearning techniques.
A lot more background information can be found in [14] (even more in the extended version [12]) and the overview table of the relevant literature at http://4c.ucc.ie/~larsko/assurvey/.
The main drawback of the systems described in the literature is that they are highly tailored and customised for the particular problem domain or even set of problems. On top of that, the implementation may not be available, or may require an obsolete version of Matlab and the respective author’s special environment that makes it work. Even though the highlevel approach can usually be applied to other problems, in practice this is almost always very difficult or even impossible. This makes it very difficult to compare different approaches and prototype new ideas especially for researchers who are not algorithm portfolio experts.
This is exactly what LLAMA addresses. Instead of providing a highlyspecialised approach that has been tuned and customised to yield high performance on a specific data set, LLAMA is a framework that provides the building blocks for automatic portfolio selectors. It supports the most common approaches to portfolio selection and offers the possibility to combine them into more sophisticated approaches. It furthermore provides an implementation of the infrastructure that is required to build, evaluate and apply algorithm portfolios in practice.
LLAMA is intended to be used by researchers working in the areas of algorithm portfolios, algorithm selection, and algorithm configuration and tuning. It is not particularly userfriendly or easy to use. It does not offer an industrialstrength C++ implementation that you can use in a highperformance portfolio solver. It can be used as a tool for designing such systems, but it will not do all the required work for you.
2 Anatomy of LLAMA
The main focus of LLAMA is to provide the user with a framework for the implementation and evaluation of different algorithm selection approaches. It is not meant to provide turnkey algorithm portfolio systems that can be used in competitions or similar settings. While the functionality it provides can certainly be used to facilitate the creation of such systems, a lot of the technical details for practical algorithm selection systems are highly domainspecific. The main audience LLAMA targets are researchers that wish investigate and explore the performance characteristics of algorithm selection systems in general.

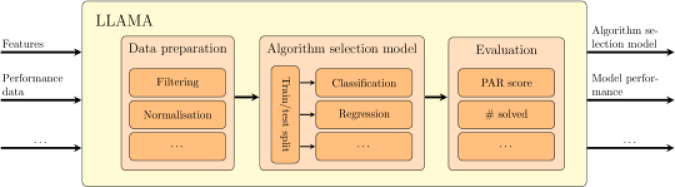

The overall architecture of LLAMA is illustrated in Figure 1. At a high level, LLAMA takes problem feature and solver performance data as input, processes it, and produces the algorithm selection model and a characterisation of its performance as output. There is no explicit support for computing features, as there are already many domainspecific systems that do this, e.g. SATzilla. The provided functionality falls into three main categories.
First, functions for data preparation are provided, such as filtering and normalising the feature data, partitioning the data set for evaluation, and analysing the contributions of the solvers in the portfolio to its overall performance. Input data can be read from a variety of sources, e.g. CSV files.
The second category comprises the modelbuilding functionality. This includes functionality required to facilitate a clean evaluation of the learned models, i.e. functions to partition into training and testing sets. All the main approaches used in the literature are represented – one can build models treating algorithm selection as label classification, regression models that predict the performance of each solver in the portfolio, clustering models that assign the best solver to each cluster, and models that predict which solver is faster for each pair of solvers. All this functionality is available through a unified interface – changing the type of algorithm selection model requires only a different function call, changing the type of machine learning used to induce the model requires only a change of parameter to the modelbuilding function call. Similarly, the output produced by these functions implements a common interface.
The third category of functionality contains the functions used to evaluate the learned models. Again, all commonly used evaluation measures, such as number of instances solved and PAR10 score, are supported. These measures can be reported for each individual problem instance or as averages.
Of the data preparation functions, any number can be used on a given data set. One could for example read the data, normalise the feature values, and filter the irrelevant features. In other cases, just reading the data may be sufficient. The processed data can then be used to build one or more algorithm selection models, depending on the requirements of the user. For a given application, only a single model may be required, while for a performance comparison several models would be needed. The learned models are then passed to the evaluation functions. Again it will depend on the application whether computing just one or several evaluation criteria makes sense.
All functions communicate through a set of common interfaces, which make it easy to extend the functionality. To implement a new modelbuilding approach for example, the code to process the input and produce the output can be reused, and the researcher is free to focus on the actual algorithm, on which no restrictions are imposed.
2.1 Implementation
LLAMA is implemented as an R package. There are many advantages to this approach; one of the main ones is that all the functionality available in R can be used to build algorithm selection models. This is not limited to the functionality that is implemented in R itself – there are interfaces to many other packages, such as the wellknown Weka machine learning toolkit [6].
The large number of machine learning approaches and algorithms available in R makes it possible to use LLAMA to quickly evaluate a range of different techniques for algorithm selection on given data, such as presented in [15]. Being able to do so is crucial for achieving good performance in practice. LLAMA has minimal requirements for machine learning algorithm implementations it can use, allowing the user to take full advantage of the functionality R and thirdparty packages provide.
3 LLAMA for domestic use
LLAMA is implemented as an R package and can be found at http://cran.rproject.org/web/packages/llama/, the development repository is at https://bitbucket.org/lkotthoff/llama. One of the main advantages of the R package implementation is that all the functionality available in R can be used to build performance model. This is not limited to the functionality that is implemented in R itself – there are interfaces to many other packages, such as the wellknown Weka machine learning toolkit [6].
The large number of machine learning approaches and algorithms available in R makes it possible to use LLAMA to quickly evaluate a range of different techniques for algorithm selection on given data, such as presented in [15]. Being able to do so is crucial for achieving good performance in practice.
LLAMA provides a number of highlevel functions that can be used to create and evaluate algorithm selection models with just a few lines of code. It is helpful to be familiar R and its language, although this document does not assume that you are. You will however need to be somewhat familiar with R to use the more sophisticated functionalities of LLAMA. There are many books on R, e.g. [2].
All of the functions LLAMA provides are documented in R’s online help system, usually with examples of how to use it. To access a help page, simply type ?<name of function>.
3.1 Installing LLAMA
LLAMA is available on CRAN. On a computer connected to the internet, all you have to do is open an R terminal and type
Alternatively, you can use the graphical package manager your R distribution provides, or download the package file yourself and install it manually.
Once the package is installed, you can load it by typing require(llama).
3.2 Reading data
Let’s start at the beginning – getting your data into LLAMA. It uses a special data structure that contains, besides the actual performance and feature data, meta data about which algorithm was the best in which case, how to extract feature and performance values, and other information that is required by the various functions that operate on it. Throughout this document, we will talk about the “performance” of an algorithm – this will usually be its runtime, but can be other things such as the quality of an obtained solution. LLAMA places no restrictions on what “performance” means.
LLAMA’s input() function requires a particular data format, but places no restrictions on where the data comes from. Its first argument is a data frame that contains the features for each problem instance. Each row in the data frame designates a different problem instance, each column holds the values for a different feature. The second argument to input() is a similar data frame that contains performance information for the algorithms in the portfolio. Both data frames should have a column that holds the ID of the problem instance such that the two data frames can be merged. In fact, LLAMA assumes that any columns that are present in both data frames can be used to merge them.
The third (and optional) argument is a data frame that tells LLAMA whether the run of a particular algorithm on a particular instance was successful or not. The column names should be the same as for the data frame that holds the algorithm performance values, and there should also be an ID column. Each cell holds a Boolean value designating whether the run was a success or not. The definition of “success” depends on the context; it can for example determine whether an algorithm returned a solution within a certain runtime limit. If this argument is specified, an additional way of evaluating the performance of an algorithm selection model is available. There are no other differences; most of the functionality of LLAMA does not require success values.
Another optional argument can be given to specify the cost of computing the feature values. This overhead incurred by the algorithm selection system needs to be taken into account to provide a realistic performance evaluation of the learned models. There are three different ways of specifying feature costs. A single number is assumed to be the cost for each instance. Alternatively, a data frame with an ID column and a column for each feature can be given. The entries in the rows denote the cost of computing the respective feature value for the respective instance. The third way of specifying feature computation costs is through a list that specifies feature groups and their costs. More details on how to specify feature costs along with examples can be found in LLAMA’s online help.
If feature costs are specified, they are automatically taken into account during the evaluation of the learned models. Cost and performance are assumed to be additive – that is, the cost can be added to the performance value. This covers the most common case for algorithm selection where the performance is the runtime. In addition to adding the cost, LLAMA also checks whether, with the overhead included, the system would incur a timeout and takes appropriate action if this is the case.
The final (and again optional) argument tells LLAMA whether low performance values are good or bad. It specifies how LLAMA determines the best algorithm, given the performances of the algorithms on an instance. The default behaviour is to assume that smaller values are better (the values give e.g. runtimes). For the opposite behaviour (e.g. quality of solution), specify minimize=F.
Assume that your data is in a set of CSV files with the following format.
features.csv: ID,width,height 0,1.2,3 ...more instances... performance.csv: ID,alg1,alg2 0,2,5 ...more instances... success.csv: ID,alg1,alg2 0,T,F ...more instances...
You can load this data into LLAMA as follows.
The input() function automatically computes all the meta data required by LLAMA – the return value can be used right away. Full details on the returned structure can be found in the online documentation.
3.2.1 Example data
LLAMA comes with some example data that you can play around with as a start. The data is runtime data for 19 SAT solvers on 2433 SAT instances [8]. For each instance, 36 features were measured. Success data (i.e. whether an algorithm timed out or not) is also available, but feature computation costs are not.
To use this data, type
If you want to run the following commands with this data, run data = satsolvers.
3.3 Slicing and dicing the data
Machine learning models are usually trained and tested on separate data. This is to avoid socalled overfitting, where the model learned is so specific to the data it was trained on that the predictions on anything else are very inaccurate. LLAMA provides functions to split a data set into training and test sets. This is one of the tedious and errorprone steps that researchers have to deal with in practice and that LLAMA aims to make less painful. To split the data into 60% training and 40% test sets, we can run the following command, assuming that your data is available in the data variable.
The second (optional) argument of the function specifies what fraction of the total data should be used for training. If, instead of a 6040 split, we want a 7030 split, all we need to do is run split = trainTest(data, 0.7).
By default, the training and test partitions are stratified. That is, the distribution of bestalgorithm labels in both partitions is approximately equal. If, for example, solver A is the best on 90% of the instances and solver B on the remaining 10% in the training set, the same will be the case in the test set. To turn off this behaviour, give the additional argument stratify = F.
In addition to a simple traintest split, LLAMA also provides a function to create data folds for crossvalidation [11], which is in general seen as a more reliable way of evaluating the performance of a learning algorithm. To partition the entire data into 10 stratified folds, run
The optional argument nfolds allows to specify the number of folds. The default behaviour is again to stratify the folds; this can be turned of in the same way as for trainTest().
3.4 Training and evaluating models
Now that we have both training and test data, we can train an algorithm selection model. To start with, we will train a simple classification model that, given the features of an instance, predicts the algorithm to use. This approach is used for example in [4]
. We train a model using the C4.5 decision tree learner
[17], J48 in Weka. For this, we load the RWeka package and call classify() with the name of the machine learning algorithm and the data folds created above.The call to classify trains and tests models on each crossvalidation fold. That is, for folds it trains models using partitions for training and the remaining partition for testing. The predictions on these testing partitions are returned along with a prediction function that uses a model that was trained on the entire data set. While the crossvalidation predictions allow to assess the expected performance of the model, the returned prediction function can be used as a building block for a portfolio system to obtain predictions on new data. For full details on the returned data structure, see the online help.
LLAMA provides several functions to evaluate the performance of an approach based on the predictions made. A common performance measure in the SAT community is the PAR (penalized average runtime) score. The score is equal to the time it took the algorithm to solve the instance or, if the algorithm was unable to solve it, a constant factor times the timeout value. Usually, PAR10 is used, meaning that timeouts are penalized by a factor of 10. To compute the average PAR10 score and the total number of solved instances of the approach using the C4.5 decision tree, we can run the following code.
On the example data, we get 5833.845 for the mean PAR10 score and 2043 solved instances^{1}^{1}1Note that these numbers will be slightly different when you run the same code because the data partitioning functions are stochastic. This also applies to all other performance numbers of models reported here. The parscores and successes evaluation functions, along with their cousin misclassificationPenalties, take the data for which the predictions were made as their first argument and the model that contains the predictions or the function that returns predictions (in the case of virtual best and single best algorithms) as the second. Optional arguments can be given to specify the penalty factor or the timeout value. By default, the performance value given for an unsuccessful run is assumed to be the timeout.
All evaluation functions return a list of the respective values for the chosen algorithm for each instance. That is, if there are 100 instances in the data, parscores() will return a list with 100 values. The predictions LLAMA computes are actually not just simple labels. Each “prediction” is a data frame that contains a ranked list of algorithms along with a score value. The number of algorithms in the data frame and the meaning of the score value depend on the modelbuilding function that is used and are explained in the respective online help pages. In this case, each data frame will contain only a single algorithm with a score of 1, meaning that this is the algorithm that was predicted by the one classifier. An individual prediction looks like this.
Computing metrics like the PAR10 score or the number of successes doesn’t give us a very good idea of how good the approach actually is. In the algorithm selection community, two common approaches to compare against are the virtual best solver and the single best solver. The virtual best solver assumes that we have a perfect predictor that will always choose the best algorithm for a particular instance. The single best solver is the algorithm in the portfolio that has overall the best performance, i.e. on the largest number of instances in the data set.
LLAMA provides convenience functions that allow to compare to both virtual best and single best solver. They are used in the same way as the predictions from a model are.
Comparing those numbers to the ones from the model that we trained should give us a better idea of its performance. Ideally, the model performance should be better than the one of the single best solver and as close to the virtual best as possible. On the example data, we get a mean PAR10 score of 4645.169 and 2124 solved instances for the VBS, and a mean PAR10 score of 5779.526 and 2048 solved instances for the best single solver. Our classification model does not improve on the single best solver in this case.
There are several different definitions for the single best solver, depending on the performance measure used to determine it. The singleBest function determines it as the one that has the best cumulative performance over all problem instances in the data set. LLAMA also provides functions to determine the single best by PAR score (singleBestByPar), by number of problem instances solved (singleBestBySuccesses), and by number of instances it delivered the overall best performance on (singleBestByCount).
As mentioned above, the modelbuilding function also returns a prediction function that allows to work with new data. As an example, we will use it to make predictions for the data that we have. Note that we’re getting predictions for the same data that we used to train the model here – do not use these predictions to evaluate the performance, this example is purely to illustrate what code to run.
Oh and if you want better model performance than the single best, try the randomForest classifier from the quick start.
3.5 Other available model types
Instead of using the J48 decision tree inducer, we can use any other classification algorithm. The only change needed is to give the other machine learning algorithm as the first argument.
Building a classifier to predict the best solver for a problem is only one of the approaches to providing a selector for algorithm portfolios. A different approach is used for example in older versions of SATzilla [26]. For each solver in the portfolio, a regression model is induced to predict the performance of the solver on a particular problem. Given these predictions, the solver with the best predicted performance is chosen.
LLAMA supports this kind of performance model as well. All we have to do is call a different function and pass in a machine learning algorithm that is able to learn models to predict numeric quantities as an argument. We use RWeka’s LinearRegression as an example.
You will notice that running this command takes longer than for the classification example. This is because instead of a single classification model, we now need to train one regression model for each algorithm in the portfolio (if you’re using the example SAT data, 19 different models).
The structure returned by the call is the same as for classification and PAR10 scores and similar are calculated in the same way. We get 5612.517 as mean PAR10 score and 2058 solved instances on the example data – an improvement on our earlier classification model and better than the single best algorithm. LLAMA offers a unified interface for all its modelbuilding functions that makes it easy to quickly try different approaches. The difference is that the prediction data frames now contain a row for each algorithm in the portfolio and the score denotes the predicted performance value.
Apart from the fact that the regression model is predicting negative runtimes, it appears to work quite well. Negative runtimes do not matter here, as we only use them to rank the algorithms.
The regression function determines whether the lowest performance value denotes the best algorithm by what has been specified when running input.
The approach used in the most recent version of SATzilla is to train classifiers that predict the better algorithm for each pair of algorithms [27]. This approach is a hybrid between the single classification model and the regression approach. Its strength comes from the fact that it explicitly considers the relation between two algorithms. It is usually easier to predict which of a pair of algorithms will be better rather than choosing the best from a large set or predicting the performance for each.
The predictions of the individual classifiers are aggregated as votes and the algorithm that has most votes wins. The number of votes for each algorithm can be used to rank all of the portfolio algorithms. This approach is also implemented in LLAMA. The function is called classifyPairs and conforms to the usual interface.
Running this command on the example SAT data will take quite a long time, as a model for each pair of algorithms needs to be trained. This approach offers great potential for parallelisation though; for more details, see Section 4.3.
On the example data, we get a mean PAR10 score of 5841.625 and 2041 solved instances. The data frame for an individual prediction now looks as follows; the score corresponds to the number of votes.
A different approach to algorithm selection that is used for example in ISAC [10] is to cluster the training problems and assign the best algorithm to each cluster based on the algorithm performances on the instances in the cluster. Again the only change is to call a different function, this time using RWeka’s XMeans clustering algorithm.
The return value corresponds to the usual format. We get a mean PAR10 score of 5736.518 and 2050 solved instances. The prediction data frames contain all portfolio algorithms ranked by performance. The score corresponds to the sum of the performances over all training instances in the respective cluster.
The cluster modelbuilder provides different ways of determining the best algorithm for a cluster that correspond to the different ways of determining the single best algorithm. The method to use is determined by the bestBy argument, which defaults to “performance”.
4 Advanced functionality
The previous section gave a glimpse of the core functionality of LLAMA. There is much more functionality beyond that though. All the functions we have used previously take additional arguments that allow them to be customised. The model building functions can work with several machine learning algorithms instead of just one. There are more functions that do exciting things^{2}^{2}2For suitable definitions of “exciting”..
4.1 Processing the input data
The feature and performance data is often messy – there are missing values, the values of some of the features are the same on all instances, or there is no correlation between feature values and performance. All of this can impact the performance of machine learning models. LLAMA provides functionality to mitigate this.
4.1.1 Selecting the most important features
Feature selection is a process by which the features that are relevant for making a particular prediction are identified. If, for example, the values of one feature are the same on all problem instances, the feature does not contribute anything and can be omitted. If on the other hand the values of a feature change as the prediction to be made changes, we definitely want to include this feature.
LLAMA does not offer any actual feature filtering algorithms, just like it does not offer any machine learning algorithms. Rather, it provides the infrastructure to use existing algorithms, which are plentiful in R. As an example, we will use the FSelector package, which provides a number of such functions.
Feature filtering in LLAMA is done through the featureFilter function. It takes a filtering algorithm and the data frame to use, which has to be in the usual LLAMA format, i.e. what is returned by the input function.
The function takes the entire data and runs the feature filtering algorithm to determine the effectiveness of the features with respect to predicting the best algorithm. The features which are retained after filtering will be used in the returned data frame.
This new data can now be used to split into training and test sets and build new models.
The model without feature filtering achieves a mean PAR10 score of 5833.845 with 2043 instances solved, while the model with feature filtering manages a slight improvement to a mean PAR10 score of 5645.93 and 2055 solved instances.
4.1.2 Normalising feature values
For some types of models, it may be desirable to normalise the feature values such that they cover the same range over all features. If, for example, we compute the distance between two instances based on the feature values in Euclidean space and the values for a particular feature happen to be 1000 times larger than the other ones, this feature will have the highest impact on the result, even though it may not be important.
LLAMA provides a function that allows to normalise the values of features before they are passed to the model learner. This functionality is different from the feature filtering, which is independent from any further operations. To normalise the feature values, scaling factors need to be computed. These same scaling factors need to be applied when working with new data, i.e. when using the predictor function returned by the model builders.
This is why normalisation is implemented as an optional argument to the modelbuilding functions instead of a standalone functions. The scaling factors are computed for the training data and saved in the environment such that they can be applied to new data later.
LLAMA currently provides only a single function, normalize, for feature value normalisation. This function scales the feature values such that the range for all features is 1 to 1. It is specified through the pre argument.
We are using the cluster model builder here, as clustering is an application that intrinsically relies on distance measures and is likely to be most affected by large differences in the range of feature values. The feature values can be normalized for all of the other modelbuilding functions in the same way.
On the example data, the mean PAR10 score is 5736.518 and the number of solved instances 2050 – the same as the model without normalisation. In this particular case, normalisation does not improve the performance.
4.1.3 Imputing censored runtimes
Working with empirical performance data is often difficult. If the problem instances are challenging, some of the algorithms may take a very long time to solve them – longer than one is prepared to wait. Usually, algorithms are run with a timeout. That is, if the algorithm did not find a solution after a certain amount of time, it is terminated – its runtime is censored. While allows to gather data in more reasonable amounts of time, the result makes machine learning more difficult – if an algorithm timed out, the recorded runtime is not actually the value we want to predict.
One way of addressing this issue is to impute the censored runtimes by learning a machine learning model to predict the runtime on the instances that did not time out and then apply it to the instances that timed out. This process can be repeated to get better models and estimates
[20].This method is implemented in LLAMA in the imputeCensored function. Its arguments are a LLAMA data frame, the regression algorithm to model the runtime, and termination conditions. Similar to featureFilter, it returns a new data frame with the imputed censored runtimes. Note that, similar to the regression model learner, the imputation function does not check the plausibility of the results – it is possible that the predicted runtimes are less than the timeout!
The performance of the new model with imputed performance values is much better in terms of average PAR10 and number of solved instances, but this is to be expected – all instances in the data are “solvable” after imputation, so no penalties will be imposed. However, we can compare the mean misclassification penalty for the old and new models. Without performance imputation, it is 88.47226 and with 45.45123 – a clear improvement.
4.2 Metalearning techniques – ensembles and stacking
One of the main strengths of LLAMA is that metalearning techniques can be applied to all of the model building functions easily. The idea behind metalearning is similar to that of algorithm portfolios – instead of relying on a single machine learning algorithm and the model it learns to deliver good predictions, we use several that (hopefully) complement each other.
The two metalearning concepts implemented in LLAMA are ensembles [3] and stacking [22]. In ensemble learning, multiple machine learning algorithms are run on the same data, learning multiple independent models. The predictions of each model are then combined to determine the overall prediction. In stacking on the other hand, several machine learning algorithms are layered on top of each other. That is, the first layer learns a model based on the actual data, while the second layer takes the predictions of the first layer as input. The two approaches can be combined – the predictions of an ensemble may be used as the input to a second layer of machine learning that makes the final prediction.
For the classify model building functions, both ensemble learning and stacking have been implemented. To use an ensemble, the first argument becomes a list of classification algorithms instead of a single one. To use stacking, that list should have a member named .combine.
We are using the svm classifier from the e1071 package in addition to classifiers from RWeka here. The mean PAR10 scores for the ensemble and stacked ensemble models on the example data are 5725.875 and 6394.164, respectively. The numbers of solved instances are 2050 and 2006. Compared to the model based on the single J48 classifier, ensemble learning improves performance a bit, but stacking does not help.
The prediction data frame for ensemble models has the number of votes for each algorithm as score. Algorithms with no votes do not appear.
For regression models, stacking as described in [13] is implemented. Instead of aggregating the predicted performance values by ranking them directly, a classifier is learned to predict, given the performance predictions, the best algorithm. To achieve this, a classification algorithm is given as the combine argument. set to true.
On the example data, this stacked model achieves a mean PAR10 score of 6103.86 and 2026 solved instances. The performance is worse than for the nonstacked version with a mean PAR10 of 5612.517 and 2058 solved instances. The reason for this is that the nonstacked combination function, choosing the algorithm with the lowest predicted value, is very hard to learn when considering the performance values independently and not the relation between them.
LLAMA does provide an additional argument for regression that allows to make this task easier. The expand argument allows to specify a function that, given the performance predictions, can augment the inputs to the classifier. In this case, we want to add the pairwise absolute differences between the predicted performances of algorithms.
While the function given here may appear cryptic at first, it demonstrates one o the advantages of the implementation of LLAMA as an R package. It allows to use arbitrary R functions to process data. The mean PAR10 score achieved by this model is 5823.698 and the number of solved instances 2044. An improvement over the stacked model without expansion.
For the classifyPairs model builder, LLAMA supports metalearning in the same way as for regression. Stacking can be used to provide a classification algorithm in the combinator argument that learns to predict the best algorithm, given the votes by the classifiers for pairs of algorithms.
The cluster model builder supports metalearning techniques in the same way as classify. More details and examples can be found in the online documentation for each of the model builders.
4.3 Parallel execution
Some of the models can take a very long time to train. Most of the operations are independent though and can be parallelised easily. LLAMA uses the parallelMap construct from the parallelMap package^{3}^{3}3https://github.com/berndbischl/parallelMap to parallelise execution across crossvalidation folds. That is, the model for each iteration will be trained and tested in parallel. The parallelMap construct provides transparent parallelisation that executes sequentially if no suitable parallel backend is loaded. All the user has to do to enable parallel execution is to load a parallel backend, for example through parallelStartSocket(). Libraries used in the spawned processes should be specified through parallelLibrary.
After running these commands, all subsequent calls to LLAMA model building functions will be parallelised across 2 CPUs.
Note that the functions provided by RWeka rely on a Java interface that is not threadsafe. The Weka machine learning algorithms can still be used with parallel execution though if a backend is used that runs separate processes, such as the sockets backend used above.
5 Case study: SATzilla
Algorithm selection systems often have additional components for which there is no explicit support in LLAMA. This is not necessarily an obstacle though, much additional functionality can be achieved by partitioning the data appropriately and using other functionality that R provides.
This section outlines how to implement a SATzillalike system with the help of LLAMA and R. A full implementation is beyond the scope of this document; instead, this section serves as a guide to researchers wishing to implement such measures. There are several techniques that the various versions of SATzilla use to make algorithm portfolios more performance in practice. We will sketch the implementation of each in turn before putting it all together. The techniques used in this section are described in more details in the SATzilla papers (e.g. [26, 24, 27]).
The main difference of the implementation sketched here and SATzilla is that we treat all problem instances the same way, without computing any weights that determine the “importance” of the problem instance. In practice, using weights is almost always a good idea.
5.1 Presolver
There are problem instances that can be solved almost instantaneously. For these, the overhead of computing features, running the algorithm selection model, and selecting a solver is too high. Using a portfolio is always going to be slower for these problems. To avoid this issue, we can run a presolver for a short amount of time.
This step is largely independent of training algorithm selection models. We do however need to take into account that the problems that are solved by the presolver within its time limit do not require algorithms to be selected for them, so we should remove them from the data before training the model. This is done easily in R.
Assuming that our presolver is minisat with a timeout of 1 second, we can filter the data as above before passing it to input. There is no need to filter the feature data, as LLAMA will discard any items it cannot match. The resulting LLAMA data frame can be used as usual to train and evaluate models.
5.2 Prediction of satisfiability
SAT solvers often behave differently depending on whether an instance is satisfiable or not. In practice, it can make sense to distinguish between these instances in algorithm portfolios. This requires a larger number of machine learning models. First, we need to be able to predict whether a given instance is satisfiable or not. Second, we need different algorithm selection models for the satisfiable and unsatisfiable cases.
To achieve this, we require additional data on whether an instance is satisfiable or not.
For simplicity, we assume that the first column of the feature file is an ID and that the order of the instances in the feature, performance, and satisfiable files is the same. The satisfiableModel can now be used to predict the satisfiability of a new instance, while the LLAMA data frames satisfiableData and unsatisfiableData can be used to train and evaluate algorithm selection models for the respective parts of the instance space.
5.3 Prediction of feature computation time
Computing the features of an instance is integral to algorithm selection systems. This information can be related to the performance of the algorithms to make predictions as to which algorithm to use in a particular case. However, sometimes just computing the features can take longer than it would take to solve the instance. It is clearly desirable to identify these cases before starting to compute the features.
To achieve this, we can train yet another machine learning model that, given a small and cheaply computable subset of the features, predicts the time required to compute the remaining features. If the time is too high, we simply run a backup solver on the instance. Such instances should not be used in the training and evaluation of the algorithm selection model.
Similar assumptions as in the section above are made. The LLAMA data frame can now again be used in the usual manner to train algorithm selection models.
5.4 Putting it all together
The techniques outlined in the previous section can now be put together to implement a system similar to SATzilla.
Let’s walk through it step by step. First, we read all the relevant data, as in the individual steps above. Then we set our time limits and the presolver. The data we want to train algorithm selection models for comprises the instances that are not solved by the presolver and for which the feature prediction time is not too long. We save the Boolean mask that encodes these conditions in toSolve to be able to filter the data later.
After that, we train our first two models – one to predict the feature computation time and the other to predict whether an instance is satisfiable or not. For the feature computation time, we need to consider all the data, whereas for the prediction of satisfiability we only need the instances that we want algorithm selection models for.
Then, we partition the data based on satisfiability and pass them to include, filtering the instances that we do not require algorithm selection for. Finally, we proceed in the usual LLAMA manner by partitioning the data into folds and learning a SATzilla 2012style pairwise classification model.
To make predictions on new data, we would use the two preliminary models to determine feature computation time and satisfiability and then the predictor member of either the satisfiableModel or the unsatisfiableModel.
Our SATzillastyle solver now looks something like this.
6 Case study: Visualising the data
Our final case study is going to be a bit more graphic than the previous rather dry sections – we are going to have a look at visualising the data we have been working with. R offers many possibilities for doing so and surveying them all is far beyond the scope of this manual. We only give a flavour of what visualisations can be done.
It is always useful to have a look at the data one will be working with. In our case, there are two main groups of data – the performance values and the features. Let’s have a look at the performance values first. Throughout this section, we will be using the example SAT data, but the same methodology applies to any other data in LLAMA format. As we have a large amount of data to visualise, we are going to use heatmaps.

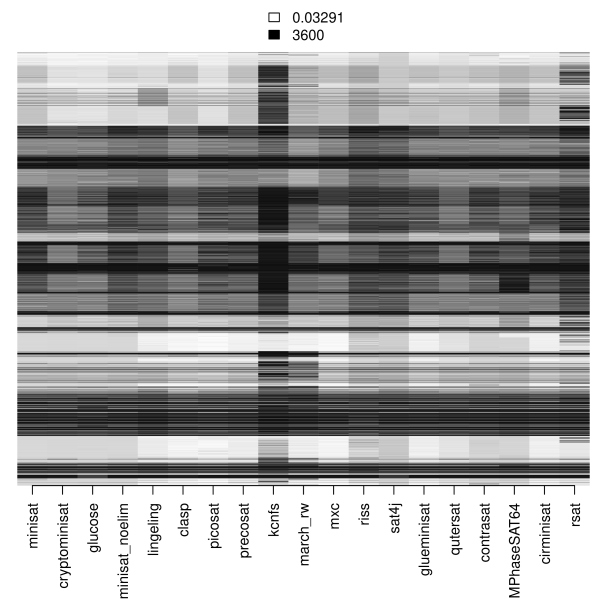

The graph created by this code is shown in Figure 2. After extracting the performance values (runtimes in this case) from the LLAMA data frame, setting some plot parameters and creating a black and white colour scale, we plot the heatmap, axis, and legend. The map shows the time each solver takes on each instance.
There is a large spread of runtimes in our data, with most instances being solved either instantaneously or timing out. The figure looks accordingly, with most colours being either white or black and very little grey in between. Plotting the log of the runtime is more informative (Figure 3).

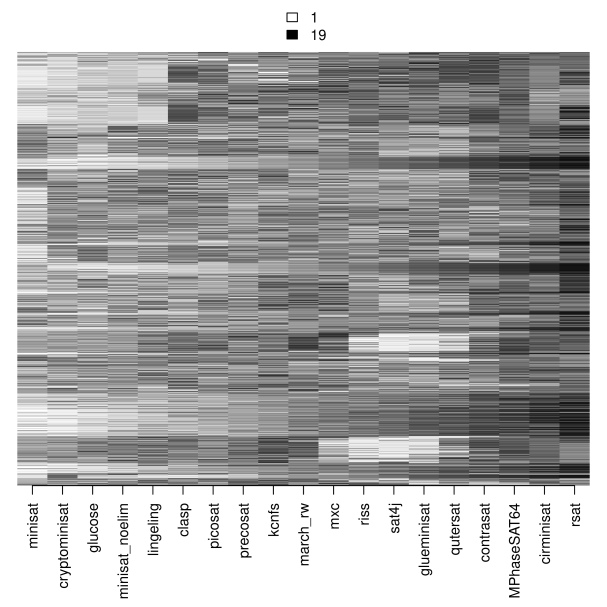

When doing algorithm selection, we are usually more interested in how the performance of a solver compares to the other solvers in the portfolio rather than the absolute value. We can plot the rank of each solver on each instance in a similar fashion to before. The resulting plot is shown in Figure 4.
The same kind of visual analysis can be applied to the features. This is probably even more important that analysing the performance data, as the features are used to create the models we are going to use for algorithm selection. If the features are bad, the models will not be good either. Let’s do the same kind of plot we did for the solvers for the features.

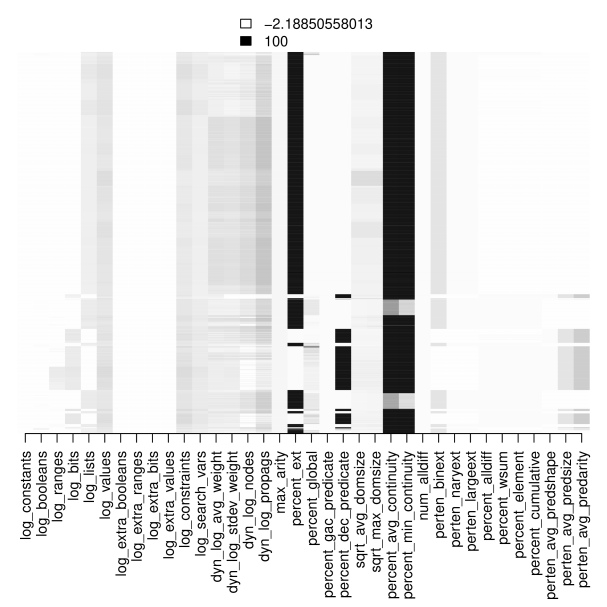

The resulting plot is shown in Figure 5
. The values for four of the features are much higher than the rest. It is hard to see the variance of the feature values for a particular feature over the set of instances because of this.

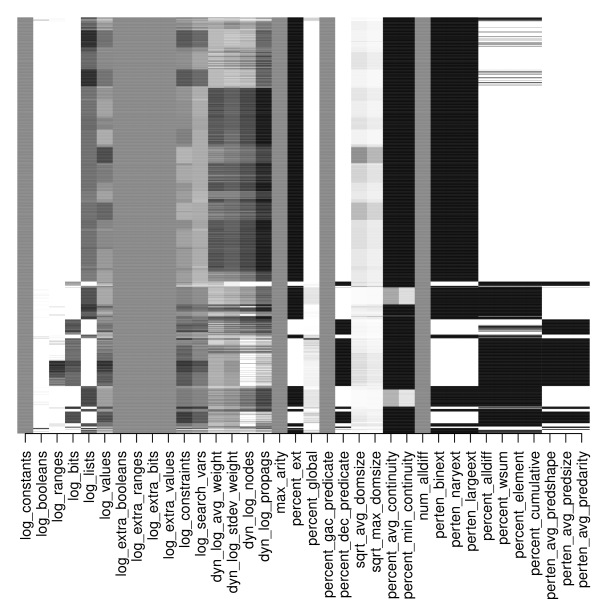

We get a better plot from the normalised feature values (Figure 6).
The features for the example data are not very good. For quite a lot of them, there is almost no variation and others have only two different values.
We can apply the same kind of analysis to the prediction results. This allows us to get an idea of what the machine learning algorithms are doing, where they work well and where things could be improved. The following code creates a heatmap of the PAR10 scores of a classification model on all instances. We are using the log of the PAR10 scores to get more shades of grey.
The resulting plot is shown in Figure 7. It gives us some idea of what’s going on, but looks more like a bar code than anything else.
The power of heatmaps comes from being able to compare multiple entities. A more useful plot compares the performance of the classification model to the performance of other models. The following code can be used to generate such a plot (Figure 8).
This comparison is actually quite insightful. The predictions of the regression model usually incur a higher PAR10 score (overall, the column is darker than the others), but its mean PAR10 score is lower than for the other models. It also shows us that for this specific scenario, there is almost no difference between the single and pairwise classification models.
As a final example, we will plot the differences in predicted and actual rank for the regression model. The heatmap resulting from the code below is shown in Figure 9.
The plot is a bit messy, but there are some insights to be gained. Looking at the solvers that perform well overall (e.g. minisat, leftmost column), we can see that they are predominantly red, i.e. most of the time they are predicted to be worse than they actually are. For the solvers that exhibit bad performance (e.g. rsat, rightmost column), we observe that they are predominantly blue, meaning that they are usually predicted to be better than they actually are. This indicates that improvements are to be had by training better machine learning models in this particular scenario.
The examples above only scratch the surface of the visualisations that are possible in R. While none of the examples shown depends on LLAMA, the data structures it provides facilitate the creation of such plots to some extent.
7 The further domestication of LLAMA
The functionality currently implemented in LLAMA facilitates the exploration of the performance of many different approaches to algorithm selection. It is our intention for LLAMA to develop into a platform that not only facilitates the exploration and comparison of different existing approaches, but also the rapid prototyping of new approaches. The functions it provides take care of the infrastructure required to train and evaluate machine learning models in a scientifically rigorous way. Researchers wishing to improve algorithm portfolio selection do not need to concern themselves with the infrastructure, but can concentrate on the actual research.
LLAMA is still at an early stage of development and bugs may occur. In the end, the responsibility of interpreting and validating the results lies with the user. However, we have used LLAMA for a number of applications, found and fixed a few bugs and are reasonably confident that it will useful to other people.
Acknowledgements
This work is supported by EU FP7 ICTFET grant 284715 (ICON). The drawing of a Llama is courtesy of http://www.bluebison.net/. We wish to thank all the people who contributed to LLAMA.
References
 [1] Christopher M. Bishop. Pattern Recognition and Machine Learning. Springer, 2007.
 [2] Michael J. Crawley. The R Book. Wiley Publishing, 1st edition, 2007.
 [3] Thomas G. Dietterich. Ensemble methods in machine learning. In International Workshop on Multiple Classifier Systems, pages 1–15, 2000.
 [4] Ian P. Gent, Christopher A. Jefferson, Lars Kotthoff, Ian Miguel, Neil Moore, Peter Nightingale, and Karen E. Petrie. Learning when to use lazy learning in constraint solving. In 19th European Conference on Artificial Intelligence, pages 873–878, August 2010.
 [5] Carla P. Gomes and Bart Selman. Algorithm portfolios. Artificial Intelligence, 126(12):43–62, 2001.
 [6] Mark Hall, Eibe Frank, Geoffrey Holmes, Bernhard Pfahringer, Peter Reutemann, and Ian H. Witten. The WEKA data mining software: An update. SIGKDD Explor. Newsl., 11(1):10–18, November 2009.
 [7] Bernardo A. Huberman, Rajan M. Lukose, and Tad Hogg. An economics approach to hard computational problems. Science, 275(5296):51–54, 1997.
 [8] Barry Hurley, Lars Kotthoff, Yuri Malitsky, and Barry O’Sullivan. Proteus: A hierarchical portfolio of solvers and transformations. In CPAIOR, May 2014.
 [9] Serdar Kadioglu, Yuri Malitsky, Ashish Sabharwal, Horst Samulowitz, and Meinolf Sellmann. Algorithm selection and scheduling. In 17th International Conference on Principles and Practice of Constraint Programming, pages 454–469, 2011.
 [10] Serdar Kadioglu, Yuri Malitsky, Meinolf Sellmann, and Kevin Tierney. ISAC – instancespecific algorithm configuration. In Proceeding of the 2010 conference on ECAI 2010: 19th European Conference on Artificial Intelligence, pages 751–756, Amsterdam, The Netherlands, The Netherlands, 2010. IOS Press.
 [11] Ron Kohavi. A study of crossvalidation and bootstrap for accuracy estimation and model selection. In Proceedings of the 14th International Joint Conference on Artificial Intelligence, pages 1137–1143. Morgan Kaufmann, 1995.
 [12] Lars Kotthoff. Algorithm selection for combinatorial search problems: A survey. Technical Report arXiv:1210.7959, University College Cork, 2012.
 [13] Lars Kotthoff. Hybrid regressionclassification models for algorithm selection. In 20th European Conference on Artificial Intelligence, pages 480–485, August 2012.
 [14] Lars Kotthoff. Algorithm selection for combinatorial search problems: A survey. AI Magazine, 2014. Forthcoming.
 [15] Lars Kotthoff, Ian P. Gent, and Ian Miguel. An evaluation of machine learning in algorithm selection for search problems. AI Communications, 25(3):257–270, 2012.
 [16] Brett Lantz. Machine Learning with R. Packt, 2013.
 [17] J. Ross Quinlan. C4.5: Programs for Machine Learning. Morgan Kaufmann, 1 edition, January 1993.
 [18] Talal Rahwan and Tomasz P. Michalak. A game theoretic approach to measure contributions in algorithm portfolios. Technical Report RR1311, DCS, 2013.
 [19] John R. Rice. The algorithm selection problem. Advances in Computers, 15:65–118, 1976.

[20]
Josef Schmee and Gerald J. Hahn.
A simple method for regression analysis with censored data.
Technometrics, 21(4):417–432, 1979.  [21] Ian H. Witten, Eibe Frank, and Mark A. Hall. Data Mining: Practical Machine Learning Tools and Techniques. Morgan Kaufmann, 2011.
 [22] David H. Wolpert. Stacked generalization. Neural Networks, 5:241–259, 1992.

[23]
David H. Wolpert and William G. Macready.
No free lunch theorems for optimization.
IEEE Transactions on Evolutionary Computation
, 1(1):67–82, 1997.  [24] Lin Xu, Holger H. Hoos, and Kevin LeytonBrown. Hierarchical hardness models for SAT. In CP, pages 696–711, 2007.
 [25] Lin Xu, Holger H. Hoos, and Kevin LeytonBrown. Hydra: Automatically configuring algorithms for portfoliobased selection. In TwentyFourth Conference of the Association for the Advancement of Artificial Intelligence, pages 210––216, 2010.
 [26] Lin Xu, Frank Hutter, Holger H. Hoos, and Kevin LeytonBrown. SATzilla: portfoliobased algorithm selection for SAT. J. Artif. Intell. Res., 32:565–606, 2008.
 [27] Lin Xu, Frank Hutter, Holger H. Hoos, and Kevin LeytonBrown. HydraMIP: automated algorithm configuration and selection for mixed integer programming. In RCRA Workshop on Experimental Evaluation of Algorithms for Solving Problems with Combinatorial Explosion, pages 16–30, 2011.
Comments
There are no comments yet.
