LIUM-CVC Submissions for WMT18 Multimodal Translation Task

This paper describes the multimodal Neural Machine Translation systems developed by LIUM and CVC for WMT18 Shared Task on Multimodal Translation. This year we propose several modifications to our previous multimodal attention architecture in order to better integrate convolutional features and refine them using encoder-side information. Our final constrained submissions ranked first for English-French and second for English-German language pairs among the constrained submissions according to the automatic evaluation metric METEOR.


page 1

page 2

page 3

page 4


LIUM-CVC Submissions for WMT17 Multimodal Translation Task

This paper describes the monomodal and multimodal Neural Machine Transla...

UMONS Submission for WMT18 Multimodal Translation Task

This paper describes the UMONS solution for the Multimodal Machine Trans...

The MeMAD Submission to the WMT18 Multimodal Translation Task

This paper describes the MeMAD project entry to the WMT Multimodal Machi...

MSCTD: A Multimodal Sentiment Chat Translation Dataset

Multimodal machine translation and textual chat translation have receive...

Automatic TM Cleaning through MT and POS Tagging: Autodesk's Submission to the NLP4TM 2016 Shared Task

We describe a machine learning based method to identify incorrect entrie...

Learning to Evaluate Translation Beyond English: BLEURT Submissions to the WMT Metrics 2020 Shared Task

The quality of machine translation systems has dramatically improved ove...

Multilingual Machine Translation Systems from Microsoft for WMT21 Shared Task

This report describes Microsoft's machine translation systems for the WM...

1 Introduction

In this paper, we present the neural machine translation (NMT) and multimodal NMT (MMT) systems developed by LIUM and CVC for the third edition of the shared task. Several lines of work have been conducted since the introduction of the shared task on MMT in 2016 Specia et al. (2016). The majority of last year submissions including ours Caglayan et al. (2017a) were based on the integration of global visual features into various parts of the NMT architecture Elliott et al. (2017). Apart from these, hierarchical multimodal attention Helcl and Libovický (2017) and multi-task learning Elliott and Kádár (2017) were also explored by the participants.

This year we decided to revisit the multimodal attention Caglayan et al. (2016)

since our previous observations about qualitative analysis of the visual attention was not satisfying. In order to improve the multimodal attention both qualitatively and quantitatively, we experiment with several refinements to it: first, we try to use different input image sizes prior to feature extraction and second we normalize the final convolutional feature maps to assess its impact on the final MMT performance. In terms of architecture, we propose to refine the visual features by learning an encoder-guided early spatial attention. In overall, we find that normalizing feature maps is crucial for the multimodal attention to obtain a comparable performance to monomodal NMT while the impact of the input image size remains unclear. Finally, with the help of the refined attention, we obtain modest improvements in terms of BLEU

Papineni et al. (2002) and METEOR Lavie and Agarwal (2007).

The paper is organized as follows: data preprocessing, model details and training hyperparameters are detailed respectively in section

2 and section 3. The results based on automatic evaluation metrics are reported in section 4. Finally the paper ends with a conclusion in section 5.

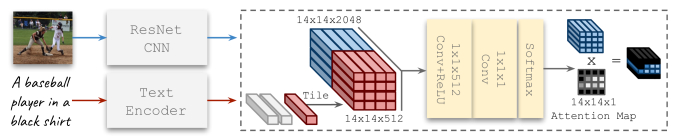

Figure 1: Filtered attention (FA): the convolutional feature maps are dynamically masked using an attention conditioned on the source sentence representation.
