1 Introduction

Noise is everywhere. When we listen to someone speak, the audio signals we receive are never pure and clean, always contaminated by all kinds of noises—cars passing by, spinning fans in an air conditioner, barking dogs, music from a loudspeaker, and so forth. To a large extent, people in a conversation can effortlessly filter out these noises Kell2019. In the same vein, numerous applications, ranging from cellular communications to human-robot interaction, rely on speech denoising algorithms as a fundamental building block.

Despite its vital importance, algorithmic speech denoising remains a grand challenge. Provided an input audio signal, speech denoising aims to separate the foreground (speech) signal from its additive background noise. This separation problem is inherently ill-posed. Classic approaches such as spectral subtraction boll; Weiss; 1170788; Yang2005SpectralSS; sg and Wiener filtering 543199; 1163086

conduct audio denoising in the spectral domain, and they are typically restricted to stationary or quasi-stationary noise. In recent years, the advance of deep neural networks has also inspired their use in audio denoising. While outperforming the classic denoising approaches, existing neural-network-based approaches use network structures developed for general audio processing tasks

Maas2012RecurrentNN; Valentini-Botinhao+2016; 101007

or borrowed from other areas such as computer vision

10112111358887; Gabbay2017; Afouras2018; Hou2018; m2019av

and generative adversarial networks

Pascual2017; Pascual2019. Nevertheless, beyond reusing well-developed network models as a black box, a fundamental question remains: What natural structures of speech can we leverage to mold network architectures for better performance on speech denoising?

1.1 Key insight: time distribution of silent intervals

Motivated by this question, we revisit one of the most widely used audio denoising methods in practice, namely the spectral subtraction method boll; Weiss; 1170788; Yang2005SpectralSS; sg. Implemented in many commercial software such as Adobe Audition audition, this classical method requires the user to specify a time interval during which the foreground signal is absent. We call such an interval a silent interval. A silent interval is a time window that exposes pure noise. The algorithm then learns from the silent interval the noise characteristics, which are in turn used to suppress the additive noise of the entire input signal (through subtraction in the spectral domain).

Yet, the spectral subtraction method suffers from two major shortcomings: i) it requires user specification of a silent interval, that is, not fully automatic; and ii) the single silent interval, although undemanding for the user, is insufficient in presence of nonstationary noise—for example, a background music. Ubiquitous in daily life, nonstationary noise has time-varying spectral features. The single silent interval reveals the noise spectral features only in that particular time span, thus inadequate for denoising the entire input signal. The success of spectral subtraction pivots on the concept of silent interval; so do its shortcomings.

In this paper, we introduce a deep network for speech denoising that tightly integrates silent intervals, and thereby overcomes many of the limitations of classical approaches. Our goal is not just to identify a single silent interval, but to find as many as possible silent intervals over time. Indeed, silent intervals in speech appear in abundance: psycholinguistic studies have shown that there is almost always a pause after each sentence and even each word in speech rochester1973significance; fors2015production. Each pause, however short, provides a silent interval revealing noise characteristics local in time. All together, these silent intervals assemble a time-varying picture of background noise, allowing the neural network to better denoise speech signals, even in presence of nonstationary noise (see Fig. 1).

In short, to interleave neural networks with established denoising pipelines, we propose a network structure consisting of three major components (see Fig. 2): i) one dedicated to silent interval detection, ii)

another that aims to estimate the full noise from those revealed in silent intervals, akin to an inpainting process in computer vision

Iizuka2017completion, and iii) yet another for cleaning up the input signal.

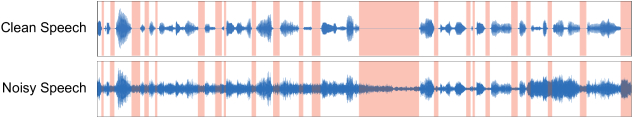

Figure 1: Silent intervals over time. (top) A speech signal has many natural pauses. Without any noise, these pauses are exhibited as silent intervals (highlighted in red). (bottom) However, most speech signals are contaminated by noise. Even with mild noise, silent intervals become overwhelmed and hard to detect. If robustly detected, silent intervals can help to reveal the noise profile over time.

Summary of results.

Our neural-network-based denoising model accepts a single channel of audio signal and outputs the cleaned-up signal. Unlike some of the recent denoising methods that take as input audiovisual signals (i.e., both audio and video footage), our method can be applied in a wider range of scenarios (e.g., in cellular communication). We conducted extensive experiments, including ablation studies to show the efficacy of our network components and comparisons to several state-of-the-art denoising methods. We also evaluate our method under various signal-to-noise ratios—even under strong noise levels that are not tested against in previous methods. We show that, under a variety of denoising metrics, our method consistently outperforms those methods, including those that accept only audio input (like ours) and those that denoise based on audiovisual input.

The pivotal role of silent intervals for speech denoising is further confirmed by a few key results. Even without supervising on silent interval detection, the ability to detect silent intervals naturally emerges in our network. Moreover, while our model is trained on English speech only, with no additional training it can be readily used to denoise speech in other languages (such as Chinese, Japanese, and Korean). Please refer to the supplementary materials for listening to our denoising results.

2 Related Work

Figure 2: Our audio denoise network. Our model has three components: (a) one that detects silent intervals over time, and outputs a noise profile observed from detected silent intervals; (b) another that estimates the full noise profile, and (c) yet another that cleans up the input signal.

Speech denoising.

Speech denoising se is a fundamental problem studied over several decades. Spectral subtraction  boll; Weiss; 1170788; Yang2005SpectralSS; sg estimates the clean signal spectrum by subtracting an estimate of the noise spectrum from the noisy speech spectrum. This classic method was followed by spectrogram factorization methods 6784107. Wiener filtering 543199; 1163086 derives the enhanced signal by optimizing the mean-square error. Other methods exploit pauses in speech, forming segments of low acoustic energy where noise statistics can be more accurately measured Doblinger95computationallyefficient; 928915; 10.1155/ASP.2005.2954; 1164550; 1325983; 1223596; 988717. Statistical model-based methods 168664; Hirsch1995NoiseET and subspace algorithms 101016; 397090 are also studied.

Applying neural networks to audio denoising dates back to the 80s 196643; 1326090. With increased computing power, deep neural networks are often used 6665000; Xu2015MultiobjectiveLA; 6932438; Kumar2016SpeechEI

. Long short-term memory networks (LSTMs)

lstm are able to preserve temporal context information of the audio signal lipton2015critical, leading to strong results Maas2012RecurrentNN; Valentini-Botinhao+2016; 101007. Leveraging generative adversarial networks (GANs) 10.5555/2969033.2969125, methods such as Pascual2017; Pascual2019 have adopted GANs into the audio field and have also achieved strong performance.

Audio signal processing methods operate on either the raw waveform or the spectrogram by Short-time Fourier Transform (STFT). Some work directly on waveform

Fu_2017; Pandey2018; michelashvili2019audio; 101109TASLP20192915167, and others use Wavenet Oord2016aiw for speech denoising Qian2017; 8462417; Germain2019. Many other methods such as Lu2013SpeechEB; 10555529991342999160; 6639038; 7032183; Kumar_2016; 7422753; 2017ASAJ1414705C work on audio signal’s spectrogram, which contains both magnitude and phase information. There are works discussing how to use the spectrogram to its best potential 1163920; 10101622, while one of the disadvantages is that the inverse STFT needs to be applied. Meanwhile, there also exist works 6334422; 7471747; 7038277; 7178800; 7178061; 7906509; 8170014 investigating how to overcome artifacts from time aliasing.

Speech denoising has also been studied in conjunction with computer vision due to the relations between speech and facial features 4317558. Methods such as 10112111358887; Gabbay2017; Afouras2018; Hou2018; m2019av utilize different network structures to enhance the audio signal to the best of their ability. Adeel et al. Adeel2019 even utilize lip-reading to filter out the background noise of a speech.

Deep learning for other audio processing tasks.

Deep learning is widely used for lip reading, speech recognition, speech separation, and many audio processing or audio-related tasks, with the help of computer vision Owens_2018; owens2016ambient; aytar2016soundnet; arandjelovic2018objects. Methods such as 7949073; 8265271; Owens_2016 are able to reconstruct speech from pure facial features. Methods such as 8585066; 101007s1048901406297 take advantage of facial features to improve speech recognition accuracy. Speech separation is one of the areas where computer vision is best leveraged. Methods such as gabbay2017seeing; Owens_2018; Ephrat_2018; zhao2018sound have achieved impressive results, making the previously impossible speech separation from a single audio signal possible. Recently, Zhang et al. Zhang2020Deep proposed a new operation called Harmonic Convolution to help networks distill audio priors, which is shown to even further improve the quality of speech separation.

3 Learning Speech Denoising

We present a neural network that harnesses the time distribution of silent intervals for speech denoising. The input to our model is a spectrogram of noisy speech wyse2017audio; sasp; 4511413, which can be viewed as a 2D image of size with two channels, where represents the time length of the signal and is the number of frequency bins. The two channels store the real and imaginary parts of STFT, respectively. After learning, the model will produce another spectrogram of the same size as the noise suppressed.

We first train our proposed network structure in an end-to-end fashion, with only denoising supervision (Sec. 3.2); and it already outperforms the state-of-the-art methods that we compare against. Furthermore, we incorporate the supervision on silent interval detection (Sec. 3.3) and obtain even better denoising results (see Sec. 4).

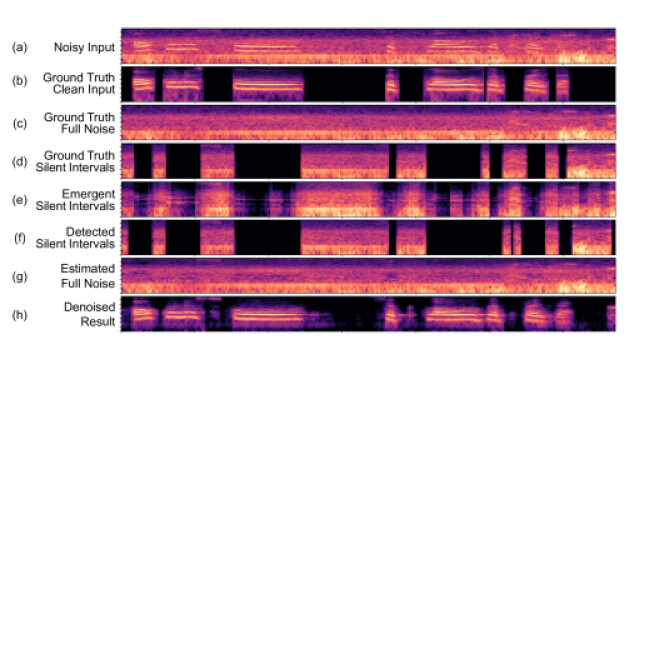

Figure 3: Example of intermediate and final results. (a) The spectrogram of a noisy input signal, which is a superposition of a clean speech signal (b) and a noise (c). The black regions in (b) indicate ground-truth silent intervals. (d) The noise exposed by automatically emergent silent intervals, i.e., the output of the silent interval detection component when the entire network is trained without silent interval supervision (recall Sec. 3.2). (e) The noise exposed by detected silent intervals, i.e., the output of the silent interval detection component when the network is trained with silent interval supervision (recall Sec. 3.3). (f) The estimated noise profile using subfigure (a) and (e) as the input to the noise estimation component. (g) The final denoised spectrogram output.

3.1 Network structure

Classic denoising algorithms work in three general stages: silent interval specification, noise feature estimation, and noise removal. We propose to interweave learning throughout this process: we rethink each stage with the help of a neural network, forming a new speech denoising model. Since we can chain these networks together and estimate gradients, we can efficiently train the model with large-scale audio data. Figure 2 illustrates this model, which we describe below.

Silent interval detection.

The first component is dedicated to detecting silent intervals in the input signal. The input to this component is the spectrogram of the input (noisy) signal . The spectrogram is first encoded by a 2D convolutional encoder into a 2D feature map, which is in turn processed by a bidirectional LSTM lstm; brnn followed by two fully-connected (FC) layers (see network details in Appendix A). The bidirectional LSTM is suitable for processing time-series features resulting from the spectrogram mehri2016samplernn; kalchbrenner2018efficient; Purwins_2019; Ephrat_2018

, and the FC layers are applied to the features of each time sample to accommodate variable length input. The output from this network component is a vector

. Each element of

is a scalar in [0,1] (after applying the sigmoid function), indicating a confidence score of a small time segment being silent. We choose each time segment to have

second, small enough to capture short speech pauses and large enough to allow robust prediction.

The output vector is then expanded to a longer mask, which we denote as

. Each element of this mask indicates the confidence of classifying each sample of the input signal

as pure noise (see Fig. 3-e). With this mask, the noise profile exposed by silent intervals are estimated by an element-wise product, namely .

Noise estimation.

The signal resulted from silent interval detection is noise profile exposed only through a series of time windows (see Fig. 3-e)—but not a complete picture of the noise. However, since the input signal is a superposition of clean speech signal and noise, having a complete noise profile would ease the denoising process, especially in presence of nonstationary noise. Therefore, we also estimate the entire noise profile over time, which we do with a neural network.

Inputs to this component include both the noisy audio signal and the incomplete noise profile . Both are converted by STFT into spectrograms, denoted as and

, respectively. We view the spectrograms as 2D images. And because the neighboring time-frequency pixels in a spectrogram are often correlated, our goal here is conceptually akin to the image inpainting task in computer vision

Iizuka2017completion. To this end, we encode and by two separate 2D convolutional encoders into two feature maps. The feature maps are then concatenated in a channel-wise manner and further decoded by a convolutional decoder to estimate the full noise spectrogram, which we denote as . A result of this step is illustrated in Fig. 3-f.

Noise removal.

Lastly, we clean up the noise from the input signal . We use a neural network that takes as input both the input audio spectrogram and the estimated full noise spectrogram . The two input spectrograms are processed individually by their own 2D convolutional encoders. The two encoded feature maps are then concatenated together before passing to a bidirectional LSTM followed by three fully connected layers (see details in Appendix A). Like other audio enhancement models Ephrat_2018; Wang_2018; 6887314, the output of this component is a vector with two channels which form the real and imaginary parts of a complex ratio mask in frequency-time domain. In other words, the mask has the same (temporal and frequency) dimensions as .

In the final step, we compute the denoised spectrogram through element-wise multiplication of the input audio spectrogram and the mask (i.e., ). Finally, the cleaned-up audio signal is obtained by applying the inverse STFT to (see Fig. 3-g).

3.2 Loss functions and training

Since a subgradient exists at every step, we are able to train our network in an end-to-end fashion with stochastic gradient descent. We optimize the following loss function:

(1)

where the notations , , , and are defined in Sec. 3.1; and denote the spectrograms of the ground-truth foreground signal and background noise, respectively. The first term penalizes the discrepancy between estimated noise and the ground-truth noise, while the second term accounts for the estimation of foreground signal. These two terms are balanced by the scalar ( in our experiments).

Natural emergence of silent intervals.

While producing plausible denoising results (see Sec. 4.4), the end-to-end training process has no supervision on silent interval detection: the loss function (1) only accounts for the recoveries of noise and clean speech signal. But somewhat surprisingly, the ability of detecting silent intervals automatically emerges as the output of the first network component (see Fig. 3-d as an example, which visualizes ). In other words, the network automatically learns to detect silent intervals for speech denoising without this supervision.

3.3 Silent interval supervision

As the model is learning to detect silent intervals on its own, we are able to directly supervise silent interval detection to further improve the denoising quality. Our first attempt was to add a term in (1) that penalizes the discrepancy between detected silent intervals and their ground truth. But our experiments show that this is not effective (see Sec. 4.4). Instead, we train our network in two sequential steps.

First, we train the silent interval detection component through the following loss function:

(2)

where is the binary cross entropy loss, is the mask resulted from silent interval detection component, and is the ground-truth label of each signal sample being silent or not—the way of constructing and the training dataset will be described in Sec. 4.1.

Next, we train the noise estimation and removal components through the loss function (1). This step starts by neglecting the silent detection component. In the loss function (1), instead of using , the noise spectrogram exposed by the estimated silent intervals, we use the noise spectrogram exposed by the ground-truth silent intervals (i.e., the STFT of ). After training using such a loss function, we fine-tune the network components by incorporating the already trained silent interval detection component. With the silent interval detection component fixed, this fine-tuning step optimizes the original loss function (1) and thereby updates the weights of the noise estimation and removal components.

4 Experiments

This section presents the major evaluations of our method, comparisons to several baselines and prior works, and ablation studies. We also refer the reader to the supplementary materials (including a supplemental document and audio effects organized on an off-line webpage) for the full description of our network structure, implementation details, additional evaluations, as well as audio examples.

4.1 Experiment setup

Dataset construction.

To construct training and testing data, we leverage publicly available audio datasets. We obtain clean speech signals using AVSPEECH Ephrat_2018, from which we randomly choose 2448 videos ( hours of total length) and extract their speech audio channels. Among them, we use 2214 videos for training and 234 videos for testing, so the training and testing speeches are fully separate. All these speech videos are in English, selected on purpose: as we show in supplementary materials, our model trained on this dataset can readily denoise speeches in other languages.

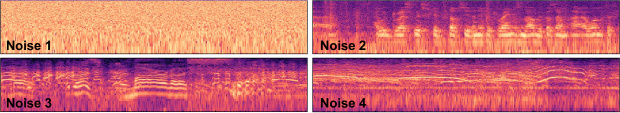

Figure 4: Noise gallery.

We show four examples of noise from the noise datasets. Noise 1) is a stationary (white) noise, and the other three are not. Noise 2) is a monologue in a meeting. Noise 3) is party noise from people speaking and laughing with background noise. Noise 4) is street noise from people shouting and screaming with additional traffic noise such as vehicles driving and honking.

We use two datasets, DEMAND thiemann:hal-00796707 and Google’s AudioSet audioset, as background noise. Both consist of environmental noise, transportation noise, music, and many other types of noises. DEMAND has been used in previous denoising works (e.g., Pascual2017; Germain2019; Valentini-Botinhao+2016). Yet AudioSet is much larger and more diverse than DEMAND, thus more challenging when used as noise. Figure 4 shows some noise examples. Our evaluations are conducted on both datasets, separately.

Due to the linearity of acoustic wave propagation, we can superimpose clean speech signals with noise to synthesize noisy input signals (similar to previous works Pascual2017; Germain2019; Valentini-Botinhao+2016). When synthesizing a noisy input signal, we randomly choose a signal-to-noise ratio (SNR) from seven discrete values: -10dB, -7dB, -3dB, 0dB, 3dB, 7dB, and 10dB; and by mixing the foreground speech with properly scaled noise, we produce a noisy signal with the chosen SNR. For example, a -10dB SNR means that the power of noise is ten times the speech (see Fig. S1 in appendix). The SNR range in our evaluations (i.e., [-10dB, 10dB]) is significantly larger than those tested in previous works.

To supervise our silent interval detection (recall Sec. 3.3), we need ground-truth labels of silent intervals. To this end, we divide each clean speech signal into time segments, each of which lasts seconds. We label a time segment as silent when the total acoustic energy in that segment is below a threshold. Since the speech is clean, this automatic labeling process is robust.

Remarks on creating our own datasets. Unlike many previous models, which are trained using existing datasets such as Valentini’s VoiceBank-DEMAND Valentini-Botinhao+2016, we choose to create our own datasets because of two reasons. First, Valentini’s dataset has a noise SNR level in [0dB, 15dB], much narrower than what we encounter in real-world recordings. Secondly, although Valentini’s dataset provides several kinds of environmental noise, it lacks the richness of other types of structured noise such as music, making it less ideal for denoising real-world recordings (see discussion in Sec. 4.6).

Method comparison.

We compare our method with several existing methods that are also designed for speech denoising, including both the classic approaches and recently proposed learning-based methods. We refer to these methods as follows: i) Ours, our model trained with silent interval supervision (recall Sec. 3.3); ii) Baseline-thres, a baseline method that uses acoustic energy threshold to label silent intervals (the same as our automatic labeling approach in Sec. 4.1 but applied on noisy input signals), and then uses our trained noise estimation and removal networks for speech denoising. iii) Ours-GTSI, another reference method that uses our trained noise estimation and removal networks, but hypothetically uses the ground-truth silent intervals; iv) Spectral Gating, the classic speech denoising algorithm based on spectral subtraction sg; v) Adobe Audition audition

, one of the most widely used professional audio processing software, and we use its machine-learning-based noise reduction feature, provided in the latest Adobe Audition CC 2020, with default parameters to batch process all our test data;

vi) SEGAN Pascual2017, one of the state-of-the-art audio-only speech enhancement methods based on generative adversarial networks. vii) DFL Germain2019, a recently proposed speech denoising method based on a loss function over deep network features; 111This recent method is designed for high-noise-level input, trained in an end-to-end fashion, and as their paper states, is “particularly pronounced for the hardest data with the most intrusive background noise”. viii) VSE Gabbay2017, a learning-based method that takes both video and audio as input, and leverages both audio signal and mouth motions (from video footage) for speech denoising. We could not compare with another audiovisual method Ephrat_2018 because no source code or executable is made publicly available.

For fair comparisons, we train all the methods (except Spectral Gating which is not learning-based and Adobe Audition which is commercially shipped as a black box) using the same datasets. For SEGAN, DFL, and VSE, we use their source codes published by the authors. The audiovisual denoising method VSE also requires video footage, which is available in AVSPEECH.

4.2 Evaluation on speech denoising

Metrics.

Due to the perceptual nature of audio processing tasks, there is no widely accepted single metric for quantitative evaluation and comparisons. We therefore evaluate our method under six different metrics, all of which have been frequently used for evaluating audio processing quality. Namely, these metrics are: i) Perceptual Evaluation of Speech Quality (PESQ) pesq, ii) Segmental Signal-to-Noise Ratio (SSNR) ssnr, iii) Short-Time Objective Intelligibility (STOI) stoi, iv) Mean opinion score (MOS) predictor of signal distortion (CSIG) metrics, v) MOS predictor of background-noise intrusiveness (CBAK) metrics, and vi) MOS predictor of overall signal quality (COVL) metrics.

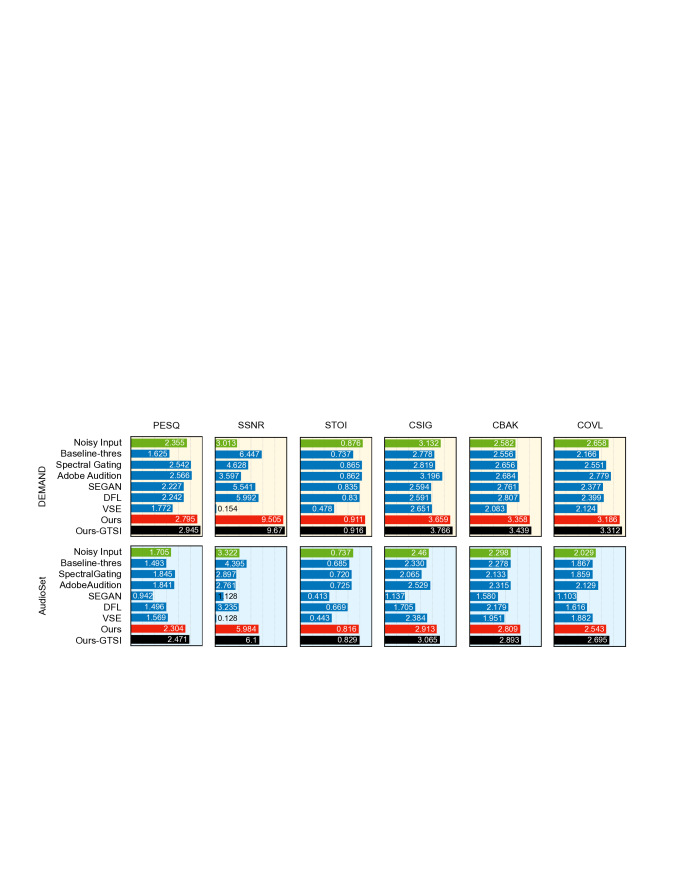

Figure 5: Quantitative comparisons. We measure denoising quality under six metrics (corresponding to columns). The comparisons are conducted using noise from DEMAND and AudioSet separately. Ours-GTSI (in black) uses ground-truth silent intervals. Although not a practical approach, it serves as an upper-bound reference of all methods. Meanwhile, the green bar in each plot indicates the metric score of the noisy input without any processing.

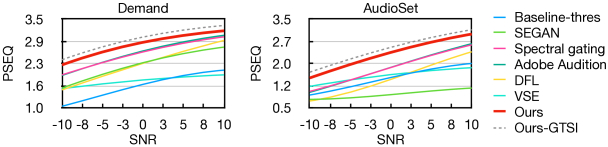

Figure 6: Denoise quality w.r.t. input SNRs. Denoise results measured in PESQ for each method w.r.t different input SNRs. Results measured in other metrics are shown in Fig. S2 in Appendix.

Results.

We train two separate models using DEMAND and AudioSet noise datasets respectively, and compare them with other models trained with the same datasets. We evaluate the average metric values and report them in Fig. 5. Under all metrics, our method consistently outperforms others.

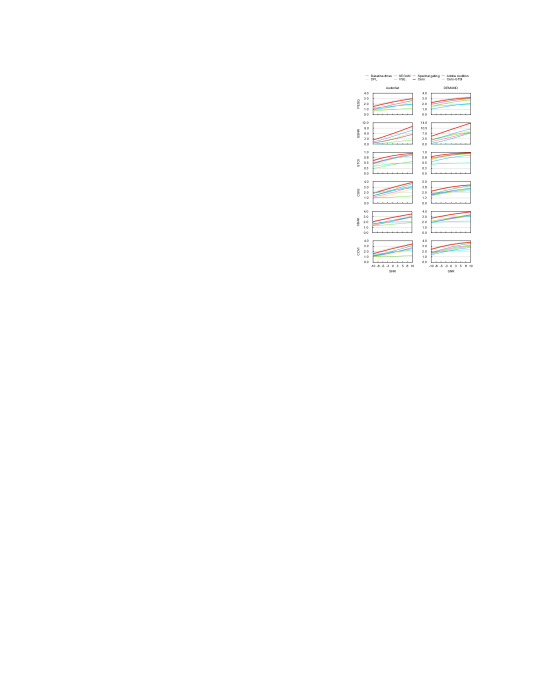

We breakdown the performance of each method with respect to SNR levels from -10dB to 10dB on both noise datasets. The results are reported in Fig. 6 for PESQ (see Fig. S2 in the appendix for all metrics). In the previous works that we compare to, no results under those low SNR levels (at dBs) are reported. Nevertheless, across all input SNR levels, our method performs the best, showing that our approach is fairly robust to both light and extreme noise.

From Fig. 6, it is worth noting that Ours-GTSI method performs even better. Recall that this is our model but provided with ground-truth silent intervals. While not practical (due to the need of ground-truth silent intervals), Ours-GTSI confirms the importance of silent intervals for denoising: a high-quality silent interval detection helps to improve speech denoising quality.

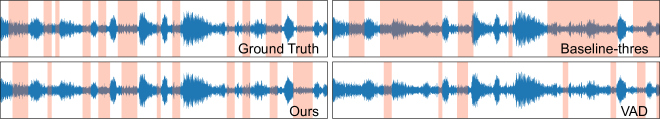

4.3 Evaluation on silent interval detection

Due to the importance of silent intervals for speech denoising, we also evaluate the quality of our silent interval detection, in comparison to two alternatives, the baseline Baseline-thres and a Voice Activity Detector (VADvad. The former is described above, while the latter classifies each time window of an audio signal as having human voice or not 293048; leb. We use an off-the-shelf VAD webrtcvad, which is developed by Google’s WebRTC project and reported as one of the best available. Typically, VAD is designed to work with low-noise signals. Its inclusion here here is merely to provide an alternative approach that can detect silent intervals in more ideal situations.

We evaluate these methods using four standard statistic metrics: the precision, recall, F1 score, and accuracy. We follow the standard definitions of these metrics, which are summarized in Appendix C.1. These metrics are based on the definition of positive/negative conditions. Here, the positive condition indicates a time segment being labeled as a silent segment, and the negative condition indicates a non-silent label. Thus, the higher the metric values are, the better the detection approach.

Noise Dataset Method Precision Recall F1 Accuracy
DEMAND Baseline-thres 0.533 0.718 0.612 0.706
VAD 0.797 0.432 0.558 0.783
Ours 0.876 0.866 0.869 0.918
Audioset Baseline-thres 0.536 0.731 0.618 0.708
VAD 0.736 0.227 0.338 0.728
Ours 0.794 0.822 0.807 0.873
Table 1: Results of silent interval detection. The metrics are measured using our test signals that have SNRs from -10dB to 10dB. Definitions of these metrics are summarized in Appendix C.1.

Table 1 shows that, under all metrics, our method is consistently better than the alternatives. Between VAD and Baseline-thres, VAD has higher precision and lower recall, meaning that VAD is overly conservative and Baseline-thres is overly aggressive when detecting silent intervals (see Fig. S3 in Appendix C.2). Our method reaches better balance and thus detects silent intervals more accurately.

4.4 Ablation studies

Noise Dataset Method PESQ SSNR STOI CSIG CBAK COVL
DEMAND Ours w/o SID comp 2.689 9.080 0.904 3.615 3.285 3.112
Ours w/o NR comp 2.476 0.234 0.747 3.015 2.410 2.637
Ours w/o SID loss 2.794 6.478 0.903 3.466 3.147 3.079
Ours w/o NE loss 2.601 9.070 0.896 3.531 3.237 3.027
Ours Joint loss 2.774 6.042 0.895 3.453 3.121 3.068
Ours 2.795 9.505 0.911 3.659 3.358 3.186
Audioset Ours w/o SID comp 2.190 5.574 0.802 2.851 2.719 2.454
Ours w/o NR comp 1.803 0.191 0.623 2.301 2.070 1.977
Ours w/o SID loss 2.325 4.957 0.814 2.814 2.746 2.503
Ours w/o NE loss 2.061 5.690 0.789 2.766 2.671 2.362
Ours Joint loss 2.305 4.612 0.807 2.774 2.721 2.474
Ours 2.304 5.984 0.816 2.913 2.809 2.543
Table 2: Ablation studies. We alter network components and training loss, and evaluate the denoising quality under various metrics. Our proposed approach performs the best.

In addition, we perform a series of ablation studies to understand the efficacy of individual network components and loss terms (see Appendix D.1 for more details). In Table 2, “Ours w/o SID loss” refers to the training method presented in Sec. 3.2 (i.e., without silent interval supervision). “Ours Joint loss” refers to the end-to-end training approach that optimizes the loss function (1) with the additional term (2). And “Ours w/o NE loss” uses our two-step training (in Sec. 3.3) but without the loss term on noise estimation—that is, without the first term in (1). In comparison to these alternative training approaches, our two-step training with silent interval supervision (referred to as “Ours”) performs the best. We also note that “Ours w/o SID loss”—i.e., without supervision on silent interval detection—already outperforms the methods we compared to in Fig. 5, and “Ours” further improves the denoising quality. This shows the efficacy of our proposed training approach.

We also experimented with two variants of our network structure. The first one, referred to as “Ours w/o SID comp”, turns off silent interval detection: the silent interval detection component always outputs a vector with all zeros. The second, referred as “Ours w/o NR comp”, uses a simple spectral subtraction to replace our noise removal component. Table 2 shows that, under all the tested metrics, both variants perform worse than our method, suggesting our proposed network structure is effective.

Furthermore, we studied to what extent the accuracy of silent interval detection affects the speech denoising quality. We show that as the silent interval detection becomes less accurate, the denoising quality degrades. Presented in details in Appendix D.2, these experiments reinforce our intuition that silent intervals are instructive for speech denoising tasks.

4.5 Comparison with state-of-the-art benchmark

Many state-of-the-art denoising methods, including MMSE-GAN tfgan, Metric-GAN fu2019metricgan, SDR-PESQ kim2019endtoend, T-GSA tgsa, Self-adaptation DNN koizumi2020speech, and RDL-Net nikzad2020deep, are all evaluated on Valentini’s VoiceBank-DEMAND Valentini-Botinhao+2016. We therefore compare ours with those methods on the same dataset. We note that DEMAND consists of audios with SNR in [0dB, 15dB]. Its SNR range is much narrower than what our method (and our training datasets) aims for (e.g., input signals with -10dB SNR). Nevertheless, trained and tested under the same setting, our method is highly competitive to the best of those methods under every metric, as shown in Table 3. The metric scores therein for other methods are numbers reported in their original papers.

Method PESQ CSIG CBAK COVL STOI
Noisy Input 1.97 3.35 2.44 2.63 0.91
WaveNet Oord2016aiw 3.62 3.24 2.98
SEGAN Pascual2017 2.16 3.48 2.94 2.80 0.93
DFL Germain2019 2.51 3.79 3.27 3.14
MMSE-GAN tfgan 2.53 3.80 3.12 3.14 0.93
MetricGAN fu2019metricgan 2.86 3.99 3.18 3.42
SDR-PESQ kim2019endtoend 3.01 4.09 3.54 3.55
T-GSA tgsa 3.06 4.18 3.59 3.62
Self-adapt. DNN koizumi2020speech 2.99 4.15 3.42 3.57
RDL-Net nikzad2020deep 3.02 4.38 3.43 3.72 0.94
Ours 3.16 3.96 3.54 3.53 0.98
Table 3: Comparisons on VoiceBank-DEMAND corpus.

4.6 Tests on real-world data

We also test our method against real-world data. Quantitative evaluation on real-world data, however, is not easy because the evaluation of nearly all metrics requires the corresponding ground-truth clean signal, which is not available in real-world scenario. Instead, we collected a good number of real-world audios, either by recording in daily environments or by downloading online (e.g., from YouTube). These real-world audios cover diverse scenarios: in a driving car, a café, a park, on the street, in multiple languages (Chinese, Japanese, Korean, German, French, etc.), with different genders and accents, and even with singing songs. None of these recordings is cherry picked. We refer the reader to our project website for the denoising results of all the collected real-world recordings, and for the comparison of our method with other state-of-the-art methods under real-world settings.

Furthermore, we use real-world data to test our model trained with different datasets, including our own dataset (recall Sec. 4.1) and the existing DEMAND Valentini-Botinhao+2016. We show that the network model trained by our own dataset leads to much better noise reduction (see details in Appendix E.2). This suggests that our dataset allows the denoising model to better generalize to many real-world scenarios.

5 Conclusion

Speech denoising has been a long-standing challenge. We present a new network structure that leverages the abundance of silent intervals in speech. Even without silent interval supervision, our network is able to denoise speech signals plausibly, and meanwhile, the ability to detect silent intervals automatically emerges. We reinforce this ability. Our explicit supervision on silent intervals enables the network to detect them more accurately, thereby further improving the performance of speech denoising. As a result, under a variety of denoising metrics, our method consistently outperforms several state-of-the-art audio denoising models.

Acknowledgments.

This work was supported in part by the National Science Foundation (1717178, 1816041, 1910839, 1925157) and SoftBank Group.

Broader Impact

High-quality speech denoising is desired in a myriad of applications: human-robot interaction, cellular communications, hearing aids, teleconferencing, music recording, filmmaking, news reporting, and surveillance systems to name a few. Therefore, we expect our proposed denoising method—be it a system used in practice or a foundation for future technology—to find impact in these applications.

In our experiments, we train our model using English speech only, to demonstrate its generalization property—the ability of denoising spoken languages beyond English. Our demonstration of denoising Japanese, Chinese, and Korean speeches is intentional: they are linguistically and phonologically distant from English (in contrast to other English “siblings” such as German and Dutch). Still, our model may bias in favour of spoken languages and cultures that are closer to English or that have frequent pauses to reveal silent intervals. Deeper understanding of this potential bias requires future studies in tandem with linguistic and sociocultural insights.

Lastly, it is natural to extend our model for denoising audio signals in general or even signals beyond audio (such as Gravitational wave denoising wei2020gravitational). If successful, our model can bring in even broader impacts. Pursuing this extension, however, requires a judicious definition of “silent intervals”. After all, the notion of “noise” in a general context of signal processing depends on specific applications: noise in one application may be another’s signals. To train a neural network that exploits a general notion of silent intervals, prudence must be taken to avoid biasing toward certain types of noise.

References

Appendix A Network Structure and Training Details

We now present the details of our network structure and training configurations.

The silent interval detection component of our model is composed of 2D convolutional layers, a bidirectional LSTM, and two FC layers. The parameters of the convolutional layers are shown in  Table S1

. Each convolutional layer is followed by a batch normalization layer with a ReLU activation function. The hidden size of bidirectional LSTM is

. The two FC layers, interleaved with a ReLU activation function, have hidden size of and , respectively.

conv1 conv2 conv3 conv4 conv5 conv6 conv7 conv8 conv9 conv10 conv11 conv12
Num Filters 48 48 48 48 48 48 48 48 48 48 48 8
Filter Size (1,7) (7,1) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (1,1)
Dilation (1,1) (1,1) (1,1) (2,1) (4,1) (8,1) (16,1) (32,1) (1,1) (2,2) (4,4) (1,1)
Stride 1 1 1 1 1 1 1 1 1 1 1 1
Table S1: Convolutional layers in the silent interval detection component.

The noise estimation component of our model is fully convolutional, consisting of two encoders and one decoder. The two encoders process the noisy signal and the incomplete noise profile, respectively; they have the same architecture (shown in Table S2) but different weights. The two feature maps resulted from the two encoders are concatenated in a channel-wise manner before feeding into the decoder. In Table S2, every layer, except the last one, is followed by a batch normalization layer together with a ReLU activation function. In addition, there is skip connections between the nd and -th layer and between the -th and -th layer.

Encoder Decoder
ID 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Layer Type C C C C C C C C C C C TC C TC C C
Num Filters 64 128 128 256 256 256 256 256 256 256 256 128 128 64 64 2
Filter Size 5 5 5 3 3 3 3 3 3 3 3 3 3 3 3 3
Dilation 1 1 1 1 1 2 4 8 16 1 1 1 1 1 1 1
Stride 1 2 1 2 1 1 1 1 1 1 1 2 1 2 1 1
Table S2: Architecture of noise estimation component. ‘C’ indicates a convolutional layer, and ‘TC’ indicates a transposed convolutional layer.

The noise removal component of our model is composed of two 2D convolutional encoders, a bidirectional LSTM, and three FC layers. The two convolutional encoders take as input the input audio spectrogram and the estimated full noise spectrogram , respectively. The first encoder has the network architecture listed in Table S3, and the second has the same architecture but with half of the number of filters at each convolutional layer. Moreover, the bidirectional LSTM has the hidden size of 200, and the three FC layers have the hidden size of 600, 600, and , respectively, where is the number of frequency bins in the spectrogram. In terms of the activation function, ReLU is used after each layer except the last layer, which uses sigmoid.

C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 C15
Num Filters 96 96 96 96 96 96 96 96 96 96 96 96 96 96 8
Filter Size (1,7) (7,1) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (5,5) (1,1)
Dilation (1,1) (1,1) (1,1) (2,1) (4,1) (8,1) (16,1) (32,1) (1,1) (2,2) (4,4) (8,8) (16,16) (32,32) (1,1)
Stride 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Table S3: Convolutional encoder for the noise removal component of our model. Each convolutional layer is followed by a batch normalization layer with ReLU as the activation function.

Training details.

We use PyTorch platform to implement our speech denoising model, which is then trained with the Adam optimizer. In our end-to-end training without silent interval supervision (referred to as “

Ours w/o SID loss” in Sec. 4; also recall Sec. 3.2

), we run the Adam optimizer for 50 epochs with a batch size of 20 and a learning rate of 0.001. When the silent interval supervision is incorporated (recall Sec.

3.3), we first train the silent interval detection component with the following setup: run the Adam optimizer for 100 epochs with a batch size of 15 and a learning rate of 0.001. Afterwards, we train the noise estimation and removal components using the same setup as the end-to-end training of “Ours w/o SID loss”.

Appendix B Data Processing Details

Our model is designed to take as input a mono-channel audio clip of an arbitrary length. However, when constructing the training dataset, we set each audio clip in the training dataset to have the same 2-second length, to enable batching at training time. To this end, we split each original audio clip from AVSPEECH, DEMAND, and AudioSet into 2-second long clips. All audio clips are then downsampled at 16kHz before converting into spectrograms using STFT. To perform STFT, the Fast Fourier Transform (FFT) size is set to 510, the Hann window size is set to 28ms, and the hop length is set to 11ms. As a result, each 2-second clip yields a (complex-valued) spectrogram with a resolution , where is the number of frequency bins, and 178 is the temporal resolution. At inference time, our model can still accept audio clips with arbitrary length.

Both our clean speech dataset and noise datasets are first split into training and test sets, so that no audio clips in training and testing are from the same original audio source—they are fully separate.

To supervise our silent interval detection, we label the clean audio signals in the following way. We first normalize each audio clip so that its magnitude is in the range [-1,1], that is, ensuring the largest waveform magnitude at -1 or 1. Then, the clean audio clip is divided into segments of length seconds. We label a time segment as a “silent” segment (i.e., label 0) if its average waveform energy in that segment is below 0.08. Otherwise, it is labeled as a “non-silent” segment (i.e., label 1).

Figure S1: Constructed noisy audio based on different SNR levels. The first row shows the waveform of the ground truth clean input.
Figure S2: Denoise quality under different input SNRs. Here we expand Fig. 6 of the main text, including the evaluations under all six metrics described in Sec. 4.2.

Appendix C Evaluation on Silent Interval Detection

c.1 Metrics

We now provide the details of the metrics used for evaluating our silent interval detection (i.e., results in Table 1

of the main text). Detecting silent intervals is a binary classification task, one that classifies every time segment as being silent (i.e., a positive condition) or not (i.e., a negative condition). Recall that the confusion matrix in a binary classification task is as follows:

Actual
Positive Negative

Predicted

Positive True Positive (TP) False Positive (FP)
Negative False Negative (FN) True Negative (TN)
Table S4: Confusion matrix

In our case, we have the following conditions:

  • A true positive (TP) sample is a correctly predicted silent segment.

  • A true negative (TN) sample is a correctly predicted non-silent segment.

  • A false positive (FP) sample is a non-silent segment predicted as silent.

  • A false negative (FN) sample is a silent segment predicted as non-silent.

The four metrics used in Table 1 follow the standard definitions in statistics, which we review here:

(S1)

where , , , and indicate the numbers of true positive, true negative, false positive, and false negative predictions among all tests. Intuitively, recall indicates the ability of correctly finding all true silent intervals, precision measures how much proportion of the labeled silent intervals are truly silent. F1

score takes both precision and recall into account, and produces their harmonic mean. And

accuracy is the ratio of correct predictions among all predictions.

c.2 An Example of Silent Interval Detection

Figure S3: An example of silent interval detection results. Provided an input signal whose SNR is 0dB (top-left), we show the silent intervals (in red) detected by three approaches: our method, Baseline-thres, and VAD. We also show ground-truth silent intervals in top-left.

In Fig. S3, we present an example of silent interval detection results in comparison to two alternative methods. The two alternatives, described in Sec. 4.3, are referred to as Baseline-thres and VAD, respectively. Figure S3 echos the quantitative results in Table 1: VAD tends to be overly conservative, even in the presence of mild noise; and many silent intervals are ignored. On the other hand, Baseline-thres tends to be too aggressive; it produces many false intervals. In contrast, our silent interval detection maintains a better balance, and thus predicts more accurately.

Appendix D Ablation Studies and Analysis

d.1 Details of Ablation Studies

In Sec. 4.4 and Table 2, the ablation studies are set up in the following way.

  • Ours” refers to our proposed network structure and training method that incorporates silent interval supervision (recall Sec. 3.3). Details are described in Appendix A.

  • Ours w/o SID loss” refers to our proposed network structure but optimized by the training method in Sec. 3.2 (i.e. an end-to-end training without silent interval supervision). This ablation study is to confirm that silent interval supervision indeed helps to improve the denoising quality.

  • Ours Joint loss” refers to our proposed network structure optimized by the end-to-end training approach that optimizes the loss function (1) with the additional term (2). In this end-to-end training, silent interval detection is also supervised through the loss function. This ablation study is to confirm that our two-step training (Sec. 3.3) is more effective.

  • Ours w/o NE loss” uses our two-step training (in Sec. 3.3) but without the loss term on noise estimation—that is, without the first term in (1). This ablation study is to examine the necessity of the loss term on noise estimation for better denoising quality.

  • Ours w/o SID comp” turns off silent interval detection: the silent interval detection component always outputs a vector with all zeros. As a result, the input noise profile to the noise estimation component is made precisely the same as the original noisy signal. This ablation study is to examine the effect of silent intervals for speech denoising.

  • Ours w/o NR comp” uses a simple spectral subtraction to replace our noise removal component; the other components remain unchanged. This ablation studey is to examine the efficacy of our noise removal component.

d.2 The Influence of Silent Interval Detection on Denoising Quality

A key insight of our neural-network-based denoising model is the leverage of silent interval distribution over time. The experiments above have confirmed the efficacy of our silent interval detection for better speech denoising. We now report additional experiments, aiming to gain some empirical understanding of how the quality of silent interval prediction would affect speech denoising quality.

Shift No Shift 1/30 1/10 1/5 1/2
PESQ 2.471 1.932 1.317 1.169 1.094
(a) Effect of shifting silent intervals.
Shrink No Shrink 20% 40% 60% 80%
PESQ 2.471 2.361 2.333 2.283 2.249
(b) Effect of shrinking silent intervals.
Table S5: Results on how silent interval detection quality affects the speech denoising quality.

First, starting with ground-truth silent intervals, we shift them on the time axis by , , , and seconds. As the shifted time amount increases, more time segments become incorrectly labeled: both the numbers of false positive labels (i.e., non-silent time segments labeled silent) and false negative labels (i.e., silent time segments are labeled non-silent) increase. After each shift, we feed the silent interval labels to our noise estimation and removal components and measure the denoising quality under the PESQ score.

In the second experiment, we again start with ground-truth silent intervals; but instead of shifting them, we shrink each silent interval toward its center by , , , and . As the silent intervals become more shrunken, fewer time segments are labeled as silent. In other words, only the number of false negative predictions increases. Similar to the previous experiment, after each shrink, we use the silent interval labels in our speech denoising pipeline, and meausure the PESQ score.

The results of both experiments are reported in Table S5. As we shrink the silent intervals, the denoising quality drops gently. In contrast, even a small amount of shift causes a clear drop of denoising quality. These results suggest that in comparison to false negative predictions, false positive predictions affect the denoising quality more negatively. On the one hand, reasonably conservative predictions may leave certain silent time segments undetected (i.e., introducing some false negative labels), but the detected silent intervals indeed reveal the noise profile. On the other hand, even a small amount of false positive predictions causes certain non-silent time segments to be treated as silent segments, and thus the observed noise profile through the detected silent intervals would be tainted by foreground signals.

Appendix E Evaluation of Model Performance

e.1 Generalization Across Datasets

To evaluate the generalization ability of our model, we performed three cross-dataset tests reported in Table S6. The experiments are set up in the following way.

  • “Test i”: We train our model on our own AVSPEECH+Audioset (AA) dataset but evaluate on Valentini’s VoiceBank-DEMAND (VD) testset. The result is shown in the first row of the “Test i” section in Table S6. In comparison, the second row shows the result of training on VD and testing on VD.

  • “Test ii”: We train our model on our own AA dataset but evaluate on our second AVSPEECH+DEMAND (AD) testset. The result is shown in the first row of the “Test ii” section in Table S6. In comparison, the second row shows the result of training on AD and testing on AD.

  • “Test iii”: We train our model on our own AD dataset but evaluate on AA testset. The result is shown in the first row of the “Test iii” section of the table. In comparison, the second row shows the result of training on AA and testing on AA.

The small degradation in each cross-dataset test demonstrates the great generalization ability of our method. We could not directly compare the generalization ability of our model with existing methods, as no previous work reported cross-dataset evaluation results.

Test Trainset Testset PESQ CSIG CBAK COVL STOI
Test i AA VD 3.00 3.78 3.08 3.34 0.98
VD VD 3.16 3.96 3.54 3.53 0.98
Test ii AA AD 2.65 3.48 3.21 3.01 0.90
AD AD 2.80 3.66 3.36 3.17 0.91
Test iii AD AA 2.12 2.71 2.65 2.34 0.79
AA AA 2.30 2.91 2.81 2.54 0.82
Table S6: Generalization across datasets.

e.2 Generalization on Real-world Data

We conduct experiments to understand the extent to which the model trained with different datasets can generalize to real-world data. We train two versions of our model using our AVSPEECH+Audioset dataset and Valentini’s VoiceBank-DEMAND, respectively (denoted as “Model AA” and “Model VD”, respectively, in Table S7), and use them to denoise our collected real-world recordings. For the denoised real-world audios, we measure the noise level reduction in detected silent intervals. This measurement is doable, since it requires no knowledge of noise-free ground-truth audios. As shown in Table S7

, in terms of noise reduction, the model trained with our own AA dataset outperforms the one trained with the public VoiceBank-DEMAND dataset by a significant amount for

all tested real-world recordings. On average, it produces 22.3 dB noise reduction in comparison to 12.6 dB, suggesting that our dataset allows the denoising model to better generalize to many real-world scenarios.

Real-world Recording Model AA noise reduction (dB) Model VD noise reduction (dB)
Song Excerpt 1 22.38 9.22
Song Excerpt 2 21.16 17.65
Chinese 18.99 15.65
Japanese 16.95 9.39
Korean 25.90 9.76
German 14.54 7.29
French 21.95 17.16
Spanish 1 33.34 11.00
Spanish 2 31.66 14.09
Female 1 17.64 7.79
Female 2 30.21 8.64
Female 3 19.15 6.70
Male 1 24.81 14.44
Male 2 24.92 13.35
Male 3 13.10 10.99
Multi-person 1 32.00 21.60
Multi-person 2 15.10 15.07
Multi-person 3 18.71 10.68
Street Interview 20.54 18.94
AVERAGE 22.27 12.60
Table S7: Real-world recording noise reduction comparison.
