LiSA: A Lightweight and Secure Authentication Mechanism for Smart Metering Infrastructure

Smart metering infrastructure (SMI) is the core component of the smart grid (SG) which enables two-way communication between consumers and utility companies to control, monitor, and manage the energy consumption data. Despite their salient features, SMIs equipped with information and communication technology are associated with new threats due to their dependency on public communication networks. Therefore, the security of SMI communications raises the need for robust authentication and key agreement primitives that can satisfy the security requirements of the SG. Thus, in order to realize the aforementioned issues, this paper introduces a lightweight and secure authentication protocol, "LiSA", primarily to secure SMIs in SG setups. The protocol employs Elliptic Curve Cryptography at its core to provide various security features such as mutual authentication, anonymity, replay protection, session key security, and resistance against various attacks. Precisely, LiSA exploits the hardness of the Elliptic Curve Qu Vanstone (EVQV) certificate mechanism along with Elliptic Curve Diffie Hellman Problem (ECDHP) and Elliptic Curve Discrete Logarithm Problem (ECDLP). Additionally, LiSA is designed to provide the highest level of security relative to the existing schemes with least computational and communicational overheads. For instance, LiSA incurred barely 11.826 ms and 0.992 ms for executing different passes across the smart meter and the service providers. Further, it required a total of 544 bits for message transmission during each session.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

09/23/2021

An Improved Authentication Key Exchange Protocol Based on ECDH for WSNs

Wide-spread use of wireless sensor networks (WSNs) that are consisted of...
04/02/2019

An Efficient Blockchain-based Hierarchical Authentication Mechanism for Energy Trading in V2G Environment

Vehicle-to-grid (V2G) networks have emerged as a new technology in moder...
11/09/2018

Mutual Heterogeneous Signcryption Schemes for 5G Network Slicings

With the emerging of mobile communication technologies, we are entering ...
11/23/2017

Key management system for WSNs based on hash functions and elliptic curve cryptography

Due to hostile environment and wireless communication channel, security ...
03/06/2019

ARIS: Authentication for Real-Time IoT Systems

Efficient authentication is vital for IoT applications with stringent mi...
04/09/2018

Lightweight Cryptography for Distributed PKI Based MANETS

Because of lack of infrastructure and Central Authority(CA), secure comm...
04/28/2022

An Improved Authentication Scheme for BLE Devices with no I/O Capabilities

Bluetooth Low Energy (BLE) devices have become very popular because of t...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Smart Grid (SG) is the next-generation power system that greatly enhances the reliability, efficiency and sustainability of the legacy power systems with renewable energy sources, distributed intelligence, and improved demand response features [1, 2]. As opposed to the traditional grid, SG allows a bi-directional flow of energy and information in order to enable new functionalities among the consumers and utilities. The smart metering infrastructure (SMI) is one of the crucial application domains of SGs that helps in evaluating the status of a power grid along with the management of the distributed resources [3, 4]. In SGs, the smart meters (SMs) connect power consumers to the utility company in order to exchange, manage and control the energy consumption. They rely on advanced information and communication technologies to support the intelligent power supply and enhance the efficiency of legacy power systems[5, 6]. However, due to the lack of inherent and effective security mechanisms, interactions between legal entities are susceptible to cyber-attacks [7, 8]. Nevertheless, the complex nature of the SG and its diverse security requirements pose challenges to its widespread adoption. Thus, it is necessary to provide secure and reliable authentication systems for SMs that not only maintain trust between the legitimate entities but also satisfy other security services like mutual authentication, integrity, and anonymity [9, 10].

In order to address the privacy issues of SMs, several authentication schemes have recently been proposed. For example, Diao et al. [11] introduced a privacy preserving smart metering protocol that employs Camenisch–Lysyanskaya signature scheme for providing a secure and reliable authentication system. This scheme constructs linkable anonymous credential in order to provide message authentication and traceability of faulty SMs. In a similar context, Yu et al. [12] designed an information centric networking (ICN) based approach; wherein a novel key management scheme was employed in order to ensure the security in SMI. Similarly, Abbasinezhad-Mood and Nikooghadam [13] devised a lightweight communication scheme for SMs which employs the hash and exclusive-OR operations in order to provide confidentiality, real-time authentication along with the ability to cope with one-minute or even less time intervals of data transmission. Likewise, the authors in [14] employed an identity-based non-interactive key distribution scheme to develop a secure and scalable key distribution framework for neighboring SMs. In order to provide compression and authentication of smart meter readings in SMIs, Lee et al. [15] introduced a unified approach based on the notion of compressive sensing in a multicarrier system. Here, the residual error of a received signal was used to determine whether the signal is legitimate or not.

In 2018, Mustapa et al. [16] proposed an authentication scheme for SMI; wherein ring oscillator physically unclonable functions (ROPUF) were employed for deriving and storing the cryptographic keys. In [17], Mohammadali et al. utilized Elliptic Curve Cryptography (ECC) to propose an identity-based key establishment protocol for SMIs. Likewise, Kumar et al. [18] presented a lightweight authentication and key agreement scheme in order to maintain the privacy in SMIs. In an another work, Abbasinezhad-Mood and Nikooghadam [19] developed an anonymous ECC-based self-certified key distribution scheme for SGs in order to solve the issues of public key infrastructure (PKI) maintenance and the key escrow problem. Similarly, Braeken et al. [20] also presented a key agreement model for smart metering communications which aims to provide session key security under the widely accepted Canetti-Krawczyk security model. The authors asserted that their scheme provides identity-based mutual authentication, credential privacy, and session key security, along with the resistance against the well-known attacks such as replay, man-in-the-middle, and impersonation. Although several authentication and key exchange protocols exist in the literature to provide security in SGs, most of them not only fail to provide SM anonymity but also require high communicational and computational costs. Thus, in this paper a Lightweight and Secure Authentication (LiSA) protocol is designed for securing SMIs.

I-a Contributions

The key contributions of this paper are illustrated below:

  • We propose a provably secure mutual authentication and key agreement protocol named LiSA, specifically for SMIs employed in SG environments. The designed protocol leverages the hardness of the Elliptic Curve Qu Vanstone (EVQV) certificate mechanism, Elliptic Curve Diffie Hellman Problem (ECDHP), and Elliptic Curve Discrete Logarithm Problem (ECDLP) in its design to prevent various security attacks.

  • Additionally, we provide a detailed informal security evaluation of the proposed protocol. The evaluation reveals that LiSA supports mutual authentication, anonymity, replay protection, session key security, and resists various other attacks.

  • The proposed protocol is a perfect mix of security features and lightweight cryptographic functions that make it apt for deployment in SG ecosystems. Thus, in order to validate it efficacy it has been extensively evaluated against the current state-of-the-art in terms of security features, computational complexity, and communicational complexity.

I-B Organization

The present manuscript is structured according to the following sequence. The proposed system model is sketched in Section II and the designed protocol is presented in Section III. Following this, detailed security analysis and performance assessment of the proposed scheme are demonstrated in Sections IV and V, respectively. Lastly, the conclusions are drawn in Section VI.

Ii System Model

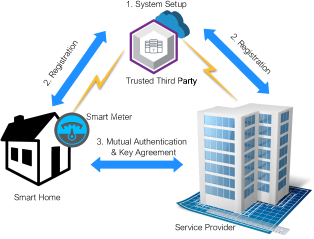

A typical schematic diagram of the proposed LiSA protocol is depicted in Fig. 1. The setup comprises primarily of three entities, i.e., SMs, Service Providers (SPs), and Trusted Third Party (TTP). SMs are resource constrained electronic devices deployed across customers’ premises to record energy consumption on a periodic basis. Additionally, SMs are also responsible for collecting and transmitting the energy consumption data to the utility. On the other hand, SPs are utilities that provide services to the end-users. Above all, TTP is the trusted entity that initializes the system parameters and aids in registration of SMs and SPs. Following this, mutual authentication and key exchange is executed between the SMs and SPs. The execution details of LiSA are elaborated in the upcoming segment.

Fig. 1: A typical setup of LiSA.

Iii LiSA: A Mutual Authentication and Key Exchange Strategy for SMI

In the proposed scheme, the concepts of ECQV, ECDLP, and ECDHP are exploited to establish trust and authenticity between the SMs and SPs to resist different attack vectors. The overall execution strategy has been segregated into the following broad phases: i) Setup Phase, ii) Registration Phase, and iii) Authentication and Key Exchange Phase

[21, 22]. In summary, the by-product of the protocol is equivalent to “mutual authentication”, while the end-product is the “exchange of a secure session key”. The detailed information is given below:

Iii-a Phase I: Setup Phase

During this phase, the SMI is prepared for the subsequent phases and incorporates the following course of actions:

Step 1: It begins with the selection of an elliptic curve by the TTP. The is further associated with a generator and order .

Step 2: Following this, the TTP computes its private () and public key () pairs. This is done in accordance with the following equations: and .

Step 3: Next, a one-way hash function, i.e., () is selected.

Step 4: Finally, the above mentioned parameters including are made public.

Iii-B Phase II: Registration Phase

During this phase, the SMs and the SPs get themselves registered with the TTP. The process of registration for both the entities is exactly alike and is based on the ECQV certificate scheme [20]. Thus, it is discussed in the case of SMs only, but is extendable to the SPs as well. The execution steps of the registration process are detailed in Fig. 2 and discussed as under:

Step 1: The SM starts its registration process by choosing an identity () for its itself. Next, it selects a random number () and computes . Finally, the SM transmits to the TTP using the secure channel.

Step 2: Upon receiving , the TTP selects a random number and computes . It then computes a certificate for the SM using the following operation: . Following this, the TTP calculates the value of variable using , concatenation, and ECC point addition operations.

Step 3: Finally, the computed value of and are sent to the SM over the secure channel.

Step 4: Using the received values, the SM computes its private key () followed by its public key .

Smart Meter () Trusted Third Party
Select
Select
Compute
Generate
Compute
Compute
Compute
Compute
Compute

Fig. 2: Phase II: Registration Phase.

Iii-C Phase III: Authentication & Key Exchange Phase

This is the most crucial phase of LiSA and incorporates mutual authentication and session key exchange between the SMs and SPs. The series of execution steps are reflected in Fig. 3 and explained as follows.

Step 1: The process is initiated by the SM by generating its current time stamp () and a random number (). Next, it computes and using ECC point multiplication.

Step 2: Following this, the SM computes an intermediate token () using its and . It also calculates an authorization token () for the SP to verify using the following operation: .

Step 3: Next, are transmitted to over the open channel. It is worth noting here that the SM’s ID is never transmitted over the channel in clear text format which prevents tracking of SM by the adversary .

Step 4: Once are received by the SP, it validates the time stamp . If found valid, the SP proceeds; else the connection is terminated immediately. Next, the SP computes ; followed by the extraction of from the received . Using the extracted values, the SP computes ’s public key: . If the computed key matches the publicly available , then the SP is sure about the authenticity of the SM. Otherwise, the connection is dropped by the SP.

Step 5: Next, the SP records its time stamp and generates another authentication token () for the SM to verify. Simultaneously, the SP also computes a session key () that is used only if the mutual authentication is established. is computed using the following operation: where is a key derivative function.

Step 6: Finally, the parameters are communicated to the SM for the next course of action.

Step 7: On receiving the above mentioned parameters, the validation of time stamp is done. Next, the authentication token is computed for verifying it against the received token. A match indicates that the SP is a valid/authentic entity.

Step 8: Finally, the SM computes the shared session key as follows: .

Smart Meter Service Provider
Generate time stamp
Select a random number
Compute
Compute
Compute
Compute
Validate time stamp
Compute
Extract
Compute
Check
If same, is authentic; else disconnect
Generate time stamp
Compute

Compute
Validate time stamp
Compute
Check
If same, SP is authentic; else disconnect
Compute
Fig. 3: Phase III: Authentication & Key Exchange Phase.

Iv Security Analysis and Comparisons

In this section, detailed security analysis of the proposed LiSA protocol is illustrated. Along with this, the comparative security assessment against the existing schemes is also presented herewith.

Iv-a Security Analysis

LiSA provides a number of security features and resists various attack vectors. The detailed information is illustrated below.

Iv-A1 Mutual authentication

LiSA supports the concept of mutual authentication between the communication parties, i.e., SMs and SPs. The process of mutual authentication helps to establish the authenticity of one party to the other. In the designed protocol, it is realised using two different intermediate authentication tokens namely and . The hardness of these tokens can be attributed to ECQV and ECDHP [20]. In detail, these tokens cannot be computed without the knowledge of and ; which are specifically private to the legitimate entities and are not shareable.

Iv-A2 Replay protection

Resistance against replay attacks enable the protocol to deny any previous message to retransmitted between the legitimate parties. In the proposed LiSA protocol, replay protection has been provided using the concept of time stamps and pseudo random numbers. These time stamps and numbers enable new values to the intermediate tokens in every session. Further, during every session, the time stamps are verified for their validity. In case of violation, the ongoing communications are terminated to avoid replay attacks.

Iv-A3 Resistance against impersonation attacks

The proposed protocol also resists impersonation attacks. This implies that an adversary cannot impersonate a valid SM to form a legitimate session with the SP. This can be credited to the strength of the ECQV certificate mechanism and the masking mechanism that prevents an to track SMs and spoof their identities. Further, extraction of a SM’s certificate and identity from is an intractable process for an . This is because, these values can only be extracted by a valid SP (say with which the SM is trying to connect) with its respective private key .

Iv-A4 Resistance against man-in-the-middle (MITM) attacks

The MITM attack allows an to intercept a legitimate session and spoof the identity of an entity. Following this, alters the relayed messages to illegitimately develop a session with the SM/SP. However, as explained earlier, LiSA resists impersonation and replay attacks. Further, the alteration of and tokens is also not possible in the proposed scheme. Thus, LiSA prevents MITM attacks.

Iv-A5 Supports anonymity

LiSA also support perfect anonymity for the participating SMs. This is achieved by masking the SM’s identity and certificate information while trying to develop a session with the SPs. Precisely, the SM’s confidential information such as and are never relayed in clear text format. Further, their extraction from the intermediate tokens by an illegitimate party is an intractable process. This can be attributed to the hardness of ECDLP [20].

Iv-A6 Session key security

The session keys ( and ) derived by the SMs and SPs in LiSA are completely secure. The session keys can only be computed by the valid and authentic parties post successful mutual authentication as discussed in Section III-C.

Iv-A7 Resistance against Denial of Service (DoS) attacks

In LiSA, the process of mutual authentication is essentially initiated by the SM by relaying the following message: . Post receiving this message, the SP makes checks i) the validity of the received time stamp followed by ii) the authenticity of the SM using . In the course of this process, if any validation check fails, then the SP knows that the other party is illegitimate. Thus, the connection is immediately dropped to prevent DoS attacks.

Iv-B Security Comparison

This sections presents the detailed comparison between the proposed LiSA protocol and the existing schemes [23, 24, 19, 20]. The comparison is carried out on the basis of following features: mutual authentication (), replay protection (), resistance against impersonation attacks (), resistance against MITM attacks (), anonymity (), session key security (), resistance against DoS attacks (), and lightweight ().

Protocol [23] [24] [19] [20] Proposed
TABLE I: Analysis of security features.

It is evident from the comparison shown in Table I that the proposed LiSA protocol is the most secure out of the existing schemes. For instance, Odelu et al.’s [23], Chen et al.’s [24], and Abbasinezhad-Mood & Nikooghadam’s schemes [19] fail to provide session key security and resistance against DoS attacks. Additionally, these protocols are not lightweight in comparison to the other protocols. Finally, Braeken et al.’s scheme [20] neither provides mutual authentication nor is lightweight.

V Performance Evaluation

In this section, the comparative analysis of the proposed LiSA protocol is carried out against the current state-of-the-art [23, 24, 19, 20]. The related comparisons have been performed on the basis of total computational and communicational complexities associated with these protocols. The detailed information about these assessments and the related simulation parameters are discussed herewith.

V-a Simulation Details

Braeken et al.in [20] adopted an efficient means to simulate the SG setup and evaluated different protocols on it. In the said setup, the authors employed a personal computer to mimic the computational capability of the SPs; while a constrained device was used to represent a SM. The configurations of SPs included Windows 7 running on 2.5 GHz CPU and 8 GB RAM. On the other hand, SMs had limited capabilities with a single core 798 MHz CPU and 256 MB RAM.

V-B Evaluation Parameters

For the evaluation of the proposed LiSA protocol in comparison to the existing protocols, the following metrics have been chosen:

V-B1 Computational Overhead Analysis

The computational time of the proposed and existing protocols have been computed by taking into consideration the number of computationally expensive cryptographic operations executed during the authentication and key exchange phases. Table II illustrates the computational time (in ms) required for executing different functions on the SMs and SPs, respectively. Here, , , and refer to the execution time for performing bilinear pairing, point multiplication, point addition, hashing, modular exponentiation operation, and symmetric encryption/decryption operation, respectively.

Entity
SP 17.01 0.986 0.004 0.001 0.874 0.033
SM 9.23 5.9 0.004 0.026 7.86 0.079
TABLE II: Execution time of different cryptographic functions.

In accordance with the values depicted in the above table, the computational complexities of different protocols have been computed. The related outcomes are shown Table III; wherein the overheads on the SMs and SPs are depicted separately. The proposed LiSA protocol requires 11.826 msec on the SM level and almost 0.992 msec on the SP level, for executing the authentication mechanism along with the key exchange. Additionally, the said execution time is the least in comparison with the other protocols as evidenced from the results shown in Table III.

Protocol At SM At SP
Odelu et al.[23]
Chen et al.[24]
Abbasinezhad-Mood [19]
Braeken et al.[20]
Proposed
TABLE III: An illustration of computational complexity analysis.

V-B2 Communicational Overhead Analysis

In order to analyse the communicational complexity of the proposed and the existing protocols, the number of messages and bits transmitted between the SMs and SPs have been considered. For this analysis, the transmitted messages have been segregated into different tokens with variable lengths. For instance, the length of the hash function and random numbers is equivalent to 160 bits, while the length of the identity field and time stamps are set to 32 bits each. Further, the x-coordinate of an ECC point requires 60 bits. Likewise, the message length of other tokens can be found in the literature [20]. Consequently, the communicational overheads associated with the transmission of different tokens across the authentication and key exchange mechanism are summarized in Table IV. It is quite clear from the obtained results that LiSA requires the least number of rounds and number of bits to establish trust, authenticity and secure session key between the communicating parties. In detail, LiSA requires 2 rounds and 544 bits for transmission of messages between the SMs and SPs.

Thus, it can be summarized from the above discussion that LiSA is the most secure and lightweight authentication scheme for SMIs in SG setups.

Protocol Number of Rounds No. of bits
Odelu et al.[23] 3 1920
Chen et al.[24] 3 1632
Abbasinezhad-Mood [19] 3 832
Braeken et al.[20] 3 832
Proposed 2 544
TABLE IV: An illustration of communicational complexity analysis.

Vi Conclusion

In this paper, a provably secure mutual authentication and key agreement protocol named LiSA was devised, specifically for SMIs employed in SG environments. The proposed protocol is a perfect mix of security features and lightweight cryptographic functions that make it apt for deployment in SG ecosystems. In order to attain the above mentioned features, the designed protocol utilizes ECC, one-way hash functions, concatenation, and logical XOR operations. In terms of ECC, the protocol leverages the concept of ECQV, ECDLP, and ECDHP to generate the intermediate tokens including authentication tokens and session keys. Further, the detailed security assessment of the protocol reveals that it supports various security features namely mutual authentication, replay protection, anonymity, resistance against MITM, DoS, impersonation attacks, etc. Additionally, the computational and communicational overheads associated with the execution of the designed protocol in SG setups indicate that it is relatively lightweight in comparison with the current state-of-the-art.

Acknowledgment

This work was supported by the Tier 2 Canada Research Chair.

References

  • [1] K. Kaur, S. Garg, N. Kumar, and A. Y. Zomaya, “A Game of Incentives: An Efficient Demand Response Mechanism using Fleet of Electric Vehicles,” in Proceedings of the 1st International Workshop on Future Industrial Communication Networks.   ACM, 2018, pp. 27–32.
  • [2] G. S. Aujla, S. Garg, S. Batra, N. Kumar, I. You, and V. Sharma, “DROpS: A Demand Response Optimization Scheme in SDN-enabled Smart Energy Ecosystem,” Information Sciences, vol. 476, pp. 453–473, 2019.
  • [3] P. Kumar, Y. Lin, G. Bai, A. Paverd, J. S. Dong, and A. Martin, “Smart Grid Metering Networks: A Survey on Security, Privacy and Open Research Issues,” IEEE Communications Surveys & Tutorials, 2019, DOI: 10.1109/COMST.2019.2899354.
  • [4] M. R. Asghar, G. Dán, D. Miorandi, and I. Chlamtac, “Smart Meter Data Privacy: A Survey,” IEEE Communications Surveys & Tutorials, vol. 19, no. 4, pp. 2820–2835, 2017.
  • [5] K. Kaur, S. Garg, N. Kumar, G. S. Aujla, K. K. R. Choo, and M. S. Obaidat, “An Adaptive Grid Frequency Support Mechanism for Energy Management in Cloud Data Centers,” IEEE Systems Journal, 2019, DOI: 10.1109/JSYST.2019.2921592.
  • [6]

    K. Kaur, S. Garg, G. Kaddoum, S. H. Ahmed, and D. N. K. Jayakody, “En-OsCo: Energy-aware Osmotic Computing Framework using Hyper-heuristics,” in

    Proceedings of the ACM MobiHoc Workshop on Pervasive Systems in the IoT Era.   ACM, 2019, pp. 19–24.
  • [7] R. Chaudhary, G. S. Aujla, S. Garg, N. Kumar, and J. J. Rodrigues, “SDN-enabled Multi-Attribute-based Secure Communication for Smart Grid in IIoT Environment,” IEEE Transactions on Industrial Informatics, vol. 14, no. 6, pp. 2629–2640, 2018.
  • [8] S. Finster and I. Baumgart, “Privacy-Aware Smart Metering: A Survey,” IEEE Communications Surveys & Tutorials, vol. 17, no. 2, pp. 1088–1101, 2015.
  • [9] S. Garg, K. Kaur, G. Kaddoum, F. Gagnon, and J. J. P. C. Rodrigues, “An Efficient Blockchain-Based Hierarchical Authentication Mechanism for Energy Trading in V2G Environment,” in IEEE International Conference on Communications Workshops (ICC Workshops), Shanghai, China, May 2019.
  • [10] A. Ghosal and M. Conti, “Key Management Systems for Smart Grid Advanced Metering Infrastructure: A Survey,” IEEE Communications Surveys & Tutorials, pp. 1–1, 2019, DOI: 10.1109/COMST.2019.2907650.
  • [11] F. Diao, F. Zhang, and X. Cheng, “A Privacy-Preserving Smart Metering Scheme using Linkable Anonymous Credential,” IEEE Transactions on Smart Grid, vol. 6, no. 1, pp. 461–467, 2015.
  • [12] K. Yu, M. Arifuzzaman, Z. Wen, D. Zhang, and T. Sato, “A Key Management Scheme for Secure Communications of Information Centric Advanced Metering Infrastructure in Smart Grid,” IEEE Transactions on Instrumentation and Measurement, vol. 64, no. 8, pp. 2072–2085, 2015.
  • [13] D. Abbasinezhad-Mood and M. Nikooghadam, “An Ultra-Lightweight and Secure Scheme for Communications of Smart Meters and Neighborhood Gateways by Utilization of an ARM Cortex-M Microcontroller,” IEEE Transactions on Smart Grid, vol. 9, no. 6, pp. 6194–6205, 2018.
  • [14] V. Seferian, R. Kanj, A. Chehab, and A. Kayssi, “Identity based Key Distribution Framework for Link Layer Security of AMI Networks,” IEEE Transactions on Smart Grid, vol. 9, no. 4, pp. 3166–3179, 2018.
  • [15] Y. Lee, E. Hwang, and J. Choi, “A Unified Approach for Compression and Authentication of Smart Meter Reading in AMI,” IEEE Access, vol. 7, pp. 34 383–34 394, 2019.
  • [16] M. Mustapa, M. Y. Niamat, A. P. D. Nath, and M. Alam, “Hardware-Oriented Authentication for Advanced Metering Infrastructure,” IEEE Transactions on Smart Grid, vol. 9, no. 2, pp. 1261–1270, 2018.
  • [17] A. Mohammadali, M. Sayad Haghighi, M. H. Tadayon, and A. Mohammadi-Nodooshan, “A Novel Identity-Based Key Establishment Method for Advanced Metering Infrastructure in Smart Grid,” IEEE Transactions on Smart Grid, vol. 9, no. 4, pp. 2834–2842, 2018.
  • [18] P. Kumar, A. Gurtov, M. Sain, A. Martin, and P. H. Ha, “Lightweight Authentication and Key Agreement for Smart Metering in Smart Energy Networks,” IEEE Transactions on Smart Grid, vol. 10, no. 4, pp. 4349–4359, 2019.
  • [19] D. Abbasinezhad-Mood and M. Nikooghadam, “An Anonymous ECC-Based Self-Certified Key Distribution Scheme for the Smart Grid,” IEEE Transactions on Industrial Electronics, vol. 65, no. 10, pp. 7996–8004, 2018.
  • [20] A. Braeken, P. Kumar, and A. Martin, “Efficient and Provably Secure Key Agreement for Modern Smart Metering Communications,” Energies, vol. 11, no. 10, p. 2662, 2018.
  • [21] K. Kaur, S. Garg, G. Kaddoum, F. Gagnon, and S. H. Ahmed, “Blockchain-Based Lightweight Authentication Mechanism for Vehicular Fog Infrastructure,” in IEEE International Conference on Communications Workshops (ICC Workshops), Shanghai, China, May 2019.
  • [22] S. Garg, K. Kaur, G. Kaddoum, S. H. Ahmed, and D. N. K. Jayakody, “SDN based Secure and Privacy-preserving Scheme for Vehicular Networks: A 5G Perspective,” IEEE Transactions on Vehicular Technology, 2019, DOI: 10.1109/TVT.2019.2917776.
  • [23] V. Odelu, A. K. Das, M. Wazid, and M. Conti, “Provably Secure Authenticated Key Agreement Scheme for Smart Grid,” IEEE Transactions on Smart Grid, vol. 9, no. 3, pp. 1900–1910, 2018.
  • [24] Y. Chen, J.-F. Martínez, P. Castillejo, and L. López, “An Anonymous Authentication and Key Establish Scheme for Smart Grid: FAuth,” Energies, vol. 10, no. 9, p. 1354, 2017.
