I Introduction

Single image super-resolution (SISR) is an important low-level computer vision task which aims at recovering a high-resolution (HR) image from a low-resolution (LR) image. It is a seriously ill-posed problem since an LR image can be mapped to an infinite number of HR images. Recently, deep convolutional neural network (CNN) has greatly facilitated improvements in this field. Dong

et al. [1] firstly proposed a three-layer CNN to establish a mapping between LR and HR. Kim et al. proposed the well-known VDSR [2]

, which introduced residual learning and adaptive gradient clipping to alleviate the difficulty of training deep network. In DRCN

[3]

, the recursive network was used to reduce the model parameters and a multi-supervised strategy was adopted to fuse intermediate results. Benefiting from skip-connection can alleviate the vanishing-gradient problem

[4], [5], Lim et al. [6] built a very deep network MDSR (more than 160 layers) with residual blocks.

Fig. 1: Speed and accuracy trade-off. The average PSNR and the average inference time for upscaling on Set5. LFFN and LFFN-S contain B4M15 and B4M4, respectively. The 3*3 convolution of all spindle blocks in LFFN-S is replaced by depthwise convolution.

Researchers usually deepen and widen the network to achieve better performance. However, even constructed with small convolution kernels, such as , the network will take up large memories. In order to lighten the deep network, some strategies have been adopted. DRRN [7] employed parameter sharing strategy to reduce parameters, but it still requires large computation objectively. CARN-M [8] adopt group convolution to attack a trade-off between computation and performance of the model. Unfortunately, applying group convolution directly to SISR will obviously impair performance. To address these problems, we propose a lightweight network LFFN to compute the HR image from the original LR image. In LFFN, we introduce a new organization of the inception-residual block [9], named spindle block, which contains a dimension extension unit, a feature exploration unit and a feature refinement unit. The dimension extension unit can learn the feature maps suitable for the next unit, and the architecture can be mitigated by fewer filters in backbone. Inspired by ResNeXt [10] and Xception [11], we introduce a feature exploration unit to explore the linear and nonlinear as well as multi-scale information for 4 different channel groups. This unit can improve the representational power of the model and can further alleviate the architecture due to fewer filters in each group. We also consider using feature maps of different receptive fields to enhance the performance. Taking computation into account and motivated by feature recalibration demonstrated in SENets [12], we develop a softmax feature fusion module (SFFM) to aggregate the features of different levels in a self-adaptive channel-wise convex weighted way rather than the multi-supervised method used in DRCN[3] and MemNet [13]. The parameters of SFFM are not large, since there is only one dense layer applied to each global feature of different levels. And SFFM can learn how to combine the features that are most conducive to reconstruction.

Ii Proposed Method

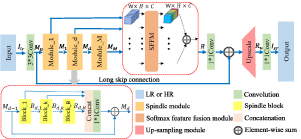

Fig. 2: The architecture of our proposed lightweight feature fusion network (LFFN).
(a)
(b)
Fig. 3: Basic block of different architecture. (a) residual block. (b) spindle block.

Ii-a Network structure

As shown in Fig. 2, the overall architecture consists of spindle blocks, a softmax feature fusion module (SFFM) and an up-sampling module. We denote and as the input and output of LFFN, respectively. First of all, we use a single convolutional layer of 48 filters to extract the feature maps from the original LR image:

(1)

where represents convolution operation and serves as the input of next part. The next part is stacked local feature fusion modules. Inspired by MemNet [13] and SRDenseNet [14], we concatenate feature maps from stacked spindle blocks to further make full use of local features. We also introduce residual learning for each module to make deep network training easier. This procedure can be expressed as

(2)

where denotes the -th module function and is the function of the convolution in -th module. and indicate the output of the -th module and -th spindle block respectively. More details about spindle block will be given in next section. After extracting complicated features progressively with modules, we further conduct softmax feature fusion (SFFM).

(3)

where is the output feature maps of SFFM, denotes a composite function. Finally, like[15] and [6] , we utilize ESPCN [16] followed by a convolution layer to upscale the refined feature maps and get the output of LFFN. It is worth mentioning that we replace the convolution with convolution in upscale module and the last layer to further reduce parameters.

(4)

where and denote the convolution and is the function of upscale module.

Ii-B Spindle Block

To reap the benefits of inception residual block [9] and group convolution, we propose a well-designed residual block, named spindle block. The overall block can be formulated as:

(5)

where , and represent compound function of three basic units respectively. And more details about them explicated as follows.

Ii-B1 dimension extension unit

The number of filters is a critical factor to improve the efficiency of deep networks, which is fixed to 64 in many deep methods for SISR currently. We can lighten the architecture by decreasing the filters, but the performance fluctuates accordingly. Using “bottleneck layer” [17] ( convolution) to compress dimensions resemble pooling operation in channel dimension. We believe that reducing feature channels before non-linear layer can lead to information loss. Here, we expand the dimensions from 48 to 64 before non-linear mapping to maintain performance with fewer parameters.

Ii-B2 feature exploration unit

As shown in Fig.3(b), we first slice the feature maps into four different 16-dimensional groups. Then, we explore nonlinear information in three groups and linear information in the other group. Specifically, we adopt a sequence of

convolutional layers followed by parametric rectified linear units (PReLUs) to make full use of the image multi-scale information. Different from

[17], [9], we assemble linear and nonlinear information to boost representational power of basic blocks and directly dispose the expanded feature maps instead of reducing dimension by additional convolutions.

Ii-B3 feature refinement unit

Then the concatenate feature maps are sent to a convolutional layer which acts as refining features, compressing dimensions and overcoming the impact of the slice operation on weakening the information flow.

Basically, as shown in Fig.3, our spindle block can take advantage of linear and nonlinear and multi-scale information with fewer parameters than baseline residual block. In particular, when we use the configuration expressed in Fig.3, a spindle block has of parameters of a residual block. This ratio can be further decreased to by replacing convolution in spindle block with depthwise convolution. More analysis will be described in experiment.

Ii-C Softmax Feature Fusion Module

Information in different levels of feature maps can complement each other for reconstruction. In order to gain more abundant and efficient information, we focus on hierarchical features and achieve a fusion mechanism. As shown in Fig.4, we take all intermediate feature maps as input and generate a fusion representation . And , , , where denotes the -th channel of the -th feature maps , and is the total number of channels. Inspired by squeeze operation in[12], we apply global average pooling to each channel to obtain the global channel feature . Then, we follow it with a dense layer to fully exploit inter-channel correlation, as formulated below:

(6)

where represent the weight set of -th dense layer and , . We utilize concatenation and slice operation and softmax function to produce the weight of the corresponding channel of different features. This process can be expressed as:

(7)

where , and , . The final output of SFFM is obtained as the following formula:

(8)

where and denotes the -th channel of the -th rescaled feature maps

. SFFM aims to incorporate hierarchical features with as few parameters as possible and each weight vector

in SFFM depends on global features of all intermediate feature maps, which is different from channel attention in SENets [12].

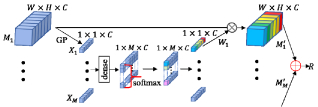

Fig. 4: Softmax feature fusion module (SFFM) architecture. denotes element-wise product. GP represents global average pooling. “dense” represents the fully connected layers applied to global features from different modules.

Iii Experiment

LFFN-NF LFFN-NS LFFN
Spindle Block ×
SFFM ×
Params.(k) 1,497 4,770 1,531
PSNR/SSIM 25.97/0.7821 26.20/0.7893 26.24/0.7902
TABLE I: Ablation study of spindle block and SFFM for scale factor on dataset Urban100

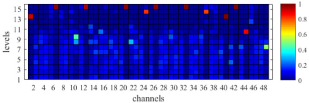

Fig. 5: Information source distribution for different channels of the feature maps used for reconstruction. The figure is drawn by visualizing the weight vector of intermediate feature maps for the “butterfly” image from Set5 dataset on enlargement.

Iii-a Implementation details

At first, we pre-train our model on 91 images from Yang et al. [18] and 200 images from the Berkeley Segmentation Dataset [19]. To further improve the performance, we use a newly-proposed high-quality image dataset DIV2K [20]

which consists of 800 images to fine-tune our pre-trained model. Data augmentation (rotation and flip) is also performed on the 291-image dataset and DIV2K dataset. To produce LR images, we downscale the HR images on particular scaling factors with bicubic interpolation. The proposed method is compared on four widely used benchmark datasets: Set5

[21], Manga109 [22], BSD100 [23], Urban100 [24]. For fair comparison, we evaluate the model with PSNR and SSIM on Y channel (i.e., luminance) of transformed YCbCr space.

In our final architecture LFFN, 15 spindle modules, each contains 4 spindle blocks, are constructed (i.e., B4M15). We initialize all convolutional filters using the method of He et al. [25]

. We use the L1 loss as our loss function instead of the L2. For optimization, we use the ADAM optimizer

[26] by setting , , and . We use 16 RGB input patches of size from the LR images for training, and the initial learning rate is set to

and then decreased to half every 20 epochs. In order to accelerate the convergence, we adopt the adjustable gradient clipping

[2]

which has been well implemented in tensorflow. Both training stages are configured the same as demonstrated above except that the initial learning rate is set to

during the fine-tuning. Training a LFFN roughly takes four days with a GTX 1080Ti GPU on the 2 model.

Iii-B Model Analysis

Algorithm scale   Params(K) Mult-Adds(G) Set5 Manga109 BSD100 Urban100
PSNR SSIM PSNR SSIM PSNR SSIM PSNR SSIM
VDSR [2] 2 665 612.6 37.53 0.9587 37.22 0.9750 31.90 0.8960 30.76 0.9140
DWSR [27] 2 373 344.0 37.42 0.9568 37.27 0.9719 31.85 0.8944 30.46 0.9162
DRRN [7] 2 297 6796.9 37.74 0.9591 37.60 0.9736 32.05 0.8973 31.23 0.9188
MemNet [13] 2 677 2665.0 37.78 0.9597 37.72 0.9740 32.08 0.8978 31.31 0.9195
CARN [8] 2 1592 222.8 37.76 0.9590 38.28 0.9754 32.09 0.8978 31.92 0.9256
LFFN 2 1522 342.8 37.95 0.9597 38.73 0.9765 32.20 0.8994 32.39 0.9299
LFFN-S 2 173 37.9 37.66 0.9585 37.93 0.9746 31.96 0.8963 31.28 0.9192
VDSR [2] 3 665 612.6 33.66 0.9213 32.01 0.9340 28.82 0.7976 27.14 0.8279
DWSR [27] 3 373 344.0 33.75 0.9209 32.14 0.9323 28.80 0.7972 27.22 0.8293
DRRN [7] 3 297 6796.9 34.03 0.9244 32.42 0.9359 28.95 0.8004 27.53 0.8378
MemNet [13] 3 677 2665.0 34.09 0.9248 32.51 0.9369 28.96 0.8001 27.56 0.8376
CARN [8] 3 1592 118.8 34.29 0.9255 33.47 0.9429 29.06 0.8034 28.06 0.8493
LFFN 3 1534 153.6 34.43 0.9266 33.65 0.9445 29.13 0.8059 28.34 0.8558
LFFN-S 3 185 18.1 34.04 0.9233 32.80 0.9381 28.91 0.8005 27.51 0.8372
VDSR [2] 4 665 612.6 31.35 0.8838 28.83 0.8870 27.29 0.7251 25.18 0.7524
DWSR [27] 4 373 344.0 31.39 0.8829 29.01 0.8855 27.27 0.7246 25.27 0.7552
DRRN [7] 4 297 6796.9 31.68 0.8888 29.18 0.8914 27.38 0.7284 25.44 0.7638
MemNet [13] 4 677 2665.0 31.74 0.8893 29.42 0.8942 27.40 0.7281 25.50 0.7630
CARN [8] 4 1592 90.9 32.13 0.8937 30.45 0.9073 27.58 0.7349 26.07 0.7837
LFFN 4 1531 87.9 32.15 0.8945 30.66 0.9099 27.52 0.7377 26.24 0.7902
LFFN-S 4 183 11.7 31.79 0.8886 29.76 0.8979 27.42 0.7308 25.52 0.7673
TABLE II: Benchmark SISR results. Average PSNR/SSIM for scale factor 2, 3 and 4 on datasets Set5, Manga109, BSD100 and Urban100. Red color indicates the best performance.

Table I shows the effects of spindle block and softmax feature fusion module (SFFM). LFFN-NF is LFFN without softmax feature fusion module (SFFM) and we replace spindle blocks with residual blocks (Fig.3(a)) in LFFN-NS. The three networks have the same number of basic blocks (B4M15). Compared with LFFN, the performance of LFFN-NS degraded and the parameters increased by three times, indicating that the proposed spindle block is more effective than residual block. LFFN is obviously superior to LFFN-NF, and the parameters are not increased much, revealing that SFFM is valid for incorporating hierarchical information. Beyond that, as shown in Fig.5, the different channel information of the feature maps used for reconstruction come from all levels. And high-level features play a major role in some channels, while low-level features dominate in other channels, which indicates that aggregating hierarchical features is important for SISR and SFFM can implement it well.

Iii-C Comparisons With State-of-the-Art Methods

We compare LFFN (B4M15) and LFFN-S (B4M4 + depthwise convolution) with state-of-the-art methods. We also compare parameters and computation (Mult-Adds) of each method. And Mult-Adds is calculated by assuming that the spatial resolution of HR image is . As shown in Table II, our LFFN performs favorably against state-of-the-art methods on all datasets. LFFN exceeds Memnet[13] by a margin of 0.41 PSNR while being 30.32 times less compute than Memnet for upscaling on Set5. Our smallest network LFFN-S has Mult-Adds about of MemNet, of DRRN and of DWSR on enlargement, respectively, but still achieves comparable performance. Fig.1 shows the execution time of different methods. We use the original codes of state-of-the-art methods to evaluate the runtime on the same machine with 2.1 GHz Intel Xeon CPU and GTX 1080 Ti GPU (12G Memory). LFFN faster, lighter and more accurate than the latest lightweight network CARN [8]. LFFN-S is about 400 times faster and 3.7 times smaller than MemNet

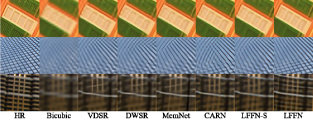

Fig. 6: Visual comparison for SR on “img013”, “img062”, “img085”from the Urban100 dataset.

We also provide qualitative comparison in Fig.6. Our smallest network LFFN-S can produce almost the same result as other state-of-the-art methods (e.g., MemNet). Besides, LFFN recovers clearer, more accurate contours and less artifacts than other methods.

Iv Conclusion

In this paper,we propose a novel lightweight feature fusion network (LFFN) for single image super-resolution. In order to build a more effective and accurate architecture, we pay more attention to full usage of the feature map information. Whether softmax feature fusion module (SFFM) or the proposed spindle block which serves as the basic building unit can significantly improve the representational capacity of a network with fewer parameters. Experiments well demonstrate the effectiveness of our method.
