1 Introduction

Heterogeneous computer systems, such as traditional CPU-GPU based systems, often expose disjoint memory spaces to the programmer, such as main memory and device memory, with the need to explicitly transfer data between these. The different memories usually require different memory access operations and different pointer types. Also, encoding memory transfers as message passing communications leads to low-level code that is more error-prone. A commonly used software technique to abstract away the distributed memory, the explicit message passing, and the asymmetric memory access mechanisms consists in providing the programmer with an object-based shared memory emulation. For CPU-GPU systems, this can be done in the form of special data-containers, which are generic, STL-like data abstractions such as vector<...> that wrap multi-element data structures such as arrays. These data-container objects internally perform transparent, coherent software caching of (subsets of) accessed elements in the different memories so they can be reused (as long as not invalidated) in order to avoid unnecessary data transfers. Such data-containers (sometimes also referred to as ”smart” containers as they can transparently perform data transfer and memory allocation optimizations Dastgeer-IJPP15 ) are provided in a number of programming frameworks for heterogeneous systems, such as StarPU StarPU and SkePU Enmyren10 ; Dastgeer-IJPP15 . StarPU is a C-based library that provides API functions to define multi-variant tasks for dynamic scheduling where the data containers are used for modeling the operand data-flow among the dynamically scheduled tasks. SkePU defines device-independent multi-backend skeletons like map, reduce, scan, stencil etc. where operands are passed to skeleton calls within data containers.

VectorPU VectorPU-2017

is a recent C++-only open-source programming framework for CPU-GPU heterogeneous systems. VectorPU relies on the specification of

components, which are functions that contain kernels for execution on either CPU or GPU. Programming in VectorPU is thus not restricted to using predefined skeletons like SkePU, but leads to more high-level and more concise code than StarPU. Like StarPU, VectorPU requires the programmer to annotate each operand of a component with the access mode (read, write, or both) including the accessing unit (CPU, GPU), and uses smart data containers for automatic transparent software caching based on this access mode information.

The implementation of VectorPU makes excessive use of static metaprogramming; this provides a light-weight realization of the access mode annotations and of the software caching, which only require a standard C++ compiler. Emulating these light-weight component and access mode constructs without additional language and compiler support (in contrast to, e.g., OpenACC or OpenMP), leads however to some compromises concerning the possibility to perform static analysis. In particular, VectorPU has no explicit type system for the access modes, as these are not known to the C++ compiler.

In this paper, we formalize access modes and data transfers in CPU-GPU heterogeneous systems and prove the correctness of the software cache coherence mechanism used in VectorPU. The contributions of this paper are:

  • A simple effect system modeling the semantics of memory accesses and communication in a CPU-GPU heterogeneous system,

  • A small calculus expressing different memory accesses and their composition across program traces.

  • The interpretation of VectorPU operations as higher-level statements that can be translated into the core calculus,

  • A proof that, if all memory accesses are performed through VectorPU operations, the memory cannot reach an inconsistent state and all memory accesses succeed,

  • The abstraction necessary to take into account arrays, possibly overlapping, in the formalism.

This article is an extended version of HKL-4PAD2018 , with two main additions. First the relationship between the formal results and the VectorPU implementation is detailed, illustrating the impact of the proven results on the behaviour of the library. Second, the theoretical framework is extended to take into account the fact that manipulated arrays may overlap and that the consistency mechanism must take this information into account to be correct. While overlapping arrays are not yet supported by VectorPU, based on the formal model we develop, we show how a simple extension of the library could provide support for overlapping arrays.

This paper is organized as follows: Section 2 reviews VectorPU as far as required for this paper, for further information we refer to VectorPU-2017 . Section 3 provides our formalization of VectorPU programs and their semantics, and proves that the coherence mechanism used in VectorPU is sound. Section 5 discusses related work, and Section 6 concludes.

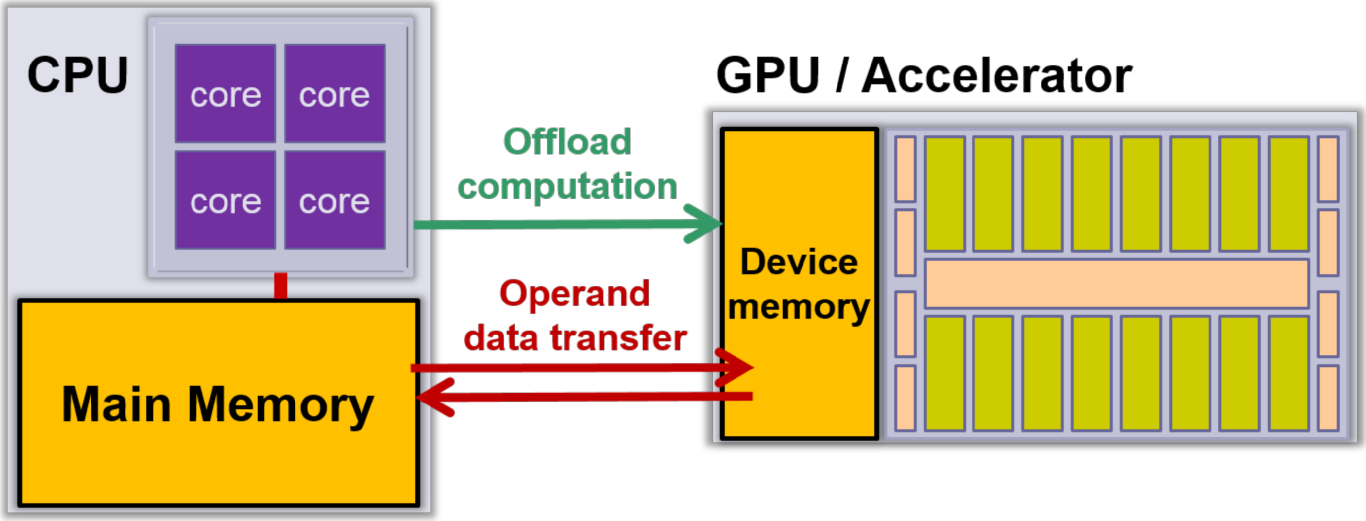

Figure 1: A GPU-based system with distributed address space

2 VectorPU

In heterogeneous systems with separate address spaces, for example in many GPU-based systems, a general-purpose processor (CPU) with direct access to main memory is connected by some network (e.g., PCIe bus) to one or several accelerators (e.g., GPUs) each having its own device memory, see Figure 1. Native programming models for such systems such as CUDA typically expose the distributed address spaces to the programmer, who has to write explicit code for data transfers and device memory management. Often, programs for such systems must be organized in multiple source files as different programming models and different toolchains are to be used for different types of execution unit. This enforces a low-level programming style. Accordingly, a number of single-source programming approaches have been proposed that abstract away the distribution by providing a virtual shared address space. Examples include directive-based language extensions such as OpenACC and OpenMP4.5, and C++-only approaches such as the library-based skeleton programming framework SkePU Dastgeer-IJPP15 and the recent macro-based framework VectorPU.

VectorPU VectorPU-2017 is an open-source222http://www.ida.liu.se/labs/pelab/vectorpu, https://github.com/lilu09/vectorpu lightweight C++-only high-level programming layer for writing single-source heterogeneous programs for Nvidia CUDA GPU-based systems. Aggregate operand data structures passed into or out of function calls are to be wrapped by special data containers known to VectorPU. VectorPU currently provides one generic data container, called vector<...>, with multiple variants that eliminate the overhead of managing heterogeneity and distribution when not required (e.g., when no GPU is available). vector<...> inherits functionality from STL vector and from Nvidia Thrust vector, and wraps a C++ array allocated in main memory. VectorPU automatically creates on demand copies of to-be accessed elements in device memory and keeps all copies coherent using a simple coherence protocol, data transfers are only performed when needed.

VectorPU programs are organized as a set of C++ functions, some of which might internally use device-specific programming CUDA constructs333VectorPU allows to directly annotate a CUDA kernel function, in addition to annotating its C++ wrapper function. while others are expected to execute on the host, using one or possibly multiple cores. VectorPU components are functions that are supposed to contain (CPU or device) kernel functionality and for which operands are passed as VectorPU data container objects. Components and the types of execution units that access their operands are declared by annotating the operands of the function, either at a call of the function or for the formal parameters in the function’s declaration, with VectorPU access mode specifiers. For example, in contrast, SkePU Enmyren10 overloads element access and iterator operations so that monitored accesses are also possible on demand in non-componentized (i.e., ordinary C++) CPU code. VectorPU only relies on access mode annotations to perform lazy data transfer, not knowing when data is going to be accessed inside a component.

Table 1 summarizes the access mode annotations currently defined for VectorPU. The access mode specifiers, such as R (read on CPU), W (write on CPU), RW (update, i.e., both read and write, on CPU), GR (read on GPU) and so forth, are available both as annotations of function signatures and as C++ preprocessor macros that expand at compilation into (possibly, device-specific) C++ pointer expressions and side effects that allow to generate device specific access code and use device-specific pointer types for the chosen execution unit. For instance, GW(x) expands to a GPU pointer to the GPU device copy of x, which might be dereferenced for GPU writing accesses to x, such as the GPU code: *( GW(x) + 2 ) = 3.14. GWI(x) evaluates to a Thrust-compatible iterator onto the GPU device copy of x, and WEI(x) to an iterator-end reference to the last element of x on CPU side. The current VectorPU prototype implementation does not (yet) check access-mode annotations in signatures of externally defined functions. It is also possible to specify partial access of a vector instead of the entire vector data structure. The current VectorPU implementation does not (yet) support coherence for overlapping intervals of elements resulting from multiple (partial) accesses some of which (may) access the same element. A solution for this problem has been described for SkePU smart containers by Dastgeer Dastgeer-IJPP15 . Section 4 details a solution for handling overlapping arrays in VectorPU.

Access Mode On Host On Device
Read pointer R GR
Write pointer W GW
Read and Write pointer RW GRW
Read Iterator RI GRI
Read End Iterator REI GREI
Write Iterator WI GWI
Write End Iterator WEI GWEI
Read and Write Iterator RWI GRWI
Read and Write End Iterator RWEI GRWEI
Not Applicable NA NA
Table 1: VectorPU access mode annotations for a parameter VectorPU-2017

The following example (adapted from VectorPU-2017 ) of a CUDA kernel wrapped in an annotated function bar shows the use of VectorPU access mode annotations at function declaration:

// Example (annotations at function declaration):
__global__
void bar ( const float *x [[GR]], float *y [[GW]],
                 float *z [[GRW]], int size )
{ ... CUDA kernel code ... }

Here, the operand array pointed to by x may be read (only) by the GPU within bar, operand array y must be written (only) by the GPU, and operand array z may be read and/or written by the GPU. When calling bar, the first three operands are passed as VectorPU vector container objects. The size formal parameter is a scalar (not a data container), so it will be available on GPU on a copy-in basis but no coherence will be provided for it by VectorPU.

It is also possible to put the annotations into a call, and hence characterize a function as a VectorPU component:

// declare a CPU function:
void foo ( const float *x, float *y, float *z, int size );

// declare three vectors:
vectorpu::vector<float> vx(100), vy(100), vz(100);

// call to VectorPU annotated function foo:
foo ( R( vx ), W( vy ), RW( vz ), size ) ;

Here, the access mode specifiers and the resulting coherence policy only apply to that particular invocation of foo, while other invocations of foo might use different access mode specifiers.

The following example shows how to use iterators:

vectorpu::vector<My_Type> vx(N);
std::generate( WI(vx), WEI(vx), RandomNumber );
thrust::sort( GRWI(vx), GRWEI(vx));
std::copy( RI(vx), REI(vx), ostream_iterator<My_Type>(cout, ""));

where std::generate is a CPU function filling a section between two addresses with values (here, random numbers), and thrust::sort denotes the GPU sorting functionality provided by the Nvidia Thrust library.

2.1 Partial Vectors

Using iterators, it is possible in VectorPU to define references to contiguous subranges of a vector, called partial vectors (pvectors), which can be passed as vector-compatible operands to a function instead of an entire vector. In this way, it is possible to pass several (disjoint or even overlapping) pvector objects as seemingly different vector arguments that however are just windows onto a common vector container variable. In contrast to vectors without pvectors, where coherence is managed automatically by VectorPU, the coherence management in the presence of pvectors is exposed to the programmer.

A partial vector can be initialized by two iterators to a normal VectorPU vector (we call it mother vector). No new memory is allocated for this partial vector, only the two iterators are stored, and the coherence state for its range in the mother vector. When a partial vector is declared, it automatically inherits the coherence state information from its mother vector.

struct my_set {
   template <class T>
   __host__ __device__
      void operator() (T &x) { x+=101; }
};
vectorpu::vector<int> vx(10);  // the mother vector
vectorpu::pvector<int> vy(x, vx.begin(), vx.begin()+2);
vectorpu::for_each<int>( GWI(vy), GWEI(vy), my_set() );
vectorpu::for_each<int>( GWI(vy), GWEI(vy), my_set() );
SR( vy );  // explicit coherence management
vectorpu::for_each<int>( RI(vx), REI(vx), [](auto x) {cout<<x<<" ";} );
Figure 2: Example of using a partial vector (pvector) and the SR macro for explicit coherence management. (Note: pvector is a short form and actually called parco_vector in the VectorPU API.)

The aliasing introduced by pvectors can lead to coherence problems. One such scenario could be that the programmer intends to operate on the previous vector again after some part of it was updated via a pvector, hence the whole vector would be in an inconsistent state. In such cases, VectorPU expects the programmer to use a macro S (Synchronize for access mode , such as SR for synchronized read) just before the programmer operates on the whole vector again. It may be inefficient for a pvector to perform the S synchronization automatically, because multiple operations can be performed on the same pvector before accessing the whole vector again, and because the pvector has no knowledge about when the operations on itself will be finished, hence keeping them coherent each time is not necessary and thus a waste of performance.

Figure 2 shows an example of using a pvector and the S macro. It initializes a mother vector vx and a pvector vy on it. The following two lines change part of vy’s value multiple times. The SR macro explicitly restores coherence for vy before the following read access, resulting in a write-back of vy elements in GPU device memory to their locations in vx, thus also vx as a whole becomes coherent again and line 6 is safe to operate on the whole vx.

void coherent_on_cpu_r(){
  Ψ if( !cpu_coherent_unit ){
       download();
       cpu_coherent_unit=true;
  Ψ }
}
void coherent_on_cpu_w(){
  Ψ cpu_coherent_unit=true;
  Ψ gpu_coherent_unit=false;
}
void coherent_on_cpu_rw(){
  Ψ if( !cpu_coherent_unit ){
       download();
       cpu_coherent_unit=true;
  Ψ }
  Ψ gpu_coherent_unit=false;
}
void coherent_on_gpu_r(){
  Ψ if( !gpu_coherent_unit ){
       upload();
       gpu_coherent_unit=true;
Ψ }
}
void coherent_on_gpu_w(){
  Ψ gpu_coherent_unit=true;
  Ψ cpu_coherent_unit=false;
}
void coherent_on_gpu_rw(){
  Ψ if( !gpu_coherent_unit ){
       upload();
       gpu_coherent_unit=true;
  Ψ }
  Ψ cpu_coherent_unit=false;
}
Figure 3: Coherence control code, here for simple vectors, in vectorpu.h. Functions download and upload are implemented using CUDA thrust::copy. Validity of copies on CPU and GPU is indicated by the flags cpu_coherent_unit and gpu_coherent_unit respectively; both are initialized to true in code allocating new vectors (not shown).

2.2 Implementation Notes

Coherence protocol

In the source code of VectorPU, the code relevant for our work is the part of vectorpu.h444The VectorPU source code can be found at https://github.com/lilu09/vectorpu. that handles coherence. Its implementation for the various variants of vector (see the code excerpt in Fig. 3 for simple vectors) follows a simple valid-invalid protocol.

Expansion of macro annotations to device-specific pointers

For function parameters, the macro annotations expand into appropriate C code to fit their function call context. For illustration, we show the simplified code after a function parameter’s expansion () for four typical annotations, where vx refers to a VectorPU vector instance:

  • R(vx) set_coherence_state(); return this->std::vector<T>::data(); //casted as const in return value

  • W(vx) set_coherence_state(); return this->std::vector<T>::data();

  • GR(vx) set_coherence_state(); return thrust::raw_pointer_cast( & (* thrust::device_vector<T>::begin() ) ); //casted as const in return value

  • GW(vx) set_coherence_state(); return thrust::raw_pointer_cast( & (* thrust::device_vector<T>::begin() ) );

Hence, each annotated parameter is expanded to some code snippet555One can think of those code snippets as anonymous functions or lambda functions. In the real scenarios these code snippets are encapsulated within a function, and each macro as shown above expands to a call to its function.. In all scenarios the expanded macros first update the coherence state according to the annotation’s semantics. Then, for the CPU cases, a pointer to a std::vector is returned, and for the GPU cases, a pointer to a Thrust pointer (which is a pointer to GPU memory space) is returned. For read-only cases, the return value is casted to const to ensure type safety in its function invocation. For write-only cases, no such const cast happens.

Partial vector implementation and memory management

For implementing the pvectors atop vectors, VectorPU uses the simplistic approach of allocating memory for the entire vector on the device even if the pvector(s) might only access a minor part of it. This may waste device memory space but makes local address calculations easy, and anyway only the accessed elements (the pvector range) will be transferred. As we will see later, it also simplifies coherence management for overlapping pvector accesses, which was not really foreseen in the original VectorPU design.

2.3 Efficiency

Using only available C++(11) language features, VectorPU provides a flexible unified memory view where all data transfer and device memory management is abstracted away from the programmer. Nevertheless, its efficiency is on par with that of handwritten CUDA code containing explicit data movement and memory management code VectorPU-2017 . In particular, the VectorPU prototype was shown to achieve 1.4x to 13.29x speedup over good quality code using Nvidia’s Unified Memory API on several machines ranging from laptops to supercomputer nodes, with Kepler and Maxwell GPUs. For a further discussion of VectorPU features, such as specialized versions of vector, for descriptions of how to use VectorPU together with lambda expressions e.g. to express skeleton computations, and for further experimental results we refer to VectorPU-2017 .

3 A Formalization for Reasoning on Consistency in VectorPU

In this section we provide a minimal calculus to reason on the memory operations that can exist in a framework that deals with memory consistency like VectorPU. We first define a set of effects that operations can have on the consistency of the memory. Then we define a small calculus expressing different memory accesses and their composition into complex procedures. Finally, we express VectorPU operations as higher-level statements that can be translated into the core calculus, and show that if all memory accesses are annotated correctly through VectorPU annotations the program cannot try to access an invalid data and the memory spaces are put in coherence when needed. We also show that VectorPU tracks the validity status of the memory adequately. In this section we abstract away the values stored in memory and we do not deal with any form of aliasing. A more precise analysis of aliasing is out of the scope of this paper, it could be for example inspired from Nielson1999 or from our extension to overlapping array (Section 4). We place ourself in a simplified setting where each variable is hosted in exactly two memory locations, e.g. a CPU (main) memory and a GPU memory location; our results could be extended to multiple memory locations without any major difficulty.

3.1 An effect system for consistency between memory locations

We start from a simple effect system, it expresses the effect of writing or reading a memory location on the consistency status of the memory. Each location is either in valid state when it holds a usable data or invalid state when the value at the location is not valid anymore. We express five operations: reading, writing, Push for uploading the local memory location into the other one, and Pull for the contrary. Noop does nothing.

These operations involve a single memory location. We express below the semantics of each of the operations on the consistency status of the concerned memory location. The memory status of a variable is a pair of the status of its locations, where each status is either for valid or for invalid. The first element is the status of the local memory, and the second one is the status of the remote memory. For example, for a program running on a CPU while the remote memory is a GPU, a status means that the memory is valid and can be read on the CPU, but is invalid on the GPU and should be transferred before being usable there. Each operation has a signature in the sense that it may require a certain memory status and will produce another memory status. The signature of each operation is expressed below and is called its effect. We use variables –, – that are considered universally quantified in each rule. They can be instantiated with either or . Push: (V,X)↦(V,V)

Pull: (X,V)↦(V,V)

r: (V,X)↦(V,X)

w: (X,Y)↦(V,I)

Noop: (X,Y)↦(X,Y)

These signatures are effects expressing that is a reading operation requiring validity of data and ensuring not to modify it, the distant status is unchanged; is a writing operation that modifies data locally but do not require validity, it invalidates the remote memory. Push uploads the local memory and thus makes valid the distant memory; it requires that the data is locally valid, and Pull is the symmetrical operation. Applying these signature consists in trying to unify the current memory status with the effect of the variable, potentially instantiating and appropriately. No unification is possible if the status and the effect cannot be made identical by instantiating variables.

Example: An operation can be applied on a validity status , leading to the validity status because can be unified with by instantiating with . However can not be applied on a validity status because cannot be unified with : and are different.

An additional operation could be defined: an operation would represent a read and/or write access, it would both require data validity and invalidate remote status: . This operation is however not needed here but we will have a similar one at the annotation level, see below.

3.2 A language for modelling consistency and effects

We now create a core calculus to reason on programs involving sequences of effects on different memory locations. range over variables and we introduce statements manipulating variables. We use sequence and simple loops and conditionals. Operations with effects now apply to a variable: denotes some operation on variable ; is a remote operation on the remote memory. We also have a Noop operation that has no effect and can be considered as a neutral element for the sequence. Statements are defined as:

Example: A GPU procedure writing and reading would correspond to the pseudo-code: .

We are interested in conditionals dealing with the validity status of the variables. Other conditionals are expressed as a generic binary operator but operators with different arities could be added as well:

where , resp. , denote checks of the validity status flag of the local, resp. remote, location of .

We now define a small step operational semantics for our core calculus. It relies on the validity status of variables, recorded in a store mapping variable names to validity pairs. Semantics is written as a transition relation between pairs consisting of a statement and a store: . The sequencing operator is associative with Noop as a neutral element. Consequently each non-empty sequence of instruction can be rewritten as where is neither a sequence nor Noop. is the update operation on maps.

[valid] σ(x)=(V,X) ⟦isValid x⟧_σ=True

[invalid] σ(x)=(I,X) ⟦isValid x⟧_σ=False

[rem-valid] σ(x)=(X,V) ⟦remIsValid x⟧_σ=True

[rem-invalid] σ(x)=(X,I) ⟦remIsValid x⟧_σ=False

[Effect] σ(x)=(X,Y)
E: (X,Y)↦(Z,T) (E x;S,σ)→(S,σ[x↦(Z,T)])

[Remote Effect] σ(x)=(X,Y)
E: (Y,X)↦(Z,T) (

Remark 5
E x;S,σ)(S,σ[x(T,Z)])

[While-True] ⟦cond⟧_σ (While(cond) S;S’,σ)→ (S;While(cond) S;S’,σ)   [While-False] ¬⟦cond⟧_σ (While(cond) S;S’,σ)→ (S’,σ)

[IF-True] ⟦cond⟧_σ ((if (cond) S else S ’);S”,σ)→ (S;S”,σ)    [IF-False] ¬⟦cond⟧_σ ((if (cond) S else S ’);S”,σ)→ (S’;S”,σ)

Figure 4: Operational semantics of validity status.

The semantics is presented in Figure 4. Like in the previous section, we use validity variables , , , that are universally quantified in each rule. The first four rules present the evaluation of conditional statements, we assume additional rules exist for evaluating 666We suppose that evaluation of always succeeds, and in particular variables accessed by the operation are specified as a operation preceding the condition.. The next rule applies an effect of the operation on a variable updating the validity store, and the Remote Effect rule applies an operation occurring on the distant memory, it applies the symmetric of the effect of the operation to the variable: validity values are switched compared to the non-remote effect. Note that Push is the symmetric of Pull and we could have removed one of those two operations without loss of generality: Pull is the same as . The last rules are standard ones for if and while statements.

Initial state: To evaluate a sequence of statements using the variables , we create an initial configuration with a store where data is hosted on the CPU and all variables are mapped to : .

A configuration is reachable if it is possible to obtain this configuration starting from the initial configuration and applying any number of reductions: is reachable if where is the reflexive transitive closure of . We write and say that the configuration is stuck if no reduction rule can be applied on .

Property 1 (Progress).

A configuration is stuck if the validity status of the accessed variable is incompatible with the effect to be applied:

Note that this supposes that always succeeds.

Proof.

Recall each non-empty sequence of instruction, here , can be rewritten as where is neither a sequence nor Noop. If the sequence is empty, , and the execution is finished, it corresponds to the last case of the rule.

By case analysis on the first statement of , there is always one rule applicable provided the premises of the rule can be evaluated.

In case the statement is an if or a while, it corresponds to the last four rules this requires the evaluation of cond. If always succeeds then cond can always be evaluated to either True or False and consequently one of the rule can always be applied.

The only cases remaining for are and . The applicable rules are Effect and Remote Effect. These rules can always be applied except if there is no unification possible between the effect of an operation and the current validity status of the affected variable, i.e. there is no instantiation of and such that both and in the case of Effect. This corresponds to the two first cases expressed in the theorem (one for Effect and one for Remote Effect). ∎

Property 2 (Safety).

A state is said to be unsafe if at least one variable is mapped to . It is impossible to reach an unsafe state from the initial state.

Proof.

The principle is that unsafe states are avoided because of the effects of operations. Indeed only the two effect rules (Effect and Remote Effect) modify the store and no effect can reach , except starting from . This is sufficient to conclude, by recursion, as the initial state is not . ∎

Example: The sequence can never be fully evaluated and will lead to a stuck configuration. Indeed, , but requires that is mapped to for some which is not the case.

However if we add a Push operation to ensure the validity of the accessed memory the program can be reduced as follows:

3.3 Declaring access modes and adding an abstraction layer

The calculus defined above only considers simple memory locations and directly manipulates them. But VectorPU and similar libraries manipulate structures representing the memory. For example, VectorPU vectors act as an abstract representation of a set of memory locations. In this section, we add a declaration and abstraction layer to the calculus to represent the access mode declarations that will trigger data transfers according to the consistency mechanism. This abstraction layer is also a necessary first step to the modelling of array structures that we will present in Section 3.5. Indeed, in array structures, the validity status of the array is abstracted away by a single validity status pair. Then a dynamic abstraction of the consistency status of the memory can be used. Abstract variables are not part of the applicative code but can be used in the access mode declarations.

Consider for example an array . As it is not desirable to store the information of the validity status of all the elements of the array, we will create for this array and abstract variable that will represent all the elements of the array – – from the validity status point of view. If the representation was precise, a value for would mean that all the elements of the array are valid locally and invalid remotely. In practice we need to authorize some approximation of the validity status, at least because most operations only act on some of the elements of the array. Consequently, some information is lost in the abstract representation: if then each element of the array must be locally valid, the remote elements may be valid or invalid. Like with non-abstract variables, having is not desirable as the coherence protocol would be unable to know where are the valid elements of the array – even if for all , or . In the case of arrays and usual data-structures, the mapping between abstract and concrete elements is quite trivial: one abstract variable represents a whole data structure. Other mappings (one variables for several structures or splitting a data structure) could be defined but their definition might be too complex to be usable in practice.

The abstraction and declaration layer relies on two principles:

  • Each variable has an abstract variable that represents it. In this section there is a single variable for each representative, but when we deal with arrays we will have a single representative for the whole array.

  • It is safe to “forget” that one memory space holds a valid copy of the data if the other memory space has a valid one. In other words, (resp. ) is a safe abstraction of and we have (resp. ). Also for any and we have .

Syntax

We now define access mode declarations:

These access modes declare the kind of access (read , write , or read and/or write ) that can be performed on the variable represented by . In a set of access mode declarations the same variable cannot appear twice777This restriction simplifies the formal definition and the reasoning. Extending the results to the same variable appearing twice with the same access mode is trivial (if the same parameter is passed twice to the same function). Having the same memory location declared twice with different access modes is not safe in the general case but Section 4 will study more precisely the case of overlapping arrays.. There exist declared access modes for local accesses and for the remote memory space.

A program is a sequence of calls to functions or components (i.e., statements accessing only real variables) each protected by an access mode declaration (on abstract variables representing the real variables):

We write if is one statement inside (i.e. is a sub-term of ).

We define below the semantics of these programs and specify well-declared program by comparing the statements they contain with the declared access modes. The semantics relies on the translation of the access mode declarations into consistency mechanisms with checks and data transfers triggered before each function execution.

Extension of statements to abstract variables

When evaluating a program, the store contains both real and abstract variables, and the existing statements have the same effect on the abstract variables as on the real ones. However one should notice that even if the effect is the same, the meaning of a statement acting on a real variable or on its representative is different: in our calculus, the effect on a variable is an abstraction of the real effect that involves side effects and data transfers. On the contrary, only the validity status of abstract variables is stored by the library: the effect triggered by an operation on an abstract variable is exactly what happens when VectorPU updates the validity status of its internal structures.

For example, a Pull operation on a real variable consists in transferring data from a remote memory space to the local one. We abstracted it by changing the local validity status. A Pull operation on an abstract variable only changes the validity status, no data transfer has to be done because abstract variables only need to be stored in one memory space. The validity status is stored in the CPU address space in VectorPU. Comparing the validity status of real memory and their representative allow us to reason formally on the correctness of the validity tracking performed by VectorPU.

⟦R x^#⟧=(if (isValid x^#) Noop else (Pull x;Pull x^#) )

As no data is accessed by the effects on abstract variables, they cannot create stuck configuration. Consequently, has no effect as it does not change the validity status of variables. The statement that should get stuck in case of a read access is the read of the real variable that cannot access a valid data.

Semantics

Figure LABEL:sem-AM defines the semantics of programs with access modes as a translation into the core calculus of Section 3.2. This translation ensures that the validity status is correct and records the effect of the function on the abstract variable before running the function call that may read and write data (on the real variables). Similarly to the VectorPU library, the protected accesses can be considered as macros and the programs can be translated into the core syntax.

This encoding corresponds to the macros as they are implemented in VectorPU. It is indeed easy to check that VectorPU tracks the effects in the same way as our effect system does in the translation rules. These translation rules perform Push or Pull operations in order to ensure that the memory is in a correct validity status for the read or write operation to be performed. The validity conditions are checked on the abstract value, which corresponds to the fact that VectorPU only check the status of the coherency flag stored with the vector structure; push/pull operations are performed twice: once for representing the data-transfer, and once for representing the validity status update. Finally, status is updated when writing operations are declared. When evaluating a program we create a store where the validity status of real and abstract variables are , corresponding to the fact that data is initially placed in one memory location; typically, in VectorPU, in the CPU memory space.

3.4 Well-declared Programs and their Properties

We now define formally what it means for an access mode declaration to be correct, i.e. to adequately specify the effect of a function. The principle is that each operation on a memory location must be declared on its representative. It is however possible to declare more read or accesses that what is done in practice, and one can declare a read and/or write access if only read or write is performed. Additionally, the annotation denotes an obligation to write which allows the consistency mechanism to avoid any validity check and any transfer before running the function that will overwrite the data. To represent this concept, we need a first definition that states that an operation will be performed in all execution paths of a (bigger) statement. This definition formalises a classical static analysis concept that states that all branches of conditionals necessarily execute a given statement. It considers executions that run to completion and states that a given statement is necessarily evaluated in this execution.

Definition 1 (Occurs in all execution paths).

We state that a statement occurs in all execution paths of if, for any correct initial store , for all full reductions , there is an intermediate state such that for some .

Notice that an operation can only appear in some of the execution paths of if : if is an operation, i.e. a single statement, then then .

Definition 2 (Well-declared program).

A program is well-declared if for all in we have:

  • and (for any ),

  • ,

  • ,

  • occurs in all execution paths of ,

  • Plus the same rules for remote operations.

Note that a well-declared program does not perform synchronisation operations (Push or Pull) manually, these operations are only performed when evaluating the access mode declarations. Also each variable accessed by a well-declared function has an abstract representative in the corresponding declaration block.

A direct consequence of the definition above is that a well-declared program cannot access, in the same function, the same variable in both address spaces. This is in accordance with VectorPU where each function is entirely executed either on a CPU or on a GPU, the formalisation is a bit more generic on this aspect. This is expressed by the following property.

Property 3 (Localised access).

Consider a well-declared program containing , for any , we cannot have and .

Proof.

This is a consequence of the uniqueness of abstract variables in access mode declarations. Indeed, if and the program is well-declared, then there must be or or in . Similarly, as , if the program is well-declared or or in , it is impossible to have two different entries for the same variable and thus we cannot have and . ∎

We now state and prove the two major properties ensured by our formalisation. The first property ensures that the abstraction is correct relatively to the execution. This corresponds to the fact that VectorPU tracks adequately the validity status of the memory. This is expressed as a theorem that is similar to subject-reduction in type systems, it states that if the status of the abstract variables represent correctly the validity status of the real variables, then the abstraction is also correct after the execution of a well-declared function. We first define the correctness of the representation of the validity status.

Definition 3 (Correct abstraction of the memory state).

We have a correct abstraction of the memory state if for each real memory location, the abstract representative of this location has a validity status that is an approximation, in the sense of , of the validity status of the real memory. More formally, stores a correct abstraction of the memory state if (recall stores the validity information for ):

The theorem below states that the execution of a well-declared function maintains the correctness of the memory state abstraction.

Theorem 1 (Subject reduction).

Suppose is well-declared, we have:

This property is extended by a trivial induction to the execution of a well-declared program in an initial store .

Proof.

Notice that , and if or then , else . We reason on the read and write access that occur in the considered reduction. Each variable is either read or written or not accessed (or read and written). For each case we compare the status of abstract and local variable, and in particular we consider the status of the reduction after executing the synchronisation code and call the corresponding store (note that ). We detail operations on the local address space, cases for remote operations are similar:

If is written, we have: . Whatever the initial value of , we have . Two cases are possible:

then the value cannot be read and we have . .

then a data-transfer (Pull) may occur. Knowing that , by a case analysis on and we have: and or . Whether is read or not we have .

If is read but not written, its validity status is not changed.

. By a case analysis on and we have: and , or and or . Reading has no effect on validity status and in all cases we have .

then similarly to the case (2) above we have , additionally or . In all cases .

If is not accessed but is in the declaration, the reasoning is the same as if it was only read. Note that a variable that is not accessed cannot be declared in write mode, , by Definition 2. ∎

Finally, a well-declared program always runs to completion: it never tries to access an invalid memory location.

Theorem 2 (Progress for well-declared programs).

If a program is well-declared, then its execution cannot reach a stuck configuration.

Proof.

By Property 1, it is sufficient to prove that unification on the validity status is always possible. We consider a reduction similarly to the proof above.

By definition of well-declared programs and because of the signature of effects ( cannot be stuck), only four cases have to be analysed for the local operations:

  • Pull operations (on and ) in the translation of or . Unification requires that and .

  • operation in the evaluation of . Unification requires that where is the store in which the read access is to be evaluated.

  • , , and that are similar to the cases above, they require the symmetric validity status in similar conditions (not detailed below).

Indeed, access mode declarations do not generate reading operations, and by definition function statements contain no Push or Pull.

Concerning the first case, because of Theorem 1, we have , and because of property 2 none of them is . By case analysis on the possible values of and , it is easy to show that and if we reach the two Pull statements that perform data transfers before the execution of the function.

Concerning read access, they should be verified by an induction on the reduction steps following the state showing that, for any variable that is declared or , in all states we have . Indeed, by the same analysis as in the proof of Theorem 1 we know that . Because of Property 3 no remote operation is possible on and thus only and operations are possible on , both maintain the invariant for some . ∎

Example: Consider the example above of a variable written on the CPU, and then read on the GPU, a well-declared program encoding this behaviour would be:

This code automatically generates the Push instruction that prevents the program from being stuck, indeed the annotation ensures that after executing the first line, the validity status pf is: , the encoding of for checks whether the remote status is valid, as it is not the statements: are executed.

3.5 Effects and Access Mode Declarations for Arrays

In array structures, the validity status of the whole array is abstracted away by a single validity status pair. We extend the syntax for arrays as follows, denotes the indexed access to an element of the array. More precisely the new operations on arrays and their elements are (we still have the previous operations on non-array and abstract variables):

Synchronisation operations (Push and Pull) exist for arrays but the whole array is synchronised, and we write and as above. All the elements of the array are represented by a single abstract variable: represents a safe abstraction of the validity status of all . In other words, as soon as one element of the array is invalid locally (resp. remotely) the validity status of can only be (resp. ).

The semantics of access mode declarations and programs is unchanged because synchronisation operations and access mode declarations do not concern array elements. The concept of well-protected programs must be adapted to the case of array structures, and more precisely to the fact that several memory locations are represented by a single abstract variable.

Definition 4 (Well-declared program with array access).

A program is well-declared if for all in , additionally to the rules of Definition 2, we have888 returns the set of valid indices of the array :

  • ,

  • ,

  • occurs in all execution paths of ,

  • Plus the same rules for remote operations.

Example: Consider the function body , corresponding to a function made of the C++ statement executed on a GPU. The only safe access mode declaration for it is indeed, some of the elements of the array are written but not all. At the end of the function execution the valid copy of the array is on the GPU.

The other definitions and properties are expressed similarly for arrays, compared to standard variables, and both subject-reduction, Theorem 1, and progress, Theorem 2, are still valid. The only change is the “correct abstraction of the memory state” criteria – see Definition 3 – that becomes

Theorem 3.

If a program using arrays is well-declared according to Definition 4 then its execution verifies both the subject-reduction and the progress property.

Proof sketch.

The proofs are similar to the non-array case except in the case of declarations where the fact that all elements of the array must be written is necessary to ensure that no element is in the status (which could not be safely represented by ) at the end of the function execution. If we focus on the proof of Theorem 1, case “ is written, sub-case (1) we have which is a safe abstraction because all elements have been written, and thus for all . If one element was not written, we could have had which would invalidate the theorem. Overall, only arguments about correctness of the abstractions need to be adapted. ∎

3.6 Discussion: Similarities and differences relatively to VectorPU

Let us compare the formal definition of the coherence protocol, Figure LABEL:sem-AM (valid for simple memory locations or arrays), with the VectorPU implementation of the protocol for simple arrays, Figure 3. Except the order of operations and minor changes, the code is similar. The main difference is that there is no view of abstract vs. concrete variables, however, if we consider that transfer operations on abstract variables have no effect, and that validity status of concrete variables can be abstracted away, the code is the same as the formalisation.

Taking a more global point of view, no verification is performed by the VectorPU framework and thus, the property of “well-declared programs” is not checked currently by the framework. In the current state of the library, the property “well-declared programs” must be ensured by the programmer. The implementation of VectorPU relies on the hypothesis that the function declarations are correct, because of this the current formalisation is a significant step forward as it allows us to express precisely what assumption is made by the library on the programmer’s code.

Such a check could either be done by runtime verification checking that each function performs exactly the required access, or statically by constraints on the program and a static analysis (involving some approximations, meaning some correct programs could be rejected). The first solution is not acceptable considering the target application domain because of the overhead involved by the dynamic checks. Let us now try to figure out how difficult it would be to ensure that a given program verifies the “well-declared” property statically. We focus on the case of arrays that is the most interesting. Checking which accesses are performed on an array is a difficult task in general. However for reading access, declaring the array of constant type could enforce a reading access and even allow us to infer the annotation for constant arrays. is not constraining the access and is always a safe annotation. however requires all the elements to be written, checking this relies on a static analysis that is way beyond the scope of this paper and might be tricky. As already argued, the fact that the same variable does not appear twice is more a restriction of the formalisation provided the same array is always declared with the same access ( in the worst case), an additional pass could modify the annotations of identical variables so that the least restrictive one is chosen. Possible aliasing between variables can be seen as a particular case of overlapping array, studied in the next section.

Finally concerning expressiveness, the “well-declared programs” definition is a bit more flexible than what VectorPU targets at the moment because it is safe to declare in our framework functions that access some variables on the CPU and others on the GPU, and this is not planned in VectorPU, again due to the supported usage scenario.

These differences highlight interesting improvement directions for VectorPU while we can still consider that the current article is a faithful formalisation of the library. In the next section, we investigate a feature that is not yet supported by VectorPU, but exists in SkePU. It concerns the handling of arrays that may overlap; this generalizes the problem of aliasing between variables. We can somehow consider the theoretical results below as a specification of a future extension of the library.

4 Overlapping arrays

In the preceding section we supposed that arrays were well-separated. The preceding abstraction would also be valid for an array that would be split into disjoint entities (such as VectorPU pvectors) and always used either as the disjoint sub-arrays or as the whole. In this section we extend the framework to take into account overlapping arrays. Here we still consider single dimension arrays for simplicity but multi-dimensional arrays could easily be taken into account.

4.1 Context and Objectives

In VectorPU, the first pvector on a vector passed as argument for access on device will (over)allocate space for the entire vector, all subsequent pvector accesses to the same vector can skip the allocation. Consequently, two successive data transfers of the same memory location will be written to the same memory location, even if the two initial locations are accessed through different (overlapping) pvectors. Consequently, on the formal side, if several push or pull are performed on overlapping memory locations, the transferred memory has the same overlaps as the source. This is very important to ensure that no two copies of the same array element will coexist in the same location.

Problem statement

Overlapping arrays raises several difficulties making the approach currently adopted in VectorPU not adapted. Indeed a single write operation can change the validity status of a cell that belongs to several arrays. Consequently, several access annotations may have to be written for a single operation. As a consequence, some annotations may never be correct: a function that is declared to write all the elements of an array will necessarily write some elements of the arrays that have an overlap with , these overlapping arrays should thus be annotated and transmitted, or another coherence protocol should be used.

Approach

In this work we take the decision not to change the coherence protocol of VectorPU and instead work at the access mode declaration level to ensure the consistency of overlapping arrays.

To take into account overlapping arrays in VectorPU, two approaches could be envisioned. A naive solution consists in applying the results for non-overlapping arrays. Indeed, Definition 4 of well-declared programs with array accesses is still valid. However, the programmer now has to annotate more variables because each array access operation may involve several arrays. Due to the array overlap, the programmer should now know all the arrays that are impacted by a function execution, including the overlapping arrays that are not passed as parameter, and the library should be extended to pass them as “artificial” parameters. To be more explicit, Definition 4 should be extended as follows (with a symmetrical rule for remote writing):

For every overlapping , if is in the range in common between and , we have .

First note that no additional rule is necessary for read operations. Indeed, read operations use the validity status but do not modify it, consequently, read operations do not modify the validity status of other arrays and have no consequence on overlapping arrays. Note also that the above rule restricts a bit the expressible effects as, for example, cannot be valid if and overlap. Indeed, means that all the cells of are written and thus the access mode for must be or . In this case, this is indeed a safe restriction as the array will be written, and reading remotely might not access a valid value.

4.2 Access mode inference for overlapping arrays

Though very precise, the approach described above does not seem realistic and we additionally develop an inference mechanism for access mode declarations in presence of overlapping arrays. The objective is to infer the correct annotations on variables that are not passed as parameters. Knowing the access modes for the function parameters, we infer what operation must be done on other intersecting arrays to ensure the coherency of the system, and we express these additional operations as implicit generated annotations. These additional access mode declarations are inferred, the semantics of these added declarations will result in additional data transfers and validation/invalidation operations that make the program correct. This is less precise as it takes a pessimistic approach on the operations performed by the declared arrays. For example, for any array that is declared we will suppose that all the array elements may be read and written, but the approach is safe and mostly automatic.

Starting from a given set of access mode annotations, we want to infer other access modes that are consequences of the overlaps and the existing annotations. Because we are only aware of an approximation of the effects (for each array variable, effect is abstracted by a single global effect), the inferred accesses will be approximate but can be a safe over-approximation of the effect of the function. Without knowing the real accesses performed by the function, we deduce from the declared access modes, a set of additional “artificial accesses”.

We consider the set of all access modes declared for a given function and extend it so that the function satisfies the well-declared program requirement even with overlapping arrays.

E x^# ∈M E x^# ∈O(M)

Remark 38

E x^# M

Remark 39

E x^# O(M)

W x^# ∈M
W y^# /∈M
x and y overlap RW y^# ∈O(M)

RW x^# ∈M
x and y overlap RW y^# ∈O(M)

Remark 40

W x^# M

Remark 42

RW y^# O(M)

Remark 43

RW x^# M
x and y overlap

Remark 44

RW y^# O(M)

Table 2: Extension of access mode annotations to deal with overlapping arrays

Example: To understand the principle of the approach, consider the case where then occurs in all execution paths of , and thus for all arrays overlapping we must have . If we have no additional information we will ensure that is also in the set of access mode declarations, which is always safe. The extension defined below not only contains the original annotations but also the annotations required for coherency of overlapping array. Here if then both and are in .

Definition 5 (Extension of access mode declarations for overlapping arrays).

Consider a set of access mode declarations. The extension for overlapping arrays of is the smallest set defined by the rules in Table 2.

The following theorem states that if the set of function parameters is extended according to the preceding definition, then memory consistency is ensured. Note that it means that a set of artificial parameters are to be added to some functions, in the sense that data-transfers and validity status modifications have to be performed on vectors that are not among the original parameters of the function.

Theorem 4.

Consider a program that is well-declared according to Definition 4, not taking into account overlapping arrays. Suppose its access mode declarations are extended according to Definition 5 then the execution of the obtained program verifies both subject reduction and progress, even in presence of overlapping arrays.

Proof sketch.

The principle of the proof is to prove that, provided a set correctly declares the accesses performed syntactically by a function on its parameters, the set is a correct approximation of the accesses performed by the function on all the arrays of the program, i.e. the parameter arrays and the arrays that overlap the parameter arrays. Then Theorem 3 will be sufficient to conclude.

Trivially, the first two rules of Table 2 are sufficient to conclude about normal function parameters. We now need to ensure that operations on overlapping arrays are well-declared. We focus on non-remote operations and prove that (indirect) operations on overlapping arrays are well-declared, according to Definition 4 modified by the additional rule introduced in above:

For every overlapping , if is in the range in common between and , we have .

By a simple case analysis on the possible annotations and the possible operations performed on the arrays, we deduce that the access modes added by the four last rules of Table 2 are sufficient to ensure the statement above. Finally the symmetrical statement for remote writing is ensured in the same way. ∎

4.3 Towards an implementation in VectorPU

To implement the proposed mechanism that ensure the safety of overlapping vector accesses in a function call , we need to add to VectorPU the two following components:

  • A representation to retrieve, for any given pvector of a vector , the set of all other valid pvectors of that overlap with . is initialized as empty when declaring a new vector , queried and/or updated at pvector creations, deletions, and at calls, and is removed when is deallocated.

  • A mechanism which intercepts the function call and, for every vector operand (vector or pvector) accessed as W or RW in , looks up in the corresponding representation all pvectors overlapping with . For other arguments in that overlap with and have access mode R or W, their access mode is updated to RW, as proposed in Table 2. For any other existing pvectors of not accessed in (but possibly in earlier and/or later calls) that do overlap with , we append shadow arguments to as suggested by Table 2. Finally, the intercept mechanism performs, as before, the resulting coherence actions (data transfers, status updates) and delivers the call. For intercepting the function call, the function call operator is overloaded.

Example: As a simple example, let us consider the following set of pvectors and call sequence:

v = new vector(10, ...);
pv1 = new pvector( v, [2:5] );
pv2 = new pvector( v, [4:8] );
pv3 = new pvector( v, [7:9] );
pv4 = new pvector( v, [2:3] );
...
f1( ... R(pv1), R(pv2), ... );
f2( ... W(pv3) ... );
f3( ... RW(pv4), R(pv2), ... );

Intercepting the function calls, we maintain and update the calls as described above. For the call to f2, we infer from W(pv3) and the overlap of pv3 with pv2 by Table 2 that the access mode of pv2 (not accessed in f2) must be upgraded to RW, which we do by conceptually appending RW(pv2) as a shadow argument to f2. The call to f2 is thus conceptually rewritten999As all overlapping pvectors had been identified before the rewriting, the rule needs not be applied recursively to the appended shadow arguments, here RW(pv2). into

f2( ... W(pv3) ... , RW(pv2) );

hence we make sure that the access to pv2 in the subsequent call to f3 will be handled correctly.

It remains to select an appropriate data structure for that allows for efficient dynamic insertion and removal of pvectors of a vector , i.e., index intervals, and efficient lookup of all pvectors that overlap with a given query interval. For very small numbers of pvectors of a vector , a simple unordered list of pvectors is sufficient; this is used e.g. in the smart-container coherence management in SkePU Dastgeer-IJPP15 . For scaling up to larger numbers of pvectors, a segment tree (Overmars, , Sec. 10.3) could be used. A segment tree storing intervals can be updated dynamically (insertion, removal) in time and can retrieve the set of all intervals overlapping with a query interval in time ; the space requirements is .

The time and space required to handle overlapping arrays at runtime could be saved with a precise enough static analysis that would infer potential overlapping between arrays; choosing a precise enough or static analysis designing a dedicated one is outside the scope of this paper.

5 A few related works

Most of the verification works related to memory consistency focus on coherence protocols and/or weak memory models pong1997verification . Among them, one could cite works on a lazy caching algorithm Gerth1999 , a formal specification of a caching algorithm, and its verification in TLA Ladkin1999 . These works shows the difficulty to reason on memory coherency, but also that specifications in these models should rely on a few simple instructions on the type of memory accessed, a bit similarly to this proposal. Coherence protocols have also been verified using CCS specifications Barrio01 . These various works are quite different from the approach presented in this paper because we rely here on a declarative approach for memory accesses: the programmer declares the kind of memory accesses performed by a component, and the consistency mechanism ensures that each component accesses a valid memory space.

More recently, and adopting a more language oriented approach, Crary and Sullivan Crary:POPL:2015 designed a calculus for expressing ordering of memory accesses in weak memory models. We are interested here in a much simpler problem where memory access is sequential and clearly identified but the objective is to prove the correctness of simple cache-coherency operations. Even an extension of this work for parallel processes would result in a simpler model than the ones that exist for weak memory models because of the explicit consistency points introduced in the execution by the start/end of each function.

The closest work to ours is probably

BJPTSAC16 that defines a memory access calculus similar to ours and proves the correctness of a generic cache coherence protocol expressed as part of the semantics of the calculus. Compared to this work, we are interested in explicit statements on memory accesses and thus the cache consistency is partially ensured by the programmer annotations, making the approach and the properties proven significantly different. Some aspects of the approaches could have been made more similar, e.g. by extending our work to more than two address spaces or adopting a different syntax. However our problem and formalisation are quite simpler, and we believe easier to read, while sufficient for our study. The same authors also designed a formal model written in Maude BJPTMaude16 to better understand the possible optimisations and the impact of the memory organisation on performance in the context of cache coherent multicore architectures. This could be an interesting starting point for future works, especially if we extend our work to better model the performance aspects of VectorPU and want to reason formally on the improved performance obtained by the library. Also from the same authors Bijo2017 extends the results described above with parallel spawned task and could be a source of inspiration to extend our work towards parallel function execution.

6 Conclusion and future works

In this article we provided a formal approach to verify the consistency of the memory accesses in heterogeneous computer systems made of two memory spaces. We formalise the operations of memory accesses and memory synchronisation between the two memory spaces and prove that a program adequately annotated with informations on the memory accesses always access valid memory spaces and tracks correctly which of the memory space contains the up-to-date data.

The practical result is that we can verify the coherency mechanism used by the VectorPU library and ensure that, additionally to the significant performance benefits of the approach, the VectorPU mechanisms is correct and ensures the consistency of the memory accesses.

We also extended our model for studying the effect of operations made on overlapping arrays. The current implementation of VectorPU supposes that the (pvector) array operands always represent disjoint memory locations, it does not take into account overlapping arrays. Based on the solution developed in our model, we described an extension of the VectorPU library that could deal safely with overlapping array accesses by overlapping pvector arguments.

We envision several extensions to this work. The current article only deals with two memory spaces; the extension to many memory spaces (as supported e.g. in SkePU) seems relatively simple but the mechanism dealing with memory transfers between several memory locations becomes a bit more complex; its formalisation should be similar.

Moreover, we are interested in the application of our approach to the verification of other frameworks. Indeed VectorPU uses the most primitive cache coherence protocol, the VI-protocol. More elaborated coherence protocols like MSI or MESI (as used e.g. in SkePU Dastgeer-IJPP15 ) introduce additional states where the number of readers has to be tracked for example. Also, SkePU uses a more space-efficient management of partial vector accesses, the coherence protocol itself involves explicit intersection tests with existing copies. Verifying such framework would require a modification of our abstract state representation and a modification of the access mode translational semantics.

Acknowledgments

C. Kessler acknowledges partial funding by EU H2020 project EXA2PRO (801015).

References

References

  • (1) U. Dastgeer, C. Kessler, Smart containers and skeleton programming for GPU-based systems, Int. J. of Par. Progr. 44 (3) (2016) 506–530. doi:10.1007/s10766-015-0357-6.
  • (2) C. Augonnet, S. Thibault, R. Namyst, P.-A. Wacrenier, StarPU: A unified platform for task scheduling on heterogeneous multicore architectures, Concurrency and Computation: Practice and Experience 23 (2011) 187–198. doi:10.1002/cpe.1631.
    URL http://hal.inria.fr/inria-00550877
  • (3) J. Enmyren, C. W. Kessler, SkePU: A multi-backend skeleton programming library for multi-GPU systems, in: Proc. 4th Int. Workshop on High-Level Parallel Programming and Applications (HLPP-2010), Baltimore, Maryland, USA, ACM, 2010, pp. 5–14, doi: 10.1145/1863482.1863487.
  • (4) L. Li, C. Kessler, VectorPU: A generic and efficient data-container and component model for transparent data transfer on GPU-based heterogeneous systems, in: Proc. PARMA-DITAM’17, ACM., ACM, 2017, pp. 7–12. doi:10.1145/3029580.3029582.
  • (5) L. Henrio, C. Kessler, L. Li, Ensuring memory consistency in heterogeneous systems based on access mode declarations, in: F. Loulergue, J.-M. Couvreur (Eds.), 5th International Symposium on Formal Approaches to Parallel and Distributed Systems, as part of The 16th International Conference on High Performance Computing & Simulation (HPCS 2018), IEEE, 2018.
  • (6) F. Nielson, H. R. Nielson, C. Hankin, Type and Effect Systems, Springer Berlin Heidelberg, 1999, pp. 283–363. doi:10.1007/978-3-662-03811-6_5.
  • (7) M. de Berg, M. van Kreveld, M. Overmars, O. Schwarzkopf, Computational Geometry, Second Revised Edition, Springer, 2000.
  • (8) F. Pong, M. Dubois, Verification techniques for cache coherence protocols, ACM Computing Surveys (CSUR) 29 (1) (1997) 82–126.
  • (9) R. Gerth, Sequential consistency and the lazy caching algorithm, Distributed Computing 12 (2) (1999) 57–59. doi:10.1007/s004460050057.
  • (10) P. Ladkin, L. Lamport, B. Olivier, D. Roegel, Lazy caching in TLA, Distributed Computing 12 (2) (1999) 151–174. doi:10.1007/s004460050063.
  • (11) M. Barrio-Solórzano, M. Encarnación Beato, C. E. Cuesta, P. de la Fuente, Formal verification of coherence for a shared memory multiprocessor model, in: V. Malyshkin (Ed.), Parallel Computing Technologies, Springer Berlin Heidelberg, 2001, pp. 17–26.
  • (12) K. Crary, M. J. Sullivan, A calculus for relaxed memory, in: Proceedings of the 42nd Annual ACM SIGPLAN-SIGACT Symposium on Principles of Programming Languages, POPL ’15, ACM, New York, NY, USA, 2015, pp. 623–636. doi:10.1145/2676726.2676984.
  • (13) S. Bijo, E. B. Johnsen, K. I. Pun, S. L. T. Tarifa, An operational semantics of cache coherent multicore architectures, in: Proceedings of the 31st Annual ACM Symposium on Applied Computing, SAC ’16, ACM, New York, NY, USA, 2016, pp. 1219–1224. doi:10.1145/2851613.2851718.
  • (14) S. Bijo, E. B. Johnsen, K. I. Pun, S. L. Tapia Tarifa, A maude framework for cache coherent multicore architectures, in: D. Lucanu (Ed.), Rewriting Logic and Its Applications, Springer International Publishing, Cham, 2016.
  • (15) S. Bijo, E. B. Johnsen, K. I. Pun, S. L. Tapia Tarifa, A formal model of parallel execution on multicore architectures with multilevel caches, in: J. Proença, M. Lumpe (Eds.), Formal Aspects of Component Software, Springer International Publishing, Cham, 2017, pp. 58–77.
