1 Introduction

The traditional approach for visual representation learning is to train vision models to predict for a fixed set of object categories using discrete labels (He et al., 2016; Dosovitskiy et al., 2021)

. However, this approach limits visual recognition systems to closed-set visual concepts defined during training, making them unable to handle new categories once deployed in target environments since additional data are required for learning a new classifier. Recently, vision-language pre-training such as CLIP

(Radford et al., 2021) and ALIGN (Jia et al., 2021) has emerged as a promising alternative. The main idea is to align images and raw text using two separate encoders—one for each modality. Through large-scale pre-training, vision-language models are allowed to learn open-set visual concepts and can readily be transferred to downstream tasks. In particular, for each new classification task one can synthesize the classification weights by feeding natural language describing classes of interest to the text encoder, and compare them with image features produced by the image encoder.

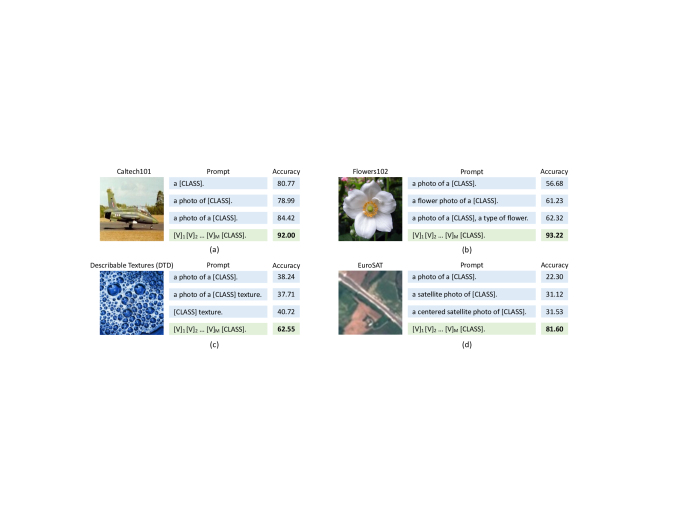

Figure 1: Prompt engineering vs. context optimization (CoOp). The latter uses only 16 shots for learning in these examples.

We observe that for pre-trained vision-language models the text input, known as prompt, plays a key role in downstream datasets. However, identifying the right prompt is a non-trivial task, which often takes a significant amount of time for words tuning—since a slight change in wording could make a huge difference in performance. For instance, for Caltech101 (Figure 1(a), 2nd vs. 3rd prompt), adding “a” before the class token brings more than 5% increase in accuracy. Moreover, prompt engineering also requires expertise about the task and ideally the language model’s underlying mechanism. This is exemplified in Figure 1(b-d) where adding task-relevant context can lead to significant improvements, i.e., “flower” for Flowers102, “texture” for DTD and “satellite” for EuroSAT. Tuning the sentence structure could bring further improvements, e.g., putting “a type of flower” after the class token for Flowers102, keeping only “texture” in the context for DTD, and adding “centered” before “satellite photo” for EuroSAT. However, even with extensive tuning, the resulting prompts are by no means guaranteed to be optimal for downstream tasks.

Inspired by recent prompt learning research in NLP (Shin et al., 2020; Jiang et al., 2020; Zhong et al., 2021), we propose context optimization (CoOp)111CoOp is pronounced as /ku:p/.

to automate prompt engineering to allow more efficient and task-specific transfer for pre-trained vision-language models. Specifically, we model a prompt’s context using continuous representations which are essentially initialized with random vectors with the same dimension as word embeddings (see Figure

2). The context could be shared among all classes or designed to be class-specific. During training, we simply minimize the prediction error using the cross-entropy loss with respect to the learnable context vectors, while keeping the pre-trained parameters fixed. The gradients can be back-propagated all the way through the text encoder, distilling the rich knowledge encoded in the parameters for learning task-relevant context.

To demonstrate the effectiveness of CoOp, we benchmark on 11 datasets, which cover a diverse set of visual recognition tasks including classification on generic objects, scenes, actions and fine-grained categories, as well as specialized tasks like recognizing textures and satellite imagery. The results show that CoOp can effectively turn pre-trained vision-language models into data-efficient visual learners, requiring as few as one or two shots to beat hand-crafted prompts with a decent margin. The performance can also be further boosted by using more shots, e.g., at 16 shots the margin over hand-crafted prompts averages at around 17% and reaches over 50% for the highest. CoOp also outperforms the linear probe alternative known as a strong few-shot learning baseline (Tian et al., 2020), and crucially, demonstrates much stronger robustness to distribution shift. Extensive analysis is also conducted to offer a comprehensive picture on how to apply CoOp in practice. The source code is available at https://github.com/KaiyangZhou/CoOp.

2 Methodology

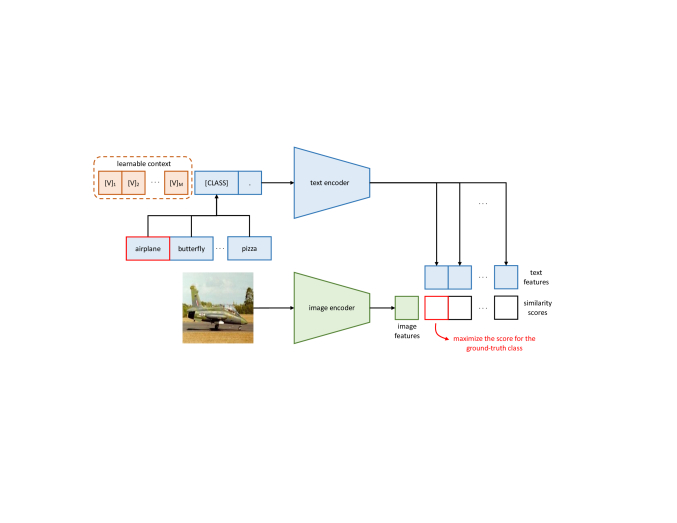

Figure 2: Overview of context optimization (CoOp).

2.1 Vision-Language Pre-training

We briefly introduce vision-language pre-training with a particular focus on CLIP (Radford et al., 2021). Our approach is applicable to broader CLIP-like vision-language models.

Models

CLIP consists of two encoders, one for images and the other for text. The image encoder aims to map high-dimensional images into a low-dimensional embedding space. The architecture of the image encoder can take the form of a CNN like ResNet-50 (He et al., 2016) or a ViT (Dosovitskiy et al., 2021). On the other hand, the text encoder is built on top of a Transformer (Vaswani et al., 2017) and aims to generate text representations from natural language.

Training

CLIP is trained to align the two embedding spaces learned for images and text respectively. Specifically, the learning objective is formulated as a contrastive loss. Given a batch of image-text pairs, CLIP maximizes the cosine similarity for matched pairs while minimizes the cosine similarity for all other unmatched pairs. To learn diverse visual concepts that are more transferable to downstream tasks, CLIP’s team collects a large training dataset consisting of 400 million image-text pairs.

Zero-Shot Inference

Since CLIP is pre-trained to predict whether an image matches a textual description, it naturally fits zero-shot recognition. This is achieved by comparing image features with the classification weights synthesized by the text encoder, which takes as input textual descriptions specifying classes of interest. Formally, let

be image features extracted by the image encoder for an image

and a set of weight vectors generated by the text encoder. denotes the number of classes and each

is derived from a prompt that could have the form of “a photo of a [CLASS].” where the class token is replaced by the specific class name, such as “cat”, “dog” or “car”. The prediction probability is then computed as

(1)

where is a temperature parameter learned by CLIP and denotes cosine similarity.

2.2 Context Optimization

We propose context optimization (CoOp), which avoids manual prompt tuning by modeling context words with continuous vectors that are end-to-end learned from data. An overview is shown in Figure 2.

Specifically, we design the prompt given to the text encoder with the following form,

(2)

where each () is a vector with the same dimension as word embeddings (i.e., 512 for CLIP), and

is a hyperparameter specifying the number of context tokens. Note that the context here is

shared among all classes, which is called unified context and different from class-specific context that is introduced later.

By forwarding a prompt to the text encoder , we can obtain a classification weight vector representing a visual concept. The prediction probability is computed as

(3)

where the class token within each prompt is replaced by the corresponding word embedding vector(s) of the -th class name.

Training is performed to minimize the standard classification loss based on the cross-entropy, and the gradients can be back-propagated all the way through the text encoder , making use of the rich knowledge encoded in the parameters to optimize the context. The design of continuous representations also allows full exploration in the word embedding space, which facilitates the learning of task-relevant context.

Other Variants

Other than placing the class token at the end of a sequence as in Equation (2), we can also put it in the middle like

(4)

which increases flexibility for learning—theoretically, the prompt is allowed to either fill the latter cells with supplementary descriptions or cut off the sentence earlier by using a termination signal such as full stop.

Another option is to design class-specific context (CSC) where context vectors are independent to each class, i.e., for and . As an alternative to unified context, we find that CSC is particularly useful for some fine-grained classification tasks.

3 Experiments

3.1 Few-Shot Learning

Datasets

We select 11 publicly available image classification datasets used in CLIP: ImageNet

(Deng et al., 2009), Caltech101 (Fei-Fei et al., 2004), OxfordPets (Parkhi et al., 2012), StanfordCars (Krause et al., 2013), Flowers102 (Nilsback & Zisserman, 2008), Food101 (Bossard et al., 2014), FGVCAircraft (Maji et al., 2013), SUN397 (Xiao et al., 2010), DTD (Cimpoi et al., 2014), EuroSAT (Helber et al., 2019)

and UCF101

(Soomro et al., 2012) (see Appendix A for their statistics). These datasets constitute a comprehensive benchmark covering a diverse set of vision tasks including classification on generic objects, scenes, actions and fine-grained categories, as well as specialized tasks like recognizing textures and satellite imagery.

Evaluation

We follow the few-shot evaluation protocol adopted in CLIP (Radford et al., 2021), using 1, 2, 4, 8 and 16 shots for training respectively and deploying models in the full test sets. The average results over three runs are reported for comparison. Unless otherwise stated, ResNet-50 (He et al., 2016) is used as the image encoder’s backbone and the number of context tokens is set to 16. Investigations on other design choices are discussed in Section 3.3

. All models are built on top of the open-sourced CLIP.

222https://github.com/openai/CLIP. See Appendix A for implementation details. CoOp has four versions: positioning the class token in the end or middle; unified context vs. CSC.

Baseline Methods

We compare CoOp with two baseline methods. The first is zero-shot CLIP, which is based on hand-crafted prompts. We follow the guideline of prompt engineering introduced by Radford et al. (2021). For generic objects and scenes, “a photo of a [CLASS].” is adopted. For fine-grained categories, task-relevant context is added like “a type of pet” for OxfordPets and “a type of food” for Food101. When it comes to specialized tasks such as recognizing textures in DTD, the prompt is customized as “[CLASS] texture.” where the class names are adjectives like “bubbly” and “dotted”. See Appendix A for the details. The second baseline is linear probe CLIP. As suggested by Radford et al. (2021) and a recent study on few-shot learning (Tian et al., 2020), training a linear classifier on top of high-quality pre-trained models’ features (like CLIP) can easily achieve performance on par with state-of-the-art few-shot learning methods.

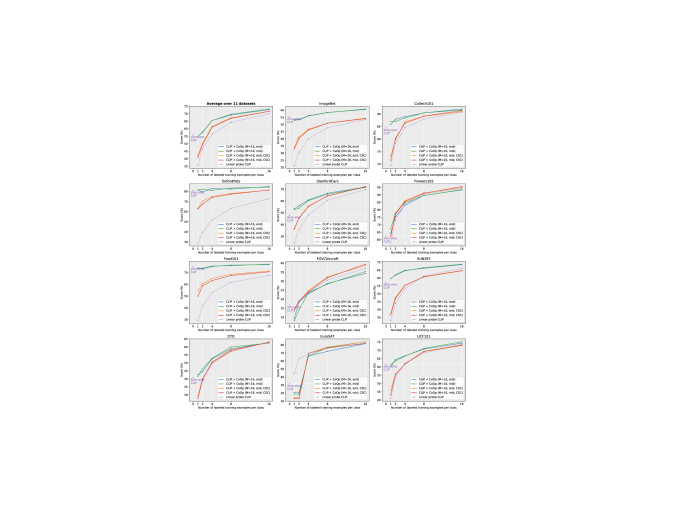

Figure 3: Main results of few-shot learning on the 11 datasets. Overall, CoOp effectively turns CLIP into a strong few-shot learner (solid lines), achieving significant improvements over zero-shot CLIP (stars) and performing favorably against the linear probe alternative (dashed lines). denotes the context length. “end” or “mid” means putting the class token in the end or middle. CSC means class-specific context.

Comparison with Hand-Crafted Prompts

Figure 3 summarizes the results. Our default model is CLIP+CoOp with the class token positioned in the end. The two different ways of positioning the class token achieve similar performance as their curves highly overlap. From the average performance displayed in the top-left corner, we observe that CLIP+CoOp is a strong few-shot learner, requiring only two shots on average to obtain a decent margin over zero-shot CLIP. Given 16 shots for training, the average gap brought by CoOp can be further increased to around 17%.

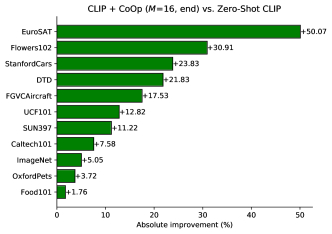

Figure 4

ranks the absolute improvements obtained by CoOp at 16 shots over hand-crafted prompts. Huge improvements are observed on specialized tasks namely EuroSAT and DTD where the increase in performance reaches over 50% and 20% respectively. The jumps in performance are also significant (those more than 10%) on most fine-grained datasets including Flowers102, StanfordCars and FGVCAircraft, as well as on scene and action recognition datasets (SUN397 & UCF101). Since ImageNet is a challenging dataset that contains 1,000 classes, the 5.05% improvement is also noteworthy. In contrast, the increases on the two fine-grained datasets, OxfordPets and Food101, are less appealing. By digging into CLIP+CoOp’s curves on these two datasets in Figure

3, we find there is a loss of momentum in performance improvements even with more shots used, seemingly an overfitting problem. A potential solution is to impose higher regularizations like increasing the weight decay. Nonetheless, the overall results are strong enough to serve as evidence of CoOp’s capability of learning task-relevant prompts in a data-efficient way.

Figure 4: Comparison with hand-crafted prompts.

Comparison with Linear Probe CLIP

In terms of the overall performance, CLIP+CoOp demonstrates clear advantages over linear probe CLIP. The latter requires 4 shots on average to match the zero-shot’s performance while CoOp’s average gains at 4 shots are already more than 10%. It is also clear that the gaps in the extreme low-data regime such as one or two shots are much larger, suggesting that CoOp is much more effective than learning a linear classifier from scratch for few-shot learning. We also observe that linear probe CLIP is comparable to CLIP+CoOp on the two specialized tasks (DTD & EuroSAT) as well as on a couple of fine-grained datasets (Flowers102 & FGVCAircraft)—this is not too surprising as the pre-trained CLIP space has been proved powerful, making the linear probe model a strong competitor. Nevertheless, CoOp’s CSC version can beat linear probe CLIP on the aforementioned datasets and moreover shows much better potential when more shots become available.

Unified vs. Class-Specific Context

On average, using unified context leads to better performance. In terms of when to apply CSC and when not to, we have the following suggestions. For generic objects (ImageNet & Caltech101), scenes (SUN397) and actions (UCF101), using unified context is clearly better. Unified context also works better on some fine-grained datasets including OxfordPets and Food101, but on others like StanfordCars, Flowers102 and FGVCAircraft the CSC version is preferred. CSC also yields better performance on the two specialized tasks, DTD and EuroSAT, at 16 shots in particular. However, CSC mostly underperforms unified context in challenging low-data scenarios (fewer than 8 shots), which makes sense because CSC has more parameters than unified context and needs more data for training.

3.2 Robustness to Distribution Shift

Since CoOp requires training on a specific data distribution, it risks learning spurious correlations that are detrimental to generalization in unseen distributions (domains), as suggested in recent studies (Taori et al., 2020; Zhou et al., 2021). On the contrary, zero-shot CLIP is not tied to a specific data distribution and has exhibited strong robustness to distribution shift (Radford et al., 2021). In this section, we aim to unveil how robust CoOp is to distribution shift, in comparison to zero-shot CLIP and the linear probe model.

Datasets

The source dataset is ImageNet, and the target datasets are ImageNetV2 (Recht et al., 2019), ImageNet-Sketch (Wang et al., 2019), ImageNet-A (Hendrycks et al., 2021b) and ImageNet-R (Hendrycks et al., 2021a), all of which have compatible class names with ImageNet allowing seamless transfer for the prompts learned by CoOp.

Results

Table 1 summarizes the results. It is surprising that CLIP+CoOp exhibits stronger robustness than zero-shot CLIP to distribution shift, suggesting that the learned prompts are also generalizable. Moreover, it is interesting to see that using fewer context tokens leads to better robustness. More results with different vision backbones are provided in Appendix B.1 where the conclusion remains the same. In contrast, linear probe CLIP obtains much worse results on these target datasets, exposing its weakness in domain generalization.

Source Target
ImageNet ImageNetV2 ImageNet-Sketch ImageNet-A ImageNet-R
Zero-Shot CLIP 55.41 48.08 31.67 18.63 53.45
Linear Probe CLIP 53.44 43.40 17.63 11.66 32.63
CLIP + CoOp () 60.46 52.17 31.14 19.62 53.31
CLIP + CoOp () 60.90 52.53 31.73 19.97 54.34
CLIP + CoOp () 60.85 53.02 32.99 20.69 55.57
Table 1: Evaluation on robustness to distribution shift. : CoOp’s context length.

3.3 Further Analysis

ImageNet
Prompt engineering 55.41
Prompt ensembling 57.81
CoOp 60.46
Table 2: Comparison with prompt ensembling.

Comparison with Prompt Ensembling

CLIP has suggested that additional improvements can be obtained by ensembling over multiple zero-shot classifiers generated using different hand-crafted prompts, such as “a photo of the large [CLASS].”, “a bad photo of the [CLASS].” and “a origami [CLASS].” which reflect a different scale, view and abstraction respectively for an image. We are interested to know whether the prompts learned by CoOp can still maintain advantages when compared with prompt ensembling. For fair comparison, we use the select prompts from Radford et al. (2021)333https://github.com/openai/CLIP/blob/main/notebooks/Prompt_Engineering_for_ImageNet.ipynb., which have been extensively tuned on ImageNet, to construct the ensemble classifier. Table 2 presents the results of prompt engineering (i.e., using a single hand-crafted prompt), prompt ensembling and CoOp, confirming that CoOp is still the best performing method. Additional results are provided in Appendix B.2 to show that CoOp also beats prompt ensembling when more advanced vision backbones are used. Given the potential of prompt ensembling, future work could investigate how to improve CoOp from the ensembling perspective.

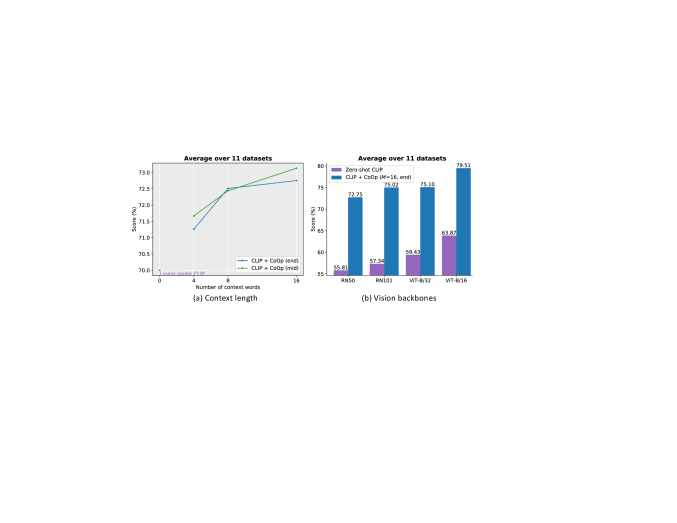

Figure 5: Investigations on CoOp’s context length and various vision backbones.
tableRandom vs. manual initialization. Avg % 71.26 “a photo of a” 71.51

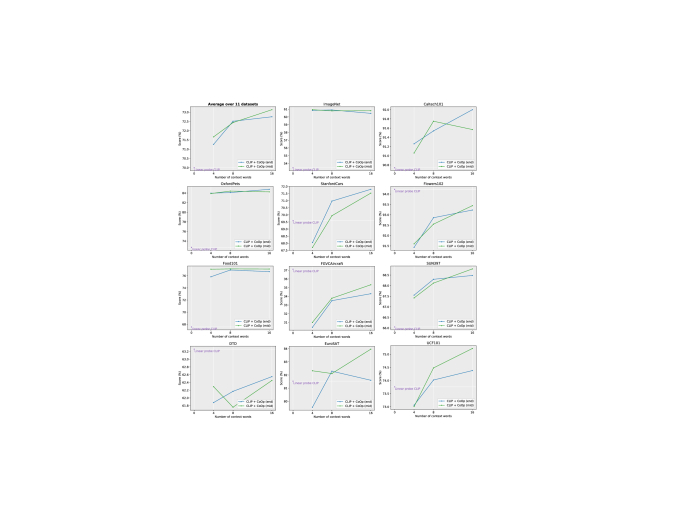

Context Length

How many context tokens should be used? And is it better to have more context tokens? The results in Section 3.2 suggest having shorter context length benefits domain generalization. Here we study this hyperparameter for source datasets. Specifically, we repeat experiments on the 11 datasets by varying the context length from 4 to 8 to 16. The average results are shown in Figure 5(a), which indicate that having more context tokens leads to better performance and that positioning the class token in the middle gains more momentum with longer context length. To sum up, there is no golden rule for selecting perfect context length since one needs to balance between performance and robustness to distribution shift. See Appendix B.3 for the dataset-specific results.

Vision Backbones

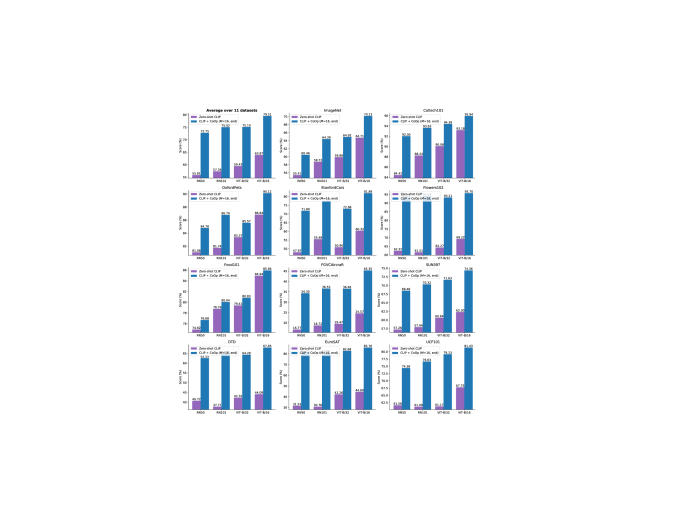

Figure 5(b) summarizes the results on the 11 datasets using a variety of vision backbones covering both CNNs and ViTs. The results are expected: the more advanced the backbone, the better the performance. The gap between CoOp and hand-crafted prompts is significant across all architectures. See Appendix B.4 for the dataset-specific results.

Initialization

We compare random initialization with manual initialization. The latter uses the embeddings of “a photo of a” to initialize the context vectors for the 11 datasets. For fair comparison, we also set the context length to 4 for random initialization. Table 5 suggests a “good” initialization only brings a small improvement. Though further tuning of the initialization words might help, in practice we suggest using the simple random initialization.

Interpreting the Learned Prompts

is difficult because the context vectors are optimized in a continuous space. We search within the vocabulary for words that are closest to the learned vectors and visualize them in Appendix B.5. While a few words are somewhat relevant to the tasks, such as “enjoyed” for Food101, “fluffy” for OxfordPets, and “pretty” for DTD, the complete prompts do not make much sense. See Appendix B.5 for more discussions.

4 Related Work

Vision-Language Models

have recently demonstrated great potential in learning generic visual representations and allowing zero-shot transfer to a variety of downstream classification tasks (Radford et al., 2021; Jia et al., 2021; Zhang et al., 2020). To our knowledge, the recent developments in vision-language learning, particularly CLIP (Radford et al., 2021) and ALIGN (Jia et al., 2021), are largely driven by advances in the following three areas: 1) text representation learning with Transformers (Vaswani et al., 2017), 2) large-minibatch contrastive representation learning (Chen et al., 2020; He et al., 2020; Hénaff et al., 2020), and 3) web-scale training datasets—CLIP benefits from 400 million curated image-text pairs while ALIGN exploits 1.8 billion noisy image-text pairs.

The idea of mapping images and text onto a common embedding space has been studied since nearly a decade ago (Socher et al., 2013; Frome et al., 2013; Elhoseiny et al., 2013), but with drastically different technologies. For text features extraction, early work has mainly utilized pre-trained word vectors (Socher et al., 2013; Frome et al., 2013) or the hand-crafted TF-IDF features (Elhoseiny et al., 2013; Lei Ba et al., 2015). Matching images and text features has been formulated as metric learning (Frome et al., 2013), multi-label classification (Joulin et al., 2016; Gomez et al., 2017)

, n-gram language learning

(Li et al., 2017), and the recently proposed captioning (Desai & Johnson, 2021). Our work is orthogonal to recent research in vision-language models, aiming to facilitate deployment of such models in downstream datasets.

Prompt Learning in NLP

Knowledge probing for large pre-trained language models, formally defined by Petroni et al. (2019) as “fill-in-the-blank” cloze tests, has recently sparked interest in prompt learning research in NLP (Shin et al., 2020; Jiang et al., 2020; Li & Liang, 2021; Zhong et al., 2021; Lester et al., 2021; Gao et al., 2020)

. The basic idea of knowledge probing is to induce pre-trained language models to generate answers given cloze-style prompts, which can benefit a number of downstream tasks, such as sentiment analysis.

Jiang et al. (2020) propose to generate candidate prompts through text mining and paraphrasing, and identify the optimal ones that give the highest training accuracy. Shin et al. (2020) introduce a gradient-based approach, which searches for tokens with the largest gradient changes in the label likelihood. Most related to our work are continuous prompt learning methods (Zhong et al., 2021; Li & Liang, 2021; Lester et al., 2021) which optimize continuous vectors in the word embedding space. A drawback of such methods compared to searching discrete tokens is the lack of a clear way to visualize what “words” are learned for the vectors. We refer readers to Liu et al. (2021) for a comprehensive survey in the topic of prompt learning in NLP.

5 Conclusion

We present CoOp, a differentiable approach that focuses on continuous prompt learning to facilitate deployment of pre-trained vision language models in downstream datasets. The results on the 11 datasets serve as strong evidence of CoOp’s effectiveness in data-efficient learning. The learned prompts are proved much more task-relevant than hand-crafted prompts reflected by the huge improvements in performance, as well as stronger in robustness to distribution shift. In terms of limitation, CoOp requires explicit access to the pre-trained model parameters which might be unavailable when only the APIs of pre-trained models are provided. An interesting future direction is thus to investigate “black-box” prompt learning.

References

  • Bossard et al. (2014) Lukas Bossard, Matthieu Guillaumin, and Luc Van Gool.

    Food-101–mining discriminative components with random forests.

    In ECCV, 2014.
  • Chen et al. (2020) Ting Chen, Simon Kornblith, Mohammad Norouzi, and Geoffrey Hinton. A simple framework for contrastive learning of visual representations. In ICML, 2020.
  • Cimpoi et al. (2014) Mircea Cimpoi, Subhransu Maji, Iasonas Kokkinos, Sammy Mohamed, and Andrea Vedaldi. Describing textures in the wild. In CVPR, 2014.
  • Deng et al. (2009) Jia Deng, Wei Dong, Richard Socher, Li-Jia Li, Kai Li, and Li Fei-Fei. Imagenet: A large-scale hierarchical image database. In CVPR, 2009.
  • Desai & Johnson (2021) Karan Desai and Justin Johnson. Virtex: Learning visual representations from textual annotations. In CVPR, 2021.
  • Dosovitskiy et al. (2021) Alexey Dosovitskiy, Lucas Beyer, Alexander Kolesnikov, Dirk Weissenborn, Xiaohua Zhai, Thomas Unterthiner, Mostafa Dehghani, Matthias Minderer, Georg Heigold, Sylvain Gelly, et al. An image is worth 16x16 words: Transformers for image recognition at scale. In ICLR, 2021.
  • Elhoseiny et al. (2013) Mohamed Elhoseiny, Babak Saleh, and Ahmed Elgammal. Write a classifier: Zero-shot learning using purely textual descriptions. In ICCV, 2013.
  • Fei-Fei et al. (2004) Li Fei-Fei, Rob Fergus, and Pietro Perona. Learning generative visual models from few training examples: An incremental bayesian approach tested on 101 object categories. In CVPR-W, 2004.
  • Frome et al. (2013) Andrea Frome, Greg Corrado, Jonathon Shlens, Samy Bengio, Jeffrey Dean, Marc’Aurelio Ranzato, and Tomas Mikolov. Devise: A deep visual-semantic embedding model. In NeurIPS, 2013.
  • Gao et al. (2020) Tianyu Gao, Adam Fisch, and Danqi Chen. Making pre-trained language models better few-shot learners. arXiv preprint arXiv:2012.15723, 2020.
  • Gomez et al. (2017) Lluis Gomez, Yash Patel, Marçal Rusiñol, Dimosthenis Karatzas, and CV Jawahar.

    Self-supervised learning of visual features through embedding images into text topic spaces.

    In CVPR, 2017.
  • He et al. (2016) Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In CVPR, 2016.
  • He et al. (2020) Kaiming He, Haoqi Fan, Yuxin Wu, Saining Xie, and Ross Girshick. Momentum contrast for unsupervised visual representation learning. In CVPR, 2020.
  • Helber et al. (2019) Patrick Helber, Benjamin Bischke, Andreas Dengel, and Damian Borth.

    Eurosat: A novel dataset and deep learning benchmark for land use and land cover classification.

    IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2019.
  • Hénaff et al. (2020) Olivier J. Hénaff, Aravind Srinivas, Jeffrey De Fauw, Ali Razavi, Carl Doersch, S. M. Ali Eslami, and Aäron van den Oord. Data-efficient image recognition with contrastive predictive coding. In ICML, 2020.
  • Hendrycks et al. (2021a) Dan Hendrycks, Steven Basart, Norman Mu, Saurav Kadavath, Frank Wang, Evan Dorundo, Rahul Desai, Tyler Zhu, Samyak Parajuli, Mike Guo, Dawn Song, Jacob Steinhardt, and Justin Gilmer. The many faces of robustness: A critical analysis of out-of-distribution generalization. ICCV, 2021a.
  • Hendrycks et al. (2021b) Dan Hendrycks, Kevin Zhao, Steven Basart, Jacob Steinhardt, and Dawn Song. Natural adversarial examples. In CVPR, 2021b.
  • Jia et al. (2021) Chao Jia, Yinfei Yang, Ye Xia, Yi-Ting Chen, Zarana Parekh, Hieu Pham, Quoc V Le, Yunhsuan Sung, Zhen Li, and Tom Duerig. Scaling up visual and vision-language representation learning with noisy text supervision. In ICML, 2021.
  • Jiang et al. (2020) Zhengbao Jiang, Frank F Xu, Jun Araki, and Graham Neubig. How can we know what language models know? ACL, 2020.
  • Joulin et al. (2016) Armand Joulin, Laurens Van Der Maaten, Allan Jabri, and Nicolas Vasilache. Learning visual features from large weakly supervised data. In ECCV, 2016.
  • Krause et al. (2013) Jonathan Krause, Michael Stark, Jia Deng, and Li Fei-Fei. 3d object representations for fine-grained categorization. In ICCV-W, 2013.
  • Lei Ba et al. (2015) Jimmy Lei Ba, Kevin Swersky, Sanja Fidler, et al.

    Predicting deep zero-shot convolutional neural networks using textual descriptions.

    In ICCV, 2015.
  • Lester et al. (2021) Brian Lester, Rami Al-Rfou, and Noah Constant. The power of scale for parameter-efficient prompt tuning. arXiv preprint arXiv:2104.08691, 2021.
  • Li et al. (2017) Ang Li, Allan Jabri, Armand Joulin, and Laurens van der Maaten. Learning visual n-grams from web data. In ICCV, 2017.
  • Li & Liang (2021) Xiang Lisa Li and Percy Liang. Prefix-tuning: Optimizing continuous prompts for generation. arXiv preprint arXiv:2101.00190, 2021.
  • Liu et al. (2021) Pengfei Liu, Weizhe Yuan, Jinlan Fu, Zhengbao Jiang, Hiroaki Hayashi, and Graham Neubig. Pre-train, prompt, and predict: A systematic survey of prompting methods in natural language processing. arXiv preprint arXiv:2107.13586, 2021.
  • Maji et al. (2013) Subhransu Maji, Esa Rahtu, Juho Kannala, Matthew Blaschko, and Andrea Vedaldi. Fine-grained visual classification of aircraft. arXiv preprint arXiv:1306.5151, 2013.
  • Nilsback & Zisserman (2008) Maria-Elena Nilsback and Andrew Zisserman. Automated flower classification over a large number of classes. In ICVGIP, 2008.
  • Parkhi et al. (2012) Omkar M Parkhi, Andrea Vedaldi, Andrew Zisserman, and CV Jawahar. Cats and dogs. In CVPR, 2012.
  • Petroni et al. (2019) Fabio Petroni, Tim Rocktäschel, Patrick Lewis, Anton Bakhtin, Yuxiang Wu, Alexander H Miller, and Sebastian Riedel. Language models as knowledge bases? In EMNLP, 2019.
  • Radford et al. (2021) Alec Radford, Jong Wook Kim, Chris Hallacy, Aditya Ramesh, Gabriel Goh, Sandhini Agarwal, Girish Sastry, Amanda Askell, Pamela Mishkin, Jack Clark, et al. Learning transferable visual models from natural language supervision. In ICML, 2021.
  • Recht et al. (2019) Benjamin Recht, Rebecca Roelofs, Ludwig Schmidt, and Vaishaal Shankar. Do imagenet classifiers generalize to imagenet? In ICML, 2019.
  • Sennrich et al. (2016) Rico Sennrich, Barry Haddow, and Alexandra Birch. Neural machine translation of rare words with subword units. In ACL, 2016.
  • Shin et al. (2020) Taylor Shin, Yasaman Razeghi, Robert L Logan IV, Eric Wallace, and Sameer Singh. Autoprompt: Eliciting knowledge from language models with automatically generated prompts. In EMNLP, 2020.
  • Socher et al. (2013) Richard Socher, Milind Ganjoo, Hamsa Sridhar, Osbert Bastani, Christopher D Manning, and Andrew Y Ng. Zero-shot learning through cross-modal transfer. In NeurIPS, 2013.
  • Soomro et al. (2012) Khurram Soomro, Amir Roshan Zamir, and Mubarak Shah. Ucf101: A dataset of 101 human actions classes from videos in the wild. arXiv preprint arXiv:1212.0402, 2012.
  • Taori et al. (2020) Rohan Taori, Achal Dave, Vaishaal Shankar, Nicholas Carlini, Benjamin Recht, and Ludwig Schmidt. Measuring robustness to natural distribution shifts in image classification. In NeurIPS, 2020.
  • Tian et al. (2020) Yonglong Tian, Yue Wang, Dilip Krishnan, Joshua B Tenenbaum, and Phillip Isola. Rethinking few-shot image classification: a good embedding is all you need? In ECCV, 2020.
  • Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. Attention is all you need. In NeurIPS, 2017.
  • Wang et al. (2019) Haohan Wang, Songwei Ge, Zachary Lipton, and Eric P Xing. Learning robust global representations by penalizing local predictive power. In NeurIPS, 2019.
  • Xiao et al. (2010) Jianxiong Xiao, James Hays, Krista A Ehinger, Aude Oliva, and Antonio Torralba.

    Sun database: Large-scale scene recognition from abbey to zoo.

    In CVPR, 2010.
  • Zhang et al. (2020) Yuhao Zhang, Hang Jiang, Yasuhide Miura, Christopher D Manning, and Curtis P Langlotz. Contrastive learning of medical visual representations from paired images and text. arXiv preprint arXiv:2010.00747, 2020.
  • Zhong et al. (2021) Zexuan Zhong, Dan Friedman, and Danqi Chen. Factual probing is [mask]: Learning vs. learning to recall. In NAACL, 2021.
  • Zhou et al. (2021) Kaiyang Zhou, Ziwei Liu, Yu Qiao, Tao Xiang, and Chen Change Loy. Domain generalization in vision: A survey. arXiv preprint arXiv:2103.02503, 2021.

Appendix

Appendix A Implementation Details

Datasets

The detailed statistics of the 11 datasets, as well as the four variants of ImageNet, are shown in Table 3. The hand-crafted prompts used for zero-shot CLIP are also detailed in the table. For Caltech101, the “BACKGROUND_Google” and “Faces_easy” classes are discarded. For the video dataset, UCF101, the middle frame of each video is used as input to the image encoder.

Training Details

All images are resized to

. CoOp’s context vectors are randomly initialized by drawing from a zero-mean Gaussian distribution with standard deviation equal to 0.02. Training is done with SGD and an initial learning rate of 0.002, which is decayed by the cosine annealing rule. For all datasets except ImageNet, the maximum epoch is set to 200 for 16/8 shots, 100 for 4/2 shots, and 50 for 1 shot. For ImageNet, the maximum epoch is fixed to 50 for all settings. To mitigate explosive gradients observed in the early training iterations, we use the warmup trick by fixing the learning rate to

during the first epoch. Random flip and crop are used for image data augmentation. For linear probe CLIP, we follow the same training method used by Radford et al. (2021).

Dataset Classes Train Val Test Hand-crafted prompt
ImageNet 1,000 1.28M N/A 50,000 “a photo of a [CLASS].”
Caltech101 100 4,128 1,649 2,465 “a photo of a [CLASS].”
OxfordPets 37 2,944 736 3,669 “a photo of a [CLASS], a type of pet.”
StanfordCars 196 6,509 1,635 8,041 “a photo of a [CLASS].”
Flowers102 102 4,093 1,633 2,463 “a photo of a [CLASS], a type of flower.”
Food101 101 50,500 20,200 30,300 “a photo of [CLASS], a type of food.”
FGVCAircraft 100 3,334 3,333 3,333 “a photo of a [CLASS], a type of aircraft.”
SUN397 397 15,880 3,970 19,850 “a photo of a [CLASS].”
DTD 47 2,820 1,128 1,692 “[CLASS] texture.”
EuroSAT 10 13,500 5,400 8,100 “a centered satellite photo of [CLASS].”
UCF101 101 7,639 1,898 3,783 “a photo of a person doing [CLASS].”
ImageNetV2 1,000 N/A N/A 10,000 “a photo of a [CLASS].”
ImageNet-Sketch 1,000 N/A N/A 50,889 “a photo of a [CLASS].”
ImageNet-A 200 N/A N/A 7,500 “a photo of a [CLASS].”
ImageNet-R 200 N/A N/A 30,000 “a photo of a [CLASS].”
Table 3: Datasets statistics.

Appendix B Additional Results

b.1 Robustness Experiments

In addition to ResNet-50, we further experiment with more advanced architectures including ResNet-101, ViT-B/32 and ViT-B/16, all of which have pre-trained weights available from CLIP’s github repository. The results are shown in Table 4 where we can draw the same conclusion as the main paper: CoOp offers stronger robustness than hand-crafted prompts and using fewer context tokens benefits domain generalization.

Source Target
Method ImageNet ImageNetV2 ImageNet-Sketch ImageNet-A ImageNet-R
ResNet-50
Zero-Shot CLIP 55.41 48.08 31.67 18.63 53.45
CLIP + CoOp () 60.46 52.17 31.14 19.62 53.31
CLIP + CoOp () 60.85 53.02 32.99 20.69 55.57
ResNet-101
Zero-Shot CLIP 58.72 51.57 36.73 25.11 62.15
CLIP + CoOp () 64.39 55.00 37.54 26.31 61.73
CLIP + CoOp () 63.99 55.45 39.11 27.25 63.58
ViT-B/32
Zero-Shot CLIP 59.88 51.98 39.22 27.44 63.79
CLIP + CoOp () 64.92 55.90 38.79 28.77 63.45
CLIP + CoOp () 64.88 56.21 40.17 29.64 64.60
ViT-B/16
Zero-Shot CLIP 64.71 58.71 44.77 43.37 72.49
CLIP + CoOp () 70.13 62.23 44.82 44.30 72.98
CLIP + CoOp () 70.11 62.66 46.27 45.46 74.33
Table 4: Comparison with zero-shot CLIP on robustness to distribution shift using different vision backbones. : CoOp’s context length.

b.2 Prompt Engineering, Prompt Ensembling and CoOp

Table 5 provides more comprehensive comparisons covering a variety of vision backbones. The observations are similar to those discussed in the main paper: prompt ensembling is clearly better than prompt engineering; and CoOp demonstrates consistent advantages over prompt ensembling.

Method ResNet-50 ResNet-101 ViT-B/32 ViT-B/16
Prompt engineering 55.41 58.72 59.88 64.71
Prompt ensembling 57.81 60.49 62.01 67.31
CoOp 60.46 64.39 64.92 70.13
Table 5: Comparison with prompt engineering and prompt ensembling on ImageNet using different vision backbones.

b.3 Context Length

Figure 6 shows detailed results of using different context lengths for CoOp on each of the 11 datasets. The average performance, displayed on the top-left corner, suggests that using more context tokens is better. There are three exceptions: on ImageNet, OxfordPets and Food101 the performance is saturated and the improvements diminish when the context length is increased. As discussed in the main paper, selecting a proper length needs to balance between performance on source datasets and robustness to distribution shift in unseen domains. We suggest practitioners use a validation set to identify the optimal context length for their applications.

Figure 6: Dataset-specific results of using different context lengths for CoOp.

b.4 Vision Backbones

Figure 7 provides the detailed per-dataset results for various vision backbones. The more advanced the backbone, the better the performance.

Figure 7: Results on the 11 datasets using a variety of vision backbones.

b.5 Understanding the Learned Context Vectors

We search for each learned context vector its nearest word from the vocabulary based on the Euclidean distance. Note that CLIP (Radford et al., 2021) uses the byte pair encoding (BPE) representation (Sennrich et al., 2016) for tokenization so the vocabulary includes subwords that frequently appear in text, such as “hu” (subsumed by many words like “hug” and “human”). Table 6 shows the searched results on some datasets. We observe that a few words are somewhat relevant to the tasks, such as “fluffy” and “paw” for OxfordPets. But when connecting all the nearest words together, the prompts do not make much sense. We also observe that when using manual initialization, the nearest words for the converged vectors are mostly the ones used for initialization. We conjecture that the learned vectors might encode meanings that are beyond the existing vocabulary. However, we are unable to draw a conclusion on these observations because using nearest words to interpret the learned prompts could be inaccurate—the semantics of the vectors is not necessarily correlated with the nearest words.

# ImageNet Food101 OxfordPets DTD UCF101
1 potd (1.7136) lc (0.6752) tosc (2.5952) boxed (0.9433) meteorologist (1.5377)
2 that (1.4015) enjoyed (0.5305) judge (1.2635) seed (1.0498) exe (0.9807)
3 filmed (1.2275) beh (0.5390) fluffy (1.6099) anna (0.8127) parents (1.0654)
4 fruit (1.4864) matches (0.5646) cart (1.3958) mountain (0.9509) masterful (0.9528)
5 ,… (1.5863) nytimes (0.6993) harlan (2.2948) eldest (0.7111) fe (1.3574)
6 ° (1.7502) prou (0.5905) paw (1.3055) pretty (0.8762) thof (1.2841)
7 excluded (1.2355) lower (0.5390) incase (1.2215) faces (0.7872) where (0.9705)
8 cold (1.4654) N/A bie (1.5454) honey (1.8414) kristen (1.1921)
9 stery (1.6085) minute (0.5672) snuggle (1.1578) series (1.6680) imam (1.1297)
10 warri (1.3055) (0.5529) along (1.8298) coca (1.5571) near (0.8942)
11 marvelcomics (1.5638) well (0.5659) enjoyment (2.3495) moon (1.2775) tummy (1.4303)
12 .: (1.7387) ends (0.6113) jt (1.3726) lh (1.0382) hel (0.7644)
13 N/A mis (0.5826) improving (1.3198) won (0.9314) boop (1.0491)
14 lation (1.5015) somethin (0.6041) srsly (1.6759) replied (1.1429) N/A
15 muh (1.4985) seminar (0.5274) asteroid (1.3395) sent (1.3173) facial (1.4452)
16 .# (1.9340) N/A N/A piedmont (1.5198) during (1.1755)
Table 6: The nearest words for each of the 16 context vectors learned by CoOp, with their distances shown in parenthesis. N/A means non-English word or nonsense character.
