Human language retains little meaning without interactions with the world it is used to describe, e.g. reading a description of a colour you have never seen is a poor substitute for seeing it. Language arose as a way of transmitting knowledge about the state of the world between the people that live in it, and it evolves as the world changes over time. Severing this link, by analysing text as a static standalone artifact, leads to problems with grounding of concepts and effectively eliminates exploratory mapping of the language. In contrast, when humans communicate they generally do so in connection to the environment and interactively in both directions, which provides the necessary grounding of concepts but also an immediate feedback on every utterance. The importance of feedback for human language learners was shown by Sachs et al. in (Sachs et al., 1981). This paper describes the case of Jim, a hearing child that was brought up by two deaf parents and had to learn to speak from watching television without any supervision or feedback. These circumstances severely delayed his acquisition of language and he did not learn to speak properly until after intervention from the outside. This indicates that not even humans can learn to master human language without the help of guided exploration via synthesis and feedback, i.e. social interactions.
In this paper we investigate if a grounded language can emerge by letting two agents invent their own language to solve a shared problem using Deep Recurrent Q-Networks (DRQN). More precisely, we let two agents play the game of Guess Who? which forces the agents to come up with grounded words that represent characteristics of objects in images in order to win the game.
Recent success in deep reinforcement learning(Mnih et al., 2015; Silver et al., 2016) has shown that complex tasks with huge state spaces can be learnt using reinforcement learning (RL). One such task is multi-agent communication. A difficult task due to a states pace which includes all possible conversation states, and non stationary environment which continually change while the agents learn. In a paper by Sukhbaatar et al. (2016) it is shown that agents can learn continuous communication using RL, later used to solve tasks that require synchronisation via a global communication channel. Though promising, the continuous nature of this communication makes it very different to natural language where words are discrete symbols. This deficit was rectified by Foerster et al. (2016a, b) using Differentiable inter-agent learning (DIAL) where a method was developed to solve puzzles in a multi-agent setting where the agents were allowed to communicate by sending one-bit messages. Though their communication is still continuous during training, to enable gradient propagation, they regularise the model to promote discrete solutions and discretize during testing. The model we employ in this paper is similar to DIAL, but differs in some key areas. (1) Instead of communicating using bits we generalise the model to handle orthogonal messages of arbitrary dimension to enable vocabularies of arbitrary size, (2) by gradually increasing the noise on the communication channel we ensure that the agents learn a symbolic language but with less negative impact on the convergence rate during training and with a positive impact on the learning capacity (for more on the model see Section 4) and (3) in our model no parameters are shared between the agents since this is more reasonable from a human perspective. In (Lazaridou et al., 2016) a first step towards grounding was taken by letting the agents play a game involving images. The main difference to our paper consist of (1) that we learn the representations of the images while Lazaridou et al.
use a pretrained classifier trained to recognise the categories of objects present in the images, and (2) that we are able to train the agents to hold a multi-step dialogue in contrast to a one step one symbol question.
The main contributions of this paper include:
An end-to-end trainable multiple-agent reinforcement learning model that learns a near optimal strategy for playing Guess who? without sharing any parameters between agents and with no predefined communications protocol.
We are able to show that the agents learn to hold a conversation where knowledge from previous time steps are used to guide further dialogue.
An analysis of the invented language that shows how the words are grounded in the concepts visible in the images.
Experiments that show how increasing levels of noise in the communication channel leads to an improved training speed and learning capacity (compared to constant noise) while retaining the ability to learn discrete symbols.
Finally, we generalise DIAL to use orthogonal messages of arbitrary dimension, to more closely resemble human language which encompasses hundreds of thousands of words, and we show that this improves the performance of the system as well as makes it more interpretable.
The results in this paper rely mainly on the theory of reinforcement learning, deep Q-networks, and the concept of differentiable inter-agent learning (Foerster et al., 2016a). We introduce these topics briefly below.
2.1 Reinforcement learning
In the traditional single-agent reinforcement learning (RL) setting, an agent observes the current state at each time step , takes action according to some policy , receives the reward
, and transitions, according to some probability distribution depending on the current state and action, to a new state
. Value function approaches to RL seek to estimate the value of different policies, typically the expected return, in order to select a good one. The return of a policy is the sum of (discounted) future rewards, where is a discount factor that trades-off the importance of immediate and future rewards. For a specific policy , the value of a state-action pair is defined as . The optimal value function is called the Q-value of the state-action pair and obeys the Bellman optimality equation (Sutton & Barto, 1998). An agent that employs the optimal strategy is guaranteed to achieve the highest expected discounted return. Reinforcement learning can in general be extended to cooperative multi-agent settings where each agent observes a global state , selects individual actions , and then receives a team reward , shared among all agents. When agents can only partially observe the environment, the global state is hidden and the agents only receive observations that are correlated with the state .
2.2 Deep Q-Networks
The space of state-action pairs is, in many applications, so large that storing and updating the Q values for each state-action pair is computationally intractable. One solution for this dimensionality problem is to employ the concept of Deep-Q-Networks (DQN) (for a more thorough description, see (Mnih et al., 2015)
). The idea of DQN is to represent the Q-function by using a neural network parameterised by, i.e., to find which approximates the value
for all state-action pairs. The network is optimised by minimising the loss function, at iteration , with , where are the parameters of a target network which is fixed for a number of iterations. The actions chosen during the training of the network are determined by an -greedy policy that selects the action that maximises the Q-value for the current state with probability and chooses an action randomly with probability . When agents only have partial observability, Hausknecht & Stone (2015) propose to use an approach called Deep Recurrent Q-Networks
(DRQN) where, instead of approximating the Q-values with a feed-forward network, they approximate the Q-values with a recurrent neural network that can maintain an internal state which aggregates the observations over time. This is modelled by adding an inputto the network that represents the hidden state of the network.
2.3 Differentiable inter-agent learning
Foerster et al. (2016a) introduce the idea of centralised training but decentralised execution, i.e., the agents are trained together but evaluated separately. They introduce the concept of Differentiable Inter-Agent Learning (DIAL) where messages are allowed to be continuous during training, but need to be discrete during evaluation, which allows gradients to propagate between the agents through the messages in training. This gives the agents more feedback and thus reduces the amount of learning required through trial-and-error. To reduce the discretisation error that could occur from the discretisation of messages in the evaluation phase the messages are processed by a dicretise/regularise unit (DRU). During centralised learning the DRU regularises the messages according to DRU() = Logistic(), where is the message of agent in time step , and during decentralised execution DRU(. The added noise during the training phase pushes the messages towards the ends of the logistic function and therefore forces the agents to send almost discrete messages. The change of setup also requires a slight change in how the model is trained; the loss with respect to the -function is the same as in the DQN case but the gradient term for
is the error backpropagated through the message from the recipient to the sender. More algorithm details can be found in supplementary materials to(Foerster et al., 2016a). Using DIAL instead of traditional independent -learning techniques is shown to be beneficial, both in terms of learning speed and in terms of ability to learn.
3 Guess Who?
The task considered in this paper is a version of the popular guessing game Guess Who?. In Guess Who? two players are each assigned one character from a set of 24 characters. Each character is represented by an image and the goal of the game is to deduce which of the 24 characters the other player has. The players take turns asking questions based on the visual appearance of the characters. The questions have to be answered truthfully with yes or no until one player knows which character the other player was assigned.
The version of Guess Who? that we consider in this paper is a slight variation on the traditional game. One important difference is that we remove the competitive element and have one agent be the asking-agent (agent ) and the other the answering-agent (agent ). This means that one agent specialises in asking questions and the other in answering them, and the two of them collaborate with the objective of solving the task. Another difference is that instead of finding the correct character amongst the full set of characters a subset is sampled and given as observation input to the asking agent; in our experiments we used a subset of two or four images. The answering agent observes only the correct image, taken from the subset observed by the asking-agent.
In Figure 1 an example of our version of Guess Who? is illustrated. The asking-agent has four images and the answering-agent has the (correct) image which is the third image of the asking-agent. The asking-agent sends its first question () and receives the answer (). Then another round of question and answer occurs and finally the asking-agent guesses which of the images the answering-agent holds.
In each time step, the agents take turns sending and receiving messages. This means that in each step either the answering-agent receives a question or the asking-agent gets an answer. The questions that the asking-agent may send are limited to a discrete vocabulary of words and the answers the answering-agent can send are limited to two words (yes or no). Instead of playing the game with a variable amount of time steps a fixed number of steps is played. For the case when the asking-agent observes two images, the agent is only allowed to ask one question () and receive one answer (), and for the case when the asking-agent observes four images, two questions () and two answers (, ) are allowed. After all answers have been received the asking-agent has to guess which of the images the answering-agent has. The guess is considered as an action taken by the asking-agent and is represented by , where is the number of images the agent holds. If is equal to the index of the character that the asking-agent has, a reward of 1 is given to both agents, otherwise they receive 0.
When the number of question-answer rounds is limited it is not always possible to win each game since only a fixed number of words are available and only yes or no answers are permitted. If if one question is selected from two words it is possible to partition the set of images into four parts. With four words the set can be partitioned in 16 ways. If there are fewer partitions than the size of the set of images this means that several images will be in the same partition, giving the same answers to the questions posed and therefore making them indistinguishable for the model. This implies that the maximum average reward for a game where the asking-agent holds two images from a total of 24 classes (as in Guess Who?) and two different words are allowed is only (for derivations see the supplementary material to this paper). The equivalent score in a four image game with two rounds of questions would be (for derivations see the supplementary material to this paper). However, since our agents have recurrent networks it is possible that the questions in each round have different meanings (otherwise there would be no point in asking the same question in the second round as in the first round) such that the set can be partitioned further, implying that the maximum average reward is higher than .
In order to evaluate the proposed framework on a larger set of images and more realistic images, we also use the CelebA dataset (Liu et al., 2015) which includes 202,599 face images of 10,177 unique celebrity identities. The images in the dataset cover large pose variations and background clutter. Examples of images can be seen in Table 1.

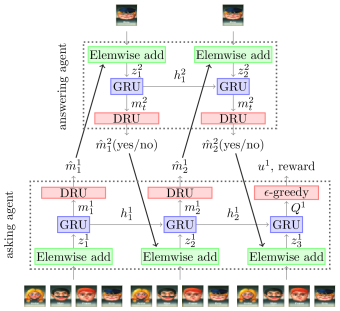

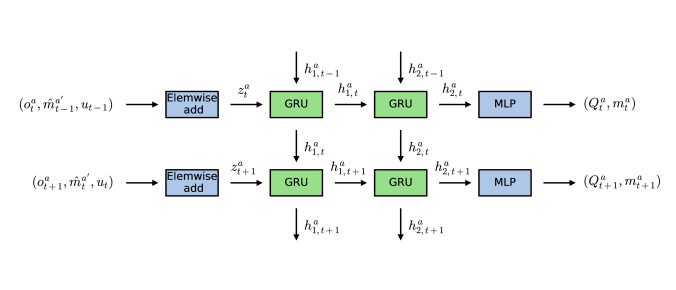

The architecture of the model is presented in this section, a schematic illustration of the model is shown in Figure 1 and a more detailed overview of each agent is shown in Figure 2. Each agent () consists of a recurrent neural network (RNN) that is rolled out for
steps. The agents have an input network, a 2-layer gated recurrent unit (GRU)(Cho et al., 2014) and an output network. The input network takes the incoming information images (), message () and the agent’s previous action (
), embeds them separately into embeddings using Multi-Layer Perceptrons (MLP) before adding the embeddings element-wise to create the joint embedding. The embedding and the incoming state is passed through the 2-layer GRU generating new states . The state of the top layer is the output embedding . The output embedding is passed through the output network generating . is used to generate action using an -greedy policy. The message is passed through a variant of DRU as described in section 2.3
to generate a one-hot encoding usingDRU() = Softmax() in the training case where is the
dimensional normal distribution. During evaluationif otherwise is used instead. The parameters for creating the embeddings and for generating the output and can be found in Table 2.
In our model we utilise messages in a one-hot encoding which are then passed to the other agent for the next time step. While using a one-hot encoding does have disadvantages in terms of scalability (since a binary encoding of length gives different possible messages instead of only in the one-hot encoding) we found that it gave improved results and makes it easier to study the underlying effect behind each message which is clouded by the varying closeness between messages that occurs in binary encoding.
|Network type||Layer sizes|
|2-layer MLP||128, 256|
Batch normalization (see, (Ioffe & Szegedy, 2015)) is performed in the MLP for the image embedding and on the regularised incoming messages . During testing, non-stochastic versions of batch normalization is used which implies that running averages of values observed during training are used instead of those from the batch.
5 Increasing noise
Inspired by curriculum learning proposed by Bengio et al. (2009), who showed that gradually increasing difficulty of tasks leads to improved learning, we introduce the usage of increasing noise to DIAL. We found that using a fixed value for the noise led to an unwelcome trade off. If is too large there is a risk of the model never learning anything. If
is too small the training error (where continuous messages are allowed) is excellent but the testing error is bad due to the model over-encoding information in the messages leading to a large discretisation error. Our solution to this is to allow the noise to linearly increase over the epochs. This enables the model to learn quickly in the beginning but to punish the over-encoding of information more and more as the training progresses. This can be compared to human speech where a person who is beginning to learn a new language requires an almost noise free surrounding to understand a message while a proficient speaker would have no problem understanding a message in a more noisy environment such as listening to the radio or having a conversation by a busy road.
To validate our ideas we run a series of experiments on our version of Guess Who? to see how well it performs but also what the model learns. Further, we evaluate the effectiveness of increasing noise by comparing it to experiments with non-increasing noise.
For each episode we randomly select two or four different images from the pool of 24 Guess Who? images (which are down-sampled to pixels). The model is trained with increasing linearly from 0.1 to 1. We evaluate the model performance with two, four, or eight different words available to the asking agent in a one-hot embedding, and the answers yes/no available to the answering agent. The game goes on for three time steps (i.e., one question, one answer, and one guess) for two images and five time steps (i.e, two questions and two answers) for four images. This experiment is also replicated for the CelebA dataset creating a pool of 202,599 images, here we only study the case with four images and for eight and sixteen different words.
Finally, we sample the messages between agents to understand the properties of the communication. This is to observe if the agents adapt their messages to the history of the communication, creating a conversation rather than individual messages. We also want to see if the meaning of words are constant along the conversation or are dependent on their context. We also compare our model with a model where the incoming state of the GRU of the answering agent gets zeroed out (and also the previous action), removing the possibility of these depending effects that depend on the history of the conversation, to see how this affects the performance of the model.
The experiments use an -greedy policy with , a discount factor , and each epoch performs parallel episodes using a batch size of 32. The target network is updated every 100 epochs. Unless stated otherwise, we let increase linearly from 0.1 to 1; this keeps the average close to what was found to work on a task with similar tasks in (Foerster et al., 2016a), where they used
. The optimization is done by RMSProp(Tieleman & Hinton, 2012) with a learning rate of . Each experiment is run multiple times and the results averaged. The code for the experiments is available online at github.com/emiliojorge/Inventing-a-Grounded-Language.
In Figure 3 the average performance (over five runs) is illustrated in the case where the asking-agent sees two images Here it is clear that more words are crucial for better performance on two images. The score for two words is close to the theoretical bound of for two words (as discussed in Section 3) but is surpassed when using four and eight words.

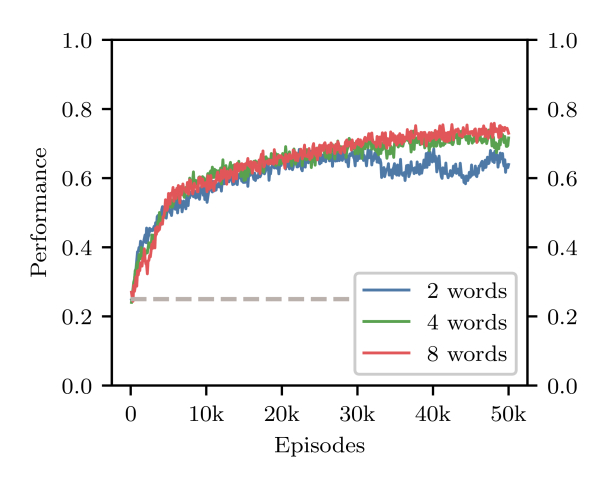

The performance for four images averaged over five runs can be seen in Figure 4. It can be seen that the performance obtained on four images is quite similar independently of how many questions are available.
The results of the experiments on the CelebA dataset can be seen in Figure 5. This shows that performance is similar even when the set of images is very large. This indicates that the performance of the model is not dependent on the networks memorising the images but rather generalises to combinations of images it is very unlikely to have seen before. This idea is also supported by a model trained on of the images and tested on the remaining obtaining very similar scores when evaluated on the different data.
7.2 Understanding the questions
To better understand the nature of the questions that the asking-agent asks we sample a few episodes from a model with two images and two available questions to see how the games play out, i.e., what the message protocol between the agents is depending on the images they see. The message protocol is illustrated in Table 3. In the table it can be seen that the asking-agents questions depend on what images it has, the answers it gets from the answering-agent, and its interpretation of the answer (its guess). One can see that in some cases it receives the same answer even when the answering-agent has different images. This leads to the answering-agent sometimes making a guess on the wrong image and receiving zero reward.

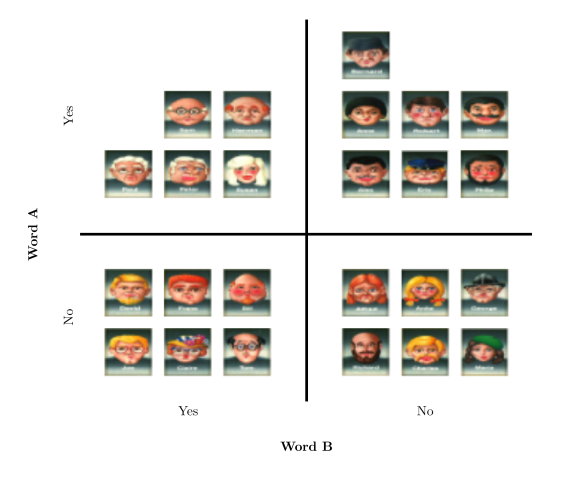

The answers to each question for the different images is illustrated in Figure 6. This shows that the two images that it has trouble separating (see the ones yielding zero reward in Table 3) have the same answers to both words (No to word A and Yes to word B), as such it is impossible for the asking-agent to distinguish between the two. This illustrates the problem with a limited vocabulary which leads to only being able to partition the set in a few ways. Judging from the appearances of the images, it seems like word A could be interpreted as something along the lines of Is the top of his/her head very light coloured or very darkly coloured?.

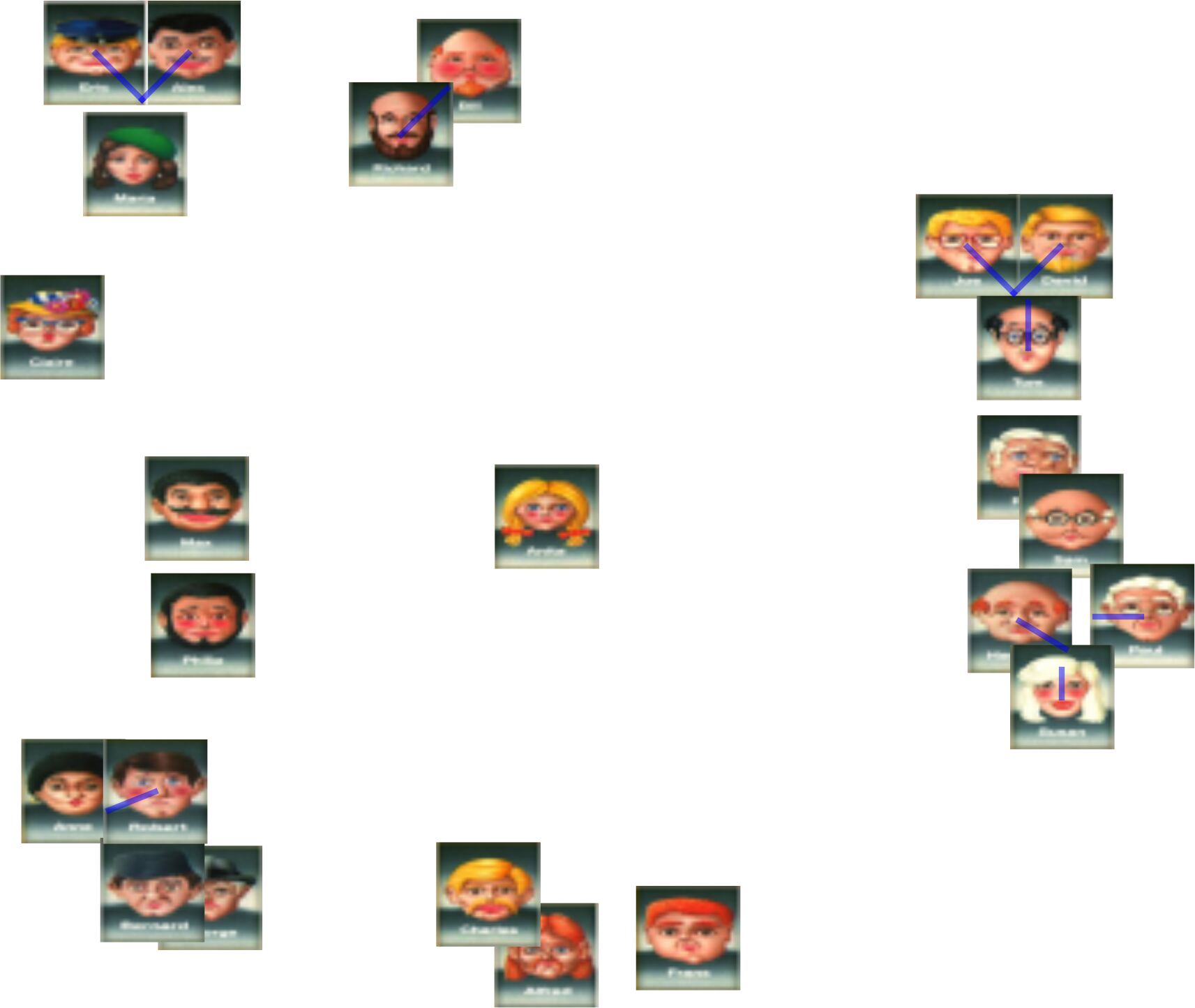

The division, as shown in Figure 6, was reproduced twelve times. How often images have the same answers to questions can be used as a distance measure to describe the relation between images. Using this distance measure we then project the images to a two-dimensional space using t-Distributed Stochastic Neighbor Embedding (t-SNE) (Maaten & Hinton, 2008) which can be seen in Figure 7. This projection also shows that similar images appear have similar answers to questions to a large degree.
7.3 Interactive conversation
The comparison seen in Figure 8 highlights the benefits of having an interactive communication. When the answering agent has a memory of previous communication it allows the communication to create homographs. Homographs are words that are spelt the same but have different meaning depending on the context. One example of a homograph is the word rock, which can both refer to a style of music but also to a stone. Since the agents have a memory of the conversation in the GRUs it allows the agents to adapt the meaning to allow words to have different significance in the second round of question answers depending on the history of the communication. Since we use a multiple step communication with agents using GRUs it is possible for the agents to create an interactive conversation where the messages sent depend on the internal state of each agent. This allows the agents to adapt the messages to send depending on the history of the communication such that a greater variety of communication is possible. By studying what message the asking agents sends as the second question in a model trained on CelebA with a vocabulary of 8 words, we find that keeping everything else the same (images, first question), the second questions differs in of situations depending on what the answer to the first question was. This shows that the agents create some kind of conversation adapting to the other agent instead of just using sending messages independently. This also makes sense, instead of limiting to possible question pairs created by the ability to form homographs it instead becomes .
7.4 Inreasing noise

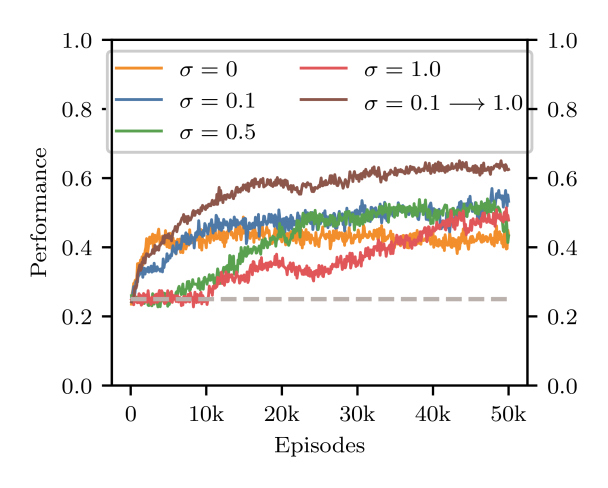

In order to evaluate the effectiveness of increasing the noise during training we compare results on Guess Who? using four images and with two available words and an increasing with a constant (which was used in (Foerster et al., 2016a)) but also with . In Figure 9 it is clearly visible that there is a significant advantage in using variable noise compared to constant noise. The model learns both faster and achieves better performance compared to the models trained with constant noise. This supports the idea that the communication is grounded in visual aspects of the images.
In this paper we have shown that a DRQN can learn to play Guess Who?. Further, by careful analysis of the results we could establish a grounding connection between the words used by the agents and characteristics of objects in images from the game. We also show that the agents create an interactive conversation where the communication adapts to what has previously been said in the communication. Finally, we showed that regulating the level of noise in the communications channel could have a large impact on the training speed as well as the final performance of the system.
The authors would like to acknowledge the project Towards a knowledge-based culturomics supported by a framework grant from the Swedish Research Council (2012–2016; dnr 2012-5738). The authors would also like to thank Jakob Foerster and Yannis M. Assael for the insightful discussions.
Bengio et al. (2009)
Bengio, Yoshua, Louradour, Jérôme, Collobert, Ronan, and Weston, Jason.
Proceedings of the 26th Annual International Conference on Machine Learning, ICML ’09, pp. 41–48. ACM, 2009.
- Cho et al. (2014) Cho, Kyunghyun, van Merrienboer, Bart, Gülçehre, Çaglar, Bahdanau, Dzmitry, Bougares, Fethi, Schwenk, Holger, and Bengio, Yoshua. Learning phrase representations using RNN encoder-decoder for statistical machine translation. In Proceedings of the 2014 Conference on Empirical Methods in Natural Language Processing, EMNLP, pp. 1724–1734, 2014. URL http://aclweb.org/anthology/D/D14/D14-1179.pdf.
- Foerster et al. (2016a) Foerster, Jakob, Assael, Yannis M, de Freitas, Nando, and Whiteson, Shimon. Learning to communicate with deep multi-agent reinforcement learning. In Advances in Neural Information Processing Systems, pp. 2137–2145, 2016a.
- Foerster et al. (2016b) Foerster, Jakob N., Assael, Yannis M., de Freitas, Nando, and Whiteson, Shimon. Learning to communicate to solve riddles with deep distributed recurrent q-networks. CoRR, abs/1602.02672, 2016b.
- Hausknecht & Stone (2015) Hausknecht, Matthew J. and Stone, Peter. Deep recurrent q-learning for partially observable mdps. CoRR, abs/1507.06527, 2015.
- Ioffe & Szegedy (2015) Ioffe, Sergey and Szegedy, Christian. Batch normalization: Accelerating deep network training by reducing internal covariate shift. In Proceedings of the 32nd International Conference on Machine Learning, ICML 2015, pp. 448–456, 2015.
- Lazaridou et al. (2016) Lazaridou, Angeliki, Peysakhovich, Alexander, and Baroni, Marco. Multi-agent cooperation and the emergence of (natural) language. arXiv preprint arXiv:1612.07182, 2016.
Liu et al. (2015)
Liu, Ziwei, Luo, Ping, Wang, Xiaogang, and Tang, Xiaoou.
Deep learning face attributes in the wild.
Proceedings of International Conference on Computer Vision (ICCV), December 2015.
- Maaten & Hinton (2008) Maaten, Laurens van der and Hinton, Geoffrey. Visualizing data using t-sne. Journal of Machine Learning Research, 9(Nov):2579–2605, 2008.
- Mnih et al. (2015) Mnih, Volodymyr, Kavukcuoglu, Koray, Silver, David, Rusu, Andrei A., Veness, Joel, Bellemare, Marc G., Graves, Alex, Riedmiller, Martin, Fidjeland, Andreas K., Ostrovski, Georg, Petersen, Stig, Beattie, Charles, Sadik, Amir, Antonoglou, Ioannis, King, Helen, Kumaran, Dharshan, Wierstra, Daan, Legg, Shane, and Hassabis, Demis. Human-level control through deep reinforcement learning. Nature, 518(7540):529–533, 02 2015.
- Sachs et al. (1981) Sachs, Jacqueline, Bard, Barbara, and Johnson, Marie L. Language learning with restricted input: Case studies of two hearing children of deaf parents. Applied Psycholinguistics, 2(01):33–54, 1981.
- Silver et al. (2016) Silver, David, Huang, Aja, Maddison, Chris J, Guez, Arthur, Sifre, Laurent, Van Den Driessche, George, Schrittwieser, Julian, Antonoglou, Ioannis, Panneershelvam, Veda, Lanctot, Marc, et al. Mastering the game of go with deep neural networks and tree search. Nature, 529(7587):484–489, 2016.
- Sukhbaatar et al. (2016) Sukhbaatar, Sainbayar, Szlam, Arthur, and Fergus, Rob. Learning multiagent communication with backpropagation. In Lee, D. D., Sugiyama, M., Luxburg, U. V., Guyon, I., and Garnett, R. (eds.), Advances in Neural Information Processing Systems 29 (NIPS), pp. 2244–2252, 2016.
- Sutton & Barto (1998) Sutton, Richard S and Barto, Andrew G. Reinforcement learning: An introduction, volume 1. MIT press Cambridge, 1998. ISBN 0262193981.
- Tieleman & Hinton (2012) Tieleman, Tijmen and Hinton, Geoffrey. Lecture 6.5-rmsprop: Divide the gradient by a running average of its recent magnitude. COURSERA: Neural networks for machine learning, 4(2), 2012.
Appendix A Derivations for optimal scoring with two words
When trying to correctly differentiate between two images from a pool of 24 images using one out of two available question the probability of guessing the correct image can be seen as the following: Let image A be the correct image and B be the incorrect image from the pool.
Images are separable if the images A and B are not in the same partition of images divided up by the questions. Since a partition that divides the set up equally is optimal this means that the 24 images are divided up such that there are 6 images in each partition and . If they are inseparable asking agent will have to perform a random guess. Equation 1 gives .
For the case with four images it is slightly different. The following calculations assume that two questions are asked but that those are the only two questions available such that the two questions available in the first question phase are the same as in the second phase. This means that the optimal procedure will be to ask one of them in the first phase and the other in the second phase. In this case the calculations are as above but take into consideration that there may be multiple images in the correct partition. This gives
