I Introduction
Kendama is the Japanese version of the classic cupandball game, which consists of a handle, a pair of cups, and a ball, which are all connected by a string. Playing the cupandball game is a task commonly considered in robotics research [1, 2, 3, 4, 5, 6, 7, 8]
, where approaches ranging from classical PD control to reinforcement learning have been utilized to solve the task. The modelbased approaches among the above typically decompose the task into two subtasks, namely
performing a swingup of the ball when the string is taut, and catching the ball during its freefall. The models of the joint system considered for both subtasks are different, thus resulting in hybrid control design for the robotic manipulator. The key drawbacks in such existing approaches are namely the need for expert demonstrations, and the lack of guarantees of operating constraint satisfaction and obtaining catches under modeling uncertainty and sensing errors.In this paper, we propose a fully physics driven modelbased hybrid approach for control design. The controller guarantees a constrained motion, while accounting for our best estimates of uncertainty in the system model and sensing errors. We use a mixed openloop and closedloop control design, motivated by works such as [9, 10, 11]. First, the swingup phase is designed offline and then an openloop policy is applied to the robotic manipulator. We use a cart with inverted pendulum model of the cupandball joint system for swingup policy design. For this phase, as we solve a constrained finite horizon nonconvex optimization problem, we only consider a nominal disturbancefree model of the system. The swingup trajectory is thus designed to ensure that the predicted difference in positions of the ball and the cup vanishes at a future time once the nominal terminal swingup state is reached and the cup is held fixed.
After a swingup, we switch to online closedloop control synthesis once the ball starts its freefall. We consider presence of only a camera that takes noisy measurements of the ball’s position at every time step. We design the feedback controller in the manipulator’s endeffector [12] space. This results in a Linear Time Invariant (LTI) model for the evolution of the difference between the cup and the ball’s positions, thus allowing us to solve convex optimization problems online for control synthesis. In order to guarantee a catch by minimizing the position difference, it is also crucial to ensure that during the freefall of the ball, the control actions to the manipulator do not yield a configuration where the string is taut, despite uncertainty in the model and noise in camera position measurements. Uncertainty in the LTI model primarily arises from low level controller mismatches in the manipulator hardware, and an upper bound of this uncertainty is assumed known. Bounds on the measurement noise induced by the camera are assumed unknown. This paper presents a method to increase the probability of a catch, as the estimate of the support of camera measurement noise distribution is updated. Our contributions are summarized as:

Offline, before the feedback control of the manipulator, we design a swingup trajectory for the nominal cupandball system that plans the motion of the ball to a state from which a catch control is initiated.

Using the notion of Confidence Support from [13] which is guaranteed to contain the true support of the camera measurement noise with a specified probability, we use online robust feedback control for enforcing bounds on the probability of failed catches.

With highfidelity Mujoco simulations and preliminary physical experiments we demonstrate that the manipulator gets better at catching the ball as the support of the camera measurement noise is learned and as the Confidence Support and closedloop policy are updated.
Ii Generating A Swingup Trajectory
The swingup phase begins with the arm in the home position such that the ball is hanging down at an angle of radians from the vertical plumb line, as seen in Fig. 1.
Iia System Modeling
We model the system such that the cup is a planar cart with pointmass and the ball acts as a rigid pendulum (mass and radius ) attached to the cup. Assuming planar motion of the ball, we derive the Lagrange equations of motion [12] with three generalized coordinates , which denote the position of the cup, position of the cup, and swing angle of the ball with respect to the plumb line of the cup respectively at any time . We reduce the equations to the general nominal form
(1)
where is the inertia matrix, is the Coriolis matrix, is the gravity matrix, and is the external input force at time . Here denotes the velocity of the cup and the angular velocity of the ball, and denotes the acceleration of the cup and the angular acceleration of the ball at any time . System (1) in statespace form is
(2)
where nominal state for all time .
IiB Optimization Problem
We discretize system (2) with one step Euler discretization and a sampling time of Hz. The discrete time system can then be written as
where denotes the sampled time version of continuous variable . To generate a force input sequence for the swingup, we solve a constrained optimal control problem over a finite planning horizon of length , given by:
(3)
where weight matrices , and constraint set is chosen such that the ball remains within the reach of the UR5e manipulator. Initial state is known in the configuration as shown in Fig. 1. Due to the nonlinear dynamics , the optimization problem (3) is nonconvex. Moreover, typically a long horizon length is required. Hence, we solve (3) offline and apply the computed input sequence in openloop to the manipulator.
IiC Terminal Conditions of the SwingUp
Predicted Behaviour
The nominal terminal state in (3) is selected such that the ball is swinging to rad with an angular velocity of rad/s. At these values, the string is calculated to lose tension and the ball begins freefall. The chosen value of ensures that the predicted difference in positions of the ball and the cup (both modeled as point masses) vanishes at a future time, if the cup were held fixed and the ball’s motion is predicted under freefall.
Actual Behaviour
When considering the nominal system (1), we have ignored the presence of uncertainties. Such uncertainties may arise due to our simplifying assumptions such as: the string is massless so the swing angle is only affected by the ball and cup masses, there are no frictional and aerodynamic drag forces to hinder the conservation of kinetic and potential energy of the system, the cup mass is decoupled from the mass of the manipulator, and there is no mismatch of control commands from the low level controller of the manipulator and . Due to such uncertainties, realized states for do not exactly match their nominal counterparts.

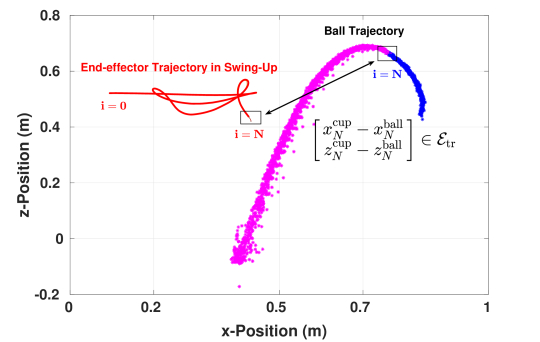

A set of 100 measured rollout trajectories of the ball after the swingup are shown in Fig. 2 for a fixed openloop input sequence .
We see from Fig. 2 that after time steps of swingup, the ball and the cup arrive at positions where their relative position is in a set . A key assumption of well posedness will be imposed on this set in Section IIID in order for our subsequent feedback control policy to deliver a catch in experiments.
Iii Designing Feedback Policy In Catch Phase
For the catch phase we start the time index where the swing up ends, i.e., . There are two main challenges during the design of the feedback controller, namely position measurements of the ball from a noisy camera, and presence of mismatch between desired control actions and corresponding low level controller commands.
Assumption 1
We assume that the UR5e endeffector gives an accurate estimate of its own position. The assumption is based on precision ranges provided in [14].
Iiia Problem Formulation
During freefall of the ball we design our feedback controller for the manipulator position only in endeffector space, with desired velocity of the endeffector as our control input. The joint ball and endeffector system in one trial can be modeled as a single integrator as:
(4a)
(4b)
with error states and inputs (i.e., relative position and velocity)
where , is a bounded uncertainty which arises due to the discrepancy between the predicted and the actual velocity of the ball at any given time step^{1}^{1}1we use the camera position information for ball’s velocity estimation, and the commanded and the realized velocities of the endeffector, primarily due to the low level controller delays and limitations. System dynamics matrices and are known, where
denotes the identity matrix of size
, and sampling time second. We assume an outer approximation to the set , i.e., is known, and is a polytope. We consider noisy measurements of states due to the noise in camera position measurements, corrupted by , with , where denotes the support of a distribution. We assume is not exactly known.Using the set (see Fig. 2), a set containing the origin where the string is not taut and (4) is valid can then be chosen. We choose:
(5)
where denotes row of all the vertices of the polytope , and
denotes the vector norm. This ensures
(6)
As (6) holds true, we impose state and input constraints for all time steps as given by:
(7)
where set is a polytope. We formulate the following finite horizon robust optimal control problem for feedback control design:
(8)
where , and denote the realized system state, control input and model uncertainty at time step respectively, and denote the nominal state and corresponding nominal input. Notice that (8) minimizes the nominal cost over a task duration of length decided by the user, having considered the safety restrictions during an experiment. The cost comprises of the positive definite stage cost , and the terminal cost . We point out that, as system (4) is uncertain, the optimal control problem (8) consists of finding , where are state feedback policies.
The main challenge in solving problem (8) is that it is difficult to obtain the camera measurement noise distribution support . Resorting to worstcase apriori set estimates of as in [15, 16] might result in loss of feasibility of (8). To avoid this, we use a datadriven estimate of denoted by , where is the number of samples of noise used to construct the set.
IiiB Control Formulation
As we have noisy output feedback in (12), we follow [17] for a tractable constrained finite time optimal controller design strategy. We repeatedly solve (8) at times in a shrinking horizon fashion [18, Chapter 9]. We make the following assumption for this purpose:
Assumption 2
The sets , and contain the origin in their interior.
IiiB1 Observer Design and Control Policy Parametrization
We design a Luenberger observer for the state as
where the observer gain is chosen such that is Schur stable. The control policy parametrization for solving (8) is chosen as:
where state feedback policy gain matrix is chosen such that is Schur stable.
IiiB2 Optimal Control Problem
Consider the tightened constraint sets,
(9a)
(9b)
where following [17, Proposition 12], the set is our best estimate of the minimal Robust Positive Invariant set for the estimation error dynamics defined as
(10)
and the set is our best estimate of the minimal Robust Positive Invariant set for the control error dynamics defined as
(11)
with and . We use the phrase best estimate for the above sets, since is an estimate of true and unknown set .
Using these sets we then solve the following tractable finite horizon constrained optimal control problem at any time step as an approximation to (8):
(12)
where is the observed state at time step , and denote the nominal state and corresponding input respectively predicted at time step . After solving (12), in closedloop we apply
(13)
to system (4). We then resolve the problem (12) again at the next th time step, yielding a shrinking horizon strategy. The choice of initial observer state is made as follows:
(14)
Assumption 3 (Manipulator Speed)
If any feasible solution is found to (12) satisfying velocity error constraints , the manipulator has enough velocity authority to satisfy these constraints, where the predicted ball velocity is obtained using forward Euler integration at freefall.
Recall the set containing the set of all possible errors at the start of the catch phase, shown in Fig. 2. We now make the following assumption.
Assumption 4 (Well Posedness)
Definition 1 (Trial Failure)
Note that a Trial Failure is a possible scenario only because is unknown and is estimated with in (12). Intuitively, a Trial Failure implies one of the following:
IiiC Constructing Set
As described in Section IIIA the set is an estimate of the measurement noise support , derived from samples of noise . The set is then used to compute and in (10)(11), used in (12) and (14). We consider the following two design specifications while constructing set , given a fixed sample size .

Probability of the event is bounded with a user specified upper bound .

Estimate ensures event (P2) in Trial Failure occurs with a vanishing probability, while satisfying specification (D1).
Satisfying (D1) using Distribution Information

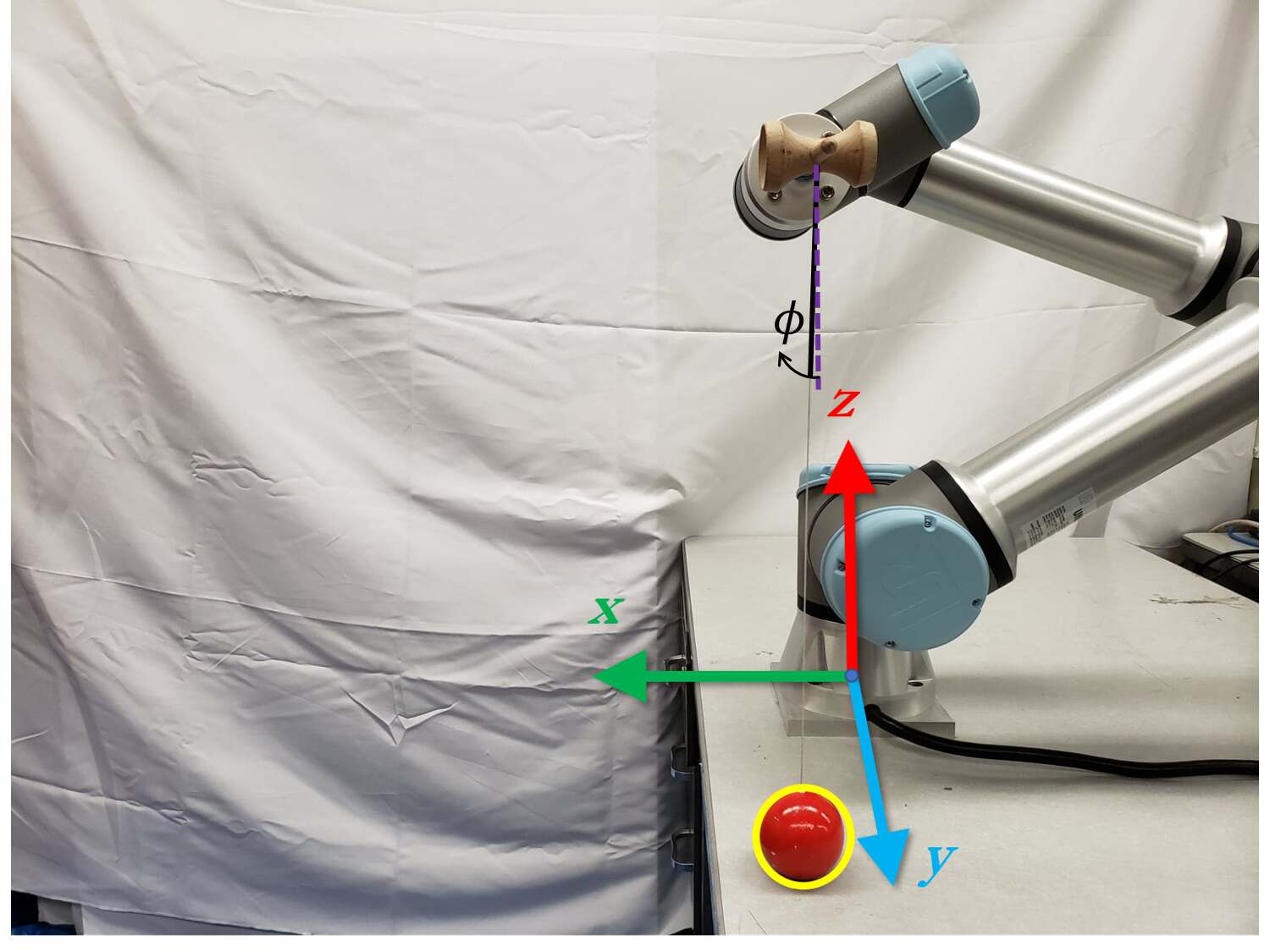

Fig. 1 shows the configuration of the system when noise samples are collected to construct . Let Assumption 1 hold true and the ball is held still, vertically below the endeffector at a position, whose coordinate is fixed and known from previous UR5e endeffector measurements, and coordinate is fixed at . We then collect camera position measurements of the ball at this configuration. The discrepancy between the known position and the measurements yield values of noise samples . For a fixed environment,^{2}^{2}2camera environment is parametrized by say lighting conditions, camera field of view, etc. the distribution of collected samples is shown in Fig. 3
, which is approximately a truncated normal distribution.
We thereby consider this distribution family in Fig. 3 conditioned on any environment as
(15)
where denotes that the distribution belongs to a parametric family (truncated normal) parametrized by , denotes the dimension ( and directions), and parameters are unknown. For a parametric distribution such as (15), for any chosen , set is then constructed as the Confidence Support of using the method in [13], which ensures
(16)
Note that (16) is a sufficient condition to guarantee that if (D2) holds, solving (12) and applying (13) to (4) gives
(17)
if is used to construct sets and .
Satisfying (D2) using Assumption 4
Since Assumption 4 holds, there exists a number of noise samples for any , such that satisfies (D2). Thus, only the sample size has to be chosen^{3}^{3}3for fixed, can be increased while constructing to satisfy (D2). for appropriately to satisfy (D2), having ensured (17). This guarantees that constructing sets and using and then designing a feedback control by solving (12) results in problem (12) being feasible throughout the task with probability at least . Value of can be chosen small enough for any userspecified level can be attained.
IiiD Obtaining Catches
Constructing as per Section IIIC to ensure (17) is still not a sufficient condition to obtain a catch in an experiment with specified probability , as our model (4) does not account for additional factors such as object dimensions, presence of contact forces, etc.
To that regard, we introduce the notion of a successful catch, which is defined as the ball successfully ending up inside the cup at the end of a rollout. Thus, a successful catch accounts for the dimensions of the ball and the cup, and the presence of contact forces.
Assumption 5 (Existence of a Successful Catch)
We assume that given an initial state , an input policy obtained by solving (12) can yield a successful catch, if true measurement noise support were known exactly.
Remark 1
From [13]
we know that as long as confidence intervals for parameters
in (15) converge, as . So, if sample size is increased iteratively approaching , obtaining a successful catch guaranteed owing to Assumption 5. However if a precise positioning system like Vicon is used to collect the noise samples, due to limited access to such environments, collecting more samples and increasing could be expensive. We therefore stick to our method of constructing for a fixed as per Section IIIC, and we attempt successful catches with multiple rollouts by solving (12). For improving the empirical probability of successful catches in these rollouts, one may then increase and thus update the control policy. We demonstrate this in Section IVB.Iv Experimental Results
We present our preliminary experimental findings in this section. For our experiments, the original Kendama handle was modified to be attached to a 3D printed mount on the UR5e endeffector, as shown in Fig. 1. A single Intel RealSense D435 depth camera running at 60 FPS was used to estimate the position and velocity of the ball.
Iva Control Design in the Catch Phase
Once the swingup controller is designed as per Section IIB and an openloop swingup control sequence is applied to the manipulator, we design the feedback controller by finding approximate solutions to the following problem:
(18)
where set , shown in Fig. 2. Note that for this specific scenario the presence of model uncertainty can be ignored. Set is unknown, and we consider Assumption 4 holds. System matrices are from Section IIIA. We find solutions to (18) for , i.e., seconds.
IvB Learning to Catch
We conduct rollouts of the catching task by solving (12), having formed as per Section IIIC, with and then iteratively increasing to . Sets are formed using [13]. Fig. 4 shows the percentage of rollouts conducted for each iteration (i.e., for each value of ), that resulted in the ball successfully striking the center of the cup.

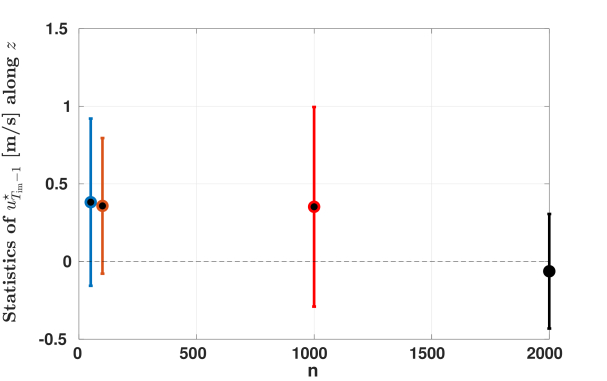

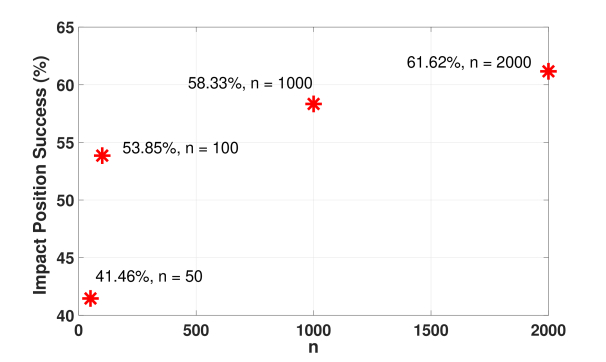

The percentage increases from to . Furthermore, another crucial quantity at the time of impact is the commanded relative velocity (13) in
direction, a lower value of which indicates an increased likelihood of the ball not bouncing out. The average value and the standard deviation of of
for is shown in Fig. 5, where denotes the rollout and denotes the time of impact.IvC Increasing Successful Catches
In order to prove that the trend shown in Fig. 4 and Fig. 5 results in an increasing number of successful catches, we resort to exhaustive Mujoco [19, 20] simulations^{4}^{4}4due to unavailability of laboratory access. The task duration in this case is .

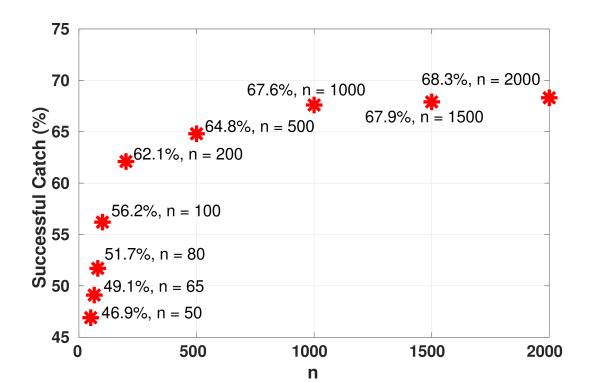

The trend in the percentage of successful catches with 1000 rollouts corresponding to each , varying from to , is shown in Fig. 6. For , of the rollouts result in a successful catch. The number increases to for . This verifies that the preliminary experimental results from Fig. 4 and Fig. 5 would very likely result in a similar trend as in Fig. 6. Thus we prove that our proposed approach enables successful learning of the kendama ball catching task.
V Conclusions
We proposed a model based control strategy for the classic cupandball game. The controller utilized noisy position measurements of the ball from a camera, and the support of this noise distribution was iteratively learned from data. Thus, the closedloop control policy iteratively updates. We proved that the probability of a catch increases in the limit, as the learned support nears the true support of the camera noise distribution. Preliminary experimental results and highfidelity simulations support our analysis.
Acknowledgement
We thank Yuri Glauthier, Charlott Vallon, and Sangli Teng for their contributions on the hardware experiments, as well as Vijay Govindarajan, Siddharth Nair and Edward Zhu for extremely useful reviews and discussions. The research was funded by grants ONRN000141812833, NSF1931853, and Siemens.
