Learning to Infer Graphics Programs from Hand-Drawn Images

07/30/2017 ∙ by Kevin Ellis, et al. ∙ Brown University MIT 0

We introduce a model that learns to convert simple hand drawings into graphics programs written in a subset of . The model combines techniques from deep learning and program synthesis. We learn a convolutional neural network that proposes plausible drawing primitives that explain an image. These drawing primitives are like a trace of the set of primitive commands issued by a graphics program. We learn a model that uses program synthesis techniques to recover a graphics program from that trace. These programs have constructs like variable bindings, iterative loops, or simple kinds of conditionals. With a graphics program in hand, we can correct errors made by the deep network, measure similarity between drawings by use of similar high-level geometric structures, and extrapolate drawings. Taken together these results are a step towards agents that induce useful, human-readable programs from perceptual input.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 6

page 7

page 9

page 10

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Human vision is rich – we infer shape, objects, parts of objects, and relations between objects – and vision is also abstract: we can perceive the radial symmetry of a spiral staircase, the iterated repetition in the Ising model, see the forest for the trees, and also the recursion within the trees. How could we build an agent with similar visual inference abilities? As a small step in this direction, we cast this problem as program learning, and take as our goal to learn high–level graphics programs from simple 2D drawings. The graphics programs we consider make figures like those found in machine learning papers (Fig.

1), and capture high-level features like symmetry, repetition, and reuse of structure.

[] for (i < 3) rectangle(3*i,-2*i+4, 3*i+2,6) for (j < i + 1) circle(3*i+1,-2*j+5) [] reflect(y=8) for(i<3) if(i>0) rectangle(3*i-1,2,3*i,3) circle(3*i+1,3*i+1)

(a)

(b)
Figure 1: (a): Model learns to convert hand drawings (top) into LaTeX (rendered below). (b) Learns to synthesize high-level graphics program from hand drawing.

The key observation behind our work is that going from pixels to programs involves two distinct steps, each requiring different technical approaches. The first step involves inferring what objects make up an image – for diagrams, these are things like as rectangles, lines and arrows. The second step involves identifying the higher-level visual concepts that describe how the objects were drawn. In Fig. 1(b), it means identifying a pattern in how the circles and rectangles are being drawn that is best described with two nested loops, and which can easily be extrapolated to a bigger diagram.

This two-step factoring can be framed as probabilistic inference in a generative model where a latent program is executed to produce a set of drawing commands, which are then rendered to form an image (Fig. 2). We refer to this set of drawing commands as a specification (spec) because it specifies what the graphics program drew while lacking the high-level structure determining how the program decided to draw it. We infer a spec from an image using stochastic search (Sequential Monte Carlo) and infer a program from a spec using constraint-based program synthesis (solar2008program, ) – synthesizing structures like symmetries, loops, or conditionals. In practice, both stochastic search and program synthesis are prohibitively slow, and so we learn models that accelerate inference for both programs and specs, in the spirit of “amortized inference” paige2016inference , training a neural network to amortize the cost of inferring specs from images and using a variant of Bias–Optimal Search schmidhuber2004optimal to amortize the cost of synthesizing programs from specs.

(Observed)

line, line,
rectangle,
line, ...

Spec/Drawing Commands
(Latent)

for (j < 3)
for (i < 3)
if (...)
 line(...)
 line(...)
rectangle(...)

Program
(Latent)

Extrapolation

Error correction

Rendering

Learning +
Stochastic search

Execution

Learning +
Program synthesis

Section 2: ImageSpec

Section 3: SpecProgram

Section 4: Applications
Figure 2: Black arrows: Top–down generative model; ProgramSpecImage. Red arrows: Bottom–up inference procedure. Bold:Random variables (image/spec/program)

The new contributions of this work are (1) a working model that can infer high-level symbolic programs from perceptual input, and (2) a technique for using learning to amortize the cost of program synthesis, described in Section 3.1.

2 Neural architecture for inferring specs

We developed a deep network architecture for efficiently inferring a spec, , from a hand-drawn image, . Our model combines ideas from Neurally-Guided Procedural Models (ritchie2016neurally, ) and Attend-Infer-Repeat (eslami1603attend, )

, but we wish to emphasize that one could use many different approaches from the computer vision toolkit to parse an image in to primitive drawing commands (in our terminology, a “spec”)

nsd . Our network constructs the spec one drawing command at a time, conditioned on what it has drawn so far (Fig. 3). We first pass a

target image and a rendering of the drawing commands so far (encoded as a two-channel image) to a convolutional network. Given the features extracted by the convnet, a multilayer perceptron then predicts a distribution over the next drawing command to execute (see Tbl.

1

). We also use a differentiable attention mechanism (Spatial Transformer Networks

jaderberg2015spatial ) to let the model attend to different regions of the image while predicting drawing commands. We currently constrain coordinates to lie on a discrete grid, but the grid could be made arbitrarily fine. Appendix A.1 gives full architectural detail.

Target image:

Canvas: render

CNN

MLP

circle(

STN

MLP

X=7,

STN

MLP

Y=12)

Next drawing command

Renderer

Figure 3: Neural architecture for inferring specs from images. Blue: network inputs. Black: network operations. Red: draws from a multinomial. Typewriter font: network outputs. Renders on a grid, shown in gray. STN: differentiable attention mechanism (jaderberg2015spatial, ).
circle
Circle at
rectangle
Rectangle with corners at &
line

Line from to ,
         optionally with an arrow and/or dashed
STOP
Finishes spec inference
Table 1: Primitive drawing commands currently supported by our model.

For the model in Fig. 3, the distribution over the next drawing command factorizes as:

(1)

where are the tokens in the drawing command, is the target image, is a spec, are the parameters of the neural network, is the image feature extractor (convolutional network), and is an attention mechanism. The distribution over specs factorizes as:

(2)

where is the length of spec , the subscripts on index drawing commands within the spec (so is a sequence of tokens: ), and the STOP token is emitted by the network to signal that the spec explains the image. We trained our network by sampling specs and target images for randomly generated scenes111Because the rendering process ignores the ordering of drawing commands in the spec, the mapping from spec to image is many-to-one. When generating random training data for the neural network, we put the drawing commands into a canonical order (left-to-right, top-to-bottom, first drawing circles, then rectangles, and finally lines/arrows.) and maximizing , the likelihood of given , with respect to model parameters , by gradient ascent. We trained on scenes, which takes a day on an Nvidia TitanX GPU.

Our network can “derender” random synthetic images by doing a beam search to recover specs maximizing . But, if the network predicts an incorrect drawing command, it has no way of recovering from that error. For added robustness we treat the network outputs as proposals for a Sequential Monte Carlo (SMC) sampling scheme (SMCBook, ). Our SMC sampler draws samples from the distribution , where uses the pixel-wise distance between two images as a proxy for a likelihood. Here, the network is learning a proposal distribution to amortize the cost of inverting a generative model (the renderer) (paige2016inference, ). Unconventionally, the target distribution of the SMC sampler includes the likelihood under the proposal distribution. Intuitively, both the proposal distribution and the distance function offer complementary signals for whether a drawing command is correct, and we found that combining these signals gave higher accuracy.

Experiment 1: Figure 4. To evaluate which components of the model are necessary to parse complicated scenes, we compared the neural network with SMC against the neural network by itself (using beam search) or SMC by itself. Only the combination of the two passes a critical test of generalization: when trained on images with objects, it successfully parses scenes with many more objects than the training data. We also compare with a baseline that produces the spec in one shot by using the CNN to extract features of the input which are passed to an LSTM which finally predicts the spec token-by-token (LSTM in Fig. 4; Appendix A.2). This architecture is used in several successful neural models of image captioning (e.g., vinyals2015show ), but, for this domain, cannot parse cluttered scenes with many objects.

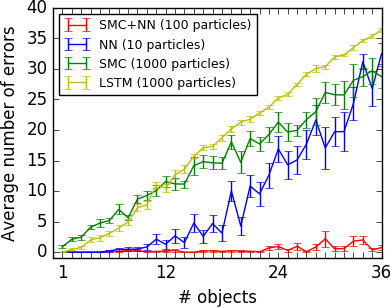

Figure 4: Parsing LaTeX output after training on diagrams with objects. Out-of-sample generalization: Model generalizes to scenes with many more objects ( at ceiling when tested on twice as many objects as were in the training data). Neither SMC nor the neural network are sufficient on their own. # particles varies by model: we compare the models with equal runtime ( sec/object). Average number of errors is (# incorrect drawing commands predicted by model)(# correct commands that were not predicted by model).

2.1 Generalizing to real hand drawings

(a) hand drawing

(b) rendering of (a)’s inferred spec
(c) noisy rendering of (b)
Figure 5: Noisy renderings produced in LaTeX TikZ w/ pencildraw package (Appendix A.4)

We trained the model to generalize to hand drawings by introducing noise into the renderings of the training target images, where the noise process mimics the kinds of variations found in hand drawings (Fig. 5). While our neurally-guided SMC procedure used pixel-wise distance as a surrogate for a likelihood function ( in Sec. 2), pixel-wise distance fares poorly on hand drawings, which never exactly match the model’s renders. So, for hand drawings, we learn a surrogate likelihood function, . The density is predicted by a convolutional network that we train to predict the distance between two specs conditioned upon their renderings. We train to approximate the symmetric difference, which is the number of drawing commands by which two specs differ:

(3)

Appendix A.3 details the architecture and training of .

Experiment 2: Figures 78. We evaluated, but did not train, our system on 100 real hand-drawn figures; see Fig. 77. These were drawn carefully but not perfectly with the aid of graph paper. For each drawing we annotated a ground truth spec and had the neurally guided SMC sampler produce samples. For 63% of the drawings, the Top-1 most likely sample exactly matches the ground truth; with more samples, the model finds specs that are closer to the ground truth annotation (Fig. 8). We will show that the program synthesizer corrects some of these small errors (Sec. 4.1). Because the model sometimes makes mistakes on hand drawings, we envision it working as follows: a user sketches a diagram, and the system responds by proposing a few candidate interpretations. The user could then select the one closest to their intention and edit it if necessary.

Figure 6: Left to right: Ising model, recurrent network architecture, figure from a deep learning textbook Goodfellow-et-al-2016 , graphical model
Figure 7: Near misses. Rightmost: illusory contours (note: no SMC in rightmost)

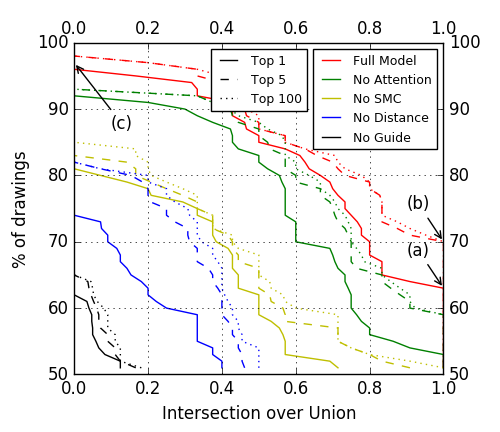

Figure 8: How close are the model’s outputs to the ground truth on hand drawings, as we consider larger sets of samples (1, 5, 100)? Distance to ground truth measured by the intersection over union (IoU) of predicted vs. ground truth: IoU of sets and is . (a) for 63% of drawings the model’s top prediction is exactly correct; (b) for 70% of drawings the ground truth is in the top 5 model predictions; (c) for 4% of drawings all of the model outputs have no overlap with the ground truth. Red: the full model. Other colors: lesioned versions of our model.

3 Synthesizing graphics programs from specs

Although the spec describes the contents of a scene, it does not encode higher-level features of an image such as repeated motifs or symmetries, which are more naturally captured by a graphics program. We seek to synthesize graphics programs from their specs.

Although it might seem desirable to synthesize programs in a Turing-complete language such as Lisp or Python, a more tractable approach is to specify what in the program languages community is called a Domain Specific Language (DSL) (polozov2015flashmeta, ). Our DSL (Tbl. 2) encodes prior knowledge of what graphics programs tend to look like.

Program Statement; ; Statement
Statement circle(Expression,Expression)
Statement rectangle(Expression,Expression,Expression,Expression)
Statement line(Expression,Expression,Expression,Expression,Boolean,Boolean)
Statement for { if { Program }; Program }
Statement reflect { Program }
Expression Var+
Axis X = | Y =
an integer
Table 2: Grammar over graphics programs. We allow loops (for) with conditionals (if), vertical/horizontal reflections (reflect), variables (Var) and affine transformations (Var+).

Given the DSL and a spec , we want a program that both satisfies and, at the same time, is the “best” explanation of . For example, we might prefer more general programs or, in the spirit of Occam’s razor, prefer shorter programs. We wrap these intuitions up into a cost function over programs, and seek the minimum cost program consistent with :

(4)

We define the cost of a program to be the number of Statement’s it contains (Tbl. 2). We also penalize using many different numerical constants; see Appendix A.5. Returning to the generative model in Fig. 2

, this setup is the same as saying that the prior probability of a program

is and the likelihood of a spec given a program is .

The constrained optimization problem in Eq. 4 is intractable in general, but there exist efficient-in-practice tools for finding exact solutions to such program synthesis problems. We use the state-of-the-art Sketch tool (solar2008program, ). Sketch takes as input a space of programs, along with a specification of the program’s behavior and optionally a cost function. It translates the synthesis problem into a constraint satisfaction problem and then uses a SAT solver to find a minimum-cost program satisfying the specification. Sketch requires a finite program space, which here means that the depth of the program syntax tree is bounded (we set the bound to 3), but has the guarantee that it always eventually finds a globally optimal solution. In exchange for this optimality guarantee it comes with no guarantees on runtime. For our domain synthesis times vary from minutes to hours, with 27% of the drawings timing out the synthesizer after 1 hour. Tbl. 3 shows programs recovered by our system. A main impediment to our use of these general techniques is the prohibitively high cost of searching for programs. We next describe how to learn to synthesize programs much faster (Sec. 3.1), timing out on 2% of the drawings and solving 58% of problems within a minute.

Drawing Spec Program Compression factor
Line(2,15, 4,15) Line(4,9, 4,13) Line(3,11, 3,14) Line(2,13, 2,15) Line(3,14, 6,14) Line(4,13, 8,13) for(i<3)  line(i,-1*i+6,       2*i+2,-1*i+6)  line(i,-2*i+4,i,-1*i+6)
Line(5,13,2,10,arrow) Circle(5,9) Circle(8,5) Line(2,8, 2,6,arrow) Circle(2,5) … etc. …; 13 lines circle(4,10) for(i<3)  circle(-3*i+7,5)  circle(-3*i+7,1)  line(-3*i+7,4,-3*i+7,2,arrow)  line(4,9,-3*i+7,6,arrow)
Circle(5,8) Circle(2,8) Circle(8,11) Line(2,9, 2,10) Circle(8,8) Line(3,8, 4,8) Line(3,11, 4,11) … etc. …; 21 lines for(i<3)  for(j<3)   if(j>0)    line(-3*j+8,-3*i+7,         -3*j+9,-3*i+7)    line(-3*i+7,-3*j+8,         -3*i+7,-3*j+9)   circle(-3*j+7,-3*i+7)
Rectangle(1,10,3,11) Rectangle(1,12,3,13) Rectangle(4,8,6,9) Rectangle(4,10,6,11) … etc. …; 16 lines for(i<4)  for(j<4)   rectangle(-3*i+9,-2*j+6,             -3*i+11,-2*j+7)
Line(3,10,3,14,arrow) Rectangle(11,8,15,10) Rectangle(11,14,15,15) Line(13,10,13,14,arrow) … etc. …; 16 lines for(i<3)  line(7,1,5*i+2,3,arrow)  for(j<i+1)   if(j>0)    line(5*j-1,9,5*i,5,arrow)   line(5*j+2,5,5*j+2,9,arrow)  rectangle(5*i,3,5*i+4,5)  rectangle(5*i,9,5*i+4,10) rectangle(2,0,12,1)
Circle(2,8) Rectangle(6,9, 7,10) Circle(8,8) Rectangle(6,12, 7,13) Rectangle(3,9, 4,10) … etc. …; 9 lines reflect(y=8)  for(i<3)   if(i>0)    rectangle(3*i-1,2,3*i,3)   circle(3*i+1,3*i+1)
Table 3: Drawings (left), their specs (middle left), and programs synthesized from those specs (middle right). Compared to the specs the programs are more compressive (right: programs have fewer lines than specs) and automatically group together related drawing commands. Note the nested loops and conditionals in the Ising model, combination of symmetry and iteration in the bottom figure, affine transformations in the top figure, and the complicated program in the second figure to bottom.

3.1 Learning a search policy for synthesizing programs

We want to leverage powerful, domain-general techniques from the program synthesis community, but make them much faster by learning a domain-specific search policy. A search policy poses search problems like those in Eq. 4, but also offers additional constraints on the structure of the program (Tbl. 4). For example, a policy might decide to first try searching over small programs before searching over large programs, or decide to prioritize searching over programs that have loops.

Formally, our search policy, , takes as input a spec and predicts a distribution over search problems, each of which is written and corresponds to a set of possible programs to search over (so ). We assume a finite222It is not strictly necessary that

be a finite set, only that it be recursively enumerable. For example, Levin Search considers the setting where the infinite set of all Turing machines serves as

. family of search problems, which we write , and require that every program in the DSL is contained in at least one .

Good policies will prefer tractable program spaces, so that the search procedure will terminate early, but should also prefer program spaces likely to contain programs that concisely explain the data. These two desiderata are in tension: tractable synthesis problems involve searching over smaller spaces, but smaller spaces are less likely to contain good programs. Our goal now is to find the parameters of the policy, written , that best navigate this trade-off.

Given a search policy, what is the best way of using it to quickly find minimum cost programs? We use a bias-optimal search algorithm (c.f. Schmidhuber 2004 (schmidhuber2004optimal, )):

Definition: Bias-optimality. A search algorithm is -bias optimal with respect to a distribution if it is guaranteed to find a solution in after searching for at least time , where is the time it takes to verify that contains a solution to the search problem.

Bias-optimal search over program spaces is known as Levin Search levin1973universal ; an example of a -bias optimal search algorithm is an ideal time-sharing system that allocates of its time to trying . We construct a -bias optimal search algorithm by identifying and , where is how long the synthesizer takes to search for a program for . Intuitively, this means that the search algorithm explores the entire program space, but spends most of its time in the regions of the space that the policy judges to be most promising. Concretely, this means that our synthesis strategy is to run many different program searches in parallel (i.e., run in parallel different instances of the synthesizer, one for each ), but to allocate compute time to a in proportion to .

Entire program search space

short programs

long programs

programs w/ reflections

programs w/ loops

etc.
Figure 9: The bias-optimal search algorithm divides the entire (intractable) program search space in to (tractable) program subspaces (written ), each of which contains a restricted set of programs. For example, one subspace might be short programs which don’t loop. The policy predicts a distribution over program subspaces. The weight that assigns to a subspace is indicated by its yellow shading in the above figure, and is conditioned on the spec .

Now in theory any is a bias-optimal searcher. But the actual runtime of the algorithm depends strongly upon the bias . Our new approach is to learn by picking the policy minimizing the expected bias-optimal time to solve a training corpus, , of graphics program synthesis problems:333This loss is differentiable but nonconvex even if is convex.

(5)

To generate a training corpus for learning a policy, we synthesized minimum cost programs for each of our hand drawings and for each , then minimized Eq. 12 using gradient descent while annealing a softened minimum to the hard minimization in Eq. 12 (see Appendix A.6). Because we want to learn a policy from only drawings, we parameterize with a low-capacity bilinear model:

(6)

where

is a one-hot encoding of the parameter settings of

(see Tbl. 4) and

extracts a vector of counts of the drawing primitives in

; thus has only 96 real-valued parameters.444 has only 96 parameters because it is a matrix mapping a 4-dimensional feature vector into a 24-dimensional output space. The output space is 24-dimensional because assumes one of 24 different values, and the input space is 4-dimensional because we have three different drawing primitives, along with an extra dimension for a ‘bias’ term.

Experiment 3: Table 5; Figure 10. We compare synthesis times for our learned search policy with 4 alternatives: Sketch, which poses the entire problem wholesale to the Sketch program synthesizer; DC, a DeepCoder–style model that learns to predict which program components (loops, reflections) are likely to be useful BalGauBroetal16 (Appendix A.7.1); End–to-End

, which trains a recurrent neural network to regress directly from images to programs (Appendix

A.7.2); and an Oracle, a policy which always picks the quickest to search also containing a minimum cost program. Our approach improves upon Sketch by itself, and comes close to the Oracle’s performance. One could never construct this Oracle, because the agent does not know ahead of time which ’s contain minimum cost programs nor does it know how long each will take to search. With this learned policy in hand we can synthesize 58% of programs within a minute.

Parameter Description Range
Loops? Is the program allowed to loop?
Reflects? Is the program allowed to have reflections?
Incremental? Solve the problem piece-by-piece or all at once?
Maximum depth Bound on the depth of the program syntax tree
Table 4: Parameterization of different ways of posing the program synthesis problem. The policy learns to choose parameters likely to quickly yield a minimal cost program.
Figure 10: Time to synthesize a minimum cost program (compare w/ Table 5). End–to–End: not shown because it times out on 96% of drawings, and has its median time (63s) calculated only on non-timeouts, wheras the other comparisons include timeouts in their median calculation. timeout. Red dashed line is median time.
Table 5: Time to synthesize a minimum cost program. Sketch: out-of-the-box performance of Sketch (solar2008program, ). DC: Deep–Coder style baseline that predicts program components, trained like BalGauBroetal16 . End–to–End: neural net trained to regress directly from images to programs, which fails to find valid programs 94% of the time. Oracle: upper bounds the performance of any bias–optimal search policy. Ours: evaluated w/ 20-fold cross validation.

4 Applications of graphics program synthesis

4.1 Correcting errors made by the neural network

The program synthesizer can help correct errors from the execution spec proposal network by favoring specs which lead to more concise or general programs. For example, one generally prefers figures with perfectly aligned objects over figures whose parts are slightly misaligned – and precise alignment lends itself to short programs. Similarly, figures often have repeated parts, which the program synthesizer might be able to model as a loop or reflectional symmetry. So, in considering several candidate specs proposed by the neural network, we might prefer specs whose best programs have desirable features such being short or having iterated structures. Intuitively, this is like the ‘top down’ influence of cognition upon perception: a reasoning engine (the program synthesizer) can influence the agent’s percept through higher-level considerations like symmetry and alignment.

Concretely, we implemented the following scheme: for an image , the neurally guided sampling scheme (Section 2) samples a set of candidate specs, written . Instead of predicting the most likely spec in according to the neural network, we can take into account the programs that best explain the specs. Writing for the spec the model predicts for image ,

(7)

where

is a prior probability distribution over programs parameterized by

. This is equivalent to doing MAP inference in a generative model where the program is first drawn from , then the program is executed deterministically, and then we observe a noisy version of the program’s output, where is our observation model.

Given a corpus of graphics program synthesis problems with annotated ground truth specs (i.e.

pairs), we find a maximum likelihood estimate of

:

(8)

where the expectation is taken both over the model predictions and the pairs in the training corpus. We define to be a log linear distribution , where is a feature extractor for programs. We extract a few basic features of a program, such as its size and how many loops it has, and use these features to help predict whether a spec is the correct explanation for an image.

Figure 11: Left: hand drawings. Center: interpretations favored by the deep network. Right: interpretations favored after learning a prior over programs. The prior favors simpler programs, thus (top) continuing the pattern of not having an arrow is preferred, or (bottom) continuing the “binary search tree” is preferred.

We synthesized programs for the top 10 specs output by the deep network. Learning this prior over programs can help correct mistakes made by the neural network, and also occasionally introduces mistakes of its own; see Fig. 11 for a representative example of the kinds of corrections that it makes. On the whole it modestly improves our Top-1 accuracy from 63% to 67%. Recall that from Fig. 8 that the best improvement in accuracy we could possibly get is 70% by looking at the top 10 specs.

4.2 Modeling similarity between drawings

Modeling drawings using programs opens up new ways to measure similarity between them. For example, we might say that two drawings are similar if they both contain loops of length 4, or if they share a reflectional symmetry, or if they are both organized according to a grid-like structure.

We measure the similarity between two drawings by extracting features of the lowest-cost programs that describe them. Our features are counts of the number of times that different components in the DSL were used (Tbl. 2). We then find drawings which are either close together or far apart in program feature space. One could use many alternative similarity metrics between drawings which would capture pixel-level similarities while missing high-level geometric similarities. We used our learned distance metric between specs, , to find drawings that are either close together or far apart according to the learned distance metric over images. Fig. 12 illustrates the kinds of drawings that these different metrics put closely together.

Close in program space Far apart in program space
Close in
image space
Far apart in
image space
Figure 12: Pairs of images either close together or far apart in different features spaces. The symbol points to the compared images. Features of the program capture abstract notions like symmetry and repetition. Distance metric over images is (see Section 2.1). The off-diagonal entries highlight the difference between these metrics: similarity of programs captures high-level features like repetition and symmetry, whereas similarity of images correspondends to similar drawing commands being in similar places.

4.3 Extrapolating figures

Having access to the source code of a graphics program facilitates coherent, high-level image editing. For example we can extrapolate figures by increasing the number of times that loops are executed. Extrapolating repetitive visuals patterns comes naturally to humans, and is a practical application: imagine hand drawing a repetitive graphical model structure and having our system automatically induce and extend the pattern. Fig. 13 shows extrapolations produced by our system.

Figure 13: Top, white: hand drawings. Bottom, black: extrapolations produced by our system.

5 Related work

Program Induction: Our approach to learning to search for programs draws theoretical underpinnings from Levin search (levin1973universal, ; solomonoff1984optimum, ) and Schmidhuber’s OOPS model (schmidhuber2004optimal, ). DeepCoder (BalGauBroetal16, ) is a recent model which, like ours, learns to predict likely program components. Our work differs by identifying and modeling the trade-off between tractability and probability of success. TerpreT (gaunt2016terpret, ) systematically compares constraint-based program synthesis techniques against gradient-based search methods, like those used to train Differentiable Neural Computers (graves2016hybrid, ). The TerpreT experiments motivate our use of constraint-based techniques.

Deep Learning: Our neural network combines the architectural ideas of Attend-Infer-Repeat (eslami1603attend, ) – which learns to decompose an image into its constituent objects – with the training regime and SMC inference of Neurally Guided Procedural Modeling ritchie2016neurally – which learns to control procedural graphics programs. IM2LATEX (im2latex, ) is a recent work that derenders LaTeX  equations, recovering a markup language representation. Our goal is to go from noisy input to a high-level program, which goes beyond markup languages by supporting programming constructs like loops and conditionals.

Hand-drawn sketches: Sketch-n-Sketch is a bi-directional editing system where direct manipulations to a program’s output automatically propagate to the program source code (Hempel:2016:SSP:2984511.2984575, ). This work compliments our own: programs produced by our method could be provided to a Sketch-n-Sketch-like system as a starting point for further editing. Other systems in the computer graphics literature convert sketches to procedural representations, using a convolutional network to match a sketch to the output of a parametric 3D modeling system in (huang2017shape, ) or supporting interactive sketch-based instantiation of procedural primitives in (Nishida:2016:ISU:2897824.2925951, ). In contrast, we seek to automatically infer a programmatic representation capturing higher-level visual patterns. The CogSketch system (forbus2011cogsketch, ) also aims to have a high-level understanding of hand-drawn figures. Their goal is cognitive modeling, whereas we are interested in building an automated AI application.

6 Contributions

We have presented a system for inferring graphics programs which generate LaTeX-style figures from hand-drawn images. The system uses a combination of deep neural networks and stochastic search to parse drawings into symbolic specifications; it then feeds these specs to a general-purpose program synthesis engine to infer a structured graphics program. We evaluated our model’s performance at parsing novel images, and we demonstrated its ability to extrapolate from provided drawings. In the near future, we believe it will be possible to produce professional-looking figures just by drawing them and then letting an artificially-intelligent agent write the code. More generally, we believe the problem of inferring visual programs is a promising direction for research in machine perception.

Acknowledgments

We are grateful for advice from Will Grathwohl and Jiajun Wu on the neural architecture. Funding from NSF GRFP, NSF Award #1753684, the MUSE program (DARPA grant FA8750-14-2-0242), and AFOSR award FA9550-16-1-0012.

References

  • [1] Armando Solar Lezama. Program Synthesis By Sketching. PhD thesis, EECS Department, University of California, Berkeley, Dec 2008.
  • [2] Brooks Paige and Frank Wood. Inference networks for sequential monte carlo in graphical models. In International Conference on Machine Learning, pages 3040–3049, 2016.
  • [3] Jürgen Schmidhuber. Optimal ordered problem solver. Machine Learning, 54(3):211–254, 2004.
  • [4] Daniel Ritchie, Anna Thomas, Pat Hanrahan, and Noah Goodman. Neurally-guided procedural models: Amortized inference for procedural graphics programs using neural networks. In NIPS, 2016.
  • [5] SM Eslami, N Heess, and T Weber.

    Attend, infer, repeat: Fast scene understanding with generative models.

    In NIPS, 2016.
  • [6] Jiajun Wu, Joshua B Tenenbaum, and Pushmeet Kohli. Neural scene de-rendering. In CVPR, 2017.
  • [7] Max Jaderberg, Karen Simonyan, Andrew Zisserman, et al. Spatial transformer networks. In NIPS, 2015.
  • [8] Arnaud Doucet, Nando De Freitas, and Neil Gordon, editors. Sequential Monte Carlo Methods in Practice. Springer, 2001.
  • [9] Oriol Vinyals, Alexander Toshev, Samy Bengio, and Dumitru Erhan. Show and tell: A neural image caption generator. In

    Proceedings of the IEEE conference on computer vision and pattern recognition

    , pages 3156–3164, 2015.
  • [10] Ian Goodfellow, Yoshua Bengio, and Aaron Courville. Deep Learning. MIT Press, 2016.
  • [11] Oleksandr Polozov and Sumit Gulwani. Flashmeta: A framework for inductive program synthesis. ACM SIGPLAN Notices, 50(10):107–126, 2015.
  • [12] Leonid Anatolevich Levin. Universal sequential search problems. Problemy Peredachi Informatsii, 9(3):115–116, 1973.
  • [13] Matej Balog, Alexander L. Gaunt, Marc Brockschmidt, Sebastian Nowozin, and Daniel Tarlow. DeepCoder: Learning to write programs. arXiv preprint arXiv:1611.01989, 2016.
  • [14] Raymond J Solomonoff. Optimum sequential search. 1984.
  • [15] Alexander L Gaunt, Marc Brockschmidt, Rishabh Singh, Nate Kushman, Pushmeet Kohli, Jonathan Taylor, and Daniel Tarlow. Terpret: A probabilistic programming language for program induction. arXiv preprint arXiv:1608.04428, 2016.
  • [16] Alex Graves, Greg Wayne, Malcolm Reynolds, Tim Harley, Ivo Danihelka, Agnieszka Grabska-Barwińska, Sergio Gómez Colmenarejo, Edward Grefenstette, Tiago Ramalho, John Agapiou, et al. Hybrid computing using a neural network with dynamic external memory. Nature, 538(7626):471–476, 2016.
  • [17] Yuntian Deng, Anssi Kanervisto, Jeffrey Ling, and Alexander M. Rush. Image-to-markup generation with coarse-to-fine attention. In ICML, 2017.
  • [18] Brian Hempel and Ravi Chugh. Semi-automated svg programming via direct manipulation. In Proceedings of the 29th Annual Symposium on User Interface Software and Technology, UIST ’16, pages 379–390, New York, NY, USA, 2016. ACM.
  • [19] Haibin Huang, Evangelos Kalogerakis, Ersin Yumer, and Radomir Mech. Shape synthesis from sketches via procedural models and convolutional networks. IEEE transactions on visualization and computer graphics, 2017.
  • [20] Gen Nishida, Ignacio Garcia-Dorado, Daniel G. Aliaga, Bedrich Benes, and Adrien Bousseau. Interactive sketching of urban procedural models. ACM Trans. Graph., 35(4), 2016.
  • [21] Kenneth Forbus, Jeffrey Usher, Andrew Lovett, Kate Lockwood, and Jon Wetzel. Cogsketch: Sketch understanding for cognitive science research and for education. Topics in Cognitive Science, 3(4):648–666, 2011.
  • [22] Jacob Devlin, Jonathan Uesato, Surya Bhupatiraju, Rishabh Singh, Abdel-rahman Mohamed, and Pushmeet Kohli. Robustfill: Neural program learning under noisy i/o. ICML, 2017.
  • [23] Illia Polosukhin and Alexander Skidanov. Neural program search: Solving programming tasks from description and examples. ICLR Workshop Track, 2018.
  • [24] Oriol Vinyals, Łukasz Kaiser, Terry Koo, Slav Petrov, Ilya Sutskever, and Geoffrey Hinton. Grammar as a foreign language. In Advances in Neural Information Processing Systems, pages 2773–2781, 2015.

Appendix A Appendix

a.1 Neural architecture details

a.1.1 Convolutional network

The convolutional network takes as input 2 images represented as a

volume. These are passed through two layers of convolutions separated by ReLU nonlinearities and max pooling:

  • Layer 1: 20 convolutions, 2 convolutions, 2 convolutions. Followed by

    pooling with a stride size of 4.

  • Layer 2: 10 convolutions. Followed by pooling with a stride size of 4.

a.1.2 Autoregressive decoding of drawing commands

Given the image features , we predict the first token (i.e., the name of the drawing command: circle, rectangle, line, or STOP

) using logistic regression:

(9)

where is a learned weight matrix and

is a learned bias vector.

Given an attention mechanism , subsequent tokens are predicted as:

(10)

Thus each token of each drawing primitive has its own learned MLP. For predicting the coordinates of lines we found that using 32 hidden nodes with sigmoid activations worked well; for other tokens the MLP’s are just logistic regression (no hidden nodes).

We use Spatial Transformer Networks [7] as our attention mechanism. The parameters of the spatial transform are predicted on the basis of previously predicted tokens. For example, in order to decide where to focus our attention when predicting the coordinate of a circle, we condition upon both the identity of the drawing command (circle) and upon the value of the previously predicted coordinate:

(11)

So, we learn a different network for predicting special transforms for each drawing command (value of ) and also for each token of the drawing command. These networks ( in equation 11) have no hidden layers and output the 6 entries of an affine transformation matrix; see [7] for more details.

Training takes a little bit less than a day on a Nvidia TitanX GPU. The network was trained on synthetic examples.

a.2 LSTM Baseline for Parsing into Specs

We compared our deep network with a baseline that models the problem as a kind of image captioning. Given the target image, this baseline produces the program spec in one shot by using a CNN to extract features of the input which are passed to an LSTM which finally predicts the spec token-by-token. This general architecture is used in several successful neural models of image captioning (e.g., [9]).

Concretely, we kept the image feature extractor architecture (a CNN) as in our model, but only passed it one image as input (the target image to explain). Then, instead of using an autoregressive decoder to predict a single drawing command, we used an LSTM to predict a sequence of drawing commands token-by-token. This LSTM had 128 memory cells, and at each time step produced as output the next token in the sequence of drawing commands. It took as input both the image representation and its previously predicted token.

a.3 Architecture and training of

Our architecture for has the same series of convolutions as the network that predicts the next drawing command. We train it to predict two scalars: and

. These predictions are made using linear regression from the image features followed by a ReLU nonlinearity; this nonlinearity makes sense because the predictions can never be negative but could be arbitrarily large positive numbers.

We train this network by sampling random synthetic scenes for , and then perturbing them in small ways to produce . We minimize the squared loss between the network’s prediction and the ground truth symmetric differences. is rendered in the “simulated hand drawing” style (Section 2.1).

a.4 Simulating hand drawings

We introduce noise into the LaTeX rendering process by:

  • Rescaling the image intensity by a factor chosen uniformly at random from

  • Translating the image by pixels chosen uniformly random

  • Rendering the LaTeX using the pencildraw style, which adds random perturbations to the paths drawn by LaTeXin a way designed to resemble a pencil.

  • Randomly perturbing the positions and sizes of primitive LaTeXdrawing commands

Empirically this noise process is close enough to the kinds of variations introduced by an actual hand drawing that the learned model generalizes to our test set of hand drawings, despite having never been trained on any real hand drawings.

a.5 A cost function over programs

Programs incur a cost of 1 for each command (primitive drawing action, loop, or reflection). They incur a cost of

for each unique coefficient they use in a linear transformation beyond the first coefficient. This encourages reuse of coefficients, which leads to code that has translational symmetry; rather than provide a translational symmetry operator as we did with reflection, we modify what is effectively a prior over the space of program so that it tends to produce programs that have this symmetry.

Programs also incur a cost of 1 for having loops of constant length 2; otherwise there is often no pressure from the cost function to explain a repetition of length 2 as being a reflection rather a loop.

a.6 Training a search policy

Recall from the main paper that our goal is to estimate the policy minimizing the following loss:

(12)

We make this optimization problem tractable by annealing our loss function during gradient descent:

(13)
where (14)

Notice that is just . We set the regularization coefficient and minimize equation 13 using Adam for 2000 steps, linearly increasing from to .

a.7 Program synthesis baselines

a.7.1 DeepCoder

We compared our synthesis policy with a DeepCoder-style baseline. DeepCoder (DC) [13] is an approach for learning to speed up program synthesizers. DC models are neural networks that predict, starting from a spec, the probability of a DSL component being in a minimal-cost program satisfying the spec. Writing for the distribution predicted by the neural network, DC is trained to maximize the following objective:

(15)

where ranges over DSL components and is the probability predicted by the DC model for component for spec .

We provided our DC model with the same features given to our bias optimal search policy ( in Section 3.1), used the same log-linear model, and trained using the same 20-fold cross validation splits. To evaluate the DC baseline on held out data, we used the Sort-and-Add policy described in the DeepCoder paper [13].

a.7.2 End–to–End

Recall that we factored the graphics program synthesis problem into two components: (1) a perception-facing component, whose job is to go from perceptual input to a set of commands that must occur in the execution of the program (spec); and (2) a program synthesis component, whose job is to infer a program whose execution contains those commands. This is a different approach from other recent program induction models (e.g., [22, 23]), which regress directly from a program induction problem to the source code of the program.

Experiment. To test whether this factoring is necessary for our domain, we trained a model to regress directly from images to graphics programs. This baseline model, which we call the no-spec baseline, was able to infer some simple programs, but failed completely on more sophisticated scenes.

Baseline model architecture: The model architecture is a straightforward, image-captioning-style CNNLSTM. We keep the same CNN architecture from our main model, with the sole difference that it takes only one image as input. The LSTM decoder produces the program token-by-token: so we flatten the program’s hierarchical structure, and use special “bracketing” symbols to convey nesting structure, in the spirit of [24]. The LSTM decoder has 2 hidden layers with 1024 units. We used 64-dimensional embeddings for the program tokens.

Training and evaluation: The model was trained on synthetically generated programs – 2 orders of magnitude more data than the model we present in the main paper. We then evaluated the baseline on synthetic renders of our 100 hand drawings (the testing set used throughout the paper). Recall that our model was evaluated on noisy real hand drawings. We sample programs from this baseline model conditioned on a synthetic render of a hand drawing, and report only the sampled program whose output most closely matched the ground truth spec spec, as measured by the symmetric difference of the two sets. We allow the baseline model to spend 1 hour drawing samples per drawing – recall that our model finds 58% of programs in under a minute. Together these training and evaluation choices are intended to make the problem as easy as possible for the baseline.

Results: The no-spec baseline succeeds for trivial programs (a few lines, no variables, loops, etc.); occasionally gets small amounts of simple looping structure; and fails utterly for most of our test cases. See Figure 14.

Figure 14: Top, white: synthetic rendering of a hand drawing. Bottom, black: output of best program found by no-spec baseline.
