1 Introduction

When a student is asked a question by a teacher, but is not confident about the answer, they may ask for clarification or hints. A good conversational agent (a learner/bot/student) should have this ability to interact with a dialogue partner (the teacher/user). However, recent efforts have mostly focused on learning through fixed answers provided in the training set, rather than through interactions. In that case, when a learner encounters a confusing situation such as an unknown surface form (phrase or structure), a semantically complicated sentence or an unknown word, the agent will either make a (usually poor) guess or will redirect the user to other resources (e.g., a search engine, as in Siri). Humans, in contrast, can adapt to many situations by asking questions.

We identify three categories of mistakes a learner can make during dialogue111This list is not exhaustive; for example, we do not address a failure in the dialogue generation stage.: (1) the learner has problems understanding the surface form of the text of the dialogue partner, e.g., the phrasing of a question; (2) the learner has a problem with reasoning, e.g. they fail to retrieve and connect the relevant knowledge to the question at hand; (3) the learner lacks the knowledge necessary to answer the question in the first place – that is, the knowledge sources the student has access to do not contain the needed information.

All the situations above can be potentially addressed through interaction with the dialogue partner. Such interactions can be used to learn to perform better in future dialogues. If a human student has problems understanding a teacher’s question, they might ask the teacher to clarify the question. If the student doesn’t know where to start, they might ask the teacher to point out which known facts are most relevant. If the student doesn’t know the information needed at all, they might ask the teacher to tell them the knowledge they’re missing, writing it down for future use.

In this work, we try to bridge the gap between how a human and an end-to-end machine learning dialogue agent deal with these situations: our student has to

learn how to learn. We hence design a simulator and a set of synthetic tasks in the movie question answering domain that allow a bot to interact with a teacher to address the issues described above. Using this framework, we explore how a bot can benefit from interaction by asking questions in both offline supervised settings and online reinforcement learning settings, as well as how to choose when to ask questions in the latter setting. In both cases, we find that the learning system improves through interacting with users.

Finally, we validate our approach on real data where the teachers are humans using Amazon Mechanical Turk, and observe similar results.

2 Related Work

Learning language through interaction and feedback can be traced back to the 1950s, when Wittgenstein argued that the meaning of words is best understood from their use within given language games (Wittgenstein, 2010). The direction of interactive language learning through language games has been explored in the early seminal work of Winograd (Winograd, 1972), and in the recent SHRDLURN system (Wang et al., 2016). In a broader context, the usefulness of feedback and interactions has been validated in the setting of multiple language learning, such as second language learning (Bassiri, 2011) and learning by students (Higgins et al., 2002; Latham, 1997; Werts et al., 1995).

In the context of dialogue, with the recent popularity of deep learning models, many neural dialogue systems have been proposed. These include the

chit-chat type end-to-end dialogue systems (Vinyals & Le, 2015; Li et al., 2015; Sordoni et al., 2015), which directly generate a response given the previous history of user utterance. It also include a collection of goal-oriented dialogue systems (Wen et al., 2016; Su et al., 2016; Bordes & Weston, 2016)

, which complete a certain task such as booking a ticket or making a reservation at a restaurant. Another line of research focuses on supervised learning for question answering from dialogues

(Dodge et al., 2015; Weston, 2016), using either a given database of knowledge (Bordes et al., 2015; Miller et al., 2016) or short stories (Weston et al., 2015). As far as we know, current dialogue systems mostly focus on learning through fixed supervised signals rather than interacting with users.

Our work is closely related to the recent work of Weston (2016), which explores the problem of learning through conducting conversations, where supervision is given naturally in the response during the conversation. Their work introduced multiple learning schemes from dialogue utterances. In particular the authors discussed Imitation Learning, where the agent tries to learn by imitating the dialogue interactions between a teacher and an expert student; Reward-Based Imitation Learning, which only learns by imitating the dialogue interactions which have have correct answers; and Forward Prediction, which learns by predicting the teacher’s feedback to the student’s response. Despite the fact that Forward Prediction does not uses human-labeled rewards, the authors show that it yields promising results. However, their work did not fully explore the ability of an agent to learn via questioning and interaction. Our work can be viewed as a natural extension of theirs.

3 The Tasks

In this section we describe the dialogue tasks we designed222 Code and data are available at https://github.com/facebook/MemNN/tree/master/AskingQuestions. . They are tailored for the three different situations described in Section 1 that motivate the bot to ask questions: (1) Question Clarification, in which the bot has problems understanding its dialogue partner’s text; (2) Knowledge Operation, in which the bot needs to ask for help to perform reasoning steps over an existing knowledge base; and (3) Knowledge Acquisition, in which the bot’s knowledge is incomplete and needs to be filled.

For our experiments we adapt the WikiMovies dataset (Weston et al., 2015), which consists of roughly 100k questions over 75k entities based on questions with answers in the open movie dataset (OMDb). The training/dev/test sets respectively contain 181638 / 9702 / 9698 examples. The accuracy metric corresponds to the percentage of times the student gives correct answers to the teacher’s questions.

Each dialogue takes place between a teacher and a bot. In this section we describe how we generate tasks using a simulator. Section 4.2 discusses how we test similar setups with real data using Mechanical Turk.

The bot is first presented with facts from the OMDb KB. This allows us to control the exact knowledge the bot has access to. Then, we include several teacher-bot question-answer pairs unrelated to the question the bot needs to answer, which we call conversation histories333 These history QA pairs can be viewed as distractions and are used to test the bot’s ability to separate the wheat from the chaff. For each dialogue, we incorporate 5 extra QA pairs (10 sentences).. In order to explore the benefits of asking clarification questions during a conversation, for each of the three scenarios, our simulator generated data for two different settings, namely, Question-Answering (denoted by QA), and Asking-Question (denoted by AQ). For both QA and AQ, the bot needs to give an answer to the teacher’s original question at the end. The details of the simulator can be found in the appendix.

3.1 Question Clarification.

In this setting, the bot does not understand the teacher’s question. We focus on a special situation where the bot does not understand the teacher because of typo/spelling mistakes, as shown in Figure 1. We intentionally misspell some words in the questions such as replacing the word “movie” with “movvie” or “star” with “sttar”.444Many reasons could lead to the bot not understanding the teacher’s question, e.g., the teacher’s question has an unknown phrase structure, rather than unknown words. We choose to use spelling mistakes because of the ease of dataset construction. To make sure that the bot will have problems understanding the question, we guarantee that the bot has never encountered the misspellings before—the misspelling-introducing mechanisms in the training, dev and test sets are different, so the same word will be misspelled in different ways in different sets. We present two AQ tasks: (i) Question Paraphrase where the student asks the teacher to use a paraphrase that does not contain spelling mistakes to clarify the question by asking “what do you mean?”; and (ii) Question Verification where the student asks the teacher whether the original typo-bearing question corresponds to another question without the spelling mistakes (e.g., “Do you mean which film did Tom Hanks appear in?”). The teacher will give feedback by giving a paraphrase of the original question without spelling mistakes (e.g., “I mean which film did Tom Hanks appear in”) in Question Paraphrase or positive/negative feedback in Question Verification. Next the student will give an answer and the teacher will give positive/negative feedback depending on whether the student’s answer is correct. Positive and negative feedback are variants of “No, that’s incorrect” or “Yes, that’s right”555In the datasets we build, there are 6 templates for positive feedback and 6 templates for negative feedback.. In these tasks, the bot has access to all relevant entries in the KB.

3.2 Knowledge Operation

The bot has access to all the relevant knowledge (facts) but lacks the ability to perform necessary reasoning operations over them; see Figure 2. We focus on a special case where the bot will try to understand what are the relevant facts. We explore two settings: Ask For Relevant Knowledge (Task 3) where the bot directly asks the teacher to point out the relevant KB fact and Knowledge Verification (Task 4) where the bot asks whether the teacher’s question is relevant to one particular KB fact. The teacher will point out the relevant KB fact in the Ask For Relevant Knowledge setting or give a positive or negative response in the Knowledge Verification setting. Then the bot will give an answer to the teacher’s original question and the teacher will give feedback on the answer.

Task 1: Question Paraphrase (QA) Task 1: Question Paraphrase (AQ):
kb: Larry Crowne directed_by Tom Hanks kb: Larry Crowne directed_by Tom Hanks
kb: Forrest Gump starred_actors Tom Hanks, kb: Forrest Gump starred_actors Tom Hanks,
Robin Wright, Gary Sinise Robin Wright, Gary Sinise
kb: Forrest Gump directed_by Robert Zemeckis kb: Forrest Gump directed_by Robert Zemeckis
T/S : Conversation History. T/S : Conversation History.
T : Which movvie did Tom Hanks sttar in ? T : Which movvie did Tom Hanks sttar in ?
S : Larry Crowne S : What do you mean ?
T : Wrong. (-) T : I mean which film did Tom Hanks appear in.
T : Which movvie did Tom Hanks sttar in ?
S : Forrest Gump
T : That’s correct. (+)
Task 2: Question Verification (QA): Task 2: Question Verification (AQ)
kb: Larry Crowne directed_by Tom Hanks kb: Larry Crowne directed_by Tom Hanks
kb: Forrest Gump starred_actors Tom Hanks, kb: Forrest Gump starred_actors Tom Hanks,
Robin Wright, Gary Sinise Robin Wright, Gary Sinise
kb: Forrest Gump directed_by Robert Zemeckis kb: Forrest Gump directed_by Robert Zemeckis
T/S : Conversation History. T/S : Conversation History.
T : Which movvie did Tom Hanks sttar in ? T : Which movvie did Tom Hanks sttar in ?
S : Forrest Gump S : Do you mean which film did Tom Hanks appear in ?
T : That’s correct. (+) T : That’s correct. (+)
T : Which movvie did Tom Hanks sttar in ?
S : Larry Crowne
T : Sorry, that’s not right. (-)
Figure 1: Sample dialogues for the two Question Clarification tasks (rows) using both the traditional QA setting (left column) and AQ setting (right column). In each case the same example is given for simplicity. Black text prefixed by “kb:” denotes KB knowledge that the student has access to. Blue text is spoken by the teacher, denoted by T. (+) denotes a reward of 1 (and 0 otherwise) that the teacher assigns to the bot. Red text denotes responses or questions posed by the bot, denoted by S. Brown denotes typos deliberately introduced by the authors. For the Question Verification

setting, the student can either ask a correct (pertinent) question (as in this example) or an incorrect (irrelevant) one. The teacher will give positive or negative feedback based on the correctness of the student’s question. In our offline superised learning experiments, the probability of asking pertinent questions and correctly answering the original question from the teacher is set to 0.5. Finally,

T/S denotes 5 pairs of questions and answers that are irrelevant to the rest of the conversation.
Task 3: Ask For Relevant Knowledge (AQ): Task 4: Knowledge Verification (AQ):
kb: Larry Crowne directed_by Tom Hanks kb: Larry Crowne directed_by Tom Hanks
kb: Forrest Gump starred_actors Tom Hanks, kb: Forrest Gump starred_actors Tom Hanks,
Robin Wright, Gary Sinise Robin Wright, Gary Sinise
kb: Forrest Gump directed_by Robert Zemeckis kb: Forrest Gump directed_by Robert Zemeckis
T/S : Conversation History. T/S : Conversation History.
T : Which movie did Tom Hanks star in ? T : Which movie did Tom Hanks star in ?
S : Can you give me a hint ? S : Does it have something to do with
T : It is related to the kb fact that      Larry Crowne directed_by Tom Hanks?
     Forrest Gump starred_actors Tom Hanks T : No. That’s wrong. (-)
      Robin Wright, Gary Sinise T : Which movie did Tom Hanks star in ?
T : Which movie did Tom Hanks star in ? S : Forrest Gump
S : Forrest Gump T : That’s correct. (+)
T : That’s correct. (+)
Figure 2: Sample dialogues for Knowledge Operation tasks.
.
Task 5: Missing Question Entity (QA) Task 5: Missing Question Entity (AQ)
kb: Larry Crowne directed_by Tom Hanks kb: Larry Crowne directed_by Tom Hanks
kb: Forrest Gump starred_actors Tom Hanks kb: Forrest Gump starred_actors Tom Hanks,
kb: Forrest Gump starred_actors Sally Field kb: Forrest Gump starred_actors Sally Field
kb: Forrest Gump directed_by Robert Zemeckis kb: Forrest Gump directed_by Robert Zemeckis
T/S : Conversation History. T : Which movie did Tom Hanks star in ?
T : Which movie did Tom Hanks star in ? S : I don’t know. What’s the answer?
S : Forrest Gump T : The answer is Forrest Gump.
T : That’s correct. (+) T/S : Conversation History.
T : Which movie did Tom Hanks star in ?
S : Forrest Gump
T : That’s correct. (+)
Task 6: Missing Answer Entity (AQ) Task 7: Missing Relation Entity (AQ)
kb: Larry Crowne directed_by Tom Hanks kb: Larry Crowne directed_by Tom Hanks
kb: Forrest Gump starred_actors Tom Hanks kb: Forrest Gump starred_actors Tom Hanks,
kb: Forrest Gump starred_actors Sally Field kb: Forrest Gump starred_actors Sally Field
kb: Forrest Gump directed_by Robert Zemeckis kb: Forrest Gump directed_by Robert Zemeckis
T : Which movie did Tom Hanks star in ? T : Which movie did Tom Hanks star in ?
S : I don’t know. What’s the answer? S : I don’t know. What’s the answer?
T : The answer is Forrest Gump. T : The answer is Forrest Gump.
T/S : Conversation History. T/S : Conversation History.
T : Which movie did Tom Hanks star in ? T : Which movie did Tom Hanks star in ?
S : Forrest Gump S : Forrest Gump
T : That’s correct. (+) T : That’s correct. (+)
.
Task 8: Missing Triple (AQ) Task 9: Missing Everything (AQ)
kb: Larry Crowne directed_by Tom Hanks kb: Larry Crowne directed_by Tom Hanks
kb: Forrest Gump starred_actors Tom Hanks kb: Forrest Gump starred_actors Tom Hanks,
kb: Forrest Gump starred_actors Sally Field kb: Forrest Gump starred_actors Sally Field
kb: Forrest Gump directed_by Robert Zemeckis kb: Forrest Gump directed_by Robert Zemeckis
T : Which movie did Tom Hanks star in ? T : Which movie did Tom Hanks star in ?
S : I don’t know. What’s the answer? S : I don’t know. What’s the answer?
T : The answer is Forrest Gump. T : The answer is Forrest Gump.
T/S : Conversation History. T/S : Conversation History.
T : Which movie did Tom Hanks star in ? T : Which movie did Tom Hanks star in ?
S : Forrest Gump S : Forrest Gump
T : That’s correct. (+) T : That’s correct. (+)
Figure 3: Different Tasks for Knowledge Acquisition. Crossed lines correspond to entries of the KB whose retrieval is missed.

3.3 Knowledge Acquisition

For the tasks in this subsection, the bot has an incomplete KB and there are entities important to the dialogue missing from it, see Figure 3. For example, given the question “Which movie did Tom Hanks star in?”, the missing part could either be the entity that the teacher is asking about (question entity for short, which is Tom Hanks in this example), the relation entity (starred_actors), the answer to the question (Forrest Gump), or the combination of the three. In all cases, the bot has little chance of giving the correct answer due to the missing knowledge. It needs to ask the teacher the answer to acquire the missing knowledge. The teacher will give the answer and then move on to other questions (captured in the conversational history). They later will come back to reask the question. At this point, the bot needs to give an answer since the entity is not new any more.

Though the correct answer has effectively been included in the earlier part of the dialogue as the answer to the bot’s question, as we will show later, many of the tasks are not as trivial as they look when the teacher reasks the question. This is because the bot’s model needs to memorize the missing entity and then construct the links between the missing entities and known ones. This is akin to the real world case where a student might make the same mistake again and again even though each time the teacher corrects them if their answer is wrong. We now detail each task in turn.

Missing Question Entity: The entity that the teacher is asking about is missing from the knowledge base. All KB facts containing the question entity will be hidden from the bot. In the example for Task 5 in Figure 3, since the teacher’s question contains the entity Tom Hanks, the KB facts that contain Tom Hanks are hidden from the bot.

Missing Answer Entity: The answer entity to the question is unknown to the bot. All KB facts that contain the answer entity will be hidden. Hence, in Task 6 of Figure 3, all KB facts containing the answer entity Forrest Gump will be hidden from the bot.

Missing Relation Entity: The relation type is unknown to the bot. In Task 7 of Figure 3, all KB facts that express the relation starred actors are hidden from the bot.

Missing Triples: The triple that expresses the relation between the question entity and the answer entity is hidden from the bot. In Task 8 of Figure 3, the triple “Forrest Gump (question entity) starred_actors Tom Hanks (answer entity)” will be hidden.

Missing Everything: The question entity, the relation entity, the answer entity are all missing from the KB. All KB facts in Task 9 of Figure 3 will be removed since they either contain the relation entity (i.e., starred_actors), the question entity (i.e., Forrest Gump) or the answer entity Tom Hanks.

4 Train/Test Regime

We now discuss in detail the regimes we used to train and test our models, which are divided between evaluation within our simulator and using real data collected via Mechanical Turk.

4.1 Simulator

Using our simulator, our objective was twofold. We first wanted to validate the usefulness of asking questions in all the settings described in Section 3. Second, we wanted to assess the ability of our student bot to learn when to ask questions. In order to accomplish these two objectives we explored training our models with our simulator using two methodologies, namely, Offline Supervised Learning and Online Reinforcement Learning.

4.1.1 Offline Supervised Learning

The motivation behind training our student models in an offline supervised setting was primarily to test the usefulness of the ability to ask questions. The dialogues are generated as described in the previous section, and the bot’s role is generated with a fixed policy. We chose a policy where answers to the teacher’s questions are correct answers 50% of the time, and incorrect otherwise, to add a degree of realism. Similarly, in tasks where questions can be irrelevant they are only asked correctly 50% of the time.666This only makes sense in tasks like Question or Knowledge Verification. In tasks where the question is static such as ‘What do you mean?” there is no way to ask an irrelevant question, and we do not use this policy.

The offline setting explores different combinations of training and testing scenarios, which mimic different situations in the real world. The aim is to understand when and how observing interactions between two agents can help the bot improve its performance for different tasks. As a result we construct training and test sets in three ways across all tasks, resulting in different scenarios per task, each of which correspond to a real world scenario.

The three training sets we generated are referred to as TrainQA, TrainAQ, and TrainMix. TrainQA follows the QA setting discussed in the previous section: the bot never asks questions and only tries to immediately answer. TrainAQ follows the AQ setting: the student, before answering, first always asks a question in response to the teacher’s original question. TrainMix is a combination of the two where of time the student asks a question and does not.

The three test sets we generated are referred to as TestQA, TestAQ, and TestModelAQ. TestQA and TestAQ are generated similarly to TrainQA and TrainAQ, but using a perfect fixed policy (rather than 50% correct) for evaluation purposes. In the TestModelAQ setting the model has to get the form of the question correct as well. In the Question Verification and Knowledge Verification tasks there are many possible ways of forming the question and some of them are correct – the model has to choose the right question to ask. E.g. it should ask “Does it have something to do with the fact that Larry Crowne directed by Tom Hanks?”rather than “Does it have something to do with the fact that Forrest Gump directed by Robert Zemeckis?” when the latter is irrelevant (the candidate list of questions is generated from the known knowledge base entries with respect to that question). The policy is trained using either the TrainAQ or TrainMix set, depending on the training scenario. The teacher will reply to the question, giving positive feedback if the student’s question is correct and no response and negative feedback otherwise. The student will then give the final answer. The difference between TestModelAQ and TestAQ only exists in the Question Verification and Knowledge Verification tasks; in other tasks there is only one way to ask the question and TestModelAQ and TestAQ are identical.

To summarize, for every task listed in Section 3 we train one model for each of the three training sets (TrainQA, TrainAQ, TrainMix) and test each of these models on the three test sets (TestQA, TestAQ, and TestModelAQ), resulting in combinations. For the purpose of notation the train/test combination is denoted by “TrainSetting+TestSetting”. For example, TrainAQ+TestQA denotes a model which is trained using the TrainAQ dataset and tested on TestQA dataset. Each combination has a real world interpretation. For instance, TrainAQ+TestQA would refer to a scenario where a student can ask the teacher questions during learning but cannot to do so while taking an exam. Similarly, TrainQA+TestQA describes a stoic teacher that never answers a student’s question at either learning or examination time. The setting TrainQA+TestAQ corresponds to the case where a lazy student never asks question at learning time but gets anxious during the examination and always asks a question.

4.1.2 Online Reinforcement Learning (RL)

We also explored scenarios where the student learns the ability to decide when to ask a question. In other words, the student learns how to learn.

Although it is in the interest of the student to ask questions at every step of the conversation, since the response to its question will contain extra information, we don’t want our model to learn this behavior. Each time a human student asks a question, there’s a cost associated with that action. This cost is a reflection of the patience of the teacher, or more generally of the users interacting with the bot in the wild: users won’t find the bot engaging if it always asks clarification questions. The student should thus be judicious about asking questions and learn when and what to ask. For instance, if the student is confident about the answer, there is no need for it to ask. Or, if the teacher’s question is so hard that clarification is unlikely to help enough to get the answer right, then it should also refrain from asking.

We now discuss how we model this problem under the Reinforcement Learning framework. The bot is presented with KB facts (some facts might be missing depending on the task) and a question. It needs to decide whether to ask a question or not at this point. The decision whether to ask is made by a binary policy . If the student chooses to ask a question, it will be penalized by . We explored different values of ranging from , which we consider as modeling the patience of the teacher. The goal of this setting is to find the best policy for asking/not-asking questions which would lead to the highest cumulative reward. The teacher will appropriately reply if the student asks a question. The student will eventually give an answer to the teacher’s initial question at the end using the policy , regardless of whether it had asked a question. The student will get a reward of if its final answer is correct and otherwise. Note that the student can ask at most one question and that the type of question is always specified by the task under consideration. The final reward the student gets is the cumulative reward over the current dialogue episode. In particular the reward structure we propose is the following:

Asking Question Not asking Question
Final Answer Correct 1- 1
Final Answer Incorrect -1- -1
Table 1: Reward structure for the Reinforcement Learning setting.

For each of the tasks described in Section 3, we consider three different RL scenarios.
Good-Student: The student will be presented with all relevant KB facts. There are no misspellings or unknown words in the teacher’s question. This represents a knowledgable student in the real world that knows as much as it needs to know (e.g., a large knowledge base, large vocabulary). This setting is identical across all missing entity tasks (5 - 9).
Poor-Student: The KB facts or the questions presented to the student are flawed depending on each task. For example, for the Question Clarification tasks, the student does not understand the question due to spelling mistakes. For the Missing Question Entity task the entity that the teacher asks about is unknown by the student and all facts containing the entity will be hidden from the student. This setting is similar to a student that is underprepared for the tasks.
Medium-Student: The combination of the previous two settings where for of the questions, the student has access to the full KB and there are no new words or phrases or entities in the question, and of the time the question and KB are taken from the Poor-Student setting.

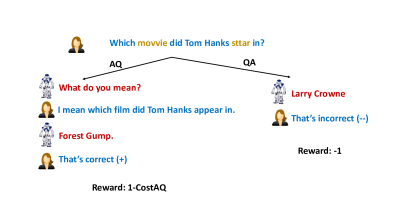

Figure 4: An illustration of the poor-student setting for RL Task 1 (Question Paraphrase).

4.2 Mechanical Turk Data

Finally, to validate our approach beyond our simulator by using real language, we collected data via Amazon Mechanical Turk. Due to the cost of data collection, we focused on real language versions of Tasks 4 (Knowledge Verification) and 8 (Missing Triple), see Secs. 3.2 and 3.3 for the simulator versions. That is, we collect dialoguess and use them in an offline supervised learning setup similar to Section 4.1.1. This setup allows easily reproducibile experiments.

For Mechanical Turk Task 4, the bot is asked a question by a human teacher, but before answering can ask the human if the question is related to one of the facts it knows about from its memory. It is then required to answer the original question, after some additional dialog turns relating to other question/answer pairs (called “conversational history”, as before). For Task 8, the bot is asked a question by a human but lacks the triple in its memory that would be needed to answer it. It is allowed to ask for the missing information, the human responds to the question in free-form language. The bot is then required to answer the original question, again after some “conversational history” has transpired.

We collect around 10,000 episodes (dialogues) for training, 1000 for validation, and 2500 for testing for each of the two tasks. In each case, we give instructions to the Turkers that still follow the original form of the task, but make the tasks contain realistic language written by humans. The instructions given to the Turkers are given in the appendix.

For both tasks, while the human turkers replace the simulator that the bot was previously conversing with, the bot’s dialogue actions (capabilities) are essentially unchanged from before. That is, when answering questions, now the bot is required to answer a human’s questions rather than templated questions from the simulator. When the bot is asking questions, the bot still asks in the same form as before, e.g. questions like “Does it have something to do with X” for Task 4 or “I don’t know. What’s the answer?” for Task 8. However, now its questions are answered by a human. In both cases (asking and answering) the human data is richer with potentially more complex language and lexical variability. Examples of the collected dialogues are given in Figure 5.

MTurk Task 4: Knowledge Verification (AQ):
  kb: In Their Skin written_by Joshua Close, Jeremy Power Regimbal
  kb: In Their Skin starred_actors Selma Blair, James D’arcy, Rachel Miner, Joshua Close
  T: What film was written by Joshua Close?
  S: Does it have something to do with “In Their Skin starred_actors Joshua Close”?
  T: No we were looking for who wrote the film not who starred in it.
  …
MTurk Task 8: Missing Triple (AQ):
  T :What movies does Timothy Scott Bogart have writing credit for?
  S: I don’t know. What’s the answer?
  T: Extreme Ops or The I Inside is the right answer.
  …
Figure 5: Sample dialogues for Mechanical Turk versions of Tasks 4 and 8. Compared to the original tasks (see Figs 2 and 3) the teacher’s questions, and the teacher responses to the student’s questions, are written by humans and are more complex and contain more variety.

5 Models

For both offline supervised and online RL settings, we use the End-to-End Memory Network model (MemN2N) (Sukhbaatar et al., 2015) as a backbone. The model takes as input the last utterance of the dialogue history (the question from the teacher) as well as a set of memory contexts including short-term memories (the dialogue history between the bot and the teacher) and long-term memories (the knowledge base facts that the bot has access to), and outputs a label. We refer readers to the Appendix for more details about MemN2N.

Offline Supervised Settings: The first learning strategy we adopt is the reward-based imitation strategy (denoted vanilla-MemN2N) described in (Weston, 2016), where at training time, the model maximizes the log likelihood probability of the correct answers the student gave (examples with incorrect final answers are discarded). Candidate answers are words that appear in the memories, which means the bot can only predict the entities that it has seen or known before.

We also use a variation of MemN2N called “context MemN2N” (Cont-MemN2N

for short) where we replace each word’s embedding with the average of its embedding (random for unseen words) and the embeddings of the other words that appear around it. We use both the preceeding and following words as context and the number of context words is a hyperparameter selected on the dev set.

An issue with both vanilla-MemN2N and Cont-MemN2N is that the model only makes use of the bot’s answers as signals and ignores the teacher’s feedback. We thus propose to use a model that jointly predicts the bot’s answers and the teacher’s feedback (denoted as TrainQA (+FP)). The bot’s answers are predicted using a vanilla-MemN2N and the teacher’s feedback is predicted using the Forward Prediction (FP) model as described in (Weston, 2016). We refer the readers to the Appendix for the FP model details. At training time, the models learn to jointly predict the teacher’s feedback and the answers with positive reward. At test time, the model will only predict the bot’s answer.

For the TestModelAQ setting described in Section 4, the model needs to decide the question to ask. Again, we use vanilla-MemN2N that takes as input the question and contexts, and outputs the question the bot will ask.

Online RL Settings: A binary vanilla-MemN2N (denoted as ) is used to decide whether the bot should or should not ask a question, with the teacher replying if the bot does ask something. A second MemN2N is then used to decide the bot’s answer, denoted as . for and are two separate models, which means the bot will use different models for final-answer prediction depending on whether it chooses to ask a question or not.777An alternative is to train one single model for final answer prediction in both AQ and QA cases, similar to the TrainMix setting in the supervised learning setting. But we find training AQ and QA separately for the final answer prediction yields a little better result than the single model setting.

We use the REINFORCE algorithm (Williams, 1992) to update and . For each dialogue, the bot takes two sequential actions : to ask or not to ask a question (denoted as ); and guessing the final answer (denoted as ). Let denote the cumulative reward for the dialogue episode, computed using Table 1. The gradient to update the policy is given by:

(1)

where

is the baseline value, which is estimated using another MemN2N model that takes as input the query

and memory , and outputs a scalar denoting the estimation of the future reward. The baseline model is trained by minimizing the mean squared loss between the estimated reward and actual cumulative reward , . We refer the readers to (Ranzato et al., 2015; Zaremba & Sutskever, 2015)

for more details. The baseline estimator model is independent from the policy models and the error is not backpropagated back to them.

In practice, we find the following training strategy yields better results: first train only , updating gradients only for the policy that predicts the final answer. After the bot’s final-answer policy is sufficiently learned, train both policies in parallel888

We implement this by running 16 epochs in total, updating only the model’s policy for final answers in the first 8 epochs while updating both policies during the second 8 epochs. We pick the model that achieves the best reward on the dev set during the final 8 epochs. Due to relatively large variance for RL models, we repeat each task 5 times and keep the best model on each task.

. This has a real-world analogy where the bot first learns the basics of the task, and then learns to improve its performance via a question-asking policy tailored to the user’s patience (represented by ) and its own ability to asnwer questions.

6 Experiments

6.1 Simulator

Offline Results: Offline results are presented in Tables 2, 7 and 8 (the latter two are in the appendix). Table 7 presents results for the vanilla-MemN2N and Forward Prediction models. Table 2 presents results for Cont-MemN2N, which is better at handling unknown words. We repeat each experiment 10 times and report the best result. Finally, Table 8 presents results for the test scenario where the bot itself chooses when to ask questions. Observations can be summarized as as follows:

Question Clarification Knowledge Operation
Task 1: Q. Paraphrase Task 2: Q. Verification Task 3: Ask For Relevant K. Task 4: K. Verification
Train \Test TestQA TestAQ TestQA TestAQ TestQA TestAQ TestQA TestAQ
TrainQA (Context) 0.754 0.726 0.742 0.684 0.883 0.947 0.888 0.959
TrainAQ (Context) 0.640 0.889 0.643 0.807 0.716 0.985 0.852 0.987
TrainMix (Context) 0.751 0.846 0.740 0.789 0.870 0.985 0.875 0.985
Knowledge Acquisition
Train \Test TestQA TestAQ TestQA TestAQ TestQA TestAQ TestQA TestAQ TestQA TestAQ
Task 5: Q. Entity Task 6: Answer Entity Task 7: Relation Entity Task 8: Triple Task 9: Everything
TrainQA (Context) 0.01 0.224 0.01 0.120 0.241 0.301 0.339 0.251 0.01 0.058
TrainAQ (Context) 0.01 0.639 0.01 0.885 0.143 0.893 0.154 0.884 0.01 0.908
TrainMix (Context) 0.01 0.632 0.01 0.852 0.216 0.898 0.298 0.886 0.01 0.903
Table 2: Results for Cont-MemN2N on different tasks.

- Asking questions helps at test time, which is intuitive since it provides additional evidence:

  • TrainAQ+TestAQ (questions can be asked at both training and test time) performs the best across all the settings.

  • TrainQA+TestAQ (questions can be asked at training time but not at test time) performs worse than TrainQA+TestQA (questions can be asked at neither training nor test time) in tasks Question Clarification and Knowledge Operation due to the discrepancy between training and testing.

  • TrainQA+TestAQ performs better than TrainQA+TestQA on all Knowledge Acquisition tasks, the only exception being the Cont-MemN2N model on the Missing Triple setting. The explanation is that for most tasks in Knowledge Acquisition, the learner has no chance of giving the correct answer without asking questions. The benefit from asking is thus large enough to compensate for the negative effect introduced by data discrepancy between training and test time.

  • TrainMix offers flexibility in bridging the gap between datasets generated using QA and AQ, very slightly underperforming TrainAQ+TestAQ, but gives competitive results on both TestQA and TestAQ in the Question Clarification and Knowledge Operations tasks.

  • TrainAQ+TestQA (allowing questions at training time but forbid questions at test time) performs the worst, even worse than TrainQA+TestQA. This has a real-world analogy where a student becomes dependent on the teacher answering their questions, later struggling to answer the test questions without help.

  • In the Missing Question Entity task (the student does not know about the question entity), the Missing Answer Entity task (the student does not know about the answer entity), and Missing Everything task, the bot achieves accuracy less than 0.01 if not asking questions at test time (i.e., TestQA).

  • The performance of TestModelAQ, where the bot relies on its model to ask questions at test time (and thus can ask irrelevant questions) performs similarly to asking the correct question at test time (TestAQ) and better than not asking questions (TestQA).

- Cont-MemN2N significantly outperforms vanilla-MemN2N. One explanation is that considering context provides significant evidence distinguishing correct answers from candidates in the dialogue history, especially in cases where the model encounters unfamiliar words.

Figure 6: Results of online learning for Task 2 and Task 6

RL Results For the RL settings, we present results for Task 2 (Question Verification) and Task 6 (Missing Answer Entities) in Figure 6. Task 2 represents scenarios where different types of student have different abilities to correctly answer questions (e.g., a poor student can still sometimes give correct answers even when they do not fully understand the question). Task 6 represents tasks where a poor learner who lacks the knowledge necessary to answer the question can hardly give a correct answer. All types of students including the good student will theoretically benefit from asking questions (asking for the correct answer) in Task 6. We show the percentage of question-asking versus the cost of AQ on the test set and the accuracy of question-answering on the test set vs the cost of AQ. Our main findings were:

  • A good student does not need to ask questions in Task 2 (Question Verification), because they already understand the question. The student will raise questions asking for the correct answer when cost is low for Task 6 (Missing Answer Entities).

  • A poor student always asks questions when the cost is low. As the cost increases, the frequency of question-asking declines.

  • As the AQ cost increases gradually, good students will stop asking questions earlier than the medium and poor students. The explanation is intuitive: poor students benefit more from asking questions than good students, so they continue asking even with higher penalties.

  • As the probability of question-asking declines, the accuracy for poor and medium students drops. Good students are more resilient to not asking questions.

6.2 Mechanical Turk

Results for the Mechanical Turk Tasks are given in Table 3. We again compare vanilla-MemN2N and Cont-MemN2N, using the same TrainAQ/TrainQA and TestAQ/TestQA combinations as before, for Tasks 4 and 8 as described in Section 4.2. We tune hyperparameters on the validation set and repeat each experiment 10 times and report the best result.

While performance is lower than on the related Task 4 and Task 8 simulator tasks, we still arrive at the same trends and conclusions when real data from humans is used. The performance was expected to be lower because (i) real data has more lexical variety, complexity and noise; and (ii) the training set was smaller due to data collection costs (10k vs. 180k). We perform an analysis of the difference between simulated and real training data (or combining the two) in the appendix, which shows that using real data is indeed important and measurably superior to using simulated data.

More importantly, the same main conclusion is observed as before: TrainAQ+TestAQ (questions can be asked at both training and test time) performs the best across all the settings. That is, we show that a bot asking questions to humans learns to outperform one that only answers them.

vanilla-MemN2N Cont-MemN2N
Task 4: K. Verification Task 8: Triple Task 4: K. Verification Task 8: Triple
Train \Test TestQA TestAQ TestQA TestAQ TestQA TestAQ TestQA TestAQ
TrainQA 0.331 0.313 0.133 0.162 0.712 0.703 0.308 0.234
TrainAQ 0.318 0.375 0.072 0.422 0.679 0.774 0.137 0.797
Table 3: Mechanical Turk Task Results. Asking Questions (AQ) outperforms only answering questions without asking (QA).

7 Conclusions

In this paper, we explored how an intelligent agent can benefit from interacting with users by asking questions. We developed tasks where interaction via asking questions is desired. We explore both online and offline settings that mimic different real world situations and show that in most cases, teaching a bot to interact with humans facilitates language understanding, and consequently leads to better question answering ability.

References
