1. Introduction

Time series forecasting is a ubiquitous problem in practical scenarios. By modeling the evolution of the states or events in the future, it enables decision-making and plays a vital role in numerous domains, such as traffic (Li et al., 2017), healthcare (Jin et al., 2018), and finance (Zhang et al., 2017b). The tremendous value of this problem is also proved by the long research history. In the early time, Auto-Regressive (AR) model and its variants are the most popular methods in classical statistical domain due to the efficiency and perfect mathematical properties. However, they are mainly applied in univariate forecasting problem and assume the linear dependency among variables. With the rapid growth of data volume, it is difficult for AR to deal with more complicated conditions due to the relatively low expressiveness.

Multivariate time series forecasting explores the correlation among variables. Recent years have witnessed that a number of deep learning methods are applied in this domain to handle non-linear dependency. LSTNet (Lai et al., 2018) and TPA-LSTM (Shih et al., 2019)

are the first two works toward multivariate time series forecasting based on the deep learning framework. To be more specific, they both combine the convolution neural network (CNN) and recurrent neural network (RNN) to capture the intra- and inter-time-series dependencies respectively. However, it is difficult for the global aggregation of CNN to pair-wise correlations among variables precisely. To solve this problem, graph neural network (GNN), the generalization of convolutional neural network to non-Euclidean space, comes to the stage. By treating the variables as nodes, the connections among them could be represented by edges properly.

Li et al. (2017)

first combined the GNN with the gated recurrent unit to give the prediction and introduced a hand-craft adjacency matrix to describe the correlations based on the distance between nodes.

Wu et al. (2019) argued that the predefined graph structure could not reflect the genuine connections, and they constructed a self-learned adjacency matrix during the training process. Shang et al. (2021)

simplified the bilevel program problem and sampled the discrete graph structure from the Bernoulli distribution. How to design the proper graph structure to model the correlations among the time series gradually becomes the key to solving this problem.

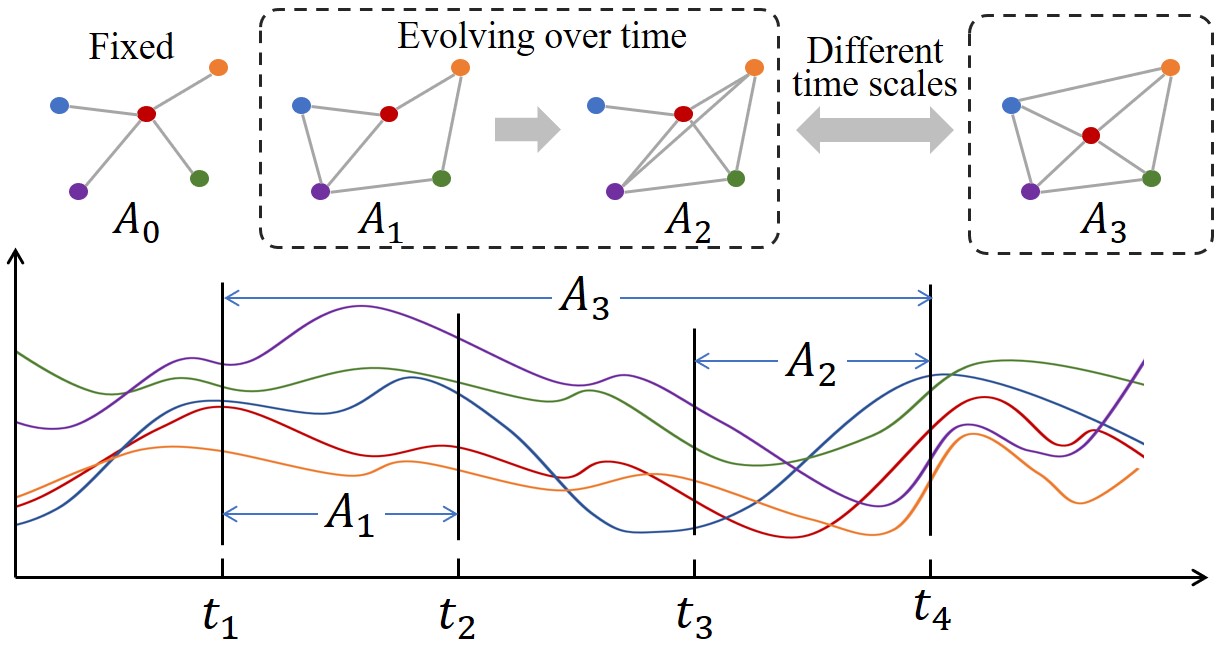

Figure 1. The possible interactions of variables in multivariate time series forecasting. Most existing works utilize the fixed correlation (). However, the graph structure is evolving ( and ) and varies in different observation scales ().

Though remarkable success has been achieved by generalizing GNN to multivariate time series forecasting domain, there are still several important problems that remain to be further addressed: 1) The graph structure is evolving over time. As it is shown in the Figure 1, the purple line and the blue line fluctuate together from to , but they separate and head the different direction from to . While most existing works maintain a fixed and static adjacency matrix from the beginning to the end, which could not handle such complicated condition obviously. 2) The graph structure varies on different observation scales. The correlation between variables in short-term view could differ from it in long-term. For example, in the finance domain, two stocks might go up and down together under the influence of a new policy released by the government in a short term view, but they will part ways definitely in the long term if one company behind is thriving and the other is about to go bankrupt. The correlations between time series at different scales are seldom considered, and it is also obvious that a fixed adjacency matrix could not deal with it. Therefore, we argue that existing works have not explored and unleashed the full potential of the graph neural network for this problem.

When we propose to take a further step and address the two problems above, three challenges are faced: 1) The evolving graph structure is not only influenced by the current input but also strongly correlated to itself at the previous time step. The recurrent construction manner has been rarely discussed. 2) Generating the graph structure for each time step to model the evolution through existing self-learned methods would bring too many parameters, which results in difficulty for model convergence. 3) It is a nontrivial endeavor to capture the scale-specific graph structure among nodes due to the excess information and messy relationship behind it.

To cope with above challenges, we propose a novel deep learning framework named Evolving Multi-Scale Graph Neural Network (ESG). Specifically, a hierarchical architecture is proposed to capture the scale-specific inter-and intra-time-series correlations simultaneously cooperated with the dilated convolution module. Next, instead of maintaining a fixed graph structure all the time, for each scale, we constructed a series of adjacency matrices to model the evolving correlations with gated recurrent unit. Last but not least, the final prediction is made by a unified forecasting model which fuses the multi-scale representations. The main contributions are summarized as follows:

  • This paper studies how to improve the GNN-based multivariate time series forecasting methods by constructing multiple evolutionary graph structures to model the interactions of time series. Most of the existing methods are founded on a fixed graph structure, which are not sufficient to capture the evolutionary interactions of time series, and not able to observe the interactions with different time scales either.

  • Correspondingly, a temporal convolution module and an evolving structure learner are particularly designed to learn the multi-scale representations of time series and a series of recurrent graph structures respectively.

  • Experiments on real-world data sets not only validate the effectiveness of the proposed method, but also illustrate how the interactions of time series evolve over time, and how to model the interactions of time series with multiple observational scales.

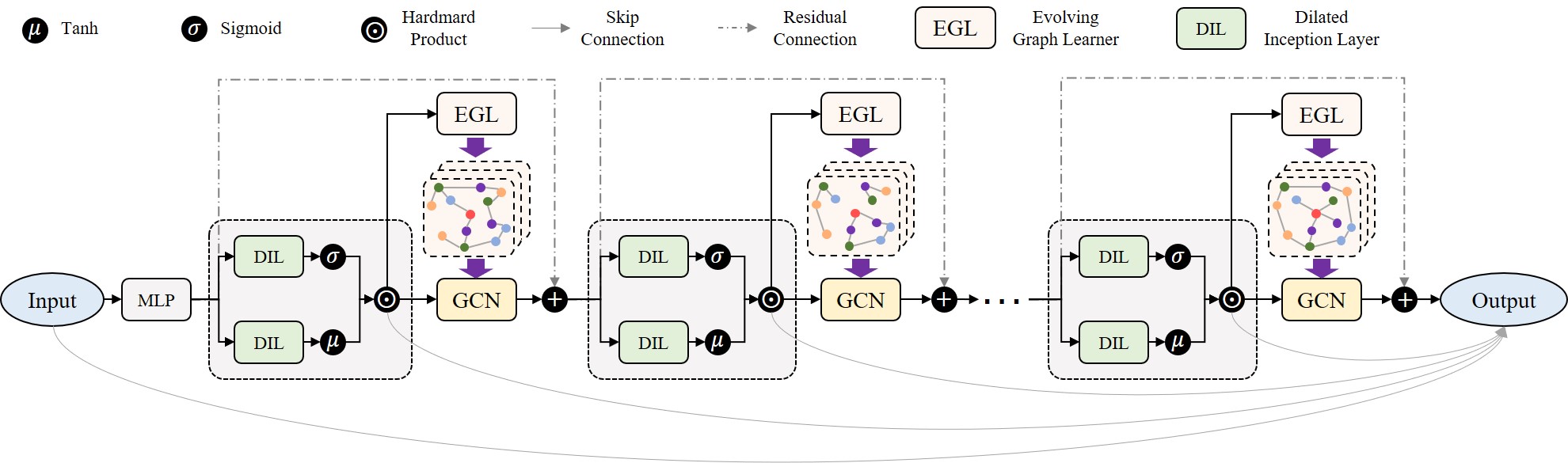

Figure 2. The framework of ESG.

It is worth mentioning that the end intention of the paper is to improve the accuracy of time series forecasting, rather than discovering the ground-truth graph structure and inferring the causality. Either the hand-crafted or self-learned graph structure might contain several causal information, but they serve more likely as the external factors which help to extract global and precise signals for time series. We also argue that there doesn’t exist a perfect and standard measurement for learned graph structure but the forecasting accuracy. For example, the genuine topological structure of the road network doesn’t exploit the full potentialities of the traffic prediction problem. Additionally, the learned graph structure provides a healthy and robust version for a more accurate prediction if the ”ground truth” graph exists (Shang et al., 2021).

2. Preliminary

This section gives a detailed definition of the multivariate time series forecasting problem.

Definition 2.1 (Graph Neural Network).

We denote the relationship among all variables via a graph , where and indicate the set of nodes and edges respectively. For an edge , it could be represented by an ordered tuple which indicates the edge points from node to node . indicates the neighbors of node , and all nodes connected with are included. The connectivity among the whole graph is represented by the adjacency matrix with iff and iff , where is the total number of nodes. In order to capture the correlation between variables, the graph theory is generalized to the multivariate time series analysis domain (Wu et al., 2020c). With denoting the variables as the nodes in graph, it is much more efficient and effective to model the correlations between variables via the adjacency matrix .

Definition 2.2 (Problem Formalization).

The time series with variables are denoted as with , and indicates the values of the variables at time step . is the feature dimension of a single variable. The forecasting problem takes the historical observations to predict the states of variables in the future. According to the number of output steps, the problem setting usually falls into two mainstream, single-step, and multi-step forecasting. Given a long historical time series and a look-back window with the fixed-length , the single-step forecasting proposes to obtain the future value at time step . In the multi-step forecasting, the historical information with fixed length is also taken into consideration, but the predicting target turns to a sequence of future values :

(1)

where the and denote the mapping function that we intend to parameterize for the single-step forecasting and multi-step forecasting respectively.

3. Methodology

In this section, the proposed framework and all components will be stated elaborately.

3.1. Overview

Here we introduce the overview architecture of Evolving Multi-Scare Graph Neural Network which is shown in Figure 2. The multivariate time series is first fed into a fully connected layer to obtain the initial representation , and the stacked multi-scale extractors follow. Each extractor is made up of three components. A temporal convolution module is utilized to capture the multi-scale representations on the temporal dimension. The output of this part is fed into the evolving graph structure learner and the graph convolution module , which is defined as:

(2)

where is the input of

-th layer. Residual connection is employed to deliver the initial input to the next layer directly. Therefore,

is obtained by adding and up. It is worth mentioning that the three modules all vary from layer to layer, which helps to extract multi-scale information. The output of the evolving graph structure learner is a series of adjacency matrices which are fed into the graph convolution module . Skip connection is utilized to deliver the information to the final output:

(3)

where is the total number of the multi-scale extractor layers, and is a simple predictor which could be implemented by a fully connected layer. Including the graph structure, ESG is trained in an end-to-end manner. In the rest of this section, the evolving graph structure learner, temporal convolution module, and graph convolution module will be elaborated respectively.

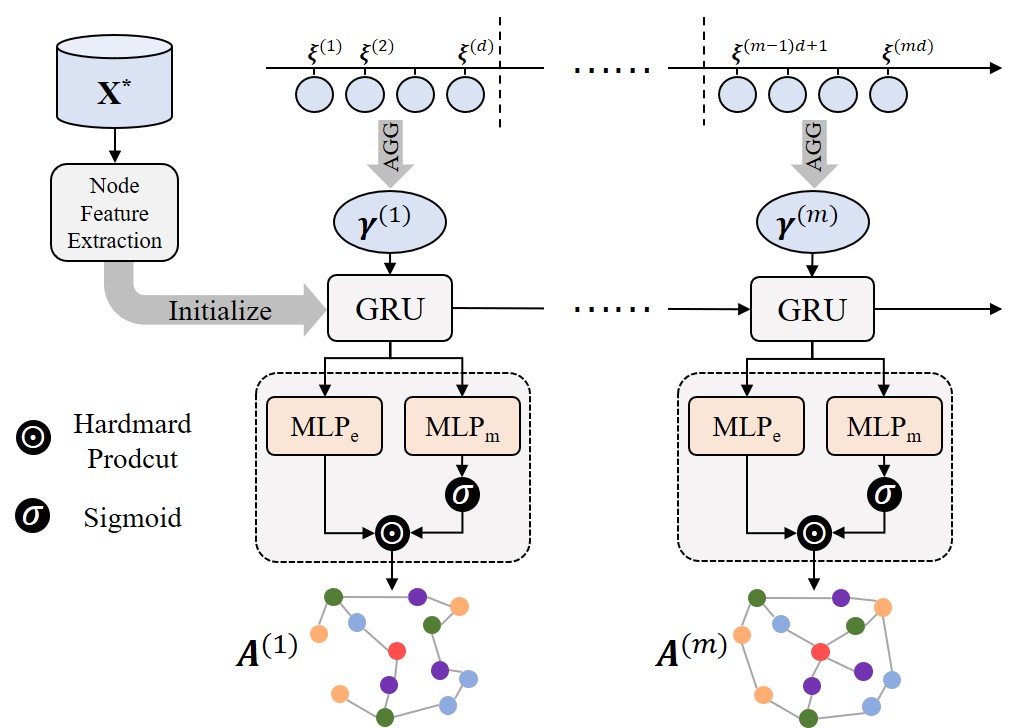

Figure 3. The detailed architecture of evolving graph structure learner (EGL).

3.2. Learning Evolving Graph Structure

The correlations among multivariate time series do not stay unchanged all the time in the practical scenario. However, the dynamic correlations are seldom considered due to the complex dependency and high computational cost. We design an Evolving Graph Structure Learner (EGL) to extract the dynamic correlations among variables to address this issue. The detail architecture is shown in Figure 3. This module both considers the dependency with the current input values and the graph structure at last time step, which could be formulated under a recurrent manner:

(4)

where the denotes the adjacency matrix which describes the evolving correlations at time step , denotes the node features, and is the evolving correlations extracting function. It is worth mentioning that we leave out the superscript

which indicates the layer number in this equation and the following of this subsection for simplicity. However, in the practical scenarios, the graph structure varies smoothly over time rather than drastically. Most of the time, adjacent timestamps follow the time consistency and have similar or even identical estimations of the relationship. Thus, we assume that the graph structures in our model remain unchanged in a time interval while having evolutionary relationships between adjacent time intervals. Additionally, directly parameterizing

adjacency matrix and the mapping function bring a great deal of computation cost. To address this issue, we denote that the nodes possess an evolving representation which also varies over time. And the evolving graph structure could be derived from the evolving node representations.

Here we utilize GRU, a simple but powerful variant of recurrent neural network, to model the dynamic of evolving representations. Node features are divided into several segments along the temporal dimension. An aggregator is applied to the features of each segment to obtain an input sequence of GRU :

(5)

where and are the time interval and the total number of segments. indicates the aggregator which could be implemented by the mean operation. Denoting as the hidden state, the updating processing of GRU is defined as:

(6)

where and denote the reset gate and update gate, is the Hardmard product, and are the learning parameters.

is the sigmoid function, and

is the tangent hyperbolic function.

In the practical scenario, some intrinsic features of time series help to forecast a lot. We propose to integrate those useful static node representations with a fully connected layer as the initial hidden state of GRU:

(7)

The instability of the training process brought by the cold start problem is also handled. However, sometimes it is not convenient to obtain the external factors. Then we turn to the rich information which the multivariate time series themselves possess. A node feature extractor is adopted to extract static representations from the whole training set without external knowledge:

(8)

where and indicate the static representation and the training set data for node respectively, and is the number of static feature dimensions. The node feature extractor

could be implemented as many deep network structures, such as multilayer perceptron, recurrent neural network, and will be optimized during the end-to-end training process for the whole model. Additionally, the inputs to the node feature extractor are not limited to the time series data in the training set. In case the external knowledge about the attributes of nodes is given, we could introduce them to form a more comprehensive static node representation.

After the evolving node representations are generated, we concatenate the two nodes representations and apply a multilayer perceptron to derive the graph structure. Additionally, we learn a mask to control the output information ratio:

(9)

where , denote the values of learned graph structure and the mask at the row column , denotes the sigmoid function. is the final evolving graph structure at the -th time interval.

3.3. Temporal Convolution Module

The temporal convolution module consists of two dilated inception layers to extract the multi-scale representations (Wu et al., 2020c). Time series could possess an extreme long-term dependency in the practical scenario. We introduce the dilation factor which controls the skipping distance to the standard causal convolution. Therefore, the receptive field could expand exponentially with the increase of the layer depth. For the node , the dilated convolution is defined as:

(10)

where is the dilation factor, indicates the input sequence for a specific layer of node , and the superscript which represents the number of layer is left out in this subsection for simplicity. is the 1D convolution filter kernel with the size .

However, the challenge still remains that it is hard to capture both the short-term and long-term patterns simultaneously by a single filter. That the dependencies are entangled with others leads to the hard situation to discover the valuable signals. To address this problem, multiple filters with different sizes are adopted to extract temporal patterns with various ranges. Thus, the dilated inception layer is defined as:

(11)

where are different filter sizes, and the outputs of different filters are truncated to the same length according to the largest filter and concatenated across the channel dimension. The gating mechanism is also utilized to control the amount of information passing to the next module. Specifically, we feed the outputs of two dilated inception layers

through two different activation functions, and then make element-wise multiplication:

(12)

where denotes the sigmoid function, denotes the tangent hyperbolic function and is the Hadamard product. is the output of the temporal convolution module of node , and it will be fed into the evolving graph structure learner and the graph convolution module. By stacking multiple layers, the temporal convolution module captures temporal patterns at different temporal levels. For example, at the bottom layer, the module extracts short-term information while at the top layer the module tackles long-term information.

3.4. Evolving Graph Convolution Module

Applying the graph neural network in the multivariate time series forecasting domain has achieved great success. However, the dependency among variables not only evolves over time but also varies on different time scales, which is difficult for the fixed adjacency matrix to describe such correlations. In addition, the evolving patterns of the graph structure are also not the same at different time scales. To tackle the above problems, we utilize the scale-specific evolving graph structure learner to discover correlations among variables for the specific scale level. Formally, the output of the -th temporal convolution layer is fed into the -th EGL proposed in Section 3.2 to generate a series of adjacency matrices as follows:

(13)

where , is the time interval, and determines the number of adjacency matrices at -th layer.

The graph convolution at each scale is implemented by the mix-hop propagation which consists of two steps, the information propagation, and the information selection. The former one is defined as:

(14)

where indicates the input of graph convolution layer, is the representation at hop and we set . is the hyper-parameter which controls the ratio between the original input and the information from different hops. The multi-level representations are attached with different weights adaptively:

(15)

where indicates the depth of propagation, and we also leave out the superscripts and for simplicity in Equation (13) and (14). The information propagation step propagates node information along with the given graph structure recursively, and retain a proportion of the node’s original states during the propagation process so that the propagated node states can both preserve locality and explore the deeper neighborhood, which also relieves the problem of over-smoothing to a certain extent. is introduced as the feature selector to lay more importance to the hop which contains the crucial signals.

Finally, at -th layer, the representation in the -th time interval will be fed into mix-hop propagation layer with its corresponding adjacency matrix , which is defined as:

(16)

where indicates the mix-hop propagation at layer . is the output of graph convolution at -th segment, -th layer, and the is the output set of all segments at -th layer, .

4. Experiments

In this section, we verify the superiority of our model through extensive and rigorous experiments.

4.1. Datasets & Setup

We conduct detailed experiments on six popular real-world datasets111Codes and datasets are available at https://github.com/LiuZH-19/ESG. Brief statistical information is listed in Table 1

. We utilize two groups of evaluation metrics for the different forecasting tasks. For the single-step prediction, Root Relative Squared Error (RSE) and Empirical Correlation Coefficient (CORR) are selected

(Wu et al., 2020c). The multi-step prediction tasks are evaluated by Root Mean Squared Error (RMSE), Mean Absolute Error (MAE), Empirical Correlation Coefficient (CORR) (Ye et al., 2021). The lower value indicates better performance for all evaluation metrics except CORR. More datasets and setup details are stated in Appendix A.1 and A.3.

Datasets Nodes Timesteps Granularity Task Types Partition
Solar-Energy 137 52560 10min Single-step 6/2/2
Electricity 321 26304 1hour
Exchange Rate 8 7588 1day
Wind 28 10957 1day
NYC-Bike 250 4368 30min Multi-step 7/1.5/1.5
NYC-Taxi 266 4368 30min
Table 1. The overall information for datasets.
Dataset Metrics Solar-Energy Electricity Exchange Rate Wind
3 6 12 24 3 6 12 24 3 6 12 24 3 6 12 24
AR RSE 0.2435 0.3790 0.5911 0.8699 0.0995 0.1035 0.1050 0.1054 0.0228 0.0279 0.0353 0.0445 0.7161 0.7572 0.8076 0.9371
CORR 0.9710 0.9263 0.8107 0.5314 0.8845 0.8632 0.8591 0.8595 0.9734 0.9656 0.9526 0.9357 0.6459 0.6046 0.5560 0.4633
GP RSE 0.2259 0.3286 0.5200 0.7973 0.1500 0.1907 0.1621 0.1273 0.0239 0.0272 0.0394 0.0580 0.6689 0.6761 0.6772 0.6819
CORR 0.9751 0.9448 0.8518 0.5971 0.8670 0.8334 0.8394 0.8818 0.8713 0.8193 0.8484 0.8278 0.6964 0.6877 0.6846 0.6781
VARMLP RSE 0.1922 0.2679 0.4244 0.6841 0.1393 0.1620 0.1557 0.1274 0.0265 0.0394 0.0407 0.0578 0.7356 0.7769 0.8071 0.8334
CORR 0.9829 0.9655 0.9058 0.7149 0.8708 0.8389 0.8192 0.8679 0.8609 0.8725 0.8280 0.7675 0.6415 0.5973 0.5724 0.5470
RNN-GRU RSE 0.1932 0.2628 0.4163 0.4852 0.1102 0.1144 0.1183 0.1295 0.0192 0.0264 0.0408 0.0626 0.6131 0.6479 0.6573 0.6381
CORR 0.9823 0.9675 0.9150 0.8823 0.8597 0.8623 0.8472 0.8651 0.9786 0.9712 0.9531 0.9223 0.7403 0.7089 0.6956 0.7173
LSTNet RSE 0.1843 0.2559 0.3254 0.4643 0.0864 0.0931 0.1007 0.1007 0.0226 0.0280 0.0356 0.0449 0.6079 0.6262 0.6279 0.6257
CORR 0.9843 0.9690 0.9467 0.8870 0.9283 0.9135 0.9077 0.9119 0.9735 0.9658 0.9511 0.9354 0.7436 0.7275 0.7249 0.7284
TPA-LSTM RSE 0.1803 0.2347 0.3234 0.4389 0.0823 0.0916 0.0964 0.1006 0.0174 0.0241 0.0341 0.0444 0.6093 0.6292 0.6290 0.6335
CORR 0.9850 0.9742 0.9487 0.9081 0.9439 0.9337 0.9250 0.9133 0.9790 0.9709 0.9564 0.9381 0.7433 0.7240 0.7235 0.7202
MTGNN RSE 0.1778 0.2348 0.3109 0.4270 0.0745 0.0878 0.0916 0.0953 0.0194 0.0259 0.0349 0.0456 0.6204 0.6346 0.6363 0.6426
CORR 0.9852 0.9726 0.9509 0.9031 0.9474 0.9316 0.9278 0.9234 0.9786 0.9708 0.9551 0.9372 0.7337 0.7209 0.7164 0.7134
StemGNN RSE 0.1839 0.2612 0.3564 0.4768 0.0799 0.0909 0.0989 0.1019 0.0506 0.0674 0.0676 0.0685 0.6197 0.6358 0.6243 0.6379
CORR 0.9841 0.9679 0.9395 0.8740 0.9490 0.9397 0.9342 0.9209 0.8871 0.8703 0.8499 0.8738 0.7282 0.7202 0.7228 0.7130
ESG RSE 0.1708 0.2278 0.3073 0.4101 0.0718 0.0844 0.0898 0.0962 0.0181 0.0246 0.0345 0.0468 0.6118 0.6250 0.6272 0.6298
CORR 0.9865 0.9743 0.9519 0.9100 0.9494 0.9372 0.9321 0.9279 0.9792 0.9717 0.9564 0.9392 0.7417 0.7281 0.7258 0.7225
Table 2. Comparison with baselines on single-step forecasting.
Dataset Method Horizon 3 Horizon 6 Horizon 12 All
RMSE MAE CORR RMSE MAE CORR RMSE MAE CORR RMSE MAE CORR
NYC-Bike XGBoost 3.7048 2.2167 0.5232 4.1747 2.5511 0.3614 4.3925 2.7091 0.2894 4.0494 2.4689 0.4107
DCRNN 3.0172 1.7917 0.6967 3.2369 1.9078 0.6609 3.5100 2.0325 0.6196 3.2274 1.8973 0.6601
STGCN 2.6256 1.6456 0.7539 3.8368 2.2827 0.6282 4.3713 2.6052 0.4521 3.7829 2.2076 0.5933
STG2Seq 3.4669 2.0409 0.5999 3.9145 2.2630 0.5079 4.2373 2.5163 0.4443 3.7843 2.2055 0.5413
STSGCN 2.7328 1.6973 0.7386 2.8861 1.7416 0.7179 3.0548 1.8224 0.6903 2.8846 1.7538 0.7126
MTGNN 2.5962 1.5668 0.7626 2.7588 1.6525 0.7447 3.3068 1.7892 0.6931 2.7791 1.6595 0.7353
CCRNN 2.6538 1.6565 0.7534 2.7561 1.7061 0.7411 2.9436 1.8040 0.7029 2.7674 1.7133 0.7333
GTS 2.7628 1.7159 0.7248 2.9287 1.7769 0.7007 3.1649 1.8905 0.6622 2.9258 1.7798 0.6985
ESG 2.5529 1.5483 0.7638 2.6484 1.6026 0.7511 2.8778 1.7173 0.7152 2.6727 1.6129 0.7449
NYC-Taxi XGBoost 15.0372 8.4121 0.6862 21.3395 11.8491 0.4433 26.7073 15.7165 0.0452 21.1994 11.6806 0.4416
DCRNN 12.3223 7.0655 0.7591 15.1599 8.6639 0.6634 17.8194 10.5095 0.5395 14.8318 8.4835 0.6671
STGCN 11.2175 6.1441 0.8090 14.0360 7.6797 0.7470 18.7168 10.2211 0.5922 14.6473 7.8435 0.7257
STG2Seq 14.0756 7.7274 0.7258 19.1757 10.5066 0.5429 24.5691 14.3603 0.2855 19.2077 10.4925 0.5389
STSGCN 10.5381 5.6448 0.8370 10.8444 5.7634 0.8302 11.9443 6.3185 0.7988 10.9692 5.8299 0.8242
MTGNN 10.3394 5.6775 0.8374 10.7534 5.8168 0.8312 12.5164 6.5285 0.7972 10.9472 5.9192 0.8249
CCRNN 9.3033 5.4586 0.8529 9.7794 5.6362 0.8438 10.9585 6.1416 0.8186 9.8744 5.6636 0.8416
GTS 10.7796 6.2337 0.7974 13.0215 7.3251 0.7299 14.9906 8.5328 0.6524 12.7511 7.2095 0.7348
ESG 8.5745 4.8750 0.8656 9.0125 5.0500 0.8592 9.7857 5.4019 0.8450 8.9759 5.0344 0.8592
Table 3. Comparison with baselines on multi-step forecasting.

4.2. Baselines

We utilize two groups of baselines for single-step and multi-step forecasting respectively. Both empirical statistic methods and popular deep learning models are selected carefully. The detailed information of baselines is shown in Appendix A.2.

Single-step forecasting. We select 8 time-series forecasting methods. Two empirical statistical methods are Auto-Regressive (AR), Gaussian Process (GP) (Roberts et al., 2013). Six deep learning models contain VARMLP (Zhang, 2003), RNN-GRU, LSTNet (Lai et al., 2018), TPA-LSTM (Shih et al., 2019), MTGNN (Wu et al., 2020c), and StemGNN (Cao et al., 2021).

Multi-step forecasting. 8 popular baselines are selected including XGBoost (Chen and Guestrin, 2016), DCRNN (Li et al., 2017), STGCN (Yu et al., 2018), STG2Seq (Bai et al., 2019), STSGCN (Song et al., 2020), MTGNN (Wu et al., 2020c), CCRNN (Ye et al., 2021), and GTS (Shang et al., 2021).

4.3. Main Results

Table 2 and Table 3 summarize the single-step and multi-step forecasting evaluation results. In summary, ESG achieves state-of-the-art performance in both two tasks. The best results are highlighted in bold font.

4.3.1. Single-step Forecasting

In this task, we compare ESG with other multivariate time series models. Table 2 shows the detailed experimental results on the single-step forecasting. Excellent performance of our model is achieved on Solar-Energy, Electricity. Especially on Solar-Energy dataset, ESG achieves 3.94, 3.96 improvements compared with the state-of-the-art methods on the horizons of 3, 24 in terms of RSE. On this dataset, the excellent results are also achieved by MTGNN which utilizes the self-learned adjacency matrix to describe the correlations between time series. The impact of weather on the power generation is shared between the plants in the same areas, which offers the static graph a strong local relationship. However, ESG still makes a significant improvement. This is because the evolving correlations between multivariate time series are well captured in Solar-Energy dataset. On the Exchange-rate and Wind datasets, the results of ESG are not as good as results on the first two datasets, but ESG still achieves optimal performance on more than half of the metrics. This is possibly due to the smaller graph size and fewer training examples of Exchange-rate and Wind datasets.

4.3.2. Multi-step Forecasting

In this task, several spatio-temporal methods are chosen in the traffic prediction domain. Table 3 shows the detailed experimental results on the multi-step forecasting. The performance on time steps 3, 6, 12, and the average of all horizons is compared. In general, our ESG achieves state-of-the-art results regarding all the metrics for all horizons on both two datasets. In particular, ESG lowers down RMSE by 7.8, 7.8, 10.7 and MAE by 10.7, 10.4, 12.0 over the horizons of 3, 6, 12 on the NYC-taxi data. The improvement of ESG increases with the growth of the forecasting horizon, indicating our model ability in long-term forecasting, which is inherently more uncertain and difficult than short-term forecasting. We can observe further phenomena from the table. XGBoost which doesn’t explore the correlations between time series obtains the worst results. DCRNN, STGCN, and STG2Seq are all graph convolution network-based forecasting models, which outperform XGBoost. However, the graph structures they utilize in GCN are fixed and hand-crafted, which is not flexible and representative enough to describe the correlations. MTGNN, CCRNN, and GTS adopt an adaptive static graph structure learning manner, which contributes to their significant improvement over previous methods. However, being lack of extracting evolving correlations restricts their further improvements.

4.4. Ablation Study

To validate the effectiveness of the key components, we conduct a ablation study on NYC-Bike. We name variants of ESG as follows:

  • Static Graph Only: Removing the evolving graph structure, utilizing the static graph constructed by static node representation only.

  • w/o Scale-Specific: Generating a series of evolving graph structures from the raw input data only, which is later used in each mix-hop propagation layer regardless of changes in correlations over different time scales.

  • Same Pattern of Evolution: Sharing parameters of evolving graph structure learners at different scales.

We repeat each experiment 10 times and report the average value and the standard deviation in Table

4. More details are shown in Appendix A.4. We could make a conclusion that all components contribute to the final state-of-the-art results to a certain extent. Firstly, removing the evolving graph structure learner still obtains a competitive result, which indicates that the robust and informative self-learned graph structure could help a lot in multivariate time series forecasting. However, only using the static graph, without considering the evolution of the graph structure, brings a large standard deviation to the results. Secondly, using dynamic graphs regardless of the difference of scales reaches the worst results. This is because the graph structure varies at different time scales. In addition, the dynamic graphs generated in this common manner cannot correspond to the information processed by the temporal convolution module in the time dimension. The fact verifies the necessity and effectiveness of using the scale-specific evolving graph structure learner. The comparison between the third variant and ESG proves the correctness of the hypothesis that the evolution patterns of graph structure follows vary at different time scales.

To further investigate the importance of multi-scale information fusion, we evaluate the performance of ESG variants which only employ one scale information, and the results are visualized as the barplot shown in Figure 4. In the experiments, scale 0 denotes using raw input. Scale 1, scale 2, and scale 3 use the output of the first, second, and third temporal convolution module respectively, which represent different time scales from the short to long term. Scale 4 uses the output of the last graph convolution module. ESG outperforms the methods using only one scale information by a large margin, which indicates the superiority of fusing the multi-scale representations to make the final prediction. Interestingly, scale 2 achieves the second-best results. It suggests that the importance of different scales varies. Furthermore, the contribution to the forecasting doesn’t weigh more as the scale level increases.

Method RMSE MAE CORR
Static Graph Only 2.74390.0438 1.63020.0176 0.73880.0050
w/o Scale-Specific 2.81020.0433 1.66630.0150 0.72590.0047
Same Pattern of Evolution 2.72740.0177 1.62960.0036 0.74020.0024
ESG 2.67270.0117 1.61290.0086 0.74490.0051
Table 4. Ablation Study.

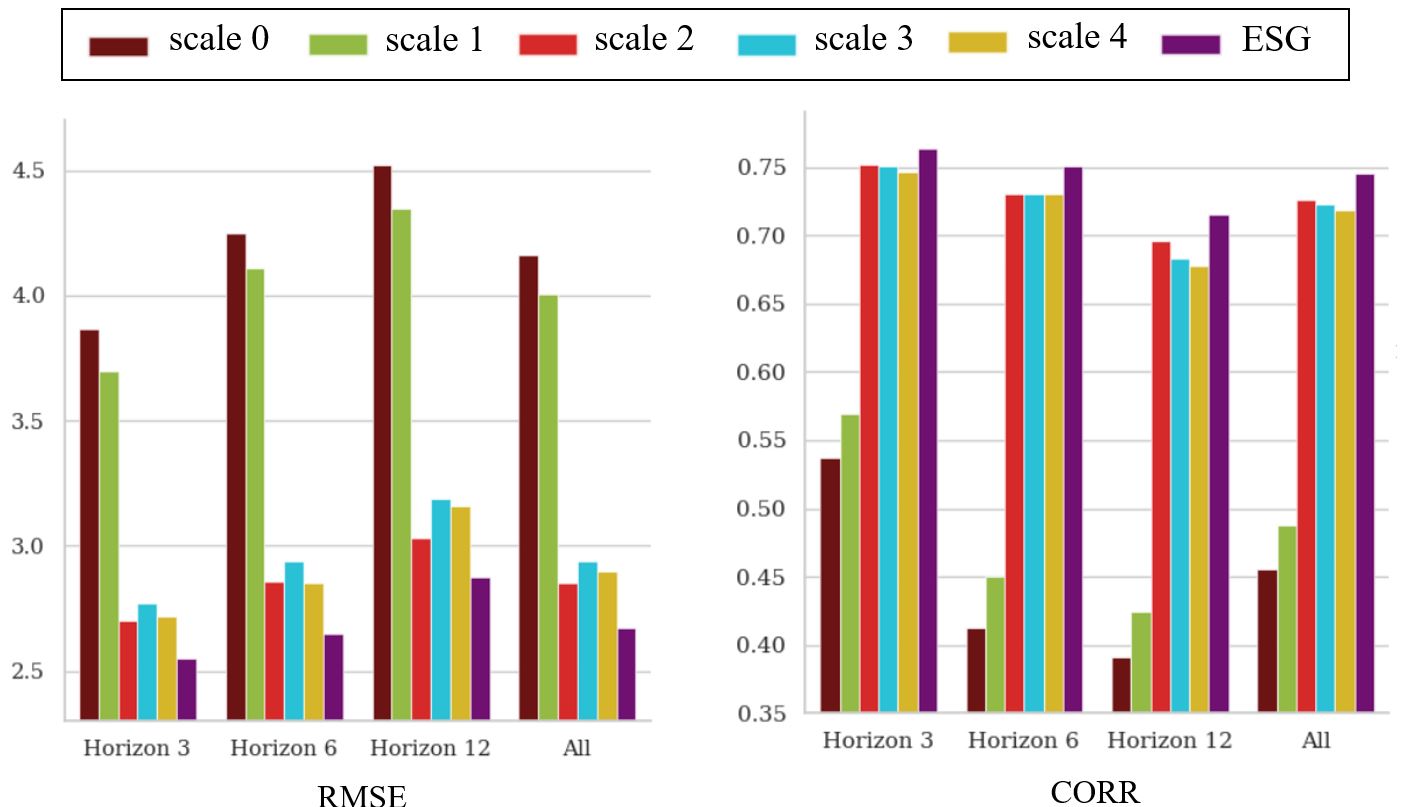

Figure 4. Utilizing the information at different scales.

4.5. Study of Evolving Graph Structure

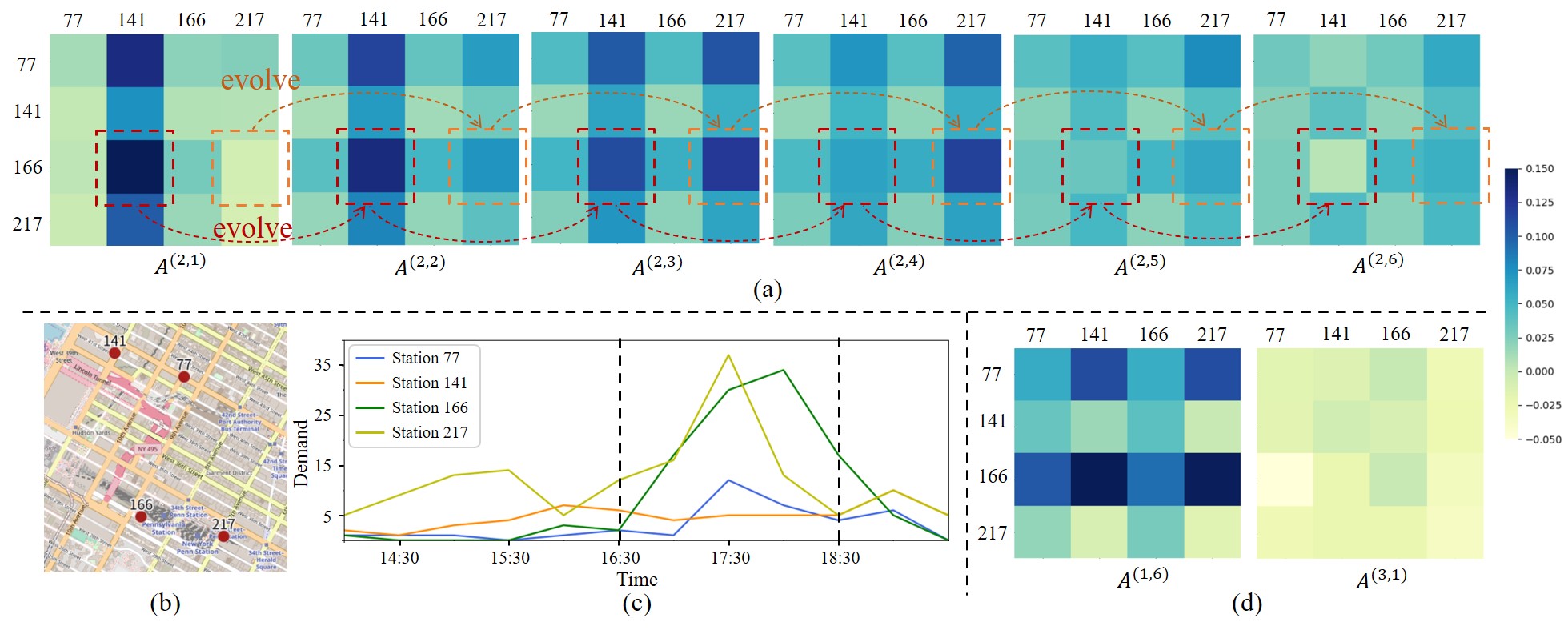

Figure 5. (a) A series of adjacency matrices in scale 2 on the NYC-Bike dataset, which reveals a strong evolving pattern. (b) The location of node 77, 141, 166 and 217 on the map. (c) The raw time series curves on 12 time steps, which corresponds to the adjacency matrices shown in (a) and (d). (d) Several adjacency matrices on scale 1 and 3.

To further verify the effectiveness of evolving graph structure learner, we select four stations with number 77, 141, 166, and 217 on April , 2016 to conduct a practical case study. As it is shown in Figure 5 (a), and are the adjacency matrices at scale 2, which are visualized as heat map. The bluer grid indicates a bigger weight. Figure 5 (b) and Figure 5 (c) display the practical locations and the raw time series curves. Considering that numerous variables contain the genuine unidirectional relationship behind, we have not constrained the symmetry when generating the adjacency matrices. Taking station 166 as an example, several interesting phenomena are observed. 1) Before 16:30 in Figure 5 (c), we could observe that station 166, the green line, and station 141, the orange line, have a strong correlation with each other, and they go up and down together. However, the situation changes after 16:30, station 141 remains stable but station 166 fluctuates dramatically. The fact that the correlations evolve from high to low is well captured by the adjacency matrices. As it is shown in Figure 5 (a), the value at row 166 and column 141 gets smaller and smaller over time. 2) As we could observe in Figure 5 (a), the value along the orange dashed line goes deep in the beginning, and then it turns light after , which indicates the correlation between station 166 and 217 rises in the beginning and falls in the end. This information is also consistent with the fact shown in Figure 5 (c). The yellow line has a different tendency from the green line in the first. Then they go up together from 16:30 to 18:30 and end up separating. The two phenomena above provide strong support for demonstrating the effectiveness of evolving graph structure learner. Additionally, though station 217 is closest to 166 in physical distance, the correlation between them is small before 16:30, which reflects the limitations of hand-crafted graph structure for its inflexibility and inaccuracy.

We also verify the graph structure which captures the the correlations at different observation scales. The total layer for the NYC-Bike dataset is 3. All adjacency matrices in scale 2 are shown in Figure 5 (a), and we random select one in scale 1. Due to the sequence reducing led by the dilated convolution, the scale 3 only contain a single adjacency matrix which is also chosen. 5 (d) display the two adjacency matrices, and , in scale 1 and 3. We could observe that the values in the adjacency matrix at the scale 1 tend to be highly polarized, which indicates the short-term dependency of the stations is more likely to differ from others. However, at the last scale, the more average values in the adjacency matrix clarify that the 4 time series possess the same pattern from the long-term view. The two case studies above offer us a strong support to verify that the evolving and multi-scale correlations among multivariate time series are well captured by ESG.

5. Related Work

In this section, we review the related work from two perspectives, time series forecasting, and graph neural network.

5.1. Time Series Forecasting

Time series forecasting has attracted numerous researchers to dig into it. According to the number of variables that are taken as the observation, this enduring topic usually falls into two mainstreams, univariate time series, and multivariate time series. The former feeds the variables one by one to a single model under the assumption that all variables of the time series share the same temporal pattern. In the statistical domain, autoregressive integrated moving average (ARIMA) (Box et al., 2015) is one of the most popular methods for its flexibility and excellent mathematical properties. Recent years have witnessed the rapid growth of deep learning, and a number of researchers analyze the time series respectively under this framework. FC-LSTM (Sutskever et al., 2014) combines the fully connected layer with LSTM to make prediction. N-BEATS (Oreshkin et al., 2019) utilizes deeply stacked fully-connected layers cooperated with the residual links, and the simple architecture pays back a great number of desired properties such as being interpretable and fast to train.

On the other side, multivariate time series forecasting takes the whole variables as an entity, and researchers devote themselves to exploring the correlation among the different time series. LSTNet (Lai et al., 2018) and TPA-LSTM (Shih et al., 2019) combined the convolution neural network and recurrent neural network to handle this problem in the deep learning framework. In the spatio-temporal prediction, the subfield of multivariate time series analysis, the similar model architecture is also preferred with treating the transportation demand of the whole city as several grids (Zhang et al., 2017a; Ye et al., 2019). DeepGLO (Sen et al., 2019) decomposes the time series as the combination of the basis via matrix factorization (MF). TLAE (Nguyen and Quanz, 2021) followed this line and proposed a temporal auto-encoder. However, it is difficult for the methods above to capture the pair-wise correlation between variables precisely. To solve this problem, MTGNN (Wu et al., 2020c) generalized graph neural network to multivariate time series forecasting via a self-learned adjacency matrix.

5.2. Graph Neural Network

Recent years have witnessed the rapid development of graph neural network. Bruna et al. (2013) first extended the convolution network to graph-based data. The following work could be roughly divided into two categories (Wu et al., 2020b), spectral-based methods and spatial-based methods. The former one takes the graph convolution as the low-pass filter to remove high frequency information from the signals (Defferrard et al., 2016). Along this line, Xu et al. (2018) proved the expressiveness of graph neural networks is equal to Weisfeiler-Lehman (WL) graph isomorphism test. The spatial-based methods follow the message passing rule and aggregate the information from neighbors (Kipf and Welling, 2016; Hamilton et al., 2017).

With the rapid development of the GNN’s theory, the flexible architecture and strong generalization ability make it widely applied in numerous domains. For example, in spatio-temporal data prediction, especially in traffic forecasting problem, the natural topological structure of the road network makes GNN achieve the remarkable performance (Li et al., 2017; Yu et al., 2018; Guo et al., 2019; Ye et al., 2021). Yu et al. (2018) first combined the GNN with the 1D convolution neural network and constructed the adjacency matrix by the distance between nodes. Guo et al. (2019) aggregated the recent, daily, weekly representations to give the final forecasting. However, the evolving and multi-scale correlations among multivariate time series are seldom captured.

6. Conclusion

In this paper, we proposed a novel multivariate time series forecasting model named ESG. In particular, an evolving graph structure learner is proposed to construct a series of adjacency matrices that not only receive the information from current input but also maintain the hidden states from the historical graph structure. Based on this, a hierarchical architecture is proposed to capture the multi-scale inter-and intra-time-series correlations simultaneously. Finally, a unified forecasting framework integrates the components above to give the final prediction. The extensive experiments conducted on real-world datasets demonstrate the superiority of the proposed methods over the baselines. This research provides a new perspective to the correlation modeling on current multivariate time series forecasting. In the future, the evolving graph structure will be explored in more scenarios.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (71901011, U1811463, 51991391, 51991395, U21A20516).

References

  • L. Bai, L. Yao, S. S. Kanhere, X. Wang, and Q. Z. Sheng (2019) STG2seq: spatial-temporal graph to sequence model for multi-step passenger demand forecasting. In

    Proceedings of the 28th International Joint Conference on Artificial Intelligence

    ,
    pp. 1981–1987. Cited by: 4th item, §4.2.
  • G. E. Box, G. M. Jenkins, G. C. Reinsel, and G. M. Ljung (2015) Time series analysis: forecasting and control. John Wiley & Sons. Cited by: §5.1.
  • J. Bruna, W. Zaremba, A. Szlam, and Y. LeCun (2013) Spectral networks and locally connected networks on graphs. arXiv preprint arXiv:1312.6203. Cited by: §5.2.
  • D. Cao, Y. Wang, J. Duan, C. Zhang, X. Zhu, C. Huang, Y. Tong, B. Xu, J. Bai, J. Tong, et al. (2021) Spectral temporal graph neural network for multivariate time-series forecasting. arXiv preprint arXiv:2103.07719. Cited by: 8th item, §4.2.
  • T. Chen and C. Guestrin (2016) Xgboost: a scalable tree boosting system. In Proceedings of the 22nd acm sigkdd international conference on knowledge discovery and data mining, pp. 785–794. Cited by: 1st item, §4.2.
  • M. Defferrard, X. Bresson, and P. Vandergheynst (2016) Convolutional neural networks on graphs with fast localized spectral filtering. In Advances in neural information processing systems, pp. 3844–3852. Cited by: §5.2.
  • S. Guo, Y. Lin, N. Feng, C. Song, and H. Wan (2019) Attention based spatial-temporal graph convolutional networks for traffic flow forecasting. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 33, pp. 922–929. Cited by: §5.2.
  • W. L. Hamilton, R. Ying, and J. Leskovec (2017) Inductive representation learning on large graphs. In Proceedings of the 31st International Conference on Neural Information Processing Systems, pp. 1025–1035. Cited by: §5.2.
  • B. Jin, H. Yang, L. Sun, C. Liu, Y. Qu, and J. Tong (2018) A treatment engine by predicting next-period prescriptions. In Proceedings of the 24th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, pp. 1608–1616. Cited by: §1.
  • T. N. Kipf and M. Welling (2016) Semi-supervised classification with graph convolutional networks. arXiv preprint arXiv:1609.02907. Cited by: §5.2.
  • G. Lai, W. Chang, Y. Yang, and H. Liu (2018) Modeling long-and short-term temporal patterns with deep neural networks. In The 41st International ACM SIGIR Conference on Research & Development in Information Retrieval, pp. 95–104. Cited by: 1st item, 2nd item, 3rd item, 5th item, §1, §4.2, §5.1.
  • Y. Li, R. Yu, C. Shahabi, and Y. Liu (2017) Diffusion convolutional recurrent neural network: data-driven traffic forecasting. arXiv preprint arXiv:1707.01926. Cited by: 2nd item, §1, §1, §4.2, §5.2.
  • N. Nguyen and B. Quanz (2021) Temporal latent auto-encoder: a method for probabilistic multivariate time series forecasting. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 35, pp. 9117–9125. Cited by: §5.1.
  • B. N. Oreshkin, D. Carpov, N. Chapados, and Y. Bengio (2019) N-beats: neural basis expansion analysis for interpretable time series forecasting. arXiv preprint arXiv:1905.10437. Cited by: §5.1.
  • S. Roberts, M. Osborne, M. Ebden, S. Reece, N. Gibson, and S. Aigrain (2013) Gaussian processes for time-series modelling. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences 371 (1984), pp. 20110550. Cited by: 2nd item, §4.2.
  • R. Sen, H. Yu, and I. S. Dhillon (2019) Think globally, act locally: a deep neural network approach to high-dimensional time series forecasting. Advances in Neural Information Processing Systems 32, pp. 4837–4846. Cited by: §5.1.
  • C. Shang, J. Chen, and J. Bi (2021) Discrete graph structure learning for forecasting multiple time series. arXiv preprint arXiv:2101.06861. Cited by: 8th item, §1, §1, §4.2.
  • S. Shih, F. Sun, and H. Lee (2019) Temporal pattern attention for multivariate time series forecasting. Machine Learning 108 (8), pp. 1421–1441. Cited by: 6th item, §1, §4.2, §5.1.
  • C. Song, Y. Lin, S. Guo, and H. Wan (2020) Spatial-temporal synchronous graph convolutional networks: a new framework for spatial-temporal network data forecasting. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 34, pp. 914–921. Cited by: 5th item, §4.2.
  • I. Sutskever, O. Vinyals, and Q. V. Le (2014) Sequence to sequence learning with neural networks. In Advances in neural information processing systems, pp. 3104–3112. Cited by: §5.1.
  • S. Wu, X. Xiao, Q. Ding, P. Zhao, Y. Wei, and J. Huang (2020a) Adversarial sparse transformer for time series forecasting. Advances in Neural Information Processing Systems 33. Cited by: 4th item.
  • Z. Wu, S. Pan, F. Chen, G. Long, C. Zhang, and S. Y. Philip (2020b) A comprehensive survey on graph neural networks. IEEE Transactions on Neural Networks and Learning Systems. Cited by: §5.2.
  • Z. Wu, S. Pan, G. Long, J. Jiang, X. Chang, and C. Zhang (2020c) Connecting the dots: multivariate time series forecasting with graph neural networks. In Proceedings of the 26th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, pp. 753–763. Cited by: 7th item, 6th item, Definition 2.1, §3.3, §4.1, §4.2, §4.2, §5.1.
  • Z. Wu, S. Pan, G. Long, J. Jiang, and C. Zhang (2019) Graph wavenet for deep spatial-temporal graph modeling. In Proceedings of the 28th International Joint Conference on Artificial Intelligence, pp. 1907–1913. Cited by: §1.
  • K. Xu, W. Hu, J. Leskovec, and S. Jegelka (2018) How powerful are graph neural networks?. arXiv preprint arXiv:1810.00826. Cited by: §5.2.
  • J. Ye, L. Sun, B. Du, Y. Fu, X. Tong, and H. Xiong (2019) Co-prediction of multiple transportation demands based on deep spatio-temporal neural network. In Proceedings of the 25th ACM SIGKDD International Conference on Knowledge Discovery & Data Mining, pp. 305–313. Cited by: §5.1.
  • J. Ye, L. Sun, B. Du, Y. Fu, and H. Xiong (2021) Coupled layer-wise graph convolution for transportation demand prediction. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 35, pp. 4617–4625. Cited by: 1st item, 2nd item, 7th item, §4.1, §4.2, §5.2.
  • B. Yu, H. Yin, and Z. Zhu (2018) Spatio-temporal graph convolutional networks: a deep learning framework for traffic forecasting. In Proceedings of the 27th International Joint Conference on Artificial Intelligence, pp. 3634–3640. Cited by: 3rd item, §4.2, §5.2.
  • G. P. Zhang (2003) Time series forecasting using a hybrid arima and neural network model. Neurocomputing 50, pp. 159–175. Cited by: 3rd item, §4.2.
  • J. Zhang, Y. Zheng, and D. Qi (2017a) Deep spatio-temporal residual networks for citywide crowd flows prediction. In Proceedings of the AAAI Conference on Artificial Intelligence, Vol. 31. Cited by: §5.1.
  • L. Zhang, C. Aggarwal, and G. Qi (2017b) Stock price prediction via discovering multi-frequency trading patterns. In Proceedings of the 23rd ACM SIGKDD international conference on knowledge discovery and data mining, pp. 2141–2149. Cited by: §1.

Appendix A Appendix

More details are displayed in this section.

a.1. Dataset and Metrics

We conduct detailed experiments on two groups of datasets, 4 for the single-step, and 2 for the multi-step task. Now more details of each dataset and the evaluation metrics are shown in the following.

a.1.1. Single-Step Forecasting.

4 datasets are conducted for this task, covering the energy, and exchange rates of countries.

  • Solar-Energy: This dataset (Lai et al., 2018) from National Renewable Energy Laboratory contains the solar power production records of 137PV plants in Alabama State in 2007.

  • Electricity: This dataset (Lai et al., 2018) which is published by National Renewable Energy Laboratory contains the hourly electricity consumption of 321 clients from 2012 to 2014.

  • Exchange Rate: This dataset (Lai et al., 2018) contains daily exchange rates of eight countries from 1990 to 2016. The countries are Australia, British, Canada, Switzerland, China, Japan, New Zealand, and Singapore.

  • Wind: This dataset (Wu et al., 2020a) contains the hourly energy potential estimates of an area from 1986 to 2015.

The length of the look-back window is 168. For each future horizon (), the model is trained independently. The feature dimension is 1. The performance of models is evaluated by the Root Relative Squared Error (RSE, defined in Equation (19)) and Empirical Correlation Coefficient (CORR, defined in Equation (20)). The indicates the total number of samples, and is the number of nodes. and indicate the ground truth and forecasting value. and represent the mean values.

a.1.2. Multi-Step Forecasting.

Two real-world traffic datasets published by New York OpenData are chosen for this task.

  • NYC-Bike: This dataset (Ye et al., 2021) collects the sharing bike demand of the residents’ daily usage at 250 bike stations in New York from April , 2016 to June , 2016.

  • NYC-Taxi: This dataset (Ye et al., 2021) contains the taxi demand data in New York from April , 2016 to June , 2016.

The look-back window is 12 (6 hours), and we predict the future values for the next 12 time steps (6 hours). The feature dimension is 2, i.e., the demand of pick-up and drop-off. The performance of models is evaluated by Root Mean Squared Error (RMSE, defined in Equation (17)), Mean Absolute Error (MAE, defined in Equation (18)) and Empirical Correlation Coefficient (CORR, defined in Equation (20)).

(17)
(18)
(19)
(20)

a.2. Baselines

Two groups of baselines are chosen for single-step and multi-step forecasting respectively. All key hyper-parameters are well-tuned to ensure their performance. Each experiment is run 10 times and the average value is presented.

a.2.1. Single-step forecasting.

For the single-step forecasting task, we select 8 baselines covering classical statistic methods and recent deep neural networks.

  • AR: Auto-Regression model capture the linear correlations among time series.

  • GP: Gaussian Process (Roberts et al., 2013) is employed for time series modeling.

  • VARMLP: VARMLP (Zhang, 2003) is a hybrid methodology that combines both VAR and MLP models.

  • RNN-GRU: The gated recurrent unit is employed for time series modeling.

  • LSTNet: LSTNet (Lai et al., 2018) combines the CNN with RNN for multivariate time series forecasting.

  • TPA-LSTM: TPA-LSTM (Shih et al., 2019) utilizes attention mechanism and RNN.

  • MTGNN: MTGNN (Wu et al., 2020c) employs an adaptive adjacency matrix to describe the correlation among time series.

  • StemGNN: StemGNN (Cao et al., 2021)

    employs Fourier Transform to discover the hidden patterns of time series.

a.2.2. Multi-step forecasting.

We choose 8 competitive and representative baselines for the multi-step forecasting task.

  • XGBoost

    : A powerful machine learning method based on gradient boosting tree

    (Chen and Guestrin, 2016).

  • DCRNN: Diffusion convolutioal recurrent neural network (Li et al., 2017) first utilizes a hand-craft adjacency matrix to describe the correlations among time series.

  • STGCN: Sptaio-temporal graph convolutional network (Yu et al., 2018) integrates the graph convolution with 1D convolution neural network.

  • STG2Seq: Spatio-temporal graph to sequence model (Bai et al., 2019) captures the long-term and short-term temporal dependency respectively.

  • STSGCN: Spatial-temporal synchronous graph convolutional network (Song et al., 2020) constructs a 3D graph convolution kernel.

  • MTGNN: This method (Wu et al., 2020c) capture the correlations among variables via a self-learned adjacency matrix.

  • CCRNN: Coupled layer-wise convolutional recurrent neural network (Ye et al., 2021) explores the hierarchical graph convolution for multivariate time series.

  • GTS: Graph for Time Series (Shang et al., 2021) combines a discrete graph structure learner with recurrent neural network.

Method Horizon 3 Horizon 6 Horizon 12 All
RMSE MAE CORR RMSE MAE CORR RMSE MAE CORR RMSE MAE CORR
Static Graph Only 2.6217 1.5686 0.7600 2.7451 1.6327 0.7401 2.9315 1.7254 0.7098 2.7439 1.6302 0.7388
w/o Scale-specific 2.6504 1.5872 0.7530 2.7907 1.6623 0.7304 3.0320 1.7781 0.6940 2.8102 1.6663 0.7259
Same Pattern of Evolution 2.5911 1.5593 0.7612 2.7179 1.6263 0.7443 2.9224 1.7297 0.7114 2.7274 1.6296 0.7402
ESG 2.5529 1.5483 0.7638 2.6484 1.6026 0.7511 2.8778 1.7173 0.7152 2.6727 1.6129 0.7449
Table 5. Ablation Study.

a.3. Experimental Setup

The models is implemented by the Pytorch. All the experiments are conducted on an Ubuntu machine equipped with two Intel(R) Xeon(R) CPU E5-2667 v4 @ 3.20GHz with 8 physical cores, and the GPU is NVIDIA TITAN Xp, armed with 12 GB of GDDR5X memory running at over 11 Gbps. We repeat the experiment 10 times and report the average value of evaluation metrics. The model is trained by the Adam optimizer with gradient clip 5. Learning rate is chosen from

0.01, 0.005, 0.001, 0.0005, 0.0001 by grid search. Dropout with 0.3 is applied after each temporal convolution module. Layernorm is applied after each graph convolution module. The depth of the mix-hop propagation layer is set to 2. The retain ratio from the mix-hop propagation layer is set to 0.05. The dimension of static node representation is 40. Other hyper-parameters are reported according to different tasks.

a.3.1. Single-step forecasting.

We stack 5 multi-scale extractors with a sequence of time intervals , 31, 31, 21, 14, 1. In temporal convolution module, the dilation factor for each layer grows exponentially at a rate of 2 and four filter sizes are used, i.e., =2, =3, =6, and =7. The output channels of temporal convolution modules and graph convolution modules both are 16. The skip connection layers are standard convolutions, where is the sequence length of the inputs to the -th skip connection layer, which all have 32 output channels. In the output module, The first layer has 64 output channels and the second layer has 1 output channel. For the Solar- Energy, the batch size is 16. For the Electricity and Exchange Rate, the batch size is 4. For the Wind, the batch size is 32. The dimension of evolving node representation is set to 20 for the Solar-Energy, Electricity, and Wind, while set to 16 for the Exchange Rate.

a.3.2. Multi-step forecasting.

We stack 3 multi-scale extractors with a sequence of time intervals , 1, 1, 1. In temporal convolution module, the dilation exponential factor is 1 and two filter sizes are used, i.e., =2, =6. The output channels of temporal convolution modules and graph convolution modules both are 32. The skip connection layers are standard convolutions, which all have 64 output channels. In the output module, The first layer has 128 output channels and the second layer has 122 output channels. The batch size is 16 and the dimension of evolving node representation is set to 20.

a.4. Extra Experiment Result

We conduct a detailed ablation study on NYC-Bike dataset. As shown in Table 5, ESG achieves the best results on the average value, as well as on horizon 3, 6, 12.
