1 Introduction

Until now, many studies have dealt with semantic segmentation. For supervised semantic segmentation, a large volume of labeled data is required for training. However, the manual annotation for pixel-wise ground truth labels is extremely laborious. For example, it takes 90 min per image to make ground truth label for the Cityscape [5] dataset.

To reduce the cost of annotation, datasets such as GTA5 [20] and SYNTHIA [21] are proposed. Since these datasets are generated by computer graphics, the images and pixel-level annotations are automatically generated. However, due to the domain gap between the synthetic domain and the real domain, a model trained with the synthetic data is hard to generalize to the real data.

Domain adaptation addresses the above issue by reducing the domain gap. One approach is pixel-level adaptation. The pixel-level adaptation uses image translation algorithms like CycleGAN [29] to reduce the gap in visual appearance between two domains. Since the synthetic image is translated into the style of the real domain, a model can learn representation for the real domain more easily.

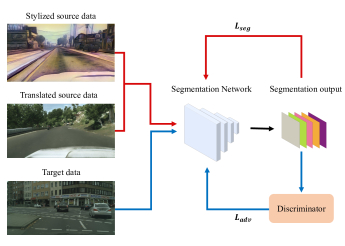

Figure 1: Process of learning texture-invariant representation. We consider both the stylized image and the translated image as the source image. The red line indicates the flow of the source image and the blue line indicates the flow of the target image. By segmentation loss of the stylized source data, the model learns texture-invariant representation. By adversarial loss, the model reduces the distribution gap in feature space.

Although CycleGAN reduces the visual gap between two domains to some extent, overcoming the fundamental difference, the texture, is still challenging. In Figure 2, the second column shows translated results by CycleGAN. Although the translated images get the Cityscapes’ gray color tone, CycleGAN cannot completely translate the synthetic texture into the real texture. Therefore, the possibility of a model to overfit to the synthetic texture still exists.

To overcome this limitation, we propose a method to adapt to the target domain’s texture. First, we generate a texture-diversified source dataset by using a style transfer algorithm. Each source image loses the synthetic texture and gets a random texture. Because of the increased variation of textures, a model trained on the texture-diversified dataset is guided to learn texture-invariant representation. Then, we fine-tune the model using self-training to get direct supervision of the target texture.

Our method achieves state-of-the-art performance on the GTA5 to Cityscapes benchmark. With extensive experiments, we analyze the properties of the model trained on the stylized dataset and compare the differences between ours and CycleGAN-based methods.

Our contributions are as follows:

  1. We design a method to adapt to the target domain’s texture for domain adaptation of semantic segmentation, combining pixel-level method and self-training.

  2. We achieve state-of-the-art performance on the GTA5 to Cityscapes benchmark.

  3. With extensive experiments, we analyze the properties of the model trained on the stylized dataset.

  4. We demonstrate that texture-based style transfer is more effective than CycleGAN-based methods for reducing the domain gap between the synthetic domain and the real domain.

Figure 2: Texture comparison. Original GTA5 [20] images (first column), generated images by CycleGAN [29] (second column) and by Style-swap [4] (third column).

2 Related Work

2.1 Domain adaptation of semantic segmentation

Domain adaptation transfers knowledge between different domains. Assume two datasets that have similar but different distributions. Let the one which has a larger volume and is more easy to collect as the source domain and the other as the target domain. The goal of domain adaptation is to transfer knowledge learned from the source domain to the target domain.

Among some settings of domain adaptation, the unsupervised setting is the most popular, which has access to input data and ground truth labels for the source domain but only input data for the target domain. Unsupervised domain adaptation (UDA)’s goal is to use the fully-labeled source domain properly to improve performance on the unlabeled target domain. Since annotating semantic label is one of the most laborious processes, domain adaptation of semantic segmentation gets much attention recently.

(a) Style
(b) Content
(c) AdaIN
(d) PhotoWCT
(e) Style-Swap
Figure 3: Results of stylization.

Pixel-level adaptation. There exists a visual gap between synthetic and real images, such as texture and lighting. Pixel-level adaptation translates the synthetic source image into the target style using image translation algorithms like CycleGAN [29]. Due to the reduced visual gap, a model more easily encodes the representation for the target domain.

Self-training. Recently, some works adopt self-training (ST) for domain adaptation of semantic segmentation [30, 16]. Generally, ST is applied when labeled training data is scarce. In the unsupervised domain adaptation, since labels on the target domain are absent, it is very attractive to apply ST. [16] suggests a simple method for self-training. At ST stage, [16] generates pseudo labels based on the previous model’s confident prediction and fine-tune the model with pseudo labels.

[16] uses both pixel-level adaptation and self-training. The models trained with ST method outperform other models only using the pixel-level method with a large margin. Considering the fundamental difference between the two domains as the texture, ST’s powerful performance means that previous methods using pixel-level adaptation are not able to encode the target texture sufficiently.

Based on this observation, we propose a method that is optimized for encoding the target domain’s texture.

2.2 Style transfer

Starting from texture synthesis [8] and going through [7], many studies have been conducted about style transfer. Based on the observation that style(texture) and content can be separated, modeling feature statistics makes possible to synthesize image with one image’s content and another image’s texture.

Our purpose is, using various textures as a regularizer preventing a model from overfitting to one specific texture, to make the segmentation model learn texture-invariant representation.

2.3 Texture and shape

According to recent research [9]

, human recognition is based on shape but the ImageNet

[6] pre-trained CNN’s criterion is based on texture. To overcome texture-dependency, [9] generates Stylized ImageNet (SIN) using the AdaIN [14] style transfer algorithm. Stylized ImageNet lose natural texture and get the various random texture. Since a model trained on SIN cannot predict results based on the local texture, it is enforced to consider the overall structure of the input. [9] demonstrates with experiments that CNN trained on SIN is more shape-dependent like humans and the shape-dependent model is better at classification and detection tasks.

Inspired by this work, we apply this method to domain adaptation of semantic segmentation task, where the texture is fundamental differences between synthetic and real domains.

3 Method

In this section, we present a process for generating texture-diversified datasets and a method to adapt to the target texture. We first diversity the texture of the original source dataset with a style transfer algorithm Style-swap [4] and translate the original source dataset with an image translation algorithm CycleGAN [29]. Then, our model goes through two training stages.

Stage 1: We train a segmentation model with the texture-diversified dataset to learn texture-invariant representation.

Stage 2: Based on the texture-invariant representation, we fine-tune the model to the target domain’s texture.

Figure 4: Examples of original images and stylized images.

3.1 Stylized GTA5 / SYNTHIA

Prior works [13, 16] use an image translation method CycleGAN [29] to reduce the visual gap between the synthetic and real domains. Although the image translation algorithm makes the source image’s overall color tone similar to the real image, it cannot completely translate the synthetic texture into the real one.

To overcome this limitation, we take a more fundamental approach which removes the synthetic texture drastically. Inspired by [9], we generate Stylized GTA5 and Stylized SYNTHIA. Stylized ImageNet [9] is generated by fast AdaIN [14] style transfer algorithm. Although AdaIN is efficient in inference, it distorts the structure of content image considerably with some wave patterns. Unlike the classification task, semantic segmentation task requires accurate pixel-level annotations. Thus, we cannot use AdaIN. The photo-realistic style transfer algorithm [15] is another option, which preserves the precise structure of the original image using a smoothing step after the stylization step. However, due to the smoothing process which is based on the original content image, final results preserve original synthetic texture. Since our purpose is to remove the synthetic texture using a style transfer algorithm, it is not appropriate to apply the photo-realistic algorithm. Our requirements are three-fold. First, enough stylization effect to remove the synthetic texture, while not distorting the structure of the original image too much. Second, due to the large image resolution and the large volume of the synthetic dataset, the stylization process should be time-efficient. Third, to generate diverse stylized results, it should be able to transfer various styles. Considering above conditions, we choose Style-swap [4]. We present stylization results from different methods in Figure 3.

For a style dataset, we used the Painter by Numbers 111https://www.kaggle.com/c/painter-by-numbers/ dataset which consists of artistic images. Considering the volume of the GTA5 and SYNTHIA dataset, we use the first split, which contains 11,026 images. The stylized datasets have the same number of images with the original datasets, i.e. one-to-one mapping.

As shown in Figure 4, the stylized images drastically lose the synthetic texture and get various random textures. Since each texture is from a different style image, this variety of texture leads a model to encode texture-invariant representation. In other words, the model can learn shape-dependent representation.

3.2 Stage 1

The goal of the first stage is to learn texture-invariant representation using the texture-diversified dataset. We train the segmentation model with both the stylized images by Style-swap [4] and the translated images by CycleGAN [29]. At each iteration, the stylized or translated inputs are alternately forwarded due to the limitation of memory. While learning texture-invariant representation with the stylized images, the translated images guide the model toward the target style.

Along with the texture regularization, we additionally use the output-level adversarial training [23] to further align feature space between the two different domains. The process of Stage 1 is shown in Figure 1.

3.3 Stage 2

The goal of the second stage is, based on learned texture-invariant representation, to fine-tune the segmentation network to the target domain’s texture. For this purpose, we adopt a self-training method. Following the process of [16], we generate pseudo labels with the model trained on Stage 1. Among predictions on the target training images, we set predictions with higher confidence than a threshold(0.9) as pseudo-labels. Then we fine-tune the model with pseudo-labels. Now the model is directly supervised by the target domain’s texture, the model can learn the representation optimized for the target domain. We apply this process iteratively.

GTA5 Cityscapes
Base Model Method

road

side.

buil.

wall

fence

pole

t-light

t-sign

vege.

terr.

sky

pers.

rider

car

truck

bus

train

motor

bike

mIoU

ResNet101 AdaptSegNet[23] 86.5 36.0 79.9 23.4 23.3 23.9 35.2 14.8 83.4 33.3 75.6 58.5 27.6 73.7 32.5 35.4 3.9 30.1 28.1 42.4
CLAN[18] 87.0 27.1 79.6 27.3 23.3 28.3 35.5 24.2 83.6 27.4 74.2 58.6 28.0 76.2 33.1 36.7 6.7 31.9 31.4 43.2
ADVENT[25] 87.6 21.4 82.0 34.8 26.2 28.5 35.6 23.0 84.5 35.1 76.2 58.6 30.7 84.8 34.2 43.4 0.4 28.4 35.2 44.8
BDL[16] 91.0 44.7 84.2 34.6 27.6 30.2 36.0 36.0 85.0 43.6 83.0 58.6 31.6 83.3 35.3 49.7 3.3 28.8 35.6 48.5
SIBAN[17] 88.5 35.4 79.5 26.3 24.3 28.5 32.5 18.3 81.2 40.0 76.5 58.1 25.8 82.6 30.3 34.4 3.4 21.6 21.5 42.6
AdaptPatch[24] 92.3 51.9 82.1 29.2 25.1 24.5 33.8 33.0 82.4 32.8 82.2 58.6 27.2 84.3 33.4 46.3 2.2 29.5 32.3 46.5
MaxSquare[3] 89.4 43.0 82.1 30.5 21.3 30.3 34.7 24.0 85.3 39.4 78.2 63.0 22.9 84.6 36.4 43.0 5.5 34.7 33.5 46.4
Ours 92.9 55.0 85.3 34.2 31.1 34.9 40.7 34.0 85.2 40.1 87.1 61.0 31.1 82.5 32.3 42.9 0.3 36.4 46.1 50.2
VGG16 AdaptSegNet[23] 87.3 29.8 78.6 21.1 18.2 22.5 21.5 11.0 79.7 29.6 71.3 46.8 6.5 80.1 23.0 26.9 0.0 10.6 0.3 35.0
CLAN[18] 88.0 30.6 79.2 23.4 20.5 26.1 23.0 14.8 81.6 34.5 72.0 45.8 7.9 80.5 26.6 29.9 0.0 10.7 0.0 36.6
ADVENT[25] 86.8 28.5 78.1 27.6 24.2 20.7 19.3 8.9 78.8 29.3 69.0 47.9 5.9 79.8 25.9 34.1 0.0 11.3 0.3 35.6
BDL[16] 89.2 40.9 81.2 29.1 19.2 14.2 29.0 19.6 83.7 35.9 80.7 54.7 23.3 82.7 25.8 28.0 2.3 25.7 19.9 41.3
SIBAN[17] 83.4 13.0 77.8 20.4 17.5 24.6 22.8 9.6 81.3 29.6 77.3 42.7 10.9 76.0 22.8 17.9 5.7 14.2 2.0 34.2
AdaptPatch[24] 87.3 35.7 79.5 32.0 14.5 21.5 24.8 13.7 80.4 32.0 70.5 50.5 16.9 81.0 20.8 28.1 4.1 15.5 4.1 37.5
DRPC[28] 84.6 31.5 76.3 25.4 17.2 28.2 21.5 13.7 80.7 26.8 74.9 47.5 15.8 77.1 22.2 22.7 1.7 8.9 9.7 36.1
Ours 92.5 54.5 83.9 34.5 25.5 31.0 30.4 18.0 84.1 39.6 83.9 53.6 19.3 81.7 21.1 13.6 17.7 12.3 6.5 42.3
Table 1: Results on GTA5 to Cityscapes.
SYNTHIA Cityscapes
Base Model Method

road

side.

buil.

t-light

t-sign

vege.

sky

pers.

rider

car

bus

motor

bike

mIoU

ResNet101 AdaptSegNet[23] 84.3 42.7 77.5 4.7 7.0 77.9 82.5 54.3 21.0 72.3 32.2 18.9 32.3 46.7
CLAN[18] 81.3 37.0 80.1 16.1 13.7 78.2 81.5 53.4 21.2 73.0 32.9 22.6 30.7 47.8
ADVENT[25] 85.6 42.2 79.7 5.4 8.1 80.4 84.1 57.9 23.8 73.3 36.4 14.2 33.0 48.0
BDL[16] 86.0 46.7 80.3 14.1 11.6 79.2 81.3 54.1 27.9 73.7 42.2 25.7 45.3 51.4
SIBAN[17] 82.5 24.0 79.4 16.5 12.7 79.2 82.8 58.3 18.0 79.3 25.3 17.6 25.9 46.3
AdaptPatch[24] 82.4 38.0 78.6 3.9 11.1 75.5 84.6 53.5 21.6 71.4 32.6 19.3 31.7 46.5
MaxSquare[3] 82.9 40.7 80. 12.8 18.2 82.5 82.2 53.1 18.0 79.0 31.4 10.4 35.6 48.2
Ours 92.6 53.2 79.2 1.6 7.5 78.6 84.4 52.6 20.0 82.1 34.8 14.6 39.4 49.3
VGG16 AdaptSegNet[23] 78.9 29.2 75.5 0.1 4.8 72.6 76.7 43.4 8.8 71.1 16.0 3.6 8.4 37.6
CLAN[18] 80.4 30.7 74.7 1.4 8.0 77.1 79.0 46.5 8.9 73.8 18.2 2.2 9.9 39.3
ADVENT[25] 67.9 29.4 71.9 0.6 2.6 74.9 74.9 35.4 9.6 67.8 21.4 4.1 15.5 36.6
SIBAN[17] 70.1 25.7 80.9 3.8 7.2 72.3 80.5 43.3 5.0 73.3 16.0 1.7 3.6 37.2
AdaptPatch[24] 72.6 29.5 77.2 1.4 7.9 73.3 79.0 45.7 14.5 69.4 19.6 7.4 16.5 39.6
DRPC[28] 77.5 30.7 78.6 10.6 16.1 75.2 76.5 44.1 15.8 69.9 14.7 8.6 17.6 41.2
Ours 89.8 48.6 78.9 0.0 4.7 80.6 81.7 36.2 13.0 74.4 22.5 6.5 32.8 43.8
Table 2: Results on SYNTHIA to Cityscapes.

3.4 Training objective

Segmentation model training. Since the ground truth label is only available in the source domain, the segmentation loss is defined as:

(1)

And when the target image is given, we calculate the adversarial loss using discriminator.

(2)

where and are the input images from the source and target domain. and are the final feature of the source and target image. is the source domain’s ground truth pixel label. is the number of classes and is a fully convolutional discriminator.

Therefore, the total loss function for the segmentation network is defined as:

(3)

Discriminator Training.

The discriminator takes source and target features and classifies whether it is from the source or target domain.

(4)

where if the feature is from source domain and if the feature is from target domain.

Self-training. In stage 2, to get direct supervision of the target domain’s texture, we calculate the segmentation loss for generated pseudo-labels in target images.

(5)

where indicates whether each pixel of the target training set is pseudo-label or not.

4 Experiments

Dataset. GTA5 [20] is a dataset which contains 24,966 synthetic images from the video game with resolution. The semantic labels are compatible with the Cityscapes dataset which has 19 classes.

For SYNTHIA [21], we use the SYNTHIA-RAND-CITYSCAPES partition with 9,400 images of resolution. We validate on 13 common classes with the Cityscapes dataset.

Cityscapes [5] is a dataset which contains 5,000 densely annotated images with resolution. We use 2,975 training images and 500 validation images.

Network architecture. We use the DeepLab-v2 [2] model with ResNet-101 [11] and VGG-16 [22] which are pretrained on ImageNet [6]. For the discriminator, we adopt similar architecture to [19]. The network contains 5 convolution layers with

kernel size, channel numbers are {64,128, 256, 512, 1} and stride of 2.

Training detail.

We implement our experiment using the Pytorch library on a single GTX 1080 Ti with 11GB memory. To optimize the segmentation network, we use the Stochastic Gradient Descent method. The momentum is set as 0.9. The initial learning rate is

. Due to the variation of the stylized dataset, a high learning rate makes training unstable. Therefore, we set smaller value than prior works which adopt the same architecture [23, 18, 25, 1, 16]. For the learning rate schedule, we adopt the polynomial procedure mentioned in [2]. For optimizing discriminator, we use Adam optimizer with the learning rate and the momentum 0.9 and 0.99. We set as 0.001. Inputs are resized to .

Comparison with state-of-the-art models. As shown in Table 1, our method outperforms all previous state-of-the-art methods on GTA5-to-Cityscapes. BDL [16] iterates the training process six times and outperforms other models with a large margin. Our model surpasses the performance of BDL with only two iterations of the segmentation training as shown in Table 5. These results show that our method (first learn texture-invariant representation, then fine-tune toward target texture) is more effective than a simple self-training method.

For the SYNTHIA to Cityscapes, we compare methods that evaluate performance on 13 classes in Table 2. Our method shows outstanding performance in classes like road and sidewalk, which occupy large area in input images. Since large-area classes will be more affected by texture, our texture-based method outperforms others in these classes. Results also report our performance on small classes like t-light, t-sign and person are lower than other methods. Although the texture is a fundamental difference between the synthetic and real domains, it is not the only factor causing the domain gap. The layout gap is also an important factor that we didn’t handle in this paper. This layout gap brings discrepancy of shape distribution across domains. In SYNTHIA, t-light, t-sign, and person are depicted much smaller compared to GTA5 and Cityscapes. Since the shape is more decisive factors than texture for small-area classes, our shape-dependent representation, which is fitted to SYNTHIA’s shape distribution, is hard to be transferred to Cityscapes’ shape distribution. Also as quantitatively shown in [26], the domain gap between SYNTHIA and Cityscapes is much larger than the domain gap between GTA5 and Cityscapes, especially for t-light and t-sign. Other methods use an additional technique like class-ratio prior [25] to reduce the layout gap.

Comparison of class-wise performance. We provide the basis for the above claim through a class-wise ablation study. In Table 3, IoUs are from large (texture-sensitive) and small (texture-insensitive) classes in the Stage 1. Models trained on Stylized dataset outperform models trained on Translated and Original dataset in large-area classes like road and sidewalk. Among other large-area classes, since road and sidewalk have similar layout distribution, texture is an especially important factor for these classes.

On the other hand, Original outperforms other methods in t-light and t-sign. [26] shows, when using the synthetic and real data together, performance increases significantly in t-light and t-sign compared to other classes. This means texture is not a decisive factor for these classes and the sharp original image is more helpful for improving performance in the real domain.

SYNTHIA Cityscapes
Base Model Source Type

road

side.

t-light

t-sign

ResNet101 Stylized 87.7 44.1 1.0 5.8
Translated 84.6 40.6 1.3 5.0
Original [23] 79.2 37.2 9.9 10.5
VGG16 Stylized 86.1 36.4 0.3 1.7
Translated 75.6 31.9 0 3.6
Original [23] 78.9 29.2 0.1 4.8
Table 3: Ablation study on large & small classes.

5 Discussion

5.1 Comparison with CycleGAN-based methods

In this section, we compare the differences between ours and CycleGAN-based methods.

First, CyCADA [13] uses CycleGAN to reduce the visual gap between the synthetic and real domains. However, while CycleGAN’s generator is trained to generate undistinguishable images from the target domain, CycleGAN is prone to generate inappropriate images. In Figure 5, for GTA5 to Cityscapes (first row), CycleGAN generates vegetation-like artifact on the sky to match Cityscapes’ distribution. For SYNTHIA to Cityscapes (second row), CycleGAN blurs out person to match Cityscapes’ color distribution. Despite CycleGAN discriminator’s PatchGAN structure, these patterns are easily observed. On the other hand, because Style-swap transfers style based on local patch, Style-swap doesn’t show such patterns.

Figure 5: Inappropriate generation of CycleGAN. Original images (first column), generated images by CycleGAN (second column) and Style-swap (third column).

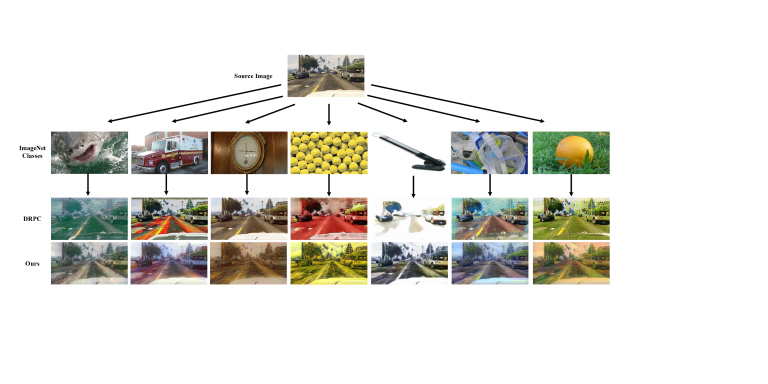

Figure 6: Stylization comparison with DRPC.
Figure 7: Texture comparison with DRPC. Cropped images from corresponding images from Figure 6.

Second, similar to our method, DRPC [28] uses CycleGAN to randomize source images. In Figure 6, we shows generated images using ImageNet classes used in [28] as auxiliary domains. Figure 7 shows cropped images from Figure 6. In Figure 7, CycleGAN match auxiliary domain’s color distribution while preserving the original image’s synthetic texture. On the other hand, Style-swap diversifies texture. This is the most differentiated point of our method compared to DRPC. Since the main difference between the synthetic and real domains is not color but the texture, our texture-based method is more effective than DRPC for randomization in synthetic to real tasks.

Also, our method is computationally more efficient than DRPC. Since training CycleGAN is a very costly process, DRPC only uses 15 auxiliary domains. On the other hand, since Style-swap does not require additional training for each style, it can handle many styles more easily. Hence our stylized datasets consist of 11,026 styles.

Additionally, DRPC used Pyramid Consistency across Domain (PCD) loss to learn style-invariant feature. Because of this loss, a computation that is linearly proportional to the number of domains is required to simultaneously forward images across domains. Since DRPC used 16 domains, it requires at least 16 times more memory and computing power. Though DRPC used 16 domains, it might be required to consider more domains for more style-invariant representation, which demands impractical computation especially when the input’s resolution is large like GTA5 (1914x1052) and SYNTHIA (1280x760). On the other hand, our method requires a fixed amount of computation regardless of the number of styles.

5.2 Ablation study

We conduct an ablation study on Stage 1 in Table 4. We divide the table into two sections according to the usage of adversarial loss.

In first section, Original source only means training the segmentation network only with the original GTA5 images. Stylized source only and Translated source only use generated dataset by Style-swap [4] and CycleGAN [29] respectively. Results show model trained on only stylized source dataset outperforms pixel-level [27, 10] method.

The second section shows the results with the adversarial feature-level adaptation. Results show Stylized/translated source, which uses both types by forwarding image alternately, is better than Stylized source. This is because, while learning texture-invariant representation through the stylized images, the translated images guide the model to the target style. Following the results, we choose Stylized/translated source setting with the adversarial loss for the training segmentation network in Stage 1.

We also conduct the ablation study for Stage 2 in Table 5. The results show in the third iteration of Stage 2 the segmentation model converged. Therefore we take three iterations for all results in Table 1, 2.

GTA5 Cityscapes
method mIoU
Original source only 36.6
DCAN [27] 38.5
Translated source only 41.0
DLOW [10] 42.3
Stylized source only 42.5
Original source + Adv loss [23] 41.4
Translated source + Adv loss [16] 42.7
Stylized source + Adv loss 43.2
Stylized/translated source + Adv loss 44.6
Table 4: Ablation study on Stage 1.
GTA5 Cityscapes
method mIoU
Stage 1 44.6
Stage 2-1 48.6
Stage 2-2 50.2
Stage 2-3 50.2
Table 5: Ablation study on Stage 2. In Stage 2-X, X means the number of iteration of self training.

5.3 Robustness test

To verify the texture-invariance of a model trained on the stylized dataset, we test the model on perturbated validation sets distorted by various noises. If the model is texture-invariant, it will be more robust to noises than other texture-dependent models. We generate noisy Cityscapes validation sets with noises that do not distort the shape of the original image’s object. Following the method of [12], we add Gaussian, Impulse, Shot and Speckle noise to the validation set. Results in Table 6 and Figure 8 show that our model is much more robust to various noises than AdaptSegNet [23] which is trained on original synthetic images.

Method AdaptSegNet[23] Stylized source only
Original 42.4 42.5
Gaussian 22.2 35.1
Impulse 20.9 32.6
Shot 24.9 38.2
Speckle 32.5 41.1
Table 6: Results on original and noisy validation set.
(a) Original image
(b) Image with Gaussian noise
(c) AdaptSegNet
(d) Ours
(e) Ground Truth
Figure 8: Results on the validation image with Gaussian noise.

5.4 Qualitative results

To qualitatively demonstrate the texture-invariance of our model, we present segmentation results on images with various texture from the stylized source dataset in Figure 9.

Figure 9: Results on images with various texture. Images from the Stylized GTA5 (left column) and segmentation results (right column).

6 Conclusion

In this paper, we present a method to adapt to the target texture. Using a style transfer algorithm, we generate the Stylized GTA5/SYNTHIA. The various texture of the stylized datasets works as a regularizer to make the segmentation model learn texture-invariant representation. We show the texture-invariance of our model qualitatively on images with various texture and quantitatively on noisy validation sets. Based on the texture-invariant representation, we use self-training to get direct supervision of the target texture. Experimental results show the effectiveness of our approach, which achieves new state-of-the-art performance in the GTA5-to-Cityscapes benchmark. Besides, we analyze the influence of texture across different classes. Also, we show our method is more effective than CycleGAN-based methods for reducing the gap between the synthetic and real domains.

7 Acknowledgement

This work was partly supported by the National Research Foundation of Korea grant funded by Korean government(No. NRF-2019R1A2C2003760).

References

  • [1] W. Chang, H. Wang, W. Peng, and W. Chiu (2019) All about structure: adapting structural information across domains for boosting semantic segmentation. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition

    ,
    pp. 1900–1909. Cited by: §4.
  • [2] L. Chen, G. Papandreou, I. Kokkinos, K. Murphy, and A. L. Yuille (2017) Deeplab: semantic image segmentation with deep convolutional nets, atrous convolution, and fully connected crfs. IEEE transactions on pattern analysis and machine intelligence 40 (4), pp. 834–848. Cited by: §4, §4.
  • [3] M. Chen, H. Xue, and D. Cai (2019) Domain adaptation for semantic segmentation with maximum squares loss. arXiv preprint arXiv:1909.13589. Cited by: Table 1, Table 2.
  • [4] T. Q. Chen and M. Schmidt (2016) Fast patch-based style transfer of arbitrary style. arXiv preprint arXiv:1612.04337. Cited by: Figure 2, §3.1, §3.2, §3, §5.2.
  • [5] M. Cordts, M. Omran, S. Ramos, T. Rehfeld, M. Enzweiler, R. Benenson, U. Franke, S. Roth, and B. Schiele (2016)

    The cityscapes dataset for semantic urban scene understanding

    .
    In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 3213–3223. Cited by: §1, §4.
  • [6] J. Deng, W. Dong, R. Socher, L. Li, K. Li, and L. Fei-Fei (2009) Imagenet: a large-scale hierarchical image database. In 2009 IEEE conference on computer vision and pattern recognition, pp. 248–255. Cited by: §2.3, §4.
  • [7] L. A. Gatys, A. S. Ecker, and M. Bethge (2016)

    Image style transfer using convolutional neural networks

    .
    In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 2414–2423. Cited by: §2.2.
  • [8] L. Gatys, A. S. Ecker, and M. Bethge (2015) Texture synthesis using convolutional neural networks. In Advances in neural information processing systems, pp. 262–270. Cited by: §2.2.
  • [9] R. Geirhos, P. Rubisch, C. Michaelis, M. Bethge, F. A. Wichmann, and W. Brendel (2018) ImageNet-trained cnns are biased towards texture; increasing shape bias improves accuracy and robustness. arXiv preprint arXiv:1811.12231. Cited by: §2.3, §3.1.
  • [10] R. Gong, W. Li, Y. Chen, and L. V. Gool (2019) DLOW: domain flow for adaptation and generalization. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2477–2486. Cited by: §5.2, Table 4.
  • [11] K. He, X. Zhang, S. Ren, and J. Sun (2016) Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 770–778. Cited by: §4.
  • [12] D. Hendrycks and T. Dietterich (2019) Benchmarking neural network robustness to common corruptions and perturbations. arXiv preprint arXiv:1903.12261. Cited by: §5.3.
  • [13] J. Hoffman, E. Tzeng, T. Park, J. Zhu, P. Isola, K. Saenko, A. A. Efros, and T. Darrell (2017) Cycada: cycle-consistent adversarial domain adaptation. arXiv preprint arXiv:1711.03213. Cited by: §3.1, §5.1.
  • [14] X. Huang and S. Belongie (2017) Arbitrary style transfer in real-time with adaptive instance normalization. In Proceedings of the IEEE International Conference on Computer Vision, pp. 1501–1510. Cited by: §2.3, §3.1.
  • [15] Y. Li, M. Liu, X. Li, M. Yang, and J. Kautz (2018) A closed-form solution to photorealistic image stylization. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 453–468. Cited by: §3.1.
  • [16] Y. Li, L. Yuan, and N. Vasconcelos (2019) Bidirectional learning for domain adaptation of semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 6936–6945. Cited by: §2.1, §2.1, §3.1, §3.3, Table 1, Table 2, §4, §4, Table 4.
  • [17] Y. Luo, P. Liu, T. Guan, J. Yu, and Y. Yang (2019) Significance-aware information bottleneck for domain adaptive semantic segmentation. arXiv preprint arXiv:1904.00876. Cited by: Table 1, Table 2.
  • [18] Y. Luo, L. Zheng, T. Guan, J. Yu, and Y. Yang (2019) Taking a closer look at domain shift: category-level adversaries for semantics consistent domain adaptation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2507–2516. Cited by: Table 1, Table 2, §4.
  • [19] A. Radford, L. Metz, and S. Chintala (2015) Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv preprint arXiv:1511.06434. Cited by: §4.
  • [20] S. R. Richter, V. Vineet, S. Roth, and V. Koltun (2016) Playing for data: ground truth from computer games. In European conference on computer vision, pp. 102–118. Cited by: Figure 2, §1, §4.
  • [21] G. Ros, L. Sellart, J. Materzynska, D. Vazquez, and A. M. Lopez (2016) The synthia dataset: a large collection of synthetic images for semantic segmentation of urban scenes. In Proceedings of the IEEE conference on computer vision and pattern recognition, pp. 3234–3243. Cited by: §1, §4.
  • [22] K. Simonyan and A. Zisserman (2014) Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556. Cited by: §4.
  • [23] Y. Tsai, W. Hung, S. Schulter, K. Sohn, M. Yang, and M. Chandraker (2018) Learning to adapt structured output space for semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 7472–7481. Cited by: §3.2, Table 1, Table 2, Table 3, §4, §5.3, Table 4, Table 6.
  • [24] Y. Tsai, K. Sohn, S. Schulter, and M. Chandraker (2019) Domain adaptation for structured output via discriminative representations. arXiv preprint arXiv:1901.05427. Cited by: Table 1, Table 2.
  • [25] T. Vu, H. Jain, M. Bucher, M. Cord, and P. Pérez (2019) Advent: adversarial entropy minimization for domain adaptation in semantic segmentation. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pp. 2517–2526. Cited by: Table 1, Table 2, §4, §4.
  • [26] M. Wrenninge and J. Unger (2018) Synscapes: a photorealistic synthetic dataset for street scene parsing. arXiv preprint arXiv:1810.08705. Cited by: §4, §4.
  • [27] Z. Wu, X. Han, Y. Lin, M. Gokhan Uzunbas, T. Goldstein, S. Nam Lim, and L. S. Davis (2018) Dcan: dual channel-wise alignment networks for unsupervised scene adaptation. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 518–534. Cited by: §5.2, Table 4.
  • [28] X. Yue, Y. Zhang, S. Zhao, A. Sangiovanni-Vincentelli, K. Keutzer, and B. Gong (2019) Domain randomization and pyramid consistency: simulation-to-real generalization without accessing target domain data. arXiv preprint arXiv:1909.00889. Cited by: Table 1, Table 2, §5.1.
  • [29] J. Zhu, T. Park, P. Isola, and A. A. Efros (2017)

    Unpaired image-to-image translation using cycle-consistent adversarial networks

    .
    In Proceedings of the IEEE international conference on computer vision, pp. 2223–2232. Cited by: Figure 2, §1, §2.1, §3.1, §3.2, §3, §5.2.
  • [30] Y. Zou, Z. Yu, B. Vijaya Kumar, and J. Wang (2018) Unsupervised domain adaptation for semantic segmentation via class-balanced self-training. In Proceedings of the European Conference on Computer Vision (ECCV), pp. 289–305. Cited by: §2.1.
