1 Introduction

In business analytics, measure

values are often summed, but often other aggregation measures, such as means or variances, is more appropriate. For example, the dataset in Figure

1 contains employment statistics for Australian states for 2007 and 2008; clearly, while summing over partitions by year may be appropriate, but summing over the entire column is not. The result of a default aggregation (sum) over these data is shown in Figure 2 given the user question: "What are the values of Total Fully Employed by State?".

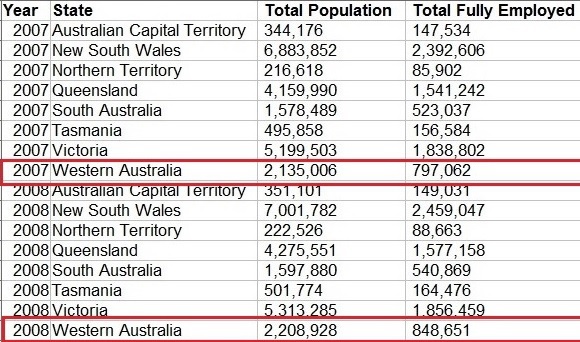

Figure 1: The snapshot of a spreadsheet containing statistics for employment in Australian states.

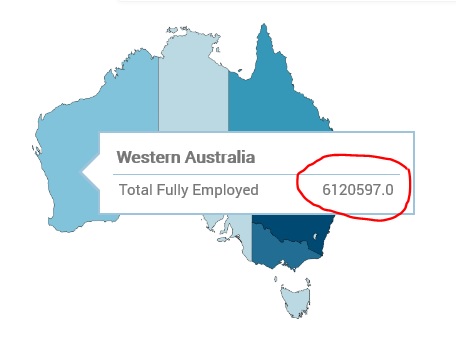

Figure 2: The result of a default aggregation on the spreadsheet of statistics for employment in Australian states for the user question: "What are the values of Total Fully Employed by State?.

Figure 3 shows another example dataset that tracks information about loan requests received by branches of a bank. The number of clients is incorrectly added in a branch by branch analysis (see Figure 4). Here, adding the loan amounts for each branch makes sense, but adding the number of clients does not.

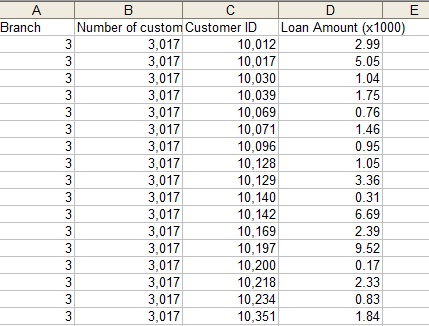

Figure 3: A snapshot of the bank loan spreadsheet.

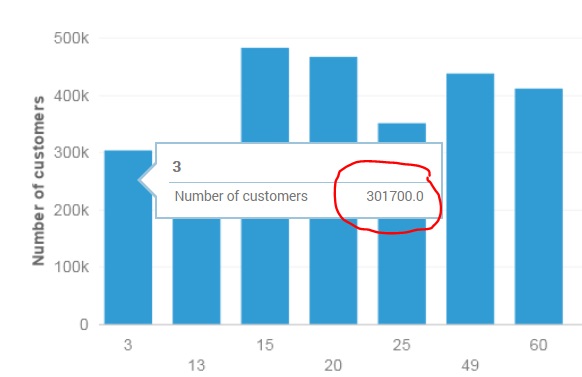

Figure 4: The result of a default aggregation on the bank loan spreadsheet, for the user’s question: "Number of customers for each branch?.

This problem is usually avoided by defining the correct default aggregation behaviour ahead of time, through data modeling techniques, which often requires hand-tuning each variable in a dataset.

In this work, we propose an alternative approach. We introduce a small set of features and develop them in a CBR system to suggest better default aggregations and hence eliminate or at least accelerate prior, data-specific modeling. This is done by extracting potentially useful features from the data and by applying case-based reasoning (CBR) [Riesbeck and Schank, 1989; Kolodner, 1993].

Our CBR system is fed a few use cases representing an aggregation context (so called known cases), consisting of (i) a measure item whose default aggregation is being learned or queried (e.g. “Total Fully Employed” in Figure 1); (ii) one or more category items for which the given measure has repeated values that need to be aggregated (e.g. “State” and “Year” in Figure 1); (iii) the expected default aggregate which is one of sum, average, or last-period.

In this work, we propose a small set of features that, when used in our CBR system, improve the learning of appropriate aggregate actions up to 86% accuracy. In the rest of this paper, we first briefly explain CBR and our CBR system architecture in Section 2. We describe our extracted features for our CBR package in Section 3. The similarity measure for each feature is described in Section 4. We then go through our empirical settings in Section 5. Finally, we conclude and address future directions in Section 6.

2 CBR architecture

CBR has been applied successfully in many practical domains  [Lamontagne and Plaza, 2014; Jalali and Leake, 2014; Chen et al., 2014; Dong et al., 2014; Freyne and Smyth, 2010; Jurisica, 1997]. The principal idea in CBR is to draw parallels between a new case and those that have been already solved.

Figure 5 shows an example case represented by feature values that need to be extracted. The action for each known case is defined and learned. The best action for the current case is selected using the most similar cases to the current one. That is, the current case is compared to the known cases using feature similarity measures and the case features, then the action for the most similar case, among all known cases, is selected for and applied to the current case.

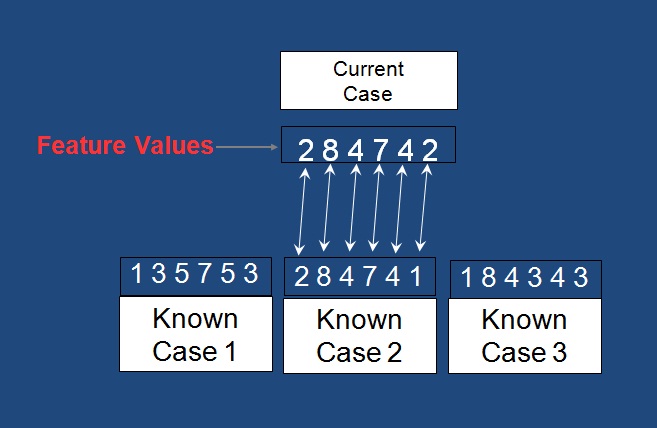

Figure 5: Case-based reasoning (CBR): In CBR a new case (current case) is compared against existing cases using a set of extracted features.

User’s question and spreadsheet

feature extraction

Action learner (CBR)
Figure 6: The architecture of our CBR system.

Figure 6 demonstrates the architecture of our developed aggregate learner. The user’s spreadsheet is submitted to the system followed by the user’s question(s). The system extracts the features for the spreadsheet particularly for category and measure columns. These features are described in Section 3. The action learner component receives the features and finds the aggregate action for each measure column based on CBR.

3 Extracted Features

At the heart of our system, and any CBR system, lies a carefully selected feature set that is used to measure the similarity of the current case to known cases, as depicted in Figure 5. The role that each feature plays in the overall similarity measurement (i.e., the feature weights) can be assigned manually or automatically using a number of optimization techniques similar to those of  Lamontagne and Guyard [2014].

Table 1 demonstrates the representation of a case using the extracted features for the bank loan example in Figure 3.

dataset: bankloan.xls
measure column: “Loan Amount (x1000)”
category column: “Branch”
concepts (measure column): [metric, monetary]
concepts (category column): [attribute]
association type (category to measure): one-to-many
averaged CoV: 1.37
measure aggregate action: sum
Table 1: Example of a case representation in our CBR system.

Our feature set consists of factors that we found most useful in establishing the default aggregation behaviour, most notably the following features:

  1. Semantic annotations of measure columns and category columns, similar to column concepts as defined in Rais-Ghasem et al. [2013];

  2. Association type between category columns and measure columns;

  3. Coefficient of variation (CoV) as an indication of trends of measure values in the context of given categories.

Semantic annotations

For the semantic annotations of measures and categories (feature 1), consider the measure column “Loan Amount (x1000)”, and the category column “Branch”. The semantic annotations of the measure column are captured as metric and monetary, and the semantics annotations of the category column is captured as attribute [Rais-Ghasem et al., 2013]. In particular, we used a designation shared by many metrics in our known cases in our CBR system, and specifically avoided depending on explicit semantic knowledge about items.

Association types

A simple analysis of data values in Figure 3 reveals that values of column “A” (“Branch”) and “B” (“Customer ID”) have a one-to-one association type, whereas the values of column “A” and “D” (Loan Amount (x1000)) have a one-to-many association type. That is, for each “Branch” number there is only one value for “number of customer”, thus a one-to-one association type. Note that the association type feature between a category column and measure column can be assigned four different values: one-to-one, one-to-many, many-to-one, and many-to-many.

As useful as this might be (i.e., it may suggest a non-additive behaviour for B in the context of A), it is not sufficient to identify the correct behaviour for the employment use case in Figure 1. That is, for each category column “Year” (or “State”) there is many “Total Fully Employed” values, thus many-to-many association type. However, addition is not the correct aggregate behaviour for “’Total Fully Employed’ over “Year”. We thus introduce the third feature that can potentially solve this limitation.

Value trends

We observe that trends of value dynamics are often useful, especially in combination with the aforementioned association type and semantic annotation of category (e.g., “Year” is a temporal category, whereas “Branch” is not).

To quantify data trends, we use the coefficient of variation (CoV):

where

is the standard deviation and

is the mean. Here, CoV acts as normalized standard variation. The lower the CoV measure for a column of data, the greater the trend tended to be in early empirical tests. This can be seen in Figure 7 to Figure 10.

Figure 7 shows the CoV for the employment status. The figure shows that the CoV for “Totally Fully Employed” over “Year” is close to 0. Note that the average of CoV over different states is 0.01.

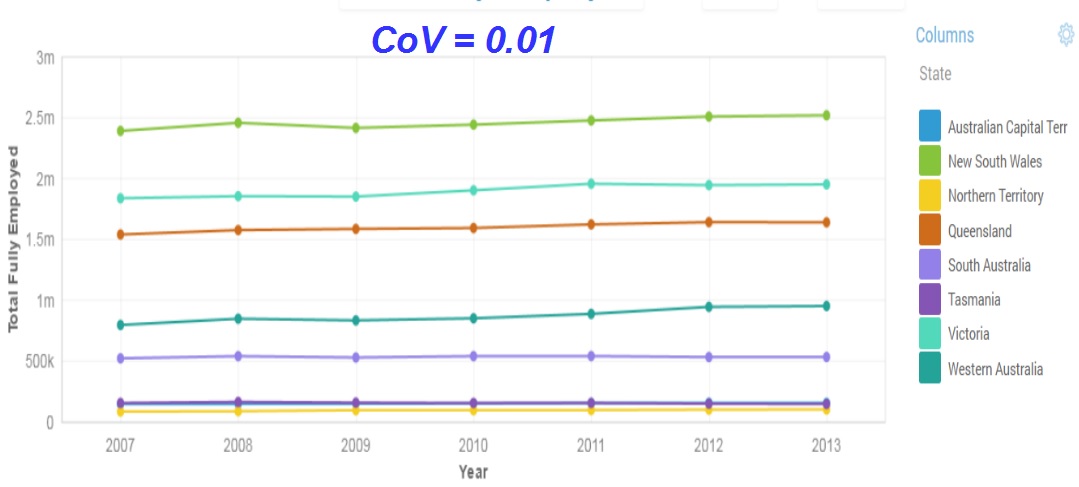

Figure 7: The trend of Australia states data. The CoV for “Totally Fully Employed” over “Year” is close to 0.

We have done a similar analysis for data in Watson Analytics that contains temperatures for Canadian cities. Figure 8 shows a snapshot of this spreadsheet. Figure 9 shows the CoV for the temperature, averaged over the category column (cities). This figure shows that the CoV for “Mean Temperature” over “Day of Year” is between 0 and 1. That is, the average CoV over different cities is 0.48. In this analysis, to get sensible CoV values we had to transform the measure values to positive (a negative measure value occurs in the column). To do so, we add the absolute value of the minimum value of the measure column to all values in that measure column.

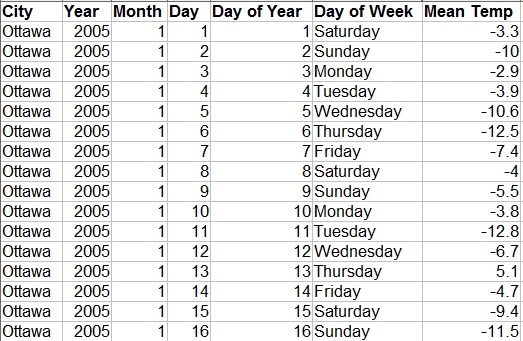

Figure 8: The temperature readings spreadsheet.

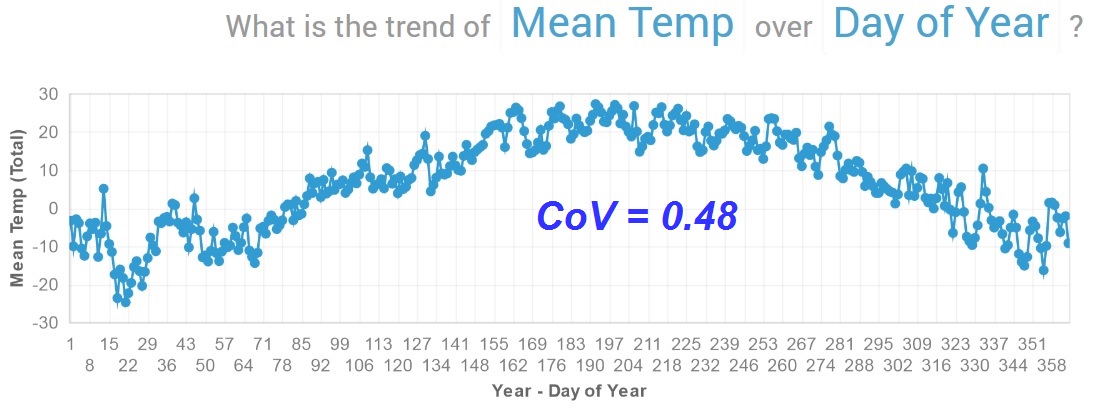

Figure 9: The trend of temperature data. The CoV for “Mean Temp” over “Days of Year” is between 0 and 1.

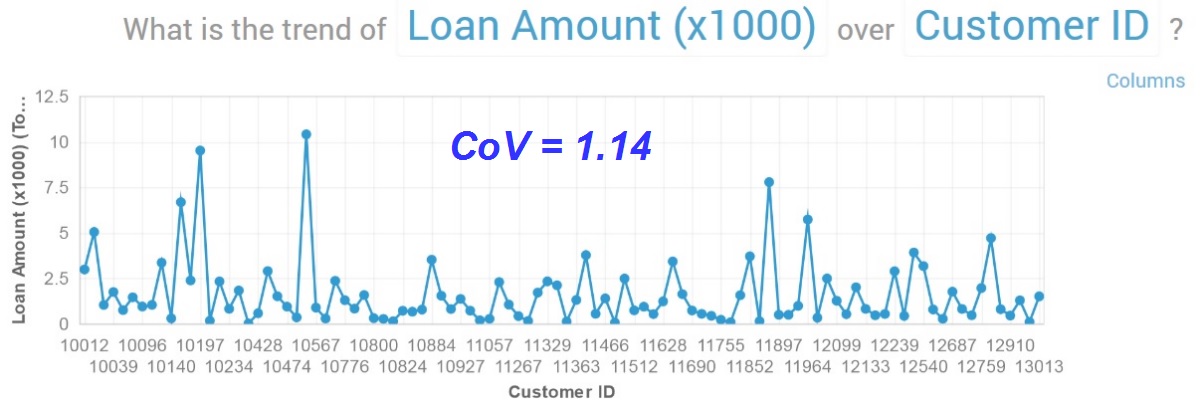

Figure 10: The trend of bank loan data. The CoV for “Loan Amount” over “Customers” is close to 1.

Finally, we follow a similar analysis over bank loan data, whose CoV is shown in Figure 10. Here, CoV for “Loan Amount” over “Customer ID” is close to 1 and the average CoV over different branches is 1.14.

Thus an interesting pattern emerges, as summarized in Table 2. CoV for measure values repeated for a category (e.g., various employment figures for different years) had strong associations with expected aggregation functions. Using CoV in combination with other features to propose default aggregation automatically, in general, within IBM Watson Analytics.

Measure CoV values Default Aggregation
Values close to 0 last-period
Values close to 0.5 average
Values close to 1 sum
Table 2: The CoV patterns for aggregate learning.

4 Feature similarity function

The similarity function for each feature is defined as follows.

Feature 1 (column concepts):

where and are case 1 and case 2, respectively; and returns the value of feature one for case . Note that feature 1 is the list of column concepts. In the above formula, card() returns the cardinality of each set. Effectively, the similarity is the number of common concepts (feature 1 values) for case 1 and case 2 divided by the total number of column concepts. Clearly, if the two cases share no concept, the similarity is 0, and if the two cases are identical, the similarity is 1.

Feature 2 (association type between columns): This similarity measure is defined by our domain experts as follows: If the association types are the same for the two cases then similarity is 1. The similarity between many-to-many and many-to-one association type is 0.5. The similarity between one-to-one and anything else (one-to-many or many-to-many) is 0.

Feature 3 (value trend):

Here, the sigmoid function defines similarity between 0 and 1.

where is the CoV values (feature 3) for case ; computes how close values for case 1 and case 2 are, defined as : . Recall that CoV is the coefficient of variation as defined in Section 3.

The similarity between two cases is calculated based on the similarity of their feature values (the three introduced feature-based similarities above). Each feature-based similarity produces values between 0 and 1, and the total similarity function is the weighted sum of the three feature-based similarity (in which the weights are set to 1 in this work). Thus the total similarity is a value between 0 and 1.

5 Experiments

We collected about 100 such use cases from IBM Watson Analytics and used 65% of them to be used as the known cases in our CBR system and the remaining 35% to evaluate our approach. Each case includes a question posed on a 2-dimensional spreadsheet of data in which we explicitly denote the category and measure columns, done manually by our domain experts. We then extracted the three features described in Section 3 for all the known cases in our CBR system. We then tested our approach using the remaining evaluation data.

Our evaluations use a ‘majority voting’ scheme in which the top most similar cases to the test case are selected and the aggregate action for the test case is selected based on the most frequent aggregate action of these most similar cases. In the extreme, if , the action of the most similar ‘known’ case is picked as the aggregate action for the test case. For the majority vote, we empirically set , given that we find no significant difference in sweeping from 3 to 6. Further increases of results in in lower accuracy.

Table 3 shows that the measure column’s CoV leads to the highest accuracy when each feature is used in isolation. Furthermore, when all the three features are used together, the approach achieves 86% accuracy using majority vote.

Method Accuracy
F1 (columns’ concept) 30%
F2 (columns’ association type) 30%
F3 (measure column’s CoV) 63%
All the three features 83%
All the three features with majority vote 86%
Table 3: The accuracy captured for the testing data using CBR and three different features.

Furthermore, we calculate the accuracy trend over known cases. Figure 11 shows by increasing the known cases, while the testing data remains the same, our approach achieves better accuracy. Specifically, the accuracy increases from 70% to 90% by increasing the number of known cases from 10 to 55.

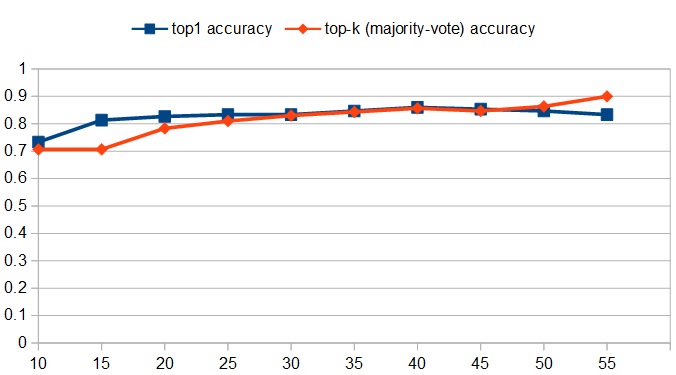

Figure 11: Trend of accuracy by increasing the number of training cases.

Notice that, in this work, we use the same feature weights for all the features (all feature weight are 1). In the future, we are going to learn feature weights using optimization techniques similar to those used by Lamontagne and Guyard [2014].

Finally, we calculate the system-level elapsed time in milliseconds for different tasks, shown in Table 4

. The feature selection task (for all known cases) takes less than two minutes by a ThinkPad (T410s) with i5-2.4GHz and 8GB of RAM, and using Win 7 Professional 64bit.

Measure CoV values Default Aggregation
Feature Extraction (known cases) 83594
Aggregate Learning (average) 8.46
Aggregate Learning (range) 1 28
Table 4: The system elapsed time in milliseconds for different kind of tasks.

The average time for learning aggregate actions of each test case is about 8 milliseconds. The learning time varies for each test case (between 1 and 28 milliseconds) since the feature extraction for each test case is done at run time and, in particular, calculating the CoV highly depends on the number of columns in the data.

5.1 Examples of experimental results

Here we isolate three test cases and their most similar cases as identified by our approach, shown in Table 5. In the first two cases, our approach has been able to find the correct aggregate action, however our approach fails in the third case to learn the correct aggregate action.

Our approach does not learn the correct default aggregate action for test case 3 (code coverage of each component). The suggested action by our approach is sum instead of last-period. The code coverage spreadsheet keeps the percentage of code that has been tested over time for each component of a software. Thus, the correct aggregate action is taking last-value. We believe that this error is caused small number of rows in the code coverage spreadsheet. In particular, the calculated CoV for data in the code coverage dataset does not represent the trend of coverage values well enough.

Test case 1
Data set American Time Use Survey.csv
Question What are values of sleeping time over gender?
Category column [Gender]
Measure column [Sleeping]
Most similar known case
Data set GL Budget.xls
Question What are values of budget over account?
category column [Account-Number]
measure column [Period-Budget-Amount]
aggregate action [average]
Test case 2
Data set [Ticket-Sales-by-Section-with-Geo.csv]
Question What are total tickets purchased for each event ?
Category column [EventName]
Measure column [Total Tickets Purchased]
Most similar known case
Data set [Ticket-Sales-by-Section-with-Geo.csv]
Question What are total price of purchased tickets for each event ?
category column [EventName]
measure column [Total Ticket Purchase Price]
aggregate action [sum]
Test case 3
Data set Sonar Results over Time.xls
Question What is code coverage for each component?
Category column [Component]
Measure column [Coverage]
Most similar known case
Data set World Mortality.csv
Question What are the number of deaths by cause?
category column [Cause]
measure column [Number of Deaths]
aggregate action [sum]
Table 5: Examples of our experimental data and results.

6 Conclusion

In this work, we proposed a method for learning semi-additive behaviour in data analytics tools, chiefly IBM Watson Analytics in which these experiments were performed. Specifically, we introduced three features that are used in case-based reasoning for learning aggregate actions in business analytics. In particular, the data trend of a variable is an important factor that can be used for learning the default aggregate of that variable. We calculated the data trend using coefficient of variation (CoV)

, whose use can empirically increase the accuracy up to 30%. Overall, our approach is able to learn the default aggregate of our testing data with up to 90% accuracy. In this work, we used the same feature weights for all the features (all feature weights are 1.0). In the future, we intend to learn feature weights using optimization techniques such as linear programming, and we are collecting more test cases to experiment our approach on larger data sets.
