1 A Vast Design Space

Key-value stores are everywhere, providing the storage backbone for an ever-growing number of diverse applications. The scenarios range from graph processing in social media [12, 19], to event log processing in cybersecurity [20], application data caching [72], NoSQL stores [79], flash translation layer design [27], time-series management [52, 53], and online transaction processing [32]

. In addition, key-value stores increasingly have become an attractive solution as embedded systems in complex data-intensive applications, machine learning pipelines, and larger systems that support more complex data models. For example, key-value stores are utilized in SQL systems, e.g., FoundationDB

[10] is a core part of Snowflake [24], while MyRocks integrates RockDB in MySQL as its backend storage.

Figure 1: From performance trade-offs to data structures, key-value stores and rich applications.

There is no Perfect Design. As shown in Figure 1, at its core a key-value store implements a data structure that stores key-value pairs. Each data structure design achieves a specific balance regarding the fundamental trade-offs of read, update, and memory amplification [14]. For example, read amplification is defined as “how much more data do we have to read for every key we are looking for on top of accessing this particular key”. There exists no perfect data structure that minimizes all three performance trade-offs [14, 45]. For example, if we add a log to support efficient out of place writes, we sacrifice memory/space cost as we may have duplicate entries, and read cost as future queries have to search both the core data structure and the log.

In turn, this means that there exists no perfect key-value store that covers diverse performance requirements. Every design is a compromise. But then how do we know which design is best for an application, e.g., for specific data, access patterns, hardware used, or even a maximum financial budget on the cloud? And do we have enough designs and systems to cover the needs of emerging and ever-changing data-driven applications? This is the problem we study in this paper and envision a research path that makes it easier to create custom data structure designs that match the needs of new applications, hardware, and cloud pricing schemes.

The Big Three. As of 2018, there are three predominant data structure designs for key-value stores to organize data. To give an idea of the diverse design goals and performance balances they provide, we go briefly through their core design characteristics. The first one is the Btree [16]. The prototypical Btree design consists of a leaf level of independent nodes with sorted key-value pairs (typically multiple storage blocks each) and an index (logarithmic at the number of leaf nodes) which consists of nodes of fractional cascading fence pointers with a large fanout. For example, Btree is the backbone design of the BerkeleyDB key-value store [74], now owned by Oracle, and the backbone of the WiredTiger key-value store [95], now used as the primary storage engine in MongoDB [73]. FoundationDB [10] also relies on a Btree. Overall, Btree achieves a good balance between read and write performance with a reasonable memory overhead that is primarily due to its fill factor in each node (typically 50%) and the auxiliary internal index nodes.

In the early 2000s, a new wave of applications emerged requiring faster writes, while still giving good read performance. At the same time, the advent of flash-based SSDs has made write I/Os 1-2 orders of magnitude costlier than read I/Os [2]. These workload and hardware trends led to two data structure design decisions for key-value stores: 1) buffering new data in memory, batching writes in secondary storage, and 2) avoiding global order maintenance. This class of designs was pioneered by the Log-Structured Merge Tree (LSM-tree) [75] which partitions data temporally in a series of increasingly larger levels. Each key-value entry enters at the very top level (the in-memory write buffer) and is sort-merged at lower levels as more data arrives. In-memory structures such as Bloom filters, fence pointers and Tries help filter queries to avoid disk I/O [25, 100]. This design has been adopted in numerous industrial settings including LevelDB [36] and BigTable [22] at Google, RocksDB [33] at Facebook, Cassandra [61], HBase [39] and Accumulo [9] at Apache, Voldemort [66] at LinkedIn, Dynamo [30] at Amazon, WiredTiger [95] at MongoDB, and bLSM [85] and cLSM [35] at Yahoo, and more designs in research such as SlimDB [80], WiscKey [69], Monkey [25, 26], Dostoevsky [28], and LSM-bush [29]. Relational databases such as MySQL and SQLite4 support this design too by mapping primary keys to rows as values. Overall, LSM-tree-based designs achieve better writes than Btree-based designs but they typically give up some read performance (e.g., for short-range queries) given that we have to look for data through multiple levels, and they also give up some memory amplification to hold enough in-memory filters to support efficient point queries. Crucial design knobs, such as fill factor for Btree and size ratio for LSM-tree, define the space amplification relationship among the two designs.

More recently, a third design emerged for applications that require even faster ingestion rates. The primary data structure design decision was to drop order maintenance. Data accumulates in an in-memory write buffer. Once full, it is pushed to secondary storage as yet another node of an ever-growing single level log. An in-memory index, e.g., a hash table, allows locating any key-value pair easily while the log is periodically merged to enforce an upper bound on the number of obsolete entries. This Log-Structured Hash-table (LSH-table) is employed by BitCask [87] at Riak, Sparkey [89] at Spotify, FASTER [21] at Microsoft, and many more systems in research [81, 65, 3]. Overall, LSH-table achieves excellent write performance, but it sacrifices read performance (for range queries), while the memory footprint is also typically higher since now all keys need to be indexed in-memory to minimize I/O needs per key.

The Practical Problem. While key-value stores continue to be adopted by an ever-growing set of applications, each application has to choose among the existing designs which may or may not be close to the ideal performance that could be achieved for the specific characteristics of the application. This is a problem for several increasingly pressing reasons. First, new applications appear many of which introduce new workload patterns that were not typical before. Second, existing applications keep redefining their services and features which affects their workload patterns directly and in many cases renders the existing underlying storage decisions sub-optimal or even bad. Third, hardware keeps changing which affects the CPU/bandwidth/latency balance. Across all those cases, achieving maximum performance requires low-level storage design changes. This boils down to the one size does not fit all problem, which holds for overall system design [91] and for the storage layer [14].

Especially in today’s cloud-based world, even designs
slightly sub-optimal by 1% translate to a massive loss in energy utilization and thus costs [58], even if the performance difference is not directly felt by the end users. This implies two trends. First, getting as close to the optimal design is critical. Second, the way a data structure design translates to cost needs to be embedded in the design process as it is not necessarily about achieving maximum query throughput, but typically a more holistic view of the design is needed, including the memory footprint. Besides, the cost policy varies from one cloud provider to the next, and even for the same provider it may vary over time. For example, Amazon AWS charges based on CPU and memory for computation resources, and based on volume size, reserved throughput, and I/O performed for networked storage. Google Cloud Platform, while charging similarly for computation, only charges based on volume size for networked storage. This implies that the optimal data structure 1) is different for different cloud providers where the key-value store is expected to run, and 2) can vary over time for the same cloud provider even if the application itself and underlying hardware stay the same.

The Research Challenge. The long-term challenge is whether we can easily or even automatically find the optimal storage design for a given problem. This has been recognized as an open problem since the early days of computer science. In his seminal 1978 paper, Robert Tarjan includes this problem in his list of the five major challenges for the future (which also included Vs ) [92]: “Is there a calculus of data structures by which one can choose the appropriate data representation and techniques for a given problem?”. We propose that a significant step toward a solution includes dealing with the following two challenges:

1) Can we know all possible data structure designs?

2) Can we compute the performance of any design?

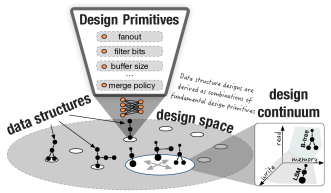

Figure 2: From data layout design principles to the design space of possible data structures, where design continuums can be observed to help navigate performance trade-offs across diverse data structure designs.

Toward an Answer to Challenge 1. We made a step toward the first challenge by introducing the design space of data structures supporting the key-value model [46]. The design space is defined by all designs that can be described as combinations and tunings of the “first principles of data layout design”. A first principle is a fundamental design concept that cannot be broken into additional concepts, e.g., fence pointers, links, and temporal partitioning. The intuition is that, over the past several decades, researchers have invented numerous fundamental design concepts such that a plethora of new valid designs with interesting properties can be synthesized out of those [46].

As an analogy consider the periodic table of elements in chemistry; it sketched the design space of existing elements based on their fundamental components, and allowed researchers to predict the existence of unknown, at the time, elements and their properties, purely by the structure of the design space. In the same way, we created the periodic table of data structures [45] which describes more data structure designs than stars on the sky and can be used as a design and new data structure discovery guide.

Naturally, a design space does not necessarily describe “all possible data structures”; a new design concept may be invented and cause an exponential increase in the number of possible designs. However, after 50 years of computer science research, the chances of inventing a fundamentally new design concept have decreased exponentially; many exciting innovations, in fact, come from utilizing a design concept that, while known, it was not explored in a given context before and thus it revolutionizes how to think about a problem. Using Bloom filters as a way to filter accesses in storage and remote machines, scheduling indexing construction actions lazily [42], using ML models to guide data access [60], storage [51] and other system components [59], can all be thought of as such examples. Design spaces that cover large fundamental sets of concepts can help accelerate progress with figuring out new promising directions, and when new concepts are invented they can help with figuring out the new possible derivative designs.

Toward an Answer to Challenge 2. The next piece of the puzzle is to investigate if we can make it easy to compute the performance properties of any given data structure design. With the Data Calculator we introduced the idea of learned cost models [46]

which allow learning the costs of fundamental access patterns (random access, scan, sorted search) out of which we can synthesize the costs of complex algorithms for a given data structure design. These costs can, in turn, be used by machine learning algorithms that iterate over machine generated data structure specifications to label designs, and to compute rewards, deciding which design specification to try out next. Early results using genetic algorithms show the strong potential of such approaches

[43]. However, there is still an essential missing link; given the fact that the design space size is exponential in the number of design principles (and that it will likely only expand over time), such solutions cannot find optimal designs in feasible time, at least not with any guarantee, leaving valuable performance behind [58]. This is the new problem we attack in this paper: Can we develop fast search algorithms that automatically or interactively help researchers and engineers find a close to optimal data structure design for a key-value store given a target workload and hardware environment?

Design Continuums.

Like when designing any algorithm, the key ingredient is to induce domain-specific knowledge. Our insight is that there exist “design continuums” embedded in the design space of data structures. An intuitive way to think of design continuums is as a performance hyperplane that connects a specific subset of data structures designs. Design continuums are effectively a projection of the design space, a “pocket” of designs where we can identify unifying properties among its members. Figure

2 gives an abstract view of this intuition; it depicts the design space of data structures where numerous possible designs can be identified, each one being derived as a combination of a small set of fundamental design primitives and performance continuums can be identified for subsets of those structures.

  1. We introduce design continuums as subspaces of the design space which connect more than one design. A design continuum has the crucial property that it creates a continuous performance tradeoff for fundamental performance metrics such as updates, inserts, point reads, long-range and short-range scans, etc.

  2. We show how to construct continuums using few design knobs. For every metric it is possible to produce a closed-form formula to quickly compute the optimal design. Thus, design continuums enable us to know the best key-value store design for a given workload and hardware.

  3. We present a design continuum that connects major classes of modern key-value stores including LSM-tree, Btree, and Btree.

  4. We show that for certain design decisions key-value stores should still rely on learning as it is hard (perhaps even impossible) to capture them in a continuum.

  5. We present the vision of self-designing key-value stores, which morph across designs that are now considered as fundamentally different.

Inspiration. Our work is inspired by numerous efforts that also use first principles and clean abstractions to understand a complex design space. John Ousterhout’s project Magic allows for quick verification of transistor designs so that engineers can easily test multiple designs synthesized by basic concepts [76]. Leland Wilkinson’s “grammar of graphics” provides structure and formulation on the massive universe of possible graphics [94]. Timothy G. Mattson’s work creates a language of design patterns for parallel algorithms [71]. Mike Franklin’s Ph.D. thesis explores the possible client-server architecture designs using caching based replication as the main design primitive [34]. Joe Hellerstein’s work on Generalized Search Trees makes it easy to design and test new data structures by providing templates which expose only a few options where designs need to differ [40, 7, 8, 55, 54, 56, 57]. S. Bing Yao’s [99] and Stefan Manegold’s [70] work on generalized hardware conscious cost models showed that it is possible to synthesize the costs of complex operations from basic access patterns. Work on data representation synthesis in programming languages enables synthesis of representations out of small sets of (3-5) existing data structures [82, 83, 23, 88, 86, 37, 38, 68, 90].

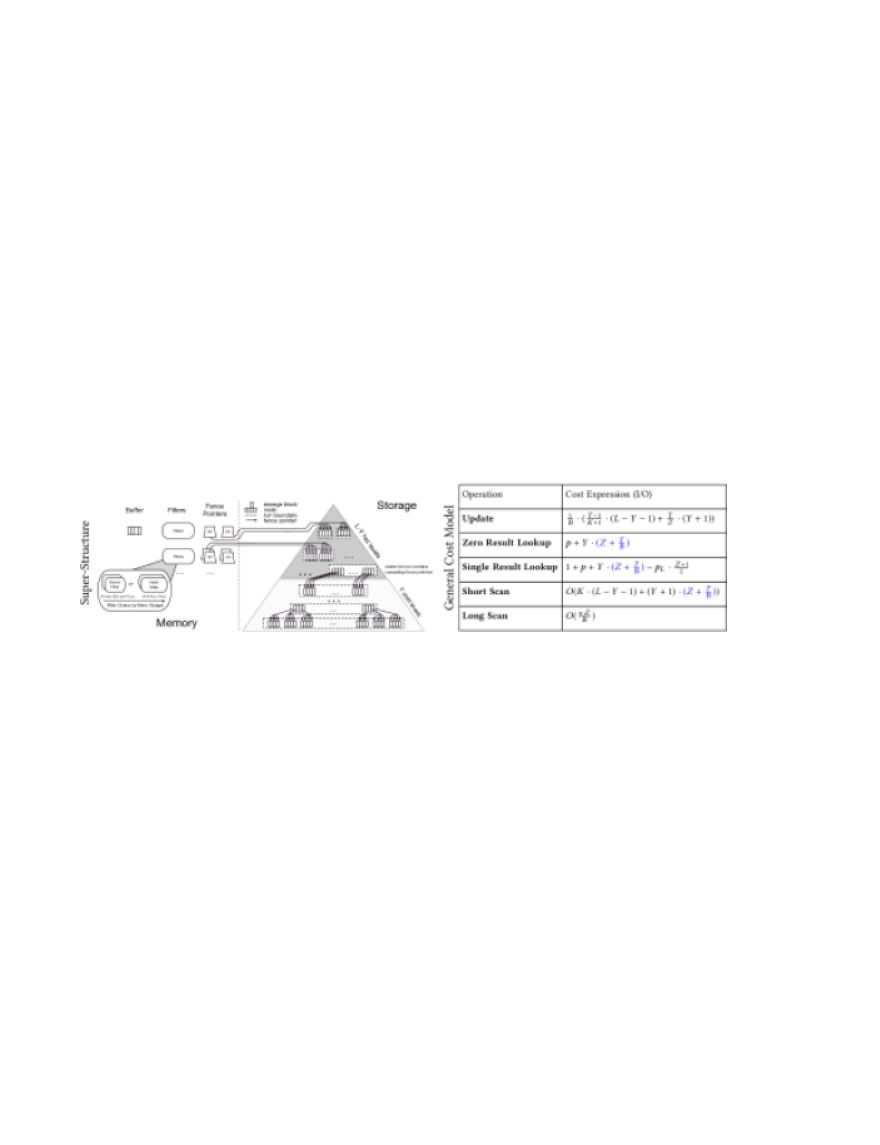

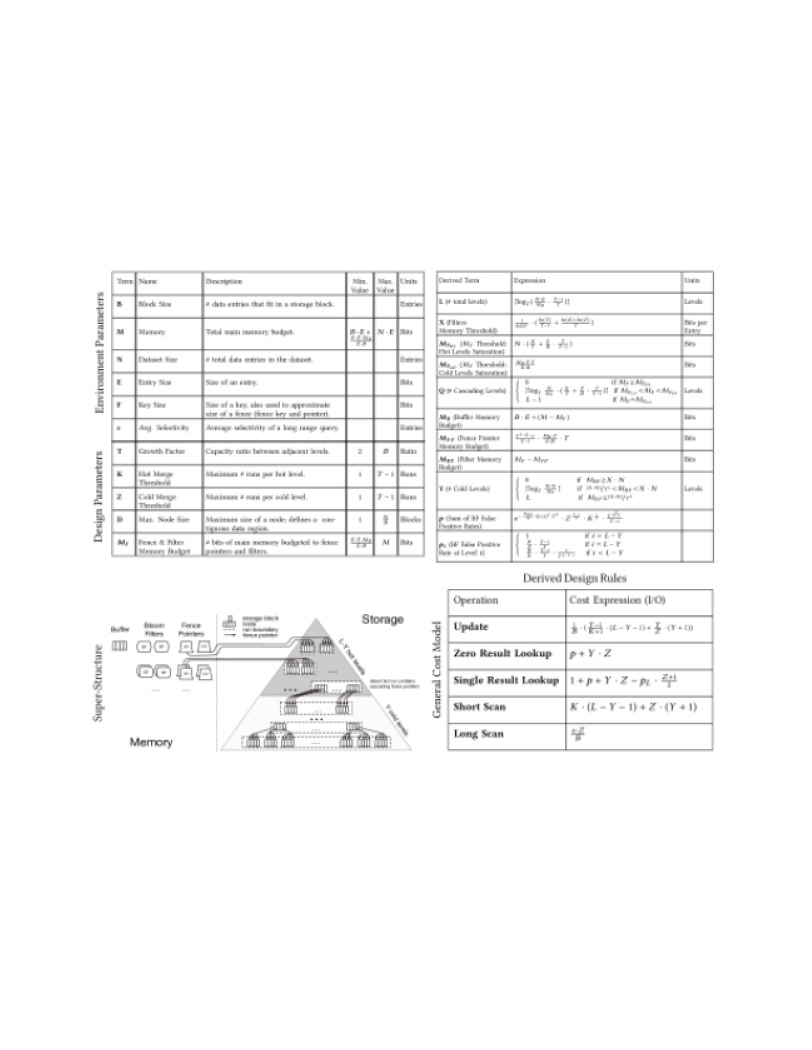

Figure 3: An example of a design continuum: connecting complex designs with few continuous parameters.

2 Design Continuums

We now describe how to construct a design continuum.

2.1 From Btree to LSM-tree

We first give an example of a design continuum that connects diverse designs including Tiered LSM-tree [47, 25, 61], Lazy Leveled LSM-tree [28], Leveled LSM-tree [75, 25, 33, 36], COLA [17, 49], FD-tree [64], Btree [18, 11, 17, 48, 49, 77], and Btree [15]. The design continuum can be thought of as a super-structure that encapsulates all those designs. This super-structure consists of levels where the larger levels are cold and the smaller levels are hot. Hot levels use in-memory fence pointers and Bloom filters to facilitate lookups, whereas cold levels apply fractional cascading to connect runs in storage. Each level contains one or more runs, and each run is divided into one or more contiguous nodes. There is a write buffer in memory to ingest application updates and flush to Level 1 when it fills up. This overall abstraction allows instantiating any of the data structure designs in the continuum. Figure 3 formalizes the continuum and the super-structure is shown at the bottom left. For reference, we provide several examples of super-structure instantiations in Appendix A and Figure 12.

Environmental Parameters. The upper right table in Figure 3 opens with a number of environmental parameters such as dataset size, main memory budget, etc. which are inherent to the application and context for which we want to design a key-value store.

Design Parameters. The upper right table in Figure 3 further consists of five continuous design knobs which have been chosen as the smallest set of movable design abstractions that we could find to allow differentiating among the target designs in the continuum. The first knob is the growth factor between the capacities of adjacent levels of the structure (e.g., “fanout” for Btree or “size ratio” for LSM-tree). This knob allows us to control the super-structure’s depth. The second knob is the hot merge threshold , which is defined as the maximum number of independent sorted partitions (i.e., runs) at each of Levels 1 to (i.e., all hot levels but the largest) before we trigger merging. The lower we set , the more greedy merge operations become to enforce fewer sorted runs at each of these hot levels. Similarly, the third knob is the cold merge threshold and is defined as the maximum number of runs at each of Levels to (i.e., the largest hot level and all cold levels) before we trigger merging. The node size is the maximal size of a contiguous data region (e.g., a “node” in a Btree or “SSTable” in an LSM-tree) within a run. Finally, the fence and filters memory budget controls the amount of the overall memory that is allocated for in-memory fence pointers and Bloom filters.

Setting the domain of each parameter is a critical part of crafting a design continuum so we can reach the target designs and correct hybrid designs. Figure 3 describes how each design parameter in the continuum may be varied. For example, we set the maximum value for the size ratio to be the block size . This ensures that when fractional cascading is used at the cold levels, a parent block has enough space to store pointers to all of its children. As another example, we observe that a level can have at most runs before it runs out of capacity and so based on this observation we set the maximum values of and to be .

Design Rules: Forming the Super-structure. The continuum contains a set of design rules, shown on the upper right part of Figure 3. These rules enable instantiating specific designs by deterministically deriving key design aspects. Below we describe the design rules in detail.

Figure 4: Instances of the design continuum and examples of their derived cost metrics.

Exponentially Increasing Level Capacities. The levels’ capacities grow exponentially by a factor of starting with the write buffer’s capacity. As a result, the overall number of levels grows logarithmically with the data size.

Fence Pointers & Bloom Filters. Our design allocates memory for fence pointers and Bloom filters from smaller to larger levels based on the memory budget assigned by the knob . Specifically, we first compute as the number of levels for which there is not enough memory for having both Bloom filters and fence pointers. We then assign the memory budget for fence pointers to as many levels as there is enough memory for. This is shown by the Equation for the fence pointers budget in Figure 3. The remaining portion of after fence pointers is assigned to a Bloom filters memory budget . This can also be done in the reverse way when one designs a structure, i.e., we can define the desired write buffer budget first and then give the remaining from the total memory budget to filters and fence pointers.

Optimal Bloom Filter Allocation Across Levels. The continuum assigns exponentially decreasing false positive rates (FPRs) to Bloom filters at smaller levels, as this approach was shown to minimize the sum of their false positive rates and thereby minimize point read cost [25]. In Figure 3, we express the FPR assigned to Level as and give corresponding equations for how to set optimally with respect to the different design knobs.

Hot vs. Cold Levels. Figure 3 further shows how to compute the number of cold levels for which there is not sufficient memory for Bloom filters. The derivation for is in terms of a known threshold for when to drop a filter for a level and instead use that memory for filters at smaller levels to improve performance [28]. Note that is either equal to or larger than it by at most one. We derive as the amount of memory above which all levels are hot (i.e., ). We also set a minimum memory requirement on to ensure that there is always enough memory for fence pointers to point to Level 1.

Fractional Cascading for Cold Levels. We use fractional cascading to connect data at cold levels to the structure, to address the issue of not having enough memory to point to them using in-memory fence pointers. For every block within a run at a cold level, we embed a “cascading” fence pointer within the next younger run along with the smallest key in the target block. This allows us to traverse cold levels with one I/O for each run by following the corresponding cascading fence pointers to reach the target key range.

Active vs. Static Runs. Each level consists of one active run and a number of static runs. Incoming data into a level gets merged into the active run. When the active run reaches a fraction of of the levels’ capacity for Levels 1 to or for Levels to , it becomes a static run and a new empty active run is initialized.

Granular Rolling Merging. When a level reaches capacity, a merge operation needs to take place to free up space. We perform a merge by first picking an eviction key 111In practice, an eviction key implies a range of eviction keys with a start key and end key, because across runs the notion of temporal sequentiality for entries with the same key must be maintained. The strategy for picking the eviction key may be as simple as round robin, though more sophisticated strategies to minimize key overlap with the active run in the next level are possible so as to minimize merge overheads [93]. . Since each run is sorted across its constituent nodes, there is at most one node in each of the static runs at the level that intersects with the eviction key. We add these nodes into an eviction set and merge them into the active run in the next larger level. Hence, the merge granularity is controlled by the maximum node size , and merge operations roll across static runs and eventually empty them out.

Fractional Cascading Maintenance. As merge operations take place at cold levels, cascading fence pointers must be maintained to keep runs connected. As an active run gradually fills up, we must embed cascading fence pointers from within the active run at the next smaller level. We must also create cascading fence pointers from a new active run into the next older static run at each level. To manage this, whenever we create a new run, we also create a block index in storage to correspond to the fences for this new run. Whenever we need to embed pointers into a Run from some new Run as Run is being created, we include the block index for Run in the sort-merge operation used to create Run to embed the cascading fence pointers within the constituent nodes of that run.

Unified Cost Model. A design continuum includes a cost model with a closed-form equation for each one of the core performance metrics. The bottom right part of Figure 3 depicts these models for our example continuum. These cost models measure the worst-case number of I/Os issued for each of the operation types, the reason being that I/O is typically the performance bottleneck for key-value stores that store a larger amount of data than can fit in memory.222Future work can also try to generate in-memory design continuums where we believe learned cost models that help synthesize the cost of arbitrary data structure designs can be a good start [46]. For example, the cost for point reads is derived by adding the expected number of I/Os due to false positives across the hot levels (given by the Equation for , the sum of the FPRs [28]) to the number of runs at the cold levels, since with fractional cascading we perform 1 I/O for each run. As another example, the cost for writes is derived by observing that an application update gets copied on average times at each of the hot levels (except the largest) and times at the largest hot level and at each of the cold levels. We amortize by adding these costs and dividing by the block size as a single write I/O copies entries from the original runs to the resulting run.

While our models in this work are expressed in terms of asymptotic notations, we have shown in earlier work that such models can be captured more precisely to reliably predict worst-case performance [25, 28]. A central advantage of having a set of closed-form set of models is that they allow us to see how the different knobs interplay to impact performance, and they reveal the trade-offs that the different knobs control.

Overall, the choice of the design parameters and the derivation rules represent the infusion of expert design knowledge in order to create a navigable design continuum. Specifically, fewer design parameters (for the same target designs) lead to a cleaner abstraction which in turn makes it easier to come up with algorithms that automatically find the optimal design (to be discussed later on). We minimize the number of design parameters in two ways: 1) by adding deterministic design rules which encapsulate expert knowledge about what is a good design, and 2) by collapsing more than one interconnected design decisions to a single design parameter. For example, we used a single parameter for the memory budget of Bloom filters and fence pointers as we assume their co-existence since fence pointers accelerate both point lookups and range queries, while Bloom filters accelerate point lookups exclusively. We specify a design strategy that progressively adds more point query benefit as the memory for fences and filters increases by prioritizing fence budget before filter budget at each level, accordingly jointly budgeting fences and filters together as one design knob.

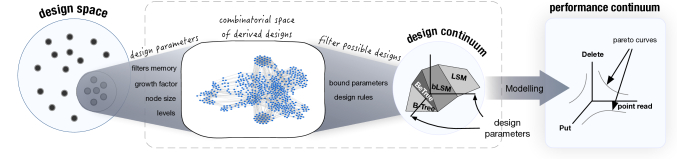

Figure 5: Constructing a design continuum: from design parameters to a performance hyperplane.

Design Instances. Figure 4 depicts several known instances of data structure designs as they are derived from the continuum. In particular, the top part of Figure 4 shows the values for the design knobs that derive each specific design, and the bottom part shows how their costs can indeed be derived from the generalized cost model of the continuum. Additional example diagrams of super-structure instantiations are provided in Appendix A Figure

For example, a Btree is instantiated by (1) setting the maximum node size to be one block333Node size can be set to whatever we want the Btree node size to be - we use block here as an example only., (2) setting and to 1 so that all nodes within a level are globally sorted, (3) setting to the minimum amount of memory so that Levels 1 to L get traversed using fractional cascading without the utilization of Bloom filters or in-memory fence pointers, and (4) setting the growth factor to be equal to the block size. By plugging the values of these knobs into the cost expressions, the well-known write and read costs for a Btree of I/Os immediately follow.

As a second example, a leveled LSM-tree design is instantiated by (1) setting and to 1 so that there is at most one run at each level, and (2) assigning enough memory to the knob to enable fence pointers and Bloom filters (with on average 10 bits per entry in the table) for all levels. We leave the knobs and as variables in this case as they are indeed used by modern leveled LSM-tree designs to strike different trade-offs. By plugging in the values for the design knobs into the cost models, we immediately obtain the well-known costs for a leveled LSM-tree. For example, write cost simplifies to as every entry gets copied across levels and on average times within each level.

Construction Summary. Figure 5 summarizes the process of constructing a design continuum. We start by selecting a set of data structures. Then we select the minimum set of design knobs that can instantiate these designs and we impose design rules and domain restrictions to restrict the population of the continuum to only the best designs with respect to our target cost criteria. Finally, we derive the generalized cost models.

Definition of Continuum. We can now revisit the exact definition of the continuum. A design continuum connects previously distinct and seemingly fundamentally different data structure designs. The construction process does not necessarily result in continuous knobs in the mathematical sense (most of the design knobs have integer values). However, from a design point of view a continuum opens the subspace in between previously unconnected designs; it allows us to connect those discrete designs in fine grained steps, and this is exactly what we refer to as the “design continuum”. The reason that this is critical is that it allows us to 1) “see” designs that we did not know before, derived as combinations of those fine-grained design options, and 2) build techniques that smoothly transition across discrete designs by using those intermediate states.

2.2 Interactive Design

The generalized cost models enable us to navigate the continuum, i.e., interactively design a data structure for a key-value store with the optimal configuration for a particular application as well as to react to changes in the environment, or workload. We formalize the navigation process by introducing Equation 1 to model the average operation cost through the costs of zero-result point lookups , non-zero-result point lookups , short range lookups , long range lookups , and updates (the coefficients depict the proportions of each in the workload).

(1)

To design a data structure using Equation 1, we first identify the bottleneck as the highest additive term as well as which knobs in Figure 3 can be tweaked to alleviate it. We then tweak the knob in one direction until we reach its boundary or until reaches the minimum with respect to that parameter. We then repeat this process with other parameters as well as with other bottlenecks that can emerge during the process. This allows us to converge to the optimal configuration without backtracking, which allows us to adjust to a variety of application scenarios reliably. For example, consider an application with a workload consisting of point lookups and updates and an initial configuration of a lazy-leveled LSM-tree with , , , , set to 2 MB, and set to , meaning we have memory for all the fence pointers and in addition 10 bits per entry for Bloom filters. We can now use the cost models to react to different scenarios.

Scenario 1: Updates Increasing. Suppose that the proportion of updates increases, as is the case for many applications [85]. To handle this, we first increase until we reach the minimum value for or until we reach the maximum value of . If we reach the maximum value of , the next promising parameter to tweak is the size ratio , which we can increase in order to decrease the number of levels across which entries get merged. Again, we increase until we hit its maximum value or reach a minimum value for .

Scenario 2: Range Lookups. Suppose that the application changes such that short-range lookups appear in the workload. To optimize for them, we first decrease to restrict the number of runs that lookups need to access across Levels 1 to . If we reach the minimum value of and short-range lookups remain the bottleneck, we can now increase to decrease the overall number of levels thereby decreasing the number of runs further.

Scenario 3: Data Size Growing. Suppose that the size of the data is growing, yet most of the lookups are targeting the youngest entries, and we do not have the resources to continue scaling main memory in proportion to the overall data size . In such a case, we can fix to to ensure memory is invested to provide fast lookups for the hot working set while minimizing memory overhead of less frequently requested data by maintaining cold levels with fractional cascading.

Effectively the above process shows how to quickly and reliably go from a high-level workload requirement to a low-level data structure design configuration at interactive times using the performance continuum.

Auto-Design. It is possible to take the navigation process one step further to create algorithms that iterate over the continuum and independently find the best configuration. The goal is to find the best values for , , , , and the best possible division of a memory budget between and . While iterating over every single configuration would be intractable as it would require traversing every permutation of the parameters, we can leverage the manner in which we constructed the continuum to significantly prune the search space. For example, in Monkey [25], when studying a design continuum that contained only a limited set of LSM-tree variants we observed that two of the knobs have a logarithmic impact on , particularly the size ratio and the memory allocation between and . For such knobs, it is only meaningful to examine a logarithmic number of values that are exponentially increasing, and so their multiplicative contribution to the overall search time is logarithmic in their domain. While the continuum we showed here is richer, by adding B-tree variants, this does not add significant complexity in terms of auto-design. The decision to use cascading fence pointers or in-memory fence pointers completely hinges on the allocation of memory between and , while the node size adds one multiplicative logarithmic term in the size of its domain.

2.3 Success Criteria

We now outline the ideal success criteria that should guide the construction of elegant and practically useful design continuums in a principled approach.

Figure 6: Extending the design continuum to support Log Structured Hash table designs.

Functionally Intact. All possible designs that can be assumed by a continuum should be able to correctly support all operation types (e.g., writes, point reads, etc.). In other words, a design continuum should only affect the performance properties of the different operations rather than the results that they return.

Pareto-Optimal. All designs that can be expressed should be Pareto-optimal with respect to the cost metrics and workloads desired. This means that there should be no two designs such that one of them is better than the other on one or more of the performance metrics while being equal on all the others. The goal of only supporting Pareto-optimal designs is to shrink the size of the design space to the minimum essential set of knobs that allow to control and navigate across only the best possible known trade-offs, while eliminating inferior designs from the space.

Bijective. A design continuum should be a bijective (one-to-one) mapping from the domain of design knobs to the co-domain of performance and memory trade-offs. As with Pareto-Optimality, the goal with bijectivity is to shrink a design continuum to the minimal set of design knobs such that no two designs that are equivalent in terms of performance can be expressed as different knob configurations. If there are multiple designs that map onto the same trade-off, it is a sign that the model is either too large and can be collapsed onto fewer knobs, or that there are core metrics that we did not yet formalize, and that we should.

Diverse. A design continuum should enable a diverse set of performance properties. For Pareto-Optimal and bijective continuums, trade-off diversity can be measured and compared across different continuums as the product of the domains of all the design knobs, as each unique configuration leads to a different unique and Pareto-optimal trade-off.

Navigable. The time complexity required for navigating the continuum to converge onto the optimal (or even near-optimal) design should be tractable. With the Monkey continuum, for example, we showed that it takes iterations to find the optimal design [25], and for Dostoevsky, which includes more knobs and richer trade-offs, we showed that it takes iterations [28]. Measuring navigability complexity in this way allows system designers from the onset to strike a balance between the diversity vs. the navigability of a continuum.

Layered. By construction, a design continuum has to strike a trade-off between diversity and navigability. The more diverse a continuum becomes through the introduction of new knobs to assume new designs and trade-offs, the longer it takes to navigate it to optimize for different workloads. With that in mind, however, we observe that design continuums may be constructed in layers, each of which builds on top of the others. Through layered design, different applications may use the same continuum but choose the most appropriate layer to navigate and optimize performance across. For example, the design continuum in Dostoevsky [25] is layered on top of Monkey [28] by adding two new knobs, and , to enable intermediate designs between tiering, leveling and lazy leveling. While Dostoevsky requires iterations to navigate the possible designs, an alternative is to leverage layering to restrict the knobs and to both always be either 1 or (i.e., to enable only leveling and tiering) in order to project the Monkey continuum and thereby reduce navigation time to . In this way, layered design enables continuum expansion with no regret: we can continue to include new designs in a continuum to enable new structures and trade-offs, all without imposing an ever-increasing navigation penalty on applications that need only some of the possible designs.

2.4 Expanding a Continuum:
A Case-Study with LSH-table

We now demonstrate how to expand the continuum with a goal of adding a particular design to include certain performance trade-offs. The goal is to highlight the design continuum construction process and principles.

Our existing continuum does not support the LSH-table data structure used in many key-value stores such as BitCask [87], FASTER [21], and others [3, 65, 81, 89, 96]. LSH-table achieves a high write throughout by logging entries in storage, and it achieves fast point reads by using a hash table in memory to map every key to the corresponding entry in the log. In particular, LSH-table supports writes in I/O, point reads in I/O, range reads in I/O, and it requires bits of main memory to store all keys in the hash table. As a result, it is suitable for write-heavy application with ample memory, and no range reads.

We outline the process of expanding our continuum in three steps: bridging, patching, and costing.

Bridging. Bridging entails identifying the least number of new movable design abstractions to introduce to a continuum to assume a new design. This process involves three options: 1) introducing new design rules, 2) expanding the domains of existing knobs, and 3) adding new design knobs.

Bridging increases the diversity of a design continuum, though it risks compromising the other success metrics. Designers of continuums should experiment with the three steps above in this particular order to minimize the chance of that happening. With respect to LSH-table, we need two new abstractions: one to allow assuming a log in storage, and one to allow assuming a hash table in memory.

To assume a log in storage, our insight is that with a tiered LSM-tree design, setting the size ratio to increase with respect to the number of runs at Level 1 (i.e., ) causes Level 1 to never run out of capacity. This effectively creates a log in storage as merge operations never take place. Our current design continuum, however, restricts the size ratio to be at most . To support a log, we expand the domain of the size ratio with a new maximum value of .

To assume a hash table in memory, recall that our continuum assigns more bits per entry for Bloom filters at smaller levels. Our insight is that when the number of bits per entry assigned to given level exceeds the average key size , it is always beneficial to replace the Bloom filters at that level with an in-memory hash table that contains all keys at the level. The reason is that a hash table takes as much memory as the Bloom filters would, yet it is more precise as it does not allow false positives at all. We therefore introduce a new design rule whereby levels with enough memory to store all keys use a hash table while levels with insufficient memory use Bloom filters444Future work toward an even more navigable continuum can attempt to generalize a Bloom filter and a hash table into one unified model with continuous knobs that allows to gradually morph between these structures based on the amount of main memory available.. With these two new additions to the continuum, we can now set the size ratio to and and to while procuring at least bits of memory to our system to assume LSH-table555More precisely, bits of memory are needed to support both the hash table and fence pointers.. Figure 6 shows the new super-structure of the continuum while Figure 7 shows how LSH-table can be derived.

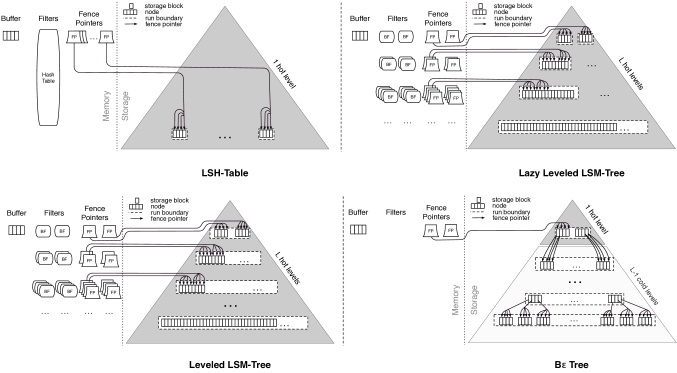

Figure 7: Instances of the extended design continuum and examples of their derived cost metrics.

An important point is that we managed to bridge LSH-table with our continuum without introducing new design knobs. As a rule of thumb, introducing new knobs for bridging should be a last resort as the additional degrees of freedom increase the time complexity of navigation. Our case-study here, however, demonstrates that even data structures that seem very different at the onset can be bridged by finding the right small set of movable abstractions.

Patching. Since the bridging process introduces many new intermediate designs, we follow it with a patching process to ensure that all of the new designs are functionally intact (i.e., that they can correctly support all needed types of queries). Patching involves either introducing new design rules to fix broken designs or adding constraints on the domains of some of the knobs to eliminate broken designs from the continuum. To ensure that the expanded continuum is layered (i.e., that it contains all designs from the continuum that we started out with), any new design rules or constraints introduced by patching should only affect new parts of the continuum. Let us illustrate an example of patching with the expanded continuum.

The problem that we identify arises when fractional cascading is used between two cold Levels and while the size ratio is set to be greater than . In this case, there is not enough space inside each block at Level to store all pointers to its children blocks (i.e., ones with an overlapping key range) at Level . The reason is that a block contains slots for pointers, and so a block at Level has a greater number of children than the number of pointer slots available. Worse, if the node size is set to be small (in particular, when ), some of the blocks at Level will neither be pointed to from Level nor exist within a node whereon at least one other block is pointed to from Level . As a result, such nodes at Level would leak out of the data structure, and so the data on these blocks would be lost. To prevent leakage, we introduce a design rule that when and , the setting at which leakage can occur, we add sibling pointers to reconnect nodes that have leaked. We introduce a rule that the parent block’s pointers are spatially evenly distributed across its children (every node at Level is pointed to from a block at level ) to ensure that all sibling chains of nodes within Level have an equal length. As these new rules only apply to new parts of our continuum (i.e., when ), they do not violate layering.

Costing. The final step is to generalize the continuum’s cost model to account for all new designs. This requires either extending the cost equations and/or proving that the existing equations still hold for the new designs. Let us illustrate two examples. First, we extend the cost model with respect to the patch introduced above. In particular, the lookup costs need to account for having to traverse a chain of sibling nodes at each of the cold levels when . As the length of each chain is blocks, we extend the cost equations for point lookups and short-range lookups with additional I/Os per each of the cold levels. The extended cost equations are shown in Figure 6.

In the derivation below, we start with general cost expression for point lookups in Figure 6 and show how the expected point lookup cost for LSH-table is indeed derived correctly. In Step 2, we plug in for and to assume a log in storage. In Step 3, we set the number of cold levels to zero as Level 1 in our continuum by construction is always hot and in this case, there is only one level (i.e., ), and thus must be zero. In Step 4, we plug in the key size for the number of bits per entry for the Bloom filters, since with LSH-table there is enough space to store all keys in memory. In Step 5, we reason that the key size must comprise on average at least bits to represent all unique keys. In Step 6, we simplify and omit small constants to arrive at a cost of I/O per point lookup.

(2)
(3)
(4)
(5)
(6)

2.5 Elegance Vs. Performance:
To Expand or Not to Expand?

As new data structures continue to get invented and optimized, the question arises of when it is desirable to expand a design continuum to include a new design. We show through an example that the answer is not always clear cut.

In an effort to make B-trees more write-optimized for flash devices, several recent B-tree designs buffer updates in memory and later flush them to a log in storage in their arrival order. They further use an in-memory indirection table to map each logical B-tree node to the locations in the log that contain entries belonging to that given node. This design can improve on update cost relative to a regular B-tree by flushing multiple updates that target potentially different nodes with a single sequential write. The trade-off is that during reads, multiple I/Os need to be issued to the log for every logical B-tree node that gets traversed in order to fetch its contents. To bound the number of I/Os to the log, a compaction process takes place once a logical node spans over blocks in the log, where is a tunable parameter. Overall, this design leads to a point and range read cost of I/Os. On the other hand, update cost consists of read I/Os to find the target leaf node and an additional amortized write I/Os to account for the overheads of compaction. The memory footprint for the mapping table is bits. We refer to this design as log-structured B-tree (LSB-tree). Would we benefit from including LSB-tree in our continuum?

To approach an answer to this question, we analytically compare LSB-tree against designs within our continuum to gauge the amount by which LSB-tree would allow us to achieve better trade-offs with respect to our continuum’s cost metrics. We demonstrate this process in Figure 8, which plots point and range read costs against write cost for both LSB-tree and Leveled LSM-tree, a representative part of our continuum. To model write cost for LSB-tree, we computed a weighted cost of read I/Os to traverse the tree, write I/Os to account for compaction overheads, and we discounted the cost of a read I/O relative to a write I/O by a factor of 20 to account for read/write cost asymmetries on flash devices. We generated the curve for LSB-tree by varying the compaction factor from 1 to 9, and the curves for the LSM-tree by varying the size ratio from 2 to 10. To enable an apples-to-apples comparison whereby both LSB-tree and the LSM-tree have the same memory budget, we assigned however much main memory LSB-tree requires for its mapping table to the LSM-tree’s fence pointers and Bloom filters. Overall, the figure serves as a first approximation for the trade-offs that LSB-tree would allow us to achieve relative to our continuum.

Figure 8: Leveled LSM-tree dominates LSB-tree for most of their respective continuums.

Figure 8 reveals that point read cost for the LSM-tree is much lower than for LSB-tree. The reason is that when the same amount of memory required by LSB-tree’s memory budget is used for the LSM-tree’s fence pointers and Bloom filters, hardly any false positives take place and so the LSM-tree can answer most point reads with just one I/O. Secondly, we observe that as we increase LSB-tree’s compaction factor , write cost initially decreases but then starts degrading rapidly. The reason is that as grows, more reads I/Os are required by application writes to traverse the tree to identify the target leaf node for the write. On the other hand, for range reads there is a point at which LSB-tree dominates the LSM-tree as fewer blocks need to be accessed when is small.

Elegance and Navigability versus Absolute Performance. By weighing the advantages of LSB-tree against the complexity of including it (i.e., adding movable abstractions to assume indirection and node compactions), one can decide to leave LSB-tree out of the continuum. This is because its design principles are fundamentally different than what we had included and so substantial changes would be needed that would complicate the continuum’s construction and navigability. On the other hand, when we did the expansion for LSH-table, even though, it seemed initially that this was a fundamentally different design, this was not the case: LSH-table is synthesized from the same design principles we already had in the continuum, and so we could achieve the expansion in an elegant way at no extra complexity and with a net benefit of including the new performance trade-offs.

At the other extreme, one may decide to include LSB-tree because the additional performance trade-offs outweigh the complexity for a given set of desired applications. We did this analysis to make the point of elegance and navigability versus absolute performance. However, we considered a limited set of performance metrics, i.e., worst-case I/O performance for writes, point reads and range reads. Most of the work on LSB-tree-like design has been in the context of enabling better concurrency control [63]

and leveraging workload skew to reduce compaction frequency and overheads

[97]. Future expansion of the design space and continuums should include such metrics and these considerations described above for the specific example will be different. In this way, the decision of whether to expand or not to expand a continuum is a continual process, for which the outcome may change over time as different cost metrics change in their level of importance given target applications.

3 Why not Mutually Exclusive
Design Components?

Many modern key-value stores are composed of mutually exclusive sets of swappable data layout designs to provide diverse performance properties. For example, WiredTiger supports separate B-tree and LSM-tree implementations to optimize more for reads or writes, respectively, while RocksDB files support either a sorted strings layout or a hash table layout to optimize more for range reads or point reads, respectively. A valid question is how does this compare to the design continuum in general? And in practice how does it compare to the vision of self-designing key-value stores?

Any exposure of data layout design knobs is similar in spirit and goals to the continuum but how it is done exactly is the key. Mutually exclusive design components can be in practice a tremendously useful tool to allow a single system to be tuned for a broader range of applications than we would have been able to do without this feature. However, it is not a general solution and leads to three fundamental problems.

1) Expensive Transitions. Predicting the optimal set of design components for a given application before deployment is hard as the workload may not be known precisely. As a result, components may need to be continually reshuffled during runtime. Changing among large components during runtime is disruptive as it often requires rewriting all data. In practice, the overheads associated with swapping components often force practitioners to commit to a suboptimal design from the onset for a given application scenario.

2) Sparse Mapping to Performance Properties. An even deeper problem is that mutually exclusive design components tend to have polar opposite performance properties (e.g., hash table vs. sorted array). Swapping between two components to optimize for one operation type (e.g. point reads) may degrade a different cost metric (e.g. range reads) by so much that it would offset the gain in the first metric and lead to poorer performance overall. In other words, optimizing by shuffling components carries a risk of overshooting the target performance properties and hitting the point of diminishing returns. A useful way of thinking about this problem is that mutually exclusive design components map sparsely onto the space of possible performance properties. The problem is that, with large components, there are no intermediate designs that allow to navigate performance properties in smaller steps.

3) Intractable Modeling. Even analytically, it quickly becomes intractable to reason about the tens to hundreds of tuning parameters in modern key-value stores and how they interact with all the different mutually exclusive design components to lead to different performance properties. An entirely new performance model is often needed for each permutation of design components, and that the number of possible permutations increases exponentially with respect to the number of components available. Creating such an extensive set of models and trying to optimize across them quickly becomes intractable. This problem gets worse as systems mature and more components get added and it boils down to manual tuning by experts.

The Design Continuum Spirit. Our work helps with this problem by formalizing this data layout design space so that educated decisions can be made easily and quickly, sometimes even automatically. Design continuums deal with even more knobs than what existing systems expose because they try to capture the fundamental design principles of design which by definition are more fine-grained concepts. For example, a sorted array is already a full data structure that can be synthesized out of many smaller decisions. However, the key is that design continuums know how to navigate those fine-grained concepts and eventually expose to designers a much smaller set of knobs and a way to argue directly at the performance tradeoff level. The key lies in constructing design continuums and key-value store systems via unified models and implementations with continuous data layout design knobs rather than swappable components.

For example, the advantage of supporting LSH-table by continuum expansion rather than as an independent swappable component is that the bridging process adds new intermediate designs into the continuum with appealing trade-offs in-between. The new continuum allows us to gradually transition from a tiered LSM-tree into LSH-table by increasing the size ratio in small increments to optimize more for writes at the expense of range reads and avoid overshooting the optimal performance properties when tuning.

4 Enhancing Creativity

Beyond the ability to assume existing designs, a continuum can also assist in identifying new data structure designs that were unknown before, but they are naturally derived from the continuum’s design parameters and rules.

For example, the design continuum we presented in this paper allows us to synthesize two new subspaces of hybrid designs, which we depict in Figure 9. The first new subspace extends the tree curve to be more write-optimized by increasing and to gather multiple linked nodes at a level before merging them. The second subspace connects tree with LSM-tree designs, allowing first to optimize for writes and lookups at hot levels by using Bloom filters and fence pointers, and second to minimize memory investment at cold levels by using fractional cascading instead. Thus, we turn the design space into a multi-dimensional space whereon every point maps onto a unique position along a hyperplane of Pareto-optimal performance trade-offs (as opposed to having to choose between drastically different designs only).

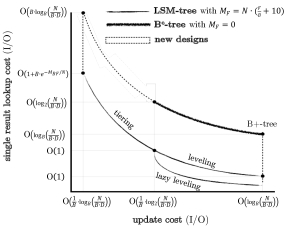

Figure 9: Visualizing the performance continuum.

In addition, as the knobs in a bijective continuum are dimensions that interact to yield unique designs, expanding any knob’s domain or adding new knobs during the bridging process can in fact enrich a continuum with new, good designs that were not a part of the original motivation for expansion. Such examples are present in our expanded continuum where our original goal was to include LSH-table. For example, fixing and to 1 and increasing the size ratio beyond towards allows us to gradually transition from a leveled LSM-tree into a sorted array (as eventually there is only one level). This design was not possible before, and it is beneficial for workloads with many range reads. In this way, the bridging process makes a continuum increasingly rich and powerful.

What is a new Data Structure?

There are a number of open questions this work touches on. And some of these questions become even philosophical. For example, if all data structures can be described as combinations of a small set of design principles, then what constitutes a new data structure design? Given the vastness of the design space, we think that the discovery of any combination of design principles that brings new and interesting performance properties classifies as a new data structure. Historically, this has been the factor of recognizing new designs as worthy and interesting even if seemingly “small” differences separated them. For example, while an LSM-tree can simply be seen as a sequence of unmerged B-trees, the performance properties it brings are so drastically different that it has become its own category of study and whole systems are built around its basic design principles.

5 The Path to Self-design

Knowing which design is the best for a workload opens the opportunity for systems that can adapt on-the-fly. While adaptivity has been studied in several forms including adapting storage to queries [42, 5, 13, 50, 44, 31, 41, 67], the new opportunity is morphing among what is typically considered as fundamentally different designs, e.g., from an LSM-tree to a Btree, which can allow systems to gracefully adapt to a larger array of diverse workload patterns. Design continuums bring such a vision a small step closer because of two reasons: 1) they allow quickly computing the best data structure design (out of a set of possible designs), and 2) by knowing intermediate data structure designs that can be used as transition points in-between “distant” designs (among which it would otherwise be too expensive to transition).

There are (at least) three challenges on the way to such self-designing systems: a) designing algorithms to physically transition among any two designs, b) automatically materializing the needed code to utilize diverse designs, and c) resolving fundamental system design knobs beyond layout decisions that are hard to encapsulate in a continuum. Below we briefly touch on these research challenges, and we show hints that they are likely possible to be resolved.

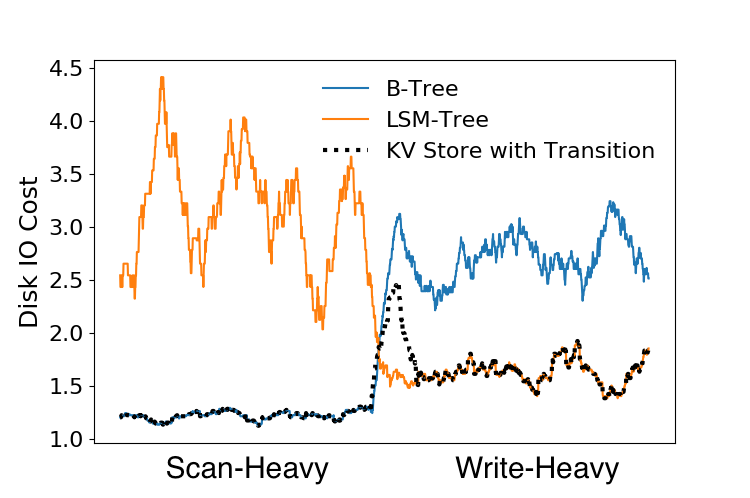

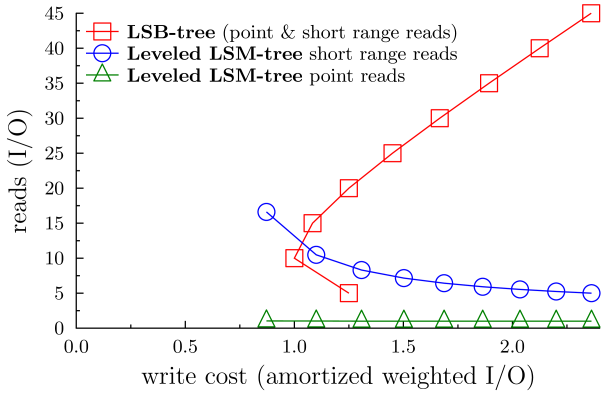

Figure 10: Potential benefit of on-the-fly transitions between Btree and LSM-tree.

Transitions. As in all adaptive studies, we need to consider the cost of a transition. The new challenge here is transitioning among fundamentally different designs. For example, assume a transition between a Leveled LSM-tree and Btree. Even though at a first glance these designs are vastly different, the design continuum helps us see possible efficient transitions; The difference in the specification of each structure on the design continuum indicates what we need to morph from one to the other. Specifically, between an LSM-tree and Btree, merging and fence pointers characterize the main design differences and so the transition policies should depend on these design principles. For example, one way to do such a transition is to wait until the LSM-tree is in a state where all of the entries are at the bottom level and then build the Btree off of that level so that we don’t have to copy the data (similar to how we build the internal index of Btree when we do bulk loading). Effectively waiting until merging is not a difference between the source and target design. A second option is to preemptively merge the levels of the LSM-tree into a single level so we can build the Btree off of that level without waiting for a natural merge to arrive. A third option is a compromise between the two: we can use the bottom level of the LSM-tree as the leaf layer of the Btree (avoiding copying the data) and then insert entries from the smaller levels of the LSM-tree into the Btree one by one. We discuss examples of transition algorithms in detail in Appendix B.1.

The opposite transition, from a Btree to an LSM-tree, is also possible with the reverse problem that the scattered leaves of the Btree need to represent a contiguous run in an LSM-tree. To avoid a full write we can trick virtual memory to see these pages as contiguous [84]. The very first time the new LSM-tree does a full merge, the state goes back to physically contiguous runs. We explore the implementation-level concerns of keeping the data layouts of such designs interoperable in Appendix B.2.

Figure 10 depicts the potential of transitions. During the first 2000 queries, the workload is short-range scan heavy and thus favors Btree. During the next 2000 queries, the workload becomes write heavy, favoring LSM-Trees. While pure LSM-tree and pure B-tree designs fail to achieve globally good performance, when using transitions, we can stay close to the optimal performance across the whole workload. The figure captures the I/O behavior of these data structure designs and the transitions (in number of blocks). Overall, it is possible to do transitions at a smaller cost than reading and writing all data even if we transition among fundamentally different structures. The future path for the realization of this vision points to a transition algebra.

1 PointLookup ()  if  then  entry := .find();
if entry then  return entry;    // Pointer for direct block access. Set to root.
2 := [0].runs[0].nodes[0];
for  to  do  // Check each level’s runs from recent to oldest.
for  to [].runs.count do  /* Prune search using bloom filters and fences when available. */
if  // At hot levels.
3 then  := [][].checkExists();
4 if  then  continue; else  := [][].find();
  /* For oldest hot run, and all cold runs, if no entry is returned, then the search continues using a pointer into the next oldest run. */
5 , := blockToCheck.find();
if  then  return ;     return ;
Algorithm 1 Lookup algorithm template for any design.

Code Generation. Tailored storage requires tailored code to get maximum performance [5]. The continuum provides the means towards such a path; since there exists a unifying model that describes the diverse designs in the continuum, this means that we can write a single generalized algorithm for each operation that can instantiate the individual algorithm for operation for each possible designs. For example, Algorithm 1 depicts such a generalized algorithm for the point lookup operation for the design continuum we presented in this paper.

Learning to go Beyond the Continuum. We expect that there will likely be critical design knobs that are very hard or even impossible to include in a well-constructed design continuum. The path forward is to combine machine learning with the design continuum. Machine learning is increasingly used to tune exposed tuning knobs in systems [4, 78]

. The new opportunity here is the native combination of such techniques with the system design itself. For example, consider the critical decision of how much memory resources to allocate to the cache. What is hard about this decision is that it interacts in multiple ways with numerous other memory allocations that uniquely characterize a design (specifically the write buffer, the bloom filters, and the fence pointers in our design continuum) but it is also highly sensitive to the workload. However, we can use the generalized cost formulas of the continuum to derive formulas for the expected I/O savings if we increase the memory in any memory component. We can then use these estimates to implement a discrete form of stochastic gradient descent (SGD). Figure

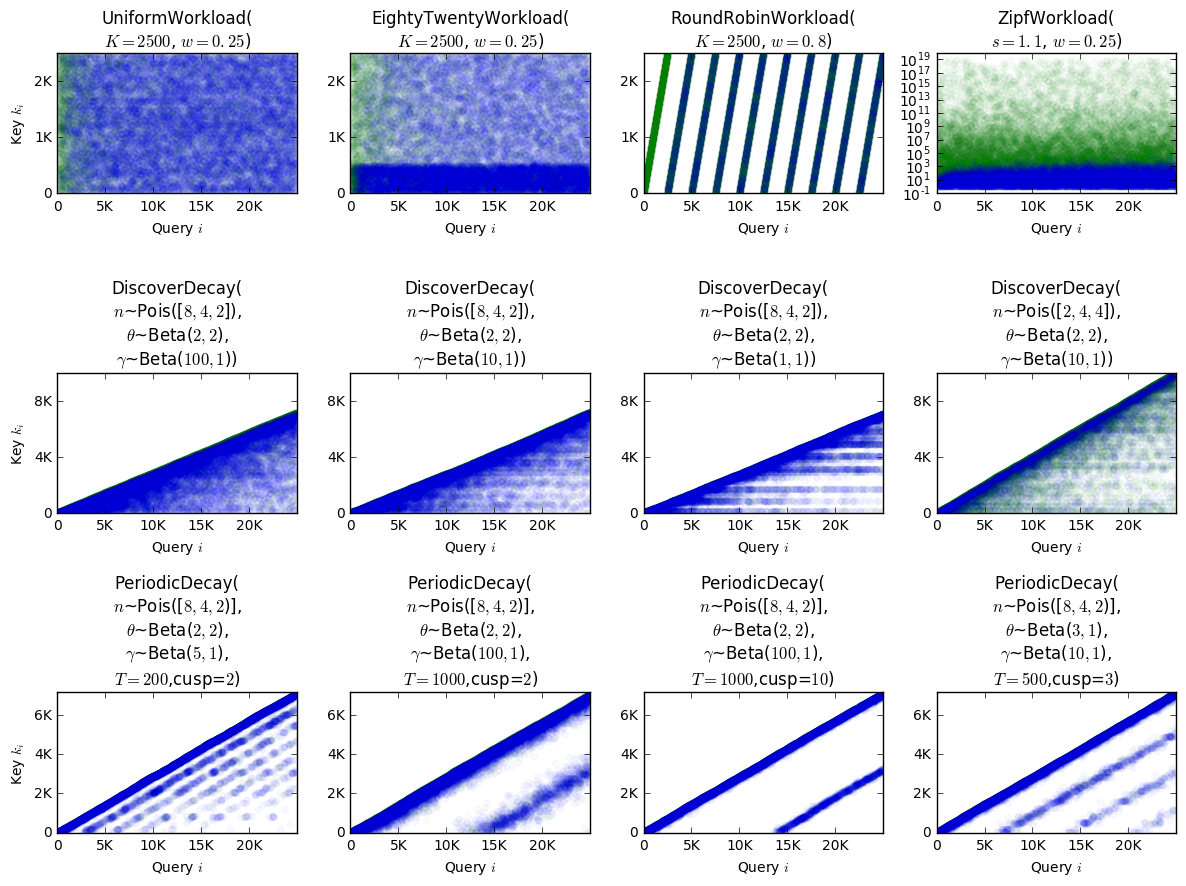

11 shows an example of our results for a skewed workload where we tested two instances of our continuum, the Monkey design [25] which optimizes bloom filter allocation and a Leveled LSM-tree design with fixed false positive rates across all bloom filters.

We evaluate three gradients (pertaining to cache, write buffer and bloom filter budget) at every grid point along the simplex of simulated LSM-trees with constant total memory. We then overlay an arrow on top of the disk access contour plot pointing from the lowest gradient component to the highest gradient component (we move 8 bytes from one component to the other every time). Finally, for each grid location, the process follows the arrows until we either reach the edge of the simplex or a previously visited point. We then plot partially opaque orange dots at the I/O minima for 3-way memory tunings, predicted by the SGD approach beginning at each simplex starting point. The set of visible orange dots represents the most frequently predicted I/O minima by the overall SGD process, showing there is general clustering of predicted minima. The yellow dot represents a global I/O minimum found experimentally. Tests with numerous other workloads also indicate that although as expected the overall optimization problem is sometimes non-convex, we can usually reach a point close to the optimum. The details of this methodology for predicting optima for memory tunings using an SGD-based approach are outlined in Appendix C. The net result is that design continuums can be blended with ML approaches to co-design a tailored system that both knows how to navigate a vast space of the design space and learns when needed to navigate design options that are hard to deterministically formulate how they will interact with the rest of the design.

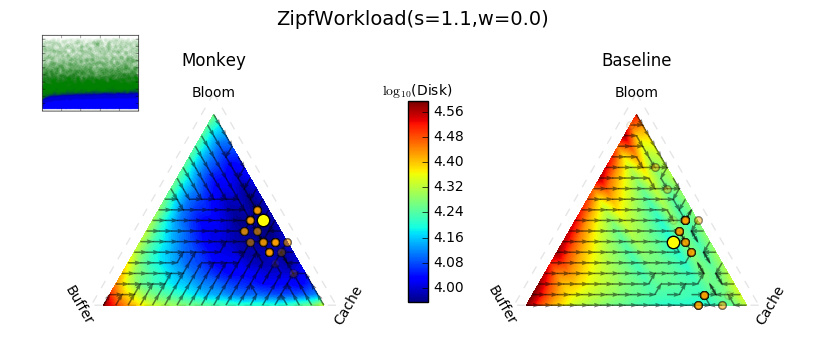

Figure 11: Navigating memory allocation by learning.

6 Next Steps

Research on data structures has focused on identifying the fundamentally best performance trade-offs. We envision a complementary line of future research to construct and improve on design continuums. The overarching goal is to flexibly harness our maturing knowledge of data structures to build more robust, diverse and navigable systems. Future steps include the construction of more and larger continuums, and especially the investigation of broader classes of data structure design, including graphs, spatial data, compression, replication as well as crucially more performance metrics such as concurrency, and adaptivity. The most challenging next step is whether the construction of design continuums itself can be (semi-) automated.

7 Acknowledgments

Mark Callaghan has provided the authors with feedback and insights on key-value store design and industry practices repeatedly over the past few years and specifically for this paper. This work is supported by the National Science Foundation under grant IIS-1452595.

References

  • [1]
  • [2] N. Agrawal, V. Prabhakaran, T. Wobber, J. D. Davis, M. Manasse, and R. Panigrahy. Design Tradeoffs for SSD Performance. ATC, 2008.
  • [3] J.-S. Ahn, C. Seo, R. Mayuram, R. Yaseen, J.-S. Kim, and S. Maeng. ForestDB: A Fast Key-Value Storage System for Variable-Length String Keys. TC, 65(3):902–915, 2016.
  • [4] D. V. Aken, A. Pavlo, G. J. Gordon, and B. Zhang. Automatic Database Management System Tuning Through Large-scale Machine Learning. SIGMOD, 2017.
  • [5] I. Alagiannis, S. Idreos, and A. Ailamaki. H2O: A Hands-free Adaptive Store. SIGMOD, 2014.
  • [6] D. J. Aldous. Exchangeability and related topics. pages 1–198, 1985.
  • [7] P. M. Aoki. Generalizing "Search" in Generalized Search Trees (Extended Abstract). ICDE, 1998.
  • [8] P. M. Aoki. How to Avoid Building DataBlades That Know the Value of Everything and the Cost of Nothing. SSDBM, 1999.
  • [9] Apache. Accumulo. https://accumulo.apache.org/.
  • [10] Apple. Foundationdb. https://github.com/apple/foundationdb, 2018.
  • [11] L. Arge. The Buffer Tree: A Technique for Designing Batched External Data Structures. Algorithmica, 37(1):1–24, 2003.
  • [12] T. G. Armstrong, V. Ponnekanti, D. Borthakur, and M. Callaghan. LinkBench: a Database Benchmark Based on the Facebook Social Graph. SIGMOD, 2013.
  • [13] J. Arulraj, A. Pavlo, and P. Menon. Bridging the Archipelago between Row-Stores and Column-Stores for Hybrid Workloads. SIGMOD, 2016.
  • [14] M. Athanassoulis, M. S. Kester, L. M. Maas, R. Stoica, S. Idreos, A. Ailamaki, and M. Callaghan. Designing Access Methods: The RUM Conjecture. EDBT, 2016.
  • [15] R. Bayer and E. M. McCreight. Organization and Maintenance of Large Ordered Indexes. Proceedings of the ACM SIGFIDET Workshop on Data Description and Access, 1970.
  • [16] R. Bayer and E. M. McCreight. Organization and Maintenance of Large Ordered Indices. Acta Informatica, 1(3):173–189, 1972.
  • [17] M. A. Bender, M. Farach-Colton, J. T. Fineman, Y. R. Fogel, B. C. Kuszmaul, and J. Nelson. Cache-Oblivious Streaming B-trees. SPAA, 2007.
  • [18] G. S. Brodal and R. Fagerberg. Lower Bounds for External Memory Dictionaries. SODA, 2003.
  • [19] Y. Bu, V. R. Borkar, J. Jia, M. J. Carey, and T. Condie. Pregelix: Big(ger) Graph Analytics on a Dataflow Engine. PVLDB, 8(2):161–172, 2014.
  • [20] Z. Cao, S. Chen, F. Li, M. Wang, and X. S. Wang. LogKV: Exploiting Key-Value Stores for Log Processing. CIDR, 2013.
  • [21] B. Chandramouli, G. Prasaad, D. Kossmann, J. J. Levandoski, J. Hunter, and M. Barnett. FASTER: A Concurrent Key-Value Store with In-Place Updates. SIGMOD, 2018.
  • [22] F. Chang, J. Dean, S. Ghemawat, W. C. Hsieh, D. A. Wallach, M. Burrows, T. Chandra, A. Fikes, and R. E. Gruber. Bigtable: A Distributed Storage System for Structured Data. OSDI, 2006.
  • [23] D. Cohen and N. Campbell. Automating Relational Operations on Data Structures. IEEE Software, 10(3):53–60, 1993.
  • [24] B. Dageville, T. Cruanes, M. Zukowski, V. Antonov, A. Avanes, J. Bock, J. Claybaugh, D. Engovatov, M. Hentschel, J. Huang, A. W. Lee, A. Motivala, A. Q. Munir, S. Pelley, P. Povinec, G. Rahn, S. Triantafyllis, and P. Unterbrunner. The Snowflake Elastic Data Warehouse. SIGMOD, 2016.
  • [25] N. Dayan, M. Athanassoulis, and S. Idreos. Monkey: Optimal Navigable Key-Value Store. SIGMOD, 2017.
  • [26] N. Dayan, M. Athanassoulis, and S. Idreos. Optimal Bloom Filters and Adaptive Merging for LSM-Trees. TODS, (to appear, 2018.
  • [27] N. Dayan, P. Bonnet, and S. Idreos. GeckoFTL: Scalable Flash Translation Techniques For Very Large Flash Devices. SIGMOD, 2016.
  • [28] N. Dayan and S. Idreos. Dostoevsky: Better Space-Time Trade-Offs for LSM-Tree Based Key-Value Stores via Adaptive Removal of Superfluous Merging. SIGMOD, 2018.
  • [29] N. Dayan and S. Idreos. The log-structured merge-bush & the wacky continuum. In SIGMOD, 2019.
  • [30] G. DeCandia, D. Hastorun, M. Jampani, G. Kakulapati, A. Lakshman, A. Pilchin, S. Sivasubramanian, P. Vosshall, and W. Vogels. Dynamo: Amazon’s Highly Available Key-value Store. SIGOPS Op. Sys. Rev., 41(6):205–220, 2007.
  • [31] J. Dittrich and A. Jindal. Towards a One Size Fits All Database Architecture. CIDR, 2011.
  • [32] S. Dong, M. Callaghan, L. Galanis, D. Borthakur, T. Savor, and M. Strum. Optimizing Space Amplification in RocksDB. CIDR, 2017.
  • [33] Facebook. RocksDB. https://github.com/facebook/rocksdb.
  • [34] M. J. Franklin. Caching and Memory Management in Client-Server Database Systems. PhD thesis, University of Wisconsin-Madison, 1993.
  • [35] G. Golan-Gueta, E. Bortnikov, E. Hillel, and I. Keidar. Scaling Concurrent Log-Structured Data Stores. EuroSys, 2015.
  • [36] Google. LevelDB. https://github.com/google/leveldb/.
  • [37] P. Hawkins, A. Aiken, K. Fisher, M. C. Rinard, and M. Sagiv. Data Representation Synthesis. PLDI, 2011.
  • [38] P. Hawkins, A. Aiken, K. Fisher, M. C. Rinard, and M. Sagiv. Concurrent data representation synthesis. PLDI, 2012.
  • [39] HBase. Online reference. http://hbase.apache.org/, 2013.
  • [40] J. M. Hellerstein, J. F. Naughton, and A. Pfeffer. Generalized Search Trees for Database Systems. VLDB, 1995.
  • [41] S. Idreos, I. Alagiannis, R. Johnson, and A. Ailamaki. Here are my Data Files. Here are my Queries. Where are my Results? CIDR, 2011.
  • [42] S. Idreos, M. L. Kersten, and S. Manegold. Database Cracking. CIDR, 2007.
  • [43] S. Idreos, L. M. Maas, and M. S. Kester. Evolutionary Data Systems. CoRR, abs/1706.0, 2017.
  • [44] S. Idreos, S. Manegold, H. Kuno, and G. Graefe. Merging What’s Cracked, Cracking What’s Merged: Adaptive Indexing in Main-Memory Column-Stores. PVLDB, 4(9):586–597, 2011.
  • [45] S. Idreos, K. Zoumpatianos, M. Athanassoulis, N. Dayan, B. Hentschel, M. S. Kester, D. Guo, L. M. Maas, W. Qin, A. Wasay, and Y. Sun. The Periodic Table of Data Structures. IEEE DEBULL, 41(3):64–75, 2018.
  • [46] S. Idreos, K. Zoumpatianos, B. Hentschel, M. S. Kester, and D. Guo. The Data Calculator: Data Structure Design and Cost Synthesis from First Principles and Learned Cost Models. SIGMOD, 2018.
  • [47] H. V. Jagadish, P. P. S. Narayan, S. Seshadri, S. Sudarshan, and R. Kanneganti. Incremental Organization for Data Recording and Warehousing. VLDB, 1997.
  • [48] W. Jannen, J. Yuan, Y. Zhan, A. Akshintala, J. Esmet, Y. Jiao, A. Mittal, P. Pandey, P. Reddy, L. Walsh, M. A. Bender, M. Farach-Colton, R. Johnson, B. C. Kuszmaul, and D. E. Porter. BetrFS: A Right-optimized Write-optimized File System. FAST, 2015.
  • [49] C. Jermaine, E. Omiecinski, and W. G. Yee. The Partitioned Exponential File for Database Storage Management. VLDBJ, 16(4):417–437, 2007.
  • [50] O. Kennedy and L. Ziarek. Just-In-Time Data Structures. CIDR, 2015.
  • [51] M. L. Kersten and L. Sidirourgos. A database system with amnesia. In CIDR, 2017.
  • [52] H. Kondylakis, N. Dayan, K. Zoumpatianos, and T. Palpanas. Coconut: A scalable bottom-up approach for building data series indexes. VLDB, 11(6):677–690, 2018.
  • [53] H. Kondylakis, N. Dayan, K. Zoumpatianos, and T. Palpanas. Coconut palm: Static and streaming data series exploration now in your palm. In SIGMOD, 2019.
  • [54] M. Kornacker. High-Performance Extensible Indexing. VLDB, 1999.
  • [55] M. Kornacker, C. Mohan, and J. M. Hellerstein. Concurrency and Recovery in Generalized Search Trees. SIGMOD, 1997.
  • [56] M. Kornacker, M. A. Shah, and J. M. Hellerstein. amdb: An Access Method Debugging Tool. SIGMOD, 1998.
  • [57] M. Kornacker, M. A. Shah, and J. M. Hellerstein. Amdb: A Design Tool for Access Methods. IEEE DEBULL, 26(2):3–11, 2003.
  • [58] D. Kossman. Systems Research - Fueling Future Disruptions. In Keynote talk at the Microsoft Research Faculty Summit, Redmond, WA, USA, aug 2018.
  • [59] T. Kraska, M. Alizadeh, A. Beutel, E. Chi, A. Kristo, G. Leclerc, S. Madden, H. Mao, and V. Nathan. Sagedb: A learned database system. In CIDR, 2019.
  • [60] T. Kraska, A. Beutel, E. H. Chi, J. Dean, and N. Polyzotis. The Case for Learned Index Structures. SIGMOD, 2018.
  • [61] A. Lakshman and P. Malik. Cassandra - A Decentralized Structured Storage System. SIGOPS Op. Sys. Rev., 44(2):35–40, 2010.
  • [62] V. Leis, A. Kemper, and T. Neumann. The Adaptive Radix Tree: ARTful Indexing for Main-Memory Databases. ICDE, 2013.
  • [63] J. J. Levandoski, D. B. Lomet, and S. Sengupta. The Bw-Tree: A B-tree for New Hardware Platforms. ICDE, 2013.
  • [64] Y. Li, B. He, J. Yang, Q. Luo, K. Yi, and R. J. Yang. Tree Indexing on Solid State Drives. PVLDB, 3(1-2):1195–1206, 2010.
  • [65] H. Lim, D. Han, D. G. Andersen, and M. Kaminsky. MICA: A Holistic Approach to Fast In-Memory Key-Value Storage. NSDI, 2014.
  • [66] LinkedIn. Voldemort. http://www.project-voldemort.com.
  • [67] Z. Liu and S. Idreos. Main Memory Adaptive Denormalization. SIGMOD, 2016.
  • [68] C. Loncaric, E. Torlak, and M. D. Ernst. Fast Synthesis of Fast Collections. PLDI, 2016.
  • [69] L. Lu, T. S. Pillai, A. C. Arpaci-Dusseau, and R. H. Arpaci-Dusseau. WiscKey: Separating Keys from Values in SSD-conscious Storage. FAST, 2016.
  • [70] S. Manegold, P. A. Boncz, and M. L. Kersten. Generic Database Cost Models for Hierarchical Memory Systems. VLDB, 2002.
  • [71] T. Mattson, B. Sanders, and B. Massingill. Patterns for Parallel Programming. Addison-Wesley Professional, 2004.
  • [72] Memcached. Reference. http://memcached.org/.
  • [73] MongoDB. Online reference. http://www.mongodb.com/.
  • [74] M. A. Olson, K. Bostic, and M. I. Seltzer. Berkeley DB. ATC, 1999.
  • [75] P. E. O’Neil, E. Cheng, D. Gawlick, and E. J. O’Neil. The log-structured merge-tree (LSM-tree). Acta Informatica, 33(4):351–385, 1996.
  • [76] J. K. Ousterhout, G. T. Hamachi, R. N. Mayo, W. S. Scott, and G. S. Taylor. Magic: A VLSI Layout System. DAC, 1984.
  • [77] A. Papagiannis, G. Saloustros, P. González-Férez, and A. Bilas. Tucana: Design and Implementation of a Fast and Efficient Scale-up Key-value Store. ATC, 2016.
  • [78] A. Pavlo, G. Angulo, J. Arulraj, H. Lin, J. Lin, L. Ma, P. Menon, T. C. Mowry, M. Perron, I. Quah, S. Santurkar, A. Tomasic, S. Toor, D. V. Aken, Z. Wang, Y. Wu, R. Xian, and T. Zhang. Self-Driving Database Management Systems. CIDR, 2017.
  • [79] Redis. Online reference. http://redis.io/.
  • [80] K. Ren, Q. Zheng, J. Arulraj, and G. Gibson. SlimDB: A Space-Efficient Key-Value Storage Engine For Semi-Sorted Data. PVLDB, 10(13):2037–2048, 2017.
  • [81] S. M. Rumble, A. Kejriwal, and J. K. Ousterhout. Log-structured memory for DRAM-based storage. FAST, 2014.
  • [82] E. Schonberg, J. T. Schwartz, and M. Sharir. Automatic data structure selection in setl. In Proceedings of the 6th ACM SIGACT-SIGPLAN Symposium on Principles of Programming Languages, pages 197–210, 1979.
  • [83] E. Schonberg, J. T. Schwartz, and M. Sharir. An automatic technique for selection of data representations in setl programs. ACM Trans. Program. Lang. Syst., 3(2):126–143, apr 1981.
  • [84] F. M. Schuhknecht, A. Jindal, and J. Dittrich. An experimental evaluation and analysis of database cracking. VLDBJ, 25(1):27–52, 2016.
  • [85] R. Sears and R. Ramakrishnan. bLSM: A General Purpose Log Structured Merge Tree. SIGMOD, 2012.
  • [86] O. Shacham, M. T. Vechev, and E. Yahav. Chameleon: Adaptive Selection of Collections. PLDI, 2009.
  • [87] J. Sheehy and D. Smith. Bitcask: A Log-Structured Hash Table for Fast Key/Value Data. Basho White Paper, 2010.
  • [88] Y. Smaragdakis and D. S. Batory. DiSTiL: A Transformation Library for Data Structures. DSL, 1997.
  • [89] Spotify. Sparkey. https://github.com/spotify/sparkey, 2014.
  • [90] M. J. Steindorfer and J. J. Vinju. Towards a Software Product Line of Trie-Based Collections. GPCE, 2016.
  • [91] M. Stonebraker and U. Cetintemel. "One Size Fits All": An Idea Whose Time Has Come and Gone. ICDE, 2005.
  • [92] R. E. Tarjan. Complexity of Combinatorial Algorithms. SIAM Review, 20(3):457–491, 1978.
  • [93] R. Thonangi and J. Yang. On Log-Structured Merge for Solid-State Drives. ICDE, 2017.
  • [94] L. Wilkinson. The Grammar of Graphics. Springer-Verlag, 2005.
  • [95] WiredTiger. Source Code. https://github.com/wiredtiger/wiredtiger.
  • [96] C. Wu, J. M. Faleiro, Y. Lin, and J. M. Hellerstein. Anna: A kvs for any scale. pages 401–412, 2018.
  • [97] C.-H. Wu, T.-W. Kuo, and L.-P. Chang. An efficient B-tree layer implementation for flash-memory storage systems. TECS, 6(3), 2007.
  • [98] Y. Xu, E. Frachtenberg, S. Jiang, and M. Paleczny. Characterizing facebook’s memcached workload. IEEE Internet Computing, 18(2):41–49, 2014.
  • [99] S. B. Yao. An Attribute Based Model for Database Access Cost Analysis. TODS, 2(1):45–67, 1977.
  • [100] H. Zhang, H. Lim, V. Leis, D. G. Andersen, M. Kaminsky, K. Keeton, and A. Pavlo. SuRF: Practical Range Query Filtering with Fast Succinct Tries. SIGMOD, 2018.

Appendix A Super-Structure Instances

We discuss four instantiations of the design continuum in this section. Lazy-Leveled LSM-tree, Leveled LSM-tree, Btree, and LSH-table instances are shown in Figure 12. while one instance (LSH-table) is expressable in the extension of the design continuum. In this section, we explain how these four example instantiations are formed.

a.1 LSH-table

LSH-table is a structure with a single hot level. This hot level is the log portion of the structure, and has growth factor , meaning that the single level log can grow up to a capacity sized to fit up to all of the dataset in the first level of the data structure. The typical compaction behavior that LSH-table requires as its managed dataset grows can be described by the two merge thresholds defined by the design continuum. The LSH-table will reach compaction capacity when the number of runs exceeds , indicated by the cold merge threshold , which specifies that the single hot level will prolong merge for as long as possible. The hot merge threshold is only provided for completeness for single level structures like the LSH-table; it is of note to mention that for the design continuum the hot merge threshold parameter does not apply to the ultimate hot level, rather the ultimate hot level is governed by the cold merge threshold. The LSH-table node size could grow up to , depending on how compaction works on the log part. For instance, a stream of sequential inserts all compacted at once would compact to a single contiguous section of pages which is analagous to a max node size of pages.

Two main memory navigation features of LSH-table design differ from that of other instantiations of the design continuum: first, a hash table is used as a filter and requires on order of one key size () for each data entry, and second, to support range scan pruning on every page worth of data (every entries) in the log, a fence of order size must be maintained in memory.

Note that in the extended design continuum a hash table is allowed to take the place of what was once the Bloom filter budget as defined by the original design continuum. Implementations of LSH-table which do not need to handle range scans, often omit the fence maintenance feature, thereby keeping effectively zero, and allocating all of to the hash table. We illustrate an LSH-table example in the top left of Figure 12; with a single large hash-table and fence pointers enabled.

a.2 Leveled LSM-tree

Leveled LSM-tree is a structure with multiple hot levels, with a growth factor of ; each level of the LSM-tree is times larger in capacity than the previous level. All levels but the ultimate hot level, are controlled by the hot merge threshold , which is set to 1, allowing no more than a single run at every hot level. The ultimate level is controlled by cold merge threshold , which is also set to 1 for completeness. Leveling corresponds to maximizing the amount of merge greediness, bounding the number of runs at each level, and reducing space amplification, benefiting short and long scans at the expense of merging updates potentially multiple times at each level. Figure 12 bottom left, illustrates a Leveled LSM-tree that uses fence and filter memory budget amounting to bits per entry for fences and 10 bits per entry for Bloom filter.

a.3 Lazy-Leveled LSM-tree

Lazy-Leveled LSM-tree is a structure with multiple hot levels, with a growth factor of ; each level of the LSM-tree is times larger in capacity than the previous level. All levels but the ultimate hot level are controlled by the hot merge threshold , which is set to , allowing up to runs to build up at each of these levels and maximally relaxes the number of times merge occurs (in comparison to a Leveled LSM-tree). The ultimate hot level is controlled by the cold merge threshold , and only has one large run, thereby bounding space amplification caused from relaxing hot merge threshold at the first levels of the tree. Figure 12 top right illustrates a Lazy-Leveled LSM-tree that uses fence and filter memory budget amounting to bits per entry for fences and 10 bits per entry for Bloom filter.

a.4 Btree

Btree is a structure with only one hot level and the rest cold levels. The single hot level is analagous to the first level of a tree below the root node. The in-memory fence pointers only exist for the first level. The fence pointers and write buffer are analgous to the child pointers and contents typically held in a B-tree’s root node. From a performance standpoint, the Btree instantiation behaves as if it has a root node pinned in memory. The tree itself has a fanout described by the growth factor , which varies dynamically between 2 to depending on how full the nodes are. The hot merge threshold is defined for completeness, the cold merge threshold governs all levels (including the single hot level) and is set at 1, describing that each level of the instantiation is one run. This allows point lookups to navigate the structure only by examining one node at each level, and following the embedded fence pointers to reach cold levels of the tree. The batch update mechanism is cascading, as each level becomes full, the entries at that level must be flushed and merged with the overlapping nodes of the next largest level, while the embedded fences of each level that point to the next are updated to reflect the merges that have taken place. By setting the maximum node size to 1, the instantiation describes the smallest unit of merge as a block size. Figure 12 bottom right illustrates a Btree instantiation.

Figure 12: Various instantiations of the super-structure from the design continuum.

Appendix B Design Transitions

In this section we discuss in further detail a preliminary exploration of what is required for facilitating online transitions between data structure designs on the design continuum.

b.1 Transition Algorithms

As an example we outline possible transition algorithms between an LSM-tree to a Btree. We give two different strategies and then we discuss how to chose between them and how to holistically design and schedule transitions.

Sort-Merge Transition. In an LSM-tree, the data is organized into several sorted runs with some obsolete entries that result in space amplification. In order to condense this data into the leaf level of a Btree, we must merge all of these runs into a dense, sorted array that becomes the leaf level. In this approach, we force a sort-merge of all the runs in the leveled LSM-tree structure. This has a performance cost of reading in all the runs’ pages, and then writing each of the sorted pages to disk. This method has optimal space amplification properties, since the resulting array is compact. Moreover, since we would usually switch to a Btree when the workload is more read-heavy than write-heavy, a compact array would be better (fuller Btree leaves and therefore fewer disk pages of data to scan).

Batch Inserts Transition. In some cases (e.g. when there is relatively little data in the levels above the bottom of the LSM-tree), we may be able to avoid reading and writing most of the data. To achieve a more lightweight transition in these cases, we can take the bottommost (largest) run of the LSM-tree and treat it as the leaf level of a Btree. We then insert the entries from the upper levels (levels above the bottom) of the LSM-tree into this Btree. By performing these inserts in sorted order, we can “batch insert” the entries into the Btree. In particular, consider a node of the leaf layer for which there are entries in the upper levels to be inserted into . We load that node into memory. Then, we iterate through the elements in the upper levels corresponding to the range of - call this set of elements . As we do so, we merge the elements of and , making new leaf-level nodes in memory. These new nodes are flushed to disk as they are made. As an example, if the set of elements to be inserted into node consists of just one element, then the above process is equivalent to a Btree node split.

Figure 13: Tradeoff Between Merge Sort (Upper Right) and Batch Insert (Lower Right)

Choosing the Optimal Transition. Compared to the sort-merge approach, the batch inserts method may be more efficient because we may not insert entries into every node of the Btree, saving reading and writing costs of certain nodes. On the other hand, it has worse space amplification properties because some pages may be partially empty; this can result in more disk IO. We show that, in both average and worst case analysis, the batch inserts approach supersedes the sort-merge approach when the size of the upper runs is below a certain threshold. To illustrate this point, we present the results for a simple worst case analysis of a basic LSM-tree with node of size page.

Assume an LSM-tree with levels where is number of entries in the th level and is the size of each entry in bytes and a machine where is the page size in bytes and is the ratio of a disk write to a disk read. The cost of a sort merge transition is . The worst-case cost of a batch insert transition is . Let be the number of entries in all levels above ; we choose to do a batch insert transition only when , in other terms when . See Figure as a visualization of this tradeoff: Using our cost model, we show that as the ratio decreases, the cost of the batch insert method decreases while the sort-merge method is unaffected. This is because as becomes relatively larger, the LSM-tree is more "bottom-heavy," and we can potentially use fewer disk operations when executing a batch insert transition. In this case, is our threshold point, below which it is cheaper to use a batch insert transition.

Gradual Transition. In many situations a sudden spike in query latency would be undesirable. Transitions should be lightweight but also we should be able to control the transition cost with respect to the current system status. We propose a robust, gradual transition algorithm that allows us to transition from an LSM-tree to a Btree over the course of an arbitrary number of steps. This algorithm exhibits a tradeoff between total transition cost and query latency during the transition phase. At each step, we take the smallest pages of data from the LSM-tree and insert these pages into the Btree at the leaf level, updating the intermediate in-memory nodes accordingly. We keep track of a "threshold value" , which is the highest key value from our LSM-tree that we have inserted into our Btree. Thus, each step will only require us to append pages to the leaf level of the Btree since we know that the key values contained in these pages will all be greater than at the previous step of this algorithm. After each step we update . We sort-merge the first pages’ worth of data to generate the values to add to our Btree, and we can do this efficiently by generating in memory one page at a time and then writing that page to disk. This allows us to only have to read and write to disk each entry in the LSM-tree once. To handle reads and writes while the transition is underway, we check if the query key is greater than or less than , and this tells us whether to execute the query on the LSM-tree, the Btree, or possibly both in the case of range queries. The total cost of the transition will include the cost of reading and writing data in the original LSM tree, the cost of reading and writing any new data added to the LSM tree during the transition, and the opportunity cost of queries during the transition.

Btree to LSM-tree Transitions. A naive transition from a Btree to an LSM-tree could take one of two approaches: we could insert the leftmost pages of our Btree into our LSM-tree over steps.

The second approach, which we detail further in the proceeding sections, would allow us to treat the Btree as the bottom-most level of the LSM tree without reading its contents from disk. The naive approach to this would requires re-writing all the non-contiguous leaves of the Btree into a contiguous block of memory, since Btrees leaves are not guaranteed to be contiguous while LSM runs are traditionally required to be contiguous. This operation would depend on a variable : The "degree of fragmentation" given by the ratio of the number of contiguous chunks in the data layer to , the total bits of data in the data layer. The cost of this naive transition would be linear in the number of pages to read and write, namely , where is an amplification factor to account for the amount of empty space in the Btree leaves (since Btree leaves are usually not completely full; i.e. pages will contain data entries).

This presents a clear opportunity for optimization. Since the Btree’s leaves are already internally sorted and in sorted order, the data would simply be copied over and no sorted step takes place, unlike in the LSM -> Btree transition, where rewrites were necessary.

b.2 Supporting Data Layout Interoperability

As a self-designing system undergoes design transition, the architecture must employ techniques to support seamless interoperabilty between data layouts as the transition is underway; it is crucial that as many components of the data layout from the previous design can be reused in the new design to save work for the system. Here we propose an implementation-level abstraction for storage layer management with the objective to mitigate the cost of data rewrite during a Btree to LSM-tree transition.

Mapping Page IDs to Disk Locations. To avoid simply copying the data into a contiguous memory region, we propose an abstraction layer to allow LSM trees to work with non-contiguously stored runs and levels. This abstraction layer would “deceive” the LSM tree into believing that it’s using contiguous memory regions, and so would require no change to the logic of the LSM tree, and would avoid rewriting any disk data. Instead, only memory indexing structures would change.

This abstraction would cause the LSM tree to manage its references to data in terms of page IDs instead of in terms of addresses to disk pages. LSM trees require contiguously stored runs due to their fence pointer architecture. Each run of the LSM tree is indexed into via a set of fences that indicate which value ranges are stored in which pages. In order to be space efficient, this indexing system stores only one pointer (the pointer to the first page of data in the run), has one "fence" for each page which indicates the largest value stored in that page. These fences are iterated through to find the poge that contains the value(s) of interest, and the appropriate page is then accessed using the single pointer and an offset. It is this single-pointer and offset mechanism that would break down if the pages that make up a run of an LSM tree were not stored contiguously. Page IDs solve this problem by providing a mapping from contiguous numbers (page IDs) to actual disk page addresses, which no longer need to be contiguous.

Therefore, the LSM tree’s implementation would sense little difference between referencing disk regions and page IDs. The page IDs would be redirected through our abstraction layer to the appropriate disk pages.

Since the abstraction is only useful when a Btree is being converted to an LSM tree, and we expect all the Btree’s data to reside in the bottom layer of the newly formed LSM tree, our abstraction is only necessary for the last level of the LSM tree, until the first merge occurs. As the LSM tree is updated, upper levels can be stored contiguously on physical pages, which will be a faster writing approach anyway.

Additionally, once the time for the first merge operation arises, we will merge the penultimate layer with the last layer (the one behind the abstraction) and write the new last layer to disk contiguously. Since the last layer is now contiguous, our data structure is not necessary.

Lightweight Indirection Mapping. The most obvious approach to map page IDs to disk locations is to use a hash table that stores page IDs as keys and disk locations as values.

This structure, however, would require memory on the order of . Additionally, a one-to-one mapping would not be necessary for the majority of pages in our data layer since many of the pages that comprise the data layer may be stored contiguously, since if we convert an LSM Tree to a Btree, then back, we observe that the only case where the contiguous runs of the LSM tree are broken is in places where new data pages are inserted. If we bound the number of insertions while in the Btree data structure, we can maintain fairly contiguous regions of data. We can therefore define a compression scheme for our mapping data structure. Instead of mapping page IDs to disk locations, we will map data "regions" to disk locations. For instance, if page IDs 2 to 1002 are stored contiguously, instead of being represented by 1000 mappings from page IDs to physical pages, the region would be represented by a single entry containing the starting page ID and the disk location of the first page. The rest of the pages may be accessed using offset arithmetic. This data structure would require memory on the order of , where is the fragmentation percentage of the data layer.

Therefore, in order to redirect page IDs to disk locations, we will make use of a miniature Btree like structure. Since the keys on a Btree are sorted, we can easily search the Btree for a key that is not currently mapped by the Btree, and access (with an offset) he value associated with the largest key less than it. Hence, rather than storing a mapping for every mapped page, we can simply store the beginning Page ID for a run of contiguous pages as our key, and the corresponding beginning pointer for our physical page as the value.

Side-Effects for LSM Tree Performance. In considering the performance implications of using this abstraction, the key insight is that we must now complicate our earlier algorithms, which costed in terms of disk I/Os, and instead cost in terms of random disk I/Os and contiguous disk I/Os.

We introduce three new variables:

  • : Average cost of continuous read

  • : Average cost of random read

  • : Average cost of continuous write

We arrive at the following conclusions about the use of our storage/compute abstraction:

  • Use of our API causes 100% reduction in the disk I/O cost of transitioning from a Btree to an LSM Tree, since our new transition only requires memory operations, but no disk I/Os.

  • Until the first merge occurs, range queries take significantly longer than they would in a regular LSM tree that does not use our API. Specifically, the degradation in performance is equal to

    (7)
  • The cost for the first merge differs between our API and the standard algorithm by

    (8)

    This term is positive since and .

The decrease in performance for a range query in an LSM tree is not a serious concern for our intended use case; since our hybrid data structure would only switch to a Btree in the case of a write-heavy workload, in most cases, the additional cost of the few range queries that occur prior to the first merge will not outweigh the benefits of the faster transition.

Appendix C Beyond Design Continuums

Bringing additional knobs into the fold with an existing design continuum adds additional challenges for reasoning about the performance tradeoffs of designs.

Complex parameter spaces: In many cases the knobs might display a high level of sensitivity to the values of other knobs. This kind of complex interaction can make the manual construction of a proper design continuum intractable.

Consider the critical design decision of how much memory to allocate to a cache in a LSM-tree. Since we have a fixed amount of main memory budget, the cache budget must interact in multiple ways with other memory allocation budgets.

In order to increase the size of the cache, we must strategize the best way to accordingly distribute the reduction in budget between the two other components that consume main memory budget: the write buffer and Bloom filter. For instance, if we choose to take away from the size of the write buffer, we might assume that more queries will end up touching more levels of the LSM-tree. Is this penalty offset by having a larger cache? This depends on the hit rate of the cache, which ultimately depends on the query workload.

If we have a workload consisting of a small working set of keys dominating the majority of queries, then perhaps the resulting improvement from cache hits will produce an overall improvement in performance. Alternatively, if we have a workload where the hot working set of keys is larger than the cache or even main memory, then we might find that the strategy of maximizing cache size turns into a bad one - e.g. a relatively small proportion of queries that cause a cache miss and hit disk might be enough to sink overall performance because by reducing the space allocated to Bloom filters we’ve increased their inaccuracy with higher false positive rate (FPRs), meaning that each run is more likely to incur the full cost of a random I/O probe, rather than a lower protected cost from effective Bloom filters.

If we had instead decided in the beginning to remove more memory from the Bloom filters rather than from the write buffer, we’d encounter a different set of dilemmas in the decision making process. On top of this, would increasing the size of the write buffer be a good decision in the first place? We would need yet another set of criteria to be able to make that determination.

Discretizing parameter spaces: We might have design knobs that are not smooth and continuous, but are made of many discrete options. Moreover, even continuous design knobs may need to be discretized in practice, to be navigable.

Complex workloads: In real world scenarios we might e.g. find that the hot working set of keys is not static but changes over time, affecting performance with it [98].

For only a few parameters, we can end up with a situation where even hand-wavy intuition on tradeoffs becomes complicated. Knowing the exact parameters or the exact tipping points in which certain design strategies become better or worse is yet harder. At each turn, we encounter more scenarios where the prevailing strategy is highly dependent on the co-interaction of other design knobs and the nuances of the workload.

c.1 A Solution: Stochastic Gradient Descent

We see a path forward by combining machine learning ideas with design continuum knowledge to create solutions that approach the optimal for a broader set of design decisions. The problem, to us, seems analogous to training a machine learning model:

The cost function that we’re minimizing is the data access cost expressed in random I/O’s to storage, derived from the design continuum.

The goal is to minimize the cost function, i.e. find the parameters that provide the lowest I/O cost for the given set of queries.

The parameters are the cache size, the write buffer size and the bloom filter size.

The parameter space is only a subset of 3D space, because total memory is constrained. For example, if we wanted to increase both the cache size and the write buffer size we would have to decrease the bloom filter size.

The gradient functions are the estimated I/O savings if we increase the memory by N bits for any single component. Following the gradients, one would expect to end up in a minima. While deriving these analytically is difficult, we come up with reasonable estimates using the design continuum cost formulas.

The dataset we’re training the model on is a key-value workload, i.e. a set of queries. We automatically generate ours from probabilistic models, but one could also use traces of real systems, or perhaps a combination of both.

c.2 Stochastic Workloads

To avoid overfitting to a particular set of queries, we define some workload classes as configurable probabilistic models. We can then generate an ordered sequence of point reads or updates (i.e. a workload) from any of these. We include more complex, time-varying workloads (inspired by [98] and [12]) that attempt to mimic realistic settings.

For all the workloads, when we draw a particular key for the first time we will insert it into the database as a write, and subsequently we will either look it up or update it with probability

.

Uniform queries will be drawn uniformly from a set of keys. This is often one in which the cache is unhelpful, but in practice may be unrealistic. Nevertheless, this is the scenario that many analyses assume.

Round-Robin queries are drawn deterministically using , i.e. we iteratively draw each key in sequence, then repeat. This represents another pathological scenario for a cache: a key that has been recently written or read is actually a contraindication we will access it again.

80-20 queries (considered in [25]) are drawn such that 20% of the most recently inserted keys constitute 80% of the lookups. This is a simple model to observe the effects of skew.

Zipf queries are distributed according to a zeta distribution, with a parameter which describes the skewness. Zipf-distributed queries are considered in [62] as another simple proxy for realistically skewed queries.

Discover-Decay queries are distributed according to the following stochastic process, inspired by the Chinese Restaurant process [6] but with time decay: with every passing time step, we draw a number of reads , writes , and updates assuming queries arrive according to Poisson processes with configurable rates:

Once we’ve drawn our new keys , we assign them an initial popularity

with a random decay rate

which is the factor by which they exponentially decay each subsequent time step. At any time , the popularity of each key is given by , where is when the key was inserted. We use these time-dependent popularities to draw each of our reads and updates from .

Periodic Decay workloads are a simple modification of the Discover-Decay model where now depends not only on the decay rate but also on a periodic function of the key’s age . To mimic the combination of exponential decay and sharp periodic peaking we see in [98], we multiply by an inverse cycloid function with period , clamped from 0 to 1, and taken to a configurable power (to make the cusps sharper or duller) that we call the cycloid’s cuspity.

Examples of these workloads are illustrated in Figure 14. The first row contains simple workloads where the distribution of key popularities does not change over time, and where the read/write ratio is a uniform probability. The second row contains Discover-Decay workloads, consisting of operations that insert/read/update keys according to Poisson processes and simulate popularity decays over time. The third row is a modified version of Discover-Decay that adds a periodic signal to the decaying popularity with a configurable period and cusp sharpness. Blue dots represent reads and green dots represent writes (inserts or updates).

Figure 14: Diverse set of workloads used for benchmarking.

c.3 Modeling

We derive equations for the number of storage accesses saved by adding N bits more space to a component. We store simple O(1) space statistics (e.g. number of queries, number of accesses for each bloom filter, number of times a key was found in a level) to get easy to compute and reasonable estimates for these. These loosely follow the general form:

More specifically:

For full derivations, refer to Section C.5.

c.4 Gradient Descent

Results for basic workloads can be seen in Figure 15. To display our results, we introduce a specific plot that shows the workload, our estimated gradients at each point, our estimated best configurations, the actual performance across the whole parameter space and the actual optimal configuration.

The triangle shows the parameter space. Each coordinate within the space represents an LSM-tree with a particular combination of these parameters. Perpendicular distance from the edge opposite a corner represents the value for that corner’s parameter, e.g. a coordinate in the very center represents an equal allocation of all three parameters and a coordinate at a corner represents allocating everything to only that parameter.

The arrows represent our estimated gradient around that coordinate i.e. given the current set of parameters, which direction our I/O savings model says you should move to get a better total I/O cost.

The orange dots signify the parameters we predict will have the minimum I/O cost. One can start the gradient descent process from any given initial point. We test our method with every possible initial point to ensure that it consistently yields good results, which is why there is more than one prediction, and why the dots have varying opacity of orange color. Darker orange points indicate parameter configurations that were more frequently the resulting predictions, while fainter orange points were less frequently the resulting predictions.

The blue-red shading represents actual I/O cost for each parameter combination, generated by exhaustively running queries from the workload on an LSM-tree simulator.

The yellow dot represents the lowest actual minimum I/O cost determined experimentally, and therefore the optimal allocation of parameters - our target.

The gradient descent process works as follows:

  • Ignoring the shading, start at any random initial parameters. Follow the arrows until you either hit the edge of the parameter space or hit a point where there are no outward arrows from your current location.

  • To evaluate our results, one can look at the plot and should check to see that the predicted minima (orange dots) are nearby the actual minimum (yellow dot), or failing that, on a grid coordinate with similar IO cost (judged by the blue-red shading).

Results for basic workloads can be seen in Figure 15. For each workload, we provide results for both the even Bloom filter allocation and the Monkey Bloom filter allocation schemes.

The uniform workload provides a baseline workload to compare other results to. The round-robin workload provides an example of a canonical workload that thrashes the cache to the point where it is useless, and indeed our recommendation is to allocate no space to the cache. Discontinuities in the number of levels as we vary the buffer size makes the optimization non-convex, but Monkey improves both absolute performance and convexity.

Figure 15: Uniform and Round-Robin simulation results overlaid with gradient estimates.
Figure 16: Zipf simulation results overlaid with gradient estimates for (lightly skewed) and (highly skewed).

The results for Zipf workloads in Figure 16 look quite different. At high skewness , we find that Bloom filters are less useful and it is better to allocate more memory to the buffer. At low skewness, the best configuration is a mixture of mostly Bloom filter and cache memory with a relatively small write buffer.

This effect may be due to the fact for highly skewed workloads, we obtain better savings for the small hot set of keys by using the cache (for reads) and the write buffer (for writes, and also as kind of auxiliary cache). For less skewed workloads, we are more likely to request unpopular keys which may be buried deep in the tree and impose a higher IO cost. To counteract this, we need better Bloom filters.

Finally, for the Discover-Decay and Periodic Decay workloads in Figures 17 and 18, we find that our gradients capture the behavior we noted near the beginning of this Appendix section. For lower effective numbers of popular keys (but high temporal locality), we tend to end up allocating most of our memory to the buffer and none to the Bloom filters, but as our “working set” expands, we are pushed closer to the center of the graph. In the bottom row of Figure 18, gradient descent is drawn into two distinct modes based on the starting location, suggesting that our gradient estimations are high-resolution enough to capture the nonconvexity. In general, there are many situations in which increasing either the write buffer or the Bloom filter will reduce I/Os, so we should expect multiple locally optimal allocation strategies to exist.

Figure 17: Discover-Decay simulation results overlaid with gradient estimates for lightly skewed and highly skewed.
Figure 18:

Periodic Decay simulation results overlaid with gradient estimates for variations in periodicity (T) and skew (Beta distribution parameters).

c.5 Modeling

We first consider the case of a uniform query distribution and then show how the formulation can be generalized to any distribution with an empirical trace.

c.6 Uniform query distribution

Assuming we have

  • items in total DB

  • size of an entry in bits

  • total memory

  • memory allocated to cache

  • memory allocated to write buffer

  • entries that fit in a disk page

  • size of the write buffer in pages, i.e.

  • ratio between levels of LSM-tree such that

  • , , and so on,

then we can solve for the total number of levels required to store all the data:

The average cost of a write remains the same as for the basic LSM-tree case:

The average cost of a read must be considered probabilistically over all possible locations of the read item, in this case assuming a uniformly random distribution of reads:

  • Probability that read is in write buffer

  • Probability that read is in cache

  • Probability that read is in L1 but not in cache

where the numerator is the number of items that are in the first level minus the proportion of items from that level that are probabilistically in the cache already:

and finally where the comes from the fact that items already in buffer (L0) are not allowed to occupy the cache.

Therefore, given a uniform query distribution, the full expected cost in disk reads of a read is

c.7 Bloom Filters

The previous analysis hasn’t yet accounted for the presence of Bloom filters, which reduce the likelihood we will unnecessarily access a larger level. For a Bloom filter of bits with independent hash functions , the probability that a given bit is still set to 0 after inserting keys is

Then the probability of a false positive is

We can minimize this over to find the optimal number of hash functions, which is . Assuming that this is the number of hash functions we will use, the probability of a false positive as a function of the number of bits is then

For an item in any level of the LSM-tree with we can reduce the expected cost of accessing that item from by the number of Bloom filter negatives at any level .

Then the expected cost of accessing an item at is

Where is the probability of a false positive for that key at level and 1 is the cost of actually accessing the item at level assuming fence pointers that lead us to the correct page.

c.8 Cost with Bloom Filters - Base Case

Assuming a random distribution of reads, we now consider also the probability that a Bloom filter allows us to ignore a level:
Expected cost of read for an item in the tree =


Expected cost for a null result read =

Given a total memory allocation , the total number of bits we can allocate to Bloom filters is
Then the total formula for the expected cost of a read in the tree is:

(9)

Whereas with a given percentage of null reads in the workload :

(10)
(11)

c.9 Cost Gradients w. Bloom Filters - Generalized Distribution

c.9.1 Cache Gradient

Note that in the above, the workload specific factors are the probability that a read is at any given level and the related probability that any given item from a level is already in the cache. To compute an empirical estimation of the probability that any given item is in a level but not already in the cache, we can simply keep statistics on the total number of times a key was found in that level divided by the total number of (non-null) read queries executed. Then we can consider the following simplification:

(12)

Taking the derivative with respect to the number of entries in the cache, , we get:

Which is just the average cost of a read throughout the tree. Then, to keep statistics on how valuable we expect the cache to be, we maintain statistics on the average cost of every read performed in the window of interest.

c.9.2 Bloom Filter Gradients

Because the memory allocation problem is discrete anyway, we consider the value of the Bloom filters as a finite difference, that is the approximate value of any marginal bloom filter bit at level will be . In this computation, all terms in the sums drop out except for those concerning , and we are left with:

(13)

Rearranging terms, we get:

(14)

Where this is exactly the number of times the given bloom filter is accessed times the difference in the theoretical false positive rates given memory allocations and . Then, to keep statistics on how valuable we expect any given Bloom filter to be, we maintain statistics on the number of times every Bloom filter was accessed in the window of interest.

c.9.3 Write Buffer Gradient: Gets

To estimate the additional value of any marginal memory in the write buffer with respect to reads, we must make a number of simplifications, as , the number of pages in the write buffer, factors into every term in this equation. Further, the interaction between and most of the terms is not available in closed form, in general. Rather, the critical terms we are empirically estimating. Then, for reasonably large values of and , we will assume that the Bloom filter false positive rate stays approximately the same, as does the value of the cache. Then, we consider only the change in I/Os occurring from the altered probability of any given element occurring in any level as a result of more elements being in the write buffer. We can provide a simple estimate of this by assuming that any items we add to the write buffer would have otherwise occurred in L1, and in the resulting cascade, times that number of items will be moved up into each level from the level below.

Then, an appropriate estimate of how useful any additional space of memory in the write buffer is for reads is simply the resulting change in for each level (that is, the number of hits we expect to see on the newly added elements) for any level , as the original cost of accessing that element was , and the new cost of accessing is , the difference between which is just . For , the write buffer itself, the expected savings per hits is exactly 1, as the item will be moved from having an access cost of 1 to 0. To estimate how many additional times L1 would be accessed if we instead allocated the final portion of the write buffer to L1, we keep statistics on how often the final spots of the write buffer were accessed in a read. In practice, these spots are accessed only very infrequently, as the write buffer is accessed only a handful of times at this stage before being flushed. This statistic might be more helpful on a system with constant compaction rather than a full level flush. For the rest of the levels, we simply assume the same hit rate per key as measured over the existing keys on any level and multiply by the number of elements we will be adding to calculate the expected accesses to the new keys on each level. We then multiply by the empirical rate of bloom filter false positives on the level.

c.9.4 Write Buffer Gradient: Puts

For the write buffer, we must additionally consider the saved I/Os for the update/insert operations.

Taking the derivative with respect to , the number of items in the buffer, we get In discrete terms, this evaluates to .

Unfortunately, this simplification only works if we can assume that memory is being allocated in page-size chunks and that the workload has no duplicates. In practice, the number of I/Os associated with reading and writing throughout the merging process is a stepwise function that depends on page size, as reading or writing one element from or to a page has the same I/O cost as reading or writing a full page. To simplify our analysis of the page size write savings, we consider only a ratio of , and we begin by addressing the case wth no duplicates.

With no duplicates, the final number of elements at any level of the tree is a deterministic function of the number of elements inserted as well as the level sizes. Then considering the empirical number of items inserted into the buffer as well as the size of the original buffer, we can solve for the theoretical final structure of an alternate LSM-tree that had a buffer of size .

Additionally, given the number of elements on any given level, no duplicates, and an original buffer size , we know the number of times each -size chunk on each level will have been read and written given the current fullness of the level. We can then multiply these numbers of known chunk reads and writes by the ceiling of the size of those possible chunks (which, with ratio will be and ) divided by pagesize, . This gives us a more realistic number in which additions of less than a pagesize of memory are not helpful in I/O savings.

Comparing the read and write costs of this theoretical tree to the empirical reads and writes accesses of the existing tree gives us an expected I/O savings related to updates for the larger tree.

We consider additionally the fact that I/O savings are in general lessened by the number of duplicates inserted, as duplicates will not be merged across the full depth of the tree. To take this into account we also keep a statistic for the total number of duplicates merged over the window of interest per level and use this to calculate the percentage of duplicates removed relative to total keys at each level. This factors in in several places. First, when computing the theoretical allocation of keys in the final tree, we consider the total number of items that would have come in to the buffer from the empirical count and adjust this at each level by the percentage that are expected to have been removed as duplicates. Further, when computing read and write I/Os during merging, we expect that number of items written when the level is already half full should be decreased by the expected number of duplicates removed among the two sets of keys. Again, the resulting I/O savings will be stepwise in pagesize. In particular, if the original size of the array would have only been slightly into the final page, it will take very few duplicates to reduce the I/O count by 1, whereas if all pages would have been full, it will take a full page’s worth of duplicate removals to improve I/Os. The same savings will be experienced again when these items are read to be merged into the lower level.

The correct way to handle the duplicates requires somewhat more consideration, but the only statistics we are currently using The are the empirical number of update queries and the empirical number of duplicates found and removed on each level over the window of interest.

c.10 Estimating Statistics with Memory

Cache: to estimate the number of storage accesses we will save by adding extra bits of memory to the cache, we let consider as a number of extra entries in the cache. That is, we calculate the savings from having extra cache entries available. As mentioned above, the relevant statistic here is the average cost of a read in the database. To calculate this, we collect statistics on the total number of storage accesses and total number of queries. The expected cost per query is then the number of disk accesses over the window divided by the total number of queries. To approximate the probability of the item being in the cache times the number of queries, we maintain a statistic for the number of times the last cache slot was accessed during the window of interest and make the assumption that the number of hits on the next marginal slot(s) would be approximately the same. Then we can calculate the final expected I/O savings as

Bloom Filters: To estimate the number of storage accesses we will save by adding extra bits of memory to the Bloom filters, we first decide how to allocate that bits using Monkey or the baseline allocation, giving us and bits per Bloom filter on each level. At each level , for both and , we update rolling averages of the theoretical false positive rate and every time the Bloom filter is queried (where is constantly changing based on insertions and flushes of the filter). These statistics (individual floats) give us an estimate of the aggregate false positive rate at and robust to changing level fullness. Finally, we keep a counter of the number of times requested items are not in bloom filter . This counter is incremented either when the bloom filter returns false (which we know immediately) or returns a false positive (which we can record after fruitlessly searching the level). This counter allows us to estimate storage accesses resulting from our current or altered false positive rates. The final savings is therefore

and only requires keeping two floats and one integer. Note that in our simulation, for flexibility, we keep a histogram of values at each bloom filter request to avoid needing to predetermine , but in a practical implementation this is unnecessary.

Note that because we can obtain these estimates on a level-by-level basis, we can investigate whether reallocating memory from one Bloom filter to another, empirically, should reduce I/Os. Validating the results of Monkey [25], in Figure 19 we find that for the baseline allocation, moving bits does improve performance, but for Monkey, it does not, regardless of workload.

Figure 19: Estimated change in I/Os when moving bits from one Bloom filter to another (keeping total bloom filter memory constant). Regardless of workload, changes in I/Os for Monkey are all less than 1, indicating its optimality.

Buffer: To estimate the number of storage accesses we will save in reads by adding extra bits of memory to the buffer, we use statistics maintained on the total bloom filter accesses per level, Bloom filter false positives per level, and hits per level. We estimate the expected additional number of hits on any given level as the original hits times the new theoretical size divided by the actual original size. That is, the number of extra hits is equal to

For each expected hit, we have an I/O savings equal to the false positive rate on the bloom filter of that level, as described in the previous section. To calculate this for a level , we use

Then the total number of I/Os saved should be

where for level 0, the write buffer, the , as the access cost at L1 is always exactly 1 and the access cost at the write buffer is always 0.

To estimate the number of storage accesses we will save in writes/updates by adding extra bits of memory to the write buffer, we maintain statistics on total number of entries that passed through any given level, number of duplicates removed at any given level, and number of entries in any given level at the end of the period. For a workload without duplicates, we can simply use these statistics to deterministically calculate the final allocation and number of read and write I/Os that would have occurred throughout the process for a second tree with write buffer size + , calculating every batch of read and write merges and summing over the number of pages that would have been involved. For the original tree we can either use statistics on empirical I/Os during the merging process or use the same deterministic formula to calculate what they would have been. The expected saved I/Os then is simply

When we consider duplicates, the estimate becomes much more noisy. To consider the effect of duplicates on reducing the total number of pages read and written during the merging process, we reduce the number of entries that pass through each level of our theoretical larger tree by the percentage of duplicates removed at each level, calculated as

This then changes the final level structure of the estimated tree. We also consider that duplicates should reduce the total number of entries written and then read after two segments are merged together. Then for those read and write components that occur on an already half-filled level, we reduce the number of elements by multiplying by
