Introduction

Recent works on semantic segmentation are mostly based on the fully convolutional network (FCN) [Long, Shelhamer, and Darrell2015]. Generally, a pretrained classification network (such as VGGNet [Simonyan and Zisserman2015], ResNet [He et al.2016] and DenseNet [Huang et al.2017]

) is used as an encoder to generate a series of feature maps with rich semantic information at the higher layers. In order to obtain the probability map with the same resolution as the input image size, the decoder is adopted to recover the spatial resolution from the output of the encoder (Fig.

1 Top). The encoder-decoder structure is widely used for semantic segmentation [Vijay, Alex, and Roberto2017, Long, Shelhamer, and Darrell2015, Noh, Hong, and Han2015, Zhao et al.2017] .

The key difficulties for the encoder-decoder structure are twofold. First, as multiple stages of spatial pooling and convolutional strides are used to reduce the final feature map size in the encoder module, much spatial information is lost. This is hard to recover in the decoder module and leads to poor semantic segmentation results, especially for boundary localization. Second, the encoder-decoder structure is much deeper than the original encoder network for image classification tasks (such as VGGNet

[Simonyan and Zisserman2015], ResNet [He et al.2016] and DenseNet [Huang et al.2017]). This results in the training optimization problem as introduced in [He et al.2016, Huang et al.2017]

though it has been partially solved by using batch normalization (BN)

[Ioffe and Szegedy2015].

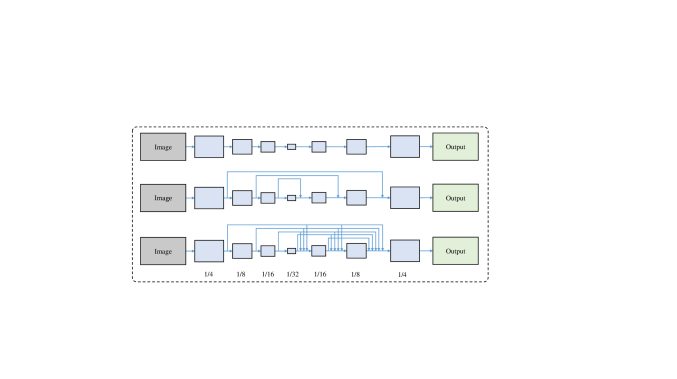

Figure 1: Different types of encoder-decoder structures for semantic segmentation. Top: basic encoder-decoder structure (e.g. DeconvNet [Noh, Hong, and Han2015] and SegNet [Vijay, Alex, and Roberto2017]) using a multiple-stage decoder to predict masks, often results in very coarse pixel masks since spatial information is largely lost in the encoder module. Middle: Feature map reuses structures using previous feature maps of the encoder module achieves very good results in semantic segmentation tasks [Lin et al.2017a, Islam et al.2017, Ghiasi and Fowlkes2016] and other related tasks [Pinheiro et al.2016, Huang et al.2018], but the potential of feature map reuse is not deeply released. Bottom: The proposed fully dense networks, using feature maps from all the previous blocks, are capable of capturing multi-scale information, of restoring the spatial information, and of benefitting the gradient backpropagation.

In order to address the spatial information loss problem, DeconvNet [Noh, Hong, and Han2015] uses the unpooling layers to restore the spatial information by recording the locations of maximum activations during the pooling operation. However, this cannot completely solve the problem since only the location of maximum activations is restored. Another way to deal with this problem is to reuse the feature maps with rich spatial information of earlier layers. U-Net [Ronneberger, Fischer, and Brox2015] exploits previous feature maps in the decoder module by a “skip connections” structure (See Fig. 1 Middle). Furthermore, RefineNet [Lin et al.2017a] refines semantic feature maps from later layers with fine-grained feature maps from earlier layers. Similarly, G-FRNet [Islam et al.2017] adopts multi-stage gate units to make use of previous feature maps progressively. The feature map reuse significantly improves the restoration of spatial information. Meanwhile, it helps to capture multi-scale information from the multi-scale feature maps of earlier layers in the encoder module. In addition, it also boosts information flow and gradient backpropagation as the path from the earlier layers to the loss layer is shortened.

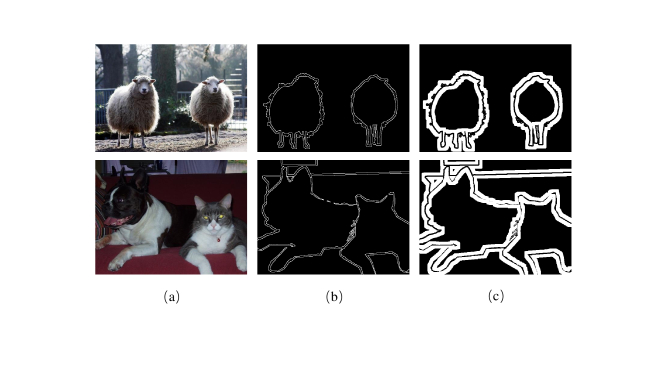

Figure 2: Left: (a) original images; (b) trimap example with 1 pixels; (c) trimap example with 10 pixels. Right: semantic segmentation results within a band around the object boundaries for different methods (mean IOU).

However, the potential of feature map reuse is not completely revealed. In order to further improve the performance, we propose to reconstruct the encoder-decoder neural network to form a fully dense neural network (See Fig. 1 Bottom). We refer to our neural network as FDNet. FDNet is a nearly symmetric encoder-decoder network and is easy to optimize. We choose DenseNet-264 [Huang et al.2017] as the encoder, which achieves state-of-the-art results in the image classification tasks. The feature maps in the encoder module are beneficial to the decoder module. The decoder module is operated as an upsampling process to recover the spatial resolution, aiming for accurate boundary localization. The feature maps of different scale sizes (including feature maps in the decoder module) will be fully reused through an adaptive aggregation structure, which will generate a fully dense connected structure.
In general, the cross entropy loss function is used to propagate the loss in previous works [Liu, Rabinovich, and Berg2016, Lin et al.2017a]. The weakness of this method is that it sees all pixels as the same. As shown in Fig. 2, labeling for the pixels near the boundary () is not very accurate. In other words, the pixels near the boundary are “hard examples”, which need to be treated differently. Based on this observation, we propose a boundary-aware loss function, which pays more attention to the pixels near the boundary. Though attention based loss has been adopted in object detection task [Lin et al.2017c], our boundary-aware loss comes from the prior that pixels near the boundary are “hard examples”. This is very different from focal loss, which pays more attention to the pixels with higher loss. In order to further boost training optimization, we use multiple losses for the output feature maps of the decoder module. As a result, basically each layer of FDNet has direct access to the gradients from the loss layers. This will be very helpful to gradient propagation [Huang et al.2017].

Related work

The fully convolutional network (FCN) [Long, Shelhamer, and Darrell2015]

has improved the performance of semantic segmentation significantly. In the FCN architecture, a fully convolutional structure and bilinear interpolation are used to realize pixel-wise prediction, which results in coarse boundaries as large amounts of spatial information have been lost. Following the FCN method, many works

[Vijay, Alex, and Roberto2017, Lin et al.2017a, Zhao et al.2017] have tried to further improve the performance of semantic segmentation.
Encoder-decoder. The encoder-decoder structure with a multi-stage decoder gradually recovers sharp object boundaries. DeconvNet [Noh, Hong, and Han2015] and SegNet [Vijay, Alex, and Roberto2017] employ symmetric encoder-decoder structures to restore spatial resolution by using unpooling layers. RefineNet [Lin et al.2017a] and G-FRNet [Islam et al.2017] also adopt a multi-stage decoder with feature map reuse in each stage of the decoder module. In LRR [Ghiasi and Fowlkes2016], a multiplicative gating method is used to refine the feature map of each stage and a Laplacian reconstruction pyramid is used to fuse predictions. Moreover, [Fu et al.2017] stacks many encoder-decoder architectures to capture multi-scale information. Following these works, we also use an encoder-decoder structure to generate pixel-wise prediction label maps.
Feature map reuse. The feature maps in the higher layers tend to be invariant to translation and illumination. This invariance is crucial for specific tasks such as image classification, but is not ideal for semantic segmentation which requires precise spatial information, since important spatial relationships have been lost. Thus, the reuse of feature maps with rich spatial information of the previous layers can boost the spatial structure reconstruction process. Furthermore, feature map reuse has also been used in object detection tasks [Lin et al.2017b] and instance segmentation tasks [Pinheiro et al.2016, He et al.2017] to capture multi-scale information when considering the objects with different scales. In our architecture, we fully aggregate previous feature maps in the decoder module, which shows outstanding performances in the experiments.

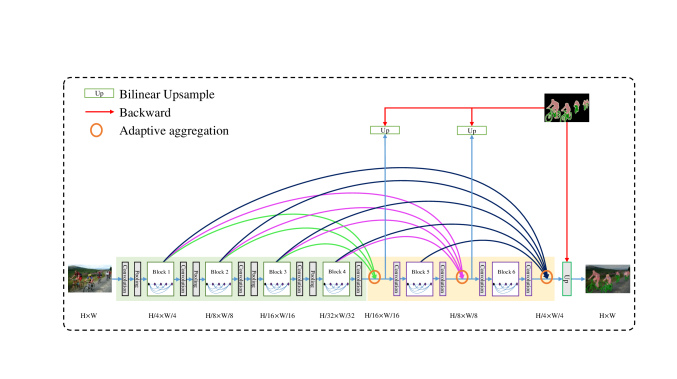

Figure 3: Overview of the proposed fully dense neural network (FDNet). The feature maps (output of dense block ) of the encoder module and even the feature maps (output of dense block 5) of the decoder module are fully reused. The adaptive aggregation module combines feature maps from all the previous blocks to form new feature maps as the input of subsequent blocks. After an adaptive aggregation module or a dense block, a convolution layer is used to compress the feature maps. The aggregated feature maps are upsampled to ( is the number of the classes for the labels) and the pixel-wise cross entropy loss is computed.

Fully dense neural networks

In this section, we introduce the proposed fully dense neural network (FDNet), which is visualized in Fig. 3 comprehensively. We first introduce the whole architecture. Next, the adaptive aggregation structure for dense feature maps is presented in detail. At last, we show the boundary-aware loss function.

Encoder-decoder architecture

Our model (Fig. 3) is based on the deep encoder-decoder architecture (e.g. [Noh, Hong, and Han2015, Vijay, Alex, and Roberto2017]). The encoder module extracts features from an image and the decoder module produces semantic segmentation prediction.
Encoder. Our encoder network is based on the DenseNet-264 [Huang et al.2017] while removing the softmax and fully connected layers of the original network (from the starting convolutional layer to the dense block 4 in Fig. 3). The input of each convolutional layer within a dense block is the concatenation of all outputs of its previous layers at a given resolution. Given that is the output of the layer in a dense block, can be computed as follows:

(1)

where denotes the concatenation operation of the feature maps , and is the input feature map of the dense block. Meanwhile, (

) is defined as a composite function of operations: BN, ReLU, a

convolution operation followed by BN, ReLU, a convolution operation. As a result, the output of a dense block includes feature maps from all the layers in this block. Each dense block is followed by a transition layer, which is to compress the number and size of the feature maps through convolution and pooling layers. For an input image , the encoder network produces 4 feature maps with decreasing spatial resolution . In order to reduce spatial information loss, we can remove the pooling layer before the dense block 4 so that the output feature map of the last dense block (i.e. ) in the encoder module is of the size. Atrous convolution is also used to control the spatial density of computed feature responses in the last block as suggested in [Chen et al.2017]. We refer to this architecture as FDNet-16s. The original architecture can be taken as FDNet-32s.
Decoder. As the encoder-decoder structure has much more layers than the original encoder network, how to boost gradient backpropagation and information flow becomes another problem we have to deal with. The decoder module progressively enlarges the feature maps while densely reusing previous feature maps by aggregating them into a new feature map. As the input feature map of each dense block has a direct connection to the output of the block, the inputs of previous blocks in the encoder module are also directly connected to the new feature map . The new feature map is then upsampled to compute loss with the groundtruth, which leads to multiple losses computation. Thus, the inputs of all dense blocks in the FDNet have a direct connection to the loss layers. This will significantly boost the gradient backpropagation.
Following the DenseNet structure, we also use dense blocks at each stage of the same size after a compression layer with convolution operation, which will change the number of feature maps from adaptive aggregation structure. The compression layer is composed of BN, ReLU and a convolution operation. In the two compression layers after adaptive aggregation, their filter numbers are set to 1024 and 768. In the two compression layers after block 5 and block 6, the filter numbers are set to 768 and 512. For block 5 and block 6, there are 2 convolutional layers in each of them.

Adaptive aggregation of dense feature maps

In previous works, e.g. U-Net [Ronneberger, Fischer, and Brox2015] for semantic segmentation, FPN [Lin et al.2017b] for object detection and SharpMask [Pinheiro et al.2016] for instance segmentation, feature maps are reused directly in the corresponding decoder module by concatenating or adding the feature maps. Furthermore, RefineNet [Lin et al.2017a], LRR [Ghiasi and Fowlkes2016] and G-FRNet [Islam et al.2017] refine the feature maps progressively stage by stage. Instead of just using previous feature maps as before, we introduce an adaptive aggregation structure to make better use of the feature maps from previous blocks. As shown in Fig. 4, the feature maps from previous blocks are densely concatenated together by using the adaptive aggregation structure.

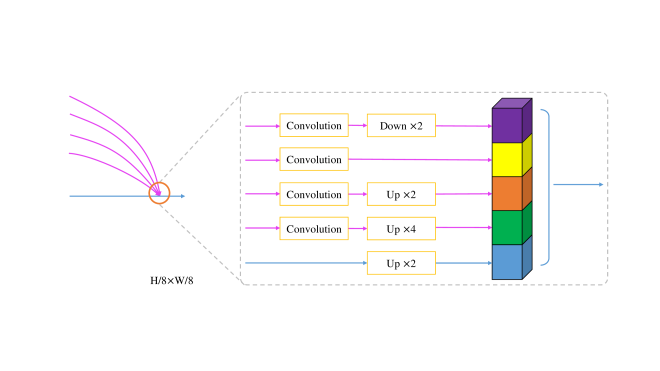

Figure 4: An example of an adaptive aggregation structure for dense feature maps. For all the input feature maps (not including direct connected input feature map, i.e. blue line), a compression layer with BN, ReLU and convolution is applied to adjust the number of feature maps. Then an upsampling or downsampling layer is first operated so that all the feature maps are consistent in size with the output feature map. They are then concatenated to form a new feature map with of the size of the input image.

The adaptive aggregation structure takes all the feature maps from previous blocks () as input. The feature maps from the lower layers (e.g. ) are of high resolution with coarse semantic information, whereas feature maps from the higher layers (e.g. ) are of low resolution with rich semantic information. The adaptive aggregation structure combines all previous feature maps to generate rich contextual information and also spatial information. For incoming feature maps, the scale sizes may be different. As shown in Fig. 4, the output feature map is of the size of the input image. To reduce memory consumption, we firstly use the convolutional layer to compress the incoming feature maps except for the direct connected feature map (which has been compressed). The compression layer is also composed of BN, ReLU and a convolution operation. In order to make all feature maps consistent in size, we use the convolutional layer to downsample and the deconvolutional layer to upsample the feature maps. Intuitively, we directly concatenate the feature map if it is equivalent to the size of the output feature map. The convolutional layers are all composed of BN, ReLU and a convolution operation with different strides. The deconvolutional layers are all composed of BN, ReLU and a deconvolutional operation with different strides. At last, all the resultant feature maps ( input feature maps) are concatenated into a new feature map for the stage, which is then fed to latter loss computation operation or dense block. The formulation for obtaining the dense feature map from the previous feature maps can be written as follows:

(2)

where denotes the transformation operation (downsample or upsample). If is of the same size as the output feature map, no operation is performaned on . In addition, stands for the concatenation operation.
In the adaptive aggregation structures for the three stages of the decoder module, the filter numbers in the compression layer for the reused feature map are set to 384, 256 and 128 respectively. The upsampling and downsampling layers will not change the dimension of feature maps.

Boundary-aware loss

In previous works, cross entropy loss function is often used in pipeline, which treat all pixels equally. As shown in Fig. 2, we can see that the pixels surrounding the boundary are “hard examples”, which lead to bad prediction. Based on this observation, we construct a boundary-aware loss function, which guides the network to pay more attention on the pixels near the boundary. The loss function is

(3)

where is the result of operation on the output feature map and is the groundtruth. The is the -th pixel in the image and is number of categories. We split all the pixels of image into several sets based on the distance between the pixels and the boundary so that . We apply image dilation operation on the boundary with varying kernel size, which refers to as band width shown in Fig. 2, to obtain different set of pixels surrounding the boundary. is the balancing weight and is an attention weight function. Motivated by [Lin et al.2017c], we test two attention weight functions ( and ): and . The is used to control attention weight. The ablation experiment results are shown in Table 2.
In order to further boost the gradient backpropagation and information flow, we compute multiple losses for different aggregated feature map motivated by [Zhao et al.2017, Islam et al.2017, Fu et al.2017]. Specifically, is fed to upsample module to obtain a feature map with channel , where is number of classes in prediction labels. Then the feature map is upsampled by using bilinear interpolation method directly to produce feature map , which is used to compute pixel-wise loss with groundtruth. In terms of formula, the final loss is computed as follows:

(4)

where denotes a upsample module with bilinear interpolation operation.
In the encoder module, the output feature map of each module is the concatenation of all the feature maps within this block, including the input. And the aggregated feature map is feature maps from all the previous blocks. Thus, each feature map in the encoder has much shorter path to loss compared with previous encoder-decoder structure [Lin et al.2017a, Islam et al.2017]. The gradient backpropagation and information flowing is much more efficient. This will further boost our network optimization.

Figure 5: The effect of employing the proposed fully dense feature map reuse structure compared with other frameworks. Our proposed FDNet shows better results (Column 4), especially on the boundary localization, compared with the results (Column 3) of encoder-decoder structure with feature reuse method (Fig. 1 Middle) and the results (Column 2) of encoder-decoder structure without feature reuse method (Fig. 1 Top).

Implementation details

Training

: The proposed FDNet is implemented with PyTorch on a single NVIDIA GTX 1080Ti. The weights of DenseNet-264 are directly employed in the encoder module of FDNet. In the training step, we adopt data augmentation similar to

[Chen et al.2016]. Random crops of and horizontal flip is applied. We train the dataset with 30K iterations. We optimize the network by using the “poly” learning rate policy where the initial learning rate is multiplied by with . The initial learning rate is set to . We set momentum to and weight decay to .
Inference

: In the inference step, we pad images with mean value before feeding full images into the network. We apply multi-scale inference, which is commonly used in semantic segmentation methods

[Lin et al.2017a, Fu et al.2017]. For multi-scale inference, we average the predictions on the same image across different scales for the final prediction. We set the scales ranging from 0.6 to 1.4. Horizontal flipping is also adopted in the inference. In the ablation experiments, we just use the single scale (i.e. scale = 1.0) and horizontal flipping method to do inference. In addition, we use the last-stage feature map of the decoder module to generate final prediction label map.

Experiments

In this section, we describe configurations of experimental datasets and show ablation experiments on PASCAL VOC 2012. At last, we report the results on two benchmark datasets: PASCAL VOC 2012 and NYUDv2.

Encoder stride
w/o feature
reuse
w/ feature
reuse
dense feature
reuse
32 77.2 78.5 78.9
16 78.2 79.1 79.4
Table 1: The mean IoU scores (%) for encoder-decoder with different feature map reuse methods on PASCAL VOC 2012 validation dataset.
loss mIoU
CE 79.4
b-aware()
79.5
80.3
b-aware()
79.6
b-aware()
,
80.0
79.6
77.7
b-aware()
,
80.7
80.3
80.9
80.6
79.2
Table 2: The mean IoU scores (%) for boundary-aware loss on PASCAL VOC 2012 validation dataset. The and represent different weighting methods.

Datasets description

To show the effectiveness of our approach, we conduct comprehensive experiments on PASCAL VOC 2012 dataset [Everingham et al.2010] and NYUDv2 dataset [Silberman et al.2012].
PASCAL VOC 2012: The dataset has 1,464 images for training, 1,449 images for validation and 1,456 images for testing, which involves 20 foreground object classes and one background class. Meanwhile, we augment the training set with extra labeled PASCAL VOC images provided by Semantic Boundaries Dataset [Hariharan et al.2011], resulting in 10,582 images as trainaug dataset for training.
NYUDv2: The NYUDv2 dataset [Silberman et al.2012] consists of 1449 RGB-D images showing indoor scenes. We use the segmentation labels provided in [Gupta, Arbelaez, and Malik2013], in which all labels are mapped to 40 classes. We use the standard training/test split with 795 and 654 images, respectively. Only RGB images are used in our experiments.
Moreover, we perform a series of ablation evaluations on PASCAL VOC 2012 dataset with mean IoU score reported. We use the trainaug and validation dataset of PASCAL VOC 2012 for training and inference, respectively.

Methods RefineNet-152 FDNet
GPU Memory (MB) 4253 2907 -
Parameters (M) 109.2 113.1 161.7
mIOU 83.4 84.2 83.5
Table 3: GPU memory, number of parameters and some results on VOC 2012 test dataset are reported.
Method mIoU
Deeplab-MSc-CRF-LargeFOV 68.7
DeconvNet 67.1
DeepLabv2 77.7
G-FRNet 77.8
DeepLabv3 79.8
SDN 80.7
DeepLabv3+ 81.4
FDNet-16s 80.9
FDNet-16s-MS 82.1
FDNet-16s-finetuning-MS 84.1
Table 4: Comparison of different mothods on PASCAL VOC 2012 validation dataset with mean IoU score (%). FDNet-16s-MS denotes the evaluation on multiple scales. FDNet-16s-finetuning-MS denotes fine-tuning on standard training data (1464 images) of PASCAL VOC 2012 dataset after training on the trainaug dataset.

Feature map reuse

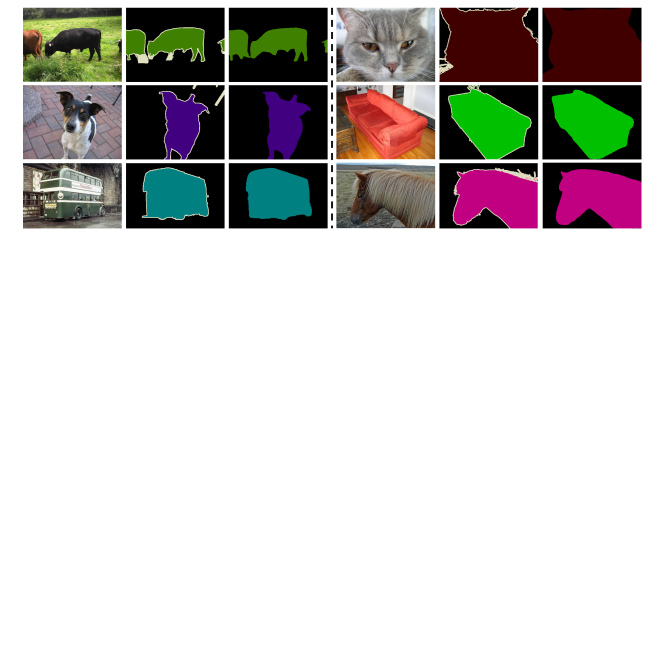

Figure 6: Some visual results on PASACAL VOC 2012 dataset. Three columns of each group are image, groundtruth and prediction label map.
Method

aero

bicycle

bird

boat

bottle

bus

car

cat

chair

cow

table

dog

horse

mbike

person

plant

sheep

sofa

train

tv

mIoU
DeconvNet [Noh, Hong, and Han2015] 89.9 39.3 79.7 63.9 68.2 87.4 81.2 86.1 28.5 77.0 62.0 79.0 80.3 83.6 80.2 58.8 83.4 54.3 80.7 65.0 72.5
Deeplabv2 [Chen et al.2016] 84.4 54.5 81.5 63.6 65.9 85.1 79.1 83.4 30.7 74.1 59.8 79.0 76.1 83.2 80.8 59.7 82.2 50.4 73.1 63.7 71.6
GCRF [Vemulapalli et al.2016] 85.2 43.9 83.3 65.2 68.3 89.0 82.7 85.3 31.1 79.5 63.3 80.5 79.3 85.5 81.0 60.5 85.5 52.0 77.3 65.1 73.2
Adelaide [Lin et al.2016] 90.6 37.6 80.0 67.8 74.4 92.0 85.2 86.2 39.1 81.2 58.9 83.8 83.9 84.3 84.8 62.1 83.2 58.2 80.8 72.3 75.3
LRR [Ghiasi and Fowlkes2016] 91.8 41.0 83.0 62.3 74.3 93.0 86.8 88.7 36.6 81.8 63.4 84.7 85.9 85.1 83.1 62.0 84.6 55.6 84.9 70.0 75.9
G-FRNet [Islam et al.2017] 91.4 44.6 91.4 69.2 78.2 95.4 88.9 93.3 37.0 89.7 61.4 90.0 91.4 87.9 87.2 63.8 89.4 59.9 87.0 74.1 79.3
PSPNet [Zhao et al.2017] 91.8 71.9 94.7 71.2 75.8 95.2 89.9 95.9 39.3 90.7 71.7 90.5 94.5 88.8 89.6 72.8 89.6 64.0 85.1 76.3 82.6
SDN [Fu et al.2017] 96.2 73.9 94.0 74.1 76.1 96.7 89.9 96.2 44.1 92.6 72.3 91.2 94.1 89.2 89.7 71.2 93.0 59.0 88.4 76.5 83.5
FDNet 95.5 79.9 88.6 76.1 79.5 96.7 91.4 95.6 40.1 93.0 71.5 93.4 95.7 91.1 89.2 69.4 93.3 68.0 88.3 76.8 84.2
Table 5: Quantitative results (%) in terms of mean IoU on PASCAL VOC 2012 test set. Only VOC data is used as training data and denseCRF [Krähenbühl and Koltun2011] is not included.

To verify the power of dense feature maps reuse, we compare our method with other two baseline frameworks. In this experiment, cross entropy loss is used. One is encoder-decoder structure without feature map reuse (Fig. 1 Top) and the other is encoder-decoder structure with naive feature map reuse (Fig. 1 Middle). We also compare the three frameworks on different encoder strides (the ratio of input image resolution to smallest output feature map of encoder, i.e. 16 and 32).
The results are shown in Table 1. It is observed that the performance increases when feature maps are reused. Specifically, the performance for encoder-decoder (encoder stride = 32) without feature map reuse is only 77.2%. After the naive feature map reuse, the performance can increase to 78.5%. Furthermore, our fully dense feature map reuse can further improve the performance to 78.9%. In addition, when we adopt the stride 16 for the encoder module, the performance is much better than the original encoder with stride 32 on the three frameworks. This is because the spatial information loss is reduced by the encoder with smaller stride. We speculate that encoder with stride 8 can have better result similar to [Chen et al.2017, Chen et al.2018]. Because of memory limitation, we only test on the encoder with stride 16 and 32.

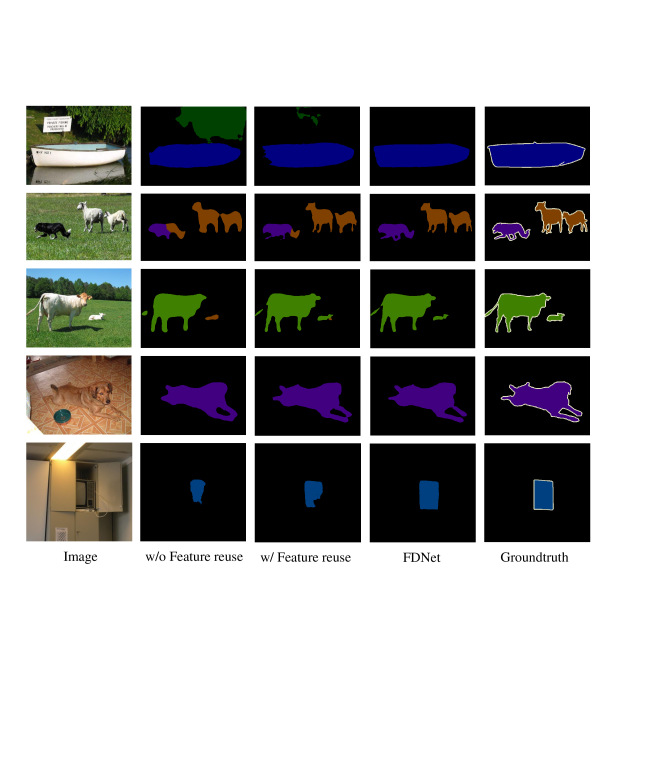

We also show some predicted semantic label maps for different feature map reuse methods in Fig. 5. For the encoder-decoder structure without feature map reuse, the result is poor, especially for boundary localization. Though the naive feature map reuse method improves the segmentation result partially, it is still hard to obtain accurate pixel-wise prediction. The fully dense feature map reuse method shows very excellent results on the boundary localization.

Boundary-aware loss

In order to demonstrate the effect of proposed boundary-aware loss method, we take FDNet-16s as baseline to test the performance of different parameters. We mainly use the and by splitting the pixels into sets (the remaining pixels are referred to as ). For weight method, the boundary-aware loss method (b-aware) degrades into cross entropy method (CE) when and . As shown in Table 2, the simply weighting on the pixels surrounding the boundary shows better performance compared with general cross entropy method, which enhances the performance by . By fixing the and , we try different parameter in Table 2. Comparing the and methods, we can observe that brings obvious improvement by . On the contrary, the methods lead to worse effect compared with baseline method ( vs ). In addition, the network cannot converge for . We also compare the labeling accuracy for the pixels near the boundary. As shown in Fig. 2, the FDNet with boundary-aware loss shows obvious better performance for the pixels surrounding the boundary.

Memory analysis

For semantic segmentation task, memory consumption and parameter number are both important issues. The proposed FDNet uses fully dense connected structure with nearly the same number of parameters compared with RefineNet [Lin et al.2017a]. As shown in Table 3, the FDNet consumes much less GPU memory (training process) compared with RefineNet. In addition, the memory consumption of FDNet can be reduced by using sharing memory efficiently based on [Geoff Pleiss*2017]. Compared with SDN [Fu et al.2017], there are much less parameters for FDNet but the performance is much better.

Pascal Voc 2012

We evaluate the performance on the PASCAL VOC 2012 dataset following previous works [Lin et al.2017a, Zhao et al.2017]. As FDNet-16s shows a better performance (Table 1), we only report the performance of FDNet-16s in the following experiments. We adopt the boundary-aware method in the training step. As shown in Table 4, FDNet-16s achieves very comparable result with an 82.1% mean IoU accuracy compared with previous works ([Chen et al.2017, Islam et al.2017, Fu et al.2017]) when evaluated on multiple scales. Moreover, after fine-tuning the model on the standard training data (1464 images) of the PASCAL VOC 2012 dataset, we achieve a much better result with 84.1% mean IoU accuracy, which is the best result currently if not considering pretraining on other dataset (such as MS-COCO [Lin et al.2014]). Some visual results with image, groundtruth and prediction label maps are shown in Fig. 6.
Table 5 shows the quantitative results of our method on the test dataset, where we only report the results using the PASCAL VOC dataset. We achieve the best result of 84.2% on test data without pretraining on other datasets, which is the highest score when considering training on PASCAL VOC 2012 dataset. Though latest work DeepLabv3+ [Chen et al.2018] achieves a mean IoU score of 89.0% on test data of PASCAL VOC 2012, the result relies upon pretraining on a much larger dataset MS-COCO [Lin et al.2014] or JFT [Chollet2017]. In fact, FDNet-16s shows very comparable result compared with DeepLabv3+ on the validation dataset (Table 4).

NYUDv2 Dataset

We conduct experiments on the NYUDv2 dataset to compare FDNet-16s with previous works. We follow the training setup in PASCAL VOC 2012 and multi-scale inference is also adopted. The results are reported in Table 6. Similar to [Lin et al.2017a], pixel accuracy, mean accuracy and mean IoU are used to evaluate all the methods. Some works make use of both depth image and RGB image as input and obtain very better results. For example, RDF [Park, Hong, and Lee2017] achieves 50.1% (mean IoU) by using depth information. For a fair comparison, we only report the results training on only RGB images. As is shown, FDNet-16s outperforms previous work in terms of all metrics. In particular, our result is better than RefineNet [Lin et al.2017a] by 0.9% in terms of mean IoU accuracy.

Method pixel acc. mean acc. mIoU
SegNet 66.1 36.0 23.6
Bayesian SegNet 68.0 45.8 32.4
FCN-HHA 65.4 46.1 34.0
Piecewise 70.0 53.6 40.6
RefineNet 73.6 58.9 46.5
FDNet-16s 73.9 60.3 47.4
Table 6: Quantitative results (%) on NYUDv2 dataset (40 classes). The model is only trained on the provided training image dataset.

Conclusion

In this paper, we have presented the fully dense neural network (FDNet) with an encoder-decoder structure for semantic segmentation. For each layer of the FDNet in the decoder module, feature maps of almost all the previous layers are aggregated as the input. Furthermore, we propose a boundary-aware loss function by paying more attention to the pixels surrounding the boundary. The proposed FDNet is very advantageous to semantic segmentation. On the one hand, the class boundaries as spatial information are well reconstructed by using the Encoder-Decoder structure with a boundary-aware loss function. On the other hand, the FDNet learns more efficiently with the more efficient gradient backpropagation, much similar to the arguments already demonstrated in ResNet and DenseNet. The experiments show that our model outperforms previous works on two public benchmarks when training on other datasets is not considered.

Acknowledgments

This work is supported by GRF 16203518, Hong Kong RGC 16208614, T22-603/15N, Hong Kong ITC PSKL12EG02, and China 973 program, 2012CB316300.
