1 Introduction

Single image super-resolution (SR) aims at recovering a high-resolution (HR) image from its low-resolution (LR) counterpart. As a long-standing low-level computer vision problem, single image SR has been investigated for decades

[1, 2, 3, 4, 5, 6]

. Recently, the rise of deep learning provides a powerful tool to solve this problem. Numerous CNN-based methods

[7, 8, 9, 10, 11] have been developed and the SR performance has been significantly improved.

Although recent CNN-based single image SR networks [10, 11, 12, 13] have achieved promising performance, they are developed for image SR with a single specific integer scale (e.g., ,). In real-world applications, non-integer SR (e.g., from to ) and asymmetric SR (e.g., from to ) are also necessary such that customers can zoom in an image arbitrarily for better view of details. However, SR networks for specific integer scales cannot be used for scale-arbitrary SR in real-world scenarios.

To address this limitation, Hu et al. [14] proposed a Meta-SR network to predict weights of filters for different scale factors using meta-learning. Meta-SR produces promising results on non-integer scale factors. However, it still has few limitations. First, the scale information is only used for upsampling in the network. That is, features in the backbone are identical for SR tasks with different scale factors, which hinders the further improvement of performance. Second, Meta-SR is trained from scratch (which is time-consuming) and has a large memory overhead. Third, Meta-SR mainly focuses on SR with non-integer scale factors but cannot handle SR with asymmetric scale factors.

Since image SR tasks with multiple scales are inter-related [15], knowledge learned by powerful scale-specific networks [10, 11, 12]

can be transferred to train a scale-arbitrary network. In this paper, we propose to learn a scale-arbitrary single image SR network from scale-specific networks. Specifically, we propose a plug-in module for existing SR networks to enable scale-arbitrary SR, which consists of multiple scale-aware feature adaption blocks and a scale-aware upsampling layer. The scale-aware feature adaption blocks are used to achieve scale-aware feature extraction and the scale-aware upsampling layer is used for scale-arbitrary upsampling. Moreover, we use a scale-aware knowledge transfer paradigm to transfer knowledge from scale-specific networks for the training of the scale-arbitrary network. Our plug-in module can be easily adapted to existing networks for scale-arbitrary SR with small additional computational and memory costs. Baseline networks equipped with our module can produce promising results for non-integer and asymmetric SR, while maintaining comparable performance to their scale-specific counterparts for SR with integer scale factors. To the best of our knowledge, our plug-in module is the first work to handle asymmetric SR.

Our main contributions can be summarized as follows: 1) We propose a plug-in module for SR networks to achieve scale-arbitrary SR, including multiple scale-aware feature adaption blocks and a scale-aware upsampling layer. 2) We introduce a scale-aware knowledge transfer paradigm to transfer knowledge from scale-specific networks to a scale-arbitrary network. 3) Experimental results show that baseline networks equipped with our module produce promising results for scale-arbitrary SR while maintaining the state-of-the-art performance for SR with integer scale factors. A video demo is available at https://youtu.be/AFm97PHWeGI. (Please play the video in 1080P for better view.)

2 Related Work

In this section, we first briefly review several major works for CNN-based single image SR. Then, we discuss learning techniques related to our work, including multi-task learning, meta-learning and transfer learning.

2.1 Single Image Super-Resolution

Due to the powerful feature representation and model fitting capabilities of deep neural network, CNN-based single image SR methods

[7, 8, 9, 10, 11] outperform traditional methods [1, 2, 3, 4, 5, 6] significantly. Dong et al. [7] proposed a three-layer convolutional network (namely, SRCNN) to learn the non-linear mapping between LR images and HR images. A deeper network (namely, VDSR) with 20 layers [8] was then proposed to achieve better performance. Tai et al. [16] proposed a deep recursive residual network (DRRN) to reduce the number of model parameters using recursive blocks with shared parameters.

Recently, Lim et al. [15]

proposed a very deep and wide network, namely EDSR. Specifically, batch normalization (BN) layers were removed and a residual scaling technique was used to enable the training of such a large model. Zhang

et al. [11]

proposed a residual dense network (RDN) by stacking several residual dense blocks. By combining residual connection and dense connection, RDN has a contiguous memory and achieves favorable performance against EDSR. Haris

et al. [10] proposed a deep back-projection network (DBPN) with iterative up-sampling and down-sampling layers to provide error feedback information. Zhang et al. [12] and Dai et al. [13] further improved the image SR performance by introducing channel attention and second-order attention, respectively.

Although existing single image SR methods have achieved promising results, they are trained for SR with a single specific integer scale factor. To overcome this limitation, Lim et al. [15] proposed a multi-scale deep super-resolution system (MDSR) to integrate modules trained for multiple scale factors (i.e., ). However, MDSR cannot super-resolve images with non-integer scale factors. Recently, Hu et al. [14] proposed a Meta-SR network to solve the scale-arbitrary upsampling problem. Specifically, they used meta-learning to predict weights of filters for different scale factors. However, Meta-SR cannot handle SR with asymmetric scale factors and has a large memory overhead.

2.2 Multi-Task Learning, Meta-Learning and Transfer Learning

Multi-task learning aims at developing a single model for multiple different tasks [17, 18, 19]. A multi-task learning network usually includes a common backbone and multiple output branches (paths) for different tasks. Multi-task learning is based on the intuition that multiple tasks are inter-related and can contribute to each other. However, for scale-arbitrary single image SR, a single network has to be used for SR with an arbitrary scale factor. Therefore, multi-task learning is unsuitable for our problem since an infinite number of scale factors have to be handled.

Meta-learning, also known as learning to learn, aims to learn meta-knowledge to make the process of learning from new data more effective and efficient [20]

. Meta-learning is commonly employed in reinforcement learning

[21, 22, 23] and optimization [24, 25, 26, 27]. As one of the meta-learning strategies, weight prediction is applied in numerous tasks, including image recognition [28] and object detection [29]. In these networks [28, 29], the weights of networks are learned from meta-learners rather than training data. In Meta-SR [14], meta-learning is used for SR to predict the weights of filters for different scale factors. Meta-learning is also used in our plug-in module to learn meta-knowledge.

Transfer learning aims at transferring knowledge learned from a source domain to a target domain [30]. The target domain can be a new task [31, 30] or a new environment [32, 33]. Since multi-scale SR are inter-related tasks [15], if we consider non-integer SR and asymmetric SR as target domains, SR with integer scale factors can be considered as source domains. Therefore, we are motivated to transfer knowledge from scale-specific SR networks to a scale-arbitrary network.

3 Methodology

3.1 Motivation

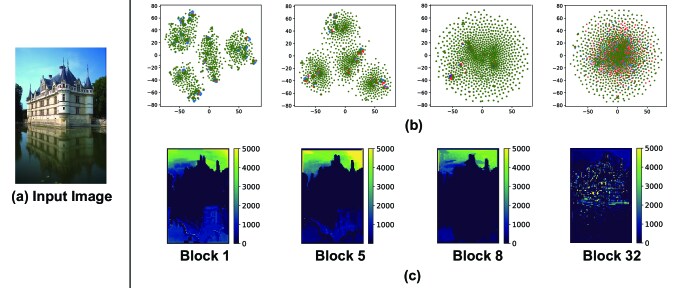

Figure 1: Visualization of features from different blocks in EDSR. Blue, red and green dots represent features frabom the , and SR networks, respectively.

Since SR tasks with different scale factors are inter-related [15], it is non-trivial to learn a scale-arbitrary SR network from scale-specific SR networks (e.g., ). Therefore, we first investigate the relationship between // SR tasks to provide insights for scale-arbitrary SR.

Specifically, we conduct experiments on the B100 dataset [34] to compare the feature distribution on specific layers in pre-trained // SR networks. In our experiments, EDSR [15] is selected as the baseline network. Experimental results with RCAN [12] are provided in the supplementary material. First, we downsample an image of the B100 dataset to size (denoted as ). Then, we feed to the EDSR network developed for // SR. The features of the last layer in the residual block (denoted as ) are then used for visualization.

In the first experiment, we use all of the 100 images in the B100 dataset and randomly select 10 positions in each image for feature sampling, resulting in 1000 feature samples for each block (e.g., ). Then, we concatenate and to produce . Finally, is visualized using the t-SNE method [35], as shown in Fig. 1(b). It is clear that dots of different colors are overlapped at most positions in blocks 1, 5 and 8. That is, the features at these positions in blocks 1, 5 and 8 of the , and SR networks are prone to be scale-independent. In contrast, the distributions of dots with different colors in the last block are quite different. That means the features in the last block are prone to be scale-dependent.

In the second experiment, we use one image (as shown in Fig. 1(a)) as the input and investigate the scale-dependency of features in different regions. Specifically, , and are concatenated and then reshaped to for t-SNE transformation. Assume a feature sample at position is projected to by the t-SNE transformation, a discrepancy measure between and is defined as:

(1)

where

(2)

The discrepancy map is visualized in Fig. 1(c). Note that, lower discrepancy indicates higher feature similarity, i.e., lower scale-dependency.

From Fig. 1(c) we can see that the discrepancy is low for regions with rich edges and texture (e.g., the building) in blocks 1, 5 and 8. However, in texture-less regions (e.g., the sky and the lake), the discrepancy is large. That means features in texture-rich regions are prone to be scale-independent while features in texture-less regions are prone to be scale-dependent. In our experiment, this observation holds for all blocks except the last one. For the last block, the discrepancy for texture-rich regions is significantly increased. For more results, please refer to the supplemental material.

In summary, scale-dependency is different for different blocks and regions. Motivated by this observation, we distinguish scale-dependent features from scale-independent ones, and then perform scale-aware feature adaption adaptively. Specifically, scale-independent features can be directly used for SR with arbitrary scale factors, while scale-dependent features should be adapted according to the scale factors.

3.2 Our Plug-in Module

The architecture of our plug-in module is shown in Fig. 2. Given a baseline network (e.g., EDSR and RCAN) developed for SR with a specific integer scale factor, we can extend it to a scale-arbitrary SR network using our plug-in module. Specifically, scale-aware feature adaption is performed after every backbone blocks, as shown in Fig. 2(b). Following the backbone module, a scale-aware upsampling layer is used for scale-arbitrary upsampling.

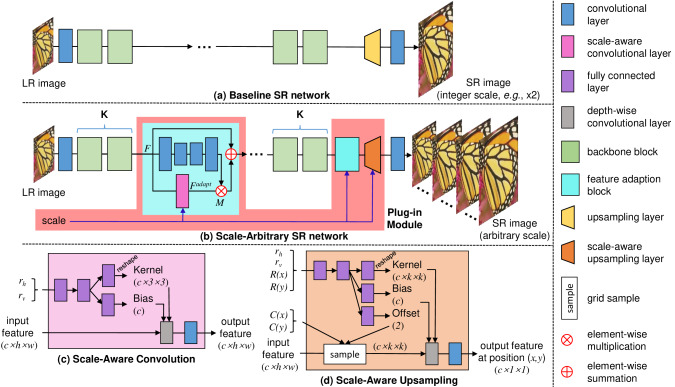

Figure 2: An overview of our plug-in module.

Scale-Aware Convolution The scale-aware convolutional layer is illustrated in Fig. 2(c). First, the horizontal scale factor and vertical scale factor

are fed to two fully connected layers, resulting a feature vector. Then, this feature vector is separately fed to a kernel head and a bias head to predict kernels and bias. Next, the predicted kernels and bias are used to perform depth-wise convolution on the input feature map. Finally, the resulting feature map is passed to a

convolution to fuse the information across different channels, resulting in an output feature.

Scale-Aware Feature Adaption Given a feature map , it is first fed to an hourglass module with four convolutions to generate a scale-dependency mask with values ranging from 0 to 1. Then, is fed to a scale-aware convolution for feature adaption, resulting in an adapted feature map . Next, and are fused as:

(3)

where the scale-dependency mask is used as a guidance.

Intuitively, in regions with low scale-dependency values, features are prone to be scale-independent and can be directly used as . In contrast, in regions with high scale-dependency values, features are prone to be scale-dependent. Therefore, should be added into for feature adaption.

Scale-Aware Upsampling Pixel shuffling layer [36] is widely used in SR networks for upsampling with integer scale factors. For SR, input features of size are first fed to a convolution to produce features of size . Then, the resulting features are shuffled to the size of . The pixel shuffling layer can be considered as a two-step pipeline, which consists of a sampling step and a spatially-variant convolution step (i.e., convolutions for different sub-positions). Please refer to the supplemental material for more details.

In this paper, we generalize the pixel shuffling layer to a scale-aware upsampling layer, as shown in Fig. 2(d). First, each pixel in the HR space is projected to the LR space to compute its coordinates ( and ) and relative distances ( and ):

(4)
(5)

Then, , , and are concatenated and fed to two fully connected layers for feature extraction. The resulting features are fed to kernel/bias/offset heads to predict kernels, bias and offsets, respectively. Next, we sample a neighborhood centered at , where and are predicted offsets along the and axes, respectively. Note that, is set to 1 in our networks to control the model size. Finally, predicted kernels and bias are used to perform depth-wise convolution on the sampled features, followed by a convolution.

3.3 Scale-Aware Knowledge Transfer

For SR, the baseline SR network () can be used as a teacher network for knowledge transfer. Intuitively, we use features in the backbone module as supervision. To exploit rich information in the hidden layers of the teacher’s backbone module, the student network learns the teacher’s outputs in every blocks, as shown in Fig. 3. Note that, our scale-aware knowledge transfer paradigm is only used in the training phase. The knowledge transfer loss is defined as an L1 loss:

(6)

where is the number of blocks used for knowledge transfer.

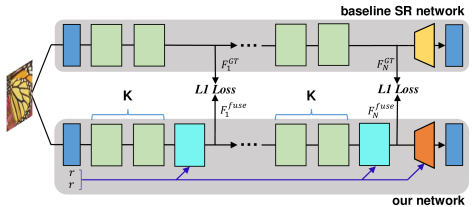

Figure 3: An illustration of the scale-aware knowledge transfer paradigm.

4 Experiments

4.1 Datasets and Metrics

We used the high-quality DIV2K dataset [37] for network training. This dataset contains 800 training images, 100 validation images and 100 test images. We then used five benchmark datasets to test our module, including Set5 [38], Set14 [39], B100 [34], Urban100 [40], and Manga109 [41]

. Peak signal-to-noise ratio (PSNR) and structural similarity index (SSIM) were used as evaluation metrics to measure SR performance. Similar to

[14], we cropped borders for fair comparison. Note that, all metrics were computed in the luminance channel.

4.2 Implementation Details

Following [14]

, we generated LR training images with scale factors varying from 1 to 4 with a stride of 0.1. During training, a scale factor was randomly selected for each batch and then 16 LR patches with the size of

were randomly cropped. Meanwhile, their corresponding HR patches were also cropped. Note that, only symmetric scale factors were considered in the training phase. Data augmentation was performed through random rotation and random flipping.

The SR loss is defined as an L1 loss between SR results and HR images. The overall loss for training is defined as:

(7)

where is empirically set to 1. Note that, is only used for batches with integer scale factors (). In our experiments, EDSR [15] and RCAN [12] were used as baseline networks. We set for EDSR and for RCAN to control the model size. A pre-trained

SR model was used to initialize the backbone blocks. Since the available pre-trained RDN models are implemented in Torch while our networks are implemented in PyTorch

[42], RDN is not included in our baseline networks. We used the Adam [43] method with and for optimization. The initial learning rate was set to

and reduced to half after every 15 epochs. To maintain training stability, we first trained our networks on integer scale factors (

) for 1 epoch and then trained the networks on all scale factors. The training was stopped after 70 epochs.

4.3 Ablation Study

Ablation experiments were conducted on Set5 to test the effectiveness of our design choices. We used EDSR as the baseline network and introduced 5 variants. All variants were re-trained for 70 epochs.

Model Scale-Aware Adaption Scale-Aware Upsampling Scale-Aware Transfer Average PSNR (,,) Average PSNR (-) Average PSNR (,,) Average PSNR (-)
SA Conv Mask
Baseline 35.11 - - -
1 bicubic 34.25 36.24 26.52 27.00
2 35.10 37.00 26.74 27.44
3 35.14 37.06 26.73 27.49
4 35.14 37.06 26.79 27.55
5 35.14 37.07 26.98 27.64
Table 1: Comparative results achieved on Set5. Note that, ‘SA conv’ represents the scale-aware convolution.

Scale-Aware Upsampling

To enable scale-arbitrary SR, a naive approach is to replace the pixel shuffling layer with an interpolation layer (

e.g., bicubic interpolation).To demonstrate the effectiveness of our scale-aware upsampling layer, we introduced two variants. For variant 1, we replaced the pixel shuffling layer in the baseline network with a bicubic upsampling layer. For variant 2, we replaced the pixel shuffling layer with the proposed scale-aware upsampling layer. It can be observed from Table 1 that the performance is low (34.25/36.24/26.52/27.00) when bicubic upsampling is used. In contrast, the performance is significantly improved (35.10/37.00/26.74/27.44) when scale-aware upsampling is used. That is because, our scale-aware upsampling layer can learn an optimal filter for each scale factor while bicubic upsampling uses a fixed filter for all scale factors. By using scale-aware upsampling, variant 2 is able to achieve scale-arbitrary SR while maintaining comparable performance to the baseline network on // SR.

Scale-Aware Feature Adaption Scale-aware feature adaption is used to adapt features to a specific scale factor. Note that, our scale-aware feature adaption block consists of two key components: scale-aware convolution and mask generation. To demonstrate their effectiveness, we first added scale-aware convolutions to variant 2. Then, we further added mask generation to variant 3. It can be observed from Table 1 that the performance benefits from both scale-aware convolution and mask generation, with PSNR values being improved from 35.10/37.00/26.74/27.44 to 35.14/37.06/26.79/27.55. That is because, features in the backbone can be adapted according to the scale information using our scale-aware feature adaption blocks. Note that, variant 4 (with mask generation) achieves comparable performance to variant 3 on SR with small scale factors, and outperforms variant 3 on SR with large scale factors (e.g., //). That is because, the network with scale-dependency masks can detect scale-dependent features for feature adaption. Therefore, better generalization ability on large scale factors can be achieved.

We further illustrate two scale-dependency masks learned by variant 4 in Fig. 4. It can be observed that the masks are consistent with the discrepancy maps (also shown in Fig. 1). This clearly demonstrates that scale-aware feature adaption blocks can detect scale-dependent features and perform feature adaption adaptively.

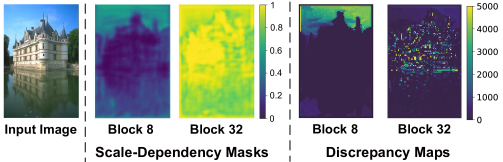

Figure 4: Visualization of scale-dependency masks and their corresponding discrepancy maps.

Scale-Aware Knowledge Transfer The scale-aware knowledge transfer paradigm is used to transfer knowledge from scale-specific networks to our scale-arbitrary network. To demonstrate its effectiveness, we introduced variant 5 by including the scale-aware knowledge transfer paradigm for network training. It can be observed from Table 1 that the performance on SR with large and unseen scale factors (i.e., // and -) is improved from 26.79/27.55 to 26.98/27.64. This clearly demonstrates that the knowledge transfer paradigm facilitates our network to achieve better generalization capability on SR with large scale factors while maintaining comparable performance on SR with small scale factors.

4.4 Results for SR with Integer Scale Factors

In this section, we applied our plug-in module to two baseline networks EDSR and RCAN to produce two scale-arbitrary networks ArbEDSR and ArbRCAN. These two networks are compared to several existing networks, including SRCNN [7], VDSR [8], LapSRN [44], MemNet [45], SRMD [46], CARN [47], MSRN [48], DBPN [10], EDSR [15], RDN [11] and RCAN [12] for // SR. Comparative results on 5 benchmark datasets are shown in Table 2.

Quantitative Results We can see from Table 2 that our ArbEDSR and ArbRCAN achieve comparable performance to their corresponding baseline networks (i.e., EDSR and RCAN), with average PSNR improvements of 0.04 and 0.01 being achieved over all datasets and scales. Compared to EDSR, our ArbEDSR achieves comparable performance on B100 (27.74/0.7418 vs. 27.73/0.7417) for SR while achieving a notable performance improvement on Manga109 (31.29/ 0.9164 vs. 31.04/0.9156). This clearly demonstrates that the proposed plug-in module can enable scale-arbitrary SR without performance degradation on SR with integer scale factors.

Model Scale Set5 Set14 B100 Urban100 Manga109
Bicubic 33.66/0.9299 30.24/0.8688 29.56/0.8431 26.88/0.8403 30.80/0.9339
SRCNN [7] 36.66/0.9542 32.45/0.9067 31.36/0.8879 29.50/0.8946 35.60/0.9663
VDSR [8] 37.53/0.9590 33.05/0.9130 31.90/0.8960 30.77/0.9140 37.22/0.9750
LapSRN [44] 37.52/0.9591 33.08/0.9130 31.08/0.8950 30.41/0.9101 37.27/0.9740
MemNet [45] 37.78/0.9697 33.28/0.9142 32.08/0.8978 31.31/0.9195 37.72/0.9740
SRMD [46] 37.79/0.9600 33.32/0.9159 32.05/0.8985 31.33/0.9204 38.07/0.9761
CARN [47] 37.76/0.9590 33.52/0.9166 32.09/0.8978 31.51/0.9312 -/-
MSRN [48] 38.08/0.9605 33.74/0.9170 32.23/0.9013 32.22/0.9326 38.82/0.9868
DBPN [10] 38.09/0.9600 33.85/0.9190 32.27/0.9000 32.55/0.9324 38.89/0.9775
EDSR [15] 38.19/0.9608 33.95/0.9200 32.36/0.9017 32.95/0.9357 39.18/0.9781
RDN [11] 38.24/0.9614 34.01/0.9212 32.34/0.9017 32.89/0.9353 39.18/0.9780
RCAN [12] 38.27/0.9613 34.12/0.9214 32.40/0.9023 33.18/0.9370 39.42/0.9786
Meta-EDSR [14] -/- -/- 32.26/- -/- -/-
Meta-RDN [14] 38.23/0.9610 34.03/0.9204 32.35/0.9009 33.03/0.9360 39.31/0.9781
ArbEDSR 38.20/0.9611 34.00/0.9204 32.36/0.9016 32.94/0.9359 39.15/0.9780
ArbRCAN 38.24/0.9612 34.06/0.9214 32.37/0.9022 33.10/0.9363 39.40/0.9784
Bicubic 30.39/0.8682 27.55/0.7742 27.21/0.7385 24.46/0.7349 26.95/0.8556
SRCNN [7] 32.75/0.9090 29.30/0.8215 28.41/0.7863 26.24/0.7989 30.48/0.9117
VDSR [8] 33.67/0.9210 29.78/0.8320 28.83/0.7990 27.14/0.8290 32.01/0.9340
LapSRN [44] 33.82/0.9227 29.87/0.8320 28.82/0.7980 27.07/0.8280 32.21/0.9350
MemNet [45] 34.09/0.9248 30.01/0.8350 28.96/0.8001 27.56/0.8376 32.51/0.9369
SRMD [46] 34.12/0.9254 30.04/0.8382 28.97/0.8025 27.57/0.8398 33.00/0.9403
CARN [47] 34.29/0.9255 30.29/0.8407 29.06/0.8034 27.38/0.8404 -/-
MSRN [48] 34.38/0.9262 30.34/0.8395 29.08/0.8041 28.08/0.8554 33.44/0.9427
EDSR [15] 34.68/0.9294 30.53/0.8461 29.27/0.8098 28.82/0.8658 34.19/0.9484
RDN [11] 34.71/0.9296 30.57/0.8468 29.26/0.8093 28.80/0.8653 34.13/0.9484
RCAN [12] 34.76/0.9300 30.62/0.8473 29.31/0.8108 29.01/0.8684 34.42/0.9497
Meta-EDSR [14] -/- -/- 29.22/- -/- -/-
Meta-RDN [14] 34.73/0.9296 30.58/0.8465 29.30/0.8095 28.93/0.8673 34.40/0.9490
ArbEDSR 34.72/0.9296 30.58/0.8469 29.30/0.8102 28.84/0.8664 34.34/0.9488
ArbRCAN 34.78/0.9301 30.62/0.8472 29.31/0.8109 28.98/0.8681 34.56/0.9497
Bicubic 28.42/0.8104 26.00/0.7027 25.96/0.6675 23.14/0.6577 24.89/0.7866
SRCNN [7] 30.48/0.8628 27.50/0.7513 26.90/0.7101 24.52/0.7221 27.58/0.8555
VDSR [8] 31.35/0.8830 28.02/0.7680 27.29/0.7260 25.18/0.7540 28.83/0.8870
LapSRN [44] 31.54/0.8850 28.19/0.7720 27.32/0.7270 25.21/0.7560 29.09/0.8900
MemNet [45] 31.74/0.8893 28.26/0.7723 27.40/0.7281 25.50/0.7630 29.42/0.8942
SRMD [46] 31.96/0.8925 28.35/0.7787 27.49/0.7337 25.68/0.7731 30.09/0.9024
CARN [47] 32.13/0.8937 28.60/0.7806 27.58/0.7349 26.07/0.7837 -/-
MSRN [48] 32.07/0.8903 28.60/0.7751 27.52/0.7273 26.04/0.7896 30.17/0.9034
DBPN [10] 32.47/0.8980 28.82/0.7860 27.72/0.7400 26.38/0.7946 30.91/0.9137
EDSR [15] 32.47/0.8983 28.81/0.7877 27.73/0.7417 26.65/0.8033 31.04/0.9156
RDN [11] 32.47/0.8990 28.81/0.7871 27.72/0.7419 26.61/0.8028 31.00/0.9151
RCAN [12] 32.63/0.8997 28.85/0.7882 27.75/0.7427 26.75/0.8062 31.20/0.9168
Meta-EDSR [14] -/- -/- 27.67/- -/- -/-
Meta-RDN [14] 32.49/0.8984 28.86/0.7881 27.75/0.7419 26.70/0.8050 31.34/0.9175
ArbEDSR 32.49/0.8980 28.85/0.7877 27.74/0.7418 26.61/0.8027 31.29/0.9164
ArbRCAN 32.54/0.8981 28.87/0.7878 27.76/0.7421 26.73/0.8046 31.39/0.9167
Table 2: PSNR/SSIM results achieved for // SR. Note that, since the model of Meta-EDSR is unavailable, its results are directly copied from [14].

Efficiency We further compare our ArbEDSR and ArbRCAN to RDN, Meta-RDN, EDSR, Meta-EDSR, RCAN and Meta-RCAN in terms of model size, memory consumption and running time. Comparative results are listed in Table 3. Both ArbRCAN and Meta-RCAN have comparable model size to their baseline network RCAN. However, our ArbRCAN takes shorter running time and much less memory consumption than Meta-RCAN. Note that, our ArbRCAN is trained for only 70 epochs while Meta-RCAN is trained for 1000 epochs. This clearly demonstrates the high efficiency of our plug-in module.

RDN Meta-RDN EDSR Meta-EDSR ArbEDSR RCAN Meta-RCAN ArbRCAN
Params. 21.7M 21.4M 42.1M 39.2M 41.9M 15.2M 15.5M 15.6M
Memory 0.3G 2.6G 0.8G 10.2G 1.1G 0.3G 3.1G 0.4G
Time 0.07s 0.29s 0.03s 0.29s 0.11s 0.23s 0.39s 0.26s
Table 3: Comparison of model size, memory consumption and running time for SR. Note that, the memory consumption is calculated on LR input images with a size of . The running time is averaged over the B100 dataset.

4.5 Results for SR with Non-Integer Scale Factors

In this section, we compare ArbEDSR and ArbRCAN to Bicubic, Meta-EDSR, and Meta-RDN on SR with non-integer scale factors. The PSNR performance improvements over Bicubic achieved by different methods on B100 are shown in Fig. 5, and the average results are listed in Table 4. Besides, we also provide visual comparison in Fig. 6.

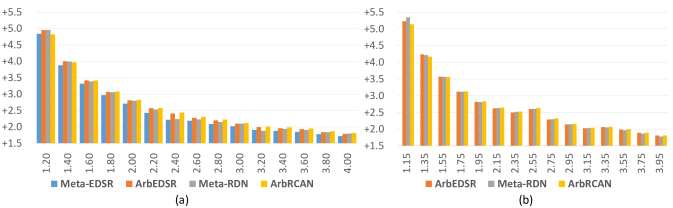

Figure 5: PSNR performance improvements over Bicubic achieved by Meta-EDSR, ArbEDSR, Meta-RDN and ArbRCAN for different scale factors on B100. Note that, scale factors in (b) are not included in training.
Scale Metric Bicubic Meta-EDSR [14] Meta-RDN [14] ArbEDSR ArbRCAN
1.1-4.0 (stride 0.1) PSNR 28.94 31.54 31.61 31.64 31.64
SSIM 0.7938 - 0.8563 0.8571 0.8575
1.05-3.95 (stride 0.1) PSNR 29.11 - 31.86 31.88 31.89
SSIM 0.8029 - 0.8633 0.8630 0.8634
Table 4: Comparative results achieved on the B100 dataset. Note that, PSNR/SSIM values are averaged over corresponding scale factors.

Quantitative Results As shown in Fig. 5(a), our ArbEDSR achieves better performance than Meta-EDSR on all scale factors. Moreover, our ArbRCAN outperforms Meta-RDN on all scale factors except 1.2 and 1.4. From Fig. 5(b), we can see that our ArbRCAN achieves the best performance on most scale factors. We can further see from Table 4 that our ArbEDSR outperforms Meta-EDSR by a notable margin, with an averaged PSNR value being improved from 31.54 to 31.64 on the B100 dataset. Moreover, our ArbRCAN achieves the best performance on both seen and unseen non-integer scale factors.

Qualitative Results Figure 6 illustrates the qualitative results on two images of the Manga109 and Urban100 datasets. From these zoom-in regions, we can see that our ArbRCAN produces better visual results than other methods with fewer artifacts. For example, Meta-RDN and ArbEDSR cannot recover the stripes reliably and suffer from obvious distorted artifacts on “img_078” of the Urban100 dataset. In contrast, our ArbRCAN produces finer details.

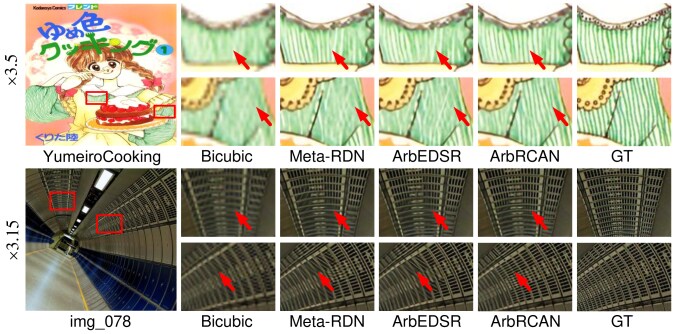

Figure 6: Visual comparison for non-integer SR (i.e., 3.5 SR and 3.15 SR).

4.6 Results for SR with Asymmetric Scale Factors

In this section, we test our ArbEDSR and ArbRCAN on the SR task with asymmetric scale factors. Note that, samples with asymmetric scale factors were not included in the training data. We generated LR test images with scale factors varying from 1.5 to 4 (with a stride of 0.5) along the horizontal and vertical axes. Comparative results are illustrated in Fig. 7, while visual comparison is provided in Fig. 8.

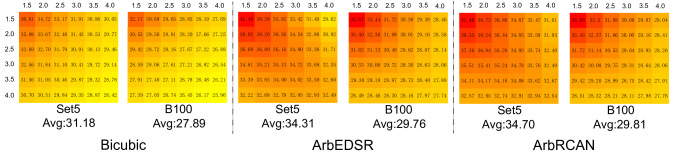

Figure 7: PSNR performance achieved by Bicubic, ArbEDSR and ArbRCAN for SR with asymmetric scale factors. Horizontal and vertical axes show scale factors along these two dimensions.

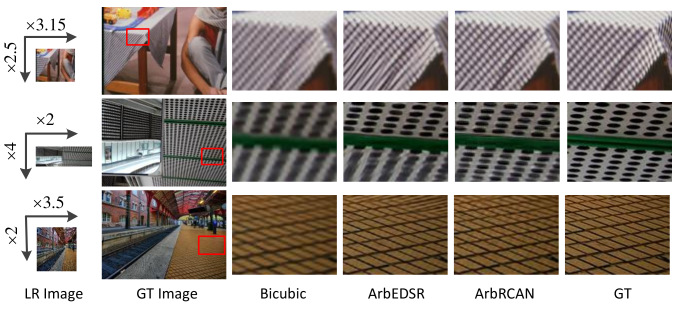

Figure 8: Visual comparison for asymmetric SR on Set14 and Urban100.

Quantitative Results It can be observed from Fig. 7 that our ArbEDSR and ArbRCAN methods outperform Bicubic by notable margins for different scale factors on Set5 and B100. Moreover, our ArbRCAN outperforms ArbEDSR, with average PSNR values being improved from 34.31/29.76 to 34.70/29.81. Although only samples with symmetric scale factors are used for training, our networks show promising generalization capability on SR tasks with unseen asymmetric scale factors.

Qualitative Results Figure 8 qualitatively illustrates the results achieved on three images of the Set14 and Urban100 datasets. It can be observed from these zoom-in regions that our ArbRCAN produces better visual results than other methods for different asymmetric scale factors. Specifically, we can see from the first row that, our ArbRCAN recovers the grids reliably while Bicubic suffers from obvious blurring artifacts. This further demonstrates the superior performance of our networks on unseen asymmetric scale factors.

5 Conclusions

In this paper, we propose a versatile plug-in module to enable existing single image SR networks for scale-arbitrary SR. We also introduce a scale-aware knowledge transfer paradigm to transfer knowledge from scale-specific networks to a scale-arbitrary network. Experimental results show that baseline networks equipped with our module can produce promising results on SR tasks with non-integer and asymmetric scale factors, while maintaining state-of-the-art performance on SR tasks with integer scale factors. Moreover, our module can be easily adapted to scale-specific networks with small additional computational and memory costs.

References

  • [1] E. Agustsson and R. Timofte (2017) NTIRE 2017 challenge on single image super-resolution: dataset and study. In CVPR, pp. 1122–1131. External Links: Document Cited by: §4.1.
  • [2] N. Ahn, B. Kang, and K. Sohn (2018) Fast, accurate, and lightweight super-resolution with cascading residual network. In ECCV, pp. 252–268. Cited by: §4.4, Table 2.
  • [3] M. Bevilacqua, A. Roumy, C. Guillemot, and M. Alberi-Morel (2012) Low-complexity single-image super-resolution based on nonnegative neighbor embedding. In BMVC, pp. 1–10. External Links: Document Cited by: §4.1.
  • [4] J. Caballero, C. Ledig, A. P. Aitken, A. Acosta, J. Totz, Z. Wang, and W. Shi (2017) Real-time video super-resolution with spatio-temporal networks and motion compensation. In CVPR, pp. 2848–2857. Cited by: §1, §2.1.
  • [5] Q. Cai, Y. Pan, T. Yao, C. Yan, and T. Mei (2018) Memory matching networks for one-shot image recognition. In CVPR, pp. 4080–4088. External Links: Document, Link Cited by: §2.2.
  • [6] T. Dai, J. Cai, Y. Zhang, S. Xia, and L. Zhang (2019) Second-order attention network for single image super-resolution. In CVPR, Cited by: §1, §2.1.
  • [7] C. Dong, C. C. Loy, K. He, and X. Tang (2014) Learning a deep convolutional network for image super-resolution. In ECCV, pp. 184–199. External Links: Document Cited by: §1, §2.1, §4.4, Table 2.
  • [8] C. Finn, S. Levine, and P. Abbeel (2016) Guided cost learning: deep inverse optimal control via policy optimization. In ICML, Vol. 48, pp. 49–58. External Links: Link Cited by: §2.2.
  • [9] S. Gu, W. Zuo, Q. Xie, D. Meng, X. Feng, and L. Zhang (2015) Convolutional sparse coding for image super-resolution. In ICCV, pp. 1823–1831. External Links: Document Cited by: §1, §2.1.
  • [10] A. Gupta, R. Mendonca, Y. Liu, P. Abbeel, and S. Levine (2018) Meta-reinforcement learning of structured exploration strategies. In NeurIPS, pp. 5307–5316. External Links: Link Cited by: §2.2.
  • [11] M. Haris, G. Shakhnarovich, and N. Ukita (2018) Deep back-projection networks for super-resolution. In CVPR, pp. 1664–1673. Cited by: §1, §1, §1, §2.1, §2.1, §4.4, Table 2.
  • [12] K. He, G. Gkioxari, P. Dollár, and R. Girshick (2017) Mask r-cnn. In ICCV, pp. 2961–2969. Cited by: §2.2.
  • [13] S. Hochreiter, A. S. Younger, and P. R. Conwell (2001) Learning to learn using gradient descent. In ICANN, Vol. 2130, pp. 87–94. External Links: Document, Link Cited by: §2.2.
  • [14] J. Hoffman, T. Darrell, and K. Saenko (2014) Continuous manifold based adaptation for evolving visual domains. In CVPR, pp. 867–874. External Links: Document Cited by: §2.2.
  • [15] X. Hu, H. Mu, X. Zhang, Z. Wang, J. Sun, and T. Tan (2019) Meta-SR: a magnification-arbitrary network for super-resolution. In CVPR, Cited by: §1, §2.1, §2.2, §4.1, §4.2, Table 2, Table 4.
  • [16] J. Huang, A. Singh, and N. Ahuja (2015) Single image super-resolution from transformed self-exemplars. In CVPR, pp. 5197–5206. Cited by: §4.1.
  • [17] A. Kendall, Y. Gal, and R. Cipolla (2018) Multi-task learning using uncertainty to weigh losses for scene geometry and semantics. In CVPR, pp. 7482–7491. External Links: Link Cited by: §2.2.
  • [18] J. Kim, J. K. Lee, and K. M. Lee (2016) Accurate image super-resolution using very deep convolutional networks. In CVPR, pp. 1646–1654. External Links: Document Cited by: §1, §2.1, §4.4, Table 2.
  • [19] D. P. Kingma and J. Ba (2015) Adam: A method for stochastic optimization. In ICLR, External Links: 1412.6980 Cited by: §4.2.
  • [20] B. Kulis, K. Saenko, and T. Darrell (2011) What you saw is not what you get: domain adaptation using asymmetric kernel transforms. In CVPR, pp. 1785–1792. External Links: Document Cited by: §2.2.
  • [21] W. Lai, J. Huang, N. Ahuja, and M. Yang (2017) Deep laplacian pyramid networks for fast and accurate super-resolution. In CVPR, pp. 5835–5843. External Links: Document Cited by: §4.4, Table 2.
  • [22] C. Lemke, M. Budka, and B. Gabrys (2015) Metalearning: a survey of trends and technologies. Artif. Intell. Rev. 44 (1), pp. 117–130. External Links: Document Cited by: §2.2.
  • [23] J. Li, F. Fang, K. Mei, and G. Zhang (2018) Multi-scale residual network for image super-resolution. In ECCV, pp. 517–532. Cited by: §4.4, Table 2.
  • [24] Z. Li and D. Hoiem (2016) Learning without forgetting. In ECCV, Vol. 9908, pp. 614–629. External Links: Document, Link Cited by: §2.2.
  • [25] B. Lim, S. Son, H. Kim, S. Nah, and K. M. Lee (2017) Enhanced deep residual networks for single image super-resolution. In CVPR, Cited by: §1, §2.1, §2.1, §2.2, §3.1, §3.1, §4.2, §4.4, Table 2.
  • [26] L. v. d. Maaten and G. Hinton (2008) Visualizing data using t-sne.

    Journal of machine learning research

    9 (Nov), pp. 2579–2605.
    Cited by: §3.1.
  • [27] D. Martin, C. Fowlkes, D. Tal, J. Malik, et al. (2001) A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In ICCV, Cited by: §3.1, §4.1.
  • [28] Y. Matsui, K. Ito, Y. Aramaki, A. Fujimoto, T. Ogawa, T. Yamasaki, and K. Aizawa (2017) Sketch-based manga retrieval using manga109 dataset. Multimedia Tools Appl. 76 (20), pp. 21811–21838. External Links: Document Cited by: §4.1.
  • [29] A. Paszke, S. Gross, F. Massa, A. Lerer, J. Bradbury, and et al. (2019) PyTorch: an imperative style, high-performance deep learning library. In NeurIPS, Cited by: §4.2.
  • [30] R. Ranjan, V. M. Patel, and R. Chellappa (2019)

    HyperFace: a deep multi-task learning framework for face detection, landmark localization, pose estimation, and gender recognition

    .
    IEEE Trans. Pattern Anal. Mach. Intell. 41 (1), pp. 121–135. External Links: ISSN 1939-3539, Document Cited by: §2.2.
  • [31] S. Ravi and H. Larochelle (2017) Optimization as a model for few-shot learning. In ICLR, External Links: Link Cited by: §2.2.
  • [32] N. Schweighofer and K. Doya (2003) Meta-learning in reinforcement learning. Neural Networks 16 (1), pp. 5–9. External Links: Document Cited by: §2.2.
  • [33] W. Shi, J. Caballero, F. Huszar, J. Totz, A. P. Aitken, R. Bishop, D. Rueckert, and Z. Wang (2016)

    Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network

    .
    In CVPR, pp. 1874–1883. External Links: Document Cited by: §3.2.
  • [34] J. Sun, Z. Xu, and H. Shum (2008) Image super-resolution using gradient profile prior. In CVPR, External Links: Document Cited by: §1, §2.1.
  • [35] Y. Tai, J. Yang, X. Liu, and C. Xu (2017) MemNet: A persistent memory network for image restoration. In ICCV, pp. 4549–4557. External Links: Document Cited by: §4.4, Table 2.
  • [36] Y. Tai, J. Yang, and X. Liu (2017) Image super-resolution via deep recursive residual network. In CVPR, pp. 2790–2798. External Links: Document Cited by: §2.1.
  • [37] R. Timofte, V. D. Smet, and L. J. V. Gool (2013) Anchored neighborhood regression for fast example-based super-resolution. In ICCV, pp. 1920–1927. External Links: Document Cited by: §1, §2.1.
  • [38] Y. Wang and M. Hebert (2016) Learning to learn: model regression networks for easy small sample learning. In ECCV, Vol. 9910, pp. 616–634. External Links: Document, Link Cited by: §2.2.
  • [39] H. Xiao, B. Kang, Y. Liu, M. Zhang, and J. Feng (2019) Online meta adaptation for fast video object segmentation. IEEE Trans. Pattern Anal. Mach. Intell.. Cited by: §2.2.
  • [40] C. Yang and M. Yang (2013) Fast direct super-resolution by simple functions. In ICCV, pp. 561–568. External Links: Document Cited by: §1, §2.1.
  • [41] J. Yang, Z. Wang, Z. Lin, S. Cohen, and T. Huang (2012-08) Coupled dictionary training for image super-resolution. IEEE Trans. Image Process. 21 (8), pp. 3467–3478. External Links: Document Cited by: §1, §2.1.
  • [42] T. Yang, X. Zhang, Z. Li, W. Zhang, and J. Sun (2018) MetaAnchor: learning to detect objects with customized anchors. In NeurIPS, pp. 318–328. External Links: Link Cited by: §2.2.
  • [43] A. R. Zamir, A. Sax, W. B. Shen, L. J. Guibas, J. Malik, and S. Savarese (2018) Taskonomy: disentangling task transfer learning. In CVPR, pp. 3712–3722. External Links: Document, Link Cited by: §2.2.
  • [44] R. Zeyde, M. Elad, and M. Protter (2010) On single image scale-up using sparse-representations. In International Conference on Curves and Surfaces, Vol. 6920, pp. 711–730. External Links: Document Cited by: §4.1.
  • [45] K. Zhang, W. Zuo, and L. Zhang (2017) Learning a single convolutional super-resolution network for multiple degradations. In CVPR, Cited by: §4.4, Table 2.
  • [46] K. Zhang, X. Gao, D. Tao, and X. Li (2012-11) Single image super-resolution with non-local means and steering kernel regression. IEEE Trans. Image Process. 21 (11), pp. 4544–4556. External Links: Document Cited by: §1, §2.1.
  • [47] Y. Zhang, K. Li, K. Li, L. Wang, B. Zhong, and Y. Fu (2018) Image super-resolution using very deep residual channel attention networks. In ECCV, pp. 1646–1654. Cited by: §1, §1, §2.1, §3.1, §4.2, §4.4, Table 2.
  • [48] Y. Zhang, Y. Tian, Y. Kong, B. Zhong, and Y. Fu (2018) Residual dense network for image super-resolution. In CVPR, pp. 2472–2481. External Links: 1802.08797 Cited by: §1, §1, §1, §2.1, §2.1, §4.4, Table 2.

References

  • [1] Sun, J., Xu, Z., Shum, H.: Image super-resolution using gradient profile prior. In: CVPR. (2008)
  • [2] Zhang, K., Gao, X., Tao, D., Li, X.: Single image super-resolution with non-local means and steering kernel regression. IEEE Trans. Image Process. 21(11) (nov 2012) 4544–4556
  • [3] Yang, J., Wang, Z., Lin, Z., Cohen, S., Huang, T.: Coupled dictionary training for image super-resolution. IEEE Trans. Image Process. 21(8) (aug 2012) 3467–3478
  • [4] Yang, C., Yang, M.: Fast direct super-resolution by simple functions. In: ICCV. (2013) 561–568
  • [5] Timofte, R., Smet, V.D., Gool, L.J.V.: Anchored neighborhood regression for fast example-based super-resolution. In: ICCV. (2013) 1920–1927
  • [6] Gu, S., Zuo, W., Xie, Q., Meng, D., Feng, X., Zhang, L.: Convolutional sparse coding for image super-resolution. In: ICCV. (2015) 1823–1831
  • [7] Dong, C., Loy, C.C., He, K., Tang, X.: Learning a deep convolutional network for image super-resolution. In: ECCV. (2014) 184–199
  • [8] Kim, J., Lee, J.K., Lee, K.M.: Accurate image super-resolution using very deep convolutional networks. In: CVPR. (2016) 1646–1654
  • [9] Caballero, J., Ledig, C., Aitken, A.P., Acosta, A., Totz, J., Wang, Z., Shi, W.: Real-time video super-resolution with spatio-temporal networks and motion compensation. In: CVPR. (2017) 2848–2857
  • [10] Haris, M., Shakhnarovich, G., Ukita, N.: Deep back-projection networks for super-resolution. In: CVPR. (2018) 1664–1673
  • [11] Zhang, Y., Tian, Y., Kong, Y., Zhong, B., Fu, Y.: Residual dense network for image super-resolution. In: CVPR. (2018) 2472–2481
  • [12] Zhang, Y., Li, K., Li, K., Wang, L., Zhong, B., Fu, Y.: Image super-resolution using very deep residual channel attention networks. In: ECCV. (2018) 1646–1654
  • [13] Dai, T., Cai, J., Zhang, Y., Xia, S.T., Zhang, L.: Second-order attention network for single image super-resolution. In: CVPR. (2019)
  • [14] Hu, X., Mu, H., Zhang, X., Wang, Z., Sun, J., Tan, T.: Meta-SR: A magnification-arbitrary network for super-resolution. In: CVPR. (2019)
  • [15] Lim, B., Son, S., Kim, H., Nah, S., Lee, K.M.: Enhanced deep residual networks for single image super-resolution. In: CVPR. (2017)
  • [16] Tai, Y., Yang, J., Liu, X.: Image super-resolution via deep recursive residual network. In: CVPR. (2017) 2790–2798
  • [17] He, K., Gkioxari, G., Dollár, P., Girshick, R.: Mask r-cnn. In: ICCV. (2017) 2961–2969
  • [18] Kendall, A., Gal, Y., Cipolla, R.: Multi-task learning using uncertainty to weigh losses for scene geometry and semantics. In: CVPR. (2018) 7482–7491
  • [19] Ranjan, R., Patel, V.M., Chellappa, R.:

    Hyperface: A deep multi-task learning framework for face detection, landmark localization, pose estimation, and gender recognition.

    IEEE Trans. Pattern Anal. Mach. Intell. 41(1) (2019) 121–135
  • [20] Xiao, H., Kang, B., Liu, Y., Zhang, M., Feng, J.: Online meta adaptation for fast video object segmentation. IEEE Trans. Pattern Anal. Mach. Intell. (2019)
  • [21] Schweighofer, N., Doya, K.: Meta-learning in reinforcement learning. Neural Networks 16(1) (2003) 5–9
  • [22] Finn, C., Levine, S., Abbeel, P.: Guided cost learning: Deep inverse optimal control via policy optimization. In: ICML. Volume 48. (2016) 49–58
  • [23] Gupta, A., Mendonca, R., Liu, Y., Abbeel, P., Levine, S.: Meta-reinforcement learning of structured exploration strategies. In: NeurIPS. (2018) 5307–5316
  • [24] Hochreiter, S., Younger, A.S., Conwell, P.R.: Learning to learn using gradient descent. In: ICANN. Volume 2130. (2001) 87–94
  • [25] Wang, Y., Hebert, M.: Learning to learn: Model regression networks for easy small sample learning. In: ECCV. Volume 9910. (2016) 616–634
  • [26] Ravi, S., Larochelle, H.: Optimization as a model for few-shot learning. In: ICLR. (2017)
  • [27] Lemke, C., Budka, M., Gabrys, B.: Metalearning: a survey of trends and technologies. Artif. Intell. Rev. 44(1) (2015) 117–130
  • [28] Cai, Q., Pan, Y., Yao, T., Yan, C., Mei, T.: Memory matching networks for one-shot image recognition. In: CVPR. (2018) 4080–4088
  • [29] Yang, T., Zhang, X., Li, Z., Zhang, W., Sun, J.: Metaanchor: Learning to detect objects with customized anchors. In: NeurIPS. (2018) 318–328
  • [30] Zamir, A.R., Sax, A., Shen, W.B., Guibas, L.J., Malik, J., Savarese, S.: Taskonomy: Disentangling task transfer learning. In: CVPR. (2018) 3712–3722
  • [31] Li, Z., Hoiem, D.: Learning without forgetting. In: ECCV. Volume 9908. (2016) 614–629
  • [32] Kulis, B., Saenko, K., Darrell, T.: What you saw is not what you get: Domain adaptation using asymmetric kernel transforms. In: CVPR. (2011) 1785–1792
  • [33] Hoffman, J., Darrell, T., Saenko, K.: Continuous manifold based adaptation for evolving visual domains. In: CVPR. (2014) 867–874
  • [34] Martin, D., Fowlkes, C., Tal, D., Malik, J., et al.: A database of human segmented natural images and its application to evaluating segmentation algorithms and measuring ecological statistics. In: ICCV. (2001)
  • [35] Maaten, L.v.d., Hinton, G.: Visualizing data using t-sne. Journal of machine learning research 9(Nov) (2008) 2579–2605
  • [36] Shi, W., Caballero, J., Huszar, F., Totz, J., Aitken, A.P., Bishop, R., Rueckert, D., Wang, Z.: Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network. In: CVPR. (2016) 1874–1883
  • [37] Agustsson, E., Timofte, R.: NTIRE 2017 challenge on single image super-resolution: Dataset and study. In: CVPR. (2017) 1122–1131
  • [38] Bevilacqua, M., Roumy, A., Guillemot, C., Alberi-Morel, M.: Low-complexity single-image super-resolution based on nonnegative neighbor embedding. In: BMVC. (2012) 1–10
  • [39] Zeyde, R., Elad, M., Protter, M.: On single image scale-up using sparse-representations. In: International Conference on Curves and Surfaces. Volume 6920. (2010) 711–730
  • [40] Huang, J., Singh, A., Ahuja, N.: Single image super-resolution from transformed self-exemplars. In: CVPR. (2015) 5197–5206
  • [41] Matsui, Y., Ito, K., Aramaki, Y., Fujimoto, A., Ogawa, T., Yamasaki, T., Aizawa, K.: Sketch-based manga retrieval using manga109 dataset. Multimedia Tools Appl. 76(20) (2017) 21811–21838
  • [42] Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J., et al.: PyTorch: An imperative style, high-performance deep learning library. In: NeurIPS. (2019)
  • [43] Kingma, D.P., Ba, J.: Adam: A method for stochastic optimization. In: ICLR. (2015)
  • [44] Lai, W., Huang, J., Ahuja, N., Yang, M.: Deep laplacian pyramid networks for fast and accurate super-resolution. In: CVPR. (2017) 5835–5843
  • [45] Tai, Y., Yang, J., Liu, X., Xu, C.: Memnet: A persistent memory network for image restoration. In: ICCV. (2017) 4549–4557
  • [46] Zhang, K., Zuo, W., Zhang, L.: Learning a single convolutional super-resolution network for multiple degradations. In: CVPR. (2017)
  • [47] Ahn, N., Kang, B., Sohn, K.: Fast, accurate, and lightweight super-resolution with cascading residual network. In: ECCV. (2018) 252–268
  • [48] Li, J., Fang, F., Mei, K., Zhang, G.: Multi-scale residual network for image super-resolution. In: ECCV. (2018) 517–532
