Meta-learning (MtL) allows rational agents to improve on their learning abilities through a process known as learning to learn Hospedales et al. (2020); Schmidhuber (1987); Vanschoren (2018); Vilalta and Drissi (2002). One major goal is to build self-adaptive systems that adjust their learning mechanism automatically with new tasks. Automatic adaptation can be described in a plethora of ways; it can be as simple as tuning hyper-parameters, selecting a different family of learning algorithms, or simply warm-starting a model. meta-learning relies on past experience stored in the form of meta-knowledge. One type of meta-knowledge encompasses families of meta-features used as a form of data (or task) characterization. Meta-features capture various types of data properties such as statistical, e.g., number of numerical attributes; degree of class separation, e.g., Fisher’s Linear Discriminant Ho and Basu (2002); or level of concept complexity, e.g., concept variation Vilalta (1999); Pérez and Rendell (1996). The proper identification of data properties is essential to map tasks to learning mechanisms.
Several approaches in meta-learning use families of meta-features as input to quantify task similarity. It is common to compute task similarity as the Euclidean distance between two meta-feature vectors. While this approach has shown to be effective in simple scenariosVanschoren (2018), it exhibits clear limitations. First, selecting a subset of relevant meta-features is a non-trivial task. What criteria should we invoke to select or discard a family of meta-features? For example, statistical meta-features are not always intuitive and lack expressiveness. Previous work has shown how different datasets may share identical statistical properties but markedly different data distributions Matejka and Fitzmaurice (2017). Second, computing certain types of meta-features on large datasets is computationally costly. For example, topological meta-features perform multiple passes over the training dataset to compute a single figure of merit Ho and Basu (2002); Lorena et al. (2018). Ultimately, the selection of meta-features is an ad-hoc process based on domain knowledge.
In this paper, we propose an approach that learns abstract meta-features from families of traditional meta-features using a deep neural network. We argue that traditional meta-features are not always capable of capturing crucial task characteristics. This can be attributed to inherent limitations such as being hand-crafted, and not being tuned to specific tasks (lacking in general applicability). Extracting meta-features on large datasets can quickly scale up computational costs and execution times. For example, complexity meta-features involve geometrical computations resulting in long computing times.
The main contribution of this paper is a novel method of inducing abstract meta-features as latent variables learned by a deep neural network; experimental results demonstrate the efficacy of the learned abstract meta-features in improving generalization performance estimation.
Data characterization consists of extracting meaningful task properties. Simple, statistical, and information-theoretic meta-features can be straightforwardly extracted from datasets by capturing information concerning data dimensionality, distribution, and the amount of information present in the data. Model-based and landmarking meta-features characterize datasets indirectly by using the induced learning models; these meta-features comprise model properties and model performance Rivolli et al. (2018).
Another family of meta-features is based on capturing the complexity of a learning task Ho and Basu (2002), and has been successfully used in different scenarios Lorena et al. (2018). Most complexity measures are computationally expensive; one approach to reduce the associate computational cost is to train a metaregressor using traditional meta-features as input Garcia et al. (2020). The metaregressor estimates complexity values for any dataset at low cost; the predicted values are called simulated meta-features.
Meta-features can be transformed to summarize the data, e.g., by reducing data dimensionality. Principal Component Analysis PCA(Hotelling, 1933) is the most straightforward and generic approach, even though it ignores the metatarget. For example, after running PCA, Bilalli et al. (2017)
select the most relevant components (according to the cumulative total variance). Next, a filter capturing the correlation with the metatarget identifies the most discriminating variables.Muñoz et al. (2018)
developed a new dimensionality reduction technique suited for data visualization. The most statistically significant traditional meta-features representing the hardness of the datasets are first identified. The metadataset is then transformed into a 2-dimensional space, searching for an optimal projection through an iterative optimization process. The new 2D space can project different algorithm’s performance footprints to investigate their strengths and weaknesses.
A different approach that has achieved popularity in recent years is Deep Neural Networks (DNNs). A strength behind DNNs is the capacity to learn data characteristics from a diverse and large amount of data. DNNs have had a strong impact in application areas such as speech recognition and image understanding Deng and Yu (2014)
. However, its use in meta-learning is still incipient and requires further investigation. A few studies explore deep learning for feature generation, representing different tasks and datasets in terms of embeddings generated by pre-trained DNNsAchille et al. (2019); Jomaa et al. (2019). In Gosztolya et al. (2017)
, the authors solved different automatic speech recognition tasks through a two-step learning process: performing classification with DNNs, followed by the extraction of intrinsic features from the DNN output. In the second phase, features were used to improve model predictions. The same strategy was explored byNotley and Magdon-Ismail (2018), using DNNs to extract features from both images and numeric data.
Our hypothesis here is that DNNs provide the means to extract intrinsic features from data. Our approach lies between transformation and deep learning methods since a DNN is induced from traditional meta-features and the knowledge captured by the hidden layers are used to generate abstract meta-features. In the process, traditional meta-features are transformed into latent variables used by the deep learning model to make predictions. Once extracted, abstract meta-features can be used by any meta-learning algorithm.
Our approach differs from traditional meta-learning settings. While model-based and landmarking induce a learning model for each dataset (metainstances) and extract features from this model, in the current approach, a model is induced using the metabase (all datasets). This is akin to the simulated meta-feature approach; however, instead of using the model’s predicted values, we use the abstract representation of the DNN model to extract meta-features.
Given a classification task on a dataset with instances, our goal is to compute a meta-feature on . A meta-feature, , is usually hand-crafted characterization function capturing a specific property of interest on a given task. Meta-features are regarded as a form of meta-knowledge collected over a distribution of tasks to learn how to learn. Not all meta-features are informative, and some of them are very task specific. Learning relevant meta-features can prove useful in identifying hidden relationships across tasks, and is necessary to build accurate metalearners.
Meta-knowledge is key to the success of meta-learning. The goal is to avoid learning from scratch given a new task. By exploiting meta-knowledge, the metalearner can effectively construct an optimal solution based on past experience Hospedales et al. (2020); Vanschoren (2018)
. For example, a metalearner can identify that a new task is similar to previous tasks and warm-start a similar model with near optimal hyperparameters. This avoids the –sometimes painstakingly– slow processes of error and trial in building a new model. meta-knowledge can be understood as meta-features, model hyperparameters, performance measures, etc. In our work, meta-knowledge consists of meta-features and performance measures gathered from previous tasks.
We formally define a meta-feature as a function that receives as input a dataset , and returns as output a set of values characterizing the dataset Rivolli et al. (2018),
where is a characterization metric mapping , is the original number of meta-features, and is a summarization function mapping . The purpose of the summarization function is to reduce the size of the output to a fixed size. A dataset is characterized by a meta-feature space , where . Our goal is to find a subset of meta-features, , that capture relevant task information.
We propose a novel approach to learning new abstract meta-features by constructing new representations from traditional meta-features using a deep neural network. A neural network –parameterized by – is a universal function estimator. The goal is to learn a function to predict the true target with approximation , where
. Training is achieved by computing gradients of the loss function with respect to the weightsand then back-propagating the errors through the network to update the weights. Gradient descent updates the weight vector
values towards the opposite direction of the steepest slope in the loss landscape. The architecture of a neural network is described by the number of neurons per layer and number of hidden layers, where is the index for the hidden layer and is the total number of neurons in that layer. Forward propagating input
through the network linearly transforms the data
. Non-linearity is achieved via an activation function. Each neuron in the -th layer outputs a non-linear transformation of the input, . Increasing the number of hidden layers and neurons allows the neural network to approximate highly non-linear functions. Each layer contains a learnt latent representation of the input data. The last hidden layer comprises the final learnt latent variables, , where each latent variable is a representation of the original input in an abstract dimensional space. The number of the latent variables is user-defined by controlling the number of neurons in that layer. By training a deep neural network on the traditional meta-feature space , we learn a new latent representation of the meta-features space (abstract meta-features). The resulting deep neural network serves as a feature extractor where the learnt latent space is extracted from the last hidden layer . This process is highlighted in Figure 1.

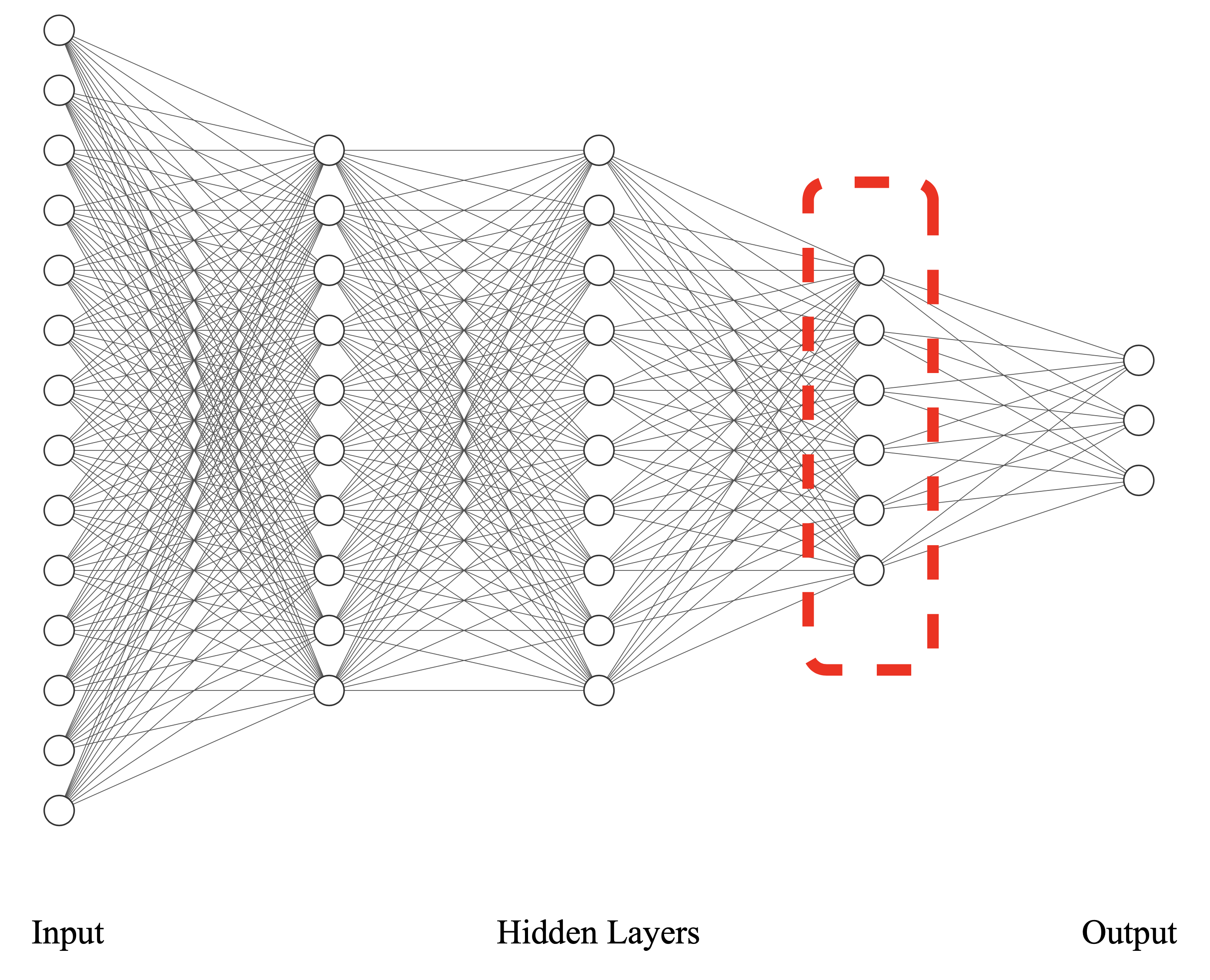

We construct a deep neural network (DNN) to act as a feature extractor on each pair of input and output meta-instances. After providing traditional meta-features as input and a performance measure of three different algorithms as target, we train our AbstractNet to learn a meaningful abstract representation of the meta-dataset. AbstractNet consists of fully connected layers with neurons in each layer excluding the final latent layer which consists of neurons. Our target is a three dimensional output consisting of a performance estimation for each of the learning algorithms on a given task (represented using meta-features). Non-linearity between layers is achieved via the ReLU activation function,
is the linear transformation of the input. Variance is controlled via dropout; regularization is applied between layers two and four with probabilitiesrespectively. We selected the smooth loss function Girshick (2015) as our criterion. It is defined as,
where is given by,
where specifies the threshold that varies the loss function between the and loss. and are input and output vectors. The smooth
loss is less sensitive to outliers, has a smoother landscape, and prevents exploding gradients. Full neural network hyper-parameters are available in Table1. Once the deep neural network is trained, we forward propagate the meta-dataset validation partition to extract the latent variables from the last hidden layer to induce our meta-models.
In this section we describe the experimental design to induce abstract meta-features. Figure 2 provides an overview of the entire process, with three different phases corresponding to data characterization, meta-database construction, and induced meta-model evaluation. We explain these steps in detail next.
Datasets and Performance Evaluation
Phase 1 of our experiments includes dataset selection, performance evaluation and meta-feature extraction. We collected a total ofclassification datasets from OpenML Vanschoren et al. (2014), a free scientific platform for standardization of experiments and sharing of empirical results. These datasets were selected following some criteria: the number of features does not exceed ; there are no missing values; there are at least classes; and the minority class must have at least examples.
Next, we evaluated three common learning algorithms: Support Vector Machine (SVM), Random Forest (RF), and Multilayer Perceptron (MLP) on each dataset, recording their generalization performance in terms of the Area Under the ROC Curve (AUC)(Hand and Till, 2001).
In parallel, we extracted the traditional family of meta-features using the PyMFE library (Alcobaça et al., 2020) for these categories: general, statistical, info-theoretical, concept, model-based and landmarking. The functions max, min and mean were used to summarize the multi-valued results.
In phase 2, we combined meta-features and performance values per dataset to construct a meta-database, . A pre-processing step was also performed at the meta-database by removing: meta-instances with more than missing values; meta-features with more than
of missing values; constant meta-feature; and high correlated meta-features. The remaining missing values were imputed using a-NN with . Lastly, we generated a meta-database with three different targets, one for each performance prediction problem (SVM, RF, MLP). The final meta-database has a total of meta-examples (instances) and meta-features (characteristics), and was used to train the deep neural network to induce the latent abstract meta-features.
In phase 3, we evaluated our approach under four different settings:
Abstract: this strategy explores our approach alone, by constructing abstract meta-features through the AbstractNet and extracting a latent representation from the last hidden layer.
Traditional: we induce meta-models on traditional meta-features only.
Hybrid: we induce meta-models using a combination of traditional and abstract meta-features.
PCA: as a baseline for comparison, PCA (Hotelling, 1933) is invoked to transform traditional meta-features through linear combinations. PCA also generates latent features keeping the components with 95% of the cumulative variance.
The hybrid approach is instrumental to assess feature relevance; it can show the value of abstract meta-features in predicting model performance over traditional meta-features.
We performed -fold cross-validation; in each iteration, nine folds are used to obtain the abstract meta-features (AbstractNet
) and induce the different meta-models; and the remaining fold is used to validate the meta-models. We employed three learning algorithms, Decision Trees, Random Forest, and Support Vector Machines as meta-inducers. Finally, we evaluated the performance of our models on the validation sets and report the Root Mean Squared Error (RMSE) and the coefficient of determination (
). We also repeated the experiments 10 times with different seeds to perform statistical validations using the Hierarchical Bayesian correlated t-test(Benavoli et al., 2017). Here, we will compare the performance of the meta-inducers using distinct subsets of meta-features. The test evaluates in pairs, resulting in probabilities concerning which approach is better (left and right) for a particular evaluation measure. It also defines a region of equivalence (rope) that indicates the probability that the difference in performance is insignificant. The complete experimental methodology is shown in Table 2.
|Target Algorithms||SVM, RF, MLP|
|PCA||60 (95% of var)|
|Meta-level||Tasks||3 (base level)|
|Regressor||RF, DT, SVM|
|Resampling||10 x 10-CV|
|Statistical Validation||Test||Hier. Bayesian|
Results and Discussion
Experimental results are shown in Table 3. Results in bold stand for best results. As we can see, abstract meta-features achieve best RMSE and scores across all four settings. For instance, abstract meta-features perform vastly better than traditional meta-features in with Decision Trees; the dimensionality of abstract meta-features is sixteen, while that of traditional meta-features is one hundred and fifty four. The reduced size of the space of abstract meta-features leads to high-generalization meta-models. Similar results are seen when different learning algorithms are used to induce meta-models. PCA transformation ranked lowest in terms of performance across the four settings; we hypothesize that PCA’s inherent linear components are not expressive enough. AbstractNet is capable of learning highly abstract representations to capture complex relationships between meta-features and the target variable.
We can see that abstract meta-features closely follow the true AUC values across datasets, while traditional and PCA meta-features exhibit instability and poor performance. Variance along our performance metrics per learning algorithm is exhibited in Figures 4, 4. The hybrid approach allows us to combine traditional and abstract meta-features. By ranking the top fifteen most important features using Gini index from the Random Forest meta-model, seven out of sixteen learnt abstract meta-features ranked in the top fifteen features.
Table 4 shows probabilities obtained with the Bayesian Hierarchical -test over different meta-databases and performance values. Abstract meta-features improved the use of traditional and PCA meta-features significantly, confirming the generalization ability of our approach. Unlike PCA, our deep neural network learnt a non-linear abstract transformation of traditional meta-features while increasing their predictive power.
|SVM AUC||RF AUC||MLP AUC||SVM AUC||RF AUC||MLP AUC|
|DT||Abstract||0.906 (0.072)||0.839 (0.17)||0.864 (0.129)||0.043 (0.014)||0.057 (0.032)||0.048 (0.022)|
|Traditional||0.554 (0.132)||0.510 (0.155)||0.561 (0.14)||0.101 (0.019)||0.114 (0.024)||0.097 (0.018)|
|Hybrid||0.877 (0.078)||0.803 (0.163)||0.841 (0.128)||0.050 (0.015)||0.067 (0.031)||0.054 (0.022)|
|PCA||0.424 (0.136)||0.384 (0.132)||0.418 (0.12)||0.121 (0.018)||0.131 (0.022)||0.117 (0.016)|
|RF||Abstract||0.925 (0.059)||0.856 (0.17)||0.882 (0.125)||0.038 (0.012)||0.052 (0.033)||0.044 (0.023)|
|Traditional||0.761 (0.076)||0.715 (0.094)||0.752 (0.079)||0.071 (0.012)||0.081 (0.018)||0.070 (0.011)|
|Hybrid||0.928 (0.055)||0.851 (0.167)||0.880 (0.123)||0.037 (0.012)||0.054 (0.032)||0.044 (0.023)|
|PCA||0.688 (0.083)||0.641 (0.085)||0.685 (0.075)||0.081 (0.012)||0.092 (0.016)||0.080 (0.011)|
|SVM||Abstract||0.889 (0.050)||0.862 (0.109)||0.873 (0.083)||0.062 (0.008)||0.076 (0.017)||0.068 (0.011)|
|Hybrid||0.829 (0.049)||0.774 (0.100)||0.805 (0.073)||0.070 (0.007)||0.083 (0.016)||0.074 (0.010)|
|Traditional||0.685 (0.082)||0.603 (0.108)||0.644 (0.081)||0.088 (0.010)||0.102 (0.016)||0.092 (0.009)|
|PCA||0.715 (0.067)||0.640 (0.105)||0.704 (0.075)||0.082 (0.009)||0.096 (0.016)||0.085 (0.009)|
Hierarchical Bayesian statistical probabilities from the comparison of pairs of meta-databases. The columnsleft and right indicate each meta-database’s probability to outperform the other. The rope column indicates the probability of them being similar.
Data-driven meta-learning (MtL) requires new forms of data characterization. Given the difficulty inherent to the size of the meta-feature space, this paper explores a promising direction to solve the meta-feature selection problem by learning abstract meta-features via a deep neural network. We introduce and discuss data characterization as meta-knowledge. In order to optimally meta-learn over a distribution of tasks, the right form of meta-knowledge is requireda priori. By defining our meta-objective as generalization performance, we construct a deep neural network to learn an abstract representation of traditional meta-features, i.e., we generate abstract meta-features as meta-knowledge to be used by our meta-models. We contend that abstract meta-features are more expressive and effectively capture hidden variable relationships.
Our experimental results demonstrate the efficacy of abstract meta-features as strong predictors of generalization performance, while reducing the size of the meta-feature space. Feature importance values computed on hybrid meta-features show that abstract meta-features are frequently achieve highest values of importance. Our results show that PCA linear transformations are not as expressive as the non-linear transformations learnt by our deep neural network.
Limitations & Future work
There is no common subset of meta-features capable of capturing task properties equally important over many tasks. Just like deep learning usually outperforms handcrafted features, learning meta-features with DNN can offer great insight into improving the data characterization process. Future research directions involve exploring abstract meta-features in a cost-effective fashion, and decomposing complex task characteristics as functions of simpler building properties. The goal is to identify fundamental characteristics that cover a broad spectrum of complex tasks.
