Parametrized quantum circuits (PQC) with variational objectives have been proposed as one of the candidate methods to achieve quantum advantage in the era of noisy intermediate-scale quantum (NISQ) devices. Unlike fully error corrected quantum computers, NISQ devices are already available and exceed the performance of classical computers on specific computational tasks Arute et al. (2019). This makes explorations of this new computing capability for real-world problems especially interesting within the next decade. Due to their versatility, PQCs are applicable in a multitude of areas like machine learning Broughton et al. (2020); Grant et al. (2018); Havlíček et al. (2019); Benedetti et al. (2019); Liu and Wang (2018); Romero et al. (2017); Carolan et al. (2019); Benedetti et al. (2019), optimization Farhi et al. (2014); Verdon et al. (2019); Hadfield et al. (2019); Wang et al. (2018); Streif and Leib (2020), and chemistry Peruzzo et al. (2014); McClean et al. (2016); O’Malley et al. (2016); Yung et al. (2014); Wecker et al. (2015); Hempel et al. (2018); Kandala et al. (2017); McClean et al. (2017); Rubin et al. (2018); Shen et al. (2017); Colless et al. (2018); Santagati et al. (2018); Verdon et al. (2019); McClean et al. (2020); Takeshita et al. (2020).
A PQC consists of an arbitrary set of quantum gates, which are parametrized by a set of controls that determine the outcome of the circuit. A specific type of PQC are so-called “quantum neural networks” (QNNs), where the suitable set of parameters for a task is learned based on a given set of data, resembling the training of a classical neural network (NN) Farhi and Neven (2018); McClean et al. (2018); Chen et al. (2018); Broughton et al. (2020)
. While the gradient-based backpropagation algorithmRumelhart et al. (1986)
is one of the most successful methods used to train NNs today, its direct translation to QNNs has been challenging. For QNNs, parameter updates for minimizing an objective function are calculated by stochastic gradient descent, based on direct evaluation of derivatives of the objective with respect to parameters in a PQC. The PQC is executed on a quantum device, while the parameter optimization routine is handled by a classical outer loop. The outer loop’s success depends on the quality of the quantum device’s output, which in the case of gradient-based optimizers are the partial derivatives of the loss function with respect to the PQC. AsMcClean et al. (2018)
has shown, gradients of random PQCs vanish exponentially in the number of qubits, as a function of the number of layers. Furthermore,Cerezo et al. (2020) shows that this effect also depends heavily on the choice of cost function, where the barren plateau effect is worst for global cost functions like the fidelity between two quantum states. When executed on a NISQ device, the issue is further amplified because small gradient values can not be distinguished from hardware noise, or will need exponentially many measurements to do so. These challenges motivate the study of training strategies that avoid initialization on a barren plateau, as well as avoid creeping onto a plateau during the optimization process.
Indeed a number of different optimization strategies for PQCs have been explored, including deterministic and stochastic optimizers Wecker et al. (2015); Romero et al. (2017); Nannicini (2019); Nakanishi et al. (2019); Zhou et al. (2018); Parrish et al. (2019); Sung et al. (2020)
. Regardless of the specific form of parameter update, the magnitudes of partial derivatives play a crucial role in descending towards the minimum of the objective function. Excessively small values will slow down the learning progress significantly, prevent progress, or even lead to false convergence of the algorithm to a sub-optimal objective function value. Crucially to this work, small values ultimately lead to a poor signal-to-noise ratio in PQC training algorithms due to the cost of information readout on a quantum device. Even if only sub-circuits of the overall circuit become sufficiently random during the training process, gradient values in a PQC will become exponentially small in the number of qubitsMcClean et al. (2018).
Moreover, in quantum-classical algorithms there is a fundamental readout complexity cost of Knill et al. (2007) as compared to a similar cost of classically. This is because classical arithmetic with floating point numbers for calculating analytic gradients may be done one digit at a time, incurring a cost . In contrast, quantum methods with incoherent sampling, such as that utilized in NISQ algorithms, converge similarly to classical Monte Carlo sampling. This means that small gradient magnitudes can result in an exponential signal-to-noise problem when training quantum circuits. As a consequence, gradients become too small to be useful even for modest numbers of qubits and circuit depths, and a randomly initialized PQC will start the training procedure on a saddle point in the training landscape with no interesting directions in sight.
To utilize the capabilities of PQCs, methods that overcome this challenge have to be studied. Due to the vast success of gradient-based methods in the classical regime, this work is concerned with understanding how these methods can be adapted effectively for quantum circuits. We propose layerwise learning, where individual components of a circuit are added to the training routine successively. By starting the training routine in a shallow circuit configuration, we avoid the unfavorable type of random initialization described in McClean et al. (2018) and section II
which is inherent to randomly initialized circuits of even modest depth. In our approach, the circuit structure and number of parameters is successively grown while the circuit is trained, and randomization effects are contained to subsets of the parameters at all training steps. This does not only avoid initializing on a plateau, but also reduces the probability of creeping onto a plateau during training, e.g. when gradient values become smaller on approaching a local minimum.
We compare our approach to a simple strategy to avoid initialization on a barren plateau, namely setting all parameters to zero, and show how the use of a layerwise learning strategy increases the probability of successfully training a PQC with restricted precision induced by shot noise by up to 40% for classifying images of handwritten digits. Intuitively, this happens for reasons that are closely tied to the sampling complexity of gradients on quantum computers. By restricting the training and randomization to a smaller number of circuit components, we focus the magnitude of the gradient into a small parameter manifold. This avoids the randomization issue associated with barren plateaus, but importantly is also beneficial for a NISQ quantum cost model which must stochastically sample from the training data as well as the components of the gradient. Simply put, with more magnitude in fewer components at each iteration, we receive meaningful training signal with fewer quantum circuit repetitions.
Another strategy to avoid barren plateaus was recently proposed by Grant et al. Grant et al. (2019), where only a small part of the circuit is initialized randomly, and the remaining parameters are chosen such that the circuit represents the identity operation. This prevents initialization on a plateau, but only does so for the first training step, and also trains a large number of parameters during the whole training routine. Another way to avoid plateaus was introduced in Volkoff and Coles (2020), where multiple parameters of the circuit are enforced to take the same value. This reduces the overall number of trained parameters and restricts optimization to a specific manifold, at the cost of requiring a deeper circuit for convergence Kiani et al. (2020).
In the classical setting, layerwise learning strategies have been shown to produce results comparable to training a full network with respect to error rate and time to convergence for classical NNs Fahlman and Lebiere (1990); Hettinger et al. (2017)et al. (2006). Here, multiple layers of RBMs are stacked and trained greedily layer-by-layer, where each layer is trained individually by taking the output of its preceding layer as the training data. In classical NNs, Bengio et al. (2007) shows that this strategy can be successfully used as a form of pre-training of the full network to avoid the problem of vanishing gradients caused by random initialization. In contrast to greedy layerwise pre-training, our approach does not necessarily train each layer individually, but successively grows the circuit to increase the number of parameters and therefore its representational capacity.
The remainder of this work is organized as follows: in section II we give a short introduction to the barren plateau problem to motivate our training approach. Section III describes the layerwise learning strategy, which is then numerically demonstrated in section IV on the learning task of classifying handwritten digits.
Ii Barren plateaus in training landscapes
The notion of vast saddle points where first and higher order derivatives vanish, or barren plateaus, in quantum circuit training landscapes was formally introduced in McClean et al. (2018)
. These plateaus result from basic features of the geometry of high-dimensional spaces. That work examines the gradients for quantum circuit training in a model known as random PQCs. For this model, parameter updates for gradient-based optimization of a PQC are calculated based on the expectation value of an observable measured on a state produced by a parametrized circuit and the circuits are drawn from a random distribution. The distribution of circuits amounts to choosing a set of gates uniformly at random, where some of the gates have continuous parameters amenable to differentiation. They show that a sufficient, but not necessary, condition for the vanishing of gradients with high probability is that for any division of the circuit into two pieces, the two pieces are statistically independent, and that one of them approximately matches the fully random distribution up to the second moment, or forms an approximate 2-design as described below. In other words, if one piece of the PQC forms an approximate 2-design, the whole circuit will be susceptible to exponentially vanishing gradients.

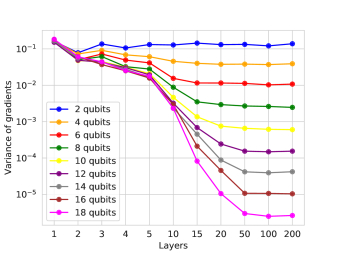

A particular class of random circuits that were studied numerically in McClean et al. (2018) were those which chose some discrete structure of gates determined by an underlying geometry (e.g. 1D line, 2D array, or all-to-all), and single qubit gates with a continuous parameter rotating around a randomly chosen axis. This assigns a parameter to each of these gates. To sample from the distribution of random circuits, each angle
was drawn from the uniform distribution. Due to concentration of measure effects as described in McClean et al. (2018)
, random PQCs with different sets of parameters will produce very similar outputs and their variance vanishes for sufficiently large circuits (those that reach 2-designs, as shown infig. 1).
Moreover, this represents a generic statement about the volume of quantum space for such a circuit where one expects to find trivial values for observables. In other words, sufficiently deep, arbitrary random PQCs will produce very similar expectation values regardless of the set of individual parameters. Consequently, the partial derivatives of an objective function based on expectation values of a random PQC will have extremely small mean and variance. These properties make them essentially untrainable for gradient-based or related local optimization methods on quantum devices, as the training landscapes in these scenarios are characterized by large regions where the gradient is almost zero, but which do not correspond to a local or global minimum of the objective function.
The origin of this phenomenon can be seen from the fact that a sufficiently deep sequence of random gates will yield an approximately Haar-distributed unitary. This results in the scenario described above, where expectation values concentrate to their average over the entire space. While executing a circuit that precisely outputs states from the Haar distribution takes time exponential in the number of qubits, there are efficient techniques to produce circuits that output states which approximate the first and second moment of the Haar distribution, which is formalized by the notion of -designs for . It has been shown in Harrow and Low (2009) that random PQCs form approximate -designs once they reach a certain depth, and McClean et al. (2018) shows how even a modest number of qubits and layers of random gates is enough for this. The depth of a quantum circuit required to reach this regime of barren plateaus depends on the number of qubits and allowed connectivity. It is thought that the depth required to reach a -design scales roughly as converging to a logarithmic required depth in the all-to-all connectivity limit Boixo et al. (2018), where is the dimension of the connectivity of the device and is the number of qubits.
These results demonstrate that randomly initialized PQCs of large depth become increasingly hard to train for any optimization method that can not avoid or escape plateaus during the optimization routine. Figure 1 shows how the variance of partial derivatives obtained from circuits of different size and all-to-all connectivity in each layer exponentially decays as a function of the number of qubits and layers, as the circuits approach convergence to a 2-design. The variance of gradients was calculated over 1000 random circuit instances for each combination of number of qubits and number of layers, with an initial layer of Hadamard gates in each circuit to avoid a bias of gradients with respect to the circuit structure, caused by initializing in the all-zero state. With increasing number of qubits, convergence happens after a larger number of layers, yielding a variance that exponentially decays in the number of qubits. This decay is not only detrimental to learning, but more generally hinders extraction of meaningful values from quantum hardware, especially on near-term processors that are subject to noise.
Iii Layerwise learning
In this section, we introduce layerwise learning (LL) for parametrized quantum circuits, a training strategy that creates an ansatz during optimization, and only trains subsets of parameters simultaneously to ensure a favorable signal-to-noise ratio. The algorithm consists of two phases.
Phase one: The first phase of the algorithm constructs the ansatz by successively adding layers. The training starts by optimizing a circuit that consists of a small number of start layers, e.g. , where all parameters are initialized as zero. We call these the initial layers :
where is the set of parameters, containing one angle for each local rotation gate per qubit, and
represents operators connecting qubits. After a fixed number of epochs, another set of layers is added, and the previous layers’ parameters are frozen. We define one epoch as the set of iterations it takes the algorithm to see each training sample once, and one iteration as one update over all trainable parameters. E.g. an algorithm trained on 100 samples with a batch size of 20 will need 5 iterations to complete one epoch. The number of epochs per layer,
, is a tunable hyperparameter. Each consecutive layertakes the form
with a fixed , as the connectivity of qubits stays the same during the whole training procedure. All angles in
are set to zero when they are added, which provides additional degrees of freedom for the optimization routine without perturbing the current solution. The parameters added with each layer are optimized together with the existing set of parameters of previous layers in a configuration dependent on two hyperparametersand . The hyperparameter determines how many layers are added in each step, and specifies after how many layers the previous layers’ parameters are frozen. E.g. with and , we add two layers in each step, and layers more than four back from the current layer are frozen. This process is repeated either until additional layers do not yield an improvement in objective function value, or until a desired depth is reached. The final circuit that consists of layers can then be represented by
Phase two: In the second phase of the algorithm, we take the pre-trained circuit acquired in phase one, and train larger contiguous partitions of layers at a time. The hyperparameter specifies the percentage of parameters that is trained in one step, e.g. a quarter or a half of the circuit’s layers. The number of epochs for which these partitions are trained is also controlled by . In this setting, we perform additional optimization sweeps where we alternate over training the specified subsets of parameters simultaneously, until the algorithm converges. This allows us to train larger partitions of the circuit at once, as the parameters from phase one provide a sufficiently non-random initialization. As the randomness is contained to shallower sub-circuits during the whole training routine, we also minimize the probability to creep onto a plateau during training as a consequence of stochastic or hardware noise present in the sampling procedure.
In general, the specific structure of layers can be arbitrary, as long as they allow successively increasing the number of layers, e.g. like the hardware-efficient ansatz introduced in Kandala et al. (2017). In this work, we indirectly compare the quality of gradients produced by our optimization strategy with respect to the results described in section II through overall optimization performance, so we consider circuits that consist of layers of randomly chosen gates as used in McClean et al. (2018). They can be represented in the following form: U(θ) = ∏_l=1^LU_l(θ_l)W , where with a Hermitian operator , is the number of qubits, and is a generic fixed unitary operator. For ease of exposition, we drop the subscripts of the individual gates in the remainder of this work. We consider single qubit generators which are the Pauli operators , and for each qubit, parametrized by , while are gates coupling arbitrary pairs of qubits. An example layer is depicted in fig. 2.
The structure and parameters of a quantum circuit define which regions of an optimization landscape given by a certain objective function can be captured. As the number of parametrized non-commuting gates grows, this allows a more fine-grained representation of the optimization landscape Kiani et al. (2020). In a setting where arbitrarily small gradients do not pose a problem, e.g. noiseless simulation of PQC training, it is often preferable to simultaneously train all parameters in a circuit to make use of the full range of degree of freedom in the parameter landscape. We will refer to this training scheme as complete-depth learning (CDL) from now on. In a noiseless setting, LL and CDL will perform similarly w.r.t. the number of calls to a QPU until convergence and final accuracy of results, as we show in the appendix. This is due to a trade off between the number of parameters in a circuit and the number of sampling steps to convergence Kiani et al. (2020). A circuit with more parameters will converge faster in number of training epochs, but will need more QPU calls to train the full set of parameters in each epoch. On the other hand, a circuit with fewer parameters will show a less steep learning curve, but will also need fewer calls to the QPU in each update step due to the reduced number of parameters. When we consider actual number of calls to a quantum device until convergence as a figure of merit, training the full circuit and performing LL will perform similarly in a noise-free setting for this reason. However, this is not true when we enter a more realistic regime, where measurement of gradient values will be affected by stochastic as well as hardware noise, as we will show on the example of shot noise in section IV. In such more realistic settings, the layerwise strategy offers considerable advantage in time to solution and quality of solution.
As noted in the appendix of McClean et al. (2018), the convergence of a circuit to a 2-design does not only depend on the number of qubits, their connectivity and the circuit depth, but also on the characteristics of the cost function used. This was further investigated in Cerezo et al. (2020), where cost functions are divided into those that are local and global, in the sense that a global cost function uses the combined output of all qubits (e.g. the fidelity of two states), whereas a local cost function compares values of individual qubits or subsets thereof (e.g. a majority vote). Both works show that for global cost functions, the variance of gradients decays more rapidly, and that barren plateaus will present themselves even in shallow circuits. As our training strategy relies on using larger gradient values in shallow circuit configurations, especially during the beginning of the training routine, we expect that LL will mostly yield an advantage in combination with local cost functions.
To examine the effectiveness of LL, we use it to train a circuit with fully-connected layers as described in section III. While fully-connected layers are not realistic on NISQ hardware, we choose this configuration for our numerical investigations because it leads circuits to converge to a 2-design with the smallest number of qubits and layers McClean et al. (2018), which allows us to reduce the computational cost of our simulations while examining some of the most challenging situations. To compare the performance of LL and CDL we perform binary classification on the MNIST data set of handwritten digits, where the circuit learns to distinguish between the numbers six and nine. We use the binary cross-entropy as the training objective function, given by
where is the natural logarithm, is given by a measurement in the -direction on qubit which we rescale to lie between 0 and 1 instead of and 1, is the correct label value for a given sample, and are the parameters of the PQC. The loss is computed as the average binary cross entropy over the batch of samples. In this case, the partial derivative of the loss function is given by ∂L(θ) ∂θi = y 1E(θ) ∂E(θ)∂θi - (1-y) 11 - E(θ) ∂E(θ)∂θi .
To calculate the objective function value, we take the expectation value of the circuit of observable ,
where is the initial state of the circuit given by the training data set. The objective function now takes the form and the partial derivative for parameter
is defined using the chain rule as
To compute gradients of , we use the parameter shift rule Schuld et al. (2019), where the partial derivative of a quantum circuit is calculated by the difference of two expectation values as
∂E(θ)∂θi = r( U^†(θ+ s ^θ_i) M U(θ+ s^θ_i)
- U^†(θ-s ^θ_i) M U(θ- s ^θ_i) ) , where
is a unit vector in the direction of the’th component of , , and .
We note that in the numerical implementation, care must be taken to avoid singularities in the training processes related to treated similarly for both the loss and its derivative (we clip values to lie in ). We choose the last qubit in the circuit as the readout , as shown in fig. 2. An expectation value of () denotes a classification result for class sixes (nines). As we perform binary classification, we encode the classification result into one measurement qubit for ease of implementation. This can be generalized to multi-label classification by encoding classification results into multiple qubits, by assigning the measurement of one observable to one data label. We use the Adam optimizer Kingma and Ba (2015) with varying learning rates to calculate parameter updates and leave the rest of the Adam hyperparameters at their typical publication values.
To feed training data into the PQC, we use qubit encoding in combination with principal component analysis (PCA), followingGrant et al. (2018). Due to the small circuits used in this work, we have to heavily downsample the MNIST images. For this, a PCA is run on the data set, and the number of principle components with highest variance corresponding to the number of qubits is used to encode the data into the PQC. This is done by scaling the component values to lie within , and using the scaled values to parametrize a data layer consisting of local -gates. In case of 10 qubits, this means that each image is represented by a vector with the 10 components, and the data layer can be written as .
Different circuits of the same size behave more and more similarly during training as they grow more random as a direct consequence of the results in McClean et al. (2018). This means that we can pick a random circuit instance that, as a function of its number of qubits and layers, lies in the 2-design regime as shown in fig. 1, and gather representative training statistics on this instance. As noted in section III, an LL scheme is more advantageous in a setting where training the full circuit is infeasible, therefore we pick a circuit with 8 qubits and 21 layers for our experiments, at which size the circuit is in this regime. When using only a subset of qubits in a circuit as readout, a randomly generated layer might not be able to significantly change its output. For example, if in our simple circuit in fig. 2, is a rotation around the axis followed only by gates, no change in will affect the measurement outcome on the bottom qubit. When choosing generators randomly from in this setting, there is a chance of to pick an unsuitable generator. To avoid this effect, we enforce at least one gate in each set of layers that is trained. For our experiments, we take one random circuit instance and perform LL and CDL with varying hyperparameters.
iv.2 Sampling requirements
To give insight into the sampling requirements of our algorithm, we have to determine the components that we need to sample. Our training algorithm makes use of gradients of the objective function that are sampled from the circuit on the quantum computer via the parameter shift rule as described in section IV.1. The precision of our gradients now depends on the precision of the expectation values for the two parts of the r.h.s. in section IV.1
. The estimation of an expectation value scales in the number of measurementsas , with error and Knill et al. (2007). For most near-term implementations using operator averaging,
, resembling classical central limit theorem statistics of sampling. This means that the magnitude of partial derivativesof the objective function directly influences the number of samples needed by setting a lower bound on , and hence the signal-to-noise ratio achievable for a fixed sampling cost. If all of the magnitudes of are much smaller than , a gradient based algorithm will exhibit dynamics more resembling a random walk than optimization.
iv.3 Comparison to CDL strategies
We compare LL to a simple approach to avoid initialization on a barren plateau, which is to set all circuit parameters in a circuit to zero followed by a CDL training strategy. We argue that considering the sampling requirements of training PQCs as described in section IV.2, an LL strategy will be more frugal in the number of samples it needs from the QPU. Shallow circuits produce gradients with larger magnitude as can be seen in fig. 1, so the number of samples we need to achieve precision directly depends on the largest component in the gradient. This difference is exhibited naturally when considering the number of samples as a hyperparameter in improving time to solution for training. In this low sample regime, the training progress depends largely on the learning rate. A small batch size and low number of measurements will increase the variance of objective function values. This can be balanced by choosing a lower learning rate, at the cost of taking more optimization steps to reach the same objective function value. We argue that the CDL approach will need much smaller learning rates to compensate for smaller gradient values and the simultaneous update of all parameters in each training step, and therefore more samples from the QPU to reach similar objective function values as LL. We compare both approaches w.r.t. their probability to reach a given accuracy on the test set, and infer the number of repeated re-starts one would expect in a real-world experiment based on that.
In order to easily translate the results here to experimental impact, we also compute an average runtime by assuming a sampling rate of 10kHz. This value is assumed to be realistic in the near term future, based on current superconducting qubit experiments shown in Arute et al. (2019) which were done with a sampling rate of 5kHz, not including cloud latency effects. The cumulative number of individual measurements taken from a quantum device during training is defined as
where is the number of parameters (taken times two to account for the parameter shift rule shown in section IV.1), the number of measurements taken from the quantum device for each expectation value estimation, and the batch size. This gives us a realistic estimate of the resources used by both approaches in an experimental setting on a quantum device.
iv.4 Numerical results
For the following experiments, we use a circuit with 8 qubits, 1 initial layer and 20 added layers, which makes 21 layers in total. As can be seen in fig. 1, this is a depth where a fully random circuit is expected to converge to a 2-design for the all-to-all connectivity that we chose. After doing a hyperparameter search over and , we set the LL hyperparameters to and , with one initial layer that is always active during training. This means that three layers are trained at once in phase one of the algorithm, and 10 and 11 layers are trained as one contiguous partition in phase two, respectively. For CDL, the same circuit is trained with all-zero initialization.
We argue that LL not only avoids initialization on a plateau, but is also less susceptible to randomization during training. In NISQ devices, this type of randomization is expected to come from two sources: (i) hardware noise, (ii) shot noise, or measurement uncertainty. The smaller the values we want to estimate and the less exact the measurements we can take from a QPU are, the more often we have to repeat them to get an accurate result. Here, we investigate the robustness of both methods to shot noise. The hyperparameters we can tune are the number of measurements , batch size and learning rate . The randomization of circuits during training can be reduced by choosing smaller learning rates to reduce the effect of each individual parameter update, at the cost of more epochs to convergence. Therefore we focus our hyperparameter search on the learning rate , after fixing the batch size to and the number of measurements to . This combination of and was chosen for a fixed, small after conducting a search over for which both LL and CDL could perform successful runs that don’t diverge during training. As we lower the batch size, we also increase the variance in objective function values similar to when the number of measurements is reduced, so these two values have to be tuned to match each other. In the remainder of this section we show results for these hyperparameters, and different learning rates for both methods. All of the results are based on 100 runs of the same hyperparameter configurations. We use 50 samples of each class to calculate the cross entropy during training, and another 50 samples per class to calculate the test error. To compute the test error, we let the model predict binary class labels for each presented sample, where a prediction is interpreted as class 0 (sixes) and as class 1 (nines). The test error is then the average error over all classified samples.

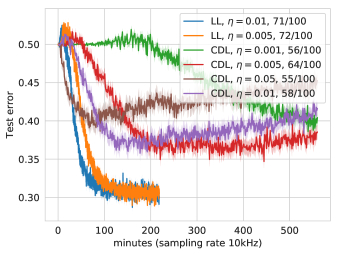

Figure 3 shows average runtimes of LL and CDL runs that have a final average error on the test set that is less than 0.5, which corresponds to random guessing. We compute the runtime by computing the number of samples taken as shown in section IV.3 and assume a sampling rate of 10kHz. Here, LL reaches a lower error on the test set on average, and also requires a lower runtime to get there. Compared to the CDL configuration with the highest success probability shown in fig. 4 (b) (red line), the best LL configuration (blue line) takes approximately half as much time to converge. This illustrates that LL does not only increase the probability of successful runs, but can also drastically reduce the runtime to train PQCs by only training a subset of all parameters at a given training step. Note also that the test error of CDL with and slowly increases at later training steps, which might look like overfitting at first. Here it is important to emphasize that these are averaged results, and what is slowly increasing is rather the percentage of circuits that have randomized or diverged at later training steps. The actual randomization in an individual run usually happens with a sudden jump in test error, after which the circuit can not return to a regular training routine anymore.
Figure 4 (a) shows the number of expected training repetitions one has to perform to get a training run that reaches a given accuracy on the test set, where we define accuracy as . One training run constitutes training the circuit to a fixed number of epochs, where the average training time for one run is shown in fig. 3. An accuracy of 0.5 corresponds to random guessing, while an accuracy of around 0.73 is the highest accuracy any of the performed runs reached. We find that LL performs well for different magnitudes of learning rates as and , and that these configurations have a number of expected repetitions that stays almost constant as we increase the desired accuracy. On average, one needs less than two restarts to get a successful training run when using LL. For CDL, the number of repetitions increases as we require the test error to reach lower values. The best configurations were those with and , which reach similarly low test errors as LL, but need between 3 and 7 restarts to succeed in doing so. This is due to the effect of randomization during training, which is caused by the high variance in objective function values, and the simultaneous update of all parameters in each training step. In fig. 4 (b), we show the probability of each configuration shown in (a) to reach a given accuracy on the test set. All CDL configurations have a probability lower than 0.3 to reach an accuracy above 0.65, while LL reaches this accuracy with a probability of over 0.7 in both cases. This translates to the almost constant number of repetitions for LL runs in fig. 4 (a). Due to the small number of measurements and the low batch size, some of the runs performed for both methods fail to learn at all, which is why none of the configurations have a success probability of 1 for all runs to be better than random guessing.
V Conclusion and outlook
We have shown that the effects of barren plateaus in QNN training landscapes can be dampened by avoiding Haar random initialization and randomization during training through layerwise learning. While performance of LL and CDL strategies is similar when considering noiseless simulation and exact analytical gradients, LL strategies outperform CDL training on average when experimentally realistic measurement strategies are considered. Intuitively, the advantage of this approach is drawn from both preventing excess randomization and concentrating the contributions of the training gradient into fewer, known components. Doing so directly decreases the sample requirements for a favorable signal-to-noise ratio in training with stochastic quantum samples. To quantify this in a cost effective manner for simulation, we reduce the number of measurements taken for estimating each expectation value. We show that LL can reach lower objective function values with this small number of measurements, while reducing the number of overall experiment repetitions until convergence to roughly half of the repetitions needed by CDL when comparing the configurations with highest success probability. This makes LL a more suitable approach for implementation on NISQ devices, where taking a large number of measurements is still costly and where results are further diluted by decoherence effects and other machine errors. While our approach relies on manipulating the circuit structure itself to avoid initializing a circuit that forms a 2-design, it can be combined with approaches that seek to find a favorable initial set of parameters as shown in Grant et al. (2019). The combination of these two approaches by choosing good initial parameters for new layers is especially interesting as the circuits grow in size. This work has also only explored the most basic training scheme of adding a new layer after a fixed number of epochs, which can still be improved by picking smarter criteria like only adding a new layer after the previous circuit configuration converged, or replacing gates in layers which provide little effect on changes of the objective function value similar to Grimsley et al. (2019). Moreover, one could consider training strategies which group sets of coordinates rather than circuit layers. These possibilities provide interesting directions for additional research, and we leave their investigation for future works.
AS, PS and ML acknowledge funding from the European Union’s Horizon 2020 research and innovation programme under the Grant Agreement No. 828826. AS and ML thank Michael Streif and Sheir Yarkoni for valuable discussions. AS thanks the TensorFlow Quantum team for providing early access to the library, which was used to perform the simulations in this work.
- Quantum supremacy using a programmable superconducting processor. Nature 574 (7779), pp. 505–510. Cited by: §I, §IV.3.
- A generative modeling approach for benchmarking and training shallow quantum circuits. npj Quantum Information 5 (1), pp. 45. External Links: Cited by: §I.
- Adversarial quantum circuit learning for pure state approximation. New Journal of Physics 21 (4), pp. 043023. External Links: Cited by: §I.
- Greedy layer-wise training of deep networks. Advances in Neural Information Processing. External Links: Cited by: §I.
- Characterizing quantum supremacy in near-term devices. Nature Physics 14 (6), pp. 595–600. External Links: Cited by: §II.
- TensorFlow quantum: a software framework for quantum machine learning. arXiv preprint arXiv:2003.02989. Cited by: §I, §I.
- Variational Quantum Unsampling on a Quantum Photonic Processor. External Links: Cited by: §I.
- Cost-function-dependent barren plateaus in shallow quantum neural networks. arXiv preprint arXiv:2001.00550. Cited by: §I, §III.
- Universal discriminative quantum neural networks. arXiv preprint arXiv:1805.08654. Cited by: §I.
- Computation of molecular spectra on a quantum processor with an error-resilient algorithm. Physical Review X 8, pp. 011021. External Links: Cited by: §I.
- The cascade-correlation learning architecture. Advances in Neural Information Processing 2, pp. 524–532. External Links: Cited by: §I.
- A Quantum Approximate Optimization Algorithm. Preprint at arXiv:1411.4028. External Links: Cited by: §I.
- Classification with quantum neural networks on near term processors. External Links: Cited by: §I.
- Hierarchical quantum classifiers. npj Quantum Information 4 (1), pp. 65. External Links: Cited by: §I, §IV.1.
- An initialization strategy for addressing barren plateaus in parametrized quantum circuits. Quantum 3, pp. 214. Cited by: §I, §V.
- An adaptive variational algorithm for exact molecular simulations on a quantum computer. Nature communications 10 (1), pp. 1–9. Cited by: §V.
- From the Quantum Approximate Optimization Algorithm to a Quantum Alternating Operator Ansatz. Algorithms 12 (2), pp. 34. External Links: Cited by: §I.
- Random Quantum Circuits are Approximate 2-designs. Communications in Mathematical Physics 291 (1), pp. 257–302. External Links: Cited by: §II.
- Supervised learning with quantum-enhanced feature spaces. Nature 567 (7747), pp. 209–212. Cited by: §I.
- Quantum chemistry calculations on a trapped-ion quantum simulator. Physical Review X 8, pp. 031022. External Links: Cited by: §I.
- Forward Thinking: Building and Training Neural Networks One Layer at a Time. In 31st Conference on Neural Information Processing Systems, External Links: Cited by: §I.
- A Fast Learning Algorithm for Deep Belief Nets. Neural Computation 18 (7), pp. 1527–1554. External Links: Cited by: §I.
- Hardware-efficient variational quantum eigensolver for small molecules and quantum magnets. Nature 549 (7671), pp. 242–246. Cited by: §I, §III.
- Learning Unitaries by Gradient Descent. External Links: Cited by: Appendix, §I, §III.
- Adam: A Method for Stochastic Optimization. In International Conference on Learning Representations, External Links: Cited by: §IV.1.
- Optimal quantum measurements of expectation values of observables. Physical Review A 75 (1), pp. 012328. External Links: Cited by: §I, §IV.2.
- Differentiable learning of quantum circuit Born machines. Physical Review A 98 (6), pp. 062324. External Links: Cited by: §I.
- Decoding quantum errors with subspace expansions. Nature Communications 11 (1), pp. 1–9. Cited by: §I.
- Hybrid quantum-classical hierarchy for mitigation of decoherence and determination of excited states. Physical Review A 95 (4), pp. 042308. External Links: Cited by: §I.
- The theory of variational hybrid quantum-classical algorithms. New Journal of Physics 18 (2), pp. 023023. External Links: Cited by: §I.
- Barren plateaus in quantum neural network training landscapes. Nature Communications 9 (1), pp. 4812. External Links: Cited by: §I, §I, §I, §II, §II, §II, §III, §III, §IV.1, §IV.1.
- Sequential minimal optimization for quantum-classical hybrid algorithms. Preprint at arXiv:1903.12166. External Links: Cited by: §I.
- . Physical Review E 99 (1), pp. 013304. External Links: Cited by: §I.
- Scalable quantum simulation of molecular energies. Physical Review X 6 (3), pp. 031007. External Links: Cited by: §I.
- A jacobi diagonalization and anderson acceleration algorithm for variational quantum algorithm parameter optimization. Preprint at arXiv:1904.03206. External Links: Cited by: §I.
A variational eigenvalue solver on a photonic quantum processor. Nature communications 5, pp. 4213. External Links: Cited by: §I.
Quantum autoencoders for efficient compression of quantum data. Quantum Science and Technology 2 (4), pp. 045001. External Links: Cited by: §I, §I.
- Application of fermionic marginal constraints to hybrid quantum algorithms. New Journal of Physics 20 (5), pp. 053020. External Links: Cited by: §I.
- Learning representations by back-propagating errors. Nature 323 (6088), pp. 533–536. External Links: Cited by: §I.
- Witnessing eigenstates for quantum simulation of hamiltonian spectra. Science Advances 4, pp. 1. External Links: Cited by: §I.
- Evaluating analytic gradients on quantum hardware. Physical Review A 99 (3), pp. 032331. External Links: Cited by: §IV.1.
- Quantum implementation of the unitary coupled cluster for simulating molecular electronic structure. Physical Review A 95 (2), pp. 020501. Cited by: §I.
- Training the quantum approximate optimization algorithm without access to a quantum processing unit. Quantum Science and Technology 5 (3), pp. 034008. Cited by: §I.
- An exploration of practical optimizers for variational quantum algorithms on superconducting qubit processors. arXiv preprint arXiv:2005.11011. Cited by: §I.
- Increasing the representation accuracy of quantum simulations of chemistry without extra quantum resources. Physical Review X 10 (1), pp. 011004. Cited by: §I.
- Learning to learn with quantum neural networks via classical neural networks. External Links: Cited by: §I.
- Large gradients via correlation in random parameterized quantum circuits. arXiv preprint arXiv:2005.12200. Cited by: §I.
- Quantum approximate optimization algorithm for maxcut: a fermionic view. Physical Review A 97 (2), pp. 022304. External Links: Cited by: §I.
- Progress towards practical quantum variational algorithms. Physical Review A 92 (4), pp. 042303. External Links: Cited by: §I, §I.
- From transistor to trapped-ion computers for quantum chemistry. Scientific Reports 4 (3589), pp. 1–7. External Links: Cited by: §I.
- Quantum approximate optimization algorithm: performance, mechanism, and implementation on near-term devices. Preprint at arXiv:1812.01041. External Links: Cited by: §I.

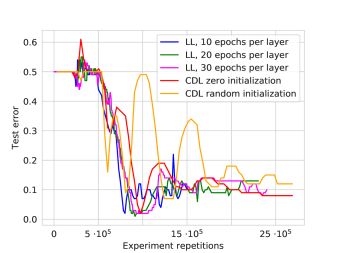

As alluded to in section III, LL and CDL perform similarly in a perfect simulation scenario, where we assume neither shot nor hardware noise. Figure 5 shows a comparison of LL and CDL under perfect conditions, i.e. infinite number of measurements and a batch size that corresponds to the number of samples, which enables computation of exact gradients. Here, the magnitude of gradients doesn’t affect the learning process severely, as the Adam optimizer uses adaptive learning rates for each parameter and can therefore handle different ranges of gradient magnitudes well as long as there is some variance in the computed gradients. In this regime, both approaches show similar performance.
The convergence rate of a PQC increases proportionally to the number of parameters in a model Kiani et al. (2020), so the number of experiment repetitions is almost equal for LL and CDL. LL has less parameters and needs more epochs to converge due to this, whereas CDL needs more calls to the quantum device for one update step, but in turn needs less epochs to converge. In terms of cross entropy, both LL and CDL converge to a value of roughly . The corresponding test error of all approaches, except for the randomly initialized CDL, reaches almost 0 but doesn’t converge there and settles around an error of roughly eventually, as seen in fig. 6.
