Latent Relation Language Models

08/21/2019 ∙ by Hiroaki Hayashi, et al. ∙ 0

In this paper, we propose Latent Relation Language Models (LRLMs), a class of language models that parameterizes the joint distribution over the words in a document and the entities that occur therein via knowledge graph relations. This model has a number of attractive properties: it not only improves language modeling performance, but is also able to annotate the posterior probability of entity spans for a given text through relations. Experiments demonstrate empirical improvements over both a word-based baseline language model and a previous approach that incorporates knowledge graph information. Qualitative analysis further demonstrates the proposed model's ability to learn to predict appropriate relations in context.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Language models (LMs) calculate the probability of textual data , and are a core model class of interest to NLP. LMs are used as testbeds for evaluation of generative models of text, and have applications such as rescoring of upstream language generation inputs Sundermeyer et al. (2012), grammatical error correction Felice et al. (2014), or pre-training of sentence representations Dai and Le (2015); Peters et al. (2018)

. State-of-the-art LMs uses neural networks to calculate this probability

Bengio et al. (2003); Mikolov et al. (2010); Merity et al. (2017b); Yang et al. (2018).

Within , there exist a wide variety of words to be modeled, from closed-class function words, to common nouns or verbs, to named entities and numbers Zipf (1949)

. Notably, words on the rarer end of this spectrum are often more semantically or topically important (as evidenced by the success of heuristics such as TF-IDF

Salton and McGill (1986), which up-weight words with low frequency). Previous work has noted that while neural LMs greatly out-perform alternatives such as

-gram models on frequent words, they often under-perform on these rare words due to their limited parameter budget, which puts them at a disadvantage compared to non-parametric models like standard

-grams Neubig and Dyer (2016).

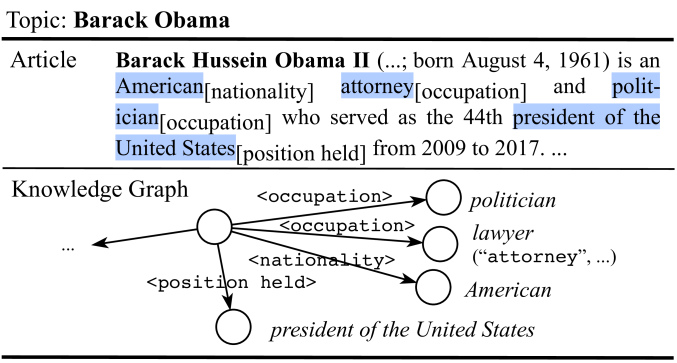

Figure 1: Overview of our task of language modeling conditioned on structured knowledge. For a given topic, we want to learn an LM that leverages the knowledge graph through relations when modeling the text.

Ways to mitigate this bottleneck have been proposed in the context of conditional LMs, which instead model the conditional probability , where is some context given to the model. For instance in sequence transduction tasks, there are mechanisms to copy from the source sequence Gu et al. (2016) or use word or phrase dictionaries Arthur et al. (2016); Tang et al. (2016) to improve modeling of low-frequency words. Perhaps more interesting from an LM perspective are methods explicitly conditioned on information from structured knowledge sources such as knowledge graphs Angeli et al. (2010); Ahn et al. (2016); Parvez et al. (2018); Wang et al. (2018), tables Barzilay and Lapata (2005); Lebret et al. (2016), or grammars Konstas and Lapata (2013). These methods are analogous to human language production, where the underlying knowledge or intent is converted into linguistic realizations.

In this work, we propose Latent Relation Language Models (LRLMs), a class of conditional LMs that take relational information between entities in a knowledge graph as context. Specifically, our model is able to generate words either from a fixed word vocabulary, or through spans defined according to their relations with a topic entity of interest, as shown in Figure 1. The choice of which method of generation to use is defined as a latent variable sequence . We use Latent Predictor Networks (LPNs; ling2016latent) to jointly learn , thus tractably marginalizing over all the possible spans. Compared to other methods that condition LMs on knowledge graphs (KGs; Ahn2016ANK,wang2018describing) , the span-based generation from the KGs alleviates problems of malformed or incomplete mentions. Moreover, the posterior probabilities of can also be considered as entity links, which are of interest in their own right in the information extraction field Ceccarelli et al. (2013); Piccinno and Ferragina (2014); Ganea and Hofmann (2017).

We apply the model on Wikipedia articles (), with the help of relational information () such as Wikidata Vrandečić and Krötzsch (2014) or Freebase Bollacker et al. (2008) regarding each article topic. Empirical results on open vocabulary language modeling show that the proposed model out-performs previous approaches on the same task, demonstrating that LRLMs provide an effective way to condition on this context. We also demonstrate the merit of explicitly modeling latent relations by examining the posterior probabilities over the chosen relations , which are in concert with human intuitions about how relations are being expressed in the text.

2 Language Modeling Conditioned on Structured Knowledge

First, we define the task of open-vocabulary language modeling conditioned on structured data.

2.1 Task Definition

Consider a directed and labeled knowledge graph (KG) consisting of a set of nodes and a set of relation edges . Relation contains , , and as the subject, relation type, and object. is the set of all relation types. Each node represents either an entity or an attribute, and is associated with a set of surface forms that can be used to refer to . For instance, the subject “Barack Obama222 is connected to both “politician” and “lawyer” with the relation <occupation>, and the object entity “politician333 has “political figure” and “polit.” as additional aliases. Notably surface forms of many objects in the KG can be multiple words, and thus it is necessary to have machinery to deal with this fact.

Given this KG, we further define a topic entity about which we would like to generate an explanation. Our conditional language modeling problem is then defined as the problem of modeling the conditional probability of text : . In particular, we consider a subgraph of the original KG by extracting nodes and edges directly related to the topic entity :

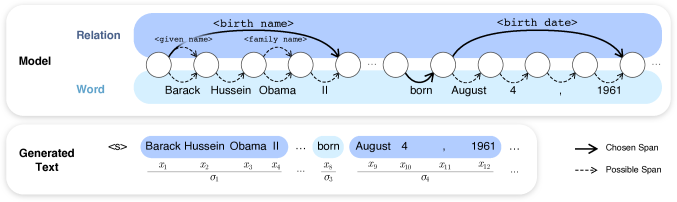

Figure 2: While generating, our model switches between the two sources, namely “Relation” and “Word”. Nodes represent hidden states up to each token, and edges represent possible span matches, i.e., choice of latent variables. In this example, we show one choice of latent variables with solid lines, and other options as dashed lines. We also show an “annotation” of the token sequence by the spans and sources we choose.

2.2 Why Condition on Knowledge Graphs?

KGs provide two important benefits for neural LMs. First, they have high coverage of rare words, which addresses lack of textual supervision for predicting these words. More importantly, KGs have the potential to help LMs generate factually consistent text by providing factually consistent associations between entities. Normal LMs would have to rely on supervision purely from textual data, which may not provide a learning signal strong enough to accurately generate these facts. For instance, results from radford2019language show that even with a very large model trained on massive amounts of data, samples can be factually incorrect, although being fluent and coherent.

3 Latent Relation Language Models

Next we describe our proposed framework of Latent Relation Language Models (LRLMs).

3.1 Motivation

The goal of the conditional language modeling task is to model the conditional probability , assuming the presence of a KG subgraph related to a topic entity . Specifically, we can choose edges from and copy the corresponding object nodes from . However, it is insufficient to model this probability using only and as conditions, because it is unknown to us which text spans are matched to which relations, and simple text matching algorithms would yield many false positives.444For example, “New York City” has an alias “New York”, which matches “New York” (state) and parts of “New York City Council”.

To circumvent this lack of relation annotation, we treat such text spans as latent variables. Formally, let be the sequence of tokens, and a sequence of latent variables describing text span matches:

  • [leftmargin=*, itemsep=0pt, topsep=6pt]

  • The source variable denotes the generation source of the span .

  • The span variable specifies a token subsequence .

  • The relation variable describes the matching relation and surface form of the span , and is only used when .

For to be a valid sequence of latent variables, the following conditions must be satisfied:

  • [leftmargin=*, itemsep=0pt, topsep=6pt]

  • The span latent variables form a segmentation of , i.e., for . This also implies .

  • If , then .

  • If , then where should satisfy , , and , i.e., must correspond to a valid surface form of an object that is related to the topic entity and matches the text span.

Let be the set of all valid latent variable sequences. We can now model the conditional probability by marginalizing over :


We will show in section 3.3 that this marginalization is tractable. For sake of brevity, unless noted otherwise, we drop and from the conditions in the following sections.

1:previous span , previously generated tokens .
2:source , span , relation , and token subsequence .
3: Update the beginning of span. :3
4: Choose whether to generate a word or relation. :4
5:if   then Generating a word. :5
6:      Simplify the probability. :6
7:      Choose a word from model vocabulary. :7
8:     if  <UNK> then
9:           CharModel Generate a word using a character model. :9
10:     else if  <EOS> then
11:          End generation.
12:     end if
13:else if   then Generating a relation. :13
14:      Factor the probability. :14
15:      Choose a relation. :15
16:      Choose a surface form from the selected relation. :16
17:      Generate a phrase. :17
18:end if
Algorithm 1 Generative Process of LRLM

3.2 Definition

Given the latent variable sequence , we follow ling2016latent in factoring the joint probability:

here is the sequence of first tokens in . Figure 2 shows an example of generation according to this factorization, and Algorithm 1 precisely defines the process of generating at time step .

3.3 Training

During training, we marginalize over according to Equation 1. Since the probability at time step is independent of previous latent variable choices, the marginalization is tractable using the forward-backward algorithm Baum et al. (1970).

Define the forward probability as the marginal probability of the sequence up to the -th token, computed as follows:

where is the set of valid latent variable tuples such that , i.e., all valid spans ending at the -th token. The marginal probability we optimize for is then . The backward probability which is required for gradient computation can be similarly calculated.

3.4 Parameterization

We use neural networks to parameterize all probability distributions mentioned above. Decisions for time step

are based on a -dimensional hidden state . This hidden state can be generated by any neural sequence model, and we experiment with multiple models in experiments to demonstrate the generality of our approach.

3.4.1 Source Selection

Source selection is done using a simple linear model followed by a softmax function applied to the latest word-level hidden state :

are trainable parameters.

3.4.2 Word Generation

Like conventional word-level neural language models, we have the option to generate the next token from a fixed vocabulary. This option is used to generate any word that isn’t an object participating in a relation. The probability is:

where we define

as a linear transform with a bottleneck of dimension

into a vector over vocabulary size


where , , , are trainable parameters. Empirically we found this low-rank version to out-perform a full linear transform.

Generating unknown words

As our task is open-vocabulary language modeling, we must be able to generate words even if they are out of vocabulary. Following chung2016hierarchical and luong2016achieving, we do so by having a character-level LM “spell-out” any unknown words. If the unknown word is with characters:

where are the parameters of the character LM. We pre-train this model on the set of all the unique words in the training set and fix its parameters while training LRLM.

3.4.3 Relation Generation

The goal of relation generation is to find the most suitable span that can be copied into the text. As Line 14 of Algorithm 1 depicts, this probability is factorized into two steps: relation selection and surface form selection.

Relation selection

We utilize pretrained KG embeddings555Specifically, from OpenKE Han et al. (2018). for entities and relation types. For a relation , we concatenate KG embeddings for and to obtain the relation embedding .666We train embeddings for each relation type not covered by pre-trained embeddings, and an UNK embedding for attributes and entities not covered by pre-trained embeddings. We then compute the probability of selecting each relation as:

Surface form selection

We featurize surface forms via fastText Bojanowski et al. (2017) embeddings pre-trained on the training corpus, and calculate probability of surface form as:

where is the embedding for and , are trainable parameters.

Dataset Doc Vocab Rel/Ent Tok/Doc Ment/Doc
WikiFacts 07856 40.0k 82.71 157.25 9.64
WikiText-S 27685 71.1k 11.38 295.75 11.20
WikiText-F 27685 .264k 11.38 3559.91 73.01
Table 1: Training set statistics for all dataset variations: number of training documents, vocabulary size, relations per head entity, tokens per document, and entity mentions per document.

4 Datasets

We use two datasets with different characteristics for experiments; statistics are shown in Table 1.

4.1 WikiFacts

WikiFacts777 Ahn et al. (2016) is a collection of Wikipedia articles restricted to /film/actor domain entities in Freebase Bollacker et al. (2008). Each example consists of the first section of the original article. Since official splits for evaluation are not provided, we follow previous work and performed a random split of 80/10/10%.

In addition to Freebase, this dataset expands the set of relations by including topic entities from other articles linked to the page to be generated. Since these (gold) entities will not be available if we attempt to generate new articles, we remove them from the dataset for our main experiments888For consistency with prior work, we also report results with them in Appendix C..

Finally, we note that this dataset does not include aliases for entities, i.e., for all objects . Hence, the surface form selection module acts as oracle, where it always assigns a probability of 1 to the correct surface form.

4.2 WikiText

While WikiFacts has been used in previous work on LMs using structured data Ahn et al. (2016), the domain is limited (film actors). To investigate the capability of knowledge-infused LMs in an open-domain setting with a wide variety of relations, we build a large-scale open-domain dataset from the existing WikiText-103 dataset Merity et al. (2017b) by associating articles with entities in Wikidata Vrandečić and Krötzsch (2014). We employ the same data splits from the original dataset. In the following paragraphs, we discuss how we bridge KGs and the articles from WikiText-103 (more details in Appendix A).

Constructing subgraphs for articles

As discussed in Section 2, we take the original KG and extract a relevant subgraph for each article. While there are many options on how to extract this subgraph, we choose the subgraph consisting of direct neighbors of the topic entity for each article. This forms a star-shaped subgraph, with the topic entity as the central node, connected by the related entities and attributes. We found on average 3.1 surface forms for each entity.

Linking mentions with the KG

For each object in , we search for occurrences of all surface forms in the article while allowing token overlaps among them. Note that, similarly to distant supervision for relation extraction Mintz et al. (2009), this process can produce false positive relation mentions because of simple string-based matching. We rely on our model’s ability to ignore such mentions by learning to assign high probabilities only on the correct mentions.

We name the dataset obtained through this process WikiText-F (Full). We also create WikiText-S (Short) by truncating after the first sections of each example in WikiText-F. This dataset is similar to WikiFacts in terms of article length, and allows performance comparisons among the two datasets.

5 Experiments

As previously noted, we evaluate our models on open-vocabulary language modeling and report token-level perplexity. This provides more realistic perplexity measures of text than in closed setting by considering OOV words. Specifically, we use pre-trained character-level LMs from Section 3.4.2 for each dataset to discount the probability of an unknown word based on its spelling. Unlike UPP Ueberla (1994), which also adjusts the perplexity of OOV words but are limited within corpus, discounting based on spelling enables truly open-vocabulary evaluation. This is done for all tested models, both proposed and baselines.

5.1 Model Configuration

For WikiFacts, we use a fixed word vocabulary size of 40,000 following previous work. For WikiText-derived datasets, we include all words with frequencies no less than 3 in our dataset following Merity et al. (2017b). We use adaptive embeddings and softmax to handle large vocabulary Baevski and Auli (2019); Grave et al. (2017).

To calculate the hidden state , we test two varieties of neural sequence models: standard LSTMs Hochreiter and Schmidhuber (1997), and the state-of-the-art Transformer-XL Dai et al. (2019)

. We implement all models in PyTorch

Paszke et al. (2017)

. Training details and hyperparameters are summarized in Appendix


Base model Dataset Dev Test
LSTM WikiFacts 219.11 93.09 89.55 208.44 87.88 82.89
WikiText-S 068.37 46.16 45.84 086.12 55.98 55.38
WikiText-F 045.13 44.46 42.18 049.47 48.54 45.70
Transformer-XL WikiFacts 170.40 98.98 83.19 162.65 92.92 76.46
WikiText-S 042.63 43.05 37.75 052.96 52.51 44.98
WikiText-F 030.14 32.19 29.56 033.01 35.27 32.20
Table 2: Perplexity values of different models on open vocabulary language modeling, lower is better. Best results are in bold. Asterisk symbols represent statistical significance according to Wilcoxon signed-rank test Dror et al. (2018) against the better model among NKLM and Vanilla LM, with () and (), respectively.

5.2 Baselines

We compare LRLM against two baselines:

Vanilla language model (Vanilla LM)

This is a simplification of LRLM removing the relation generation module, analogous to standard LSTM or Transformer-XL language models from previous work Merity et al. (2017a); Dai et al. (2019).

Neural Knowledge Language Model (NKLM)

Similar to LRLM, the Neural Knowledge Language Model (NKLM; Ahn2016ANK) also has the ability to copy from a given set of KG triples, but differs from LRLM in several ways:

  1. [leftmargin=*, itemsep=1pt, parsep=2pt, topsep=6pt]

  2. LRLM marginalizes over all derivations of a sequence, which allows processing of overlapped tokens among spans, while NKLM makes all decisions in a hard fashion and cannot handle such overlapped tokens.999We perform additional data preprocessing on WikiText for NKLM, detailed in Appendix D.

  3. LRLM allows generation at span-level (i.e. can predict multi-word entities at once), while NKLM predicts one word at a time and the model needs to repeatedly predict the right relation until copying of an object is done.

The original NKLM does not differentiate between aliases, so we perform the same surface form selection as LRLM for fair comparison.

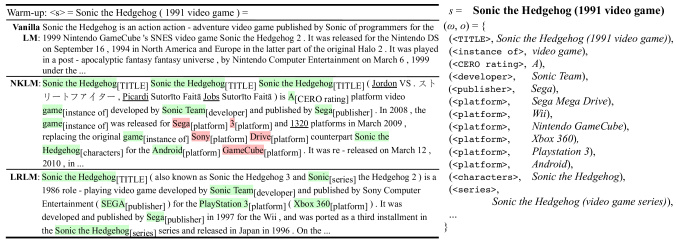

Figure 3: Samples from the three models for a topic entity “Sonic the Hedgehog (1991 video game)” with the corresponding subgraph on the right. Square brackets denote the relation type of copied objects. Highlighted spans in light green represent objects that are copied in full, whereas those in dark red represent partially copied objects. Underlined tokens are unknown words sampled from character model.

6 Results and Analysis

6.1 Main Results

Perplexities over the datasets are shown in Table 2. We observe that for both sequence models, LRLM out-performs the baselines on all datasets (although on the one case of LSTM+WikiText-S the improvement was not statistically significant). Particularly on the two WikiText-derived datasets, our model shows significant improvements over the baselines by leveraging KGs in comparison to the vanilla LM, while NKLM has difficulty utilizing the KGs to achieve better perplexity, and in some cases results in worse perplexities than the vanilla LM. Note that these results are on open-vocabulary modeling, and results and analyses on the closed vocabulary setting can be found in Appendix C. We also report UPP values Ueberla (1994) in Appendix E.

6.2 Generated Samples

To illustrate the behavior of the learned models, we take the three models trained on WikiText-S and draw 10 samples while conditioning on and , and show the sample with lowest perplexity in Figure 3. Highlighted terms with different colors represent two types of mentions generated from the relation predictor: full and partial. A full mention is an identical copy of an entity surface form, while a partial mention is an incomplete subphrase of an entity surface form. NKLM’s word-by-word generation scheme results in partial mention being generated, while LRLM does not due to span-level copying from KGs. A perfect model should not generate partial mentions as it leads to possibly corrupted phrases, and should generate the same set of full mentions as the gold mentions.

Although NKLM generates more mentions, it suffers from generating partial mentions because it 1) is unaware of the length of entities, and 2) requires making copy decisions as many times as the number of tokens in a phrase. As a result, we often observe NKLM switching entities or surface forms halfway through, ending mentions early, and repeating the same entity. In contrast, LRLM, by design, only generates full mentions.

We quantitatively show this in Table 3 by counting the average number of partial and full mentions in samples. We take 10 samples from 10 random development set articles. Next, we performed a precursory manual annotation of “valid” mentions, which we deemed as semantically correct based on the sentential context. NKLM generates more invalid mentions than LRLM, most of which are false positives and repetitions of the same entity. LRLM has almost no repetitions, but sometimes incorrectly predicts the article’s theme.101010For example, generating an article about a TV episode for a topic entity of a song.

Partial Full Valid Invalid
NKLM 16.9 7.81 6.37 1.44
LRLM 6.32 5.63 0.69
Gold 9.00 9.00 0.00
Table 3: Average number of partially generated, fully generated, and valid mentions over 100 samples from the development set or gold human-generated article.

6.3 Posterior Probability of Spans

One of the advantages of our model is its capability to calculate the posterior probability of a relation generating a span in an existing text. We calculate the joint probability of a span and the surrounding text111111We consider the text segment in the batch where the span belongs to as the surrounding text. by marginalizing over the latent variable for both sides of context, and normalize over all possible spans:

where is the backward probability calculated reversely following Section 3.3. Table 4 shows spans with the posterior probability of various relation types from an article about “Sorry (Madonna song)”. The model demonstrates the ability to relate the entity “Madonna” to the topic based on context. We also observe a general trend that the model prefers generating multi-word spans through relations rather than word by word from vocabulary. However, when generating common phrases (e.g., “the United States”), our model often favors word-based generation even if an alternative relation-based prediction is possible.

Title: Sorry (Madonna Song)
… song by American singer Madonna from her tenth …
Relations: <performer> 0.9697
<lyrics by> 0.0289
word 0.0014
… written and produced by Madonna and Stuart Price , …
Relations: <performer> 0.1545
<lyrics by> 0.7693
word 0.0762
… continuation from the “ Hung Up ” music video . …
Relations: <follows> 1.0000
word 0.0000
… . However , in the United States , the song did …
Relations: <origin> 0.0000
    word <origin> 0.0003
word 0.9997
Table 4: Posterior probability of spans (highlighted) in contexts. word represents word-based generation. The second relation in the last example means generation of “the” using word, followed by relation-based generation of “United States” using the <origin> relation.

6.4 Effect of Subgraph Size

Finally, we measure the performance of models with respect to the richness of resource available for conditioning. We group WikiFacts articles into 10 bins by the number of relations available, and plot binned word-average log-probabilities in Figure 4. While all models have slightly higher log-probabilities as the number of relations increase, LRLM achieves the largest gain. We believe this is due to marginalization over the latent variables in LRLM helping better disambiguate between many candidates, while NKLM struggles to predict the right relations and surface form lengths as the number of candidates increases.

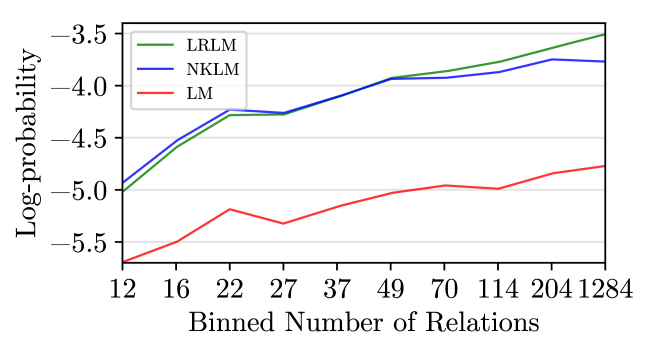

Figure 4: Word-average log-probabilities on development set of WikiFacts grouped by average relations per article. LRLM shows a larger gain over the baselines as the number of relations increases.

7 Related Work

A variety of entity-aware LMs exist, conditioning on a variety of information sources such as expert coreference annotations Ji et al. (2017); Clark et al. (2018); Yang et al. (2017), entity annotations Logan et al. (2019), definitions Bahdanau et al. (2017), or keywords Kiddon et al. (2016); Parvez et al. (2018). As mentioned above, NKLM Ahn et al. (2016) is the most relevant previous work that uses relational information. Our proposed LRLM formulation is more successful at lowering perplexity and also allows calculating posterior probabilities of relations.

Incorporating KGs for natural language generation (NLG) has a long history

Goldberg et al. (1994); Reiter et al. (2005); Chen and Mooney (2008). With the recent advancement of neural sequence modeling, prevalent approaches for language generation from KGs employ sequence-to-sequence models Sutskever et al. (2014) with special attention mechanisms tailored for input structures such as graphs Wang et al. (2018) or tables Liu et al. (2018); Perez-Beltrachini and Lapata (2018). Unlike our focus, however, this class of research focuses on learning discriminative models that do not explicitly generate the referent entity as latent variables, like we do in Section 6.3.

While not directly related to our core task, there have been a number of other methods for incorporating latent variables into NLG problems. Latent structure has included predicting latent sequences of topics Wiseman et al. (2018), chunking of word sequences into -grams Buckman and Neubig (2018), deciding between input sources Ling et al. (2016); Gu et al. (2016), predicting latent continuous vectors Bowman et al. (2016), generating compressed summary tokens Miao and Blunsom (2016), or inducing syntactic and semantic trees Yogatama et al. (2016); Yin et al. (2018). Our work borrows heavily from Ling et al. (2016), who select from multiple sources for source code generation. We use a similar method for selecting latent sources for Wikipedia article language modeling with a repository of KG triples.

8 Conclusion

In this work, we propose Latent Relation Language Models, a class of conditional language models conditioned on knowledge graphs. Our generative framework models text as a sequence of spans, some of which are generated as entities included in the knowledge graph. Marginalization over latent variables allows the model to not only out-perform previous work in conditional language modeling tasks, but also score spans with their posterior relation probability.


This research was supported in part by Funai Foundation for Information Technology and Amazon. The authors would also like to thank Qian Wang for helping designing the model figure and the members of the NeuLab for helpful discussion.


  • Ahn et al. (2016) Sungjin Ahn, Heeyoul Choi, Tanel Pärnamaa, and Yoshua Bengio. 2016. A neural knowledge language model. CoRR, arXiv:1608.00318.
  • Angeli et al. (2010) Gabor Angeli, Percy Liang, and Dan Klein. 2010. A simple domain-independent probabilistic approach to generation. In

    Proceedings of the 2010 Conference on Empirical Methods in Natural Language Processing

    , pages 502–512. Association for Computational Linguistics.
  • Arthur et al. (2016) Philip Arthur, Graham Neubig, and Satoshi Nakamura. 2016. Incorporating discrete translation lexicons into neural machine translation. In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, pages 1557–1567. Association for Computational Linguistics.
  • Baevski and Auli (2019) Alexei Baevski and Michael Auli. 2019. Adaptive input representations for neural language modeling. In International Conference on Learning Representations.
  • Bahdanau et al. (2017) Dzmitry Bahdanau, Tom Bosc, Stanisław Jastrzębski, Edward Grefenstette, Pascal Vincent, and Yoshua Bengio. 2017. Learning to compute word embeddings on the fly. CoRR, arXiv:1706.00286.
  • Barzilay and Lapata (2005) Regina Barzilay and Mirella Lapata. 2005. Collective content selection for concept-to-text generation. In Proceedings of Human Language Technology Conference and Conference on Empirical Methods in Natural Language Processing, pages 331–338. Association for Computational Linguistics.
  • Baum et al. (1970) Leonard E. Baum, Ted Petrie, George Soules, and Norman Weiss. 1970. A maximization technique occurring in the statistical analysis of probabilistic functions of markov chains. The Annals of Mathematical Statistics, 41(1):164–171.
  • Bengio et al. (2003) Yoshua Bengio, Réjean Ducharme, Pascal Vincent, and Christian Jauvin. 2003. A neural probabilistic language model.

    Journal of Machine Learning Research

    , 3(Feb):1137–1155.
  • Bojanowski et al. (2017) Piotr Bojanowski, Edouard Grave, Armand Joulin, and Tomas Mikolov. 2017. Enriching word vectors with subword information. Transactions of the Association for Computational Linguistics, 5:135–146.
  • Bollacker et al. (2008) Kurt Bollacker, Colin Evans, Praveen Paritosh, Tim Sturge, and Jamie Taylor. 2008. Freebase: A collaboratively created graph database for structuring human knowledge. In Proceedings of the 2008 ACM SIGMOD International Conference on Management of Data, SIGMOD ’08, pages 1247–1250. Association for Computing Machinery.
  • Bowman et al. (2016) Samuel R. Bowman, Luke Vilnis, Oriol Vinyals, Andrew Dai, Rafal Jozefowicz, and Samy Bengio. 2016. Generating sentences from a continuous space. In Proceedings of The 20th SIGNLL Conference on Computational Natural Language Learning, pages 10–21, Berlin, Germany. Association for Computational Linguistics.
  • Buckman and Neubig (2018) Jacob Buckman and Graham Neubig. 2018. Neural lattice language models. Transactions of the Association for Computational Linguistics, 6:529–541.
  • Ceccarelli et al. (2013) Diego Ceccarelli, Claudio Lucchese, Salvatore Orlando, Raffaele Perego, and Salvatore Trani. 2013. Learning relatedness measures for entity linking. In Proceedings of the 22nd ACM International conference on Information & Knowledge Management, pages 139–148. Association for Computing Machinery.
  • Chen and Mooney (2008) David L. Chen and Raymond J. Mooney. 2008. Learning to sportscast: A test of grounded language acquisition. In Proceedings of the 25th International Conference on Machine Learning, pages 128–135. Association for Computing Machinery.
  • Chung et al. (2017) Junyoung Chung, Sungjin Ahn, and Yoshua Bengio. 2017. Hierarchical multiscale recurrent neural networks. In International Conference on Learning Representations.
  • Clark et al. (2018) Elizabeth Clark, Yangfeng Ji, and Noah A. Smith. 2018. Neural text generation in stories using entity representations as context. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pages 2250–2260. Association for Computational Linguistics.
  • Dai and Le (2015) Andrew M. Dai and Quoc V. Le. 2015. Semi-supervised sequence learning. In Advances in Neural Information Processing Systems 28, pages 3079–3087.
  • Dai et al. (2019) Zihang Dai, Zhilin Yang, Yiming Yang, Jaime Carbonell, Quoc Le, and Ruslan Salakhutdinov. 2019. Transformer-XL: Attentive language models beyond a fixed-length context. In Proceedings of the 57th Annual Meeting of the Association for Computational Linguistics, pages 2978–2988, Florence, Italy. Association for Computational Linguistics.
  • Dror et al. (2018) Rotem Dror, Gili Baumer, Segev Shlomov, and Roi Reichart. 2018. The hitchhiker’s guide to testing statistical significance in natural language processing. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1383–1392, Melbourne, Australia. Association for Computational Linguistics.
  • Felice et al. (2014) Mariano Felice, Zheng Yuan, Øistein E. Andersen, Helen Yannakoudakis, and Ekaterina Kochmar. 2014. Grammatical error correction using hybrid systems and type filtering. In Proceedings of the Eighteenth Conference on Computational Natural Language Learning: Shared Task, pages 15–24, Baltimore, Maryland. Association for Computational Linguistics.
  • Ganea and Hofmann (2017) Octavian-Eugen Ganea and Thomas Hofmann. 2017. Deep joint entity disambiguation with local neural attention. In Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, pages 2619–2629, Copenhagen, Denmark. Association for Computational Linguistics.
  • Goldberg et al. (1994) Eli Goldberg, Norbert Driedger, and Richard I Kittredge. 1994. Using natural-language processing to produce weather forecasts. IEEE Expert, 9(2):45–53.
  • Grave et al. (2017) Édouard Grave, Armand Joulin, Moustapha Cissé, David Grangier, and Hervé Jégou. 2017. Efficient softmax approximation for GPUs. In Proceedings of the 34th International Conference on Machine Learning, volume 70 of Proceedings of Machine Learning Research, pages 1302–1310, International Convention Centre, Sydney, Australia. PMLR.
  • Gu et al. (2016) Jiatao Gu, Zhengdong Lu, Hang Li, and Victor O.K. Li. 2016. Incorporating copying mechanism in sequence-to-sequence learning. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1631–1640, Berlin, Germany. Association for Computational Linguistics.
  • Han et al. (2018) Xu Han, Shulin Cao, Xin Lv, Yankai Lin, Zhiyuan Liu, Maosong Sun, and Juanzi Li. 2018. OpenKE: An open toolkit for knowledge embedding. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing: System Demonstrations, pages 139–144. Association for Computational Linguistics.
  • Hochreiter and Schmidhuber (1997) Sepp Hochreiter and Jürgen Schmidhuber. 1997. Long short-term memory. Neural Computation, 9(8):1735–1780.
  • Ji et al. (2017) Yangfeng Ji, Chenhao Tan, Sebastian Martschat, Yejin Choi, and Noah A. Smith. 2017. Dynamic entity representations in neural language models. In Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, pages 1830–1839, Copenhagen, Denmark. Association for Computational Linguistics.
  • Kiddon et al. (2016) Chloé Kiddon, Luke Zettlemoyer, and Yejin Choi. 2016. Globally coherent text generation with neural checklist models. In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, pages 329–339. Association for Computational Linguistics.
  • Kingma and Ba (2015) Diederik P. Kingma and Jimmy Ba. 2015. Adam: A method for stochastic optimization. In International Conference on Learning Representations.
  • Konstas and Lapata (2013) Ioannis Konstas and Mirella Lapata. 2013. A global model for concept-to-text generation.

    Journal of Artificial Intelligence Research

    , 48:305–346.
  • Lebret et al. (2016) Rémi Lebret, David Grangier, and Michael Auli. 2016. Neural text generation from structured data with application to the biography domain. In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, pages 1203–1213. Association for Computational Linguistics.
  • Ling et al. (2016) Wang Ling, Phil Blunsom, Edward Grefenstette, Karl Moritz Hermann, Tomáš Kočiský, Fumin Wang, and Andrew Senior. 2016. Latent predictor networks for code generation. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 599–609. Association for Computational Linguistics.
  • Liu et al. (2018) Tianyu Liu, Kexiang Wang, Lei Sha, Baobao Chang, and Zhifang Sui. 2018. Table-to-text generation by structure-aware seq2seq learning. Proceedings of the Thirty-Second AAAI Conference on Artificial Intelligence.
  • Logan et al. (2019) Robert Logan, Nelson F. Liu, Matthew E. Peters, Matt Gardner, and Sameer Singh. 2019. Barack’s wife Hillary: Using knowledge graphs for fact-aware language modeling. In Proceedings of the 57th Annual Meeting of the Association for Computational Linguistics, pages 5962–5971, Florence, Italy. Association for Computational Linguistics.
  • Luong and Manning (2016) Minh-Thang Luong and Christopher D. Manning. 2016. Achieving open vocabulary neural machine translation with hybrid word-character models. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1054–1063. Association for Computational Linguistics.
  • Merity et al. (2017a) Stephen Merity, Nitish Shirish Keskar, and Richard Socher. 2017a. Regularizing and optimizing LSTM language models. CoRR, arXiv:1708.02182.
  • Merity et al. (2017b) Stephen Merity, Caiming Xiong, James Bradbury, and Richard Socher. 2017b. Pointer sentinel mixture models. In International Conference on Learning Representations.
  • Miao and Blunsom (2016) Yishu Miao and Phil Blunsom. 2016. Language as a latent variable: Discrete generative models for sentence compression. In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, pages 319–328, Austin, Texas. Association for Computational Linguistics.
  • Mikolov et al. (2010) Tomáš Mikolov, Martin Karafiát, Lukáš Burget, Jan Černockỳ, and Sanjeev Khudanpur. 2010. Recurrent neural network based language model. In Eleventh Annual Conference of the International Speech Communication Association.
  • Mintz et al. (2009) Mike Mintz, Steven Bills, Rion Snow, and Daniel Jurafsky. 2009. Distant supervision for relation extraction without labeled data. In Proceedings of the Joint Conference of the 47th Annual Meeting of the ACL and the 4th International Joint Conference on Natural Language Processing of the AFNLP, pages 1003–1011, Suntec, Singapore. Association for Computational Linguistics.
  • Neubig and Dyer (2016) Graham Neubig and Chris Dyer. 2016. Generalizing and hybridizing count-based and neural language models. In Proceedings of the 2016 Conference on Empirical Methods in Natural Language Processing, pages 1163–1172, Austin, Texas. Association for Computational Linguistics.
  • Parvez et al. (2018) Md Rizwan Parvez, Saikat Chakraborty, Baishakhi Ray, and Kai-Wei Chang. 2018. Building language models for text with named entities. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 2373–2383, Melbourne, Australia. Association for Computational Linguistics.
  • Paszke et al. (2017) Adam Paszke, Sam Gross, Soumith Chintala, Gregory Chanan, Edward Yang, Zachary DeVito, Zeming Lin, Alban Desmaison, Luca Antiga, and Adam Lerer. 2017. Automatic differentiation in PyTorch.
  • Perez-Beltrachini and Lapata (2018) Laura Perez-Beltrachini and Mirella Lapata. 2018. Bootstrapping generators from noisy data. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pages 1516–1527. Association for Computational Linguistics.
  • Peters et al. (2018) Matthew Peters, Mark Neumann, Mohit Iyyer, Matt Gardner, Christopher Clark, Kenton Lee, and Luke Zettlemoyer. 2018. Deep contextualized word representations. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pages 2227–2237. Association for Computational Linguistics.
  • Piccinno and Ferragina (2014) Francesco Piccinno and Paolo Ferragina. 2014. From TagME to WAT: a new entity annotator. In Proceedings of the First International Workshop on Entity Recognition & Disambiguation, pages 55–62. Association for Computing Machinery.
  • Radford et al. (2019) Alec Radford, Jeffrey Wu, Rewon Child, David Luan, Dario Amodei, and Ilya Sutskever. 2019. Language models are unsupervised multitask learners. Preprint.
  • Reiter et al. (2005) Ehud Reiter, Somayajulu Sripada, Jim Hunter, Jin Yu, and Ian Davy. 2005. Choosing words in computer-generated weather forecasts. Artificial Intelligence, 167(1-2):137–169.
  • Salton and McGill (1986) Gerard Salton and Michael J. McGill. 1986. Introduction to Modern Information Retrieval. McGraw-Hill, Inc., New York, NY, USA.
  • Sundermeyer et al. (2012) Martin Sundermeyer, Ralf Schlüter, and Hermann Ney. 2012. LSTM neural networks for language modeling. In Thirteenth Annual Conference of the International Speech Communication Association.
  • Sutskever et al. (2014) Ilya Sutskever, Oriol Vinyals, and Quoc V Le. 2014. Sequence to sequence learning with neural networks. In Advances in Neural Information Processing Systems 27, pages 3104–3112.
  • Tang et al. (2016) Yaohua Tang, Fandong Meng, Zhengdong Lu, Hang Li, and Philip LH Yu. 2016. Neural machine translation with external phrase memory. CoRR, arXiv:1606.01792.
  • Ueberla (1994) Joerg Ueberla. 1994. Analysing a simple language model⋅ some general conclusions for language models for speech recognition. Computer Speech & Language, 8(2):153–176.
  • Vrandečić and Krötzsch (2014) Denny Vrandečić and Markus Krötzsch. 2014. Wikidata: A free collaborative knowledgebase. Communications of the ACM, 57(10):78–85.
  • Wang et al. (2018) Qingyun Wang, Xiaoman Pan, Lifu Huang, Boliang Zhang, Zhiying Jiang, Heng Ji, and Kevin Knight. 2018. Describing a knowledge base. In Proceedings of the 11th International Conference on Natural Language Generation, pages 10–21. Association for Computational Linguistics.
  • Williams and Peng (1990) Ronald J. Williams and Jing Peng. 1990. An efficient gradient-based algorithm for on-line training of recurrent network trajectories. Neural Computation, 2(4):490–501.
  • Wiseman et al. (2018) Sam Wiseman, Stuart Shieber, and Alexander Rush. 2018. Learning neural templates for text generation. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pages 3174–3187, Brussels, Belgium. Association for Computational Linguistics.
  • Yang et al. (2018) Zhilin Yang, Zihang Dai, Ruslan Salakhutdinov, and William W. Cohen. 2018. Breaking the softmax bottleneck: A high-rank RNN language model. In International Conference on Learning Representations.
  • Yang et al. (2017) Zichao Yang, Phil Blunsom, Chris Dyer, and Wang Ling. 2017. Reference-aware language models. In Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, pages 1850–1859. Association for Computational Linguistics.
  • Yin et al. (2018) Pengcheng Yin, Chunting Zhou, Junxian He, and Graham Neubig. 2018. StructVAE: Tree-structured latent variable models for semi-supervised semantic parsing. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 754–765. Association for Computational Linguistics.
  • Yogatama et al. (2016) Dani Yogatama, Phil Blunsom, Chris Dyer, Edward Grefenstette, and Wang Ling. 2016. Learning to compose words into sentences with reinforcement learning. In International Conference on Learning Representations.
  • Zipf (1949) George Kingsley Zipf. 1949. Human behavior and the principle of least effort: An introduction to human eoclogy. Addison-Wesley Press.

Appendix A Article Collection

We collect seed Wikipedia articles from the raw release of WikiText-103 Merity et al. (2017b), where raw vocabulary was preserved. Minimal preprocessing was performed by the dataset providers.121212Data can be found at The dataset provides an open domain, quality-assured set of Wikipedia articles verified by editors. We take the dataset and split each set back into per-article texts with simple regular expression rules for detecting titles. Then we query the Wikipedia API to identify the Wikidata entity131313We used a Wikidata dump as of 2018/09/20. for each article. During this process, we discarded some articles in the training set where the API failed to return Wikidata IDs, which was due to their deletion or title renames since the release of original dataset in 2016. For development and test set, we manually matched the few missed articles to recover all the articles.

Common hyperparameters
Learning rate decay rate 0.9
Batch size 60
BPTT window size 150
Entity embedding size 50/100/100
fastText embedding size 300
Transformer-XL hyperparameters
Learning rate 0.00025
Warm up steps 6000
Attention dropout rate 0
Dropout rate 0.1
Embedding size 410
FC layer hidden unit size 2100
Memory size 150
Number of layers 16
Number of heads 10
Per-head attention dimension 41
LSTM hyperparameters
Learning rate 0.001
Dropout rate 0.5 / 0.5 / 0.1
Embedding size 400 / 400 / 512
Hidden unit size 1000 / 1000 / 1024
Linear hidden unit size 1000 / 1000 / 500
Number of layers 2/2/4
LRLM-specific hyperparameters
Relation linear hidden unit size 1000 / 1000 / 800
NKLM-specific hyperparameters
Max position count 20
Position embedding size 40 / 40 / 50
Table 5: Model and training hyperparameters that are common across the models. Slash-delimited values represent different hyperparameters used in WikiFacts, WikiText-S, WikiText-F, respectively.

Appendix B Training Details and Hyperparameters

Training Details

All models are trained using Adam Kingma and Ba (2015)

. Models equipped with Transformer-XL are trained with the same schedule as the original paper; the learning rate is linearly increased over the first 6000 gradient steps up to 0.00025, and reduced according to cosine annealing. Models with LSTM are trained with the initial learning rate set to 0.001. Validation is performed on the development set after every epoch, and when validation loss does not improve, learning rate is multiplied by 0.9 and the model and optimizer parameters are reset to the previous checkpoint. For all experiments, we use truncated backpropagation through time

Williams and Peng (1990) with the truncation window size being 150.


We list the common model hyperparameters for the model in Table 5. While we use the same Transformer-XL hyperparameters across datasets, we apply different sets of LSTM hyperparameters on WikiFacts, WikiText-S, and WikiText-F for better performance. See Section 5 for more details on the vocabulary size. We take pre-trained KG embeddings from OpenKE Han et al. (2018), with dimensions of 50 and 100 for WikiFacts and WikiText respectively.141414Ahn et al. (2016) uses 100-d KG embeddings, but there were no publicly available embeddings in that dimension.

Appendix C Utilization of Extra Entities

Dataset Dev Test
WikiFacts 217.19 95.68 94.64 207.54 90.44 87.73
Entity 217.19 59.84 54.60 207.54 57.14 51.34
Oracle char model 088.03 38.54 34.73 084.56 37.23 33.02
Ahn et al. (2016) 082.4 41.4 086.4 43.6
Table 6: Perplexity values of models on WikiFacts, lower is better. “ Entity” means trained with extra entities; “ Oracle char model” means treating the character model as oracle, i.e., treating spell-out probabilities of OOV words as 1. Best results are in bold. Note that our results are not directly comparable with reported results by Ahn et al. (2016) due to different dataset splits being used.
Base model Dataset Dev Test
LSTM WikiFacts 156.29 74.04 71.20 148.05 70.08 66.09
WikiText-S 065.42 49.95 44.44 080.69 60.96 52.81
WikiText-F 043.59 42.99 40.88 047.14 46.37 43.72
Transformer-XL WikiFacts 121.55 78.72 66.14 115.53 74.09 60.96
WikiText-S 040.79 41.59 37.75 049.62 49.92 42.76
WikiText-F 029.11 32.19 28.59 031.45 33.69 30.75
Table 7: UPP of different models, lower is better. Best results are in bold. Asterisk symbols represent statistical significance according to Wilcoxon signed-rank test Dror et al. (2018) against the better model among NKLM and Vanilla LM, with () and (), respectively.

Adding extra entities to WikiFacts increased the average number of relations per article from 82.71 to 89.28, and mentions from 9.64 to 16.97. On average, each added entity matches 1.12 spans.

Table 6 compares results under different settings. The inclusion of extra entities significantly improves results for both models. This is due to the fact that these entities are extracted from hyperlinks within text, so 1) they are mostly rare words; 2) the model can easily learn that all such entities must be included in the text at some point.

Appendix D Data Preprocessing for NKLM


The provided WikiFacts dataset contains KG subgraphs and text annotated with non-overlapping matched spans. Copying positions151515Copying position of a word is the 0-based word index into the matching entity surface form, which indicates the position to copy from. are sequentially assigned within a matched span.

One caveat is that the dataset includes relations containing Freebase Compound Value Type (CVT) as entities. These types are used to encapsulate a structured representation with multiple fields. We removed all relations where the subject entity is a CVT. For relations where the object entity is a CVT, we substitute it with multiple relations using the field types and values of the CVT. Without CVT-based relations, each article has on average 37.67 relations.


The WikiText-derived dataset is constructed using the methods described in Section 4. The methods can potentially match overlapping spans, which cannot be handled by NKLM.

Thus, we prune the set of matching spans for each article so that no two spans overlap. Pruning is done by iterating over the spans in a predefined order, and greedily selecting spans that do not overlap with previously selected spans. The spans are ordered by the following criteria:

  • [topsep=4pt,leftmargin=*,itemsep=0pt,parsep=0pt]

  • In descending order of span length. (Prefer longer spans)

  • In ascending order of span starting index. (Prefer spans appearing earlier)

  • Order spans that match entity canonical forms (the first surface form in list) in front. (Prefer spans matching canonical forms)

  • Ties are broken by relation type ID and index of matched surface form.

While NKLM supports partial and arbitrary-order entity matches by specifying copying positions,161616For example, the entity “Barack Hussein Obama” can match the text “Obama Barack” with copying positions 2 and 0. we do not perform this kind of matching as it greatly increases the complexity of the matching algorithm, and could produce more false positives. We sequentially assign copying positions within matched spans as in WikiFacts.

Appendix E Comparison of Models using UPP

We show the main results evaluated according to UPP Ueberla (1994) in Table 7. This adjusted perplexity measure penalizes unknown word probabilities by a constant value of , where is the set of OOV words in a corpus.
