Introduction
Probabilistic modeling is one of the foundations of modern machine learning and artificial intelligence, which aims to compactly represent the joint probability distribution of random variables. The most widely used approach for probabilistic modeling is probabilistic graphical models. A probabilistic graphical model represents a probability distribution with a directed or undirected graph. It represents random variables with the nodes in the graph and uses the edges in the graph to encode the probabilistic relationships between random variables. However, traditional probabilistic graphical models have a number of limitations. First, inference takes exponential time in the worst case. Second, learning probabilistic graphical models (in particular, learning the model structures) is very difficult in general. Third, the dependencies between variables are fixed and therefore contextspecific independence (CSI) (i.e., independency between variables that only holds given a specific assignment of certain variables) cannot be represented in the basic form of probabilistic graphical models.
To alleviate or solve the first two problems of probabilistic graphical models, a number of tractable probabilistic models are proposed. One example is mixtures of trees (MTs) [Meila and Jordan2001], which represent a probability distribution with a finite mixture of tree distributions. Inference and learning of MTs are both tractable. In addition, certain CSI can be represented in MTs.
More recently, sumproduct networks (SPNs) [Poon and Domingos2011] have been proposed as a type of very expressive tractable probabilistic models that subsume many previous probabilistic models as special cases. A SPN can be represented as a rooted directed acyclic graph with univariate distributions as leaves and sums and products as internal nodes. Exact inference in SPNs can be done in linear time with respect to the network size. However, the large number of latent sum and product nodes in SPNs makes learning (especially structure learning) of SPNs very challenging.
It has been shown that SPNs can be seen as an extension of probabilistic contextfree grammars (PCFGs) and a special case of stochastic AndOr grammars [Poon and Domingos2011, Tu2016b]
. Based on this observation, we would like to draw a parallel between learning probabilistic models such as SPNs and unsupervised learning of probabilistic grammars. Learning the structure of a probabilistic model resembles learning the set of production rules of a grammar, while learning model parameters resembles learning grammar rule probabilities. From the unsupervised grammar learning literature, one can see that learning approaches based on PCFGs have not been very successful, while the stateoftheart performance has mostly been achieved based on less expressive models such as dependency grammars (DGs)
[Klein and Manning2004, Headden III, Johnson, and McClosky2009, Tu and Honavar2012, Spitkovsky2013]. In comparison with PCFGs, DGs eliminate all the latent nodes (i.e., nonterminals) and therefore the difficult discrete optimization problem of structure learning can be easily converted into the more amenable continuous optimization problem of parameter learning. Inspired by this property of DGs, we propose latent dependency forest models (LDFMs) as a new type of probabilistic models. LDFMs encode the relations between variables with a dependency forest (a set of trees). A distribution over all possible dependency forests given the current assignment of variables is specified using a firstorder nonprojective DG [McDonald and Satta2007]. The probability of a complete assignment can then be computed by adding up the weights of all the dependency forests. Figure 1 gives an example of using LDFMs to compute the joint probability of an assignment of two random variables. The number of possible forests grows exponentially with the number of variables, but the summation of the forest weights can still be computed tractably by utilizing the Matrix Tree Theorem (MTT) [Tutte1984].Compared with existing probabilistic models, LDFMs have the following features. Similar to SPNs, LDFMs model latent dependencies between random variables, i.e., the dependencies are dynamically determined based on the assignments of the random variables, and therefore LDFMs are capable of modeling CSI (we give an example of modeling CSI with LDFMs in the supplementary material). Unlike SPNs, there is no latent variable in LDFMs, resulting in easier learning. Similar to MTs, LDFMs assume the latent dependencies to form a forest structure; but unlike MTs that restrict the possible dependency structure to a small number of forest structures, LDFMs consider all
possible forest structures at the same time. By parameterizing the model using a firstorder nonprojective DG, unnormalized joint probability computation can still be made tractable. Unlike most of the previous probabilistic models, learning LDFMs from data can be formulated purely as a parameter learning problem without the difficult step of structure learning, and therefore it can be handled by any continuous optimization approach such as the expectationmaximization (EM) algorithm.
Related Work
Probabilistic Modeling
Probabilistic modeling aims to compactly model a joint distribution over a set of random variables. Many different types of probabilistic models have been proposed in the literature. The most widely used probabilistic models are perhaps Bayesian networks (BNs)
[Pearl1988] and Markov networks (MNs) [Kindermann and Snell1980]. A BN models a set of random variables and their conditional dependencies with a directed acyclic graph (DAG). The nodes in the DAG represent the random variables and the edges represent the dependencies. The dependencies are specified between variables regardless of their assignments, so CSI is not representable. The inference of BNs is generally intractable: computing the exact probability of a marginal or conditional query is Pcomplete [Roth1996]. In addition, learning the structure of BNs from data is very challenging and finding the global optimum structure is known to be NPhard [Chickering, Heckerman, and Meek2004]. A MN is similar to a BN in its representation of dependencies, the differences being that BNs are directed and acyclic, whereas MNs are undirected and may be cyclic. In general, exact inference of MNs is also Pcomplete [Roth1996] and learning of MNs is hard.Mixtures of trees (MTs) [Meila and Jordan2001] represent joint probability distributions as finite mixtures of tree distributions. One can represent certain CSI in MTs by using different tree distributions to model different contexts. Like most mixture models, the EM algorithm can be used for the learning of MTs. The inference of MTs takes linear time in (the number of variables) and each step of the EM learning algorithm takes quadratic time in . The number of mixture components in a MT is usually set to a small number in practice. LDFMs can also be seen as a mixture of tree distributions, but unlike MTs, LDFMs consider all possible structures of tree distributions and resort to firstorder nonprojective DGs to encode the mixture weight of each tree distribution.
A sumproduct network (SPN) [Poon and Domingos2011] is a tractable deep probabilistic model represented as a rooted DAG with univariate distributions as leaves and sums and products as internal nodes. A sum node computes the weighted sum of its child nodes and a product node computes the product of its child nodes. The root of a SPN can represent different types of probability distributions according to different inputs. For example, when all the leaves are set to , the root represents the partition function; when the input is evidence, the root represents the unnormalized marginal probability of the evidence; and when the input is a complete assignment, the root represents the unnormalized joint probability. SPNs can also represent CSI by using different subSPNs to model distributions of variables under different contexts. Calculating the root value of a SPN is a bottomup process with time complexity linear in the network size, so inference is tractable in terms of the network size. Structure learning of SPNs is still a challenging problem involving difficult discrete optimization and recently a variety of approaches have been proposed [Gens and Pedro2013, Rooshenas and Lowd2014, Adel, Balduzzi, and Ghodsi2015]. More recently, some subclasses of SPNs have been proposed [Rahman, Kothalkar, and Gogate2014, Peharz, Gens, and Domingos2014].
For most of the above models, learning involves identification of a good model structure, which is typically a difficult discrete optimization problem. Borrowing ideas from the unsupervised grammar learning literature, we formulate a LDFM as a firstorder nonprojective dependency “grammar” on variable assignments and circumvent the structure learning step by including all possible “grammar rules” in the model and then learning their parameters.
Dependency Grammars
In natural language processing (NLP), dependency grammars (DGs) are a simple flexible mechanism for encoding words and their syntactic dependencies through directed graphs. In the directed graph derived from a sentence, each word is a node and the dependency relationships between words are the edges. In a nonprojective dependency graph, an edge can cross with other edges. Nonprojectivity arises due to long distance dependencies or in languages with flexible order. In most cases, the dependency structure is assumed to be a directed tree. Figure
2 is an example nonprojective dependency tree for the sentence A hearing is scheduled on the issue today. Each edge connects a word to its modifier and is labeled with the specific syntactic function of the dependency, e.g., SBJ for subject. Dependency parsing (finding the dependency trees) is an important task in NLP and McDonald et al. [McDonald et al.2005] proposed an efficient parsing algorithm for firstorder nonprojective DGs by searching for maximum spanning trees (MSTs) in directed graphs. McDonald and Satta [McDonald and Satta2007] appealed to Matrix Tree Theorem to make unsupervised learning feasible for firstorder nonprojective DGs via the EM algorithm.LDFMs can be seen as an extension of firstorder nonprojective DGs for probabilistic modeling. There are two main differences between nonprojective DGs and LDFMs. One difference is that LDFMs use the nodes in a dependency tree to represent the assignments of the variables, while nonprojective DGs use the nodes to represent the words in a sentence. The other difference is that when viewed as generative models, a DG always produces a valid sentence while a LDFM may produce invalid assignments of variables if there are conflicting or missing assignments.
Latent Dependency Forest Models
Basics
Let be a set of random variables and be an assignment to the set of random variables. Given an assignment , we construct a complete directed graph such that,

where is a dummy root node.

contains all possible pairwise dependencies between the variables under the current assignments . We assume that the actual dependency relations between the variables always form a forest structure (a set of trees). By adding an edge from the dummy root node to the root of each tree of the dependency forest, we obtain a single dependency tree structure that is a directed spanning tree of the graph rooted at . We denote this tree by , where .
We assume that the strength of each pairwise dependency is independent of any other dependencies and denote the dependency strength from node to node by edge weight . We can compute the strength or weight of a spanning tree as the product of the edge weights:
The partition function is the sum over the weights of all possible dependency trees for a given assignment , which represents the weight of the assignment. We denote this value as .
is the set of all possible dependency trees. The size of is exponential in , but we can use Matrix Tree Theorem [Tutte1984] to compute the partition function tractably.
Matrix Tree Theorem (MTT).
Let be a graph with nodes and edges . Define (Laplacian) matrix as a matrix indexed from to . For all and , define:
If the th row and column are removed from to produce the matrix , then the sum of the weights of all the directed spanning trees rooted at node is equal to the determinant of .
Thus, to compute , we construct matrix from graph and compute the determinant of matrix . The time complexity is if we use LU decomposition for determinant calculation.
Based on the framework introduced above, now we present two generative probabilistic models: LDFM and LDFMS.
Ldfm
LDFM requires that the weight of each dependency is the conditional probability of generating the variable and setting its value to given the assignment or the root node. We denote this probability by . We impose the constraint and the normalization condition for each (or for continuous variables).
An assignment is generated recursively in a topdown manner. First, we generate a dependency tree with nodes uniformly at random. We label the root node as . Then, starting from the root node, we recursively traverse the tree in preorder; at each nonroot node, we generate a pair conditioned on the pair of its parent node. The probability of generating an assignment is:
where is the uniform probability of the tree structure, and is a constant w.r.t. . The derivation details can be found in the supplementary material.
Note that, however, the above process may also generate invalid assignments. First, it allows multiple assignments of the same variable to be generated at different nodes, resulting in duplicate or conflicting assignments. Second, since there are only nonroot nodes, if some variables are assigned at multiple nodes, then there must be some other variables that are not assigned at all. One could modify the generation process to disallow invalid assignments, but that would break the assumed independence between the strength of pairwise dependencies, leading to intractable computation of the partition function .
Since we are only interested in the space of valid assignments (i.e., no duplicate or missing variable assignment), we define the joint probability of a valid assignment as
where is the set of valid assignments and is the normalization factor. The joint probability is proportional to the partition function , so we can use MTT to compute the unnormalized joint probability. However, the normalized joint probability is intractable to compute because computing the normalization factor is Phard, which is similar to the case of Markov networks.
LdfmS
The assumption of uniformly distributed tree structures in LDFM can be unreasonable in many cases. In LDFMS, instead of first uniformly sampling a tree structure and then instantiating the tree nodes, we generate the tree structure and the
pairs at the tree nodes simultaneously. Starting from the root node, we generate a tree structure in a topdown recursive manner: at each node , we keep sampling from the conditional distribution to generate new child nodes until a dummy stop node is generated; then for each child of , we recursively repeat this procedure. We denote the probability of generating a stop node given the assignment by and require the normalization condition for each (or for continuous variables). It is easy to see that if is larger, then is more likely to be a leaf node in the tree structure. The probability of generating an assignment is:The joint probability of a valid assignment is:
where is the set of valid assignments and is the normalization factor. Again, computing the unnormalized joint probability is tractable by using MTT, but computing the normalization factor is Phard. Note that when all the stop weights are equal, LDFMS reduces to LDFM.
Inference
In probabilistic inference, the set of random variables are divided into query, evidence, and hidden variables and we want to compute the conditional probabilities of the query variables given the evidence variables. Inference of LDFMs in general can be shown to be
Phard, so we resort to Markov chain Monte Carlo (MCMC) for approximate inference.
One way to do MCMC is by Gibbs sampling, which resamples each of the query and hidden variables in turn according to its conditional distribution given the rest of the variables. After getting enough samples, we can compute the probability of a particular query as the fraction of the samples that match the query. At each resampling step, the conditional distribution is computed from the unnormalized joint probabilities, which takes time and thus can be slow when is large.
For more efficient sampling, we apply the idea of data augmentation [Tanner and Wong1987] and simultaneously sample the latent dependency tree structure and the variable values. We name this method treeaugmented sampling. We first randomly initialize the values of the query and hidden variables as well as the dependency tree structure. At each MCMC step, we randomly pick a variable and simultaneously change its value and its parent node in the dependency tree (with the constraint that no loop is formed). Suppose variable is picked, then the proposal probability of value and parent is proportional to the dependency weight where is the value of in the previous sample. It can be shown that the acceptance rate of the proposal is always one. The time complexity of each sampling step is
, which can be further reduced if the dependencies between variables are sparse. After getting enough samples, we estimate the query probability based on the statistics of the sampled variable values while disregarding the sampled dependency trees.
Dataset  Asia  Child  Alarm  Sachs  Insurance  Water  Win95pts  Hepar2  Hailfinder

Dimension  8  20  37  11  27  32  76  70  56
Avg cardinality  2  3  2.84  3  3.30  3.63  2  2.31  3.98
Max cardinality  2  6  4  3  5  4  2  4  11
Avg degree  2  2.5  2.49  3.09  3.85  4.12  2.95  3.51  2.36
Max indegree  2  2  4  3  3  5  7  6  4
Learning
We want to learn a LFDM form data where the dependency structure of each training instance is unknown. We avoid the difficult structure learning problem by assuming a complete LDFM structure, i.e., we assume that all the dependencies between pairs are possible (having nonzero weights), rather than trying to identify a subset of possible dependencies. We then rely on parameter learning to specify the weights of all the dependencies. This strategy is quite different from that of learning other types of probabilistic models, as structure learning is unlikely to circumvent for most of them. For BNs, if we assume a complete structure (i.e., the skeleton being a complete graph), then the model size (in particular, sizes of conditional probability tables) becomes exponential in the number of random variables and learning becomes intractable. For SPNs, there is no general principle of constructing a “complete” structure; if we assume that there is at least one node for each possible scope (subset of random variables), then the model size is also exponential.
Our learning objective function is the loglikelihood of the model.
where is the training dataset. Note that we compute the likelihood based on , the probability of generating an assignment, instead of , the probability of a valid assignment. This makes our learning algorithm tractable and also encourages the learned model to be more likely to produce valid assignments.
Since the dependency structure of each training sample is hidden, we can use the expectationmaximization (EM) algorithm for learning LDFM parameters. We uniformly initialize all the dependency weights, which we find to be the most effective initialization method.
In the Estep, we compute the partition functions and edge expectations of the training samples. For a training sample , the edge expectation of is defined as follows:
where is an indicator function which is one when is in the tree and zero otherwise. Following the work of McDonald and Satta [McDonald and Satta2007], we can compute the edge expectations through matrix inversion. When ,
When and ,
In the Mstep, we update the parameters to maximize the loglikelihood subject to the constraints of (for discrete variables) and . By solving the above constrained optimization problem with the Lagrange multiplier method, we can get:
For continuous variables, we can assume a certain form of conditional distributions (e.g., a bivariate conditional normal distribution) and derive its optimal parameters in terms of the partition functions and edge expectations in a similar manner.
In addition to maximum likelihood estimaton, we may also run maximum a posteriori (MAP) estimation using EM with a prior over the parameters. We find that the modified Dirichlet prior [Tu2016a], which is a strong sparsity prior, can sometimes significantly improve the learning results.
5000 training instances  40% Query, 30% Evidence  30% Query, 20% Evidence
Dataset  gLDFM  tLDFM  BN  DN  SPN  MT  gLDFM  tLDFM  BN  DN  SPN  MT
Asia  0.258  0.241  0.274  0.268  0.262  0.262  0.268  0.240  0.286  0.276  0.272  0.272
Child  0.609  0.663  0.721  0.634  0.630  0.707  0.650  0.702  0.744  0.670  0.688  0.761
Alarm  0.293  0.357  0.436  0.317  0.277  0.343  0.335  0.396  0.473  0.375  0.328  0.379
Insurance  0.460  0.538  0.565  0.499  0.476  0.557  0.550  0.616  0.660  0.598  0.581  0.652
Sachs  0.605  0.620  0.675  0.610  0.644  0.647  0.632  0.627  0.698  0.649  0.683  0.681
Water  0.399  0.401  0.474  0.407  0.415  0.435  0.434  0.439  0.496  0.445  0.457  0.478
Win95pts  0.166  0.169  0.229  0.185  0.118  0.121  0.163  0.193  0.251  0.207  0.147  0.146
Hepar2  0.481  0.483  0.509  0.490  0.489  0.507  0.481  0.482  0.513  0.493  0.497  0.513
Hailfinder  0.991  1.091  1.223  1.089  0.941  1.241  1.013  1.096  1.242  1.110  0.979  1.268
500 training instances
40% Query, 30% Evidence  30% Query, 20% Evidence
Dataset
gLDFM  tLDFM  BN  DN  SPN  MT  gLDFM  tLDFM  BN  DN  SPN  MT
Asia  0.263  0.246  0.301  0.266  0.272  0.264  0.268  0.244  0.296  0.280  0.276  0.273
Child  0.623  0.677  0.801  0.668  0.757  0.927  0.665  0.706  0.813  0.701  0.804  0.898
Alarm  0.328  0.368  0.521  0.359  0.426  0.526  0.370  0.403  0.605  0.408  0.463  0.510
Insurance  0.478  0.542  0.665  0.533  0.596  0.706  0.564  0.617  0.751  0.621  0.698  0.776
Sachs  0.627  0.634  0.702  0.653  0.759  0.733  0.644  0.654  0.712  0.678  0.780  0.723
Water  0.406  0.411  0.482  0.431  0.511  0.531  0.441  0.445  0.507  0.462  0.541  0.543
Win95pts  0.162  0.191  0.271  0.205  0.151  0.174  0.188  0.205  0.311  0.231  0.173  0.194
Hepar2  0.491  0.488  0.539  0.503  0.531  0.641  0.490  0.485  0.535  0.504  0.535  0.591
Hailfinder  1.024  1.10  1.449  1.127  1.187  2.244  1.040  1.098  1.511  1.135  1.197  1.938
Experiments
We empirically evaluated the learning and inference of LDFMs on nine datasets and compared the performance against several popular probabilistic models including Bayesian networks (BNs), dependency networks (DNs), mixtures of trees (MTs), and sumproduct networks (SPNs).
To produce our training and test data, we picked nine BNs that are frequently used in the BN learning literature from bnlearn^{1}^{1}1http://www.bnlearn.com/bnrepository/, a popular BN repository. For each BN, we sampled two training sets of 5000 and 500 instances, one validation set of 1000 instances, and one testing set of 1000 instances. All the random variables are discrete. Table 1 shows the statistics of each BN. It can be seen that many of the ground truth BNs are much more complicated than a tree structure and some have relatively high treewidth. Note that the way we produced our data actually gives BNs an advantage in our evaluation because the data never goes beyond the representational power of BNs. Nevertheless, as we will see, LDFMs and a few other models still outperform BNs on these datasets.
We learned the five types of models from the training data and evaluated them by their accuracy in query answering on the test data. For each test data sample, we randomly divided the variables into three subsets: query variables , evidence variables , and hidden variables . We then ran the learned model to compute the conditional probability , where and are the values that and take in the test data sample. A model that is closer to the ground truth would produce a higher conditional probability on average. Four different proportions of dividing the query, evidence, and hidden variables (e.g., query variables, evidence variables, and
hidden variables) were used and for each proportion, a thousand query instances were generated from the test set. Following the evaluation metrics of the previous work
[Rooshenas and Lowd2014], we report the maximum of the conditional loglikelihood (CLL) and the conditional marginal loglikelihood (CMLL): . We normalize CLL or CMLL by the number of query variables to facilitate comparison across different query proportions.We trained LDFM using EM and modified Dirichlet prior on each dataset and used the two MCMC approaches introduced in the Inference section to estimate the query probabilities. For the other four probabilistic models, we used the Libra toolkit [Lowd and Rooshenas2015]
to train them and tuned the hyperparameters of the training algorithms according to the query probabilities on the validation set. Specifically, Libra learns BNs with decisiontree CPDs
[Chickering, Heckerman, and Meek1997] which is an extension of plain BNs that is capable of modeling CSI; it learns DNs using an algorithm similar to [Heckerman et al.2001]; it uses the algorithm proposed in [Meila and Jordan2001] to learn MTs; and it learns SPNs using direct and indirect variable interactions [Rooshenas and Lowd2014]. Note that in Libra, the input data to the MTs and SPNs training algorithms needs to be binary, so we binarized all the variables when training MTs and SPNs. After training the four probabilistic models, we again used Libra to do inference. For BNs and DNs, we used the Gibbs sampling algorithm implemented in Libra. For MTs and SPNs, Libra first converted the trained models to an equivalent arithmetic circuit (AC) and then used an exact AC inference method to do inference.
We report the evaluation results of two proportions in Table 2, and report the results of the other two proportions in the supplementary material. The evaluation results of LDFMS are similar to the results of LDFM, and we report them in the supplementary material. It can be seen that LDFMs are competitive with the other probabilistic models and achieve the best results on most datasets. Comparing the performance of the two MCMC approaches of LDFMs, we see that Gibbs sampling achieves better overall results than treeaugmented sampling; however, in our experiments treeaugmented sampling is more than twenty times faster than Gibbs sampling on average. SPNs have very good performance on the larger training set , which verifies their effectiveness in probabilistic modeling compared with traditional approaches; however, their performance is not as good on the smaller training set suggesting that SPNs may require more data to learn than LDFMs. BNs perform worst on average even though the data was generated from ground truth BNs, which suggests that structure learning of BNs is still a very challenging problem.
Conclusion
In this paper, we propose latent dependency forest models (LDFMs), a novel probabilistic model. A LDFM models the dependencies between random variables with a forest structure that can change dynamically based on the variable values. We define a LDFM as a generative model parameterized by a firstorder nonprojective DG. We propose two MCMC approaches, Gibbs sampling and treeaugmented sampling, for inference of LDFMs. Learning LDFMs from data can be formulated purely as a parameter learning problem, and hence the difficult problem of model structure learning is circumvented. We derive an EM algorithm for learning LDFMs. Our experimental results show that LDFMs are competitive with existing probabilistic models.
Acknowledgments
This work was supported by the National Natural Science Foundation of China (61503248).
Supplementary Material
An Example of Using LDFMs to Model CSI
The assignments of the variables can influence the distribution over the dependency structures. In this way, LDFMs can model CSI to some extent. Here is an example of using LDFMS to model three binary variables

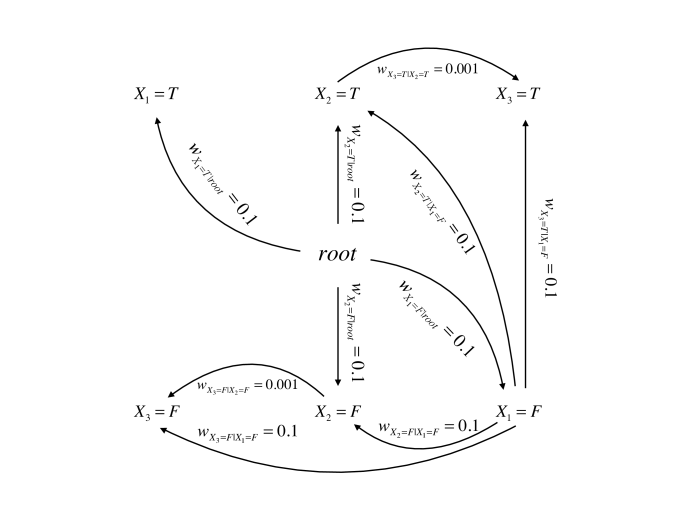

, and .Figure 3 gives an example of using LDFMS to model CSI. The conditional probabilities of the two variables and given can be computed using the formula in the LDFMS subsection and they are shown in Table 3. It can be seen that when , and are strongly dependent; when , they are only weakly dependent.
T  T  T  0.5
T  T  F  0
T  F  T  0
T  F  F  0.5
F  T  T  0.251
F  T  F  0.249
F  F  T  0.249
F  F  F  0.251
Dataset  Asia  Child  Alarm  Insurance  Sachs  Water  Win95pts  Hepar2  Hailfinder

5000 training samples; 40% Query, 30% Evidence
BN  0.274  0.721  0.436  0.565  0.675  0.474  0.229  0.509  1.223
DN  0.268  0.634  0.317  0.499  0.610  0.407  0.185  0.490  1.089
SPN  0.262  0.63  0.277  0.476  0.644  0.415  0.118  0.489  0.941
MT  0.262  0.707  0.343  0.557  0.647  0.435  0.121  0.507  1.241
LDFM  0.258  0.609  0.293  0.460  0.605  0.399  0.166  0.481  0.991
LDFMS  0.263  0.607  0.291  0.462  0.613  0.462  0.130  0.480  0.987
5000 training samples; 30% Query, 40% Evidence
BN  0.266  0.711  0.411  0.589  0.655  0.437  0.187  0.497  1.088
DN  0.237  0.610  0.303  0.528  0.589  0.391  0.148  0.479  0.985
SPN  0.229  0.619  0.272  0.506  0.620  0.402  0.114  0.481  0.893
MT  0.226  0.698  0.348  0.603  0.620  0.427  0.116  0.499  1.188
LDFM  0.230  0.609  0.288  0.481  0.581  0.383  0.129  0.461  0.908
LDFMS  0.235  0.588  0.286  0.482  0.586  0.461  0.124  0.459  0.904
The Derivation Details
We show the details of deriving the probability of generating an assignment discussed in the LDFM subsection in the main text.
where is the uniformly generated tree structure and is a mapping from the variables to the nodes of the tree structure , is the constant value of . is a constant w.r.t. . Here we have because for each spanning tree of , each permutation of the variables is generated differently (i.e., corresponds to a different pair).
The Evaluation Results of LDFMS
We report the results of LDFMS and LDFM trained on the 5000sample datasets and evaluated by using Gibbs sampling on two different proportions of dividing the query and evidence variables in Table 4. It can be seen that LDFMS has similar performance to LDFM on most datasets, but achieves significantly better results on the Win95pts dataset and significantly worse results on the Water dataset. Therefore, it may depend on the dataset as to whether modeling distributions over tree structures is useful.
More Evaluation Results
In the Experiments section in the main text, we report the evaluation results of two proportions of dividing the query and evidence variables (40% query, 30% evidence and 30% query, 20% evidence). In Table 5 we report the evaluation results of the other two proportions (30% query, 40% evidence and 20% query, 30% evidence).
Dataset  Asia  Child  Alarm  Insurance  Sachs  Water  Win95pts  Hepar2  Hailfinder

5000 training samples; 30% Query, 40% Evidence
BN  0.266  0.711  0.411  0.589  0.655  0.437  0.187  0.497  1.088
DN  0.237  0.610  0.303  0.528  0.589  0.391  0.148  0.479  0.985
SPN  0.229  0.619  0.272  0.506  0.620  0.402  0.114  0.481  0.893
MT  0.226  0.698  0.348  0.603  0.620  0.427  0.116  0.499  1.188
gLDFM  0.230  0.609  0.288  0.481  0.581  0.383  0.129  0.461  0.908
tLDFM  0.210  0.630  0.349  0.556  0.590  0.389  0.159  0.464  1.019
2000 training samples; 30% Query, 40% Evidence
BN  0.266  0.764  0.469  0.599  0.669  0.466  0.195  0.506  1.099
DN  0.242  0.626  0.312  0.550  0.597  0.404  0.154  0.497  0.999
SPN  0.232  0.634  0.300  0.519  0.634  0.406  0.117  0.479  0.911
MT  0.228  0.719  0.371  0.623  0.638  0.446  0.132  0.521  1.250
gLDFM  0.229  0.587  0.303  0.487  0.581  0.378  0.126  0.462  0.900
tLDFM  0.218  0.640  0.392  0.555  0.576  0.402  0.169  0.465  1.013
500 training samples; 30% Query, 40% Evidence
BN  0.288  0.776  0.500  0.690  0.721  0.480  0.236  0.534  1.314
DN  0.240  0.654  0.348  0.706  0.625  0.418  0.186  0.498  1.058
SPN  0.243  0.752  0.425  0.637  0.741  0.512  0.147  0.520  1.140
MT  0.234  0.961  0.569  0.811  0.710  0.562  0.183  0.647  2.226
gLDFM  0.238  0.609  0.331  0.509  0.596  0.390  0.152  0.473  0.947
tLDFM  0.220  0.650  0.359  0.562  0.579  0.398  0.167  0.473  1.029
5000 training samples; 20% Query, 30% Evidence
BN  0.217  0.724  0.432  0.585  0.698  0.448  0.217  0.505  1.164
DN  0.198  0.655  0.316  0.524  0.626  0.411  0.174  0.487  1.068
SPN  0.188  0.671  0.297  0.514  0.660  0.428  0.133  0.491  0.982
MT  0.189  0.733  0.355  0.586  0.659  0.445  0.134  0.506  1.277
gLDFM  0.192  0.644  0.309  0.480  0.617  0.398  0.145  0.468  0.972
tLDFM  0.166  0.678  0.352  0.544  0.618  0.404  0.168  0.471  1.068
2000 training samples; 20% Query, 30% Evidence
BN  0.217  0.759  0.486  0.600  0.697  0.464  0.214  0.510  1.159
DN  0.194  0.659  0.330  0.547  0.638  0.418  0.177  0.492  1.073
SPN  0.189  0.682  0.324  0.518  0.667  0.431  0.137  0.492  0.993
MT  0.189  0.750  0.376  0.601  0.669  0.455  0.148  0.522  1.316
gLDFM  0.191  0.637  0.319  0.483  0.620  0.402  0.143  0.471  0.946
tLDFM  0.169  0.687  0.394  0.551  0.618  0.408  0.183  0.472  1.062
500 training samples; 20% Query, 30% Evidence
BN  0.223  0.778  0.522  0.664  0.716  0.479  0.262  0.535  1.431
DN  0.192  0.675  0.362  0.551  0.676  0.428  0.199  0.499  1.116
SPN  0.192  0.795  0.444  0.627  0.765  0.517  0.161  0.529  1.219
MT  0.191  0.915  0.522  0.721  0.721  0.511  0.184  0.607  2.120
gLDFM  0.198  0.648  0.335  0.497  0.642  0.406  0.168  0.478  0.990
tLDFM  0.172  0.690  0.368  0.551  0.613  0.410  0.175  0.476  1.075
References
 [Adel, Balduzzi, and Ghodsi2015] Adel, T.; Balduzzi, D.; and Ghodsi, A. 2015. Learning the structure of sumproduct networks via an svdbased algorithm. In 31st Conference on Uncertainty in Artificial Intelligence (UAI).
 [Chickering, Heckerman, and Meek1997] Chickering, D. M.; Heckerman, D.; and Meek, C. 1997. A bayesian approach to learning bayesian networks with local structure. In Proceedings of the Thirteenth conference on Uncertainty in artificial intelligence, 80–89. Morgan Kaufmann Publishers Inc.
 [Chickering, Heckerman, and Meek2004] Chickering, D. M.; Heckerman, D.; and Meek, C. 2004. Largesample learning of bayesian networks is nphard. The Journal of Machine Learning Research 5:1287–1330.
 [Gens and Pedro2013] Gens, R., and Pedro, D. 2013. Learning the structure of sumproduct networks. In Proceedings of The 30th International Conference on Machine Learning, 873–880.
 [Headden III, Johnson, and McClosky2009] Headden III, W. P.; Johnson, M.; and McClosky, D. 2009. Improving unsupervised dependency parsing with richer contexts and smoothing. In Proceedings of Human Language Technologies: The 2009 Annual Conference of the North American Chapter of the Association for Computational Linguistics, 101–109. Boulder, Colorado: Association for Computational Linguistics.

[Heckerman et al.2001]
Heckerman, D.; Chickering, D. M.; Meek, C.; Rounthwaite, R.; and Kadie, C.
2001.
Dependency networks for inference, collaborative filtering, and data visualization.
The Journal of Machine Learning Research 1:49–75.  [Kindermann and Snell1980] Kindermann, R., and Snell, J. L. 1980. Markov random fields and their applications, volume 1. American Mathematical Society Providence.
 [Klein and Manning2004] Klein, D., and Manning, C. D. 2004. Corpusbased induction of syntactic structure: Models of dependency and constituency. In Proceedings of the 42nd Annual Meeting on Association for Computational Linguistics, 478. Association for Computational Linguistics.
 [Lowd and Rooshenas2015] Lowd, D., and Rooshenas, A. 2015. The libra toolkit for probabilistic models. arXiv preprint.
 [McDonald and Satta2007] McDonald, R., and Satta, G. 2007. On the complexity of nonprojective datadriven dependency parsing. In Proceedings of the 10th International Conference on Parsing Technologies, 121–132. Association for Computational Linguistics.
 [McDonald et al.2005] McDonald, R.; Pereira, F.; Ribarov, K.; and Hajič, J. 2005. Nonprojective dependency parsing using spanning tree algorithms. In Proceedings of the conference on Human Language Technology and Empirical Methods in Natural Language Processing, 523–530. Association for Computational Linguistics.
 [Meila and Jordan2001] Meila, M., and Jordan, M. I. 2001. Learning with mixtures of trees. The Journal of Machine Learning Research 1:1–48.
 [Pearl1988] Pearl, J. 1988. Probabilistic reasoning in intelligent systems: networks of plausible inference.
 [Peharz, Gens, and Domingos2014] Peharz, R.; Gens, R.; and Domingos, P. 2014. Learning selective sumproduct networks. In LTPM workshop.
 [Poon and Domingos2011] Poon, H., and Domingos, P. 2011. Sumproduct networks: A new deep architecture. In Computer Vision Workshops (ICCV Workshops), 2011 IEEE International Conference on, 689–690. IEEE.
 [Rahman, Kothalkar, and Gogate2014] Rahman, T.; Kothalkar, P.; and Gogate, V. 2014. Cutset networks: A simple, tractable, and scalable approach for improving the accuracy of chowliu trees. In Joint European Conference on Machine Learning and Knowledge Discovery in Databases, 630–645. Springer.
 [Rooshenas and Lowd2014] Rooshenas, A., and Lowd, D. 2014. Learning sumproduct networks with direct and indirect variable interactions. In Proceedings of the 31st International Conference on Machine Learning (ICML14).
 [Roth1996] Roth, D. 1996. On the hardness of approximate reasoning. Artificial Intelligence 82(1):273–302.
 [Spitkovsky2013] Spitkovsky, V. I. 2013. Grammar Induction and Parsing with DependencyandBoundary Models. Ph.D. Dissertation, Computer Science Department, Stanford University, Stanford, CA.
 [Tanner and Wong1987] Tanner, M. A., and Wong, W. H. 1987. The calculation of posterior distributions by data augmentation. Journal of the American statistical Association 82(398):528–540.
 [Tu and Honavar2012] Tu, K., and Honavar, V. 2012. Unambiguity regularization for unsupervised learning of probabilistic grammars. In Proceedings of the 2012 Joint Conference on Empirical Methods in Natural Language Processing and Computational Natural Language Learning, 1324–1334.
 [Tu2016a] Tu, K. 2016a. Modified dirichlet distribution: Allowing negative parameters to induce stronger sparsity. In Conference on Empirical Methods in Natural Language Processing (EMNLP 2016), Austin, Texas, USA.
 [Tu2016b] Tu, K. 2016b. Stochastic AndOr grammars: A unified framework and logic perspective. In IJCAI.
 [Tutte1984] Tutte, W. T., ed. 1984. Graph Theory. Cambridge University Press.
