1 Introduction

Machine learning systems trained on sensitive user data can be vulnerable to privacy attacks (Shokri et al., 2017; Hayes et al., 2019). This issue is especially pressing for recent applications involving large deep learning models of text (Brown et al., 2020), as training data for these systems often contain private user data (Carlini et al., 2020), and these models are able to memorize and regurgitate sensitive training examples (Zhang et al., 2016; Carlini et al., 2020).

As a result of these concerns, there has been a large interest in developing methods that provide data privacy guarantees for discriminative and generative models of text. The gold-standard way for providing such a guarantee in machine learning is Differential Privacy (DP) (Dwork et al., 2006, 2014). Unfortunately, DP has typically struggled to produce useful models when applied to large language models, resulting in models with either vacuous privacy guarantees (Dupuy et al., 2021) or performance far below non-private baselines. This is widely attributed to the fact that the core primitive of Differentially Private Stochastic Gradient Descent (DP-SGD) (Song et al., 2013; Bassily et al., 2014; Abadi et al., 2016) injects noise that must scale with the number of parameters, resulting in large noise levels for large language models (Yu et al., 2021a).

We tackle the problem of building performant DP language models for sentence classification and language generation tasks with tens to hundreds of thousands of examples. We pursue this goal by re-examining the performance of the baseline DP optimization algorithm for fine-tuning large language models, and study how choices of hyperparameters, training objective, and pretrained models affect the performance of models given fixed privacy budgets. In contrast to the mainstream perception, our empirical results demonstrate that large pretrained models with hundreds of millions of parameters can be effectively and efficiently fine-tuned to yield models with high performance with modest privacy leakage.

For language generation, the performance of our models surpasses strong non-private baselines. For sentence classification, the performance of our fine-tuned models surpasses those obtained under heuristic privacy notions

(Huang et al., 2020a) which do not possess formal guarantees. Figure 1 illustrates these results. We summarize our contributions below.

  • [leftmargin=6mm]

  • We show that with appropriate hyperparameters and downstream task objectives, directly fine-tuning pretrained language models with DP-SGD yields strong performance for a suite of NLP tasks at privacy levels . Notably, some of our fine-tuned models outperform strong non-private learning baselines and models obtained under heuristic privacy notions.

  • DP-SGD is known for its expensive memory cost due to clipping per-example gradients. We present ghost clipping, a memory saving technique that makes fine-tuning larger Transformers under DP computationally efficient. Our technique generalizes the Goodfellow (2015) trick to handle sequential inputs, and can be combined with a layer-by-layer clipping procedure (Lee & Kifer, 2020) to enable privately fitting large Transformers with almost the same memory storage as non-private training—at the cost of one additional backward pass per processed batch.

  • We show that the dimensionality of gradient updates does not explain private fine-tuning performance. While there exist dimension-dependent lower bounds for private (convex) optimization (Bassily et al., 2014), we find that larger pretrained models lead to better private fine-tuning results. Moreover, parameter-efficient adaptation methods that reduce the dimensionality of updates do not necessarily outperform a baseline method that fine-tunes all model parameters.

Our empirical studies indicate that directly fine-tuning pretrained models with DP optimization results in performant DP language models under modest privacy budgets. This enables building practical DP NLP models for a range of common tasks where privacy could be at stake.

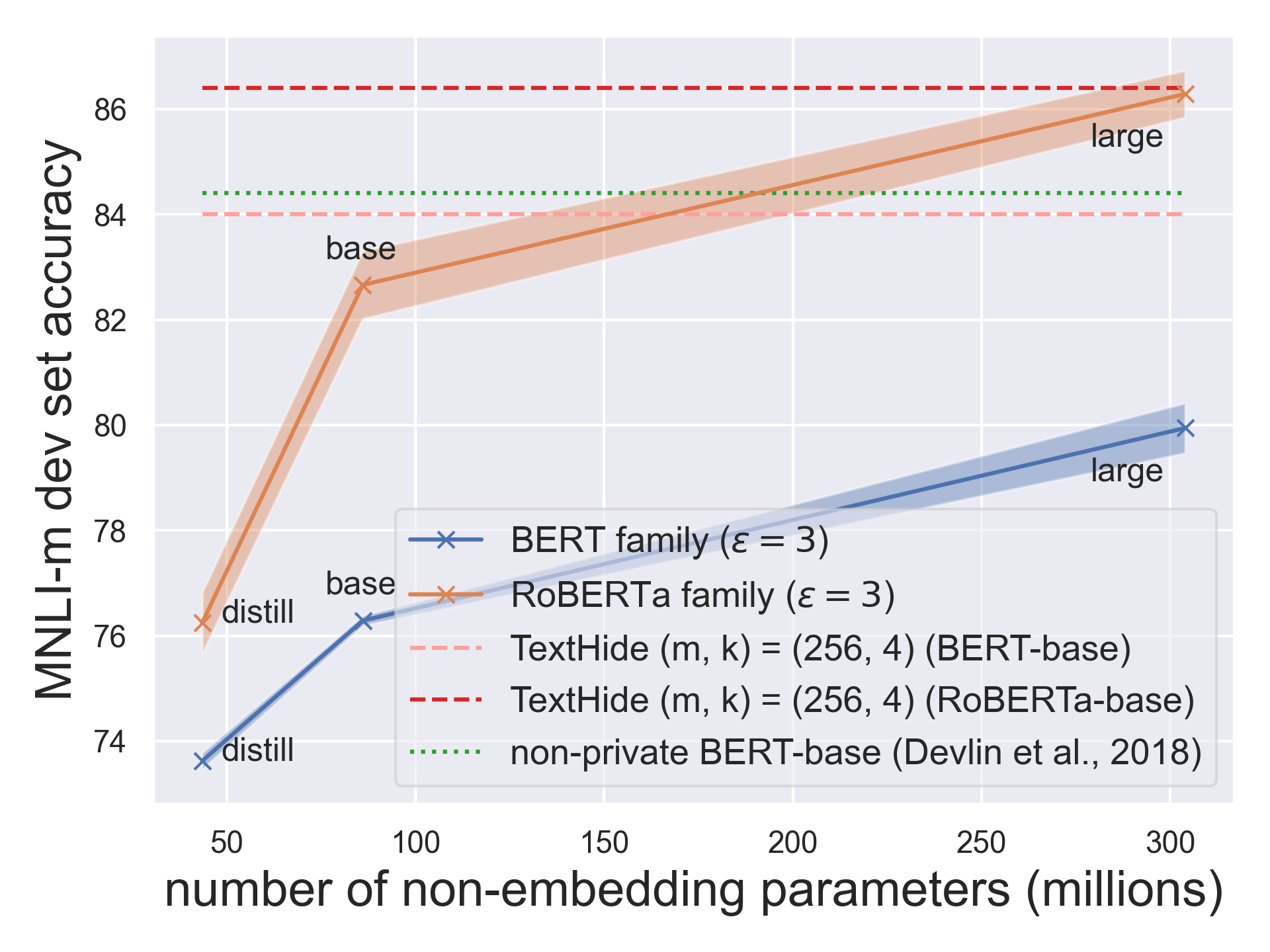

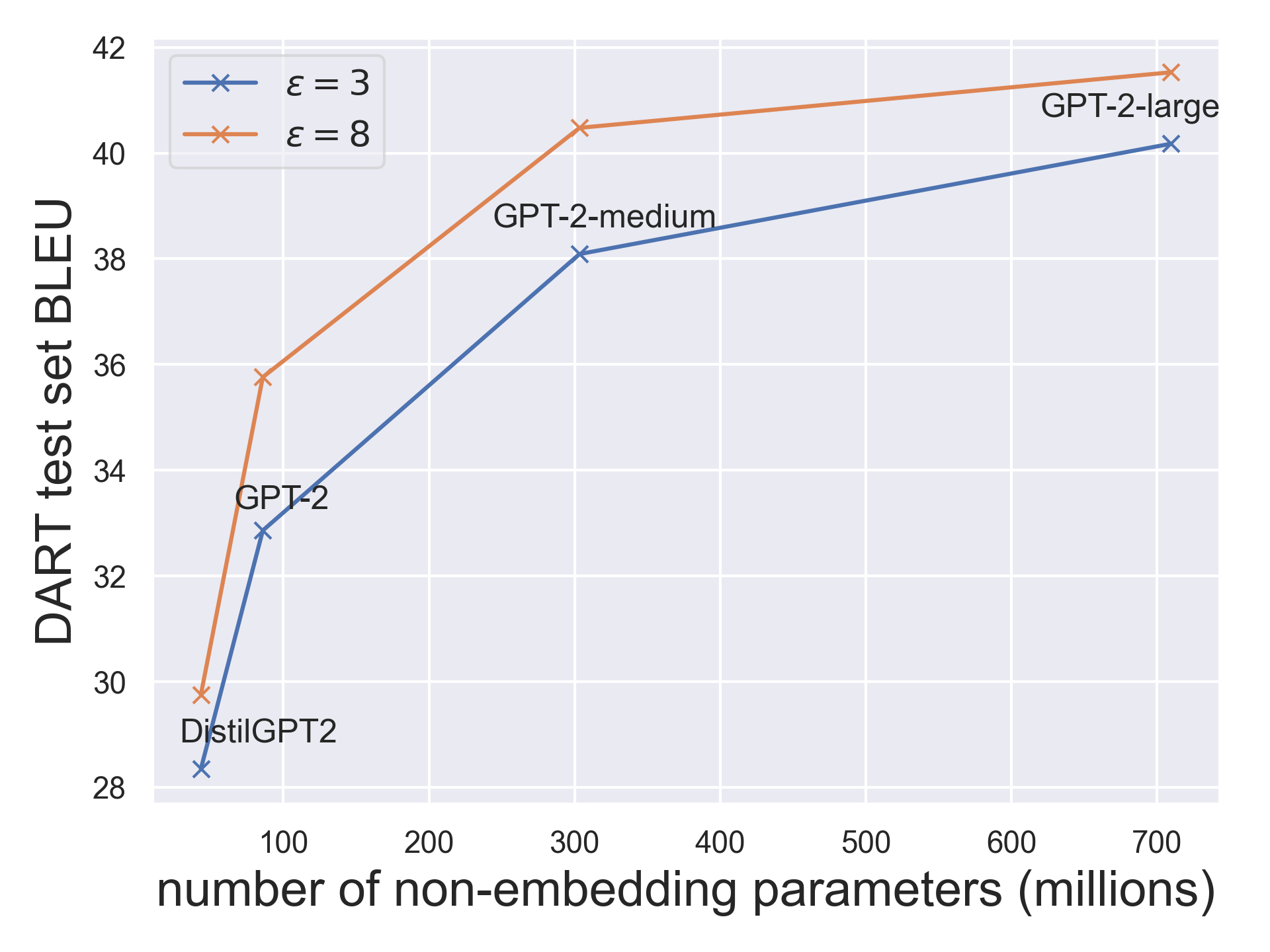

(a) Sentence classification MNLI-matched (Williams et al., 2018) (b) Natural language generation E2E (Novikova et al., 2017)

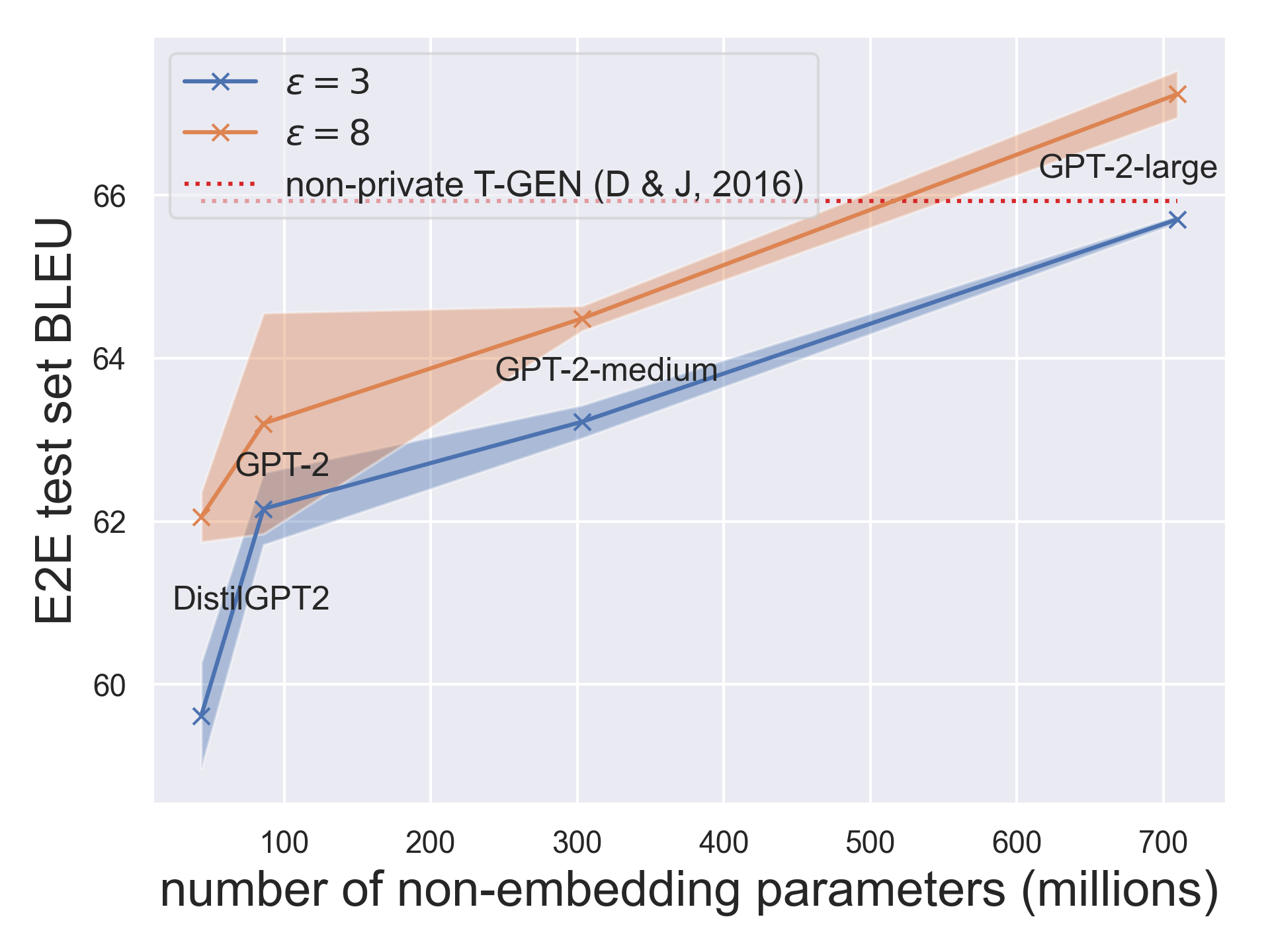

Figure 1: A summary of a few of our findings: (1) Pretrained models fine-tuned with DP-Adam has strong performance. (2) Fine-tuning larger models produces better results. (3) Fine-tuned RoBERTa-large under DP at outperforms TextHide (the extension of InstaHide (Huang et al., 2020b) for text classification) with BERT-base. Non-private generation baseline numbers are based on those reported by Wiseman et al. (2018).

2 Problem Statement

We build models for sentence classification and language generation tasks with private datasets of modest sizes under (central/global) approximate-DP (also known as -DP) (Dwork et al., 2014).

Definition 1 (-Dp).

A randomized algorithm is ()-differentially private if for all adjacent datasets and all ,

Two datasets are adjacent if and only if one can be obtained from the other by including an extra record (Mironov et al., 2019)

. What counts as a record is task dependent and will be defined below. Intuitively, algorithms satisfying DP ensures that output random variables obtained from similar inputs are also similar.

and are privacy leakage parameters that measure the loss of privacy and small values imply more privacy. Unlike heuristic privacy notions (Huang et al., 2020b), DP allows for the tracking of privacy loss through the calculation of leakage parameters, and ensures privacy under composition (Dwork et al., 2014), meaning that the overall privacy loss of multiple DP algorithms releasing multiple statistics can be reasoned in a principled manner.

DP models are typically trained with DP optimizers which privatize the gradient before taking a standard gradient descent step. The privatization step ensures that the parameter updates leak limited information about the training examples through their gradients. Specifically, this step clips per-example gradients with a norm constraint , and adds isotropic Gaussian noise to the sum of clipped gradients. Here, is the noise multiplier determined from the privacy budget , number of gradient updates , and sampling rate for a batch size of and a dataset with examples. Intuitively, clipping individual gradients ensures that each example has bounded influence on the parameter update, whereas noising the gradient denies exact tracing of particular examples. The noise being isotropic implies that larger models would experience heavier noise per update, as the norm of the high-dimensional Gaussian tends to for large dimensionality

with high probability. This is widely believed to be the cause for DP optimization performing poorly at training high-dimensional deep learning models

(Kamath, 2020).

Our starting point for building DP language models is (public) pretrained models. Pretrained language models tend to contain general knowledge of language (Manning et al., 2020) and thus would make the downstream private learning problem easier. We fine-tune these models with DP-Adam (Abadi et al., 2016; Kingma & Ba, 2014) (see Appendix A for details) and track privacy loss through Rényi DP (Mironov, 2017), but also report the converted

from Gaussian DP and its central limit theorem

(Dong et al., 2019) and the converted

from accurately composing tradeoff functions via fast Fourier transform

(Gopi et al., 2021). We consider privacy levels and throughout for a training set of size (See Appendix B for further details). We outline two broad classes of NLP problems considered in this paper and define what constitutes a record below.

Sentence Classification.

The goal is to learn a model that correctly classifies sentences. For these tasks, each example/record consists of some input sentences and a label to be predicted. We fine-tune models of various sizes in the BERT

(Devlin et al., 2018) and RoBERTa (Liu et al., 2019) families, as these models are known to work well for sentence classification.

Language Generation.

The goal is to learn a model that generates natural language sentences given some context. For table-to-text generation tasks such as E2E (Novikova et al., 2017) and DART (Nan et al., 2020), each example/record in the training data consists of a pair of table entry and corresponding text description to be predicted. For a dialog generation task such as Persona-Chat (Zhang et al., 2018), each example/record consists of some auxiliary information, a dialog history, and a response to be predicted. We fine-tune GPT-2 (Radford et al., 2019) of various sizes for these problems, as this model family is known to work well for text generation.

3 Effective Differentially Private Fine-Tuning

By studying the impact of hyperparameters and choice of fine-tuning objective, we demonstrate that the performance of the DP-Adam baseline can be substantially improved, even matching some strong non-private learning results. Our analyses reveal common failure modes when straightforwardly applying DP optimization and explain poor results reported in past works that consider these baselines.

3.1 Hyperparameter Tuning

DP optimization is sensitive to the choice of hyperparameters (Papernot et al., 2019). Our experiments suggest that performance can vary from being close to trivial with ill-chosen hyperparameters to near previous state-of-the-art with appropriately chosen ones. As a consequence, we present simple but effective guidelines on setting the most important hyperparameters. Unless otherwise stated, the unmentioned hyperparameters are set to defaults documented in Appendix H.

3.1.1 Batch Size, Learning Rate & Training Epochs

Our experiments suggest that batch size is one of the most important hyperparameters to set correctly, and the dependence of the optimal batch size on learning rate and training epochs makes its selection complex. We first describe batch size selection in realistic, compute-bound settings and then describe how the complexity of identifying the optimal batch size in these situations arise due to constraints on the number of training epochs.

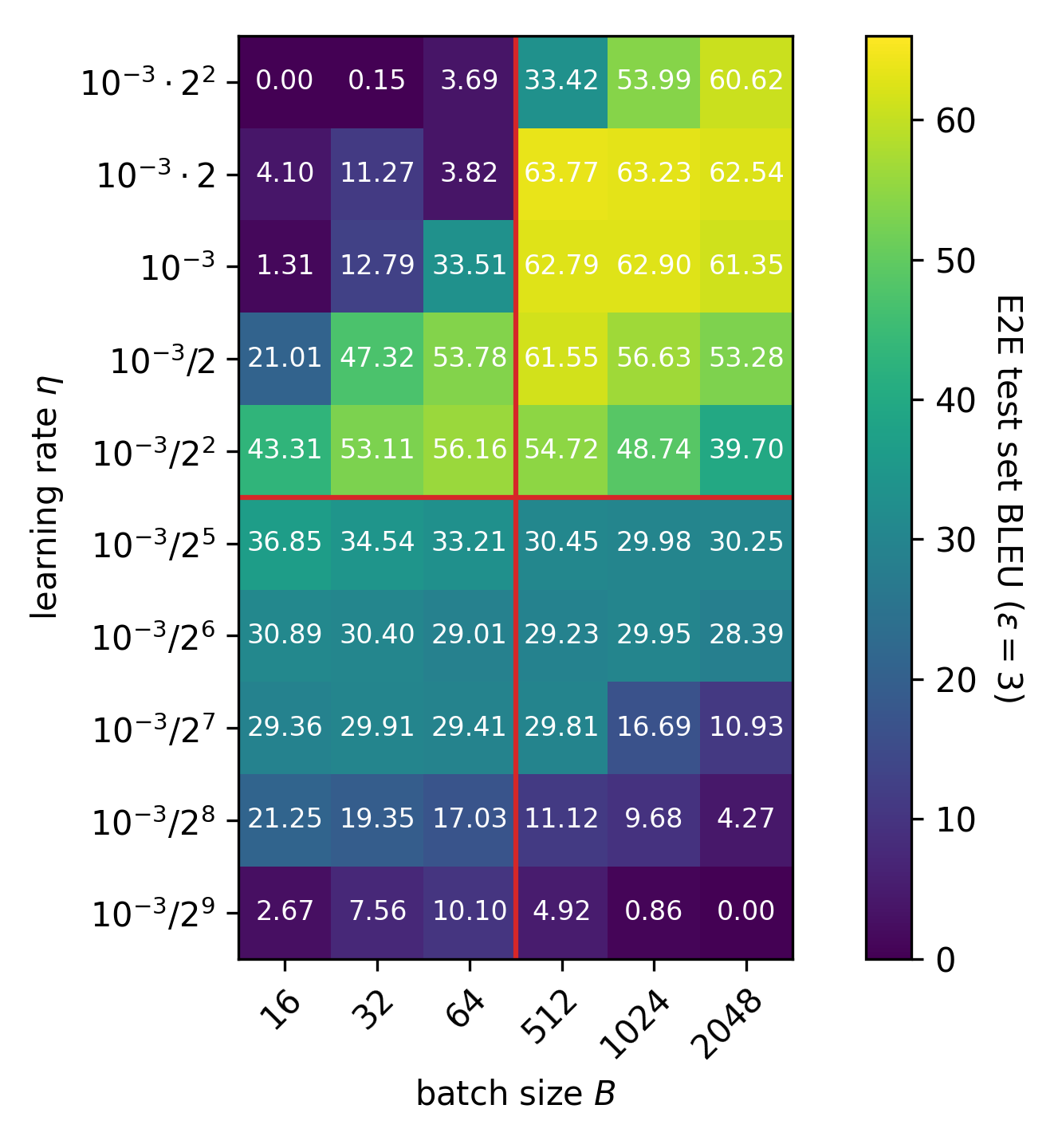

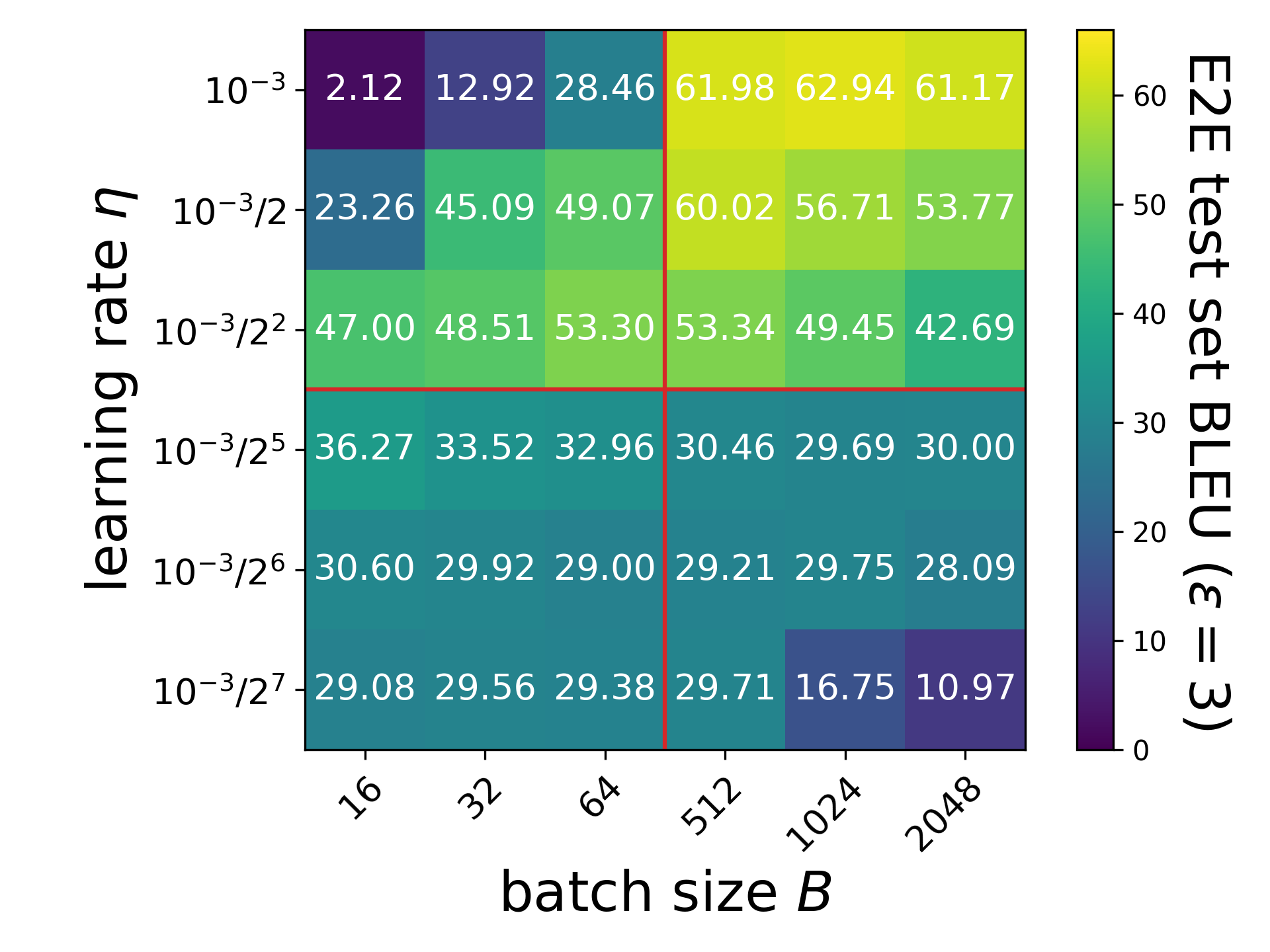

Figure 2: Large batch sizes and learning rates lead to the best performance when is fixed. Red lines divide heat map into four panels. Top and bottom correspond to low and high learning rate regimes; left and right correspond to small and large batch regimes.
Fixed Training Epochs .

We first describe a realistic situation in which there is a constraint on the total amount of compute budget available. For the case of DP-SGD, this compute budget constraint often corresponds to a constraint on the number of examples that are processed by SGD.111This is because DP-SGD often necessitates microbatching, in which case the number of backward passes is independent of the actual batch size for gradient updates but dependent on numbers of passes through the data.In this fixed training epoch setting, the learning rate and batch size jointly affect performance, since using larger batches implies performing fewer gradient updates. To study this joint influence empirically, we fine-tune GPT-2 on the E2E dataset for table-to-text generation with DP-Adam at with various batch sizes and learning rates. Figure 2 shows that the best performing models are obtained with both a large batch size and large learning rate. Using a small learning rate together with a small batch size yields considerably worse results. Note a seq2seq baseline achieves a test BLEU of ~65 without privacy here (Wiseman et al., 2018).

Recall that in the non-private world, pretrained language models are typically fine-tuned with small batch sizes and small learning rates with Adam (bottom left panel in Figure 2). This implies that naïely fine-tuning pretrained language models privately using the non-private setup would result in more performance degradation than necessary.

Recently, Tramèr & Boneh (2020) studied how the batch size and learning rate jointly affect learning private image classifiers while holding other hyperparameters fixed. They heuristically suggested a linear scaling rule: Scaling the learning rate together with the batch size by the same constant should yield models with almost the same performance. However, Figure 2 indicates that this fails to hold consistently as it falsely predicts that large batch and high learning rate (top right most entry) would have equal performance to small batch and low learning rate (bottom left entry). We further explain why linear scaling fails for small batches in Appendix D.

Fixed Update Steps .

In the fixed epoch setting, we saw that the optimal batch size setting was complex due to the trade-off between batch size and number of gradient updates. We now show that the complexity of setting batch sizes arises almost entirely from this tradeoff by considering a different setting, where the total number of gradient updates (rather than epochs) is fixed. In this case, using larger batches implies training for more epochs, and we find that using larger batch sizes almost always results in better performance at a given privacy budget (at the cost of processing more examples and using more compute), once other hyperparameters are fixed. We provide an explanation of this by introducing the idea of an effective noise multiplier . Recall the noise multiplier is determined from the privacy budget , update steps , and sampling rate . In addition, recall the form of the privatized gradient in DP-SGD/DP-Adam:

where is the gradient of the th example in a batch of examples and

clips the vector

by the norm constraint

. We observe that for moderately large batches, the signal-to-noise ratio

is mainly controlled by the batch size through the effective noise multiplier: The signal term tends to concentrate quickly due to being an average of bounded vectors, whereas the effective noise multiplier could vary significantly as the batch size changes. Figure 3 (a) shows that the effective noise multiplier decreases as batch size increases. In addition, Figure 3 (b) plots the average signal-to-noise ratio over the first 30 gradient updates against the final model’s performance on E2E and demonstrates that large batches (up to a threshold) lead to both increased signal-to-noise ratio at the beginning of training and better performance at the end of training. These findings additionally resonant with and explains recent empirical successes of private pretraining (Anil et al., 2021).

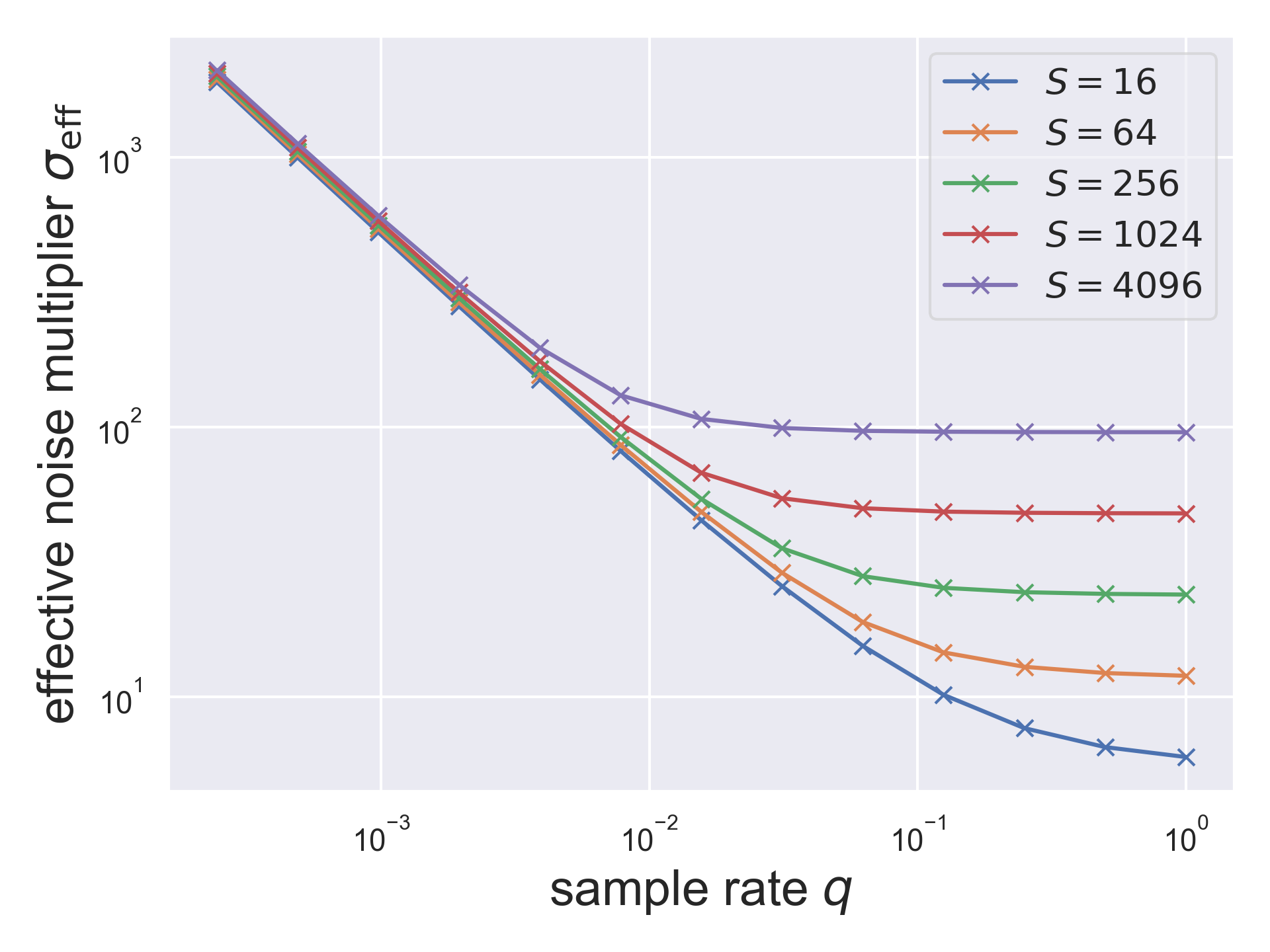

Figure 3: Left: Effective noise multiplier decreases with increasing batch size for various fixed . Right: Large batch sizes (corresponding to large in the figure) have higher signal-to-noise ratio, which (log-)linearly correlates with final model performance.

3.1.2 Clipping Norm

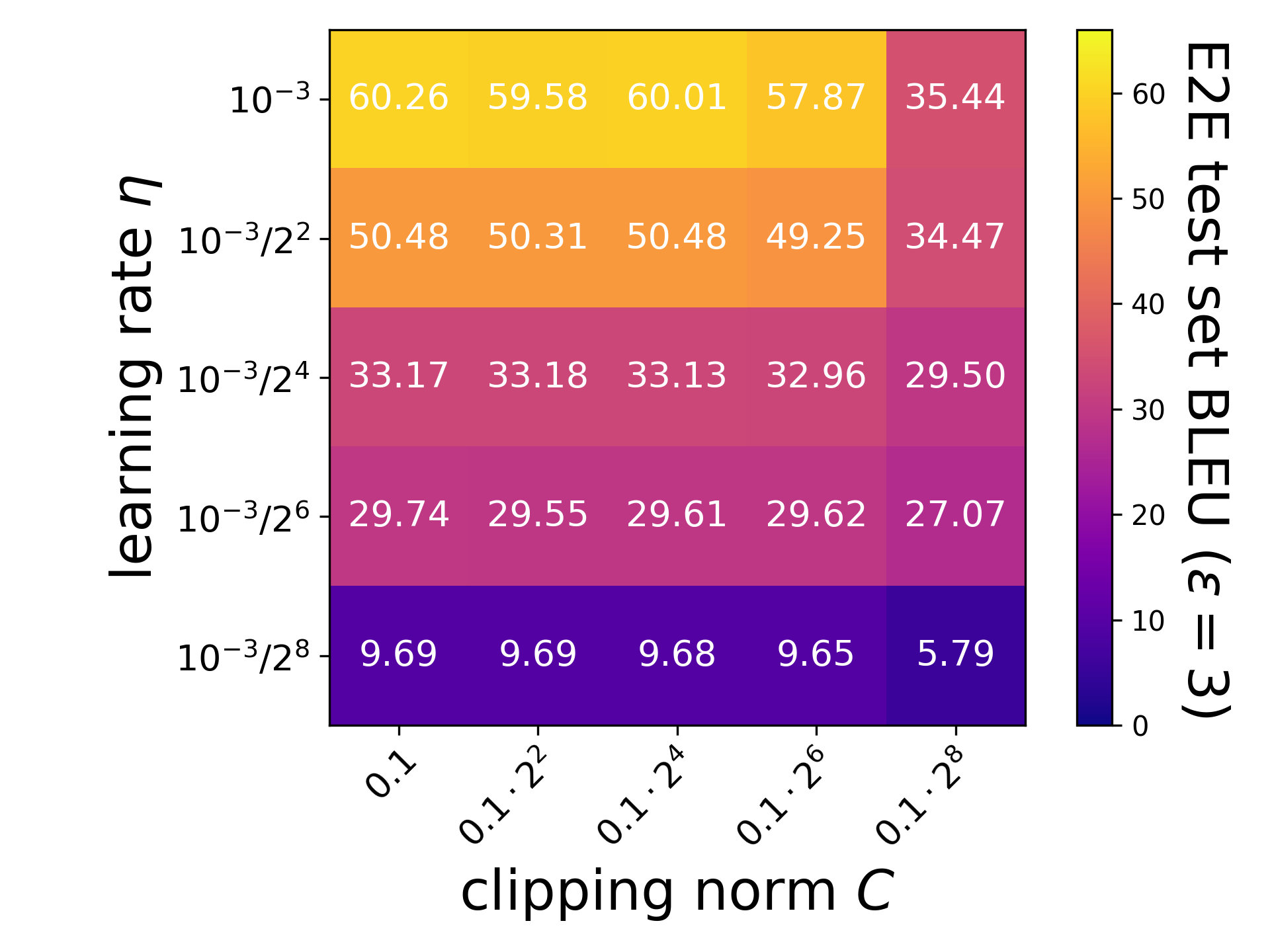

Figure 4: Small clipping norms lead to the best performance.

DP optimization is known to be sensitive to the choice of clipping norm. Since the scale of noise depends on this clipping norm (recall its standard deviation is

), picking the threshold much larger than the actual gradient norm implies more noise is being applied than necessary. In practice, we have found that a small clipping norm which enforces almost all gradients to be clipped throughout training leads to the best performing models. This finding explains the poor performance of full fine-tuning baselines in recent works and is illustrated in Figure 4 on E2E; similar trends hold for classification tasks.222Yu et al. (2021b) include DP full fine-tuning of RoBERTa as a baseline with and report much worse results than ours which sets by default; hyperparameter value obtained via private communication.

3.2 Improving the task alignment helps private learning

Our fine-tuned models on language generation tasks worked well since the pretraining objective and downstream task are aligned: Both involve predicting sequences of tokens. This alignment simplified the task and benefitted private learning. While pretrained models are naturally aligned for language generation, it is much less so for classification tasks. The standard approach for adapting language models for classification involves stacking a freshly initialized network on top of the encoding of the special [CLS] token and jointly optimizing all parameters (Devlin et al., 2018). This workflow introduces a discrepancy between pretraining and fine-tuning: Pretraining predicts masked out words from a large vocabulary whereas fine-tuning predicts integer labels.

To eliminate the discrepancy, we instead consider learning to predict the missing word during fine-tuning for classification. For example, for sentiment classification, we reframe the problem as filling in the [MASK] token in the sequence “<INPUT>. It is [MASK].” and compare the probabilities of words “awesome” and “terrible”. This text infilling task is almost exactly the procedure used for pretraining masked language models, and recent works have demonstrated its effectiveness for knowledge probing (Petroni et al., 2019), few-shot learning (Gao et al., 2020) and multi-task fine-tuning (Wei et al., 2021). On SST-2, we found that using the generic template as described above already improved private fine-tuning performance by across different settings. Table 1 (to be presented) contains additional results and Appendix E includes analyses on choices of label words.

4 Ghost Clipping: Clipping without per-example gradients

DP-SGD has high memory overhead due to clipping per-example gradients. Naïvely implemented, this step instantiates a giant gradient vector for each example in a batch during optimization and can be prohibitively expensive. For example, Hoory et al. (2021) pretrained BERT with DP optimization and reported memory issues when using the large batches necessary to achieve high performance. A time-costly solution to the memory problem is micro-batching: Split large batches into multiple smaller ones and aggregate the results after processing each small batch individually (Tramèr & Boneh, 2020). This solution, however, is unlikely to be sufficient as neural language models become larger and fitting a few copies of the gradient in memory can be difficult. Lee & Kifer (2020) observed that per-example gradients need not be instantiated at all, if the goal is only to clip the gradients and take the sum. They presented a clipping procedure that only instantiates the per-example gradient for parameters of a single layer in the model one at a time, as opposed to the entire model at once.

Unfortunately, we find this trick to be still insufficient for sequence models such as Transformers (Vaswani et al., 2017), as the memory requirement for per-example gradients of embedding layers and language modeling heads can be costly. We extend the Lee & Kifer (2020)

approach such that training Transformers with DP optimization has almost the same memory consumption as non-private training, at the cost of an extra backpropagation pass per processed batch. Unlike their approach, our extension avoids instantiating the per-example gradient even for individual linear layers. We call this approach

ghost clipping, as the per-example gradient is the ghost that never explicitly appears. We anticipate this extension to be useful for both privately fine-tuning and pretraining large Transformers.

4.1 The memory trick by Lee & Kifer (2020)

Per-example gradient clipping is easy if we know per-example gradient norms. In this case, we first compute the scaling factor

, where is the clipping threshold and is the loss associated with the th example. Then, we perform the usual backward pass with the reweighted scalar loss . This procedure gives us the sum of clipped gradients. Under this setup, the difficulty is computing the per-example gradient norm . We emphasize two technicalities that enable computing this quantity without instantiating the full per-example gradient .

First, for a typical neural net layer with parameters (without parameter sharing), the per-example gradient w.r.t. parameters can be easily computed using the input to the layer and the gradient of the loss w.r.t. the output , both of which are available during backpropagation. Second, for a large vector formed by concatenating several small vectors , its Euclidean norm is simply the norm of the vector of norms, i.e. The second observation means that computing the per-example gradient norm can be done by computing the per-example gradient norms for individual layers of the neural net one at a time (

is layer count). Moreover, the first observation implies that the norms for each layer can be computed using quantities freely available to a typical backward pass. Overall, the per-example gradient norm of any network without parameter sharing can be computed in a layer-by-layer fashion with only one per-example gradient tensor for a single layer being instantiated at any time.

4.2 Ghost clipping for Transformers with sequential data

The trick by Lee & Kifer (2020) still requires instantiating the per-example gradient of individual layers (although not simultaneously). This can be problematic in terms of memory for Transformers with large embedding layers.333 For GPT-2, per-example gradients w.r.t. the embedding for ten examples alone occupy ~1.5GB of memory. Here, we present a specialized procedure for computing the per-example gradient norm for linear and embedding layers when they are applied to sequential data.444

An embedding layer is essentially a linear layer: The embedding lookup operation applied to indices is equivalent to a matrix multiplication of the embedding matrix with one-hot encoded indices.

This procedure reduces memory footprint and can be viewed as a generalization of the Goodfellow (2015) trick that additionally handles sequential inputs.

Let be the input to a linear layer with weight matrix , and be the output with . Let be the gradient of the loss w.r.t. the output . Here, is the number of time steps in the input, and we omitted biases for simplicity. Simple calculation shows that the per-example gradient is the product of two matrices:

(1)

Since the per-example gradient norms are the end goal, the per-example gradients themselves need not be instantiated explicitly. More precisely, we observe that the squared per-example gradient norm for this layer obeys the following identity:

(2)

See Appendix F for a derivation. Implemented with usual primitives in machine learning libraries, (2) has a memory complexity of order when are instantiated, as opposed to in the naïve approach which goes through instantiating (1).

The memory efficiency of this procedure is exemplified with off the shelf pretrained language models, most of which have large embeddings. For instance, for GPT-2, and for the embedding layer, and the context window .555In practice, for fine-tuning tasks, the maximum sequence length is usually a few hundred. Our method in theory reduces the memory cost of this large embedding layer by at least a factor of . In practice, we also observe significant savings, since embedding layers can be a major source of memory spending for training large language models.666While there are alternative approaches for reducing the memory footprint of embedding layers during training, these methods tend to introduce extra hyperparameters that require tuning and privacy spending. To stress-test ghost clipping, we compare it with baselines: The PyTorch package Opacus that implements DP optimization by instantiating per-example gradients, the approach by Lee & Kifer (2020), non-private training in PyTorch, and naïve DP optimization implemented in JAX with jit and vmap enabled. We include the JAX baseline since recent studies show that DP optimization can be made cheap through compiler optimization (Subramani et al., 2020). Figure 5 (a) shows that for typical inputs, our technique is the most memory friendly and allows fitting batches almost as large as those in non-private training. Since ghost clipping allows us to fit larger batches but with a run-time penalty, a natural question is whether it improves throughput with the use of larger batches. Figure 5 (b) shows that while ghost clipping only provides minor gains compared to Opacus for smaller models, it allows processing ~10% more examples compared to the approach by Lee & Kifer (2020) for fitting GPT-2-large, a model that neither Opacus or JAX could handle. See Appendix G for the setup of these experiments.

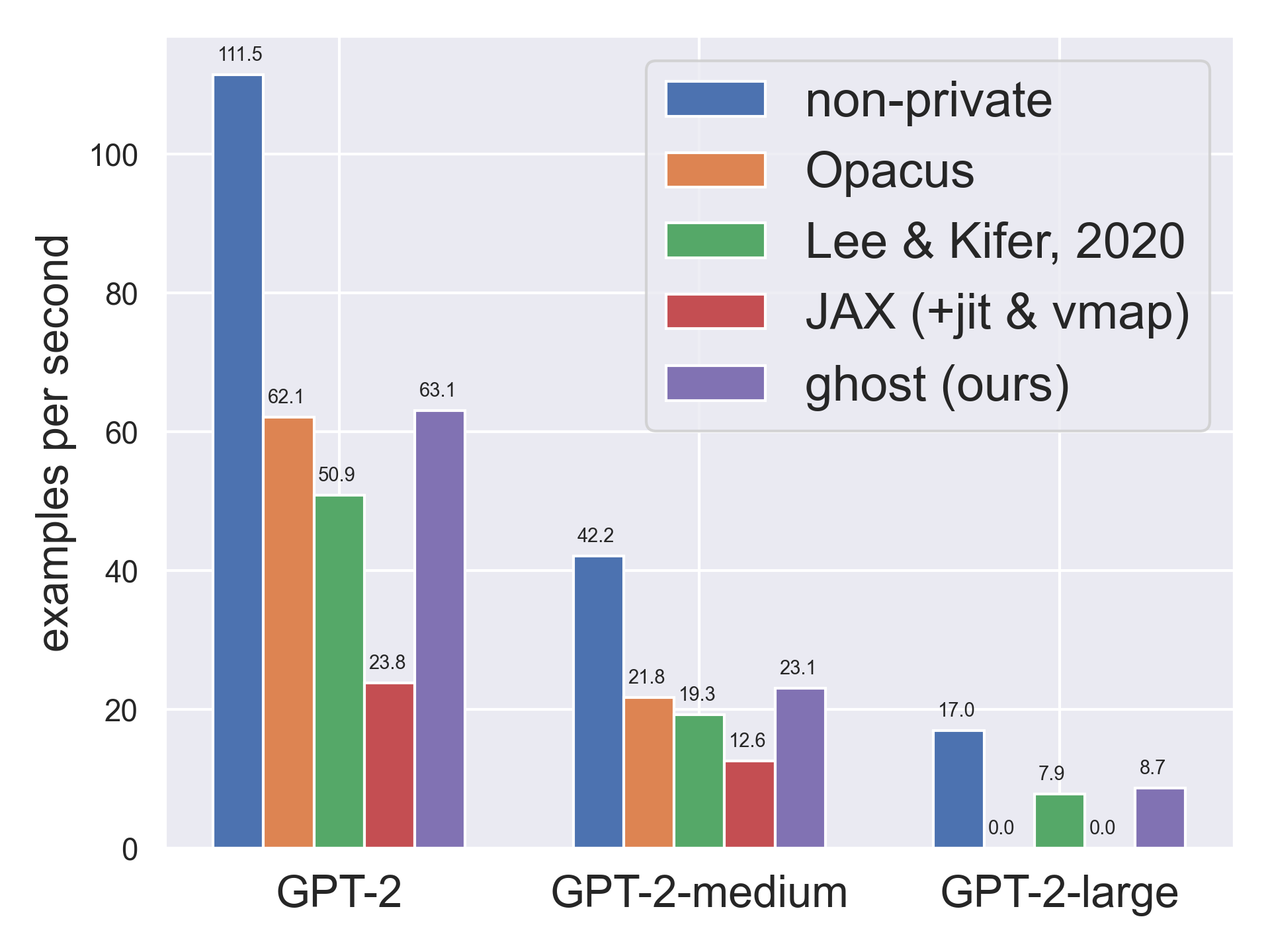

(a) Memory (b) Throughput

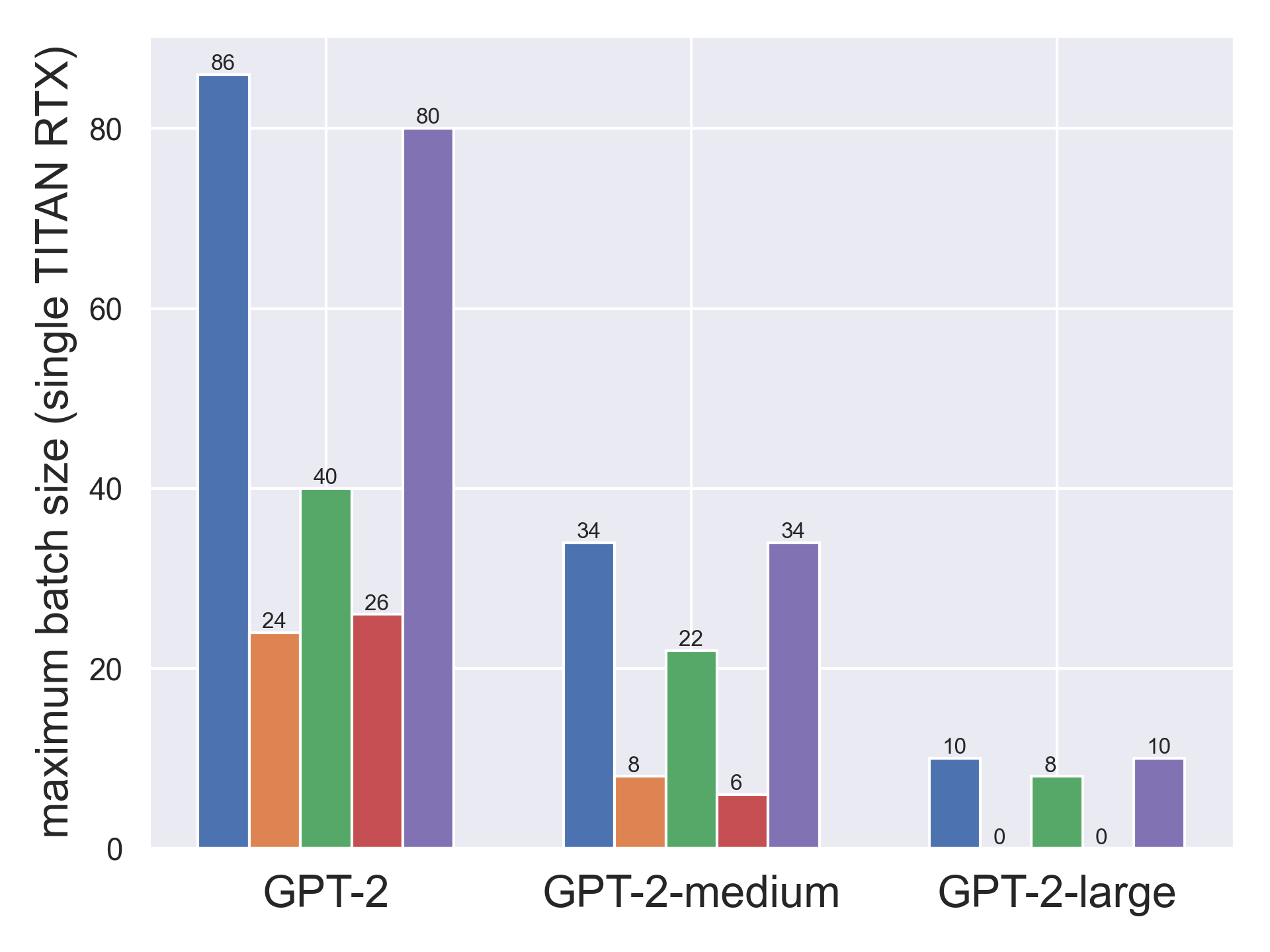

Figure 5: Left: Ghost clipping is 3 times more memory efficient than Opacus and is almost as efficient as non-private training for typical sequences across model sizes. For GPT-2-large, we were unable to fit single-example micro batches together with gradient accumulation with Opacus or JAX on a TITAN RTX GPU ( GBs of VRAM). Right: DP optimization with ghost clipping processes ~10% more examples than the approach by Lee & Kifer (2020) under unit time for GPT-2-large.

5 Low dimensional updates are not necessarily better

Since the norm of the noise added to gradients in DP scales with dimensionality, it is natural to ask whether privatizing and updating fewer parameters would result in improved performance. We decompose this question into two aspects: (1) Do smaller pretrained models lead to better private fine-tuned performance, and (2) do parameter-efficient adaptation methods designed with a reduced dimensionality of updates outperform full fine-tuning? Our experiments below show that the answer to both questions is negative. Reported numbers in this section are averaged over three seeds.

5.1 Larger Pretrained Models result in better performance

We observe that larger pretrained models lead to better private fine-tuned performance. Specifically, we fully fine-tune four sizes of GPT-2 models (for language generation) and three sizes of BERT/RoBERTa models (for sentence classification) at the same privacy budget with DP-Adam and compare their performances. Since the performance of DP optimization heavily depends on hyperparameter choices, we need to ensure that our hyperparameters are not particularly favoring larger models. We thus tune hyperparameters on the smallest model and then reuse the same hyperparameters for all fine-tuning workloads. Figure 1 from earlier demonstrates gains on E2E and MNLI from model scaling, and we find similar improvements on 5 additional tasks (deferred to Figure 6 in Appendix C).

5.2 Full fine-tuning with DP-Adam matches state-of-the-art

There is a range of lightweight fine-tuning methods that reduce the dimensionality of updates, including some that are designed for DP (Yu et al., 2021b). Do methods that optimize fewer parameters lead to better results under DP even if they perform similarly non-privately? Empirical results suggest otherwise and that full fine-tuning is a strong baseline that even matches specialized low-dimensional DP learning methods for both classification and generation. Below, we study the two sets of tasks separately. For completeness, all experimental details are in Appendix K.

Sentence Classification.

We study DP fine-tuning on tasks from the GLUE benchmark that have more than

k training examples (MNLI, QQP, QNLI, and SST-2), following the experimental setup of

Yu et al. (2021b). The associated datasets have modest sizes: SST-2 and QNLI have 60k+ and 100k+ training examples, respectively. MNLI and QQP each contains less than 400k examples. Table 1 shows that using larger pretrained models and the text-infilling objective generally improve classification accuracy. We compare full fine-tuning with reparameterized gradient perturbation (RGP) (Yu et al., 2021b), as it is the state-of-the-art for DP fine-tuning on sentence classification at the time of writing. The method is designed to privatize gradients projected onto low dimensional subspaces and was motivated to reduce DP noise in high-dimensional models. We note that full fine-tuning with the text infilling objective outperforms well-tuned RGP on all tasks despite being the simplest baseline. Computationally, while RGP is faster per-update, it requires more than 3 times as many epochs as full fine-tuning – overall, both methods are comparably fast in terms of wall time.

Method
MNLI-(m/mm) QQP QNLI SST-2 MNLI-(m/mm) QQP QNLI SST-2
RGP (RoBERTa-base) - - - - 80.5/79.6 85.5 87.2 91.6
RGP (RoBERTa-large) - - - - 86.1/86.0 86.7 90.0 93.0
full (RoBERTa-base) 82.47/82.10 85.41 84.62 86.12 83.30/83.13 86.15 84.81 85.89
full (RoBERTa-large) 85.53/85.81 86.65 88.94 90.71 86.28/86.54 87.49 89.42 90.94
full + infilling (RoBERTa-base) 82.45/82.99 85.56 87.42 91.86 83.20/83.46 86.08 87.94 92.09
full + infilling (RoBERTa-large) 86.43/86.46 86.43 90.76 93.04 87.02/87.26 87.47 91.10 93.81
(Gaussian DP + CLT) 2.52 2.52 2.00 1.73 5.83 5.85 4.75 4.33
(Compose tradeoff func.) 2.75 2.75 2.57 2.41 7.15 7.16 6.87 6.69
Table 1: Full fine-tuning larger pretrained models with text infilling has best performance. Results are dev set accuracies. Best numbers based on two-sample test for each privacy level are in bold.
Table-To-Text Generation.

We study different fine-tuning methods under DP for table-to-text generation where the goal is to generate natural language descriptions of table entries. We consider the datasets E2E (Novikova et al., 2017) and DART (Nan et al., 2020). E2E consists of simple restaurant reviews, whereas DART consists of open-domain table entries from Wikipedia and is more complex. Both datasets are small: E2E has more than 40k training examples, whereas DART has more than 60k. Since we are the first to experiment with this task under DP, we compare full fine-tuning (full) against a suite of parameter-efficient approaches which includes LoRA (Hu et al., 2021), prefix-tuning (Li & Liang, 2021) (prefix), RGP, and fine-tuning the top 2 Transformer blocks (top2), all of which optimize few parameters. On GPT-2 (125 million parameters), prefix-tuning with default hyperparameters optimizes ~10 million parameters; LoRA with rank 4 optimizes ~ million parameters. We also report results for training from randomly initialized weights (retrain). Hyperparameters of each method were tuned only the E2E dataset; the complete search ranges are in Appendix I. Table 2 shows that LoRA and full fine-tuning are generally the most performant on E2E. Tables 7 and 8 in Appendix J contain the full result on E2E and DART and confirm the trend.

Metric DP Guarantee Gaussian DP Compose Method
+ CLT tradeoff func. full LoRA prefix RGP top2 retrain
BLEU 61.519 58.153 47.772 58.482 25.920 15.457
63.189 63.389 49.263 58.455 26.885 24.247
non-private - - 69.463 69.682 68.845 68.328 65.752 65.731
ROUGE-L 65.670 65.773 58.964 65.560 44.536 35.240
66.429 67.525 60.730 65.030 46.421 39.951
non-private - - 71.359 71.709 70.805 68.844 68.704 68.751
Table 2: Full fine-tuning performs on par with or outperforms others methods that execute gradient update in low dimensional spaces. Results are on E2E from fine-tuning GPT-2.
Chit-Chat Dialog Generation.

We stress-test full fine-tuning under DP with the task of chit-chat dialog generation. This task has the distinct challenge that the response space is intrinsically diverse (Li et al., 2015; Gao et al., 2018) since human conversations can be informal and noisy (Zhang et al., 2019). Moreover, dialog datasets are usually formed with user data which may contain sensitive information. We use the Persona-Chat dataset (Zhang et al., 2018) as a testbed and build off a processed version that has ~130k training entries. Each entry contains a dialog history, persona descriptions of the respondent, and the response. We fine-tune GPT-2, GPT2-medium, and DialoGPT-medium on this dataset both privately and non-privately by training to predict the response with the dialog history and persona description. We report the F1 score and perplexity on the validation split, and human evaluated quality scores of generations. Table 3 shows that private models have strong performance. In particular, fine-tuned DialoGPT-medium at beats the (non-private) winning entry of the ConvAI2 challenge (Dinan et al., 2019) on perplexity and has a human evaluation rating that is close to non-private models. Samples from our private models can be found in Appendix O.

Model DP Guarantee Gaussian DP Compose Metrics
+CLT tradeoff func. F1 Perplexity Quality (human)
GPT-2 15.90 24.59 -
16.08 23.57 -
non-private - - 17.96 18.52 -
GPT-2-medium 15.99 20.68 -
16.53 19.25 -
non-private - - 18.64 15.40 -
DialoGPT-medium 17.37 17.64 2.82 (2.56, 3.09)
17.56 16.79 3.09 (2.83, 3.35)
non-private - - 19.28 14.28 3.26 (3.00, 3.51)
HuggingFace (ConvAI2 winner) non-private - - 19.09 17.51 -
HuggingFace (our implementation) non-private - - 16.36 20.55 3.23 (2.98, 3.49)
Reference - - - - - 3.74 (3.49, 4.00)
Table 3: Fine-tuning with DP-Adam yields high quality chit-chat dialog generation models.

6 Related Work

Private NLP.

The privacy-preserving NLP space is largely divided by whether or not a formal notion of privacy is considered. McMahan et al. (2017b) successfully trained small word-level RNNs with 1.35 million parameters in a federated setting with more than 700k users under a global DP guarantee of . Ramaswamy et al. (2020) train production grade next-word prediction models using DP-FedAvg with millions of users. Qu et al. (2021) studied fine-tuning BERT for language understanding tasks under local DP. Kerrigan et al. (2020) presented initial results that public pretraining is helpful for downstream DP fine-tuning. However, they did not attempt fine-tuning large pretrained models with DP-SGD. Bommasani et al. (2021) briefly commented on the possibility of achieving cheaper private learning by fine-tuning large pretrained language models. Anil et al. (2021) pretrained BERT under global DP on datasets with hundreds of millions of examples. Dupuy et al. (2021) studied private BERT fine-tuning on datasets of utterances, but reported results with on the order of at least 100. Orthogonally, many works considered training language models that satisfy empirical notions of privacy (Xu et al., 2021; Coavoux et al., 2018; Mireshghallah et al., 2021; Melamud & Shivade, 2019). Our work is distinct from all works mentioned above in that we study fine-tuning large language models (with hundreds of millions of parameters) under global DP with stringent guarantees () on smaller datasets (much less than a million examples).

DP Synthetic Data Generation.

Fine-tuning generative language models on private data under DP can also be viewed as a means of accomplishing DP synthetic data generation – learning generative models from private data so that synthetic examples could be sampled and used for analysis. Previous work employed generative adversarial networks and focused primarily on image or tabular datasets

(Torkzadehmahani et al., 2019; Neunhoeffer et al., 2020; Chen et al., 2020; Torfi et al., 2020). Perhaps more related is the work by Bommasani et al. (2019) which attempted fine-tuning GPT-2 on medical datasets to generate synthetic records but did not report any quantitative results.

7 Scope and Limitations

We presented strategies for fine-tuning large pretrained language models under DP for a wide range of NLP tasks. For researchers and practitioners working on private NLP, our empirical results suggest that DP fine-tuning with a proper setup is a competitive baseline that is worth trying before prematurely shifting to less formal notions of privacy which have not stood against the test of time. Below we list some limitations and future directions.

Hyperparameter Studies.

We studied how hyperparameter values affects the basic DP-Adam algorithm for private fine-tuning. We note that our study is by no means comprehensive. In particular, we did not study how weight decay, learning rate schedule, or batch size schedule affect private learning. Custom setups for these knobs have been found helpful for other private learning tasks (Anil et al., 2021). Our studies revealed that hyperparameter values can affect private fine-tuning in significant ways. This calls for more transparency in hyperparameter disclosure, analyses of hyperparameter transferability across tasks, and accounting of privacy loss for hyperparameter tuning when hyperparameters aren’t transferred across workloads.

Pretraining vs Private Learning.

Our model scaling results suggest that using larger pretrained models improves performance. This argument, however, is dependent on the particular choice of pretrained models. We chose off-the-shelf models since they tend to be successful for non-private fine-tuning. How pretraining helps private learning and whether better pretrained models for private learning could be built are interesting future avenues.

Scaling Laws for Private Learning.

While scaling laws (Kaplan et al., 2020) for non-private deep learning have become prevalent, we are unaware of a case study in the private realm. Studies on how the dimensionality of models (and pretraining) generally affect private deep learning in precise quantitative terms will likely be a useful tool in trading off compute budget and model quality.

Federated Fine-tuning.

Our techniques for private fine-tuning likely transfer to federated settings (McMahan et al., 2017a, b). Fine-tuning pretrained models on compute-limited devices to achieve communication efficiency then becomes an important practical problem.

Ethics Statement

While the present paper studies privacy aspects of NLP models, all experiments performed herein are based on publicly available datasets for reproducibility. The paper empirically studies various behaviors of (mostly existing) algorithms, thus likely does not introduce any new ethical or societal concerns. The present paper does not introduce any new dataset.

Reproducibility

All experiments in the paper are based on publicly available datasets. Links to these datasets are included in the main text and appendices. Hyperparameters necessary for reproducing our experiments are documented in Appendix I and H. Code for our ghost clipping technique will be released shortly.

Acknowledgments

We thank Xiang Lisa Li for help on reproducing non-private prefix-tuning results. We thank Da Yu for discussions and help on reproducing results for the RGP method. We thank Abhradeep Guha Thakurta and Rishi Bommasani for helpful discussions. We thank members of the Stanford statistical machine learning group for comments on early versions of the abstract. We thank Guodong Zhang and Mayee Chen for comments on an early draft. We thank Stanford HAI for a Google Cloud Credits Grant. XL is supported by a Stanford Graduate Fellowship.

References

Appendix A DP-Adam

We use DP-Adam throughout. DP-Adam works just like regular Adam (Kingma & Ba, 2014)

but performs updates and moment accumulation with privatized gradients. The gradient privatization part is the same as that performed in DP-SGD

(Song et al., 2013; Abadi et al., 2016). To determine the noise multiplier, we account privacy through Rényi differential privacy (RDP) (Mironov, 2017; Mironov et al., 2019). For completeness, we include the pseudocode for DP-Adam below.

1:Input: Data , learning rate , noise multiplier , batch size , Euclidean norm threshold for gradients , epochs , initial parameter vector

, initial moment estimates

, exponential decay rates , avoid division-by-zero constant .
2:for   do
3:     Draw a batch via Poisson sampling; each element has probability of being selected
4:     for   do
5:
6:     end for
7:
8:
9:
10:end for
11:return
Algorithm 1 DP-Adam
1:Input:
2:
3:
4:
5:return
Algorithm 2 AdamUpdate

Appendix B Privacy Accounting

We train all models under approximate-DP (Dwork et al., 2014), and we view two datasets as being adjacent if and only if one can be obtained from the other by including an extra record (Mironov et al., 2019). Instead of accounting the privacy loss with Moments Accountant (Abadi et al., 2016), we perform computation through Rényi DP (Mironov, 2017; Mironov et al., 2019), Gaussian DP with an associated central limit theorem (Dong et al., 2019), and numerically composing tradeoff functions via fast Fourier transform (Gopi et al., 2021; Koskela et al., 2020). All approaches are improvements over the Moments Accountant. Accounting loss with Rényi DP provides strict upper bounds on the actual privacy leakage but may result in loose bounds. Accounting loss with Gaussian DP and its central limit theorem, although asymptotically exact, only provides approximations to the actual loss under a finite number of compositions (Dong et al., 2019, Theorem 3.4). Gopi et al. (2021) observed that accounting loss with GDP and its CLT results in underestimation and proposed to numerically compose tradeoff functions resulting in both upper and lower bounds on the actual leakage . We therefore also report the converted with the approach by Gopi et al. (2021) using their code.777https://github.com/microsoft/prv_accountant

Given the noise multiplier , sampling rate , number of steps , and failure constant , can be computed via first computing the Rényi DP leakage and then converting it to approximate DP. When a privacy spending (specified by a set of given and ) is prescribed, we can numerically invert the above procedure to obtain a suitable for noisy optimization. This is what we do throughout all experiments. For completeness, given ’s chosen as above, we also report the leakage estimated by going through the central limit theorem in Gaussian DP (Bu et al., 2020).

In addition, model selection from hyperparameter tuning on private training data could incur extra privacy leakage. We skip the step of private hyperparameter tuning (Liu & Talwar, 2019; Chaudhuri & Vinterbo, 2013; Papernot & Steinke, 2021) and instead perform tuning only on the E2E task and reuse almost the exact hyperparameters for all remaining tasks.

Appendix C Additional Results on Model Scaling

We repeat the model scaling experiments from Figure 1 on the other tasks considered in the paper. Figure 6 shows that the trend that larger and better pretrained models lead to improved private fine-tuned performance holds consistently across all tasks. TextHide numbers based on the formulation (Huang et al., 2020a).

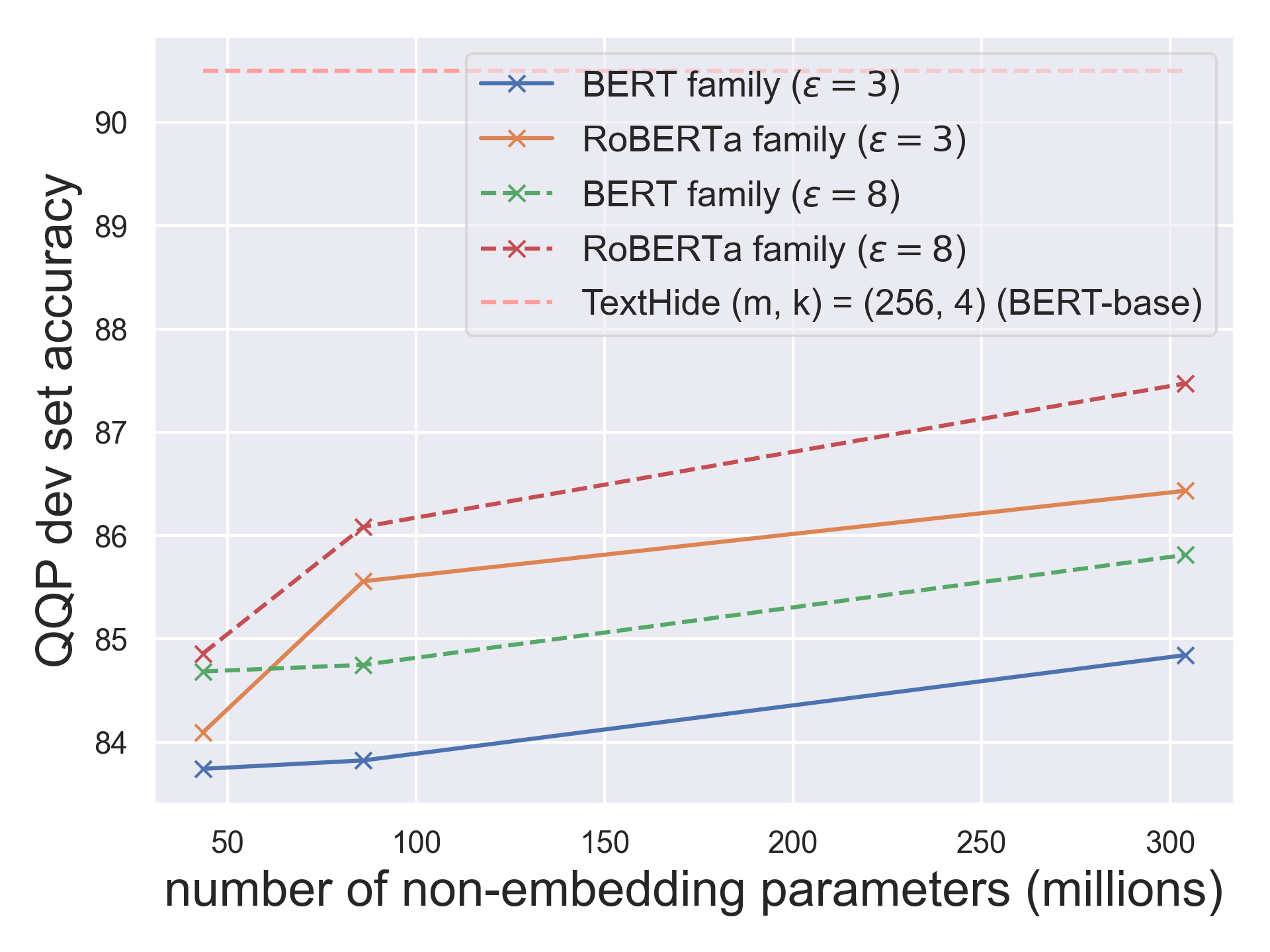

(a) MNLI-mismatched (b) SST-2 (c) QQP (d) QNLI (e) DART

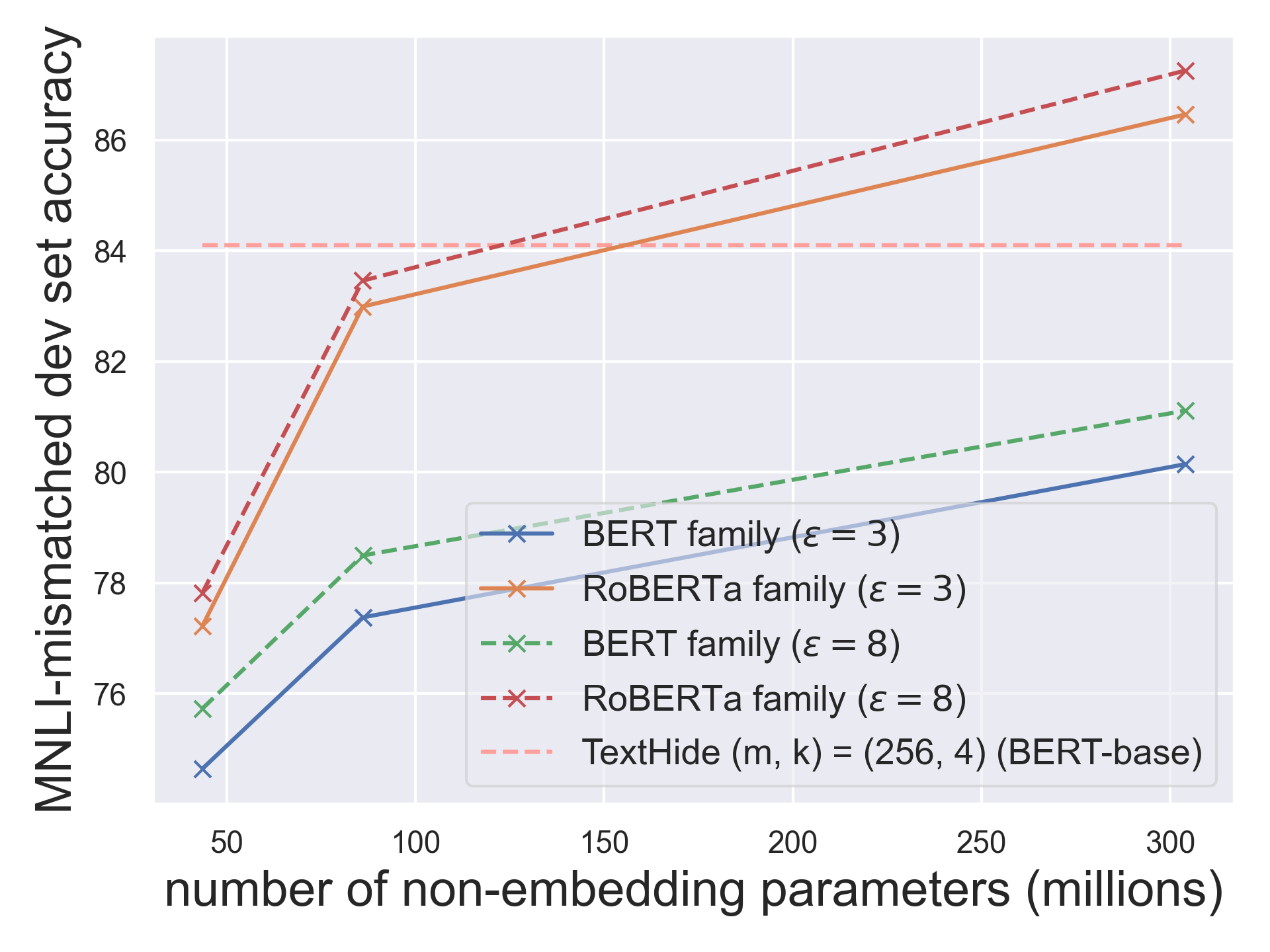

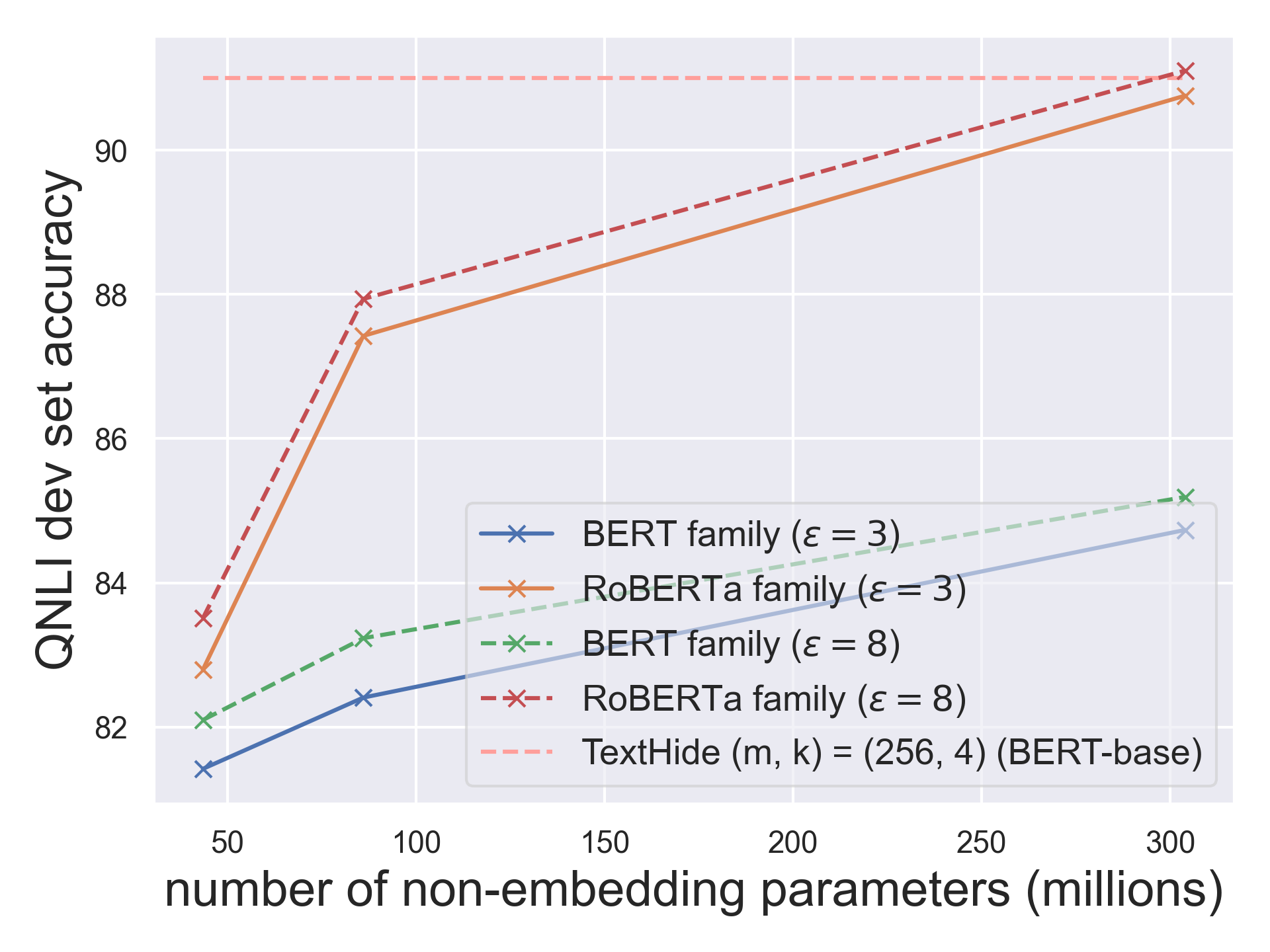

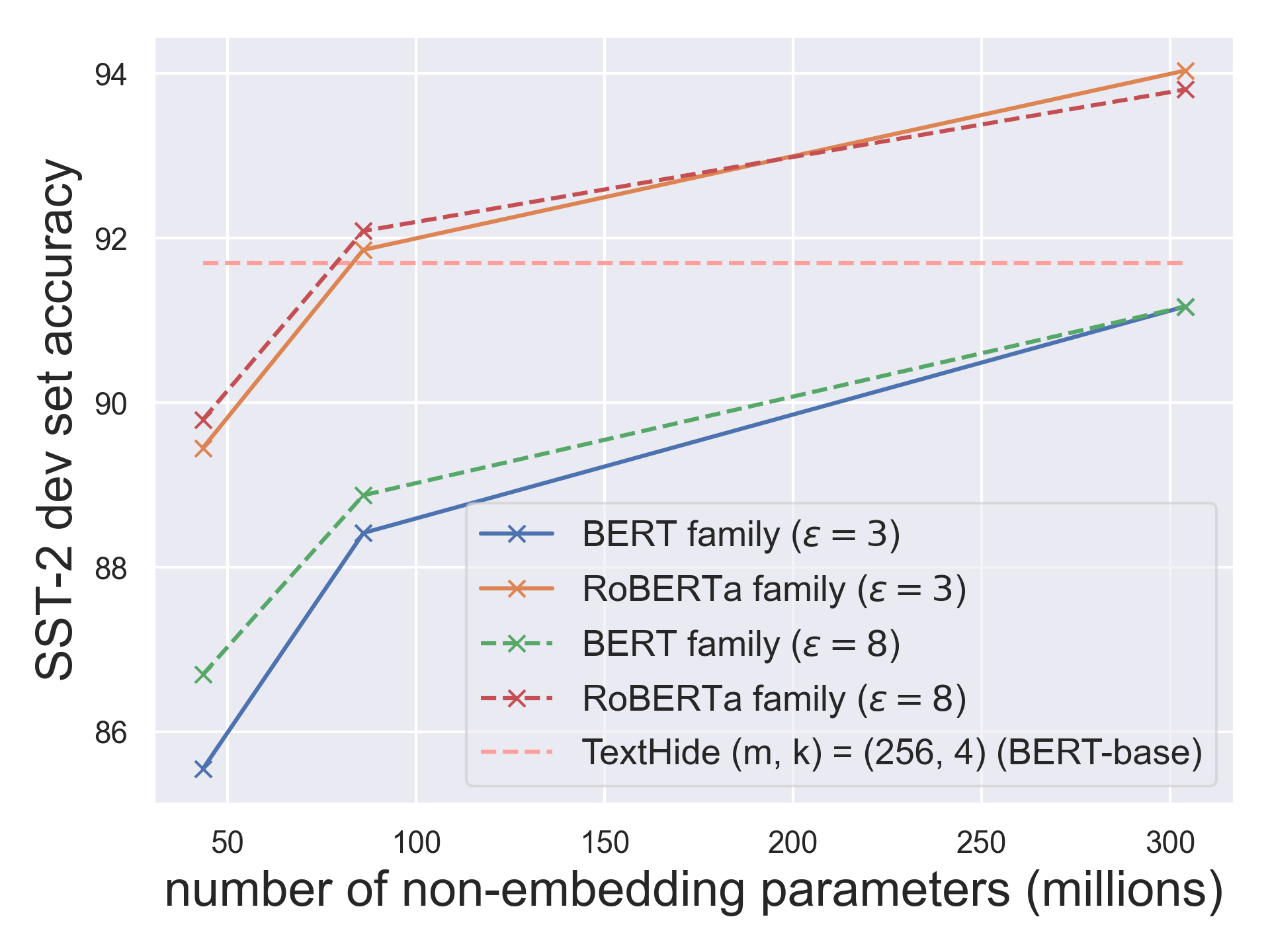

Figure 6: Larger and better pretrained models consistently lead to better private fine-tuned performance on sentence classification and language generation tasks.

Appendix D When and why does linear scaling fail?

Recall Tramèr & Boneh (2020)

suggested that the following simple rule approximately holds in private learning: Scaling the learning rate together with the batch size by the same constant yields models with almost the same performance. Note that their experiments on MNIST, Fashion-MNIST, and CIFAR-10 used only batch sizes in

. These values are fairly large from a non-private learning perspective. Indeed, our experiments on E2E suggest that this rule does not generalize to batch sizes that are too small (sampling rates ).

We provide an explanation by noting that a core assumption which the linear scaling rule depends on fails to hold for small batch sizes. This assumption is that given a privacy budget, a “square-root” relationship holds between the noise multiplier and the sampling rate (see also (Tramèr & Boneh, 2020, Claim D.1)). For instance, Tramèr & Boneh (2020) showed that when for some constant . Our numerical estimates show that this relationship fails to hold for small – it underestimates the true noise multiplier that would be obtained with numerical computation. Figure 7 provides an illustration for when the sample size k and number of training epochs .

Figure 7: “Square-root” relationship underestimates the noise multiplier for small batch sizes.

Appendix E how does the choice of label words affect sentence classification

Recall in Section 3.2 we cast sentence classification as filling in the missing word among candidates for a -way classification problem. Since a label word could be mapped to multiple possible words, we study how the choice of label words affect performance. We again use the sentiment classification task SST-2 as a testbed. Figure 8 shows the effect of varying the label word, where we measure the alignment between the label word and the downstream task by the zero-shot performance of the infilling task (x-axis). We find that increasing the task alignment of the label words alone improves performance by (orange curve), which is in contrast to the non-private setting, where choice of label words do not affect performance in statistically significant ways (blue curve).

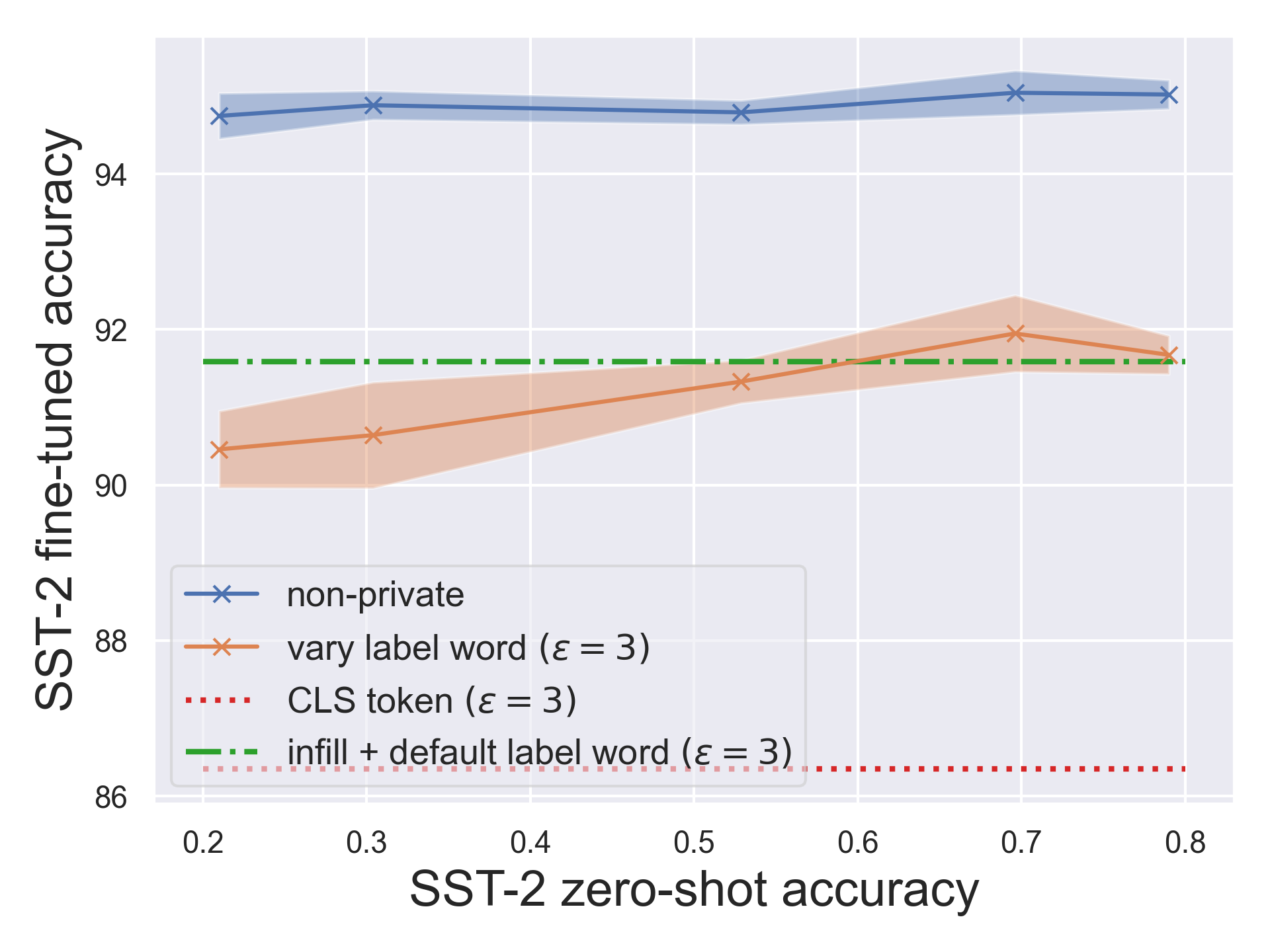

Figure 8: Better text labels help private learning more than non-private learning.

Appendix F Derivation of the Frobenius norm identity

Recall is the input to a linear layer with weight matrix , and is the gradient of the loss w.r.t. the output. The identity follows from trivial algebra:

Note that when , the identity takes the form of

This is exactly what is used in the Goodfellow (2015) trick.

Appendix G Protocol for experiments in Section 4.2

For these experiments, we used mock examples with the same format as examples in the E2E dataset. We created mock input sequences of length , as this length is almost the maximum length of examples in the actual E2E training set.

Our JAX implementation is adapted from a codebase used in the work by Subramani et al. (2020) and utilizes the package flaxmodels for loading pretrained models.888https://github.com/matthias-wright/flaxmodels The Opacus (Yousefpour et al., 2021) baseline is based on version 0.14.0 of the library, where for a fair comparison, we also optimized the implementation of the privacy engine by replacing all einsum operations with basic primitives that manipulate tensors directly. We found certain einsum steps to cause large and unnecessary speed and memory overheads.

To identify the maximum batch size that each approach could use, we ran binary search over the range of possible batch sizes until the upper bound matched the lower bound and that OOM did not occur. To estimate the throughput of each private method, we compared them to non-private training first. Specifically, for a pairwise comparison, we took the maximum batch size for non-private training and some private method, and computed the least common multiple as a batch size to perform updates with. Using the least common multiple batch size ensures that both methods will process exactly the same number of examples and perform the same number of updates. By estimating the time elapse of these methods for performing a fixed number of updates, we obtained throughputs for non-private training and the private method. This gives us the relative throughput of the private method with non-private training as the reference.

For methods implemented in PyTorch, the time elapse was recorded with torch.profiler. When estimating the time elapse for a training procedure, we first performed 3 gradients updates as a warm up process before taking the actual steps which will be timed. In particular, this eliminates the time that JAX uses for compiling computation graphs with vmap and jit.

All experimental runs in the section were under full precision.

Appendix H Details and additional results for Studies in Section 3.1

Method Full
DP guarantee
Clipping norm 0.1
Batch size 1024
Learning rate
Learning rate decay no
Epochs 10 for E2E; 3 for SST-2
Weight decay 0
Noise scale calculated numerically so that a DP budget of is spent after epochs
Table 4: Default hyperparameters for ablation studies.
Figure 9: Extended results for the batch size experiment under fixed epochs.

Appendix I Hyperparameter Search Ranges for experiments in Section 5

We compare different adaptation methods by reporting task specific metrics on the test split using hyperparameters that maximize validation BLEU on E2E. For sentence classification tasks, we reused the same hyperparameters, except for the number of training epochs and batch size. For SST-2, we reused the same batch size as for private E2E fine-tuning, and the number of epochs exactly as in typical non-private fine-tuning for SST-2 (number of epochs equals to 3 in this case). For remaining classification tasks, we use a batch size such that the sampling rate is the same as for SST-2, and a number of training epochs that ensures the number of gradient updates is the same as for SST-2. Appendix L outlines why we transfer the sampling rate and number of gradient updates, as opposed to the batch size and training epochs. We list the range of hyperparameters that we searched over for each individual adaptation method on E2E considered in the paper. Prefix-tuning has two additional hyperparameters: the length of the prefix and the dimensionality of the hidden layer. We set these to the default used by Li & Liang (2021) (10 for the former and 512 for the latter). For Adam, we use the default hyperparamaters set by PyTorch (Paszke et al., 2017).

Method Full Prefix Linear FT2
Guarantee
Clipping norm 0.1 0.1 0.1 0.1
Batch size
Learning rate
LR decay
Epochs
Weight decay 0 0 0 0
Noise scale calculated numerically so that a DP budget of is spent after epochs
Table 5: Hyperparameter search range for different methods.
Method LoRA RGP
DP guarantee
Clipping norm 0.1
Batch size
Learning rate
LR decay
Epochs
Weight decay 0 0
Rank
Noise scale calculated numerically so that a DP budget of is spent after epochs
Table 6: Hyperparameter search range for different methods (continued).

Appendix J Full Results for experiments in Section 5.2

Method DP Guarantee Gaussian DP Compose Metrics
+CLT tradeoff func. BLEU NIST METEOR ROUGE-L CIDEr
full 61.519 6.697 0.384 65.670 1.761
63.189 7.444 0.400 66.429 1.919
non-private - - 69.463 8.780 0.461 71.359 2.422
LoRA 58.153 5.463 0.370 65.773 1.581
63.389 7.449 0.407 67.525 1.948
non-private - - 69.682 8.822 0.463 71.709 2.491
prefix 47.772 5.775 0.331 58.964 1.300
49.263 6.276 0.349 60.730 1.496
non-private - - 68.845 8.722 0.456 70.805 2.418
RGP 58.482 5.249 0.363 65.560 1.507
58.455 5.525 0.364 65.030 1.569
non-private - - 68.328 8.722 0.445 68.844 2.345
top2 25.920 1.510 0.197 44.536 0.452
26.885 1.547 0.207 46.421 0.499
non-private - - 65.752 8.418 0.443 68.704 2.180
retrain 15.457 0.376 0.113 35.240 0.116
24.247 1.010 0.145 39.951 0.281
non-private - - 65.731 8.286 0.429 68.751 2.004
Table 7: Full results on E2E from fine-tuning GPT-2.
Method DP Guarantee Gaussian DP Compose Metrics
+ CLT tradeoff func. METEOR ROUGE-1 ROUGE-2 ROUGE-L BLEU BERTScore BLEURT
full 0.294 62.815 40.773 52.063 31.025 0.887 -0.058
0.319 66.423 43.609 54.576 35.057 0.901 0.043
non-private - - 0.369 71.563 47.168 56.717 42.783 0.915 0.178
LoRA 0.304 63.641 40.753 52.012 32.329 0.885 -0.029
0.318 66.336 43.056 54.082 34.163 0.899 0.036
non-private - - 0.366 71.192 47.336 57.430 42.254 0.915 0.182
prefix 0.269 59.503 38.229 49.444 25.726 0.860 -0.144
0.297 64.009 41.581 52.602 30.463 0.892 -0.021
non-private - - 0.353 70.341 46.643 56.858 40.163 0.912 0.148
RGP 0.265 58.688 37.202 49.011 25.748 0.873 -0.175
0.279 60.005 38.258 49.835 28.304 0.874 -0.141
non-private - - 0.324 65.667 42.617 53.477 35.551 0.895 0.022
top2 0.022 3.570 2.183 3.166 0.388 0.098 -1.952
0.054 11.475 7.054 10.042 2.453 0.240 -1.660
non-private - - 0.318 62.777 38.367 49.426 36.099 0.883 -0.082
retrain 0.064 19.085 8.901 17.142 2.997 0.493 -1.513
0.093 24.971 11.938 21.680 7.765 0.573 -1.302
non-private - - 0.232 47.782 26.361 37.864 26.794 0.806 -0.593
Table 8: Full results on DART from fine-tuning GPT-2. Trend is consistent with results on E2E.

Appendix K Details for experiments in section 5.2

Sentence Classification.

Results for RGP in Table 1 are taken from documented numbers in their released codebase.999https://github.com/dayu11/Differentially-Private-Deep-Learning/tree/main/language These results are under the DP guarantees of or . These guarantees are strictly looser than our guarantees which are based on (recall the smallest dataset in this cohort of tasks has k+ records). The RGP numbers in Table  1 are higher than those reported in their paper (Yu et al., 2021b), since the latter numbers are not based on fine-tuning the official RoBERTa models.

Table-To-Text Generation.

To evaluate models trained on E2E and DART, we evaluate generations from models obtained with beam search with a beam size of . For evaluation, we run the official pipeline for E2E,101010https://github.com/tuetschek/e2e-metrics and the pipeline used in the GEM benchmark (Gehrmann et al., 2021) for DART.111111https://github.com/GEM-benchmark/GEM-metrics

Chit-Chat Dialog Generation.

We built off Huggingface’s codebase of the winning entry of the ConvAI2 competition, 121212https://github.com/huggingface/transfer-learning-conv-ai 131313http://convai.io/2018/ and used their preprocessed training set with the minor modification of truncating the number of training examples to be a multiple of the batch size. The original ConvAI2 competition is aimed at advancing research on building engaging chatbots and also requested models to predict the mostly likely response given a list of candidates. The challenge included hits@1 as part of its suite of automatic metrics. For simplicity, we skip this step of predicting the most likely response for both training and evaluation. Results for the entry HuggingFace (ConvAI2 winner) in Table 3 are taken from the official validation set leader board.141414https://github.com/DeepPavlov/convai/blob/master/leaderboards.md Our reimplementation of HuggingFace’s submission uses the released code for their winning entry, fine-tunes GPT with the default hyperparameters, and removes the classification loss for learning to predict the most likely response given candidates.

We additionally fine-tuned DialoGPT-medium (Zhang et al., 2019), since the model was pretrained on conversation-like exchanges extracted from Reddit comment chains. Intuitively, this pretraining corpus is more aligned with the downstream fine-tuning data than WebText (Radford et al., 2019), and thus would likely improve downstream performance.

To evaluate the F1 score, we obtained predicted responses from trained models using beam search with a beam size of . Since past work found that the F1 score can be gamed by always letting the model predict a predetermined phrase (Dinan et al., 2019), we additionally ask humans to rate generations from the model through Amazon mechanical turk to obtain a more complete picture of model quality. When sampling responses for human evaluation, we used nucleus sampling with  (Holtzman et al., 2019). For human evaluation, we asked 20 turkers to each rate 5 entries. For each entry, a turker is asked to rate on a scale of 1 to 5 the quality of predicted responses from privately fine-tuned DialoGPT-medium models, non-privately fine-tuned DialoGPT-medium models, non-privately fine-tuned GPT models (our reimplementation of HuggingFace’s entry), and the reference text, given the history of the dialog. Since human evaluation can yield noisy results, we also report the

asymptotic confidence interval in Table

3. All models were trained and evaluated on the version of Persona-Chat with the original persona. All numbers reported in Table 3 are obtained on the validation split.

Appendix L Transferring Hyperparameters Across Datasets

Our work involved tuning hyperparameter with models trained via DP-Adam on one private dataset and transferring such hyperparameters to other private datasets. Since different datasets may be of different sizes, transferring hyperparameter values such as the number of training epochs and batch size may cause a discrepancy in the effective noise multiplier across workloads with different datasets. Transferring the number of training epochs and batch size based on hyperparameter tuning on small datasets to larger datasets can be particularly problematic, as the effective noise multiplier can be larger than ideal. In this work, we instead transferred the sampling rate and number of training steps across different datasets.

Appendix M Does DP Fine-Tuning Prevent Unintended Memorization?

One of the ultimate goals of fitting models under DP is to ensure that training data extraction is unlikely given the trained model. To empirically evaluate whether DP fine-tuning helps prevent against unintended memorization and related attacks, we follow the secret sharer framework (Carlini et al., 2019) and estimate the exposure of artificial canaries inserted into the training set used for fine-tuning. We use the E2E dataset as a testbed.

To create canaries, we first form a subvocabulary by randomly sampling words in the original vocabulary of GPT-2. Our canaries have prefixes of the form

where <word> is randomly sampled from the subvocabulary. The suffix which our model should learn to predict consists of randomly sampled words with an average length of . By definition, canaries with an estimated exposure close to can likely be extracted. We experiment with canary-corrupted datasets for repetition values . A canary has a higher chance in being extracted when it’s repeated for more than once in the training data.

GuaranteeRepetitions
non-private
Table 9: Fine-tuning under DP prevents unintended memorization of downstream data. Numbers reported are exposure values estimated with the approximation by distribution model approach.

Appendix N Templates and Label Words for Text-Infilling-Based Classification in Section 3.2

Recall that fine-tuning for classification can be reformulated as filling in the [MASK] token in a template sequence. Here, we list the templates used for each classification task considered in the paper. These templates are almost generic and are not obtained from expensive manual or automated search. We anticipate better templates obtained from automated search based on data (Gao et al., 2020) to improve the performance even further. However, we also expect that such a procedure would lead to some amount of increased privacy spending if it were based on private data.

Task Template Label words
SST-2 <> It was [MASK] . positive: great, negative: terrible
MNLI <> ? [MASK] , <> entailment: Yes, netural: Maybe, contradiction: No
QNLI <> ? [MASK] , <> entailment: Yes, not_entailment: No
QQP <> [MASK] , <> equivalent: Yes, not_equivalent: No
Table 10: Templates and label words borrowed from the work by Gao et al. (2020).

Appendix O Uncurated Samples from fine-tuned models

Table name : The Punter — Type : restaurant — food : Indian — price : cheap — customer rating : average — area : riverside — family friendly : no — near : Express by Holiday Inn
GPT-2 The Punter is a cheap Indian restaurant near Express by Holiday Inn in the riverside area. It is not family - friendly.
GPT-2 The Punter is a cheap Indian restaurant near Express by Holiday Inn in the riverside area. It is not family - friendly.
GPT-2-m The Punter is a cheap Indian restaurant located in the riverside area near Express by Holiday Inn. It has an average customer rating and is not family - friendly.
GPT-2-m The Punter is a restaurant providing Indian food in the cheap price range. It is located in the riverside area near Express by Holiday Inn. Its customer rating is average.
GPT-2-l The Punter is a cheap Indian restaurant in the riverside area near Express by Holiday Inn. It is not family - friendly and has an average customer rating.
GPT-2-l The Punter is a restaurant providing Indian food in the cheap price range. It is located in the riverside area near Express by Holiday Inn. Its customer rating is average.
Reference The restaurant named The Punter has cheap Indian food and an average customer rating . It is near the Express by Holiday Inn on the riverside and is not family friendly .
Table name : The Mill — Type : restaurant — food : English — price : moderate — customer rating : 3 out of 5 — area : city centre — family friendly : yes — near : Café Rouge
GPT-2 The Mill is a moderately priced restaurant located in the city centre near Café Rouge.
GPT-2 The Mill is a moderately priced restaurant located in the city centre near Café Rouge.
GPT-2-m The Mill is an English restaurant located in the city centre near Café Rouge. It is moderately priced and has a customer rating of 3 out of 5.
GPT-2-m The Mill is a moderately priced restaurant located in the city centre near Café Rouge. It is child friendly and has a customer rating of 3 out of 5.
GPT-2-l The Mill is a moderately priced English restaurant in the city centre near Café Rouge. It is child friendly and has a customer rating of 3 out of 5.
GPT-2-l The Mill is a kid friendly English restaurant in the city centre near Café Rouge. It has a moderate price range and a customer rating of 3 out of 5.
Reference Serving moderately priced English food with a 3 out of 5 customer approval , The Mill restaurant is kid friendly and conveniently located at the city centre near the Café Rouge .
Table name : The Vaults — Type : pub — food : Japanese — price : high — customer rating : 3 out of 5 — area : city centre — family friendly : yes — near : Raja Indian Cuisine
GPT-2 Located near Raja Indian Cuisine in the city centre, The Vaults is a family - friendly Japanese pub with a high customer rating.
GPT-2 The Vaults is a Japanese pub in the city centre near Raja Indian Cuisine. It has a high price range and a customer rating of 3 out of 5.
GPT-2-m The Vaults is a Japanese pub located in the city centre near Raja Indian Cuisine. It has a high price range and a customer rating of 3 out of 5.
GPT-2-m The Vaults is a Japanese pub located in the city centre near Raja Indian Cuisine. It has a high price range and a customer rating of 3 out of 5.
GPT-2-l The Vaults is a Japanese pub in the city centre near Raja Indian Cuisine. It has a high price range and a customer rating of 3 out of 5.
GPT-2-l The Vaults is a child friendly Japanese pub in the city centre near Raja Indian Cuisine. It has a high price range and a customer rating of 3 out of 5.
Reference Located near the Raja Indian Cuisine at the city centre , is family - friendly pub The Vaults . Serving Japanese food , The Vaults , is high priced with a 3 out of 5 customer satisfaction rating .
Table 11: Fully fine-tuned GPT-2, GPT-2-medium, and GPT-2-large generations with E2E test table entries.
Table Real Madrid Castilla : manager : Luis Miguel Ramis — Abner (footballer) : club : Real Madrid Castilla — Abner (footballer) : club : C.D. FAS
GPT-2 Luis Miguel Ramis played for Real Madrid Castilla and played for C.D. FAS.
GPT-2 Luis Miguel Ramis is the manager of Abner (footballer) who plays for Real Madrid Castilla.
GPT-2-m Luis Miguel Ramis is the manager of Real Madrid Castilla. He plays for C.D. FAS.
GPT-2-m Luis Miguel Ramis is the manager of Real Madrid Castilla. He plays for C.D. FAS.
GPT-2-l Luis Miguel Ramis is the manager of Real Madrid Castilla and C.D. FAS.
GPT-2-l Luis Miguel Ramis is the manager of Real Madrid Castilla and Abner (footballer) plays for C.D. FAS.
Reference Footballer, Abner, plays C.D. FAS. and Real Madrid Castilla, the manager of which, is Luis Miguel Ramis.
Table United States : ethnic_group : Asian Americans — United States : capital : Washington, D.C. — Albany, Oregon : is_part_of : Benton County, Oregon — Albany, Oregon : country : United States
GPT-2 The capital of the United States is Washington, D.C. and is part of Benton County, Oregon.
GPT-2 The capital of the United States is Washington, D.C. and is part of Benton County, Oregon.
GPT-2-m Albany, Oregon is part of Benton County, Oregon in the United States where Asian Americans are an ethnic group.
GPT-2-m Albany, Oregon is part of Benton County, Oregon in the United States where Asian Americans are an ethnic group.
GPT-2-l Albany, Oregon is part of the United States where Asian Americans are an ethnic group and the capital is Washington D.C.
GPT-2-l Albany, Oregon is part of the United States where Asian Americans are an ethnic group and the capital is Washington D.C.
Reference The Asian Americans are an ethnic group in the United States, which has the capital city of Washington DC. It is also the location of Albany, part of Benton County in Oregon.
Table A Loyal Character Dancer : language : English language — English language : spoken_in : Great Britain — A Loyal Character Dancer : country : United States — United States : ethnic_group : Native Americans in the United States
GPT-2 A Loyal Character Dancer is an English language spoken in the United States where Native Americans are the ethnic group.
GPT-2 A Loyal Character Dancer is written in English and is spoken in Great Britain. Native Americans are an ethnic group in the United States.
GPT-2-m A Loyal Character Dancer is written in English and is written in the United States where Native Americans are an ethnic group.
GPT-2-m A Loyal Character Dancer is written in English and is written in the United States where Native Americans are an ethnic group.
GPT-2-l A Loyal Character Dancer is written in English and is written in the United States where Native Americans are an ethnic group.
GPT-2-l A Loyal Character Dancer is written in English, which is spoken in Great Britain and the United States. Native Americans are an ethnic group in the United States.
Reference A Loyal Character Dancer is written in English which is spoken in Great Britain. The book is published in the United States where the Native Americans are an ethnic group.
Table 12: Fully fine-tuned GPT-2, GPT-2-medium, and GPT-2-large generations with DART test table entries.
Persona [’i am 40 years old.’, ’i work as a car salesman.’, ’my wife spends all my money.’, ’i hate my job.’, ”i’m planning on getting a divorce.”]
History [’i know the struggle, i volunteer at a homeless shelter’, ”great, i hope you don’t get to see me there.”, ’i hope not either, would not wish it on my worse enemy’, ’between wife, job with no money, i am thinking now of divorce.’, ”i’ve given it a few thoughts before”]
GPT-2-m i wish i had a better idea .
GPT-2-m i think i will . what are your thoughts on divorce ?
DialoGPT-medium i’m sorry to hear that . i hope you don’t have any financial problems .
DialoGPT-medium i don’t have any money , i do not know how i could manage .
Reference do you give demonstrations of your skills ?
Persona [’my mother is a dentist.’, ’my favourite artist is travis scott.’, ’i have one older sister.’, ’i am currently looking for a job preferably at a restaurant.’, ’i like playing basketball.’]
History [’hello, how are you tonight?’]
GPT-2-m i’m good , good luck
GPT-2-m i am good , just listening to travis scott . what about you ?
DialoGPT-medium i’m good . just got back from a dentist visit .
DialoGPT-medium i am doing well . just got back from a dentist visit
Reference i am good . about to go to basketball practice .
Persona [’my mom passed away when i was young.’, ’i work in the insurance business.’, ’my father is in the army.’, ’i recently was fired and had to get a new job.’]
History [”god isn’t really real”, ’to each their own, but i believe he is.’, ’my children are gone now’, ’i lost my mom at a young age’, ’my wife took them all’]
GPT-2-m she was a great mother
GPT-2-m they were so young , they were so crazy
DialoGPT-medium that is horrible . my mom was a soldier
DialoGPT-medium what happened to her ?
Reference sorry to hear that . i barely see my dad he’s in the army
Persona [’i am also a graduate student.’, ’i walk dogs for a living.’, ’my parents taught me survival skills.’, ’i am an avid kayaker.’, ’i enjoy reading journals and guides related to psychology.’]
History [’hi, how are you today?’, ”good evening. how are you tonight? i’m well.”, ’i am doing good, i just finished playing ping pong.’, ’i am trying to write invoices for my dog walking business.’, ’that seems like hare work, i like to play the violin in my free time.’]
GPT-2-m i have a lot of dogs , i walk them on my walks .
GPT-2-m that is a very rewarding hobby . i have a dog named jasper .
DialoGPT-medium oh , that is a nice hobby . what do you do for a living ?
DialoGPT-medium it is . i love learning to play the violin .
Reference i love the violin . i do not play anything . i kayak for fun however .
Table 13: Fully fine-tuned GPT-2-medium and DialoGPT-medium generations for Persona-Chat validation examples.

Appendix P Additional Related Work

Differentially Private Deep Learning.

DP-SGD has been viewed as ineffective for large models due to the addition of large Gaussian noise to gradient updates. Improvements to the learning procedure mostly fall under two distinct camps: Simplifying the private learning problem, and reducing the scale of noise. For instance, Papernot et al. (2019); Tramèr & Boneh (2020); Abadi et al. (2016) consider transferring features learned on public datasets to simplify the subsequent private learning task. On the other hand, Zhou et al. (2020); Kairouz et al. (2020) remove the ambient dimension dependence of DP noise by identifying subspaces in which private gradients lie and would be privatized. Yu et al. (2021a, b) make such ideas practical and demonstrate improved results on private learning benchmarks. Zhang et al. (2021) applied the sparse vector technique to learning wide neural layers to reduce the amount of injected noise. Our work mostly falls under the first camp – improving private learning through simplifying the learning task. Our work is also distinct from prior works in that we focus on privately fine-tuning large pretrained models. Lastly, there are alternative solutions in the literature that enforces DP which are not based on gradient perturbation (Papernot et al., 2018, 2016). These methods typically require extra public data and are not the present focus.

Parameter-Efficient Fine-Tuning.

Recent developments on pretrained model adaptation have produced a wide range of parameter-efficient fine-tuning methods for both vision and language tasks. We briefly summarize these, grouping by category. Approaches based on optimizing prompt-like constructions for NLP tasks include prefix-tuning (Li & Liang, 2021), P-tuning (Liu et al., 2021), and prompt-tuning (Lester et al., 2021). Adapter-based methods insert small subnetworks inside pretrained Transformers (Houlsby et al., 2019; Rücklé et al., 2020; Pfeiffer et al., 2020). Methods that optimize low-rank matrices include the work by Hu et al. (2021); Mahabadi et al. (2021). In addition, there are adaptation methods that only optimize biases for vision (Cai et al., 2020) and language tasks (Ben Zaken et al., 2021). Our evaluation in Section 5.2 covered the most representative methods that generally have state-of-the-art non-private learning performance (at the time of writing) for the range of NLP tasks studied in this paper.

Speeding Up DP-SGD.

Apart from the work by Lee & Kifer (2020) and Subramani et al. (2020), there is an approach that approximates per-example gradient norms through the combination of random projection and forward-mode autodiff (Bu et al., 2021). While faster than vanilla private learning, this approach has the drawback of increased privacy spending and having an extra hyperparameter. Our ghost clipping technique, while only suited for Transformers applied to sequential data, does not introduce new hyperparameters.

Alternative Clipping Strategies.

While there are alternative clipping strategies in the literature that show improvements on simple tasks (Pichapati et al., 2019; Asi et al., 2021), we have opted to study the simplest strategy that clips gradients by their Euclidean norm. We leave the study of these algorithms for NLP tasks to future work.

Concurrent Work.

We are made aware of a concurrent work in submission that also studies fine-tuning large language models under DP (Anonymous, 2022). This work presents initial successes on fine-tuning under DP with low-rank methods such as LoRA. Our experiments on language generation (see Section 5.2 and Table 2) demonstrate similar findings. Yet, we moreover show that full fine-tuning with good hyperparameters attains similar performance and possesses similar model scaling properties, which was raise by Anonymous (2022) as interesting open questions to pursue. Lastly, our private fine-tuning results for sentence classification may be far from optimal, since we used hyperparameters mostly transferred from tuning on the E2E language generation task.

Appendix Q Estimates of Run-time in practice

The actual run-time of algorithms depends on implementation details. Here, we outline estimates of the run-time for full fine-tuning with DP-Adam on tasks considered in the paper. These numbers are based on running with a single RTX 3090 with PyTorch==1.9.0. Fine-tuning GPT-2 on E2E and DART takes less than 10 minutes per epoch, and fine-tuning for 10 epochs results in reasonably performing models. The time to fine-tune RoBERTa-base on classification tasks depends on the size of the dataset. It takes less than 10 minutes per epoch on the smallest SST-2, whereas for the largest MNLI, it takes less than an hour per epoch.
