1 Introduction
Training of large Convolutional Neural Networks (CNN) takes a lot of time. The bruteforce way to speed up CNN training is to add more computational power (e.g. more GPU nodes) and train network using dataparallel Stochastic Gradient Descent, where each worker receives some chunk of global minibatch (see e.g.
Krizhevsky (2014) or Goyal et al. (2017) ). The size of a chunk should be large enough to utilize the computational resources of the worker. So scaling up the number of workers results in the increase of batch size. But using large batch may negatively impact the model accuracy, as was observed in Krizhevsky (2014), Li et al. (2014), Keskar et al. (2016), Hoffer et al. (2017),..Increasing the global batch while keeping the same number of epochs means that you have fewer iterations to update weights. The straightforward way to compensate for a smaller number of iterations is to do larger steps by increasing the learning rate (LR). For example,
Krizhevsky (2014) suggests to linearly scale up LR with batch size. However using a larger LR makes optimization more difficult, and networks may diverge especially during the initial phase. To overcome this difficulty, Goyal et al. (2017) suggested doing a "learning rate warmup": training starts with a small "safe" LR, which is slowly increased to the target "base" LR. With a LR warmup and a linear scaling rule, Goyal et al. (2017) successfully trained Resnet50 with batch B=8K (see also Cho et al. (2017)). Linear scaling of LR with a warmup is the "stateofthe art" recipe for large batch training.We tried to apply this linear scaling and warmup scheme to train Alexnet on Imagenet (
Deng et al. (2009)), but scaling stopped after B=2K since training diverged for large LRs. For B=4K the accuracy dropped from the baseline 57.6% ( for B=256) to 53.1%, and for B=8K the accuracy decreased to 44.8%. To enable training with a large LR, we replaced Local Response Normalization layers in Alexnet with Batch Normalization (BN). We will refer to this modification of AlexNet as AlexNetBN throughout the rest of the paper. BN improved both model convergence for large LR as well as accuracy: for B=8K the accuracy gap was decreased from 14% to 2.2%.
To analyze the training stability with large LRs we measured the ratio between the norm of the layer weights and norm of gradients update. We observed that if this ratio is too high, the training may become unstable. On other hand, if the ratio is too small, then weights don’t change fast enough. This ratio varies a lot between different layers, which makes it necessary to use a separate LR for each layer. Thus we propose a novel Layerwise Adaptive Rate Scaling (LARS) algorithm. There are two notable differences between LARS and other adaptive algorithms such as ADAM (Kingma & Ba (2014)
) or RMSProp (
Tieleman & Hinton (2012)): first, LARS uses a separate learning rate for each layer and not for each weight, which leads to better stability. And second, the magnitude of the update is controlled with respect to the weight norm for better control of training speed. With LARS we trained AlexnetBN and Resnet50 with B=32K without accuracy loss.2 Background
The training of CNN is done using Stochastic Gradient (SG) based methods. At each step a minibatch of samples
is selected from the training set. The gradients of loss function
are computed for this subset, and networks weights are updated based on this stochastic gradient:(1)
The computation of SG can be done in parallel by units, where each unit processes a chunk of the minibatch with samples. Increasing the minibatch permits scaling to more nodes without reducing the workload on each unit. However, it was observed that training with a large batch is difficult. To maintain the network accuracy, it is necessary to carefully adjust training hyperparameters (learning rate, momentum etc).
Krizhevsky (2014) suggested the following rules for training with large batches: when you increase the batch by , you should also increase LR by while keeping other hyperparameters (momentum, weight decay, etc) unchanged. The logic behind linear LR scaling is straightforward: if you increase by while keeping the number of epochs unchanged, you will do fewer steps. So it seems natural to increase the step size by . For example, let’s take . The weight updates for batch size after 2 iterations would be:
(2)
The weight update for the batch with learning rate :
(3)
will be similar if you take , assuming that ) .
Using the "linear LR scaling" Krizhevsky (2014) trained AlexNet with batch B=1K with minor () accuracy loss. The scaling of Alexnet above 2K is difficult, since the training diverges for larger LRs. It was observed that linear scaling works much better for networks with Batch Normalization (e.g. Codreanu et al. (2017)). For example Chen et al. (2016) trained the Inception model with batch B=6400, and Li (2017) trained Resnet152 for B=5K.
The main obstacle for scaling up batch is the instability of training with high LR. Hoffer et al. (2017) tried to use less aggressive "square root scaling" of LR with special form of Batch Normalization ("Ghost Batch Normalization") to train Alexnet with B=8K, but still the accuracy (53.93%) was much worse than baseline 58%. To overcome the instability during initial phase, Goyal et al. (2017) proposed to use LR warmup: training starts with small LR, and then LR is gradually increased to the target. After the warmup period (usually a few epochs), you switch to the regular LR policy ("multisteps", polynomial decay etc). Using LR warmup and linear scaling Goyal et al. (2017) trained Resnet50 with batch B=8K without loss in accuracy. These recipes constitute the current stateoftheart for large batch training, and we used them as the starting point of our experiments
Another problem related to large batch training is so called "generalization gap", observed by Keskar et al. (2016). They came to conclusion that "the lack of generalization ability is due to the fact that largebatch methods tend to converge to sharp minimizers of the training function." They tried a few methods to improve the generalization with data augmentation and warmstarting with small batch, but they did not find a working solution.
3 Analysis of Alexnet training with large batch
We used BVLC^{1}^{1}1https://github.com/BVLC/caffe/tree/master/models/bvlc_alexnet Alexnet with batch B=512 as baseline. Model was trained using SGD with momentum 0.9 with initial LR=0.01 and the polynomial (power=2) decay LR policy for 100 epochs. The baseline accuracy is 58% (averaged over last 5 epochs). Next we tried to train Alexnet with B=4K by using larger LR. In our experiments we changed the base LR from 0.01 to 0.08, but training diverged with LR > 0.06 even with warmup ^{2}^{2}2LR starts from 0.001 and is linearly increased it to the target LR during 2.5 epochs. The best accuracy for B=4K is 53.1%, achieved for LR=0.05. For B=8K we couldn’t scaleup LR either, and the best accuracy is 44.8% , achieved for LR=0.03 (see Table 1(a) ).
To stabilize the initial training phase we replaced Local Response Normalization layers with Batch Normalization (BN). We will refer to this model as AlexnetBN ^{3}^{3}3 https://github.com/borisgin/nvcaffe0.16/tree/caffe0.16/models/alexnet_bn. The baseline accuracy for AlexnetBN with B=512 is 60.2%. ^{4}^{4}4 AlexnetBN baseline was trained using SGD with momentum=0.9, weight decay=0.0005 for 128 epochs. We used polynomial (power 2) decay LR policy with base LR=0.02. With BN we could use large LRs even without warmup. For B=4K the best accuracy 58.9% was achieved for LR=0.18, and for B=8K the best accuracy 58% was achieved for LR=0.3. We also observed that BN significantly widen the range of LRs with good accuracy.
(a) Alexnet (warmup 2.5 epochs)

Batch  Base LR  accuracy,%
512  0.02  58.8
4096  0.04  53.0
4096  0.05  53.1
4096  0.06  51.6
4096  0.07  0.1
8192  0.02  29.8
8192  0.03  44.8
8192  0.04  43.1
8192  0.05  0.1
(b) AlexnetBN (no warmup)

Batch  Base LR  accuracy,%
512  0.02  60.2
4096  0.16  58.1
4096  0.18  58.9
4096  0.21  58.5
4096  0.30  57.1
8192  0.23  57.6
8192  0.30  58.0
8192  0.32  57.7
8192  0.41  56.5

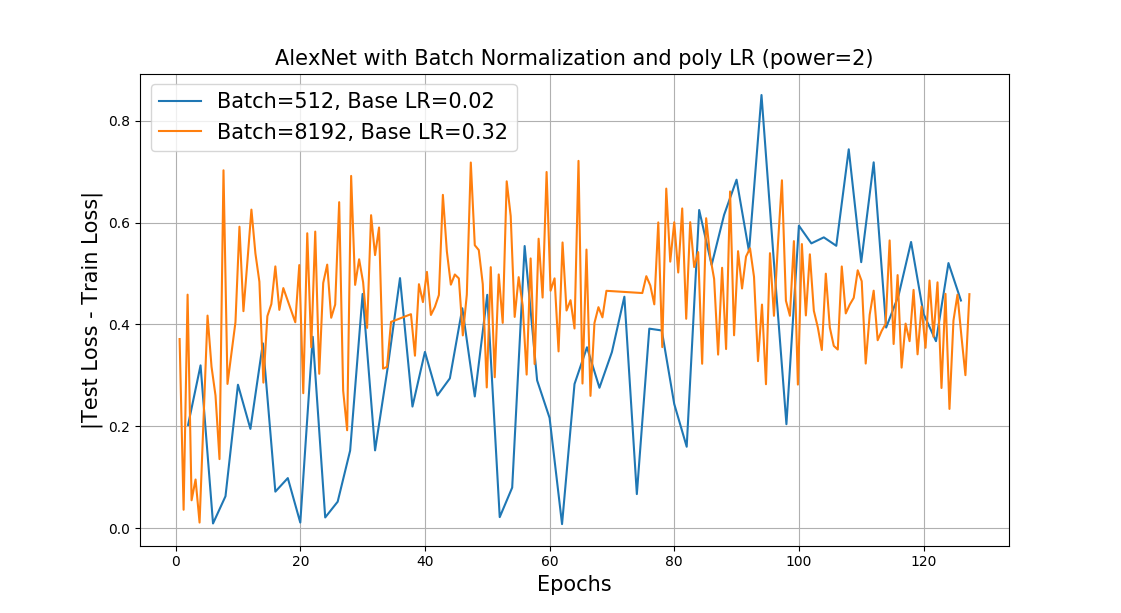

Still there is a accuracy loss for B=8K. To check if it is related to the "generalization gap" (Keskar et al. (2016)), we looked at the loss gap between training and testing (see Fig. 1). We did not find the significant difference in the loss gap between B=256 and B=8K. We conclude that in this case the accuracy loss is not related to a generalization gap, and it is caused by the low training.
4 Layerwise Adaptive Rate Scaling (LARS)
The standard SGD uses the same LR for all layers: . When is large, the update can become larger than , and this can cause the divergence. This makes the initial phase of training highly sensitive to the weight initialization and to initial LR. We found that the ratio the L2norm of weights and gradients varies significantly between weights and biases, and between different layers. For example, let’s take AlexNetBN after one iteration (Table 2, "*.w" means layer weights, and "*.b"  biases). The ratio for the 1st convolutional layer ("conv1.w") is 5.76, and for the last fully connected layer ("fc6.w")  1345.
Layer  conv1.b  conv1.w  conv2.b  conv2.w  conv3.b  conv3.w  conv4.b  conv4.w

1.86  0.098  5.546  0.16  9.40  0.196  8.15  0.196
0.22  0.017  0.165  0.002  0.135  0.0015  0.109  0.0013
8.48  5.76  33.6  83.5  69.9  127  74.6  148
Layer  conv5.b  conv5.w  fc6.b  fc6.w  fc7.b  fc7.w  fc8.b  fc8.w
6.65  0.16  30.7  6.4  20.5  6.4  20.2  0.316
0.09  0.0002  0.26  0.005  0.30  0.013  0.22  0.016
73.6  69  117  1345  68  489  93  19
The ratio is high during the initial phase, and it is rapidly decrease after few epochs (see Figure 2). If LR is large comparing to the ratio for some layer, then training may becomes unstable. The LR "warmup" attempts to overcome this difficulty by starting from small LR, which can be safely used for all layers, and then slowly increasing it until weights will grow up enough to use larger LRs.
We would like to use different approach. We use local LR for each layer :
(4)
where is a global LR. Local LR is defined for each layer through "trust" coefficient :
(5)
The defines how much we trust the layer to change its weights during one update ^{5}^{5}5 One can consider LARS as a private case of blockdiagonal rescaling from Lafond et al. (2017).
. Note that now the magnitude of the update for each layer doesn’t depend on the magnitude of the gradient anymore, so it helps to partially eliminate vanishing and exploding gradient problems. This definition can be easily extended for SGD to balance the local learning rate and the weight decay term
:(6)
The network training for SGD with LARS are summarized in the Algorithm 1. One can find more implementation details at https://github.com/borisgin/nvcaffe0.16
The local LR strongly depends on the layer and batch size (see Figure. 2 )
5 Training with LARS
We retrained Alexnet and AlexnetBN with LARS for batches up to 32K ^{6}^{6}6 Models have been trained for 100 epochs using SGD with momentum=0.9, weight decay=0.0005, polynomial (p=2) decay LR policy, and LARS coefficient . Training have been done on NVIDIA DGX1. To emulate large batches (B=16K and 32K) we used parameter to partition minibatch into smaller chunks. The weights update is done after gradients for the last chunk are computed. . For B=8K the accuracy of both networks matched the baseline B=512 (see Figure 3). AlexnetBN trained with B=16K lost 0.9% in accuracy, and trained with B=32K lost 2.6%.
(a) Alexnet (warmup for 2 epochs)
Batch  LR  accuracy,%
512  2  58.7
4K  10  58.5
8K  10  58.2
16K  14  55.0
32K  TBD  TBD
(b) AlexnetBN (warmup for 5 epochs)
Batch  LR  accuracy,%
512  2  60.2
4K  10  60.4
8K  14  60.1
16K  23  59.3
32K  22  57.8

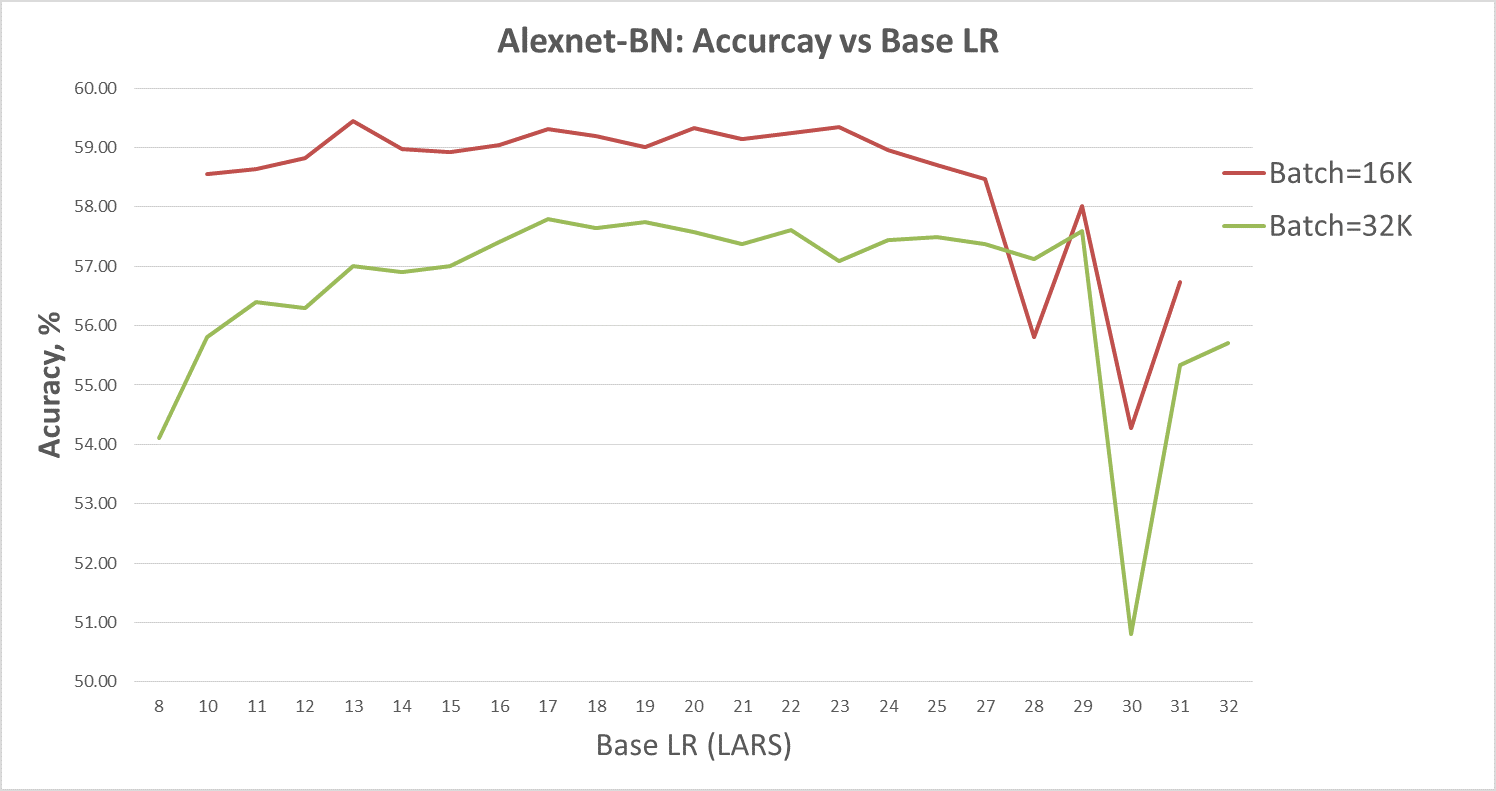

There is a relatively wide interval of base LRs which gives the "best" accuracy. for example, for AlexnetBN with B=16K LRs from [13;22] give the accuracy , for B=32k, LRs from [17,28] give

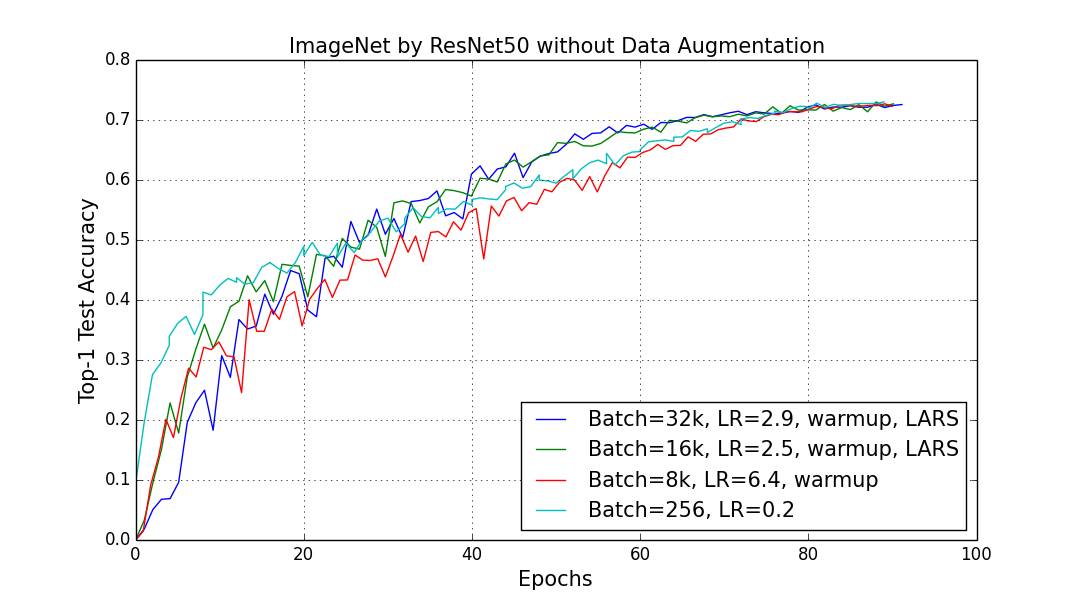

Next we retrained Resnet50, ver.1 from He et al. (2016) with LARS. As a baseline we used B=256 with corresponding top1 accuracy 73%. ^{7}^{7}7 Note that our baseline 73% is lower than the published stateoftheart 75% Goyal et al. (2017) and Cho et al. (2017) for few reasons. We trained with the minimal data augmentation (prescale images to 256x256 and use random 224x224 crop with horizontal flip). During testing we used one model and 1 central crop. The stateofthe art accuracy 75% was achieved with more extensive data augmentation during testing, and with multimodel, multicrop testing. For more details see log files https://people.eecs.berkeley.edu/youyang/publications/batch.
Batch  LR policy  warmup  accuracy, %

256  poly(2)  0.2  N/A  73.0
8K  LARS+poly(2)  0.6  5  72.7
16K  LARS+poly(2)  2.5  5  73.0
32K  LARS+poly(2)  2.9  5  72.3
All networks have been trained using SGD with momentum 0.9 and weight decay=0.0001 for 90 epochs. We used LARS and warmup for 5 epochs with polynomial decay (power=2) LR policy.
We found that with LARS we can scale up Resnet50 up to batch B=32K with almost the same (0.7%) accuracy as baseline
6 Large Batch vs Number of steps
As one can see from AlexnetBN exmaple for B=32K, even training with LARS and using large LR does not reach baseline accuracy. But the accuracy can be recovered completely by just training longer. We argue that when batch very large, the stochastic gradients become very close to true gradients, so increasing the batch does not give much additional gradient information comparing to smaller batches.
Num of epochs  accuracy, %

100  57.8
125  59.2
150  59.5
175  59.5
200  59.9
7 Conclusion
Large batch is a key for scaling up training of convolutional networks. The existing approach for largebatch training, based on using large learning rates, leads to divergence, especially during the initial phase, even with learning rate warmup. To solve these optimization difficulties we proposed the new algorithm, which adapts the learning rate for each layer (LARS). Using LARS, we extended scaling of Alexnet and Resnet50 to B=32K. Training of these networks with batch above 32K without accuracy loss is still open problem.
