1 Introduction

High resolution (HR) images are generally preferred to low resolution (LR) ones in many applications of computer vision, such as remote sensing, medical imaging and video surveillance. However, the resolution is always limited by the constraint of optical imaging systems and hardware devices. As a software technique to break this limitation, super-resolution (SR) has been developed to reconstruct HR images from the observed LR ones using specific algorithms. SR methods can be divided into two categories: reconstruction based and learning based methods.

Reconstruction based methods recover HR images with help of prior knowledge and statistics of natural images, such as gradient profile prior Sun

, Gaussian mixture model

GMM , wavelet based model wavelet and total variation (TV) TV . Global constraint Irani has also been widely used as a typical back-projection technique for SR.

Learning based methods predict the missing HR details by learning the model of relationships between pairs of LR and HR examples. The representative methods include neighbor embedding (NE) algorithm Chang , sparse coding (SC) based method Yang2010 and position-based method Ma . As for the above mentioned learning based methods, external examples from training images are required.

However, internal examples instead of external ones can also be utilized. In nature images, sufficient examples which are highly correlated to the input patches can be found in the input image, its repeatedly down-sampled and subsequently up-scaled versions. In the past few years, self-similarity has been successfully utilized for SRGlasner ; ZhangK2013 ; Yu2014 ; Bevilacqua2014 . Glasner et al. Glasner first designed an appealing self-similarity learning framework. With the help of self-examples, the input image is repeatedly magnified to the desired size. By this coarse-to-fine strategy, the difficulty of each step is alleviated, which benefits the performance of the whole SR system. Due to these advantages, self-similarity learning has been followed by many researchers in recent years. Bevilacqua et. al Bevilacqua2014 proposed a new double pyramid SR model with simple multi-variate regression to learn the direct mappings between LR and HR patches. Zhang et. al ZhangK2013 presented a neighbor embedding based self-similarity learning SR scheme with spatially nonlocal regularization. Yu et. al Yu2014 combined the self-similarity learning with sparse representation to perform SR. However, due to the degradation (i.e. blurring and down-sampling) of the observed image which is also the source of self-examples. The above mentioned conventional learning methods are prone to produce unfaithful representation coefficients, which are not suitable for accurate SR reconstruction. To solve the problem, a nonlocally constrained learning methods have been introduced recently Dong2013 . Dong et. al Dong2013

proposed a nonlocally centralized sparse representation for image restoration using PCA dictionary trained from self-examples. Specifically, they defined the deviation of the learned sparse codes from the expected true ones as sparse coding noise (SCN). As suggested by their work, SR performance can be improved by suppressing SCN through calculating nonlocal means of the sparse codes for similar neighbors of the LR input patches as an estimation of the optimal codes. However, the estimation is still a weighted linear combination of codes for the similar patches. In our previous work

prework , we found that nonlinear low-rank constraint can be used to suppress SCN in self-similarity learning scheme for SR. Furthermore, in this paper, we propose a novel kernel based low-rank sparse coding (KLRSC) method via self-similarity learning for single image SR. Self-examples are extracted from the input image itself, its degraded versions and up-scaled ones. The input image is gradually super-resolved. In each magnification, similar column components of a nonlocal data matrix which consists of a vectorized input patch and its nonlocal neighbors can be observed. This property of similarity leads to the nature of low-rank. Furthermore, we also use the kernel method kernel1997 to capture nonlinear structures of data, the nonlocal data are mapped into a high-dimensional feature space by kernel method. In our work, we find that the low-rank property is preserved when the nonlocal patches are mapped into the kernel space. Due to this observation, we assume that the sparse codes for nonlocal matrices should be approximately low-rank. Thus, we perform kernel based low-rank sparse coding to gain accurate coefficients for self-similarity learning based SR. Experimental results demonstrate the advantage of our proposed method in both visual quality and reconstruction error. Our contributions are two folds:

  1. The low-rank property is proved to be preserved when the nonlocal data are mapped into high dimensional space by kernel method.

  2. A novel kernel based low-rank sparse coding based scheme for single image SR is proposed, which exploits both low-rank property and nonlinear structural information of nonlocal data in a high-dimensional space.

The remainder of this paper is organized as follows. In Section 2, we describe the proposed method in detail. The experimental results are given in Section 3. We conclude this paper in Section 4.

Our preliminary work has appeared in prework .

2 Proposed kernel based low-rank sparse model for single image SR

2.1 Overview

In this section, we start the discussion of the kernel based low-rank sparse model for single image SR. We adopt the double pyramid self-similarity learning framework which is the same as that of Bevilacqua2014 . By coarse-to-fine strategy, the observed image is zoomed in by several times to reach the expected size. In each magnification, we perform KLRSC to learn the representation coefficients for SR reconstruction. Both the self-examples, the structural information and the underlying nonlinear structure of nonlocal similar examples are exploited in the coding stage. Then, an interim image can be recovered by the learned coefficients and self-examples for the next magnification. When the image reaches the desired size, the iterations of magnification will terminate.

2.2 Self-similarity learning and gradual magnification

In the stage of self-similarity learning, the pairs of examples are extracted from two pyramids of images. The flowchart of the double pyramids model is shown in Fig. 1. We denote the pyramid which composes of the sequences of the input image and its several down-sampled versions as for . Given the input image , the down-sampling is repeated for times with a factor of at each time. The -th layer is represented as:

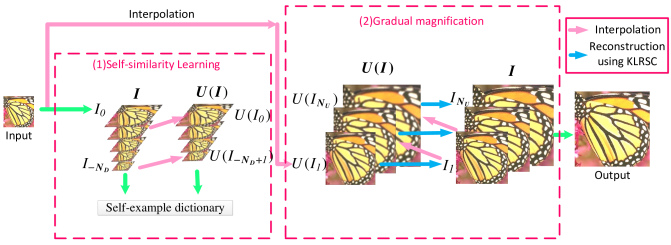

Figure 1: Overview of double pyramids model for single image SR. Sub-figure (1) with dashed lines stands for collection of self-examples . Sub-figure (2) with dashed lines denotes the gradual magnification with KLRSC for SR reconstruction.

where is a convolution operator and denotes the down-sampling operator by a factor of .

is a Gaussian blur kernel with a standard variance

which can be computed as Blur :


The up-scaled pyramid

by bicubic interpolation is established as:


where is the -th layer of the up-scaled pyramid with respect to the layer and is an up-scaling operator by a factor of s. In order to obtain the pairs of self-examples, layer and the corresponding layer are divided into overlapping patches. For each patch from , we use four high-pass filters to extract its gradient feature of the first- and second-order gradients in both vertical and horizontal directions:


The four high-pass filtered features are concatenated into vector as a descriptor of the patch. As for the corresponding patch from , we extract its intensity feature by subtracting its mean value. We collect these two kinds of features from all layers and normalize them to unit -norm to construct the dictionary. Let represent the dictionary for reconstruction and denote the one for learning.

In multi-step magnification, we gradually super-resolve the input image . Given the total up-scale factor , we repeat the magnification for times, where returns the nearest integer larger than . In the -th magnification for , we produce the interim layer by:


Then we partition the -th layer is into overlapped patches and convert them into a set of normalized gradient features . We recover the corresponding patches by kernel based low-rank sparse representation and reconstruct the layer by weighted average operation on the overlapped region, which we describe in the following subsection.

2.3 Kernel based low-rank sparse representation for SR reconstruction

In this subsection, we present how to recover the super-resolved layers from the interpolated ones using our proposed KLRSC. We first describe the algorithm of KLRSC for SR reconstruction. Then we present the post-processing procedure by the incorporation of iterative back projection (IBP) Irani and pixel-wise autoregressive (AR) model regularization Dong2011 to improve the quality of reconstructed layer.

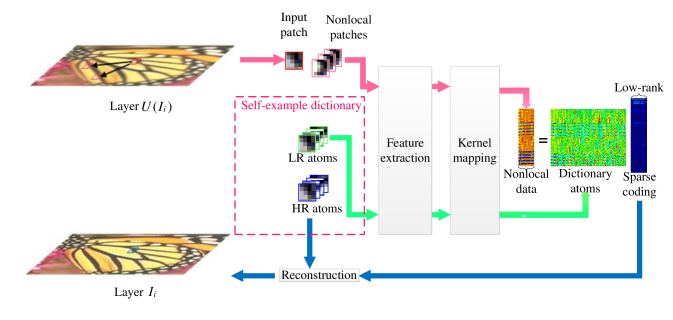

Fig. 2 gives the illustration of KLRSC for SR reconstruction. Nonlocal-similarity is an effective prior for image reconstruction ZhangK2013 ; Yu2014 ; Dong2013 ; Lu2014 ; NLSC ; selfsimilarity2016 , which means that small patches tend to appear repeatedly at different locations of a natural image. For each j-th feature vector extracted from the i-th layer , we select its most similar nonlocal neighbors in the same layer and stack them as columns where refers to the indices of the nonlocal data. We also find its nearest atoms in the dictionary to create an subset for learning and accumulate the corresponding atoms in the dictionary to form the subset for reconstruction. denotes the indices of the selected atoms.

Figure 2: KLRSC method for SR reconstruction.

2.3.1 Implementation of KLRSC for SR

In standard sparse coding, the sparse coding for the feature vector can be formulated as:


Different from the conventional approach, Recently, Zhang et. al Zhang2013 proposed a low-rank sparse coding method for image classification. They encoded densely sampled SIFT features in spatially local domain. The codes for spatially local features were assumed to be low-rank. we introduce a low-rank constraint to regularize the representations for similar feature vectors. We attach the feature vector to the nonlocal feature vectors to combine a grouped matrix with the nature of low-rank property. The corresponding sparse coefficient matrix for representing the data upon the subset is also expected to be low-rank. Low-rank optimization relies on the proof that the convex envelope of rank is the nuclear norm under broad conditions lowrankproof . Based on this theorem, low-rank optimization has been successfully used in many applications Candes2011 ; Liu2015 ; TILT ; Tang2014 ; Ren2015 ; ICIPfusion We use nuclear norm constraint lowrankproof to formulate the low-rank optimization. The augmented optimization problem can be written as:


where represents the corresponding weights that each atom in the subset contributes in the reconstruction of the augmented data . The nuclear norm

is calculated by the sum of the matrix singular values, which is an approximation of rank.

and are the parameters balancing different regularization terms.

We also use the kernel method kernel1997 to capture the nonlinear structures of features, which can reduce the feature quantization error and improve the coding performance. As suggested by KSR ; Shi2015 , we transform the augmented data and the LR subset into high dimensional space by the nonlinear mapping: to capture the relationship between them. The augmented features are transformed to and the corresponding LR subset is mapped to . Given two column features and , we define a kernel function . In our work, we use Gaussian kernel function . Thus the kernel matrix can be represented as where the element .

In Fig. 3, we draw the nuclear norm distributions of the nonlocal matrices consisting of nonlinearly mapped nonlocal feature vectors. The feature vectors extracted from a test image and their nonlocal neighbors are concatenated to form matrices of nonlocal features. Note that the nuclear norm of nonlinear mapped nonlocal matrix is calculated as where

denotes the diagonal matrix with the eigenvalues of

on the diagonal and is the matrix trace operator. It shows that the matrices of nonlocal features tend to have relatively lower nuclear norms than their maximum (), which indicates the low-rank property of nonlocal matrices.

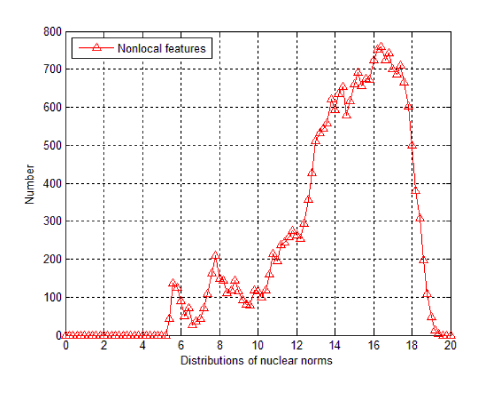

Figure 3: Nuclear norm distributions of the matrices consisting of nonlinearly mapped nonlocal feature vectors. The feature vectors and their nonlocal neighbors are concatenated to form matrices of nonlocal features.

Thus, with this preservation of low-rank property, the optimization problem of (7) in kernel space can be rewritten as:


However, since the optimization problems of nuclear norm and norm (8) are difficult to solve simultaneously, we introduce two more relaxation variables and impose fidelity constraints between the pairs of relaxation variables:


We use inexact augmented Lagrange multiplier (IALM) method Lin2009 to solve problem (9), which has also been used to efficiently solve other low-rank problems (i.e. RPCA for low rank matrix recovery Candes2011 ). We add two more variables to relax the fidelity constraints. The augmented Lagrange function for (9) is:


where is the operator to get matrix trace. and are scalar constants. and are Lagrange multiplier matrices. and are the parameters balancing the difference between pairs of objective variables and other regularization terms.

2.3.2 Optimization of KLRSC

There are three objective variables in (10) which we alternatively update, followed by the adjustment of multipliers. Soft-threshold operations on matrix elements and singular values are used to solve the problem of -norm and nuclear norm optimizations. The update steps of and the multipliers are given below.


Firstly, we update and meanwhile fix other variables. The optimization function with respect to derived from (10) can be formulated as:


The -norm optimization problem of (11) can be solved by soft-thresholding:


where signmax is a shrinkage operator on values of matrix .


Then we update and fix others by solving the following optimization problem:


The nuclear norm optimization problem of (13) can be solved by singular value soft-thresholding:


where is a shrinkage operator on singular values of matrix and

is the singular value decomposition of



The optimization function with respect to is given by:


Solving the optimization problem (15), we update by:



is an identity matrix and the matrix

is represented as:


Update multipliers


where is a scalar constant.

When the changes of objective variables during updates are below a defined threshold , the optimization reaches convergence. We summarize this optimization in Algorithm 1.

0:  Data , Sub-dictionary and parameters , , , , and while not converged do: Fix the others and update Fix the others and update Fix the others and update Fix the others and update the multipliers ,, and end while
Algorithm 1 Optimization of Kernel Based Low-rank Sparse Coding Problem

2.3.3 Effectiveness of KLRSC

To explain the effectiveness of KLRSC, we perform an experiment to investigate the statistical property of sparse coding noises (SCN) for different coding methods. We use

image as a test image. Its LR counterpart is generated through blurring (Gaussian kernel with standard deviation

), down-sampling and up-scaling (with a factor of ). We collect pairs of LR and HR features from the LR and HR images. DCT dictionary is used in our experiment. We denote method of sparse coding with low-rank constraint as ’LRSC’ which appeared in our preliminary work prework . We firstly calculate the sparse coefficients for them using KLRSC, LRSC and SC, respectively. We calculate SCN by following the definition in Dong2013 . In our experiment, We evaluate SCN by norm. In Fig 4, we draw the norm distributions of SCN for KLRSC, LRSC and conventional SC. The distribution for KLRSC, LRSC and SC is drawn in red, blue and black lines, respectively. It is shown that KLRSC get lower SCN than the other two methods do, which means that the proposed KLRSC approach effectively suppress SCN utilizing the low-rank property of nonlocal-similarity and improve the coding performance.

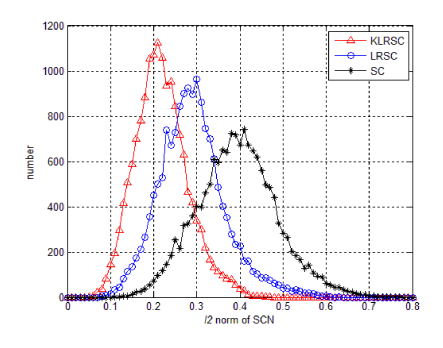

Figure 4: norm distributions of SCN for KLRSC, LRSC and SC.

2.3.4 Post-processing procedure

When the optimization converges, the solution becomes both sparse and low-rank. Then we distil the first column of as the sparse weight for the reconstruction of the HR patch because low-rank constraint does not change the identities of columns. The HR patch can be sparsely represented upon as:


where is the -norm of the corresponding LR feature and denotes the average intensity of the corresponding LR patch. Having obtained all HR patches , we merge them into the layer by averaging the intensity of the overlapping pixels between the adjacent patches.

To enhance quality of the reconstructed interim layer, we apply IBP algorithm Irani and pixel-wise autoregressive (AR) model Dong2011 to both enforce the global reconstruction constraint between the interim layer and the input and refine the relation between neighboring pixels.

The j-th pixel of the reconstructed layer is expected to be predicted as a linear combination of its neighboring pixels in a square window: , where is the central pixel and is the vector consisting of its neighbors. To learn the combination weights , we collect the N nearest neighbors of the centered patch from other already reconstructed HR layers. These patches are assumed to share the same neighboring relationship. The combination weights can be obtained by the following optimization problem:


can be derived by:


where , and is the identity matrix. Thus, we regularize the estimated layer by minimize the AR prediction error and the global reconstruction error by:


where describes pixel-wise relationships in , denotes the initial HR estimation, is the LR observation, and are the down-sampling and blurring operator of the -th layer, respectively. The layer is updated by:


where is the step size for gradient descent.

According to the self-similarity learning framework, we repeat the aforementioned low-rank sparse representation based SR for times followed by a fine adjustment to get the final SR result.

2.4 Summary

The complete SR process is summarized in Algorithm 2.

0:  LR image and up-scaling factor
1:  InitializationSet the input image as initial layer . Create the double pyramids from the input image using (1) and (3). Collect self-examples from the pyramids to generate the LR dictionary and the HR dictionary
2:  Upscaling Gradual magnification loop:  for to do    1) Enlarge the last layer by a factor of to build the layer      .    2) Partition the layer into LR patches .    3) Compute the kernel based low-rank sparse representation      coefficients of each LR patch .    4) Reconstruct the HR patch     5) Merge the HR patches into the layer .    6) Refine the layer by IBP and AR using (23).  end for
3:  Image size adjustmentDown-sample the final layer to get .
3:  HR image
Algorithm 2 Proposed Kernel Based Low-Rank Sparse Model for Single Image Super-Resolution

3 Experimental results

In our experiments, we use nine test images from the software package for Dong2011 . These images (see Fig. 5) cover various contents including humans, animals, plants and man-made objects. The size of image parthenon is and the size of other images is . We compare our method with SC-SR Yang2010 , ASDS Dong2011 , LRNE-SR Chen2014 , DM-SR Bevilacqua2014 , NCSR Dong2013 and Aplus Aplus2015 . Since the human visual systems are more sensitive to luminance changes in color images, we only perform our proposed method on the luminance component. The SR performances are evaluated in the luminance channel by the peak signal-to-noise ratio (PSNR) and the structural similarity (SSIM) SSIM objectively.

Figure 5: Test Images

3.1 Experimental setting

The color test images are blurred with Gaussian kernel with standard variation and then down-sampled by bicubic interpolation to generate the LR input images. All the layers of images are split into patches with overlap of five pixels. The number of layers of LR and HR pyramids to train the self-example dictionary is . The up-scaling factor for each time of magnification is . The standard variance of Gaussian Blur kernel for the generation of the -th layer is computed by (2). The number of the neighbors for low-rank sparse representation is 60. The number of similar nonlocal neighbors is 20. We set , , . We obtain initialization of codes by standard sparse coding Yang2010 and let at the beginning of optimization. We set and . For the stage of IBP and AR regularization, the window size is . The maximum iteration times is set to . We set the step size . The parameters and are set to and .

For fairness of the comparisons, according to the experimental setting, we retrain the LR-HR dictionary for Yang2010 and Chen2014 and change all down-sampling and up-scaling for Dong2013 and Dong2011 to bicubic and retrain its AR models and nonlocal adaptive regularization models before implementation.

3.2 Experimental results

The PSNRs and SSIMs of different methods for comparisons are shown in Table 1 for the scaling factor and Table 2 for the scaling factor , respectively. Our proposed method gets better quantitative SR performances on most of the test images than other methods. The average gains of our proposed method for the scaling factor over the second best method are 0.293dB in PSNR and 0.0078 in SSIM. In the case of , the average gains are 0.420dB in PSNR and 0.0117 in SSIM.

Image Bi- SC- ASDS LRNE- DM- NCSR Aplus Pro-
cubic SRYang2010 Dong2011 SRChen2014 SRBevilacqua2014 Dong2013 Aplus2015 posed
Lena 29.600 30.489 31.232 30.618 30.691 31.357 31.610 31.884
0.8306 0.8556 0.8693 0.8523 0.8555 0.8747 0.8708 0.8791
Girl 32.724 33.529 33.753 33.422 33.599 33.982 33.367 34.319
0.8162 0.8386 0.8417 0.8321 0.8410 0.8489 0.8205 0.8540
Butt- 23.103 24.337 25.196 24.815 24.940 25.391 26.808 26.735
erfly 0.7926 0.8375 0.8680 0.8553 0.8615 0.8754 0.8980 0.9003
Parrot 27.406 28.488 29.309 28.339 28.728 29.355 29.460 29.503
0.8692 0.8910 0.9025 0.8876 0.8932 0.9063 0.9049 0.9087
Flower 26.935 27.949 28.489 27.885 28.177 28.581 28.802 29.230
0.7594 0.8025 0.8215 0.7978 0.8113 0.8285 0.8382 0.8437
Pepper 27.269 28.275 29.065 28.605 28.527 29.140 29.514 30.059
0.8393 0.8628 0.8827 0.8697 0.8704 0.8862 0.8764 0.8967
Bike 22.502 23.385 23.928 23.407 23.555 24.010 24.264 24.429
0.6640 0.7235 0.7494 0.7177 0.7313 0.7563 0.7782 0.7721
Hat 28.958 29.824 30.363 30.030 30.107 30.530 30.915 31.177
0.8233 0.8454 0.8568 0.8508 0.8536 0.8641 0.8670 0.8739
Parth- 25.593 26.081 26.543 26.137 26.228 26.608 26.823 26.869
enon 0.6683 0.6978 0.7118 0.6923 0.6992 0.7180 0.7315 0.7266
Avg. 27.121 28.040 28.653 28.140 28.284 28.773 29.063 29.356
0.7848 0.8172 0.8337 0.8173 0.8241 0.8398 0.8428 0.8506
Table 1: PSNRs (dB) and SSIMs by different SR methods with the scaling factor ()
Image Bi- SC- ASDS LRNE- DM- NCSR Aplus Pro-
cubic SRYang2010 Dong2011 SRChen2014 SRBevilacqua2014 Dong2013 Aplus2015 posed
Lena 27.820 28.529 29.254 28.591 29.039 29.908 29.610 30.083
0.7605 0.7849 0.8047 0.7838 0.8000 0.8234 0.8204 0.8252
Girl 31.263 31.814 32.211 31.826 32.211 32.109 31.971 32.635
0.7601 0.7768 0.7873 0.7743 0.7885 0.7751 0.7699 0.7978
Butt- 21.438 22.656 23.666 22.737 23.781 24.208 23.996 24.827
erfly 0.7121 0.7555 0.8145 0.7721 0.8198 0.8295 0.8316 0.8511
Parrot 25.512 26.416 26.966 26.276 26.796 27.428 27.228 27.183
0.8145 0.8380 0.8521 0.8346 0.8486 0.8654 0.8638 0.8639
Flower 25.259 26.113 26.452 25.952 26.510 26.850 26.706 27.022
0.6689 0.7157 0.7306 0.7071 0.7366 0.7552 0.7498 0.7597
Pepper 25.527 26.358 27.153 26.480 27.011 27.668 27.367 27.887
0.7660 0.7866 0.8174 0.7925 0.8135 0.8296 0.8279 0.8340
Bike 21.021 21.747 22.248 21.738 22.172 22.646 22.423 22.716
0.5585 0.6170 0.6488 0.6108 0.6462 0.6774 0.6673 0.6800
Hat 27.487 28.187 28.699 28.344 26.510 29.347 29.022 29.485
0.7771 0.7933 0.8108 0.8009 0.7366 0.8277 0.8226 0.8319
Parth- 24.875 25.388 25.682 25.366 25.628 25.549 25.516 25.783
enon 0.6296 0.6574 0.6683 0.6518 0.6659 0.6620 0.6593 0.6748
Avg. 25.578 26.356 26.926 26.368 26.629 27.301 27.093 27.513
0.7163 0.7472 0.7705 0.7476 0.7617 0.7828 0.7792 0.7909
Table 2: PSNRs (dB) and SSIMs by different SR methods with the scaling factor ()

Fig. 6-8 show the visual SR results in the case of on the images girl butterfly and hat by different methods, respectively. Fig. 9-11 show the visual SR results of the same test images with the factor of . The SC-SR method Yang2010 generates blurry along edges (i.e., the boundary of the girl’s nose) because the single over-complete dictionary learned from the external training images is not prone to produce sharp edges. LRNE-SR Chen2014 tends to lose high-frequency details while smooth regions and clean edges are produced. As one of the state-of-the-art methods for image SR, Aplus Aplus2015 obtains the second best quantitative SR performances (see Table 1 and 2), however, too sharp boundaries and ringing artifacts can also be observed. Our proposed method generates obvious boundaries and suppresses artifacts. We can see clear edges of girl s nose and natural patterns in the wing of butterfly. As seen from the visual experimental results, our proposed method gets better results than other methods perceptually.

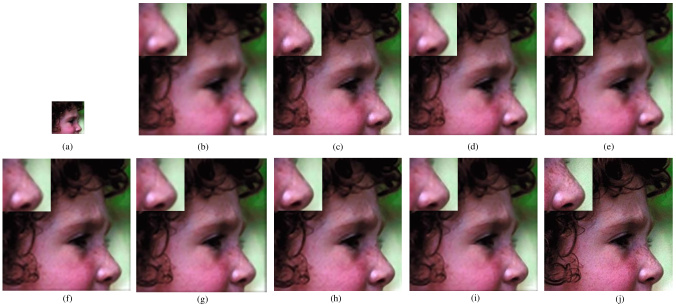

Figure 6: Visual results comparison for image girl (, ). (a)LR input. (b)bicubic. (c)SC-SRYang2010 . (d)ASDSDong2011 . (e)LRNE-SRChen2014 . (f)DM-SRBevilacqua2014 . (g)NCSRDong2013 . (h)AplusAplus2015 . (i)proposed method. (j)ground truth.

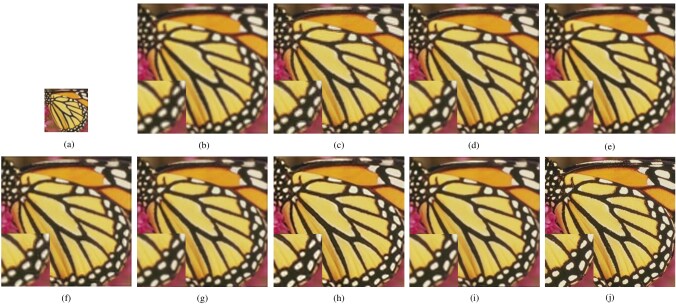

Figure 7: Visual results comparison for image butterfly (, ). (a)LR input. (b)bicubic. (c)SC-SRYang2010 . (d)ASDSDong2011 . (e)LRNE-SRChen2014 . (f)DM-SRBevilacqua2014 . (g)NCSRDong2013 . (h)AplusAplus2015 . (i)proposed method. (j)ground truth.
Figure 8: Visual results comparison for image hat (, ). (a)LR input. (b)bicubic. (c)SC-SRYang2010 . (d)ASDSDong2011 . (e)LRNE-SRChen2014 . (f)DM-SRBevilacqua2014 . (g)NCSRDong2013 . (h)AplusAplus2015 . (i)proposed method. (j)ground truth.
Figure 9: Visual results comparison for image girl (, ). (a)LR input. (b)bicubic. (c)SC-SRYang2010 . (d)ASDSDong2011 . (e)LRNE-SRChen2014 . (f)DM-SRBevilacqua2014 . (g)NCSRDong2013 . (h)AplusAplus2015 . (i)proposed method. (j)ground truth.
Figure 10: Visual results comparison for image butterfly (, ). (a)LR input. (b)bicubic. (c)SC-SRYang2010 . (d)ASDSDong2011 . (e)LRNE-SRChen2014 . (f)DM-SRBevilacqua2014 . (g)NCSRDong2013 . (h)AplusAplus2015 . (i)proposed method. (j)ground truth.
Figure 11: Visual results comparison for image hat (, ). (a)LR input. (b)bicubic. (c)SC-SRYang2010 . (d)ASDSDong2011 . (e)LRNE-SRChen2014 . (f)DM-SRBevilacqua2014 . (g)NCSRDong2013 . (h)AplusAplus2015 . (i)proposed method. (j)ground truth.

3.3 Evaluation of the different contributions

To further validate the effectiveness of proposed method, we test the SR performances with the scaling factor using sparse coding with different constraints and regularization. The results are shown in Fig. 12. For the convenience of description, we denote sparse coding as ’SC’, sparse coding with low-rank constraint as ’LRSC’ and autoregressive as ’AR’. Our proposed KLRSC incorporated with AR model gains the highest PSNRs and SSIMs for all the reconstructions of images. Table 3 shows the average SR performance using SC, LRSC, KLRSC and KLRSC+AR. The proposed KLRSC+AR method has an average improvement of 0.664dB in PSNR and 0.0148 in SSIM over the method using standard sparse representation, where the average PSNR/SSIM contributions of the low-rank constraint, the kernel method and the AR regularization are 0.120dB/0.0028, 0.284dB/0.0041 and 0.260dB/0.0079, respectively. It indicates that the incorporation of low-rank constraint, kernel method and AR regularization indeed boosts the SR results.

Figure 12: SR performances with the scaling factor 3 using sparse coding with different constraints and regularization.
SC LRSC KLRSC proposed
Avg. 28.692 0.8358 28.812 0.8386 29.096 0.8427 29.356 0.8506
Table 3: The average SR performance using SC, LRSC, KLRSC and KLRSC+AR.

4 Conclusion

In this paper, we propose a novel single image SR method by incorporating self-similarity learning framework with kernel based low-rank sparse coding. The kernel method is used which captures the nonlinear structures of the input data. A novel kernel based low-rank sparse coding based scheme for single image SR is proposed, which exploits both the structural information of nonlocal-similarity in kernel space. Furthermore, we exploit the self-similarity redundancy among patches across different scales in a single natural image to train a self-example dictionary. The gradual magnification framework compatible to the self-example dictionary is adopted. Experimental results demonstrate that our proposed method improves SR performances both quantitatively and perceptually.



  • (1) J. Sun, J. Sun, Z. Xu, H.-Y. Shum, Gradient profile prior and its applications in image super-resolution and enhancement, IEEE Transactions on Image Processing 20 (2011) 1529–1542. doi:10.1109/TIP.2010.2095871.
  • (2) Y. Ogawa, Y. Ariki, T. Takiguchi, Super-resolution by gmm based conversion using self-reduction image 22 (10) (2012) 1285–1288. doi:10.1109/ICASSP.2012.6288124.
  • (3) C. V. Jiji, M. V. Joshi, S. Chaudhuri, Single-frame image super-resolution using learned wavelet coefficients, International Journal of Imaging Systems and Technology 14 (14) (2004) 105–112. doi:10.1002/ima.20013.
  • (4) A. Marquina, S. J. Osher, Image super-resolution by tv-regularization and bregman iteration, J. Sci. Comput. 37 (2008) 367–382. doi:10.1007/s10915-008-9214-8.
  • (5) M. Irani, S. Peleg, Motion analysis for image enhancement: resolution, occlusion, and transparency, J. Vis. Commun. Image Represent. 4 (1993) 324–335. doi:10.1006/jvci.1993.1030.
  • (6)

    H. Chang, D.-Y. Yeung, Y. Xiong, Super-resolution through a neighbor embedding, in: IEEE Conference on Computer Vision and Pattern Recognition, 2004, pp. 275–282.

  • (7) J. Yang, J. Wright, T. Huang, Y. Ma, Image super-resolution via sparse representation, IEEE Transactions on Image Processing 19 (2010) 2861–2873. doi:10.1109/TIP.2010.2050625.
  • (8) X. Ma, J. Zhang, C. Qi, Hallucinating face by position-patch, Pattern Recognition 43 (6) (2010) 2224–2236. doi:10.1016/j.patcog.2009.12.019.
  • (9) D. Glasner, S. Bagon, M. Irani, Super-resolution from a single image, in: IEEE International Conference on Computer Vision, 2009, pp. 349–356. doi:10.1109/ICCV.2009.5459271.
  • (10)

    K. Zhang, X. Gao, D. Tao, X. Li, Single image super-resolution with multiscale similarity learning, IEEE Transactions on Neural Networks and Learning Systems 24 (10) (2013) 1648–1659.

  • (11) J. Yu, X. Gao, D. Tao, X. Li, K. Zhang, A unified learning framework for single image super-resolution, IEEE Transactions on Neural Networks and Learning Systems 25 (2014) 780–792. doi:10.1109/TIP.2010.2050625.
  • (12) M. Bevilacqua, A. Roumy, C. Guillemot, M.-L. Morel, Single-image super-resolution via linear mapping of interpolated self-examples, IEEE Transactions on Image Processing 23 (2014) 5334–5347. doi:10.1109/TIP.2014.2364116.
  • (13) W. Dong, L. Zhang, G. Shi, X. Wu, Nonlocally centralized sparse representation for image restoration, IEEE Transactions on Image Processing 20 (2011) 1838–1857. doi:10.1109/TIP.2012.2235847.
  • (14) J. Shi, C. Qi, Low-rank sparse representation for single image super-resolution via self-similarity learning, in: IEEE International Conference on Image Processing, 2016, pp. 1424–1428. doi:10.1109/ICIP.2016.7532593.
  • (15)

    B. Schölkopf, A. Smola, K.-R. Müller, Kernel principal component analysis, in: International Conference on Artificial Neural Networks, 1997, pp. 583–588.

  • (16) C.-Y. Yang, J.-B. Huang, M.-H. Yang, Exploiting self-similarities for single frame super-resolution, in: Asian Conference on Computer Vision, 2010, pp. 497–510. doi:10.1007/978-3-642-19318-7_39.
  • (17) W. Dong, L. Zhang, G. Shi, X. Wu, Image deblurring and super-resolution by adaptive sparse domain selection and adaptive regularization, IEEE Transactions on Image Processing 20 (2011) 1838–1857. doi:10.1109/TIP.2011.2108306.
  • (18) J. Lu, H. Zhang, Y. Sun, Video super resolution based on non-local regularization and reliable motion estimation, Signal Processing: Image Communication 29 (4) (2014) 514 – 529. doi:
  • (19) J. Mairal, F. Bach, J. Ponce, G. Sapiro, A. Zisserman, Non-local sparse models for image restoration, in: IEEE International Conference on Computer Vision, 2009, pp. 2272–2279. doi:10.1109/ICCV.2009.5459452.
  • (20) H. Chen, X. He, Q. Teng, C. Ren, Single image super resolution using local smoothness and nonlocal self-similarity priors, Signal Processing: Image Communication 43 (2016) 68 – 81. doi:
  • (21) T. Zhang, B. Ghanem, S. Liu, C. Xu, N. Ahuja, Low-rank sparse coding for image classification, in: IEEE International Conference on Computer Vision, 2013, pp. 281–288. doi:10.1109/ICCV.2013.42.
  • (22) B. Recht, M. Fazel, P. A. Parrilo, Guaranteed minimum-rank solutions of linear matrix equations via nuclear norm minimization, SIAM Review 52 (3) (2010) 471–501. doi:10.1137/070697835.
  • (23) E. J. Candes, X. D. Li, Y. Ma, J. Wright, Robust principal component analysis?, Journal of the ACM 58 (2011) 11:1–11:37. doi:10.1145/1970392.1970395.
  • (24) X. Liu, G. Zhao, J. Yao, C. Qi, Background subtraction based on low-rank and structured sparse decomposition, IEEE Transactions on Image Processing 24 (2015) 2502–2514. doi:10.1109/TIP.2015.2419084.
  • (25) Z. Zhang, A. Ganesh, X. Liang, Y. Ma, Tilt: Transform invariant low-rank textures, International Journal of Computer Vision 99 (2012) 1–24. doi:10.1007/s11263-012-0515-x.
  • (26) Y. Tang, Y. Yuan, Learning from errors in super-resolution, IEEE Transactions on Cybernetics 44 (2014) 2143–2154. doi:10.1109/TCYB.2014.2301732.
  • (27) K. Ren, F. Xu, Super-resolution images fusion via compressed sensing and low-rank matrix decomposition, Infrared Physics and Technology 68 (2015) 61–68. doi:10.1016/j.infrared.2014.11.006.
  • (28) S. Wang, S. Lin, X. Liang, B. Yue, L. Jiao, External and internal learning for single-image super-resolution, in: IEEE International Conference on Image Processing, 2015, pp. 128–132. doi:10.1109/ICIP.2015.7350773.
  • (29)

    S. Gao, I. W.-H. Tsang, L.-T. Chia, Kernel sparse representation for image classification and face recognition, in: European Conference on Computer Vision, Heraklion, 2010, pp. 1–14.

  • (30) J. Shi, C. Qi, Kernel-based face hallucination via dual regularization priors, IEEE Signal Processing Letters 22 (8) (2015) 1189–1193. doi:10.1109/LSP.2015.2390972.
  • (31) Z. Lin, A. Ganesh, J. Wright, L.Wu, M. Chen, Y. Ma, Fast convex optimization algorithms for exact recovery of a corrupted low-rank matrix, in: Technical Report UILU-ENG-09-2214, 2009.
  • (32) X. Chen, C. Qi, Low-rank neighbor embedding for single image super-resolution, IEEE Signal Processing Letters 21 (2014) 79–82. doi:10.1109/LSP.2013.2286417.
  • (33) R. Timofte, V. De Smet, V. Luc, A+: Adjusted anchored neighborhood regression for fast super-resolution, in: Asian Conference on Computer Vision, 2015, pp. 111–126. doi:10.1007/978-3-319-16817-3_8.
  • (34) Z. Wang, A. C. Bovik, H. R. Sheikh, E. P. Simoncelli, Image quality assessment: from error visibility to structural similarity, IEEE Transactions on Image Processing 13 (4) (2004) 600–612. doi:10.1109/TIP.2003.819861.
