K-CONFIG: Using Failing Test Cases to Generate Test Cases in GCC Compilers

08/27/2019
by   Md Rafiqul Islam Rabin, et al.
0

The correctness of compilers is instrumental in the safety and reliability of other software systems, as bugs in compilers can produce programs that do not reflect the intents of programmers. Compilers are complex software systems due to the complexity of optimization. GCC is an optimizing C compiler that has been used in building operating systems and many other system software. In this paper, we describe K-CONFIG, an approach that uses the bugs reported in the GCC repository to generate new test inputs. Our main insight is that the features appearing in the bug reports are likely to reappear in the future bugs, as the bugfixes can be incomplete or those features may be inherently challenging to implement hence more prone to errors. Our approach first clusters the failing test input extracted from the bug reports into clusters of similar test inputs. It then uses these clusters to create configurations for Csmith, the most popular test generator for C compilers. In our experiments on two versions of GCC, our approach could trigger up to 36 miscompilation failures, and 179 crashes, while Csmith with the default configuration did not trigger any failures. This work signifies the benefits of analyzing and using the reported bugs in the generation of new test inputs.

READ FULL TEXT VIEW PDF

I Introduction

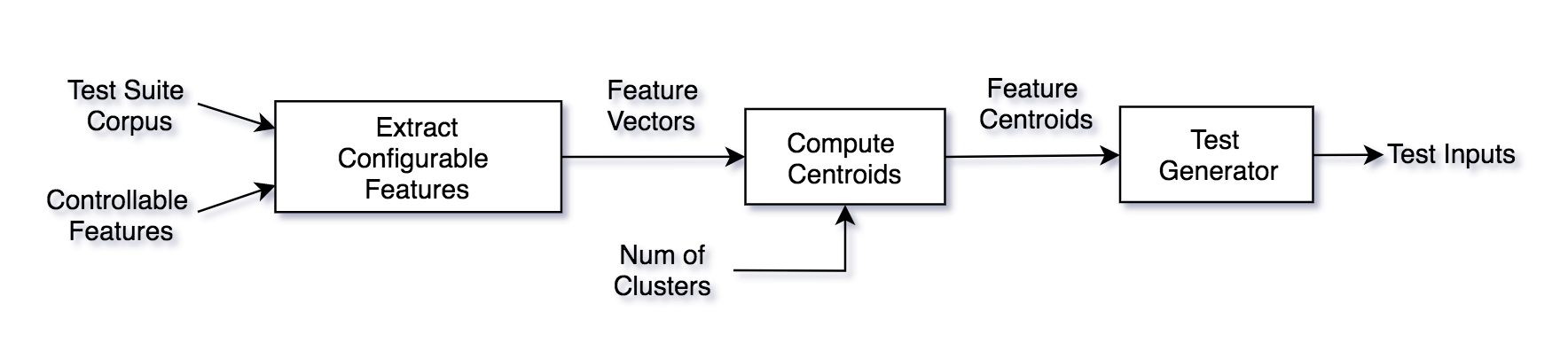

Figure 1: The overall workflow of K-Config approach.

Compilers translate programs understandable by developers to programs that machines can understand and execute. Compilers are the key part of software development infrastructure that makes all software systems depend on them. Developers rely on compilers to build and debug their programs, libraries, and operating systems. Optimization passes in the compilers search the input programs for the opportunities to improve various aspects of the output programs such as execution time, memory consumption, and the code size.

Optimizing compilers are complex software systems that constitute several passes from various syntax and semantic analyses to code generation. As programming languages grow and add new features, the compilers that implement these features also grow in size and complexity. Moreover, compilers attempt to accommodate the translation of several programming languages which further complicates the compiler system. Today’s GCC compiler is over 10 million lines of code [Link:GCCLOC]. Testing such massive, sophisticated systems is a non-trivial task and researchers and developers still can find many bugs in modern compilers.

Several approaches for testing compilers have been proposed; for example, [Zeller:TestGenMutation:LangFuzz:Security:2012], [Regehr:TestSelection:Rank:PLDI:2013], [Zhendong:TestOracle:classfuzz:PLDI:2016], [Cummins:TestGenLearn:DeepSmith:ISSTA:2018], [Zhendong:TestGenMutation:Orion:PLDI:2014], [Zhendong:TestGenMutation:Athena:OOPSLA:2015], [Zhendong:TestGenMutation:Hermes:OOPSLA:2016], [Groce:TestGenRnd:Swarm:ISSTA:2012], to name few. These approaches either generate test inputs from scratch by grammar [Regehr:TestGenGrammar:Csmith:PLDI:2011] and learning [Cummins:TestGenLearn:DeepSmith:ISSTA:2018], or they create new test input by manipulating [Zeller:TestGenMutation:LangFuzz:Security:2012] or transforming the existing test input, e.g., [Zhendong:TestGenMutation:Orion:PLDI:2014].

In this paper, we evaluate the use of failure-inducing test inputs to generate new test inputs. Our insight is that these test inputs can provide hints into places in the code that are more prone to be buggy. In fact, this idea is not that novel. LangFuzz [Zeller:TestGenMutation:LangFuzz:Security:2012] transplants fragments of failing test inputs to other programs to generate new test input. However, our work takes a significantly different approach. In this approach that we call K-Config, instead of embedding fragments for existing failing test inputs into new test input to create a new test input, we analyze features of failing test inputs to create new configurations

for a test generator. The test generator uses these configurations for creating new test input that exhibits similar features to the original failing test input. This approach is also different from (deep) learning-based approaches such as DeepSmith

[Cummins:TestGenLearn:DeepSmith:ISSTA:2018], whereas they try to build a generative model for the test inputs in two ways. First, while learning approaches requires many test inputs with millions of tokens to train a model, this approach can work with a couple of thousands of failing test inputs. Second, learning based approaches tend to converge to a limited language model of test input that overly restricts the type of test inputs that can be produced [Godefroid:FeatureBased:LearnFuzz:ASE:2017]. K-Config instead uses the configuration of test generators to guide testing which is less constrained than the generation of test inputs in learning-based approaches. In particular, K-Config only specifies the programming constructs that should be present in the generated test inputs, and the order or number of those constructs are determined by the test generator.

Figure 1 depicts the overall workflow of the approach. It constitutes following main phases: (1) collecting failing test inputs, (2) extracting configurable test features from failing test inputs, (3) clustering test inputs into a similar cluster, (4) generating configurations based on clusters, and finally (5) using configurations to generate new test input.

Of course, there are limitations to the application of this approach. First, it assumes that a stable test generator exists. Second, it requires a set of failing test inputs. GCC compiler easily satisfies both requirements, as it has been under development for decades and the bug reports are available. Moreover, it has a mature well-engineered test generator, Csmith [Regehr:TestGenGrammar:Csmith:PLDI:2011] [Link:Csmith]. It allows us to evaluate the effectiveness of this approach in testing GCC compilers.

We have implemented the proposed approach for GCC C compiler testing. We collected 3661 failing test inputs from GCC codebase. We parse the test inputs and collect the features that can be used in the configuration of Csmith. We used the K-Means algorithm to cluster the test inputs. K-Means returns centroids of the clusters of similar test inputs. We use these centroids to synthesize configurations for Csmith.

We performed a large scale experiment to evaluate the effectiveness of configurations generated by this approach with the default configuration of Csmith on two versions of GCC. In total, we experimented the new and default configuration for over 900 hours (almost 40 days). The result of our experiment shows that the new configurations could find up to 36 test input for miscompilation, and 179 test input for crashes per 13-hour test sessions, while Csmith with the default configuration could not find any failures at the same time. It reinforces the previous studies that many of bugfixes are incomplete [Yin:IncompleteBugFix:ESEC:FSE:2011] and GCC is not an exception. This also indicates that processing failing test input can provide insights into the regions of code that are susceptible to bugs.

Contributions This paper makes the following main contributions:

  • We propose a novel approach for testing compilers with mature test generators.

  • We perform a large-scale study to evaluate the efficiency of the proposed approach.

  • We make code and test input available for further use. 111We add the URL to the data and code at the time of publication.

Paper Organization Section II demonstrates the proposed approach. Section III describes the experimental setup for the evaluation of the approach. Section IV provides an analysis of the results and answer to the research questions. Section V surveys the related works, Section VI discusses some of the threats to validity. Finally, Section VII concludes the paper.

Ii Proposed Approach

Main programming languages such as C and JavaScript have test generators that produce test inputs for those languages. The test inputs can be used to test compilers and interpreters of the languages. For example, Csmith has been able to find hundreds of bugs in mainstream C compilers. Another good example is jsFunFuzz [Link:jsFunFuzz] for JavaScript that has found thousands of bugs in JavaScript interpreters. Newer programming languages are also developing such tools for testing compilers, for example, Go-Fuzz [Link:goFuzz] for Go.

Configurable test generators, such as Csmith, allow developers to specify some of the characteristics of the test input to be generated. This way developers can control the test generation and direct the test generation process. It is fair to say that the current test generation techniques under-utilize the configuration of the test generators. We only could find two studies that use the configurations: swarm testing [Groce:TestGenRnd:Swarm:ISSTA:2012] and focused random testing [Alipour:FocusedTesting:ISSTA:2016]. Swarm testing randomly enables or disables options in the test generators. Focused random testing attempts to establish a causation relation between configurable options and test coverage in order to find configurations that can target parts of the code.

In this section, we describe the proposed approach in detail. Our approach is based on analysis of previous failing test inputs to generate the configuration for the test generators that we call it K-Config. K-Config takes , a set of existing test inputs that exhibit some interesting property , and a configurable test generator TestGen for a compiler. The goal of K-Config is to analyze to extract configurations for TestGen that are likely to generate test cases that exhibit .

Figure  2 depicts an overview of the workflow for realizing K-Config for testing the GCC compiler. It can broadly be divided into two phases: (1) extracting feature centroids from test suite of failing test inputs, and (2) using centroids to generate test cases. We describe these phases in the following subsections.

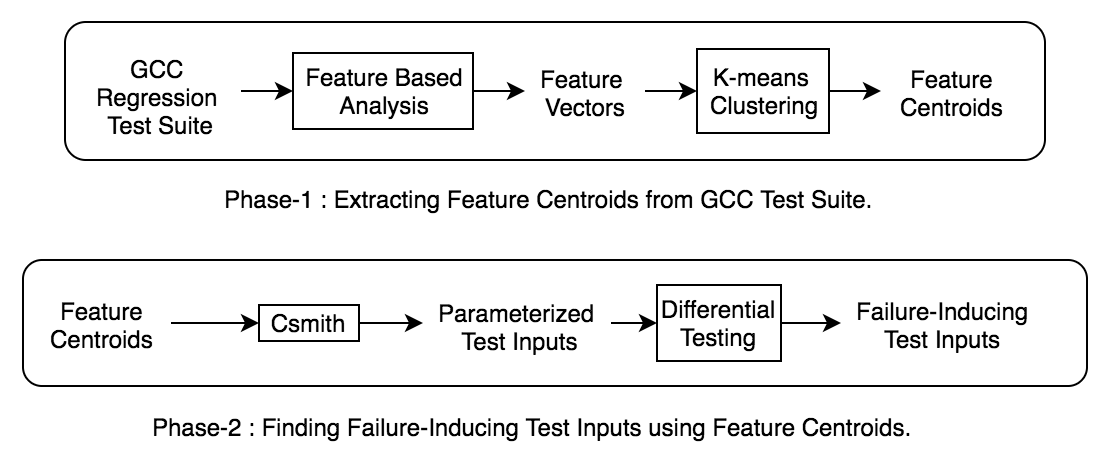

Figure 2: Overview of K-Config approach for testing GCC.

Ii-a Phase 1: Extracting Feature Centroids from Test Suite

Configurable Test Generator Csmith [Regehr:TestGenGrammar:Csmith:PLDI:2011] is a configurable random test generator for C compilers. The common practice for testing compilers is differential testing. That is a test input is compiled and executed by two or more versions of compilers, or two or more optimization levels, and the results are compared. The metamorphic test oracle specifies the result of the output of the compiled programs by all compilers and optimization levels must be the same. An obnoxious feature of testing compilers, especially C compilers is that the language allows undefined behavior. Undefined behaviors are those the standard of the language does specify standard behavior of the program for certain conditions. For example, the C standard does not specify default values for the uninitialized variables in the programs; it, therefore, is up to the developers of the compilers to decide on the actual behavior. Csmith does the best effort to avoid the undefined behaviors in C.

Controllable Features Csmith allows developers to choose the C programming constructs that they want in the test inputs generated by Csmith. The order and number of the constructs however are chosen randomly and developers cannot control them—mainly because Csmith is a random generator that uses grammar to generate test cases. We use Csmith 2.3.0 in our experiments that provides 28 configuration options. These options are offered in the form of “feature” for including the feature in the test input and “no-feature” to exclude the feature in the generation of the test inputs. For example, Csmith includes a volatile variable in test input by using “--volatiles” or excludes it by using “–no-volatiles”. The 28 features list: “argc, arrays, bitfields, comma-operators, compound-assignment, consts, divs, pre-incr-operator, pre-decr-operator, post-incr-operator, post-decr-operator, unary-plus-operator, jumps, longlong, int8, uint8, float, inline-function, muls, packed-struct, pointers, structs, unions, volatiles, volatile-pointers, const-pointers, global-variables, and builtins”

Test Suite Corpus At first, to extract the properties of the failing test input, we need a corpus of failing test suite. We extracted test input from bug reports in GCC; these test inputs caused some older versions of GCC to fail. We use these test inputs as the basis of our analysis.

Extracting Test Features We use pycparser v2.19 [Link:PyCParser], a parser for the C programming language written in Python to extract C programming constructs used in the test suite corpus. We use the abstract syntax tree (AST) to find out features present in the test inputs in the test suite. An unanticipated finding was that the pycparser failed on C programs having comments. It is therefore likely that pycparser failed on GCC regression test C programs as those C programs contain comments. To resolve this issue and make pycparser working on those C programs, we removed the comments from C programs. Finally, pycparser was able to parse 3,661 of 7,131 test C programs. We investigated the rest of the test input and found that they are indeed not parsable, but they caused the earlier versions of GCC to crash. We used 3,661 parsable test input and their corresponding AST in our experiments.

Extracting Feature Vectors

In this step, we focus on counting the number of occurrences of each of the 28 features in our test suite. To do this, we use a combination pattern matching in regular expressions in the text of test inputs and simple visiting of the abstract syntax tree. We extract all occurrences of features in test inputs. We next count the number of occurrences for each feature in each C program or corresponding AST file. Figure

3 shows the number of test input that contains each feature. We observe that the distribution of features in failing test input is not uniform. Features like global variables and compound assignments have occurred more frequently than features like int_8.

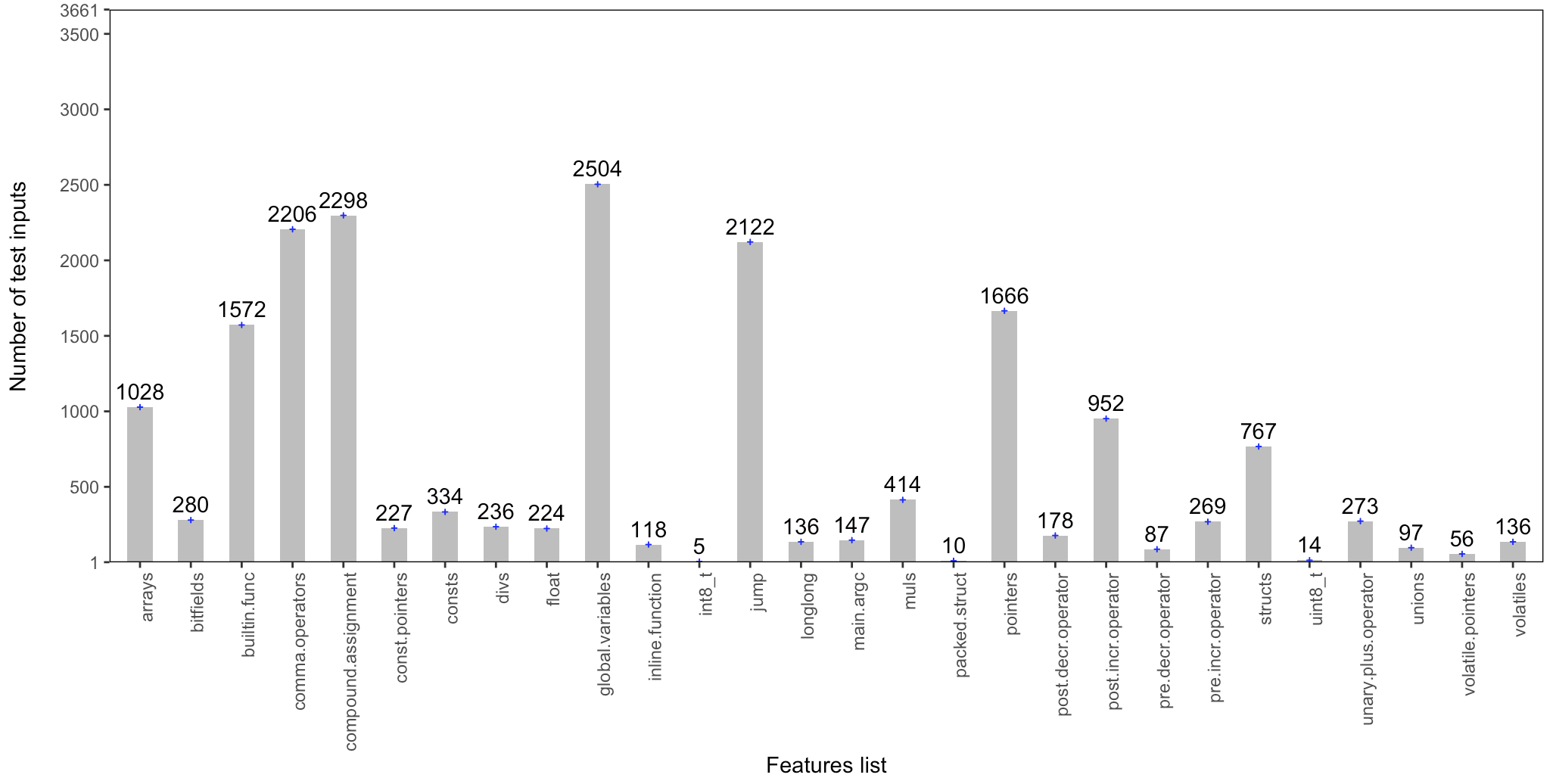

Figure 3: Number of test input for each feature.

Compute Centroids Given a set of feature vectors that represents the presence or absence of each feature in the test inputs, we use K-Means clustering on the feature vectors. The K-Means

clustering is an unsupervised machine learning algorithm that performs clustering on unlabeled vector data. Given a set of vector data, this algorithm observes the underlying patterns and cluster similar data together. The number of clusters we want to see has to be predefined. Each cluster results in a

centroid that has a minimum distance to the data points of the cluster. Suppose, is the vector data of observations and is the number of disjoint clusters . The K-Means algorithm groups the observations into clusters and each cluster has a centroid , the mean of the samples in the cluster. The centroid is set based on the minimum distance of the inertia criterion. For K-Means, the distance metric is the sum of squared distances within-cluster which is defined as:

K-Means computes centroids for a given . At the end of K-Means clustering, we have clusters and centroids where are located at the center of each cluster. Since the feature vectors contain only 0 and 1 values, the values in the centroids would be a real value from 0 to 1 (inclusive).

Ii-B Phase 2: Generating test input using K-Config

Generating configurations in K-Config Our realization of K-Config uses K-Means

that results in a vector of real values from 0 to 1. A closer value to 1 in a centroid, it means that the corresponding feature was more prevalent in the test inputs in that cluster. Therefore, we use those values as the probability of including a feature in a test input. Algorithm

1 describes the algorithm for generating new test inputs. Given a testing time budget , a set of centroids , the algorithm calls in round-robin fashion until the test time budget expires. Procedure takes a centroid and generates a new configuration. In generating a new configuration, chooses to include feature with a random probability where is represented by the element in the centroid vector.

Testing time budget;
Set of centroids;
;
while  do
       forall centroid  do
             if doesFail(testInput,GCC) then

             end if

       end forall

end while
Function ConfigGen():
       forall value  do
             if randNum v then

            else

             end if

       end forall

return
Algorithm 1 K-Config

Differential testing to evaluate test input We use a metamorphic relation between optimization levels of compilers. In particular, we compile a test input with two optimization levels: O0 and O3 and we compare the result of the execution of the programs generated by those optimization levels.

Iii Experimental Setup

This section discusses the experimental parameters used to evaluate the K-Config approach.

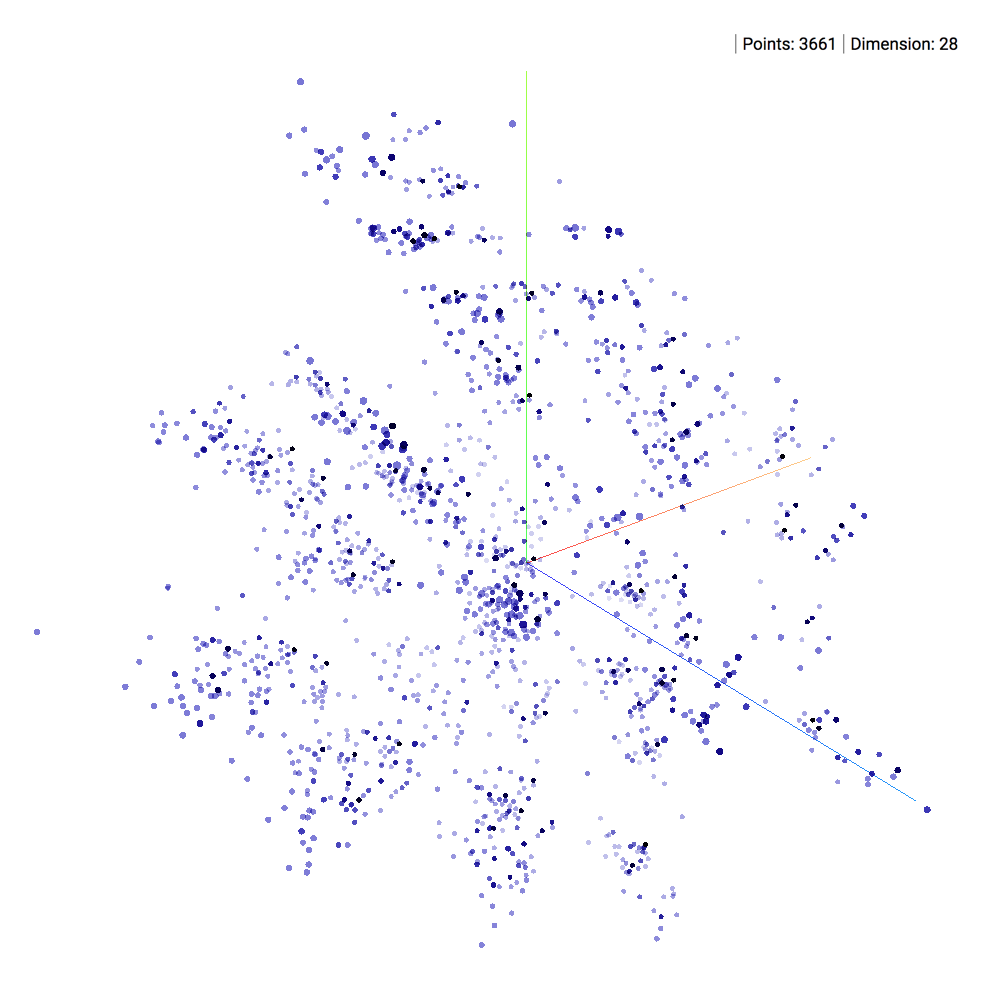

Figure 4: Visualization of feature vectors of failing test inputs in GCC.

Number of Clusters Choosing the number of cluster is key and hard. The best ensures the similarity within the clusters and dissimilarity between the clusters. But there are no well-defined methods to choose such a value of . We visualize our feature vectors in the projector [Link:ProjectorTensorflow] to see the underlying clustering patterns. Figure  4 shows the projection of our vector data. Here, the number of points is and the dimension of each point is . That means each point is the representation of a test input having a vector of 28 features. We can see different cluster patterns in various aspects, that’s why we come up with a decision to choose different values, where .

Iii-a Initial Setting for Clusters

We consider the K-Means algorithm implementation of python scikit-learn [Link:ScikitLearn] machine learning library in this paper. We use the KMeans API where we need to fit the vector data (the observations to the cluster) and have to pass the n_clusters parameters (the number of centroids to generate after forming the number of clusters). We also use the default K-Means++ initialization method which selects initial cluster centers for K-Means clustering in a smart way to speed up the convergence. The inertia criterion for distance metric is used is the sum of squared distances between centroid and data points. After each iteration, the K-Means algorithm minimizes the within-cluster sum of squared distances. We run our algorithms with default n_int and max_iter option. As a result, the K-Means algorithm runs 10 times with different centroid seeds and continue for 300 iterations for each run. The centroids are found at the last iteration of K-Means that dumps the best output as the final result.

Test Subject Compilers We use two mature versions of GCC to evaluate the effectiveness of this approach: GCC 4.8.2 and GCC 5.4.0. GCC 4.8.2 was released in October of 2013 and GCC 5.4.0 was released three years after, in September 2016. Both releases are mature and have been widely used in building various software systems.

System Hardware Our evaluation has been conducted on a high performance computing cluster. The HPC Server is the shared campus resource pool hosting a total of 5704 CPU cores in 169 computes. The CPU type is Intel Xeon E5-2680v4 with 128GB shared main memory.

Test Generation Tool Csmith [Regehr:TestGenGrammar:Csmith:PLDI:2011] is an open source automatic test generation tool. Given a set of C language features as options (by default enable), Csmith can generate random C programs. We use Csmith 2.3.0 [Link:Csmith] in our approach.

Initial Test Suite We use the GCC regression bug test suite that has more than 3000 parsable test C programs. This test suite contains failure-inducing test inputs. We are interested in mine the patterns of those failure-inducing test input to guide the Csmith test input generation.

Test budget for testing campaign We run each configuration of Csmith for 13 hours to create test input and execute the test input. We also experiment with two compilation time setup. First, we use a 10 seconds timeout to compile a test input. Then, we use a 30 seconds timeout to compile a test input. To check the robustness of randomness, we run each experiment three times.

Iii-B Research Questions

In this study, we seek to answer the following research questions.

  • Research Question 1: Can the K-Config find more failure-inducing test inputs compared to the state-of-the-art approach?

  • Research Question 2: What impact of choosing the different have on K-Config?

  • Research Question 3: What are the common features in the failure-inducing test inputs for GCC?

For RQ1, we seek to compare the Csmith with our setting to the Csmith with the default setting in terms of the number of failure-inducing test input for the crash, timeout, and miscompilation. RQ2 evaluates the impact of choosing different on the effectiveness of K-Config. Finally, for RQ3, we aim to find the features that are culprits for the failures.

The remaining of this section discusses our evaluation of the proposed K-Config approach. We have been experimenting on GCC.

Iii-C Ground Truth

To find the failure-inducing test inputs, we choose the result of without optimization as ground truth. For example, for a specific compiler version, we first compiled a test input with the lowest optimization (-O0). Then, we compiled the same test input with the highest optimization (-O3) on the same compiler version. Test oracles state that the behavior should be the same in both trials. Any mismatch between the behaviors represents a failure. There are other failures that are described in Table  I.

No Optimization (-O0) High Optimization (-O3) Failure?
Compiler crashes Compiler crashes False
Compiler crashes Compiler doesn’t crash True
Compiler doesn’t crash Compiler crashes True
Output for -O0 and -O3 are identical False
Output for -O0 and -O3 are different True
Table I: Possible failures in the experiment

Iii-D Failure Types

We have classified the failures into three classes: (1) miscompilation, (2) crash failure, and (3) timeout. Table

II summarizes these failures. The miscompilation failures happen wherein a compiler produces programs that output wrong outputs for different optimization. In a crash failure, the compiler terminates the compilation abruptly with a crash report on screen. The timeout failure happens when the compilation time exceeds the predefined threshold for compilation—we need to set timeout due to avoid potential infinite loop errors in the compiler under test.

Failure Types Definition
Miscompilation Compiler produces different output for no (-O0) and high (-O3) optimization.
Crash Compiler crashes when compiling program.
Timeout Compiler takes longer time than the specified time to compile program.
Table II: Failure types

Iii-E Experiment parameters

Table  III contains information about the experiments. We have conducted six experiments to evaluate the effectiveness of the K-Config approach. In E1, we used Csmith with the default configuration. In E2 through E6 experiments, instead of using the default setting of Csmith, we used the different featured centroids as parameters for Csmith. We chose different values, where , respectively. is essentially setting the probability of including a feature proportional to the number of times that is it has seen in test inputs in the original test suite. In each experiment, for 13 hours, we generated, compiled test input, and executed the output programs. We also ran each experiment three times to avoid potential effects of randomness in the experiments.

Experiment ID Feature Selection Testing Window
E1 Csmith default configuration 13 hours
E2 Select k=1 centroid as features 13 hours
E3 Select k=2 centroids as features 13 hours
E4 Select k=4 centroids as features 13 hours
E5 Select k=8 centroids as features 13 hours
E6 Select k=16 centroids as features 13 hours
Table III: Experiment with GCC for different feature selection

Iv Analysis of results

This section presents the results of experiments to evaluate the effectiveness of the K-Config approach. Tables IV and VI show the experiment results with GCC 4.8.2 for the compilation timeout of 10 seconds and 30 seconds respectively. Table V and VII show the experiment results with GCC 5.4.0 for the compilation time of 10 seconds and 30 seconds respectively.

Experiment ID Test input Crash(0) Crash(3) Crash(both) Total Crash Timeout(0) Timeout(3) Timeout(both) Total Timeout Miscompilation
E1 (r1) 9225 0 0 0 0 8 0 1187 1195 0
E1 (r2) 10037 0 0 0 0 10 0 1226 1236 0
E1 (r3) 9075 0 0 0 0 13 0 1164 1177 0
E2 (r1) 10351 54 83 7 144 21 12 1545 1578 26
E2 (r2) 11524 63 102 13 178 29 18 1609 1656 25
E2 (r3) 10122 66 95 6 167 28 18 1509 1555 24
E3 (r1) 10577 52 71 7 130 20 17 1542 1579 31
E3 (r2) 10952 49 76 5 130 17 8 1669 1694 22
E3 (r3) 10262 56 70 5 131 24 12 1512 1548 20
E4 (r1) 11325 48 62 3 113 19 11 1531 1561 24
E4 (r2) 11835 62 79 3 144 22 16 1634 1672 28
E4 (r3) 10897 49 80 7 136 24 11 1499 1534 26
E5 (r1) 10411 49 73 10 132 24 13 1596 1633 23
E5 (r2) 10777 48 83 4 135 24 10 1714 1748 26
E5 (r3) 9717 38 69 4 111 16 12 1586 1614 21
E6 (r1) 11024 60 115 4 179 32 12 1535 1579 30
E6 (r2) 11449 61 103 6 170 28 21 1649 1698 29
E6 (r3) 10754 50 94 10 154 28 12 1496 1536 36
Table IV: GCC 4.8.2 (timeout=10s)
Experiment ID Test input Crash(0) Crash(3) Crash(both) Total Crash Timeout(0) Timeout(3) Timeout(both) Total Timeout Miscompilation
E1 (r1) 8285 0 0 0 0 8 0 1059 1067 0
E1 (r2) 8722 0 0 0 0 9 0 1137 1146 0
E1 (r3) 8225 0 0 0 0 11 0 1010 1021 0
E2 (r1) 9901 0 0 0 0 5 1 1471 1477 41
E2 (r2) 10637 0 0 0 0 5 1 1560 1566 51
E2 (r3) 9565 0 0 0 0 3 0 1438 1441 42
E3 (r1) 10044 0 0 0 0 5 1 1481 1487 38
E3 (r2) 10407 0 0 0 0 8 1 1591 1600 39
E3 (r3) 9768 0 0 0 0 4 3 1443 1450 32
E4 (r1) 10224 0 0 0 0 7 0 1449 1456 42
E4 (r2) 10895 0 0 0 0 4 2 1525 1531 28
E4 (r3) 9633 0 0 0 0 3 1 1430 1434 30
E5 (r1) 9541 0 0 0 0 6 0 1514 1520 45
E5 (r2) 10020 0 0 0 0 5 0 1624 1629 35
E5 (r3) 9413 0 0 0 0 5 1 1478 1484 30
E6 (r1) 10306 0 0 0 0 4 2 1436 1442 53
E6 (r2) 10588 0 0 0 0 5 3 1544 1552 47
E6 (r3) 9915 0 0 0 0 6 1 1399 1406 37
Table V: GCC 5.4.0 (timeout=10s)
Experiment ID Test input Crash(0) Crash(3) Crash(both) Total Crash Timeout(0) Timeout(3) Timeout(both) Total Timeout Miscompilation
E1 (r1) 4400 0 0 0 0 3 0 552 555 0
E1 (r2) 4832 0 0 0 0 4 0 609 613 0
E1 (r3) 4316 0 0 0 0 6 0 540 546 0
E2 (r1) 4516 19 38 3 60 9 4 620 633 7
E2 (r2) 4637 25 49 2 76 11 2 685 698 12
E2 (r3) 4361 32 45 1 78 17 6 606 629 12
E3 (r1) 4252 29 26 4 59 4 4 633 641 12
E3 (r2) 4550 23 37 1 61 6 4 688 698 12
E3 (r3) 4221 19 26 3 48 8 3 618 629 12
E4 (r1) 4786 19 30 3 52 7 5 616 628 13
E4 (r2) 4944 26 26 1 53 12 6 677 695 18
E4 (r3) 4406 19 34 4 57 10 4 607 621 13
E5 (r1) 4456 19 37 2 58 15 4 627 646 10
E5 (r2) 4370 16 27 2 45 5 5 695 705 11
E5 (r3) 4232 25 33 2 60 5 4 623 632 15
E6 (r1) 4372 26 39 3 68 16 3 618 637 12
E6 (r2) 5140 19 49 0 68 15 4 674 693 21
E6 (r3) 4219 21 34 3 58 13 7 611 631 15
Table VI: GCC 4.8.2 (timeout=30s)
Experiment ID Test input Crash(0) Crash(3) Crash(both) Total Crash Timeout(0) Timeout(3) Timeout(both) Total Timeout Miscompilation
E1 (r1) 4110 0 0 0 0 5 0 515 520 0
E1 (r2) 4587 0 0 0 0 2 0 573 575 0
E1 (r3) 4270 0 0 0 0 5 0 505 510 0
E2 (r1) 4189 0 0 0 0 1 0 614 615 15
E2 (r2) 4648 0 0 0 0 4 0 667 671 15
E2 (r3) 4062 0 0 0 0 1 0 609 610 5
E3 (r1) 4132 0 0 0 0 0 0 615 615 23
E3 (r2) 4385 0 0 0 0 2 0 676 678 14
E3 (r3) 4273 0 0 0 0 0 0 597 597 10
E4 (r1) 4333 0 0 0 0 2 0 605 607 16
E4 (r2) 4603 0 0 0 0 1 0 669 670 16
E4 (r3) 4420 0 0 0 0 0 0 594 594 26
E5 (r1) 3949 0 0 0 0 1 0 616 617 17
E5 (r2) 4090 0 0 0 0 1 0 683 684 11
E5 (r3) 4114 0 0 0 0 4 0 602 606 19
E6 (r1) 4198 0 0 0 0 0 0 615 615 25
E6 (r2) 4707 0 0 0 0 2 0 663 665 19
E6 (r3) 4003 0 0 0 0 1 0 599 600 21
Table VII: GCC 5.4.0 (timeout=30s)

Here, the first column shows the type of experiments. Column “Test input” shows the total number of test inputs generated and executed in 13 hours period for a specific experiment. “Crash(0)” shows the total number of crash failures that have been found in an experiment while compiling a test input with the lowest optimization level (i.e., -O0), “Crash(3)” demonstrates the number of crashes encountered with the highest level of optimization (i.e., -O3). “Crash(both)” column contains the number of test input that causes a crash in both lowest (-O0) and highest (-O3) level of optimization. “Total Crash” is the sum of “Crash(0)”, “Crash(3)”, and “Crash(both)” in an experiment. Similarly, “Timeout(0)”, “Timeout(3)”, and “Timeout(both)” represent the number of timeouts encountered with lowest (-O0) optimization, highest (-O3) optimization, and both the lowest (-O0) & highest (-O3) optimization, respectively. “Total Timeout” is the sum of “Timeout(0)”, “Timeout(3)”, and “Timeout(both)”. Note that we run each experiment three times; (r1), (r2), and (r3) present the result of individual experiments.

Rq1: Comparison of the configuration of K-Config with the default configuration of the test generator

In GCC 4.8.2, the configuration of the K-Config approach could find up to 179 test input for crashes and 36 test input for miscompilation failures. But Csmith with the default configuration could not find any failure-inducing test input. On the other hand, in GCC 5.4.0, K-Config suggests configurations that could find up to 53 test input with miscompilations and no test input for crashes. Again Csmith with the default setting could not find any failure-inducing test input.

Observation 1: Csmith with K-Config configurations could find more failure-inducing test inputs than Csmith with the default configuration.

Rq2: What impact of different effectiveness of K-Config

We experiment with a different selection of in our approach. Table IV-VII summarizes the results of those selections. When Csmith with default selection could not find any failure-inducing test input, Csmith with setting even could find many failure-inducing test input. is similar to set the probability of configurations based on the ratio of the number of test inputs per feature. Whatever value takes we could see the robustness of finding failure-inducing test input in each experiment. Therefore, choosing the value has no major impact on K-Config.

Observation 2: Different values for did not impact the effectiveness of K-Config.

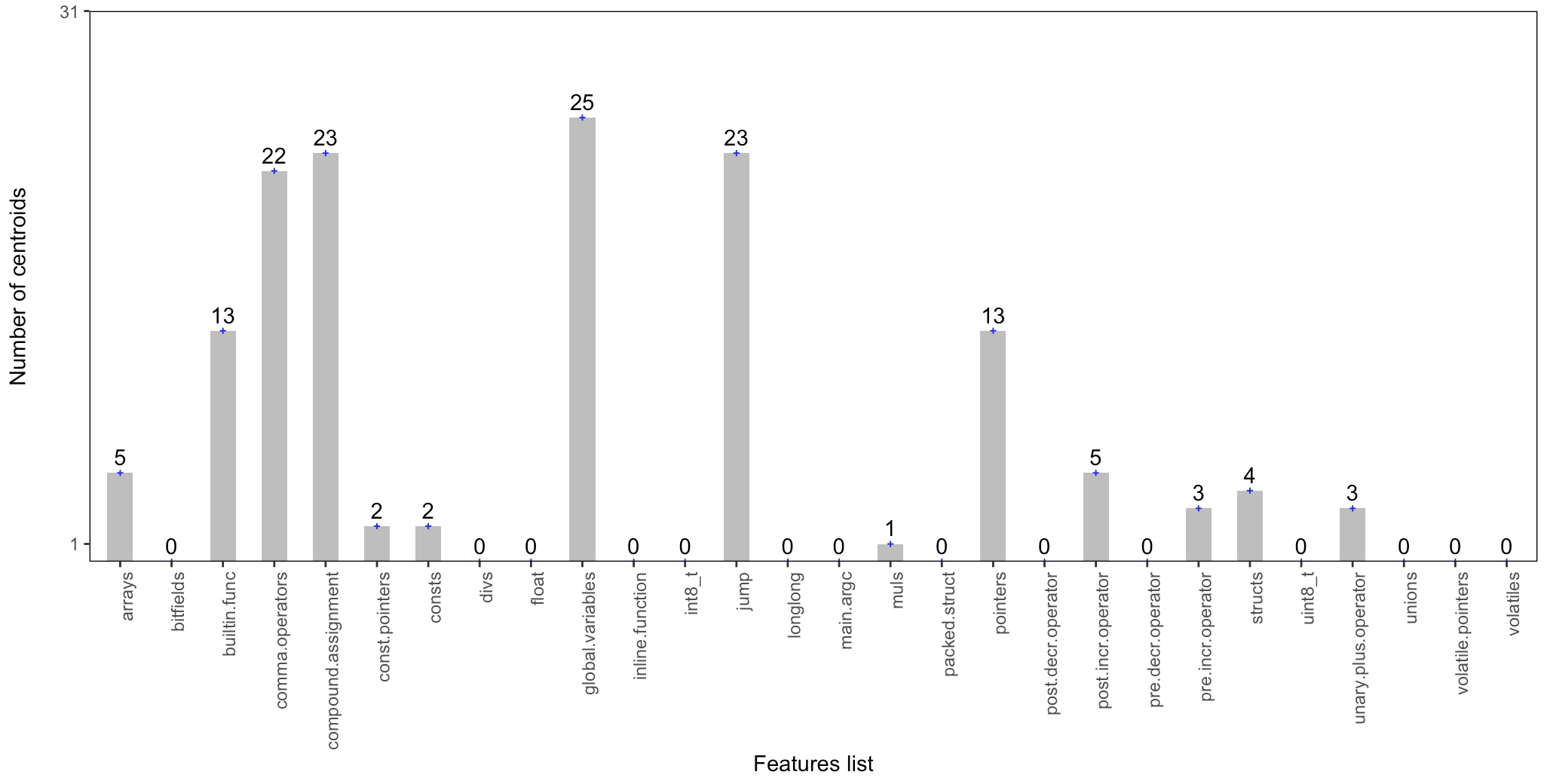

Figure 5: Frequency of features in centroids.

Rq3: Common features in the failure-inducing test inputs for GCC

To get rid of bias for centroids in the experiment, we run round-robin selection of centroids in test input generation. Figure  3 shows the quantitative count of each feature in the test input. We could observe that there is no missing feature in the test suite, the feature exists in at least 5 to 2504 test input, which supports the goodness of our test suite. Similarly, Figure  5 shows the quantitative count of each feature in centroids. We could observe that “global-variables, compound-assignment, jumps, comma-operators, pointers, builtins” features appear exceedingly in the failure-inducing test inputs, and “arrays, post-incr-operator, structs, pre-incr-operator, unary-plus-operator, consts, const-pointers, muls” features appear occasionally in the failure-inducing test inputs. On the other hand, “argc, bitfields, divs, pre-decr-operator, post-decr-operator, longlong, int8, uint8, float, inline-function, packed-struct, unions, volatiles, volatile-pointers” features appear rarely in the failure-inducing test inputs.

Observation 3: Table VIII shows the number of occurrences of the common features in the failure-inducing test inputs.

Frequency of features Feature list
Very frequent “global-variables, compound-assignment, jumps, comma-operators,
pointers, builtins”
Occasionally “arrays, post-incr-operator, structs, pre-incr-operator, unary-plus-operator,
consts, const-pointers, muls”
Rarely “argc, bitfields, divs, pre-decr-operator, post-decr-operator, longlong, int8,
uint8, float, inline-function, packed-struct, unions, volatiles, volatile-pointers”
Table VIII: Ranking of features based on their frequency in failure inducing test inputs

V Related Work

Finding bugs in compilers is an active area of research. Several approaches have been proposed to generate test inputs, reduce test size, rank and prioritize test inputs, select/omit/mutate features, diverse test inputs, accelerate testing, categorize similar bugs, etc. The goals of those approaches are to reveal bugs in compiler and facilitate debugging. This section highlights the literature of compiler testing related to our proposed approach. The summary of related works is shown in Table  IX.

Author and Reference Publication Year Approach(s) Test Compiler/Engine
Leon et. al. [Leon:TestSelection:coverage:ISSRE:2003] ISSRE 2003 Filtering and prioritizing GCC, Jikes and javac
Podgurski et. al. [Podgurski:BugTriage:profile-visualization:ICSE:2003] ICSE 2003 Classification and visualization GCC and Jacks
Leon et. al. [Leon:TestSelection:CIF:ICSE:2005] ICSE 2005 Filtering with cif javac, Xerces and JTidy
Holler et. al. [Zeller:TestGenMutation:LangFuzz:Security:2012] USENIX 2012 Fuzzing code fragments Mozilla TraceMonkey, Google V8 and PHP
Groce et. al. [Groce:TestGenRnd:Swarm:ISSTA:2012] ISSTA 2012 Feature omission LLVM/Clang and GCC
Chen et. al. [Regehr:TestSelection:Rank:PLDI:2013] PLDI 2013 Ranking test inputs SpiderMonkey and GCC
Zhang et. al. [Zhendong:TestSelection:SPE:PLDI:2017] PLDI 2017 Skeletal program enumeration GCC/Clang, CompCert, Dotty and Scala
Chen et. al. [Chen:TestSelection:LET:ICSE:2017] ICSE 2017 Learning and scheduling GCC and LLVM
Chen et. al. [Chen:TestSelection:COP:IEEE-TSE:2018] IEEE TSE 2018 Coverage prediction and clustering GCC and LLVM
Table IX: Summary of related works

V-a Clustering-based approaches

Cluster filtering approaches have been used in the compiler testing for classifying test inputs, triggered bugs, and failure reports. This classification can help researchers to pick test programs from the different cluster in order to increase the diversity of program as well the testing acceleration as testing from the same cluster is likely to observe the same facts. Several approaches for cluster filtering have been proposed; for example, [Leon:TestSelection:coverage:ISSRE:2003], [Podgurski:BugTriage:profile-visualization:ICSE:2003], [Leon:TestSelection:CIF:ICSE:2005], [Chen:TestSelection:COP:IEEE-TSE:2018]. These approaches either cluster based on the profile execution ([Leon:TestSelection:coverage:ISSRE:2003], [Podgurski:BugTriage:profile-visualization:ICSE:2003]) or filter based on the information flow ([Leon:TestSelection:CIF:ICSE:2005], [Chen:TestSelection:COP:IEEE-TSE:2018]). Filtering and Prioritizing [Leon:TestSelection:coverage:ISSRE:2003] partitions a set of test cases into separate groups according to the profile similarity on execution space. The authors then use the one-per-cluster sampling to select one test program randomly from each cluster. If any bug found, the authors use the failure-pursuit sampling to select nearest neighbors of the failure-inducing program. This process is continued until no more bugs are found. Another work in this area is classification and multivariate visualization [Podgurski:BugTriage:profile-visualization:ICSE:2003]

where the failure-inducing inputs have been grouped together based on the profile execution space. The classification approach has four phases: (1) capturing the execution profile in the first phase, (2) extracting profile features, (3) grouping similar failures using cluster analysis and multivariate visualization, and (4) explore the results in order to confirm or refine. Filtering with complex information flows

[Leon:TestSelection:CIF:ICSE:2005] is another profile-based test case filtering approach where both coverage-based and profile-distribution-based filtering approaches are considered. Another example is COP [Chen:TestSelection:COP:IEEE-TSE:2018] where authors prioritize test inputs by clustering them according to the predicted coverage information. The evaluation result of all those approaches demonstrates that the cluster filter approach is effective and finds many defects along with maximizing the coverage.

V-B Feature-based Testing

Feature selection leads a program generator to generate diverse test programs that explore the various area of space. These diverse test inputs can increase code coverage and find hidden bugs. Several feature-based analysis have been proposed; for example, [Groce:TestGenRnd:Swarm:ISSTA:2012], [Zhendong:TestSelection:SPE:PLDI:2017], [Zeller:TestGenMutation:LangFuzz:Security:2012], [Godefroid:FeatureBased:LearnFuzz:ASE:2017]. Swarm testing [Groce:TestGenRnd:Swarm:ISSTA:2012] randomly chooses a subset of features available to generate new test cases. The generated test cases are very diverse and the evaluation result shows that this approach outperforms Csmith’s default configuration in both code coverage and crash bug finding. Another notable work is SPE [Zhendong:TestSelection:SPE:PLDI:2017] where authors enumerate a set of programs with different variable usage patterns. The generated diverse test cases exploit different optimization and the evaluation result shows that the skeletal program enumeration has confirmed bugs in all tested compilers. Two more related studies in this area are LangFuzz [Zeller:TestGenMutation:LangFuzz:Security:2012] and Learn&Fuzz [Godefroid:FeatureBased:LearnFuzz:ASE:2017]. LangFuzz approach extracts code fragments from a given code sample that triggered past bugs and then apply random mutation within a pool of fragments to generate test inputs. On the other hand, the Learn&Fuzz approach uses the generative learned char-RNN model to generate new test objects for the experiment.

V-C Accelerate Testing

Another important fact behind the diverse test input is to accelerate the testing. Running a larger set of test inputs will take a long period of time to find compiler bugs, and repeatedly testing similar test inputs will result in the same compiler bugs. Several approaches for testing acceleration have been performed; for example, [Regehr:TestSelection:Rank:PLDI:2013], [Chen:TestSelection:LET:ICSE:2017], [Chen:TestSelection:4steps:ICSE:2018], [Chen:TestSelection:COP:IEEE-TSE:2018]. One novel approach is taming [Regehr:TestSelection:Rank:PLDI:2013] where authors order the test inputs in such a way that diverse test inputs are highly ranked. They first define distance metrics between test cases and then rank test cases in the furthest point first order. The evaluation result shows that the ranking approach speeds up the bug finding in both the number of test inputs and testing time. Another interesting approach is LET [Chen:TestSelection:LET:ICSE:2017] where authors use a learning model to schedule the test inputs. This learning-to-test approach has two steps: learning and scheduling. In learning steps, LET extracts a set of features from the past bug triggering test cases and then trains a capability model to predict the bug triggering probability of the test programs, and trains another time model to predict the execution time of the test programs. In scheduling steps, LET ranks the target test programs based on the probability of bug triggering in unit time. The evaluation result shows that the scheduled test inputs significantly accelerate compiler testing. Another example in this area is COP [Chen:TestSelection:COP:IEEE-TSE:2018] where authors predict the coverage information of compilers for test inputs and prioritize test inputs by clustering them according to the predicted coverage information. The result shows that COP significantly speeds up the test acceleration and outperforms the state-of-the-art acceleration approaches.

Vi Threats to Validity

There are various factors that may impact the validity of our results. First, our initial test suite of failing test inputs is not representative of all bugs in the GCC compiler. It has been extracted from the bug reports available online. Some bugs might have been reported using different mechanisms such as email to developers. There are many more dormant bugs that yet to be found. Therefore, it would not be a representative of all bugs. However, using it in the K-Config approach could guide Csmith to trigger several failures.

Second, we only looked at the absolute number of failures. We did not check to see if they represent distinct bugs because determining the number of distinct faults is a non-trivial task.

Third, K-Config approach divides observations (initial failing test inputs) into clusters that are similar within-cluster but dissimilar between-cluster. In data with high dimensions, the value of is important. The wrong choice of can push clustering to include dissimilar observations or to exclude similar ones. Unfortunately, there is no well-established method to reach to the right value for . Developers mostly suggest to a fail and trial approach with multiple .

Another concern in this paper is that we only did experiments with only two versions of GCC. As a result, the observed failing test input may be fixed or passed by a newer version of GCC. We run each script for 13 hours and evaluated the test inputs in this time window. The number of test inputs and the allocated time may also impact on the evaluation result. Also, the different compilation timeout may affect the number in the result.

Vii Conclusion

Compilers are key software tools for developers to build software. Compiler testing is necessary to ensure the correctness of compiler. In this paper, we have proposed K-Config to create a configuration for test generators by processing existing test inputs. We experimented this approach on two versions of GCC compilers and found that the configuration suggested by K-Config could trigger several crashes and miscompilation failures in two stable versions of GCC.

References
