1 Introduction and Related Work
Graph neural networks (GNNs) have become the de facto standard for representation learning on relational data (Bronstein et al., 2017; Gilmer et al., 2017; Battaglia et al., 2018). GNNs follow a simple neighborhood aggregation procedure motivated by two major perspectives: The generalization of classical CNNs to irregular domains (Shuman et al., 2013), and their strong relations to the Weisfeiler & Lehman (1968) algorithm (Xu et al., 2019; Morris et al., 2019). Many different graph neural network variants have been proposed and significantly advanced the state-of-the-art in this field (Defferrard et al., 2016; Kipf & Welling, 2017; Monti et al., 2017; Gilmer et al., 2017; Hamilton et al., 2017; Veličković et al., 2018; Fey et al., 2018).
Most of these approaches focus on novel kernel formulations, however, deeply stacking those layers usually result in gradually decreasing performance despite having, in principal, access to a wider range of information (Kipf & Welling, 2017). Xu et al. (2018) blame the strongly varying speed of expansion on this phenomenon, caused by locally differing graph structures, and hence propose to node-adaptively jump back to earlier representations if those fit the task at hand more precisely.
Inspired by these so-called Jumping Knowledge networks (Xu et al., 2018), we explore a highly dynamic neighborhood aggregation (DNA) procedure based on scaled dot-product attention (Vaswani et al., 2017) which is able to aggregate neighboring node representations of differing locality. We show that this approach, when additionaly combined with grouped linear projections, outperforms traditional stacking of GNN layers, even when those are enhanced by Jumping Knowledge.
We briefly give a formal overview of the related work before we propose our method in more detail:
Graph Neural Networks (GNNs)
operate over graph structured data and iteratively update node features of node in layer by aggregating localized information via
from the neighbor set through a differentiable function parametrized by weights . In current implementations, is either defined to be static (Xu et al., 2019), structure- (Kipf & Welling, 2017; Hamilton et al., 2017) or data-dependent (Veličković et al., 2018).
Jumping Knowledge (JK) networks
enable deeper GNNs by introducing layer-wise jump connections and selective aggregations to leverage node-adaptive neighborhood ranges (Xu et al., 2018). Given layer-wise representations of node , its final output representation is obtained by either
where scorings are obtained from a bi-directional LSTM (Hochreiter & Schmidhuber, 1997).
weight the values of a set of key-value pairs according to a given query by computing scaled dot-products between key-query pairs and using the softmax-normalized results as weighting coefficients (Vaswani et al., 2017):
In practice, the attention function is usually performed times (with each head learning separate attention weights and attending to different positions) and the results are concatenated.
Closely related to the JK networks (Xu et al., 2018), we are seeking for a way to node-adaptively craft receptive-fields for a specific task at hand. JK nets achieve this by dynamically jumping to the most representive layer-wise embedding after a fixed range of node representations were obtained. Hence, Jumping Knowledge can not guarantee that higher-order features will not become “washed out” in later layers, but instead will just fall back to more localized information preserved from earlier representations. In addition, fine-grained details may still get lost very early on in expander-like subgraph structures (Xu et al., 2018).
In contrast, we propose to allow jumps to earlier knowledge immediately while aggregating information from neighboring nodes. This results in a highly-dynamic receptive-field in which neighborhood information is potentially gathered from representations of differing locality. Each node’s representation controls its own spread-out, possibly aggregating more global information in one branch, and falling back to more local information in others.
Formally, we allow each node-neighborhood pair to attend to all its former representations while using its output for aggregation:

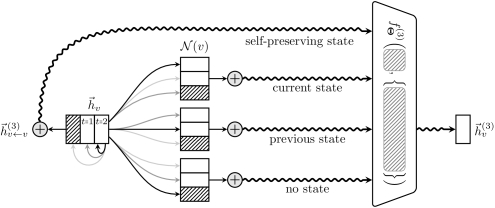

with denoting trainable symmetric projection matrices. A scheme of this layer is depicted in Figure 1.
By ensuring that former information is preserved, our operator can be stacked deep by design, in particular without the need of JK nets.
In practice, we replace the single attention module by multi-head attention with a user-defined number of heads while maintaining the same number of parameters. We implemented as the graph convolutional operator from Kipf & Welling (2017), although any other GNN layer may be applicable. Due to being already projected, we do not transform incoming node embeddings in .
Furthermore, we incorporate an additional parameter to the softmax distribution of the attention module to allow the model to refuse the aggregation of individual neighboring embeddings in order to preserve fine-grained details (cf. Figure 1). Instead of actually overparametrizing the resulting distribution, we restrict this parameter to be fixed (Goodfellow et al., 2016). This results in a softmax function of the form
We apply dropout (Srivastava et al., 2014) to the softmax-normalized attention weights and use grouped linear projections with groups to reduce the number of parameters from to , where must be chosen so that is divisible by . The grouped projections regulate the attention heads by forcing them to only have a local influence on other attention heads (or even restricting them to have no influence at all). We observed that these adjustments greatly help the model to avoid overfitting while still maintaining large effective hidden sizes.
Our proposed operator does scale linearly in the number of previously seen node representations for each edge, i.e. . To account for large , we suggest to restrict the inputs of the attention module to a fixed-sized subset of former representations.
We evaluate our approach on 8 transductive benchmark datasets: the tasks of classifying academic papers (Cora, CiteSeer, PubMed, Cora Full)(Sen et al., 2008; Bojchevski & Günnemann, 2018), active research fields of authors (Coauthor CS, Coauthor Physics) (Shchur et al., 2018) and product categories (Amazon Computers, Amazon Photo) (Shchur et al., 2018). We randomly split nodes into , and for training, validation and testing. Descriptions and statistics of all datasets can be found in Appendix A. The code with all its evaluation examples is integrated into the PyTorch Geometric111https://github.com/rusty1s/pytorch_geometric library (Fey & Lenssen, 2019).
We compare our DNA approach to GCN (Kipf & Welling, 2017) and GAT (Veličković et al., 2018) with and without Jumping Knowledge, closely following the network architectures of Xu et al. (2018): We first project node features separately into a lower-dimensional space, apply a number of GNN layers with effective hidden size
and ReLU non-linearity, and perform the final prediction via a fully-connected layer. All models were implemented using grouped linear projections and evaluated with the number of groups.
We use the Adam optimizer (Kingma & Ba, 2015) with a learning rate of and stop training early with a patience value of . We apply a fixed dropout rate of before and after GNN layers and add a regularization of to all model parameters. For our proposed model and GAT, we additionaly tune the number of heads and set the dropout rate of attention weights to
. Hyperparameter configurations of the best performing models with respect to the validation set are reported in AppendixB.
|JK-None||83.20 0.98||73.87 0.81||86.93 0.25||62.55 0.60||92.90 0.14||95.90 0.16||89.32 0.20||93.11 0.27|
|JK-Concat||83.99 0.72||73.77 0.89||87.52 0.25||65.62 0.49||95.44 0.32||96.71 0.15||90.27 0.28||94.74 0.29|
|JK-Pool||84.36 0.62||73.86 0.97||87.61 0.27||65.14 0.81||95.47 0.21||96.74 0.17||90.30 0.37||94.64 0.24|
|JK-LSTM||80.46 0.88||72.92 0.69||87.38 0.29||55.39 0.40||94.40 0.28||96.55 0.08||90.06 0.23||94.54 0.30|
|JK-None||86.35 0.74||73.70 0.53||86.76 0.25||65.70 0.32||93.54 0.17||96.21 0.08||88.02 1.39||93.00 0.42|
|JK-Concat||84.70 0.57||73.97 0.46||88.73 0.30||66.18 0.47||95.12 0.18||96.66 0.09||89.67 0.59||94.93 0.31|
|JK-Pool||83.91 0.87||73.42 0.71||88.44 0.33||61.52 1.17||94.84 0.16||96.62 0.06||89.42 0.47||94.80 0.24|
|JK-LSTM||78.08 1.53||71.84 1.20||87.85 0.26||55.41 0.35||94.09 0.23||96.45 0.05||87.26 1.82||94.47 0.33|
|83.88 0.50||73.37 0.83||87.80 0.25||63.72 0.44||94.02 0.17||96.49 0.10||90.52 0.40||94.89 0.26|
|85.86 0.45||74.19 0.66||88.04 0.17||66.50 0.42||94.46 0.15||96.58 0.09||90.99 0.40||94.96 0.24|
|86.15 0.57||74.50 0.62||88.04 0.22||66.64 0.47||94.64 0.15||96.53 0.10||90.81 0.38||95.00 0.19|
Results of our DNA approach, in comparison to GCN and GAT with and without Jumping Knowledge. Accuracy and standard deviations are computed from 10 random data splits.
Table 1 shows the average classification accuracy over 10 random data splits and initializations. Our DNA approach outperforms traditional stacking of GNN layers (JK-None) and even exceeds the performance of Jumping Knowledge in most cases. Noticeably, the use of grouped linear projections greatly improves attention-based approaches, especially when combined with a large effective hidden size. We noticed gains in accuracy up to percentage points when comparing the best results of to , both for GAT and DNA, especially when combined with a large effective hidden size. Best hyperparameter configurations (cf. Appendix B) show advantages in using increased feature dimensionalities across all datasets. For GCN, we found those gains to be negligible. Similar to JK nets, our approach benefits from an increased amount of stacked layers.
4 Qualtivate Analysis on Cora
We use the (normalized) influence score (Xu et al., 2018) to visualize the differences in aggregation starting at a node which is correctly classified by DNA, but is incorrectly classified by GCN JK-Pool (cf. Figure 3). While the node embedding of GCN JK-Pool is nearly exclusively influenced by its central node and a node nearby, DNA aggregates localized information even from nodes far away. Figure 3 signals that aggregations typically attend to earlier representations. This verifies that nearby information is indeed often sufficient to classify most nodes. However, there are some nodes that do make heavy usage of information retrieved from latter representations, indicating the merits of a dynamic neighborhood aggregation procedure.
We introduced a dynamic neighborhood aggregation (DNA) scheme which computes new embeddings for a node by attending to all previous embeddings of its neighbors. This dynamic aggregation allows the model to learn to use specific receptive fields and depths for a given task and naturally solves the problems of exponential spread-outs and “washed out” representations when naively stacking GNN layers. In contrast to JK nets, our DNA scheme enables fine-grained node representations in which both local and global information can effectively be combined across different neighborhood branches. Finally, we showed empirically that grouped operations can be an effective regularizer for attention heads which can additionally enable the usage of larger feature dimensionalities in GNNs.
This work has been supported by the German Research Association (DFG) within the Collaborative Research Center SFB 876, Providing Information by Resource-Constrained Analysis, project A6. I thank Jan E. Lenssen for proofreading and helpful advice.
- Battaglia et al. (2018) P. W. Battaglia, J. B. Hamrick, V. Bapst, A. Sanchez-Gonzalez, V. F. Zambaldi, M. Malinowski, A. Tacchetti, D. Raposo, A. Santoro, R. Faulkner, Ç. Gülçehre, F. Song, A. J. Ballard, J. Gilmer, G. E. Dahl, A. Vaswani, K. Allen, C. Nash, V. Langston, C. Dyer, N. Heess, D. Wierstra, P. Kohli, M. Botvinick, O. Vinyals, Y. Li, and R. Pascanu. Relational inductive biases, deep learning, and graph networks. CoRR, abs/1806.01261, 2018.
- Bojchevski & Günnemann (2018) A. Bojchevski and S. Günnemann. Deep gaussian embedding of attributed graphs: Unsupervised inductive learning via ranking. In ICLR, 2018.
Bronstein et al. (2017)
M. M. Bronstein, J. Bruna, Y. LeCun, A. Szlam, and P. Vandergheynst.
Geometric deep learning: Going beyond euclidean data.In Signal Processing Magazine, 2017.
- Cangea et al. (2018) C. Cangea, P. Veličković, N. Jovanović, T. N. Kipf, and P. Liò. Towards sparse hierarchical graph classifiers. In NeurIPS-W, 2018.
- Cho et al. (2014) K. Cho, B. van Merriënboer, D. Bahdanau, and Y. Bengio. On the properties of neural machine translation: Encoder-decoder approaches. CoRR, abs/1409.1259, 2014.
- Chollet (2017) F. Chollet. Xception: Deep learning with depthwise separable convolutions. In CVPR, 2017.
- Defferrard et al. (2016) M. Defferrard, X. Bresson, and P. Vandergheynst. Convolutional neural networks on graphs with fast localized spectral filtering. In NIPS, 2016.
- Fey et al. (2018) M. Fey, J. E. Lenssen, F. Weichert, and H. Müller. SplineCNN: Fast geometric deep learning with continuous B-spline kernels. In CVPR, 2018.
- Fey & Lenssen (2019) Matthias Fey and Jan E. Lenssen. Fast graph representation learning with PyTorch Geometric. In ICLR Workshop on Representation Learning on Graphs and Manifolds, 2019.
- Gilmer et al. (2017) J. Gilmer, S. S. Schoenholz, P. F. Riley, O. Vinyals, and G. E. Dahl. Neural message passing for quantum chemistry. In ICML, 2017.
- Goodfellow et al. (2016) I. Goodfellow, Y. Bengio, and A. Courville. Deep Learning. MIT Press, 2016.
- Hamilton et al. (2017) W. L. Hamilton, R. Ying, and J. Leskovec. Inductive representation learning on large graphs. In NIPS, 2017.
- Hochreiter & Schmidhuber (1997) S. Hochreiter and J. Schmidhuber. Long short-term memory. Neural Computation, 9(8), 1997.
- Kingma & Ba (2015) D. P. Kingma and J. L. Ba. Adam: A method for stochastic optimization. In ICLR, 2015.
- Kipf & Welling (2017) T. N. Kipf and M. Welling. Semi-supervised classification with graph convolutional networks. In ICLR, 2017.
- Krizhevsky et al. (2012) A. Krizhevsky, I. Sutskever, and G. E. Hinton. Imagenet classification with deep convolutional neural networks. In NIPS, 2012.
- Li et al. (2016) Y. Li, D. Tarlow, M. Brockschmidt, and R. Zemel. Gated graph sequence neural networks. In ICLR, 2016.
- Monti et al. (2017) F. Monti, D. Boscaini, J. Masci, E. Rodolà, J. Svoboda, and M. M. Bronstein. Geometric deep learning on graphs and manifolds using mixture model CNNs. In CVPR, 2017.
- Morris et al. (2019) C. Morris, M. Ritzert, M. Fey, W. L. Hamilton, J. E. Lenssen, G. Rattan, and M. Grohe. Weisfeiler and Leman go neural: Higher-order graph neural networks. In AAAI, 2019.
- Sen et al. (2008) G. Sen, G. Namata, M. Bilgic, and L. Getoor. Collective classification in network data. AI Magazine, 29(3), 2008.
- Shchur et al. (2018) O. Shchur, M. Mumme, A. Bojchevski, and S. Günnemann. Pitfalls of graph neural network evaluation. In NeurIPS-W, 2018.
Shuman et al. (2013)
D. I. Shuman, S. K. Narang, P. Frossard, A. Ortega, and P. Vandergheynst.
The emerging field of signal processing on graphs: Extending high-dimensional data analysis to networks and other irregular domains.IEEE Signal Processing Magazine, 30(3), 2013.
Srivastava et al. (2014)
N. Srivastava, G. E. Hinton, A. Krizhevsky, I. Sutskever, and R. Salakhutdinov.
Dropout: A simple way to prevent neural networks from overfitting.
Journal of Machine Learning Research, 15(1), 2014.
- Vaswani et al. (2017) A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomes, and Ł. Kaiser. Attention is all you need. In NIPS, 2017.
- Veličković et al. (2018) P. Veličković, G. Cucurull, A. Casanova, A. Romero, P. Liò, and Y. Bengio. Graph attention networks. In ICLR, 2018.
- Weisfeiler & Lehman (1968) B. Weisfeiler and A. A. Lehman. A reduction of a graph to a canonical form and an algebra arising during this reduction. Nauchno-Technicheskaya Informatsia, 2(9), 1968.
- Xu et al. (2018) K. Xu, C. Li, Y. Tian, T. Sonobe, K. Kawarabayashi, and S. Jegelka. Representation learning on graphs with jumping knowledge networks. In ICML, 2018.
- Xu et al. (2019) K. Xu, W. Hu, J. Leskovec, and S. Jegelka. How powerful are graph neural networks? In ICLR, 2019.
Appendix A Datasets
are citation network datasets where nodes represent documents, and edges represent (undirected) citation links. The networks contain bag-of-words feature vectors for each document.
Coauthor CS and Coauthor Physics (Shchur et al., 2018) are co-authorship graphs where nodes are authors which are connected by an edge if they co-authored a paper. Given paper keywords for each author’s paper as node features, the task is to map each author to its most active field of study.
Amazon Computers and Amazon Photo (Shchur et al., 2018) are segments of the Amazon co-purchase graph where nodes represent goods which are linked by an edge if these goods are frequently bought together. Node feature encode product reviews as bag-of-word feature vectors, and class labels are given by product category.
Appendix B Hyperparameter Configurations
