Jointly Optimizing Diversity and Relevance in Neural Response Generation

02/28/2019 ∙ by Xiang Gao, et al. ∙ Microsoft 0

Although recent neural conversation models have shown great potential, they often generate bland and generic responses. While various approaches have been explored to diversify the output of the conversation model, the improvement often comes at the cost of decreased relevance. In this paper, we propose a method to jointly optimize diversity and relevance that essentially fuses the latent space of a sequence-to-sequence model and that of an autoencoder model by leveraging novel regularization terms. As a result, our approach induces a latent space in which the distance and direction from the predicted response vector roughly match the relevance and diversity, respectively. This property also lends itself well to an intuitive visualization of the latent space. Both automatic and human evaluation results demonstrate that the proposed approach brings significant improvement compared to strong baselines in both diversity and relevance.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The field of neural response generation is advancing rapidly both in terms of research and commercial applications Gao et al. (2019); Zhou et al. (2018). Nevertheless, vanilla sequence-to-sequence (S2S) models often generate bland and generic responses Li et al. (2016a).

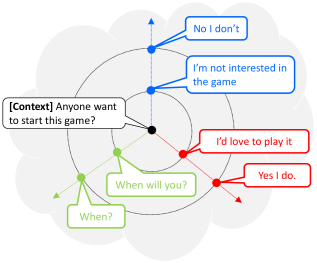

Figure 1: Illustration of one context and its multiple responses in the latent space induced by our model. Distance and direction from the predicted response vector given the context roughly match the relevance and diversity, respectively. Based on the example in Table 2.222
22footnotetext: For simplicity, we omitted the response at the center: ”I would love to play this game”. See Table 2 for more details.

Li et al. (2016a) encourage diversity by re-ranking the beam search results according to their mutual information with the conversation context. However, as beam search itself often produces lists of nearly identical sequences, this method can require a large beam width (e.g. 200). The result is that re-ranking can be extremely time-consuming, raising difficulties for real-time applications. This highlights the need to improve the quality of candidates before re-ranking, and the need to optimize for diversity during training rather than just at the decoding stage.

While various approaches have been explored to diversify the output of the conversation model, improvements often come at the cost of decreased response quality along other dimensions. For instance, Zhao et al. (2017)

present an approach to enhancing diversity by mapping diverse responses to a probability distribution using a conditional variational autoencoder (CVAE). Despite the improved response diversity, this approach reduces response relevance as measured against the baseline. One possible reason for this diversity-relevance trade-off is that such probabilistic approaches are not explicitly encouraged to induce a disentangled structure (representation) in latent space for controlling diversity and relevance independently. Consider a Gaussian distribution, which is widely used for CVAE. A Gaussian distribution naturally brings frequent responses near its mean and such responses are often generic and boring. To generate diverse and interesting responses, one needs to sample a little distance from the mean. But doing so naturally leads to infrequent and thus even irrelevant responses.

In this paper, we propose a novel geometrical approach that explicitly encourages a structured latent space in which the distance and direction from a predicted response vector roughly match the relevance and diversity, respectively, as illustrated in Figure 1. To induce such a latent space, we leverage two different models: 1) a S2S model, producing the predicted response vector (the black dot at the center in Figure 1), and 2) an autoencoder (AE) model, yielding the vectors for potential responses (the colored dots). In order to make the S2S and AE share the same latent space (the cloud), we use the same decoder for both and train them jointly end-to-end with novel regularization terms. As this fuses the two latent spaces, we refer to our model as SpaceFusion.

Regularization is necessary because only sharing the decoder, as in Luan et al. (2017)

, does not necessarily align the latent spaces obtained by S2S and AE respectively or impose a disentangled structure onto the space. We introduce two regularization terms to tackle this issue. 1) interpolation term: we encourage a smooth semantic transition along the path between the predicted response vector and each target response vector (arrowed lines in Figure

1). This term effectively prevents significantly different responses from aligning in the same direction, essentially scattering them over different directions. 2) fusion term: we want the vectors from the two models to be distributed in a homogeneous manner, rather than forming two separate clusters (Figure 5) that can potentially make sampling non-trivial. With the resulting latent space, we can control relevance and diversity by respectively adjusting distance and direction from a predicted response vector, without sacrificing each other greatly.

Our approach also lends itself well to the intuitive visualization of latent space. Since our model allows us to geometrically find not only the predicted response vector but also the target response vector as in Figure 5, we can visually interpret the structure of latent space and identify major issues thereof. We devote Section 5.1 to show comprehensive examples for visualization-based analysis.

Automatic and human evaluations demonstrate that the proposed approach improves both the diversity and relevance of the responses, compared to strong baselines on two datasets with one-to-many context-response mapping.

2 Related Work

Grounded conversation models

utilize extra context inputs besides conversation history, such as persona Li et al. (2016b), textual knowledge Ghazvininejad et al. (2017), dialog act Zhao et al. (2017) and emotion Huber et al. (2018). Our approach does not depend on such extra input and thus is complementary to this line of studies.

Variational autoencoder (VAE) models

explicitly model the uncertainty of responses in latent space. Bowman et al. (2016)

used VAE with Long-Short Term Memory (LSTM) cells to generate sentences. The basic idea of VAE is to encode the input

into a probability distribution (e.g. Gaussian) instead of a point encoding. However, it suffers from the vanishing latent variable problem Bowman et al. (2016); Zhao et al. (2017) when applied to sentence generation tasks. Bowman et al. (2016) proposed to tackle this problem with KL annealing and word dropping, where both are tricky to tune. Zhao et al. (2017) proposed to add a bag-of-word loss, complementary to KL annealing. Applying this to a CVAE conversation model, they showed that even greedy decoding can generate diverse responses. However, as VAE/CVAE conversation models can be limited to a simple latent representations such as standard Gaussian distribution, Gu et al. (2018) proposed to enrich the latent space by leveraging a Gaussian mixture prior. Our work takes a geometrical approach that is fundamentally different from probabilistic approaches to tackle the limitations of parameteric distributions in representation and difficulties in training.

Decoding and ranking

encourages diversity during the decoding stage. As “vanilla” beam search often produces lists of nearly identical sequences, Vijayakumar et al. (2016) propose to include a dissimilarity term in the objective of beam search decoding. Li et al. (2016a) re-ranked the results obtained by beam search based on mutual information with the context using a separately trained response-to-context sequence-to-sequence model.

Multi-task learning

is another line of studies related to the present work (see Section 3.2). Sennrich et al. (2016)

use multi-task learning to improve neural machine translation by utilizing monolingual data, which usually far exceeds the amount of parallel data. A similar idea is applied by

Luan et al. (2017) to conversational modeling, involving two tasks: 1) a S2S model that learns a context-to-response mapping using conversation data, and 2) an AE that utilizes speaker-specific non-conversational data. The decoders of S2S and AE were shared, and the two tasks were trained alternately.

3 Proposed Approach

3.1 Problem statement

Let denote a conversational dataset, where and are a context and its response, respectively. consists of one or more utterances. Our aim is to generate relevant and diverse responses given a context when trained on .

3.2 Fusing latent spaces

We design our model to induce a latent space where different responses for a given context are in different directions around the predicted response vector, as illustrated in Figure 1. Then we can obtain diverse responses by varying the direction and keep their relevance by sampling near the predicted response vector.

To fulfill this goal, we first produce the predicted response representation and target response representations using an S2S and AE model, respectively, as illustrated in Figure 2

. Both encoders are stacked Gated Recurrent Unit (GRU)

Cho et al. (2014) cells followed by a noise layer that adds multivariate Gaussian noise .

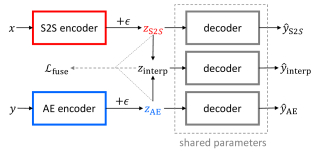

Figure 2: SpaceFusion model architecture.

We then explicitly encourage smooth semantic transition along the path from to by imposing any interpolation between them to generate the same response via the following loss term:


where and

is a uniformly distributed random variable.

is the number of words in . Note that it is this regularization term that effectively prevents significantly different responses from aligning in the same direction, essentially scattering them over different directions. In order for this interpolation loss to work, we share the same decoder for both AE and S2S models as in Luan et al. (2017)

. The decoder consists of stacked GRU cells followed by a softmax layer. It is worth mentioning that

is not just randomly drawn from a single line but from a richer probabilistic region as both and are stochastic due to the random component .

Now, we want vectors from both AE and S2S models to be distributed in a homogeneous manner scattered over the entire space while keeping the distance between and as small as possible for a context and its response in the training data. This objective is represented in the following regularization term:


where is the batch size and is the root mean square of the difference between and . For each batch, we basically disperse vectors obtained by the same model and pull the predicted response vectors to the corresponding target response vectors. In practice, we found that the performance is better if the Euclidean distance is clipped to a prescribed maximum value.333This value is set as 0.3 for the present experiments

Finally, with weight parameters and

, the loss function is defined as:


As and encourage the path between and to be smooth and short while scattering vectors over the entire space, they effectively fuse the latent space and latent space. Accordingly we refer this approach as SpaceFusion with path regularization.

3.3 Training

In contrast to previous multi-task conversation model Luan et al. (2017), where S2S and AE are trained alternately, our approach trains S2S and AE at the same time by minimizing the above loss function.

3.4 Inference

Like Zhao et al. (2017); Bowman et al. (2016), for a given context, we sample different latent vectors to obtain multiple hypotheses. This is done by adding a random vector that is uniformly sampled from a hypersphere of radius to the prediction .


where is tuned on the validation set to optimize the trade-off between relevance and diversity. is then fed to the decoder as the initial state of GRU cells. We then generate responses using greedy decoding.444Although we use greedy decoding in this work, other decoding techniques, such as beam search, can be applied.

4 Experiment Setup

4.1 Datasets

We used the following datasets. Some of their key features are compared in Table 1.


We use the version offered by Zhao et al. (2017), which is an extension of the original version by Godfrey and Holliman (1997). Zhao et al. (2017) collected multiple references for the test set using information retrieval (IR) techniques followed by human filtering, and randomly split the data into 2316/60/62 conversations for train/validate/test, respectively. Each conversation has multiple turns and thus multiple pairs, as listed in Table 1. As our approach does not utilize extra information except conversation history, we removed the meta data (e.g. gender, age, prompt) from this dataset.


As the Switchboard dataset is relatively small and multiple references are synthetically constructed, we extracted another multi-reference dataset based on posts and comments on during 2011 collected by a third party.555 As each Reddit post and comment may have multiple comments, it is a natural source of multi-reference responses. We further filtered the data based on the number of replies to obtain the final conversation dataset in which each context has at least 10 different responses, and on average the number of responses is 24.1 for a given context. The size is significantly larger than Switchboard, as listed in Table 1. The conversations are randomly shuffled before being split into train/valid/test subsets.

Switchboard Reddit
train () samples 0.2M 7.3M
test () samples 5418 5000
ref. source IR+filtering natural
ref. availability test only train/vali/test
ref. per context 7.7 24.1
Table 1: Key features of the datasets.

4.2 Model setup

Both encoders and the shared decoder consist of two GRU cells, each with 128 hidden units. The variance of the noise layer in each decoder is

. The word embedding dimension is 128. The weight parameters (see Equation. 3.2) are set as and . For both datasets, the inference radius (see Equation. 4) is set to 1.5 which optimizes F1 score on the validation set. All methods are trained using Adam Kingma and Ba (2014)

method with a learning rate of 0.001 for both datasets until convergence (around 4 epochs for Reddit and 10 epochs for Switchboard).

4.3 Automatic evaluation

Let denote the number of responses, for a given context , we have reference responses and generate the same number of hypotheses,666

We set the number of hypotheses equal to the number of references to encourage precision and recall have comparable impact on F1

and define the following metrics, following Zhao et al. (2017). We use the following metrics based on 4-gram BLEU Papineni et al. (2002). The final score is averaged over the entire test dataset.

context : Anyone want to start this game?
response at : I would love to play this game.
towards ”No I don’t.” towards ”when?” towards ”Yes I do.”
0.18 I am not interested in the game. 0.15 I’d be interested in the game 0.15 I would love to play it.
0.21 I am not interested. 0.31 When is it? 0.27 Yes I do.
0.30 No I don’t. 0.40 When will you?
1.00 When?
Table 2: Semantic interpolation along different directions . Results decoded from See Fig. 1 for a visualization.


We use Precision as an approximate surrogate metric for relevance and Recall for diversity. It should be noted that recall is not equivalent to other diversity metrics, e.g., distinct Li et al. (2016a) and entropy Zhang et al. (2018), which only depend on hypotheses. One potential issue of these metrics is that even randomly generating responses may yield a high diversity score. F1 is the harmonic average of these two and encourages both Precision and Recall to be high.

4.4 Human evaluation

We conduct a human evaluation using crowdworkers. For each hypothesis, given its context, we ask the three annotators to individually measure the quality, on a scale of 1 to 5, in terms of two aspects: relevance and interest. Interestingness is treated as an estimation of the diversity, as these two are often correlated. The hypotheses from all systems are shuffled before being provided to annotators, and system names are invisible to the annotators.

4.5 Baselines

We compare the proposed model with the following baseline models:


We consider a vanilla version of sequence-to-sequence model. The dimensions are similar to our model: both encoder and decoder consist of two stacked GRU cells with 128 hidden units, and the word embedding size is 128. As in the baseline in Zhao et al. (2017), we applied softmax sampling at inference time to generate multiple hypotheses.


For the CVAE conversation model, we use the original implementation and hyperparameters of

Zhao et al. (2017) with the bag-of-words (BOW) loss. The number of trainable model parameters is 15.4M, which is much larger than our model (3.2M).


Since our approach utilizes a multi-task learning scheme, we also evaluate against a vanilla multi-task learning model, MTask, similar to Luan et al. (2017), to illustrate the effect of space fusion. The model architecture and hyperparameters are identical to the proposed model except that the loss function is .

5 Results and Analysis

context : Anyone want to start this game?
towards one possible target : Yes I do.
with regularization without regularization
0.00 I would love to play this game. 0.00 I would have to play with the game.
0.15 I would love to play it. 0.29 Dude, I know, but, or etc.
0.30 Yes I do 0.61 Op I was after though today
0.85 I’m single :( though
0.90 Yes I do.
Table 3: Semantic interpolation with and without regularization. Results decoded from .

5.1 In-depth analysis of latent space

In this section, we undertake an in-depth analysis to verify whether the latent space induced by our method manifests desirable properties, namely: 1) disentangled space structure between relevance and diversity, 2) homogeneous space distribution in which semantics changes smoothly without holes. We first provide a qualitative investigation based on real examples. Then, we present a set of corpus-level quantitative analyses focused on geometric properties.

5.1.1 Qualitative examples

For qualitative analysis, in Table 2, we investigate three different directions from the context “Anyone want to start this game?” , which is a real example taken from Reddit. The three different directions correspond to clearly different semantics: “No I don’t”, “when?” and “Yes I do.” If we generate a response with the vector predicted by the S2S model (), our model outputs “I would love to play this game” which is highly relevant to the context. Now as we move along each direction, we can see our model gradually transforms the response toward the corresponding responses of each direction. For instance, towards “No I don’t”, our model gradually transforms the response to “I am not interested in the game” () and then “I am not interested.” (). In contrary, towards “Yes I do”, the response transforms to “I would love to play it.” (). Besides the positive or negative directions, the same transition applies to other directions such as “When?”. This example clearly shows that there is a rough correspondence between geometric properties and semantic properties in the latent space induced by our method as shown in Figure 1– the relevance of the response decreases as we move away from the predicted response vector and different directions are associated with significantly different responses.

5.1.2 Direction vs. diversity

In order to quantitatively verify the correspondence between direction and diversity

, we visualize the distribution of cosine similarities among multiple references for each context for a set of 1000 random samples drawn from the test dataset. Specifically, for a context

and associated reference responses , we compute the cosine similarity between and . In Figure 3

, we compare the distribution of our model with that of MTask, which does not employ our regularization terms. While our method yields a bell shaped curve with average cosine similarity being close to zero (0.38), the distribution of MTask is extremely skewed with average cosine similarity being close to 1 (0.95). This indicates that the directions of the reference responses are more evenly distributed in our latent space whereas everything is packed in a narrow band in the MTask’s space. This essentially makes the inference process simple and robust in that one can choose arbitrary directions to generate diverse responses.

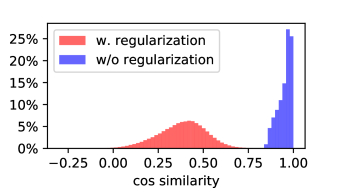

Figure 3: Distribution of the directions from a given context to its multiple responses, measured by the cosine similarity between and . Histogram calculated based on 1000 from Reddit test data and visualized with bin width of 0.02.

5.1.3 Distance vs. relevance

In order to quantitatively verify the correspondence between distance and relevance, we visualize the perplexity of reference responses along the path from the associated () to the () corresponding to the predicted response. In Figure 4, we compare our model with MTask, which as already noted, does not employ our regularization terms. While our model shows a gradual increase in perplexity, there is a huge bump for MTask’s line. This clearly indicates that there is a rough correspondence between distance and relevance in our latent space whereas even a slight change can lead to an irrelevant response in the MTask’s space.

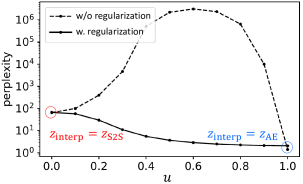

Figure 4: Perplexity of on the Reddit test dataset as a function of for simple multi-task model (without regularization, dashed line) and SpaceFusion (with regularization, solid line).

We further illustrate the smooth change in relevance according to distance for a specific example in Table 3. Given the context “Anyone want to start this game?”, our model is able to transition from the predicted response “I would love to play this game” to a one of reference responses “Yes I do”. The relevance smoothly descreases, generating intermediate responses such as “I would love to play it.” In contrary, the MTask model tends to produce irrelevant or ungrammatical responses as it moves away from the predicted response.

5.1.4 Homogeneity and Convexity

Other desirable properties, with which we want to equip our latent space are homogeneity and convexity. If the space is not homogeneous, we must sample differently depending on the regional traits. Also if the space is not convex, we should worry about running into holes that are not properly associated with valid semantic meanings. In order to verify homogeneity and convexity, we visualize our latent space in a 2D space produced by the multidimensional scaling (MDS) algorithm Borg and Groenen (2003), which approximately preserves pairwise distance. For comparison, we also provide a visualization for MTask. As shown in Figure 5, our latent space offers great homogeneity and convexity regardless of which model is used to produce a dot (i.e. or ). In contrary, MTask’s latent space forms two separate clusters for and with a large gap in-between where no training samples were mapped to.

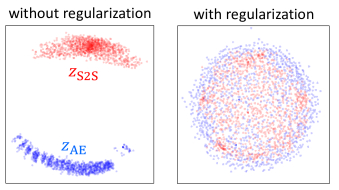

Figure 5: MDS visualization of the two latent spaces: (red dots) and (blue dots) of 1000 randomly picked () pairs from the Reddit test dataset. Left: multi-task model (without regularization); right: SpaceFusion (with regularization).

5.2 Automatic evaluation

We let each system generate 100 hypotheses for each context from the test dataset. Assuming has references, we then pick the top distinct hypotheses ranked by . Similar to Li et al. (2016a); Wu et al. (2016), we takes into consideration, as BLEU is sensitive to length. For fair comparison, is tuned such that the average hypothesis length becomes roughly the same for all systems and approaches the average length of the references.777Approximately 10 words/tokens for Switchboard and 12 for Reddit

The automatic evaluation results are reported in Table 4. For both datasets, the proposed system consistently outperforms the baselines by a large margin in Precision, Recall, and F1.

Examples of system outputs and human references can be found in Table 5 and Table 6 for Reddit and Switchboard, respectively. As shown in the examples, CVAE+BOW and other baseline models may generate diverse but not-so-relevant responses.

dataset model Precision Recall F1
SpaceFusion 1.22 0.66 0.86
Switchboard CVAE+BOW 0.76 0.57 0.65
MTask 0.75 0.43 0.54
S2S+Sampling 0.57 0.48 0.52
SpaceFusion 0.40 0.26 0.31
Reddit CVAE+BOW 0.16 0.18 0.17
MTask 0.31 0.18 0.23
S2S+Sampling 0.10 0.11 0.11
Table 4: Performance of each model on automatic measures. The highest score in each row is in bold for each dataset. Note that our BLEU scores are normalized to .
context Everything about this movie is awesome!
Space I love this movie.
Fusion It’s so awesome!!! I have no idea how to watch this movie. I can’t wait for the trailer.
I don’t think i’m a fan of the movie.
I would love to see this.
I want to watch this movie.
CVAE Smartphones of the best games!.
+BOW I’m in the same boat! I feel the same way about this
I don’t know why but can’t tell if the New York will be the only one.
Caves would never say yes, but I’d love to know.
I know where this movie is.
MTask This is so funny.
I think I saw this.
I don’t know how many people do you.
I would.
I remember watching was was disappointed.
S2S+ Whoa man, this is amazing!!!
sampling Man, I love Tom Cruise and I love the show.
Is this a bill on the right?
More like samurai jack.
I weep for the hivemind.
human I love this movie.
Watched this yesterday! so amazing.
My favorite Muppet movie by far.
Seriously. Good times. Great oldies.
Now you have got the song into my head.
Table 5: Example system outputs and human reference on Reddit dataset
context A: Are they doing a lot of recycling out in ***?
B: Well at my workplace they are. We have places for aluminum cans and we have everybody been issued a separate trash can for recyclable paper. Let’s see them get that word straight.
A: Uh-huh
B: As far as the community goes, it’s pretty much voluntary. Nothing’s been done. ***. We have just private garbage services.
Space They’re not recycling as a matter of fact.
Fusion And it’s a waste of time
You know the paper is a big recycling program.
But they just put it in the trash
Or if you have a recycling bag or anything like that.
CVAE Um - hum.
+BOW Oh that would be nice.
Is that right?
It’s a it’s a luxury
Well that’s interesting.
MTask Um - hum.
That’s right.
I don’t know how much money you’re going to do it.
That’s right.
S2S+ That’s great.
sampling What do you feel about this uh - huh.
It’s just kind of a glass of town and it’s even irritating to me. I don’t know
Somebody and it’s so much better.
It now and it’s hard to go.
human Yeah it is to some degree inconvenient i’d have to say that
Table 6: Example system outputs and human reference on Switchboard dataset. Controversial or offensive words are replaced by ***.

5.3 Human evaluation

We randomly sampled 500 contexts from the Reddit test dataset and picked the top 1 hypothesis generated for each context ranked by . As in the automatic evaluation, we tuned such that all systems have roughly the same average hypothesis length. We also randomly select one reference for each context and compare them with the systems (labeled ”human” in Table 7)

As illustrated in Table 7, the proposed model outperforms all systems except human, consistent with our automatic evaluation results.

relevance interest average
SpaceFusion 2.72 2.53 2.63
CVAE+BOW 2.51 2.37 2.44
Multi-Task 2.34 2.14 2.24
S2S+Sampling 2.58 2.43 2.50
human 3.59 3.41 3.50
Table 7: Performance of each model on human evaluation. The highest score, except human, in each row is in bold.

6 Conclusion

We propose a method to jointly optimize diversity and relevance that leverages novel regularization terms to essentially fuse the latent space of a sequence-to-sequence model with that of an autoencoder model. This fused latent space exhibits desirable properties such as smooth semantic interpolation between two points. The distance and direction from the predicted response vector roughly match relevance and diversity, respectively. This property also lends itself well to intuitive visualization of the latent space. Both automatic and human evaluation results demonstrate that the proposed approach brings significant improvement compared to strong baselines in terms of both diversity and relevance. In future work, we hope to provide theoretical justification of the effectiveness of the proposed regularization terms. We expect that this technique will find application as an efficient ”mixing board” for conversation that draws on multiple sources of information.
