In order to build high quality systems for complex natural language processing (NLP) tasks, it is useful to leverage the output information of lower level tasks, such as named entity recognition (NER) and entity linking (EL). Therefore NER and EL are two fundamental NLP tasks.
NER corresponds to the process of detecting mentions of named entities in a text and classifying them with predefined types such as person, location and organisation. However, the majority of the detected mentions can refer to different entities as in the example of Table1, in which the mention “Leeds” can refer to “Leeds”, the city, and “Leeds United A.F.C.”, the football club. To solve this ambiguity EL is performed. It consists in determining to which entity a particular mention refers to, by assigning a knowledge base entity id.
|Leeds’ Bowyer fined for part in fast-food fracas.|
In this example, the knowledge base id of the entity “Leeds United A.F.C.” should be selected.
In real world applications, EL systems have to perform two tasks: mention detection or NER and entity disambiguation. However, most approaches have only focused on the latter, being the mentions that have to be disambiguated given.
In this work we do joint learning of NER and EL in order to leverage the information of both tasks at every decision. Furthermore, by having a flow of information between the computation of the representations used for NER and EL we are able to improve the model.
One example of the advantage of doing joint learning is showed in Table 1, in which the joint model is able to predict the correct entity, by knowing that the type predicted by NER is Organisation.
This paper introduces two main contributions:
A system that jointly performs NER and EL, with competitive results in both tasks.
A empirical qualitative analysis of the advantage of doing joint learning vs using separate models and of the influence of the different components to the result obtained.
|[Obama, met, Donald, Trump]|||||
|Shift||[met, Donald, Trump]||[Obama]|||
|Reduce-PER||[met, Donald, Trump]||||[(Obama)-PER]||Barack_Obama|
|Out||[Donald, Trump]||||[(Obama)-PER, met]||Barack_Obama|
|Shift||||[Donald, Trump]||[(Obama)-PER, met]||Barack_Obama|
2 Related work
The majority of NER systems treat the task has sequence labelling and model it using conditional random fields (CRFs) on top of hand-engineered features Finkel et al. (2005)
or bi-directional Long Short Term Memory Networks (LSTMs)Lample et al. (2016); Chiu and Nichols (2016). Recently, NER systems have been achieving state-of-the-art results by using word contextual embeddings, obtained with language models Peters et al. (2018); Devlin et al. (2018); Akbik et al. (2018).
Most EL systems discard mention detection, performing only entity disambiguation of previously detected mentions. Thus, in these cases the dependency between the two tasks is ignored. EL state-of-the-art methods often correspond to local methods which use as main features a candidate entity representation, a mention representation, and a representation of the mention’s context Sun et al. (2015); Yamada et al. (2016, 2017); Ganea and Hofmann (2017). Recently, there has also been an increasing interest in attempting to improve EL performance by leveraging knowledge base information Radhakrishnan et al. (2018) or by allying local and global features, using information about the neighbouring mentions and respective entities Le and Titov (2018); Cao et al. (2018); Yang et al. (2018). However, these approaches involve knowing the surrounding mentions which can be impractical in a real case because we might not have information about the following sentences. It also adds extraneous complexity that might implicate a longer time to process.
Some works, as in this paper, perform end-to-end EL trying to leverage the relatedness of mention detection or NER and EL, and obtained promising results. Kolitsas et al. (2018) proposed a model that performs mention detection instead of NER, not identifying the type of the detected mentions, as in our approach. Sil and Yates (2013), Luo et al. (2015), and Nguyen et al. (2016) introduced models that do joint learning of NER and EL using hand-engineered features. Durrett and Klein (2014) performed joint learning of entity typing, EL, and coreference using a structured CRF, also with hand-engineered features. In contrast, in our model we perform multi-task learning Caruana (1997); Evgeniou and Pontil (2004), using learned features.
3 Model Description
In this section firstly, we briefly explain the Stack-LSTM (Dyer et al., 2015; Lample et al., 2016), model that inspired our system. Then we will give a detailed explanation of our modifications and of how we extended it to also perform EL, as showed in the diagram of Figure 1. An example of how the model processes a sentence can be viewed in Table 2.
The Stack-LSTM corresponds to an action-based system which is composed by LSTMs augmented with a stack pointer. In contrast to the most common approaches which detect the entity mentions for a whole sequence, with Stack-LSTMs the entity mentions are detected and classified on the fly. This is a fundamental property to our model, since we perform EL when a mention is detected.
This model is composed by four stacks: the Stack, that contains the words that are being processed, the Output, that is filled with the completed chunks, the Action stack, which contains the previous actions performed during the processing of the current document, and the Buffer, that contains the words to be processed.
For NER, in the Stack-LSTM there are three possible types of actions:
Shift, that pops a word off the Buffer and pushes it into the Stack. It means that the last word of the Buffer is part of a named entity.
Out, that pops a word off the buffer and inserts it into the Output. It means that the last word of the Buffer is not part of a named entity.
Reduce, that pops all the words in the Stack and pushes them into the Output. There is one action Reduce for each possible type of named entities, e.g. Reduce-PER and Reduce-LOC.
Moreover, the actions that can be performed at each step are controlled: the action Out can only occur if the stack is empty and the actions Reduce are only available when the Stack is not empty.
3.2 Our model
To better capture the context, we complement the Stack-LSTM with a representation of the sentence being processed, for each action step . For that the sentence is passed through a bi-directional LSTM, being the hidden state of its 1st layer (bi-LSTM in Figure 1), that corresponds to the word with index :
We compute a representation of the words contained in the Stack, , by doing the mean of the hidden states of the 1st layer of the bi-LSTM that correspond to the words contained in the stack at action step , set ,:
This is used to compute the attention scores :
where , , and are trainable parameters. The representation is then obtained by doing the weighted average of the bi-LSTM 1st layer’s hidden states:

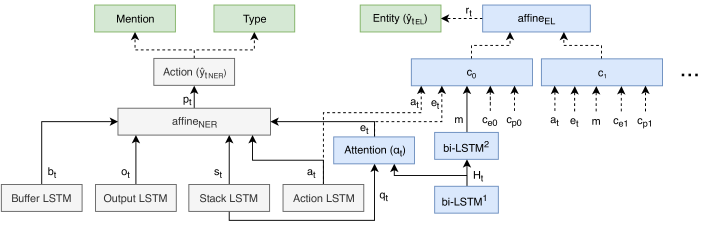

To predict the action to be performed, we implement an affine transformation ( in Figure 1) whose input is the concatenation of the last hidden states of the Buffer LSTM , Stack LSTM , Action LSTM , and Output LSTM , as well as the sentence representation .
Then, for each step
, we use these representations to compute the probability distributionover the set of possible actions , and select the action with the highest probability:
The NER loss function is the cross entropy, with the gold action for step
being represented by the one-hot vector:
where is the total number of action steps for the current document.
When the action predicted is Reduce, a mention is detected and classified. This mention is then disambiguated by selecting its respective entity knowledge base id. The disambiguation step is performed by ranking the mention’s candidate entities.
The candidate entities for the present mention are represented by their entity embedding
and their prior probability. The prior probabilities were previously computed based on the co-occurrences between mentions and candidates in Wikipedia.
To represent the mention detected the 2nd layer of the sentence bi-LSTM (bi-LSTM in Figure 1), is used, being the representation obtained by averaging the hidden states that correspond to the words contained in the mention, set :
These features are concatenated with the representation of the sentence , and the last hidden state of the Action stack-LSTM :
We compute a score for each candidate with affine transformations ( in Figure 1) that have as input, and select the candidate entity with the highest score, :
The EL loss function is the cross entropy, with the gold entity for step being represented by the one-hot vector :
where is the total number of mention that correspond to entities in the knowledge base.
Due to the fact that not every mention detected has a corresponding entity in the knowledge base, we first classify whether this mention contains an entry in the knowledge base using an affine transformation followed by a sigmoid. The affine’s input is the stack LSTM last hidden state :
The NIL loss function, binary cross-entropy, is given by:
where corresponds to the gold label, if mention should be linked and otherwise.
During training we perform teacher forcing, i.e. we use the gold labels for NER and the NIL classification, only performing EL when the gold action is Reduce and the mention has a corresponding id in the knowledge base. The multi-task learning loss is then obtained by summing the individual losses:
4.1 Datasets and metrics
We trained and evaluated our model on the biggest NER-EL English dataset, the AIDA/CoNLL dataset (Hoffart et al., 2011). It is a collection of news wire articles from Reuters, composed by a training set of 18,448 linked mentions in 946 documents, a validation set of 4,791 mentions in 216 documents, and a test set of 4,485 mentions in 231 documents. In this dataset, the entity mentions are classified as person, location, organisation and miscellaneous. It also contains the knowledge base id of the respective entities in Wikipedia.
For the NER experiments we report the F1 score while for the EL we report the micro and macro F1 scores. The EL scores were obtained with the Gerbil benchmarking platform, which offers a reliable evaluation and comparison with the state-of-the-art models Röder et al. . The results were obtained using strong matching settings, which requires exactly predicting the gold mention boundaries and their corresponding entity.
4.2 Training details and settings
In our work, we used dimensional word embeddings pre-trained with structured skip-gram on the Gigaword corpus Ling et al. (2015). These were concatenated with dimensional character embeddings obtained using a bi-LSTM over the sentences. In addition, we use contextual embeddings obtained using a character bi-LSTM language model by Akbik et al. (2018). The entity embeddings are dimensional and were trained by Yamada et al. (2017) on Wikipedia. To get the set of candidate entities to be ranked for each mention, we use a pre-built dictionary Pershina et al. (2015).
The LSTM used to extract the sentence and mention representations, and is composed by hidden layers with a size of and the ones used in the Stack-LSTM have hidden layer of size . The feedforward layer used to determine the entity id has a size of
. The affine layer used to predict whether the mention is NIL has a size of. A dropout ratio of was used throughout the model.
The model was trained using the ADAM optimiser Kingma and Ba (2014) with a decreasing learning rate of and a decay of and for the first and second momentum, respectively.
Comparison with state of the art models.
We compared the results obtained using our joint learning approach with state-of-the-art NER models, in Table 3, and state-of-the-art end-to-end EL models, in Table 4. In the comparisons, it can be observed that our model scores are competitive in both tasks.
|Flair (Akbik et al., 2018)||93.09|
|BERT Large (Devlin et al., 2018)||92.80|
|CVT + Multi (Clark et al., 2018)||92.60|
|BERT Base (Devlin et al., 2018)||92.40|
|BiLSTM-CRF+ELMo (Peters et al., 2018)||92.22|
Comparison with individual models.
To understand whether the multi-task learning approach is advantageous for NER and EL we compare the results obtained when using a multi-task learning objective with the results obtained by the same models when training with separate objectives. In the EL case, in order to perform a fair comparison, the mentions that are linked by the individual system correspond to the ones detected by the multi-task approach NER.
These comparisons results can be found in Tables 5 and 6, for NER and EL, respectively. They show that, as expected, doing joint learning improves both NER and EL results consistently. This indicates that by leveraging the relatedness of the tasks, we can achieve better models.
|System||Validation F1||Test F1|
|NER + EL||95.72||92.52|
|System||Validation F1||Test F1|
|NER + EL||82.6||85.2||81.1||81.8|
In order to comprehend which components had the greatest contribution to the obtained scores, we performed an ablation test for each task, which can be seen in Tables 7 and 8, for NER and EL, respectively. These experiments show that the use of contextual embeddings (Flair) is responsible for a big boost in the NER performance and, consequently, in EL due to the better detection of mentions. We can also see that the addition of the sentence representation (sent rep ) improves the NER performance slightly. Interestingly, the use of a mention representation (ment rep ) for EL that is computed by the sentence LSTM, not only yields a big improvement on the EL task but also contributes to the improvement of the NER scores. The results also indicate that having a simple affine transformation selecting whether the mention should be linked, improves the EL results.
|System||Validation F1||Test F1|
|+ sent rep||95.55||92.22|
|+ ment rep||95.72||92.52|
|System||Validation F1||Test F1|
|+ sent rep||82.31||85.43||80.49||80.62|
|+ ment rep||82.64||85.17||81.07||81.76|
5 Conclusions and Future Work
We proposed doing joint learning of NER and EL, in order to improve their performance. Results show that our model achieves results competitive with the state-of-the-art. Moreover, we verified that the models trained with the multi-task objective have a better performance than individual ones. There is, however, further work that can be done to improve our system, such as training entity contextual embeddings and extending it to be cross-lingual.
This work was supported by the European Research Council (ERC StG DeepSPIN 758969), and by the Fundação para a Ciência e Tecnologia through contracts UID/EEA/50008/2019 and CMUPERI/TIC/0046/2014 (GoLocal). We thank Afonso Mendes, David Nogueira, Pedro Balage, Sebastião Miranda, Gonçalo Correia, Erick Fonseca, Vlad Niculae, Tsvetomila Mihaylova, Marcos Treviso, and the anonymous reviewers for helpful discussion and feedback.
- Akbik et al. (2018) Alan Akbik, Duncan Blythe, and Roland Vollgraf. 2018. Contextual string embeddings for sequence labeling. In Proceedings of the 27th International Conference on Computational Linguistics, pages 1638–1649. Association for Computational Linguistics.
- Cao et al. (2018) Yixin Cao, Lei Hou, Juanzi Li, and Zhiyuan Liu. 2018. Neural collective entity linking. In Proceedings of the 27th International Conference on Computational Linguistics, pages 675–686. Association for Computational Linguistics.
- Caruana (1997) Rich Caruana. 1997. Multitask learning. Machine learning, 28(1):41–75.
- Chiu and Nichols (2016) Jason PC Chiu and Eric Nichols. 2016. Named entity recognition with bidirectional lstm-cnns. Transactions of the Association for Computational Linguistics, 4:357–370.
- Clark et al. (2018) Kevin Clark, Minh-Thang Luong, Christopher D. Manning, and Quoc Le. 2018. Semi-supervised sequence modeling with cross-view training. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, pages 1914–1925. Association for Computational Linguistics.
- Devlin et al. (2018) Jacob Devlin, Ming-Wei Chang, Kenton Lee, and Kristina Toutanova. 2018. Bert: Pre-training of deep bidirectional transformers for language understanding. arXiv preprint arXiv:1810.04805.
- Durrett and Klein (2014) Greg Durrett and Dan Klein. 2014. A joint model for entity analysis: Coreference, typing, and linking. Transactions of the association for computational linguistics, 2:477–490.
- Dyer et al. (2015) Chris Dyer, Miguel Ballesteros, Wang Ling, Austin Matthews, and Noah A. Smith. 2015. Transition-based dependency parsing with stack long short-term memory. In Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics and the 7th International Joint Conference on Natural Language Processing (Volume 1: Long Papers), pages 334–343. Association for Computational Linguistics.
- Evgeniou and Pontil (2004) Theodoros Evgeniou and Massimiliano Pontil. 2004. Regularized multi–task learning. In Proceedings of the tenth ACM SIGKDD international conference on Knowledge discovery and data mining, pages 109–117. ACM.
- Finkel et al. (2005) Jenny Rose Finkel, Trond Grenager, and Christopher Manning. 2005. Incorporating non-local information into information extraction systems by gibbs sampling. In Proceedings of the 43rd annual meeting on association for computational linguistics, pages 363–370. Association for Computational Linguistics.
- Ganea and Hofmann (2017) Octavian-Eugen Ganea and Thomas Hofmann. 2017. Deep joint entity disambiguation with local neural attention. In Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing, pages 2619–2629.
- Hoffart et al. (2011) Johannes Hoffart, Mohamed Amir Yosef, Ilaria Bordino, Hagen Fürstenau, Manfred Pinkal, Marc Spaniol, Bilyana Taneva, Stefan Thater, and Gerhard Weikum. 2011. Robust disambiguation of named entities in text. In Proceedings of the Conference on Empirical Methods in Natural Language Processing, pages 782–792. Association for Computational Linguistics.
- Kingma and Ba (2014) Diederik Kingma and Jimmy Ba. 2014. Adam: A method for stochastic optimization. arXiv:1412.6980 [cs.LG], pages 1–13.
- Kolitsas et al. (2018) Nikolaos Kolitsas, Octavian-Eugen Ganea, and Thomas Hofmann. 2018. End-to-end neural entity linking. In Proceedings of the 22nd Conference on Computational Natural Language Learning, pages 519–529. Association for Computational Linguistics.
- Lample et al. (2016) Guillaume Lample, Miguel Ballesteros, Sandeep Subramanian, Kazuya Kawakami, and Chris Dyer. 2016. Neural architectures for named entity recognition. arXiv preprint arXiv:1603.01360.
- Le and Titov (2018) Phong Le and Ivan Titov. 2018. Improving entity linking by modeling latent relations between mentions. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1595–1604.
- Ling et al. (2015) Wang Ling, Chris Dyer, Alan W Black, and Isabel Trancoso. 2015. Two/too simple adaptations of word2vec for syntax problems. In Proceedings of the 2015 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 1299–1304. Association for Computational Linguistics.
- Luo et al. (2015) Gang Luo, Xiaojiang Huang, Chin-Yew Lin, and Zaiqing Nie. 2015. Joint entity recognition and disambiguation. In Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing, pages 879–888.
- Nguyen et al. (2016) Dat Ba Nguyen, Martin Theobald, and Gerhard Weikum. 2016. J-nerd: joint named entity recognition and disambiguation with rich linguistic features. Transactions of the Association for Computational Linguistics, 4:215–229.
- Pershina et al. (2015) Maria Pershina, Yifan He, and Ralph Grishman. 2015. Personalized page rank for named entity disambiguation. In Proceedings of the 2015 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 238–243.
- Peters et al. (2018) Matthew E Peters, Mark Neumann, Mohit Iyyer, Matt Gardner, Christopher Clark, Kenton Lee, and Luke Zettlemoyer. 2018. Deep contextualized word representations. In Proceedings of NAACL-HLT, pages 2227–2237, New Orleans, Louisiana.
Radhakrishnan et al. (2018)
Priya Radhakrishnan, Partha Talukdar, and Vasudeva Varma. 2018.
Elden: Improved entity linking using densified knowledge graphs.In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pages 1844–1853.
- (23) Michael Röder, Ricardo Usbeck, and Axel-Cyrille Ngonga Ngomo. Gerbil–benchmarking named entity recognition and linking consistently. Semantic Web, (Preprint):1–21.
- Sil and Yates (2013) Avirup Sil and Alexander Yates. 2013. Re-ranking for joint named-entity recognition and linking. In Proceedings of the 22nd ACM international conference on Information & Knowledge Management, pages 2369–2374. ACM.
Sun et al. (2015)
Yaming Sun, Lei Lin, Duyu Tang, Nan Yang, Zhenzhou Ji, and Xiaolong Wang. 2015.
Modeling mention, context and entity with neural networks for entity disambiguation.In
Twenty-Fourth International Joint Conference on Artificial Intelligence.
- Yamada et al. (2016) Ikuya Yamada, Hiroyuki Shindo, Hideaki Takeda, and Yoshiyasu Takefuji. 2016. Joint learning of the embedding of words and entities for named entity disambiguation. In Proceedings of The 20th SIGNLL Conference on Computational Natural Language Learning, pages 250–259.
Yamada et al. (2017)
Ikuya Yamada, Hiroyuki Shindo, Hideaki Takeda, and Yoshiyasu Takefuji. 2017.
Learning distributed representations of texts and entities from knowledge base.TACL, 5:397–411.
- Yang et al. (2018) Yi Yang, Ozan Irsoy, and Kazi Shefaet Rahman. 2018. Collective entity disambiguation with structured gradient tree boosting. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long Papers), pages 777–786.
